XPulse (FB)¶
FUNCTION_BLOCK XPulse
Short Description¶
Generation of an exclusive impulse with adjustable time duration

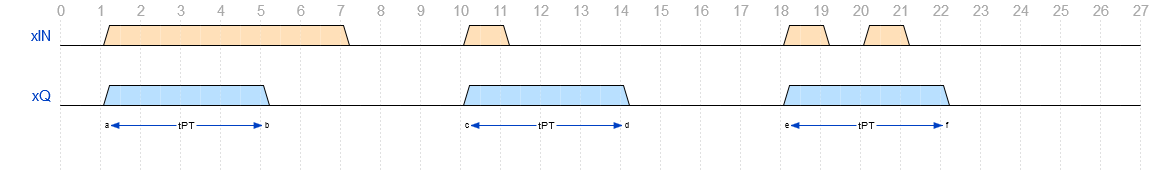

Portrayal¶
Interfaces¶
Inputs¶
Name Datatype
Range
Init-Value
Function
xIN BOOL Input
tPT TIME T#1s Impulse time duration
Outputs¶
Name Datatype
Range
Init-Value
Function
xQ BOOL Output
tET TIME 0 ... tPT Time difference to beginning of impulse
Setpoints / Parameters¶
Name Datatype
Range
Init-Value
Function
xTest BOOL FALSE Simulation of the Input xIN
Functional Description¶
General¶
These function block is used to generate an impulse with a defined time duration (tPT) after a triggered rising edge at the input xIN.
The generation of the impulses can be simulated independently by a triggered raising edge from the simulation input xTest.
The time difference to the start of the impulse is displayed at output tET (value range: 0... tPT).
Visualization¶
Information¶
Element Authors
Date
Version Notes
Function
Adam Bartod 10.2017 1.0 Initial version
Programming
Adam Bartod 10.2017 1.0 Initial version
Test Jochen Reu 11.2017 1.0 Initial version
Documentation
Jochen Reu 11.2017 1.0 Initial version
Documentation
Lukas Pfänder 11.2017 0.1.3.0 Revision
Codesys¶
- InOut:
Scope Name Type Initial Comment Input xIN BOOL Input
tPT TIME TIME#1s0ms Impulse time duration
xTest BOOL FALSE Simulation of the Input xIN
Output xQ BOOL Output
tET TIME acutal state of the time function
