StartDelay (FB)¶

FUNCTION_BLOCK StartDelay

Short Description¶

Generation of signals after each CPU restart

Use case: Delayed release of actions after CPU restart

Portrayal¶

Interfaces¶

Outputs¶

Name
Datatype

Range

Init-Value

Function

xQ1 BOOL
Output 1

xQ1p BOOL
Impulse output 1

xQ2 BOOL
Output 2

xQ2p BOOL
Impulse output 2

Setpoints / Parameters¶

Name
Datatype

Range

Init-Value

Function

TimeQ2Puls TIME T#1s
Impulse duration - impulse output 2

TimeQ2 TIME T#20s
Time delay - output 2

TimeQ1Puls TIME T#1s
Impulse duration - impulse output 1

TimeQ1 TIME T#5s
Time delay - output 2

xTest BOOL FALSE
Simulation of the CPU-Restart

Functional Description¶

General¶

These Functionblock is used for the generation of signals after each cpu-restart. the cpu-restart can be triggerd by the simulation input xTest (= TRUE)
independently of an actual CPU restart.

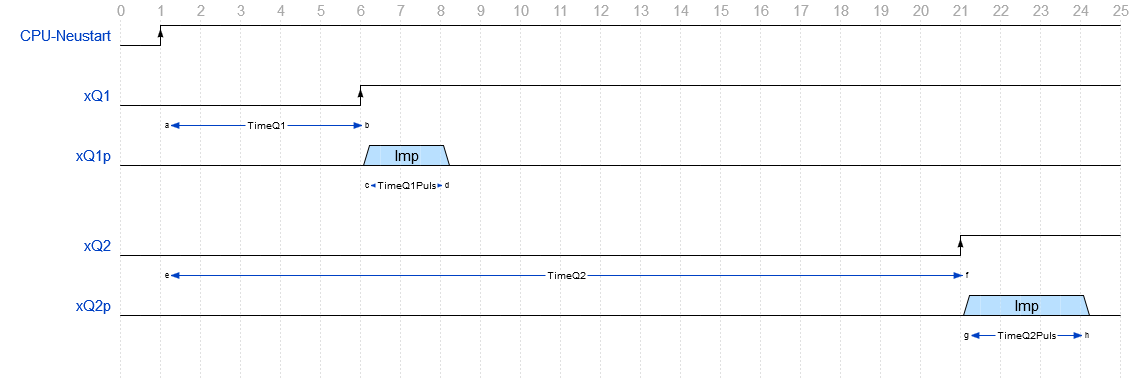

The output xQ1 changes permanently from FALSE to TRUE after each CPU restart with a time delay of TimeQ1.
At impulse output 1 xQ1p, a single impulse with the pulse length TimeQ1Pulse is generated during this status change.

The output xQ2 changes permanently from FALSE to TRUE after each CPU restart with a time delay of TimeQ2.
At impulse output 2 xQ2p, a single impulse with the pulse length TimeQ2Pulse is generated during this status change.

Visualization¶

Information¶

Element
Authors

Date
Version
Note

Function
Adam Bartod 04.2016 1.0
Initial version

Programming
Adam Bartod 04.2016 1.0
Initial version

Test Jochen Reu 05.2017 1.0
Initial version

Dcoumentation
Jochen Reu 10.2017 1.0
Initial version

Codesys¶

InOut:

Scope	Name	Type	Initial	Comment
Input	TimeQ2Puls	TIME	TIME#1s0ms	Impulse duration - impulse output 2
	TimeQ2	TIME	TIME#20s0ms	Time delay - output 2
	TimeQ1Puls	TIME	TIME#1s0ms	Impulse duration - impulse output 1
	TimeQ1	TIME	TIME#5s0ms	Time delay - output 2
	xTest	BOOL	FALSE	Simulation of the CPU-Restart
Output	xQ1	BOOL		Output 1
	xQ1p	BOOL		Impulse output 1
	xQ2	BOOL		Output 2
	xQ2p	BOOL		Impulse output 2
