PulseShift (FB)

FUNCTION_BLOCK PulseShift

Short Descritpion

Edge-controlled, delayed impulse generation with adjustable impulse duration

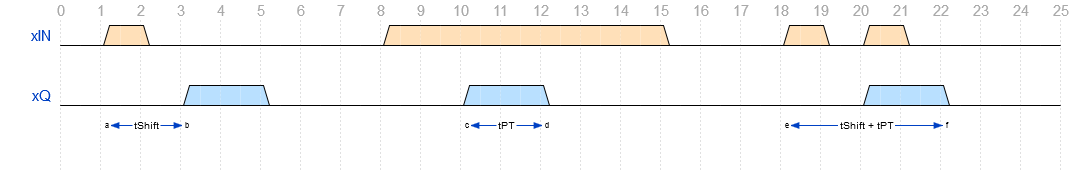

Portrayal

Interfaces

Inputs

Name	Datatype	Range	Init-Value	Function
xIN	BOOL			Binary input
tShift	TIME		T#1s	Delay time
tPT	TIME		T#1s	Time duration of the output impulse

Outputs

Name	Datatype	Range	Init-Value	Function
xQ	BOOL			Impulse output
tET	TIME			Time difference between the target time duration and the duration of the impulse on xQ

Setpoints/parameters

Name	Datatype	Range	Init-Value	Function
xTest	BOOL		FALSE	Simulation of the Input xIN

Functional description

General

After a positive edge at the binary input xIN and a subsequent delay time tShift,

a impulse with a time duration tPT is generated at the impulse output xQ. Alternatively, impulse generation can also be triggered by the setpoint / parameter

xTest.

Time output tET

If the impulse output xQ is active, the time difference between the target duration tPT and the time duration of the impulse on

xQ is displayed. If pulse output xQ is inactive, the value T#0s is always displayed.

Visualisation

Information

Element	Authors	Date	Version	Information
Function	Adam Bartod	10.2017	1.0	Initial version
Programming	Adam Bartod	10.2017	1.0	Initial version
Test	Jochen Reu	11.2017	1.0	Initial version
Documentation	Jochen Reu	11.2017	1.0	Initial version

Codesys

InOut:

Scope	Name	Type	Initial	Comment
Input	xIN	BOOL		Binary input
	tShift	TIME	TIME#1s0ms	Delay time
	tPT	TIME	TIME#1s0ms	Time duration of the output impulse
	xTest	BOOL	FALSE	Simulation of the Input xIN
Output	xQ	BOOL		Impulse output
	tET	TIME		Time difference between the target time duration and the duration of the impulse on xQ
