Clock7d1Ch (FB)¶

FUNCTION_BLOCK Clock7d1Ch

Functional Description¶

7 weekday time switch, one switch-on / switch-off points in time and a binary total output.

The mode of operation (switch-on period or switch-off period) can be defined per weekday.

Typical application: Defining the night / day operation of a zone temperature control

Portrayal¶

Interfaces¶

Inputs¶

Name
Datatype

Range

Init-Value

Function

xEn BOOL
Enable input

Outputs¶

Name
Datatype

Range

Init-Value

Function

xActive BOOL
Current Switching periods

todActivatedFrom TOD
Switch-on point in time of the current weekday

todActivatedTo TOD
Switch-off point in time of the current weekday

Setpoints / Parameters¶

Name
Datatype

Range

Init-Value

Function

todMonFrom TOD TOD#07:00
Switch-on point in time - Monday

todMonTo TOD TOD#12:00
Switch-off point in time - Monday

xMonMode BOOL TRUE
Mode - Switching periods - Monday

todTueFrom TOD TOD#07:00
Switch-on point in time - Tuesday

todTueTo TOD TOD#12:00
Switch-off point in time - Tuesday

xTueMode BOOL TRUE
Mode - Switching periods - Tuesday

todWedFrom TOD TOD#07:00
Switch-on point in time - Wednesday

todWedTo TOD TOD#12:00
Switch-off point in time - Wednesday

xWedMode BOOL TRUE
Mode - Switching periods - Wednesday

todThuFrom TOD TOD#07:00
Switch-on point in time - Thursday

todThuTo TOD TOD#12:00
Switch-off point in time - Thursday

xThuMode BOOL TRUE
Mode - Switching periods - Friday

todFriFrom TOD TOD#07:00
Switch-on point in time - Friday

todFriTo TOD TOD#12:00
Switch-off point in time - Friday

xFriMode BOOL TRUE
Mode - Switching periods - Friday

todSatFrom TOD TOD#07:00
Switch-on point in time 1 - Saturday

todSatTo TOD TOD#12:00
Switch-off point in time - Saturday

xSatMode BOOL TRUE
Mode - Switching periods - Saturday

todSunFrom TOD TOD#07:00
Switch-on point in time - Sunnday

todSunTo TOD TOD#12:00
Switch-off point in time - Sunnday

xSunMode BOOL TRUE
Mode - Switching periods - Sunday

sNotice STRING
‘Own Notice - click to change.’

Designation - Time switch

Functional Description¶

General¶

Weekdays 1 - 7 (Monday ... Sunday, XXX = Mon, Tue, Wed, Thu, Fri, Sat, Sun)¶

Each of the seven days of the week are assigned to a separate switching periods.

Each switching period is defined by adjustable data (todXXXTimeFrom1 Switch-on point in time and todXXXTimeTo1 Switch-off point in time ).
In addition, an operating mode ( xXXXMode) can be defined.

If the switch-off point in time is before the switch-on point in time, then the switch-off point in time is set to the value of the switch-on point in time for the test.

A switching period is active if the current time on weekday XXX is within the switching periods of weekday XXX ( **xXXXMode**= TRUE).
A switching period is active if the current time on weekday XXX is outside the switching periods of weekday XXX ( **xXXXMode**= TRUE).

Special case 1: Switch-on point in time= Switch-off point in time = TOD#00:00

If the switch-on period (xXXXMode = TRUE) is active, the switching period is inactive the whole day.

If the switch-off period (xXXXMode = FALSE) is active, the switching period is active the whole day.

Special case 1: Switch-on point in time= Switch-off point in time = TOD#23:59

If the switch-on period (xXXXMode = TRUE) is active, the switching period is active the whole day.

If the switch-off period (xXXXMode = FALSE) is active, the switching period is inactive the whole day.

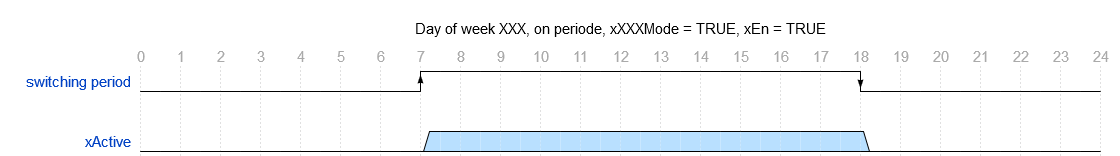

Switch-on periods¶

Switch-off periods¶

Enabling input xEN¶

xEn xActive todActivatedFrom todActivatedTo
Notes

FALSE FALSE
unchanged

unchanged

FB deactivated

TRUE
Condition depending on weekday, time and switching periods

Switch-on point of time the switching period 1 of the current weekday

Switch-off point of time the switching period 2 of the current weekday

FB activated

Display output xActive¶

The xActive display output assumes the status TRUE if the time on weekday XXX when the enable input ( xEn = TRUE) is active
within the switching periods of weekday XXX (**xXXXMode**= TRUE).
The xActive display output assumes the status TRUE if the time on weekday XXX when the enable input ( xEn = TRUE) is active
outside the switching periods of weekday XXX (**xXXXMode**= FALSE).
In all other cases, the xActive display output assumes the status FALSE.

xEn xActive
Switching periods XXX
xXXXMode - XXX
Notes

FALSE FALSE X X
FB deactivated

TRUE FALSE FALSE TRUE
Switch-on periods inactive

TRUE TRUE TRUE TRUE
Switch-on periods active

TRUE TRUE FALSE FALSE
Switch-off periods inactive

TRUE FALSE TRUE FALSE
Switch-off periods active

todActivatedFrom switch-on point in time of the switching periods of the current day of the week¶

This output permanently indicates the switch-on point in time of the switching period of the current day of the week, if the enable input (xEn = TRUE) is active.

In all other situations, it is not changed. In special cases 1 and 2, the value TOD#00:00 is always displayed.

todActivatedFrom switch-off point in time of the switching periods of the current day of the week¶

This output permanently indicates the switch-off point in time of the switching period of the current day of the week, if the enable input (xEn = TRUE) is active.

In all other situations, it is not changed. In special case 1, the value TOD#00:00 is always displayed. In special case 2, the value TOD#23:59 is displayed.

Visualization¶

Information¶

Element
Authors

Date
Version
Notes

Function
Adam Bartod 02.2017 1.0
Initial version

Programming
Adam Bartod 02.2017 1.0
Initial version

Test Jochen Reu 11.2017 1.0
Initial version

Documentation
Jochen Reu 11.2017 1.0
Initial version

Codesys¶

InOut:

Scope	Name	Type	Initial	Comment
Input	xEn	BOOL		Enable input
	todMonFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time - Monday
	todMonTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Monday
	xMonMode	BOOL	TRUE	Mode - Switching periods - Monday
	todTueFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time - Tuesday
	todTueTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Tuesday
	xTueMode	BOOL	TRUE	Mode - Switching periods - Tuesday
	todWedFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time - Wednesday
	todWedTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Wednesday
	xWedMode	BOOL	TRUE	Mode - Switching periods - Wednesday
	todThuFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time - Thursday
	todThuTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Thursday
	xThuMode	BOOL	TRUE	Mode - Switching periods - Friday
	todFriFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time - Friday
	todFriTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Friday
	xFriMode	BOOL	TRUE	Mode - Switching periods - Friday
	todSatFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time 1 - Saturday
	todSatTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Saturday
	xSatMode	BOOL	TRUE	Mode - Switching periods - Saturday
	todSunFrom	TOD	TIME_OF_DAY#7:0	Switch-on point in time - Sunnday
	todSunTo	TOD	TIME_OF_DAY#12:0	Switch-off point in time - Sunnday
	xSunMode	BOOL	TRUE	Mode - Switching periods - Sunday
	sNotice	STRING	‘Own Notice - click to change.’	Designation - Time switch
Output	xActive	BOOL		Current Switching periods
	todActivatedFrom	TOD		Switch-on point in time of the current weekday
	todActivatedTo	TOD		Switch-off point in time of the current weekday
