Strapi v3 - Navigation plugin

Create consumable navigation with a simple and straightforward visual builder

GitHub package.json version Monthly download on NPM CircleCI codecov.io

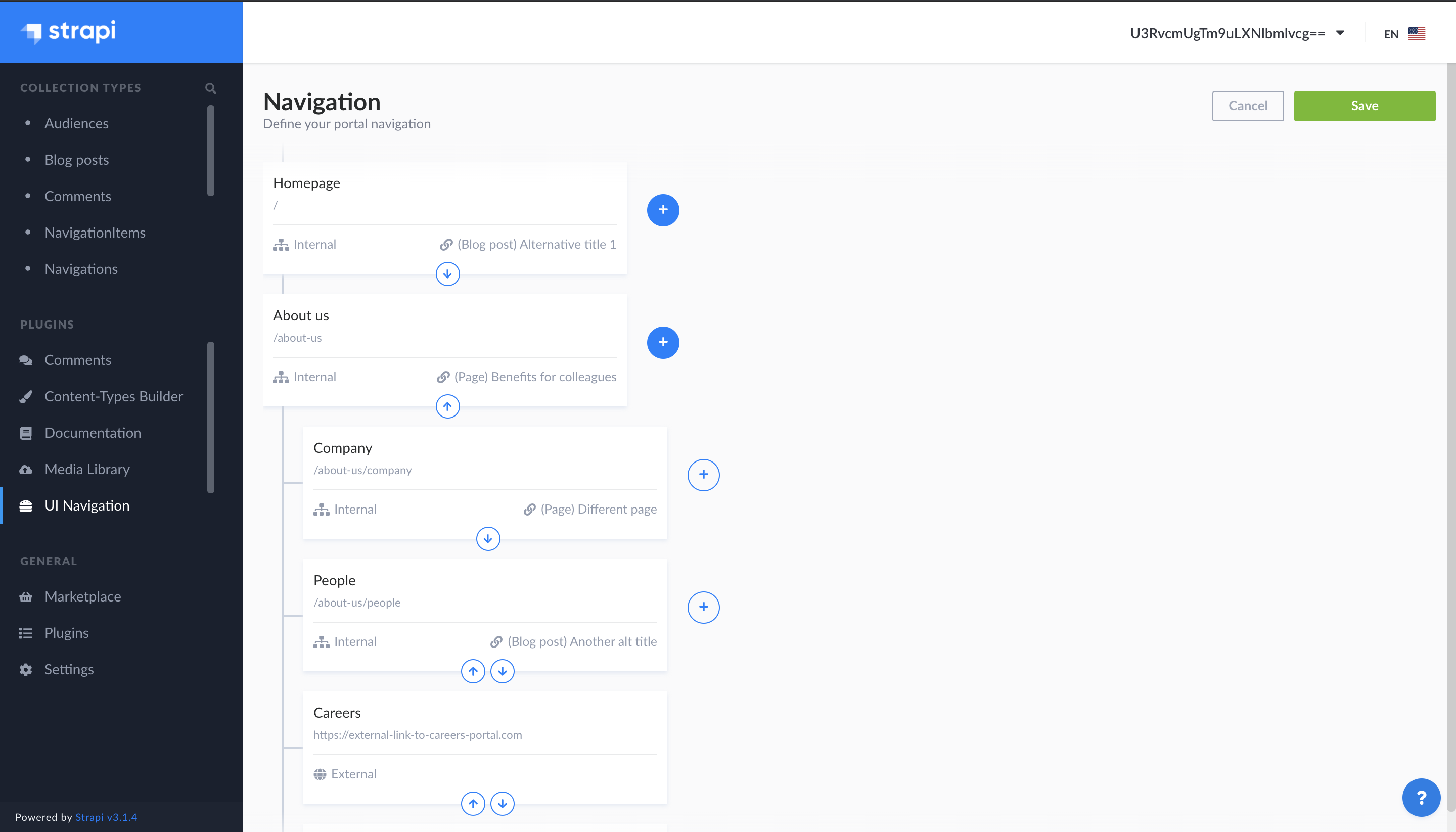

--- A plugin for [Strapi Headless CMS](https://github.com/strapi/strapi) that provides navigation / menu builder feature with their possibility to control the audience and different output structure renderers: - Flat - Tree (nested) - RFR (ready for handling by Redux First Router) UI preview ### ⚙️ Versions - **Strapi v4** - [v2.x](https://github.com/VirtusLab-Open-Source/strapi-plugin-navigation) - **Strapi v3** - (current) - [v1.x](https://github.com/VirtusLab-Open-Source/strapi-plugin-navigation/tree/strapi-v3) ### ⏳ Installation (Use **yarn** to install this plugin within your Strapi project (recommended). [Install yarn with these docs](https://yarnpkg.com/lang/en/docs/install/).) ```bash yarn add strapi-plugin-navigation@latest-v3 ``` After successful installation you've to build a fresh package that includes plugin UI. To archive that simply use: ```bash yarn build yarn develop ``` or just run Strapi in the development mode with `--watch-admin` option: ```bash yarn develop --watch-admin ``` The **UI Navigation** plugin should appear in the **Plugins** section of Strapi sidebar after you run app again. Enjoy 🎉 ### 🖐 Requirements Complete installation requirements are exact same as for Strapi itself and can be found in the documentation under Installation Requirements. **Supported Strapi versions**: - Strapi v3.6.8 (recently tested) - Strapi v3.x (This plugin may work with the older Strapi versions, but these are not tested nor officially supported at this time.) **We recommend always using the latest version of Strapi to start your new projects**. ## Features - **Navigation Public API:** Simple and ready for use API endpoint for getting the navigation structure you've created - **Visual builder:** Elegant and easy to use visual builder - **Any Content Type relation:** Navigation can by linked to any of your Content Types by default. Simply, you're controlling it and also limiting available content types by configuration props - **Customizable:** Possibility to customize the options like: available Content Types, Maximum level for "attach to menu", Additional fields (audience) - **[Audit log](https://github.com/VirtusLab/strapi-molecules/tree/master/packages/strapi-plugin-audit-log):** integration with Strapi Molecules Audit Log plugin that provides changes track record ## Content Type model relation to Navigation Item We can define in `config/plugins.js` ```js navigation: { ... relatedContentTypes: [ 'application::pages.pages' ], ... }, ``` ## Configuration To setup the plugin properly we recommend to put following snippet as part of `config/plugins.js` or `config//plugins.js` file. If you've got already configurations for other plugins stores by this way, use just the `navigation` part within exising `plugins` item. ```js ... navigation: { additionalFields: ['audience'], allowedLevels: 2, contentTypesNameFields: { 'blog_posts': ['altTitle'], 'pages': ['title'], }, gql: { ... } }, ... ``` ### Properties - `additionalFields` - Additional fields: 'audience', more in the future - `allowedLevels` - Maximum level for which your're able to mark item as "Menu attached" - `contentTypesNameFields` - Definition of content type title fields like `'content_type_name': ['field_name_1', 'field_name_2']`, if not set titles are pulled from fields like `['title', 'subject', 'name']` - `gql` - If you're using GraphQL that's the right place to put all necessary settings. More **[ here ](#gql-configuration)** ## GQL Configuration To properly configure GQL to work with navigation you should provide `gql` prop which should contain union types which will be used for define GQL response format for your data while fetching: ```gql master: Int items: [NavigationItem] related: NavigationRelated ``` as follows: ```js gql: { navigationItemRelated: 'union NavigationRelated = ', }, ``` for example: ```js gql: { navigationItemRelated: 'union NavigationRelated = Pages | UploadFile', }, ``` where `Pages` and `UploadFile` are your types to the **Content Types** you're referring by navigation items relations. ## Public API Navigation Item model ### Flat ``` { "id": 1, "title": "News", "type": "INTERNAL", "path": "news", "externalPath": null, "uiRouterKey": "News", "menuAttached": false, "parent": 8, // Parent Navigation Item 'id', null in case of root level "master": 1, // Navigation 'id' "created_at": "2020-09-29T13:29:19.086Z", "updated_at": "2020-09-29T13:29:19.128Z", "related": [ ], "audience": [] } ``` ### Tree ``` { "title": "News", "menuAttached": true, "path": "/news", "type": "INTERNAL", "uiRouterKey": "news", "slug": "benefits", "external": false, "related": { }, "items": [ { "title": "External url", "menuAttached": true, "path": "http://example.com", "type": "EXTERNAL", "uiRouterKey": "generic", "external": true }, < Tree Navigation Item models > ] } ``` ### RFR ``` { "id": "News", "title": "News", "templateName": "pages:1", "related": { "contentType": "page", "collectionName": "pages", "id": 1 }, "path": "/news", "slug": "news", "parent": null, // Parent Navigation Item 'id', null in case of root level "menuAttached": true } ``` ## Public API specification ### Render `GET /navigation/render/?type=` Return a rendered navigation structure depends on passed type (`tree`, `rfr` or nothing to render as `flat/raw`). *Note: The ID of navigation by default is `1`, that's for future extensions and multi-navigation feature.* **Example URL**: `https://localhost:1337/navigation/render/1` **Example response body** ``` [ { "id": 1, "title": "News", "type": "INTERNAL", "path": "news", "externalPath": null, "uiRouterKey": "News", "menuAttached": false, "parent": null, "master": 1, "created_at": "2020-09-29T13:29:19.086Z", "updated_at": "2020-09-29T13:29:19.128Z", "related": [{ "__contentType": "Page", "id": 1, "title": "News", ... }] }, ... ] ``` **Example URL**: `https://localhost:1337/navigation/render/1?type=tree` **Example response body** ``` [ { "title": "News", "menuAttached": true, "path": "/news", "type": "INTERNAL", "uiRouterKey": "news", "slug": "benefits", "external": false, "related": { "__contentType": "Page", "id": 1, "title": "News", ... }, "items": [ { "title": "External url", "menuAttached": true, "path": "http://example.com", "type": "EXTERNAL", "uiRouterKey": "generic", "external": true }, ... ] }, ... ] ``` **Example URL**: `https://localhost:1337/navigation/render/1?type=rfr` **Example response body** ``` { "pages": { "News": { "id": "News", "title": "News", "templateName": "pages:1", "related": { "contentType": "page", "collectionName": "pages", "id": 1 }, "path": "/news", "slug": "news", "parent": null, "menuAttached": true }, "Community": { "id": "Community", "title": "Community", "templateName": "pages:2", "related": { "contentType": "page", "collectionName": "pages", "id": 2 }, "path": "/community", "slug": "community", "parent": null, "menuAttached": true }, "Highlights": { "id": "Highlights", "title": "Highlights", "templateName": "pages:3", "related": { "contentType": "page", "collectionName": "pages", "id": 3 }, "path": "/community/highlights", "slug": "community-highlights", "parent": "Community", "menuAttached": false }, ... }, "nav": { "root": [ { "label": "News", "type": "internal", "page": "News" }, { "label": "Community", "type": "internal", "page": "Community" }, { "label": "External url", "type": "external", "url": "http://example.com" }, ... ], "Community": [ { "label": "Highlights", "type": "internal", "page": "Highlights" }, ... ], ... } } ``` ### Template name Depending on a content type `templateName` will be resolved differently For collection types it will be read from content type's attribute name `template` holding a component which definition has option named `templateName`. For single types a global name of this content type will be used as a template name or it can be set manually with an option named `templateName`. ## Audit log If you would like to use the [Strapi Molecules Audit Log](https://github.com/VirtusLab/strapi-molecules/tree/master/packages/strapi-plugin-audit-log) plugin you've to first install and then add in you `config/middleware.js` following section enable it: ```js { 'audit-log': { enabled: true, exclude: [], map: [ { pluginName: 'navigation', serviceName: 'navigation', Class: Navigation, }, ] } } ``` As a last step you've to provide the Navigation class to let Audit Log use it. To not provide external & hard dependencies we've added the example of class code in the `examples/audit-log-integration.js` . ## Examples Live example of plugin usage can be found in the [VirtusLab Strapi Examples](https://github.com/VirtusLab/strapi-examples/tree/master/strapi-plugin-navigation) repository. ## Q&A ### Content Types **Q:** I've recognized **Navigation Item** and **Navigation** collection types in the Collections sidebar section, but they are not working properly. What should I do? **A:** As an authors of the plugin we're not supporting any editing of mentioned content types via built-in Strapi Content Manager. Plugin delivers highly customized & extended functionality which might be covered only by dedicated editor UI accessible via **Plugins Section > UI Navigation**. Only issues that has been recognized there, are in the scope of support we've providing. ## Contributing Feel free to fork and make a Pull Request to this plugin project. All the input is warmly welcome! ## Community support For general help using Strapi, please refer to [the official Strapi documentation](https://strapi.io/documentation/). For additional help, you can use one of these channels to ask a question: - [Slack](http://slack.strapi.io) We're present on official Strapi slack workspace. Look for @cyp3r and DM. - [Slack - VirtusLab Open Source](https://virtuslab-oss.slack.com) We're present on a public channel #strapi-molecules - [GitHub](https://github.com/VirtusLab/strapi-plugin-navigation/issues) (Bug reports, Contributions, Questions and Discussions) - [E-mail](mailto:strapi@virtuslab.com) - we will respond back as soon as possible ## License [MIT License](LICENSE.md) Copyright (c) [VirtusLab Sp. z o.o.](https://virtuslab.com/) & [Strapi Solutions](https://strapi.io/).
