# pi integration

[← Documentation hub](../../README.md) · [Agent integrations](../agent-integrations.md) · [Project README](../../../README.md)

The pi integration adds a read-only `/codex-limits` extension command that loads the shared core locally and displays Codex usage windows, reset times, reset credits, and safe warnings without sending the request or limits data to the LLM. This page is the canonical setup, usage, removal, and troubleshooting guide for the pi adapter.

## At a glance

| Detail             | Value                              |
| ------------------ | ---------------------------------- |
| Agent              | [pi](https://pi.dev/)              |
| Status             | Supported                          |
| Agent command      | `/codex-limits`                    |
| Install command    | `codex-limits agents install pi`   |
| Uninstall command  | `codex-limits agents uninstall pi` |
| Installation scope | Global for the current user        |

## Requirements

Install the published CLI and a compatible pi host. Current pi releases have their own Node.js and peer-dependency requirements; see [pi compatibility](../compatibility.md#pi-compatibility) for the canonical support details.

## Installation

Install the CLI and pi, then run the named installer:

```bash
npm install -g @simonesiega/codex-limits@latest
npm install -g --ignore-scripts @earendil-works/pi-coding-agent
codex-limits agents install pi
```

The explicit agent name works in interactive and non-interactive terminals. The legacy `codex-limits init --pi` form remains supported for backward compatibility, but new usage should prefer `codex-limits agents install pi`. Restart pi after installation so it reloads its extensions. An already-running interactive pi session can use `/reload` instead.

### Configuration

The installer updates pi's global settings file:

```text
~/.pi/agent/settings.json
```

When `PI_CODING_AGENT_DIR` is set, the installer uses `settings.json` under that directory instead. It adds the current Codex Limits package root to the `packages` array. The published package declares this pi manifest:

```json
{
  "pi": {
    "extensions": ["./dist/pi.js"]
  }
}
```

Registering the local package root avoids another download and keeps the extension synchronized with the globally installed `codex-limits` package. The same host module is exposed explicitly as `@simonesiega/codex-limits/pi`, but pi installation continues to use the package manifest rather than that subpath directly. The installer also recognizes existing unversioned, tagged, or pinned `npm:@simonesiega/codex-limits` pi package registrations. If a matching object registration filters out the bundled extension, the named installer force-enables only `dist/pi.js` while preserving unrelated resource filters.

The installer creates missing settings objects, preserves unrelated settings and package registrations, avoids duplicates, and verifies that the package manifest and `dist/pi.js` bundle are available.

Installer file-handling, size, symbolic-link, atomic-write, package-filter, and path-redaction guarantees are canonical in the [Security policy](../../../SECURITY.md#agent-integrations-and-installers).

### Alternative: pi native package installation

Pi can also install the package directly because the npm package includes the pi manifest:

```bash
pi install npm:@simonesiega/codex-limits
```

Use either installation method rather than registering the package twice. The named `codex-limits` installer reuses the already installed local package root, while `pi install` lets pi own the npm package lifecycle.

## Usage

Restart pi or run `/reload`, then invoke:

```text
/codex-limits
```

<p align="center">
  <img
    src="../../assets/agents/pi/pi_result.png"
    alt="Codex Limits themed usage overlay running inside pi"
    width="740"
  />
</p>

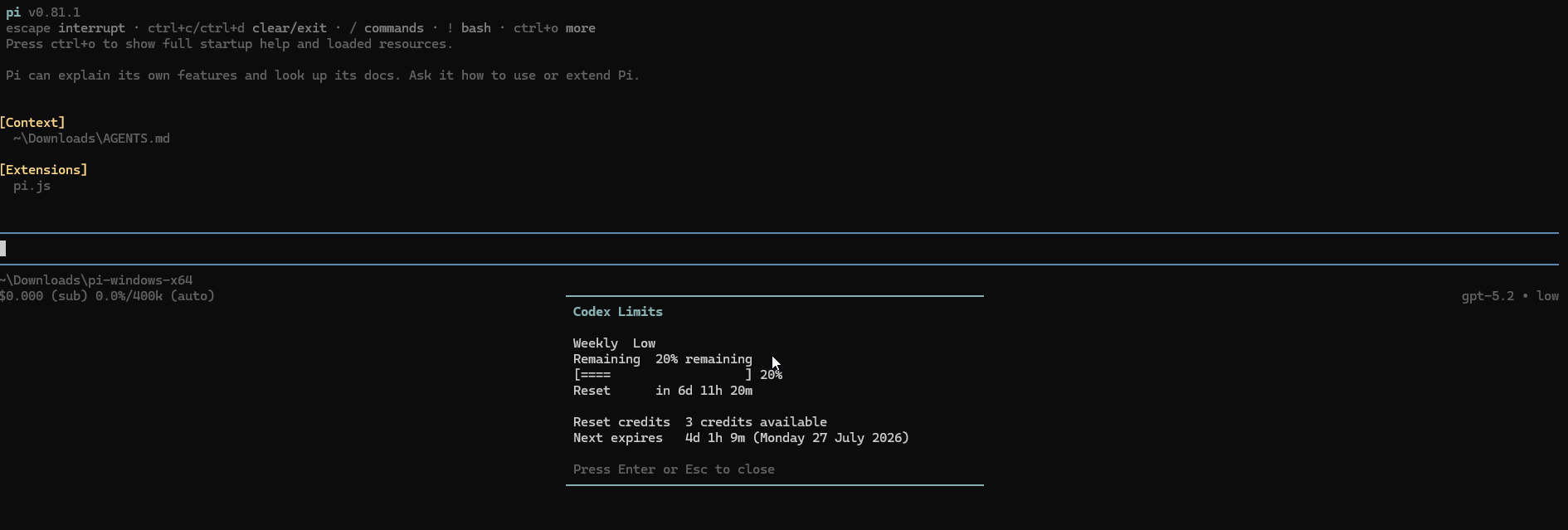

This overlay is the expected result: Codex Limits renders the [shared read-only summary](../agent-integrations.md#shared-behavior-and-privacy) inside pi and closes without adding a model-conversation message.

Press Enter, Escape, or Ctrl+C to close the overlay. While data loads, the extension shows a temporary footer status. Loading and display failures are reduced to static safe messages instead of exposing raw filesystem, credential, or network details.

The command is interactive-TUI-only. In pi RPC, print, and JSON modes, it performs no lookup and sends no message to the model.

## Removal

Running `codex-limits agents install pi` again is safe. It reports `already installed` when the matching local or npm package registration is already enabled.

Remove recognized registrations with:

```bash
codex-limits agents uninstall pi
```

The uninstaller removes only package entries that exactly identify the current local Codex Limits package root or an unversioned, tagged, or pinned `npm:@simonesiega/codex-limits` source. It handles those recognized registrations regardless of whether they were added by `codex-limits` or pi's native package manager, and preserves unrelated packages and settings. It does not invoke pi's package manager or remove any separate package-manager cache.

If you originally installed Codex Limits with `pi install npm:@simonesiega/codex-limits`, prefer `pi remove npm:@simonesiega/codex-limits` (or the equivalent `pi uninstall` alias) when you want pi to manage the complete native package lifecycle.

An absent registration reports `not installed`. Malformed, oversized, or symbolic-link settings fail without being rewritten. Restart pi or run `/reload` after successful removal.

## Troubleshooting

### The command does not appear

1. Run `codex-limits agents install pi` again.
2. Confirm that it reports the pi settings file as installed or already installed.
3. Restart pi or run `/reload` in an interactive session.
4. Check that the global `packages` array contains the Codex Limits local package path or `npm:@simonesiega/codex-limits`.
5. Run `pi config` if needed and confirm that the bundled `dist/pi.js` extension has not been disabled by package resource filters.

### Setup reports invalid settings

Correct the affected pi settings before running the installer again. The installer intentionally does not overwrite malformed JSON or replace an invalid `packages` field.

### The integration bundle is unavailable

Reinstall or rebuild `@simonesiega/codex-limits`, then run the installer again. Published packages include `dist/pi.js`; source checkouts create it with `bun run build`.

### Limits cannot be loaded

Run `codex-limits doctor` and `codex-limits status` outside pi. If data is also unavailable there, verify Codex authentication, local data discovery, and network access.

## Security and behavior notes

See the [Security policy](../../../SECURITY.md#agent-integrations-and-installers) for the canonical agent, credential, local-data, installer, and output safety guarantees. Pi extensions execute with the current user's system permissions, so install only packages you trust.
