Sports surfaces as SVG, drawn to scale, with the score on them.
The NFL, CFL and IFAF football fields, the NHL rink, the NBA court, the soccer pitch and futsal court, the baseball field of every MLB ballpark, current and past, and every NPB home park, the rink and court of 167 NHL, NBA, WNBA and PWHL arenas, and the surfaces of curling, athletics, speed, short track and figure skating, swimming, water polo, diving, artistic swimming, tennis, volleyball (indoor, beach and sitting), badminton, pickleball, table tennis, padel, squash, racquetball, sepak takraw, teqball, roundnet, netball, lacrosse, rugby, Australian football, Gaelic games, cricket, field hockey, handball, judo, karate, kendo, sumo, kyūdō and a dojo of tatami, thirty-nine sports in all, each drawn from its rulebook or its published distances, with each team's name and logo on its side and the score in the middle, a lineup and the situation of the game on them, with stands and a crowd, a pageant of flags and a 3D view. Wide or tall, light or dark, a compact badge for a list, a helper for React, a custom element and a frame for a page that runs no script. One function, no dependencies.
> **Renamed.** Previously `@johnmorrisdotca/kyogijo`; renamed in 0.4.0 to `@johnmorrisdotca/kyogijo-stadiums`. The product is still Kyogijo Stadiums (競技場); only the package and the repository names changed. See the [changelog](./CHANGELOG.md).

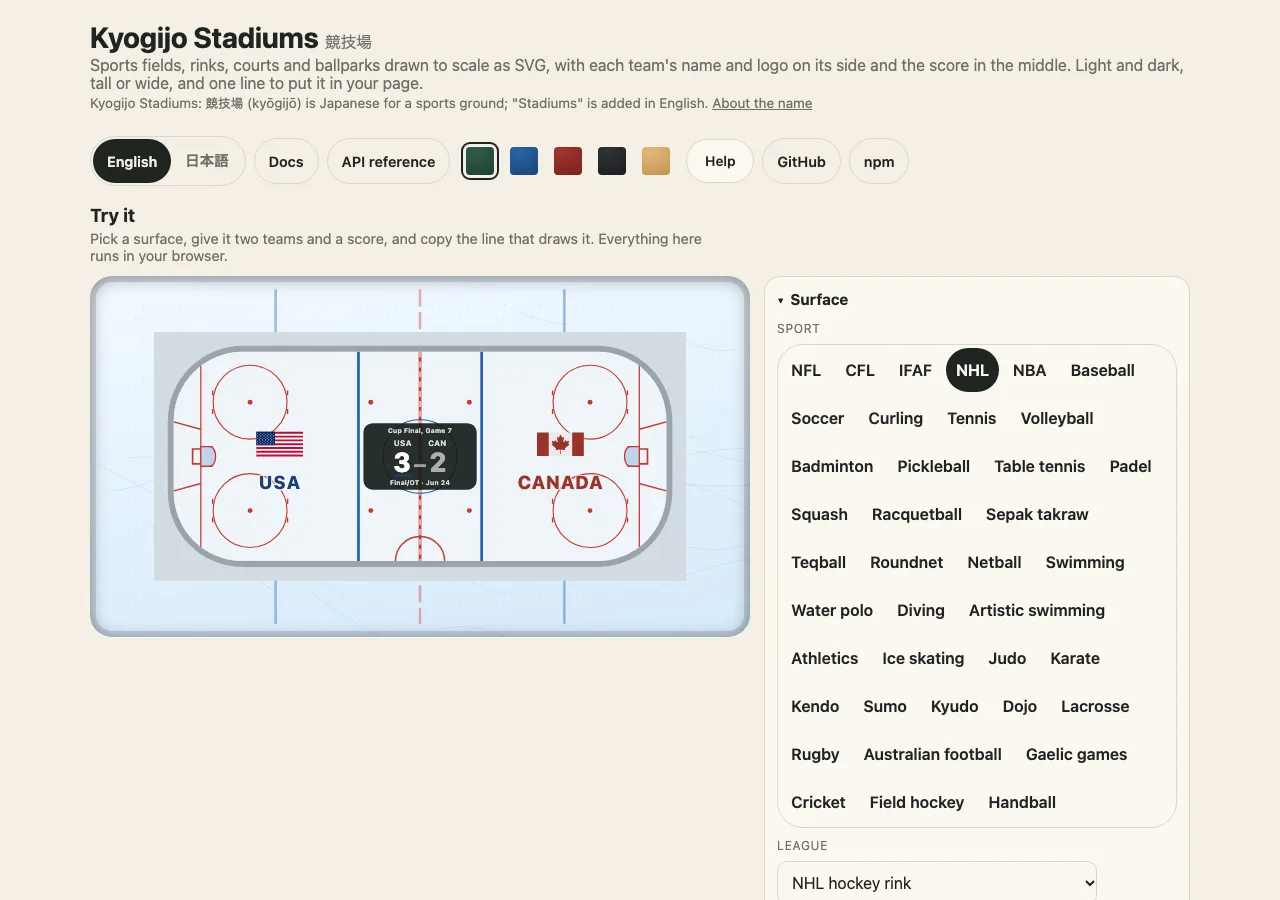

The demo on a desk: a rink, with the teams on their sides and the score in the middle.

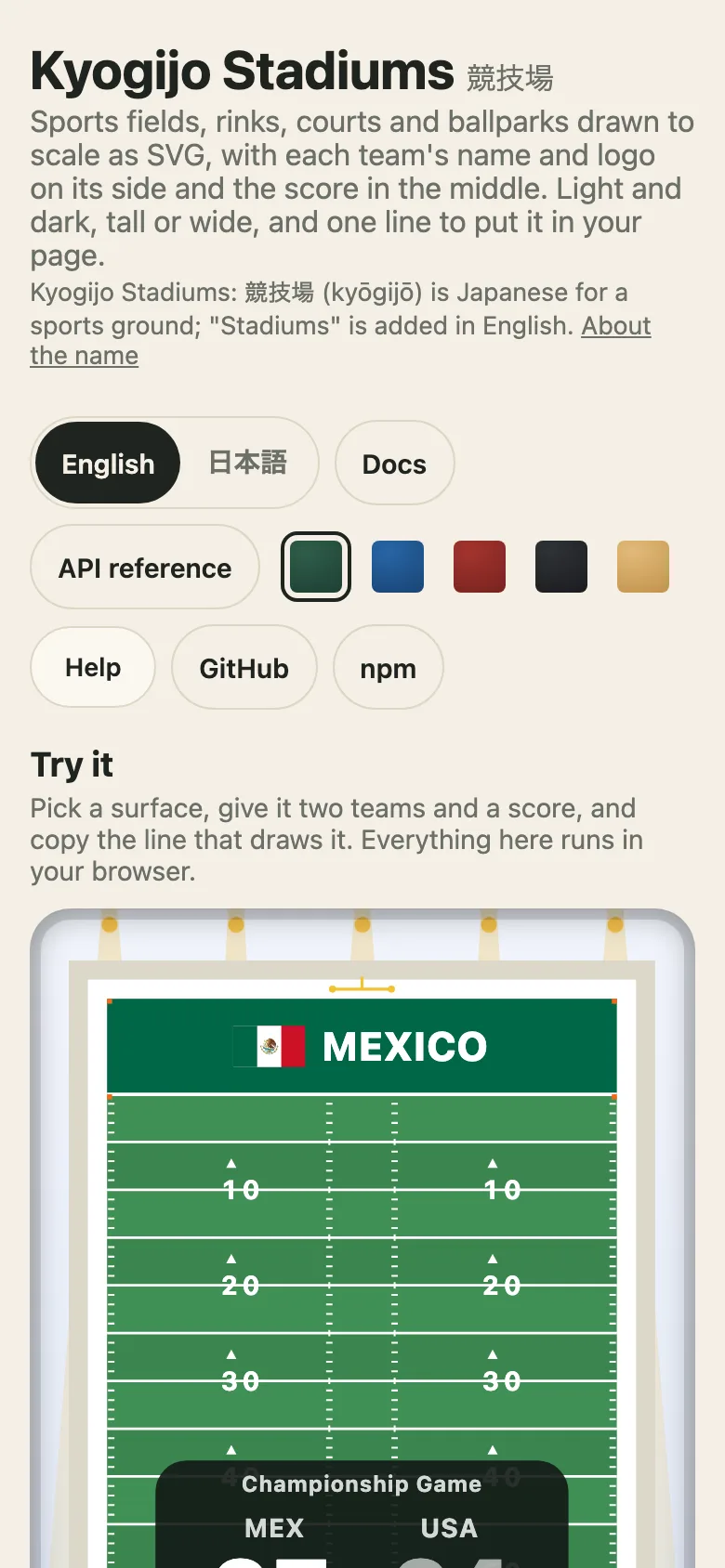

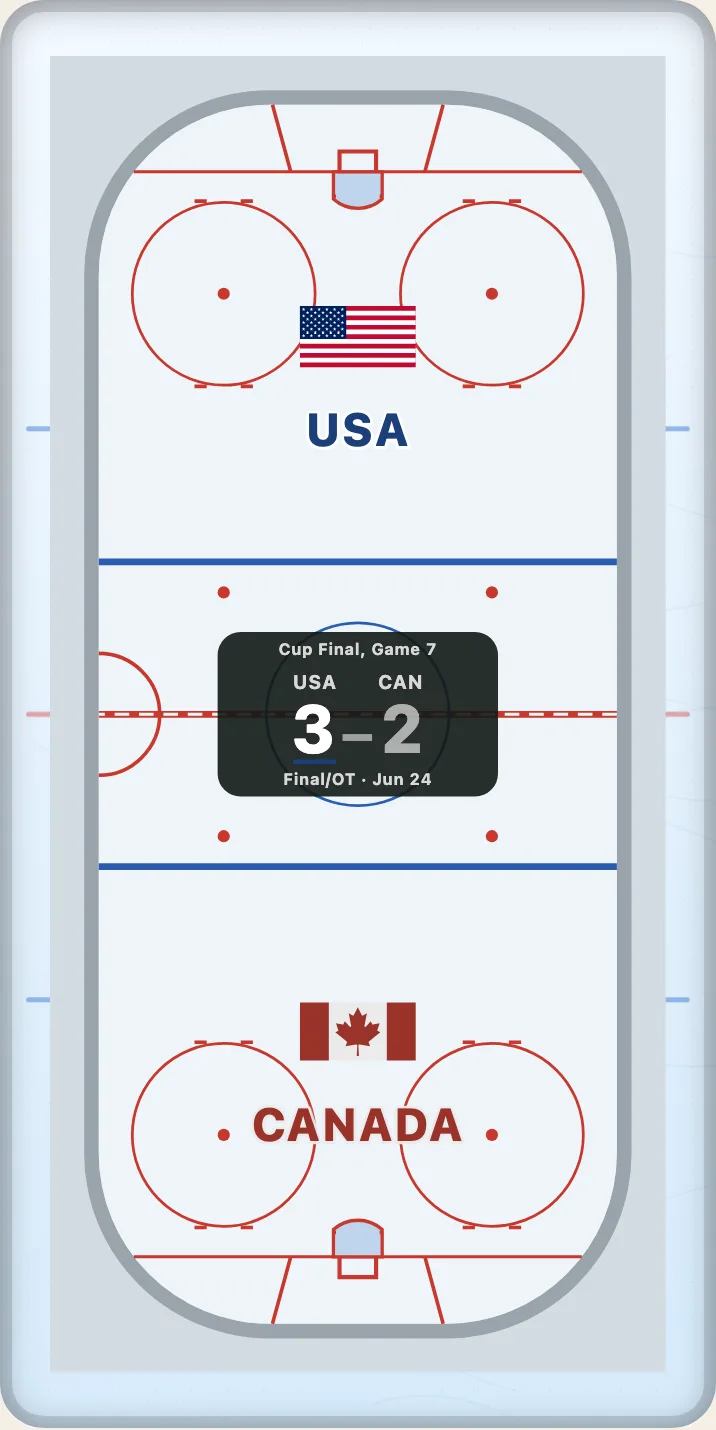

On a phone the same surface stands tall, the words still upright.
Kyogijo Stadiums draws the places a game is played on, and puts a game on them. It was made to show the score of a game or a championship on the surface it was played on: the teams at their ends, the score in the middle, a label for what it was. The surfaces are drawn to scale from the rulebooks, so that a football field has its hash marks where the rules put them and a ballpark has its fence where its published distances put it.
## In 30 seconds
```sh
npm install @johnmorrisdotca/kyogijo-stadiums
```
```ts
import { drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
const svg = drawKyogijo({
sport: "nhl",
away: { name: "USA", abbr: "USA", score: 3, color: "#1c3f7a" },
home: { name: "Canada", abbr: "CAN", score: 2, color: "#d52b1e" },
status: "final-ot",
competition: "Cup Final, Game 7",
});
console.log(svg.startsWith("
```
## Who it is for
- **A results page or a stats site** that has the score of a game and wants a picture of where it was played: the teams, the score, the round and the date, with the winner clear.
- **A list of games** that needs a compact strip for each, small enough for a phone.
- **Anyone drawing a rink, a field, a court or a ballpark** for a poster, a diagram or a lesson, who wants the dimensions right and the colours their own.
- **A site that uses a framework or none**: the drawing is a string, so it works from a server, a build step, a framework, a custom element or a frame.
## Features
- **Thirty-nine surfaces, to scale.** The NFL field (360 by 160 feet with its end zones), the CFL field (450 by 195), the IFAF field, the NHL rink (200 by 85 with a 28-foot corner radius), the NBA court (94 by 50), the soccer pitch (105 by 68 metres, in ten sizes and variants), the baseball field, the curling sheet (150 by 15 feet 7 inches) and the courts of tennis, volleyball (beach and sitting), badminton, pickleball, table tennis, padel, squash, racquetball, sepak takraw, teqball, roundnet and netball, the pools of swimming, water polo, diving and artistic swimming, the athletics stadium, the skating rinks, the fields of lacrosse, rugby, Australian football, Gaelic games, cricket, field hockey and handball, and the budō: the competition areas of judo and karate, the kendo shiai-jo, the sumo dohyō, the kyūdōjō and a dojo of tatami, with the lines, circles, keys, boxes and goals of each. Every figure is cited in [sources](./docs/sources.md). [The surfaces](./docs/surfaces.md).
- **Each league's rulebook.** `league: "fiba"` draws a court as FIBA marks it: 48 variants, from the WNBA, the NCAA and the IIHF to Little League, PONY, softball, Curling Canada, FIVB's beach volleyball, rugby league and the NLL's box lacrosse, each cited. [League variants](./docs/variants.md).
- **A realistic basketball floor.** `court: { hardwood: true }` draws maple boards that run the length of the court with staggered ends, grain and tone, stained keys, circle and border, a strip behind each baseline in the team's colour, the baskets and stanchions with soft shadows from above, a coaching box and benches, and a satin sheen, in every league and every renderer, with the detail dropping at small sizes. The clean floor stays the default. [Hardwood](./docs/hardwood.md).
- **The stands and the crowd.** `crowd: true` draws the seating round any surface that has spectators: a bowl, two sides, a horseshoe, an arena's courtside rows, or a ballpark's grandstands and bleachers laid behind the park's own fence, with the people as a seeded pattern of heads and shoulders in the home colours, the visitors at an end, the empty seats showing (`density`, or `attendance` over `capacity`), a card display on request, and a soccer pitch inside a gridiron stadium's footprint, to scale. A few kB of patterns, blocks at small sizes, every renderer, and the stands' rings, heights and rake as data. [The crowd](./docs/crowd.md).
- **Curling, from the rule books.** A sheet from World Curling's and Curling Canada's rules, tall by default, with the board and the hammer in a score, `curlingStones` for the stones of an end, scored by the rules, `show: "folded"` for the whole sheet with both houses enlarged beside it in a square, and a heat map and statistics (free guards, hammer, steals, shots) for many ends. [Curling](./docs/curling.md).
- **Net, racket and court sports, from their rulebooks.** The ITF's court, the FIVB's indoor and beach courts, World ParaVolley's sitting volleyball court, the BWF's, USA Pickleball's, the ITTF's table, the FIP's padel court, World Squash's courts (with the front wall laid flat beside the floor), the IRF's racquetball court, the ISTAF's sepak takraw court, the FITEQ's teqball court and table, the Roundnet Federation's court and World Netball's court, each in its look (hard court, clay, grass, wood, sand), with a board of sets and games and a ball beside the server. [Net, racket and court sports](./docs/courts.md).
- **Swimming, water polo, diving and artistic swimming, from World Aquatics' regulations.** The competition pool of 50 or 25 m and one to ten lanes with its ropes in the rules' colours, floor markings and cross lines, blocks, touch panels, backstroke flags at 5 m and false start rope at 15 m, with a side section and a flat, "water" or tiled look; the water polo field with its ropes, lines, goals and re-entry areas; the diving well with its springboards and platforms at the distances of Appendix 2; the artistic swimming area; several pools in a natatorium. The lanes of a race carry names, flags you pass in, places with medals, times, reaction times and splits, with split pace bars, a race replay by lane (`raceTimeline`) and a `splitsChart`. [Pools](./docs/pools.md).
- **Lacrosse, rugby, Australian football, Gaelic games, cricket, field hockey and handball, from their rulebooks.** The fields and floors of World Lacrosse, the NCAA, the PLL and the NLL; World Rugby's union and the NRL's and IRL's league; the AFL's oval at the size of a named ground; the GAA's field for football and hurling; a cricket ground with a boundary of your own and the 30-yard circle; the FIH's pitch and the IHF's court. A score is goals and behinds (10.12 (72)), goals and points (2-14 (20)) or a board of runs, wickets and overs. [Field sports](./docs/field-sports.md).
- **The athletics stadium, from World Athletics' rules.** The 400 m track with its lanes, the staggers worked out from the running lines (the 200 m and 400 m to the millimetre of the Manual's table, the 800 m and 4 x 400 m from the breakline's own construction), curved and relay starts, hurdles, the steeplechase with the water jump inside or outside, every field event in its place or alone at a large scale, a close-up of each start with stencil lane numbers, the covered 200 m track, an ink-only `line-drawing` look, and lane draws, results, a race replay and the marks of throws and jumps. [The athletics stadium](./docs/athletics.md).
- **The skating rinks, from the ISU's rules.** The standard 400 m speed skating track with its two lanes, warm-up lane, blocks and coaches' area, and the starting and finishing lines of every race worked out lane by lane from the track's measurements (held to the layout plan's own dimensions); the short track's oval of 111.12 m with its seven blocks in each curve, five or seven tracks and starting positions; the figure skating rink of 60 by 30 m with its judges' seats; and pairs, results, a race replay and the elements of a programme on the ice. [The skating rinks](./docs/skating.md).
- **The budō, from the federations' rules.** The IJF's judo competition area (a contest area of 8 m to 10 m in a safety area of 3 m or more, with the common safe zone, the free zone, the platform, the tape and the tatami of 2 m by 1 m in the IJF's yellow and red, or other looks) and the All Japan Judo Federation's (its tatami of 182 by 91 cm, its red danger zone), the WKF's karate areas (8 m, the boundary band, the 2 m safety area, the start mats), the kendo shiai-jo (9 m to 11 m, the cross and the kaishi-sen), the sumo dohyō (the 6.7 m clay square, the ring of 20 tawara, the shikiri-sen, the four tassels), the kyūdōjō (kinteki at 28 m and enteki at 60 m, the shajō, the yamichi and the azuchi), and **a dojo builder**: a floor of tatami laid as real units (no four corners meet), in jō or metres, with the walls, doors, windows, shrine and kamiza. Five famous halls are on the atlas (the Kodokan's main dojo of 420 jō, the Nippon Budokan's octagon, the Kokugikan, the old Butokuden and the Budokwai), each with only what a source gives; the scores are judo's ippon, waza-ari and shido, karate's points, kendo's points and sumo's kimarite. [The budō](./docs/budo.md).
- **Soccer, to the Laws.** A pitch from Law 1 of the IFAB Laws of the Game of any size, with presets (international, UEFA, MLS, NCAA, the FA's 9-, 7- and 5-a-side, FIFA's futsal), half pitches, five mowing patterns, four goal styles, penalties and extra time in a score. [Soccer](./docs/soccer.md).
- **Every ballpark.** The 30 current MLB parks and 44 that MLB clubs have left (the Polo Grounds, Ebbets Field, the Astrodome and more), and the 12 home parks of Nippon Professional Baseball with eight other NPB grounds, each with its fence drawn from the distances published for it; a past park whose fence moved is drawn as it stood in a season. [Ballparks](./docs/ballparks.md).
- **Soccer grounds, arenas and an atlas.** 64 soccer grounds, each pitch at its published size, and 167 NHL, NBA, WNBA and PWHL arenas (`drawKyogijo({ sport: "nhl", arena: "boston-garden" })`), a rink or a court at the arena's own size where an article gives one, and every park, ground, arena and budō hall (330 places) on a map, by sport, league, country and year, each found by any name it has in English, Japanese or its own language (`Koshien Stadium` is also `甲子園`, `San Siro` is `サン・シーロ`). [The grounds](./docs/grounds.md), [the arenas](./docs/arenas.md), [the atlas](./docs/atlas.md), [names](./docs/ballparks.md#names).
- **Walls and quirks.** How high the fence stands, stretch by stretch and season by season (the Green Monster at 37 feet 2 inches, the Crawford Boxes, the Baggie), drawn as a band outside the fence whose width and shade say the height, with a key (`walls`); and Tal's Hill, Wrigley Field's ivy and basket, overhangs, poles, bullpens, the backstop and the dugouts (`quirks`), each from the park's article, none guessed: [ballparks](./docs/ballparks.md).
- **Special games.** A surface set inside another, to scale: an NHL rink on a ballpark's infield or a football stadium's field (the Winter Classic, the Stadium Series, the Heritage Classic), a college basketball court on the deck of a carrier, a baseball field laid over a London stadium's pitch. 18 games, each with its day, its venue and its sources, and the place of the rink cited where a source gives it and marked as a convention where none does. [Special games](./docs/special-games.md).
- **Surfaces through the years.** `year: 1975` draws a surface as its league's rules marked it that season, each change cited. [Surfaces through the years](./docs/eras.md).
- **Score mode.** Each team's name and logo on its side (the end zones of a football field, the ends of the ice, the halves of the court, the dugouts of a ballpark) and the score large in the middle, with the competition, the status and the date, and the winner emphasised; a flag or a crest can be round, in a circle with a ring (`markShape: "round"`). [Score and layout](./docs/score.md#round-marks).
- **The situation of a game.** `situation` draws what is happening: hockey's power play or empty net as a pill with the attacking zone tinted, and a shootout as a strip of dots; baseball's runners lit on the diamond with a scorebug (outs, inning, count); football's line of scrimmage, first-down line, red zone and down-and-distance tag, with a drive chart; in the badge and the compact card too, and in the description. [The situation](./docs/situation.md).
- **Lineups.** A `lineup` layer places a team's players by position code (`GK`, `CB`, `HK`, `C`) with no coordinates: it reads where each stands from a formation (36 of them, in 13 sports), draws a disc or a jersey with the shirt number and the name under it, a captain's C and a flag, and puts the visitors at the other end. A drawing with a lineup puts the score in the strip under it, so the panel hides no player. [Lineups](./docs/team-shape.md#lineups).
- **A pageant.** Each team's flag or crest laid large over its half of the surface, as a stadium lays giant flags and crests for a final: `pageant: "carpet"` (a flag at its own ratio with a border and a gentle fabric) or `"stage"` (a crest on a round disc with a gold ring), an emblem or a trophy of your own in the centre circle, the score in the middle or in the strip, upright wide and tall, in light and dark, with an entrance in CSS for readers who have not asked for less motion. [The pageant](./docs/pageant.md).
- **Trophies, medals, balls and crests, by id.** `useEmblems(renderEmblem)` plugs in the sister package [Dougu Sports](https://johnmorrisdotca.github.io/dougu-sports/) in one line, and an id goes wherever a logo, a flag or a mark is taken: `logo: "crest:shield"` (a crest in the team's colour with its letters), `pageant: { emblem: "trophy:hockey-cup" }`, `"sport:nhl/line"`, `"ball:puck"`, `"cup"`. Kyogijo bundles no emblem and keeps zero dependencies; without the plug-in an id is refused like any unsafe address. [Emblems](./docs/emblems.md).
- **Country flags, by code.** `useFlags(render)` plugs in the sister package [Hata](https://github.com/johnmorrisdotca/hata) through a small adapter, and a team's `flag: "CA"` is its flag: round in a round mark, at its own proportions on a banner, a badge or a pageant's carpet. The same adapter serves [Taisen Brackets](https://github.com/johnmorrisdotca/taisen-brackets). Kyogijo bundles no flag and keeps zero dependencies; without the plug-in a code is ignored. [Flags](./docs/flags.md).
- **Zoom to a part of a surface.** `range: "offensive-zone"` crops a drawing to a rink's zone, a half court, the paint, the red zone, a soccer half, third or penalty area, the infield, a curling house, or a box of your own in any frame, with its data, heat, labels and score following. [Display ranges](./docs/ranges.md).
- **Wide, tall or fit the box.** Every surface lies wide or tall: tall turns it a quarter, keeps every word upright and puts the teams top and bottom. With `orientation: "auto"` the browser helpers follow the box.
- **Where a point lies, by the rules, and a click as a place.** `zoneAt("nhl", [69, 22], { frame: "nhl-api" })` names the zone and the area in it from the rink's, court's, pitch's, park's or field's own figures (the offensive zone and its face-off circle, the frontcourt and the corner three, the attacking third and the six-yard box, the infield and the warning track, the red zone and between the hashes), with `isThreePointer`, `inSlot`, `inPenaltyArea`, `isFair`, `overWall` and the like, and `isHomeRun(park, point, { height })` from the park's fence and wall; `clientPointToField(svg, x, y, { provider })` is a pointer's place in any of the frames, with the zone, and `fieldPointToClient` the way back. `marks: true` writes `data-mark-id`, `data-index` and `data-zone` on every mark of a layer, for one listener to link it to a table. [Zones](./docs/zones.md), [pointing](./docs/pointer.md).
- **Goals, the strike zone and the stumps, end-on.** A goal mouth for hockey (6 by 4 feet), soccer, handball, water polo, lacrosse (6 by 6) and field hockey with the shots laid on it and its zones (the top shelf, the five-hole, the corners), the catcher's view of the strike zone with its nine and thirteen zones and the pitches numbered, and the wicket from the bowler's end with its line and length zones. [Targets](./docs/targets.md).
- **Data on the surface.** Points, lines, arrows, text, heat maps, hexagons, zone charts and density contours over any surface, in its feet or a data provider's frame, cut to its outline, with a table for each layer; ready-made shot and pass charts (the road to a tournament's final moved to [`@johnmorrisdotca/taisen-brackets`](https://www.npmjs.com/package/@johnmorrisdotca/taisen-brackets), its `/road` entry). [Data layers](./docs/layers.md), [charts](./docs/charts.md).
- **Small multiples and backgrounds.** `drawGrid` puts many drawings in one SVG, under a title and a subtitle, over a credit line, with a key they share, in a size for a social card, a square post or a phone; `background` lays a quiet pattern (felt, grass, wood, ice, paper, a grid, dots) or a photograph behind a drawing or a grid. [Layouts and backgrounds](./docs/layouts.md).
- **Replay.** Tracking data played on any surface: the players with their numbers, the ball and its trail, and the passes, shots and goals as they happen, with controls, the keyboard and a live region, steps for a reader who prefers reduced motion, and a pause when the page is hidden. [Replay](./docs/replay.md).
- **A 3D view.** Any surface as a floor that turns by mouse, touch, wheel or keys, with four viewpoints (overhead, broadcast, end-on, low corner) and a reset, and what the rulebook stands on it at its height: the net and antennae of volleyball, the nets of tennis, badminton, pickleball and table tennis, baskets and stanchions, rink boards and glass, goals, the posts of football, rugby, Gaelic and Australian football, stumps, a ballpark's fence, the walls of padel, squash and racquetball (cut away on the side nearest the eye), a swimming pool's blocks and flags, a diving well's boards and platforms, a water polo goal, a jump's uprights and bar, a throwing cage, the hurdles, and the padding of a skating track; and the venue round it, raised from the same data (the raked stands of a `crowd` with the people on them, a ballpark's grandstands and the seats on its wall, roofs on request, a dojo's walls, dais, banner and gallery), faded on the side nearest the eye, with an auto-turn toggle. Plain DOM and CSS over the same SVG, flat where 3D is not drawn. [The 3D view](./docs/turn.md).
- **Renderers.** The same drawing as plain data (a scene), on a canvas (a browser's or a Node canvas), in a d3 selection, as a mark of an Observable Plot, as GeoJSON and as a PNG in Node, each an entry of its own that imports nothing from outside the package. [Renderers](./docs/renderers.md).
- **Units and frames.** Each surface in its rulebook's unit and any other, and 48 coordinate frames (ten soccer providers, the NHL API, HockeyTech, NBA stats, NFL tracking, MLBAM, Retrosheet, a curling stone's place from the button, a place from the net in each net sport (from the centre of the court in squash, racquetball, roundnet and netball), the centre of each field sport's surface, the middle of the water of each pool, the middle of the athletics stadium and of each skating rink) to move a provider's points onto a surface. [Units](./docs/units.md), [coordinate frames](./docs/frames.md).
- **A compact badge and a compact card.** One strip for a list, or the surface with that strip under it.
- **Light and dark**, by the device or the page, and every colour a custom property; eight named looks, colours by feature, line widths and dashes, goal styles and mowing patterns, and arrows, axes and labels for teaching. [Theming](./docs/theming.md), [annotations](./docs/annotations.md).
- **Accessible.** Each drawing is an `img` with a title and a description that say the surface and the result, in English or Japanese. [Accessibility](./docs/accessibility.md).
- **Four ways in.** A function that returns SVG text; a helper that draws into a container; a standard custom element; a frame for pages that run no script. A React helper that does not import React.
- **No dependencies**, no network requests, nothing stored. Text, colours and logo addresses that come from outside are made safe before they are drawn.
- **A docs site.** Guides, a search over every page, a gallery that draws every picture from the code beside it, and [how it compares](./docs/compare.md) with the other packages: [the documentation](./docs/README.md).
### What's in it
| Part | What it is |
| --- | --- |
| `drawKyogijo`, `drawSurface`, `drawScore`, `drawBadge` | The drawing, as a string of SVG. |
| `SPORTS`, `PARKS`, `PARK_IDS`, `COURT_THEMES` | The thirty-nine sports, the 94 ballparks, the court looks. |
| `SOCCER_PITCHES`, `SOCCER_PROVIDERS`, `rescale`, `soccerSpec` | The soccer pitches, the data providers' coordinate systems and the map between them. |
| `GROUNDS`, `groundById` | The 64 soccer grounds, each pitch at its own size. |
| `EVENTS`, `eventOptions` | The 18 special games: a rink in a ballpark, a court on a carrier's deck, with `host` and `placement` in the options. |
| `./zones`, `./pointer`, `./target` | Where a point lies by a sport's own rules, and the yes-or-no questions; a click on a drawing as a place in a provider's numbers; a goal, the strike zone or the stumps seen end-on. |
| `./geometry`, `./frames`, `./layers`, `./charts`, `./replay` | The dimensions in any unit; the providers' frames; data layers; ready-made charts; tracking data played on a surface. |
| `./athletics` | The athletics stadium: the plan, the track's geometry (the stagger of any lane), the races and field events, and the lane draw, results, race replay and field marks charts. |
| `./budo` | The budō: the judo and karate areas, the kendo shiai-jo, the sumo dohyō, the kyūdōjō and the dojo builder (`dojo`, `drawDojo`), the plans, the tatami layout, the 82 kimarite, the looks and the five halls. |
| `./skating` | The skating rinks: the plan, the long track's geometry (a skater's way round it, the start of a race), the races, and the pairs, starting positions, results, race replay and programme elements charts. |
| `./parks`, `./grounds`, `./arenas`, `./atlas`, `./eras`, `./leagues`, `./events` | The ballparks, the grounds, the arenas, every place, the markings of a season, each league's rulebook, the special games. |
| `./turn` | A surface as a 3D view that turns, with the net, basket, goal or posts standing on it. |
| `./scene`, `./canvas`, `./d3`, `./plot`, `./geojson`, `./png` | The drawing as data; on a canvas; in a d3 selection; as an Observable Plot mark; as GeoJSON; as a PNG (the optional peer `@resvg/resvg-js`). |
| `./layouts` | `drawGrid` and `GRID_PRESETS`: small multiples with a title, a subtitle, a key and a credit line; the grounds behind a drawing or a grid. |
| `./mount`, `./react`, `./element`, `./element/define` | Draw into a container; React props; the `` element and its registration. |
The full list of entry points is in [entry points](./docs/entry-points.md); every export is in the [API reference](https://johnmorrisdotca.github.io/kyogijo-stadiums/api.html).
## Use it in your project
### Install
```sh
npm install @johnmorrisdotca/kyogijo-stadiums
# or: pnpm add @johnmorrisdotca/kyogijo-stadiums
# or: yarn add @johnmorrisdotca/kyogijo-stadiums
```
It needs Node 22 or later on a server, and any current browser. It is plain ES modules, with types. Once it is on npm the same files are on the CDNs: `https://cdn.jsdelivr.net/npm/@johnmorrisdotca/kyogijo-stadiums@0/+esm` is the package as one module for the browser, and `https://unpkg.com/@johnmorrisdotca/kyogijo-stadiums@0/dist/index.js` the file itself.
### Four ways in
1. **A string of SVG.** `drawKyogijo(options)` returns SVG text; it needs no DOM and the same options always give the same text.
2. **A container in the browser.** `mountKyogijo(element, options)` draws into an element and, with `orientation: "auto"`, draws again when its shape changes.
3. **A custom element.** ``: import `element/define` once and use the tag with attributes.
4. **A frame.** For a page that cannot run scripts, the demo site serves `embed.html`, which draws what its address says.
Each is shown with its code in [getting started](./docs/getting-started.md); React, Vue and Svelte are below.
## Examples
Each example is run against the built package by `pnpm test:readme`, and each links to the page that has the rest.
### A score on the rink
```ts
import { drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
const svg = drawKyogijo({
sport: "nhl",
away: { name: "USA", abbr: "USA", score: 3, color: "#1c3f7a" },
home: { name: "Canada", abbr: "CAN", score: 2, color: "#d52b1e" },
status: "final-ot",
competition: "Cup Final, Game 7",
date: "June 24",
});
console.log(svg.includes("Cup Final, Game 7"), svg.includes("Final/OT"));
// true true
```

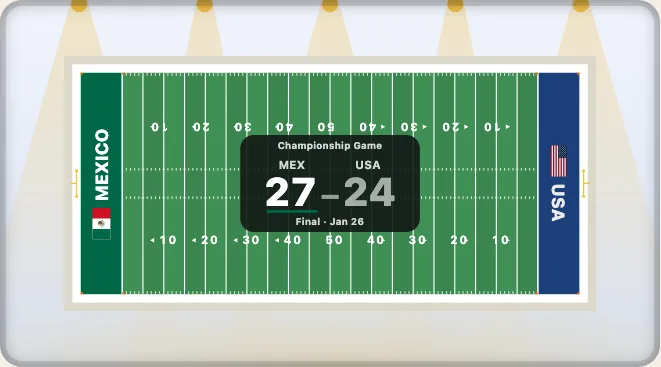

A football field: the end zones in the teams' colours, the score at midfield.
### Trophies, medals, balls and crests
Kyogijo draws none of its own. Plug in [Dougu Sports](https://johnmorrisdotca.github.io/dougu-sports/) (`npm install @johnmorrisdotca/dougu-sports`) once, and its 167 emblems are ids: [Emblems](./docs/emblems.md).
```ts
import { drawKyogijo, useEmblems } from "@johnmorrisdotca/kyogijo-stadiums";
import { renderEmblem } from "@johnmorrisdotca/dougu-sports/emblems";
useEmblems(renderEmblem);
const svg = drawKyogijo({
sport: "soccer",
away: { name: "Brazil", abbr: "BRA", score: 2, color: "#009739", logo: "crest:shield" },
home: { name: "England", abbr: "ENG", score: 1, color: "#c8102e", logo: "crest:roundel" },
status: "final",
pageant: { style: "stage", emblem: "trophy:soccer-globe", emblemName: "Northern Cup" },
});
console.log(svg.includes(encodeURIComponent(">BRA<")), svg.includes("Northern Cup"));
// true true
```
### A bare surface, and tall for a phone
```ts
import { drawKyogijo, drawSurface } from "@johnmorrisdotca/kyogijo-stadiums";
// No teams: just the NFL field at its true shape, 120 by 53⅓ yards with 12 feet of ground round it.
console.log(/viewBox="-12 -12 384 184"/.test(drawSurface({ sport: "nfl" })));
// true
const game = { away: { name: "Mexico", score: 27 }, home: { name: "USA", score: 24 }, status: "final" };
const wide = drawKyogijo({ sport: "nfl", ...game, orientation: "landscape" });
const tall = drawKyogijo({ sport: "nfl", ...game, orientation: "portrait" });
const box = (svg: string) => /viewBox="[^ ]+ [^ ]+ ([^ ]+) ([^ "]+)"/.exec(svg)!.slice(1).map(Number);
console.log(box(wide), box(tall));
// [ 384, 184 ] [ 184, 384 ]
```
The same game tall: the teams top and bottom, every word upright.
[The surfaces](./docs/surfaces.md) lists the thirty-nine, with their sizes and what is drawn; [score and layout](./docs/score.md) has the options of a score, a strip and a compact card.
### A league's rulebook
```ts
import { drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
// A court as FIBA marks it is not the NBA's.
console.log(drawKyogijo({ sport: "nba", league: "fiba" }) === drawKyogijo({ sport: "nba" }));
// false
```
Thirty-five leagues, each with its figures and its sources, are in [league variants](./docs/variants.md).
### A ballpark, by name
```ts
import { PARKS, drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
const park = PARKS["hanshin-koshien-stadium"];
console.log(park.name, park.nameJa, park.points.length);
// Koshien Stadium 甲子園球場 5
const svg = drawKyogijo({ sport: "mlb", park: "hanshin-koshien-stadium", language: "ja" });
console.log(svg.includes("甲子園球場のグラウンド"), svg.includes("阪神甲子園球場のグラウンド"), svg.includes("正式名称は阪神甲子園球場です"));
// true false true
```

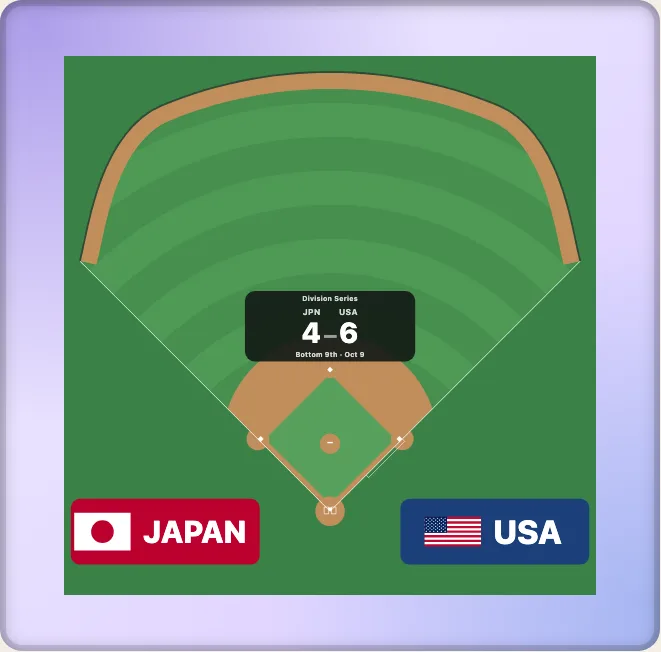

A ballpark's fence, drawn through the distances its article publishes.
### A ballpark of the past, in a season
```ts
import { PARKS, parkPointsIn, drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
const polo = PARKS["polo-grounds"];
console.log(polo.name, polo.from, polo.to, parkPointsIn(polo, 1915).map(([, feet]) => feet));
// Polo Grounds 1891 1963 [ 277, 433, 258 ]
console.log(drawKyogijo({ sport: "mlb", park: "polo-grounds", year: 1915 }) === drawKyogijo({ sport: "mlb", park: "polo-grounds", year: 1930 }));
// false
```
Your own fence (`fence: { left: 310, center: 420 }`) and every park's key are in [ballparks](./docs/ballparks.md) and [parks](./docs/parks.md).
### A rink in a ballpark
```ts
import { drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
import { EVENTS, eventOptions } from "@johnmorrisdotca/kyogijo-stadiums/events";
// The 2009 Winter Classic: the NHL's rink, 200 by 85 feet, on the infield of Wrigley Field.
const game = EVENTS["winter-classic-2009"];
console.log(game.name.en, game.dates[0], game.venue.en);
// 2009 NHL Winter Classic 2009-01-01 Wrigley Field
const svg = drawKyogijo({
...eventOptions("winter-classic-2009"),
away: { name: "Detroit Red Wings", abbr: "DET", score: 6, color: "#ce1126" },
home: { name: "Chicago Blackhawks", abbr: "CHI", score: 4, color: "#111111" },
status: "final",
});
console.log(svg.includes("Detroit Red Wings 6, Chicago Blackhawks 4"), svg.includes("lies outside the outline"));
// true true
```
The host, the rink and where it stood are each cited, and each game says whether its place is a source's or a convention: [special games](./docs/special-games.md).
### A badge for a list
```ts
import { drawBadge } from "@johnmorrisdotca/kyogijo-stadiums";
const badge = drawBadge({
sport: "nba",
away: { name: "Australia", abbr: "AUS", score: 98, color: "#00843d" },
home: { name: "Japan", abbr: "JPN", score: 104, color: "#bc002d" },
status: "Q4 2:31",
});
console.log(/viewBox="0 0 440 64"/.test(badge));
// true
```

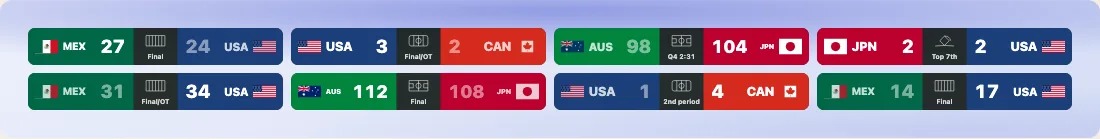

Badges for a list of games.
### A court of your own look
```ts
import { COURT_THEMES, drawKyogijo } from "@johnmorrisdotca/kyogijo-stadiums";
const svg = drawKyogijo({
sport: "nba",
court: { ...COURT_THEMES.twoTone, baselineText: ["SUMMIT PEAKS", "METRO BOLTS"], paintThreePoint: true },
});
console.log(svg.includes("--ky-key:#1e4f8f"), svg.includes("METRO BOLTS"));
// true true
```

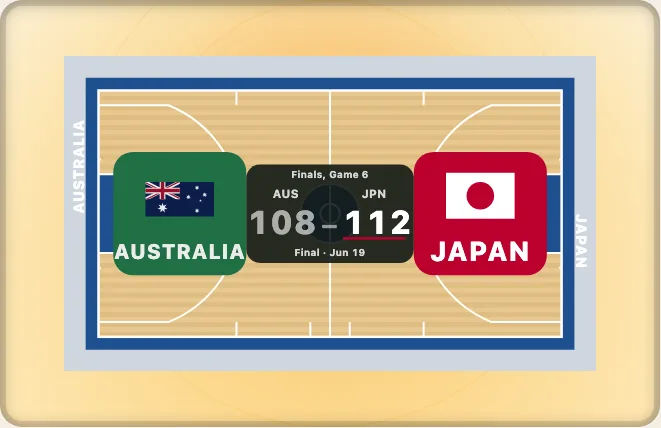

A court in a look of its own: the paint, the border and the words on the baselines are options.
The five court looks, the eight looks of every sport and every colour property are in [theming](./docs/theming.md).
### Turn it, and see the net
```ts no-run
import { mountKyogijoTurn } from "@johnmorrisdotca/kyogijo-stadiums/turn";
const view = mountKyogijoTurn(document.querySelector("#court")!, { sport: "volleyball", status: "live" }, { preset: "end" });
view.preset("corner");
```
```ts
import { turnMarkup, uprightsFor } from "@johnmorrisdotca/kyogijo-stadiums/turn";
const { items } = uprightsFor({ sport: "volleyball" }, { netHeight: "women" });
const html = turnMarkup({ sport: "volleyball" }, { preset: "end" });
console.log(items.map((item) => item.kind).join(), html.includes("preserve-3d"));
// net,netposts,antennae false
```
The flat drawing is the floor, turned by a drag, a swipe, the keys or four viewpoints (overhead, broadcast, end-on, low corner), and what the rulebook stands on the surface is built up on it at its height. Each part is a flat rectangle placed by one `matrix3d`, so there is no 3D context for a phone to lose; where 3D is not drawn the flat drawing stays. In the element it is ``. [The 3D view](./docs/turn.md).

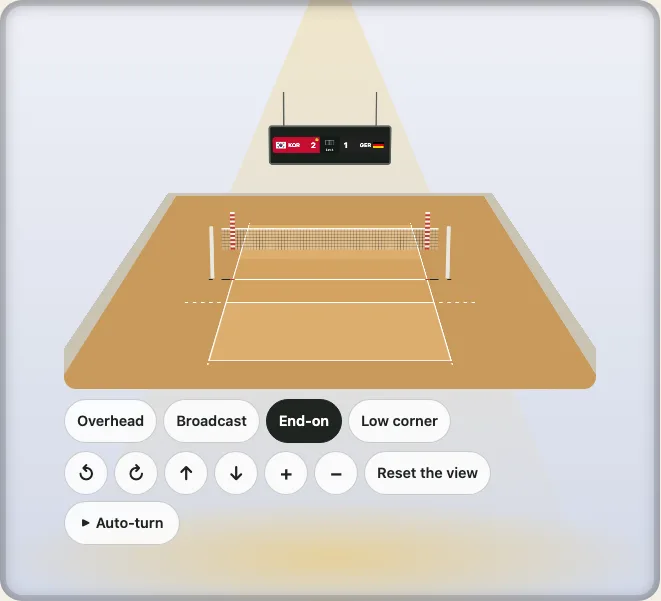

A volleyball net at its rulebook height, with its posts and antennae.

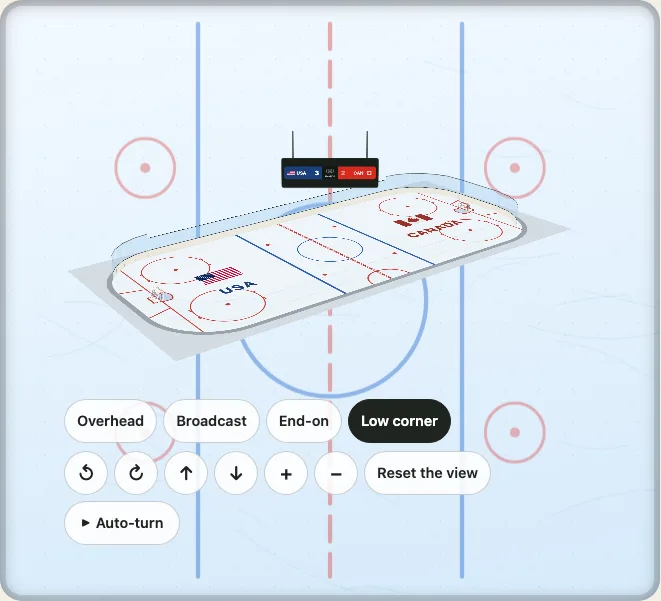

A rink with its boards, glass and goals.

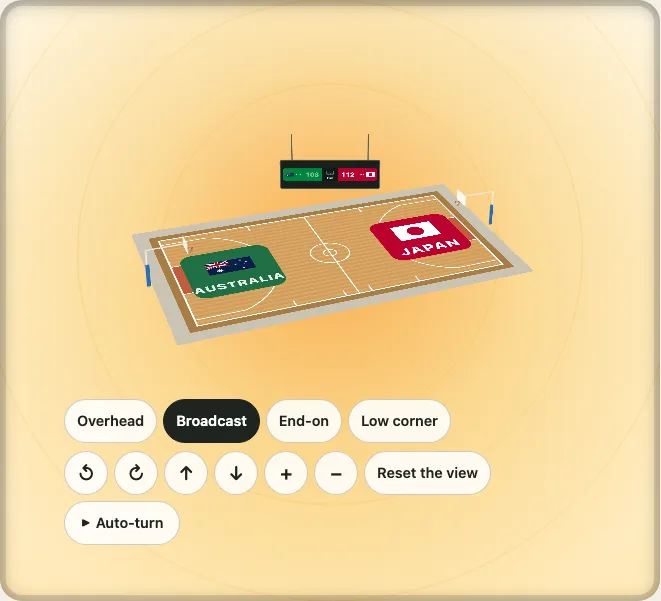

A court with a basket at each end, the rim at 10 feet.
