> 🤖 **Building with an AI coding agent?** Install [Capgo skills](https://capgo.app/skills/?ref=plugin_sheets) so Claude Code, Codex, Cursor, Copilot, or Gemini CLI know how to install and use `@capgo/capacitor-sheets` in your Capacitor app: `npx skills add Cap-go/capgo-skills`. Then ask your agent: _"Add @capgo/capacitor-sheets to my Capacitor app and wire it up."_ [Agent setup guides](https://capgo.app/agents/?ref=plugin_sheets) · [Hosted MCP](https://capgo.app/docs/ai/mcp/?ref=plugin_sheets)

Framework-agnostic sheets, drawers, dialogs, scroll helpers, and overlay primitives for Capacitor apps.

This package is inspired by the public Silk feature surface, but it is not a wrapper around Silk and does not include Silk source code. It uses platform web APIs and custom elements so the same primitives work in React, Vue, Angular, Svelte, Solid, or plain TypeScript.

## Usecase Demos

Each usecase has its own animated WebP demo. These match the public Silk-style example set: long sheets, detents, sidebars, bottom/top sheets, keyboard-aware sheets, toasts, detached sheets, full pages, stacking, depth, parallax, lightboxes, persistent detents, and cards..

<table>
  <tr>
    <td>

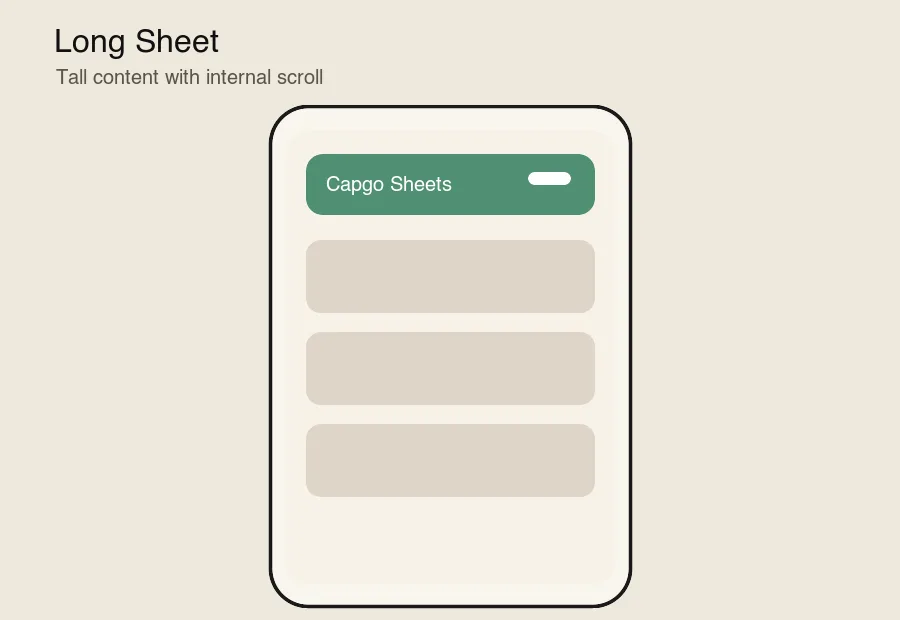

      <img src="./docs/demos/long-sheet.webp" alt="Long Sheet demo" />
      <br />
      <strong>Long Sheet</strong>
    </td>
    <td>

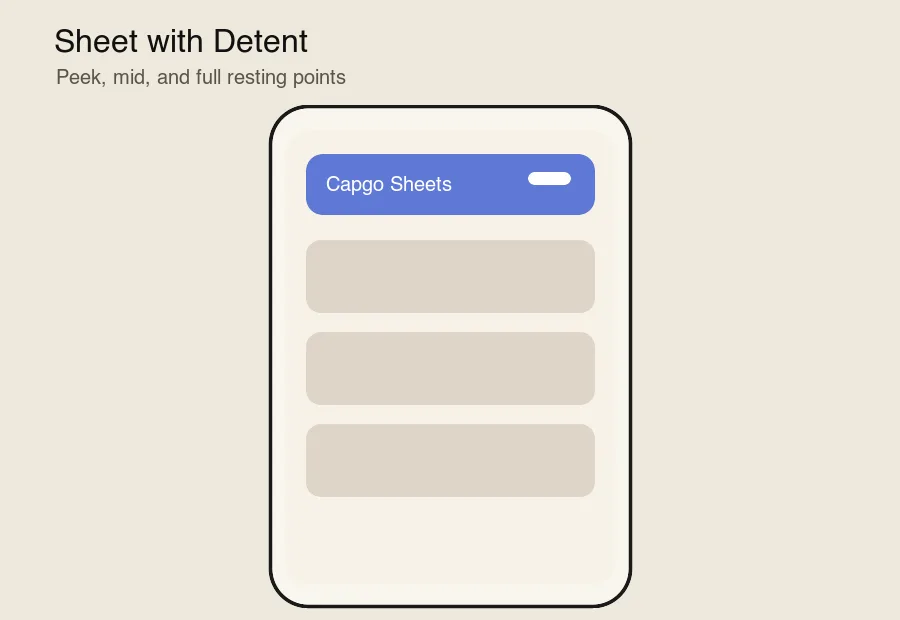

      <img src="./docs/demos/sheet-with-detent.webp" alt="Sheet with Detent demo" />
      <br />
      <strong>Sheet with Detent</strong>
    </td>
  </tr>
  <tr>
    <td>
      <img src="./docs/demos/sidebar.webp" alt="Sidebar demo" />
      <br />

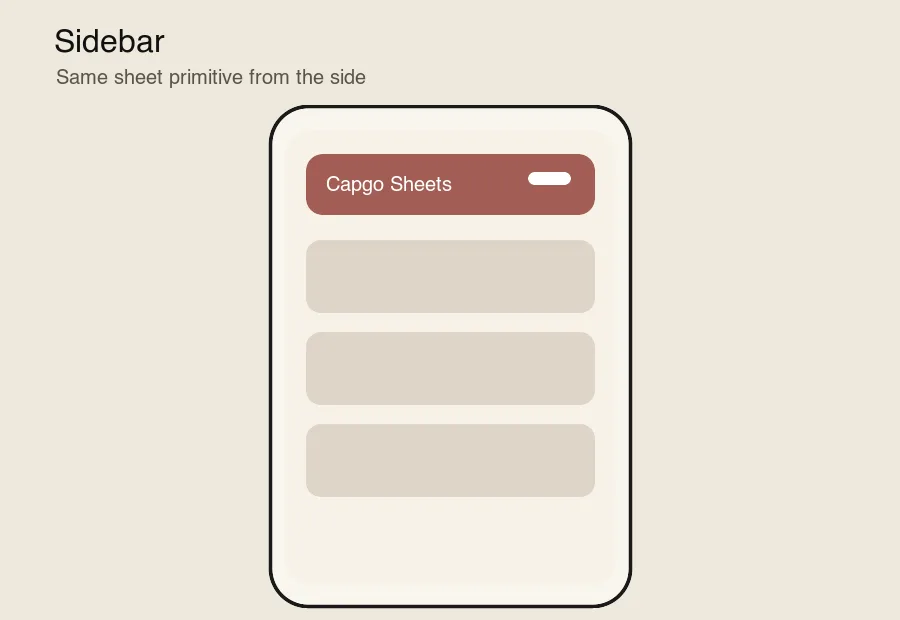

      <strong>Sidebar</strong>
    </td>
    <td>

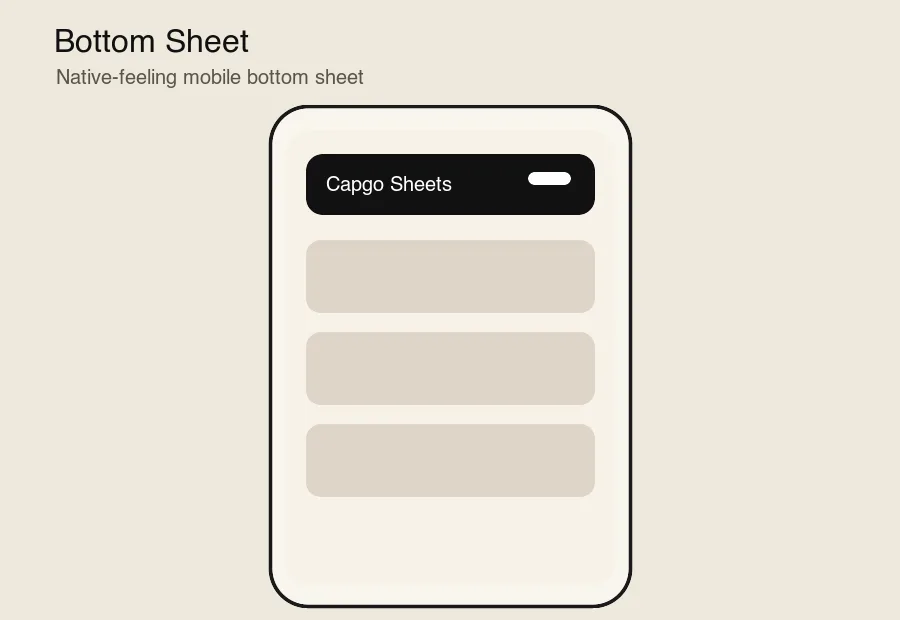

      <img src="./docs/demos/bottom-sheet.webp" alt="Bottom Sheet demo" />
      <br />
      <strong>Bottom Sheet</strong>
    </td>
  </tr>
  <tr>
    <td>

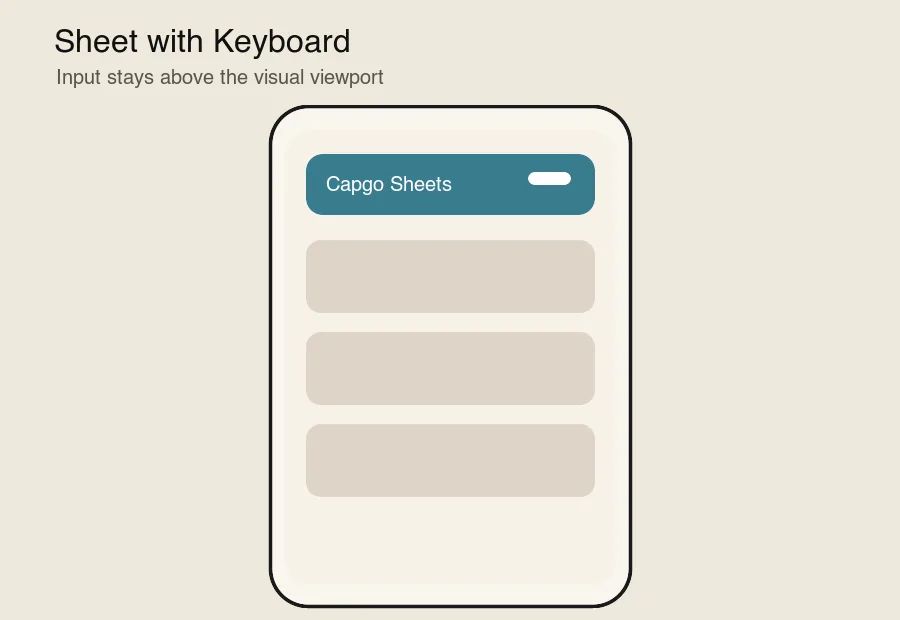

      <img src="./docs/demos/sheet-with-keyboard.webp" alt="Sheet with Keyboard demo" />
      <br />
      <strong>Sheet with Keyboard</strong>
    </td>
    <td>

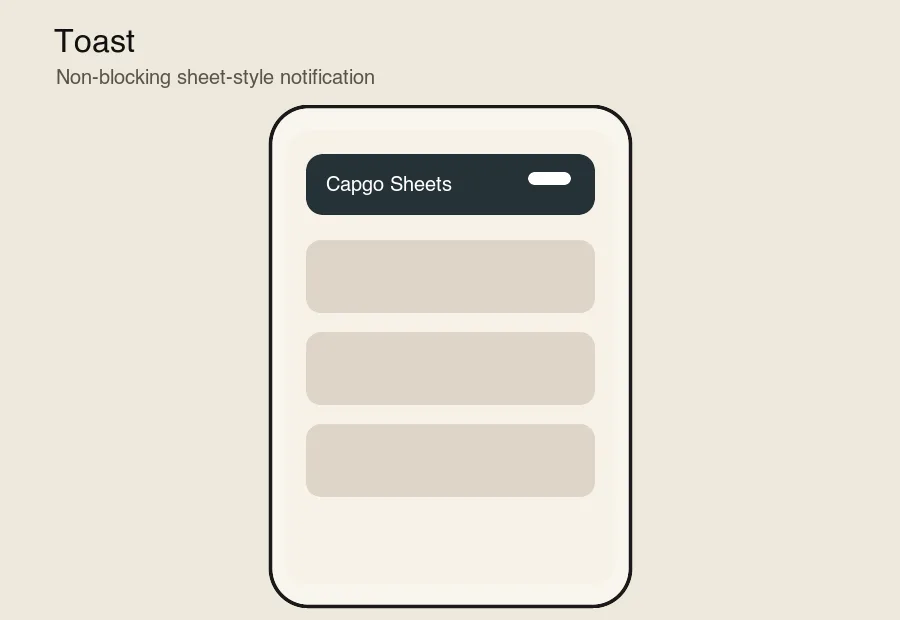

      <img src="./docs/demos/toast.webp" alt="Toast demo" />
      <br />
      <strong>Toast</strong>
    </td>
  </tr>
  <tr>
    <td>
      <img src="./docs/demos/detached-sheet.webp" alt="Detached Sheet demo" />
      <br />

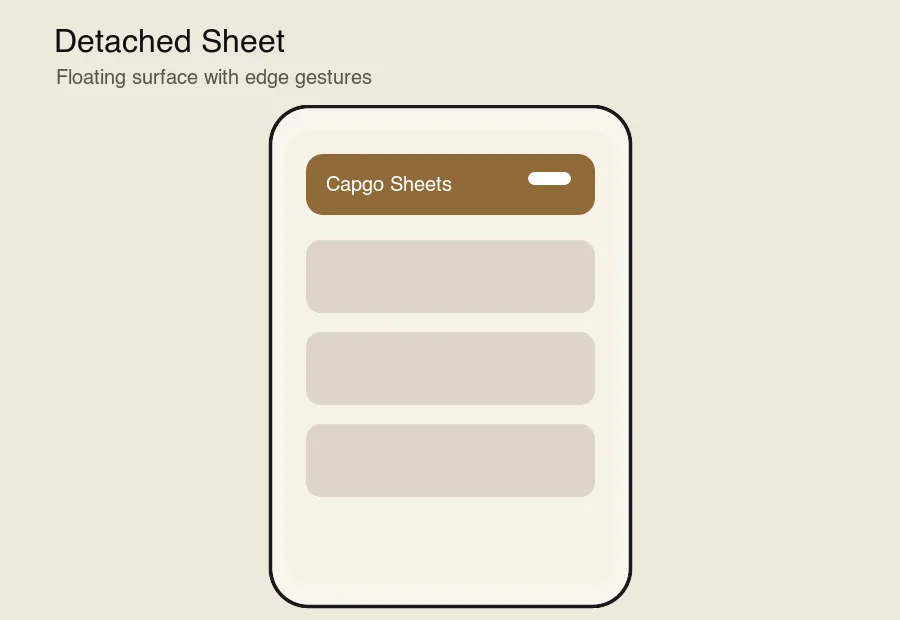

      <strong>Detached Sheet</strong>
    </td>
    <td>

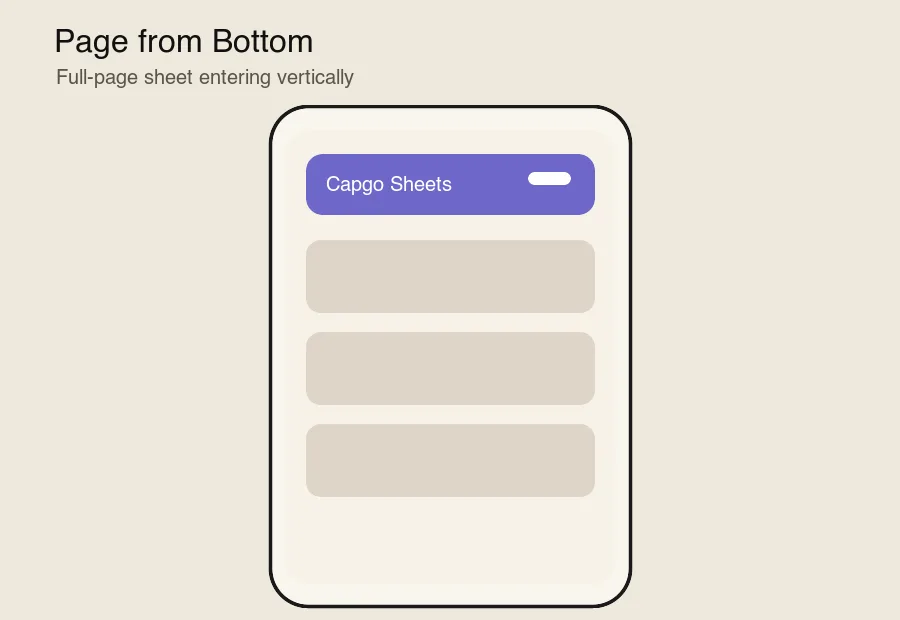

      <img src="./docs/demos/page-from-bottom.webp" alt="Page from Bottom demo" />
      <br />
      <strong>Page from Bottom</strong>
    </td>
  </tr>
  <tr>
    <td>
      <img src="./docs/demos/top-sheet.webp" alt="Top Sheet demo" />
      <br />
      <strong>Top Sheet</strong>
    </td>
    <td>
      <img src="./docs/demos/sheet-with-stacking.webp" alt="Sheet with Stacking demo" />
      <br />

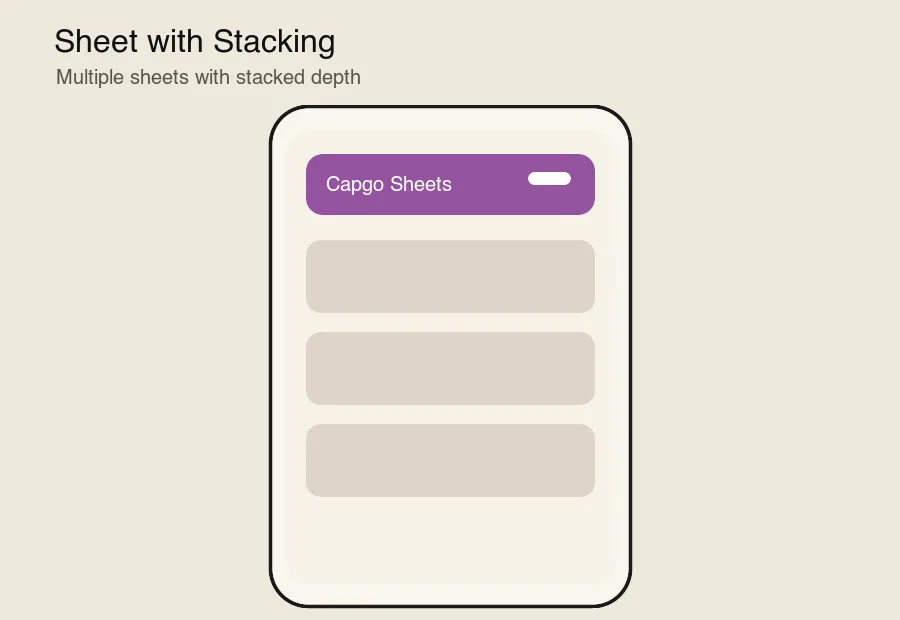

      <strong>Sheet with Stacking</strong>
    </td>
  </tr>
  <tr>
    <td>
      <img src="./docs/demos/sheet-with-depth.webp" alt="Sheet with Depth demo" />
      <br />

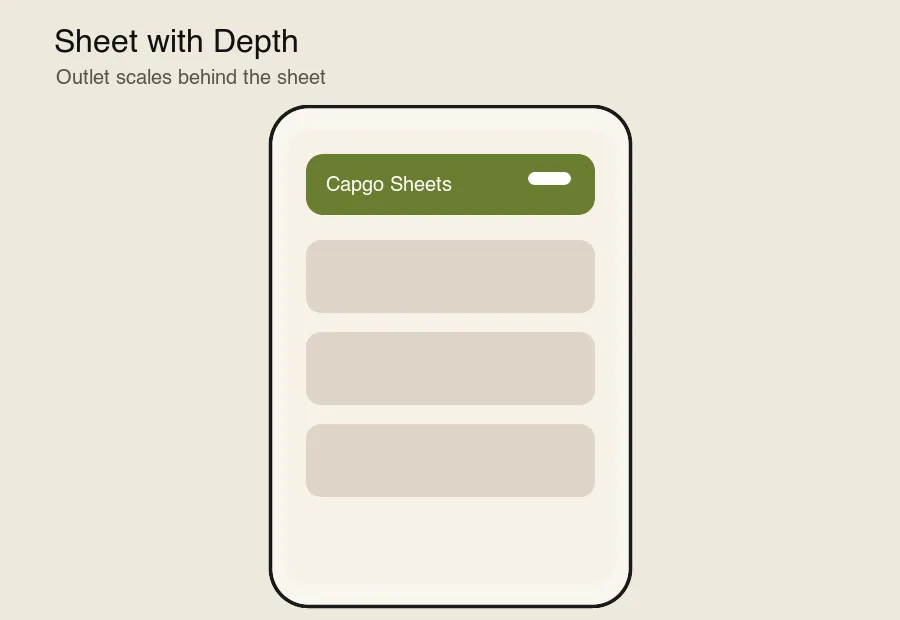

      <strong>Sheet with Depth</strong>
    </td>
    <td>
      <img src="./docs/demos/parallax-page.webp" alt="Parallax Page demo" />
      <br />

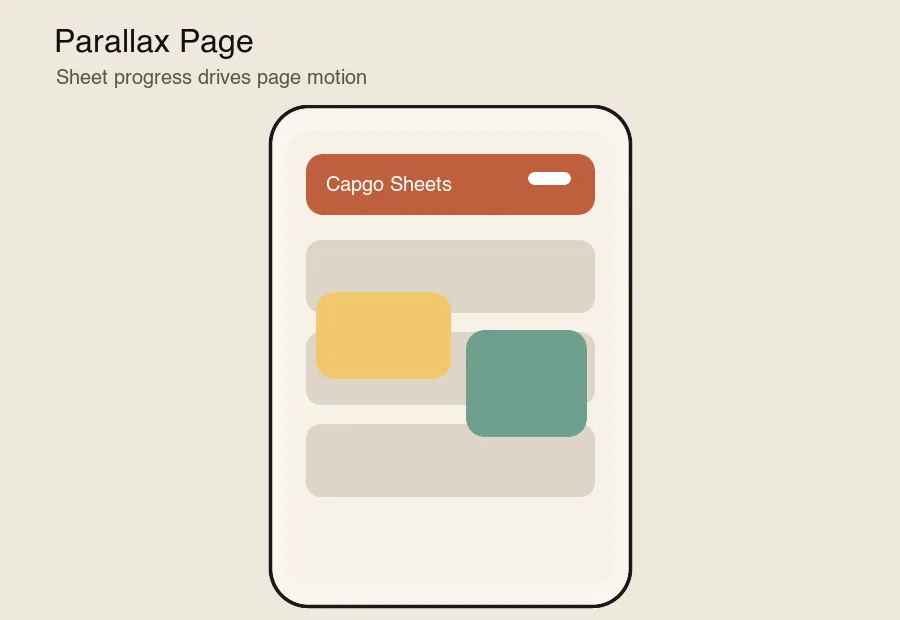

      <strong>Parallax Page</strong>
    </td>
  </tr>
  <tr>
    <td>

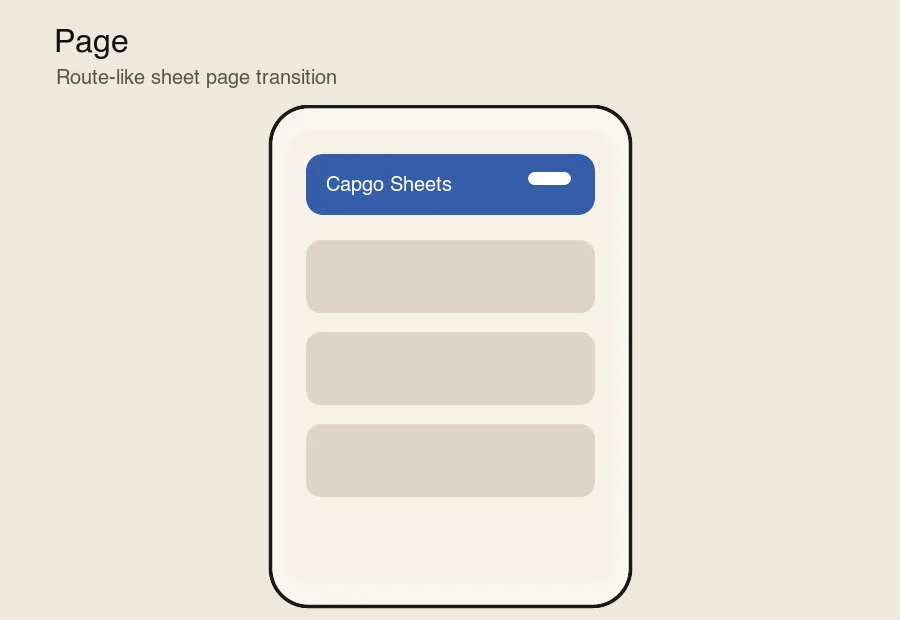

      <img src="./docs/demos/page.webp" alt="Page demo" />
      <br />
      <strong>Page</strong>
    </td>
    <td>
      <img src="./docs/demos/lightbox.webp" alt="Lightbox demo" />
      <br />

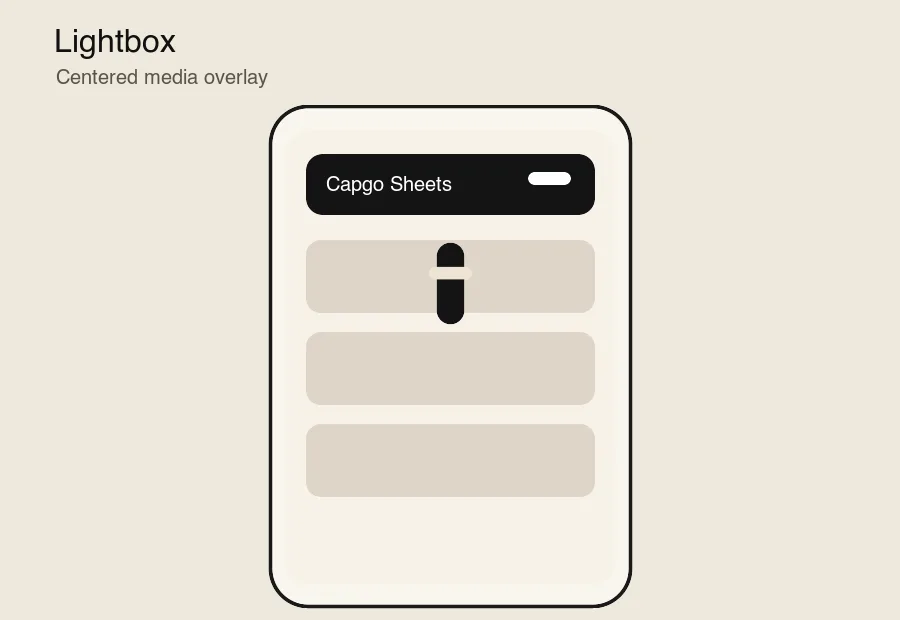

      <strong>Lightbox</strong>
    </td>
  </tr>
  <tr>
    <td>

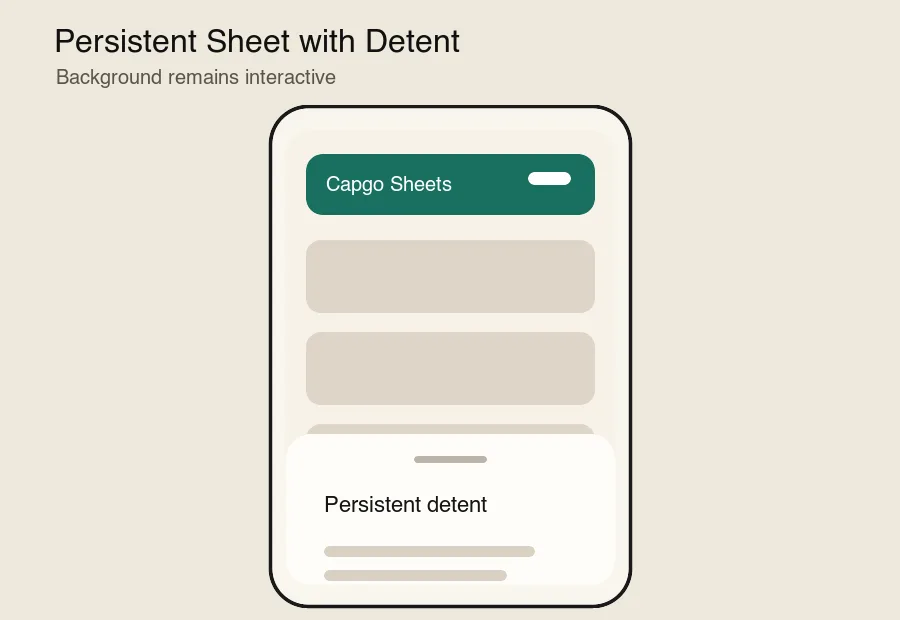

      <img src="./docs/demos/persistent-sheet-with-detent.webp" alt="Persistent Sheet with Detent demo" />
      <br />
      <strong>Persistent Sheet with Detent</strong>
    </td>
    <td>
      <img src="./docs/demos/card.webp" alt="Card demo" />
      <br />

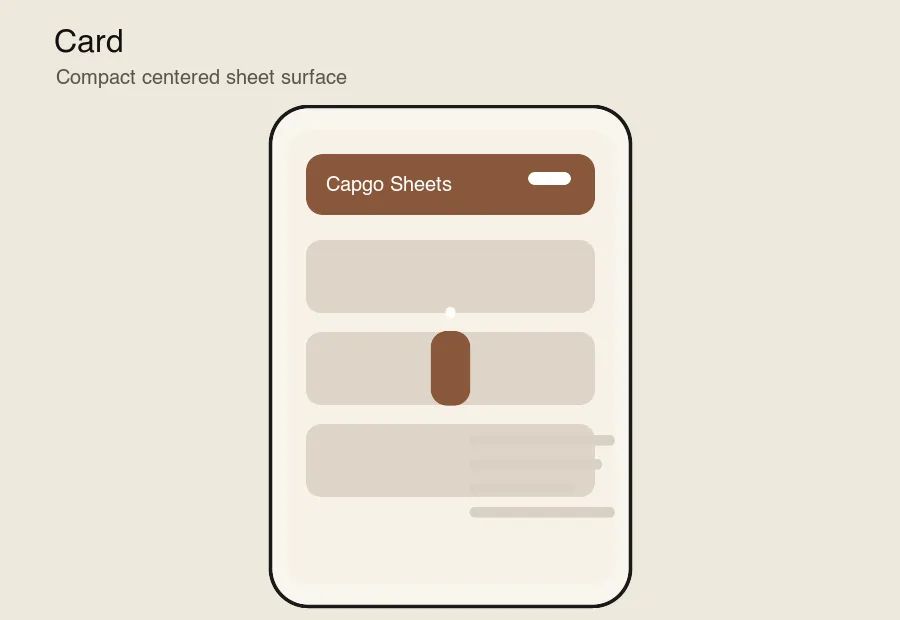

      <strong>Card</strong>
    </td>
  </tr>
</table>

## Online Playgrounds

Each framework example opens the same 16-usecase gallery, so StackBlitz is useful for testing the full surface instead of a single smoke-test sheet:

- [React playground](https://stackblitz.com/github/Cap-go/capacitor-sheets?file=examples/react-app/src/main.tsx&startScript=stackblitz-react)
- [Vue playground](https://stackblitz.com/github/Cap-go/capacitor-sheets?file=examples/vue-app/src/App.vue&startScript=stackblitz-vue)
- [Angular playground](https://stackblitz.com/github/Cap-go/capacitor-sheets?file=examples/angular-app/src/app/app.component.ts&startScript=stackblitz-angular)
- [Svelte playground](https://stackblitz.com/github/Cap-go/capacitor-sheets?file=examples/svelte-app/src/App.svelte&startScript=stackblitz-svelte)
- [Solid playground](https://stackblitz.com/github/Cap-go/capacitor-sheets?file=examples/solid-app/src/main.tsx&startScript=stackblitz-solid)

## Mobile Test App

The repo includes a Capacitor app that wraps the React gallery so the sheets can be tested on real iOS and Android devices. The app id is `app.capgo.capacitor.sheets`.
Capacitor 8 requires Node.js 22 or newer for local mobile commands.

```bash
npm run build:mobile
npx cap run ios
npx cap run android
```

Capgo OTA uploads use the same built gallery:

```bash
npx @capgo/cli@latest app add app.capgo.capacitor.sheets --name "Capgo Sheets"
npm run deploy:capgo:dev
npm run deploy:capgo
```

Create the Capgo app once before the first upload. GitHub Actions also include a Capgo deploy workflow. Tag builds deploy to `production`, alpha tags deploy to `dev`, and manual runs can choose either channel. Set `CAPGO_TOKEN` in repository secrets before running it.

## Features

- **Framework agnostic** custom elements: no React runtime dependency in the core package.
- **Bottom sheets, side drawers, top sheets, and centered dialogs** through `content-placement`.
- **Detents** with `em`, `rem`, `dvh`, `lvh`, `svh`, `calc()`, and other modern CSS lengths.
- **Touch, pointer, wheel, and trackpad gestures** with dismissal, overshoot, and trap controls.
- **Modal behavior**: focus trap, focus restore, Escape dismissal, outside-click dismissal, and inert outside content.
- **Capacitor safe-area defaults** using `env(safe-area-inset-*)` plus Capacitor SystemBars `--safe-area-inset-*` fallbacks.
- **Keyboard-aware layout** using `visualViewport` resize/scroll events and `preventScroll` focus behavior.
- **Overlay compatibility** through `cap-island` and `cap-external-overlay`.
- **Stacking and outlet animation hooks** for depth effects and coordinated page motion.
- **Scroll primitives** with progress/distance helpers.
- **Theme color dimming** for Capacitor WebViews and mobile browsers.
- **Modern CSS defaults** authored with `em`-based sizing, with no design-system lock-in.

## Usecase Coverage

| Usecase                      | Capgo Sheets pattern                                                                                      |
| ---------------------------- | --------------------------------------------------------------------------------------------------------- |
| Long Sheet                   | `cap-sheet` + `cap-scroll` or naturally scrolling `cap-sheet-content`                                     |
| Sheet with Detent            | `detents="18em 32em"` and `stepTo()` / `cap-sheet-trigger action="step"`                                  |
| Sidebar                      | `content-placement="left"` or `content-placement="right"`                                                 |
| Bottom Sheet                 | default `content-placement="bottom"`                                                                      |
| Sheet with Keyboard          | visual viewport offset support via `native-focus-scroll-prevention`                                       |
| Toast                        | `inert-outside="false"`, `close-on-outside-click="false"`, `focus-trap="false"`                           |
| Detached Sheet               | rounded content with margins and `cap-sheet-special-wrapper` composition                                  |
| Page from Bottom             | full-height bottom sheet content                                                                          |
| Top Sheet                    | `content-placement="top"`                                                                                 |
| Sheet with Stacking          | `cap-sheet-stack`, stack depth variables, and stacking animation hooks                                    |
| Sheet with Depth             | `cap-sheet-outlet` progress variables and `travelAnimation`                                               |
| Parallax Page                | `cap-sheet-outlet` + `cap-scroll` progress composition                                                    |
| Page                         | full-viewport sheet content or side-entering `content-placement`                                          |
| Lightbox                     | `content-placement="center"` plus backdrop and media content                                              |
| Persistent Sheet with Detent | `default-presented`, `swipe-dismissal="false"`, `inert-outside="false"`, `close-on-outside-click="false"` |
| Card                         | `content-placement="center"` with compact content                                                         |

## Installation

You can use our AI-Assisted Setup to install the plugin. Add the Capgo skills to your AI tool using the following command:

```bash
npx skills add https://github.com/cap-go/capacitor-skills --skill capacitor-plugins
```

Then use the following prompt:

```text
Use the `capacitor-plugins` skill from `cap-go/capacitor-skills` to install the `@capgo/capacitor-sheets` plugin in my project.
```

If you prefer Manual Setup, install the plugin by running the following commands and follow the platform-specific instructions below:

```bash
npm install @capgo/capacitor-sheets
npx cap sync
```

## Capacitor Setup

Add `viewport-fit=cover` so iOS exposes safe-area insets to CSS:

```html
<meta name="viewport" content="width=device-width, initial-scale=1.0, viewport-fit=cover" />
```

Safe areas are enabled by default. In `auto`, edge-attached sheets protect the attached edge and side edges while leaving the opposite edge available for fullscreen detents. `cap-sheet-view` reads standard `env(safe-area-inset-*)` values and Capacitor SystemBars fallback variables such as `--safe-area-inset-bottom`, then applies them to the sheet viewport in `em`-based layout. You can opt out or choose edges per sheet:

```text
<cap-sheet safe-area="none"></cap-sheet>
<cap-sheet safe-area="bottom left right"></cap-sheet>
```

Detached sheets can use Gorhom-style container spacing without CSS margins. Use `detached` for full edge rounding, `top-inset` / `bottom-inset` / `left-inset` / `right-inset` for one-off offsets, or `containerOffset` from framework setup helpers for per-edge offsets:

```html
<cap-sheet detached bottom-inset="1rem" detents="18em" content-placement="bottom"></cap-sheet>
```

```ts
setupSheet(sheet, {
  detached: true,
  bottomInset: '1rem',
  containerOffset: { left: '1rem', right: '1rem' },
});
```

For Capacitor apps with overlay status/system bars, keep the platform plugins responsible for exposing correct insets:

```ts
import type { CapacitorConfig } from '@capacitor/cli';

const config: CapacitorConfig = {
  plugins: {
    StatusBar: {
      overlaysWebView: true,
    },
    Keyboard: {
      resize: 'body',
      resizeOnFullScreen: true,
    },
    SystemBars: {
      insetsHandling: 'css',
    },
  },
};

export default config;
```

Keyboard handling is on by default through `native-focus-scroll-prevention`. It listens to `visualViewport` changes, keeps focused controls visible above the keyboard, and restores the sheet offset when the keyboard closes.

## Vanilla Usage

```html
<script type="module">
  import '@capgo/capacitor-sheets';
</script>

<cap-sheet-trigger for="booking-sheet" action="present">Open</cap-sheet-trigger>

<cap-sheet id="booking-sheet" detents="18em 32em" content-placement="bottom">
  <cap-sheet-portal>
    <cap-sheet-view>
      <cap-sheet-backdrop></cap-sheet-backdrop>
      <cap-sheet-content class="sheet">
        <cap-sheet-bleeding-background></cap-sheet-bleeding-background>
        <cap-sheet-handle></cap-sheet-handle>
        <cap-sheet-title>Evening route</cap-sheet-title>
        <cap-sheet-description>Choose a route and confirm pickup.</cap-sheet-description>
        <cap-sheet-trigger action="dismiss">Done</cap-sheet-trigger>
      </cap-sheet-content>
    </cap-sheet-view>
  </cap-sheet-portal>
</cap-sheet>
```

```css
.sheet {
  width: min(100%, 34em);
  padding: 0 1.25em 1.25em;
}
```

## Five Framework Examples

Full runnable examples live in:

- `examples/react-app`
- `examples/vue-app`
- `examples/angular-app`
- `examples/svelte-app`
- `examples/solid-app`

All five apps mount the shared usecase gallery from `examples/shared/usecase-gallery.ts`. That gallery covers Long Sheet, Sheet with Detent, Sidebar, Bottom Sheet, Sheet with Keyboard, Toast, Detached Sheet, Page from Bottom, Top Sheet, Sheet with Stacking, Sheet with Depth, Parallax Page, Page, Lightbox, Persistent Sheet with Detent, and Card.

### React

```tsx
import { setupSheet } from '@capgo/capacitor-sheets/react';
import { useEffect, useRef } from 'react';
import '@capgo/capacitor-sheets';
import { mountUsecaseGallery } from '../../shared/usecase-gallery';

export function App() {
  const galleryRef = useRef<HTMLDivElement>(null);

  useEffect(() => {
    if (!galleryRef.current) return;
    return mountUsecaseGallery(galleryRef.current, {
      framework: 'React',
      setupSheet,
    });
  }, []);

  return <div ref={galleryRef} />;
}
```

### Vue

```vue
<script setup lang="ts">
import { onMounted, onUnmounted, ref } from 'vue';
import { setupSheet } from '@capgo/capacitor-sheets/vue';
import '@capgo/capacitor-sheets';
import { mountUsecaseGallery } from '../../shared/usecase-gallery';

const galleryRef = ref<HTMLElement | null>(null);
let cleanup: (() => void) | undefined;

onMounted(() => {
  if (galleryRef.value) {
    cleanup = mountUsecaseGallery(galleryRef.value, {
      framework: 'Vue',
      setupSheet,
    });
  }
});

onUnmounted(() => cleanup?.());
</script>

<template>
  <div ref="galleryRef"></div>
</template>
```

### Angular

```ts
import type { AfterViewInit, ElementRef, OnDestroy } from '@angular/core';
import { Component, CUSTOM_ELEMENTS_SCHEMA, ViewChild } from '@angular/core';
import { setupSheet } from '@capgo/capacitor-sheets/angular';
import '@capgo/capacitor-sheets';
import { mountUsecaseGallery } from '../../../shared/usecase-gallery';

@Component({
  selector: 'app-root',
  standalone: true,
  schemas: [CUSTOM_ELEMENTS_SCHEMA],
  template: `<div #gallery></div>`,
})
export class AppComponent implements AfterViewInit, OnDestroy {
  @ViewChild('gallery', { static: true }) gallery?: ElementRef<HTMLElement>;
  private cleanup?: () => void;

  ngAfterViewInit(): void {
    if (this.gallery?.nativeElement) {
      this.cleanup = mountUsecaseGallery(this.gallery.nativeElement, {
        framework: 'Angular',
        setupSheet,
      });
    }
  }

  ngOnDestroy(): void {
    this.cleanup?.();
  }
}
```

### Svelte

```svelte
<script lang="ts">
  import { onMount } from 'svelte'
  import { setupSheet } from '@capgo/capacitor-sheets/svelte'
  import '@capgo/capacitor-sheets'
  import { mountUsecaseGallery } from '../../shared/usecase-gallery'

  let gallery: HTMLDivElement

  onMount(() =>
    mountUsecaseGallery(gallery, {
      framework: 'Svelte',
      setupSheet,
    }),
  )
</script>

<div bind:this={gallery}></div>
```

### Solid

```tsx
import { onCleanup, onMount } from 'solid-js';
import { setupSheet } from '@capgo/capacitor-sheets/solid';
import '@capgo/capacitor-sheets';
import { mountUsecaseGallery } from '../../shared/usecase-gallery';

export function App() {
  let galleryEl!: HTMLDivElement;

  onMount(() => {
    const cleanup = mountUsecaseGallery(galleryEl, {
      framework: 'Solid',
      setupSheet,
    });
    onCleanup(cleanup);
  });

  return <div ref={galleryEl} />;
}
```

## API Surface

Core elements:

- `cap-sheet`: state, detents, placement, gestures, modal behavior, lifecycle events.
- `cap-sheet-trigger`: declarative present, dismiss, toggle, and step actions.
- `cap-sheet-portal`: optional body portal for overlay layering.
- `cap-sheet-view`: viewport overlay host.
- `cap-sheet-backdrop`: progress-synced modal backdrop.
- `cap-sheet-content`: accessible sheet surface.
- `cap-sheet-bleeding-background`: background extension for rounded edge sheets.
- `cap-sheet-handle`: draggable and keyboard-accessible detent handle.
- `cap-sheet-title` and `cap-sheet-description`: accessible naming.
- `cap-sheet-special-wrapper` and `cap-sheet-special-wrapper-content`: composition hooks for detached sheets, cards, lightboxes, and custom page layouts.
- `cap-sheet-stack`: groups sheets for stacked depth.
- `cap-sheet-outlet`: receives sheet progress variables and optional `travelAnimation`.
- `cap-scroll` and `cap-scroll-content`: scroll progress helpers.
- `cap-fixed`, `cap-island`, `cap-external-overlay`, `cap-visually-hidden`, `cap-auto-focus-target`: composition and accessibility helpers.

Important events:

- `cap-sheet-presented-change`
- `cap-sheet-active-detent-change`
- `cap-sheet-travel`
- `cap-sheet-travel-status-change`
- `cap-sheet-travel-range-change`
- `cap-sheet-drag-start`
- `cap-sheet-drag-end`
- `cap-scroll`

Imperative methods on `cap-sheet`:

```ts
const sheet = document.querySelector('cap-sheet')!;
await sheet.present();
await sheet.dismiss();
await sheet.toggle();
await sheet.stepTo(2);
await sheet.step('down');
```

The public TypeScript API is documented with TSDoc in `src/core/types.ts`, and generated declarations are emitted during `npm run build`.

## Development

```bash
npm install
npm run render:demos
npm run build
npm run dev:examples -- react vue svelte angular solid
```

In the Capgo monorepo, use `bun` and `bunx` for local commands.
