Model Outline

In flash model, we have \[ Y_{n\times p} = L_{n \times k}F_{p\times k}^{T} + E_{n\times p} \] We could find some patterns of the data Y based on the factors in F. But the patterns depend on the loadings L. We run flash on L again \[ L_{n\times k} = O_{n\times r} A_{k\times r}^{T} + R_{n\times k} \]

From the factors A, we can check the dependence of factors in F.

I simulate Y with 5 conditions (p = 5). Some have equal effect in all conditions; some have equal effect in consition 3, 4 and 5, but stronger effect in condition 1 and 2 (all effects are in the same direction); some have effect only in the last condition.

• Summary from the simulation:

  From the simulation, we see factors with loadings both positive or both negative, and also see cases where one loading is positive and the other is negative.

• Question:

  We interprete the factor as a pattern in the data Y. For example, in GTEx data, we say a factor with approximately equal weight for every tissue reflects that many eQTLs have similar effects accross all tissues. I doubt whether our interpretation is correct. The pattern in Y depends on L. If some rows of L have 2 large entries, then those samples depend on 2 factors. The pattern in Y is actually a linear combination of the 2 factors. Therefore, we perform factor analysis on L again. Using the new factors A, we check if there is a linear combination of factors F.

  My question is that the actual pattern in Y is still depending on the new loading O. The rows of loading O could also have several large entries, which suggests that the pattern in Y depends on a combination of factors. I don’t have an example for this case yet. So I think we cannot say the factors summarize the patterns in the data.

  The problem is that the pattern in the data depends on loadings, and we don’t have any summary about the loadings.

Simulation

flashdata = function(n, FF, LL, Lsd, err_sd){
  k = ncol(FF)
  p = nrow(FF)
  LLL = matrix(0,0,k)
  for(i in 1:nrow(LL)){
    temp = matrix(rnorm(n * k, sd = Lsd), n, k)
    direction = c(sign(temp[,1]))
    temp2 = direction * abs(temp)
    LLL = rbind(LLL, t(t(temp2) * LL[i,] ))
  }
  Ytrue = LLL %*% t(FF)
  Y = Ytrue + matrix(rnorm(n*nrow(LL)*p, sd = err_sd), n*nrow(LL), p)
  return(list(Y = Y, Ytrue = Ytrue))
}

set.seed(1)
FF = cbind(c(1,1,1,1,1), c(1,1,0,0,0), c(0,0,0,0,1))
LL = rbind(c(1,0,0), c(0,0,1), c(0.3,0.7,0))
data = flashdata(500, FF, LL, 4,0.5)

f1 = flash(data$Y, greedy = TRUE, backfit = TRUE)

fitting factor/loading 1

fitting factor/loading 2

fitting factor/loading 3

fitting factor/loading 4

ff1 = flash_get_ldf(f1)$f; Loadings1 = flash_get_ldf(f1)$l * flash_get_ldf(f1)$d

par(mfrow=c(1,3))
for(i in 1:ncol(ff1)){

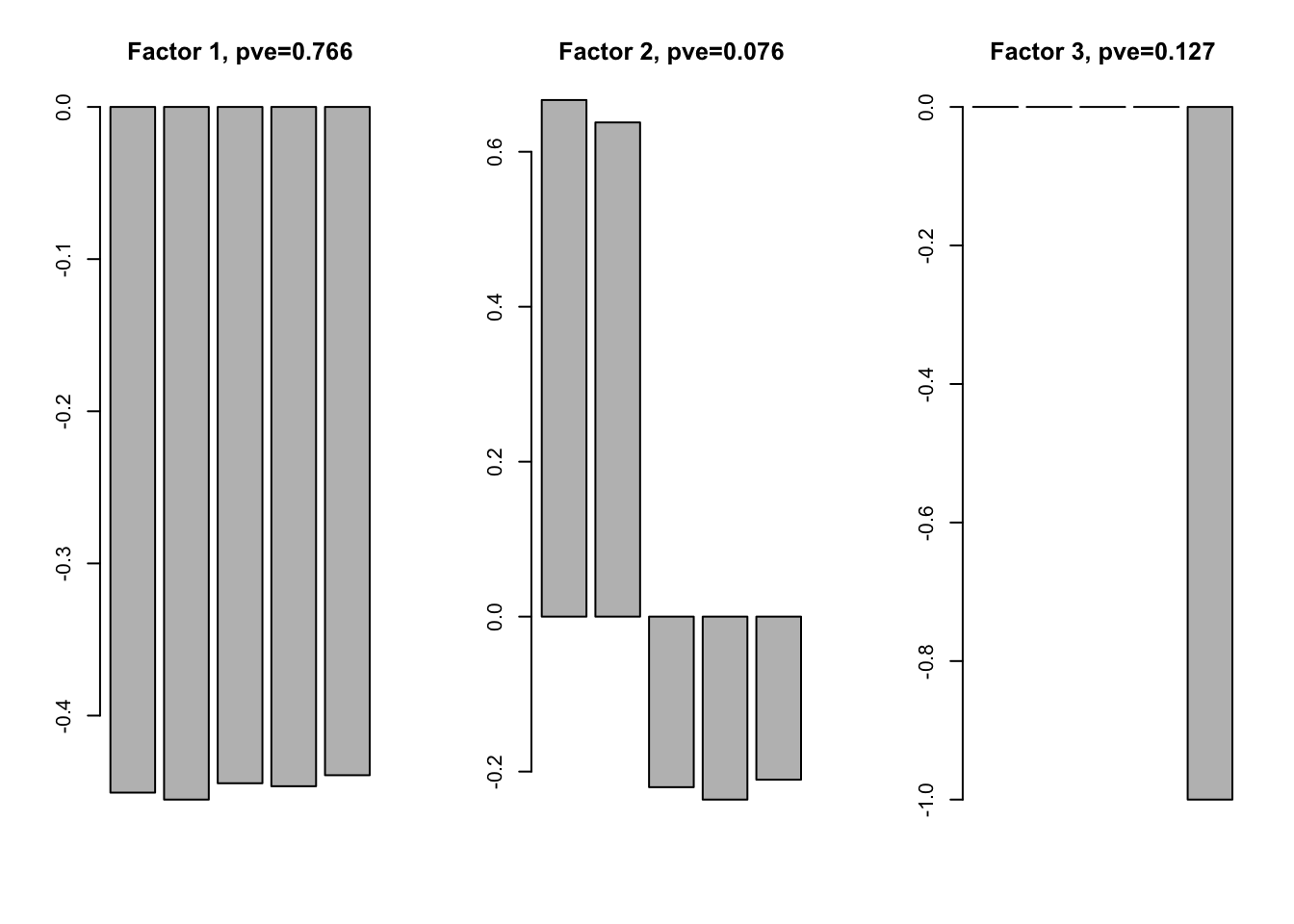

  barplot(ff1[,i], main = paste0('Factor ', i, ', pve=', round(flash_get_pve(f1)[i],3)))
}

melted_Loading = melt(Loadings1)
melted_Loading_zoom = melt(Loadings1[1001:1500,])

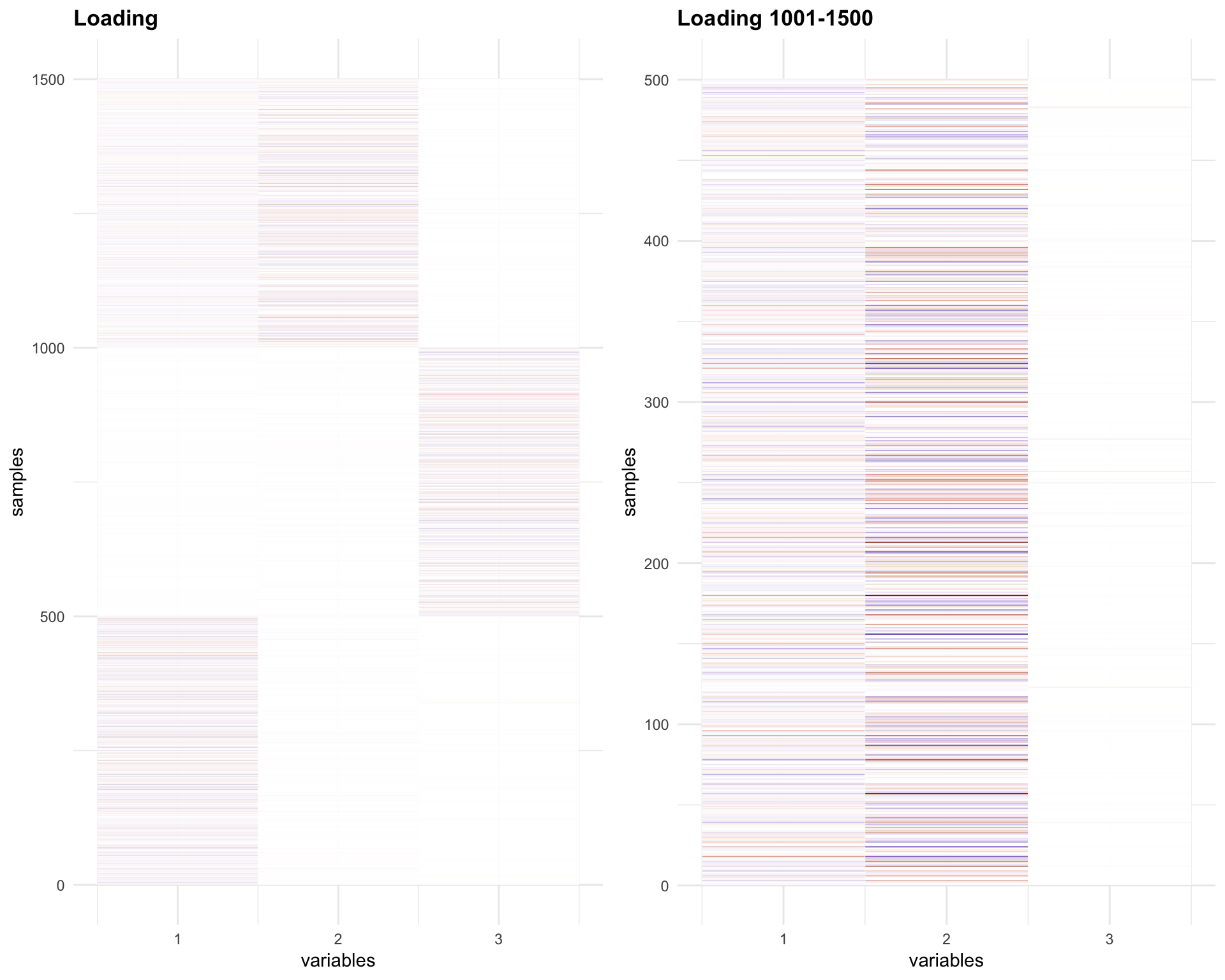

p1 = plot_HP('Loading', melted_Loading)
p2 = plot_HP('Loading 1001-1500', melted_Loading_zoom)
gridExtra::grid.arrange(p1,p2, ncol = 2)

f1.l = flash(Loadings1, greedy = TRUE, backfit = TRUE)

fitting factor/loading 1

fitting factor/loading 2

fitting factor/loading 3

fitting factor/loading 4

f1l.f = flash_get_ldf(f1.l)$f
row.names(f1l.f) = paste0('Factor ', 1:3)
par(mfrow=c(1,3))
for(i in 1:ncol(f1l.f)){

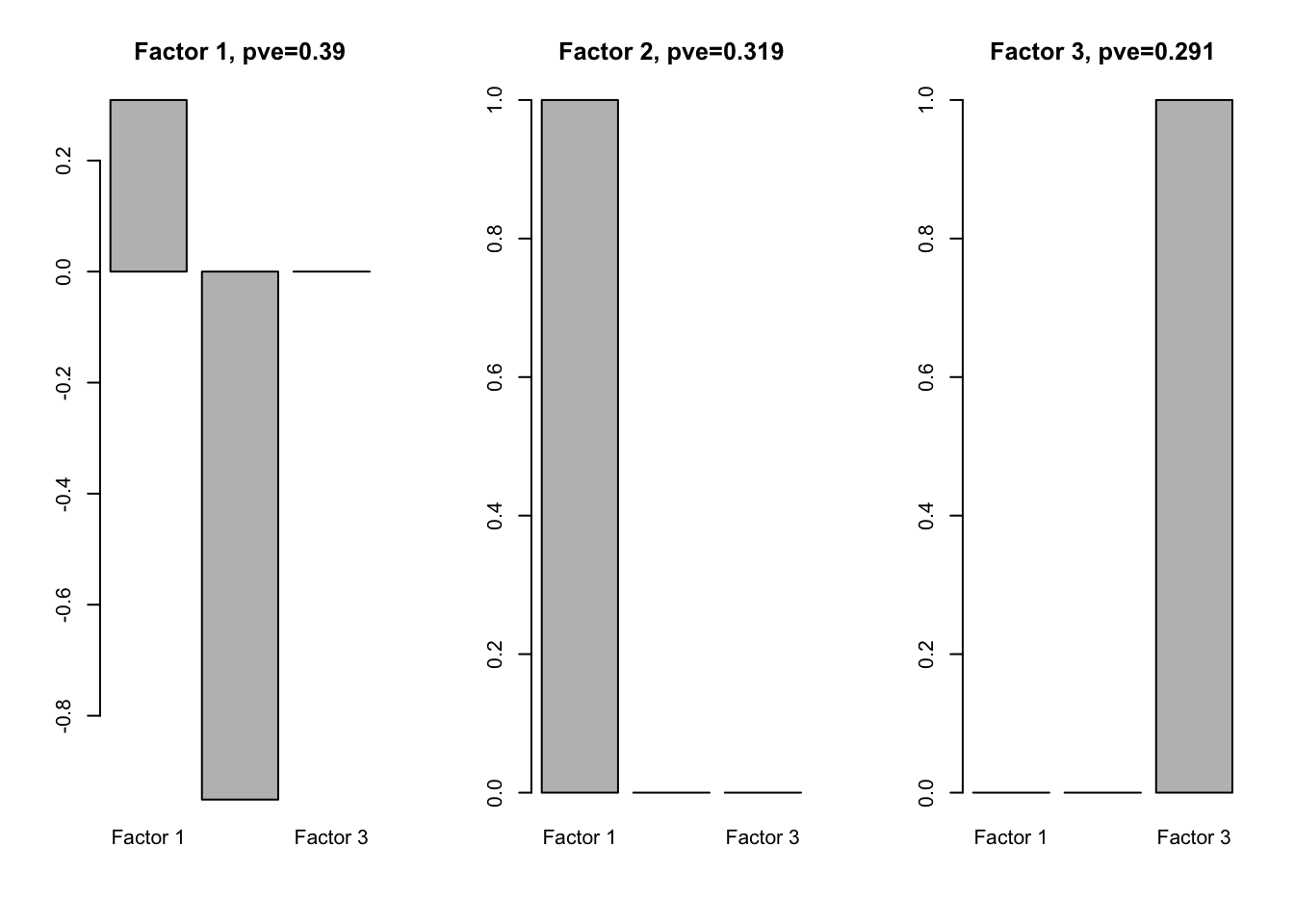

  barplot(f1l.f[,i], main = paste0('Factor ', i, ', pve=', round(flash_get_pve(f1.l)[i],3)))
}

melted_LLoading = melt(flash_get_ldf(f1.l)$l * flash_get_ldf(f1.l)$d)

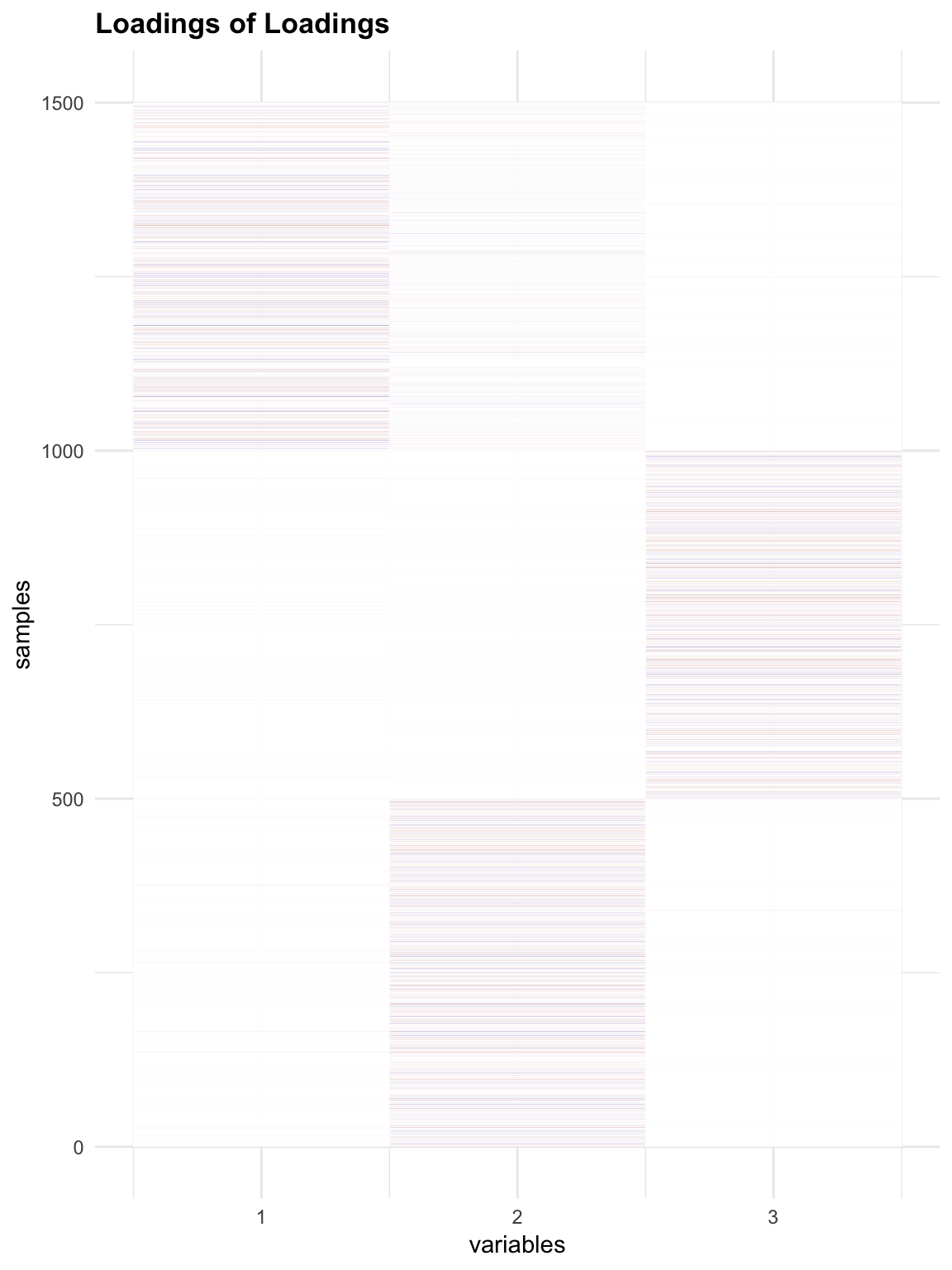

p3 = plot_HP('Loadings of Loadings', melted_LLoading)
p3

f2 = flash_add_fixed_f(data$Y, FF=cbind(c(1,1,1,1,1), c(1,1,0,0,0), c(0,0,0,0,1)))
f2 = flash_backfit(data$Y, f2)
Loading.fix = flash_get_ldf(f2)$l * flash_get_ldf(f2)$d

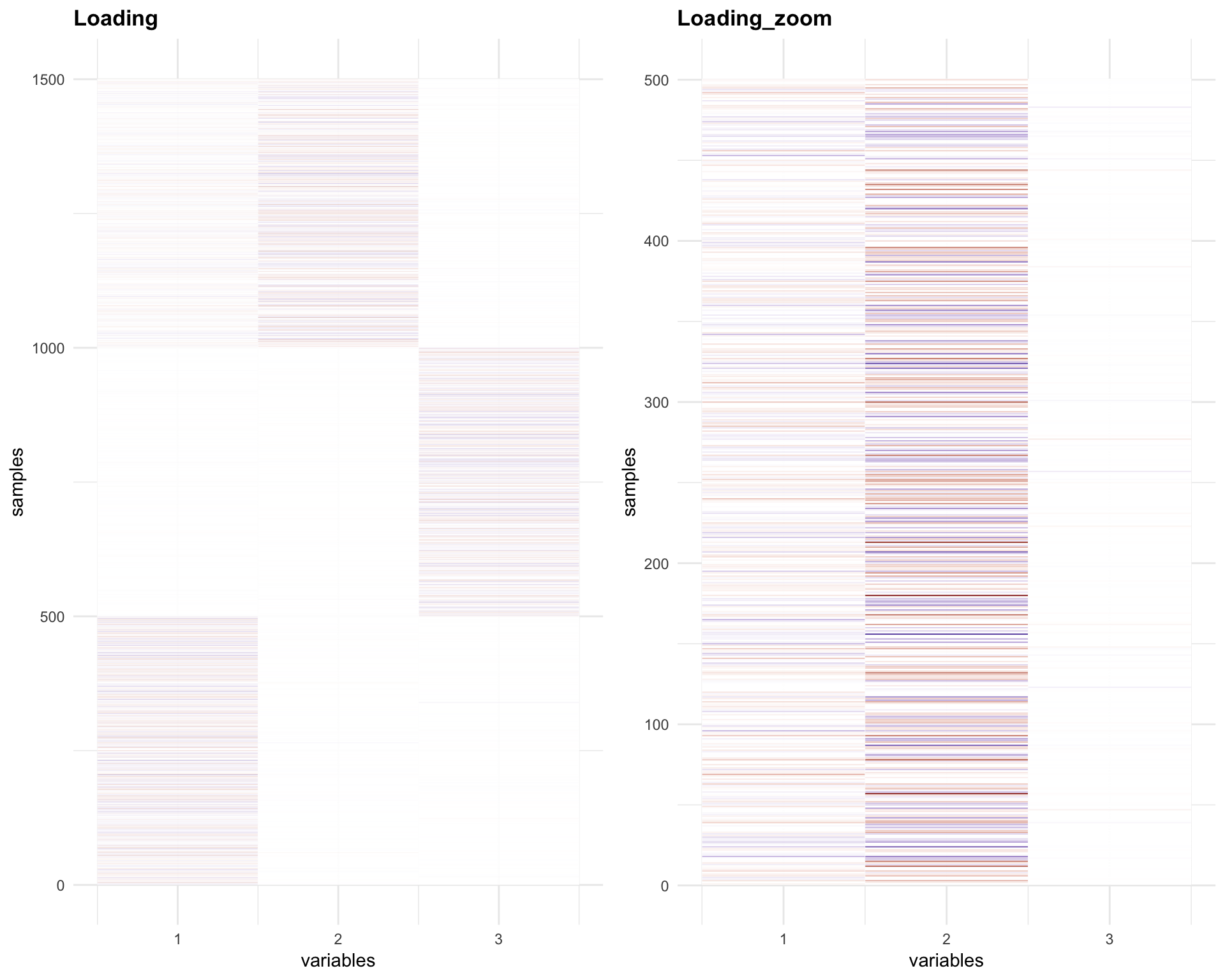

# Check loadings
melted_LoadingFix = melt(Loading.fix)
melted_LoadingFix_zoom = melt(Loading.fix[1001:1500,])
p4 = plot_HP('Loading', melted_LoadingFix)
p5 = plot_HP('Loading_zoom', melted_LoadingFix_zoom)
gridExtra::grid.arrange(p4,p5, ncol = 2)

f2.l = flash(Loading.fix, greedy = TRUE, backfit = TRUE)

fitting factor/loading 1

fitting factor/loading 2

fitting factor/loading 3

fitting factor/loading 4

f2l.f = flash_get_ldf(f2.l)$f
row.names(f2l.f) = paste0('Factor ', 1:3)
par(mfrow=c(1,3))
for(i in 1:ncol(f2l.f)){

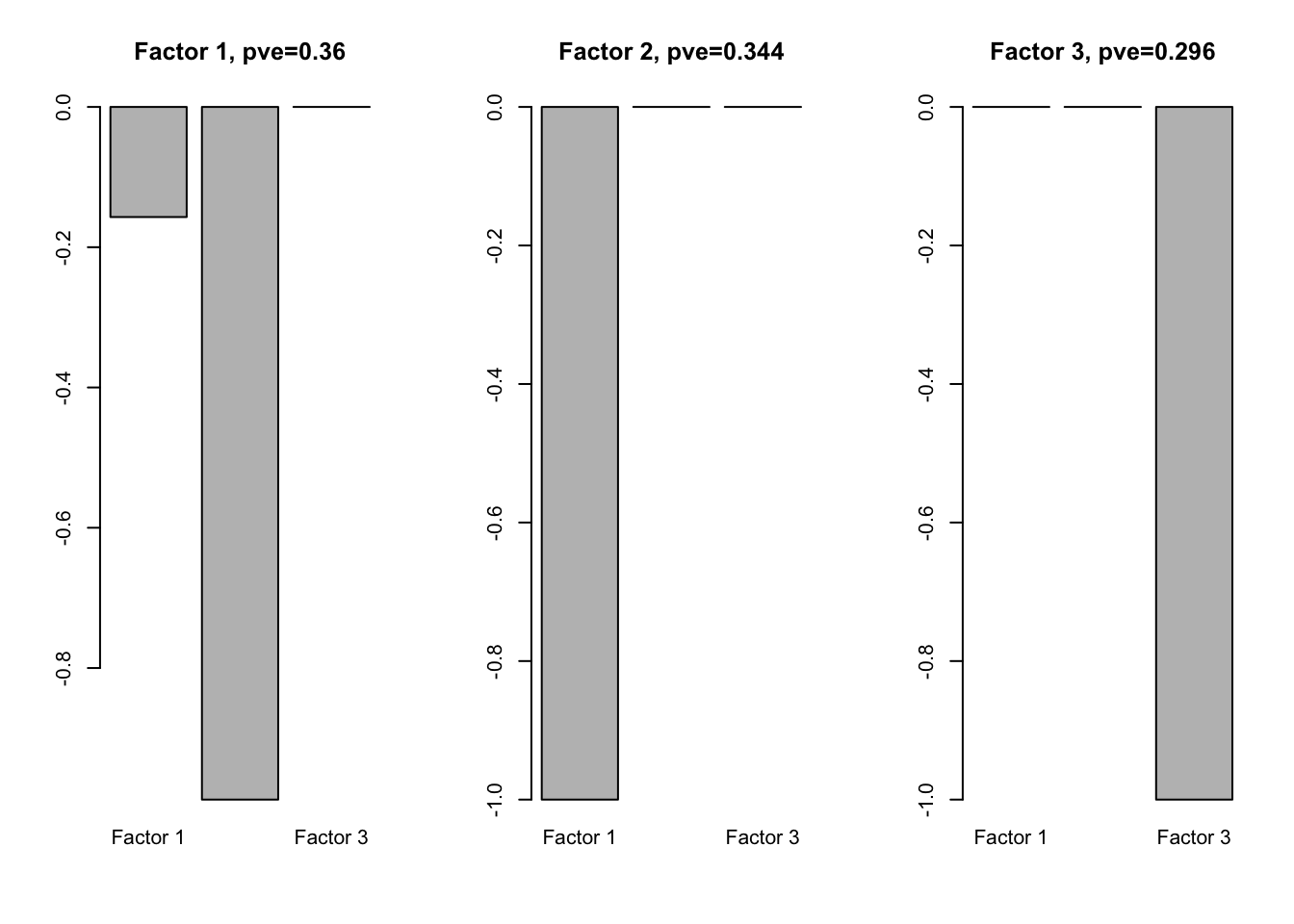

  barplot(f2l.f[,i], main = paste0('Factor ', i, ', pve=', round(flash_get_pve(f2.l)[i],3)))
}

melted_LLoading.fix = melt(flash_get_ldf(f2.l)$l * flash_get_ldf(f2.l)$d)

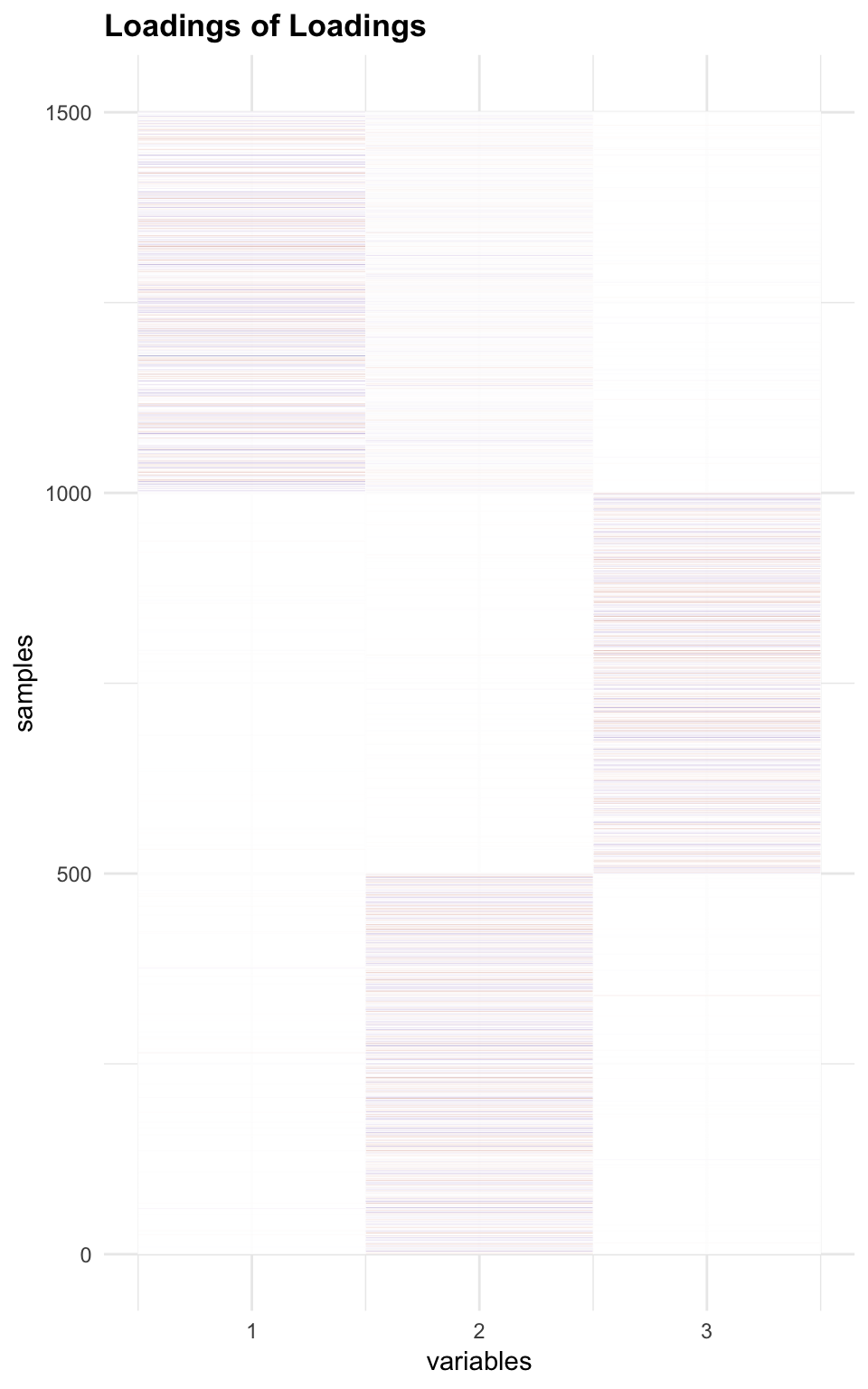

p6 = plot_HP('Loadings of Loadings', melted_LLoading.fix)
p6
