<h1 class="title toc-ignore">Mash Missing Whole Row</h1>
<h4 class="author"><em>Yuxin Zou</em></h4>
<h4 class="date"><em>2018-2-28</em></h4>
</div>
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-03-06</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> 193208d</p>
<div id="r5" class="section level1">
<h1>R=5</h1>
<pre class="r"><code>library(mashr)</code></pre>
<pre><code>Loading required package: ashr</code></pre>
<pre class="r"><code>set.seed(2018)
data = simple_sims(500, err_sd = 0.1)
data.miss = data
# select missing rows
missing.row = sample(1:nrow(data$Bhat), nrow(data$Bhat)/4)
missing.ind = matrix(0, nrow = nrow(data$B), ncol=ncol(data$B))
missing.ind[missing.row,] = 1
# set missing rows to NA
missing = which(missing.ind == 1)
data.miss$Bhat[missing] = NA
data.miss$Shat[missing] = NA
missing1 = is.na(data.miss$Bhat[,1])
# set the missing value with large standard deviation
data.large.dev = data.miss
data.large.dev$Bhat[is.na(data.miss$Bhat)] = 0
data.large.dev$Shat[is.na(data.miss$Shat)] = 1000</code></pre>
<div id="ee-model" class="section level2">
<h2>EE model</h2>
<pre class="r"><code># with missing values
mash.data.missing = mash_set_data(Bhat=data.large.dev$Bhat, Shat=data.large.dev$Shat)
U.c = cov_canonical(mash.data.missing)
mash.model.missing = mash(mash.data.missing, U.c, verbose = FALSE)
# delete missing values
data.miss.na = data.miss
data.miss.na$Bhat = na.omit(data.miss$Bhat)
data.miss.na$Shat = na.omit(data.miss$Shat)
mash.data.missing.na = mash_set_data(Bhat=data.miss.na$Bhat, Shat= data.miss.na$Shat)
U.c = cov_canonical(mash.data.missing.na)
mash.model.missing.na = mash(mash.data.missing.na, U.c, verbose=FALSE)</code></pre>
<pre><code>Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
consider reducing rtol</code></pre>
<pre><code>Warning in mixIP(matrix_lik = structure(c(1, 0.204132576568413,
0.736530341806702, : Optimization step yields mixture weights that are
either too small, or negative; weights have been corrected and renormalized
after the optimization.</code></pre>

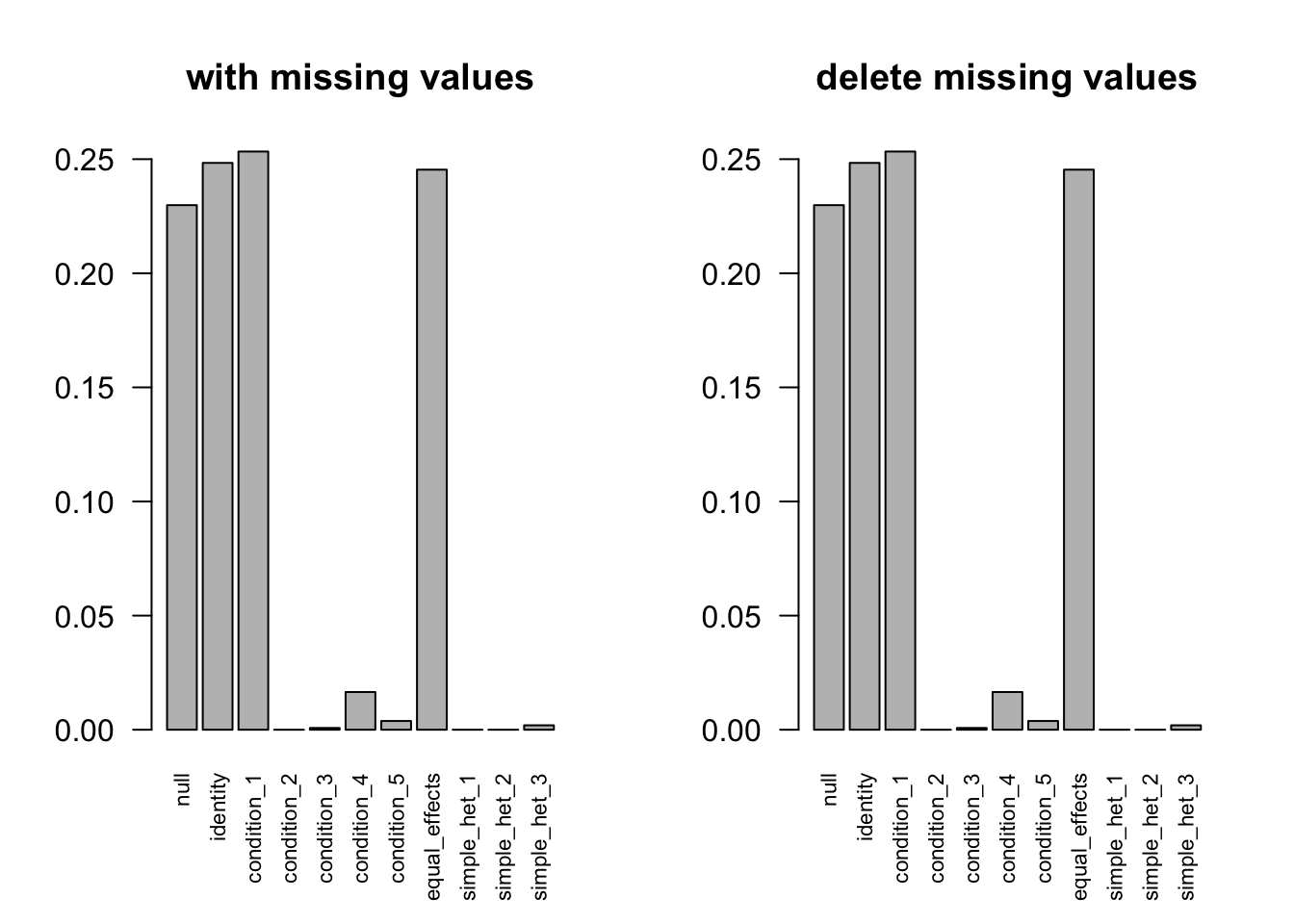

<pre class="r"><code>par(mfrow=c(1,2))
barplot(get_estimated_pi(mash.model.missing), las=2, cex.names = 0.7, main='with missing values')
barplot(get_estimated_pi(mash.model.missing.na), las=2, cex.names = 0.7, main = 'delete missing values')</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>par(mfrow=c(1,1))</code></pre>
</div>
<div id="ez-model" class="section level2">
<h2>EZ model</h2>
<pre class="r"><code># with missing values
mash.data.missing.1 = mash_set_data(Bhat=data.large.dev$Bhat, Shat=data.large.dev$Shat, alpha = 1)
U.c = cov_canonical(mash.data.missing.1)
mash.model.missing.1 = mash(mash.data.missing.1, U.c, verbose = FALSE)</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>
<pre class="r"><code># delete missing values
mash.data.missing.na.1 = mash_set_data(Bhat=data.miss.na$Bhat, Shat= data.miss.na$Shat, alpha = 1)
U.c = cov_canonical(mash.data.missing.na.1)
mash.model.missing.na.1 = mash(mash.data.missing.na.1, U.c, verbose=FALSE)</code></pre>
<pre><code>Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
consider reducing rtol</code></pre>
<pre><code>Warning in mixIP(matrix_lik = structure(c(1, 0.204132576568412,
0.736530341806701, : Optimization step yields mixture weights that are
either too small, or negative; weights have been corrected and renormalized
after the optimization.</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>

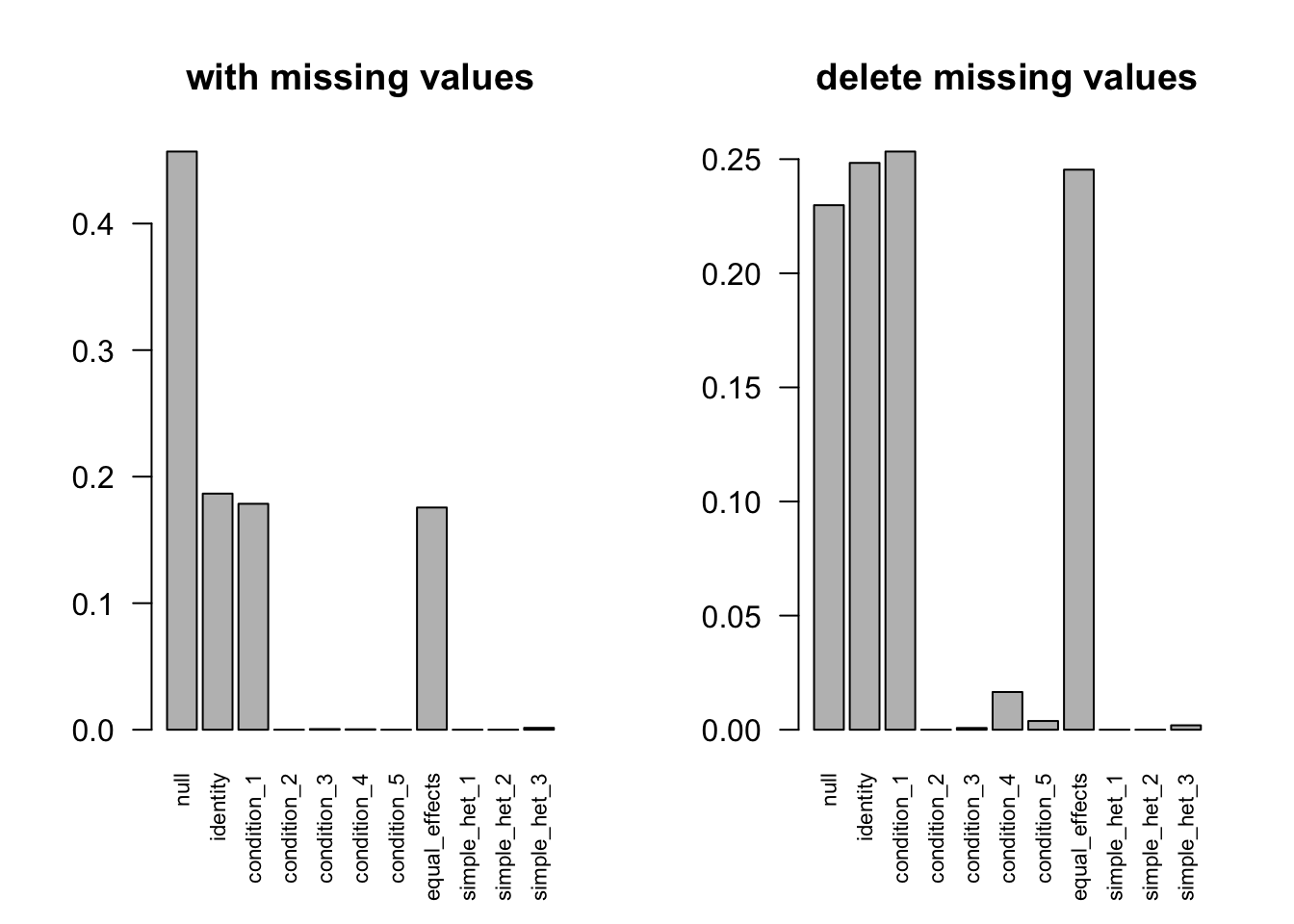

<pre class="r"><code>par(mfrow=c(1,2))
barplot(get_estimated_pi(mash.model.missing.1), las=2, cex.names = 0.7, main='with missing values')
barplot(get_estimated_pi(mash.model.missing.na.1), las=2, cex.names = 0.7, main='delete missing values')</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>par(mfrow=c(1,1))</code></pre>
</div>
</div>
<div id="r60" class="section level1">
<h1>R=60</h1>
<pre class="r"><code>set.seed(2018)
data = simple_sims(500, ncond = 60, err_sd = 0.1)
data.miss = data
missing.row = sample(1:nrow(data$Bhat), nrow(data$Bhat)/4)
missing.ind = matrix(0, nrow = nrow(data$B), ncol=ncol(data$B))
missing.ind[missing.row,] = 1
missing = which(missing.ind == 1)
data.miss$Bhat[missing] = NA
data.miss$Shat[missing] = NA
missing1 = is.na(data.miss$Bhat[,1])
# Set the missing value with large standard deviation
data.large.dev = data.miss
data.large.dev$Bhat[is.na(data.miss$Bhat)] = 0
data.large.dev$Shat[is.na(data.miss$Shat)] = 1000</code></pre>
<div id="ee-model-1" class="section level2">
<h2>EE model</h2>
<div id="with-missing-values" class="section level3">
<h3>With missing values</h3>
<pre class="r"><code>mash.data.missing = mash_set_data(Bhat=data.large.dev$Bhat, Shat=data.large.dev$Shat)
U.c = cov_canonical(mash.data.missing)
mash.model.missing = mash(mash.data.missing, U.c, verbose = FALSE)

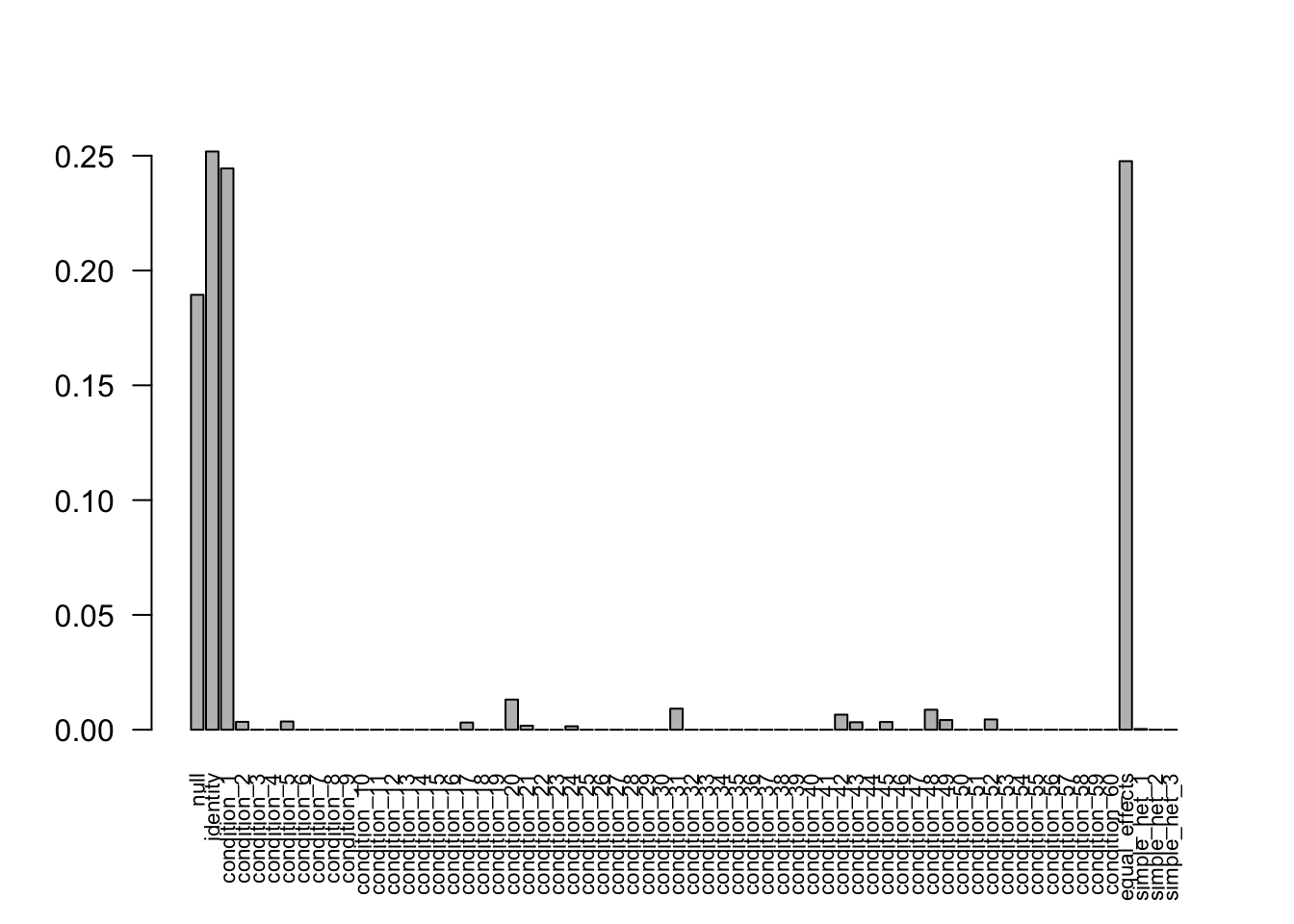

barplot(get_estimated_pi(mash.model.missing), las=2, cex.names = 0.7)</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-8-1.png" width="672" style="display: block; margin: auto;" /> The weights learned from the data are correct.</p>
</div>
<div id="delete-missing-values" class="section level3">
<h3>Delete missing values</h3>
<pre class="r"><code>data.miss.na = data.miss
data.miss.na$Bhat = na.omit(data.miss$Bhat)
data.miss.na$Shat = na.omit(data.miss$Shat)
mash.data.missing.na = mash_set_data(Bhat=data.miss.na$Bhat, Shat= data.miss.na$Shat)
U.c = cov_canonical(mash.data.missing.na)
mash.model.missing.na = mash(mash.data.missing.na, U.c, verbose=FALSE)</code></pre>
<pre><code>Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
consider reducing rtol</code></pre>
<pre><code>Warning in mixIP(matrix_lik = structure(c(0.240920767436896,
0.337563330121546, : Optimization step yields mixture weights that are
either too small, or negative; weights have been corrected and renormalized
after the optimization.</code></pre>

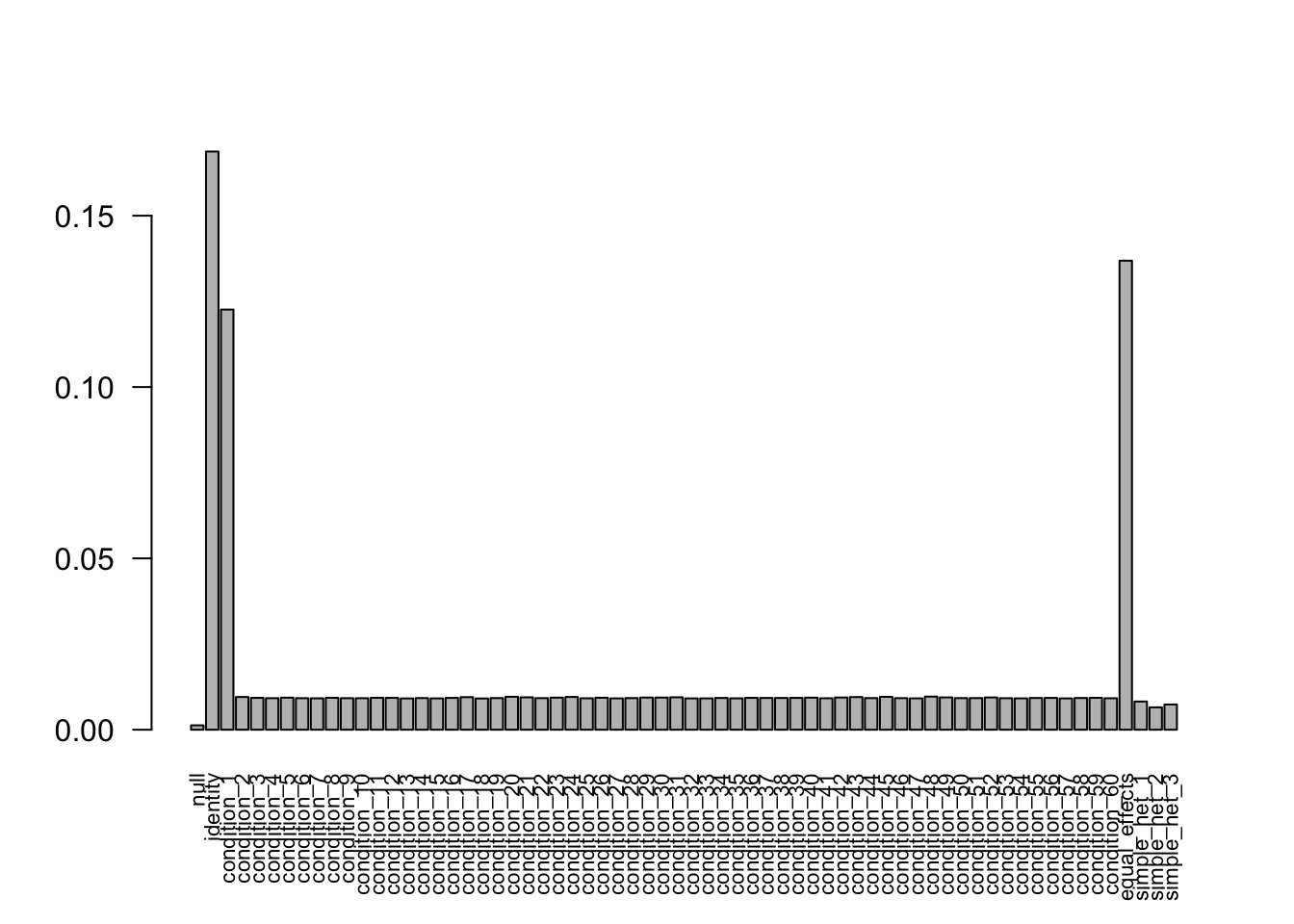

<pre class="r"><code>barplot(get_estimated_pi(mash.model.missing.na), las=2, cex.names = 0.7)</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-9-1.png" width="672" style="display: block; margin: auto;" /> The estimated weights are very weird and incorrect. It ignores the null matrix.</p>
</div>
</div>
<div id="ez-model-1" class="section level2">
<h2>EZ model</h2>
<div id="with-missing-values-1" class="section level3">
<h3>With missing values</h3>
<pre class="r"><code>mash.data.missing.1 = mash_set_data(Bhat=data.large.dev$Bhat, Shat=data.large.dev$Shat, alpha = 1)
U.c = cov_canonical(mash.data.missing.1)
mash.model.missing.1 = mash(mash.data.missing.1, U.c, verbose = FALSE)</code></pre>
<pre><code>Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
consider reducing rtol</code></pre>
<pre><code>Warning in mixIP(matrix_lik = structure(c(0.240920767436896,
0.33756333012155, : Optimization step yields mixture weights that are
either too small, or negative; weights have been corrected and renormalized
after the optimization.</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>

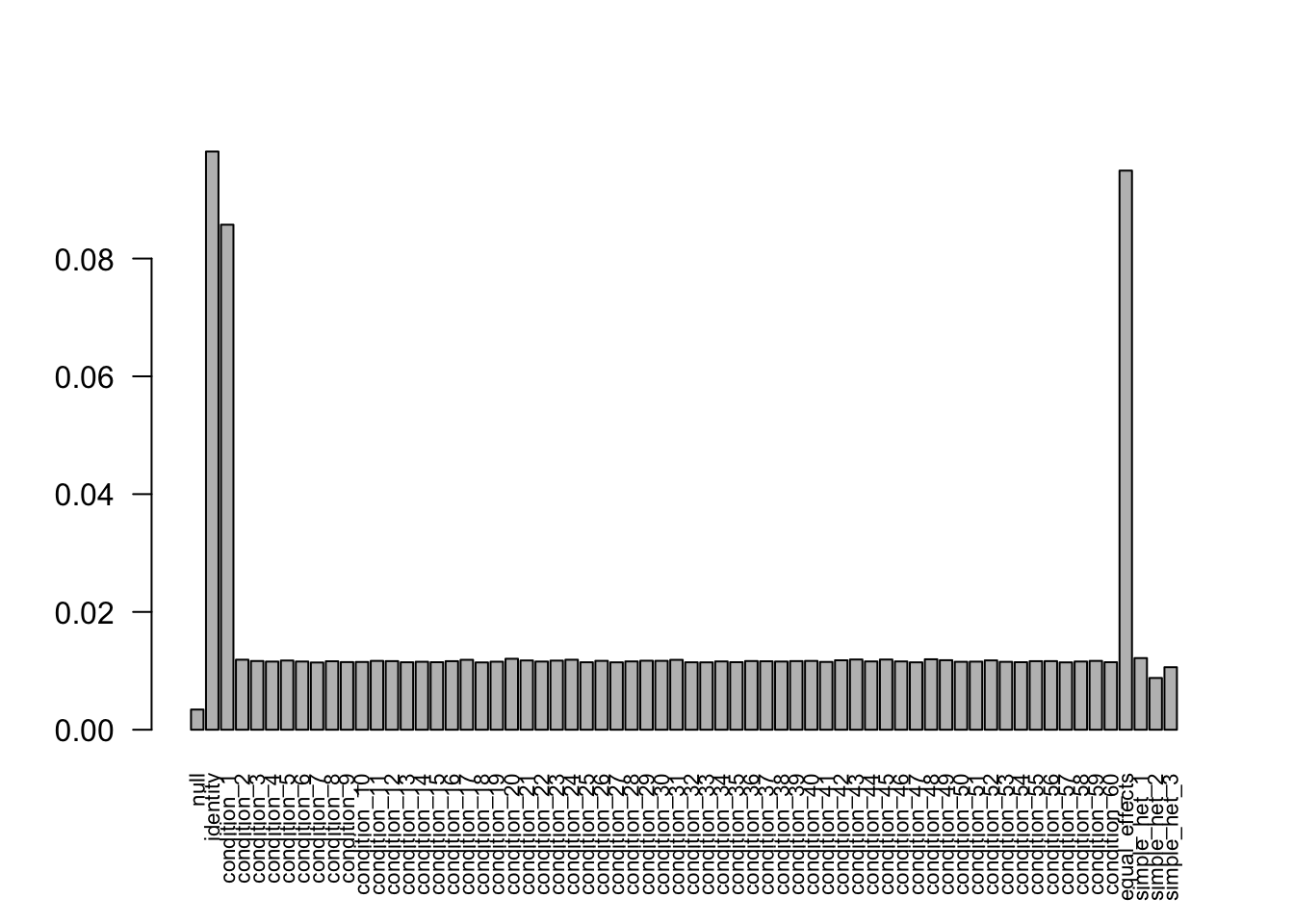

<pre class="r"><code>barplot(get_estimated_pi(mash.model.missing.1), las=2, cex.names = 0.7)</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-10-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="delete-missing-values-1" class="section level3">
<h3>Delete missing values</h3>
<pre class="r"><code>mash.data.missing.na.1 = mash_set_data(Bhat=data.miss.na$Bhat, Shat= data.miss.na$Shat, alpha = 1)
U.c = cov_canonical(mash.data.missing.na.1)
mash.model.missing.na.1 = mash(mash.data.missing.na.1, U.c, verbose=FALSE)</code></pre>
<pre><code>Warning in REBayes::KWDual(A, rep(1, k), normalize(w), control = control): estimated mixing distribution has some negative values:
consider reducing rtol</code></pre>
<pre><code>Warning in mixIP(matrix_lik = structure(c(0.240920767436896,
0.33756333012155, : Optimization step yields mixture weights that are
either too small, or negative; weights have been corrected and renormalized
after the optimization.</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>
<pre class="r"><code>barplot(get_estimated_pi(mash.model.missing.na.1), las=2, cex.names = 0.7)</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-11-1.png" width="672" style="display: block; margin: auto;" /> The estimated weights are different.</p>
</div>
</div>
</div>
<div id="subgroups" class="section level1">
<h1>Subgroups</h1>
<p>The weired covariance structure is caused by the high dimension of R.</p>
<p>If we separate conditions into several groups, the covariance structure will be correct.</p>
<p>We show this for the EZ model R=60.</p>
<pre class="r"><code>mash.data.missing.1.sub1 = mash_set_data(Bhat=data.large.dev$Bhat[,1:20], Shat=data.large.dev$Shat[,1:20], alpha = 1)
U.c = cov_canonical(mash.data.missing.1.sub1)
mash.model.missing.1.sub1 = mash(mash.data.missing.1.sub1, U.c, verbose = FALSE)</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>
<pre class="r"><code>mash.data.missing.1.sub2 = mash_set_data(Bhat=data.large.dev$Bhat[,21:40], Shat=data.large.dev$Shat[,21:40], alpha = 1)
U.c = cov_canonical(mash.data.missing.1.sub2)
mash.model.missing.1.sub2 = mash(mash.data.missing.1.sub2, U.c, verbose = FALSE)</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>
<pre class="r"><code>mash.data.missing.1.sub3 = mash_set_data(Bhat=data.large.dev$Bhat[,41:60], Shat=data.large.dev$Shat[,41:60], alpha = 1)
U.c = cov_canonical(mash.data.missing.1.sub3)
mash.model.missing.1.sub3 = mash(mash.data.missing.1.sub3, U.c, verbose = FALSE)</code></pre>
<pre><code>FIXME: 'compute_posterior_matrices' in Rcpp does not transfer EZ to EE</code></pre>

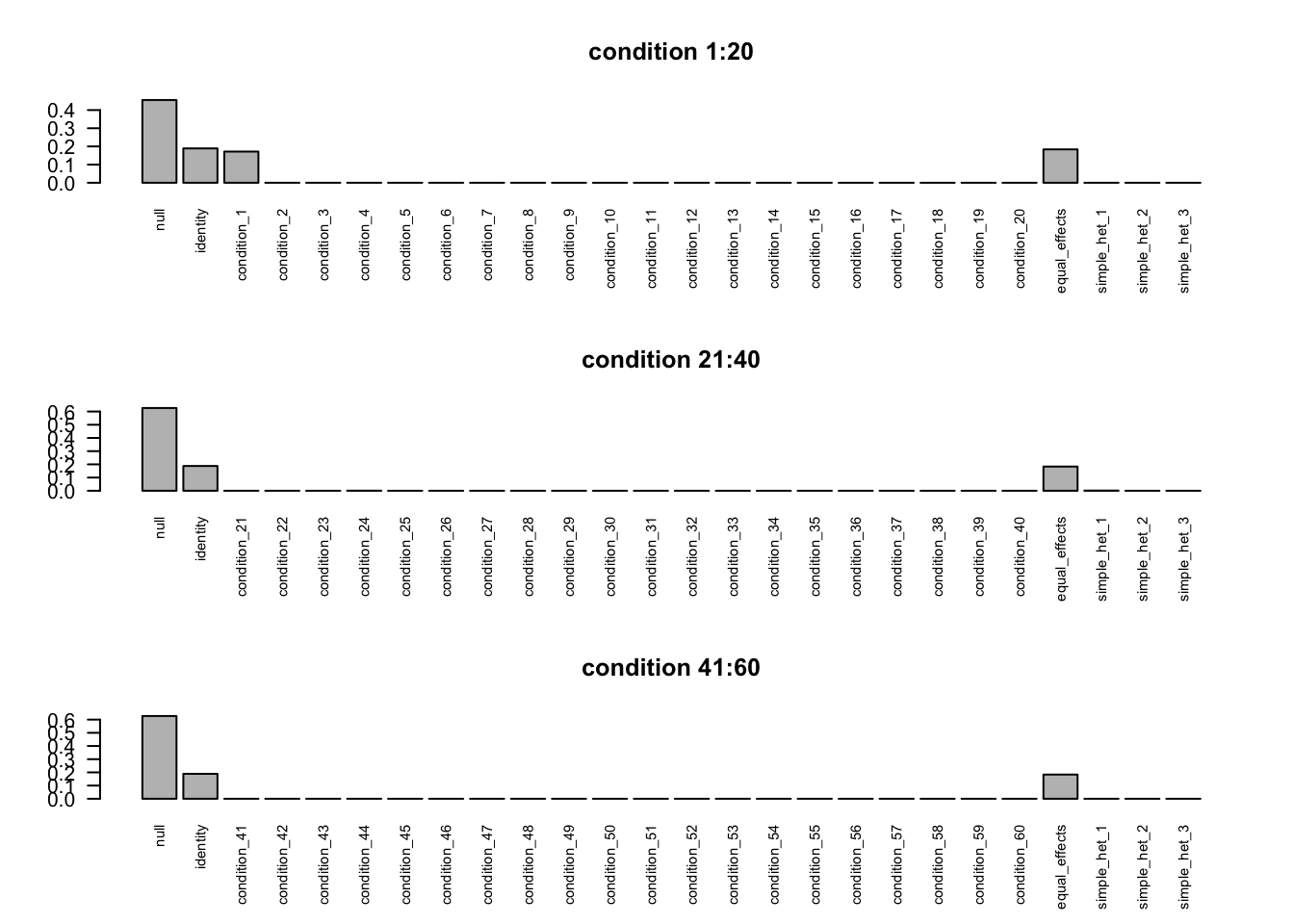

<pre class="r"><code>par(mfcol=c(3,1))
barplot(get_estimated_pi(mash.model.missing.1.sub1), las=2, cex.names = 0.7, main='condition 1:20')
barplot(get_estimated_pi(mash.model.missing.1.sub2), las=2, cex.names = 0.7, main='condition 21:40')
barplot(get_estimated_pi(mash.model.missing.1.sub3), las=2, cex.names = 0.7,
main='condition 41:60')</code></pre>
<p><img src="figure/mash_missing_whole_row.Rmd/unnamed-chunk-12-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>par(mfcol=c(1,1))</code></pre>
</div>
<div id="session-information" class="section level1">
<h1>Session information</h1>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.3
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] mashr_0.2-6 ashr_2.2-7
loaded via a namespace (and not attached):
[1] Rcpp_0.12.15 knitr_1.20 magrittr_1.5
[4] REBayes_1.2 MASS_7.3-47 doParallel_1.0.11
[7] pscl_1.5.2 SQUAREM_2017.10-1 lattice_0.20-35
[10] foreach_1.4.4 plyr_1.8.4 stringr_1.3.0
[13] tools_3.4.3 parallel_3.4.3 grid_3.4.3
[16] rmeta_2.16 git2r_0.20.0 htmltools_0.3.6
[19] iterators_1.0.9 assertthat_0.2.0 yaml_2.1.17
[22] rprojroot_1.2 digest_0.6.13 Matrix_1.2-12
[25] codetools_0.2-15 evaluate_0.10.1 rmarkdown_1.8
[28] stringi_1.1.6 compiler_3.4.3 Rmosek_8.0.69
[31] backports_1.1.2 mvtnorm_1.0-7 truncnorm_1.0-8 </code></pre>
</div>
<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html. This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
MathJax.Hub.Config({
"HTML-CSS": { availableFonts: ["TeX"] }
});
</script>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
