Discard a different column

In MeanSignal, the data was generated with signals in the first c conditions (\(c_{j,1}, \cdots, c_{j,c}\)). The contrast matrix L used there discards the last condition. The deviations are \(\hat{c}_{j,1} - \bar{\hat{c}_{j}}, \hat{c}_{j,2} - \bar{\hat{c}_{j}}, \cdots, \hat{c}_{j,R-1} - \bar{\hat{c}_{j}}\).

However, the contrast matrix L can discard any deviation from \(\hat{c}_{j,1} - \bar{\hat{c}_{j}}, \cdots, \hat{c}_{j,R} - \bar{\hat{c}_{j}}\). Let’s see whether the choice of the discarded deviation could influence the reuslt.

We run the same model with L that discard the first deviation.

Mash contrast

set.seed(1)
R = 10
C = 2
data = sim.mean.sig(nsamp=10000, ncond=C)

L.1 = matrix(-1/R, R, R)
L.1[cbind(1:R,1:R)] = (R-1)/R
L.1 = L.1[2:R,]
row.names(L.1) = seq(2,R)
mash_data.1 = mash_set_data(Bhat=data$Chat, Shat=data$Shat)
mash_data_L.1 = mash_set_data_contrast(mash_data.1, L.1)

U.c = cov_canonical(mash_data_L.1)

# data driven
# select max
m.1by1 = mash_1by1(mash_data_L.1, alpha=1)
strong = get_significant_results(m.1by1,0.05)
# center Z
mash_data_L.center.1 = mash_data_L.1
mash_data_L.center.1$Bhat = mash_data_L.1$Bhat/mash_data_L.1$Shat # obtain z
mash_data_L.center.1$Shat = matrix(1, nrow(mash_data_L.1$Bhat),ncol(mash_data_L.1$Bhat))
mash_data_L.center.1$Bhat = apply(mash_data_L.center.1$Bhat, 2, function(x) x - mean(x))
U.pca = cov_pca(mash_data_L.center.1,2,strong)
U.ed = cov_ed(mash_data_L.center.1, U.pca, strong)

mashcontrast.model.1 = mash(mash_data_L.1, c(U.c, U.ed), algorithm.version = 'R', verbose = FALSE)

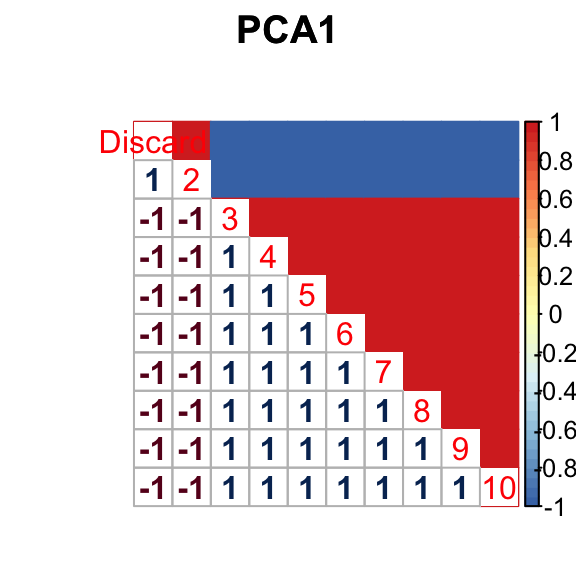

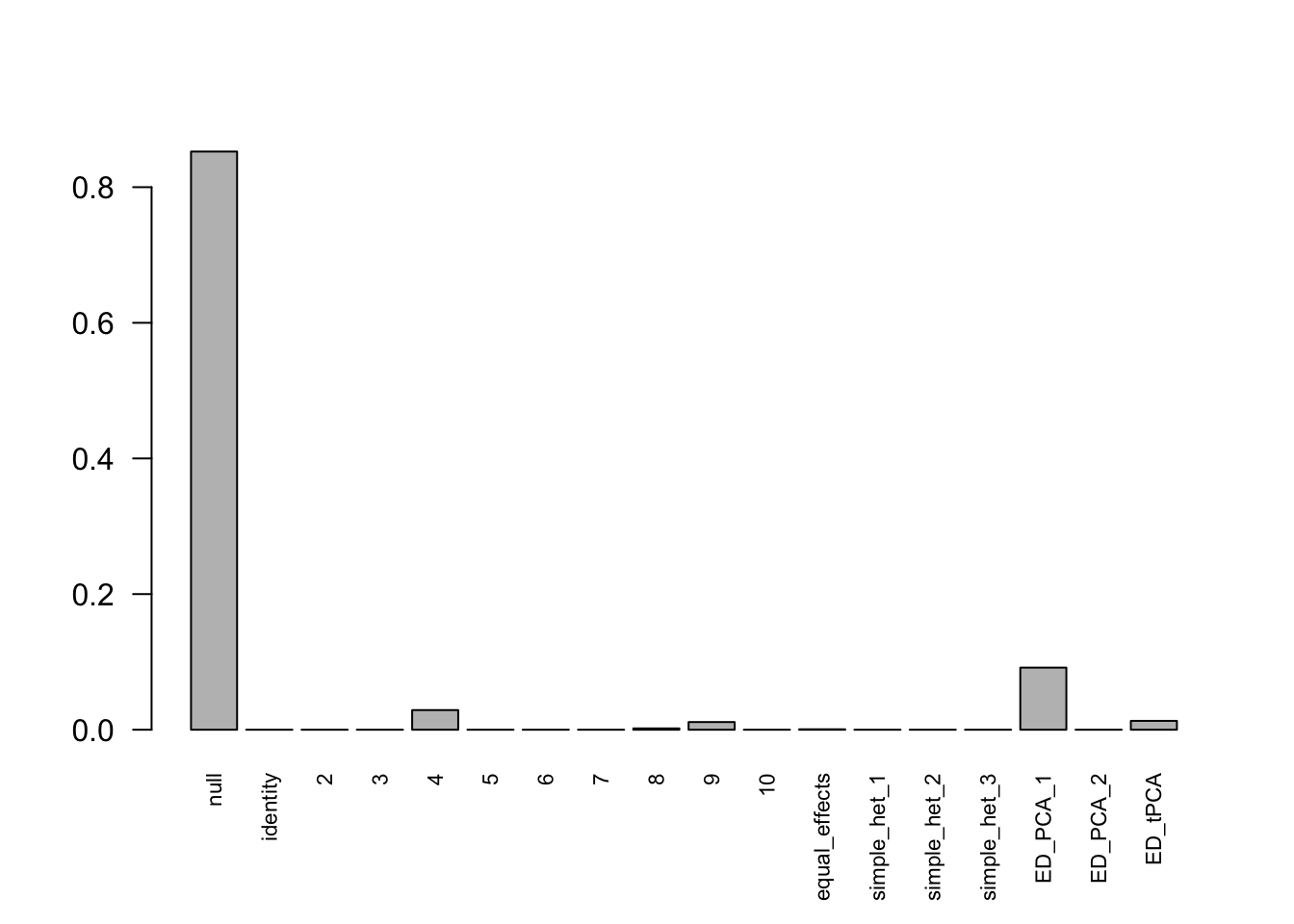

Using mashcommonbaseline model, there are 283 discoveries. The covariance structure found here is: The correlation PCA 1 is:

mashcontrast.model.full.1 = mashcontrast.model.1
mashcontrast.model.full.1$result = mash_compute_posterior_matrices(g = mashcontrast.model.1, data = mash_data_L.1, algorithm.version = 'R', recover=TRUE)

Subtract mean directly

Indep.data.1 = mash_set_data(Bhat = mash_data_L.1$Bhat,
                           Shat = matrix(sqrt(0.5-1/(R*2)), nrow(data$Chat), R-1))

Indep.model.1 = mash(Indep.data.1, c(U.c, U.ed), algorithm.version = 'R', verbose = FALSE)

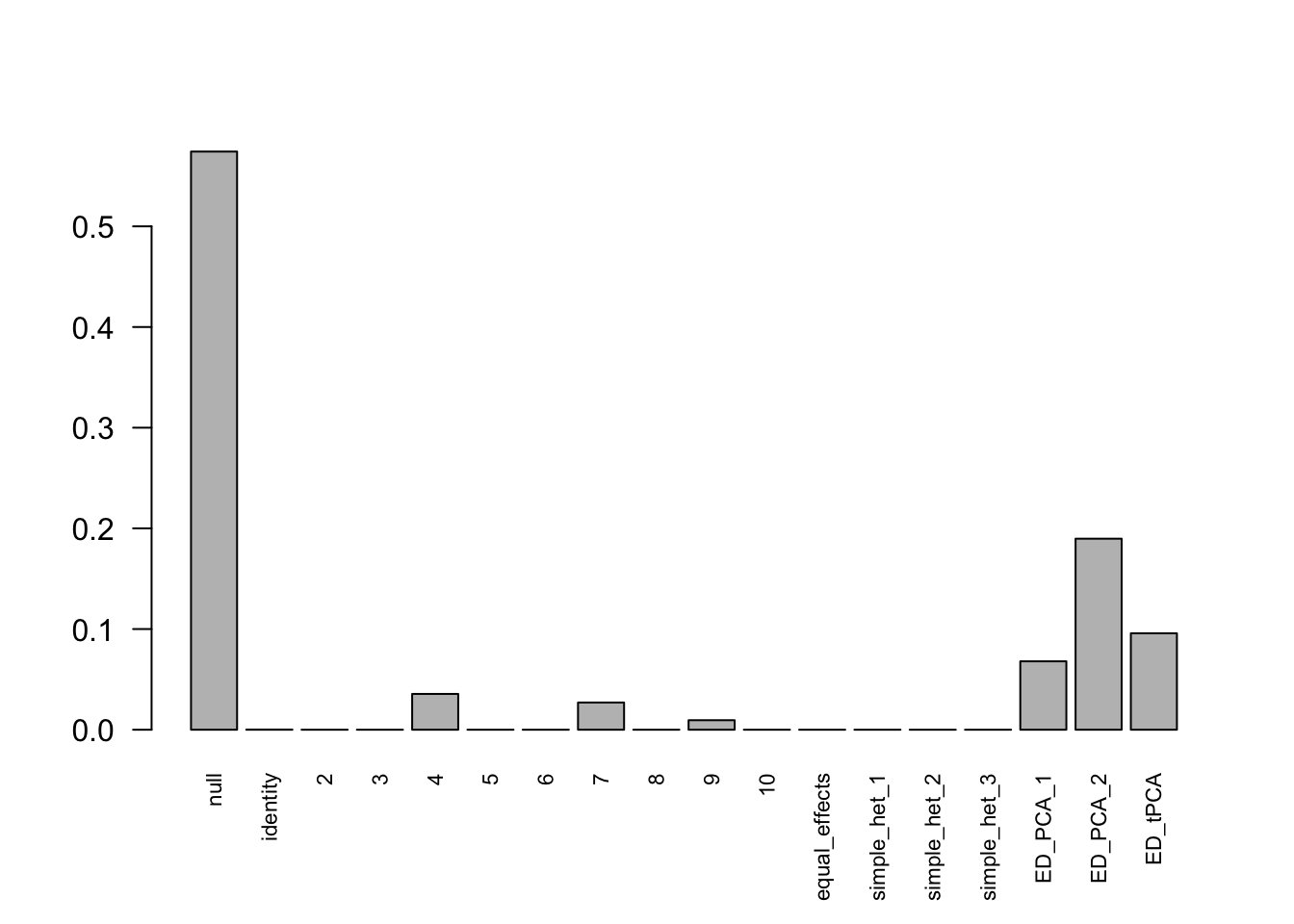

For mashIndep model, there are 217 discoveries, which is less than the mashcommonbaseline model. The covariance structure found here is:

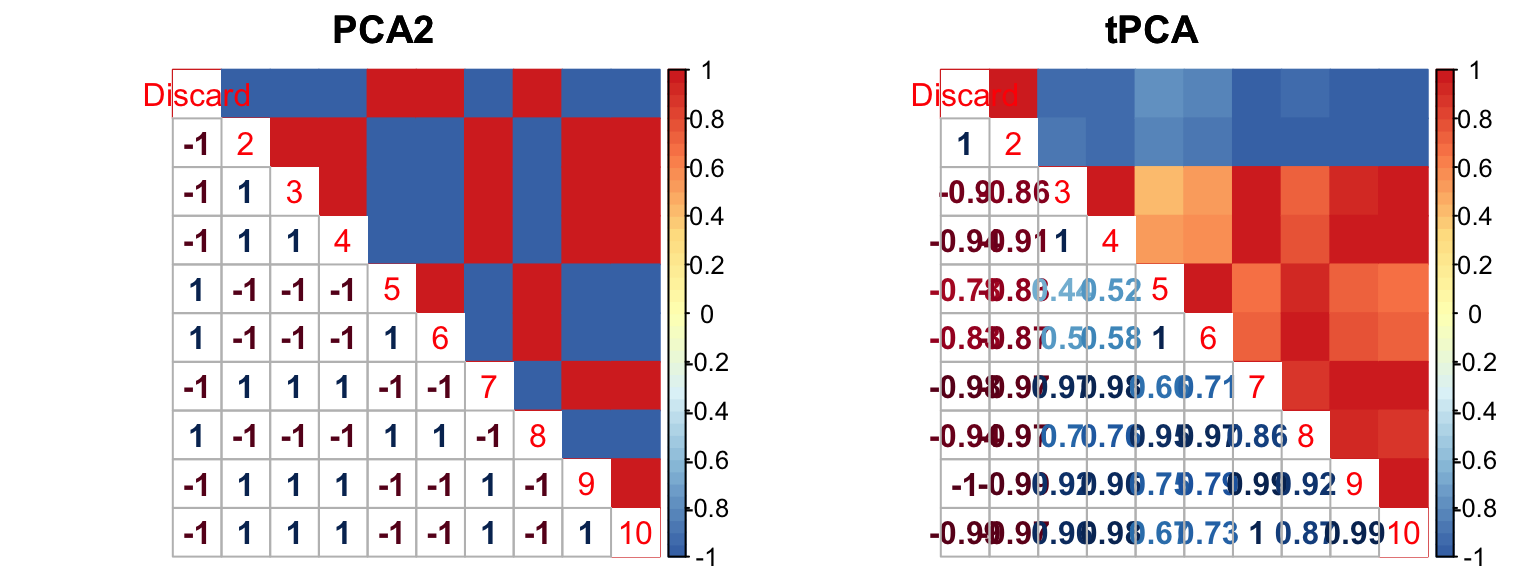

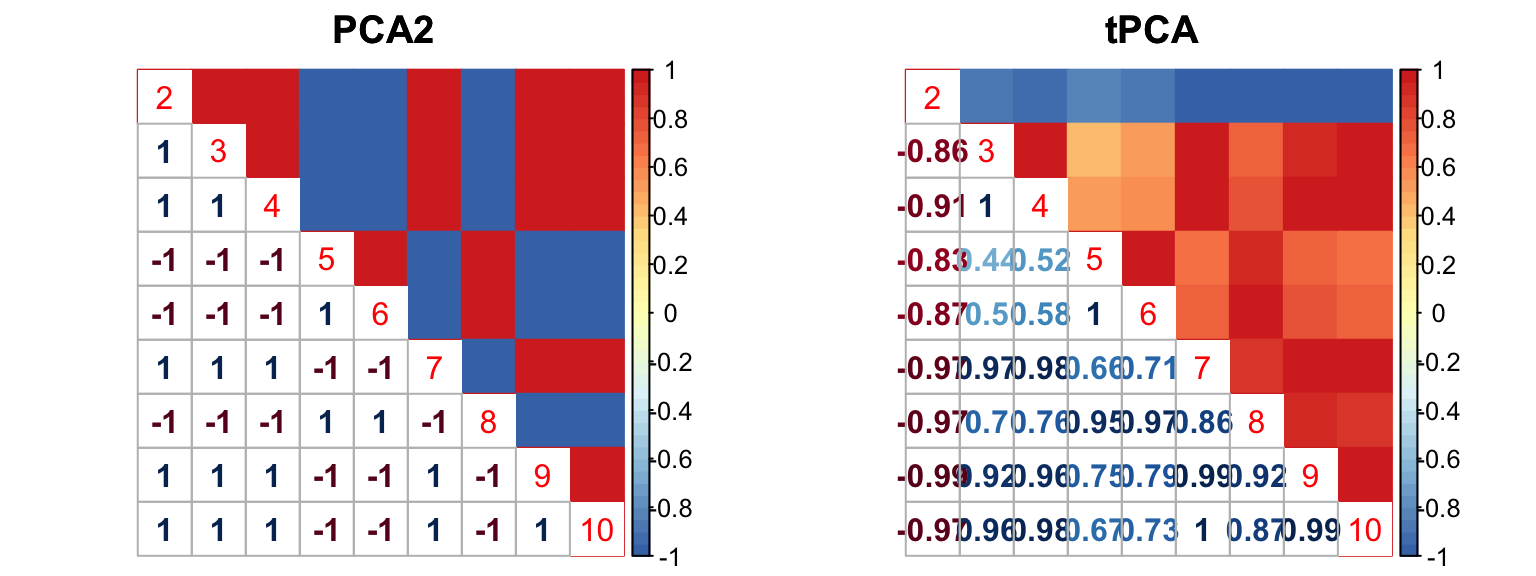

The correlation for PCA2 and tPCA is:

Indep.model.full.1 = Indep.model.1
Indep.model.full.1$result = mash_compute_posterior_matrices(g = Indep.model.1, data = Indep.data.1, algorithm.version = 'R', recover=TRUE)

Compare two models

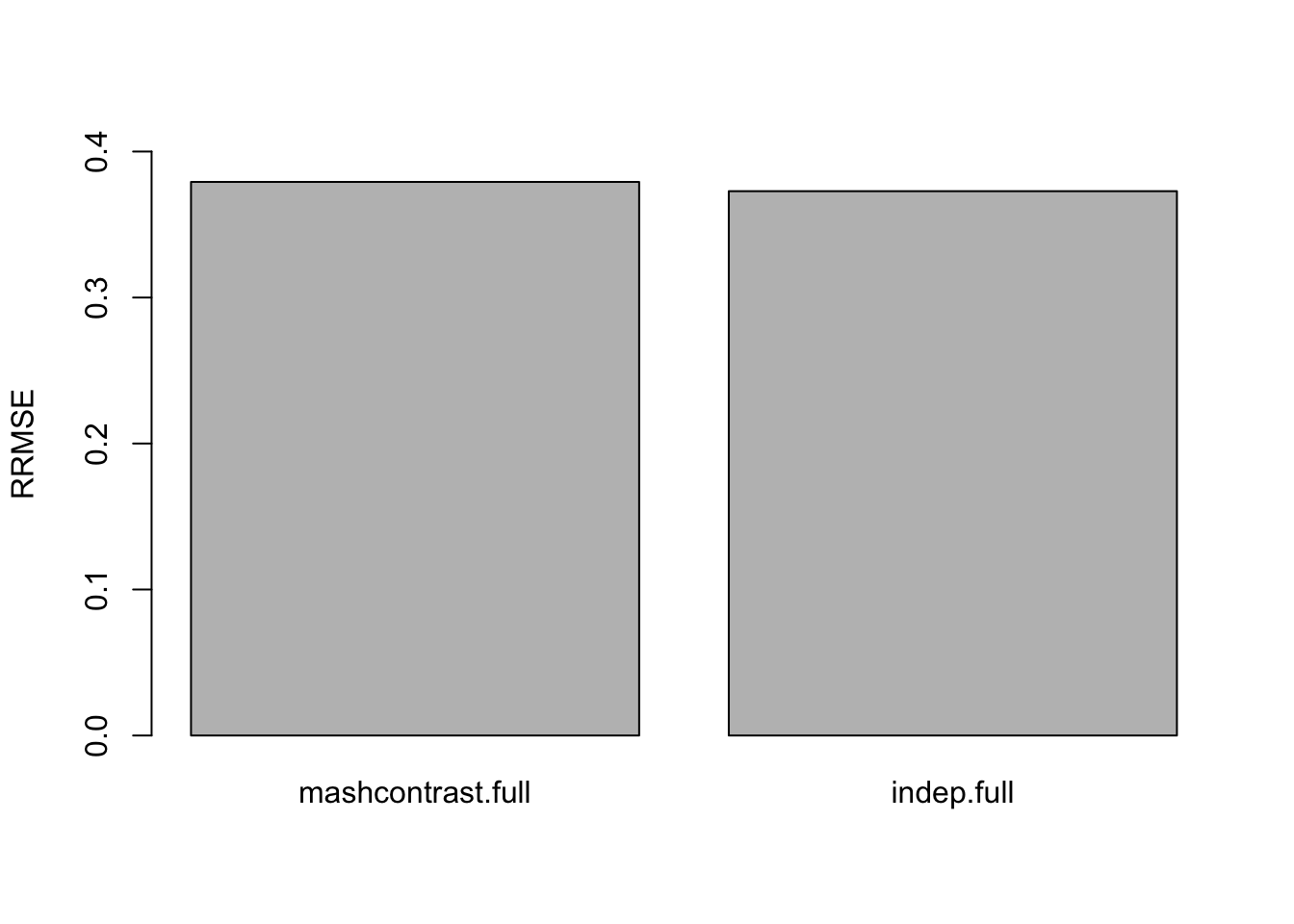

The RRMSE plot:

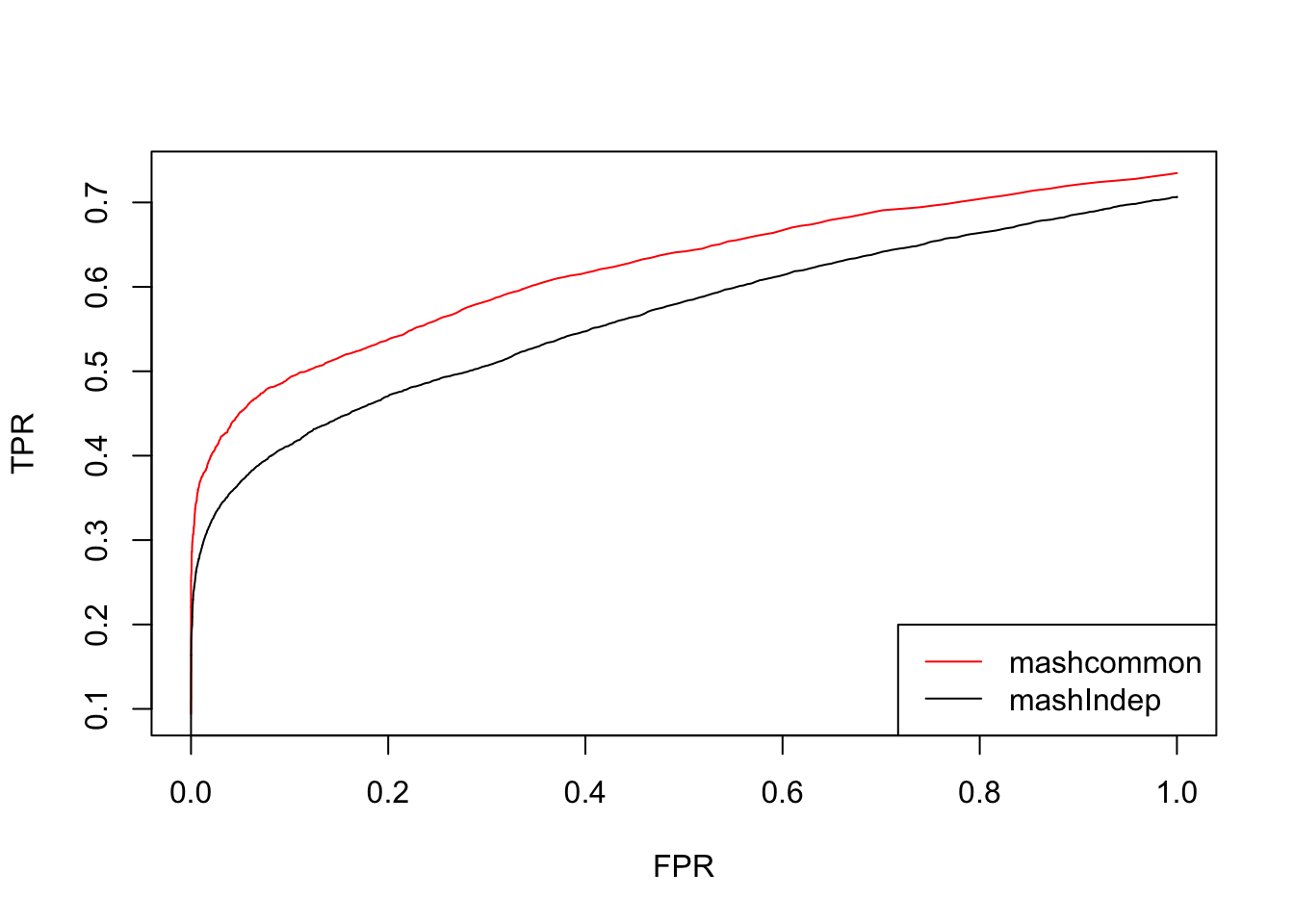

We check the False Positive Rate and True Positive Rate. \[FPR = \frac{|N\cap S|}{|N|} \quad TPR = \frac{|CS\cap S|}{|T|} \]

Using this contrast L, the results from mashcommonbaseline is better than mashIndep.

The choice of L could influence the result.
