library(susieR)
library(knitr)
library(kableExtra)
R.utils::sourceDirectory("~/Documents/GitHub/susieR/inst/code/susiez_num/")

Data: SuSiE vs DAP: data 31_35 (lower power)

X = readRDS('data/random_data_31.rds')$X
R = cor(X)
data = readRDS('data/random_data_31_sim_gaussian_35.rds')
y = data$Y
beta = data$meta$true_coef
sumstats = readRDS('data/random_data_31_sim_gaussian_35_get_sumstats_1.rds')
zscores = sumstats$sumstats$bhat/sumstats$sumstats$shat

We randomly generated 1200 by 1000 matrix X, each entry is random from N(0,1). The variables are independent. There are 5 signals in the simulated data, total PVE is 0.8. The true signals are 424, 427, 523, 941, 950.

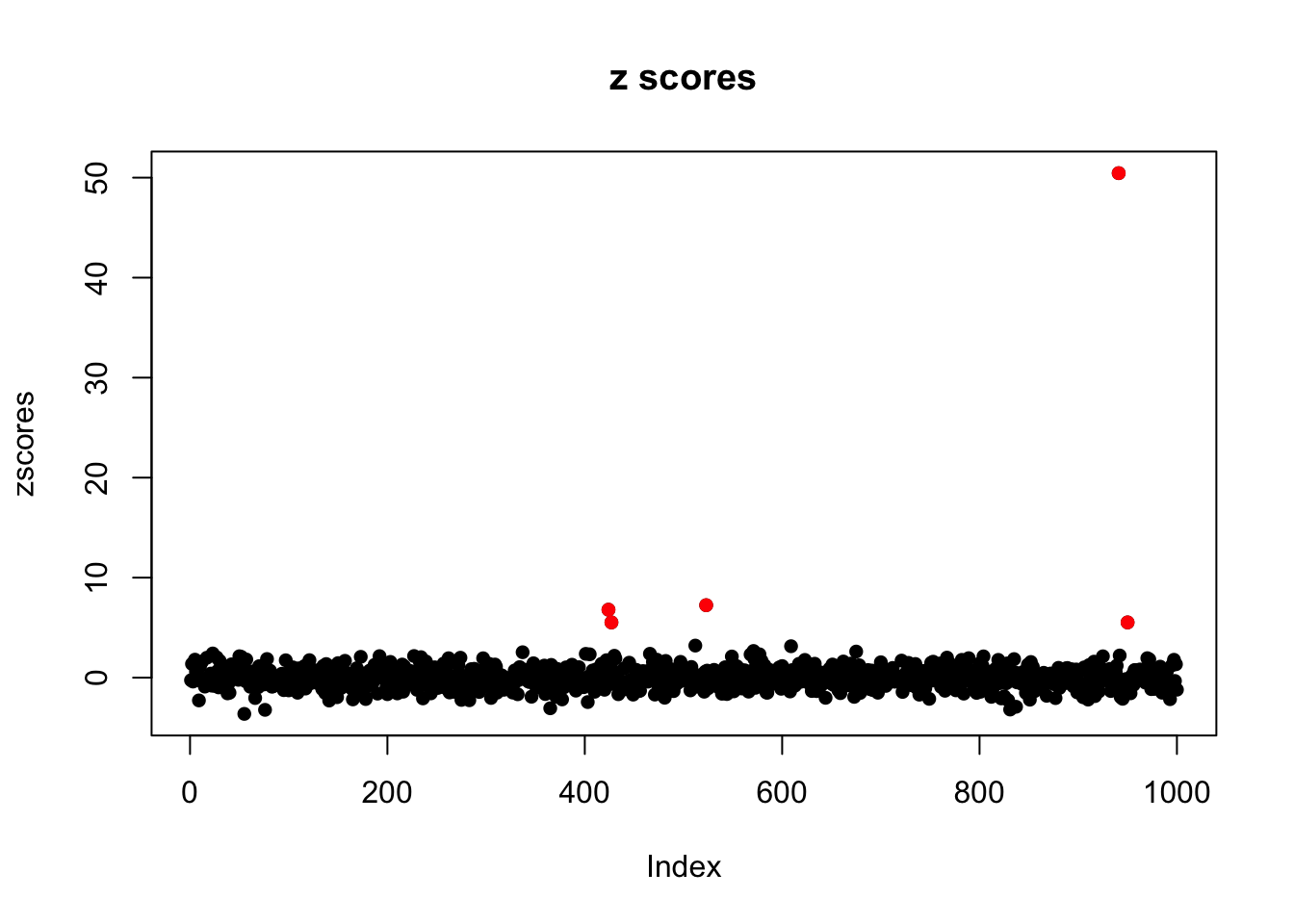

plot(zscores, pch=16, main='z scores')
pos = 1:length(zscores)
points(pos[beta!=0],zscores[beta!=0],col=2,pch=16)

Expand here to see past versions of unnamed-chunk-2-1.png:
Version Author Date
a0fba92 zouyuxin 2019-03-12

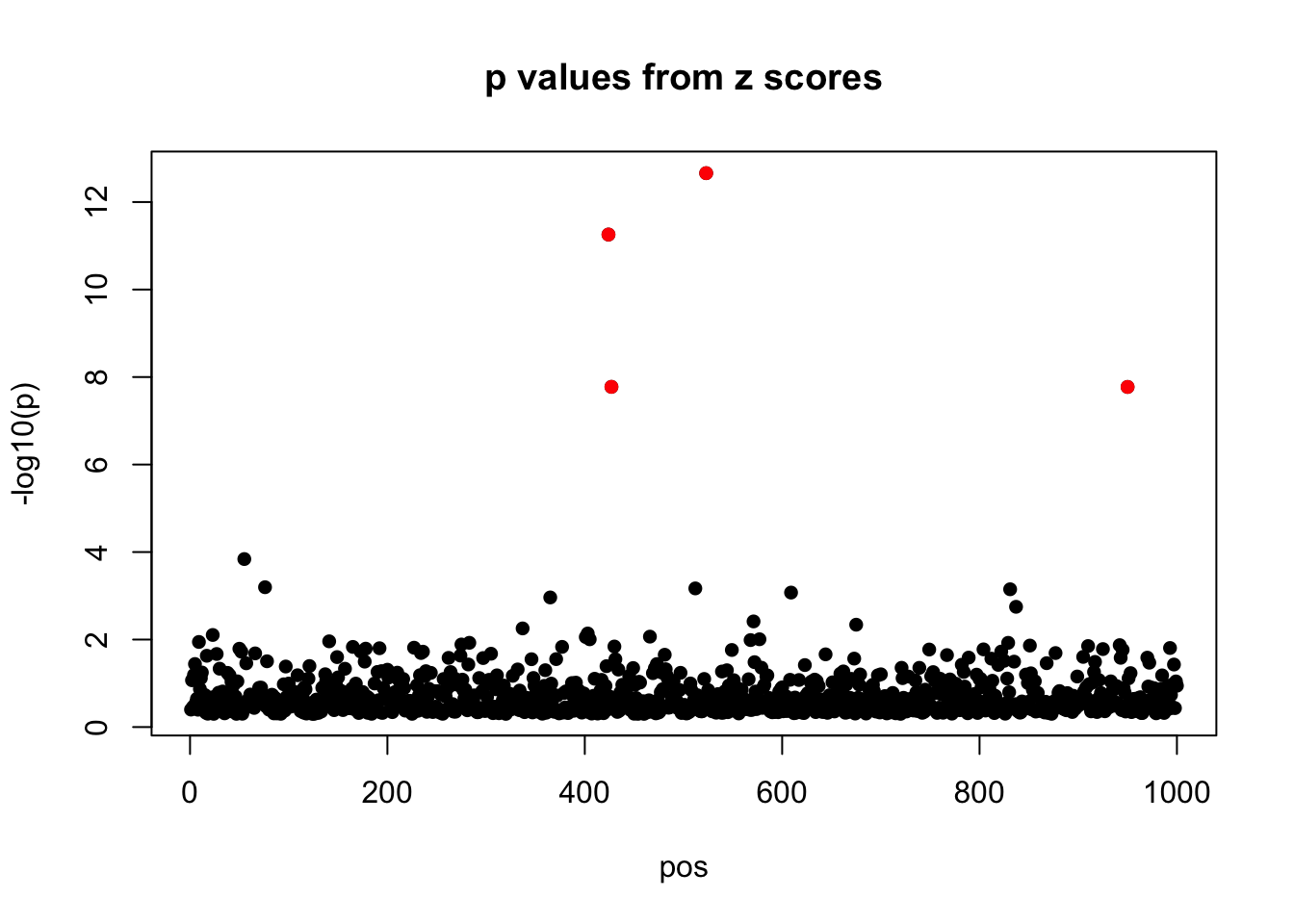

susie_plot(zscores, y = "z", b = beta, main='p values from z scores')

Expand here to see past versions of unnamed-chunk-2-2.png:
Version Author Date
a0fba92 zouyuxin 2019-03-12

fit_1 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, max_iter = 100, estimate_prior_method = 'EM')
fit_1 = readRDS('output/random_data_31_35_fit_em.rds')

The algorithm fails to stop.

The objective is -1790.4412135.

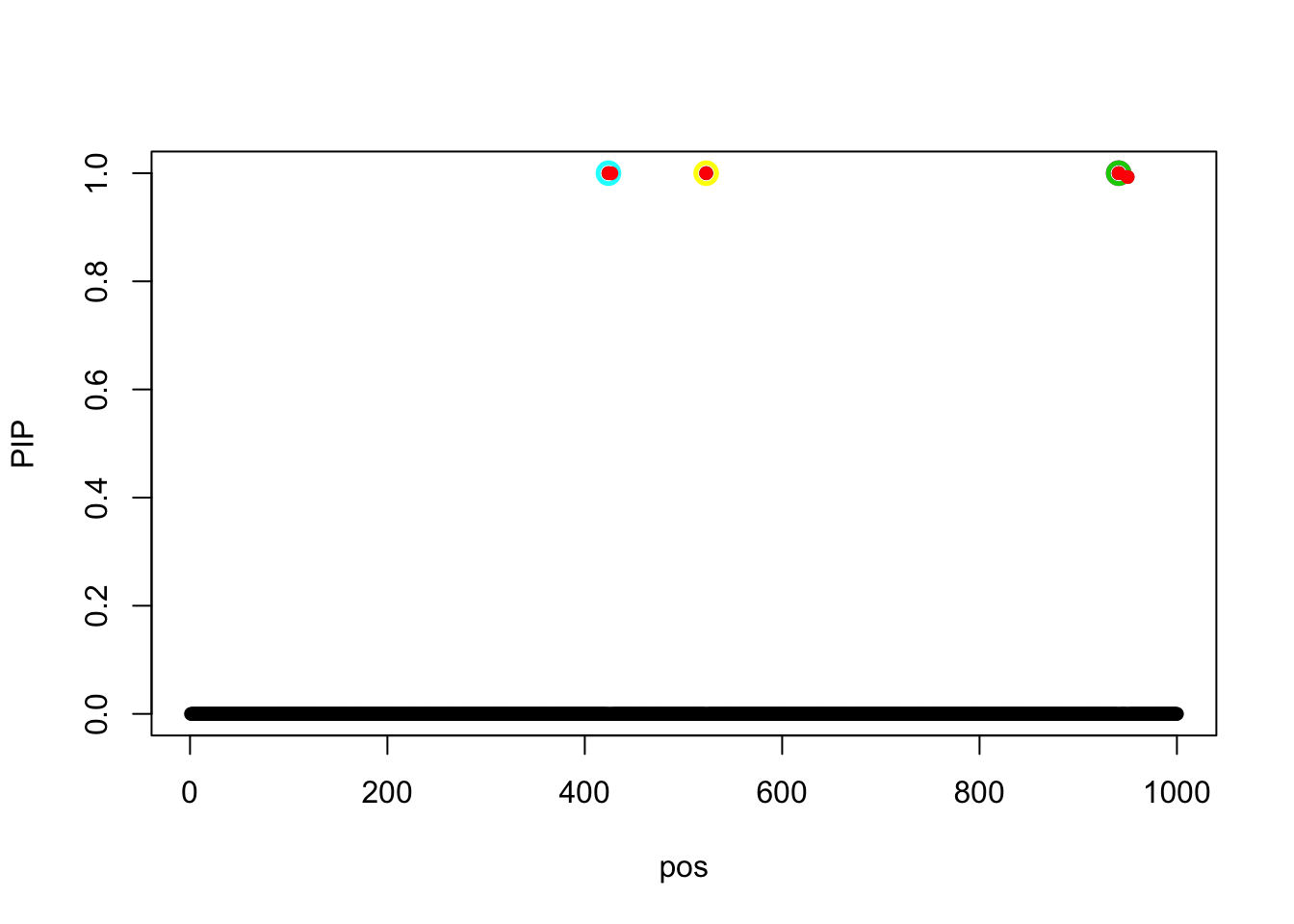

susie_plot(fit_1, y='PIP', b=beta)

The estimated prior variance at last 10 iterations are

Vs = matrix(NA, 11, 10)
for(i in 1:10){
  Vs[i,] = fit_1$trace[[90+i]]$V
}
Vs[11,] = fit_1$V
row.names(Vs) = paste0('Iter: ', 91:101)
Vs %>% kable() %>% kable_styling()
Iter: 91 1293.436 0 42.28013 202.6049 37.97431 0 31.53091 24.34895 0 0
Iter: 92 1296.446 0 42.28012 201.4125 37.97438 0 31.53092 24.34897 0 0
Iter: 93 1299.477 0 42.28012 200.2171 37.97446 0 31.53093 24.34898 0 0
Iter: 94 1302.529 0 42.28012 199.0185 37.97454 0 31.53094 24.34900 0 0
Iter: 95 1305.601 0 42.28012 197.8168 37.97462 0 31.53095 24.34902 0 0
Iter: 96 1308.694 0 42.28012 196.6119 37.97470 0 31.53096 24.34904 0 0
Iter: 97 1311.809 0 42.28012 195.4039 37.97478 0 31.53097 24.34906 0 0
Iter: 98 1314.945 0 42.28012 194.1927 37.97486 0 31.53098 24.34907 0 0
Iter: 99 1318.103 0 42.28012 192.9784 37.97494 0 31.53099 24.34909 0 0
Iter: 100 1321.282 0 42.28012 191.7608 37.97503 0 31.53100 24.34911 0 0
Iter: 101 1324.485 0 42.28012 190.5401 37.97511 0 31.53101 24.34913 0 0

Fit model with initial prior variance 50:

fit_2 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, scaled_prior_variance = 50, estimate_prior_method = 'EM')
[1] "before estimate sigma2 objective:-1816.93777951728"
[1] "after estimate sigma2 objective:-1816.93777951728"
[1] "before estimate sigma2 objective:-1780.84227231863"
[1] "after estimate sigma2 objective:-1780.84227231863"
[1] "before estimate sigma2 objective:-1780.72942172036"
[1] "after estimate sigma2 objective:-1780.72942172036"
[1] "before estimate sigma2 objective:-1780.72794633462"
[1] "after estimate sigma2 objective:-1780.72794633462"
[1] "before estimate sigma2 objective:-1780.72793597231"
[1] "after estimate sigma2 objective:-1780.72793597231"

The algorithm stops. The objective is -1780.727936.

susie_plot(fit_2, y='PIP', b=beta)

The estimated prior variances are

fit_2$V %>% kable() %>% kable_styling()
x
2520.96470
42.28076
37.95474
31.52849
24.34387
0.00000
0.00000
0.00000
0.00000
0.00000
fit_3 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, s_init = fit_2, scaled_prior_variance = fit_2$V)
[1] "before estimate sigma2 objective:-1780.7279359051"
[1] "after estimate sigma2 objective:-1780.7279359051"
[1] "before estimate sigma2 objective:-1780.72793590511"
[1] "after estimate sigma2 objective:-1780.72793590511"
susie_plot(fit_3, y='PIP', b=beta)

Expand here to see past versions of unnamed-chunk-8-1.png:
Version Author Date
a0fba92 zouyuxin 2019-03-12

Fit model using ‘optim’:

fit_4 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, estimate_prior_method = 'optim')
[1] "before estimate sigma2 objective:-1786.68857739904"
[1] "after estimate sigma2 objective:-1786.68857739904"
[1] "before estimate sigma2 objective:-1781.50283517316"
[1] "after estimate sigma2 objective:-1781.50283517316"
[1] "before estimate sigma2 objective:-1780.72803928019"
[1] "after estimate sigma2 objective:-1780.72803928019"
[1] "before estimate sigma2 objective:-1780.72793598391"
[1] "after estimate sigma2 objective:-1780.72793598391"

The objective is -1780.727936.

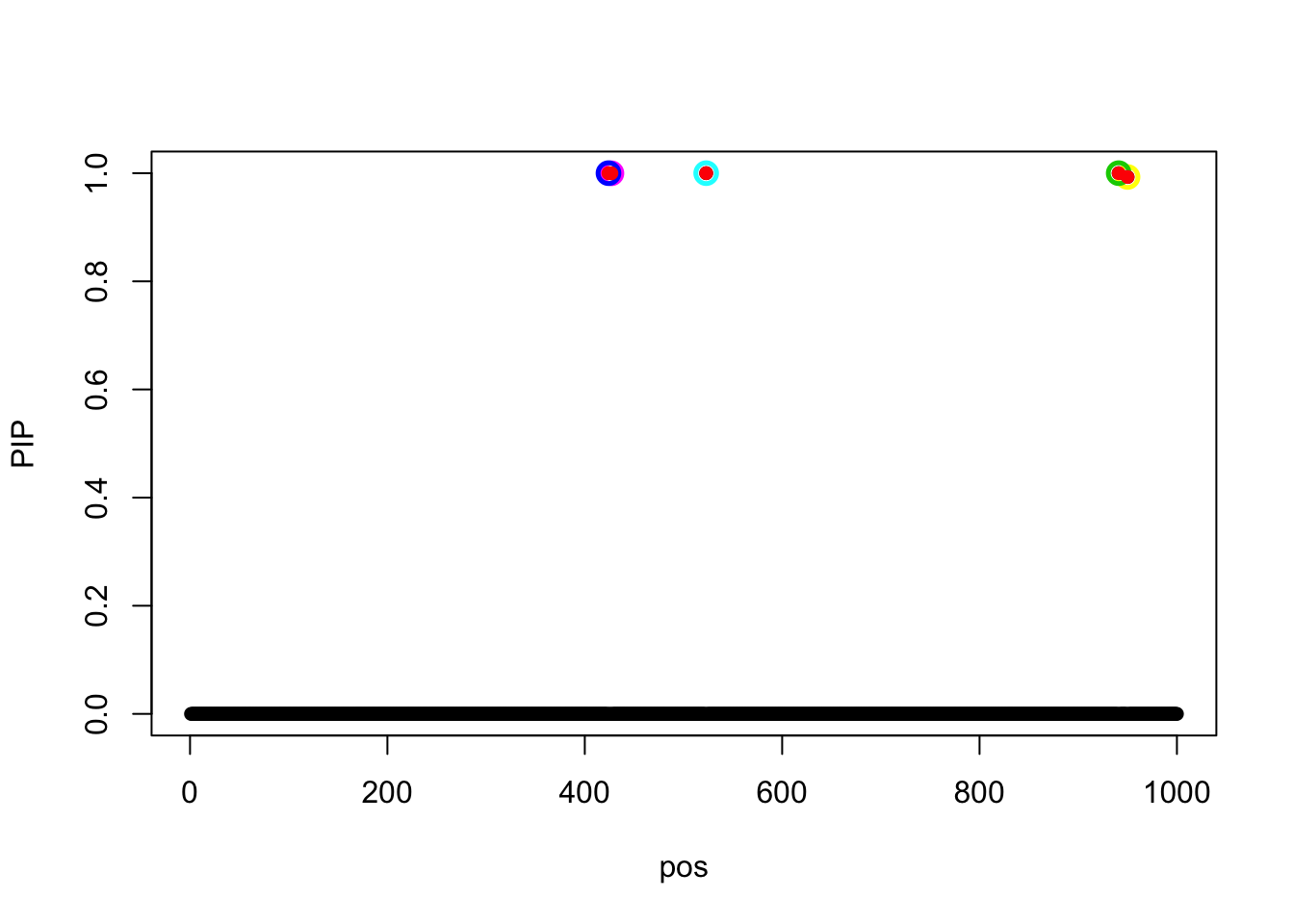

susie_plot(fit_4, y='PIP', b=beta)

Expand here to see past versions of unnamed-chunk-10-1.png:
Version Author Date
a0fba92 zouyuxin 2019-03-12

The estimated prior variances are

fit_4$V %>% kable() %>% kable_styling()
x
2520.99866
42.27946
37.95660
31.52854
24.34473
0.00000
0.00000
0.00000
0.00000
0.00000
