library(susieR)
library(R.utils)

We use the data in susieR package. It is simulated to have exactly 3 non-zero effects.

data(N3finemapping)
b <- N3finemapping$data$true_coef[,1]
R <- cor(N3finemapping$dat$X)
z_scores = N3finemapping$sumstats[1,,1]/N3finemapping$sumstats[2,,1]

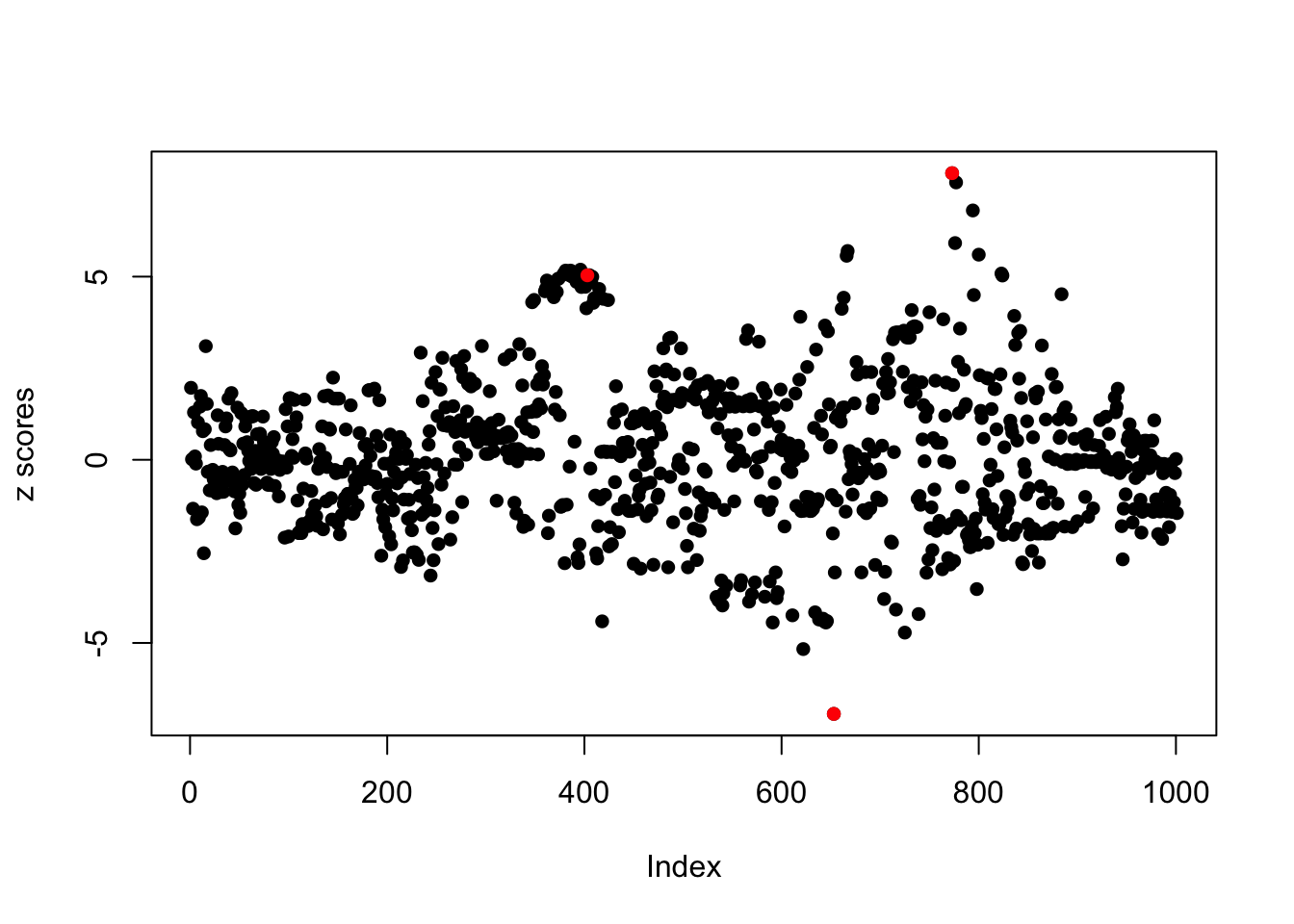

plot(z_scores, pch=16, ylab='z scores')
points(which(b!=0),z_scores[which(b!=0)], col=2, pch=16)

fit1 = susie_z(z_scores, R, L=5)

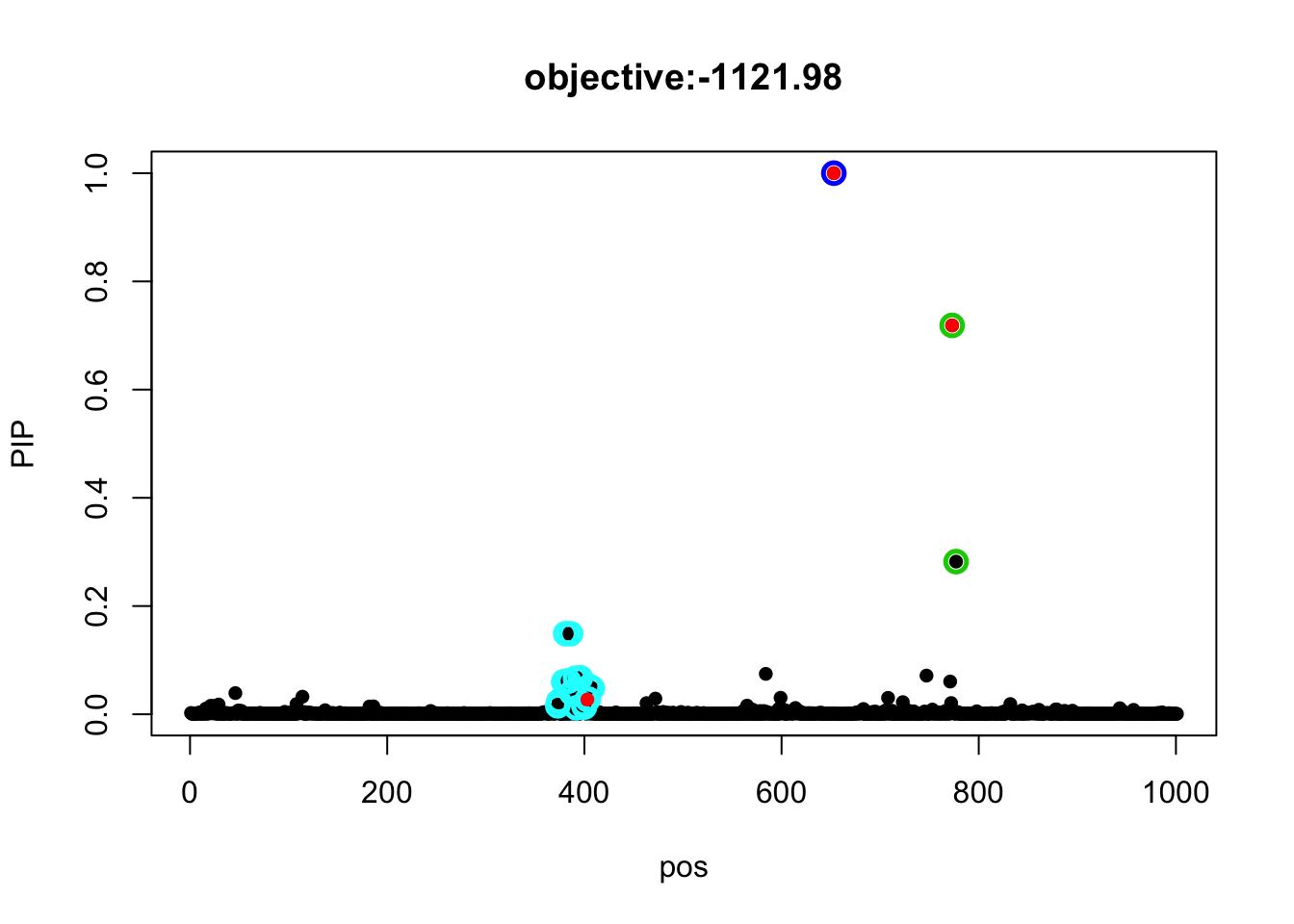

susie_plot(fit1, y = 'PIP', b=b, main=paste0('objective:', round(susie_get_objective(fit1), 2)))

We fit the model with var \(\sigma^2(R + \lambda I)\).

sourceDirectory("~/Documents/GitHub/susieR/inst/code/susiez_fix/")
fit2 = susie_z_general_fix(z_scores, R, L=5, lambda = 1e-8, track_fit = TRUE, verbose = TRUE)
[1] "before estimate sigma objective:-176108.356082106"
[1] "after estimate sigma2 objective:341.575476122518"
[1] "before estimate sigma objective:349.018680645267"
[1] "after estimate sigma2 objective:349.018681622517"
[1] "before estimate sigma objective:349.022409715368"
[1] "after estimate sigma2 objective:349.022409728946"
[1] "before estimate sigma objective:349.022409728946"
[1] "after estimate sigma2 objective:349.022409728946"

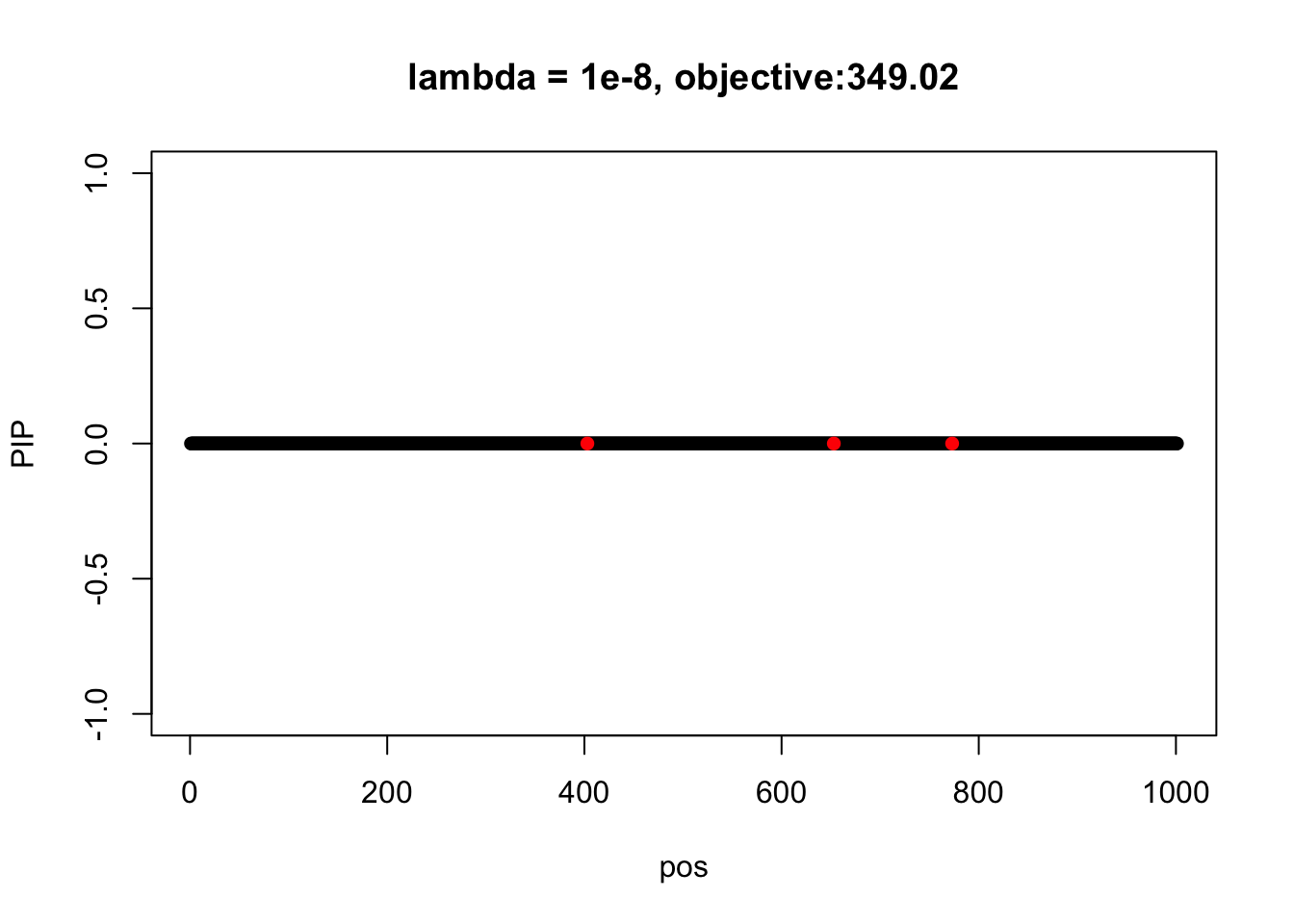

susie_plot(fit2, y = 'PIP', b=b, main=paste0('lambda = 1e-8, objective:', round(susie_get_objective(fit2), 2)))

We fit the model with var \(\sigma^2R + \lambda I\).

sourceDirectory("~/Documents/GitHub/susieR/inst/code/susiez_num/")
par(mfrow = c(2, 3))

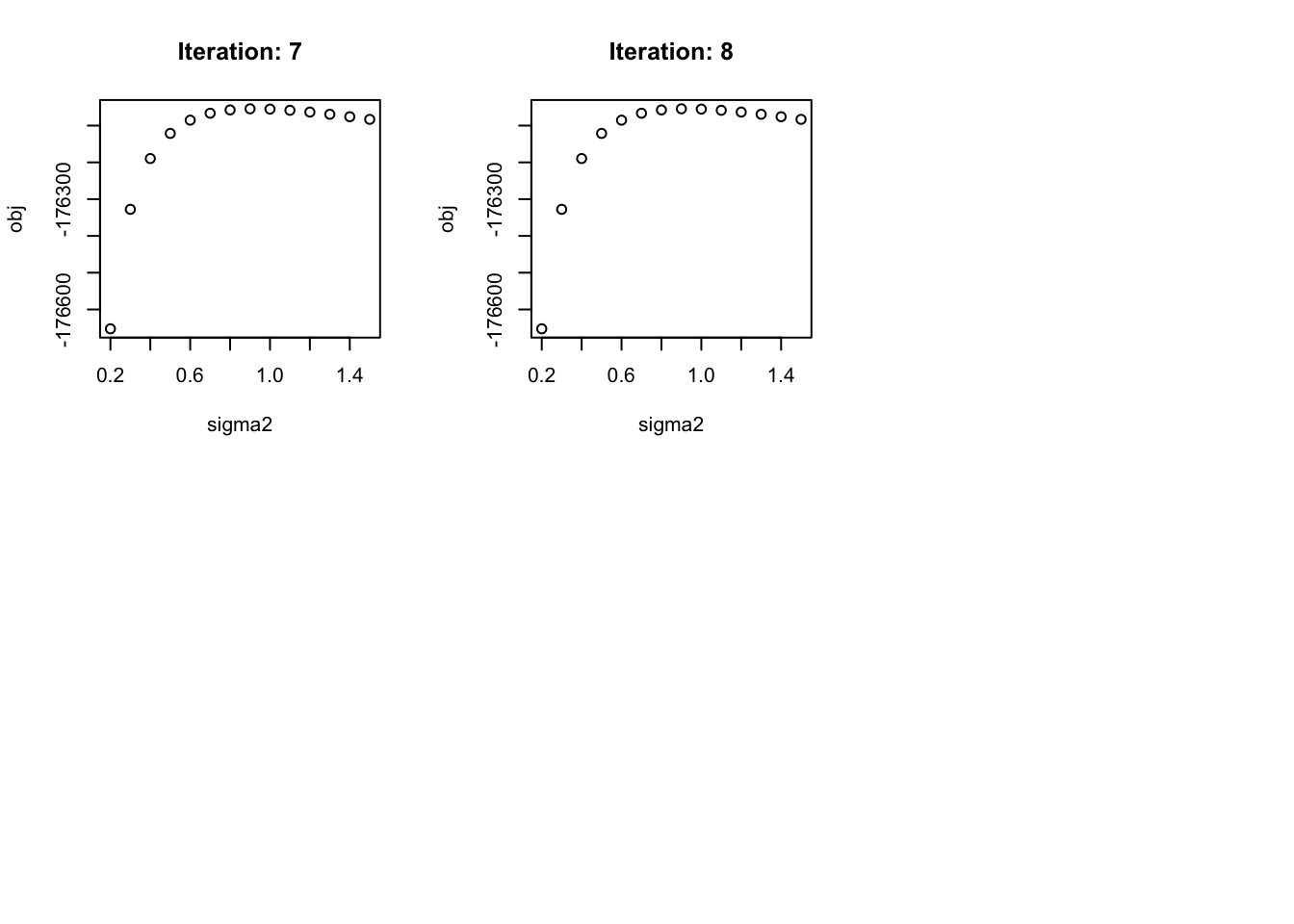

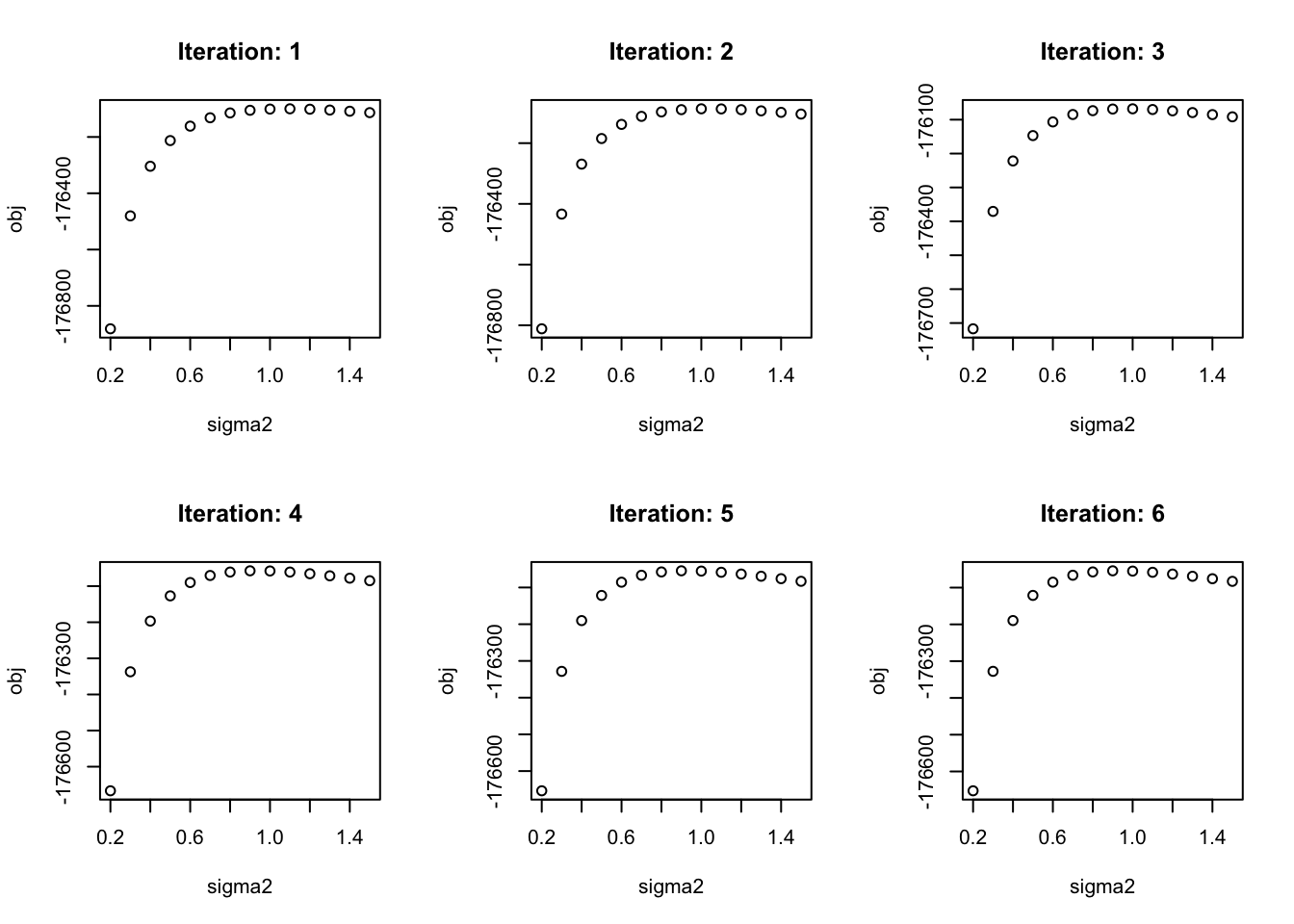

fit3 = susie_z_general_num(z_scores, R, L=5, lambda = 1e-8, track_fit = TRUE, verbose = TRUE)
[1] "before estimate sigma2 objective:-176108.356082106"
[1] "after estimate sigma2 objective:-176107.431097485"
[1] "before estimate sigma2 objective:-176102.530490343"
[1] "after estimate sigma2 objective:-176102.184350997"
[1] "before estimate sigma2 objective:-176087.167964295"
[1] "after estimate sigma2 objective:-176087.167964295"
[1] "before estimate sigma2 objective:-176080.196067129"
[1] "after estimate sigma2 objective:-176079.74293158"
[1] "before estimate sigma2 objective:-176076.83603438"
[1] "after estimate sigma2 objective:-176076.83603438"
[1] "before estimate sigma2 objective:-176076.495338684"

[1] "after estimate sigma2 objective:-176076.495338684"
[1] "before estimate sigma2 objective:-176076.4809328"
[1] "after estimate sigma2 objective:-176076.4809328"
[1] "before estimate sigma2 objective:-176076.480770257"
[1] "after estimate sigma2 objective:-176076.480770257"
par(mfrow = c(1, 1))

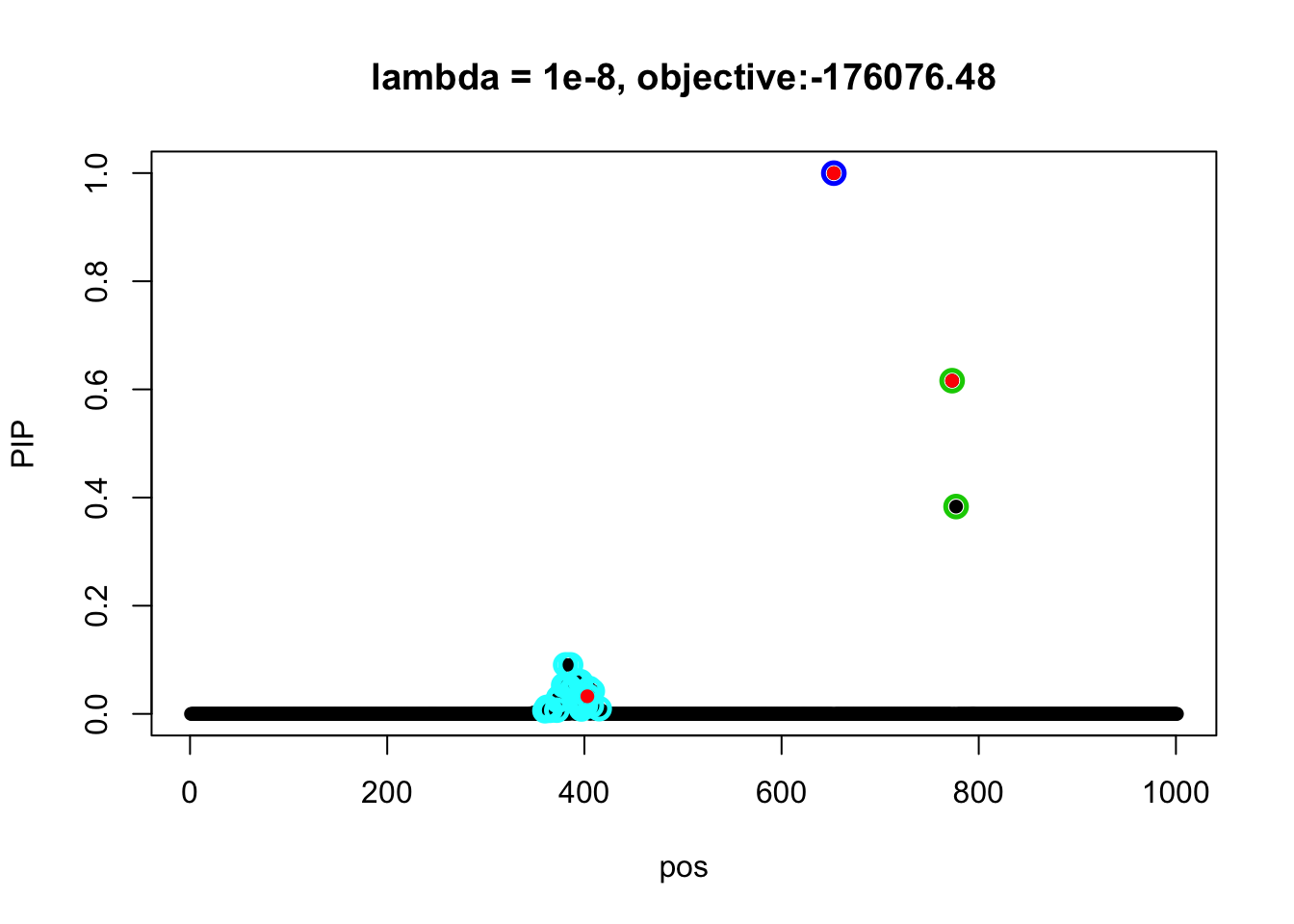

susie_plot(fit3, y = 'PIP', b=b, main=paste0('lambda = 1e-8, objective:', round(susie_get_objective(fit3), 2)))

par(mfrow = c(2, 3))

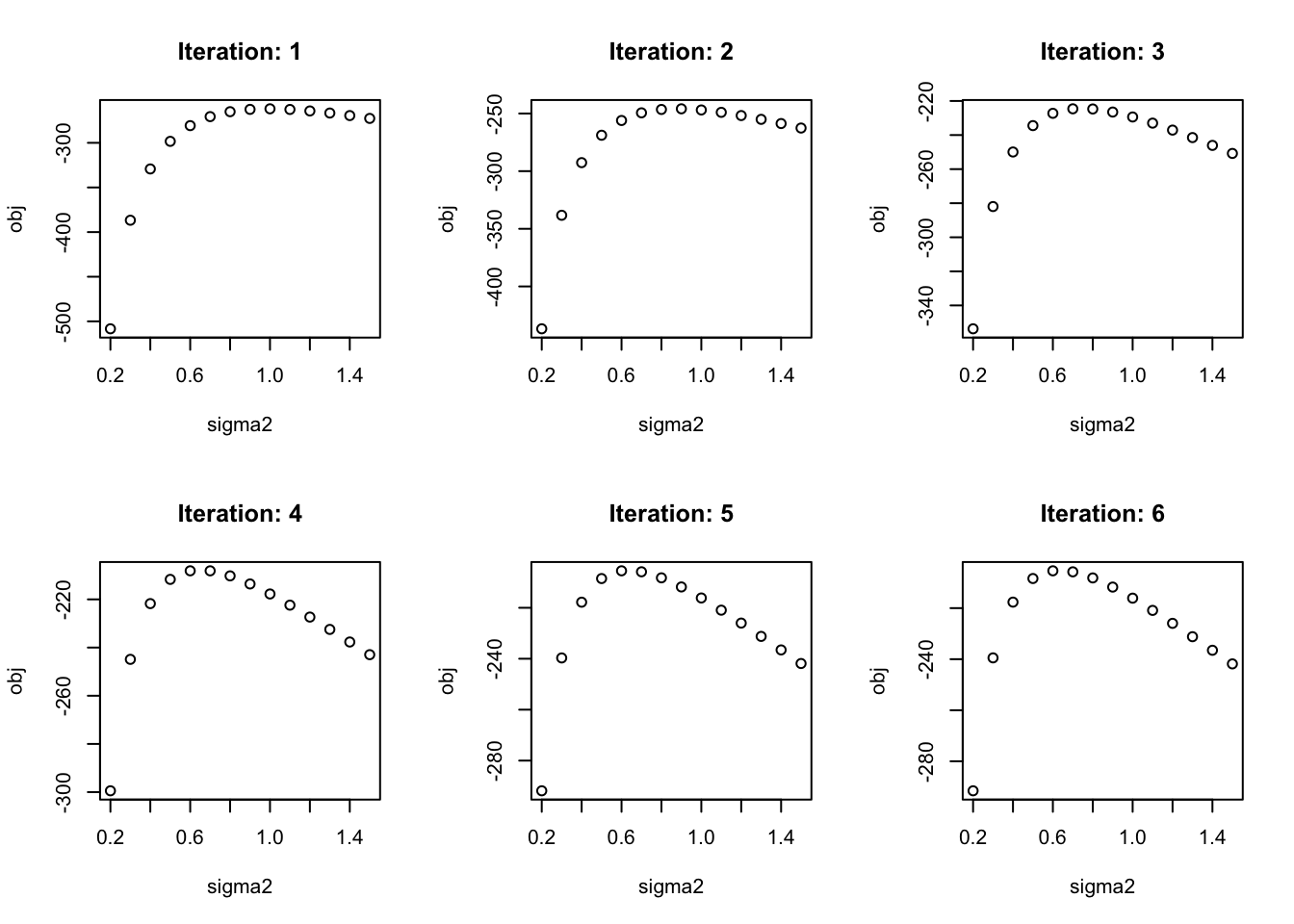

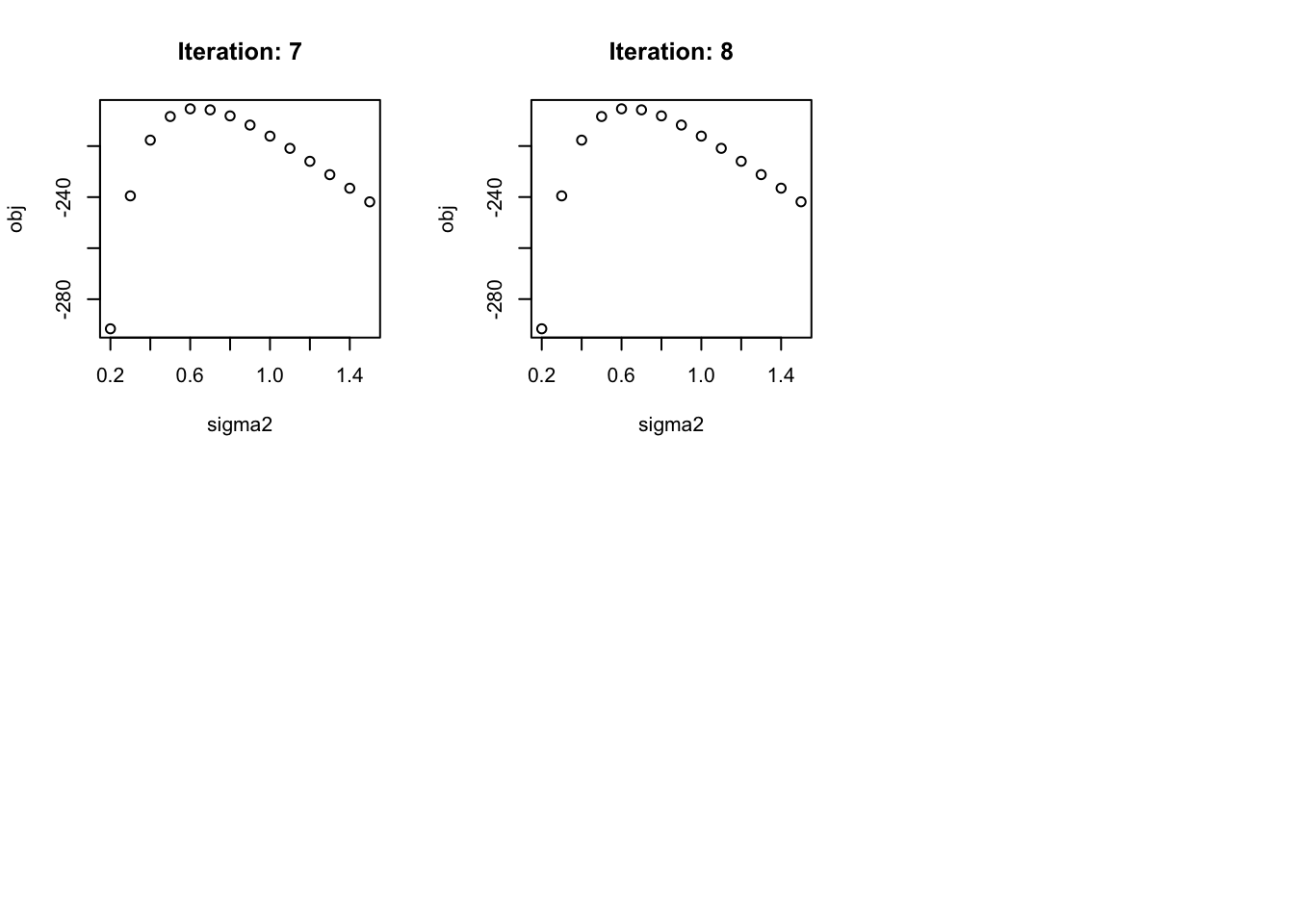

fit4 = susie_z_general_num(z_scores, R, L=5, lambda = 0.1, track_fit = TRUE, verbose = TRUE)
[1] "before estimate sigma2 objective:-268.382924136224"
[1] "after estimate sigma2 objective:-268.382924136224"
[1] "before estimate sigma2 objective:-263.583517059885"
[1] "after estimate sigma2 objective:-262.582217811463"
[1] "before estimate sigma2 objective:-246.293667680361"
[1] "after estimate sigma2 objective:-244.398921702326"
[1] "before estimate sigma2 objective:-232.726801436096"
[1] "after estimate sigma2 objective:-232.720246921936"
[1] "before estimate sigma2 objective:-229.849008457783"
[1] "after estimate sigma2 objective:-229.849008457783"
[1] "before estimate sigma2 objective:-229.656391292686"

[1] "after estimate sigma2 objective:-229.656391292686"
[1] "before estimate sigma2 objective:-229.649501048445"
[1] "after estimate sigma2 objective:-229.649501048445"
[1] "before estimate sigma2 objective:-229.648954904787"
[1] "after estimate sigma2 objective:-229.648954904787"
par(mfrow = c(1, 1))

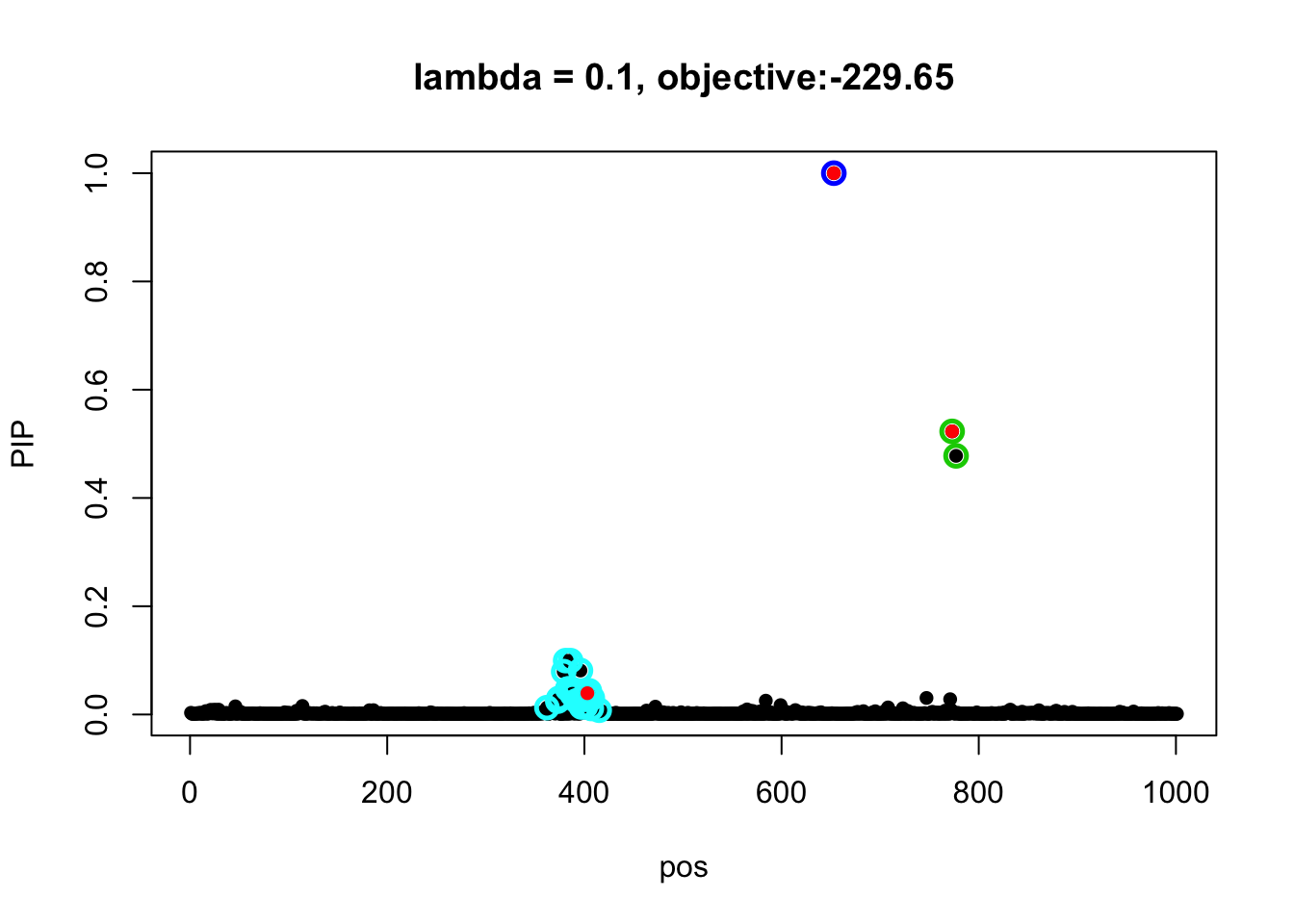

susie_plot(fit4, y = 'PIP', b=b, main=paste0('lambda = 0.1, objective:', round(susie_get_objective(fit4), 2)))
