Don’t Stop Problem

Last updated: 2019-03-13

• ✔ R Markdown file: up-to-date

  Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

• ✔ Environment: empty

  Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

• ✔ Seed: set.seed(20190115)

  The command set.seed(20190115) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

• ✔ Session information: recorded

  Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

• ✔ Repository version: 9b93d36

  Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

  Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


  Ignored files:
      Ignored:    .DS_Store
      Ignored:    .Rhistory
      Ignored:    .Rproj.user/
      Ignored:    .sos/
      Ignored:    data/.DS_Store
      Ignored:    output/.DS_Store

  Untracked files:
      Untracked:  data/random_data_31.rds
      Untracked:  data/random_data_31_sim_gaussian_35.rds
      Untracked:  data/random_data_31_sim_gaussian_35_get_sumstats_1.rds
      Untracked:  data/small_data_46.rds
      Untracked:  data/small_data_46_sim_gaussian_10.rds
      Untracked:  data/small_data_46_sim_gaussian_10_get_sumstats_2.rds
      Untracked:  docs/figure/test.Rmd/
      Untracked:  figure/
      Untracked:  output/dscoutProblem475.rds
      Untracked:  output/dscoutProblem75.rds
      Untracked:  output/finemap_compare_random_data_null_dscout.rds
      Untracked:  output/finemap_compare_random_data_signal_dscout.rds
      Untracked:  output/finemap_compare_small_data_signal_dscout.rds
      Untracked:  output/finemap_compare_small_data_signal_dscout_RE8.rds
      Untracked:  output/random_data_100_sim_gaussian_null_1_get_sumstats_1_finemap_1.rds
      Untracked:  output/random_data_31_35_fit_em.rds
      Untracked:  output/random_data_76.rds
      Untracked:  output/random_data_76_sim_gaussian_8.rds
      Untracked:  output/random_data_76_sim_gaussian_8_get_sumstats_1.rds
      Untracked:  output/small_data_42_sim_gaussian_36_get_sumstats_2_susie_z_2.rds
      Untracked:  output/small_data_92_sim_gaussian_30_get_sumstats_2_susie_z_2.rds

  Unstaged changes:
      Modified:   analysis/SuSiEDAP_Power_data31_35.Rmd
      Modified:   analysis/SusieZPerformance.Rmd
      Modified:   analysis/SusieZPerformanceRE3.Rmd
      Modified:   output/dsc_susie_z_v_output.rds



  Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

library(susieR)
library(knitr)
library(kableExtra)
R.utils::sourceDirectory("~/Documents/GitHub/susieR/inst/code/susiez_num/")

Data: SuSiE vs DAP: data 31_35 (lower power)

X = readRDS('data/random_data_31.rds')$X
R = cor(X)
data = readRDS('data/random_data_31_sim_gaussian_35.rds')
y = data$Y
beta = data$meta$true_coef
sumstats = readRDS('data/random_data_31_sim_gaussian_35_get_sumstats_1.rds')
zscores = sumstats$sumstats$bhat/sumstats$sumstats$shat

We randomly generated 1200 by 1000 matrix X, each entry is random from N(0,1). The variables are independent. There are 5 signals in the simulated data, total PVE is 0.8. The true signals are 424, 427, 523, 941, 950.

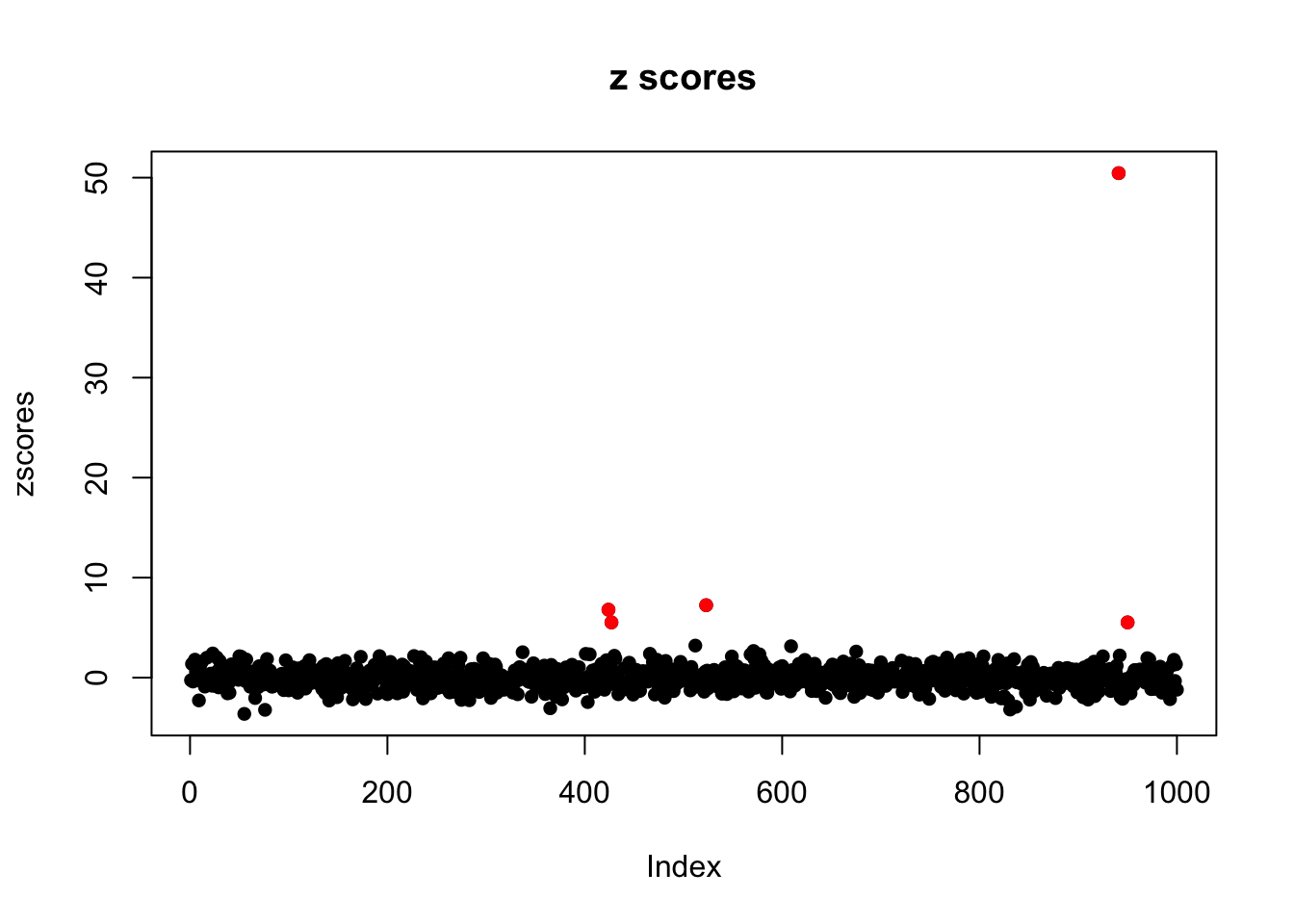

plot(zscores, pch=16, main='z scores')
pos = 1:length(zscores)
points(pos[beta!=0],zscores[beta!=0],col=2,pch=16)

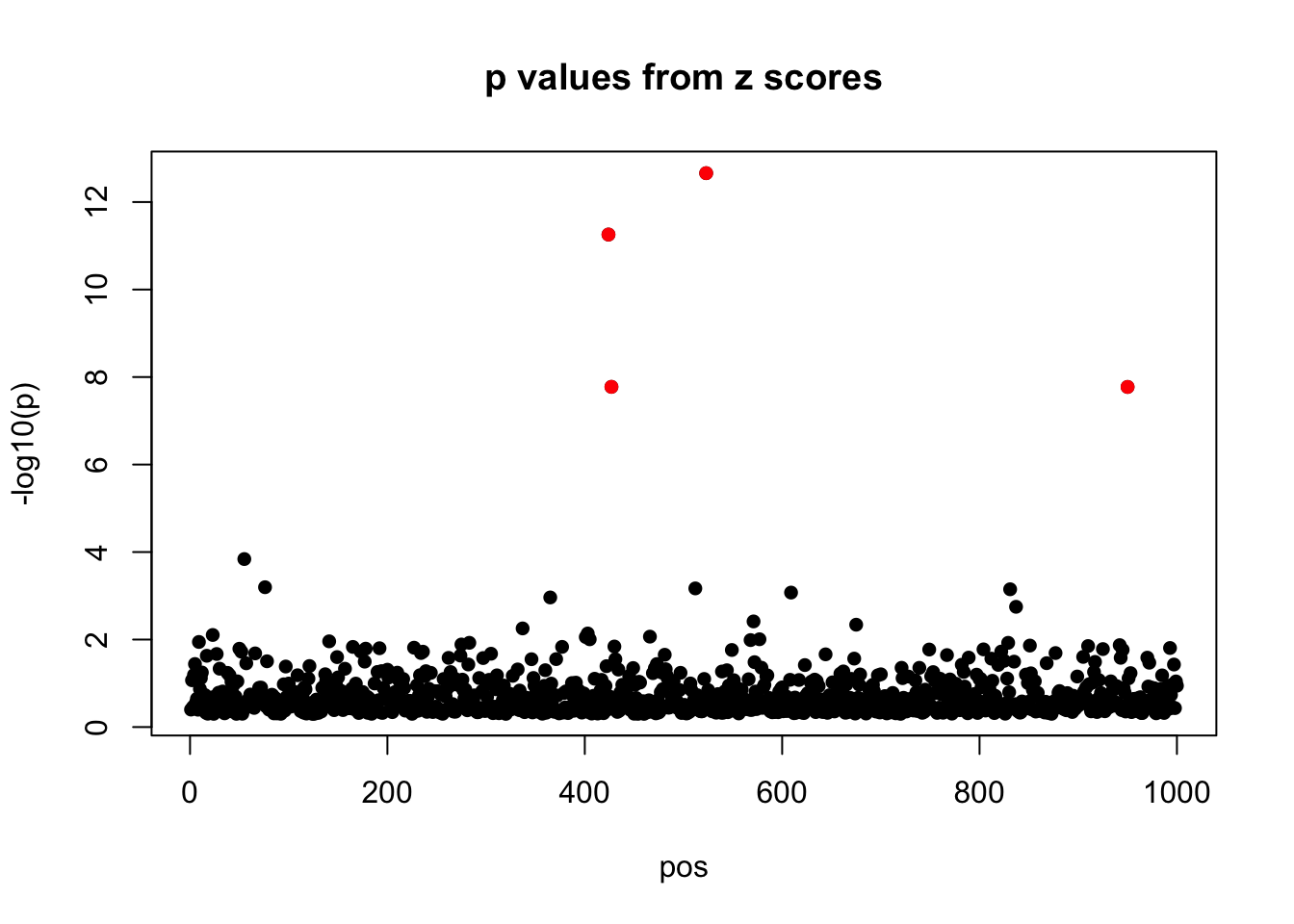

susie_plot(zscores, y = "z", b = beta, main='p values from z scores')

fit_1 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, max_iter = 100, estimate_prior_method = 'EM')

fit_1 = readRDS('output/random_data_31_35_fit_em.rds')

The algorithm fails to stop.

The objective is -1790.4412135.

susie_plot(fit_1, y='PIP', b=beta)

The estimated prior variance at last 10 iterations are

Vs = matrix(NA, 11, 10)
for(i in 1:10){
  Vs[i,] = fit_1$trace[[90+i]]$V
}
Vs[11,] = fit_1$V
row.names(Vs) = paste0('Iter: ', 91:101)
Vs %>% kable() %>% kable_styling()

Fit model with initial prior variance 50:

fit_2 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, scaled_prior_variance = 50, estimate_prior_method = 'EM')

[1] "before estimate sigma2 objective:-1816.93777951728"
[1] "after estimate sigma2 objective:-1816.93777951728"
[1] "before estimate sigma2 objective:-1780.84227231863"
[1] "after estimate sigma2 objective:-1780.84227231863"
[1] "before estimate sigma2 objective:-1780.72942172036"
[1] "after estimate sigma2 objective:-1780.72942172036"
[1] "before estimate sigma2 objective:-1780.72794633462"
[1] "after estimate sigma2 objective:-1780.72794633462"
[1] "before estimate sigma2 objective:-1780.72793597231"
[1] "after estimate sigma2 objective:-1780.72793597231"

The algorithm stops. The objective is -1780.727936.

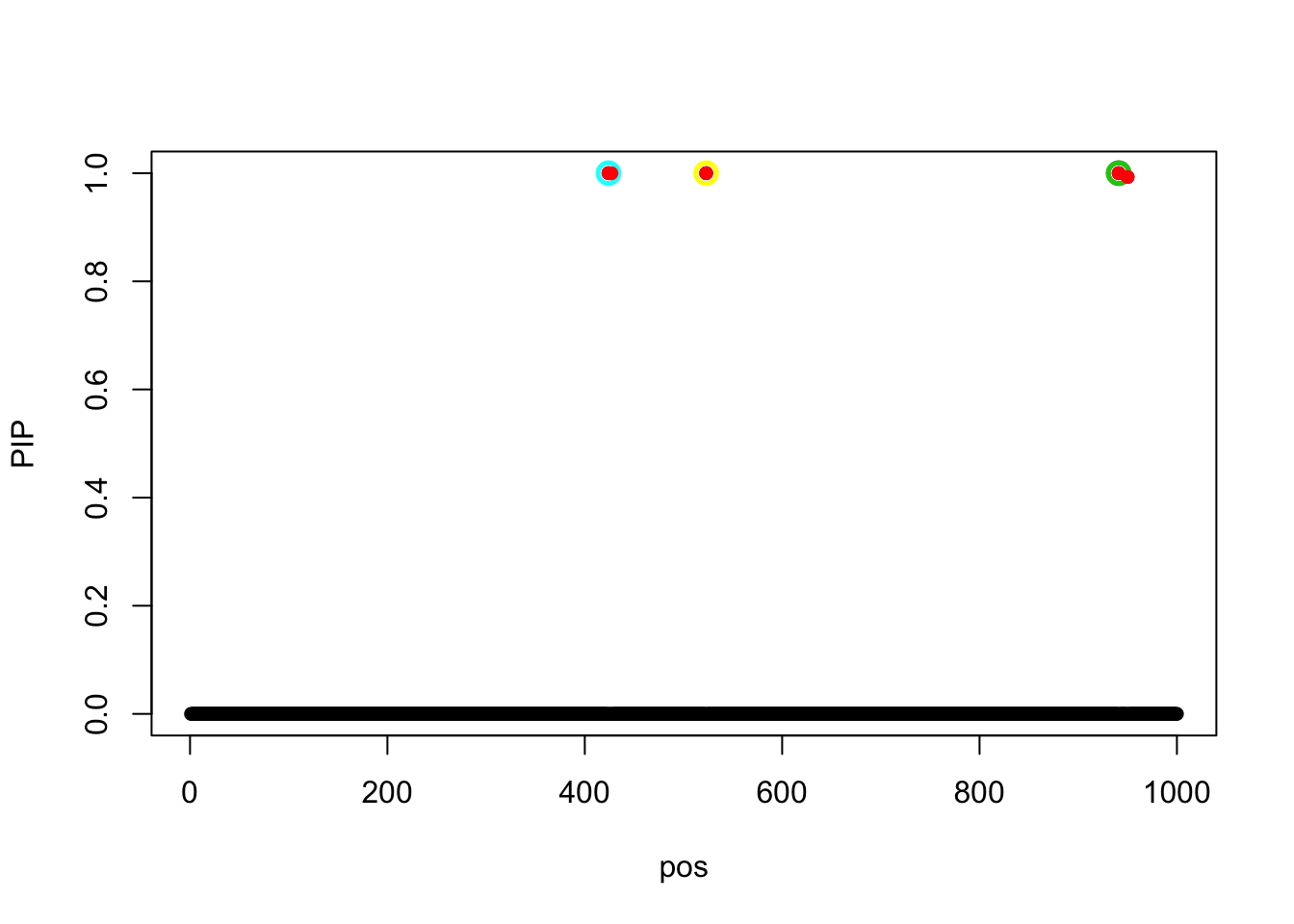

susie_plot(fit_2, y='PIP', b=beta)

The estimated prior variances are

matrix(fit_2$V, 1, 10) %>% kable() %>% kable_styling()

Fit model with initialization at previous one:

fit_3 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, s_init = fit_2, scaled_prior_variance = fit_2$V)

[1] "before estimate sigma2 objective:-1780.7279359051"
[1] "after estimate sigma2 objective:-1780.7279359051"
[1] "before estimate sigma2 objective:-1780.72793590511"
[1] "after estimate sigma2 objective:-1780.72793590511"

susie_plot(fit_3, y='PIP', b=beta)

Fit model using ‘optim’:

fit_4 = susie_z_general_num(zscores, R, lambda = 1e-6, track_fit = TRUE, verbose = TRUE, estimate_prior_method = 'optim')

[1] "before estimate sigma2 objective:-1786.68857739904"
[1] "after estimate sigma2 objective:-1786.68857739904"
[1] "before estimate sigma2 objective:-1781.50283517316"
[1] "after estimate sigma2 objective:-1781.50283517316"
[1] "before estimate sigma2 objective:-1780.72803928019"
[1] "after estimate sigma2 objective:-1780.72803928019"
[1] "before estimate sigma2 objective:-1780.72793598391"
[1] "after estimate sigma2 objective:-1780.72793598391"

The objective is -1780.727936.

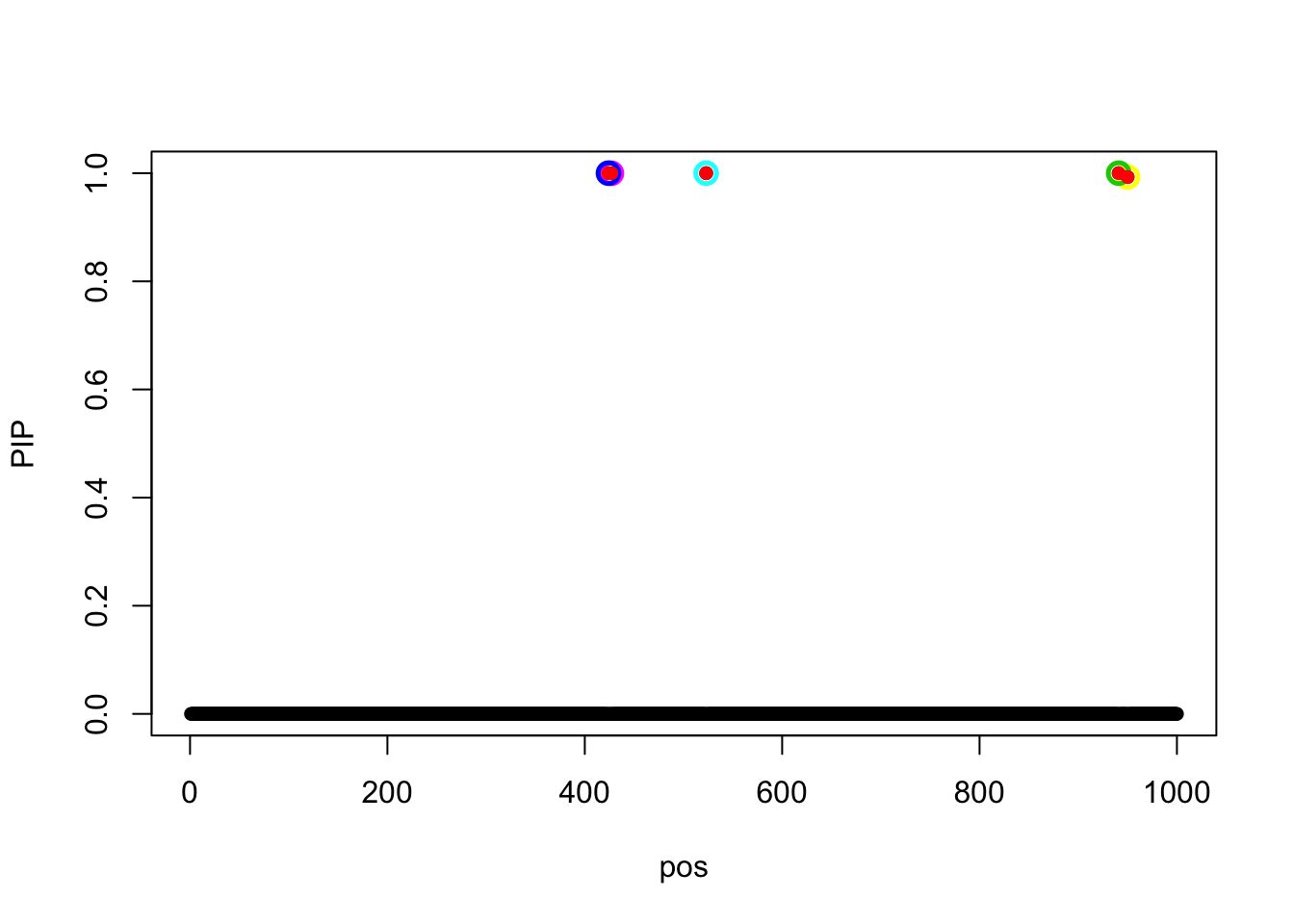

susie_plot(fit_4, y='PIP', b=beta)

The estimated prior variances are

matrix(fit_4$V, 1, 10) %>% kable() %>% kable_styling()

sessionInfo()

R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS  10.14.3

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] kableExtra_1.0.1  knitr_1.20        susieR_0.7.1.0482

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.0        highr_0.7         compiler_3.5.1
 [4] pillar_1.3.1      git2r_0.24.0      workflowr_1.1.1
 [7] R.methodsS3_1.7.1 R.utils_2.7.0     tools_3.5.1
[10] digest_0.6.18     evaluate_0.12     tibble_2.0.1
[13] lattice_0.20-38   viridisLite_0.3.0 pkgconfig_2.0.2
[16] rlang_0.3.1       Matrix_1.2-15     rstudioapi_0.9.0
[19] yaml_2.2.0        stringr_1.3.1     httr_1.4.0
[22] xml2_1.2.0        hms_0.4.2         webshot_0.5.1
[25] rprojroot_1.3-2   grid_3.5.1        glue_1.3.0
[28] R6_2.3.0          rmarkdown_1.11    readr_1.3.1
[31] magrittr_1.5      whisker_0.3-2     backports_1.1.3
[34] scales_1.0.0      htmltools_0.3.6   rvest_0.3.2
[37] colorspace_1.4-0  stringi_1.2.4     munsell_0.5.0
[40] crayon_1.3.4      R.oo_1.22.0

This reproducible R Markdown analysis was created with workflowr 1.1.1
