Prerequisites

• Simple recursion in Java
• How the recursion stack saves values

You're lost in a maze

• How do you find your way out?

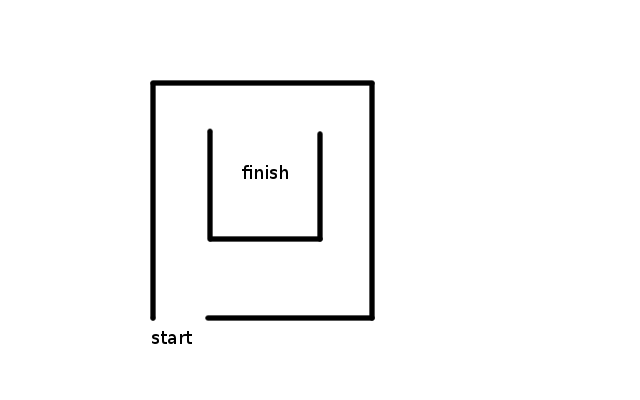

• Right Hand rule:
•

Fail!!!!!

Let's go to the literature

• Theseus
•
• Hansel and Gretel
•

We can look at a "State" of the maze

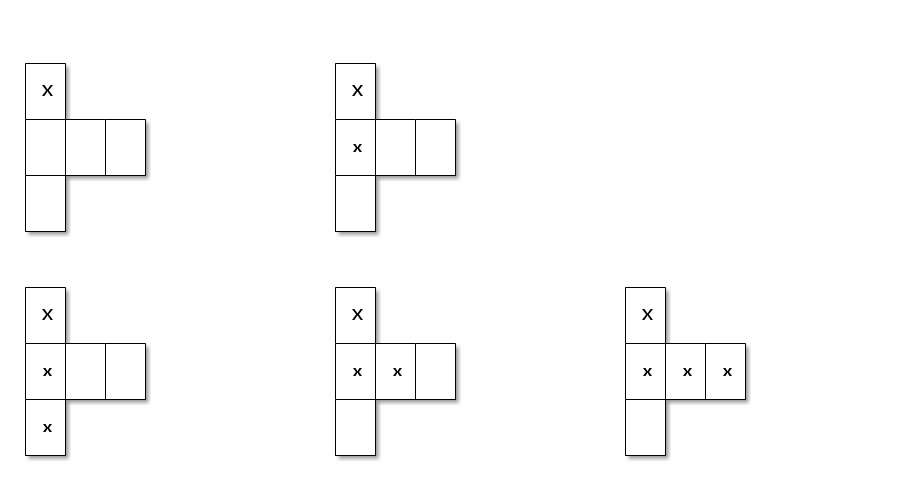

Or a bunch of states

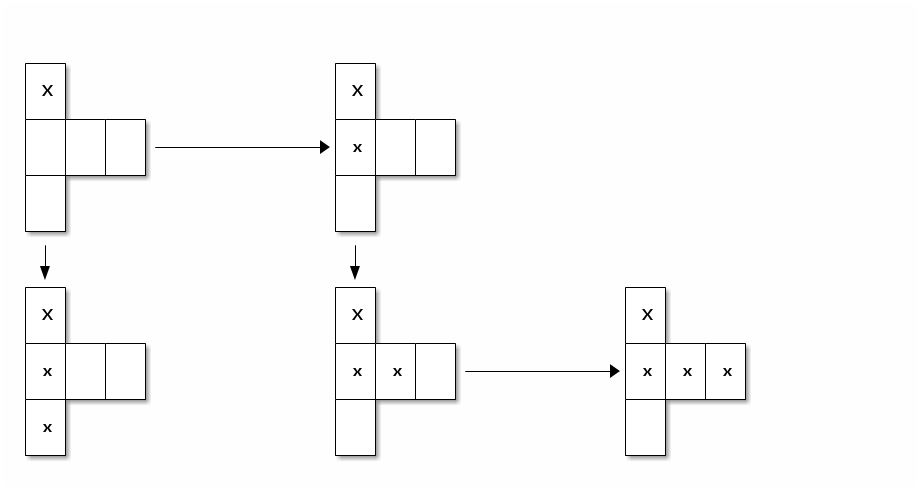

And we can transition from state to state

What do we need?

• Take steps one at a time to get closer to our solution
• Keep track of where we've been so we can back up
• Recursion!!!!!!!!!!
• Recall factorial:

  public int fact(int n){
    if (n<=1)
      return 1;
    else
      return n * fact(n-1);
  }

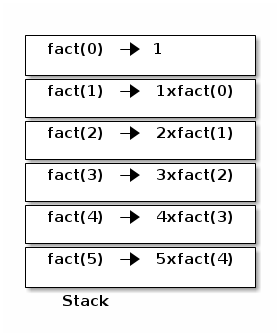

Storing previous state:

• Factorial

• Maze

Working it out

• Base case?
  • found exit?
  • hit a wall?
• Move to next state?
  • four possible recursive calls
  • x+1, x-1, y+1, y-1

How can we represent our maze?

• 2D array
• Space = wall, # = path, z = us

•
   #################
   #   #        #  #
   #   #        #  ##################
   #   #        #            #      #
   #   #        #            #      #
   #   #######  #   ##########      #
   ###       #  #            #      #
   ####################      #      #
   #####       #                    #
   #           #                    #
   #           #       #            #
   #           #       #            #
   #           #       #            #
               #       #            #
    ################   ###############
                  #            #######
                  #
                  ##########$


  y

Algorithm

• Base cases
  • If we're at a wall, return
  • If we're at the exit, set solved to true and return
  • If we're solved, return
• Recursive reduction
  • Put us (z) in the current x,y location of the 2D array
  • solve from the x+1 location
  • solve from the x-1 location
  • solve from the y+1 location
  • solve from the y-1 location
  • if not solved, remove us from the board

Solver

public void solve(int x, int y){
    if (board[x][y]==wall ||
        board[x][y]==visited ||
        solved){
        return;
    }

    if (board[x][y]==exit){
        System.out.println(this);
        solved = true;
    }

    System.out.println(this);
    board[x][y]=me;
    solve(x+1,y);
    solve(x-1,y);
    solve(x,y+1);
    solve(x,y-1);
    if (!solved){
        board[x][y]=visited;
    }
}

Let's look at finished solver

Next steps

• Other state space search and related problems
• Heuristic Search
• Pathway to more advanced search (A*)
• implicit data structures
