Intro

Here I implement the algorithm described in a previous note and compare results with FLASH.

Code

Click “Code” to view the implementation.

# INITIALIZATION FUNCTIONS ------------------------------------------

add_new_altfl <- function(data, fl, seed=1) {
  set.seed(seed)

  altfl <- list()
  altfl$tau <- fl$tau
  altfl$Rk <- flashr:::flash_get_R(data, fl)

  n <- nrow(fl$tau)
  p <- ncol(fl$tau)
  altfl$wl <- rep(0.1, n)
  altfl$wf <- rep(0.1, p)
  altfl$mul <- rnorm(n)
  altfl$muf <- rnorm(p)
  altfl$s2l <- rep(1, n)
  altfl$s2f <- rep(1, p)
  altfl$al <- altfl$af <- 1
  altfl$pi0l <- altfl$pi0f <- 0.9

  altfl$KL <- sum(unlist(fl$KL_l) + unlist(fl$KL_f))

  return(altfl)
}

fl_to_altfl <- function(data, fl, k) {
  altfl <- list()
  altfl$tau <- fl$tau
  altfl$Rk <- flashr:::flash_get_R(data, fl)

  altfl$al <- fl$gl[[k]]$a
  altfl$pi0l <- fl$gl[[k]]$pi0
  altfl$af <- fl$gf[[k]]$a
  altfl$pi0f <- fl$gf[[k]]$pi0

  s2 = 1/(fl$EF2[, k] %*% t(fl$tau))
  s = sqrt(s2)
  Rk = flashr:::flash_get_Rk(data, fl, k)
  x = fl$EF[, k] %*% t(Rk * fl$tau) * s2
  w = 1 - fl$gl[[k]]$pi0
  a = fl$gl[[k]]$a

  altfl$wl <- ebnm:::wpost_normal(x, s, w, a)
  altfl$mul <- ebnm:::pmean_cond_normal(x, s, a)
  altfl$s2l <- ebnm:::pvar_cond_normal(s, a)

  s2 = 1/(fl$EL2[, k] %*% fl$tau)
  s = sqrt(s2)
  Rk = flashr:::flash_get_Rk(data, fl, k)
  x = fl$EL[, k] %*% (Rk * fl$tau) * s2
  w = 1 - fl$gf[[k]]$pi0
  a = fl$gf[[k]]$a

  altfl$wf <- ebnm:::wpost_normal(x, s, w, a)
  altfl$muf <- ebnm:::pmean_cond_normal(x, s, a)
  altfl$s2f <- ebnm:::pvar_cond_normal(s, a)

  altfl$KL <- sum(unlist(fl$KL_l)[-k] + unlist(fl$KL_f)[-k])

  return(altfl)
}

altfl_to_fl <- function(altfl, fl, k) {
  fl$EL[, k] <- compute_EX(altfl$wl, altfl$mul)
  fl$EL2[, k] <- compute_EX2(altfl$wl, altfl$mul, altfl$s2l)
  fl$EF[, k] <- compute_EX(altfl$wf, altfl$muf)
  fl$EF2[, k] <- compute_EX2(altfl$wf, altfl$muf, altfl$s2f)

  fl$gl[[k]] <- list(pi0 = altfl$pi0l, a = altfl$al)
  fl$gf[[k]] <- list(pi0 = altfl$pi0f, a = altfl$af)
  fl$ebnm_fn_l <- fl$ebnm_fn_f <- "alt"
  fl$ebnm_param_l <- fl$ebnm_param_f <- list()

  fl$tau <- altfl$tau

  return(fl)
}

# OBJECTIVE FUNCTION ------------------------------------------------

compute_obj <- function(altfl) {
  with(altfl, {
    EL <- compute_EX(wl, mul)
    EL2 <- compute_EX2(wl, mul, s2l)
    EF <- compute_EX(wf, muf)
    EF2 <- compute_EX2(wf, muf, s2f)

    obj <- rep(0, 8)

    obj[1] <- sum(0.5 * log(tau / (2 * pi)))
    obj[2] <- sum(-0.5 * (tau * (Rk^2 - 2 * Rk * outer(EL, EF) + outer(EL2, EF2))))

    tmp <- (1 - wl) * (log(pi0l) - log(1 - wl))
    obj[3] <- sum(tmp[!is.nan(tmp)])
    tmp <- wl * (log(1 - pi0l) - log(wl))
    obj[4] <- sum(tmp[!is.nan(tmp)])

    obj[5] <- sum(0.5 * wl * (log(al) + log(s2l) + 1 - al * (mul^2 + s2l)))

    tmp <- (1 - wf) * (log(pi0f) - log(1 - wf))
    obj[6] <- sum(tmp[!is.nan(tmp)])
    tmp <- wf * (log(1 - pi0f) - log(wf))
    obj[7] <- sum(tmp[!is.nan(tmp)])

    obj[8] <- sum(0.5 * wf * (log(af) + log(s2f) + 1 - af * (muf^2 + s2f)))

    return(sum(obj) + KL)
  })
}

compute_EX <- function(w, mu) {
  return(as.vector(w * mu))
}

compute_EX2 <- function(w, mu, sigma2) {
  return(as.vector(w * (mu^2 + sigma2)))
}

# UPDATE FUNCTIONS --------------------------------------------------

update_a <- function(w, EX2) {
  return(sum(w) / sum(EX2))
}

update_pi0 <- function(w) {
  return(sum(1 - w) / length(w))
}

update_mul <- function(a, tau, Rk, EF, EF2) {
  n <- nrow(tau)
  p <- ncol(tau)
  numer <- rowSums(tau * Rk * matrix(EF, nrow=n, ncol=p, byrow=TRUE))
  denom <- a + rowSums(tau * matrix(EF2, nrow=n, ncol=p, byrow=TRUE))
  return(numer / denom)
}

update_muf <- function(a, tau, Rk, EL, EL2) {
  n <- nrow(tau)
  p <- ncol(tau)
  numer <- colSums(tau * Rk * matrix(EL, nrow=n, ncol=p, byrow=FALSE))
  denom <- a + colSums(tau * matrix(EL2, nrow=n, ncol=p, byrow=FALSE))
  return(numer / denom)
}

update_s2l <- function(a, tau, EF2) {
  n <- nrow(tau)
  p <- ncol(tau)
  return(1 / (a + rowSums(tau * matrix(EF2, nrow=n, ncol=p, byrow=TRUE))))
}

update_s2f <- function(a, tau, EL2) {
  n <- nrow(tau)
  p <- ncol(tau)
  return(1 / (a + colSums(tau * matrix(EL2, nrow=n, ncol=p, byrow=FALSE))))
}

update_wl <- function(a, pi0, mu, sigma2, tau, Rk, EF, EF2) {
  C1 <- log(1 - pi0) - log(pi0)
  C2 <- 0.5 * (log(a) + log(sigma2) - a * (mu^2 + sigma2) + 1)
  C3 <- rowSums(tau * (Rk * outer(mu, EF) - 0.5 * outer(mu^2 + sigma2, EF2)))
  C <- C1 + C2 + C3
  return(1 / (1 + exp(-C)))
}

update_wf <- function(a, pi0, mu, sigma2, tau, Rk, EL, EL2) {
  C1 <- log(1 - pi0) - log(pi0)
  C2 <- 0.5 * (log(a) + log(sigma2) - a * (mu^2 + sigma2) + 1)
  C3 <- colSums(tau * (Rk * outer(EL, mu) - 0.5 * outer(EL2, mu^2 + sigma2)))
  C <- C1 + C2 + C3
  return(1 / (1 + exp(-C)))
}

# ALGORITHM ---------------------------------------------------------

update_tau <- function(altfl) {
  within(altfl, {
    EL <- compute_EX(wl, mul)
    EL2 <- compute_EX2(wl, mul, s2l)
    EF <- compute_EX(wf, muf)
    EF2 <- compute_EX2(wf, muf, s2f)

    R2 <- Rk^2 - 2 * Rk * outer(EL, EF) + outer(EL2, EF2)
    tau <- matrix(1 / colMeans(R2), nrow=nrow(tau), ncol=ncol(tau),
                  byrow=TRUE)
  })
}

update_loadings_post <- function(altfl) {
  within(altfl, {
    EF <- compute_EX(wf, muf)
    EF2 <- compute_EX2(wf, muf, s2f)

    mul <- update_mul(al, tau, Rk, EF, EF2)
    s2l <- update_s2l(al, tau, EF2)
    wl <- update_wl(al, pi0l, mul, s2l, tau, Rk, EF, EF2)
  })
}

update_loadings_prior <- function(altfl) {
  within(altfl, {
    EL2 <- compute_EX2(wl, mul, s2l)

    al <- update_a(wl, EL2)
    pi0l <- update_pi0(wl)
  })
}

update_factor_post <- function(altfl) {
  within(altfl, {
    EL <- compute_EX(wl, mul)
    EL2 <- compute_EX2(wl, mul, s2l)

    muf <- update_muf(af, tau, Rk, EL, EL2)
    s2f <- update_s2f(af, tau, EL2)
    wf <- update_wf(af, pi0f, muf, s2f, tau, Rk, EL, EL2)
  })
}

update_factor_prior <- function(altfl) {
  within(altfl, {
    EF2 <- compute_EX2(wf, muf, s2f)

    af <- update_a(wf, EF2)
    pi0f <- update_pi0(wf)
  })
}

do_one_update <- function(altfl) {
  obj <- rep(0, 5)

  altfl <- update_tau(altfl)
  obj[1] <- compute_obj(altfl)

  altfl <- update_loadings_post(altfl)
  obj[2] <- compute_obj(altfl)

  altfl <- update_loadings_prior(altfl)
  obj[3] <- compute_obj(altfl)

  altfl <- update_factor_post(altfl)
  obj[4] <- compute_obj(altfl)

  altfl <- update_factor_prior(altfl)
  obj[5] <- compute_obj(altfl)

  return(list(altfl = altfl, obj = obj))
}

optimize_alt_fl <- function(altfl, tol = .01, verbose = FALSE) {
  obj <- compute_obj(altfl)
  diff <- Inf

  while (diff > tol) {
    tmp <- do_one_update(altfl)
    new_obj <- tmp$obj[length(tmp$obj)]
    diff <- new_obj - obj
    obj <- new_obj
    if (verbose) {
      message(paste("Objective:", obj))
    }
    altfl <- tmp$altfl
  }

  return(altfl)
}

Fit

Using the same dataset as in previous investigations, I fit a FLASH object with four factors (recall that it’s the fourth factor that has been causing problems during loadings updates):

load("./data/before_bad.Rdata")
# devtools::install_github("stephenslab/flashr")
devtools::load_all("/Users/willwerscheid/GitHub/flashr")
Loading flashr
fl <- flash_add_greedy(data, Kmax=4, verbose=FALSE)
fitting factor/loading 1
fitting factor/loading 2
fitting factor/loading 3
fitting factor/loading 4

The objective as computed by FLASH is:

flash_get_objective(data, fl)
[1] -1297148

I now convert the fourth factor to an “altfl” object. The objective as computed by the alternate method is:

altfl <- fl_to_altfl(data, fl, 4)
compute_obj(altfl)
[1] -1288461

Next, I optimize the altfl object:

altfl <- optimize_alt_fl(altfl, verbose=TRUE)
Objective: -1267406.2685275
Objective: -1260756.13822147
Objective: -1257939.29612236
Objective: -1257300.63730127
Objective: -1257110.55550233
Objective: -1257016.7314057
Objective: -1256963.52277046
Objective: -1256932.3695305
Objective: -1256914.13309796
Objective: -1256902.74309918
Objective: -1256895.1068788
Objective: -1256889.8003563
Objective: -1256886.07583612
Objective: -1256883.4080515
Objective: -1256881.44636624
Objective: -1256879.9749153
Objective: -1256878.85630259
Objective: -1256877.99813191
Objective: -1256877.33547644
Objective: -1256876.82128467
Objective: -1256876.42074587
Objective: -1256876.10774166
Objective: -1256875.8624804
Objective: -1256875.66985319
Objective: -1256875.5182584
Objective: -1256875.39874455
Objective: -1256875.3043765
Objective: -1256875.22976218
Objective: -1256875.17069613
Objective: -1256875.12388932
Objective: -1256875.08676316
Objective: -1256875.05729166
Objective: -1256875.03387997
Objective: -1256875.0152705
Objective: -1256875.00047012
Objective: -1256874.98869349
Objective: -1256874.9793189

Finally, I put the altfl object back into the fourth factor of the flash object.

fl2 <- altfl_to_fl(altfl, fl, 4)

Comparison

The fits are very different. For priors on both factors and loadings, the altfl fit favors less sparsity (smaller spikes, i.e., smaller pi0) and more shrinkage (narrower slabs, i.e., greater a).

list(loadings = fl$gl[[4]], alt_loadings = fl2$gl[[4]])
$loadings
$loadings$pi0
[1] 0.7252435

$loadings$a
[1] 0.05228744


$alt_loadings
$alt_loadings$pi0
[1] 0.6079064

$alt_loadings$a
[1] 0.1251973
list(factors = fl$gf[[4]], alt_factors = fl2$gf[[4]])
$factors
$factors$pi0
[1] 0.3667051

$factors$a
[1] 23.14738


$alt_factors
$alt_factors$pi0
[1] 0.1302886

$alt_factors$a
[1] 36.28001

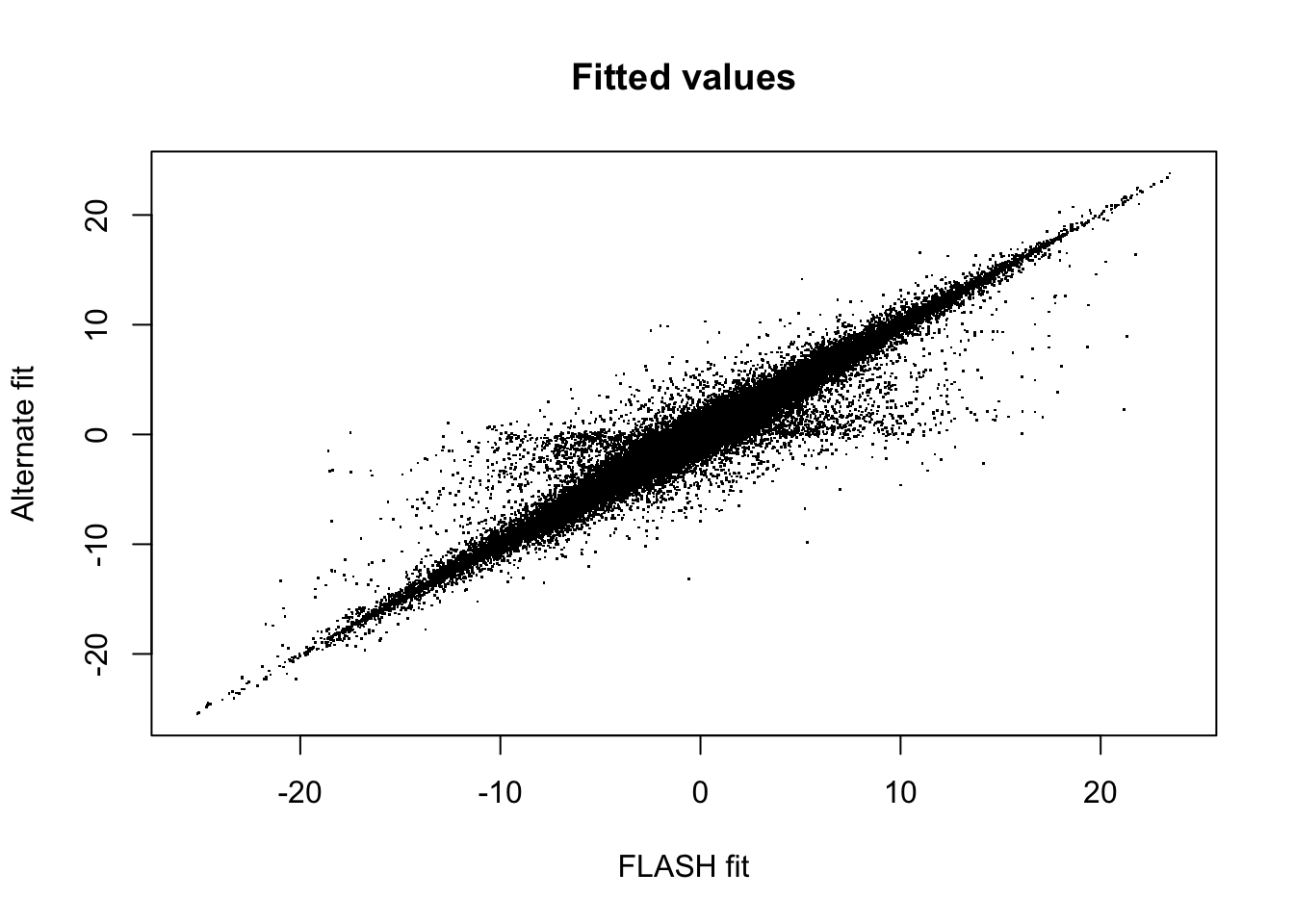

A scatterplot comparing the fitted fourth factor/loading appears as follows:

fitted <- flash_get_fitted_values(fl)
fitted2 <- flash_get_fitted_values(fl2)

minval <- min(c(fitted, fitted2))
maxval <- max(c(fitted, fitted2))

plot(fitted, fitted2, pch='.',
     xlab="FLASH fit", ylab="Alternate fit",
     xlim=c(minval, maxval), ylim=c(minval, maxval),
     main="Fitted values")

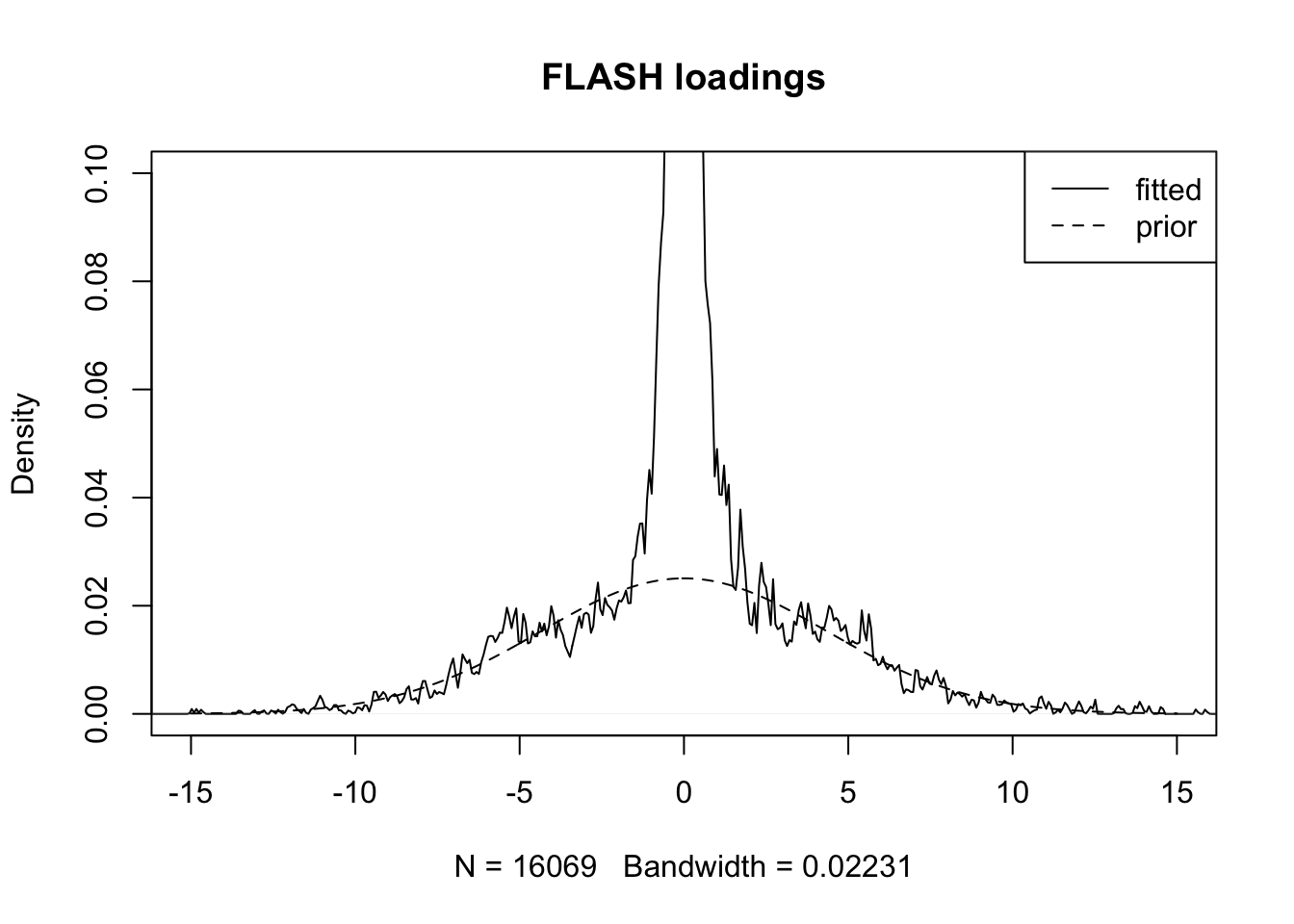

To see what’s going on, I fit the estimated loadings against the estimated prior on the loadings. For the FLASH fit:

plot(density(fl$EL[, 4]), xlim=c(-15, 15), ylim=c(0, 0.1),
     main="FLASH loadings")
grid <- seq(-15, 15, by=.05)
y <- (1 - fl$gl[[4]]$pi0) * dnorm(grid, 0, 1/sqrt(fl$gl[[4]]$a))
lines(grid, y, lty=2)
legend("topright", legend = c("fitted", "prior"), lty = c(1, 2))

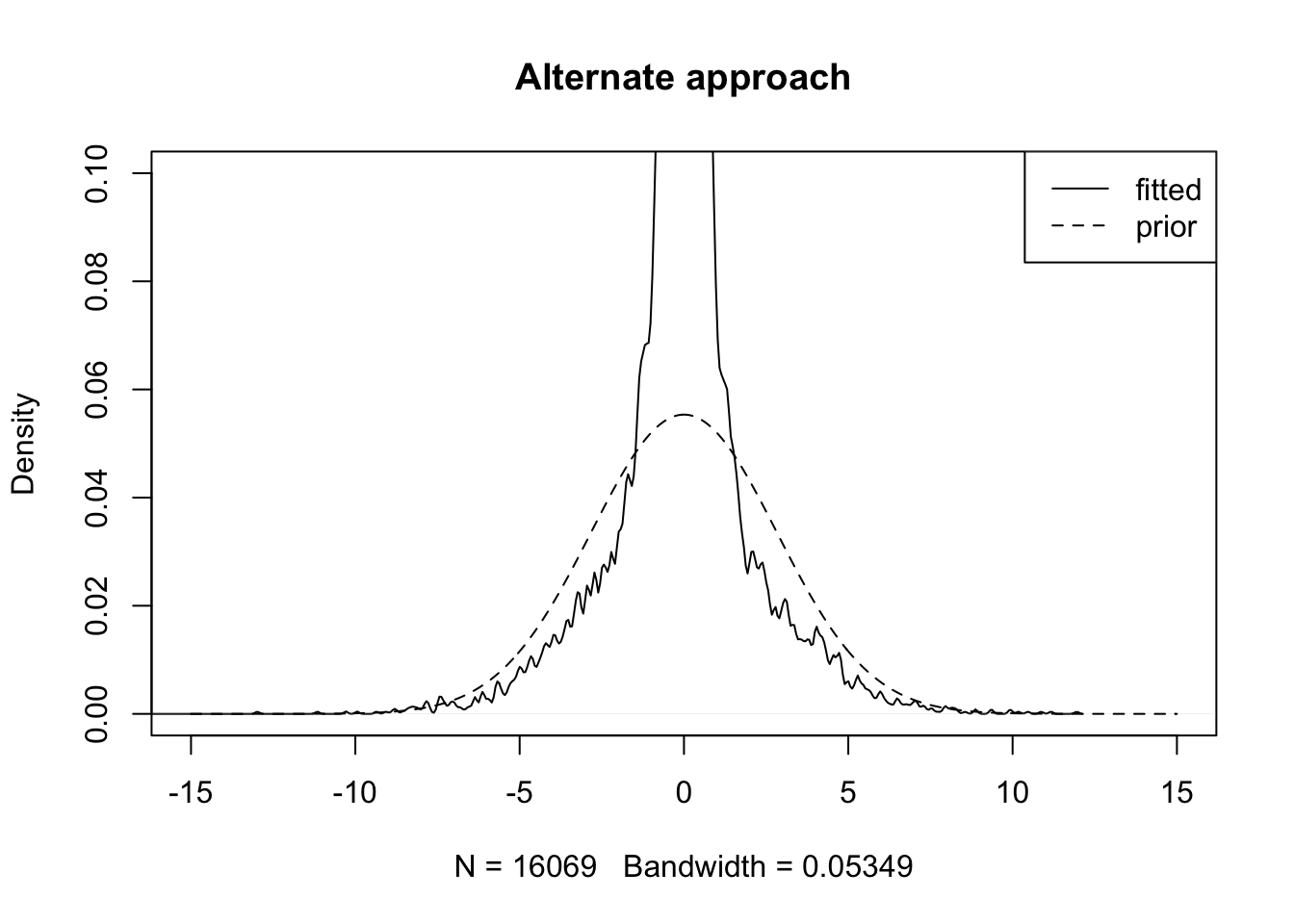

For the alternate approach:

plot(density(fl2$EL[, 4]), xlim=c(-15, 15), ylim=c(0, 0.1),
     main="Alternate approach")
grid <- seq(-15, 15, by=.05)
y <- (1 - fl2$gl[[4]]$pi0) * dnorm(grid, 0, 1/sqrt(fl2$gl[[4]]$a))
lines(grid, y, lty=2)
legend("topright", legend = c("fitted", "prior"), lty = c(1, 2))

It seems almost as if FLASH were fitting the model \[ l_i \sim^{iid} g_l + e, \] where \(e\) is some error term, rather than the model \[ l_i \sim^{iid} g_l. \] This might explain why the prior gets pulled up more by the fitted values in the latter approach.

Session information

sessionInfo()
R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Sierra 10.12.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] flashr_0.5-12

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.17        pillar_1.2.1        plyr_1.8.4
 [4] compiler_3.4.3      git2r_0.21.0        workflowr_1.0.1
 [7] R.methodsS3_1.7.1   R.utils_2.6.0       iterators_1.0.9
[10] tools_3.4.3         testthat_2.0.0      digest_0.6.15
[13] tibble_1.4.2        evaluate_0.10.1     memoise_1.1.0
[16] gtable_0.2.0        lattice_0.20-35     rlang_0.2.0
[19] Matrix_1.2-12       foreach_1.4.4       commonmark_1.4
[22] yaml_2.1.17         parallel_3.4.3      ebnm_0.1-12
[25] withr_2.1.1.9000    stringr_1.3.0       roxygen2_6.0.1.9000
[28] xml2_1.2.0          knitr_1.20          devtools_1.13.4
[31] rprojroot_1.3-2     grid_3.4.3          R6_2.2.2
[34] rmarkdown_1.8       ggplot2_2.2.1       ashr_2.2-10
[37] magrittr_1.5        whisker_0.3-2       backports_1.1.2
[40] scales_0.5.0        codetools_0.2-15    htmltools_0.3.6
[43] MASS_7.3-48         assertthat_0.2.0    softImpute_1.4
[46] colorspace_1.3-2    stringi_1.1.6       lazyeval_0.2.1
[49] munsell_0.4.3       doParallel_1.0.11   pscl_1.5.2
[52] truncnorm_1.0-8     SQUAREM_2017.10-1   R.oo_1.21.0

This reproducible R Markdown analysis was created with workflowr 1.0.1
