<h1 class="title toc-ignore">Comparing initialization functions (part II)</h1>
<h4 class="author"><em>Jason Willwerscheid</em></h4>
<h4 class="date"><em>8/28/2018</em></h4>
</div>
<p><strong>Last updated:</strong> 2018-08-29</p>
<strong>workflowr checks:</strong> <small>(Click a bullet for more information)</small>
<ul>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>R Markdown file:</strong> up-to-date </summary></p>
<p>Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Environment:</strong> empty </summary></p>
<p>Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Seed:</strong> <code>set.seed(20180714)</code> </summary></p>
<p>The command <code>set.seed(20180714)</code> was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Session information:</strong> recorded </summary></p>
<p>Great job! Recording the operating system, R version, and package versions is critical for reproducibility.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Repository version:</strong> <a href="https://github.com/willwerscheid/FLASHvestigations/tree/237072b28f322233c744e4ffc2c4f88b75a33e81" target="_blank">237072b</a> </summary></p>
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated. <br><br> Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use <code>wflow_publish</code> or <code>wflow_git_commit</code>). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
<pre><code>
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: docs/.DS_Store
Ignored: docs/figure/.DS_Store
Untracked files:
Untracked: code/init_fn3.R
Untracked: data/greedy19.rds
Untracked: data/init_fn3/
</code></pre>
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes. </details>
</li>
</ul>
<details> <summary> <small><strong>Expand here to see past versions:</strong></small> </summary>
<ul>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
File
</th>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
<th style="text-align:left;">
Message
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
Rmd
</td>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/237072b28f322233c744e4ffc2c4f88b75a33e81/analysis/init_fn3.Rmd" target="_blank">237072b</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-29
</td>
<td style="text-align:left;">
wflow_publish(“analysis/init_fn3.Rmd”)
</td>
</tr>
</tbody>
</table>
</ul>
<p></details></p>
<hr />
<div id="introduction" class="section level2">
<h2>Introduction</h2>
<p>Here I return to the question of which initialization function is best, and in which cases. I run some simple experiments on simulated datasets of various dimensions and with or without missing data.</p>
</div>
<div id="results" class="section level2">
<h2>Results</h2>
<p>I simulate data from both a null model and a rank-one model with <span class="math inline">\(p \in \{1000, 10000\}\)</span> and with <span class="math inline">\(n\)</span> ranging from 10 to 1000. I either retain all of the data or I delete 20% of entries. I initialize using <code>"udv_si"</code>, <code>"udv_si_svd"</code>, and, when there is no missing data, <code>"udv_svd"</code>.</p>
<p>I pre-run the code <a href="#code">below</a> and load the results from file.</p>
<pre class="r"><code>all_res <- readRDS("./data/init_fn3/all_res.rds")
plot_results <- function(res, n, main, colors) {
colors = colors[c("udv_si_svd", "udv_si", "udv_svd")]
plot(log10(n), log10(res[["udv_si_svd"]]), type='l', col=colors[1],
xlab = "log10(n)", ylab = "time elapsed (log10 s)",
ylim = log10(c(min(unlist(res)), max(unlist(res)))),
main = main)
lines(log10(n), log10(res[["udv_si"]]), col=colors[2])
if (length(res) == 3) {
lines(log10(n), log10(res[["udv_svd"]]), col=colors[3])
}
legend.txt <- c("udv_si_svd", "udv_si", "udv_svd")
legend("bottomright", legend.txt[1:length(res)], lty=1,
col=colors[1:length(res)])
}
ns <- c(10, 25, 50, 100, 250, 500, 1000)
colors = RColorBrewer::brewer.pal(3, "Dark2")[1:3]
names(colors) = c("udv_svd", "udv_si", "udv_si_svd")

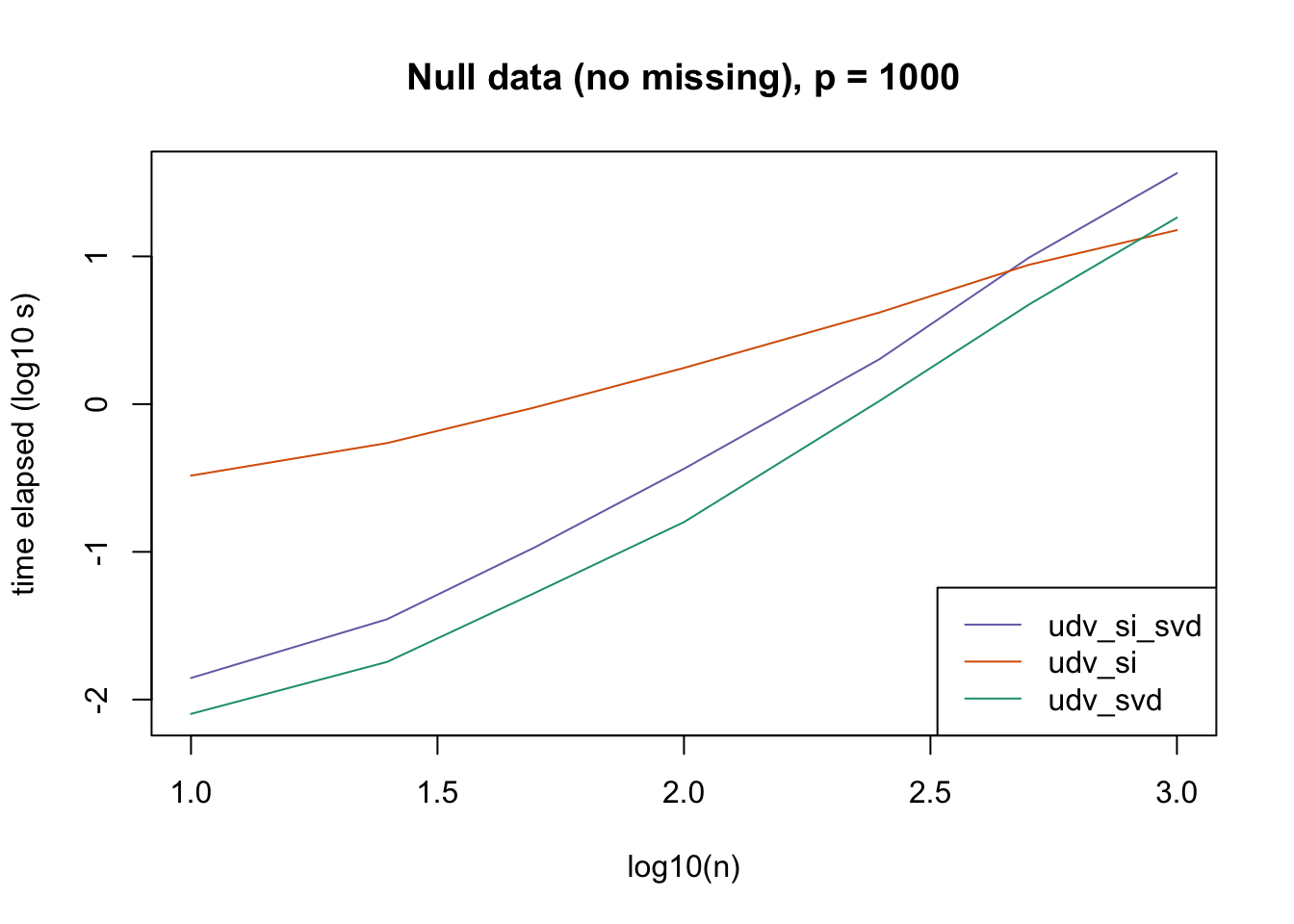

plot_results(all_res$null_noNA_p1000, ns,
"Null data (no missing), p = 1000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>plot_results(all_res$null_noNA_p10000, ns,
"Null data (no missing), p = 10000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-2.png" width="672" style="display: block; margin: auto;" /></p>

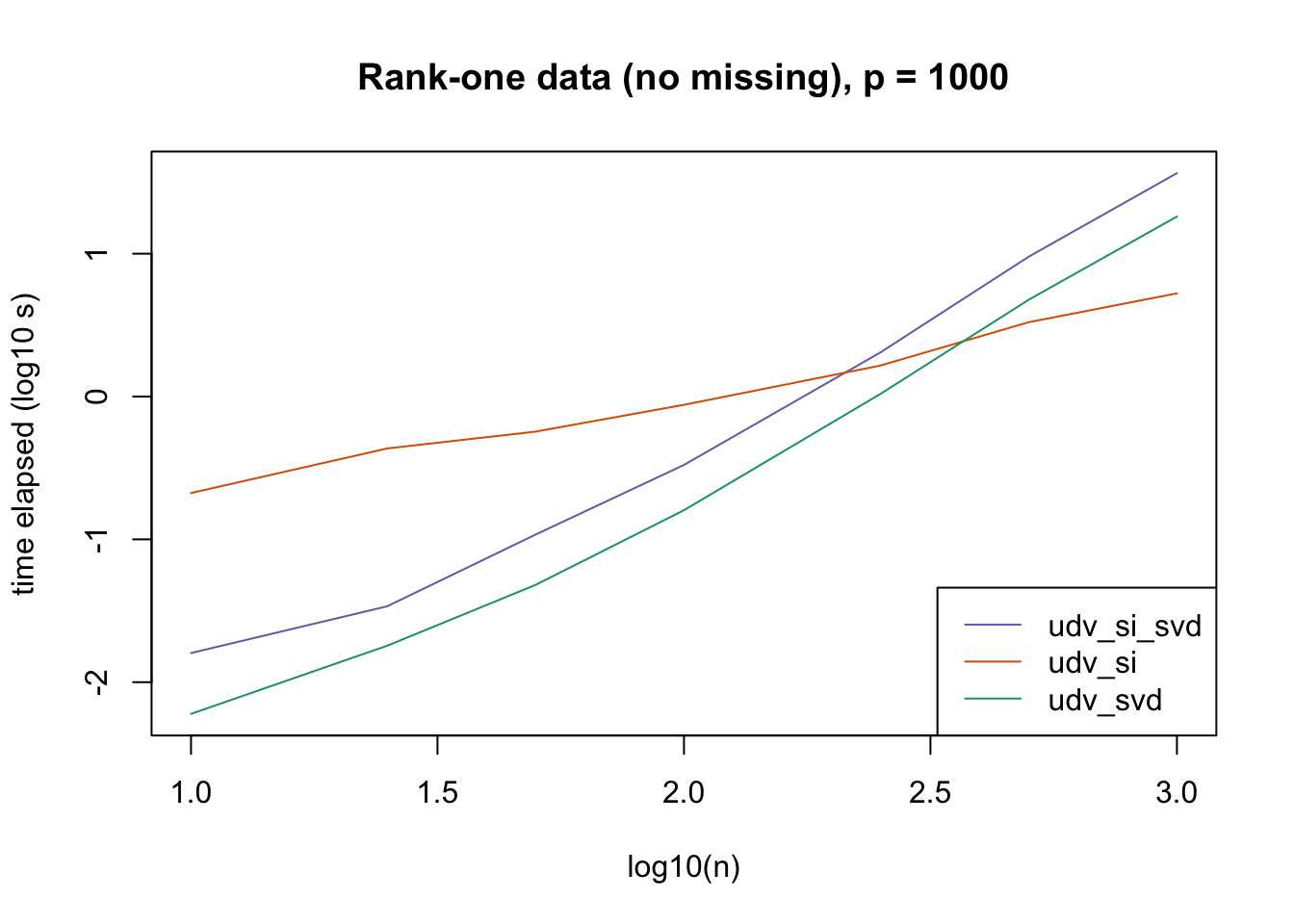

<pre class="r"><code>plot_results(all_res$r1_noNA_p1000, ns,
"Rank-one data (no missing), p = 1000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-3.png" width="672" style="display: block; margin: auto;" /></p>

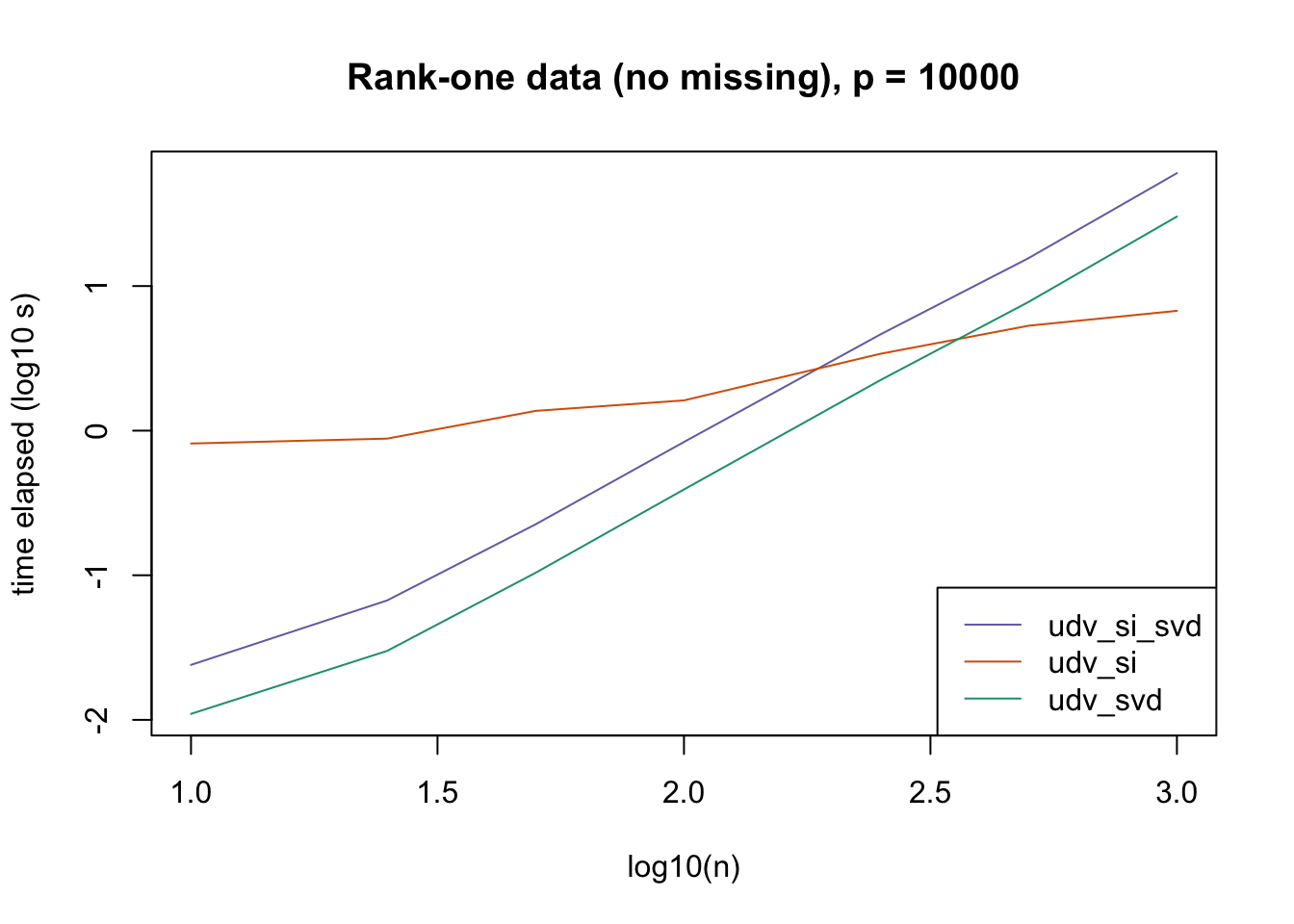

<pre class="r"><code>plot_results(all_res$r1_noNA_p10000, ns,
"Rank-one data (no missing), p = 10000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-4.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>plot_results(all_res$null_missing_p1000, ns,
"Null data (with missing), p = 1000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-5.png" width="672" style="display: block; margin: auto;" /></p>

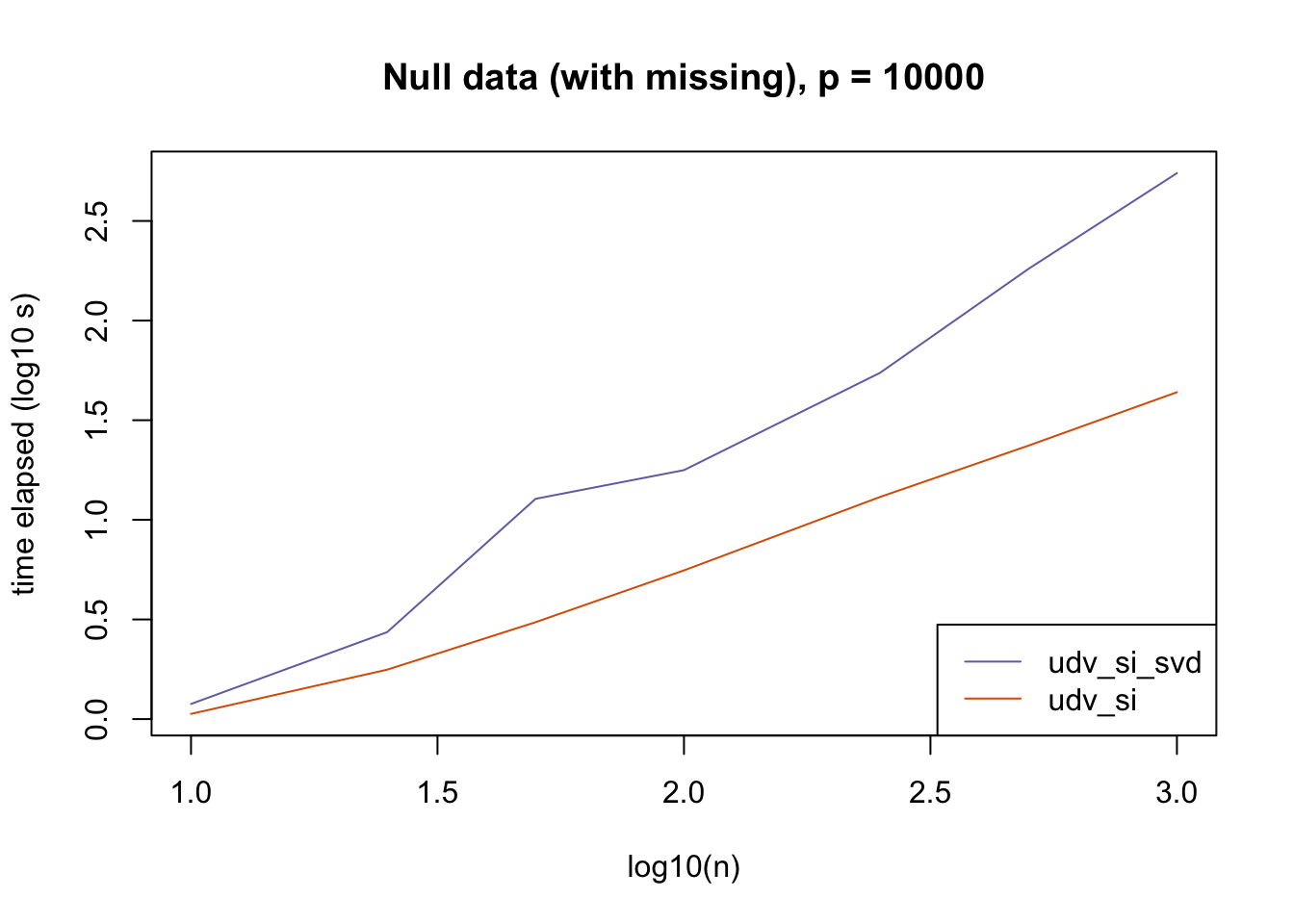

<pre class="r"><code>plot_results(all_res$null_missing_p10000, ns,
"Null data (with missing), p = 10000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-6.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>plot_results(all_res$r1_missing_p1000, ns,
"Rank-one data (with missing), p = 1000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-7.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>plot_results(all_res$r1_missing_p10000, ns,
"Rank-one data (with missing), p = 10000", colors)</code></pre>
<p><img src="figure/init_fn3.Rmd/results-8.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="conclusions" class="section level2">
<h2>Conclusions</h2>
<p>The current default <code>init_fn = "udv_si"</code> is sensible. In cases with missing data, <code>"udv_si"</code> almost always beats <code>"udv_si_svd"</code>; the only exceptions are for small <span class="math inline">\(n\)</span>, but in such cases initialization is very fast anyway.</p>
<p>When there is no missing data, then <code>"udv_svd"</code> is the fastest method for small <span class="math inline">\(n\)</span>, but <code>"udv_si"</code> is again the fastest method when <span class="math inline">\(n\)</span> becomes large. (Interestingly, the relative speeds do not seem to depend on the larger dimension <span class="math inline">\(p\)</span>.)</p>
<p>It would be possible to programmatically set <code>init_fn</code> based on <span class="math inline">\(n\)</span> (or more precisely, based on the smaller of <span class="math inline">\(n\)</span> and <span class="math inline">\(p\)</span>), but I don’t think it’s worth the trouble, since <code>"udv_si_svd"</code> seems to consistently be the fastest (or nearly fastest) method when the speed of initialization actually becomes an issue.</p>
</div>
<div id="code" class="section level2">
<h2>Code</h2>
<pre class="r"><code>devtools::load_all("/Users/willwerscheid/GitHub/flashr")
sim_mat <- function(n, p, type, missing) {
if (type == 1) {
out <- matrix(rnorm(n * p), nrow=n, ncol=p)
} else if (type == 2) {
out <- (outer(rep(1, n), rep(1, p))
+ matrix(rnorm(n * p), nrow=n, ncol=p))
}
if (missing) {
out[rbinom(n * p, 1, 0.2) == 1] <- NA
}
return(out)
}
do_experiment <- function(nreps, ns, p, type, missing, verbose=TRUE) {
res <- list()
if (missing) {
init_fns <- c("udv_si", "udv_si_svd")
} else {
init_fns <- c("udv_svd", "udv_si", "udv_si_svd")
}
for (init_fn in init_fns) {
res[[init_fn]] <- rep(NA, nrow=length(ns))
}
for (i in 1:length(ns)) {
if (verbose) {
message("n = ", ns[i])
}
data <- list()
for (rep in 1:nreps) {
data[[rep]] <- sim_mat(ns[i], p, type, missing)
}
for (init_fn in init_fns) {
t <- system.time({
for (rep in 1:nreps) {
fl <- flash_add_factors_from_data(data[[rep]],
K=5,
init_fn=init_fn,
backfit=FALSE,
verbose=FALSE)
}
})
res[[init_fn]][i] <- t["elapsed"]
}
}
return(res)
}
set.seed(666)
all_res <- list()
nreps <- 5
ns <- c(10, 25, 50, 100, 250, 500, 1000)
p <- 1000
all_res$null_noNA_p1000 <- do_experiment(nreps, ns, p, type=1,
missing=FALSE)
all_res$r1_noNA_p1000 <- do_experiment(nreps, ns, p, type=2,
missing=FALSE)
all_res$null_missing_p1000 <- do_experiment(nreps, ns, p, type=1,
missing=TRUE)
all_res$r1_missing_p1000 <- do_experiment(nreps, ns, p, type=2,
missing=TRUE)
nreps <- 1
ns <- c(10, 25, 50, 100, 250, 500, 1000)
p <- 10000
all_res$null_noNA_p10000 <- do_experiment(nreps, ns, p, type=1,
missing=FALSE)
all_res$r1_noNA_p10000 <- do_experiment(nreps, ns, p, type=2,
missing=FALSE)
all_res$null_missing_p10000 <- do_experiment(nreps, ns, p, type=1,
missing=TRUE)
all_res$r1_missing_p10000 <- do_experiment(nreps, ns, p, type=2,
missing=TRUE)
saveRDS(all_res, "./data/init_fn3/all_res.rds")</code></pre>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] workflowr_1.0.1 Rcpp_0.12.17 digest_0.6.15
[4] rprojroot_1.3-2 R.methodsS3_1.7.1 backports_1.1.2
[7] git2r_0.21.0 magrittr_1.5 evaluate_0.10.1
[10] stringi_1.1.6 whisker_0.3-2 R.oo_1.21.0
[13] R.utils_2.6.0 rmarkdown_1.8 RColorBrewer_1.1-2
[16] tools_3.4.3 stringr_1.3.0 yaml_2.1.17
[19] compiler_3.4.3 htmltools_0.3.6 knitr_1.20 </code></pre>
</div>
<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html. This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
MathJax.Hub.Config({
"HTML-CSS": { availableFonts: ["TeX"] }
});
</script>
<hr>
<p>
This reproducible <a href="http://rmarkdown.rstudio.com">R Markdown</a>
analysis was created with
<a href="https://github.com/jdblischak/workflowr">workflowr</a> 1.0.1
</p>
<hr>
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
