<h1 class="title toc-ignore">Parallel backfitting updates</h1>
<h4 class="author"><em>Jason Willwerscheid</em></h4>
<h4 class="date"><em>8/12/2018</em></h4>
</div>
<p><strong>Last updated:</strong> 2018-08-15</p>
<strong>workflowr checks:</strong> <small>(Click a bullet for more information)</small>
<ul>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>R Markdown file:</strong> up-to-date </summary></p>
<p>Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Environment:</strong> empty </summary></p>
<p>Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Seed:</strong> <code>set.seed(20180714)</code> </summary></p>
<p>The command <code>set.seed(20180714)</code> was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Session information:</strong> recorded </summary></p>
<p>Great job! Recording the operating system, R version, and package versions is critical for reproducibility.</p>
</details>
</li>
<li>
<p><details> <summary> <strong style="color:blue;">✔</strong> <strong>Repository version:</strong> <a href="https://github.com/willwerscheid/FLASHvestigations/tree/bf441076172436f6b48a223baf52268926f686d3" target="_blank">bf44107</a> </summary></p>
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated. <br><br> Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use <code>wflow_publish</code> or <code>wflow_git_commit</code>). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
<pre><code>
Ignored files:
Ignored: .DS_Store
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: docs/.DS_Store
Ignored: docs/figure/.DS_Store
Untracked files:
Untracked: data/greedy19.rds
Untracked: data/parallel/MASHvFLASHfinal.rds
Untracked: data/parallel/MASHvFLASHrandom.rds
Untracked: data/parallel/MASHvFLASHrandom_bad.rds
Untracked: docs/figure/parallel2.Rmd/
Unstaged changes:
Modified: code/parallel_test.R
Modified: data/parallel/greedy20niter100.rds
Modified: data/parallel/svd20niter100.rds
</code></pre>
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes. </details>
</li>
</ul>
<details> <summary> <small><strong>Expand here to see past versions:</strong></small> </summary>
<ul>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
File
</th>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
<th style="text-align:left;">
Message
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
html
</td>
<td style="text-align:left;">
<a href="https://cdn.rawgit.com/willwerscheid/FLASHvestigations/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/parallel.html" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
<td style="text-align:left;">
Build site.
</td>
</tr>
<tr>
<td style="text-align:left;">
html
</td>
<td style="text-align:left;">
<a href="https://cdn.rawgit.com/willwerscheid/FLASHvestigations/5a2e2a9601fa2c67d7858623a8f1a021b7bd6774/docs/parallel.html" target="_blank">5a2e2a9</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
<td style="text-align:left;">
Build site.
</td>
</tr>
<tr>
<td style="text-align:left;">
Rmd
</td>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/6a9bf1c4cb55f106ec6bfa8279041df485958868/analysis/parallel.Rmd" target="_blank">6a9bf1c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
<td style="text-align:left;">
wflow_publish(c(“analysis/index.Rmd”, “analysis/parallel.Rmd”))
</td>
</tr>
<tr>
<td style="text-align:left;">
html
</td>
<td style="text-align:left;">
<a href="https://cdn.rawgit.com/willwerscheid/FLASHvestigations/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/parallel.html" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
<td style="text-align:left;">
Build site.
</td>
</tr>
<tr>
<td style="text-align:left;">
Rmd
</td>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/eaba09b9681df28c1319325ecf9f96d390be6a39/analysis/parallel.Rmd" target="_blank">eaba09b</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
<td style="text-align:left;">
wflow_publish(c(“analysis/index.Rmd”, “analysis/parallel.Rmd”))
</td>
</tr>
</tbody>
</table>
</ul>
<p></details></p>
<hr />
<div id="introduction" class="section level2">
<h2>Introduction</h2>
<p>At present, backfitting is done serially. That is, factor 1 is updated using the current residuals, then factor 2 is updated using the new values of factor 1 to calculate residuals, and so on.</p>
<p>Here I implement parallel updates, where all factors are updated using the same residuals. Parallelization could provide a significant speedup, but the objective is no longer guaranteed to increase after each iteration.</p>
<p>For the code used in this investigation, see <a href="#code">below</a>.</p>
</div>
<div id="experiments" class="section level2">
<h2>Experiments</h2>
<p>I carry out two experiments, using the same GTEx dataset that I use <a href="https://willwerscheid.github.io/MASHvFLASH/MASHvFLASHgtex.html">here</a>. The first experiment adds 20 factors to a flash object using <code>flash_add_greedy</code> and then backfits for 100 iterations. The second adds 20 factors using <code>flash_add_factors_from_data</code> (with <code>init_fn = udv_svd</code>) and then backfits (again, for 100 iterations).</p>
<p>In each case, I use three methods to backfit:</p>
<ol style="list-style-type: decimal">
<li><p>The standard method implemented in <code>flash_backfit</code>, which serially updates each factor by calling <code>flash_update_single_fl</code>.</p></li>
<li><p>A “parallelized” method that peforms simultaneous updates via <code>lapply</code>.</p></li>
<li><p>A multi-core method that performs simultaneous updates using function <code>mclapply</code> in package <code>parallel</code> (I am using 4 cores).</p></li>
</ol>
<p>I compare objectives attained after each update and time required to carry out each update.</p>
</div>
<div id="results" class="section level2">
<h2>Results</h2>
<p>I pre-run the experiments and load the results from file.</p>
<pre class="r"><code>res_greedy <- readRDS("./data/parallel/greedy20niter100.rds")
res_svd <- readRDS("./data/parallel/svd20niter100.rds")</code></pre>
<div id="greedy" class="section level3">
<h3>Greedy</h3>
<p>First I give results for backfitting the 20 factors obtained using <code>flash_add_greedy</code>.</p>
<p>The objectives attained using each backfitting method are very similar (the objectives for the <code>lapply</code> and <code>mclapply</code> methods are of course identical, so I only give “standard” and “parallel” results below):</p>
<pre class="r"><code>plot(res_greedy$backfit_obj, pch=19, col="blue",
xlim=c(1, 100), xlab="Update", ylab="Objective")
points(res_greedy$parallel_obj, pch=19, col="red")
legend("bottomright", legend=c("standard", "parallel"),
pch=c(19, 19), col=c("blue", "red"))</code></pre>
<p><img src="figure/parallel.Rmd/greedy_obj1-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of greedy_obj1-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/figure/parallel.Rmd/greedy_obj1-1.png" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
</tr>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/figure/parallel.Rmd/greedy_obj1-1.png" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>Plotting the same results as the difference in objective attained (i.e., the improvement in the objective if one uses the standard method rather than a parallel method):</p>
<pre class="r"><code>y <- res_greedy$backfit_obj - res_greedy$parallel_obj
plot(1:length(y), y, type="l", xlim=c(1, 100), ylim=c(0, max(y)),
xlab="Update", ylab="Difference")</code></pre>
<p><img src="figure/parallel.Rmd/greedy_obj2-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of greedy_obj2-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/figure/parallel.Rmd/greedy_obj2-1.png" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
</tr>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/figure/parallel.Rmd/greedy_obj2-1.png" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
</tr>
</tbody>
</table>
<p></details></p>

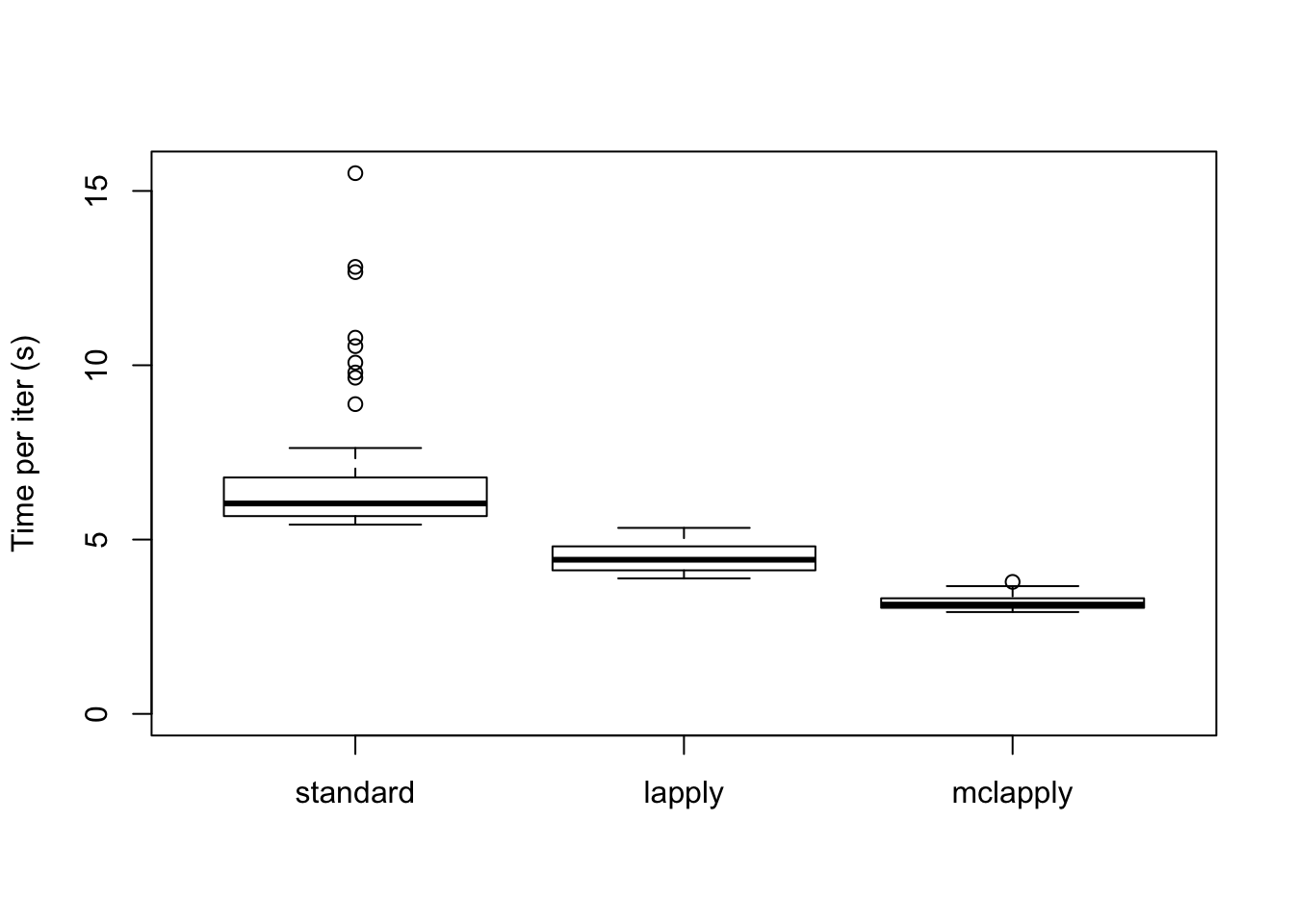

<p>The time required for each update is as follows. Interestingly, simply using <code>lapply</code> achieves a minor speedup. Using 4 cores cuts the time required to backfit approximately in half.</p>
<pre class="r"><code>data <- data.frame(standard = res_greedy$backfit_t,
lapply = res_greedy$parallel_t,
mclapply = res_greedy$multicore_t)
boxplot(data, ylim=c(0, max(data)), ylab="Time per iter (s)")</code></pre>
<p><img src="figure/parallel.Rmd/greedy_t1-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of greedy_t1-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/figure/parallel.Rmd/greedy_t1-1.png" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
</tr>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/figure/parallel.Rmd/greedy_t1-1.png" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>The total time required (in seconds) is:</p>
<pre class="r"><code>colSums(data)</code></pre>
<pre><code>standard lapply mclapply
657.796 447.641 318.600 </code></pre>
</div>
<div id="svd" class="section level3">
<h3>SVD</h3>

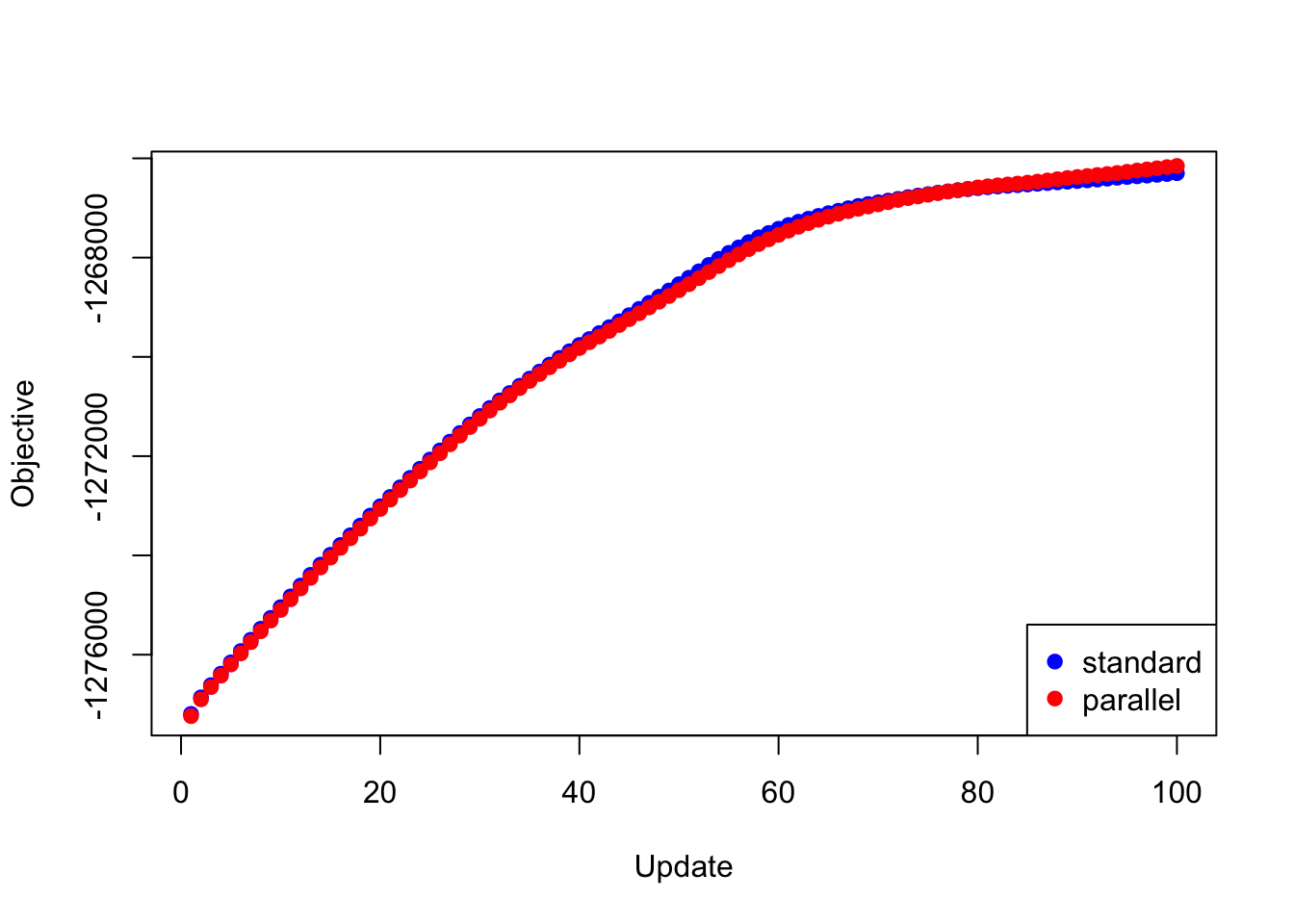

<p>Next I give results for the 20 factors obtained using <code>flash_add_factors_from_data</code>. In this case, the parallel updates attain a better objective than the standard updates after 80 iterations or so:</p>
<pre class="r"><code>plot(res_svd$backfit_obj, pch=19, col="blue",
xlim=c(1, 100), xlab="Update", ylab="Objective")
points(res_svd$parallel_obj, pch=19, col="red")
legend("bottomright", legend=c("standard", "parallel"),
pch=c(19, 19), col=c("blue", "red"))</code></pre>
<p><img src="figure/parallel.Rmd/svd_obj1-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of svd_obj1-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/figure/parallel.Rmd/svd_obj1-1.png" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
</tr>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/figure/parallel.Rmd/svd_obj1-1.png" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
</tr>
</tbody>
</table>
<p></details></p>

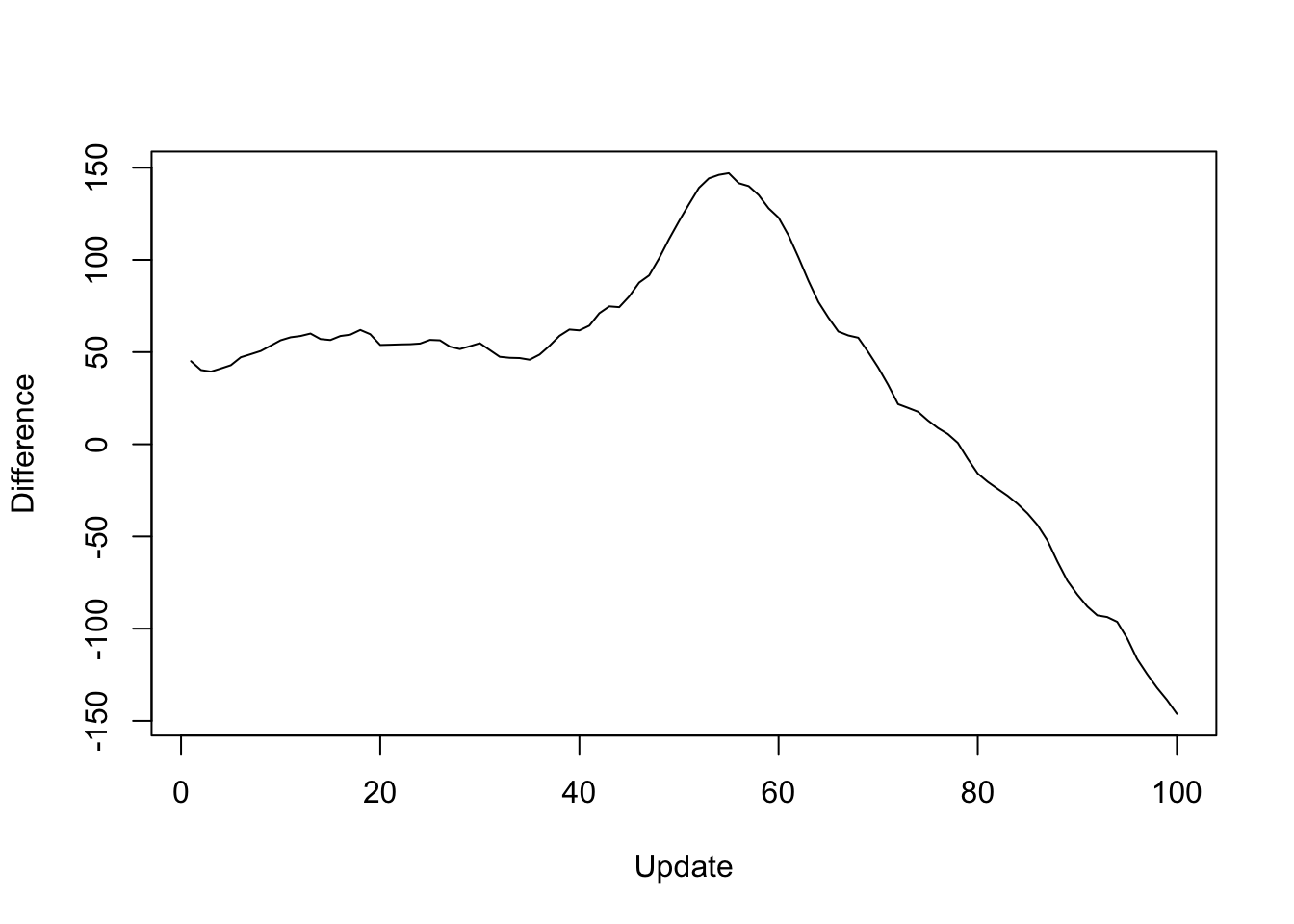

<pre class="r"><code>y <- res_svd$backfit_obj - res_svd$parallel_obj
plot(1:length(y), y, type="l", xlim=c(1, 100), ylim=c(min(y), max(y)),
xlab="Update", ylab="Difference")</code></pre>
<p><img src="figure/parallel.Rmd/svd_obj2-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of svd_obj2-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/figure/parallel.Rmd/svd_obj2-1.png" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
</tr>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/figure/parallel.Rmd/svd_obj2-1.png" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
</tr>
</tbody>
</table>
<p></details></p>

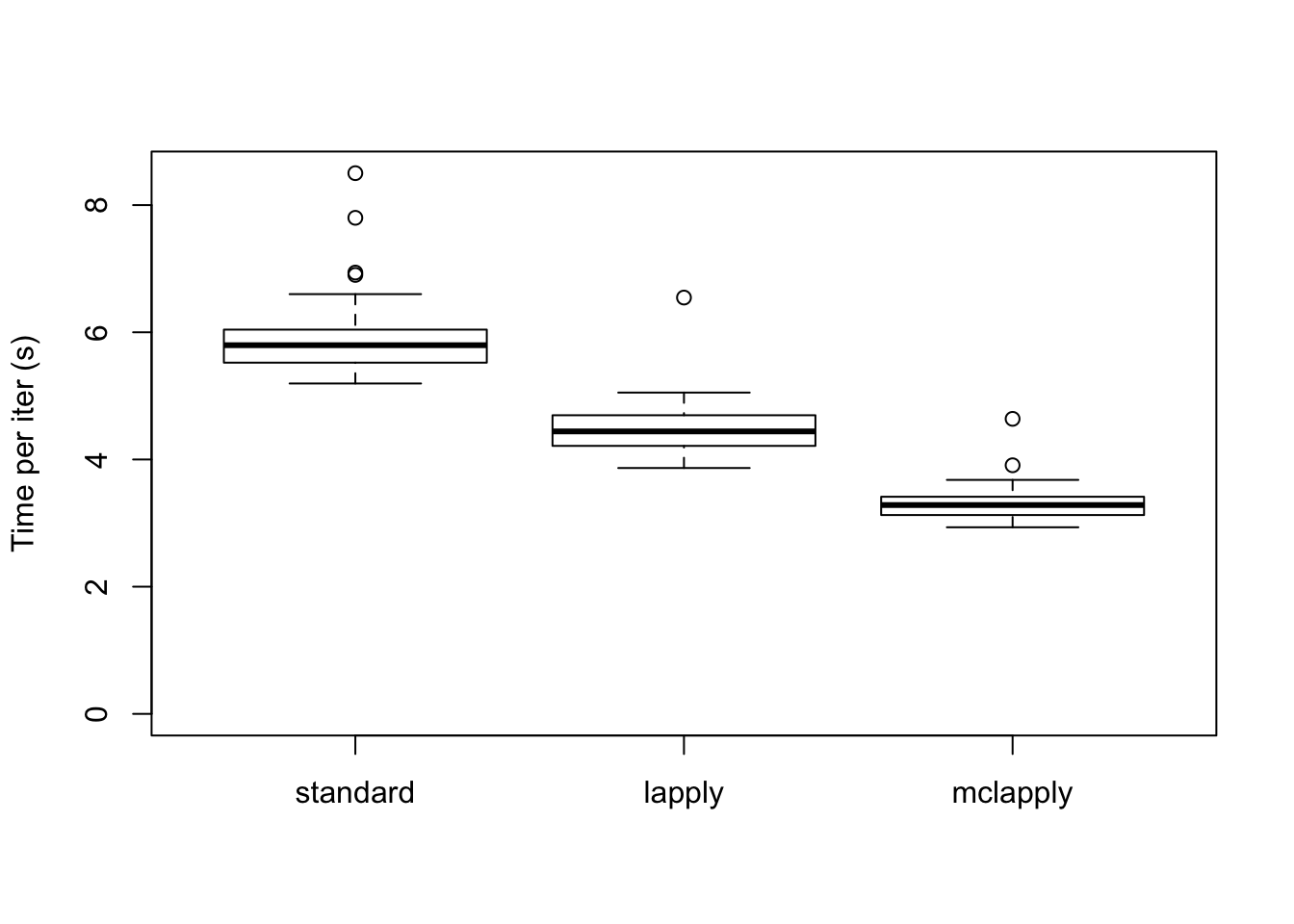

<pre class="r"><code>data <- data.frame(standard = res_svd$backfit_t,
lapply = res_svd$parallel_t,
mclapply = res_svd$multicore_t)
boxplot(data, ylim=c(0, max(data)), ylab="Time per iter (s)")</code></pre>
<p><img src="figure/parallel.Rmd/svd_t1-1.png" width="672" style="display: block; margin: auto;" /></p>
<details> <summary><em>Expand here to see past versions of svd_t1-1.png:</em></summary>
<table style="border-collapse:separate; border-spacing:5px;">
<thead>
<tr>
<th style="text-align:left;">
Version
</th>
<th style="text-align:left;">
Author
</th>
<th style="text-align:left;">
Date
</th>
</tr>
</thead>
<tbody>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/e53fa9c7bd26344f1fcdc6eba032c278ad2cf348/docs/figure/parallel.Rmd/svd_t1-1.png" target="_blank">e53fa9c</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-15
</td>
</tr>
<tr>
<td style="text-align:left;">
<a href="https://github.com/willwerscheid/FLASHvestigations/blob/9246c68c81509a23ff8bad9053af3bab2feb9e41/docs/figure/parallel.Rmd/svd_t1-1.png" target="_blank">9246c68</a>
</td>
<td style="text-align:left;">
Jason Willwerscheid
</td>
<td style="text-align:left;">
2018-08-12
</td>
</tr>
</tbody>
</table>
<p></details></p>
<p>The total time required (in seconds) is:</p>
<pre class="r"><code>colSums(data)</code></pre>
<pre><code>standard lapply mclapply
584.846 446.226 328.599 </code></pre>
</div>
</div>
<div id="code" class="section level2">
<h2>Code</h2>
<p>…for the parallel updates…</p>
<pre class="r"><code>flash_update_fl_parallel = function(data,
f,
kset,
var_type,
ebnm_fn_l,
ebnm_param_l,
ebnm_fn_f,
ebnm_param_f,
parallel_fn) {
f = flash_update_precision(data, f, var_type)
f = flash_update_loadings_parallel(data,
f,
kset,
ebnm_fn_l,
ebnm_param_l,
parallel_fn)
f = flash_update_factors_parallel(data,
f,
kset,
ebnm_fn_f,
ebnm_param_f,
parallel_fn)
}
flash_update_loadings_parallel = function(data,
f,
kset,
ebnm_fn,
ebnm_param,
parallel_fn) {
R = flash_get_R(data, f)
subset = !f$fixl
update_fn = function(k) {
Rk = R + outer(f$EL[, k], f$EF[, k])
calc_update_vals(data,
f,
k,
which(subset[, k]),
ebnm_fn[[k]],
ebnm_param[[k]],
loadings = TRUE,
Rk)
}
res = parallel_fn(as.list(kset), update_fn)
# Deal with "failed" updates:
null_idx = which(sapply(res, is.null))
if (length(null_idx) > 0) {
res = res[-null_idx]
kset = kset[-null_idx]
}
subset[, -kset] = FALSE
f$EL[subset] = unlist(lapply(res, function(k) {k$EX}))
f$EL2[subset] = unlist(lapply(res, function(k) {k$EX2}))
f$ebnm_fn_l[kset] = ebnm_fn[kset]
f$ebnm_param_l[kset] = ebnm_param[kset]
f$gl[kset] = lapply(res, function(k) {k$g})
f$KL_l[kset] = lapply(res, function(k) {k$KL})
return(f)
}
flash_update_factors_parallel = function(data,
f,
kset,
ebnm_fn,
ebnm_param,
parallel_fn) {
R = flash_get_R(data, f)
subset = !f$fixf
update_fn = function(k) {
Rk = R + outer(f$EL[, k], f$EF[, k])
calc_update_vals(data,
f,
k,
which(subset[, k]),
ebnm_fn[[k]],
ebnm_param[[k]],
loadings = FALSE,
Rk)
}
res = parallel_fn(as.list(kset), update_fn)
# Deal with "failed" updates:
null_idx = which(sapply(res, is.null))
if (length(null_idx) > 0) {
res = res[-null_idx]
kset = kset[-null_idx]
}
subset[, -kset] = FALSE
f$EF[subset] = unlist(lapply(res, function(k) {k$EX}))
f$EF2[subset] = unlist(lapply(res, function(k) {k$EX2}))
f$ebnm_fn_f[kset] = ebnm_fn[kset]
f$ebnm_param_f[kset] = ebnm_param[kset]
f$gf[kset] = lapply(res, function(k) {k$g})
f$KL_f[kset] = lapply(res, function(k) {k$KL})
return(f)
}</code></pre>
<p>…and for the experiments.</p>
<pre class="r"><code># devtools::install_github("stephenslab/flashr")
devtools::load_all("/Users/willwerscheid/GitHub/flashr/")
# devtools::install_github("stephenslab/ebnm")
devtools::load_all("/Users/willwerscheid/GitHub/ebnm/")
library(parallel)
source("./code/parallel.R")
gtex <- readRDS(gzcon(url("https://github.com/stephenslab/gtexresults/blob/master/data/MatrixEQTLSumStats.Portable.Z.rds?raw=TRUE")))
strong <- t(gtex$strong.z)
strong_data <- flash_set_data(strong, S = 1)
run_test <- function(data, fl_init, niter,
ebnm_fn_l = "ebnm_pn", ebnm_fn_f = "ebnm_pn",
ebnm_param_l = NULL, ebnm_param_f = NULL,
ksets = NULL) {
nfactors <- flash_get_k(fl_init)
if (is.null(ebnm_param_l)) {
ebnm_param_l <- vector("list", nfactors)
for (k in 1:nfactors) {ebnm_param_l[[k]] <- list(warmstart = TRUE)}
}
if (is.null(ebnm_param_f)) {
ebnm_param_f <- vector("list", nfactors)
for (k in 1:nfactors) {ebnm_param_f[[k]] <- list(warmstart = TRUE)}
}
if (is.null(ksets)) {
ksets = list()
ksets[[1]] = 1:nfactors
}
message("Usual backfit...")
fl <- fl_init
backfit_t <- rep(0, niter)
backfit_obj <- rep(0, niter)
for (i in 1:niter) {
message(" Iteration ", i)
t <- system.time(
for (k in 1:nfactors) {
fl <- flashr:::flash_update_single_fl(data,
fl,
k,
"zero",
ebnm_fn_l,
ebnm_param_l[[k]],
ebnm_fn_f,
ebnm_param_f[[k]])
}
)
backfit_t[i] <- t[3] # elapsed time
backfit_obj[i] <- flash_get_objective(data, fl)
}
message("Parallel updates with lapply...")
fl <- fl_init
parallel_t <- rep(0, niter)
parallel_obj <- rep(0, niter)
for (i in 1:niter) {
message(" Iteration ", i)
t <- system.time({
for (kset in ksets) {
fl <- flash_update_fl_parallel(data,
fl,
kset,
"zero",
as.list(rep(ebnm_fn_l, nfactors)),
ebnm_param_l,
as.list(rep(ebnm_fn_f, nfactors)),
ebnm_param_f,
lapply)
}
})
parallel_t[i] <- t[3]
parallel_obj[i] <- flash_get_objective(data, fl)
}
message("Parallel updates with mclapply...")
fl <- fl_init
multicore_t <- rep(0, niter)
for (i in 1:niter) {
message(" Iteration ", i)
t <- system.time({
for (kset in ksets) {
fl <- flash_update_fl_parallel(data,
fl,
kset,
"zero",
as.list(rep(ebnm_fn_l, nfactors)),
ebnm_param_l,
as.list(rep(ebnm_fn_f, nfactors)),
ebnm_param_f,
mclapply)
}
})
multicore_t[i] <- t[3]
}
res <- list(backfit_t = backfit_t,
parallel_t = parallel_t,
multicore_t = multicore_t,
backfit_obj = backfit_obj,
parallel_obj = parallel_obj)
}
fl_greedy <- flash_add_greedy(strong_data, 20, var_type = "zero")
res_greedy <- run_test(strong_data, fl_greedy, 100)
saveRDS(res_greedy, "./data/parallel/greedy20niter100.rds")
fl_svd <- flash_add_factors_from_data(strong_data, 20, init_fn = "udv_svd")
res_svd <- run_test(strong_data, fl_svd, 100)
saveRDS(res_svd, "./data/parallel/svd20niter100.rds")
## Test MASH v FLASH backfits:
random <- t(gtex$random.z)
random_data <- flash_set_data(random, S = 1)
fpath <- "/Users/willwerscheid/GitHub/MASHvFLASH/output/"
nn <- readRDS(paste0(fpath, "MASHvFLASHnn/fl.rds"))
multi <- c(2, 5, 6, 8, 11:13, 17, 22:25, 31)
n <- nrow(strong)
dd <- nn$EL[, multi]
dd <- dd / rep(apply(dd, 2, max), each=n) # normalize
canonical <- cbind(rep(1, n), diag(rep(1, n)))
LL <- cbind(canonical, dd)
fl_random <- flash_add_fixed_loadings(random_data, LL)
res_random <- run_test(random_data, fl_random, 5)
saveRDS(res_random, "./data/parallel/MASHvFLASHrandom_bad.rds")
ksets=list(1, 2:45, c(46, 50), c(47:49, 51:flash_get_k(fl_final)))
res_random <- run_test(random_data, fl_random, 20,
ksets = ksets)
saveRDS(res_random, "./data/parallel/MASHvFLASHrandom.rds")
res_final <- run_test(strong_data, fl_final, 20,
ebnm_param_f = ebnm_param_f,
ksets = ksets)
saveRDS(res_final, "./data/parallel/MASHvFLASHfinal.rds")
ksets=list(1, 2:45, c(46, 50), c(47:49, 51:flash_get_k(fl_final)))
res_random <- run_test(random_data, fl_random, 20,
ksets=list(c(1, 46:flash_get_k(fl_random)), 2:45))
saveRDS(res_random, "./data/parallel/MASHvFLASHrandom.rds")
fl_final <- flash_add_fixed_loadings(strong_data, LL)
gf <- readRDS(paste0(fpath, "MASHvFLASHgtex3/flgf.rds"))
ebnm_param_f = lapply(gf, function(g) {list(g=g, fixg=TRUE)})
res_final <- run_test(strong_data, fl_final, 5,
ebnm_param_f = ebnm_param_f, ksets=ksets)
saveRDS(res_final, "./data/parallel/MASHvFLASHfinal_bad.rds")
ksets=list(1, 2:45, c(46, 50), c(47:49, 51:flash_get_k(fl_final)))</code></pre>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] workflowr_1.0.1 Rcpp_0.12.17 digest_0.6.15
[4] rprojroot_1.3-2 R.methodsS3_1.7.1 backports_1.1.2
[7] git2r_0.21.0 magrittr_1.5 evaluate_0.10.1
[10] stringi_1.1.6 whisker_0.3-2 R.oo_1.21.0
[13] R.utils_2.6.0 rmarkdown_1.8 tools_3.4.3
[16] stringr_1.3.0 yaml_2.1.17 compiler_3.4.3
[19] htmltools_0.3.6 knitr_1.20 </code></pre>
</div>
<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html. This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
MathJax.Hub.Config({
"HTML-CSS": { availableFonts: ["TeX"] }
});
</script>
<hr>
<p>
This reproducible <a href="http://rmarkdown.rstudio.com">R Markdown</a>
analysis was created with
<a href="https://github.com/jdblischak/workflowr">workflowr</a> 1.0.1
</p>
<hr>
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
