<h1 class="title toc-ignore">Explorations of implementing the UDI framework in mash</h1>
<h4 class="author"><em>Matthew Stephens</em></h4>
<h4 class="date"><em>2017-06-25</em></h4>
</div>
<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-06-26</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> f6f5121</p>
<div id="preliminary" class="section level1">
<h1>Preliminary</h1>
<p>First, here is the code from Stephens (2013) PloS ONE</p>
<pre class="r"><code>#' @param VYX is (1/n) Y'X is d by p
#' @param VYY is (1/n) Y'Y is d by d
#' @param VXX a p-vector of the estimated variances of the SNP
#' @param U vector of length d of true/false
#' @param D vector of length d of true/false
#' @param n sample size the summaries were computed from
#' @param m a parameter in the prior (I believe)
#' @param d the number of phenotypes
#' @param sigmaa the parameter of the prior determining effect size
logBF.fromVSummaries = function(VYX,VYY,VXX,U,D,n,m,d,sigmaa){
dd = sum(D)
du= sum(U)
p = dim(VYX)[2]
if(du>0){
LUU = chol(VYY[U,U,drop=FALSE]) # a du by du matrix
VUD = VYY[U,D,drop=FALSE] #a du by dd matrix of the correlations of Yu with Yd
c = cbind(forwardsolve(t(LUU),VYX[U,,drop=FALSE]))#c solves LUU'c = phiU, c is a du by p matrix
b = cbind(forwardsolve(t(LUU), VUD)) # b is du by dd, and solves LUU' b = VUD, so b'b = VUD' LUU^-1 LUU'^-1 VUD = VUD' (LUU'LUU)^-1 VUD = VUD'VYYU^-1 VUD
} else{c=matrix(0,nrow=1,ncol=p); b=matrix(0,nrow=1,ncol=dd);}
C = VXX - colSums(c*c)
u = VYX[D,,drop=FALSE] - crossprod(b,c)
V0 = VYY[D,D,drop=FALSE] - crossprod(b)
L0 = chol(V0)
a = forwardsolve(t(L0),u)
lambda = sigmaa^(-2) / (n*C)
k = as.numeric(1/(1+lambda))
return((dd/2) * log(1-k) - 0.5*(n+m-(d-sum(D)-sum(U)))*log(1-(k/C) *colSums(a*a)))
}</code></pre>
<p>And now how we apply this to summary data based on the methods in Stephens (2016)</p>
<pre class="r"><code>#' @param Z a p by d matrix of Z scores
#' @param VYY a d by d matrix
#' @param f a p vector containing the frequencies of the p SNPs
logBF.fromZ = function(Z,VYY,f,U,D,n,m,sigmaa){
VXX = 2*f*(1-f)
VYX = t(sqrt(VXX/n) * Z)
logBF.fromVSummaries(VYX,VYY,VXX,U,D,n,m,d=ncol(Z),sigmaa)
}</code></pre>
<p>Read in some example data</p>
<pre class="r"><code>z = read.table("../data/bmass.HaemgenRBC2016.Vs2.NewSNPs.ZScores.hclust.vs1.txt",header=TRUE)
z = as.matrix(z[,2:7])
V = diag(6)
V[1,]=c(0.5,-0.47,0.80,-0.47,0.73,-0.13)
V[2,2:6] = c(0.5,0.12,0.87,0.12,0.03)
V[3,3:6] = c(0.5,0.04,0.93,-0.1)
V[4,4:6] = c(0.5,0.20,0.46)
V[5,5:6] =c(0.5,0.22)
V[6,6] = 0.5
V = V+t(V)</code></pre>
<p>And apply the method. Here we show how changes in n and f give the same BF if we scale the prior parameter sigma_a like <span class="math inline">\(1/\sqrt{2f(1-f)n}\)</span>.</p>

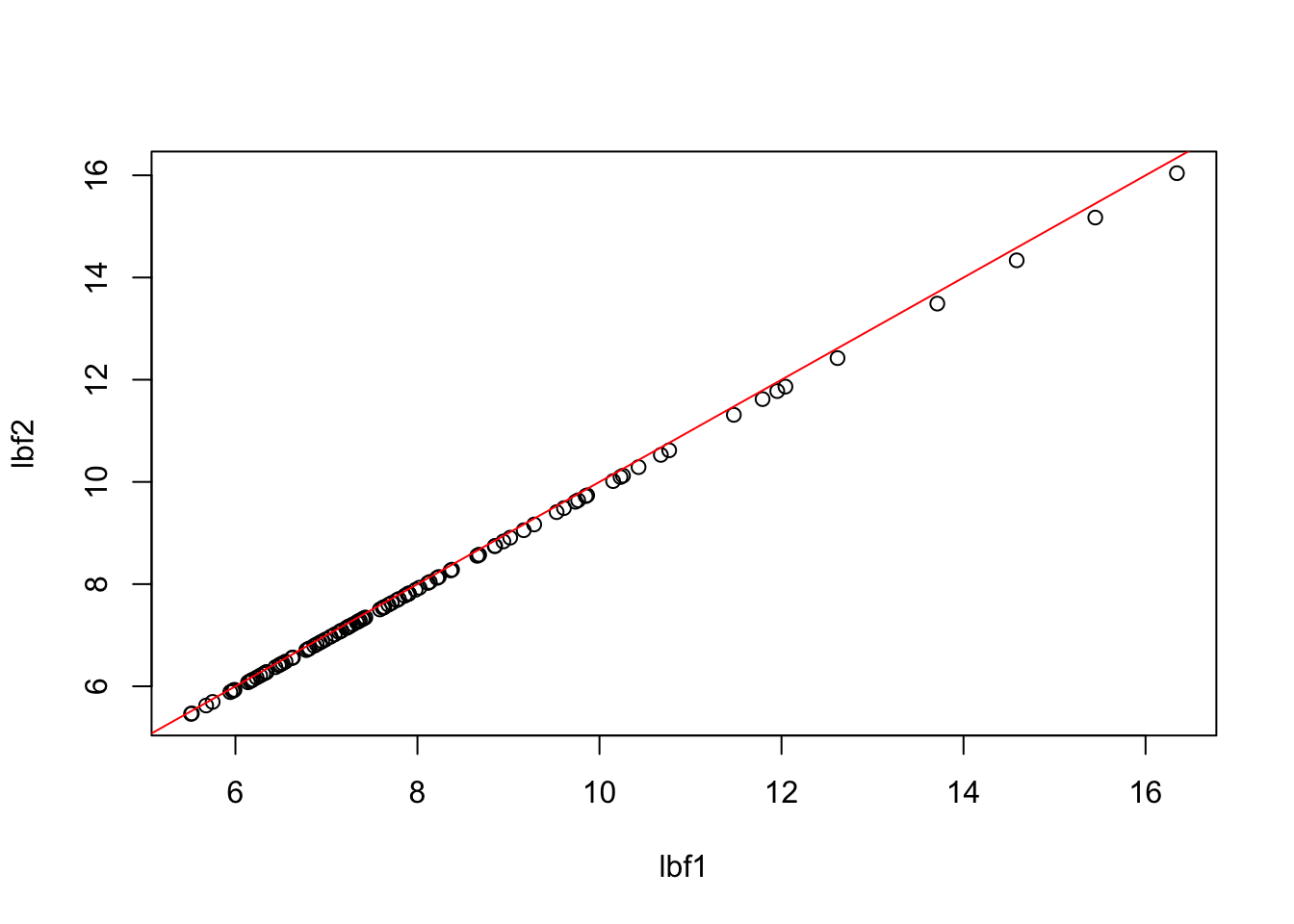

<p>First scaling in n:</p>
<pre class="r"><code>UU = c(F,F,F,F,F,F)
DD = c(T,T,T,T,T,T)
p = nrow(z)
f = 0.5
lbf1=logBF.fromZ(z,V,rep(f,p), UU,DD,n=1000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*1000)))
lbf2=logBF.fromZ(z,V,rep(f,p), UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
plot(lbf1,lbf2)
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/scaling_n-1.png" width="672" style="display: block; margin: auto;" /></p>

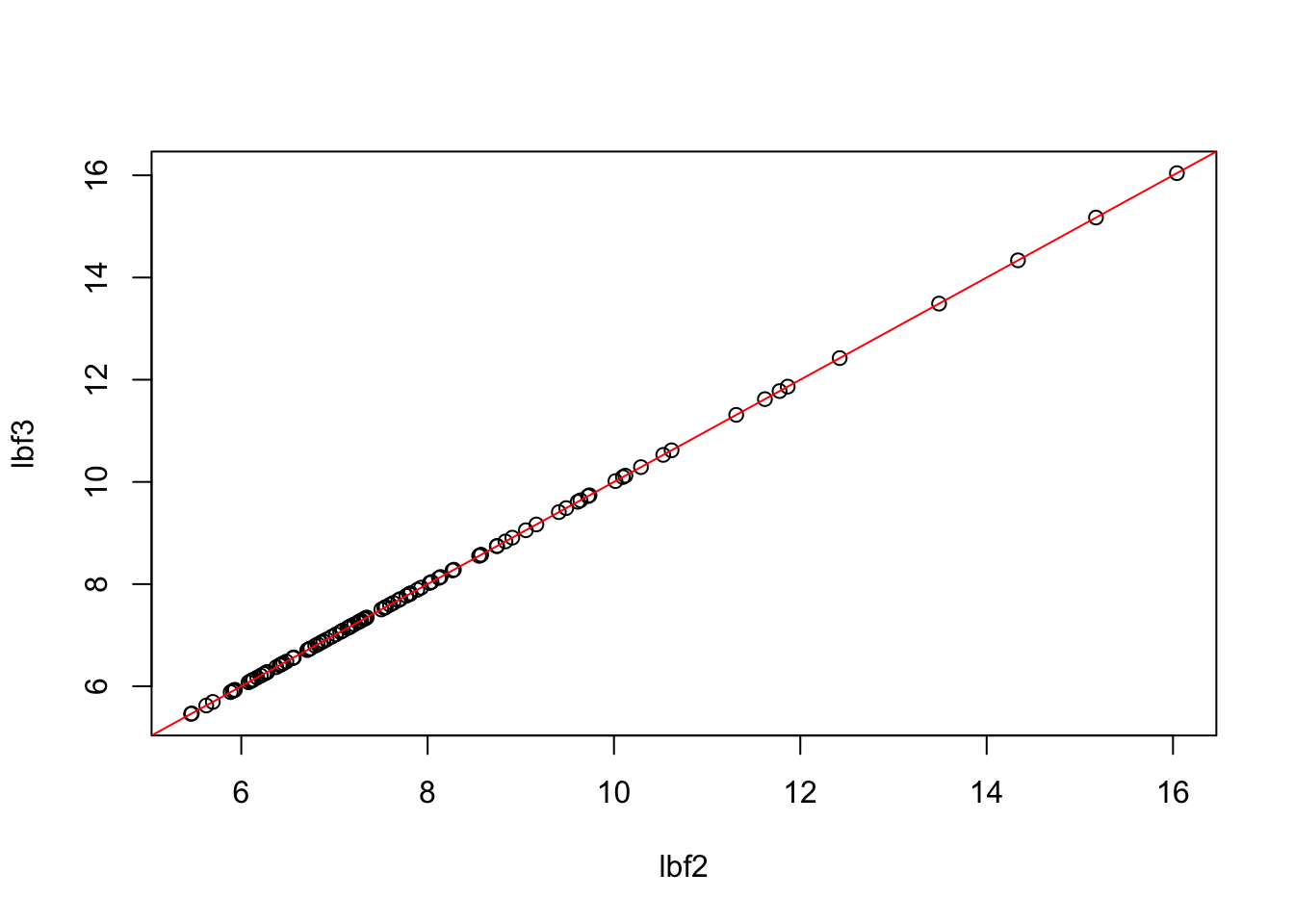

<p>Now try changing f:</p>
<pre class="r"><code>f = 0.2
lbf3=logBF.fromZ(z,V,rep(f,p), UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
plot(lbf2,lbf3)
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/scaling_f-1.png" width="672" style="display: block; margin: auto;" /></p>

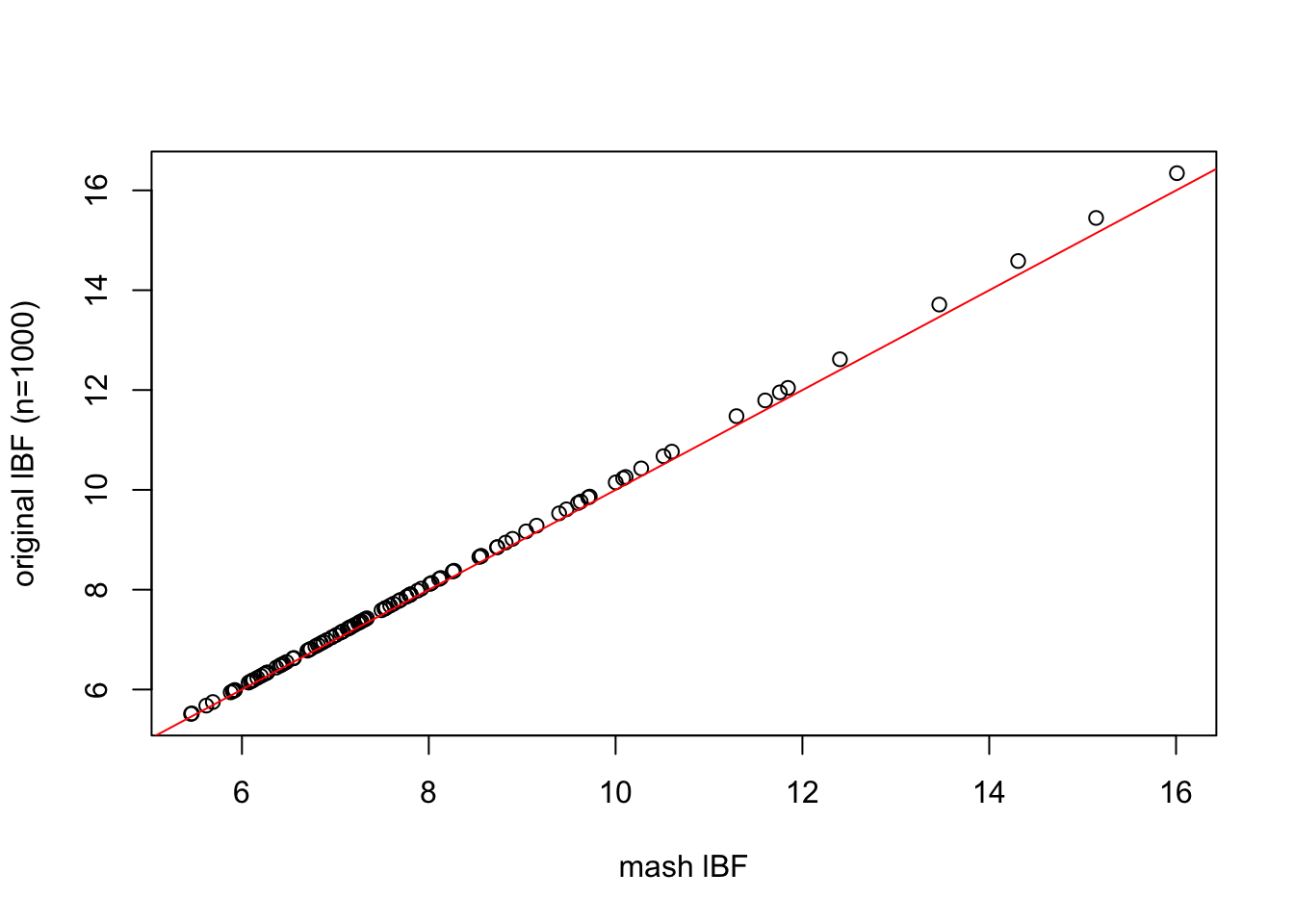

<p>Now check the mashr version:</p>
<pre class="r"><code>library("mashr")
data = set_mash_data(z,1,V)
Ulist = c(list(null= mashr:::cov_all_zeros(data)),cov_udi(data,c("D","D","D","D","D","D")))
temp = calc_lik_matrix(data,Ulist,log=TRUE)
plot(temp[,2]-temp[,1],lbf1,xlab="mash lBF",ylab="original lBF (n=1000)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/mashr_version-1.png" width="672" style="display: block; margin: auto;" /> Pretty good agreement. But even better if we use the version with n=10k:</p>
<pre class="r"><code>plot(temp[,2]-temp[,1],lbf2,xlab="mash lBF",ylab="original lBF (n=10k)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/unnamed-chunk-2-1.png" width="672" style="display: block; margin: auto;" /></p>

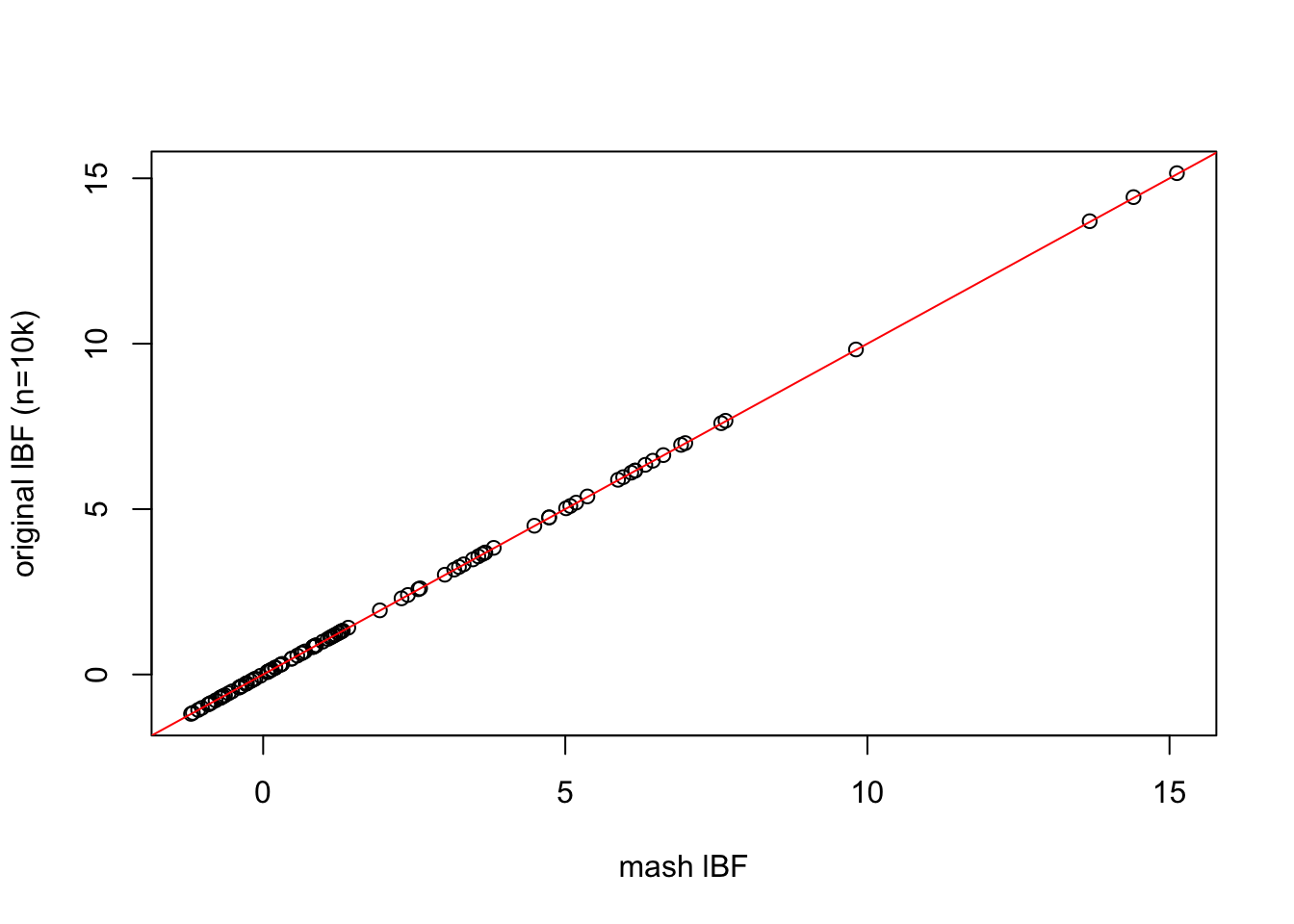

<p>Now try making the first two components unassociated</p>
<pre class="r"><code>UU = c(T,T,F,F,F,F)
DD = c(F,F,T,T,T,T)
lbf=logBF.fromZ(z,V,rep(f,p),UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
data = set_mash_data(z,1,V)
Ulist = c(list(null= mashr:::cov_all_zeros(data)), cov_udi(data,c("U","U","D","D","D","D")))
temp = calc_lik_matrix(data,Ulist,log=TRUE)
plot(temp[,2]-temp[,1],lbf,xlab="mash lBF",ylab="original lBF (n=10k)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>

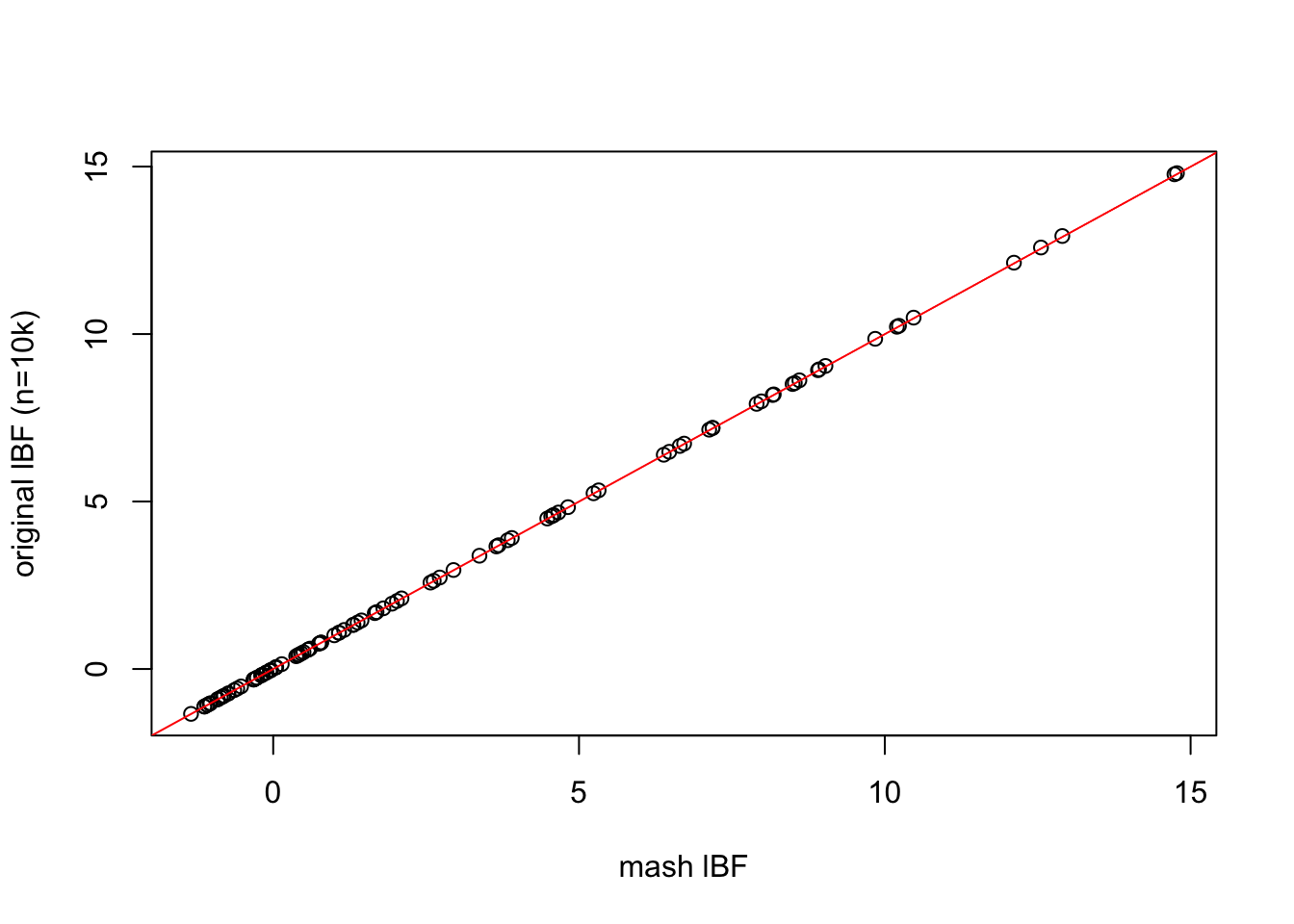

<p>And making components 3-4 unassociated</p>
<pre class="r"><code>UU = c(F,F,T,T,F,F)
DD = c(T,T,F,F,T,T)
lbf=logBF.fromZ(z,V,rep(f,p),UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
data = set_mash_data(z,1,V)
Ulist = c(list(null= mashr:::cov_all_zeros(data)), cov_udi(data,c("D","D","U","U","D","D")))
temp = calc_lik_matrix(data,Ulist,log=TRUE)
plot(temp[,2]-temp[,1],lbf,xlab="mash lBF",ylab="original lBF (n=10k)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>

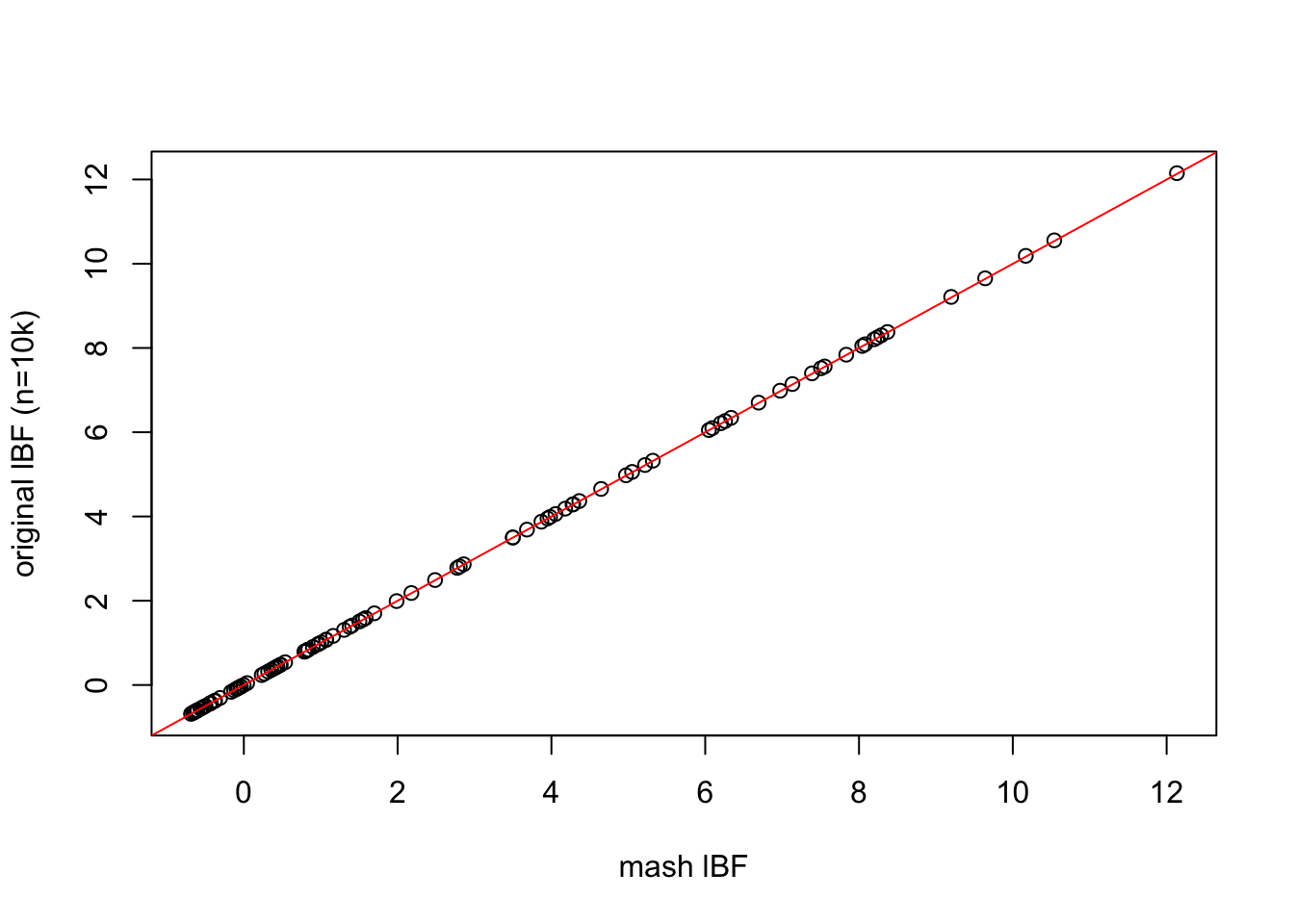

<p>And also making components 1 and 6 indirectly associated</p>
<pre class="r"><code>UU = c(F,F,T,T,F,F)
DD = c(F,T,F,F,T,F)
lbf=logBF.fromZ(z,V,rep(f,p),UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
data = set_mash_data(z,1,V)
Ulist = c(list(null= mashr:::cov_all_zeros(data)), cov_udi(data,c("I","D","U","U","D","I")))
temp = calc_lik_matrix(data,Ulist,log=TRUE)
plot(temp[,2]-temp[,1],lbf,xlab="mash lBF",ylab="original lBF (n=10k)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/unnamed-chunk-5-1.png" width="672" style="display: block; margin: auto;" /></p>

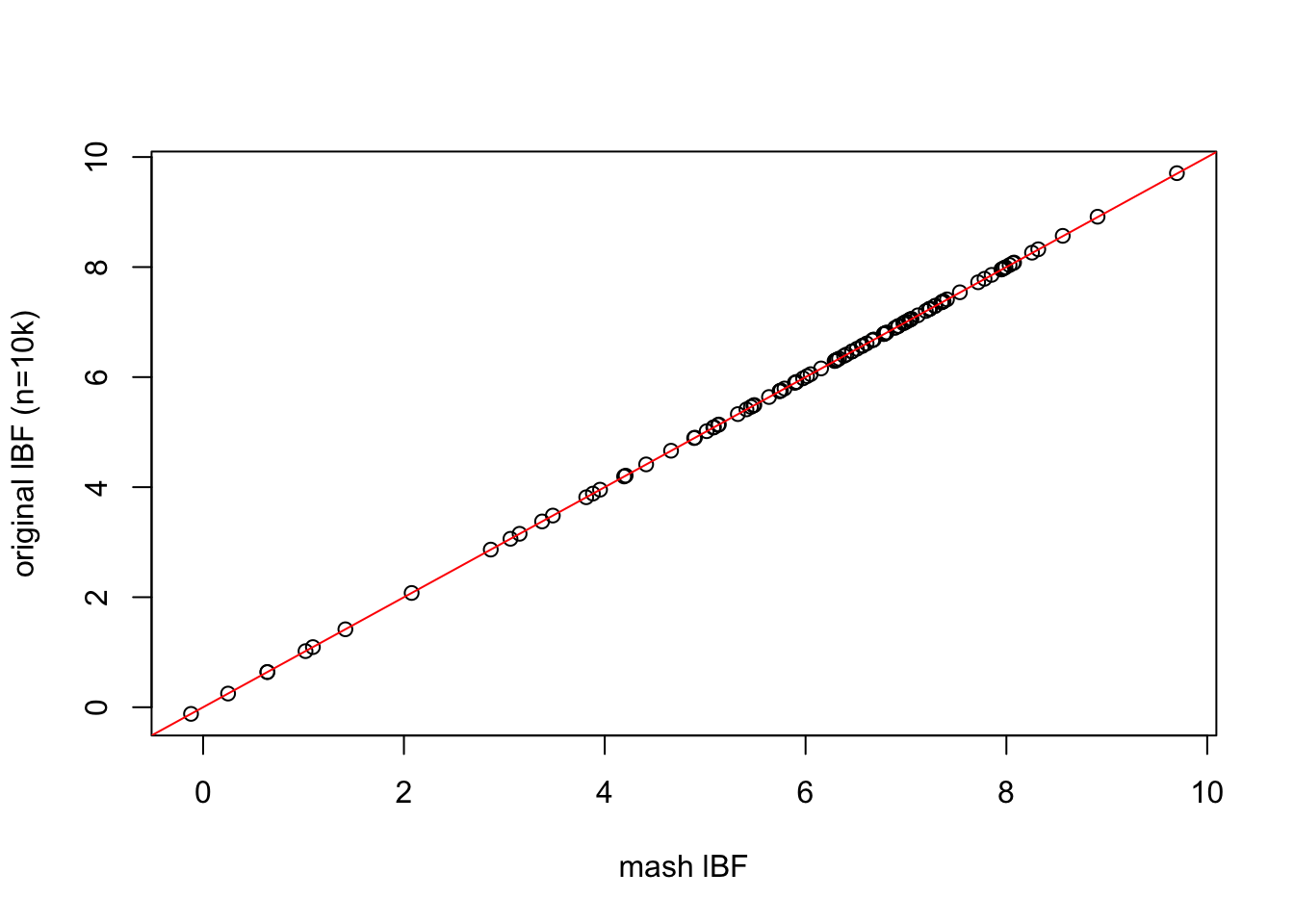

<p>Without any unaffected:</p>
<pre class="r"><code>UU = c(F,F,F,F,F,F)
DD = c(T,T,T,F,F,F)
lbf=logBF.fromZ(z,V,rep(f,p),UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
data = set_mash_data(z,1,V)
Ulist = c(list(null= mashr:::cov_all_zeros(data)), cov_udi(data,c("D","D","D","I","I","I")))
temp = calc_lik_matrix(data,Ulist,log=TRUE)
plot(temp[,2]-temp[,1],lbf,xlab="mash lBF",ylab="original lBF (n=10k)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>

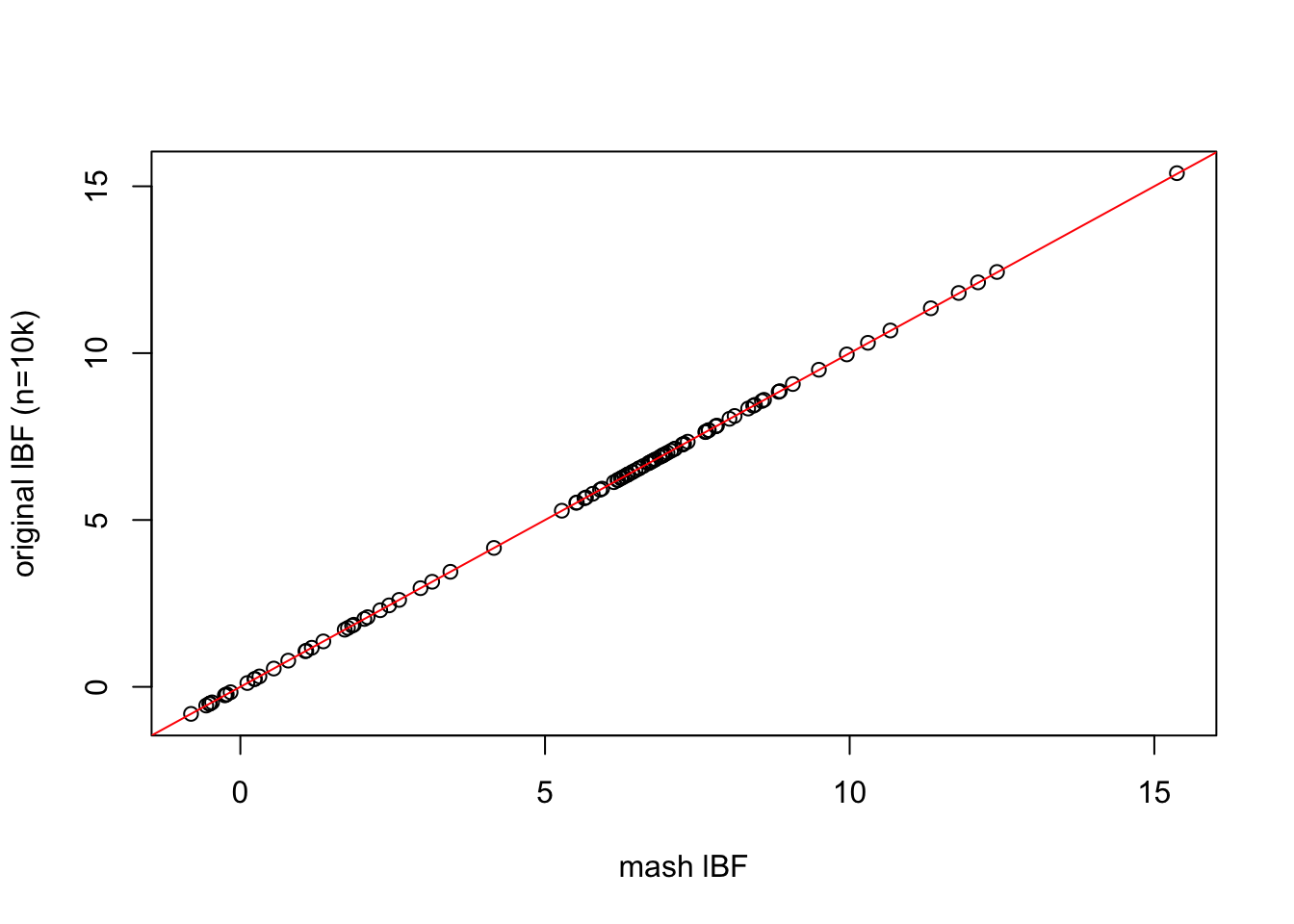

<p>And another, just to check:</p>
<pre class="r"><code>UU = c(F,F,F,F,F,F)
DD = c(F,T,F,T,F,T)
lbf=logBF.fromZ(z,V,rep(f,p),UU,DD,n=10000,m=0,sigmaa=sqrt(1/(2*f*(1-f)*10000)))
data = set_mash_data(z,1,V)
Ulist = c(list(null= mashr:::cov_all_zeros(data)), cov_udi(data,c("I","D","I","D","I","D")))
temp = calc_lik_matrix(data,Ulist,log=TRUE)
plot(temp[,2]-temp[,1],lbf,xlab="mash lBF",ylab="original lBF (n=10k)")
abline(a=0,b=1,col=2)</code></pre>
<p><img src="figure/cov_udi_explore.Rmd/unnamed-chunk-7-1.png" width="672" style="display: block; margin: auto;" /></p>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.3.2 (2016-10-31)
Platform: x86_64-apple-darwin13.4.0 (64-bit)
Running under: OS X El Capitan 10.11.6
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] mashr_0.1-19
loaded via a namespace (and not attached):
[1] Rcpp_0.12.11 knitr_1.16 magrittr_1.5
[4] MASS_7.3-47 doParallel_1.0.10 pscl_1.4.9
[7] SQUAREM_2016.8-2 lattice_0.20-35 foreach_1.4.3
[10] plyr_1.8.4 ashr_2.1-19 stringr_1.2.0
[13] tools_3.3.2 parallel_3.3.2 grid_3.3.2
[16] rmeta_2.16 git2r_0.18.0 htmltools_0.3.6
[19] iterators_1.0.8 assertthat_0.2.0 yaml_2.1.14
[22] rprojroot_1.2 digest_0.6.12 Matrix_1.2-10
[25] codetools_0.2-15 evaluate_0.10 rmarkdown_1.6
[28] stringi_1.1.5 backports_1.1.0 mvtnorm_1.0-6
[31] truncnorm_1.0-7 </code></pre>
</div>
</div>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
