<h1 class="title toc-ignore">New attempt at VB</h1>
<h4 class="author"><em>Matthew Stephens</em></h4>
<h4 class="date"><em>2017-10-27</em></h4>
</div>
<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-11-18</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> b1b37ce</p>
<div id="outline" class="section level1">
<h1>Outline</h1>
<p>The model is: <span class="math display">\[Y_i = \sum_{l=1}^L \sum_j X_{ij} \gamma_{lj} \beta_{lj} + e_i\]</span></p>
<p><span class="math display">\[(\gamma_{l1},\dots,\gamma_{lp}) \sim Multinomial(1,\pi)\]</span> <span class="math display">\[\beta_{lj} \sim g()\]</span>.</p>
<p>For now assume <span class="math inline">\(g\)</span> is <span class="math inline">\(N(0,\sigma_\beta^2)\)</span>, and <span class="math inline">\(\pi = (1/p,\dots,1/p)\)</span>.</p>
<p>The idea is that there are <span class="math inline">\(L\)</span> non-zero effects. (though see later comment.) For each of <span class="math inline">\(l=1,\dots,L\)</span> we assume that exactly 1 of the <span class="math inline">\(p\)</span> variables has an effect, as indicated by <span class="math inline">\(\gamma_{lj}\)</span>. <span class="math inline">\(\pi\)</span> is a <span class="math inline">\(p\)</span> vector of prior probabilities summing to 1.</p>
<p><span class="math inline">\(g()\)</span> is an effect distribution for the non-zero effects. <span class="math inline">\(g()\)</span> could be a mixture of normals as in my ash work. <span class="math inline">\(g\)</span> could include a point mass at 0, in which case <span class="math inline">\(L\)</span> is an upper bound on the number of non-zero effects, rather than an actual number of effects. But I’m not sure we need to go this far… for now we assume <span class="math inline">\(g\)</span> normal.</p>
<p>The idea is to seek a variational approximation (or expectation propogation?) based on <span class="math display">\[q(\gamma,\beta) = \prod_l q(\gamma_l, \beta_l)\]</span></p>
<p>Possibly we would further factorize this to <span class="math inline">\(q(\gamma_l,\beta_l) = q(\gamma_l) q(\beta_l)\)</span>, although it might be <span class="math inline">\(q(\gamma_l) q(\beta_l | \gamma_l)\)</span>, I’m not sure.</p>
<p>However, cruicially, we do not factorize the <span class="math inline">\(q(\gamma_l)\)</span> across the <span class="math inline">\(p\)</span> elements of <span class="math inline">\(\gamma_l\)</span>: <span class="math inline">\(\gamma_l\)</span> is a binary vector with exactly one non-zero element, so <span class="math inline">\(q(\gamma_l) = Multinimial(1, \alpha_l)\)</span> say where <span class="math inline">\(\alpha_l=(\alpha_{l1,\dots,\alpha_lp})\)</span> are variational parameters.</p>
<p>Here I have simply guessed at what the form of the variational updates might look like, by mimicking the updates from Carbonetto and Stephens. I borrowed and modified code from the function <code>varbvsnormupdate</code> from <code>varbvs</code>. Notice that we update all the variables simultaneously for each <span class="math inline">\(l\)</span>… not one at a time. (This is a computational advantage of this approach, at least when coded in R.!)</p>
<p>In brief, the variational parameters are as in Carbonetto and Stephens, but they become <span class="math inline">\(L \times p\)</span> matrices. That is they are <span class="math inline">\(\alpha,\mu,s\)</span> where <span class="math inline">\(\alpha_{lj}\)</span> is the posterior mean for <span class="math inline">\(\gamma_{lj}\)</span>, <span class="math inline">\(\mu_{lj}\)</span> is the posterior mean on <span class="math inline">\(\beta_{lj}\)</span>, and <span class="math inline">\(s_{lj}\)</span> is the posterior variance.</p>
<p>In the code below <code>alpha[l,] mu[l,]</code> is an estimate of <span class="math inline">\(\hat{\beta}[l,]\)</span>, and a sum of this over <span class="math inline">\(l\)</span> is an estimate of the overall SNP effects. Call this sum <code>r</code> as in Carbonetto and Stephens. The variable <code>Xr</code> is <code>t(X) %*% r</code>, effectively the “fitted values”.</p>
<p>Lots to do: - derive these updates (or correct them!) and the VB lower bound. - investigate how it compares with exact calculations in small problems - think about how to deal with automatically choosing L or estimating g - hyperparameter estimation…</p>
<pre class="r"><code>knitr::read_chunk("newVB.funcs.R")</code></pre>
<pre class="r"><code>new_varbvsnormupdate <- function (X, sigma, sa, xy, d, alpha0, mu0, Xr0) {
# Get the number of samples (n) and variables (p).
n <- nrow(X)
p <- ncol(X)
L = nrow(alpha0) # alpha0 and mu0 must be L by p
pi = rep(1,p)
# Check input X.
if (!is.double(X) || !is.matrix(X))
stop("Input X must be a double-precision matrix")
# Check inputs sigma and sa.
if (length(sigma) != 1 | length(sa) != 1)
stop("Inputs sigma and sa must be scalars")
# Check input Xr0.
if (length(Xr0) != n)
stop("length(Xr0) must be equal to nrow(X)")
# Initialize storage for the results.
alpha <- alpha0
mu <- mu0
Xr <- Xr0
# Repeat for each effect to update
for (l in 1:L) {
# remove lth effect
Xr = Xr - X %*% (alpha[l,]*mu[l,])
# Compute the variational estimate of the posterior variance.
s <- sa*sigma/(sa*d + 1)
# Update the variational estimate of the posterior mean.
mu[l,] <- s/sigma * (xy - t(X) %*% Xr)
# Update the variational estimate of the posterior inclusion
# probability. This is basically prior (pi) times BF.
# The BF here comes from the normal approx - could be interesting
# to replace it with a t version that integrates over sigma?
alpha[l,] <- pi*exp((log(s/(sa*sigma)) + mu[l,]^2/s)/2)
alpha[l,] <- alpha[l,]/sum(alpha[l,])
# Update Xr by adding back in the $l$th effect
Xr <- Xr + X %*% (alpha[l,]*mu[l,])
}
return(list(alpha = alpha,mu = mu,Xr = Xr,s=s))
}
# Just repeated applies those updates
# X is an n by p matrix of genotypes
# Y a n vector of phenotypes
# sa the variance of the prior on effect sizes (actually $\beta \sim N(0,sa sigma)$ where the residual variance sigma here is fixed to the variance of Y based on a small effect assumption.)
fit = function(X,Y,sa=1,sigma=NULL,niter=100,L=5,calc_elbo=FALSE){
if(is.null(sigma)){
sigma=var(Y)
}
p =ncol(X)
xy = t(X) %*% Y
d = colSums(X * X)
alpha0= mu0 = matrix(0,nrow=L,ncol=p)
Xr0 = X %*% colSums(alpha0*mu0)
elbo = rep(NA,niter)
for(i in 1:niter){
res = new_varbvsnormupdate(X, sigma, sa, xy, d, alpha0, mu0, Xr0)
alpha0 = res$alpha
mu0 = res$mu
Xr0 = res$Xr
if(calc_elbo){
elbo[i] = elbo(X,Y,sigma,sa,mu0,alpha0)
}
}
return(c(res,list(elbo=elbo)))
}
#this is for scaled prior in which effect prior variance is sa * sigma
elbo = function(X,Y,sigma,sa,mu,alpha){
L = nrow(alpha)
n = nrow(X)
p = ncol(X)
Xr = (alpha*mu) %*% t(X)
Xrsum = colSums(Xr)
d = colSums(X*X)
s <- sa*sigma/(sa*d + 1)
postb2 = alpha * t(t(mu^2) + s)
Eloglik = -(n/2) * log(2*pi* sigma) -
(1/(2*sigma)) * sum(Y^2) +
(1/sigma) * sum(Y * Xrsum) -
(1/(2*sigma)) * sum(Xrsum^2) +
(1/(2*sigma)) * sum((Xr^2)) -
(1/(2*sigma)) * sum(d*t(postb2))
KL1 = sum(alpha * log(alpha/(1/p)))
KL2 = - 0.5* sum(t(alpha) * (1 + log(s)-log(sigma*sa)))
+ 0.5 * sum(postb2)/(sigma*sa)
return(Eloglik - KL1 - KL2)
}
# This computes the average lfsr across SNPs for each l, weighted by the
# posterior inclusion probability alpha
lfsr_fromfit = function(res){
pos_prob = pnorm(0,mean=t(res$mu),sd=sqrt(res$s))
neg_prob = 1-pos_prob
1-rowSums(res$alpha*t(pmax(pos_prob,neg_prob)))
}
#find how many variables in the 95% CI
# x is a probability vector
n_in_CI_x = function(x){
sum(cumsum(sort(x,decreasing = TRUE))<0.95)+1
}
# return binary vector indicating if each point is in CI
# x is a probability vector
in_CI_x = function(x){
n = n_in_CI_x(x)
o = order(x,decreasing=TRUE)
result = rep(0,length(x))
result[o[1:n]] = 1
return(result)
}
# Return binary matrix indicating which variables are in CI of each
# of effect
in_CI = function(res){
t(apply(res$alpha,1,in_CI_x))
}
n_in_CI = function(res){
apply(res$alpha,1,n_in_CI_x)
}
# computes z score for association between each
# column of X and y
calc_z = function(X,y){
z = rep(0,ncol(X))
for(i in 1:ncol(X)){
z[i] = summary(lm(y ~ X[,i]))$coeff[2,3]
}
return(z)
}

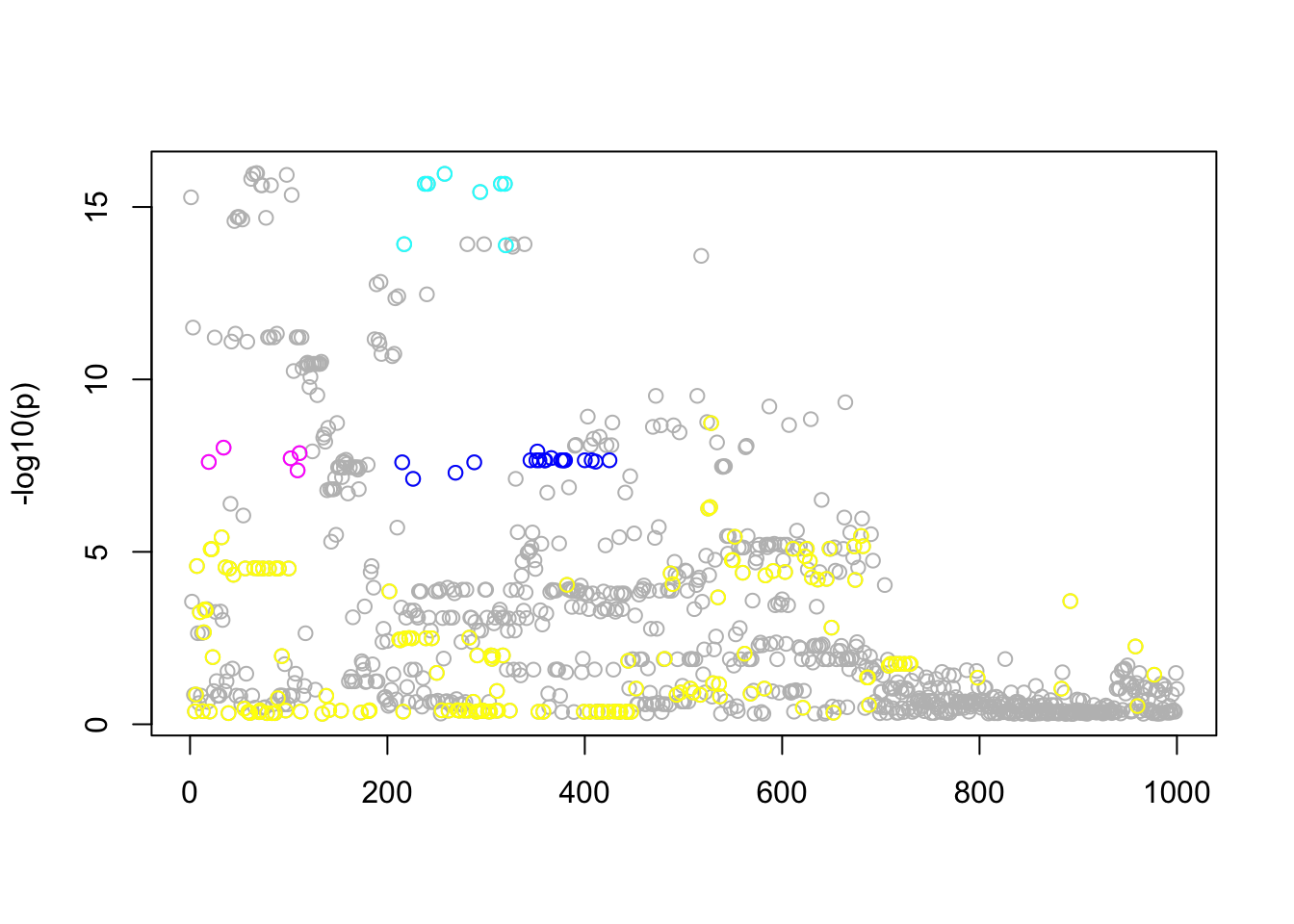

# plot p values of data and color in the 95% CIs
# for simulated data, specify b = true effects (highlights in red)
pplot = function(X,y,res,pos=NULL,b=NULL,CImax = 400,...){
z = calc_z(X,y)
zneg = -abs(z)
logp = log10(pnorm(zneg))
if(is.null(b)){b = rep(0,ncol(X))}
if(is.null(pos)){pos = 1:ncol(X)}
plot(pos,-logp,col="grey",xlab="",ylab="-log10(p)",...)
points(pos[b!=0],-logp[b!=0],col=2,pch=16)
for(i in 1:nrow(res$alpha)){
if(n_in_CI(res)[i]<CImax)
points(pos[which(in_CI(res)[i,]>0)],-logp[which(in_CI(res)[i,]>0)],col=i+2)
}
}</code></pre>
</div>
<div id="null-simulation" class="section level1">
<h1>Null simulation</h1>
<p>This is a null simulation. Actually I don’t understand why it converges to this result where all the posteriors are the same for each <span class="math inline">\(l\)</span>. Might be interesting to understand.</p>
<pre class="r"><code>set.seed(1)
n = 1000
p = 1000
y = rnorm(n)
X = matrix(rnorm(n*p),nrow=n,ncol=p)
res =fit(X,y,niter=100,calc_elbo=TRUE)
n_in_CI(res)</code></pre>
<pre><code>[1] 889 889 889 889 889</code></pre>
<pre class="r"><code>lfsr_fromfit(res)</code></pre>
<pre><code>[1] 0.1461692 0.1461692 0.1461692 0.1461692 0.1461692</code></pre>

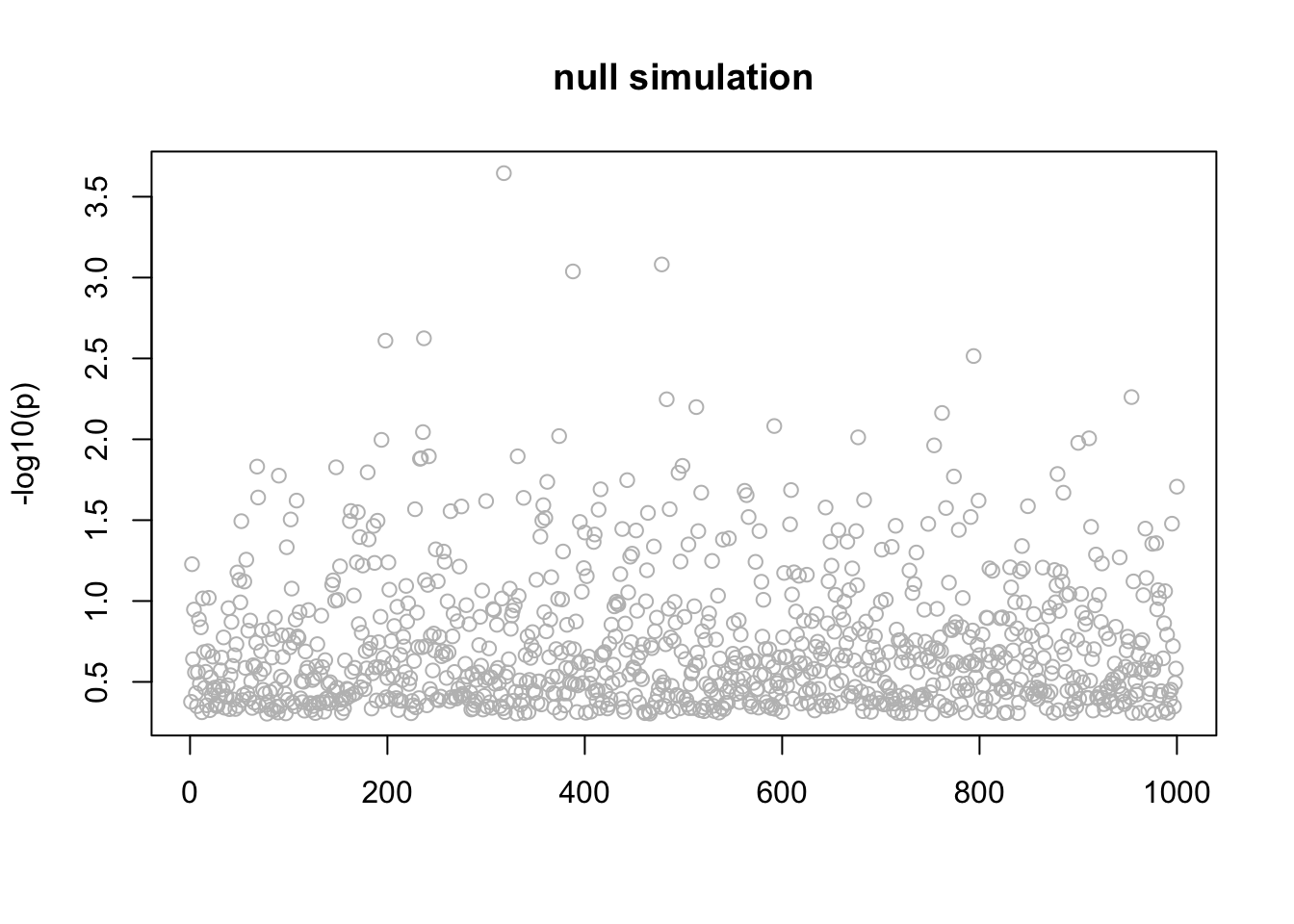

<pre class="r"><code>pplot(X,y,res,main="null simulation")</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-2-1.png" width="672" style="display: block; margin: auto;" /></p>

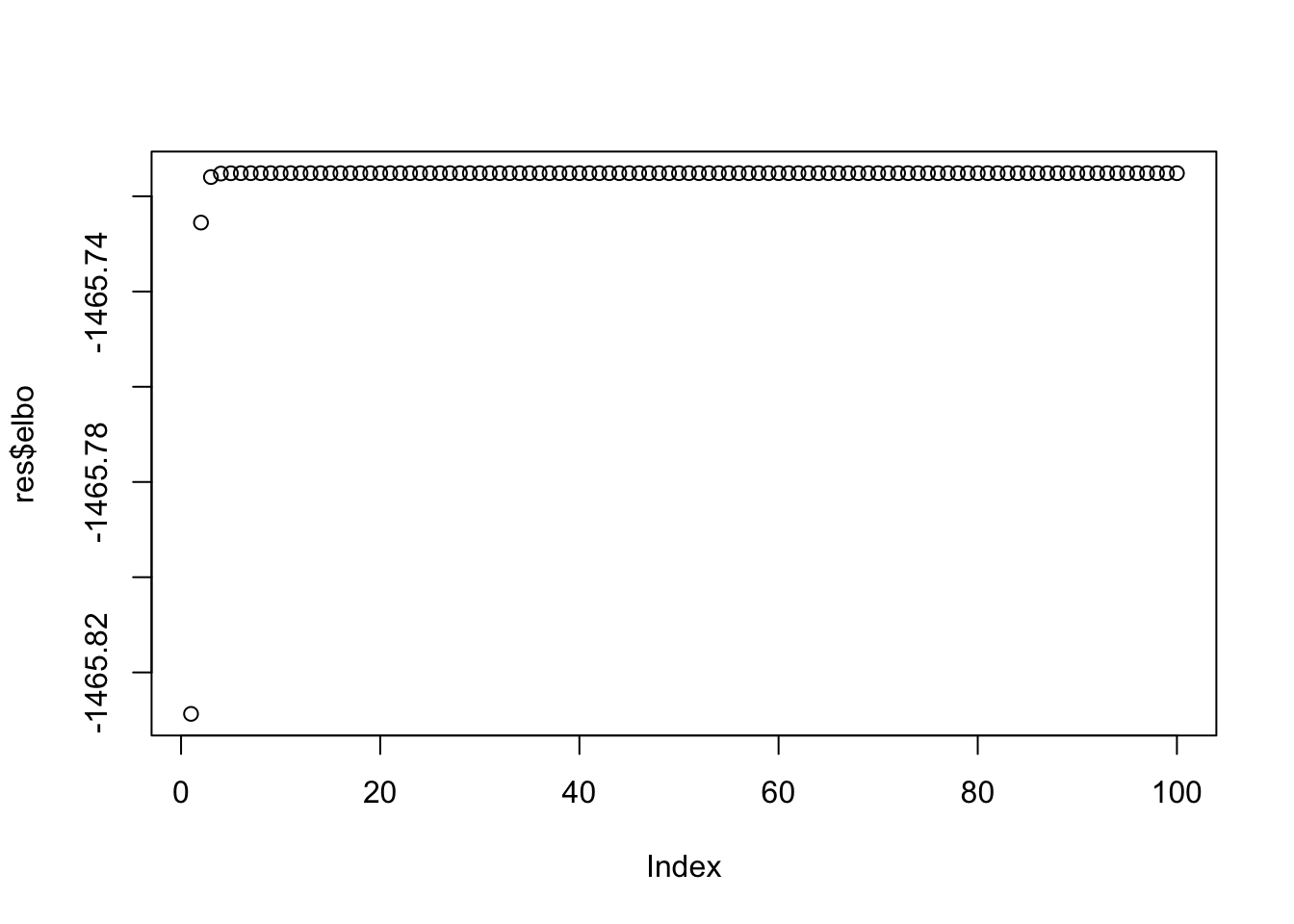

<p>Note that the ELBO is increasing</p>
<pre class="r"><code>plot(res$elbo)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="simple-simulation" class="section level1">
<h1>Simple Simulation</h1>
<p>Here the first 4 variables are actually real… just a sanity check!</p>
<pre class="r"><code>n = 1000
p = 1000
beta = rep(0,p)
beta[1] = 1
beta[2] = 1
beta[3] = 1
beta[4] = 1
X = matrix(rnorm(n*p),nrow=n,ncol=p)
y = X %*% beta + rnorm(n)
res =fit(X,y,niter=100,calc_elbo=TRUE)
n_in_CI(res)</code></pre>
<pre><code>[1] 1 1 1 1 943</code></pre>
<pre class="r"><code>lfsr_fromfit(res)</code></pre>
<pre><code>[1] 0.000000 0.000000 0.000000 0.000000 0.356592</code></pre>
<pre class="r"><code>pplot(X,y,res,main="simple simulation")</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>

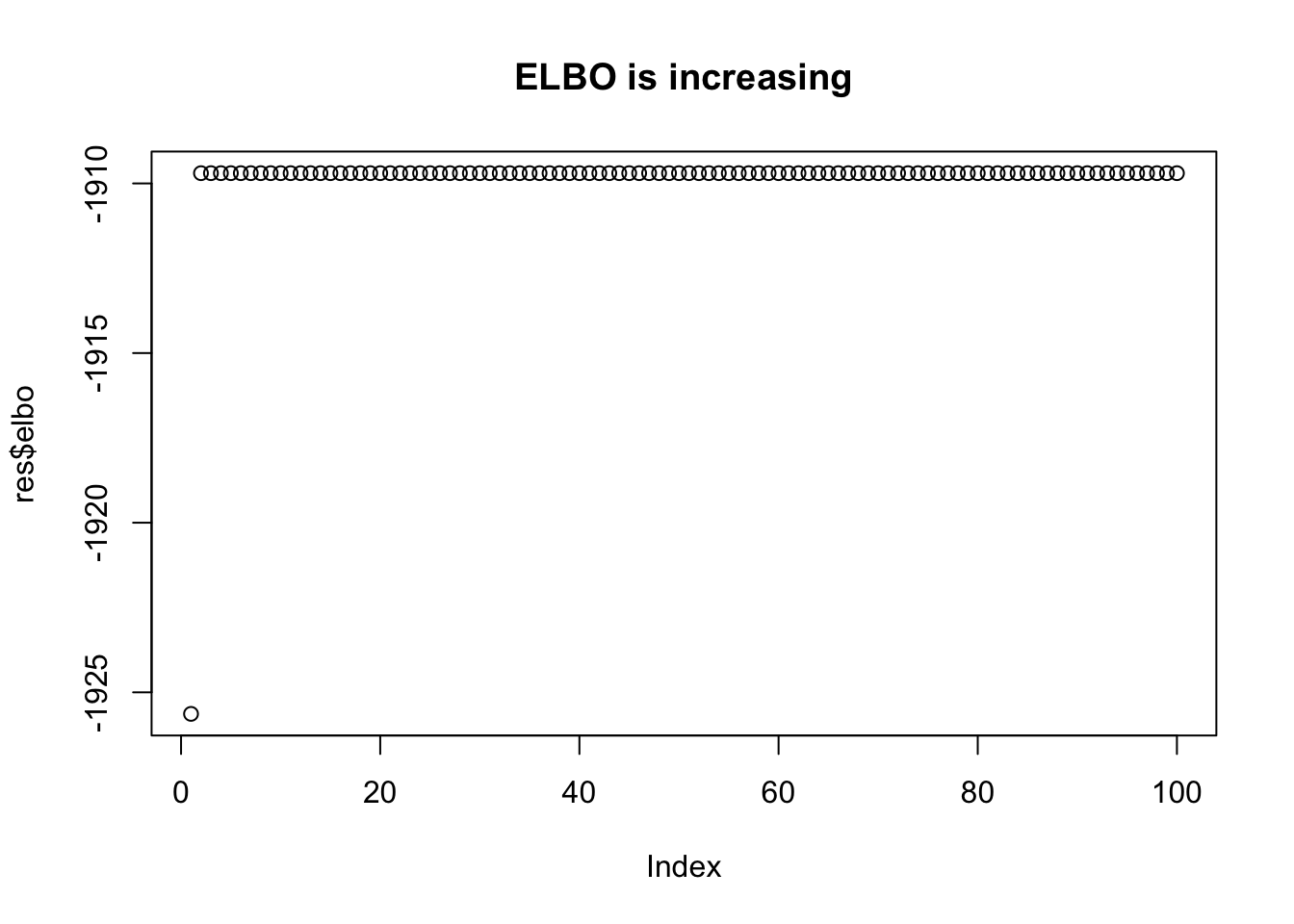

<pre class="r"><code>plot(res$elbo,main="ELBO is increasing")</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-4-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="simulate-with-ld-blocks" class="section level1">
<h1>Simulate with LD blocks</h1>
<p>We will simulate data with some “LD structure”. b=3 blocks of p=10 variables, each correlated through some latent Z. The phenotype model is <span class="math inline">\(Y = X_1+...+X_b + e\)</span> where <span class="math inline">\(X_1,\dots,X_b\)</span> are each a member of a block, and <span class="math inline">\(e\)</span> is <span class="math inline">\(N(0,sd)\)</span>.</p>
<pre class="r"><code>set.seed(1)
simulate = function(n=100,p=10,b=3,sd=1){
Z = list()
X = list()
Y = list()
for(i in 1:b) Z[[i]] = rnorm(n)
for(i in 1:b) X[[i]] = Z[[i]] + matrix(rnorm(n*p),nrow=n)
for(i in 1:b) Y[[i]] = X[[i]][,1]
X = do.call(cbind,X) # bind columns of X and Y
Y = do.call(cbind,Y)
Y = rowSums(Y) # each of the betas is 1
Y = Y + rnorm(n,sd = sd)
return(list(X=X,Y=Y))
}
d = simulate()</code></pre>
<p>Now fit the model:</p>
<pre class="r"><code>res.LD =fit(d$X,d$Y,niter=100)
n_in_CI(res.LD)</code></pre>
<pre><code>[1] 1 1 1 29 29</code></pre>
<pre class="r"><code>lfsr_fromfit(res.LD)</code></pre>
<pre><code>[1] 2.925933e-06 1.575560e-06 2.550389e-04 3.442160e-01 3.442160e-01</code></pre>
<pre class="r"><code>pplot(d$X,d$Y,res.LD,main="LD simulation",CImax=10)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="real-data" class="section level1">
<h1>Real data</h1>
<p>These are GTEX data from Thyroid.</p>
<pre class="r"><code>d=readRDS("../data/Thyroid.FMO2.pm1Mb.RDS")
storage.mode(d$X) <- "double"
d$X <- d$X[,3501:4500]
pos <- d$pos[3501:4500]
X = d$X
y = d$y
Z = d$Z
Xresid= X
p =ncol(Xresid)
for(i in 1:p){Xresid[,i] = lm(X[,i]~Z)$resid}
yresid = lm(y~Z)$resid
res.gtex =fit(Xresid,yresid,niter=100,calc_elbo=TRUE)
n_in_CI(res.gtex)</code></pre>
<pre><code>[1] 840 19 8 5 152</code></pre>
<pre class="r"><code>lfsr_fromfit(res.gtex)</code></pre>
<pre><code>[1] 2.281823e-01 1.483460e-09 2.220446e-16 1.166622e-12 1.318208e-02</code></pre>
<pre class="r"><code>pplot(Xresid,yresid,res.gtex)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-7-1.png" width="672" style="display: block; margin: auto;" /></p>

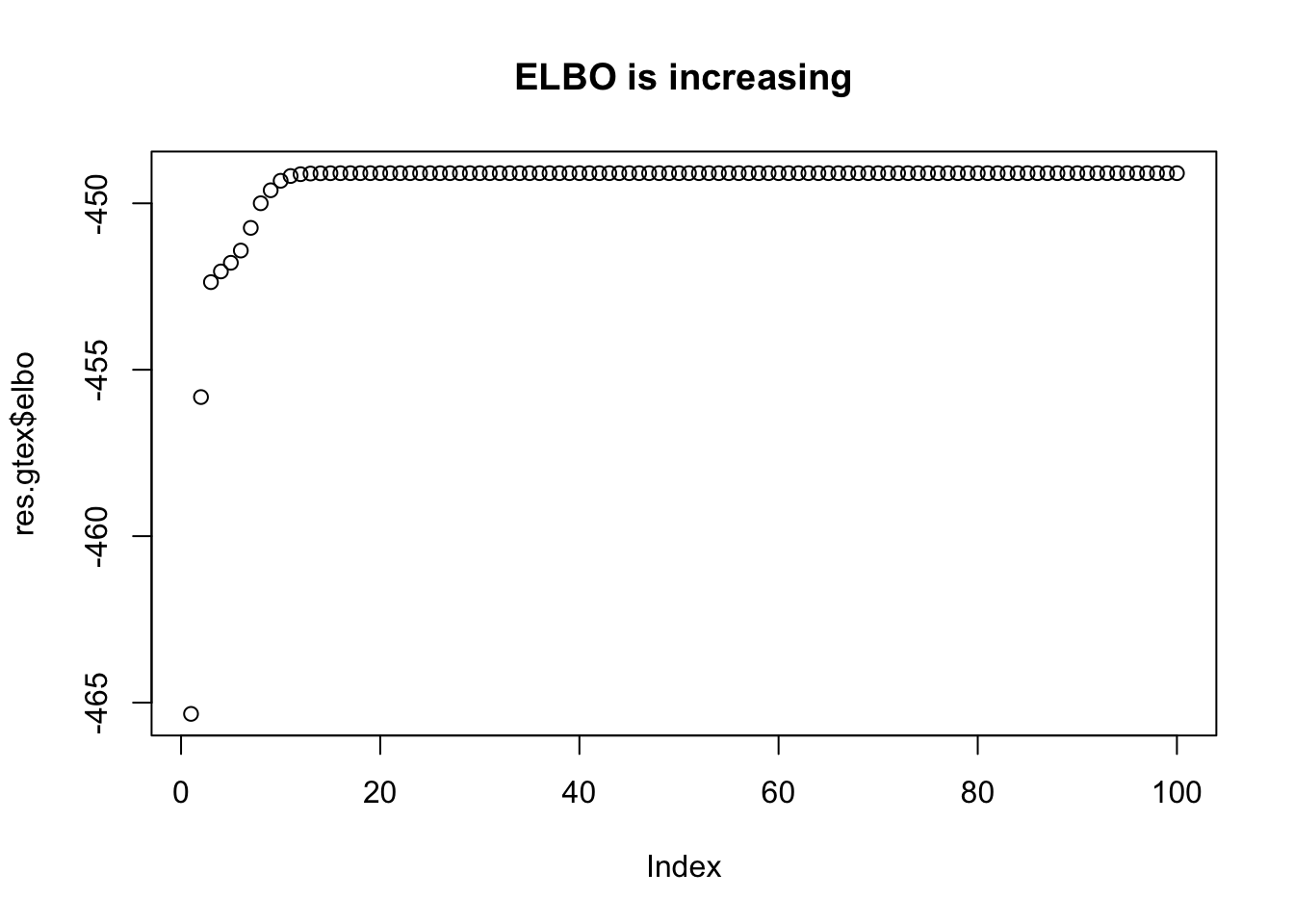

<pre class="r"><code>plot(res.gtex$elbo,main="ELBO is increasing")</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-7-2.png" width="672" style="display: block; margin: auto;" /></p>
<p>Interestingly, the variable with smallest <span class="math inline">\(p\)</span> value is not in the CIs of the most confident eQTLs. It seems that when we control for the other hits, that variable is no longer that significant.</p>
<p>Notice that only <span class="math inline">\(l=2,\dots,5\)</span> have small lfsr. So the first one can probably be ignored. Of the others, there are 3 eQTLs that are fairly well mapped (95% CI contains 5-19 SNPs) and one that is not all well mapped (152).</p>
<p>Here we pick out the top marker for each <span class="math inline">\(L\)</span> and look at the BFs. Also compare with the top markers found by <code>varbvs</code>. We see the BF for the top 4 markers is higher than those from varbvs, which is encouraging.</p>
<pre class="r"><code>#find top hits
tophits = apply(res.gtex$alpha,1,which.max)
markers = colnames(Xresid)[tophits]
# varbvs, top 4 SNPs:
markers.varbvs<- c("chr1_171168633_C_A_b38",
"chr1_171147265_C_A_b38",
"chr1_171164750_C_A_b38",
"chr1_171178589_C_T_b38")
#simple bf calculation X an n by p matrix of genoytpes
log10BF = function(X,y,sigmaa){
p = ncol(X)
n = nrow(X)
X = cbind(rep(1,n),X)
invnu = diag(c(0,rep(1/sigmaa^2,p)))
invOmega = invnu + t(X) %*% X
B = solve(invOmega, t(X) %*% cbind(y))
invOmega0 = n
return(-0.5*log10(det(invOmega)) + 0.5*log10(invOmega0) - p*log10(sigmaa) -(n/2) * (log10( t(y- X %*% B) %*% y) - log10(t(y) %*% y - n*mean(y)^2) ))
}
c(log10BF(Xresid[,markers], yresid,0.5),
log10BF(Xresid[,markers[2:5]], yresid,0.5),
log10BF(Xresid[,markers[2:4]], yresid,0.5),
log10BF(Xresid[,markers.varbvs], yresid,0.5))</code></pre>
<pre><code>[1] 36.41482 35.41237 31.07575 33.70173</code></pre>
<div id="simulations-based-on-real-data" class="section level2">
<h2>Simulations based on real data</h2>
<p>Here we take the real genotypes (actually the residuals after removing Z) from the data above, and simulate effects with the effect sizes matched to the 4 significant top SNPs identified above.</p>
<pre class="r"><code>set.seed(1)
p =ncol(Xresid)
n = nrow(Xresid)
b = rep(0,p)
index = apply(res.gtex$alpha,1,which.max)[-1]
b[index] = diag(res.gtex$mu[2:5,index])
fitted = Xresid %*% b
sigma = sqrt(var(yresid) - var(fitted))
ysim = fitted + rnorm(n, 0, sigma)
write_finemap_files = function(X,Y,dir,prefix){
dir = normalizePath(dir)
z = calc_z(X,Y)
n = length(Y)
write.table(z,file.path(dir,paste0(prefix,".z")),quote=F,col.names=F)
write.table(cor(Xresid),file.path(dir,paste0(prefix,".ld")),quote=F,col.names=F,row.names=FALSE)
write.table(t(c(0,0,0,1)),file.path(dir,paste0(prefix,".k")),quote=F,col.names=F,row.names=FALSE)
write("z;ld;snp;config;k;log;n-ind",file=file.path(dir,"data"))
write(paste(file.path(dir,paste0(prefix,".z")),
file.path(dir,paste0(prefix,".ld")),
file.path(dir,paste0(prefix,".snp")),
file.path(dir,paste0(prefix,".config")),
file.path(dir,paste0(prefix,".k")),
file.path(dir,paste0(prefix,".log")),
n,sep=";"),
file=file.path(dir,"data"),append=TRUE)
}
write_finemap_files(Xresid,ysim,"../data/finemap_data/fmo2.sim","fmo2.sim")
# this version puts all weight on k=4
# and gives results more similar to the VB approach
system("~/finemap_v1.1_MacOSX/finemap --sss --in-files ../data/finemap_data/fmo2.sim/data --prior-k --n-iterations 1000000 --prior-std 0.4 --regions 1")
system("mv ../data/finemap_data/fmo2.sim/fmo2.sim.snp ../data/finemap_data/fmo2.sim/fmo2.sim.k4.snp")
system("mv ../data/finemap_data/fmo2.sim/fmo2.sim.config ../data/finemap_data/fmo2.sim/fmo2.sim.k4.config")
# this version uses default prior
system("~/finemap_v1.1_MacOSX/finemap --sss --in-files ../data/finemap_data/fmo2.sim/data --n-iterations 1000000 --prior-std 0.4 --regions 1")
#system("~/finemap_v1.1_MacOSX/finemap --sss --in-files ../data/finemap_data/fmo2.sim/data --n-iterations 1000000 --prior-std 0.4 --regions 1 --prob-tol 0.00001")
# Wrote these files to send to William for DAP
write.table(Xresid,"../data/finemap_data/fmo2.sim/Xresid.txt",quote=F,col.names=F,row.names=FALSE)
write.table(ysim,"../data/finemap_data/fmo2.sim/ysim.txt",quote=F,col.names=F,row.names=FALSE)
z = calc_z(Xresid,ysim)
write.table(c("Zscore",z),"../data/paintor_data/fmo2.sim/fmo2.sim.z",quote=F,col.names=F,row.names=FALSE)
write.table(cor(Xresid),"../data/paintor_data/fmo2.sim/fmo2.sim.ld",quote=F,col.names=F,row.names=FALSE)
write.table(cor(Xresid[,1:99]),"../data/paintor_data/fmo2.sim/fmo2.sim.short.ld",quote=F,col.names=F,row.names=FALSE)
write.table(rep(1,length(z)),"../data/paintor_data/fmo2.sim/fmo2.sim.annotations",quote=F,col.names=F,row.names=FALSE)
res.sim = fit(Xresid,ysim,niter=100)
n_in_CI(res.sim)</code></pre>
<pre><code>[1] 6 4 20 475 799</code></pre>
<pre class="r"><code>lfsr_fromfit(res.sim)</code></pre>
<pre><code>[1] 0.000000e+00 6.565859e-13 4.114310e-08 3.884454e-02 1.875360e-01</code></pre>
<pre class="r"><code>#try with sigma="true" sigma
# res2.sim = fit(Xresid,ysim,sa=0.5,sigma=sigma^2,niter=100)
# n_in_CI(res2.sim)
# lfsr_fromfit(res2.sim)</code></pre>
<p>Compare with p values</p>
<pre class="r"><code>pplot(Xresid,ysim,res.sim,pos,b,100)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-10-1.png" width="672" style="display: block; margin: auto;" /></p>

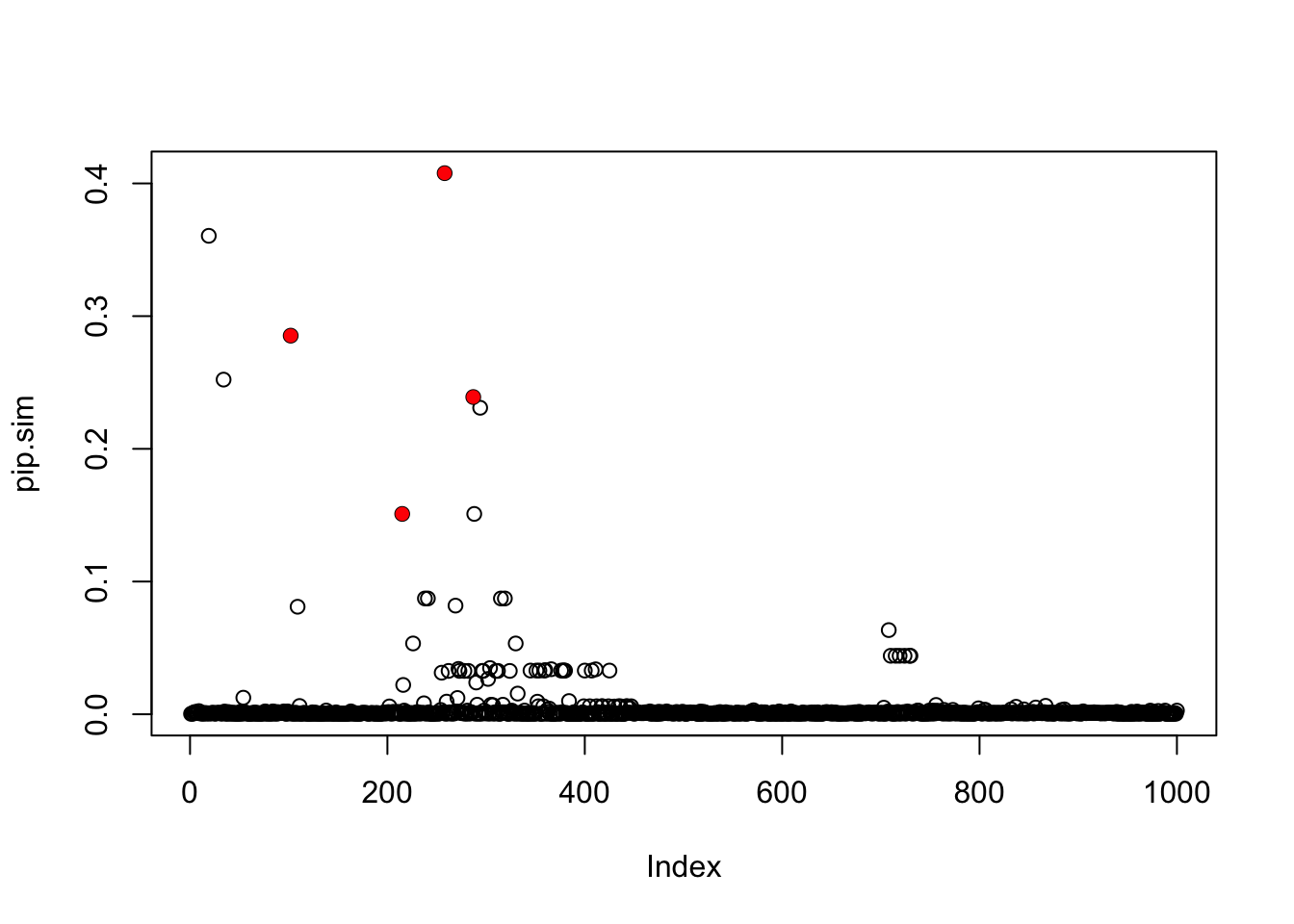

<pre class="r"><code>ci = list()
for(i in 1:5){ci[[i]] = which(in_CI_x(res.sim$alpha[i,])>0)}
pip.sim = colSums(res.sim$alpha)
plot(pip.sim)
which(b!=0)</code></pre>
<pre><code>[1] 102 215 258 287</code></pre>
<pre class="r"><code>points(which(b!=0),pip.sim[which(b!=0)],col=2,pch=16)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-10-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
</div>
<div id="compare-with-finemap" class="section level1">
<h1>Compare with FINEMAP</h1>

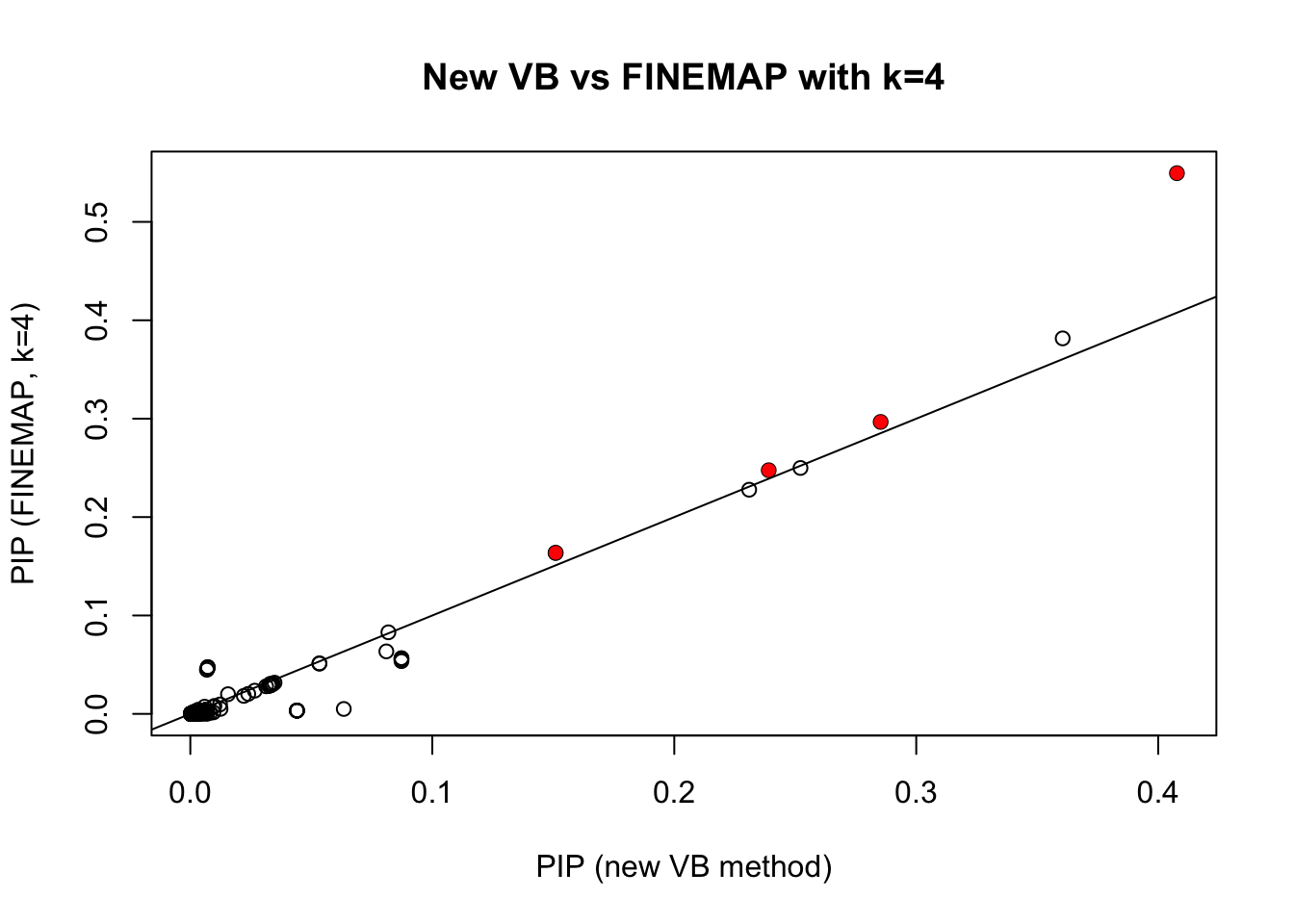

<p>The new VB method gives similar results to FINEMAP (with FINEMAP set to <span class="math inline">\(k=4\)</span>)</p>
<pre class="r"><code>res.fm = read.table("../data/finemap_data/fmo2.sim/fmo2.sim.snp",header=TRUE,sep=" ")
pip.fm = rep(0,1000)
pip.fm[res.fm$index] = res.fm$snp_prob
res.fm.k4 = read.table("../data/finemap_data/fmo2.sim/fmo2.sim.k4.snp",header=TRUE,sep=" ")
pip.fm.k4 = rep(0,1000)
pip.fm.k4[res.fm.k4$index] = res.fm.k4$snp_prob
plot(pip.sim,pip.fm.k4,xlab="PIP (new VB method)",ylab="PIP (FINEMAP, k=4)", main="New VB vs FINEMAP with k=4")
points(pip.sim[which(b!=0)],pip.fm.k4[which(b!=0)],col=2,pch=16)
abline(a=0,b=1)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-11-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Now compare with DAP. William sent me two different DAP results, the first with default settings, and the second with the residual variance set to be equal to var(y), which is in some sense “conservatve”. It turns out the latter agrees really well with FINEMAP with default prior.</p>
<pre class="r"><code>res.dap = read.table("../data/finemap_data/fmo2.sim/dap_out_snp.txt",stringsAsFactors = FALSE)
res.dap$snp = as.numeric(substr(res.dap$V2,4,6))
pip.dap = rep(0,1000)
pip.dap[res.dap$snp] = res.dap$V3
res.dap2 = read.table("../data/finemap_data/fmo2.sim/dap_out2_snp.txt",stringsAsFactors = FALSE)
res.dap2$snp = as.numeric(substr(res.dap2$V2,4,6))
pip.dap2 = rep(0,1000)
pip.dap2[res.dap2$snp] = res.dap2$V3
plot(pip.dap2,pip.fm,main ="DAP (conservative) vs FINEMAP (defaults)",xlab="DAP",ylab="FINEMAP")
points(pip.dap2[which(b!=0)],pip.fm[which(b!=0)],col=2,pch=16)
abline(a=0,b=1)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-12-1.png" width="672" style="display: block; margin: auto;" /></p>

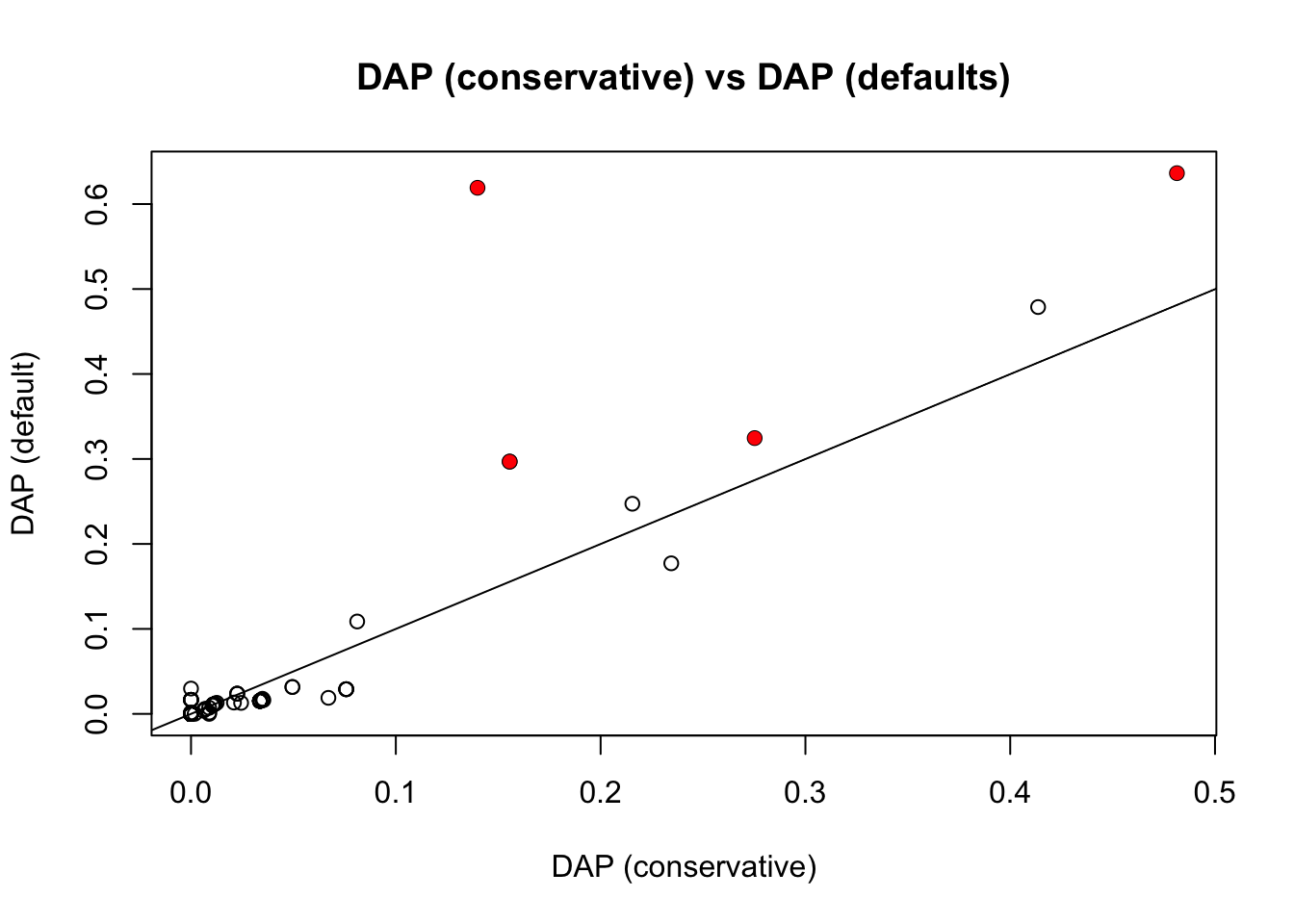

<pre class="r"><code>plot(pip.dap2,pip.dap,main ="DAP (conservative) vs DAP (defaults)",xlab="DAP (conservative)",ylab="DAP (default)")
points(pip.dap2[which(b!=0)],pip.dap[which(b!=0)],col=2,pch=16)
abline(a=0,b=1)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-12-2.png" width="672" style="display: block; margin: auto;" /></p>

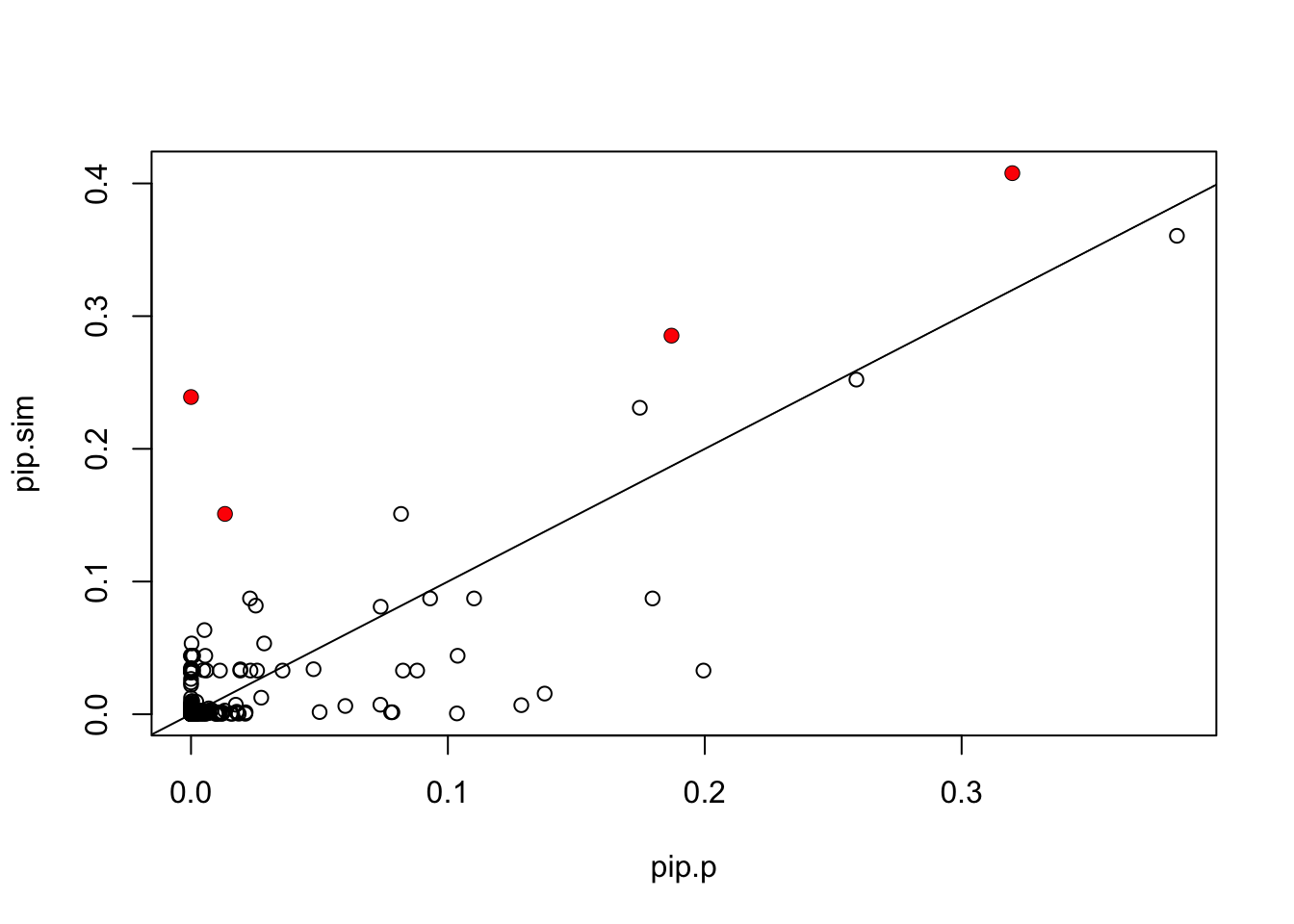

<p>In contrast, Paintor results seem pretty different:</p>
<pre class="r"><code>pip.p = read.table("~/PAINTOR_V3.0/myData/fmo2.sim.results",header=TRUE)[,2]
plot(pip.p,pip.sim)
points(pip.p[which(b!=0)],pip.sim[which(b!=0)],col=2,pch=16)
abline(a=0,b=1)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-13-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Compare log10BF. Note the top log10BF from finemap was 36.7 (for a 4 marker model). So similar, but not identical. (I haven’t been careful about making sure parameters are exactly same across methods.)</p>
<pre class="r"><code>tophits = apply(res.sim$alpha,1,which.max)
markers = colnames(Xresid)[tophits]
log10BF(Xresid[,markers[1:3]],ysim,0.4)</code></pre>
<pre><code> [,1]
[1,] 33.86796</code></pre>
<pre class="r"><code>log10BF(Xresid[,markers[1:4]],ysim,0.4)</code></pre>
<pre><code> [,1]
[1,] 37.13914</code></pre>
</div>
<div id="run-on-actn3-data" class="section level1">
<h1>Run on ACTN3 data</h1>
<pre class="r"><code>d=readRDS("../data/Muscle_Skeletal.ACTN3.pm1Mb.RDS")
storage.mode(d$X) <- "double"
#d$X <- d$X[,3501:4500]
X = d$X
y = d$y
Z = d$Z
Xresid= X
p =ncol(Xresid)
for(i in 1:p){Xresid[,i] = lm(X[,i]~Z)$resid}
yresid = lm(y~Z)$resid
res.actn3 =fit(Xresid,yresid,niter=100)
n_in_CI(res.actn3)</code></pre>
<pre><code>[1] 3 3796 3796 3796 3796</code></pre>
<pre class="r"><code>lfsr_fromfit(res.actn3)</code></pre>
<pre><code>[1] 0.0000000 0.2952032 0.2952032 0.2952032 0.2952032</code></pre>
<pre class="r"><code>pplot(Xresid,yresid,res.actn3)</code></pre>
<p><img src="figure/newVB.Rmd/unnamed-chunk-15-1.png" width="672" style="display: block; margin: auto;" /></p>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.3.2 (2016-10-31)
Platform: x86_64-apple-darwin13.4.0 (64-bit)
Running under: OS X El Capitan 10.11.6
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] backports_1.1.1 magrittr_1.5 rprojroot_1.2 tools_3.3.2
[5] htmltools_0.3.6 yaml_2.1.14 Rcpp_0.12.13 stringi_1.1.5
[9] rmarkdown_1.7 knitr_1.17 git2r_0.19.0 stringr_1.2.0
[13] digest_0.6.12 evaluate_0.10.1</code></pre>
</div>
</div>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
