<h1 class="title toc-ignore">Apply mash to red blood cell traits</h1>
<h4 class="author"><em>Matthew Stephens</em></h4>
<h4 class="date"><em>2017-06-24</em></h4>
</div>
<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-06-24</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> 100d44c</p>
<!-- Add your analysis here -->
<div id="preparation" class="section level1">
<h1>Preparation</h1>
<p>Here we read in the data.</p>
<pre class="r"><code>z.old = read.table("../data/bmass.HaemgenRBC2016.Vs2.PreviousSNPs.ZScores.hclust.vs1.txt",header=TRUE,stringsAsFactors = FALSE)
z.new = read.table("../data/bmass.HaemgenRBC2016.Vs2.NewSNPs.ZScores.hclust.vs1.txt",header=TRUE,stringsAsFactors = FALSE)
z.old.m = as.matrix(z.old[,2:7])
z.new.m = as.matrix(z.new[,2:7])
V = diag(6)
V[1,]=c(0.5,-0.47,0.80,-0.47,0.73,-0.13)
V[2,2:6] = c(0.5,0.12,0.87,0.12,0.03)
V[3,3:6] = c(0.5,0.04,0.93,-0.1)
V[4,4:6] = c(0.5,0.20,0.46)
V[5,5:6] =c(0.5,0.22)
V[6,6] = 0.5
V = V+t(V)</code></pre>
<p>First we fit mash to the old hits.</p>
<p>IMPORTANT NOTE: really we should do this on a random sample of all zs.. but I don’t have that now.</p>
<pre class="r"><code>#devtools::install_github("stephenslab/mashr")
library("mashr")
d.old = set_mash_data(z.old.m, Shat=1, V=V)
U.c = cov_canonical(d.old)
U.pca = cov_pca(d.old,3,subset=NULL)</code></pre>
<pre><code>svd currently performed on Bhat; maybe should be Bhat/Shat?</code></pre>
<pre class="r"><code>U.d = cov_ed(d.old,U.pca,subset=NULL)
m.old=mashr::mash(d.old,c(U.c,U.d),algorithm.version = "R",outputlevel=99)</code></pre>
<pre><code> - Computing 622 x 316 likelihood matrix.
- Likelihood calculations took 0.14 seconds.
- Fitting model with 316 mixture components.
- Model fitting took 0.28 seconds.
- Computing posterior matrices.
- Computation allocated took 0.01 seconds.</code></pre>
<p>Apply mash to the new data using fit from old data.</p>
<pre class="r"><code>d.new = set_mash_data(z.new.m, Shat=matrix(1,nrow=103,ncol=6), V=V)
m.new = mashr::mash(d.new,g=ashr::get_fitted_g(m.old),fixg=TRUE)</code></pre>
<pre><code> - Computing 103 x 316 likelihood matrix.
- Likelihood calculations took 0.01 seconds.
- Computing posterior matrices.
- Computation allocated took 0.00 seconds.</code></pre>

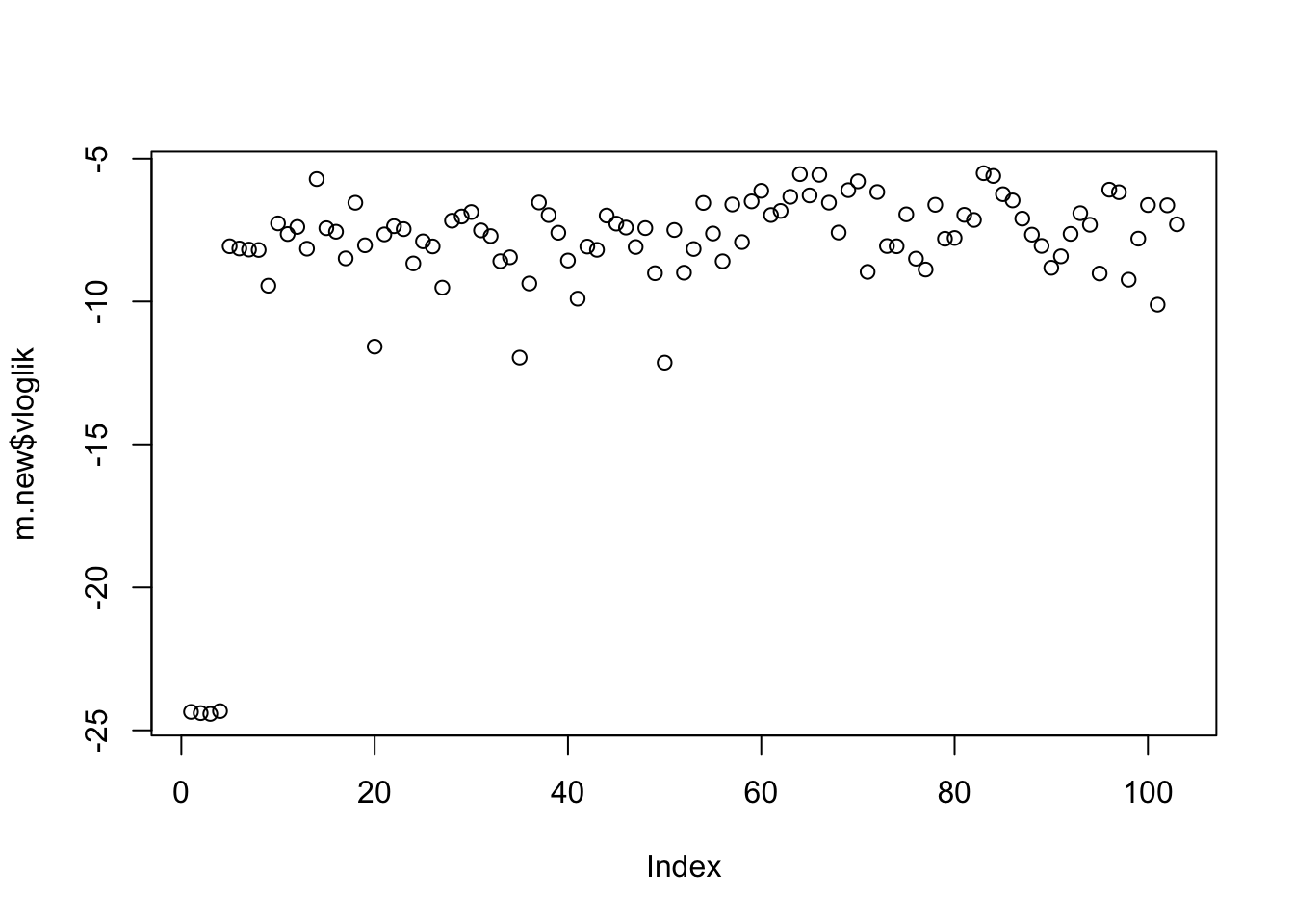

<p>Looking at the log-likelihoods for the observed z under the fitted model, we see some very strong outliers… indicates a potential problem!</p>
<pre class="r"><code>plot(m.new$vloglik)</code></pre>
<p><img src="figure/rbc_zscore_mash.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>

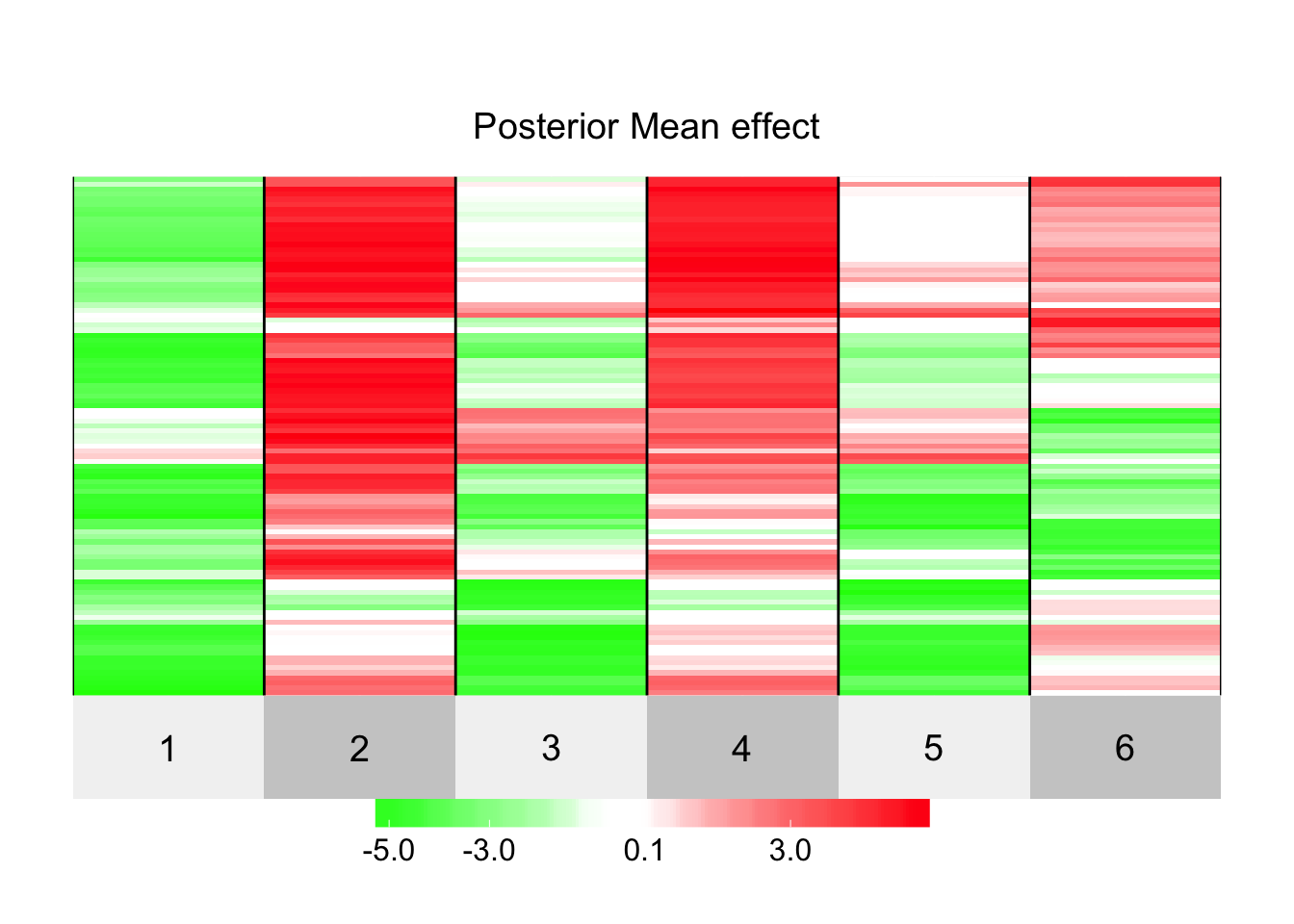

<pre class="r"><code>postmean = ashr::get_pm(m.new)
lfsr = ashr::get_lfsr(m.new)
#sign_of_biggest_effect= apply(postmean, 1, function(x){m = which.max(abs(x)); #return(sign(x[m]))})
#postmean = postmean*sign_of_biggest_effect
postmean = postmean * sign(svd(postmean)$u[,1])
superheat::superheat(postmean,
pretty.order.cols = FALSE,pretty.order.rows=TRUE, title="Posterior Mean effect", heat.pal = c(rgb(seq(0,1,length=5),1,seq(0,1,length=5)),rgb(1,seq(1,0,length=5),seq(1,0,length=5))))</code></pre>
<p><img src="figure/rbc_zscore_mash.Rmd/unnamed-chunk-5-1.png" width="672" style="display: block; margin: auto;" /></p>

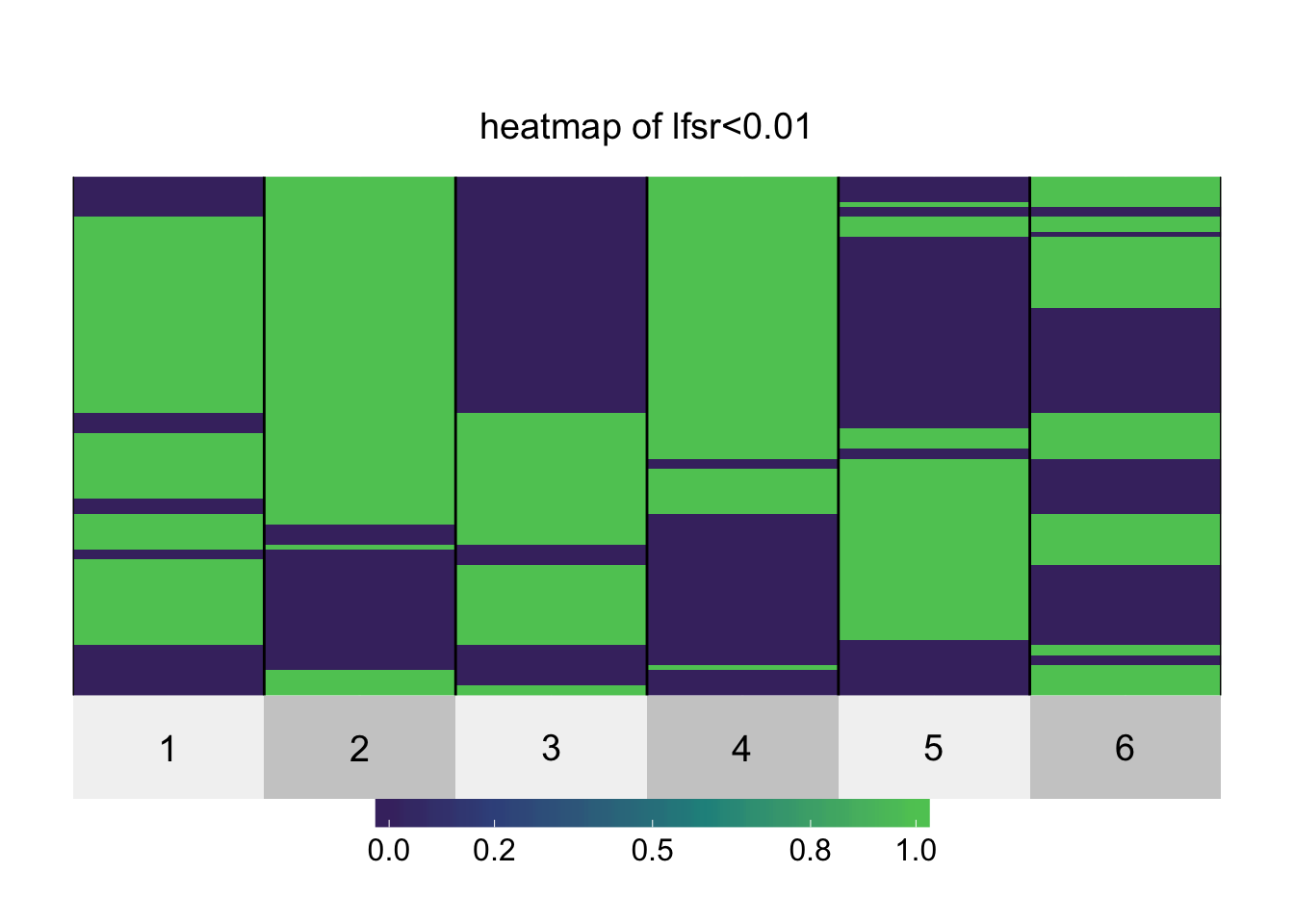

<pre class="r"><code>superheat::superheat(1*(lfsr<0.01),pretty.order.rows=TRUE, title ="heatmap of lfsr<0.01")</code></pre>
<p><img src="figure/rbc_zscore_mash.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.3.2 (2016-10-31)
Platform: x86_64-apple-darwin13.4.0 (64-bit)
Running under: OS X El Capitan 10.11.6
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] bindrcpp_0.2 mashr_0.1-18
loaded via a namespace (and not attached):
[1] Rcpp_0.12.11 bindr_0.1
[3] git2r_0.18.0 plyr_1.8.4
[5] iterators_1.0.8 tools_3.3.2
[7] digest_0.6.12 tibble_1.3.3
[9] evaluate_0.10 gtable_0.2.0
[11] lattice_0.20-35 pkgconfig_2.0.1
[13] rlang_0.1.1 Matrix_1.2-10
[15] foreach_1.4.3 yaml_2.1.14
[17] parallel_3.3.2 mvtnorm_1.0-6
[19] dplyr_0.7.1 stringr_1.2.0
[21] knitr_1.16 REBayes_0.85
[23] rprojroot_1.2 grid_3.3.2
[25] superheat_0.1.0 glue_1.1.1
[27] R6_2.2.2 rmarkdown_1.6
[29] rmeta_2.16 ggplot2_2.2.1
[31] ashr_2.1-19 magrittr_1.5
[33] backports_1.1.0 scales_0.4.1
[35] codetools_0.2-15 htmltools_0.3.6
[37] MASS_7.3-47 assertthat_0.2.0
[39] colorspace_1.3-2 labeling_0.3
[41] stringi_1.1.5 Rmosek_7.1.2
[43] lazyeval_0.2.0 pscl_1.4.9
[45] doParallel_1.0.10 munsell_0.4.3
[47] truncnorm_1.0-7 SQUAREM_2016.8-2
[49] ExtremeDeconvolution_1.3</code></pre>
</div>
</div>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
