[![CI](https://github.com/lsd-consulting/lsd-core/actions/workflows/ci.yml/badge.svg?branch=main)](https://github.com/lsd-consulting/lsd-core/actions/workflows/ci.yml) [![Nightly Build](https://github.com/lsd-consulting/lsd-core/actions/workflows/nightly.yml/badge.svg)](https://github.com/lsd-consulting/lsd-core/actions/workflows/nightly.yml) [![GitHub release](https://img.shields.io/github/release/lsd-consulting/lsd-core)](https://github.com/lsd-consulting/lsd-core/releases) [![Maven Central](https://img.shields.io/maven-central/v/io.github.lsd-consulting/lsd-core.svg?label=Maven%20Central)](https://search.maven.org/search?q=g:%22io.github.lsd-consulting%22%20AND%20a:%22lsd-core%22) [![](https://data.jsdelivr.com/v1/package/gh/lsd-consulting/lsd-core/badge)](https://www.jsdelivr.com/package/gh/lsd-consulting/lsd-core) ![LSD](src/main/resources/static/lsd_logo.png) # Living Sequence Diagrams > Automatically generate interactive sequence diagrams from your code LSD Core transforms how you document system interactions. Instead of manually maintaining sequence diagrams that quickly become stale, **capture interactions programmatically** and generate living documentation that stays in sync with your code. **Key Features:** - Generate sequence diagrams without writing PlantUML markup - Interactive HTML reports with clickable event details - Component diagrams showing system-wide relationships - Automatic diagram splitting for complex flows - Multiple output formats and customizable themes **Use Cases:** - Document API interactions in integration tests - Visualize microservice communication patterns - Debug complex distributed system flows - Generate architecture documentation from tests - Create onboarding materials automatically ![LSD_example](https://user-images.githubusercontent.com/1330362/233956459-f8545861-b323-4243-9097-4b1dd1877bda.gif) ## Table of Contents - [Why LSD?](#why-lsd) - [Quick Start](#quick-start) - [Advanced Features](#advanced-features) - [Configuration](#configuration) - [Gallery](#gallery) - [Ecosystem](#ecosystem) - [FAQ](#faq) - [Development](#development) ## Why LSD? ### Traditional Approach ```plantuml @startuml User -> API: POST /login API -> Database: SELECT * FROM users Database --> API: user data API --> User: 200 OK @enduml ``` **Problems:** - Manual maintenance required - Quickly becomes outdated - No connection to actual code - Limited interactivity ### LSD Approach ```kotlin // In your test or application code lsd.capture( "User" messages "API" withLabel "POST /login", "API" messages "Database" withLabel "SELECT * FROM users", "Database" messages "API" withLabel "user data" withType SYNCHRONOUS_RESPONSE, "API" messages "User" withLabel "200 OK" withType SYNCHRONOUS_RESPONSE ) ``` **Benefits:** - Generated from actual execution - Always in sync with code - Interactive HTML with details - Automatic from tests ### Features at a Glance | Feature | Description | |---------|-------------| | **Zero Markup** | No PlantUML syntax to learn - just Java/Kotlin code | | **Living Documentation** | Diagrams generated from actual execution, not manual drawings | | **Interactive Reports** | Click any interaction to see full request/response details | | **Multiple Diagrams** | Sequence diagrams + component diagrams from same data | | **Test Integration** | JUnit 5 and Cucumber plugins available | | **HTTP Interception** | Auto-capture REST/HTTP calls with interceptors | | **Customizable** | Themes, colors, participant types, custom icons | | **Large Diagram Support** | Auto-splitting for complex flows | | **Offline Mode** | Works without internet (inline CSS/JS) | ## Quick Start ### Installation Add the dependency to your project: [![Maven Central](https://img.shields.io/maven-central/v/io.github.lsd-consulting/lsd-core.svg?label=Maven%20Central)](https://search.maven.org/search?q=g:%22io.github.lsd-consulting%22%20AND%20a:%22lsd-core%22)
Maven ```xml io.github.lsd-consulting lsd-core X.X.X ```
Gradle ```groovy implementation 'io.github.lsd-consulting:lsd-core:X.X.X' ```
### Basic Usage Capture interactions using the `LsdContext` singleton:
Kotlin Example (Kotlin DSL as below or alternatively use the Java style builder or create `Message()` instances directly) ```kotlin fun main() { val lsd = LsdContext.instance // Capture message exchanges lsd.capture( "User Service" messages "Auth Service" withLabel "POST /authenticate", "Auth Service" messages "User Service" withLabel "200 OK" withData "" ) // Complete the scenario and generate report lsd.completeScenario("User Authentication Flow") lsd.completeReport("Authentication API") } ```
Java Example ```java public static void main(String[] args) { LsdContext lsd = LsdContext.getInstance(); lsd.capture( messageBuilder() .from("User Service") .to("Auth Service") .label("POST /authenticate"), messageBuilder() .from("Auth Service") .to("User Service") .label("200 OK") .data("") .type(SYNCHRONOUS_RESPONSE) ); lsd.completeScenario("User Authentication Flow"); lsd.completeReport("Authentication API"); } ```
**Output:** The generated HTML report will be in `build/reports/lsd/` (configurable via properties). ### Real-World Example Here's how you might document an order processing flow: ```kotlin @Test fun `process order with payment`() { val lsd = LsdContext.instance // Customer places order lsd.capture( "Customer" messages "Order Service" withLabel "POST /orders {items, total}" ) // Order service validates and requests payment lsd.capture( "Order Service" messages "Payment Service" withLabel "POST /payments", "Payment Service" messages "Order Service" withLabel "200 OK" withData "" withType SYNCHRONOUS_RESPONSE, ) // Order confirmed lsd.capture( "Order Service" messages "Customer" withLabel "201 Created" withData "" withType SYNCHRONOUS_RESPONSE ) lsd.completeScenario("Successful Order Processing") lsd.completeReport("E-Commerce API Flows") } ``` This generates an interactive diagram showing the complete flow, with each arrow clickable to reveal request/response details. ## Advanced Features ### Customizing Participants Enhance diagrams with typed participants that have custom colors and aliases: ```kotlin // Define participants with visual styling val frontend = BOUNDARY.called("Web App", "Frontend", "#3498db") val api = CONTROL.called("API Gateway", "Gateway", "#2ecc71") val userDb = DATABASE.called("PostgreSQL", "User DB", "#e74c3c") val cache = DATABASE.called("Redis", "Cache", "#f39c12") val queue = QUEUE.called("RabbitMQ", "Event Queue", "#9b59b6") // Register participants for consistent styling across scenarios lsd.addParticipants(listOf(frontend, api, userDb, cache, queue)) // Use in messages lsd.capture( frontend messages api withLabel "GET /users/123" withData "data for report diagram popup (may contain json, xml, html)" ) ``` **Available Participant Types:** | Type | Visual | Best For | |------|--------|----------| | `ACTOR` | Stick figure | End users, external actors | | `BOUNDARY` | Box with side bar | UI components, API boundaries | | `CONTROL` | Circle with arrow | Controllers, orchestrators | | `DATABASE` | Cylinder | Databases, data stores | | `ENTITY` | Circle | Domain entities, models | | `QUEUE` | Queue icon | Message queues, event streams | | `COLLECTIONS` | Stacked boxes | Collections, lists | | `PARTICIPANT` | Simple box | Generic components (default) | ### Sequence Events Beyond messages, capture additional context with these event types: ```kotlin // Add a title to the diagram lsd.capture(PageTitle("User Registration Flow")) // Add explanatory notes lsd.capture(NoteOver("API", "Validates email format")) lsd.capture(NoteLeft("Database", "Checks for existing user")) lsd.capture(NoteRight("Email Service", "Sends welcome email")) // Show async operations or delays lsd.capture(TimeDelay("Processing...")) // Split complex flows into multiple pages lsd.capture(Newpage title "Payment Processing") // Show active processing for a component (useful for async operations) lsd.capture(ACTIVATE lifeline "Payment Processor" withColour "#ff6b6b") // ... capture message events ... lsd.capture(DEACTIVATE lifeline "Payment Processor") ``` **Available Event Types:** | Event | Use Case | Example | |-------|----------|----------| | `PageTitle` | Set diagram title | `PageTitle("Authentication Flow")` | | `NoteLeft` | Add context to the left | `NoteLeft("API", "Rate limited")` | | `NoteRight` | Add context to the right | `NoteRight("DB", "Cached result")` | | `NoteOver` | Add context over lifeline | `NoteOver("Service", "Retry logic")` | | `TimeDelay` | Show elapsed time | `TimeDelay("5 seconds")` | | `Newpage` | Split into pages | `Newpage("Error Handling")` | | `ActivateLifeline` | Show active processing | `ActivateLifeline("Worker", "red")` | | `DeactivateLifeline` | End active processing | `DeactivateLifeline("Worker")` | ### Additional Capabilities **Generate an index page** for multiple reports: ```kotlin lsd.createIndex() ``` **Create component diagrams** showing relationships across all scenarios: ```kotlin lsd.completeComponentsReport("Relationships") ``` **Highlight important information** with facts: ```kotlin // The keyword "Lorem" will be highlighted throughout the report lsd.addFact("Something to highlight", "Lorem") ``` **Include custom icons** (e.g., Font Awesome): ```kotlin lsd.includeFiles(listOf("tupadr3/font-awesome-5/heart")) lsd.capture(NoteLeft("Friends <$heart{scale=0.4,color=red}>")) ``` ## Configuration Customize LSD behavior by adding an `lsd.properties` file to your classpath or setting system properties (which take precedence). | Property | Default | Description | |----------|---------|-------------| | `lsd.core.label.maxWidth` | `200` | Maximum label width (in characters) before abbreviation | | `lsd.core.diagram.theme` | `plain` | PlantUML theme ([available themes](https://plantuml.com/theme)) | | `lsd.core.report.outputDir` | `build/reports/lsd` | Output directory for report files | | `lsd.core.ids.deterministic` | `false` | Generate deterministic HTML element IDs (useful for approval testing) | | `lsd.core.diagram.sequence.maxEventsPerDiagram` | `50` | Maximum events per diagram before auto-splitting | | `lsd.core.devMode` | `true` | Offline mode with inline CSS/JS (no CDN dependencies) | | `lsd.core.metrics.enabled` | `false` | _Experimental:_ Show performance metrics table | ## Gallery ### Report Types

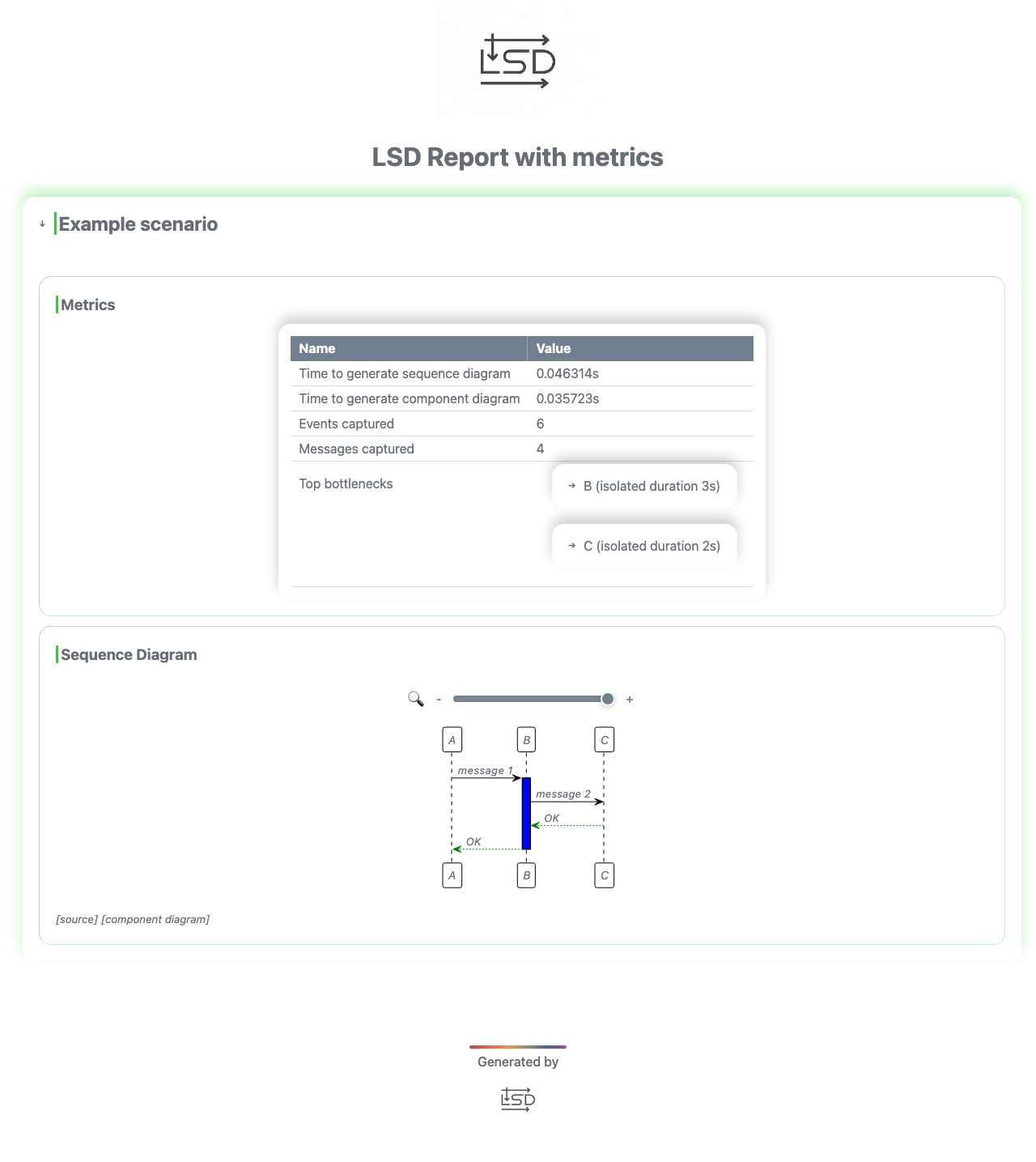

Sequence Diagrams with Metrics
LSD report example 		Interactive Popups
Click arrows to view detailed event data
Popup example

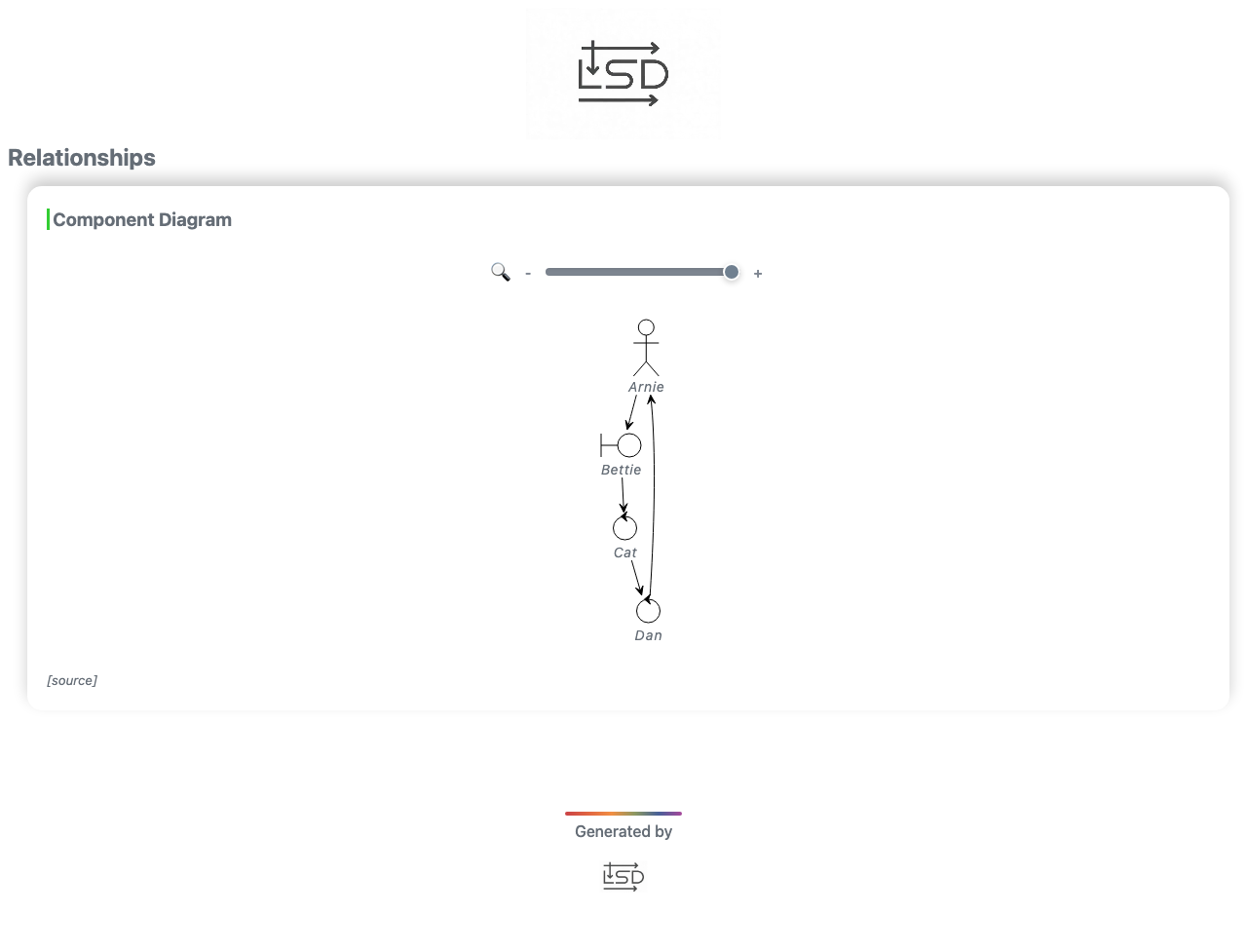

Component Diagrams
Visualize all participants across scenarios

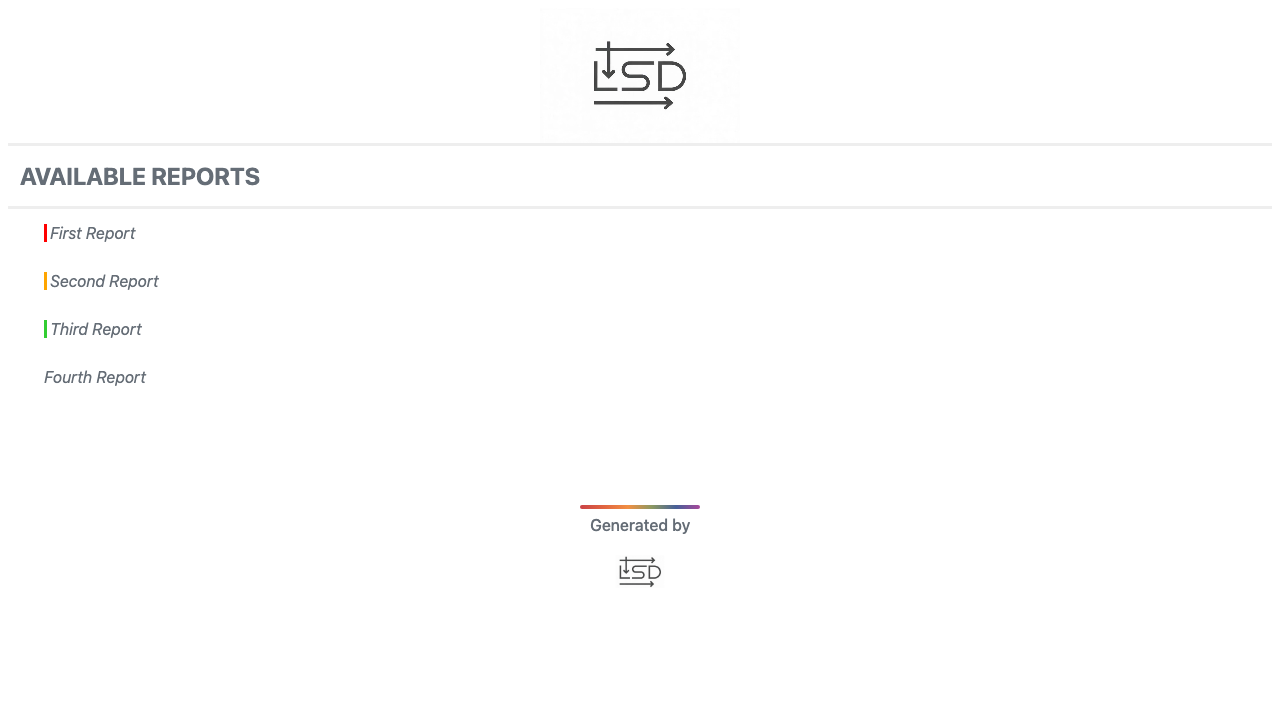

components report example 		Index Pages
Navigate between multiple reports
index page example
## Ecosystem **LSD Core** is the foundation library. Several companion libraries automate diagram generation for popular testing frameworks: - **[lsd-junit-jupiter](https://github.com/lsd-consulting/lsd-junit-jupiter)** - JUnit Jupiter extension - **[lsd-junit5](https://github.com/lsd-consulting/lsd-junit5)** - JUnit 5 extension (deprecated) - **[lsd-cucumber](https://github.com/lsd-consulting/lsd-cucumber)** - Cucumber plugin - **[lsd-interceptors](https://github.com/lsd-consulting/lsd-interceptors)** - HTTP/messaging interceptors - **[More libraries...](https://github.com/lsd-consulting)** ## FAQ
How does LSD differ from manually writing PlantUML? LSD generates diagrams from actual code execution, ensuring they stay synchronized with your implementation. You can capture events during tests, and the diagrams are always accurate.
Can I use LSD with existing test frameworks? Yes! Check out the [Ecosystem](#ecosystem) section for integrations with JUnit, Cucumber, and HTTP interceptors that automatically capture interactions.
What's the performance impact? LSD is designed for test and development environments. In production, you can disable event capture or use conditional logic. Event capture is lightweight, but diagram generation should happen offline.
Can I customize the diagram appearance? Yes! You can use any PlantUML theme, customize participant colors, add notes, and control diagram layout. See [Configuration](#configuration) and [Advanced Features](#advanced-features).
How do I handle large diagrams? LSD automatically splits diagrams when they exceed `lsd.core.diagram.sequence.maxEventsPerDiagram` (default: 50 events). You can also manually split using `Newpage` events.
## Development ### Prerequisites - Java 17 JDK ### Building ```bash ./gradlew clean build ``` Git hooks are configured automatically on first build (uses `.githooks` directory). ### Troubleshooting #### CDN Cache Issues Static files (CSS/JS) are cached on JSDelivr CDN for up to 7 days. To force a cache refresh: 1. Use the [JSDelivr Purge tool](https://www.jsdelivr.com/tools/purge) 2. Purge these files: - `https://cdn.jsdelivr.net/gh/lsd-consulting/lsd-core@8/src/main/resources/static/style.min.css` - `https://cdn.jsdelivr.net/gh/lsd-consulting/lsd-core@8/src/main/resources/static/custom.min.js` 3. Clear your browser cache **Tip:** Use `lsd.core.devMode=true` (default) to avoid CDN issues during development. ## Contributing Contributions are welcome! Please feel free to submit a Pull Request. ## License This project is licensed under the MIT License - see the [LICENSE.txt](LICENSE.txt) file for details.
