<h1 class="title toc-ignore">npreg: trendfilter</h1>
<h4 class="author"><em>Joyce Hsiao</em></h4>
</div>
<div id="TOC">
<ul>
<li><a href="#data-and-packages">Data and packages</a></li>
<li><a href="#consider-5-genes-previously-identified-to-be-cyclical">Consider 5 genes previously identified to be cyclical</a></li>
<li><a href="#property-of-genes-with-many-zeros">Property of genes with many zeros</a></li>
<li><a href="#make-simulated-data-from-the-5-identified-cyclical-genes">Make simulated data from the 5 identified cyclical genes</a><ul>
<li><a href="#fitting-trendfilter">Fitting trendfilter</a></li>
<li><a href="#results">Results</a></li>
</ul></li>
<li><a href="#session-information">Session information</a></li>
</ul>
</div>
<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-05-07</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> 41ea88d</p>
<hr />
<div id="data-and-packages" class="section level2">
<h2>Data and packages</h2>
<p>Packages</p>
<pre class="r"><code>library(circular)
library(conicfit)
library(Biobase)
library(dplyr)
library(matrixStats)
library(genlasso)</code></pre>
<p>Load data</p>
<pre class="r"><code>df <- readRDS(file="../data/eset-final.rds")
pdata <- pData(df)
fdata <- fData(df)
# select endogeneous genes
counts <- exprs(df)[grep("ENSG", rownames(df)), ]
log2cpm.all <- t(log2(1+(10^6)*(t(counts)/pdata$molecules)))
macosko <- readRDS("../data/cellcycle-genes-previous-studies/rds/macosko-2015.rds")
theta <- readRDS("../output/images-time-eval.Rmd/theta.rds")
log2cpm.all.ord <- log2cpm.all[,order(theta)]
source("../code/utility.R")
source("../code/npreg/npreg.methods.R")</code></pre>
<p>–</p>
</div>
<div id="consider-5-genes-previously-identified-to-be-cyclical" class="section level2">
<h2>Consider 5 genes previously identified to be cyclical</h2>

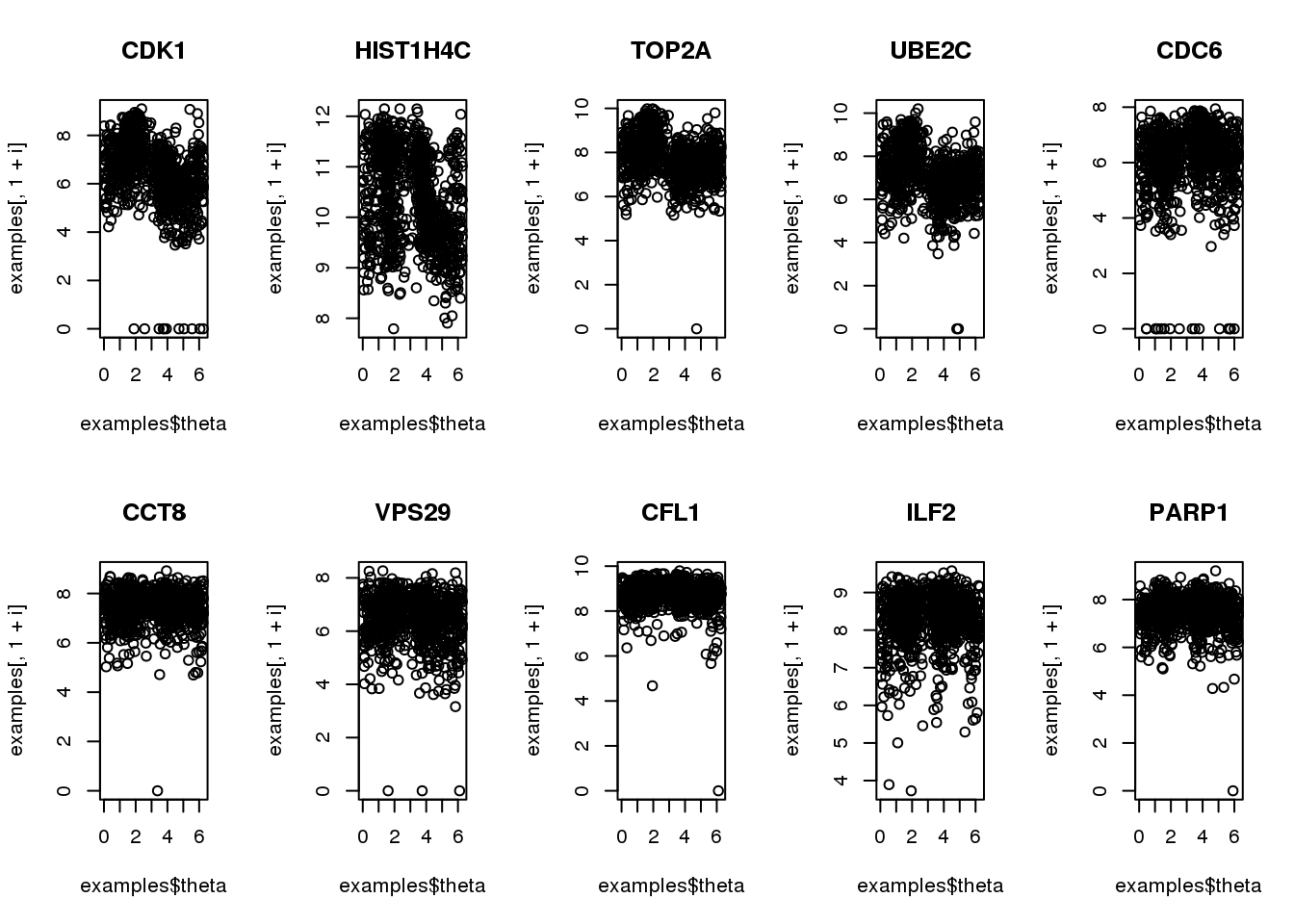

<p>Consider 5 genes previously identified to have cyclical patterns and 5 genes previously identified to not have cyclical patterns. Note that there’s a discrepany (albeit small) between the samples that was used to identify cyclical patterns and the samples that are in the finalized data.</p>
<pre class="r"><code>examples <- readRDS("../output/npreg-methods.Rmd/cyclegenes.rds")
library(biomaRt)
ensembl <- useMart(biomart = "ensembl", dataset = "hsapiens_gene_ensembl")
symbols <- getBM(attributes = c("hgnc_symbol",'ensembl_gene_id'),
filters = c('ensembl_gene_id'),
values = colnames(examples)[-1],
mart = ensembl)
symbols <- symbols[match(colnames(examples)[-1], symbols$ensembl_gene_id),]
par(mfrow=c(2,5))
for (i in 1:10) {
plot(examples$theta,
examples[,1+i], main = symbols$hgnc_symbol[i])
}</code></pre>
<p><img src="figure/npreg-trendfilter-prelim.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Get ENSG IDs.</p>
<pre class="r"><code>cycles <- symbols[1:5,]
cycles.not <- symbols[6:10,]</code></pre>
<p>Get these genes from the updated data.</p>
<pre class="r"><code>cycles.log2cpm <- log2cpm.all.ord[rownames(log2cpm.all.ord) %in% cycles$ensembl_gene_id,]
cycles.not.log2cpm <- log2cpm.all.ord[rownames(log2cpm.all.ord) %in% cycles.not$ensembl_gene_id,]</code></pre>

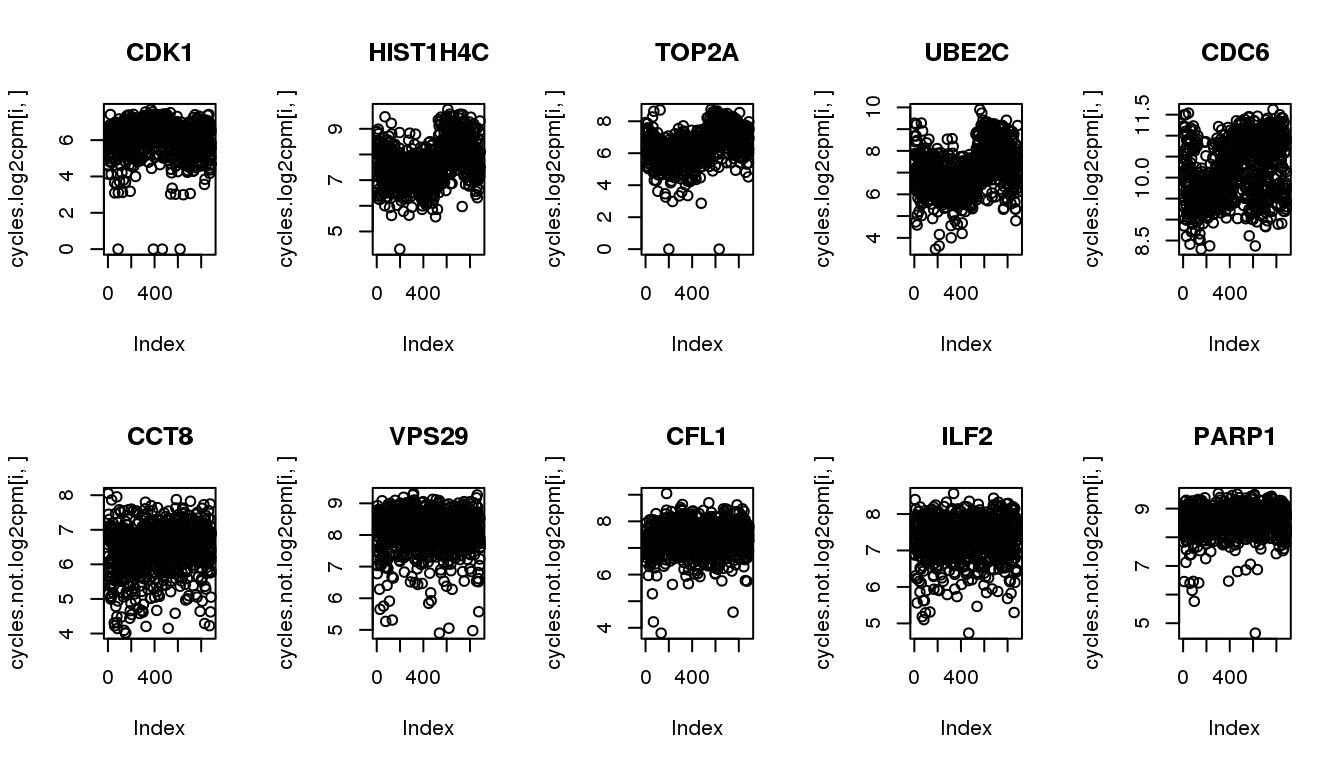

<p>confirm pattern in the udpated dataset.</p>
<pre class="r"><code>par(mfrow=c(2,5))
for (i in 1:5) {
plot(cycles.log2cpm[i,], main = cycles$hgnc_symbol[i])
}
for (i in 1:5) {
plot(cycles.not.log2cpm[i,], main = cycles.not$hgnc_symbol[i])
}</code></pre>
<p><img src="figure/npreg-trendfilter-prelim.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
<div id="property-of-genes-with-many-zeros" class="section level2">
<h2>Property of genes with many zeros</h2>
<ol style="list-style-type: decimal">

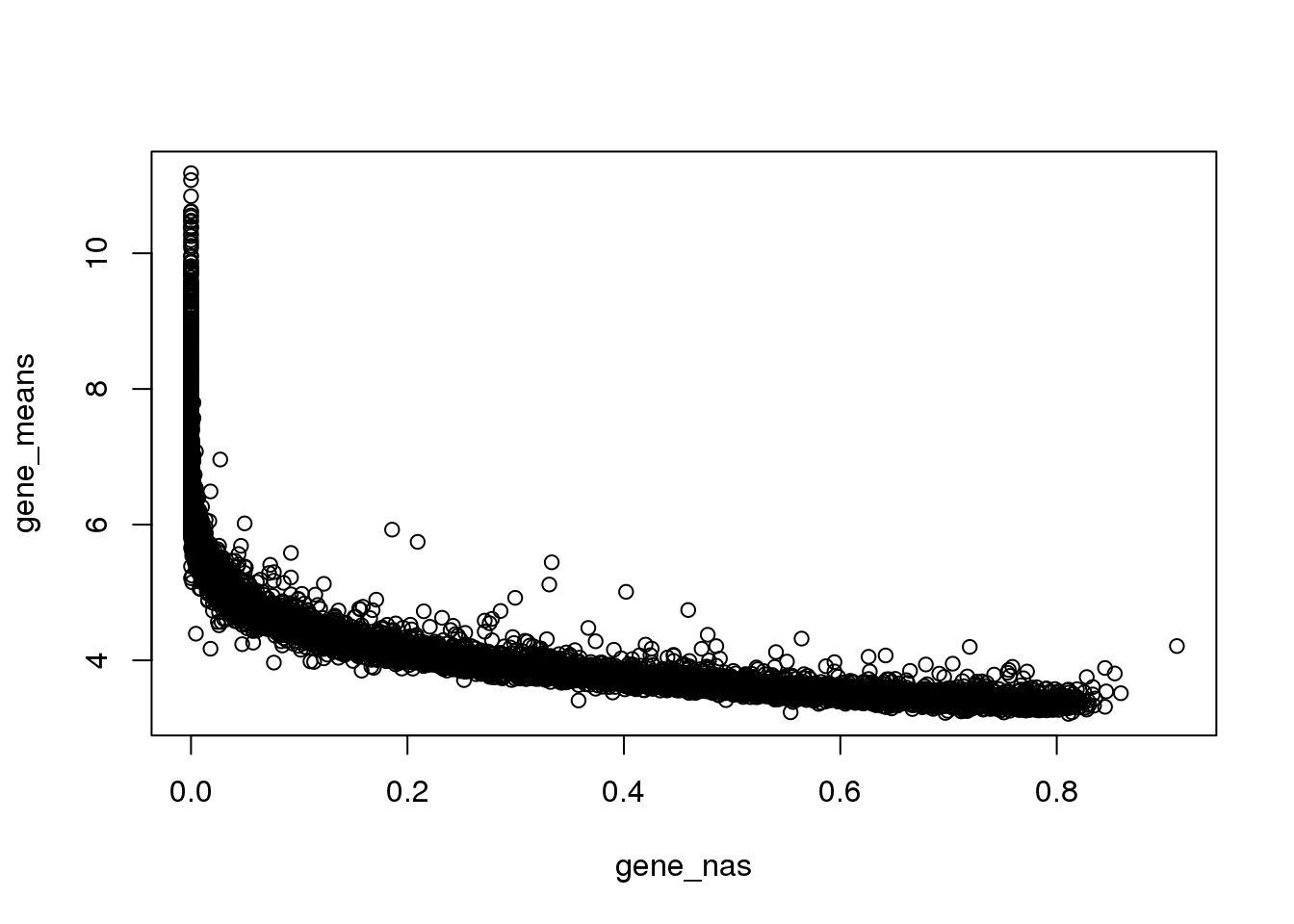

<li><p>As expected, genes with many zeros tend to have lower mean non-zero molecule count.</p></li>
<li><p>Note that at gene mean log2cpm of 4, the average molecule count is about 16 across the 880 samples, which is not many.</p></li>
</ol>
<pre class="r"><code>log2cpm.all.impute <- log2cpm.all
ii.zero <- which(log2cpm.all == 0, arr.ind = TRUE)
log2cpm.all.impute[ii.zero] <- NA
gene_nas <- rowMeans(log2cpm.all==0)
gene_means <- rowMeans(log2cpm.all.impute, na.rm=TRUE)
plot(x=gene_nas, y=gene_means)</code></pre>
<p><img src="figure/npreg-trendfilter-prelim.Rmd/unnamed-chunk-7-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
<div id="make-simulated-data-from-the-5-identified-cyclical-genes" class="section level2">

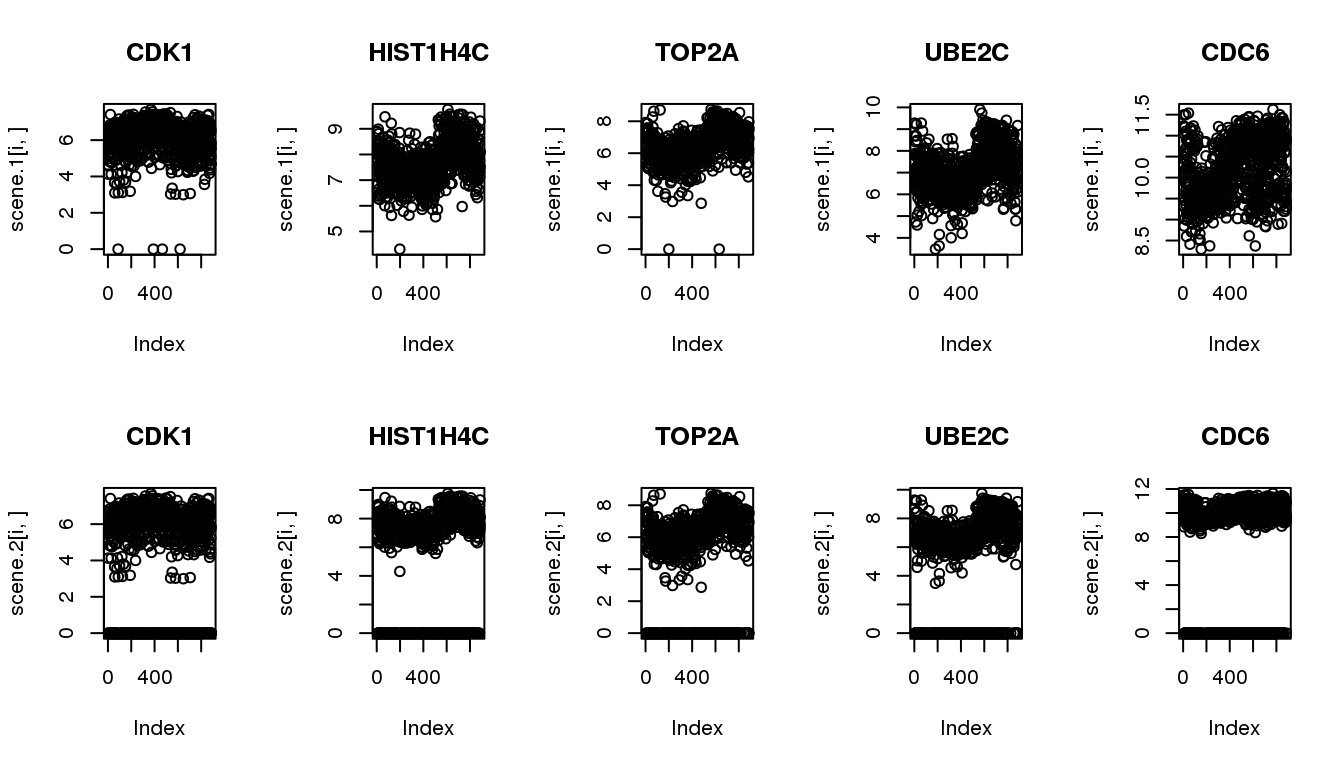

<h2>Make simulated data from the 5 identified cyclical genes</h2>
<p>The goal of simulation is to compare the methods in their ability to recover cyclical patterns despite of zero observations.</p>
<ol style="list-style-type: decimal">
<li><p>Scenario 1: original data</p></li>
<li><p>Scenario 2: subsample to include 20% missing</p></li>
</ol>
<pre class="r"><code>N <- ncol(log2cpm.all)
scene.1 <- cycles.log2cpm
scene.2 <- do.call(rbind, lapply(1:nrow(cycles.log2cpm), function(g) {
yy <- cycles.log2cpm[g,]
numzeros <- round(N*0.2)
numzeros <- numzeros - sum(yy==0)
which.nonzero <- which(yy!=0)
ii.zeros <- sample(which.nonzero,numzeros, replace = F)
yy[ii.zeros] <- 0
return(yy)
}))
par(mfrow=c(2,5))
for (i in 1:5) {
plot(scene.1[i,], main = cycles$hgnc_symbol[i])
}
for (i in 1:5) {
plot(scene.2[i,], main = cycles$hgnc_symbol[i])
}</code></pre>
<p><img src="figure/npreg-trendfilter-prelim.Rmd/unnamed-chunk-8-1.png" width="672" style="display: block; margin: auto;" /></p>
<div id="fitting-trendfilter" class="section level3">
<h3>Fitting trendfilter</h3>
<p>out.1: excluding zero</p>
<p>out.2: including zero</p>
<pre class="r"><code>out.1 <- lapply(1:5, function(i) {
yy <- scene.2[i,]
theta.sam <- theta
out.trend <- fit.trendfilter(yy=yy, pos.yy=c(1:length(yy)))
return(list(yy.sam=yy,
theta.sam=theta.sam,
out.trend=out.trend))
})
out.2 <- lapply(1:5, function(i) {
yy <- scene.2[i,]
out.trend <- fit.trendfilter.includezero(yy=yy, pos.yy=c(1:length(yy)))
return(list(yy.sam=yy,
theta.sam=theta,
out.trend=out.trend))
})
saveRDS(out.1, file = "../output/npreg-trendfilter-prelim.Rmd/out1.rds")
saveRDS(out.2, file = "../output/npreg-trendfilter-prelim.Rmd/out2.rds")</code></pre>
</div>
<div id="results" class="section level3">
<h3>Results</h3>

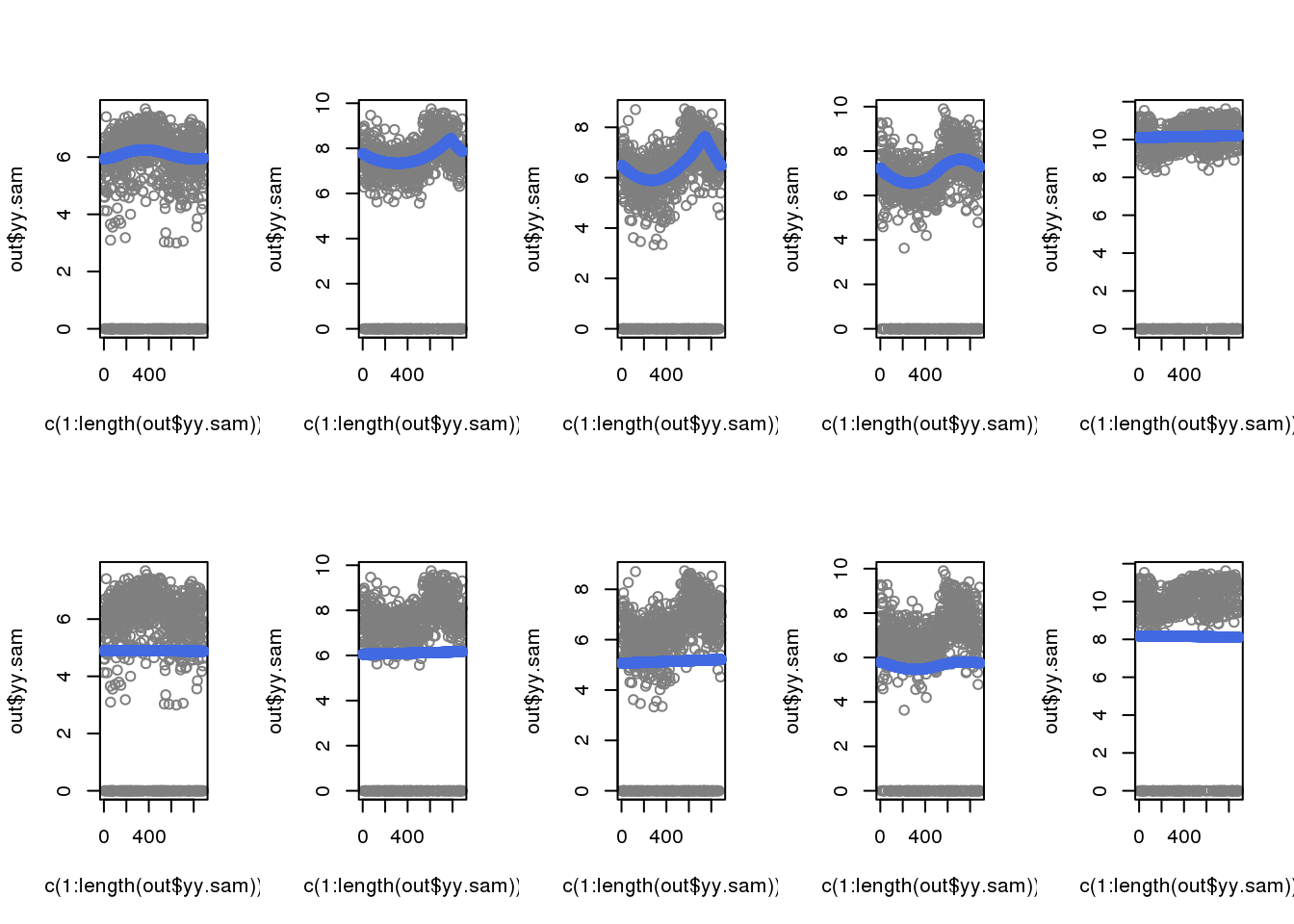

<p>When including zeros in the fitting, the previously cyclical trend disappeared.</p>
<pre class="r"><code>out.1 <- readRDS(file = "../output/npreg-trendfilter-prelim.Rmd/out1.rds")
out.2 <- readRDS(file = "../output/npreg-trendfilter-prelim.Rmd/out2.rds")
par(mfrow=c(2,5))
for (i in 1:5) {
out <- out.1[[i]]
plot(c(1:length(out$yy.sam)), out$yy.sam, col = "gray50")
with(out$out.trend,
points(trend.pos, trend.yy, col = "royalblue"), cex=.5, pch=16)
}
for (i in 1:5) {
out <- out.2[[i]]
plot(c(1:length(out$yy.sam)), out$yy.sam, col = "gray50")
with(out$out.trend,
points(trend.pos, trend.yy, col = "royalblue"), cex=.5, pch=16)
}</code></pre>
<p><img src="figure/npreg-trendfilter-prelim.Rmd/unnamed-chunk-10-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.1 (2017-06-30)
Platform: x86_64-redhat-linux-gnu (64-bit)
Running under: Scientific Linux 7.2 (Nitrogen)
Matrix products: default
BLAS/LAPACK: /usr/lib64/R/lib/libRblas.so
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
attached base packages:
[1] parallel stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] biomaRt_2.34.2 genlasso_1.3 igraph_1.2.1
[4] Matrix_1.2-10 MASS_7.3-47 matrixStats_0.53.1
[7] dplyr_0.7.4 Biobase_2.38.0 BiocGenerics_0.24.0
[10] conicfit_1.0.4 geigen_2.1 pracma_2.1.4
[13] circular_0.4-93
loaded via a namespace (and not attached):
[1] progress_1.1.2 lattice_0.20-35 htmltools_0.3.6
[4] stats4_3.4.1 yaml_2.1.18 blob_1.1.0
[7] XML_3.98-1.10 rlang_0.2.0 pillar_1.2.1
[10] glue_1.2.0 DBI_0.8 bit64_0.9-7
[13] bindrcpp_0.2 bindr_0.1.1 stringr_1.3.0
[16] mvtnorm_1.0-7 evaluate_0.10.1 memoise_1.1.0
[19] knitr_1.20 IRanges_2.12.0 curl_3.1
[22] AnnotationDbi_1.40.0 Rcpp_0.12.16 backports_1.1.2
[25] S4Vectors_0.16.0 bit_1.1-12 digest_0.6.15
[28] stringi_1.1.7 grid_3.4.1 rprojroot_1.3-2
[31] tools_3.4.1 bitops_1.0-6 magrittr_1.5
[34] RCurl_1.95-4.10 tibble_1.4.2 RSQLite_2.0
[37] pkgconfig_2.0.1 prettyunits_1.0.2 assertthat_0.2.0
[40] rmarkdown_1.9 httr_1.3.1 R6_2.2.2
[43] boot_1.3-19 git2r_0.21.0 compiler_3.4.1 </code></pre>
</div>
<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html. This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
MathJax.Hub.Config({
"HTML-CSS": { availableFonts: ["TeX"] }
});
</script>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
