<div id="introductionsummary" class="section level2">
<h2>Introduction/Summary</h2>
<p>In this document, we assess the convergence of <code>cellcycleR</code> across all samples and all batches on fitting intensity data - three intensity vectors for ~1,200 single cell samples.</p>
<p><strong>Results</strong>:</p>
<p>20 runs of <code>sin_cell_ordering_class</code> on 20 different random seeds. Each 500 iterations. We assess the range of log-likelihood, and model estimates <span class="math inline">\(\hat{\alpha}_g\)</span>, <span class="math inline">\(\hat{\phi}_g\)</span>, and <span class="math inline">\(\hat{\sigma}_g\)</span>.</p>
<ol style="list-style-type: decimal">
<li><p>Large deviation in the estimates of <span class="math inline">\(\phi_g\)</span>: because <span class="math inline">\(\phi_g\)</span> is not identifiable.</p></li>
<li><p>Not much deviation between the 20 runs in the estimates for <span class="math inline">\(\alpha_g\)</span> amplitude or <span class="math inline">\(\sigma_g\)</span> or log-likelihood.</p></li>
<li><p>Re. speed of convergence, across random seeds, it takes about less than 50 iterations to reach convergence. Note that the observation vector of each cell is a three-dimensional vector (green, red, and dapi). The number of iterations will go up as we increase the dimension of the observations (e.g., number of genes).</p></li>
</ol>
<hr />
</div>
<div id="data" class="section level2">
<h2>Data</h2>
<p>Combined intensity data (see <a href="/project2/gilad/joycehsiao/fucci-seq/code/combine-intensity-data.R">combine-intensity-data.R</a>).</p>
<hr />
</div>
<div id="model-overview" class="section level2">
<h2>Model overview</h2>
<p>For <span class="math inline">\(S\)</span> cells, let the vector of true cell time be <span class="math inline">\(t_S\)</span>. We use an iterative scheme to estimate cell time parameters <span class="math inline">\(t_S\)</span>, and curve parameters <span class="math inline">\(\alpha_g\)</span>, <span class="math inline">\(\phi_g\)</span>, and <span class="math inline">\(\sigma_g\)</span>. First, we consider <span class="math inline">\(T\)</span> time classes which is a set of uniformly spaced time points on <span class="math inline">\((0, 2\pi)\)</span>. In the first iteration, we assign each cell <span class="math inline">\(s\)</span> to a time class <span class="math inline">\(t_s^{(0)}\)</span> and estimate the curve parameters <span class="math inline">\(\alpha_g\)</span>, <span class="math inline">\(\phi_g\)</span>, and <span class="math inline">\(\sigma_g\)</span>. In the second iteratio, we estimate <span class="math inline">\(t_s^{(1)}\)</span> based on the model estimates from the first iteration (<span class="math inline">\(\hat{\alpha}_g\)</span>, <span class="math inline">\(\hat{\phi}_g\)</span>, and <span class="math inline">\(\hat{\sigma}_g\)</span>). We continue this iterative scheme until convergence. For any <span class="math inline">\(n\)</span> iterations, starting from 0, we fit the following model for gene <span class="math inline">\(g\)</span> and and cell <span class="math inline">\(s\)</span>.</p>
<p><span class="math display">\[
Y_{sg} = \alpha_g sin(t_s^{(n)} + \phi_g) + \epsilon_{sg}
\]</span> where <span class="math inline">\(\epsilon_{sg} \sim N(0, \sigma^2_g)\)</span>, and frequency is 1.</p>
<hr />
</div>
<div id="analysis" class="section level2">
<h2>Analysis</h2>
<p>20 runs of <code>sin_cell_ordering_class</code> on 20 different random seeds. Each 500 iterations.</p>
<p>We assess the range of log-likelihood, and model estimates <span class="math inline">\(\hat{\alpha}_g\)</span>, <span class="math inline">\(\hat{\phi}_g\)</span>, and <span class="math inline">\(\hat{\sigma}_g\)</span>.</p>
<pre class="r"><code>summary(loglik)</code></pre>
<pre><code>   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  -3350   -3312   -3290   -3290   -3262   -3244 </code></pre>
<pre class="r"><code>summary(amp)</code></pre>
<pre><code>      Red            Green            DAPI
 Min.   :1.289   Min.   :1.060   Min.   :1.002
 1st Qu.:1.301   1st Qu.:1.081   1st Qu.:1.019
 Median :1.318   Median :1.093   Median :1.036
 Mean   :1.316   Mean   :1.090   Mean   :1.035
 3rd Qu.:1.324   3rd Qu.:1.099   3rd Qu.:1.047
 Max.   :1.346   Max.   :1.106   Max.   :1.068  </code></pre>
<pre class="r"><code>summary(phi)</code></pre>
<pre><code>      Red             Green             DAPI
 Min.   :0.4663   Min.   :0.1580   Min.   :0.06544
 1st Qu.:1.2966   1st Qu.:0.6726   1st Qu.:0.64207
 Median :3.9793   Median :3.4906   Median :3.48495
 Mean   :3.5329   Mean   :2.9224   Mean   :2.89855
 3rd Qu.:5.4010   3rd Qu.:4.5465   3rd Qu.:4.47567
 Max.   :5.9765   Max.   :6.1127   Max.   :6.01985  </code></pre>
<pre class="r"><code>summary(sigma)</code></pre>
<pre><code>      Red             Green             DAPI
 Min.   :0.3654   Min.   :0.6702   Min.   :0.6928
 1st Qu.:0.3774   1st Qu.:0.6745   1st Qu.:0.7085
 Median :0.3854   Median :0.6814   Median :0.7141
 Mean   :0.3876   Mean   :0.6815   Mean   :0.7133
 3rd Qu.:0.3971   3rd Qu.:0.6873   3rd Qu.:0.7180
 Max.   :0.4120   Max.   :0.6990   Max.   :0.7230  </code></pre>

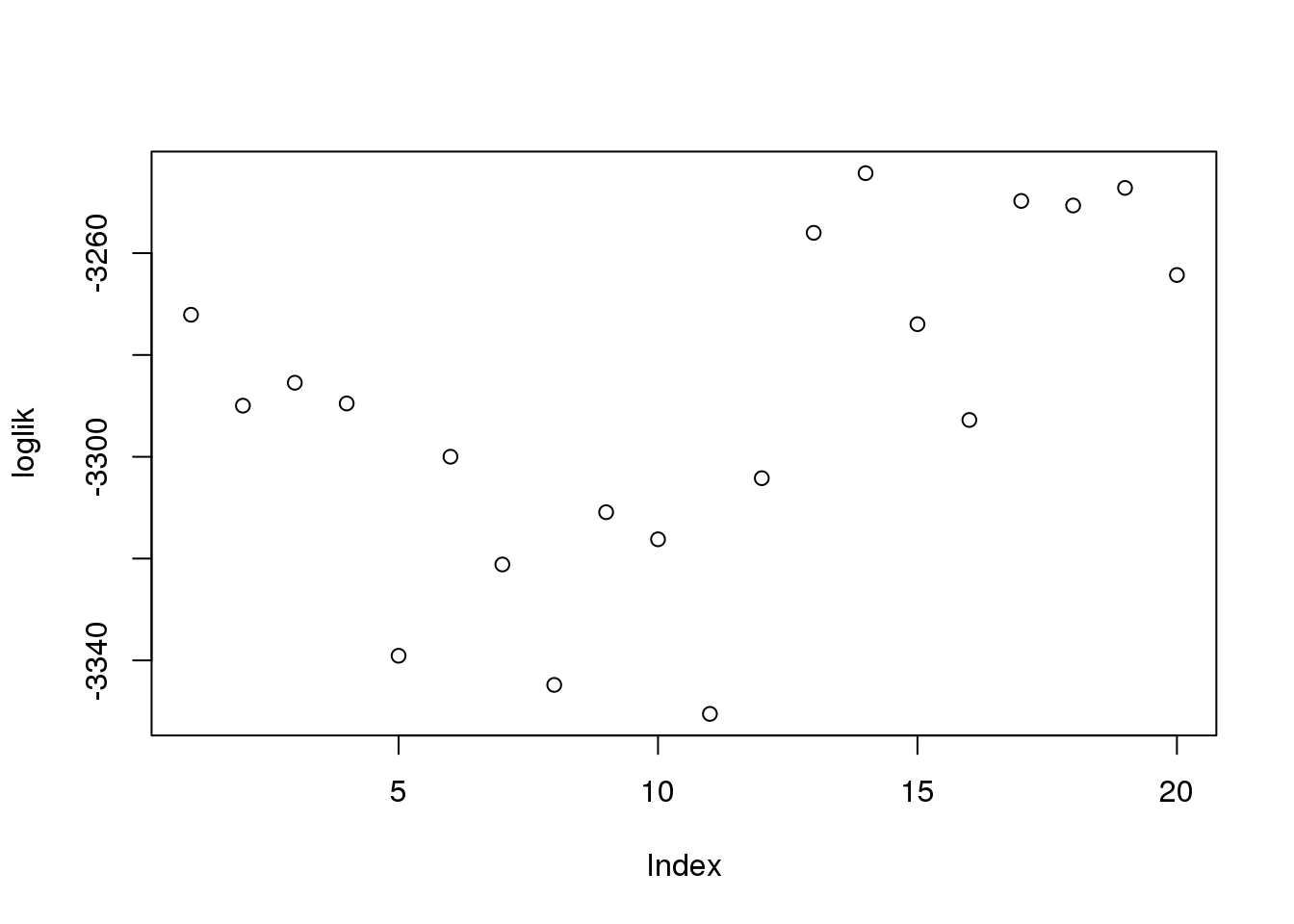

<p>log-liklihood distribution</p>
<pre class="r"><code>plot(loglik)</code></pre>
<p><img src="figure/images-cellcycleR-convergence.Rmd/unnamed-chunk-5-1.png" width="672" style="display: block; margin: auto;" /></p>

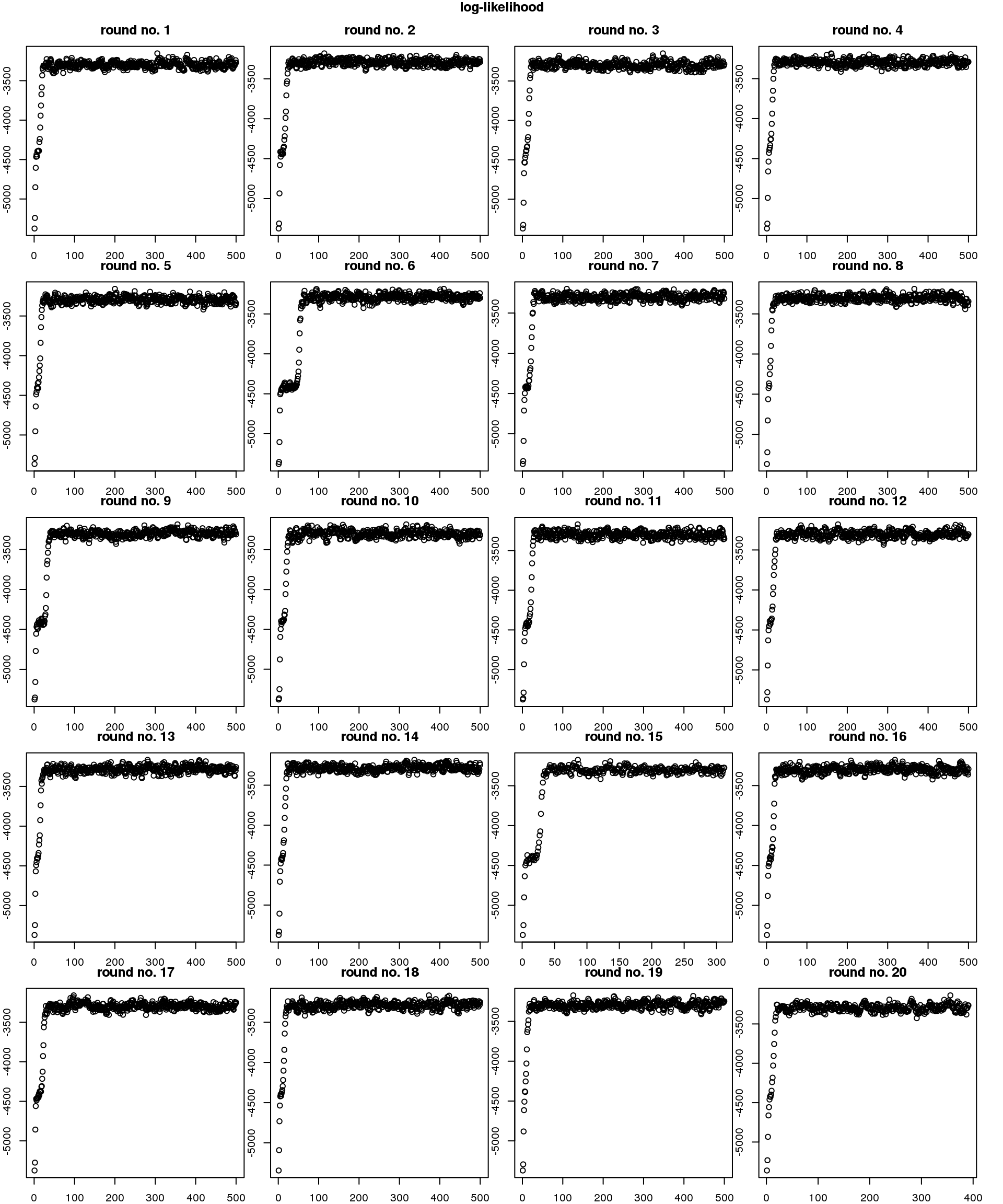

<pre class="r"><code>par(mfrow=c(5,4), mar=c(1,1,2.5,1), oma=rep(1,4))
for (i in 1:length(objs)) {
plot(objs[[i]]$loglik_iter[-1],
     main = paste(&quot;round no.&quot;, i))
}
title(&quot;log-likelihood&quot;, outer=TRUE)</code></pre>
<p><img src="figure/images-cellcycleR-convergence.Rmd/unnamed-chunk-6-1.png" width="960" style="display: block; margin: auto;" /></p>

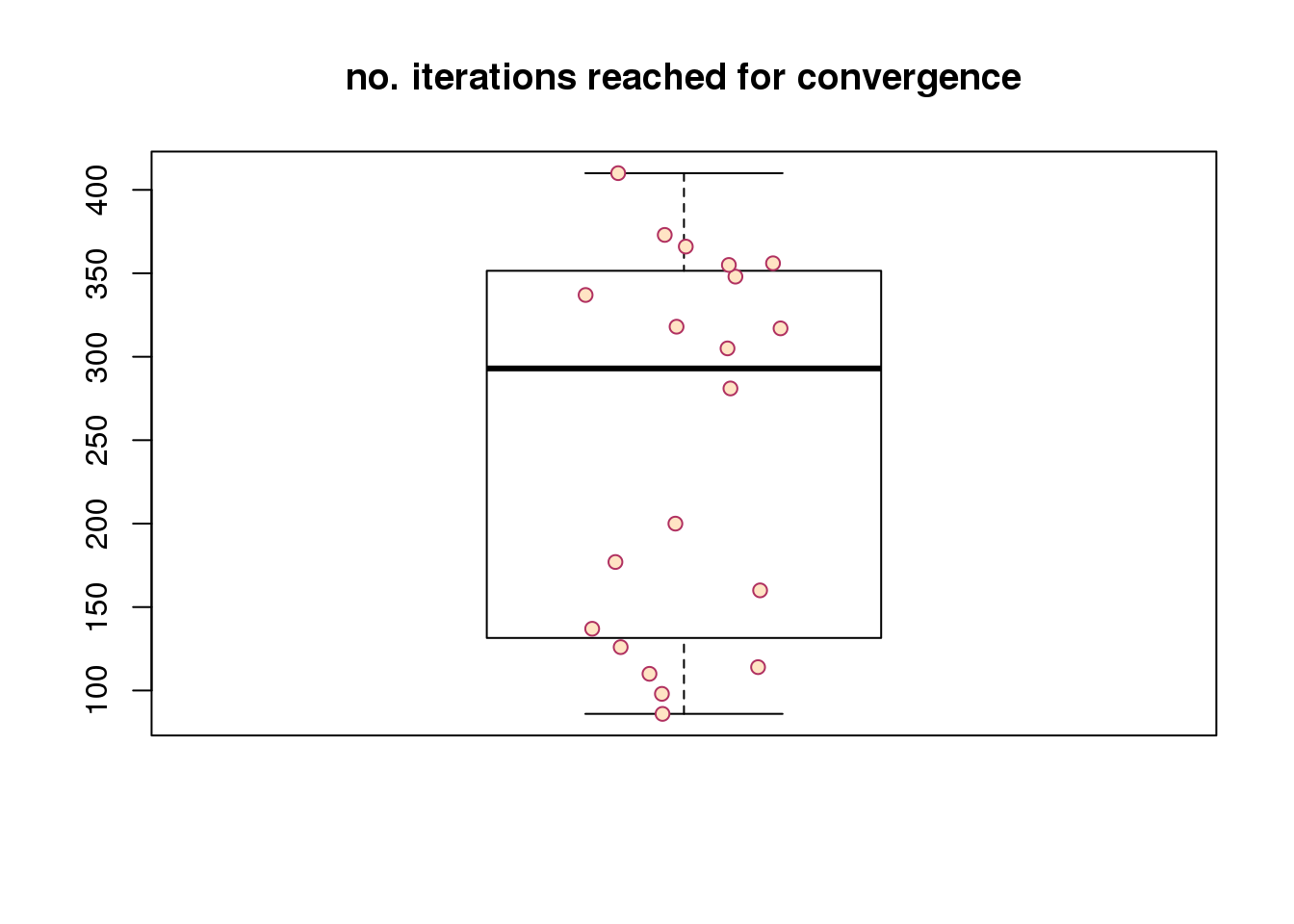

<p>speed of convergence</p>
<pre class="r"><code>maxiter &lt;- vector(&quot;numeric&quot;, length(objs))
for (i in 1:length(maxiter)) {
  maxiter[i] &lt;- which.max(objs[[i]]$loglik_iter[-1])
}

boxplot(maxiter, outpch = NA, main = &quot;no. iterations reached for convergence&quot;)
stripchart(maxiter,
            vertical = TRUE, method = &quot;jitter&quot;,
            pch = 21, col = &quot;maroon&quot;, bg = &quot;bisque&quot;,
            add = TRUE) </code></pre>
</div>
<div id="section" class="section level2">
<h2><img src="figure/images-cellcycleR-convergence.Rmd/unnamed-chunk-7-1.png" width="672" style="display: block; margin: auto;" /></h2>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre><code>R version 3.4.1 (2017-06-30)
Platform: x86_64-redhat-linux-gnu (64-bit)
Running under: Scientific Linux 7.2 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /usr/lib64/R/lib/libRblas.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] plotrix_3.7         Biobase_2.38.0      BiocGenerics_0.24.0
 [4] RColorBrewer_1.1-2  wesanderson_0.3.4   cowplot_0.9.2
 [7] dplyr_0.7.4         data.table_1.10.4-3 cellcycleR_0.1.6
[10] zoo_1.8-1           binhf_1.0-1         adlift_1.3-3
[13] EbayesThresh_1.4-12 wavethresh_4.6.8    MASS_7.3-47
[16] ggplot2_2.2.1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.14     compiler_3.4.1   git2r_0.20.0     plyr_1.8.4
 [5] bindr_0.1        tools_3.4.1      digest_0.6.13    evaluate_0.10.1
 [9] tibble_1.3.4     gtable_0.2.0     lattice_0.20-35  pkgconfig_2.0.1
[13] rlang_0.1.4      yaml_2.1.16      bindrcpp_0.2     stringr_1.2.0
[17] knitr_1.17       rprojroot_1.3-1  grid_3.4.1       glue_1.2.0
[21] R6_2.2.2         rmarkdown_1.8    magrittr_1.5     backports_1.1.2
[25] scales_0.5.0     htmltools_0.3.6  assertthat_0.2.0 colorspace_1.3-2
[29] stringi_1.1.6    lazyeval_0.2.1   munsell_0.4.3   </code></pre>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
