<h1 class="title toc-ignore">Circle fit to intensities</h1>
<h4 class="author"><em>Joyce Hsiao</em></h4>

</div>


<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-02-23</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
 package git2r is installed -->
<p><strong>Code version:</strong> f434aa3</p>
<hr />
<div id="overviewresults" class="section level2">
<h2>Overview/Results</h2>
<p>Here we estimate a circle fit on the two-dimensional intensity distriubtion of GFP and RFP.</p>
<hr />
</div>
<div id="data-and-packages" class="section level2">
<h2>Data and packages</h2>
<p>Packages</p>
<pre class="r"><code>library(circular)
library(conicfit)
library(Biobase)
library(dplyr)
library(matrixStats)
library(CorShrink)

source(&quot;../code/circle.intensity.fit.R&quot;)</code></pre>
<p>Load data</p>
<pre class="r"><code>df &lt;- readRDS(file=&quot;../data/eset-filtered.rds&quot;)
pdata &lt;- pData(df)
fdata &lt;- fData(df)

# select endogeneous genes
counts &lt;- exprs(df)[grep(&quot;ENSG&quot;, rownames(df)), ]

# log2cpm &lt;- readRDS(&quot;../output/seqdata-batch-correction.Rmd/log2cpm.rds&quot;)
# log2cpm.adjust &lt;- readRDS(&quot;../output/seqdata-batch-correction.Rmd/log2cpm.adjust.rds&quot;)

# import corrected intensities
pdata.adj &lt;- readRDS(&quot;../output/images-normalize-anova.Rmd/pdata.adj.rds&quot;)</code></pre>
</div>
<div id="circle-fitting" class="section level2">
<h2>Circle fitting</h2>

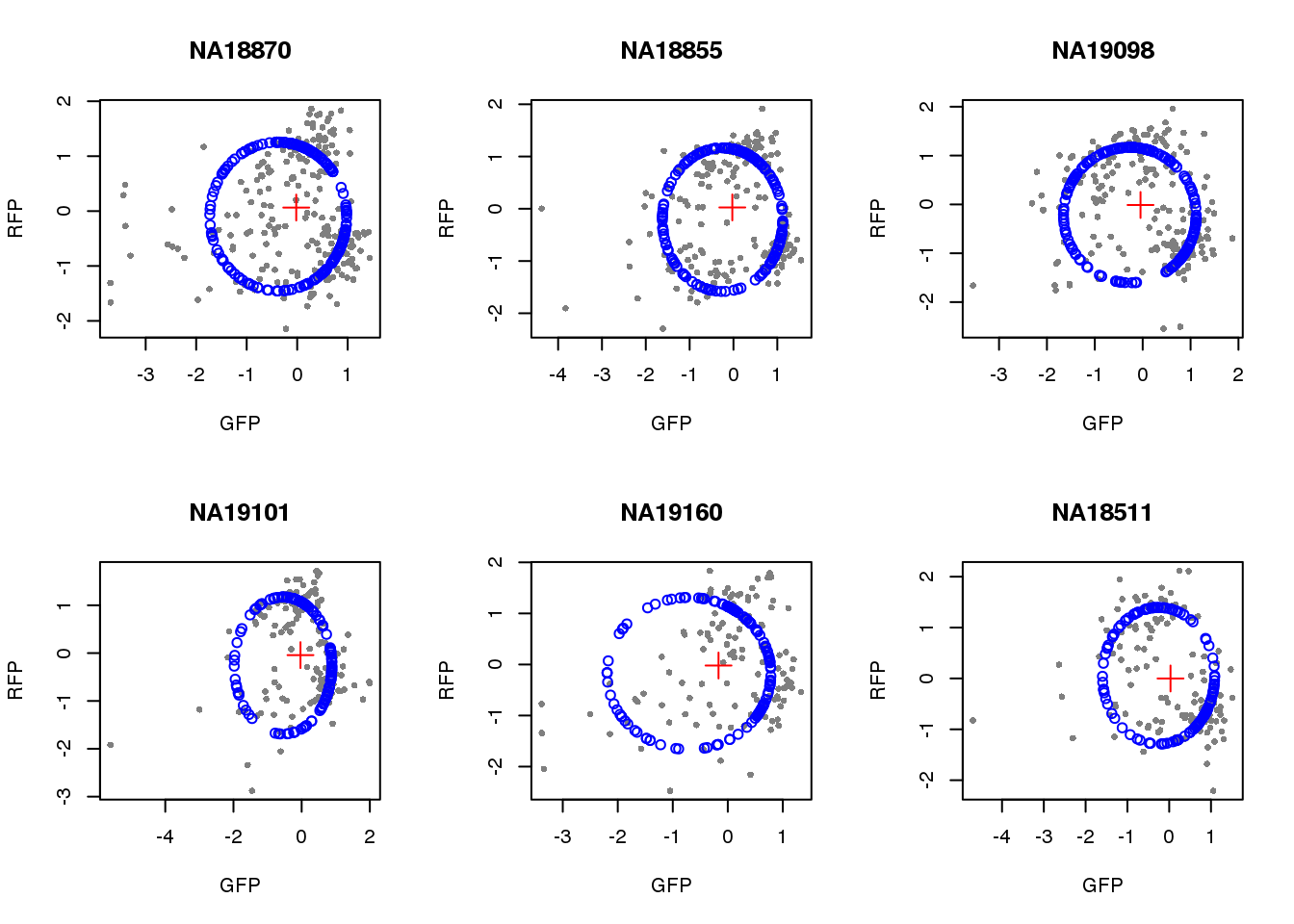

<p>Based on all data.</p>
<pre class="r"><code>source(&quot;../code/circle.intensity.fit.R&quot;)
#sample_names &lt;- rownames(pdata.adj)

pdata.adj &lt;- pdata.adj %&gt;% group_by(chip_id) %&gt;%
  mutate(rfp.z=scale(rfp.median.log10sum.adjust.ash),
            gfp.z=scale(gfp.median.log10sum.adjust.ash),
            dapi.z=scale(dapi.median.log10sum.adjust.ash))
pdata.adj &lt;- data.frame(pdata.adj)

par(mfrow=c(2,3))
for(i in 1:length(unique(pdata.adj$chip_id))) {
  id &lt;- unique(as.character(pdata.adj$chip_id))[i]
  df_sub &lt;- subset(pdata.adj, chip_id == id, select=c(gfp.z, rfp.z))

  cpred &lt;- circle.fit(df_sub)

  xlims &lt;- range(df_sub[,1])
  ylims &lt;- range(df_sub[,2])
  plot(df_sub, pch=16, col=&quot;gray50&quot;, xlim=xlims, ylim=ylims, cex=.7,
       main = id, xlab=&quot;GFP&quot;, ylab=&quot;RFP&quot;)
  points(cpred[,1], cpred[,2], col=&quot;blue&quot;, type = &quot;p&quot;)
  points(mean(cpred[,1]), mean(cpred[,2]), col=&quot;red&quot;, pch=3, cex=2)
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>

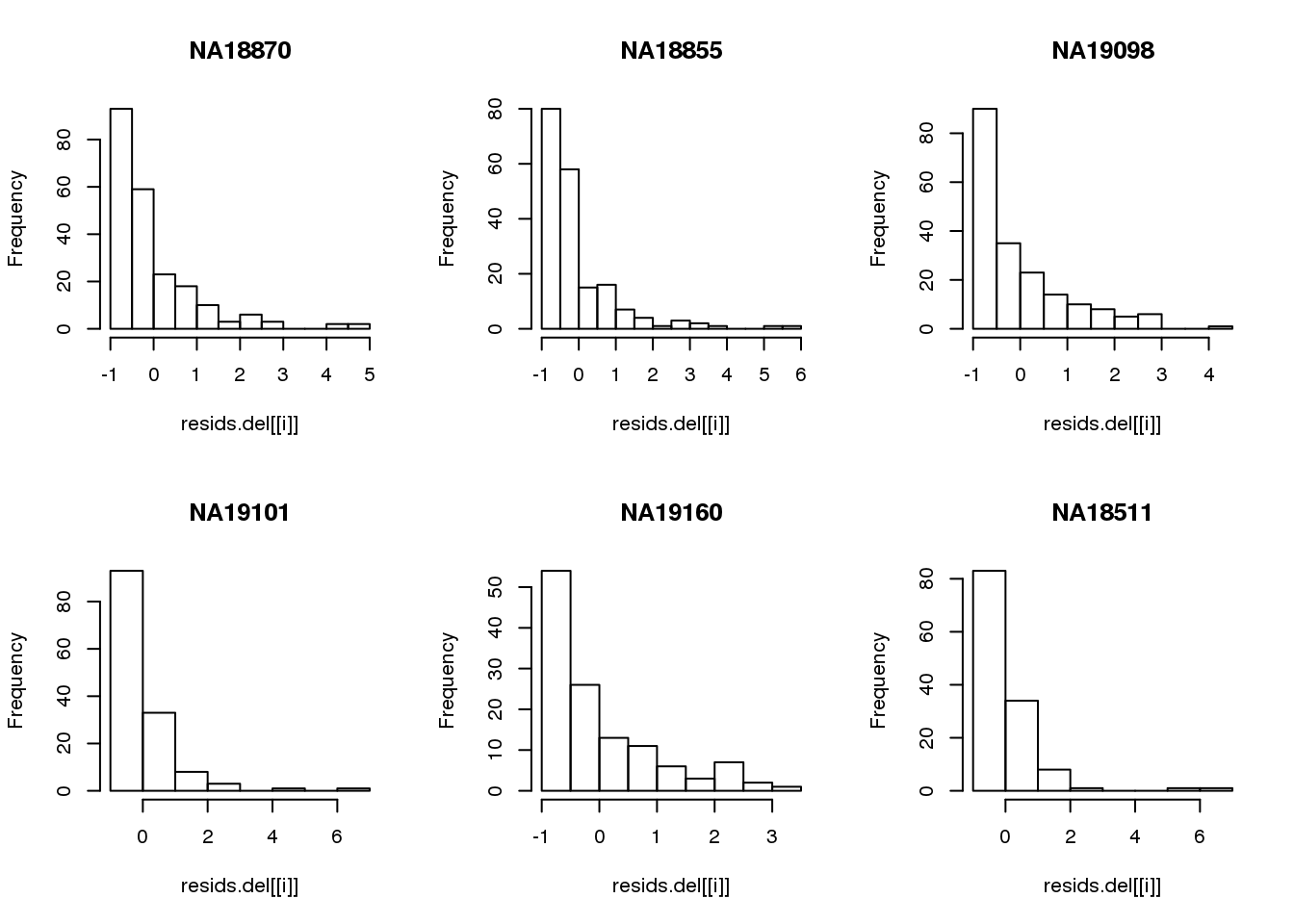

<p>Consider deleted residuals.</p>
<pre class="r"><code>resids.del &lt;- lapply(1:length(unique(pdata.adj$chip_id)), function(i) {
  id &lt;- unique(as.character(pdata.adj$chip_id))[i]
  df_sub &lt;- subset(pdata.adj, chip_id == id, select=c(gfp.z, rfp.z))
  resids &lt;- circle.fit.resid.delete(df_sub)
  scale(resids)
})
names(resids.del) &lt;- unique(pdata.adj$chip_id)

par(mfrow=c(2,3))
for(i in 1:length(unique(pdata.adj$chip_id))) {
  # id &lt;- unique(as.character(pdata.adj$chip_id))[i]
  # df_sub &lt;- subset(pdata.adj, chip_id == id, select=c(gfp.z, rfp.z))
  hist(resids.del[[i]], main = unique(pdata.adj$chip_id)[i])
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Remove samples with standardized residuals greater than 3.</p>
<pre class="r"><code>resids.del.remove &lt;- lapply(1:length(unique(pdata.adj$chip_id)), function(i) {
  which(resids.del[[i]] &gt; 3)
})
names(resids.del.remove) &lt;- unique(pdata.adj$chip_id)

pdata.adj.filt &lt;- do.call(rbind, lapply(1:length(unique(pdata.adj$chip_id)), function(i) {
  id &lt;- unique(as.character(pdata.adj$chip_id))[i]
  df_sub &lt;- pdata.adj[which(pdata.adj$chip_id == id),]
  ii.remove &lt;- resids.del.remove[[i]]
  df_sub_return &lt;- df_sub[-ii.remove,]
  rownames(df_sub_return) &lt;- (rownames(pdata.adj)[which(pdata.adj$chip_id == id)])[-ii.remove]
  data.frame(df_sub_return)
}) )</code></pre>

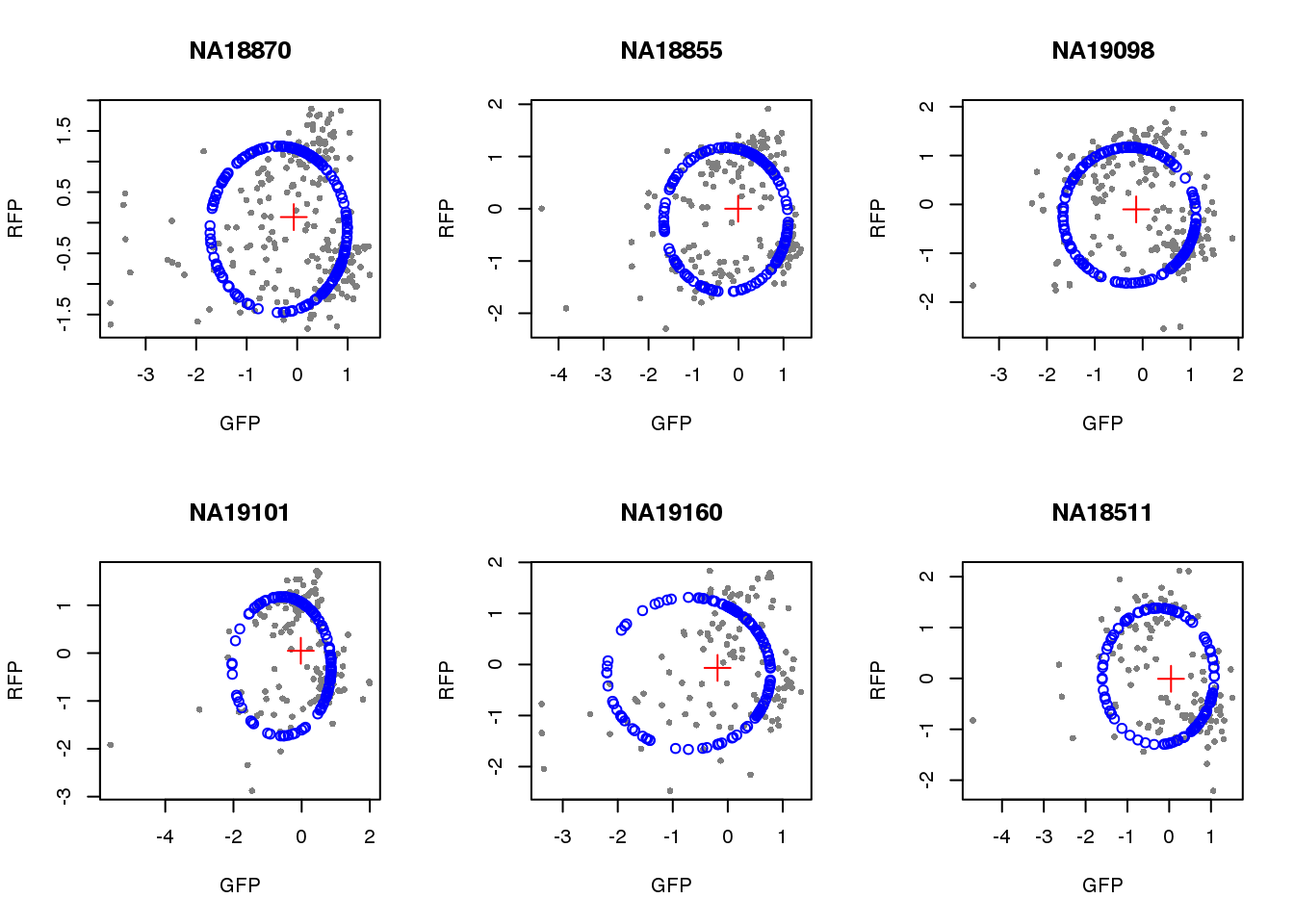

<p>Visualize fit after removing outliers.</p>
<pre class="r"><code>par(mfrow=c(2,3))
for(i in 1:length(unique(pdata.adj.filt$chip_id))) {
  id &lt;- unique(as.character(pdata.adj.filt$chip_id))[i]
  df_sub &lt;- subset(pdata.adj.filt, chip_id == id, select=c(gfp.z, rfp.z))

  cpred &lt;- circle.fit(df_sub)

  xlims &lt;- range(df_sub[,1])
  ylims &lt;- range(df_sub[,2])
  plot(df_sub, pch=16, col=&quot;gray50&quot;, xlim=xlims, ylim=ylims, cex=.7,
       main = id, xlab=&quot;GFP&quot;, ylab=&quot;RFP&quot;)
  points(cpred[,1], cpred[,2], col=&quot;blue&quot;, type = &quot;p&quot;)
  points(mean(cpred[,1]), mean(cpred[,2]), col=&quot;red&quot;, pch=3, cex=2)
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>saveRDS(pdata.adj.filt,
        file = &quot;../output/images-circle-ordering.Rmd/pdata.adj.filt.rds&quot;)</code></pre>
</div>
<div id="project-positions" class="section level2">

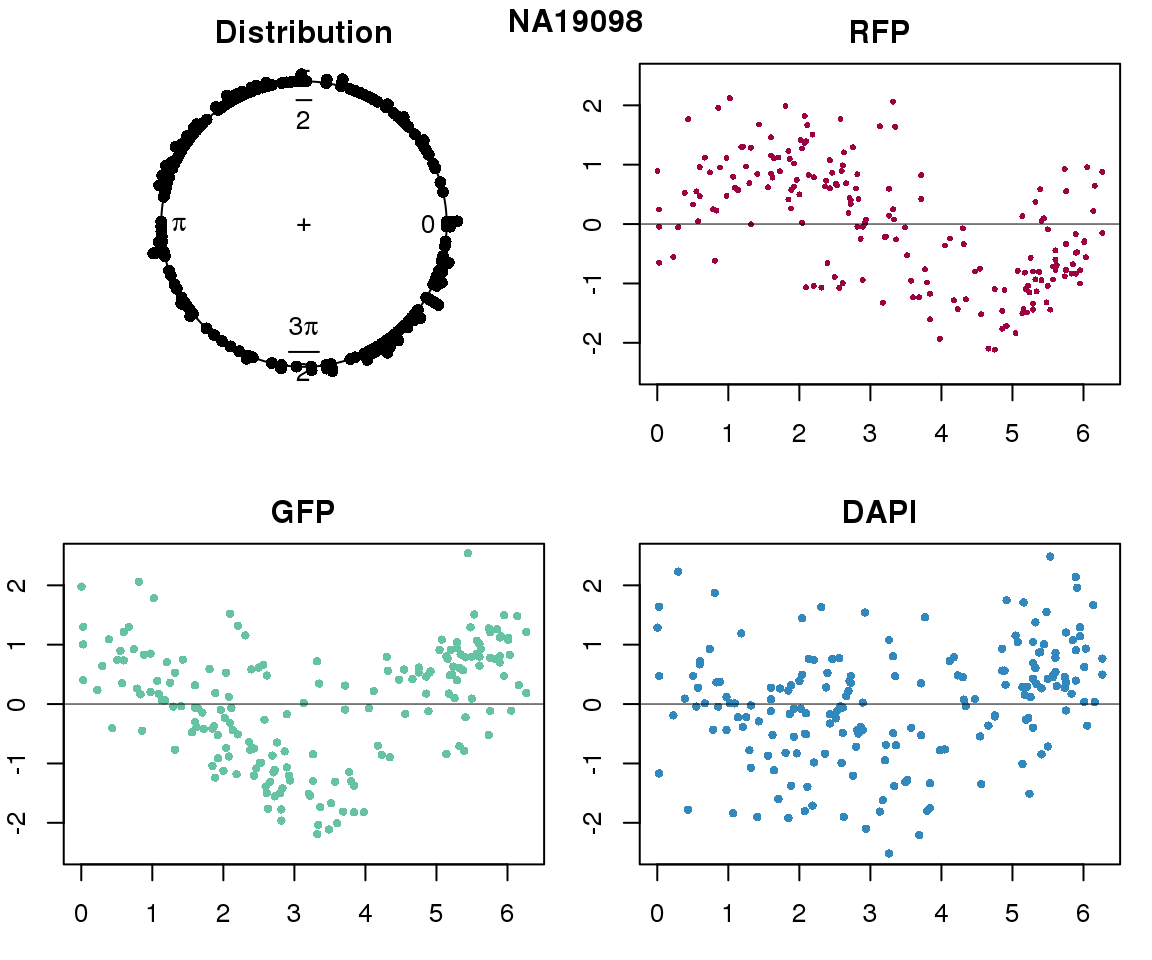

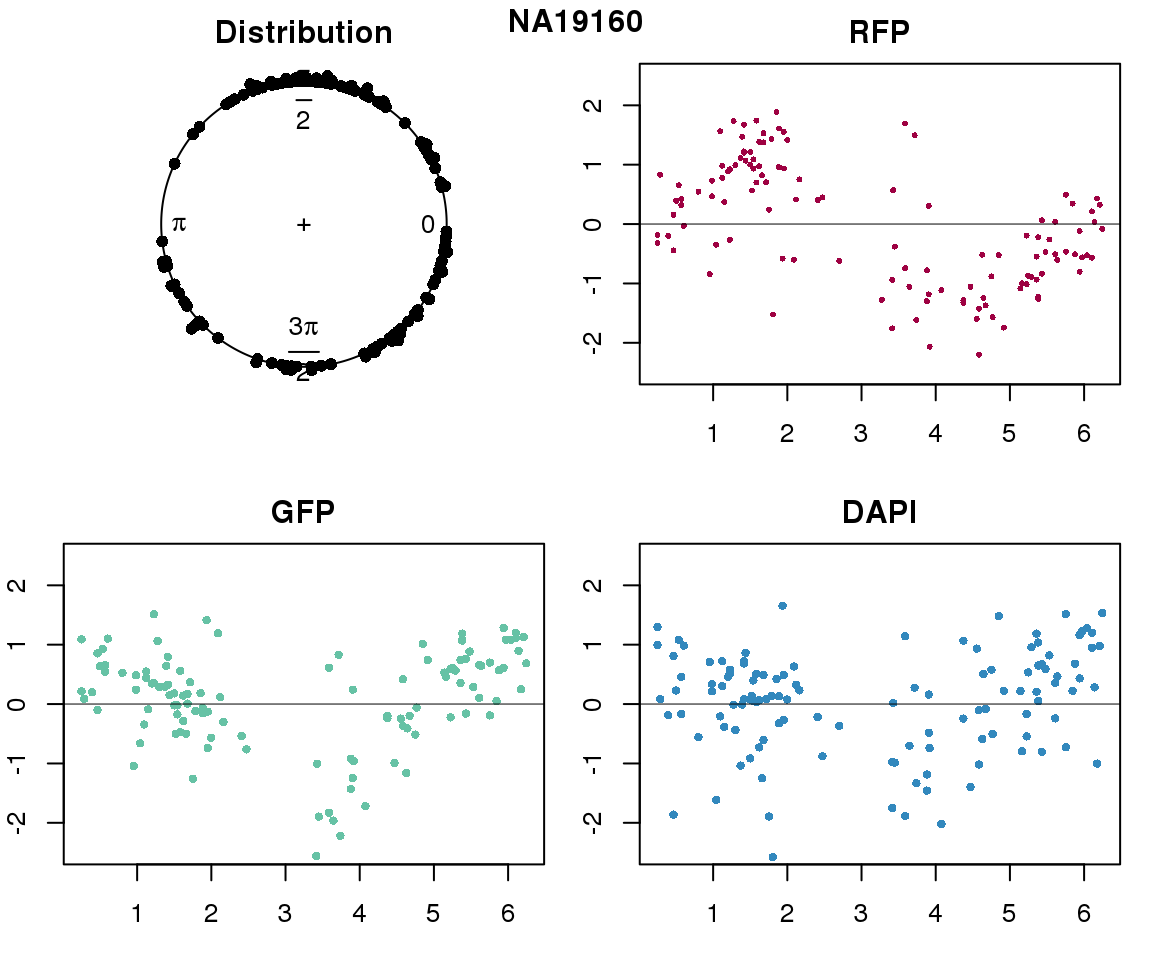

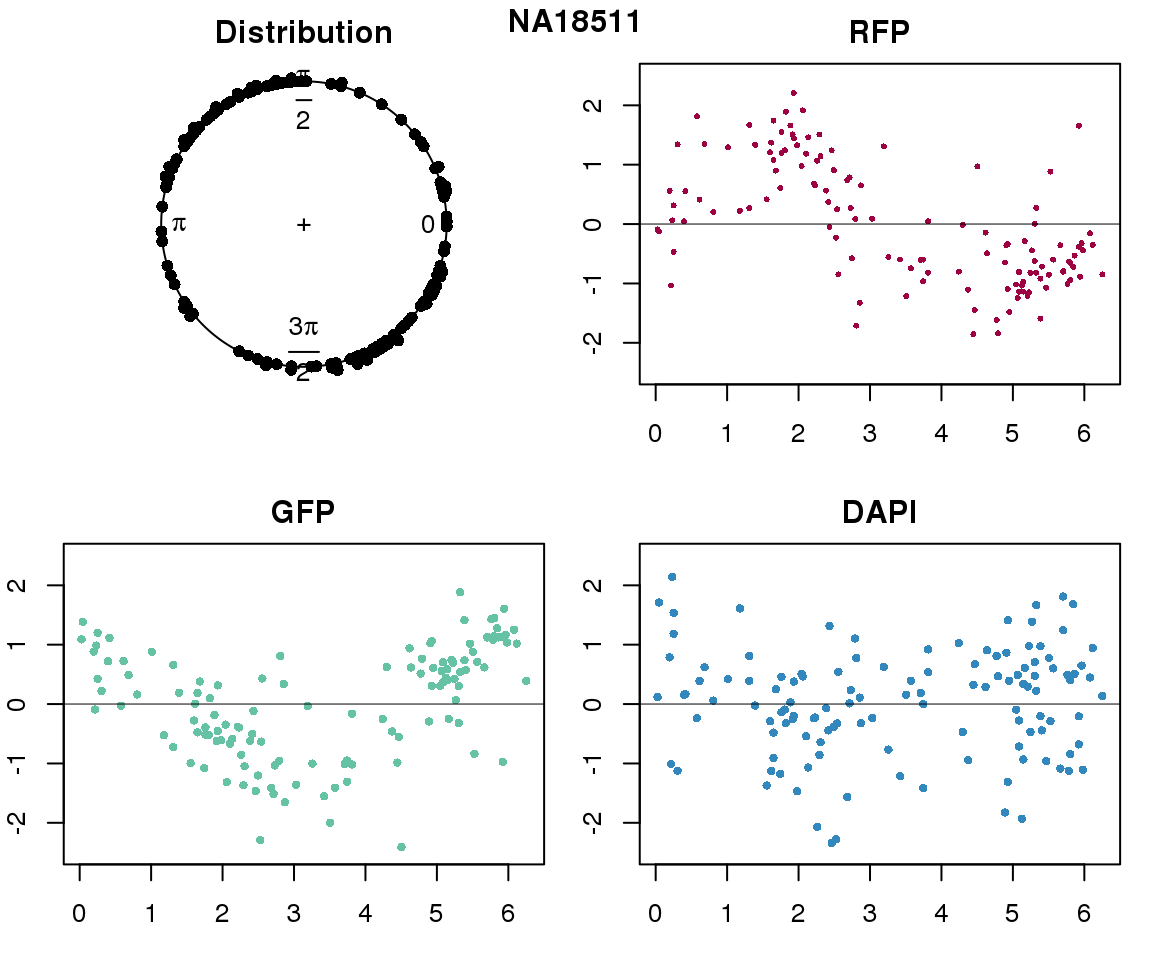

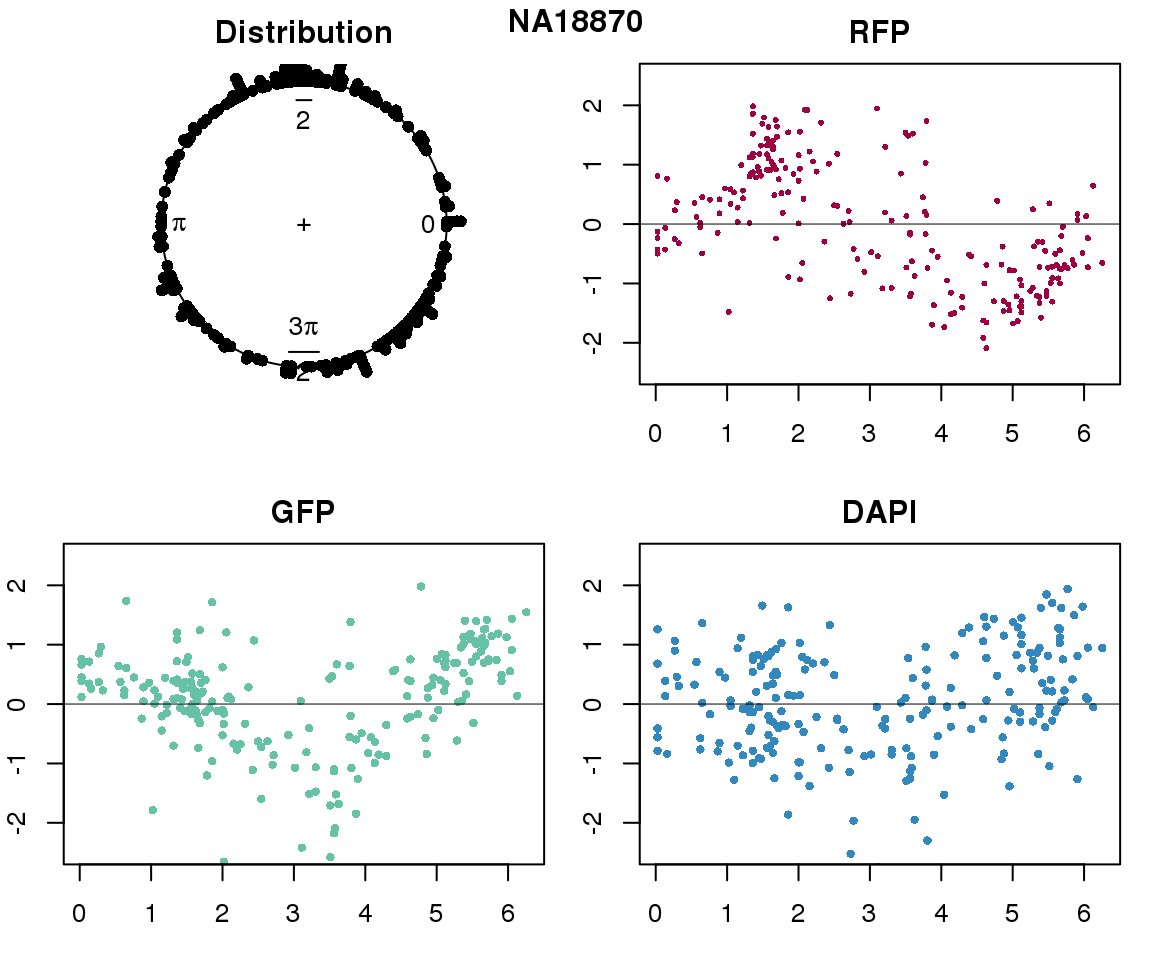

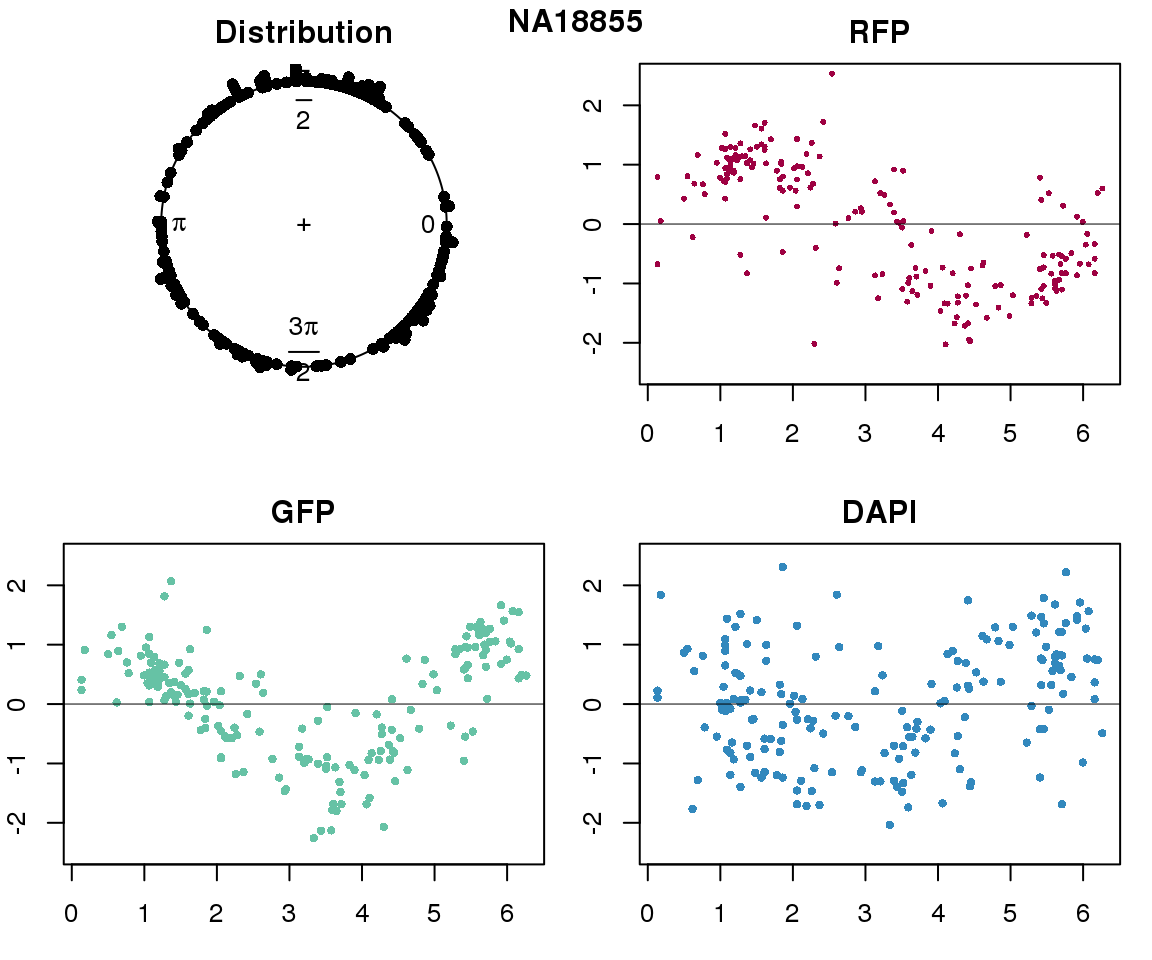

<h2>Project positions</h2>
<pre class="r"><code>pdata.adj.filt &lt;- readRDS(&quot;../output/images-circle-ordering.Rmd/pdata.adj.filt.rds&quot;)

proj.res &lt;- vector(&quot;list&quot;, length=length(unique((pdata.adj$chip_id))))

for(i in 1:length(unique((pdata.adj$chip_id)))) {
  proj.res[[i]] &lt;- vector(&quot;list&quot;,2)

  id &lt;- unique(as.character(pdata.adj.filt$chip_id))[i]

  df_sub &lt;- subset(pdata.adj.filt,
                   chip_id == id, select=c(gfp.z, rfp.z))
#  sample_ids &lt;-

  cpred &lt;- circle.fit(df_sub)

  proj.res[[i]][[1]] &lt;- data.frame(cpred, df_sub)
  colnames(proj.res[[i]][[1]]) &lt;- c(&quot;pos.pred.x&quot;, &quot;pos.pred.y&quot;, &quot;gfp.z&quot;, &quot;rfp.z&quot;)

  # convert projected coordinates to radians
  # modulo 2*pi
  proj.res[[i]][[1]]$rads &lt;- coord2rad(cbind(proj.res[[i]][[1]]$pos.pred.x,
                                        proj.res[[i]][[1]]$pos.pred.y))
  rownames(proj.res[[i]][[1]]) &lt;- rownames(df_sub)

  # compute centers
  centers &lt;- LMcircleFit(as.matrix(df_sub), ParIni=colMeans(as.matrix(df_sub)), IterMAX=50)

  proj.res[[i]][[2]] &lt;- data.frame(x.center=centers[1], y.center=centers[2])
}
names(proj.res) &lt;- unique(pdata.adj.filt$chip_id)</code></pre>
<p>Save output</p>
<pre class="r"><code>saveRDS(proj.res, file = &quot;../output/images-circle-ordering.Rmd/proj.res.rds&quot;)</code></pre>

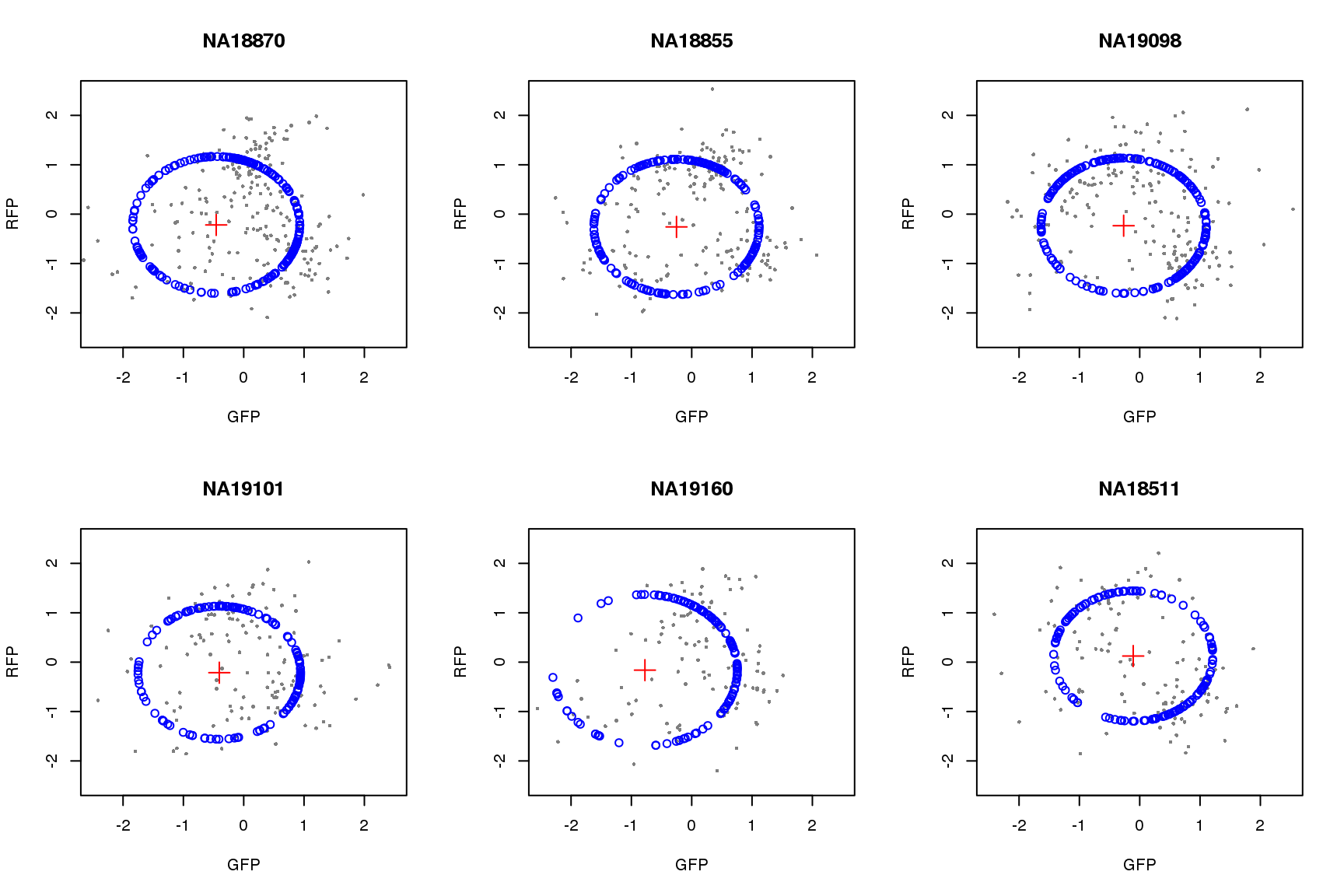

<p>Plot circle fit.</p>
<pre class="r"><code>proj.res &lt;- readRDS(file = &quot;../output/images-circle-ordering.Rmd/proj.res.rds&quot;)

par(mfrow=c(2,3))
for (i in 1:length(proj.res)) {
  # xlims &lt;- range(proj.res[[i]]$gfp.z)
  # ylims &lt;- range(proj.res[[i]]$rfp.z)
  xlims &lt;- c(-2.5, 2.5)
  ylims &lt;- c(-2.5, 2.5)
  plot(subset(proj.res[[i]][[1]], select=c(gfp.z, rfp.z)),
       pch=16, col=&quot;gray50&quot;, xlim=xlims, ylim=ylims, cex=.5,
       main = names(proj.res)[i],
       xlab = &quot;GFP&quot;, ylab = &quot;RFP&quot;)
  points(proj.res[[i]][[1]]$pos.pred.x, proj.res[[i]][[1]]$pos.pred.y,
         col=&quot;blue&quot;, pch=1)
  points(proj.res[[i]][[2]]$x.center, proj.res[[i]][[2]]$y.center,
         col=&quot;red&quot;, pch=3, cex=2)
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-10-1.png" width="864" style="display: block; margin: auto;" /></p>

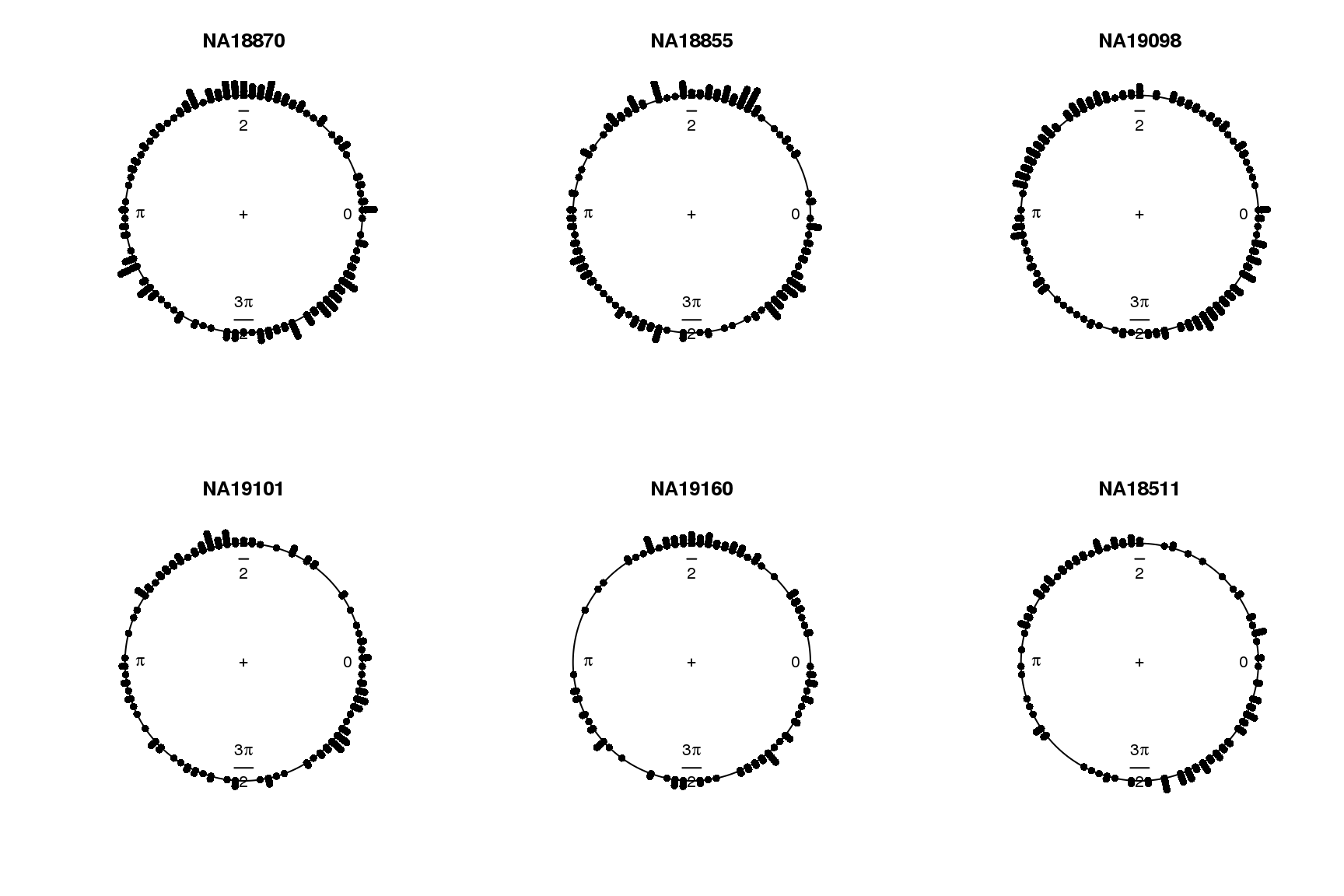

<pre class="r"><code>par(mfrow=c(2,3))
for (i in 1:length(proj.res)) {
  plot(proj.res[[i]][[1]]$rads, stack=TRUE, bins=90,
       main = names(proj.res)[i])
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-10-2.png" width="864" style="display: block; margin: auto;" /></p>
<hr />
</div>
<div id="property-of-the-circle-fit" class="section level2">
<h2>Property of the circle fit</h2>
<div id="intensity-values-by-circle-fit" class="section level3">

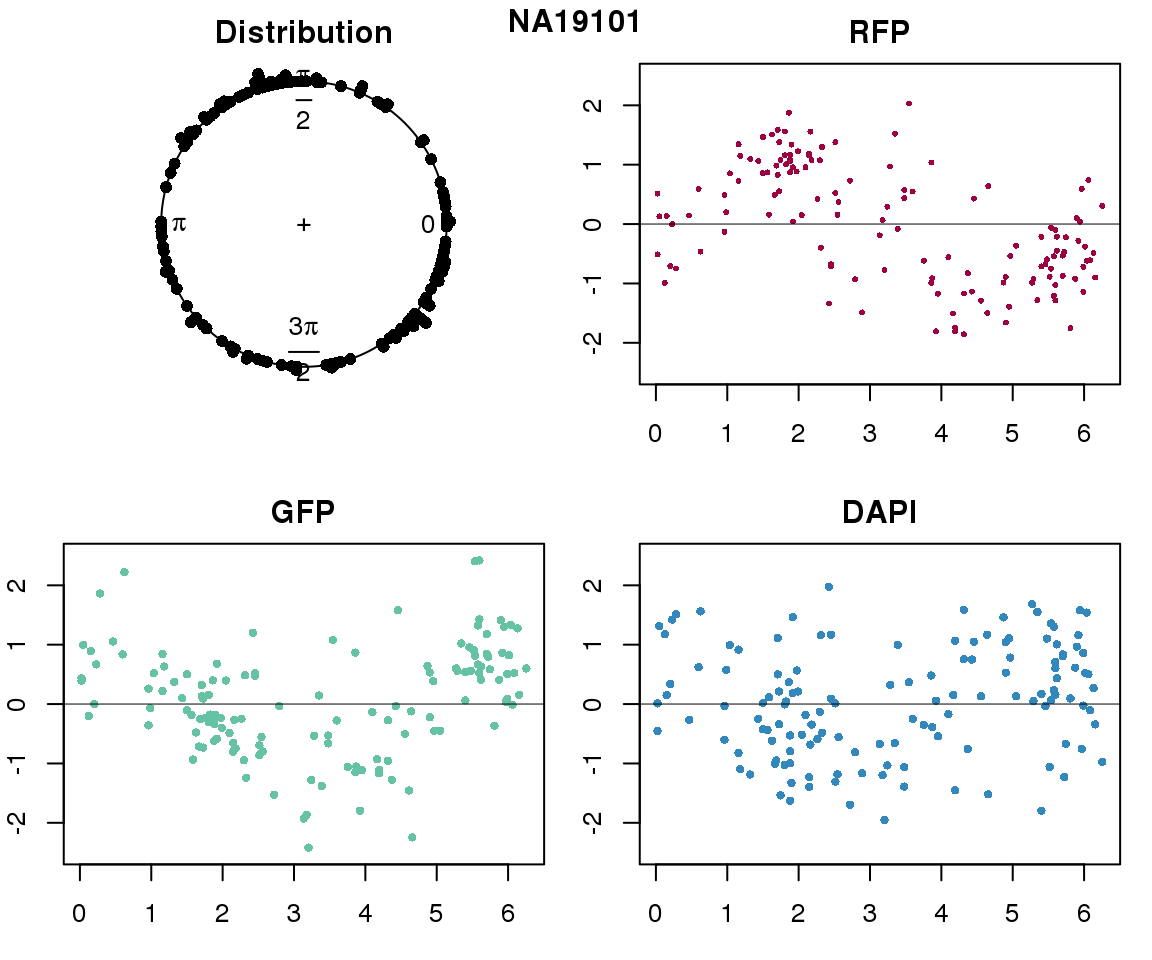

<h3>Intensity values by circle fit</h3>
<pre class="r"><code>pdata.adj.filtered &lt;- readRDS(&quot;../output/images-circle-ordering.Rmd/pdata.adj.filt.rds&quot;)
proj.res &lt;- readRDS(&quot;../output/images-circle-ordering.Rmd/proj.res.rds&quot;)

for (i in 1:length(unique(pdata.adj.filt$chip_id))) {
  par(mfrow=c(2,2), mar = c(3,2,2,1))
  ids &lt;- unique(as.character(pdata.adj.filt$chip_id))
  p_sub &lt;- subset(pdata.adj.filt, chip_id == ids[i])
  #all.equal(rownames(p_sub), rownames(proj.res$NA18870[[1]]))
  plot(proj.res[[i]][[1]]$rads, stack=T, bins=180, main = &quot;Distribution&quot;)
  library(RColorBrewer)
  color &lt;- colorRampPalette(brewer.pal(11,&quot;Spectral&quot;))(11)
  plot(x=as.numeric(proj.res[[i]][[1]]$rads),
       y=p_sub$rfp.z, pch=16, cex=.5, col=color[1], ylim=c(-2.5, 2.5),
       xlab = &quot;Position on the circle&quot;,
       ylab = &quot;RFP&quot;, main = &quot;RFP&quot;)
  abline(h=0, lwd=.5)
  plot(x=as.numeric(proj.res[[i]][[1]]$rads),
       y=p_sub$gfp.z, pch=16, cex=.7, col=color[9], ylim=c(-2.5, 2.5),
       xlab = &quot;Position on the circle&quot;,
       ylab = &quot;GFP&quot;, main = &quot;GFP&quot;)
  abline(h=0, lwd=.5)
  plot(x=as.numeric(proj.res[[i]][[1]]$rads),
       y=p_sub$dapi.z, pch=16, cex=.7, col=color[10], ylim=c(-2.5, 2.5),
       xlab = &quot;Position on the circle&quot;,
       ylab = &quot;DAPI&quot;, main = &quot;DAPI&quot;)
  abline(h=0, lwd=.5)
  title(names(proj.res)[i], outer=TRUE, line =-1)
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-11-1.png" width="576" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-11-2.png" width="576" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-11-3.png" width="576" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-11-4.png" width="576" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-11-5.png" width="576" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-11-6.png" width="576" style="display: block; margin: auto;" /></p>
</div>
<div id="expression-variation-by-cell-time" class="section level3">
<h3>Expression variation by cell time</h3>
<pre class="r"><code># load cell cycle genes
genes.cycle &lt;- readRDS(&quot;../output/seqdata-select-cellcyclegenes.Rmd/genes.cycle.detect.rds&quot;)

# log2cpm
log2cpm &lt;- readRDS(&quot;../output/seqdata-batch-correction.Rmd/log2cpm.rds&quot;)
log2cpm.adjust &lt;- readRDS(&quot;../output/seqdata-batch-correction.Rmd/log2cpm.adjust.rds&quot;)

counts.cycle &lt;- counts[rownames(counts) %in% genes.cycle, ]
log2cpm.cycle &lt;- log2cpm[rownames(log2cpm) %in% genes.cycle, ]
log2cpm.adjust.cycle &lt;- log2cpm.adjust[rownames(log2cpm.adjust) %in% genes.cycle, ]</code></pre>
</div>
<div id="pearson-correlation" class="section level3">
<h3>Pearson correlation</h3>
<pre class="r"><code>corrs &lt;- lapply(1:length(unique(pdata.adj.filt$chip_id)), function(i) {

  id &lt;- unique(pdata.adj.filt$chip_id)[i]

  log2cpm_sub &lt;- log2cpm.adjust.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(log2cpm.adjust.cycle))]

  counts_sub &lt;- counts.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(counts.cycle))]

  corrs &lt;- do.call(rbind, lapply(1:nrow(counts_sub), function(g) {
    vec &lt;- cbind(as.numeric(proj.res[[i]][[1]]$rads),
                 log2cpm_sub[g,])
    filt &lt;- counts_sub[g,] &gt; 1
    nsamp &lt;- sum(filt)

    if (nsamp &gt; ncol(counts_sub)/2) {
      vec &lt;- vec[filt,]
      corr &lt;- cor(vec[,1], vec[,2])
      nsam &lt;- nrow(vec)
      data.frame(corr=corr, nsam=nsam)
    } else {
      data.frame(corr=NA, nsam=nrow(vec))
    }
    }))
  rownames(corrs) &lt;- rownames(counts_sub)
  return(corrs)
  })
names(corrs) &lt;- unique(pdata.adj.filt$chip_id)</code></pre>

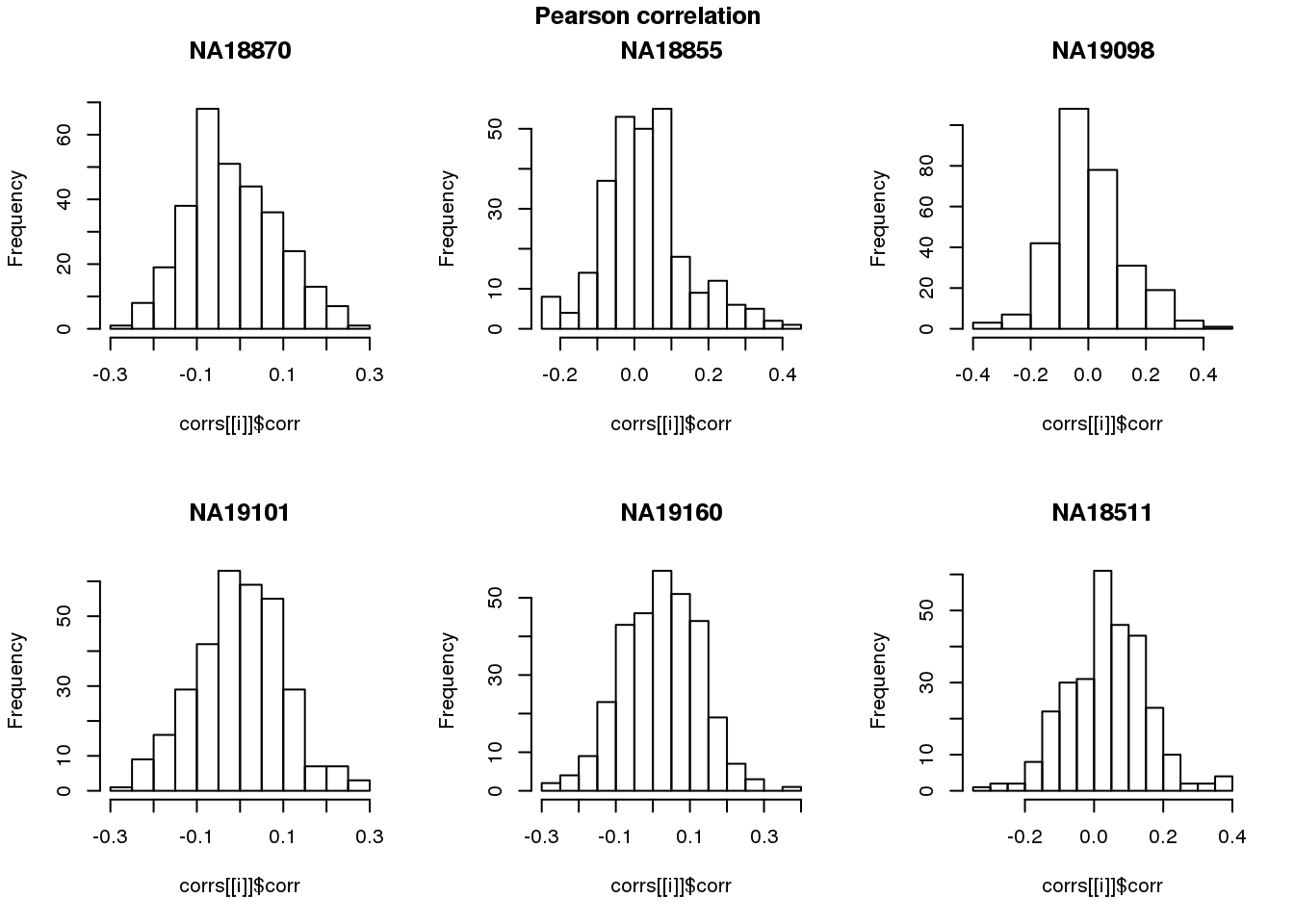

<pre class="r"><code>par(mfrow=c(2,3))
for (i in 1:length(corrs)) {
  hist(corrs[[i]]$corr, main = names(corrs)[i])
}
title(main = &quot;Pearson correlation&quot;, outer = TRUE, line = -1)</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-14-1.png" width="672" style="display: block; margin: auto;" /></p>

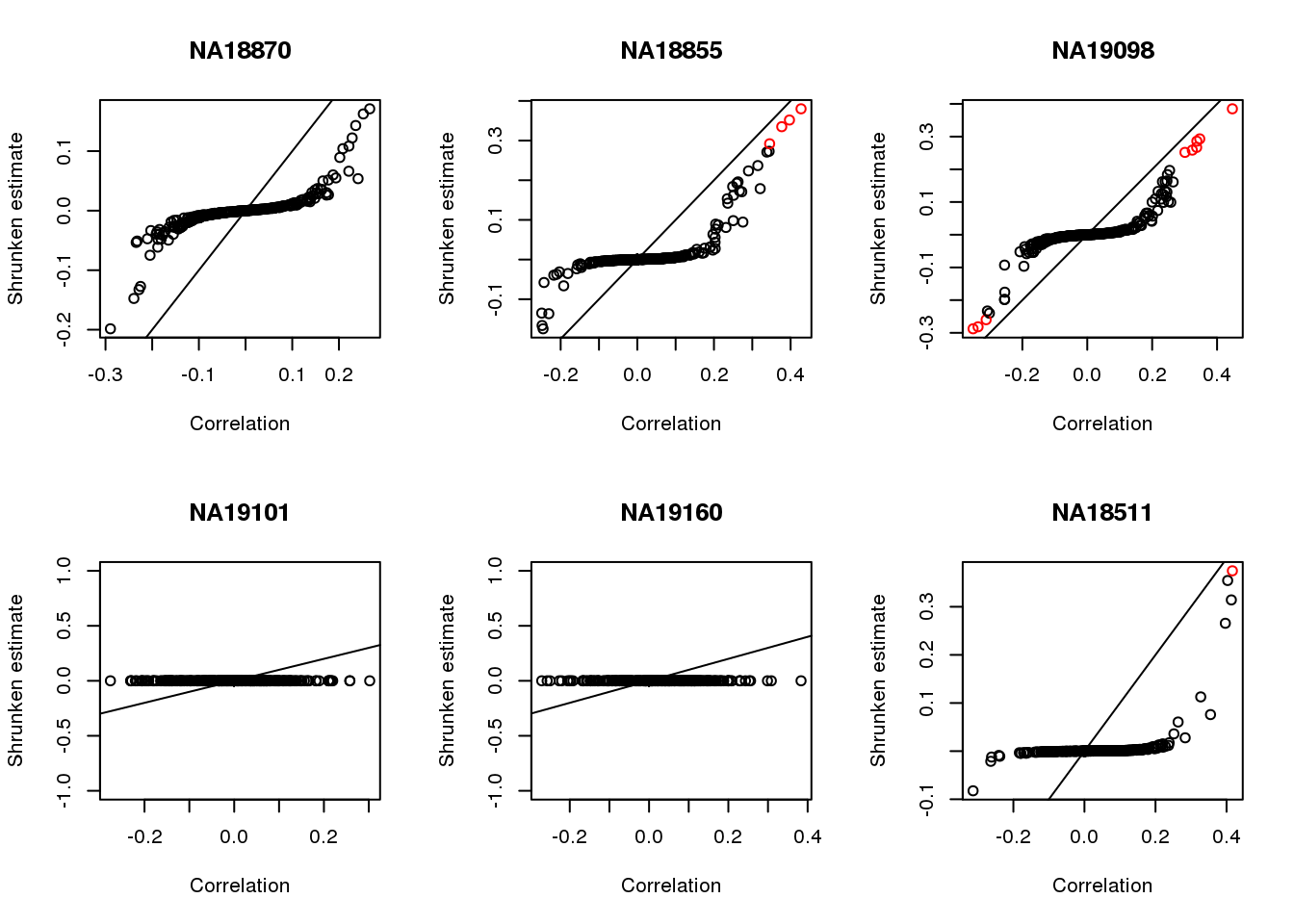

<p>Apply CorShrink</p>
<pre class="r"><code>par(mfrow=c(2,3))
for (i in 1:length(corrs)) {
  corrs_sub &lt;- corrs[[i]]
  corr.shrink &lt;- CorShrinkVector(corrs_sub$corr, nsamp_vec = corrs_sub$nsam,
                                   optmethod = &quot;mixEM&quot;, report_model = TRUE)
  names(corr.shrink$estimate) &lt;- rownames(corrs_sub)
  plot(corr.shrink$model$result$betahat,
       corr.shrink$model$result$PosteriorMean,
       col = 1+as.numeric(corr.shrink$model$result$svalue &lt; .01),
       xlab = &quot;Correlation&quot;, ylab = &quot;Shrunken estimate&quot;)
  abline(0,1)
  title(names(corrs)[i])
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-15-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="ciruclar-correlation" class="section level3">
<h3>Ciruclar correlation</h3>
<pre class="r"><code>source(&quot;../code/corr.cl.R&quot;)

corrs.cl &lt;- lapply(1:length(unique(pdata.adj.filt$chip_id)), function(i) {

  id &lt;- unique(pdata.adj.filt$chip_id)[i]

  log2cpm_sub &lt;- log2cpm.adjust.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(log2cpm.adjust.cycle))]

  counts_sub &lt;- counts.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(counts.cycle))]

  corrs &lt;- do.call(rbind, lapply(1:nrow(counts_sub), function(g) {
    vec &lt;- cbind(as.numeric(proj.res[[i]][[1]]$rads),
                 log2cpm_sub[g,])
    filt &lt;- counts_sub[g,] &gt; 1
    nsamp &lt;- sum(filt)

    if (nsamp &gt; ncol(counts_sub)/2) {
      vec &lt;- vec[filt,]
      corr &lt;- R2xtCorrCoeff(lvar=vec[,2], cvar=vec[,1])
      nsam &lt;- nrow(vec)
      data.frame(corr=corr, nsam=nsam)
    } else {
      data.frame(corr=NA, nsam=nrow(vec))
    }
    }))
  rownames(corrs) &lt;- rownames(counts_sub)
  return(corrs)
  })
names(corrs.cl) &lt;- unique(pdata.adj.filt$chip_id)</code></pre>
<pre class="r"><code>par(mfrow=c(2,3))
for (i in 1:length(corrs)) {
  hist(corrs.cl[[i]]$corr, main = names(corrs)[i])
}
title(main = &quot;Circular-linear correlation&quot;, outer = TRUE, line = -1)</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-17-1.png" width="672" style="display: block; margin: auto;" /></p>

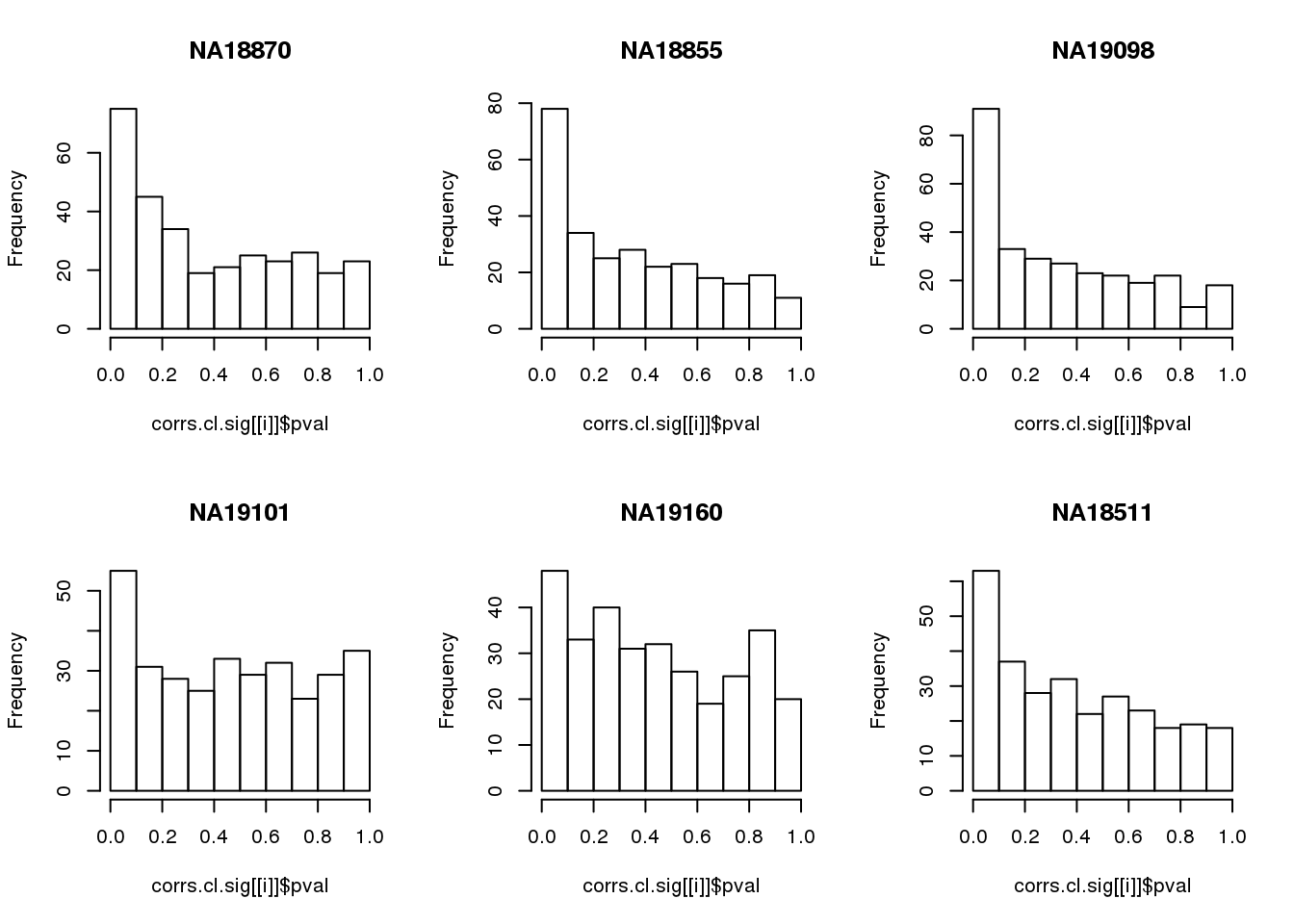

<p>Compute significance value</p>
<pre class="r"><code>corrs.cl.sig &lt;- lapply(1:length(unique(pdata.adj.filt$chip_id)), function(i) {

  id &lt;- unique(pdata.adj.filt$chip_id)[i]

  log2cpm_sub &lt;- log2cpm.adjust.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(log2cpm.adjust.cycle))]

  counts_sub &lt;- counts.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(counts.cycle))]

  corrs &lt;- do.call(rbind, lapply(1:nrow(counts_sub), function(g) {
    vec &lt;- cbind(as.numeric(proj.res[[i]][[1]]$rads),
                 log2cpm_sub[g,])
    filt &lt;- counts_sub[g,] &gt; 1
    nsamp &lt;- sum(filt)

    if (nsamp &gt; ncol(counts_sub)/2) {
      vec &lt;- vec[filt,]
      corr &lt;- R2xtIndTestRand(lvar=vec[,2], cvar=vec[,1], NR=100)
      nsam &lt;- nrow(vec)
      return(corr)
    } else {
      return(data.frame(corr=NA, pval=NA))
    }
    }))
  rownames(corrs) &lt;- rownames(counts_sub)
  return(corrs)
  })
names(corrs.cl.sig) &lt;- unique(pdata.adj.filt$chip_id)</code></pre>
<pre class="r"><code>par(mfrow=c(2,3))
for(i in 1:length(corrs.cl.sig)) {
  hist(corrs.cl.sig[[i]]$pval,
       main = names(corrs.cl.sig)[i])
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-19-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Consider significant ones</p>
<pre class="r"><code>for (i in 1:length(corrs.cl.sig)) {
  ii.sig &lt;- corrs.cl.sig[[i]]$pval &lt; .01
  print(sum(ii.sig, na.rm=TRUE))
}</code></pre>
<pre><code>[1] 12
[1] 21
[1] 23
[1] 11
[1] 4
[1] 10</code></pre>

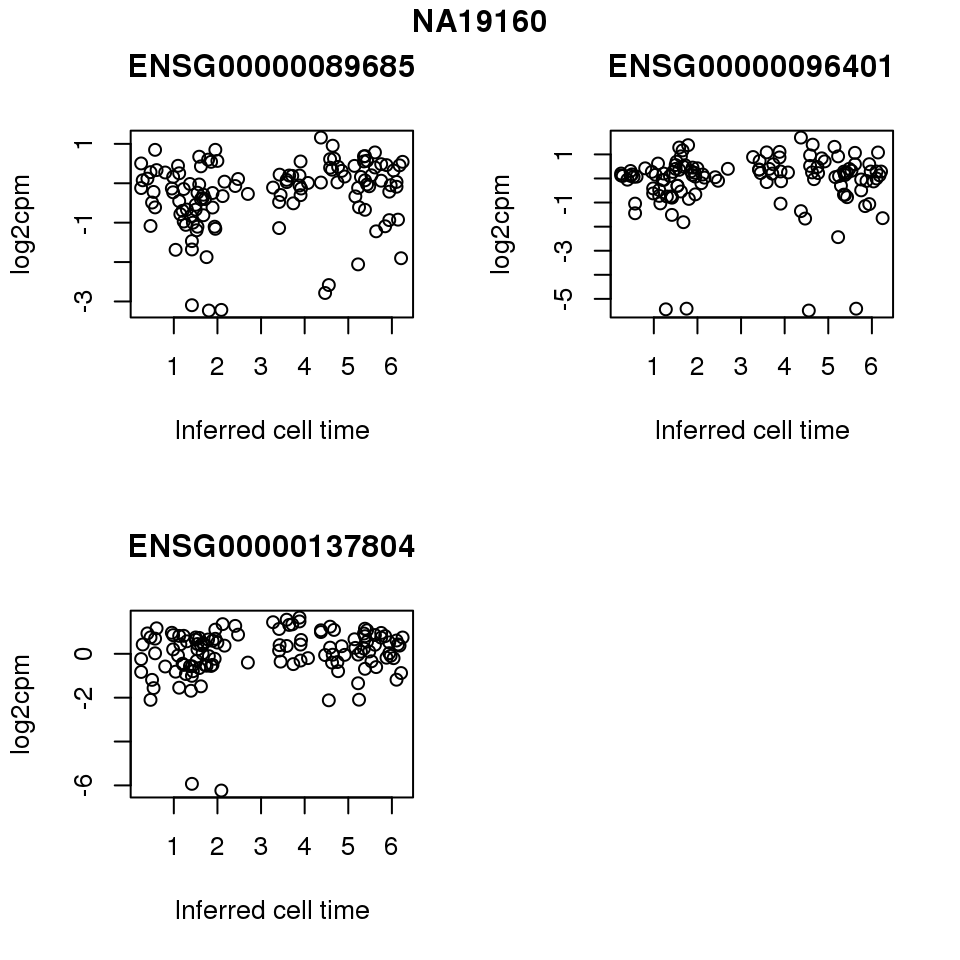

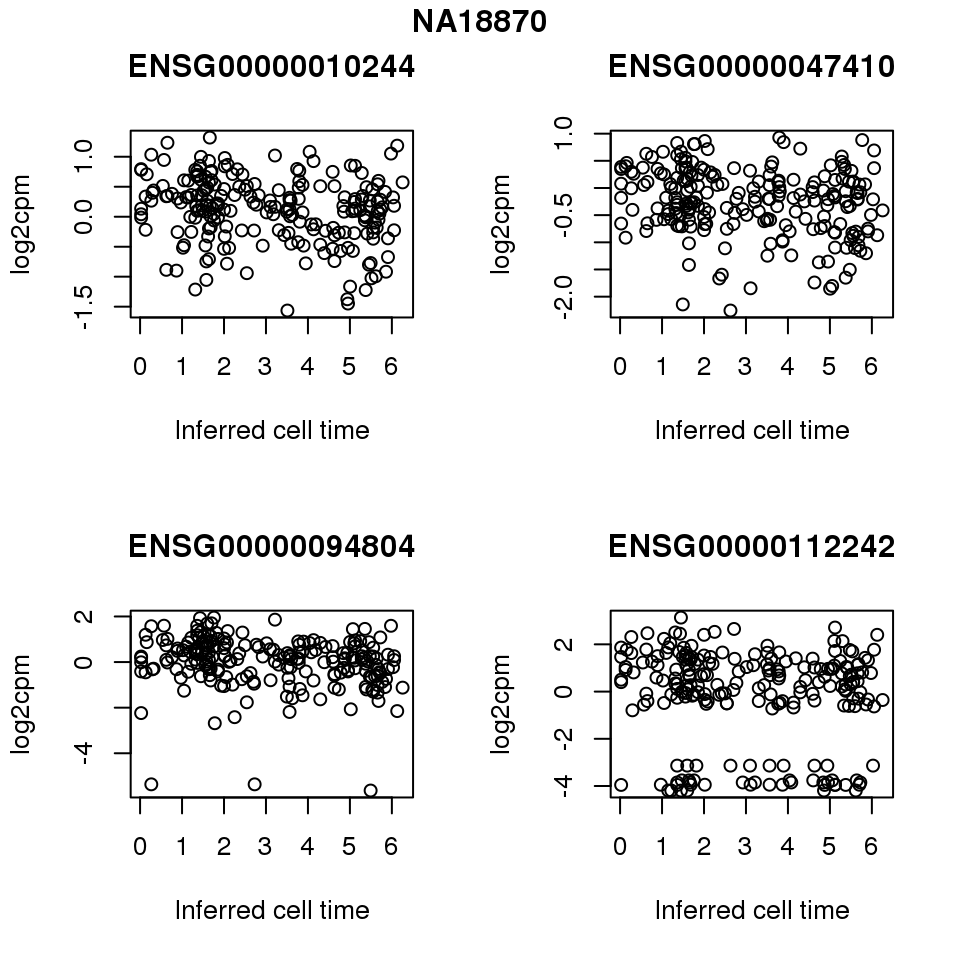

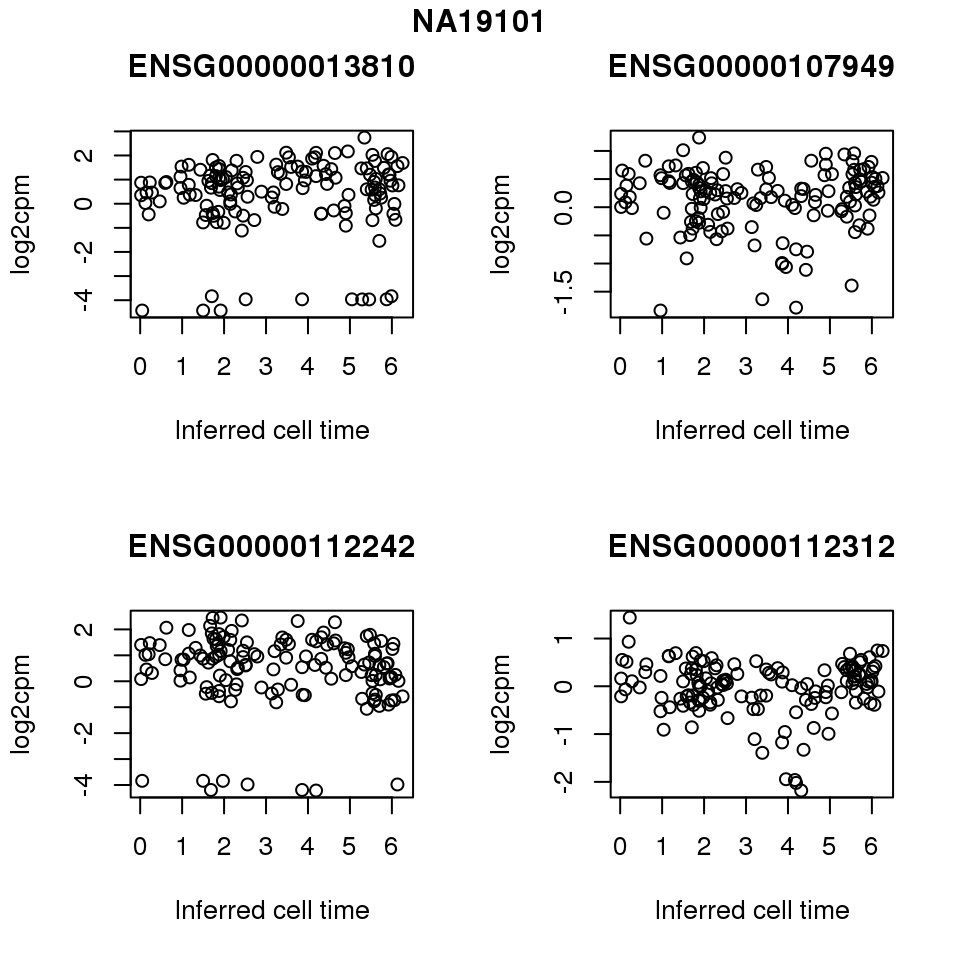

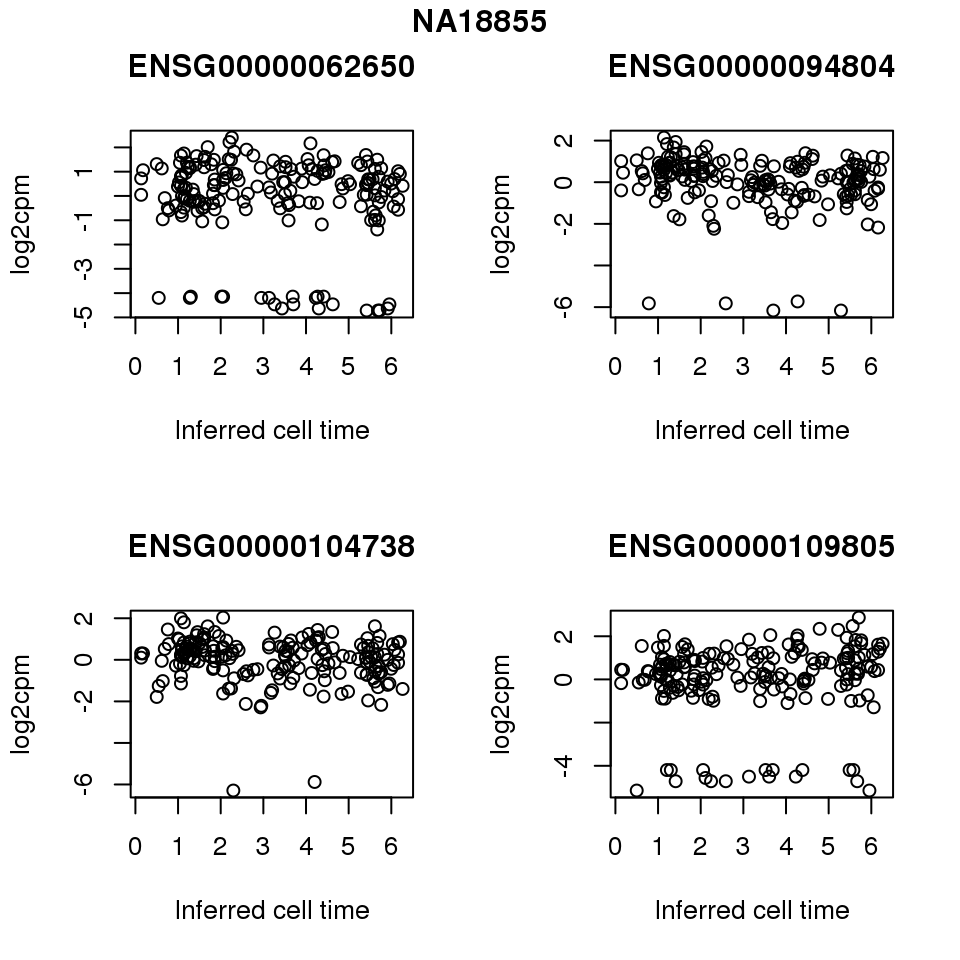

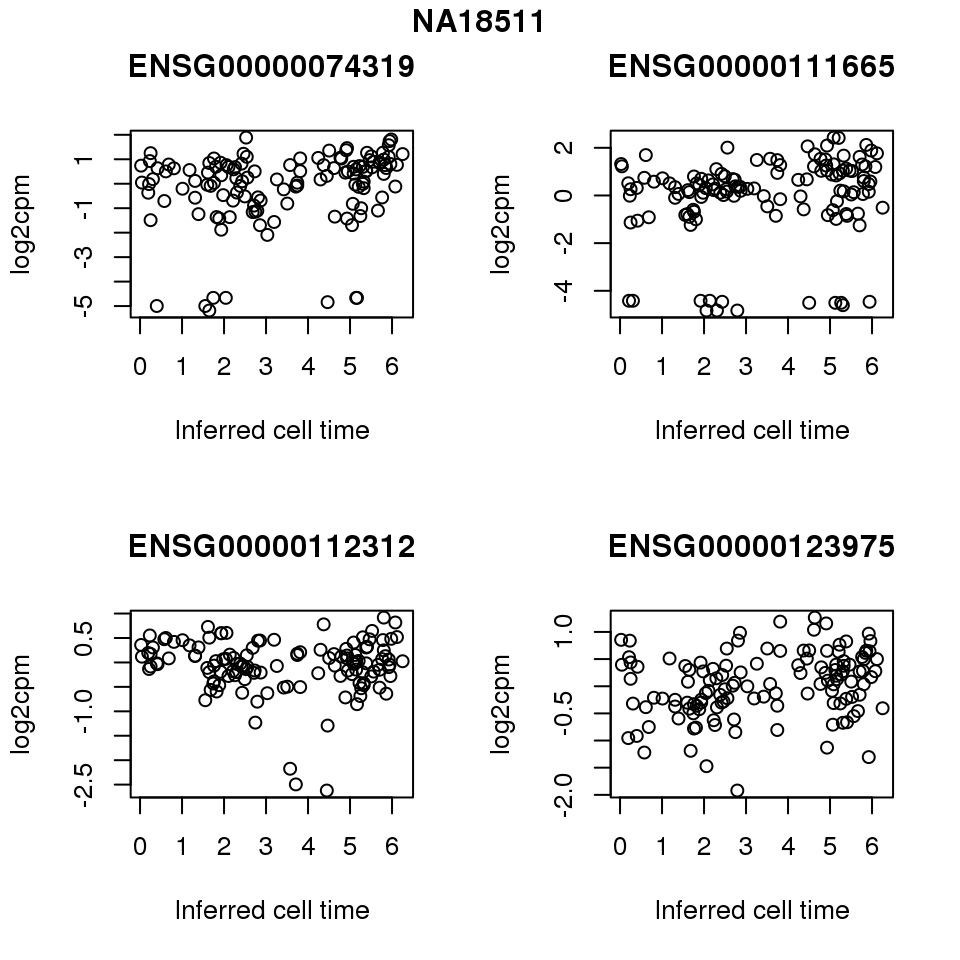

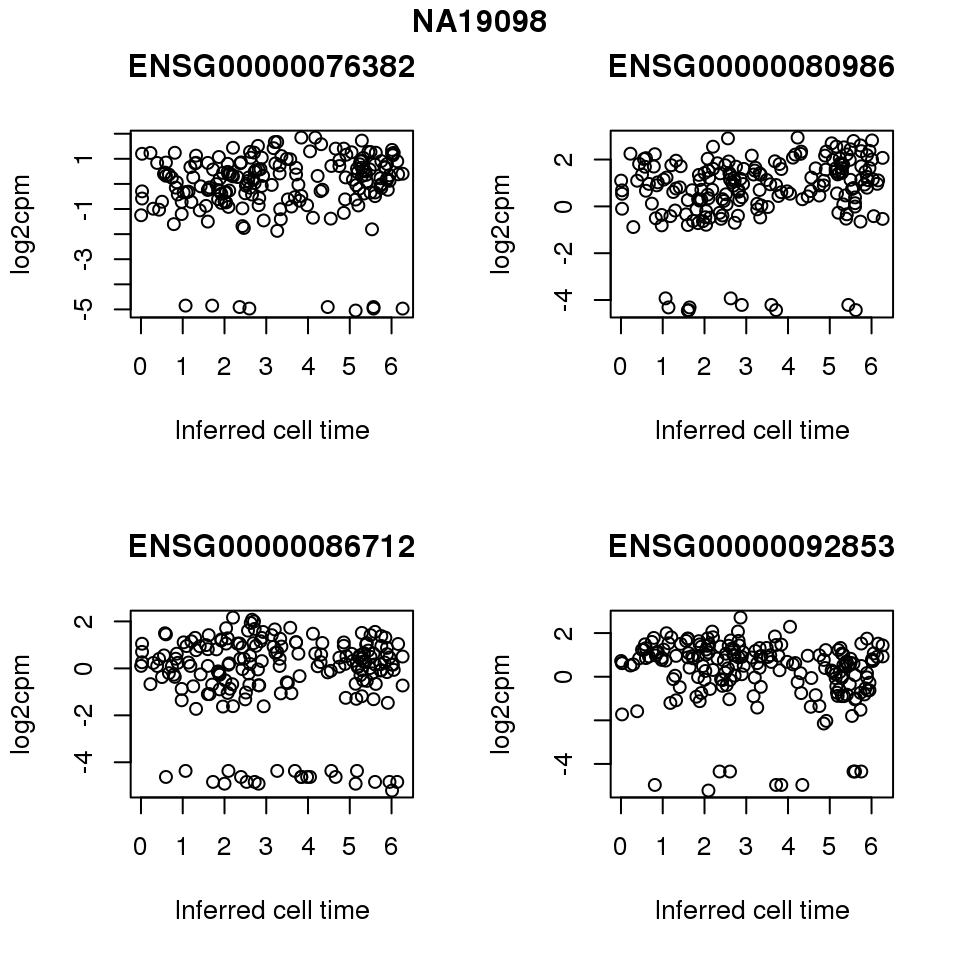

<p>Print some genes</p>
<pre class="r"><code>for (i in 1:length(corrs.cl.sig)) {
  ii.sig &lt;- corrs.cl.sig[[i]]$pval &lt; .01

  id &lt;- unique(pdata.adj.filt$chip_id)[i]

  log2cpm_sub &lt;- log2cpm.adjust.cycle[, match(rownames(proj.res[[i]][[1]]), colnames(log2cpm.adjust.cycle))]

  genes &lt;- rownames(corrs.cl.sig[[i]])

  if (i == 5) {numgene &lt;- 3} else {numgene &lt;- 4}
  par(mfrow=c(2,2))
  for (g in 1:numgene) {
    gene &lt;- genes[which(ii.sig)[g]]
    plot(x=as.numeric(proj.res[[i]][[1]]$rads),
         y = log2cpm_sub[rownames(log2cpm_sub) == gene,] ,
         xlab = &quot;Inferred cell time&quot;,
         ylab = &quot;log2cpm&quot;,
         main = gene)
  }
  title(names(proj.res)[i], outer = TRUE, line = -1)
}</code></pre>
<p><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-21-1.png" width="480" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-21-2.png" width="480" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-21-3.png" width="480" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-21-4.png" width="480" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-21-5.png" width="480" style="display: block; margin: auto;" /><img src="figure/images-circle-ordering.Rmd/unnamed-chunk-21-6.png" width="480" style="display: block; margin: auto;" /></p>
<hr />
</div>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre><code>R version 3.4.1 (2017-06-30)
Platform: x86_64-redhat-linux-gnu (64-bit)
Running under: Scientific Linux 7.2 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /usr/lib64/R/lib/libRblas.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] RColorBrewer_1.1-2  bindrcpp_0.2        CorShrink_0.1.1
 [4] matrixStats_0.53.1  dplyr_0.7.4         Biobase_2.38.0
 [7] BiocGenerics_0.24.0 conicfit_1.0.4      geigen_2.1
[10] pracma_2.1.4        circular_0.4-93

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.15      plyr_1.8.4        compiler_3.4.1
 [4] pillar_1.1.0      git2r_0.21.0      bindr_0.1
 [7] iterators_1.0.9   tools_3.4.1       boot_1.3-19
[10] digest_0.6.15     evaluate_0.10.1   tibble_1.4.2
[13] lattice_0.20-35   pkgconfig_2.0.1   rlang_0.2.0
[16] foreach_1.4.4     Matrix_1.2-10     yaml_2.1.16
[19] mvtnorm_1.0-7     stringr_1.3.0     knitr_1.20
[22] rprojroot_1.3-2   grid_3.4.1        glue_1.2.0
[25] R6_2.2.2          rmarkdown_1.8     reshape2_1.4.3
[28] ashr_2.2-4        magrittr_1.5      MASS_7.3-47
[31] codetools_0.2-15  backports_1.1.2   htmltools_0.3.6
[34] assertthat_0.2.0  stringi_1.1.6     pscl_1.5.2
[37] doParallel_1.0.11 truncnorm_1.0-7   SQUAREM_2017.10-1</code></pre>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
