<h1 class="title toc-ignore">npreg: trendfilter on normalized data</h1>
<h4 class="author"><em>Joyce Hsiao</em></h4>
</div>
<div id="TOC">
<ul>
<li><a href="#data-and-packages">Data and packages</a></li>
<li><a href="#evaluate-data-after-standardizing-expression">Evaluate data after standardizing expression</a></li>
<li><a href="#fit-trendfilter-to-the-data-after-quantile-normalization">Fit trendfilter to the data after quantile normalization</a></li>
<li><a href="#make-a-permuted-distribution">Make a permuted distribution</a></li>
<li><a href="#genes-with-the-small-pve">Genes with the small PVE</a></li>
<li><a href="#output-summary-statistics">Output summary statistics</a></li>
<li><a href="#session-information">Session information</a></li>
</ul>
</div>
<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-05-08</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> 85120ce</p>
<hr />
<div id="data-and-packages" class="section level2">
<h2>Data and packages</h2>
<p>Packages</p>
<pre class="r"><code>library(circular)
library(conicfit)
library(Biobase)
library(dplyr)
library(matrixStats)
library(NPCirc)
library(smashr)
library(genlasso)</code></pre>
<p>Load data</p>
<pre class="r"><code>df <- readRDS(file="../data/eset-final.rds")
pdata <- pData(df)
fdata <- fData(df)
# select endogeneous genes
counts <- exprs(df)[grep("ENSG", rownames(df)), ]
log2cpm.all <- t(log2(1+(10^6)*(t(counts)/pdata$molecules)))
macosko <- readRDS("../data/cellcycle-genes-previous-studies/rds/macosko-2015.rds")
log2cpm.all <- log2cpm.all[,order(pdata$theta)]
pdata <- pdata[order(pdata$theta),]
source("../code/utility.R")
source("../code/npreg/npreg.methods.R")</code></pre>
<p>–</p>
</div>
<div id="evaluate-data-after-standardizing-expression" class="section level2">
<h2>Evaluate data after standardizing expression</h2>
<p>Map log2cpm expression to standard normal distribution. The transformation is non-linear. Sort N expression values from the largest to the smalles. General N standard normal random variable. For the non-zero expression value, find the correspnoding standard normal random variable that has the same quantile and subsitute the value with the corresponding normal random variable value. We then find the stanadard normal random variable values correspond to non-zero expression values and randomly assign these non-zero expression values to a standard normal random variable value.</p>
<ul>
<li><p>For genes with relatively low fraction of deteted cells, this method allows to move the zero expression values closer to the non-zero expression value.</p></li>
<li><p>For genes with high fraction of undetected cells, this method creates a</p></li>
</ul>
<pre class="r"><code>log2cpm.quant <- do.call(rbind, mclapply(1:nrow(log2cpm.all), function(g) {
yy <- log2cpm.all[g,]
is.zero <- which(yy == 0)
qq.map <- qqnorm(yy)
yy.qq <- qq.map$x
yy.qq[is.zero] <- sample(qq.map$x[is.zero])
return(yy.qq)
}, mc.cores=8) )
rownames(log2cpm.quant) <- rownames(log2cpm.all)
saveRDS(log2cpm.quant, file = "../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.rds")</code></pre>

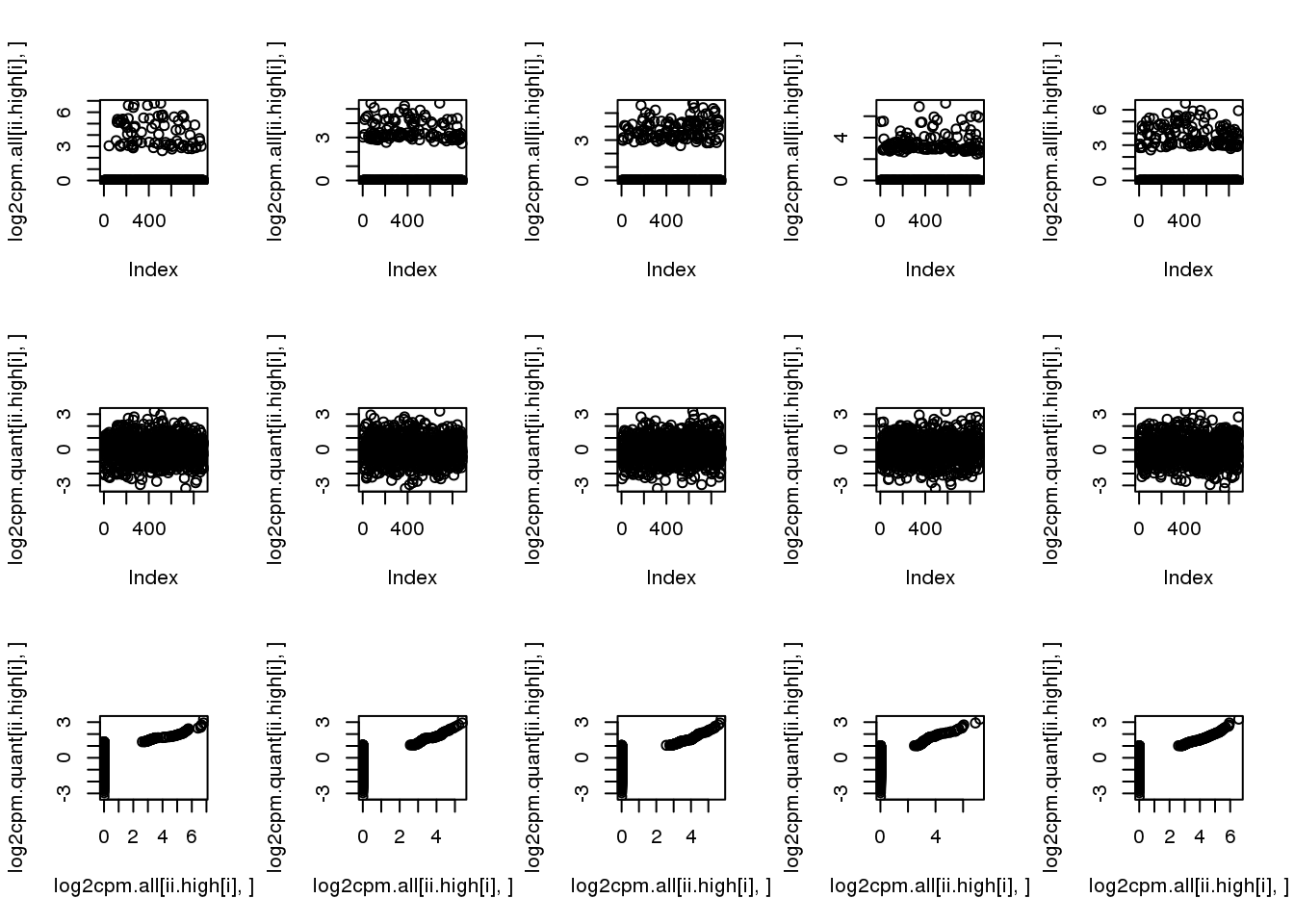

<p>check genes with low/high fraction of undetected cells.</p>
<pre class="r"><code>log2cpm.quant <- readRDS("../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.rds")
ii.high <- order(rowMeans(log2cpm.all > 0), decreasing = F)[1:5]
par(mfcol=c(3,5))
for (i in 1:5) {
plot(log2cpm.all[ii.high[i],])
plot(log2cpm.quant[ii.high[i],])
plot(log2cpm.all[ii.high[i],], log2cpm.quant[ii.high[i],])
}</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>

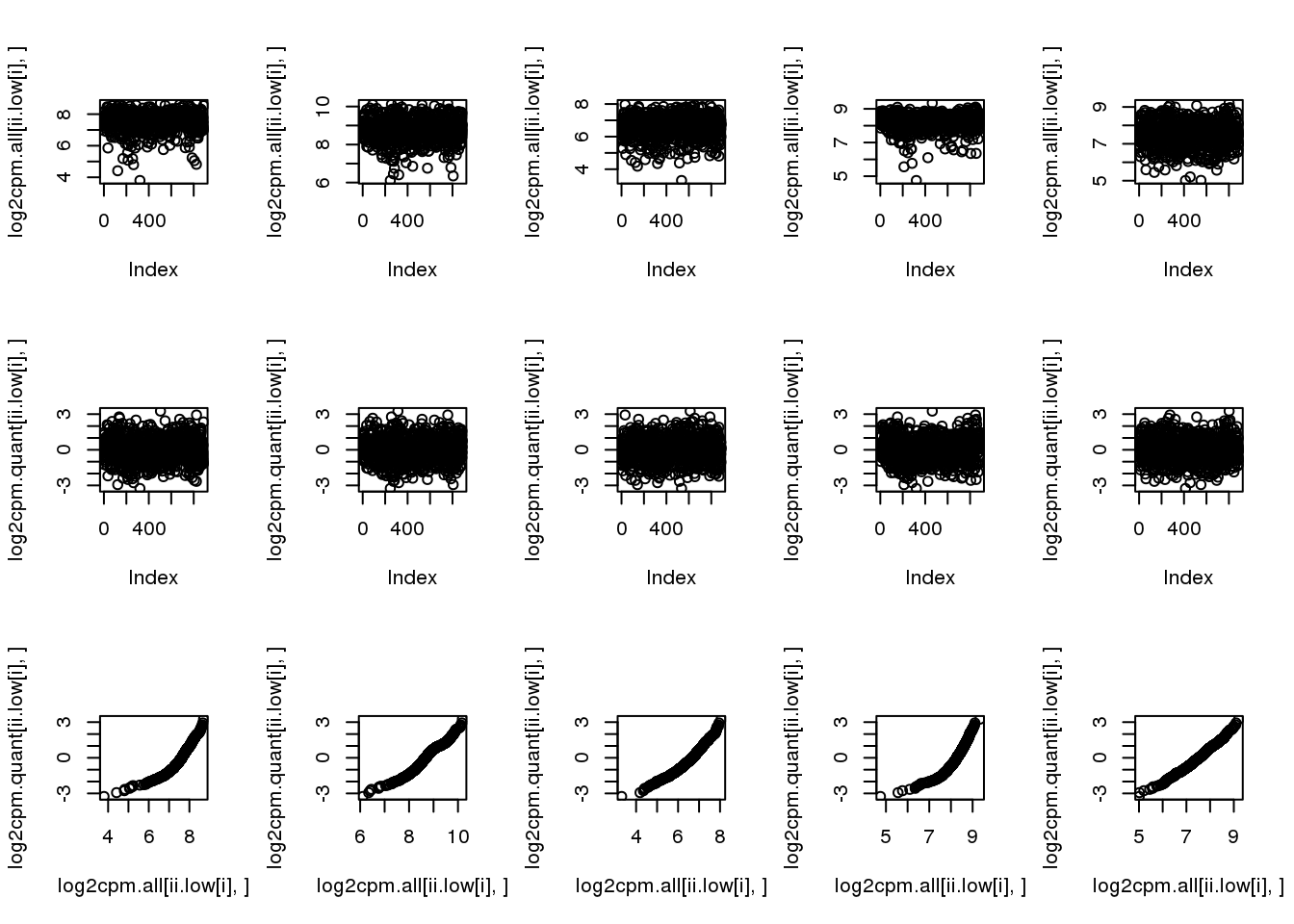

<pre class="r"><code>ii.low <- order(rowMeans(log2cpm.all > 0), decreasing = T)[1:5]
par(mfcol=c(3,5))
for (i in 1:5) {
plot(log2cpm.all[ii.low[i],])
plot(log2cpm.quant[ii.low[i],])
plot(log2cpm.all[ii.low[i],], log2cpm.quant[ii.low[i],])
}</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-4-2.png" width="672" style="display: block; margin: auto;" /></p>

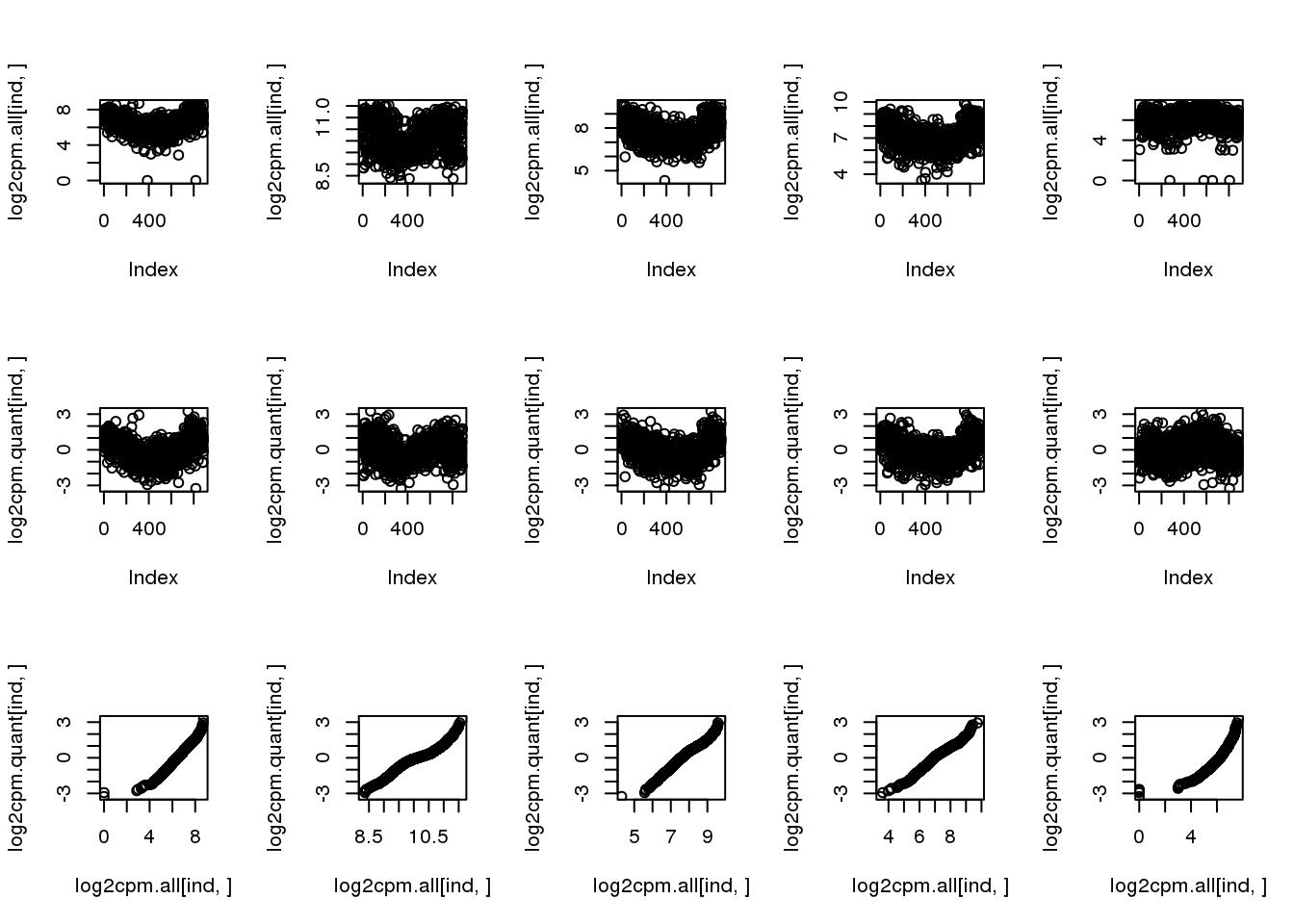

<p>Check genes that we previously found to have cyclical patterns. This doesn’t distor genes previously found to have cyclical patterns.</p>
<pre class="r"><code>cyclegenes <- readRDS("../output/npreg-methods.Rmd/cyclegenes.rds")
par(mfcol=c(3,5))
for (gene in colnames(cyclegenes)[2:6]) {
ind <- rownames(log2cpm.all) == gene
plot(log2cpm.all[ind,])
plot(log2cpm.quant[ind,])
plot(log2cpm.all[ind,], log2cpm.quant[ind,])
}</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-5-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
<div id="fit-trendfilter-to-the-data-after-quantile-normalization" class="section level2">
<h2>Fit trendfilter to the data after quantile normalization</h2>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.1.sh</code></p>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.2.sh</code></p>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.3.sh</code></p>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.4.sh</code></p>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.5.sh</code></p>
<p>Split the data to five chunks by genes and submit the chunks to independent batch jobs.</p>
<pre class="r"><code>log2cpm.quant <- readRDS("../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.rds")
saveRDS(log2cpm.quant[1:2200,],
"../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.1.rds")
saveRDS(log2cpm.quant[2201:4400,],
"../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.2.rds")
saveRDS(log2cpm.quant[4401:6600,],
"../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.3.rds")
saveRDS(log2cpm.quant[6601:8800,],
"../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.4.rds")
saveRDS(log2cpm.quant[8801:11040,],
"../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.5.rds")
fit.quant.1 <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.quant.1.rds")
fit.quant.2 <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.quant.2.rds")
fit.quant.3 <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.quant.3.rds")
fit.quant.4 <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.quant.4.rds")
fit.quant.5 <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.quant.5.rds")
fit.quant <- c(fit.quant.1,fit.quant.2,fit.quant.3,fit.quant.4,fit.quant.5)
saveRDS(fit.quant,
"../output/npreg-trendfilter-quantile.Rmd/fit.quant.rds")</code></pre>
<p>consider PVE</p>
<pre class="r"><code>fit.quant <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.quant.rds")
pve <- sapply(fit.quant, "[[", "trend.pve")
summary(pve)</code></pre>
<pre><code> Min. 1st Qu. Median Mean 3rd Qu. Max.
-0.0043839 0.0000798 0.0002166 0.0008961 0.0004973 0.3266288 </code></pre>
<p>select genes with the highest PVE</p>
<pre class="r"><code>pve.genes <- names(pve)[order(c(pve), decreasing = T)[1:10]]</code></pre>

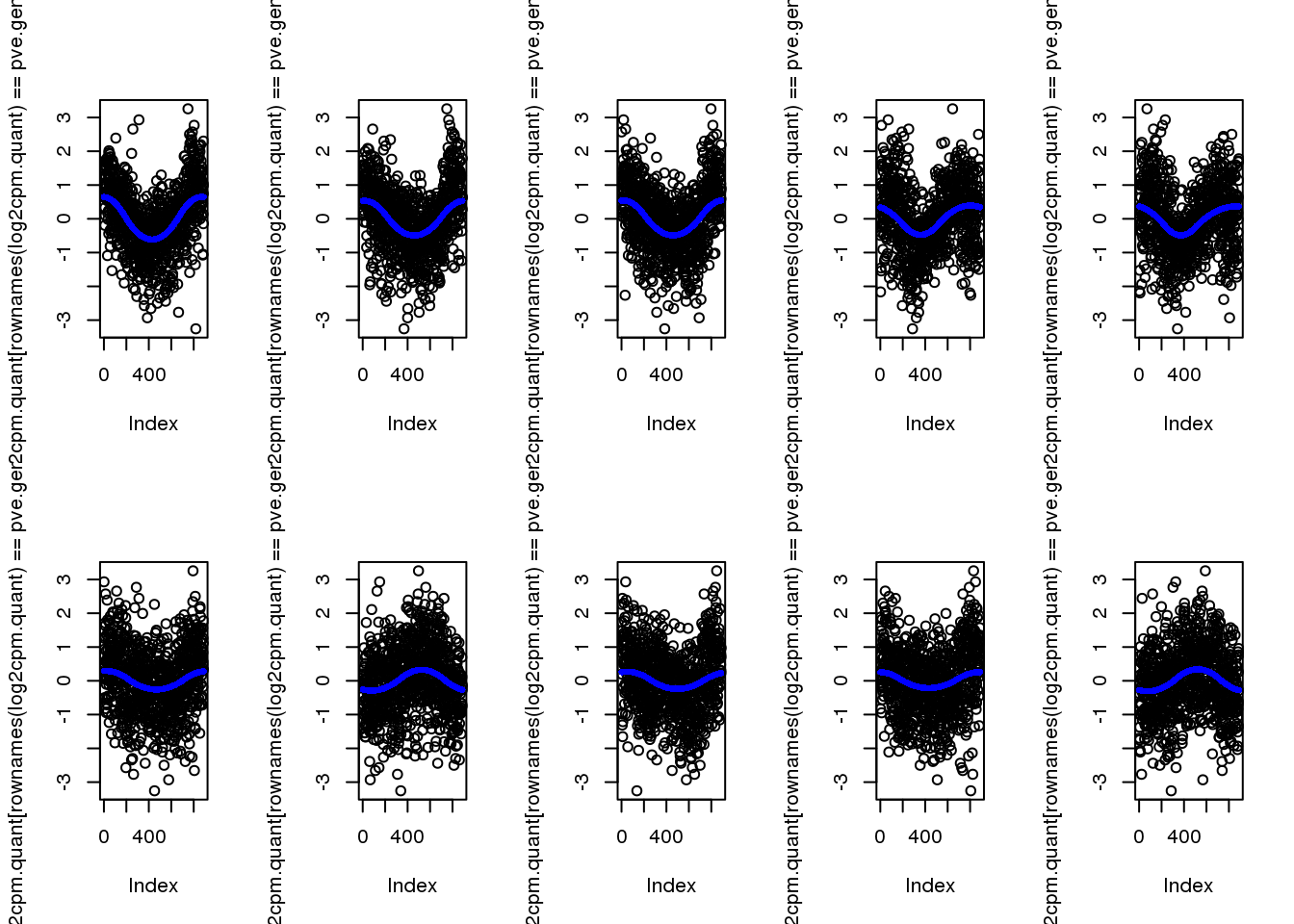

<p>plot top 10</p>
<pre class="r"><code>par(mfrow=c(2,5))
for (g in 1:length(pve.genes)) {
ii.g <- which(names(fit.quant)==pve.genes[g])
plot(log2cpm.quant[rownames(log2cpm.quant)==pve.genes[g]])
points(fit.quant[[ii.g]]$trend.yy, pch=16, col = "blue", cex=.7)
}</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-9-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>quickily check top 100 enrichment for cell cycle genes.</p>
<pre class="r"><code>enrich.order <- function(cutoffs, metrics, cyclegenes, allgenes) {
# out <- order(mad.ratio$smash.mad.ratio)
# cutoffs <- c(100, 200, 300)
cycle.rich <- sapply(cutoffs, function(x) {
which_top <- order(metrics, decreasing = T)[1:x]
sig.cycle <- sum(allgenes[which_top] %in% cyclegenes)/x
non.cycle <- sum(allgenes[-which_top] %in% cyclegenes)/(length(allgenes)-x)
cbind(as.numeric(sum(allgenes[which_top] %in% cyclegenes)),
sig.cycle/non.cycle)
})
colnames(cycle.rich) <- cutoffs
rownames(cycle.rich) <- c("nsig.genes.cycle", "fold.sig.vs.nonsig.cycle")
cycle.rich
}
enrich.order(cutoffs = c(100, 200, 300),
metrics = pve, cyclegenes = macosko$ensembl,
allgenes = rownames(log2cpm.quant))</code></pre>
<pre><code> 100 200 300
nsig.genes.cycle 54.00000 73.000000 86.00
fold.sig.vs.nonsig.cycle 12.78701 8.931377 7.16</code></pre>
</div>
<div id="make-a-permuted-distribution" class="section level2">
<h2>Make a permuted distribution</h2>
<p>Consider two genes, one with large fraction of undetected cells and one with small fraction of undeteted cells. See if the null distribution is similar.</p>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.perm.lowmisss.sh</code></p>
<p><code>sbatch code/npreg-trendfilter-quantile.Rmd trendfilter.perm.highmisss.sh</code></p>
<pre class="r"><code>perm.lowmiss <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.perm.lowmiss.rds")
perm.highmiss <- readRDS("../output/npreg-trendfilter-quantile.Rmd/fit.trend.perm.highmiss.rds")
pve.perm.lowmiss <- sapply(perm.lowmiss, "[[", "trend.pve")
pve.perm.highmiss <- sapply(perm.highmiss, "[[", "trend.pve")
summary(pve.perm.lowmiss)</code></pre>
<pre><code> Min. 1st Qu. Median Mean 3rd Qu. Max.
3.700e-08 4.998e-05 1.388e-04 2.821e-04 3.382e-04 1.617e-02 </code></pre>
<pre class="r"><code>summary(pve.perm.highmiss)</code></pre>
<pre><code> Min. 1st Qu. Median Mean 3rd Qu. Max.
1.340e-07 5.089e-05 1.389e-04 2.664e-04 3.403e-04 4.214e-03 </code></pre>

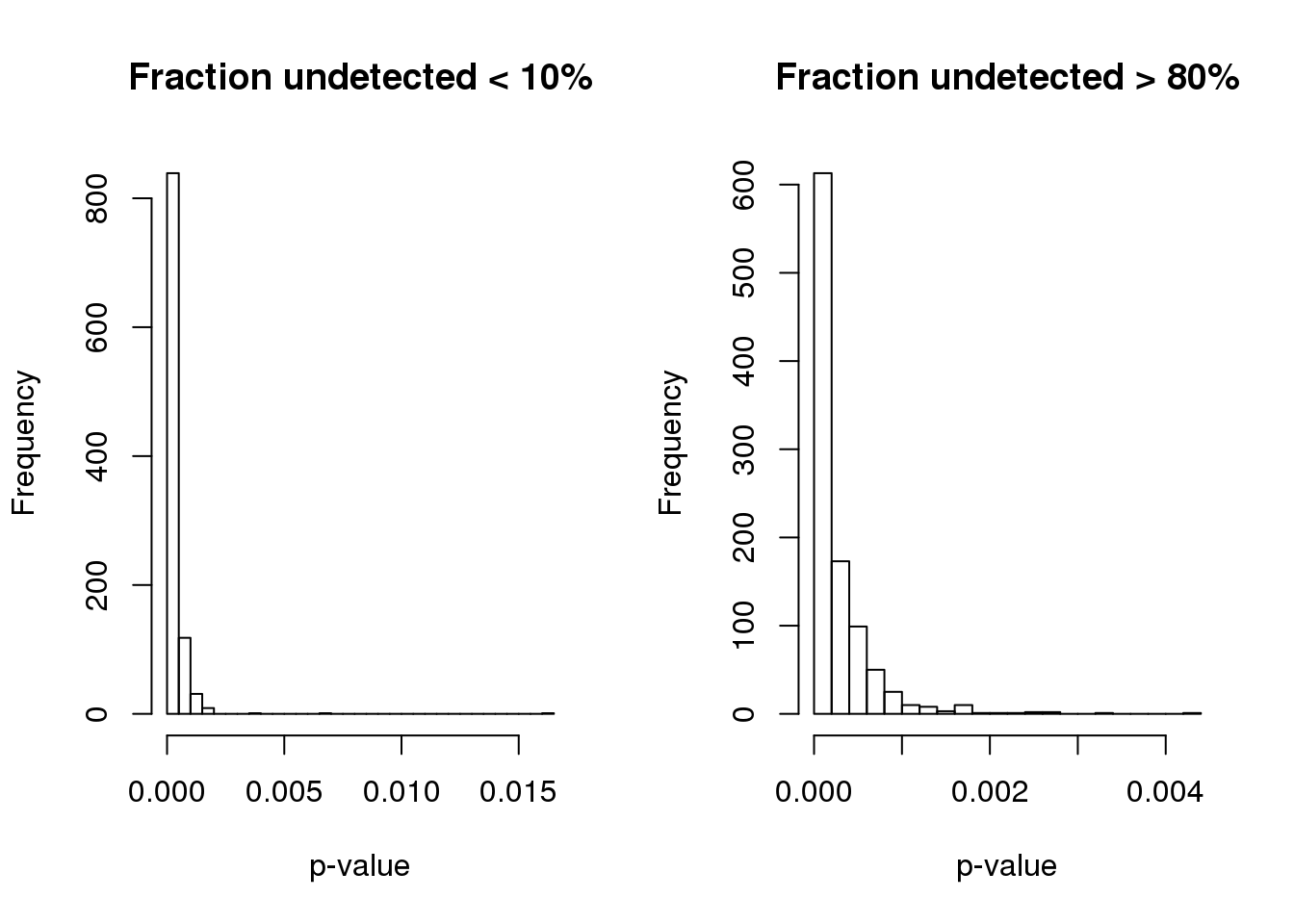

<p>Turns out the p-value based on permuted data is not the same for genes with low and high fraction of undetected cells.</p>
<pre class="r"><code>par(mfrow=c(1,2))
hist(pve.perm.lowmiss, nclass=30,
main = "Fraction undetected < 10%", xlab = "p-value")
hist(pve.perm.highmiss, nclass=30,
main = "Fraction undetected > 80%", xlab = "p-value")</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-12-1.png" width="672" style="display: block; margin: auto;" /></p>

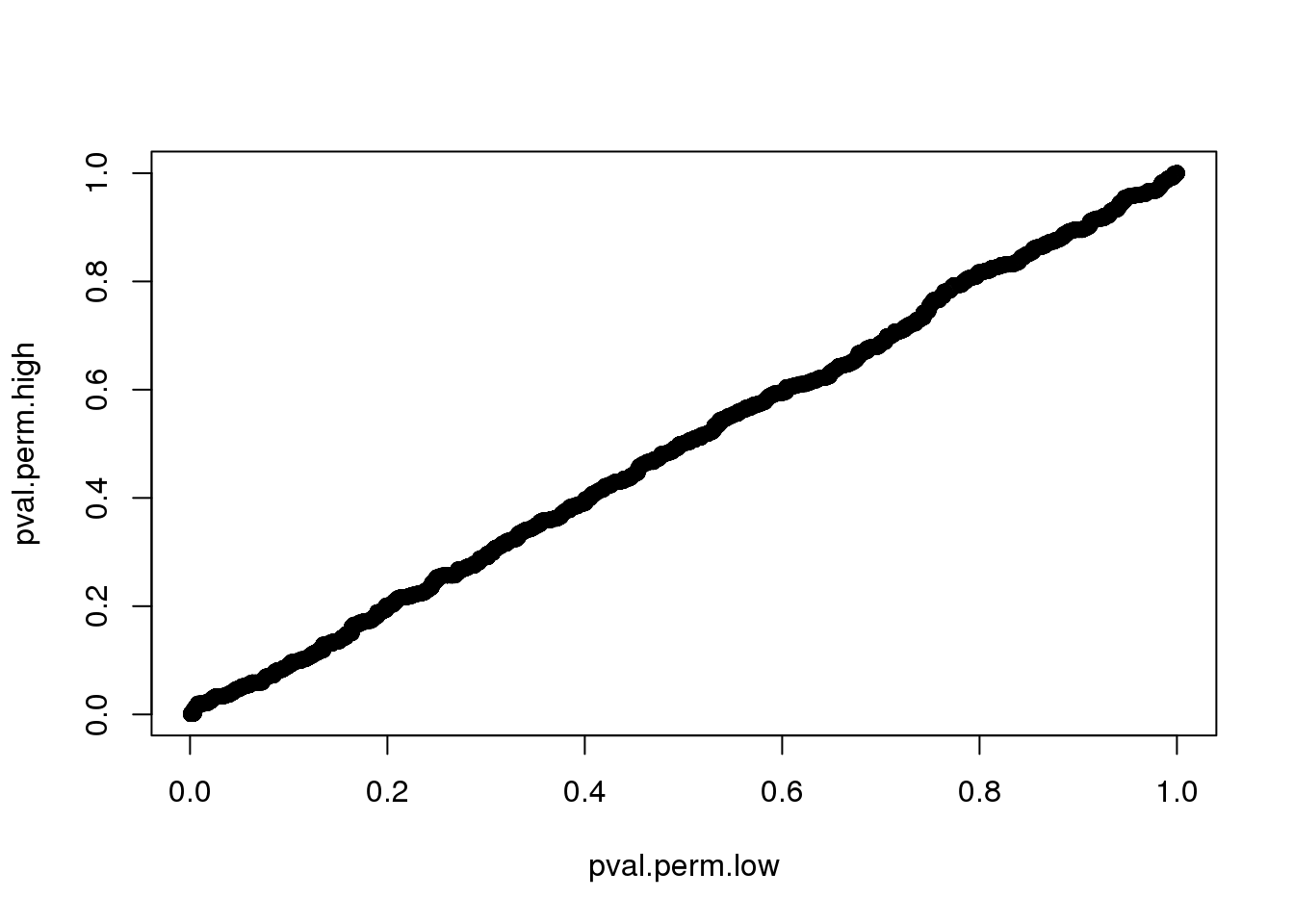

<p>Compute p-value based on two different distributions. High consistency between the two.</p>
<pre class="r"><code>B <- length(pve.perm.lowmiss)
pval.perm.low <- sapply(fit.quant, function(x) (1+sum(pve.perm.lowmiss > x$trend.pve))/(1+B))
pval.perm.high <- sapply(fit.quant, function(x) (1+sum(pve.perm.highmiss > x$trend.pve))/(1+B))
summary(pval.perm.low)</code></pre>
<pre><code> Min. 1st Qu. Median Mean 3rd Qu. Max.
0.000999 0.163836 0.365634 0.415336 0.648352 1.000000 </code></pre>
<pre class="r"><code>summary(pval.perm.high)</code></pre>
<pre><code> Min. 1st Qu. Median Mean 3rd Qu. Max.
0.000999 0.150849 0.360639 0.411520 0.630370 1.000000 </code></pre>
<pre class="r"><code>plot(pval.perm.low, pval.perm.high)</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-13-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>sum(pval.perm.high < .001)</code></pre>
<pre><code>[1] 278</code></pre>
<pre class="r"><code>sum(pval.perm.low < .001)</code></pre>
<pre><code>[1] 101</code></pre>
<p>use permutated distribution based data with low missing value. more conservative</p>
<pre class="r"><code>which.sig <- pval.perm.low < .001
enrich.sigval <- function(cutoffs, metrics, cyclegenes, allgenes) {
# out <- order(mad.ratio$smash.mad.ratio)
# cutoffs <- c(100, 200, 300)
cycle.rich <- sapply(cutoffs, function(x) {
#which_top <- order(metrics, decreasing = T)[1:x]
sig.cycle <- sum(allgenes[metrics < x] %in% cyclegenes)/sum(metrics < x)
non.cycle <- sum(allgenes[metrics > x] %in% cyclegenes)/sum(metrics > x)
cbind(sum(metrics < x), as.numeric(sum(allgenes[metrics < x] %in% cyclegenes)),
sig.cycle/non.cycle)
})
colnames(cycle.rich) <- cutoffs
rownames(cycle.rich) <- c("nsig.genes", "nsig.genes.cycle", "fold.sig.vs.nonsig.cycle")
cycle.rich
}
enrich.sigval(cutoffs = c(.001, .005, .01), metrics=pval.perm.low,
cyclegenes = macosko$ensembl,
allgenes = rownames(log2cpm.quant))</code></pre>
<pre><code> 0.001 0.005 0.01
nsig.genes 101.00000 476.000000 553.000000
nsig.genes.cycle 54.00000 99.000000 99.000000
fold.sig.vs.nonsig.cycle 12.65925 5.268908 4.502205</code></pre>
<hr />
</div>
<div id="genes-with-the-small-pve" class="section level2">
<h2>Genes with the small PVE</h2>
<pre class="r"><code>out.stats <- data.frame(pve=sapply(fit.quant, "[[", "trend.pve"),
pval.perm=pval.perm.low,
row.names = rownames(log2cpm.quant))
out.stats.ordered <- out.stats[order(out.stats$pve, decreasing = T),]
out.stats.ordered.sig <- out.stats.ordered[out.stats.ordered$pval.perm < .001,]
library(biomaRt)
ensembl <- useMart(biomart = "ensembl", dataset = "hsapiens_gene_ensembl")
symbols <- getBM(attributes = c("hgnc_symbol",'ensembl_gene_id'),
filters = c('ensembl_gene_id'),
values = rownames(out.stats.ordered.sig),
mart = ensembl)
out.stats.ordered.sig$symbols <- symbols$hgnc_symbol[match(rownames(out.stats.ordered.sig),
symbols$ensembl_gene_id)]
out.stats.ordered.sig$symbols[is.na(out.stats.ordered.sig$symbols)] <- rownames(out.stats.ordered.sig)[is.na(out.stats.ordered.sig$symbols)]
sig.genes <- rownames(out.stats.ordered.sig)
par(mfrow=c(4,5))
for (g in 1:20) {
ii.g <- which(rownames(log2cpm.quant) == sig.genes[g])
plot(log2cpm.quant[ii.g,],
main=out.stats.ordered.sig$symbols[g])
points(fit.quant[[ii.g]]$trend.yy, col = "blue", pch=16, cex=.7)
}</code></pre>
<p><img src="figure/npreg-trendfilter-quantile.Rmd/unnamed-chunk-15-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
<div id="output-summary-statistics" class="section level2">
<h2>Output summary statistics</h2>
<pre class="r"><code>saveRDS(out.stats.ordered.sig,
"../output/npreg-trendfilter-quantile.Rmd/out.stats.ordered.sig.rds")
saveRDS(out.stats,
"../output/npreg-trendfilter-quantile.Rmd/quant.stats.rds")
write.table(rownames(out.stats.ordered.sig),
quote = F, col.names = F, row.names = F,
file = "../output/npreg-trendfilter-quantile.Rmd/siggens.txt")</code></pre>
<hr />
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.1 (2017-06-30)
Platform: x86_64-redhat-linux-gnu (64-bit)
Running under: Scientific Linux 7.2 (Nitrogen)
Matrix products: default
BLAS/LAPACK: /usr/lib64/R/lib/libRblas.so
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
attached base packages:
[1] parallel stats graphics grDevices utils datasets methods
[8] base
other attached packages:
[1] biomaRt_2.34.2 genlasso_1.3 igraph_1.2.1
[4] smashr_1.1-0 caTools_1.17.1 data.table_1.10.4-3
[7] Matrix_1.2-10 wavethresh_4.6.8 MASS_7.3-47
[10] ashr_2.2-7 Rcpp_0.12.16 NPCirc_2.0.1
[13] matrixStats_0.53.1 dplyr_0.7.4 Biobase_2.38.0
[16] BiocGenerics_0.24.0 conicfit_1.0.4 geigen_2.1
[19] pracma_2.1.4 circular_0.4-93
loaded via a namespace (and not attached):
[1] httr_1.3.1 bit64_0.9-7 jsonlite_1.5
[4] foreach_1.4.4 shiny_1.0.5 assertthat_0.2.0
[7] stats4_3.4.1 blob_1.1.0 yaml_2.1.18
[10] progress_1.1.2 slam_0.1-42 pillar_1.2.1
[13] RSQLite_2.0 backports_1.1.2 lattice_0.20-35
[16] glue_1.2.0 digest_0.6.15 htmltools_0.3.6
[19] httpuv_1.3.6.2 XML_3.98-1.10 pkgconfig_2.0.1
[22] misc3d_0.8-4 xtable_1.8-2 mvtnorm_1.0-7
[25] git2r_0.21.0 tibble_1.4.2 IRanges_2.12.0
[28] movMF_0.2-2 magrittr_1.5 mime_0.5
[31] memoise_1.1.0 evaluate_0.10.1 doParallel_1.0.11
[34] truncnorm_1.0-8 tools_3.4.1 prettyunits_1.0.2
[37] stringr_1.3.0 S4Vectors_0.16.0 plotrix_3.7
[40] AnnotationDbi_1.40.0 bindrcpp_0.2 compiler_3.4.1
[43] rlang_0.2.0 grid_3.4.1 RCurl_1.95-4.10
[46] iterators_1.0.9 htmlwidgets_1.0 crosstalk_1.0.0
[49] bitops_1.0-6 rmarkdown_1.9 boot_1.3-19
[52] codetools_0.2-15 curl_3.1 DBI_0.8
[55] R6_2.2.2 knitr_1.20 bit_1.1-12
[58] bindr_0.1.1 rprojroot_1.3-2 shape_1.4.4
[61] stringi_1.1.7 pscl_1.5.2 SQUAREM_2017.10-1 </code></pre>
</div>
<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html. This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
MathJax.Hub.Config({
"HTML-CSS": { availableFonts: ["TeX"] }
});
</script>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
