<h1 class="title toc-ignore">Training dataset</h1>
<h4 class="author"><em>Joyce Hsiao</em></h4>

</div>

<div id="TOC">
<ul>
<li><a href="#extract-data-from-the-top-101-genes-identified">Extract data from the top 101 genes identified</a></li>
<li><a href="#supervised-methods">Supervised methods</a><ul>
<li><a href="#results">Results</a></li>
</ul></li>

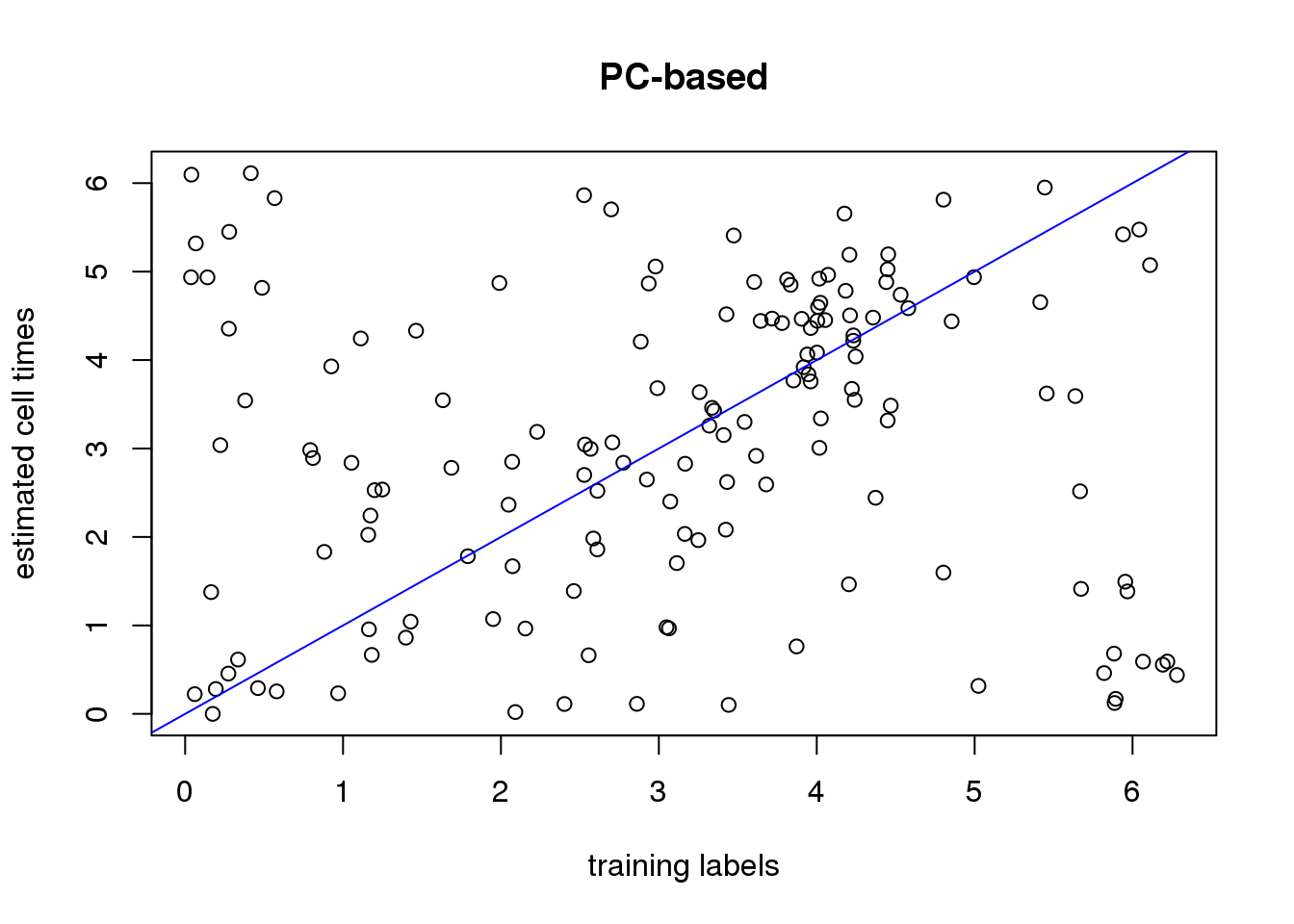

<li><a href="#pcs-of-gene-expression">PCs of gene expression</a></li>
<li><a href="#unsupervsied-methods-fitted-across-then-extract-test-samples">Unsupervsied methods fitted across then extract test samples</a></li>
<li><a href="#unsupervsied-methods-fitt-for-each-test-sample">Unsupervsied methods fitt for each test sample</a></li>
<li><a href="#correlation-between-predicted-times">Correlation between predicted times</a></li>
<li><a href="#session-information">Session information</a></li>
</ul>
</div>

<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-06-24</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
 package git2r is installed -->
<p><strong>Code version:</strong> 6a336e9</p>
<hr />
<div id="extract-data-from-the-top-101-genes-identified" class="section level2">
<h2>Extract data from the top 101 genes identified</h2>
<pre class="r"><code>library(Biobase)
df &lt;- readRDS(file=&quot;../data/eset-final.rds&quot;)
pdata &lt;- pData(df)
fdata &lt;- fData(df)

# select endogeneous genes
counts &lt;- exprs(df)[grep(&quot;ENSG&quot;, rownames(df)), ]

log2cpm.all &lt;- t(log2(1+(10^6)*(t(counts)/pdata$molecules)))

#macosko &lt;- readRDS(&quot;data/cellcycle-genes-previous-studies/rds/macosko-2015.rds&quot;)
counts &lt;- counts[,order(pdata$theta)]
log2cpm.all &lt;- log2cpm.all[,order(pdata$theta)]
pdata &lt;- pdata[order(pdata$theta),]

log2cpm.quant &lt;- readRDS(&quot;../output/npreg-trendfilter-quantile.Rmd/log2cpm.quant.rds&quot;)


# select external validation samples
set.seed(99)
nvalid &lt;- round(ncol(log2cpm.quant)*.15)
ii.valid &lt;- sample(1:ncol(log2cpm.quant), nvalid, replace = F)
ii.nonvalid &lt;- setdiff(1:ncol(log2cpm.quant), ii.valid)

log2cpm.quant.nonvalid &lt;- log2cpm.quant[,ii.nonvalid]
log2cpm.quant.valid &lt;- log2cpm.quant[,ii.valid]
theta &lt;- pdata$theta
names(theta) &lt;- rownames(pdata)

# theta.nonvalid &lt;- theta_moved[ii.nonvalid]
theta.nonvalid &lt;- theta[ii.nonvalid]
theta.valid &lt;- theta[ii.valid]


sig.genes &lt;- readRDS(&quot;../output/npreg-trendfilter-quantile.Rmd/out.stats.ordered.sig.101.rds&quot;)
expr.sig &lt;- log2cpm.quant.nonvalid[rownames(log2cpm.quant.nonvalid) %in% rownames(sig.genes), ]


# get predicted times
# set training samples
source(&quot;../peco/R/primes.R&quot;)
source(&quot;../peco/R/partitionSamples.R&quot;)
parts &lt;- partitionSamples(1:ncol(log2cpm.quant.nonvalid), runs=5,
                          nsize.each = rep(151,5))
part_indices &lt;- parts$partitions</code></pre>
<hr />
</div>
<div id="supervised-methods" class="section level2">
<h2>Supervised methods</h2>
<p>Fitting</p>
<pre class="r"><code>source(&quot;../peco/R/fit.cyclical.R&quot;)
source(&quot;../peco/R/cycle.npreg.R&quot;)
source(&quot;../code/utility.R&quot;)</code></pre>
<pre class="r"><code>fits.nw &lt;- vector(&quot;list&quot;, 5)
for (run in 1:5) {
  print(run)
  # fitting training data
  Y_train &lt;- expr.sig[,part_indices[[run]]$train]
  theta_train &lt;- theta.nonvalid[part_indices[[run]]$train]
  fit.train &lt;- cycle.npreg.insample(Y = Y_train,
                                    theta = theta_train,
                                    ncores=15,
                                    method.trend=&quot;npcirc.nw&quot;)
  # fitting test data
  Y_test &lt;- expr.sig[,part_indices[[run]]$test]
  theta_test &lt;- theta.nonvalid[part_indices[[run]]$test]

  fit.test &lt;- cycle.npreg.outsample(Y_test=Y_test,
                                    sigma_est=fit.train$sigma_est,
                                    funs_est=fit.train$funs_est,
                                    method.grid = &quot;uniform&quot;,
                                    method.trend=&quot;npcirc.nw&quot;,
                                    ncores=15)

  fits.nw[[run]] &lt;- list(fit.train=fit.train,
                      fit.test=fit.test)
}
saveRDS(fits.nw, file = &quot;../output/method-train-classifiers.Rmd/fits.nw.rds&quot;)


fits.trend2 &lt;- vector(&quot;list&quot;, 5)
for (run in 1:5) {
  print(run)
  # fitting training data
  Y_train &lt;- expr.sig[,part_indices[[run]]$train]
  theta_train &lt;- theta.nonvalid[part_indices[[run]]$train]
  fit.train &lt;- cycle.npreg.insample(Y = Y_train,
                                    theta = theta_train,
                                    polyorder=2,
                                    ncores=15,
                                    method.trend=&quot;trendfilter&quot;)
  # fitting test data
  Y_test &lt;- expr.sig[,part_indices[[run]]$test]
  theta_test &lt;- theta.nonvalid[part_indices[[run]]$test]

  fit.test &lt;- cycle.npreg.outsample(Y_test=Y_test,
                                    sigma_est=fit.train$sigma_est,
                                    funs_est=fit.train$funs_est,
                                    method.grid = &quot;uniform&quot;,
                                    method.trend=&quot;trendfilter&quot;,
                                    polyorder=2,
                                    ncores=15)

  fits.trend2[[run]] &lt;- list(fit.train=fit.train,
                      fit.test=fit.test)
}

saveRDS(fits.trend2, file = &quot;../output/method-train-classifiers.Rmd/fits.trend2.rds&quot;)</code></pre>
<p>load results</p>
<pre class="r"><code>fits.nw &lt;- readRDS(file = &quot;../output/method-train-classifiers.Rmd/fits.nw.rds&quot;)
fits.trend2 &lt;- readRDS(file = &quot;../output/method-train-classifiers.Rmd/fits.trend2.rds&quot;)</code></pre>
<div id="results" class="section level3">
<h3>Results</h3>
<p>Compute metrics</p>
<pre class="r"><code>xy_time &lt;- lapply(1:5, function(run) {
   xy &lt;- data.frame(
     ref_time=theta.nonvalid[part_indices[[run]]$test],
     pred_time_nw=fits.nw[[run]]$fit.test$cell_times_est[
       match(names(theta.nonvalid[part_indices[[run]]$test]),
             names(fits.nw[[run]]$fit.test$cell_times_est))],
     pred_time_trend2=fits.trend2[[run]]$fit.test$cell_times_est[
       match(names(theta.nonvalid[part_indices[[run]]$test]),
             names(fits.trend2[[run]]$fit.test$cell_times_est))],
    dapi=pdata$gfp.median.log10sum.adjust[match(names(theta.nonvalid[part_indices[[run]]$test]),
                                                rownames(pdata))])
   return(xy)
})

for (i in 1:5) {
  xy_time[[i]]$diff_time_nw &lt;- pmin(
    abs(xy_time[[i]]$pred_time_nw-xy_time[[i]]$ref_time),
    abs(xy_time[[i]]$pred_time_nw-(2*pi-xy_time[[i]]$ref_time)))
  xy_time[[i]]$diff_time_trend2 &lt;- pmin(
    abs(xy_time[[i]]$pred_time_trend2-xy_time[[i]]$ref_time),
    abs(xy_time[[i]]$pred_time_trend2-(2*pi-xy_time[[i]]$ref_time)))
}

mean(sapply(xy_time, function(x) mean(x$diff_time_trend2))/2/pi)</code></pre>
<pre><code>[1] 0.09360664</code></pre>
<pre class="r"><code>mean(sapply(xy_time, function(x) mean(x$diff_time_nw))/2/pi)</code></pre>
<pre><code>[1] 0.09627132</code></pre>
<p>Circular rank correlation</p>
<pre class="r"><code># source(&quot;../peco/R/cycle.corr.R&quot;)
# corrs.rank &lt;- lapply(1:5, function(i) {
#   data.frame(cbind(nw=rFLRank.IndTestRand(xy_time[[i]]$ref_time, xy_time[[i]]$pred_time_nw),
#         trend2=rFLRank.IndTestRand(xy_time[[i]]$ref_time, xy_time[[i]]$pred_time_trend2)),
#         nw.trend2=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw, xy_time[[i]]$pred_time_trend2))
# })
#
# mean(sapply(1:5, function(i) corrs.rank[[i]]$trend2[1]))
# sd(sapply(1:5, function(i) corrs.rank[[i]]$trend2[1]))
#
# mean(sapply(1:5, function(i) corrs.rank[[i]]$nw[1]))
# sd(sapply(1:5, function(i) corrs.rank[[i]]$nw[1]))
#
# mean(sapply(1:5, function(i) corrs.rank[[i]]$nw.trend2[1]))
# sd(sapply(1:5, function(i) corrs.rank[[i]]$nw.trend2[1]))</code></pre>
<p>PVE</p>
<pre class="r"><code>source(&quot;../peco/R/utility.R&quot;)
nw &lt;- sapply(1:5, function(i) get.pve(with(xy_time[[i]],dapi[order(pred_time_nw)])))
trend2 &lt;- sapply(1:5, function(i) get.pve(with(xy_time[[i]],dapi[order(pred_time_trend2)])))

save(nw, trend2,
     file=&quot;../output/method-train-classifiers.Rmd/pve.methods.rda&quot;)</code></pre>
<pre class="r"><code>load(file=&quot;../output/method-train-classifiers.Rmd/pve.methods.rda&quot;)
cbind(mean(trend2),sd(trend2))</code></pre>
<pre><code>          [,1]       [,2]
[1,] 0.2848364 0.07619723</code></pre>
<pre class="r"><code>cbind(mean(nw),sd(nw))</code></pre>
<pre><code>          [,1]       [,2]
[1,] 0.2176942 0.08988926</code></pre>
<p>plots</p>
<pre class="r"><code>Y_test &lt;- expr.sig[,part_indices[[1]]$test]
theta_test &lt;- theta.nonvalid[part_indices[[1]]$test]

time_nw &lt;- fits.nw[[1]]$fit.test$cell_times_est[match(names(theta_test),
                           names(fits.nw[[1]]$fit.test$cell_times_est))]
time_trend2 &lt;- fits.trend2[[1]]$fit.test$cell_times_est[match(names(theta_test),
                           names(fits.trend2[[1]]$fit.test$cell_times_est))]

par(mfrow=c(1,2))
plot(theta_test, time_nw,
     ylab=&quot;estimated time&quot;,
     xlab=&quot;training labels&quot;, main = &quot;NPcirc.nw&quot;)
abline(0,1, col=&quot;blue&quot;)
plot(theta_test, time_trend2,
     ylab=&quot;estimated time&quot;,
     xlab=&quot;training labels&quot;, main = &quot;trendfilter&quot;)
abline(0,1, col=&quot;blue&quot;)</code></pre>
<p><img src="figure/method-train-classifiers.Rmd/unnamed-chunk-9-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
</div>
<div id="pcs-of-gene-expression" class="section level2">
<h2>PCs of gene expression</h2>
<pre class="r"><code>library(circular)
source(&quot;../peco/R/cycle.corr.R&quot;)

for (i in 1:5) {
  ref_time &lt;- theta.nonvalid[part_indices[[i]]$test]
  expr_sub &lt;- expr.sig[,part_indices[[i]]$test]

  pc_expr &lt;- prcomp(t(expr_sub), scale=T)
  pred_time_pc_expr &lt;- as.numeric(coord2rad(cbind(pc_expr$x[,1],pc_expr$x[,2])))
  #plot(pred_time_pc_expr, ref_time)
  pred_time_pc_expr_shift &lt;- rotation(ref_time, pred_time_pc_expr)$y2shift
  names(pred_time_pc_expr_shift) &lt;- colnames(expr_sub)

  xy_time[[i]]$pred_time_pc &lt;- pred_time_pc_expr_shift
}


for (i in 1:5) {
  xy_time[[i]]$diff_time_pc &lt;- pmin(
  abs(xy_time[[i]]$pred_time_pc-xy_time[[i]]$ref_time),
  abs(xy_time[[i]]$pred_time_pc-(2*pi-xy_time[[i]]$ref_time)))
}

mean(sapply(xy_time, function(x) mean(x$diff_time_pc)))/2/pi</code></pre>
<pre><code>[1] 0.1187757</code></pre>
<pre class="r"><code>source(&quot;../peco/R/utility.R&quot;)
source(&quot;../peco/R/fit.trendfilter.generic.R&quot;)
pc_pve &lt;- sapply(xy_time, function(x) get.pve(x$dapi[order(x$pred_time_pc)]))</code></pre>
<pre><code>Fold 1 ... Fold 2 ... Fold 3 ... Fold 4 ... Fold 5 ...
Fold 1 ... Fold 2 ... Fold 3 ... Fold 4 ... Fold 5 ...
Fold 1 ... Fold 2 ... Fold 3 ... Fold 4 ... Fold 5 ...
Fold 1 ... Fold 2 ... Fold 3 ... Fold 4 ... Fold 5 ...
Fold 1 ... Fold 2 ... Fold 3 ... Fold 4 ... Fold 5 ... </code></pre>
<pre class="r"><code>mean(pc_pve)</code></pre>
<pre><code>[1] 0.1208765</code></pre>
<pre class="r"><code>sd(pc_pve)</code></pre>
<pre><code>[1] 0.06477794</code></pre>
<pre class="r"><code>par(mfrow=c(1,1))
plot(xy_time[[1]]$ref_time,
     xy_time[[1]]$pred_time_pc,
     xlab=&quot;training labels&quot;,
     ylab=&quot;estimated cell times&quot;, main=&quot;PC-based&quot;)
abline(0,1, col=&quot;blue&quot;)</code></pre>
<p><img src="figure/method-train-classifiers.Rmd/unnamed-chunk-10-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
</div>
<div id="unsupervsied-methods-fitted-across-then-extract-test-samples" class="section level2">
<h2>Unsupervsied methods fitted across then extract test samples</h2>
<p>the average prediction error across the test samples way higher than for all. this suggest that we should fit for each test sample at a time</p>
<pre class="r"><code># get predicted times
# set training samples
source(&quot;../peco/R/primes.R&quot;)
source(&quot;../peco/R/partitionSamples.R&quot;)
source(&quot;../peco/R/fit.cyclical.R&quot;)
source(&quot;../peco/R/cycle.npreg.R&quot;)
source(&quot;../peco/R/utility.R&quot;)

# select external validation samples
set.seed(99)
nvalid &lt;- round(ncol(log2cpm.quant)*.15)
ii.valid &lt;- sample(1:ncol(log2cpm.quant), nvalid, replace = F)
ii.nonvalid &lt;- setdiff(1:ncol(log2cpm.quant), ii.valid)

log2cpm.quant.nonvalid &lt;- log2cpm.quant[,ii.nonvalid]
log2cpm.quant.valid &lt;- log2cpm.quant[,ii.valid]
theta &lt;- pdata$theta
names(theta) &lt;- rownames(pdata)

# theta.nonvalid &lt;- theta_moved[ii.nonvalid]
theta.nonvalid &lt;- theta[ii.nonvalid]
theta.valid &lt;- theta[ii.valid]

sig.genes &lt;- readRDS(&quot;../output/npreg-trendfilter-quantile.Rmd/out.stats.ordered.sig.101.rds&quot;)
expr.sig &lt;- log2cpm.quant.nonvalid[rownames(log2cpm.quant.nonvalid) %in% rownames(sig.genes), ]</code></pre>
<p>Fitting</p>
<pre class="r"><code>source(&quot;../peco/R/unsupervised.R&quot;)
source(&quot;../peco/R/cycle.npreg.R&quot;)
source(&quot;../peco/R/fit.cyclical.R&quot;)

theta_initial=initialize_grids(expr.sig, method.grid=&quot;pca&quot;)

### npcirc.nw
fit.nw.unsup &lt;- cycle.npreg.unsupervised(Y=expr.sig, theta=theta_initial,
                         ncores=15,
                         method.trend=&quot;npcirc.nw&quot;,
                         maxiter=30, verbose=TRUE, tol=1)
fit.nw.unsup$ref_time &lt;- theta_true
fit.nw.unsup$cell_times_est_shift &lt;- with(fit.nw.unsup,
  rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                    names(ref_time))])$y2shift)
fit.nw.unsup$diff_time &lt;- with(fit.nw.unsup, pmin(
    abs(cell_times_est_shift-ref_time),
    abs(cell_times_est_shift-(2*pi-ref_time))))
saveRDS(fit.nw.unsup, &quot;../output/method-train-classifiers.Rmd/fit.nw.unsup.rds&quot; )


### bspline
fit.bspline.unsup &lt;- cycle.npreg.unsupervised(Y=expr.sig, theta=theta_initial,
                         ncores=15,
                         method.trend=&quot;bspline&quot;,
                         maxiter=30, verbose=TRUE, tol=1)
fit.bspline.unsup$ref_time &lt;- theta_true
fit.bspline.unsup$cell_times_est_shift &lt;- with(fit.bspline.unsup,
   rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                           names(ref_time))])$y2shift)
fit.bspline.unsup$diff_time &lt;- with(fit.bspline.unsup,
          pmin(abs(cell_times_est_shift-ref_time),
               abs(cell_times_est_shift-(2*pi-ref_time))))
saveRDS(fit.bspline.unsup,
        &quot;../output/method-train-classifiers.Rmd/fit.bspline.unsup.rds&quot; )

### loess
fit.loess.unsup &lt;- cycle.npreg.unsupervised(Y=expr.sig, theta=theta_initial,
                         ncores=15,
                         method.trend=&quot;loess&quot;,
                         maxiter=30, verbose=TRUE, tol=1)
fit.loess.unsup$ref_time &lt;- theta_true
fit.loess.unsup$cell_times_est_shift &lt;- with(fit.loess.unsup,
   rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                           names(ref_time))])$y2shift)
fit.loess.unsup$diff_time &lt;- with(fit.loess.unsup,
          pmin(abs(cell_times_est_shift-ref_time),
               abs(cell_times_est_shift-(2*pi-ref_time))))
saveRDS(fit.loess.unsup,
        &quot;../output/method-train-classifiers.Rmd/fit.loess.unsup.rds&quot; )


### trendfilter
fit.trend2.unsup &lt;- cycle.npreg.unsupervised(Y=expr.sig, theta=theta_initial,
                         ncores=15,
                         method.trend=&quot;trendfilter&quot;,
                         polyorder=2,
                         maxiter=30, verbose=TRUE, tol=1)
fit.trend2.unsup$ref_time &lt;- theta_true
fit.trend2.unsup$cell_times_est_shift &lt;- with(fit.trend2.unsup,
   rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                           names(ref_time))])$y2shift)
fit.trend2.unsup$diff_time &lt;- with(fit.trend2.unsup,
          pmin(abs(cell_times_est_shift-ref_time),
               abs(cell_times_est_shift-(2*pi-ref_time))))
saveRDS(fit.trend2.unsup, &quot;../output/method-train-classifiers.Rmd/fit.trend2.unsup.rds&quot; )</code></pre>
<pre class="r"><code>fit.nw.unsup &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.nw.unsup.rds&quot;)
fit.trend2.unsup &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.trend2.unsup.rds&quot;)
fit.bspline.unsup &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.bspline.unsup.rds&quot;)
fit.loess.unsup &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.loess.unsup.rds&quot;)


xy_time &lt;- lapply(1:5, function(i) {
  data.frame(ref_time=theta.nonvalid[match(names(theta.nonvalid[part_indices[[i]]$test]),
                                            colnames(expr.sig))],
             pred_time_nw=fit.nw.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.nw.unsup$cell_times_est_shift))],
             pred_time_trend2=fit.trend2.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.trend2.unsup$cell_times_est_shift))],
             pred_time_bspline=fit.bspline.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.bspline.unsup$cell_times_est_shift))],
             pred_time_loess=fit.loess.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.loess.unsup$cell_times_est_shift))],
             diff_time_nw=fit.nw.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.nw.unsup$diff_time))],
             diff_time_trend2=fit.trend2.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.trend2.unsup$diff_time))],
             diff_time_bspline=fit.bspline.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.bspline.unsup$diff_time))],
             diff_time_loess=fit.loess.unsup$cell_times_est_shift[
                     match(names(theta.nonvalid[part_indices[[i]]$test]),
                           names(fit.loess.unsup$diff_time))],
             dapi=pdata$dapi.median.log10sum.adjust[
                    match(names(theta.nonvalid[part_indices[[i]]$test]),rownames(pdata))]) })


mean(sapply(1:5, function(i) mean(xy_time[[i]]$diff_time_nw)))/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 1.109325</code></pre>
<pre class="r"><code>mean(sapply(1:5, function(i) mean(xy_time[[i]]$diff_time_trend2)))/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 0.6886358</code></pre>
<pre class="r"><code>mean(sapply(1:5, function(i) mean(xy_time[[i]]$diff_time_bspline)))/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 1.132689</code></pre>
<pre class="r"><code>mean(sapply(1:5, function(i) mean(xy_time[[i]]$diff_time_loess)))/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 1.116159</code></pre>
<pre class="r"><code>mean(fit.nw.unsup$diff_time)/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 0.262197</code></pre>
<pre class="r"><code>mean(fit.trend2.unsup$diff_time)/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 0.3221262</code></pre>
<pre class="r"><code>mean(fit.bspline.unsup$diff_time)/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 0.2598507</code></pre>
<pre class="r"><code>mean(fit.loess.unsup$diff_time)/(2*pi)/(pi/(2*pi))</code></pre>
<pre><code>[1] 0.3217046</code></pre>
<hr />
</div>
<div id="unsupervsied-methods-fitt-for-each-test-sample" class="section level2">
<h2>Unsupervsied methods fitt for each test sample</h2>
<pre class="r"><code># get predicted times
# set training samples
source(&quot;../peco/R/primes.R&quot;)
source(&quot;../peco/R/partitionSamples.R&quot;)
source(&quot;../peco/R/fit.cyclical.R&quot;)
source(&quot;../peco/R/cycle.npreg.R&quot;)
source(&quot;../peco/R/utility.R&quot;)

# select external validation samples
set.seed(99)
nvalid &lt;- round(ncol(log2cpm.quant)*.15)
ii.valid &lt;- sample(1:ncol(log2cpm.quant), nvalid, replace = F)
ii.nonvalid &lt;- setdiff(1:ncol(log2cpm.quant), ii.valid)

log2cpm.quant.nonvalid &lt;- log2cpm.quant[,ii.nonvalid]
log2cpm.quant.valid &lt;- log2cpm.quant[,ii.valid]
theta &lt;- pdata$theta
names(theta) &lt;- rownames(pdata)

# theta.nonvalid &lt;- theta_moved[ii.nonvalid]
theta.nonvalid &lt;- theta[ii.nonvalid]
theta.valid &lt;- theta[ii.valid]

sig.genes &lt;- readRDS(&quot;../output/npreg-trendfilter-quantile.Rmd/out.stats.ordered.sig.101.rds&quot;)
expr.sig &lt;- log2cpm.quant.nonvalid[rownames(log2cpm.quant.nonvalid) %in% rownames(sig.genes), ]</code></pre>
<p>Fitting</p>
<pre class="r"><code>source(&quot;../peco/R/unsupervised.R&quot;)
source(&quot;../peco/R/cycle.npreg.R&quot;)
source(&quot;../peco/R/fit.cyclical.R&quot;)
source(&quot;../peco/R/cycle.corr.R&quot;)


fit.nw.unsup.split &lt;- vector(&quot;list&quot;, 5)
for (run in 1:5) {
  print(run)
  # fitting training data
  # fitting test data
  theta_test &lt;- theta.nonvalid[part_indices[[run]]$test]

  Y_test &lt;- expr.sig[,part_indices[[run]]$test]
  theta_initial &lt;- initialize_grids(Y_test, method.grid=&quot;pca&quot;)
  names(theta_initial) &lt;- colnames(Y_test)

  fit.nw.unsup.split[[run]] &lt;- cycle.npreg.unsupervised(Y=Y_test, theta=theta_initial,
                           ncores=15,
                           method.trend=&quot;npcirc.nw&quot;,
                           maxiter=30, verbose=TRUE, tol=1)
  fit.nw.unsup.split[[run]]$ref_time &lt;- theta_test
  fit.nw.unsup.split[[run]]$cell_times_est_shift &lt;- with(fit.nw.unsup.split[[run]],
    rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                      names(ref_time))])$y2shift)
  fit.nw.unsup.split[[run]]$diff_time &lt;- with(fit.nw.unsup.split[[run]],
      pmin(abs(cell_times_est_shift-ref_time),
           abs(cell_times_est_shift-(2*pi-ref_time))))
}
saveRDS(fit.nw.unsup.split, &quot;../output/method-train-classifiers.Rmd/fit.nw.unsup.split.rds&quot; )


### bspline
fit.bspline.unsup.split &lt;- vector(&quot;list&quot;, 5)
for (run in 1:5) {
  print(run)
  # fitting training data
  # fitting test data
  theta_test &lt;- theta.nonvalid[part_indices[[run]]$test]
  Y_test &lt;- expr.sig[,part_indices[[run]]$test]
  theta_initial &lt;- initialize_grids(Y_test, method.grid=&quot;pca&quot;)
  names(theta_initial) &lt;- colnames(Y_test)

  fit.bspline.unsup.split[[run]] &lt;- cycle.npreg.unsupervised(Y=Y_test, theta=theta_initial,
                           ncores=15,
                           method.trend=&quot;bspline&quot;,
                           maxiter=30, verbose=TRUE, tol=1)
  fit.bspline.unsup.split[[run]]$ref_time &lt;- theta_test
  fit.bspline.unsup.split[[run]]$cell_times_est_shift &lt;- with(fit.bspline.unsup.split[[run]],
     rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                             names(ref_time))])$y2shift)
  fit.bspline.unsup.split[[run]]$diff_time &lt;- with(fit.bspline.unsup.split[[run]],
            pmin(abs(cell_times_est_shift-ref_time),
                 abs(cell_times_est_shift-(2*pi-ref_time))))
}
saveRDS(fit.bspline.unsup.split,
        &quot;../output/method-train-classifiers.Rmd/fit.bspline.unsup.split.rds&quot;)


### loess

fit.loess.unsup.split &lt;- vector(&quot;list&quot;, 5)
for (run in 1:5) {
  print(run)
  # fitting training data
  # fitting test data
  theta_test &lt;- theta.nonvalid[part_indices[[run]]$test]
  Y_test &lt;- expr.sig[,part_indices[[run]]$test]
  theta_initial &lt;- initialize_grids(Y_test, method.grid=&quot;pca&quot;)
  names(theta_initial) &lt;- colnames(Y_test)

  fit.loess.unsup.split[[run]] &lt;- cycle.npreg.unsupervised(Y=Y_test, theta=theta_initial,
                           ncores=15,
                           method.trend=&quot;loess&quot;,
                           maxiter=30, verbose=TRUE, tol=1)
  fit.loess.unsup.split[[run]]$ref_time &lt;- theta_test
  fit.loess.unsup.split[[run]]$cell_times_est_shift &lt;- with(fit.loess.unsup.split[[run]],
     rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                             names(ref_time))])$y2shift)
  fit.loess.unsup.split[[run]]$diff_time &lt;- with(fit.loess.unsup.split[[run]],
            pmin(abs(cell_times_est_shift-ref_time),
                 abs(cell_times_est_shift-(2*pi-ref_time))))
}
saveRDS(fit.loess.unsup.split,
        &quot;../output/method-train-classifiers.Rmd/fit.loess.unsup.split.rds&quot;)





fit.trend2.unsup.split &lt;- vector(&quot;list&quot;, 5)
for (run in 1:5) {
  print(run)
  # fitting training data
  # fitting test data
  theta_test &lt;- theta.nonvalid[part_indices[[run]]$test]
  Y_test &lt;- expr.sig[,part_indices[[run]]$test]
  theta_initial &lt;- initialize_grids(Y_test, method.grid=&quot;pca&quot;)
  names(theta_initial) &lt;- colnames(Y_test)

  fit.trend2.unsup.split[[run]] &lt;- cycle.npreg.unsupervised(Y=Y_test, theta=theta_initial,
                           ncores=15,
                           method.trend=&quot;trendfilter&quot;,
                           polyorder=2,
                           maxiter=30, verbose=TRUE, tol=1)
  fit.trend2.unsup.split[[run]]$ref_time &lt;- theta_test
  fit.trend2.unsup.split[[run]]$cell_times_est_shift &lt;- with(fit.trend2.unsup.split[[run]],
     rotation(ref_time, cell_times_est[match(names(cell_times_est),
                                             names(ref_time))])$y2shift)
  fit.trend2.unsup.split[[run]]$diff_time &lt;- with(fit.trend2.unsup.split[[run]],
            pmin(abs(cell_times_est_shift-ref_time),
                 abs(cell_times_est_shift-(2*pi-ref_time))))
}
saveRDS(fit.trend2.unsup.split,
        &quot;../output/method-train-classifiers.Rmd/fit.trend2.unsup.split.rds&quot;)</code></pre>
<pre class="r"><code>fit.nw.unsup.split &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.nw.unsup.split.rds&quot;)
fit.trend2.unsup.split &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.trend2.unsup.split.rds&quot;)
fit.bspline.unsup.split &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.bspline.unsup.split.rds&quot;)
fit.loess.unsup.split &lt;- readRDS(&quot;../output/method-train-classifiers.Rmd/fit.loess.unsup.split.rds&quot;)


xy_time_unsup &lt;- lapply(1:5, function(i) {
  data.frame(ref_time=fit.nw.unsup.split[[i]]$ref_time,
             pred_time_nw=with(fit.nw.unsup.split[[i]], cell_times_est_shift[
                     match(names(ref_time),names(cell_times_est_shift))]),
             pred_time_bspline=with(fit.bspline.unsup.split[[i]], cell_times_est_shift[
                     match(names(ref_time),names(cell_times_est_shift))]),
             pred_time_loess=with(fit.loess.unsup.split[[i]], cell_times_est_shift[
                     match(names(ref_time),names(cell_times_est_shift))]),
             pred_time_trend2=with(fit.trend2.unsup.split[[i]], cell_times_est_shift[
                     match(names(ref_time),names(cell_times_est_shift))]),
             diff_time_nw=with(fit.nw.unsup.split[[i]], diff_time[
                     match(names(ref_time),names(diff_time))]),
             diff_time_bspline=with(fit.bspline.unsup.split[[i]], diff_time[
                     match(names(ref_time),names(diff_time))]),
             diff_time_loess=with(fit.loess.unsup.split[[i]], diff_time[
                     match(names(ref_time),names(diff_time))]),
             diff_time_trend2=with(fit.trend2.unsup.split[[i]], diff_time[
                     match(names(ref_time),names(diff_time))]),
             dapi=pdata$dapi.median.log10sum.adjust[
                    match(names(fit.nw.unsup.split[[i]]$ref_time),rownames(pdata))] ) })


mean(sapply(1:5, function(i) mean(xy_time_unsup[[i]]$diff_time_trend2)))/(2*pi)</code></pre>
<pre><code>[1] 0.1447239</code></pre>
<pre class="r"><code>mean(sapply(1:5, function(i) mean(xy_time_unsup[[i]]$diff_time_nw)))/(2*pi)</code></pre>
<pre><code>[1] 0.1209679</code></pre>
<pre class="r"><code>mean(sapply(1:5, function(i) mean(xy_time_unsup[[i]]$diff_time_bspline)))/(2*pi)</code></pre>
<pre><code>[1] 0.1200142</code></pre>
<pre class="r"><code>mean(sapply(1:5, function(i) mean(xy_time_unsup[[i]]$diff_time_loess)))/(2*pi)</code></pre>
<pre><code>[1] 0.1536686</code></pre>
<p>PVE</p>
<pre class="r"><code>source(&quot;../peco/R/utility.R&quot;)
pve.split.nw &lt;- sapply(1:5, function(i) get.pve(with(xy_time_unsup[[i]],
                                                     dapi[order(pred_time_nw)])))
pve.split.trend2 &lt;- sapply(1:5, function(i) get.pve(with(xy_time_unsup[[i]],
                                                         dapi[order(pred_time_trend2)])))
pve.split.bspline &lt;- sapply(1:5, function(i) get.pve(with(xy_time_unsup[[i]],
                                                          dapi[order(pred_time_bspline)])))
pve.split.loess &lt;- sapply(1:5, function(i) get.pve(with(xy_time_unsup[[i]],
                                                        dapi[order(pred_time_loess)])))

save(pve.split.nw, pve.split.trend2, pve.split.bspline, pve.split.loess,
     file=&quot;../output/method-train-classifiers.Rmd/pve.methods.unsupervised.split.rda&quot;)</code></pre>
<pre class="r"><code>load(file=&quot;../output/method-train-classifiers.Rmd/pve.methods.unsupervised.split.rda&quot;)
c(mean(pve.split.nw),
  mean(pve.split.trend2),
  mean(pve.split.bspline),
  mean(pve.split.loess))</code></pre>
<pre><code>[1] 0.09505480 0.06449484 0.08605530 0.14442381</code></pre>
<pre class="r"><code>c(sd(pve.split.nw),
  sd(pve.split.trend2),
  sd(pve.split.bspline),
  sd(pve.split.loess))</code></pre>
<pre><code>[1] 0.05840516 0.07380083 0.06332662 0.10388520</code></pre>
<hr />
</div>
<div id="correlation-between-predicted-times" class="section level2">
<h2>Correlation between predicted times</h2>
<pre class="r"><code>source(&quot;../peco/R/cycle.corr.R&quot;)
corrs_rank &lt;- lapply(1:5, function(i) {
  data.frame(cbind(
        nw=rFLRank.IndTestRand(xy_time[[i]]$ref_time, xy_time[[i]]$pred_time_nw),
        trend2=rFLRank.IndTestRand(xy_time[[i]]$ref_time, xy_time[[i]]$pred_time_trend2),
        pc=rFLRank.IndTestRand(xy_time[[i]]$ref_time, xy_time[[i]]$pred_time_pc),
        nwunsup=rFLRank.IndTestRand(xy_time[[i]]$ref_time,
                                    xy_time_unsup[[i]]$pred_time_nw),
        trend2unsup=rFLRank.IndTestRand(xy_time[[i]]$ref_time,
                                        xy_time_unsup[[i]]$pred_time_trend2),
        bsplineunsup=rFLRank.IndTestRand(xy_time[[i]]$ref_time,
                                         xy_time_unsup[[i]]$pred_time_bspline),
        loessunsup=rFLRank.IndTestRand(xy_time[[i]]$ref_time,
                                       xy_time_unsup[[i]]$pred_time_loess),
        nw.trend2=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw,
                                      xy_time[[i]]$pred_time_trend2),
        nw.pc=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw,
                                  xy_time[[i]]$pred_time_pc),
        nw.nwunsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw,
                                       xy_time_unsup [[i]]$pred_time_nw),
        nw.trend2unsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw,
                                           xy_time_unsup [[i]]$pred_time_trend2),
        nw.bsplineunsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw,
                                            xy_time_unsup [[i]]$pred_time_bspline),
        nw.loessunsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_nw,
                                          xy_time_unsup [[i]]$pred_time_loess),
        trend2.pc=rFLRank.IndTestRand(xy_time[[i]]$pred_time_trend2,
                                      xy_time[[i]]$pred_time_pc),
        trend2.nwunsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_trend2,
                                       xy_time_unsup[[i]]$pred_time_nw),
        trend2.trend2unsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_trend2,
                                           xy_time_unsup[[i]]$pred_time_trend2),
        trend2.bsplineunsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_trend2,
                                            xy_time_unsup[[i]]$pred_time_bspline),
        trend2.loessunsup=rFLRank.IndTestRand(xy_time[[i]]$pred_time_trend2,
                                          xy_time_unsup[[i]]$pred_time_loess) ))
})
saveRDS(corrs_rank, &quot;../output/method-train-classifiers.Rmd/corrs_rank.rds&quot;)</code></pre>
<hr />
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.3 (2017-11-30)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.4 (Nitrogen)

Matrix products: default
BLAS/LAPACK: /software/openblas-0.2.19-el7-x86_64/lib/libopenblas_haswellp-r0.2.19.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] genlasso_1.3        igraph_1.1.2        Matrix_1.2-14
[4] MASS_7.3-50         circular_0.4-93     Biobase_2.38.0
[7] BiocGenerics_0.24.0

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.17    lattice_0.20-35 mvtnorm_1.0-7   digest_0.6.15
 [5] rprojroot_1.3-2 grid_3.4.3      backports_1.1.2 git2r_0.21.0
 [9] magrittr_1.5    evaluate_0.10.1 stringi_1.1.6   boot_1.3-20
[13] rmarkdown_1.8   tools_3.4.3     stringr_1.2.0   yaml_2.1.16
[17] compiler_3.4.3  pkgconfig_2.0.1 htmltools_0.3.6 knitr_1.18     </code></pre>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->



</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
