Simulation study of circular-linear correlation

Notations

Let \(X\) be a linear random variable, and \(\Theta\) be a circular random variables. We observe data \((x_1, \theta_1), \dots, (x_n, \theta_n)\) on \((X, \Theta)\). In our case, \(n\) denotes cells, \(x_i\) denotes log2 gene expression (CPM) of a selected gene, and \(theta_i\) denotes the angle of cell \(i\) on the unit circle formed by GFP and RFP.

\(\Theta\) measures directions in 2-dimensions and can be represented as unit vectors \(\boldsymbol{u}\) in the plane, i.e., as points on the sphere \(S^{p-1} = \{ \boldsymbol{u}: \boldsymbol{u}^T \boldsymbol{u} = 1 \}\), the (p-1)-dimensional sphere with unit radius and centre at the origin, where \(p=2\). \(\boldsymbol{u}\) is thus defined by

\[ \boldsymbol{u} = (cos\,\Theta, sin\,\Theta)^T \] This definition of \(\Theta\) is also known as the embedding approach, where the sphere \(S^{p-1}\) is regarded as a subset of \(\mathbb{R}^p\).

Approach

We consider a correlation coefficient based on the embedding approach. This approach was independently introduced by Mardia (1979) and Johnson and Wehrly (1977). The measure of dependence between \(X\) and \(\boldsymbol{u} = (cos \,\theta, sin\,\theta)^T\) is the sample multiple correlation coefficient \(R_{x\theta}\) of \(X\) and \(u\), i.e., the maximum sample correlation between \(X\) and linear functions of \(\boldsymbol{u}\). The sample multiple correlation coefficient is given by:

\[ R^2_{x\theta} = \frac{r^2_{xc} + r^2_{xs} - 2r_{xc}r_{xs}r_{cs}}{1-r^2_{cs}} \] where \(r_{xc} = corr(x, cos\,\theta)\), \(r_{xs} = corr(x, sin\,\theta)\), \(\r_{cs} = corr(cos \,\theta, sin \,\theta)\) are the sample correlation coefficients. If \(X\) and \(\Theta\) are indepenent and \(X\) is normally distributed then under the null hypothesis of zero population multiple correlation coefficient,

\[ \frac{(n-3)R^2_{x\theta}}{1-R^2_{x\theta}} \sim F_{2,n-3} \]

\(R^2_{x\theta}\) ranges between zero and one, the greater its value the stronger the association between \(X\) and \(\Theta\). \(R^2_{x\theta}\) is invariant under a change of scale and origin of \(X\) as well as under a change of zero or sense of direction for \(\Theta\).

Reference:

Mardia and Jupp (2000). “Correlation and Regression”. Directional Statistics. West Sussex, England: John Wiley & Sons Ltd.

Mardia, Kent, and Bibby. (1979). Multivariate analysis. Academic Press, London.

Basic properties

The sample multiple correlation for ciruclar-linear association is a function of the sample pearson’s correlation between cos(theta) and sin(theta), correlation between data vector and cos(theta), and correlation between data vector and sin(theta). So when \(r_{cs}\) is small, \(R^2_{x\tehta}\) is large when either \(r^2_{xc}\) or \(r^2_{xs}\) is large. When \(r_{cs}\) is large, \(R^2_{x\theta}\) approaches zero.

library(circular)
library(Rfast)
set.seed(7)
theta <- rvonmises(50, pi, 100, rads = TRUE)
cor(cos(theta), sin(theta))

[1] -0.3499888

x <- 20*rnorm(50, 3*pi/4, 1/10)
cor(x, cos(theta))^2; cor(x, sin(theta))^2

[1] 0.0004284577

[1] 0.006214955

sqrt(circlin.cor(theta, x))

      R-squared  p-value
[1,] 0.07917757 0.863013

Get a sense of parameters needed for simulations.

set.seed(7)
theta <- rvonmises(50, 2, 20, rads = TRUE)
tau <- runif(300, -25, 5)
set.seed(7)
x <- t(sapply(1:length(tau), function(i) {
  tau[i]*cos(theta-15) + rnorm(50) }))
r.squared <- apply(x, 1, function(x) circlin.cor(theta, x)[1])
summary(r.squared)

     Min.   1st Qu.    Median      Mean   3rd Qu.      Max.
0.0002146 0.1658601 0.5318962 0.4722308 0.7447599 0.9067895

which.max(r.squared)

[1] 115

tau[75]

[1] -24.71072

which(r.squared < .4 & r.squared > .3)

 [1]   1  11  21  34  44  57  67  68  84 136 167 194 208 284 285

tau[19]

[1] -8.031457

which.min(r.squared)

[1] 13

tau[46]

[1] -0.1493445

# strong r.squared
set.seed(7)
theta <- rvonmises(50, 2, 20, rads = TRUE)
set.seed(7)
x.1 <- (-24.7)*cos(theta-15) + rnorm(50)
cors.1 <- circlin.cor(theta, x.1)
cors.1

     R-squared     p-value
[1,] 0.8799178 8.42342e-29

set.seed(19)
x.2 <- (-9.8)*cos(theta-15) + rnorm(50)
cors.2 <- circlin.cor(theta, x.2)
cors.2

     R-squared      p-value
[1,] 0.5189844 1.837546e-12

set.seed(17)
x.3 <- 6*cos(theta-15) + rnorm(50)
cors.3 <- circlin.cor(theta, x.3)
cors.3

     R-squared    p-value
[1,] 0.1344775 0.00173116

library(circular)

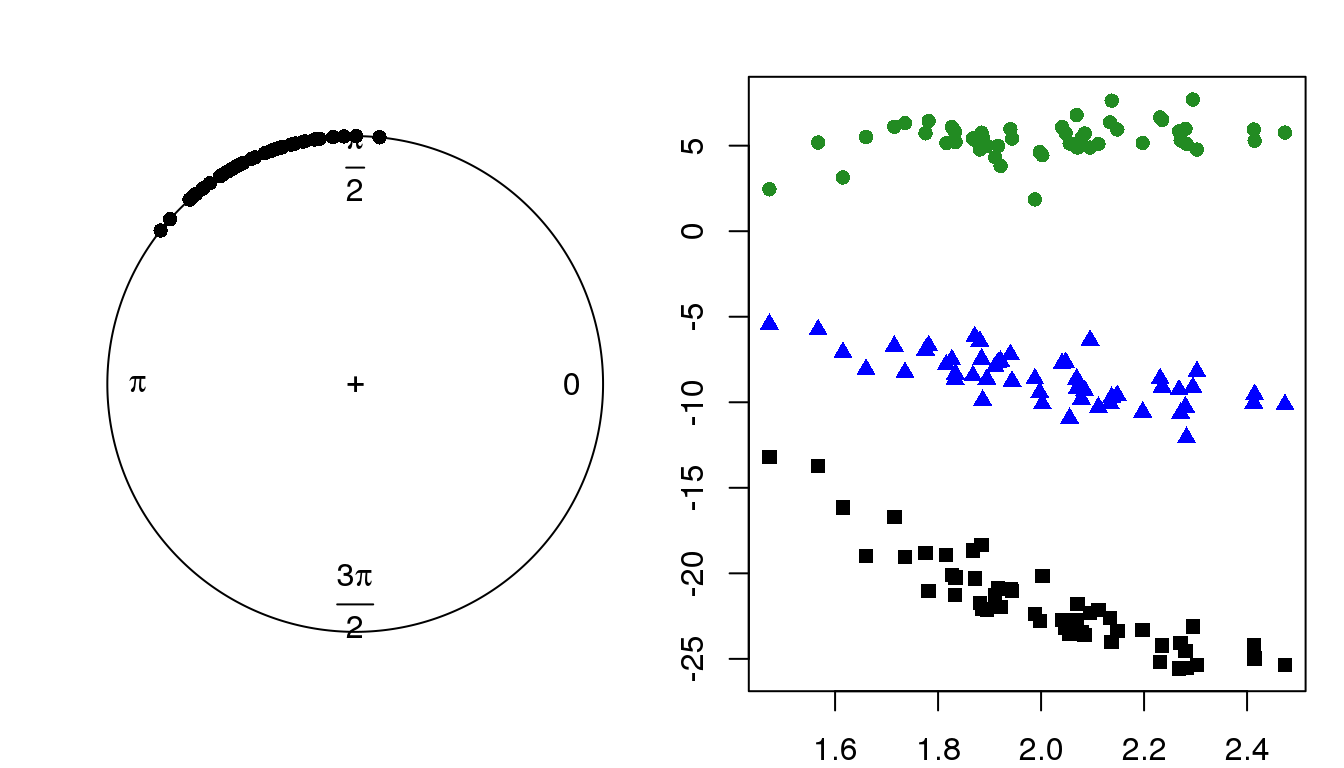

par(mfrow=c(1,2), mar = c(2,2,2,1))
plot(circular(theta))
lims <- range(c(x.1,x.2,x.3))
plot(x=theta, y = x.1, pch = 15, col = "black", ylim = lims,
     ylab = "X, linear variable values",
     xlab = "Theta, VM(2,20)")
points(x=theta, y = x.2, pch = 17, col = "blue")
points(x=theta, y = x.3, pch = 16, col = "forestgreen")

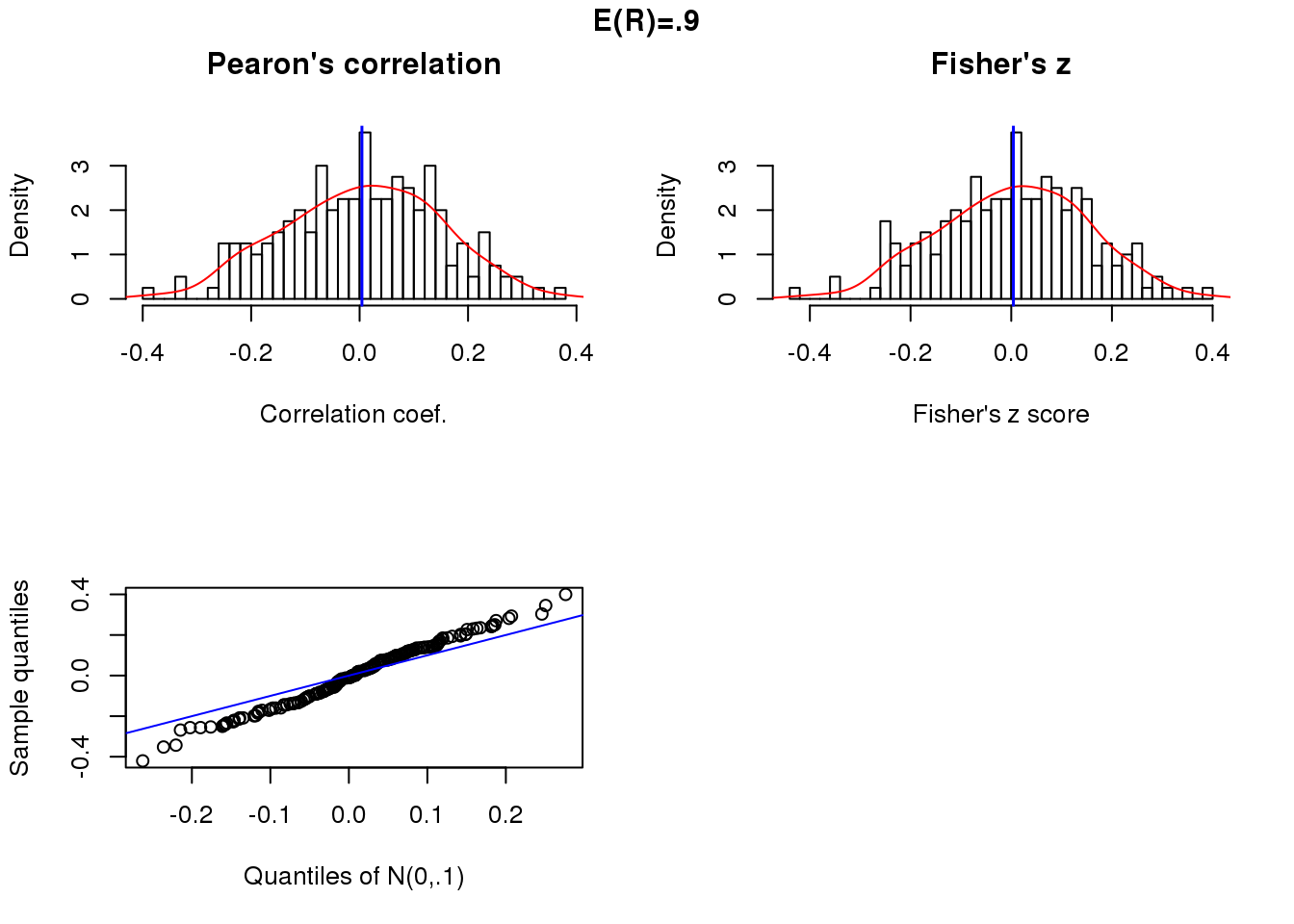

Fisher’s z transformation

Moderate association

x.cl <- sweep(matrix(rnorm(50*200), ncol=50), 2,
                    STATS = (-8)*cos(theta-15), "+")
r.squared.cl <- apply(x.cl, 1, function(x) circlin.cor(theta, x)[1])

par(mfrow=c(2,2))
hist(sqrt(r.squared.cl), nclass = 50, prob = TRUE,
     main = "sqrt(multiple correlation)",
     xlab = "squared multiple correlation")
lines(density(sqrt(r.squared.cl)), col = "red")
abline(v=mean(sqrt(r.squared.cl)), col = "blue", lwd=1.5)

trans.cl <- 0.5* log ((1+ sqrt(r.squared.cl))/(1- sqrt(r.squared.cl)))
trans.cl.mean <- 0.5* log ((1+ mean(sqrt(r.squared.cl)))/(1- mean(sqrt(r.squared.cl))))
hist(trans.cl, nclass=50, prob = TRUE,
     main = "Fisher's z", xlab = "Fisher's z")
lines(density(trans.cl), col = "red")
abline(v=trans.cl.mean, col="blue", lwd=1.5)

qqplot(rnorm(length(trans.cl), trans.cl.mean, 1/sqrt(50-3)), trans.cl,
       xlab = "Quantiles of N(0, 1/sqrt(47))",
       ylab = "Sample quantiles")
abline(0,1, col = "blue")

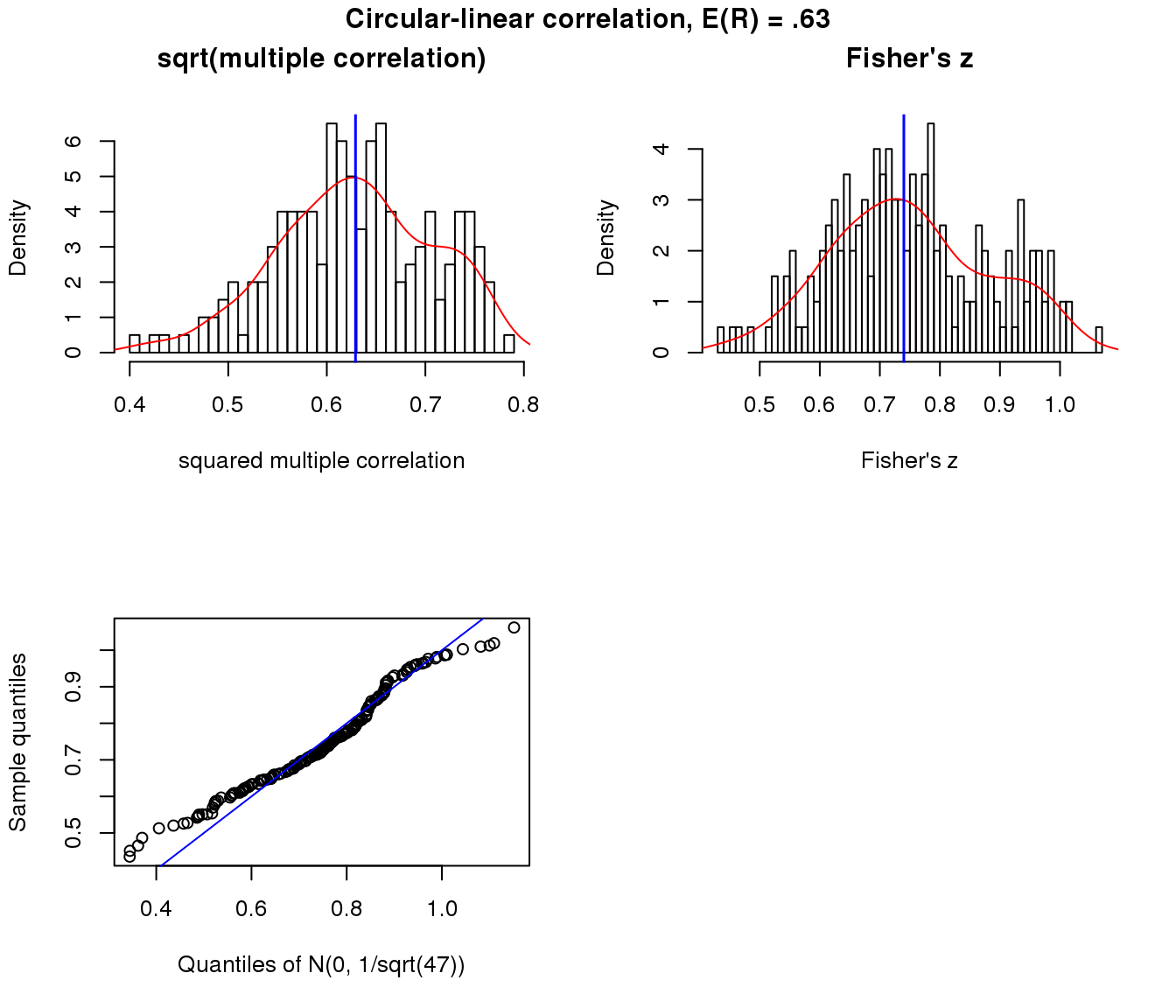

title("Circular-linear correlation, E(R) = .63", outer = TRUE, line = -1)

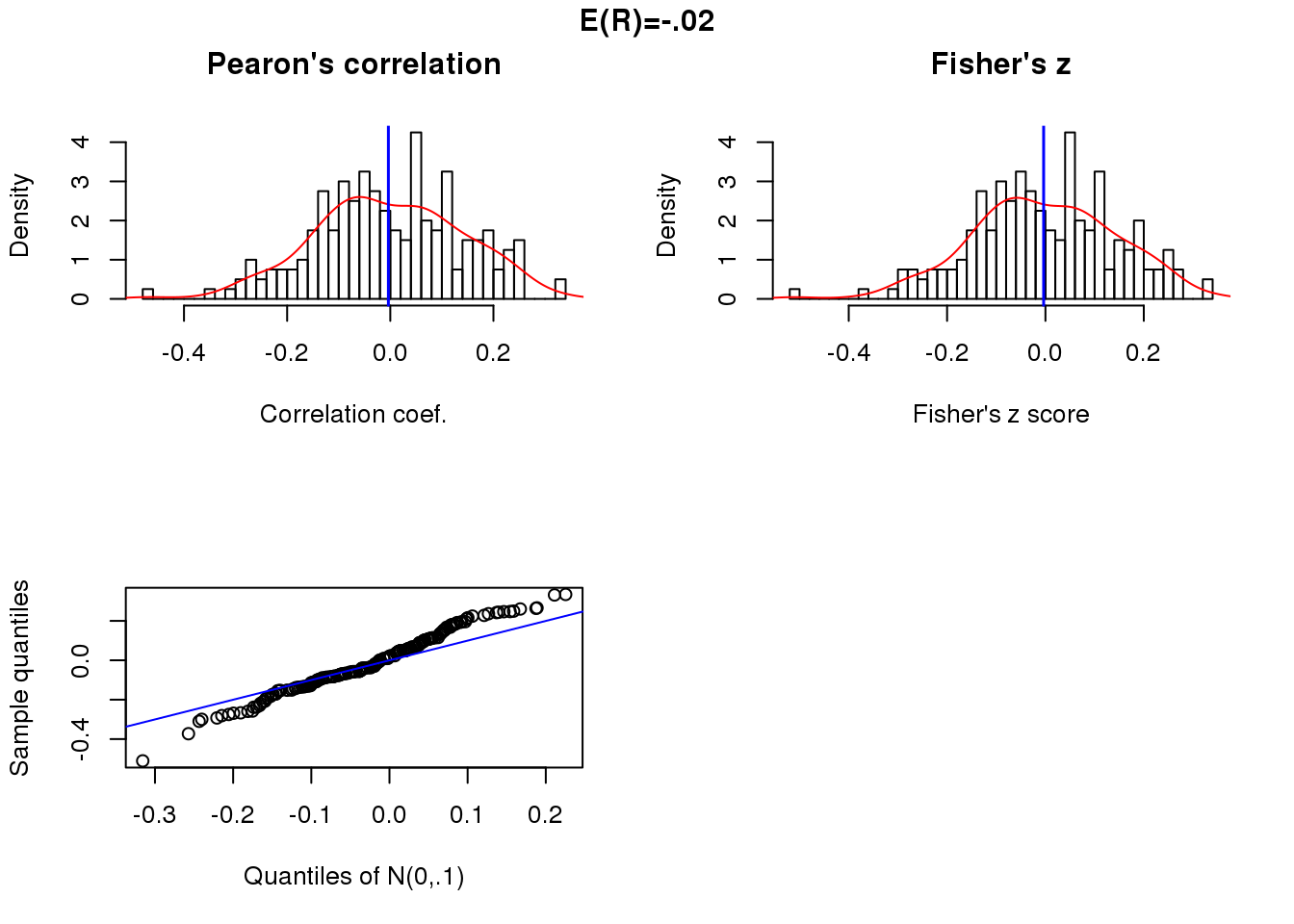

Weak association

x.cl.null <- sweep(matrix(rnorm(50*200), ncol=50), 2,
                    STATS = (-.15)*cos(theta-15), "+")
r.squared.cl.null <- apply(x.cl.null, 1, function(x) circlin.cor(theta, x)[1])
summary(sqrt(r.squared.cl.null))

    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
0.003026 0.111656 0.167794 0.176677 0.242834 0.482664

par(mfrow=c(2,2))
hist(sqrt(r.squared.cl.null), nclass = 50, prob = TRUE,
     main = "sqrt(multiple correlation)",
     xlab = "squared multiple correlation")
lines(density(sqrt(r.squared.cl.null)), col = "red")
abline(v=mean(sqrt(r.squared.cl.null)), col = "blue", lwd=1.5)

trans.cl.null <- 0.5* log ((1+ sqrt(r.squared.cl.null))/(1- sqrt(r.squared.cl.null)))
trans.cl.null.mean <- 0.5* log ((1+ mean(sqrt(r.squared.cl.null)))/(1- mean(sqrt(r.squared.cl.null))))
hist(trans.cl.null, nclass=50, prob = TRUE,
     main = "Fisher's z", xlab = "Fisher's z")
lines(density(trans.cl.null), col = "red")
abline(v=trans.cl.null.mean, col="blue", lwd=1.5)

qqplot(rnorm(length(trans.cl.null), trans.cl.null.mean, 1/sqrt(50-3)), trans.cl.null,
       xlab = "Quantiles of N(0,.1)",
       ylab = "Sample quantiles")
abline(0,1, col = "blue")

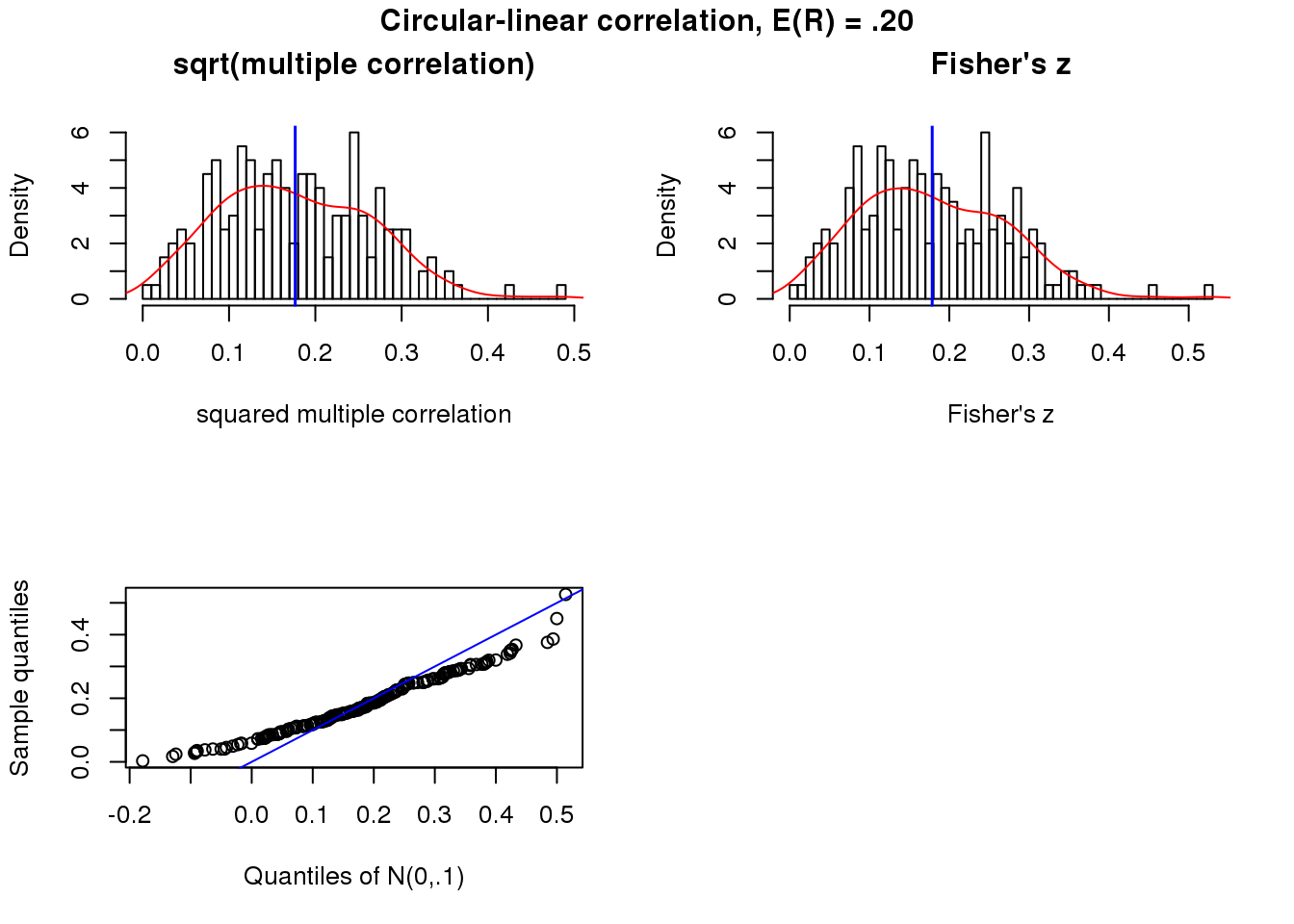

title("Circular-linear correlation, E(R) = .20", outer = TRUE, line = -1)

Approach

This section is largely taken from Jammalamadaka and SenGupta (2001). Circular Correlation and Regression Section 2. Topics in Circular Statistics. Covent Garden, London: World Scientific Publishing Co. Pe. Ltd.

Let \(\Phi\) and \(\Theta\) be a pair of circular random variables with values between 0 to \(2\pi\). We observe data \((\phi_1, \theta_1), \dots, (\phi_n, \theta_n)\) on \((\Phi, \Theta)\). I define \(\phi_i\) as the normalized log2CPM between 0 to 2pi (value scaled by maximum value across the data and the multipled by 2pi) for cell \(i\). Denote the means of \(\Phi\) and \(\Theta\) as \(\mu\) and \(\tau\), respectively.

Recall that the pearson’s moment correlation coeffcient of variables X and Y is defined by

\[ \rho(X,Y) = Cov(X,Y)/\sqrt{Var(X)Var(Y)} \] This measure has the properties

• \(-1 \le \rho(X,Y) \le 1\)
• \(\rho(X,Y) = \rho(Y,X)\)
• \(\rho(aX + b, cY+d) = sgn(a)sgn(c)\rho(X,Y)\)

Furthermore, \(\rho(X,Y)=0\) if X and Y are independent although the converse is not true in general and if \(\rho(X,Y)=+/-1\), then \(X=aY+b\) with probability 1.

In the case with circular variables \(\Phi\) and \(\Theta\), Jammalamadaka and Sarma (1988) define a measure of circular correlation coefficient as

\[ \rho_c(\phi, \theta) = \frac{E \big[ sin(\rho-\mu)sin(\theta-\tau)\big]}{\sqrt{Var(sin(\rho-\mu))Var(\theta-\tau)}} \]

sin(-) and sin(-) are taken to represent the deviation of \(\rho\) and \(\theta\) from their respective mean directions.

To compute \(\rho_c(\phi, \theta)\), notice that

1. \(E(sin(\rho-\mu))=E(sin(\theta-\tau))=0\), which is analogous to the fact that the first central moment in linear case is 0.

2. \(E(cos(\phi-\mu))\) is a measure of concentration of \(\phi\) around the mean \(\mu\)

The circular correlation \(\rho_c\) satisfies the following properties:

1. \(\phi_c(\phi, \theta)\) does not depend on the zero direction used for either variable

2. \(\phi_c(\phi, \theta) = \rho_c(\theta, \phi)\)

3. $ | _c(, ) |<1$

4. \(\phi_c(\phi, \theta)=0\) if \(\rho\) and \(\theta\) are independent although the converse need not be true.

5. If \(\rho\) and \(\theta\) have full support, \(\phi_c(\rho, \theta)=1\) iff \(\rho=\theta+constant (mod 2\pi)\) and \(\phi_c(\phi, \theta) = -1\) iff \(\rho+\theta=constant(mod 2\pi\).

6. \(\phi_c(\phi, \theta) \approx \rho_c(\theta, \phi)\), if \(\rho\) and \(\theta\) are concentrated in a small neighborhood of their respective mean directions and are measured in radians.

The sample correlatoin coefficient of \(\Phi\) and \(\Theta\) is given by

\[ r_{c,n} = \frac{\sum^n_{i=1}sin(\rho_i-\bar{\rho})sin(\theta_i-\bar{\theta})}{\sqrt{\sum^n_{i=1}sin^2(\rho_i-\bar{\rho})sin^2(\theta_i-\bar{\theta})}} \] where \(\bar{\rho}\) and \(\bar{\theta}\) are the sample mean directions.

Get a sense of parameters needed for simulations.

set.seed(7)
theta <- rvonmises(50, pi, 100, rads = TRUE)
rho <- 2*theta
cor(sin(theta), sin(rho))

[1] -0.999963

Sample size when correlation near zero

nsamp <- c(5,20,40)
theta.n <- lapply(1:length(nsamp), function(i) {
  set.seed(17)
  n <- nsamp[i]
  t <- theta[sample(length(theta), n, replace = F)]
  return(t)
})

cor.linear.null.n <- lapply(1:length(nsamp), function(i) {
  n <- nsamp[i]
  mat <- matrix(rnorm(200*n), ncol=n)
  cor <- apply(mat, 1, function(x) cor(theta.n[[i]], x))
  return(cor)
})

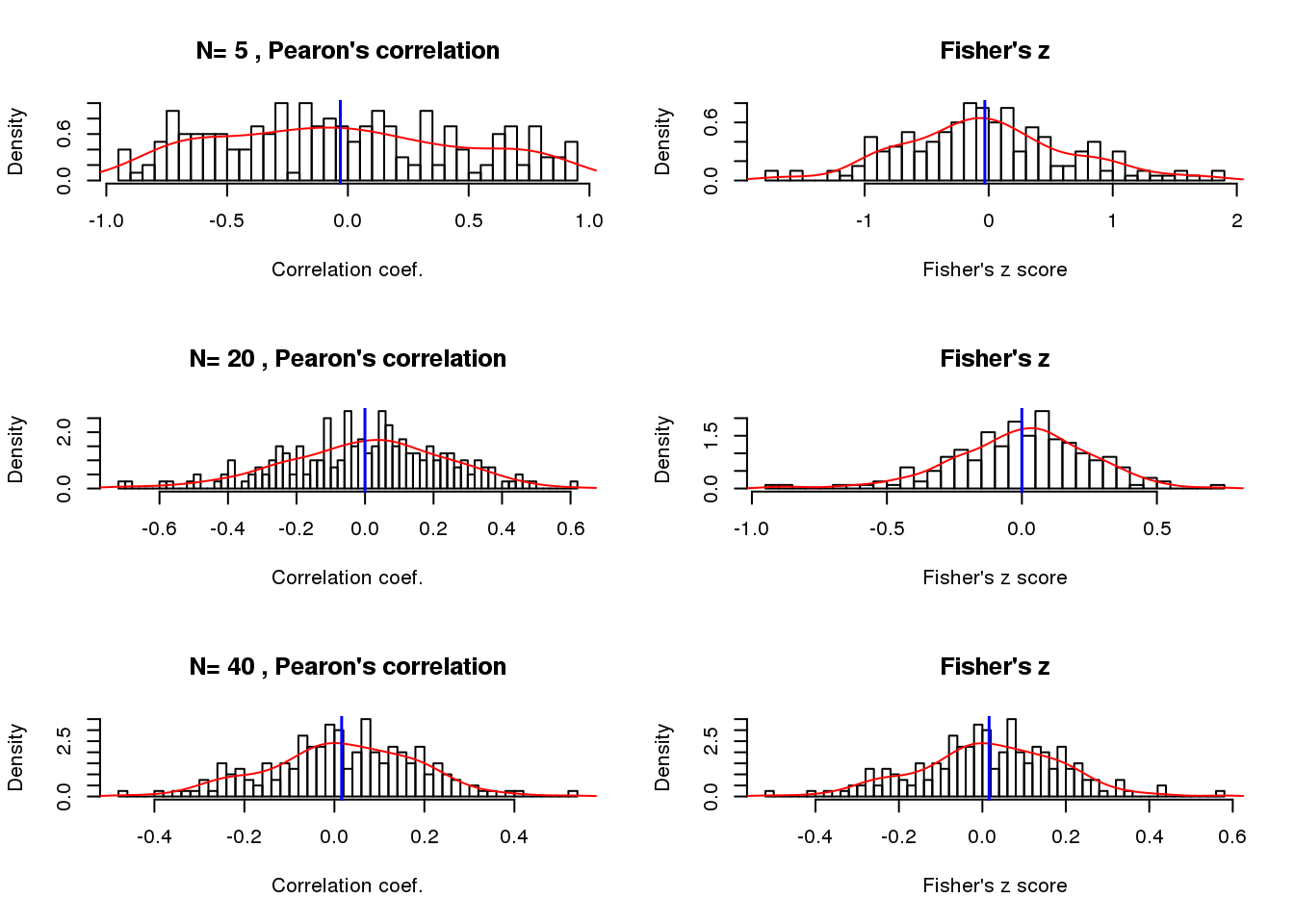

par(mfrow=c(3,2))
for (i in 1:length(nsamp)) {
  vec <- cor.linear.null.n[[i]]
  hist(vec, nclass = 50, prob = TRUE,
       main = paste("N=", nsamp[i],", Pearon's correlation"),
       xlab = "Correlation coef.")
  lines(density(vec), col = "red")
  abline(v=mean(vec), col = "blue", lwd=1.5)

  trans <- 0.5* log ((1+ vec)/(1- vec))
  trans.mean <- 0.5* log ((1+ mean(vec))/(1- mean(vec)))
  hist(trans, nclass=50, prob = TRUE,
       main = "Fisher's z", xlab = "Fisher's z score")
  lines(density(trans), col = "red")
  abline(v=trans.mean, col="blue", lwd=1.5)
}

Size of correlation when the sample size is small

theta.5 <- theta.n[[1]]

x.linear.rho <- list(
  sweep(matrix(rnorm(200*5), ncol=5), 2,
      STAT=5*cos(theta.5-pi), "+"),
  sweep(matrix(rnorm(200*5), ncol=5), 2,
        STAT=20*cos(theta.5-pi), "+") )

cor.linear.rho <- lapply(1:length(x.linear.rho), function(i) {
  cor <- apply(x.linear.rho[[i]], 1, function(x) cor(theta.5, x))
  return(cor)
})

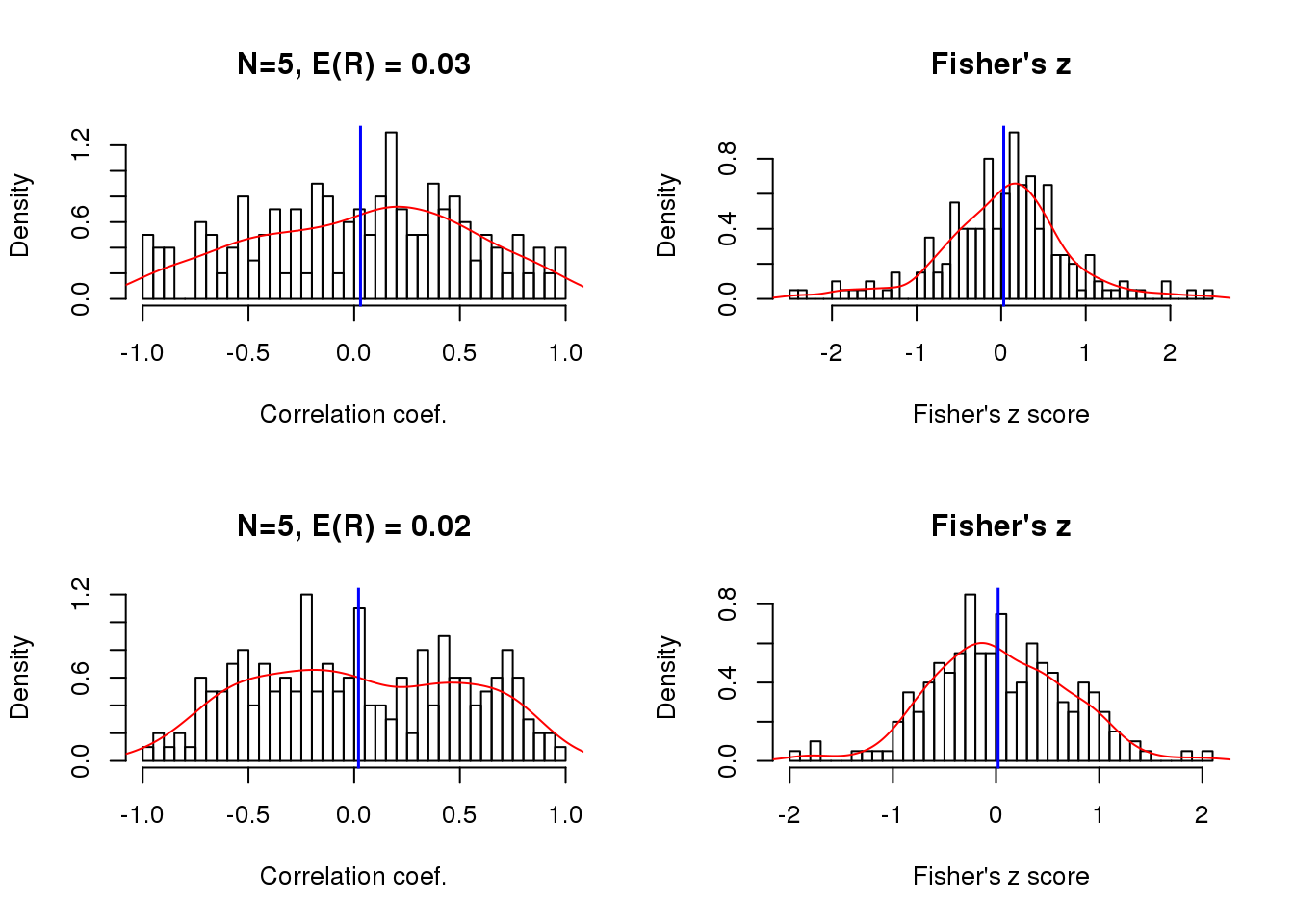

par(mfrow=c(2,2))
for (i in 1:length(x.linear.rho)) {
  vec <- cor.linear.rho[[i]]
  hist(vec, nclass = 50, prob = TRUE,
       main = paste("N=5, E(R) =", round(mean(vec),2)),
       xlab = "Correlation coef.")
  lines(density(vec), col = "red")
  abline(v=mean(vec), col = "blue", lwd=1.5)

  trans <- 0.5* log ((1+ vec)/(1- vec))
  trans.mean <- 0.5* log ((1+ mean(vec))/(1- mean(vec)))
  hist(trans, nclass=50, prob = TRUE,
       main = "Fisher's z", xlab = "Fisher's z score")
  lines(density(trans), col = "red")
  abline(v=trans.mean, col="blue", lwd=1.5)
}
