<h1 class="title toc-ignore">Quantile-normalize intensity measurements</h1>
<h4 class="author"><em>Joyce Hsiao</em></h4>

</div>


<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-12-11</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
 package git2r is installed -->
<p><strong>Code version:</strong> a5ec074</p>
<hr />
<div id="introduction" class="section level2">
<h2>Introduction</h2>
<p>Previously when investigating measurement variation (GFP/RFP/FAPI), we learned that there’s significant variation between batches in the distributions of background-corrected pixel intensites. See <a href="../docs/images-qc-labels.html">here</a>.</p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>Approach:</strong></p>
<p>In this document, I apply quantile normalization to intensity measurements on a per-channel basis. The approach is as follows</p>
<ol style="list-style-type: decimal">
<li><p>Construct a reference intensity. Estimate k-quantiles of reference intensities <span class="math inline">\(Q^{R,k}= \big( {q^{R,k}_{[1]}, \dots, q^{R,k}_{[n_k]}} \big)\)</span>.</p></li>
<li><p>For each plate <span class="math inline">\(i\)</span>, estimate <span class="math inline">\(l\)</span>-quantiles of intensities on a per-plate basis <span class="math inline">\(Q^{i,l}= \big( {q^{i,l}_{[1]}, \dots, q^{i,l}_{[n_l]}} \big)\)</span>.</p></li>
<li><p>For each plate <span class="math inline">\(i\)</span>, compare the intensity value <span class="math inline">\(F_{ij}\)</span> with the quantile values <span class="math inline">\(\big( {q^{i,l}_{[1]}, \dots, q^{i,l}_{[n_l]}} \big)\)</span> and assign image/well <span class="math inline">\(j\)</span> with the quantile that has the closest intensity value, say <span class="math inline">\(q^{i,l}_{[m]}\)</span> if <span class="math inline">\(m= argmin_{(1,\dots,n_l)} |F_{ij}- q^{i,l}_{[n_l]}|\)</span>. Then subsitute the intensity value with the <span class="math inline">\(m\)</span>-th quantile value in the reference intensity <span class="math inline">\(q^{R,k}_{[m]}\)</span>.</p></li>
</ol>
<p><span class="math inline">\(~\)</span></p>
<p>I tried two methods for constructing reference intensity vector, and the results are vastly different depends on the method that we choose.</p>
<p><em>Method 1</em>: Aggregate intensity values aross plates.</p>
<p><em>Method 2</em>: Take the average of <span class="math inline">\(n\)</span>-quantiles across plates.</p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>Results:</strong></p>
<ol style="list-style-type: decimal">
<li><p>We chose 1/.005 quantiles for all three channels. See the document for our exploratory analysis of intensities from all three channels.</p></li>
<li><p>Method 1 versus Method 2: Because in Method 1, the distribution of Green/Red is more dense toward low and high-valued intensities, we see that the normalized values are closer toward the boundaries.</p></li>
<li><p>Method 2 of constructing the reference produces better results. We see that the relationship between Green/Red is preserved before versus after normalization.</p></li>
<li><p>In Method 2, after normalization, the range of intensities is the same between plates for each of the three channels (Green, Red, DAPI). As a result, many of the images/wells with low intensties decreased in intensity values.</p></li>
<li><p>Because of 4, the distances between samples in many plates increase rather than decrease. We were looking for decrease in the distances between samples, i.e., tighter clusters or smaller within-cluster distance…</p></li>
</ol>
<hr />
</div>
<div id="load-packages-and-data" class="section level2">
<h2>Load packages and data</h2>
<pre class="r"><code>ints &lt;- readRDS(file=&quot;/project2/gilad/joycehsiao/fucci-seq/data/intensity.rds&quot;)</code></pre>
<hr />
<p><span class="math inline">\(~\)</span></p>
</div>
<div id="densit-plots" class="section level2">
<h2>Densit plots</h2>
<p><span class="math inline">\(~\)</span></p>

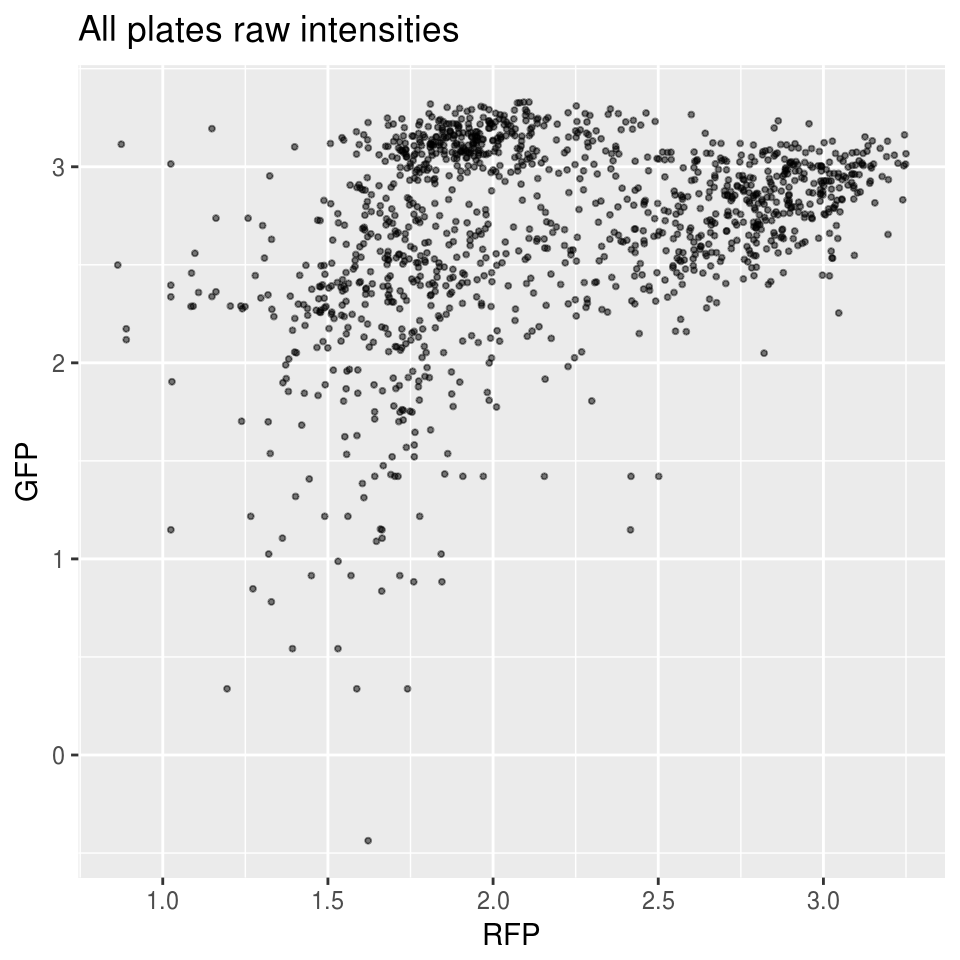

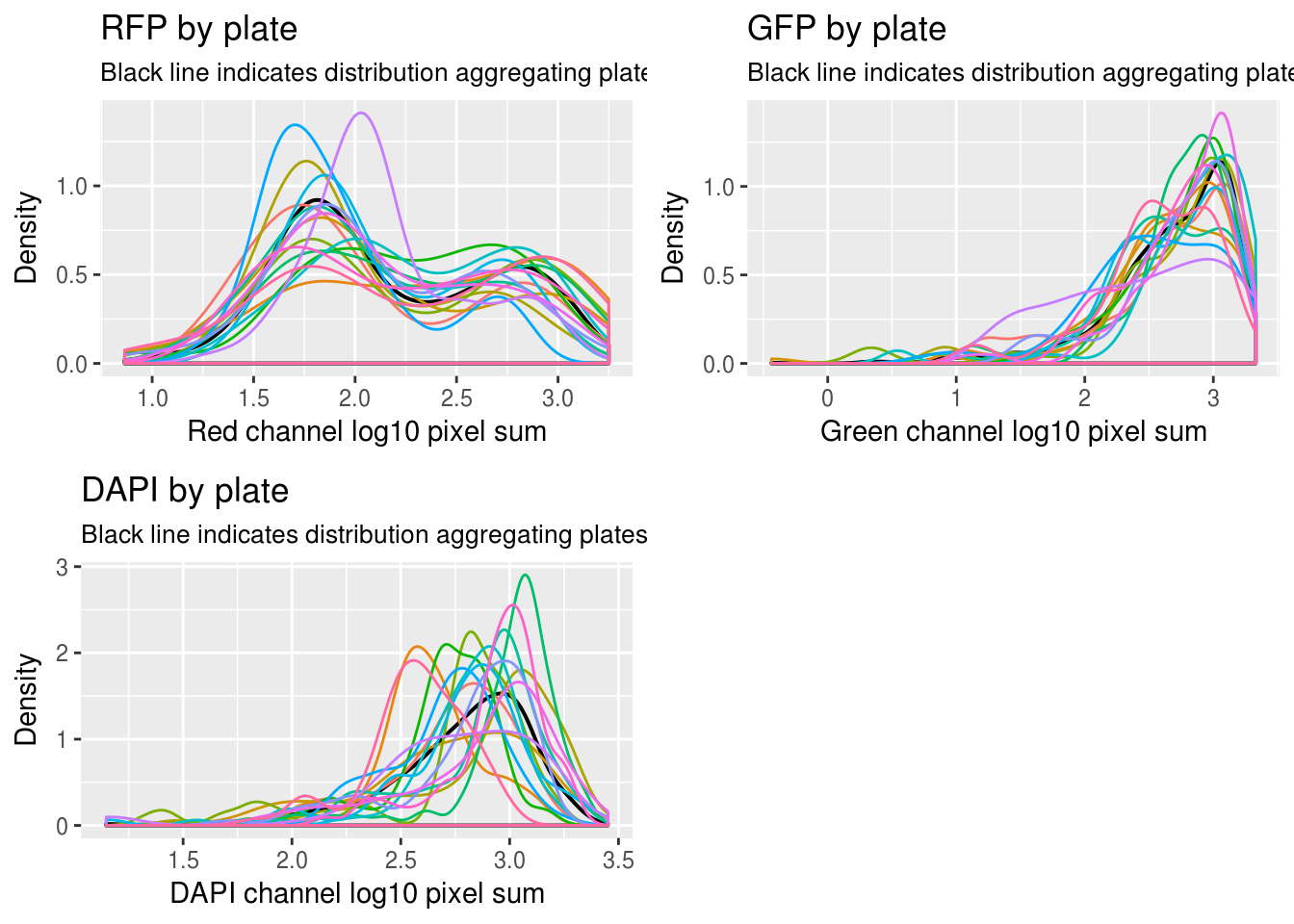

<p>First, look at the distribution of all batches combined versus each batch.</p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>
<hr />
<p><span class="math inline">\(~\)</span></p>
</div>
<div id="normalization" class="section level2">
<h2>Normalization</h2>
<p><span class="math inline">\(~\)</span></p>
<p>Code for one single sample</p>
<p><span class="math inline">\(~\)</span></p>
<pre class="r"><code>my_quantnorm &lt;- function(reference, sample, span=.01) {
  # quantiles for intensities all samples across plates
  quants_reference &lt;- quantile(reference, probs=seq(0,1,span))
  # intensities for a given plate
  # quantiles for intensities at each plate
  quants_sample &lt;- quantile(sample, probs=seq(0,1,span))
  # empty vector for normalized values
  sample_normed &lt;- vector(&quot;numeric&quot;, length=length(sample))

  for (index in 1:length(sample)) {
    # for each sample, find the closest sample quantile
    sample_order &lt;- names(which.min(abs(sample[index]-quants_sample)))
    # # get the reference intensity value of the closet quantile
    ref_order_value &lt;- reference[which(names(quants_reference)==sample_order)]
    # assign the reference intensity value to the sample
    sample_normed[index] &lt;- ref_order_value
  }
  return(sample_normed)
}</code></pre>
<p><span class="math inline">\(~\)</span></p>
<div id="choosing-quantile-interval" class="section level3">

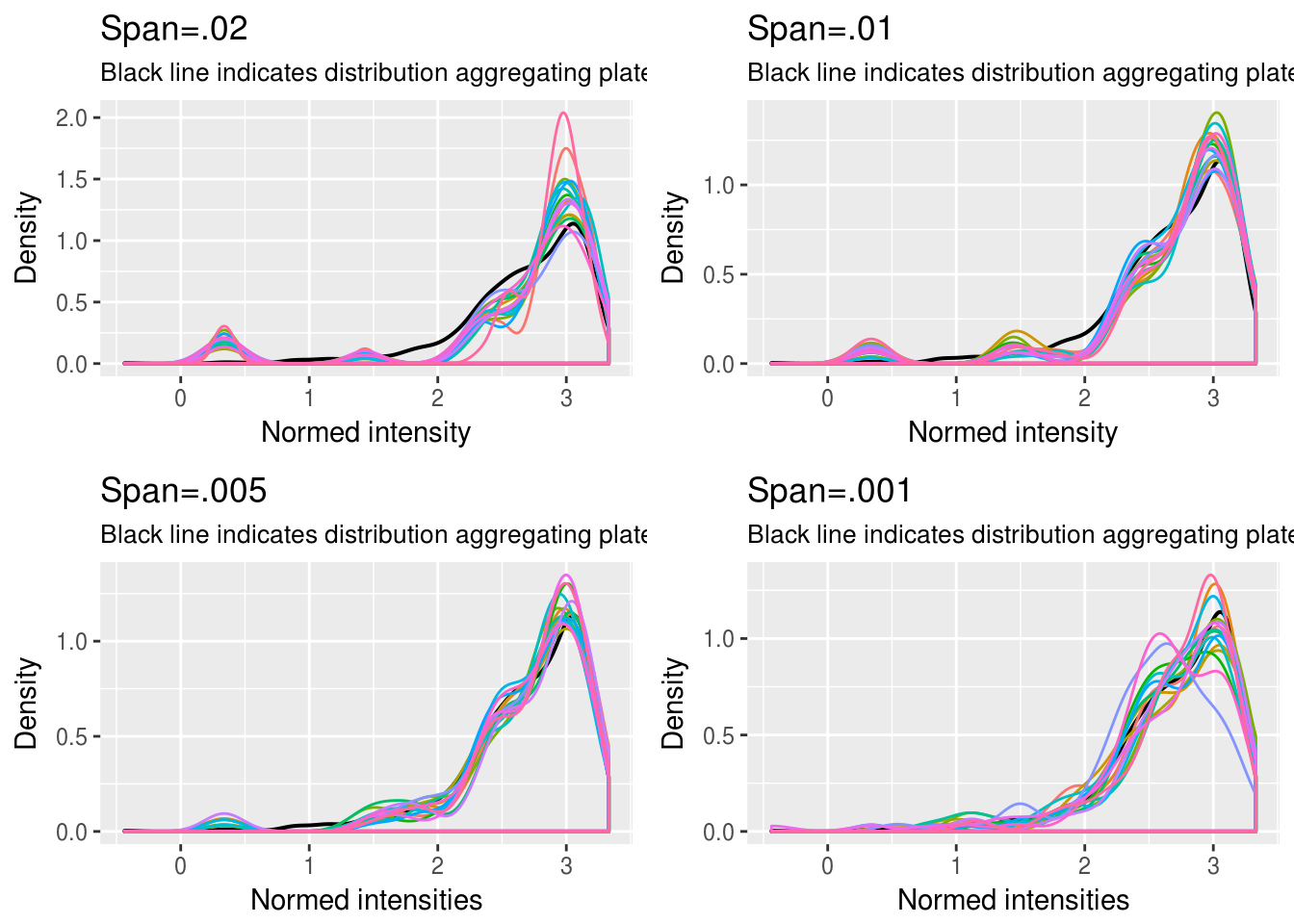

<h3>Choosing quantile interval</h3>
<p><span class="math inline">\(~\)</span></p>

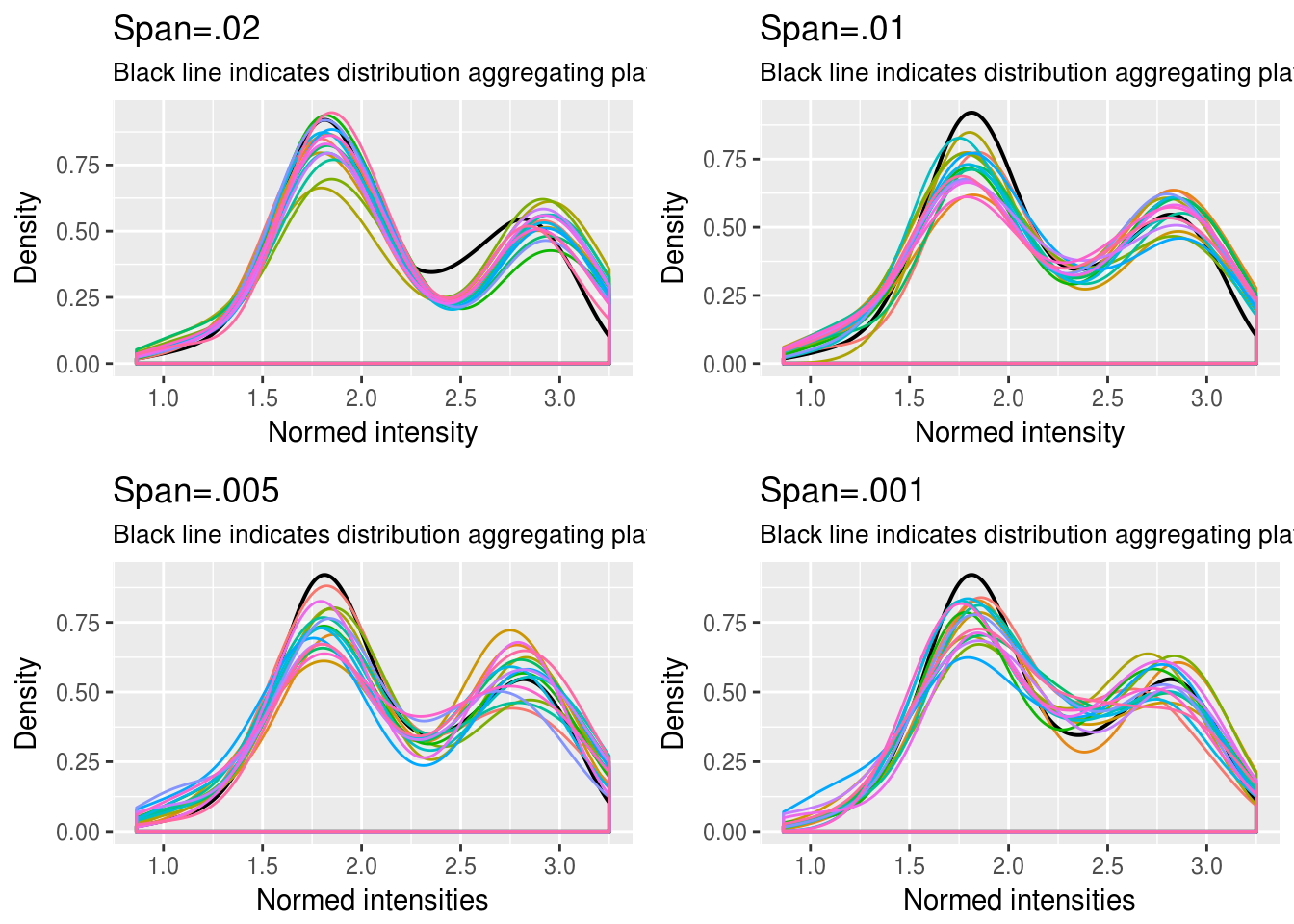

<p><strong>RFP</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-5-1.png" width="672" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>GFP</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-6-1.png" width="672" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

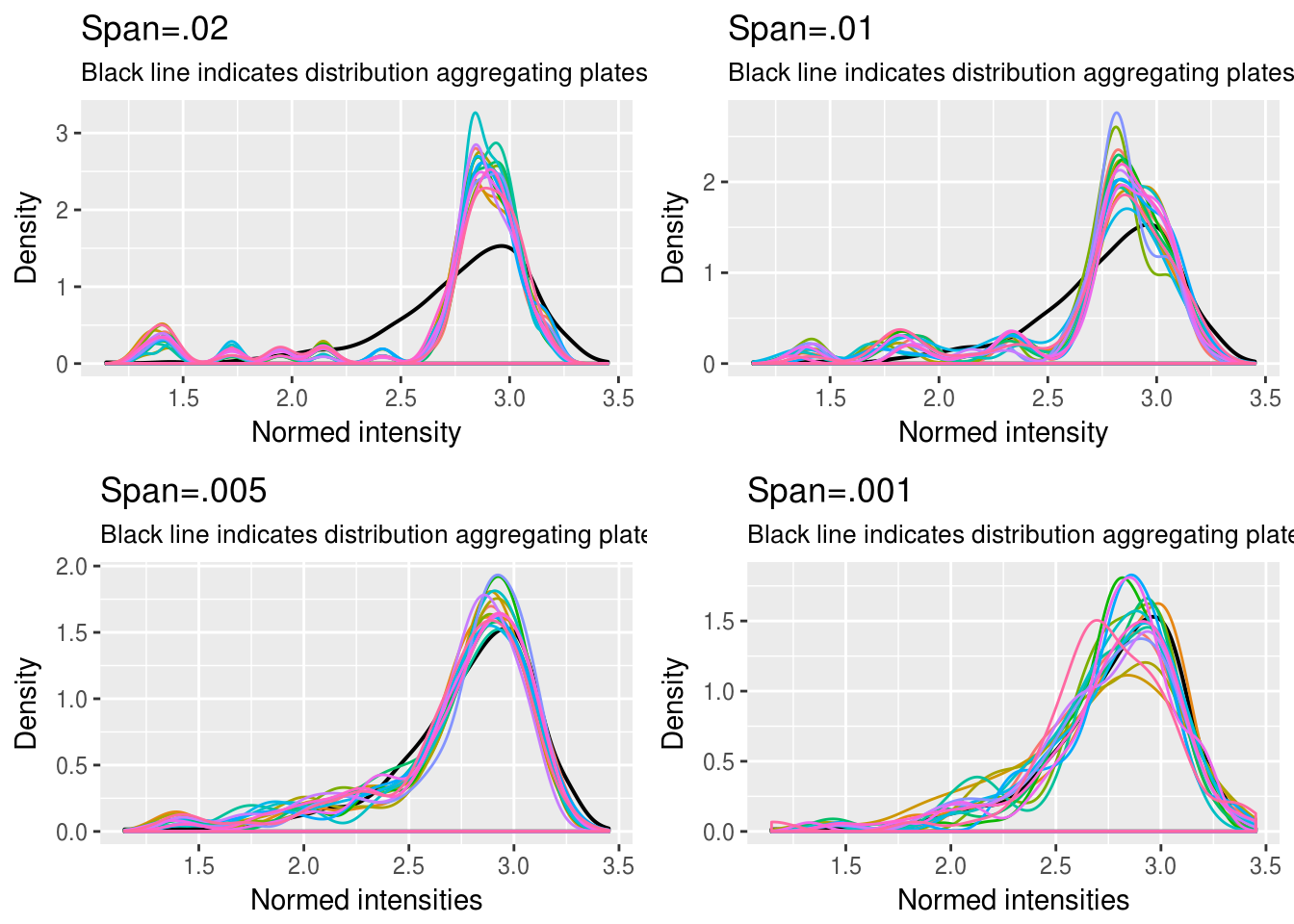

<p><strong>DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-7-1.png" width="672" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>
</div>
<div id="method-1" class="section level3">
<h3>Method 1</h3>
<p>Method 1 constructs a vector of refernece intensity by aggregating all image intensity values across plates.</p>
<p><span class="math inline">\(~\)</span></p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>Distribution of the reference</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-9-1.png" width="480" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

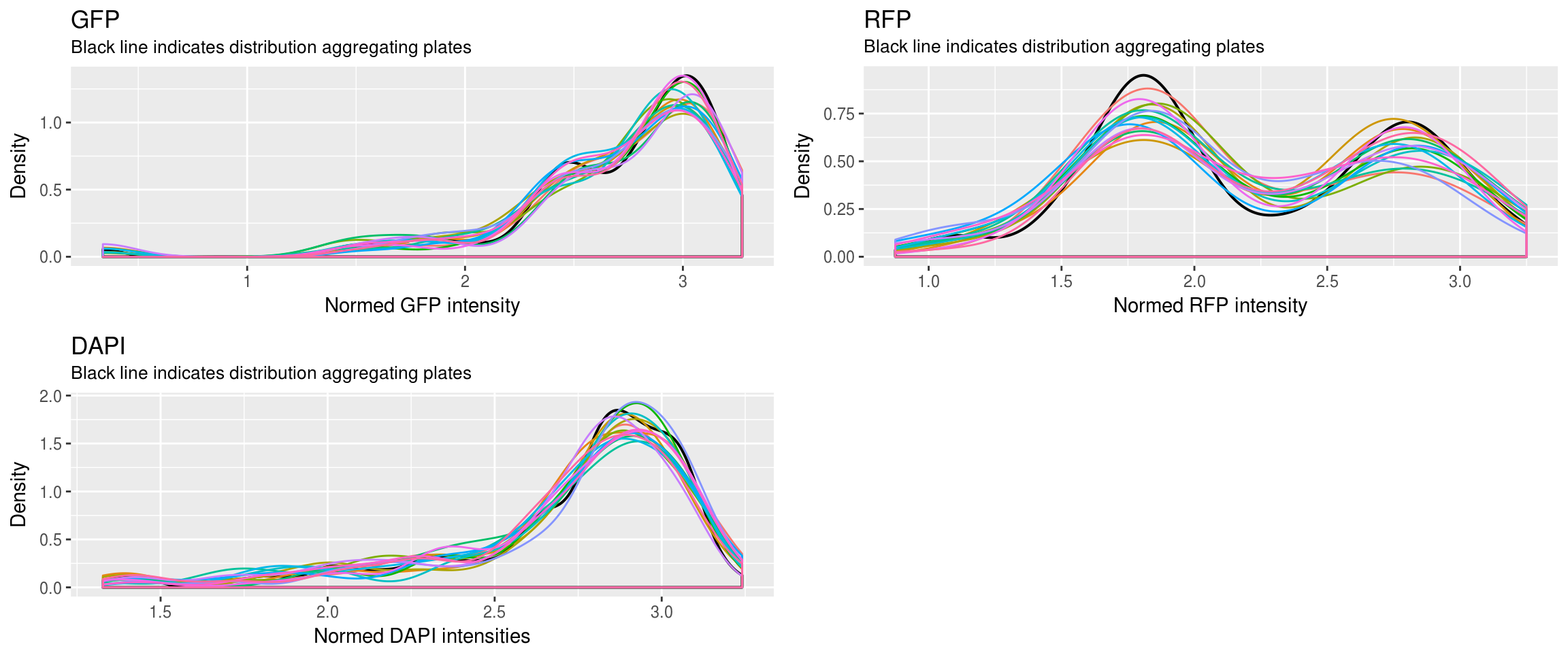

<p><strong>After normalization</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-10-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

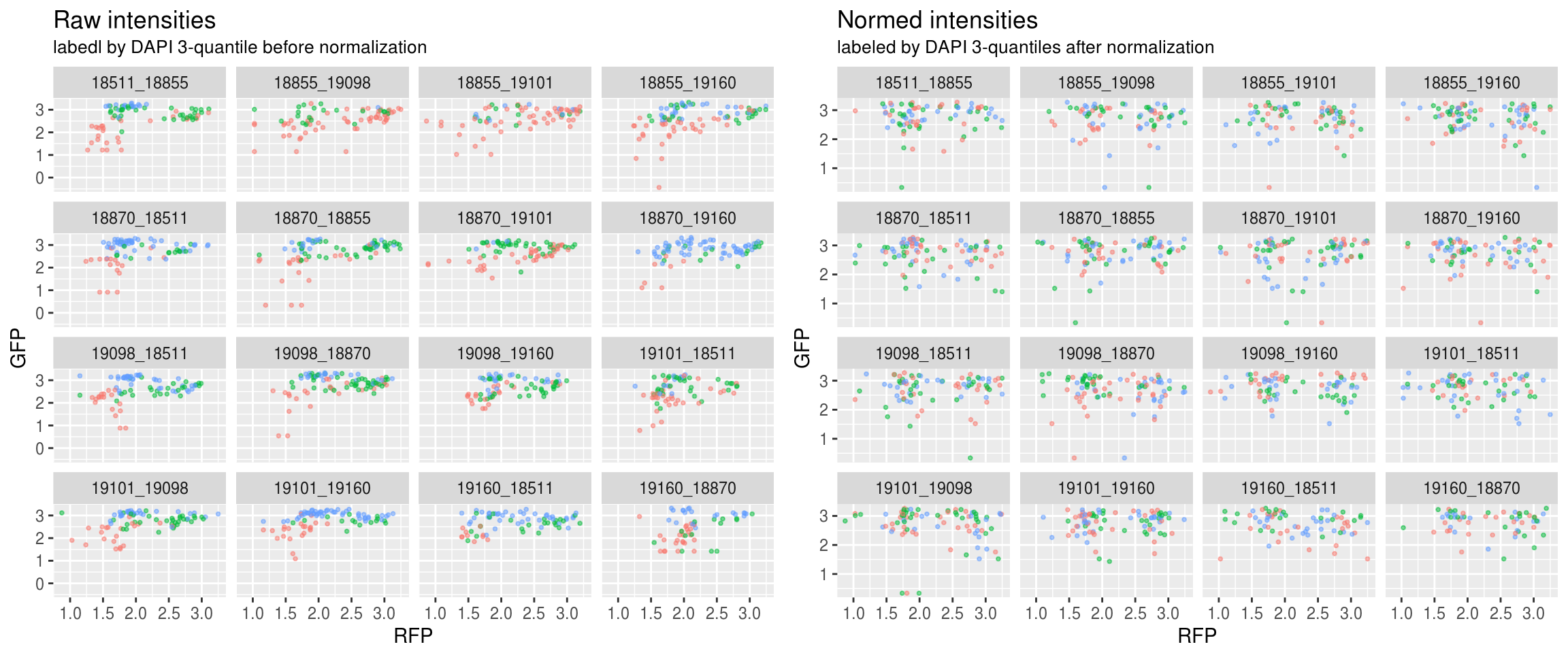

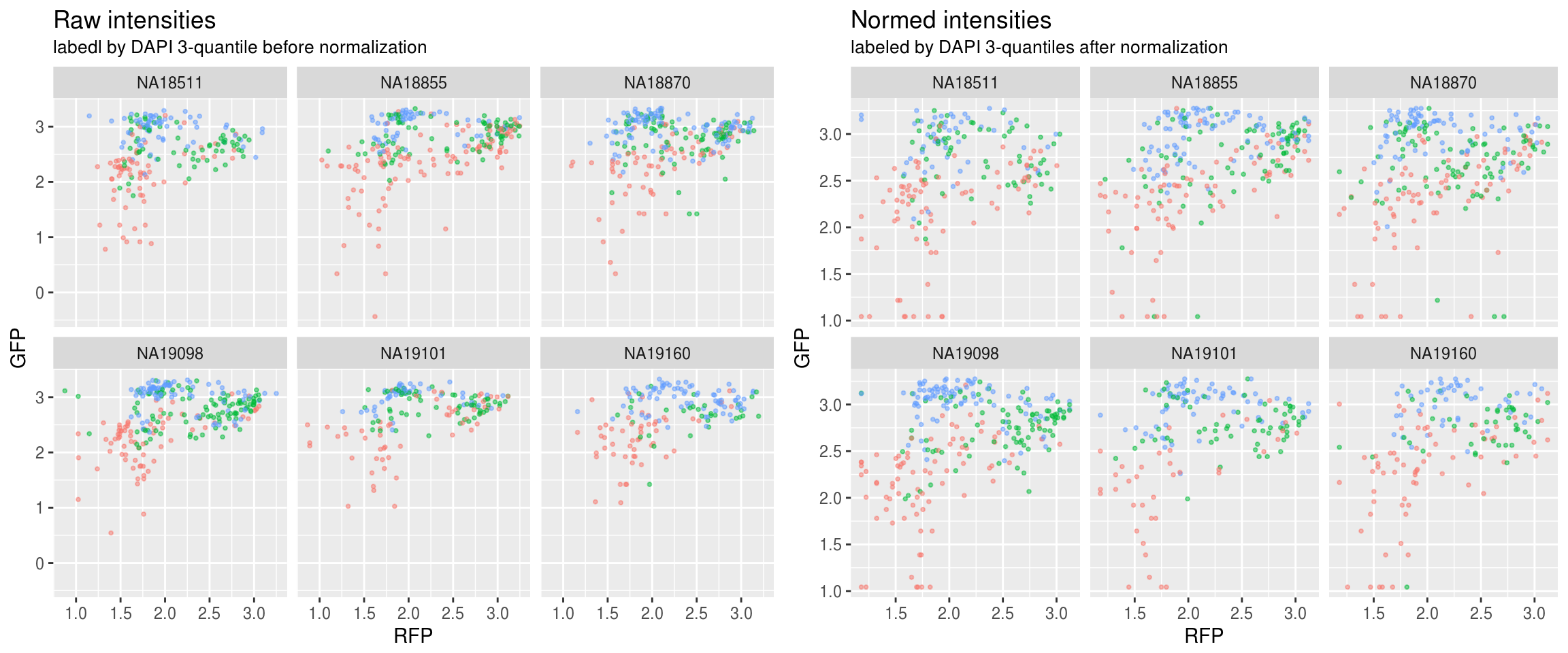

<p><strong>Green versus Red intensties by plate, labeled by DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-11-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

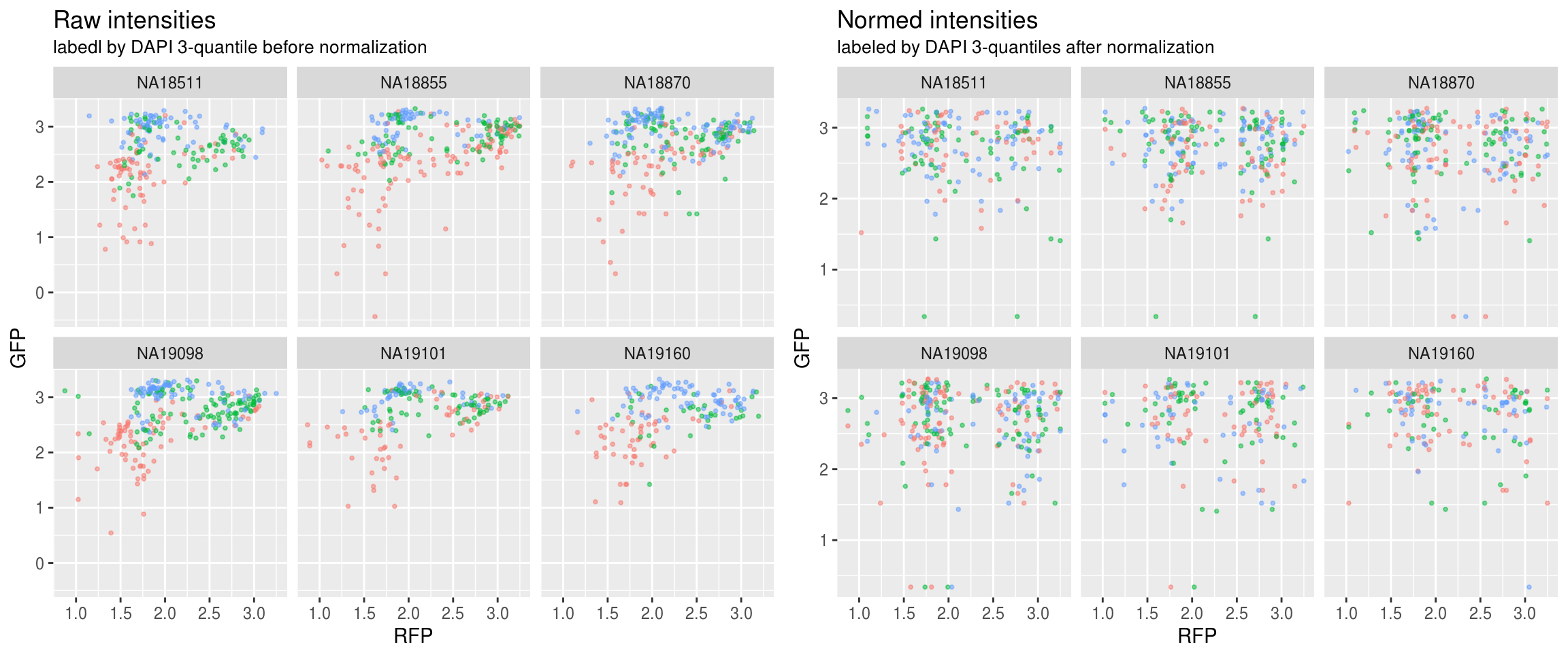

<p><strong>Green versus Red intensties by individual, labeled by DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-12-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>Green</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-13-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

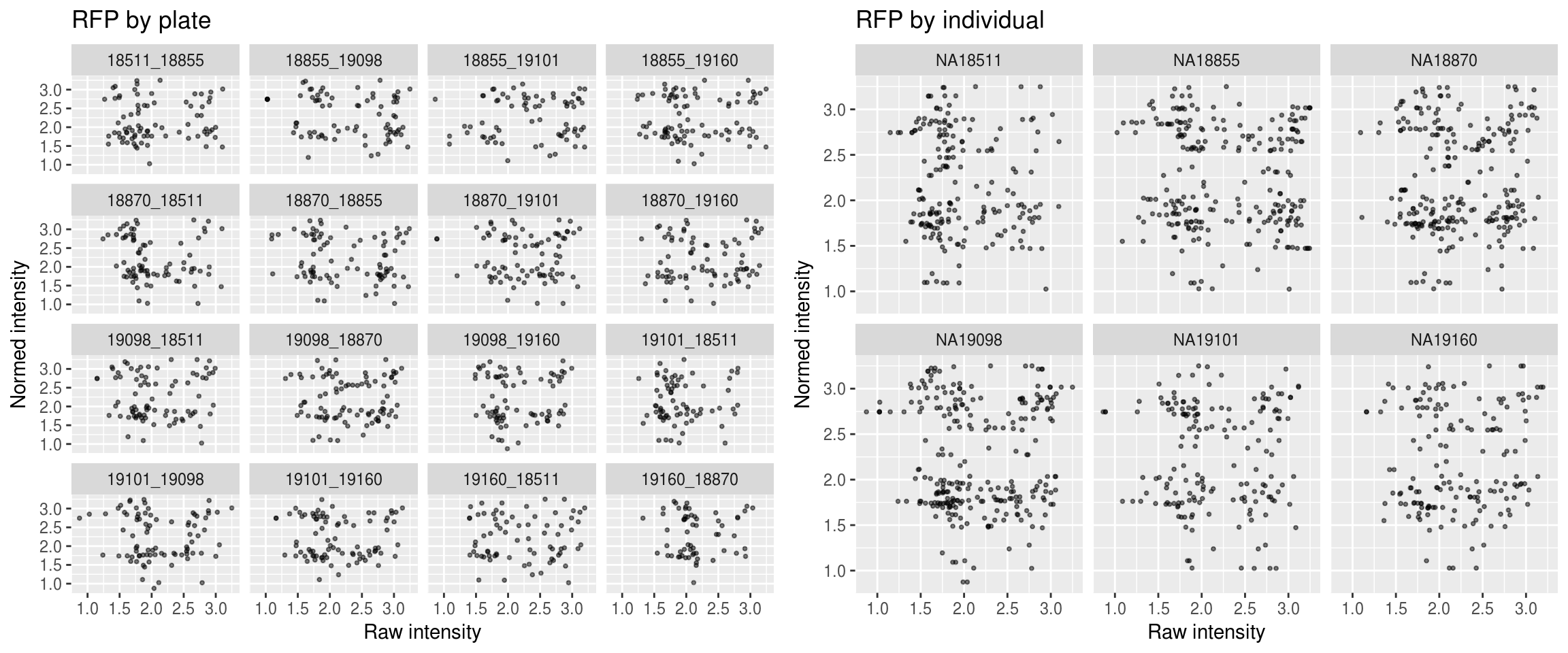

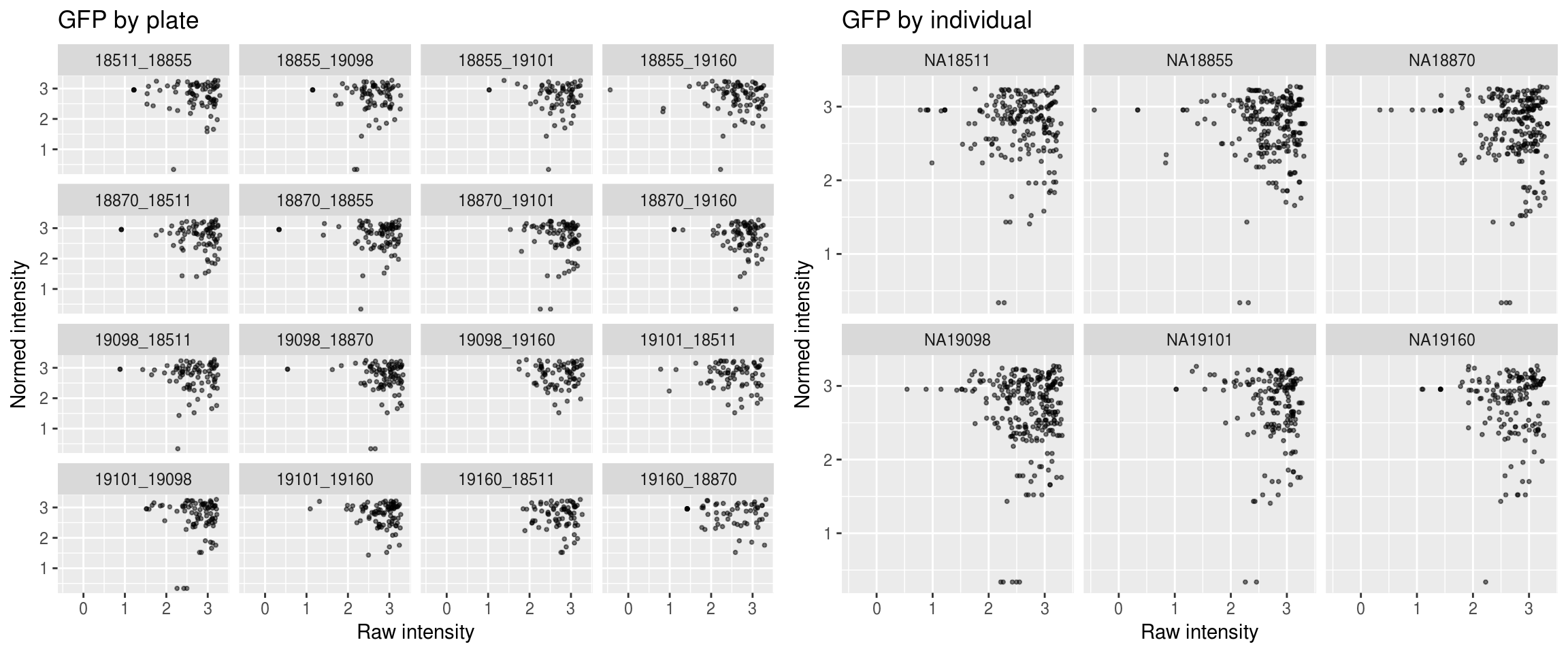

<p><strong>Red</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-14-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

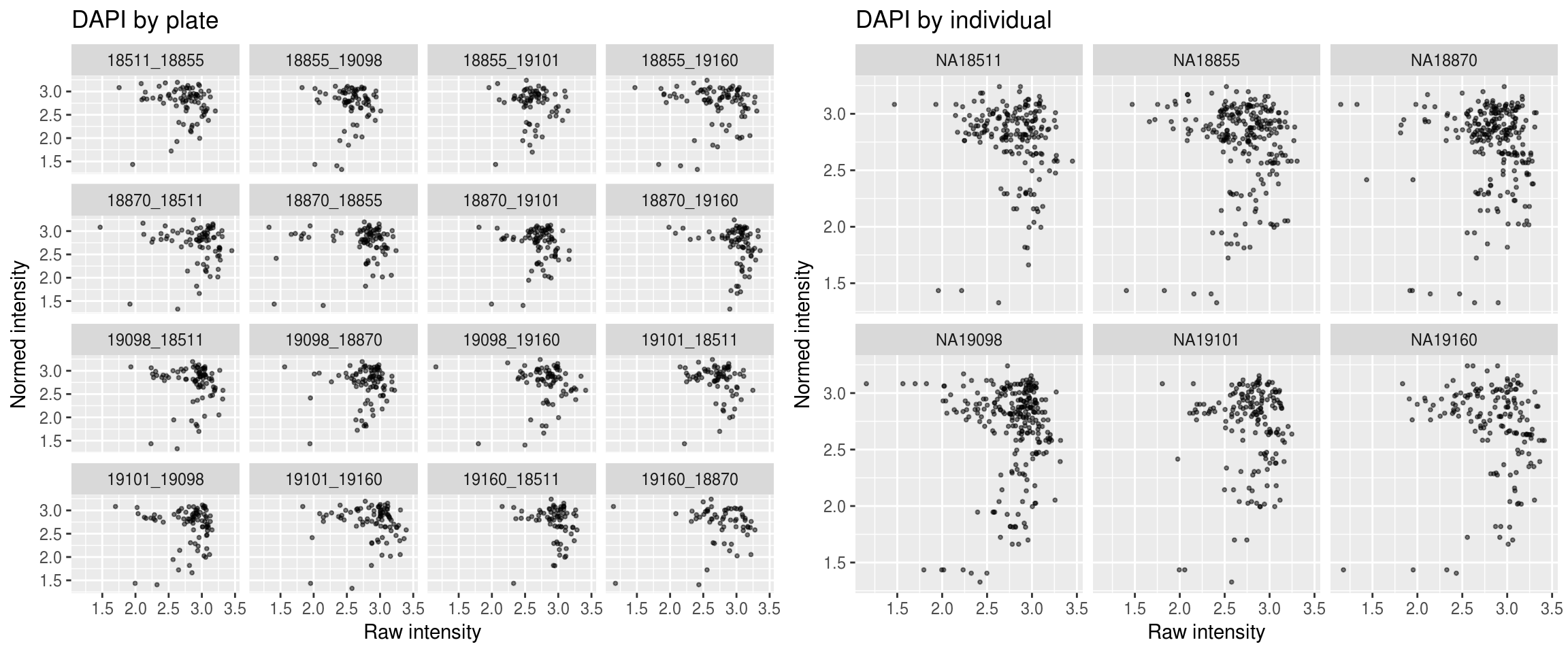

<p><strong>DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-15-1.png" width="1152" style="display: block; margin: auto;" /></p>
<hr />
<p><span class="math inline">\(~\)</span></p>
</div>
<div id="method-2" class="section level3">
<h3>Method 2</h3>
<p><span class="math inline">\(~\)</span></p>
<p>Reference intensity vector: average of quantile values across plates.</p>
<p><span class="math inline">\(~\)</span></p>
<p><span class="math inline">\(~\)</span></p>

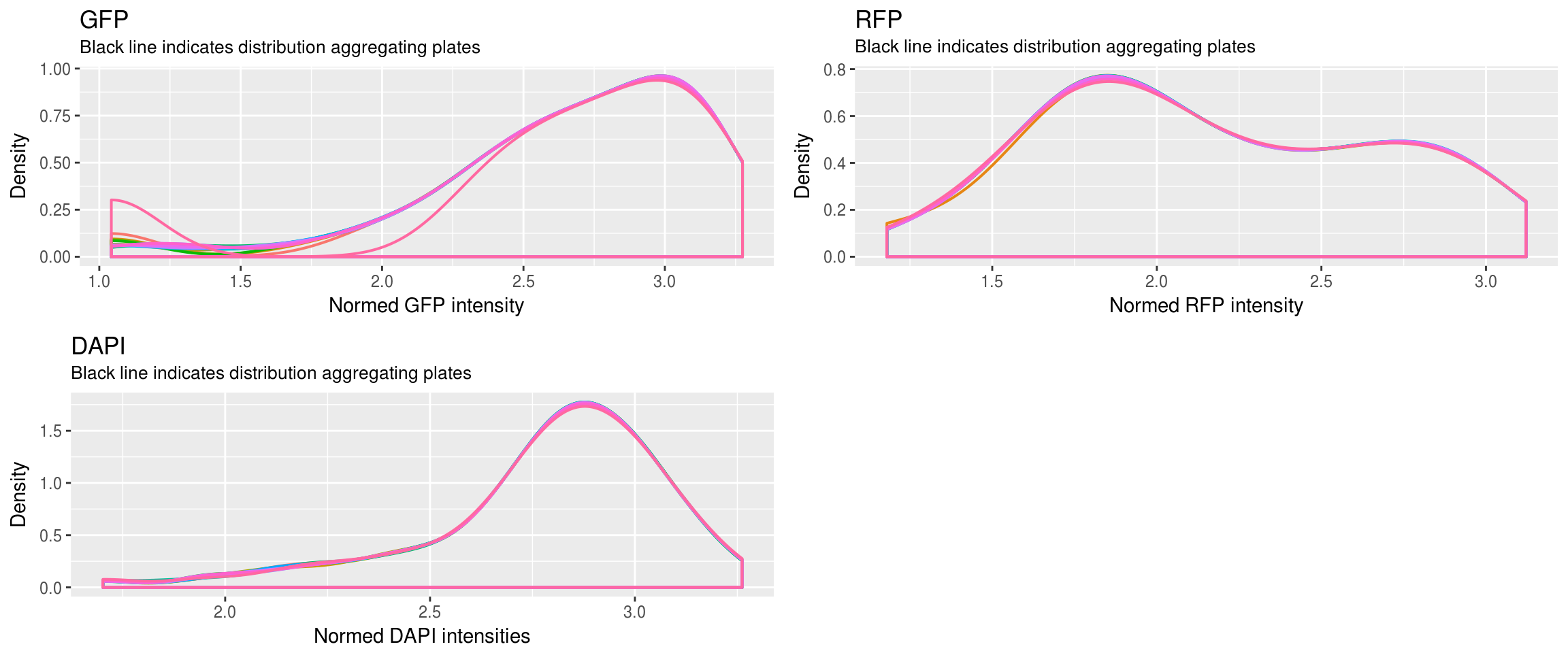

<p><strong>After normalization</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-17-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

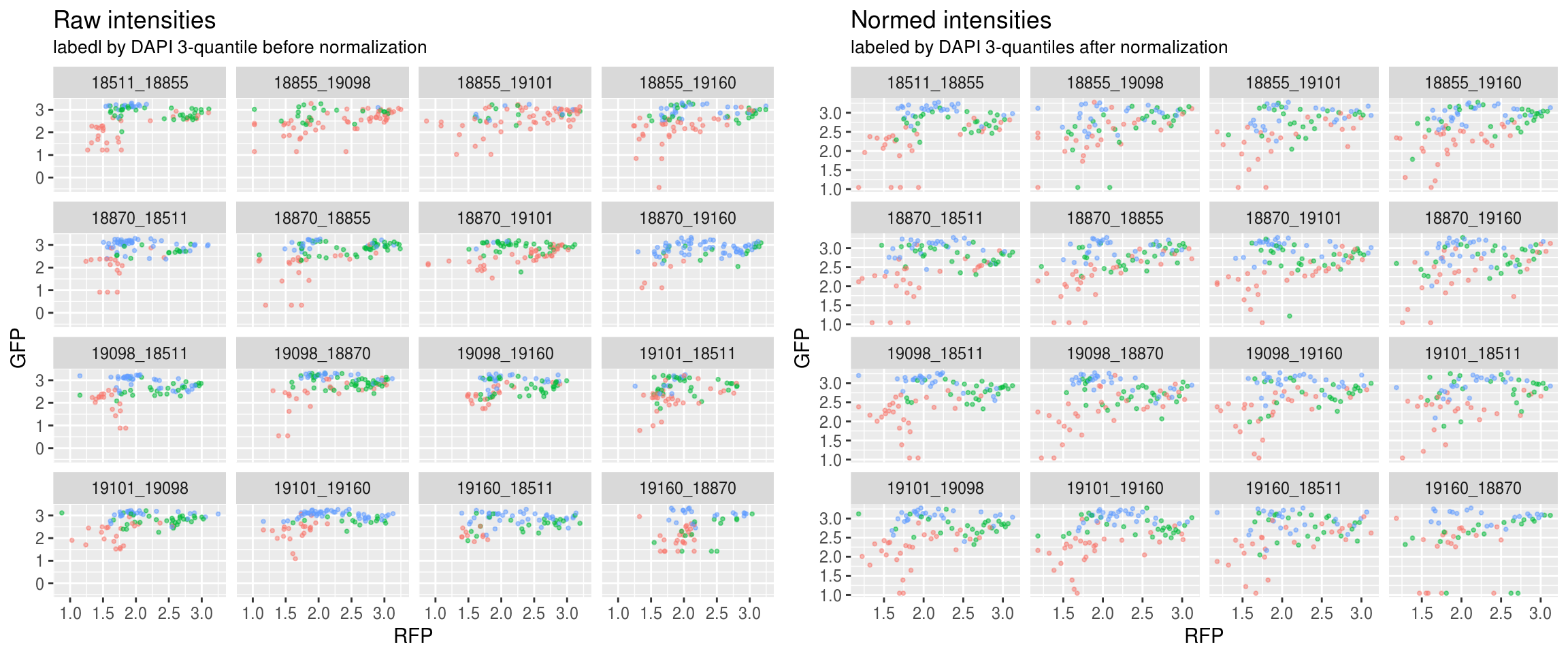

<p><strong>Green versus Red intensties by plate, labeled by DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-18-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>Green versus Red intensties by individual, labeled by DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-19-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

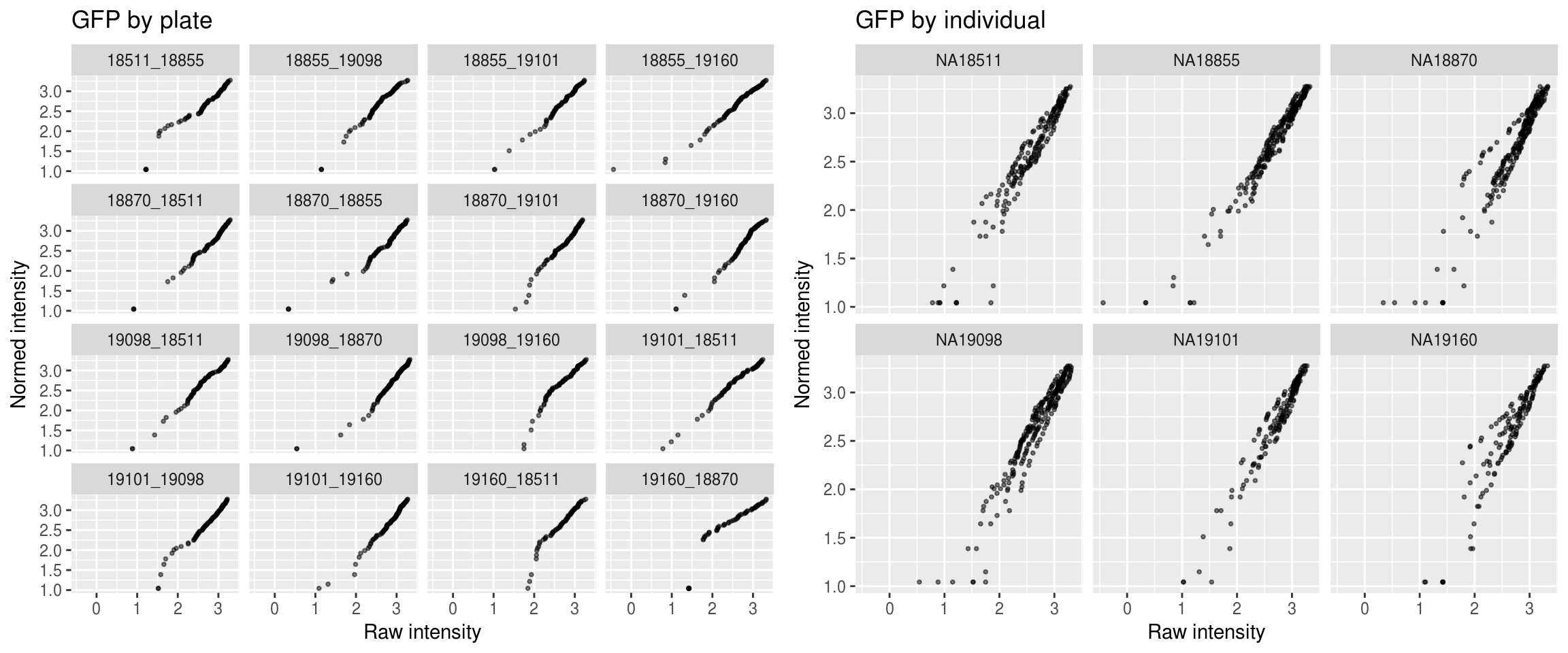

<p><strong>Green</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-20-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>

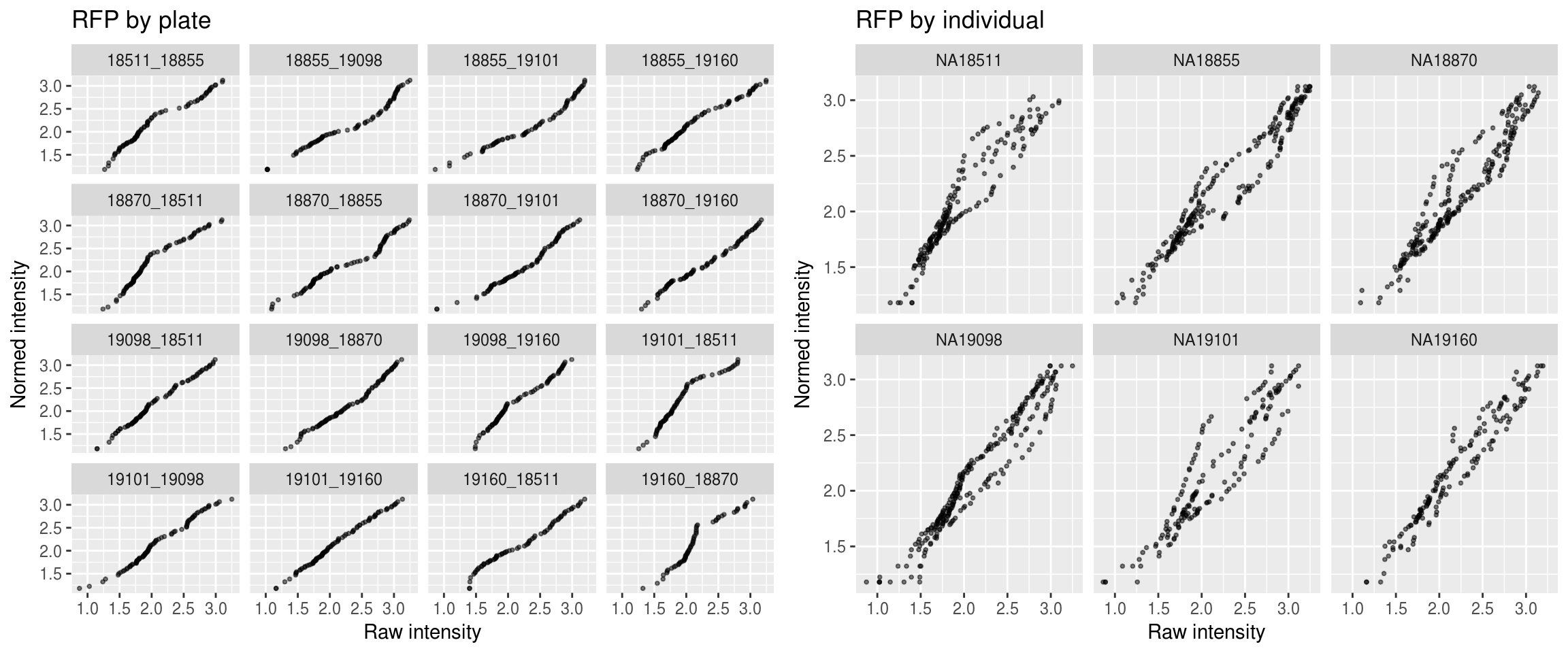

<p><strong>Red</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-21-1.png" width="1152" style="display: block; margin: auto;" /></p>
<p><span class="math inline">\(~\)</span></p>
<p><strong>DAPI</strong></p>
<p><span class="math inline">\(~\)</span></p>
<p><img src="figure/images-normalize-quantile.Rmd/unnamed-chunk-22-1.png" width="1152" style="display: block; margin: auto;" /></p>
<hr />
</div>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre><code>R version 3.4.1 (2017-06-30)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Scientific Linux 7.2 (Nitrogen)

Matrix products: default
BLAS: /home/joycehsiao/miniconda3/envs/fucci-seq/lib/R/lib/libRblas.so
LAPACK: /home/joycehsiao/miniconda3/envs/fucci-seq/lib/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8       LC_NUMERIC=C
 [3] LC_TIME=en_US.UTF-8        LC_COLLATE=en_US.UTF-8
 [5] LC_MONETARY=en_US.UTF-8    LC_MESSAGES=en_US.UTF-8
 [7] LC_PAPER=en_US.UTF-8       LC_NAME=C
 [9] LC_ADDRESS=C               LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] Biobase_2.38.0      BiocGenerics_0.24.0 RColorBrewer_1.1-2
[4] wesanderson_0.3.2   cowplot_0.8.0       ggplot2_2.2.1
[7] dplyr_0.7.0         data.table_1.10.4

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.14     knitr_1.16       magrittr_1.5     munsell_0.4.3
 [5] colorspace_1.3-2 R6_2.2.0         rlang_0.1.2      stringr_1.2.0
 [9] plyr_1.8.4       tools_3.4.1      grid_3.4.1       gtable_0.2.0
[13] git2r_0.19.0     htmltools_0.3.6  lazyeval_0.2.0   yaml_2.1.14
[17] rprojroot_1.2    digest_0.6.12    assertthat_0.1   tibble_1.3.3
[21] glue_1.1.1       evaluate_0.10.1  rmarkdown_1.6    labeling_0.3
[25] stringi_1.1.2    compiler_3.4.1   scales_0.4.1     backports_1.0.5 </code></pre>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
