<h1 class="title toc-ignore">PCA vs Technical Variables</h1>
<h4 class="author"><em>Po-Yuan Tung</em></h4>
<h4 class="date"><em>2018-01-31</em></h4>

</div>


<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2018-05-18</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
 package git2r is installed -->
<p><strong>Code version:</strong> f053912</p>
<hr />
<div id="setup" class="section level2">
<h2>Setup</h2>
<pre class="r"><code>library(&quot;cowplot&quot;)
library(&quot;dplyr&quot;)
library(&quot;edgeR&quot;)
library(&quot;ggplot2&quot;)
library(&quot;heatmap3&quot;)
library(&quot;reshape2&quot;)
library(&quot;Biobase&quot;)
source(&quot;../code/utility.R&quot;)</code></pre>
</div>
<div id="pca" class="section level2">
<h2>PCA</h2>
<div id="before-fileter" class="section level3">
<h3>Before fileter</h3>
<pre class="r"><code>fname &lt;- Sys.glob(&quot;../data/eset/*.rds&quot;)
eset &lt;- Reduce(combine, Map(readRDS, fname))

## look at human genes
eset_hs &lt;- eset[fData(eset)$source == &quot;H. sapiens&quot;, ]
head(featureNames(eset_hs))</code></pre>
<pre><code>[1] &quot;ENSG00000000003&quot; &quot;ENSG00000000005&quot; &quot;ENSG00000000419&quot; &quot;ENSG00000000457&quot;
[5] &quot;ENSG00000000460&quot; &quot;ENSG00000000938&quot;</code></pre>
<pre class="r"><code>## remove genes of all 0s
eset_hs_clean &lt;- eset_hs[rowSums(exprs(eset_hs)) != 0, ]
dim(eset_hs_clean)</code></pre>
<pre><code>Features  Samples
   19348     1536 </code></pre>
<pre class="r"><code>## convert to log2 cpm
mol_hs_cpm &lt;- cpm(exprs(eset_hs_clean), log = TRUE)
mol_hs_cpm_means &lt;- rowMeans(mol_hs_cpm)
summary(mol_hs_cpm_means)</code></pre>
<pre><code>   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  2.413   2.482   3.180   3.858   4.761  12.999 </code></pre>
<pre class="r"><code>## keep genes with reasonable expression levels
mol_hs_cpm &lt;- mol_hs_cpm[mol_hs_cpm_means &gt; median(mol_hs_cpm_means), ]
dim(mol_hs_cpm)</code></pre>
<pre><code>[1] 9674 1536</code></pre>
<pre class="r"><code>## pca of genes with reasonable expression levels
pca_hs &lt;- run_pca(mol_hs_cpm)

## a function of pca vs technical factors
get_r2 &lt;- function(x, y) {
  stopifnot(length(x) == length(y))
  model &lt;- lm(y ~ x)
  stats &lt;- summary(model)
  return(stats$adj.r.squared)
}

## selection of technical factor
covariates &lt;- pData(eset) %&gt;% dplyr::select(experiment, well, concentration, raw:unmapped,
                                                     starts_with(&quot;detect&quot;), chip_id, molecules)
## look at the first 6 PCs
pcs &lt;- pca_hs$PCs[, 1:6]

## generate the data
r2_before &lt;- matrix(NA, nrow = ncol(covariates), ncol = ncol(pcs),
             dimnames = list(colnames(covariates), colnames(pcs)))
for (cov in colnames(covariates)) {
  for (pc in colnames(pcs)) {
    r2_before[cov, pc] &lt;- get_r2(covariates[, cov], pcs[, pc])
  }
}

## plot

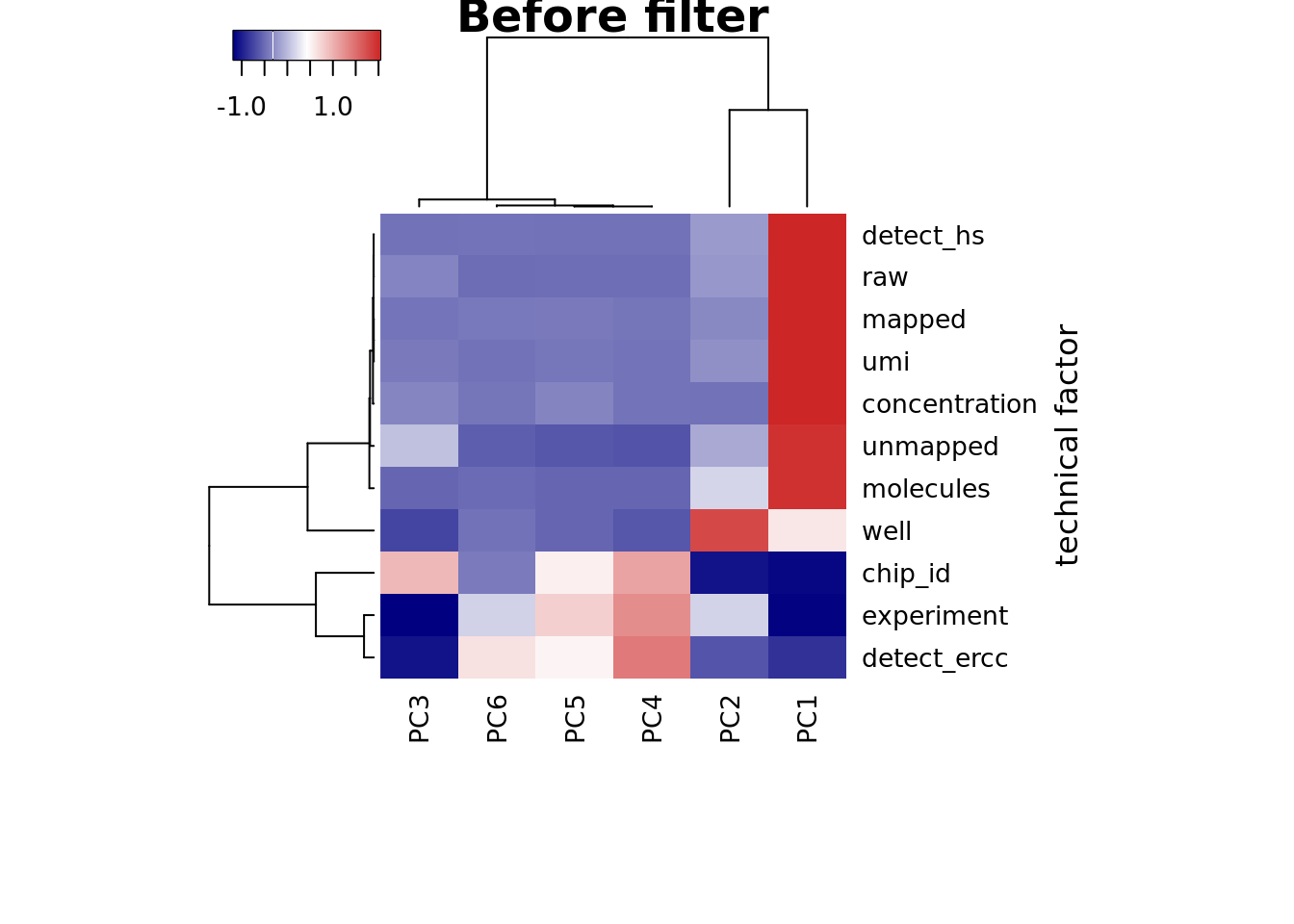

heatmap3(r2_before, cexRow=1, cexCol=1, margins=c(8,8),
                              ylab=&quot;technical factor&quot;, main = &quot;Before filter&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/before-filter-1.png" width="672" style="display: block; margin: auto;" /></p>

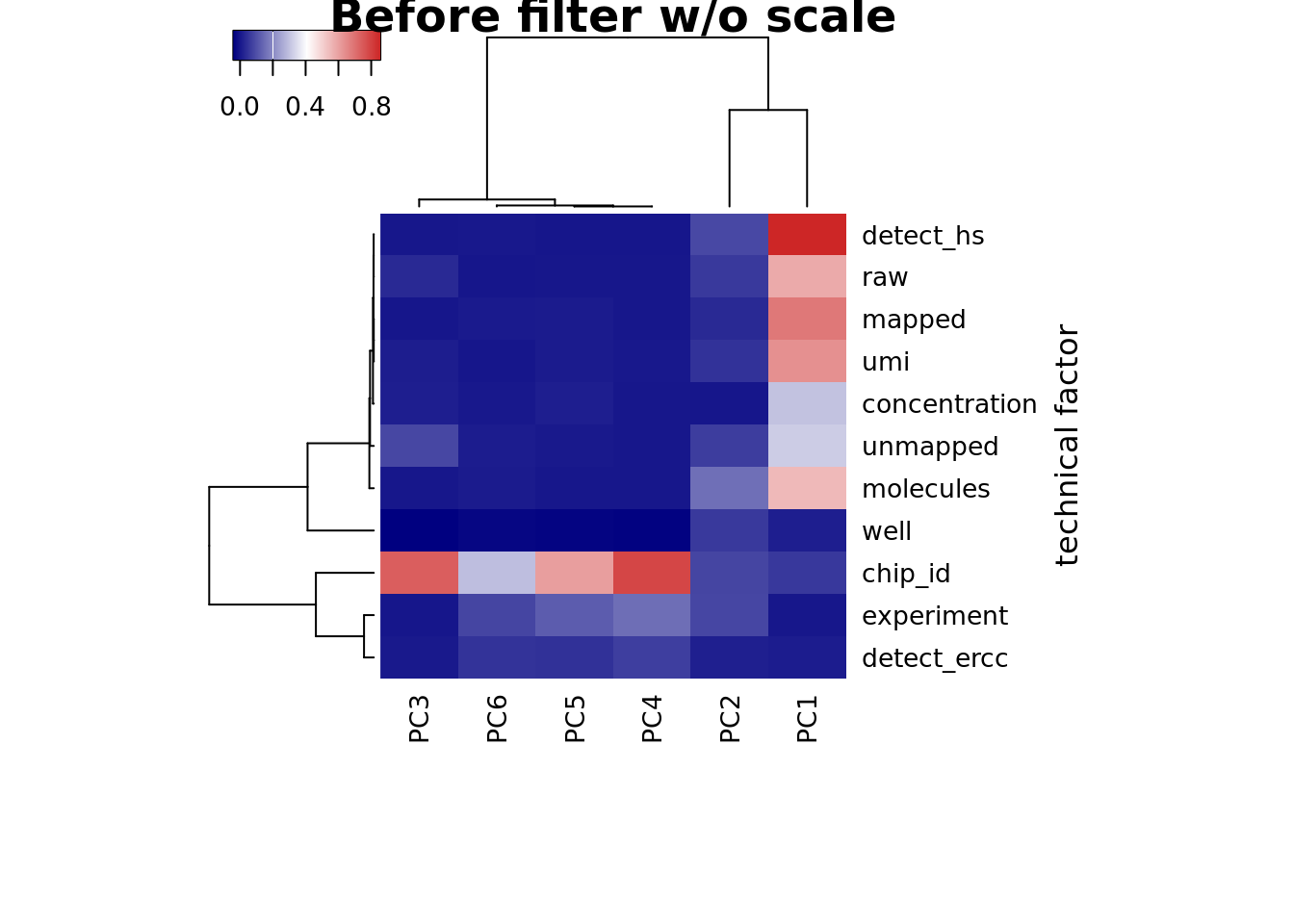

<pre class="r"><code>heatmap3(r2_before, cexRow=1, cexCol=1, margins=c(8,8), scale = &quot;none&quot;,
                       ylab=&quot;technical factor&quot;, main = &quot;Before filter w/o scale&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/before-filter-2.png" width="672" style="display: block; margin: auto;" /></p>

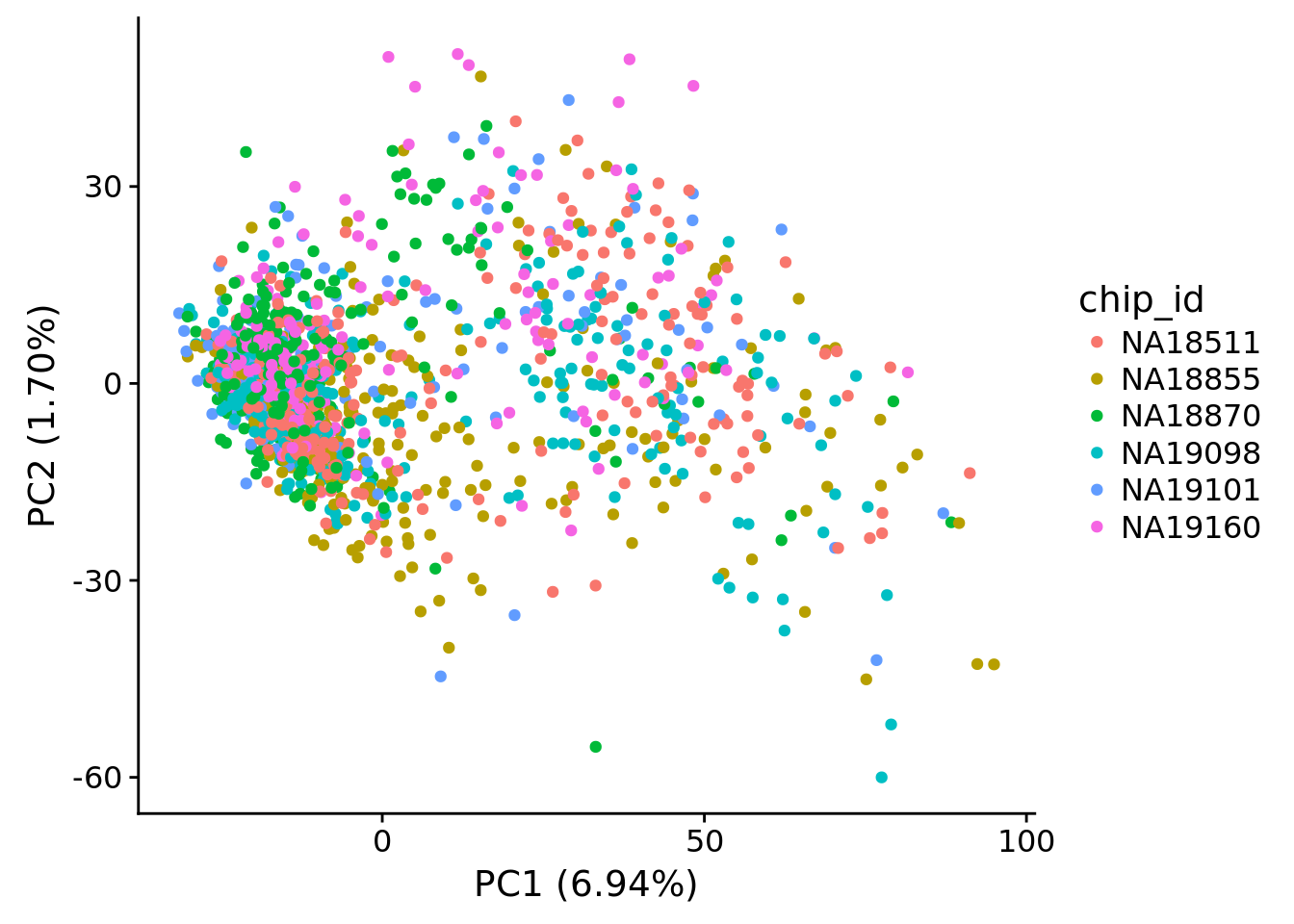

<pre class="r"><code>plot_pca(pca_hs$PCs, pcx = 1, pcy = 2, explained = pca_hs$explained,
         metadata = pData(eset_hs), color=&quot;chip_id&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/before-filter-3.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="after-filter" class="section level3">
<h3>After filter</h3>
<p>Import data post <a href="gene-filtering.Rmd">sample and gene filtering</a></p>
<pre class="r"><code>eset_filter &lt;- readRDS(&quot;../data/eset-filtered.rds&quot;)</code></pre>
<p>Compute log2 CPM based on the library size before filtering.</p>
<pre class="r"><code>log2cpm &lt;- cpm(exprs(eset_filter), log = TRUE)
dim(log2cpm)</code></pre>
<pre><code>[1] 11093   923</code></pre>
<pre class="r"><code>pca_log2cpm &lt;- run_pca(log2cpm)

pdata &lt;- pData(eset_filter)
pdata$experiment &lt;- as.factor(pdata$experiment)

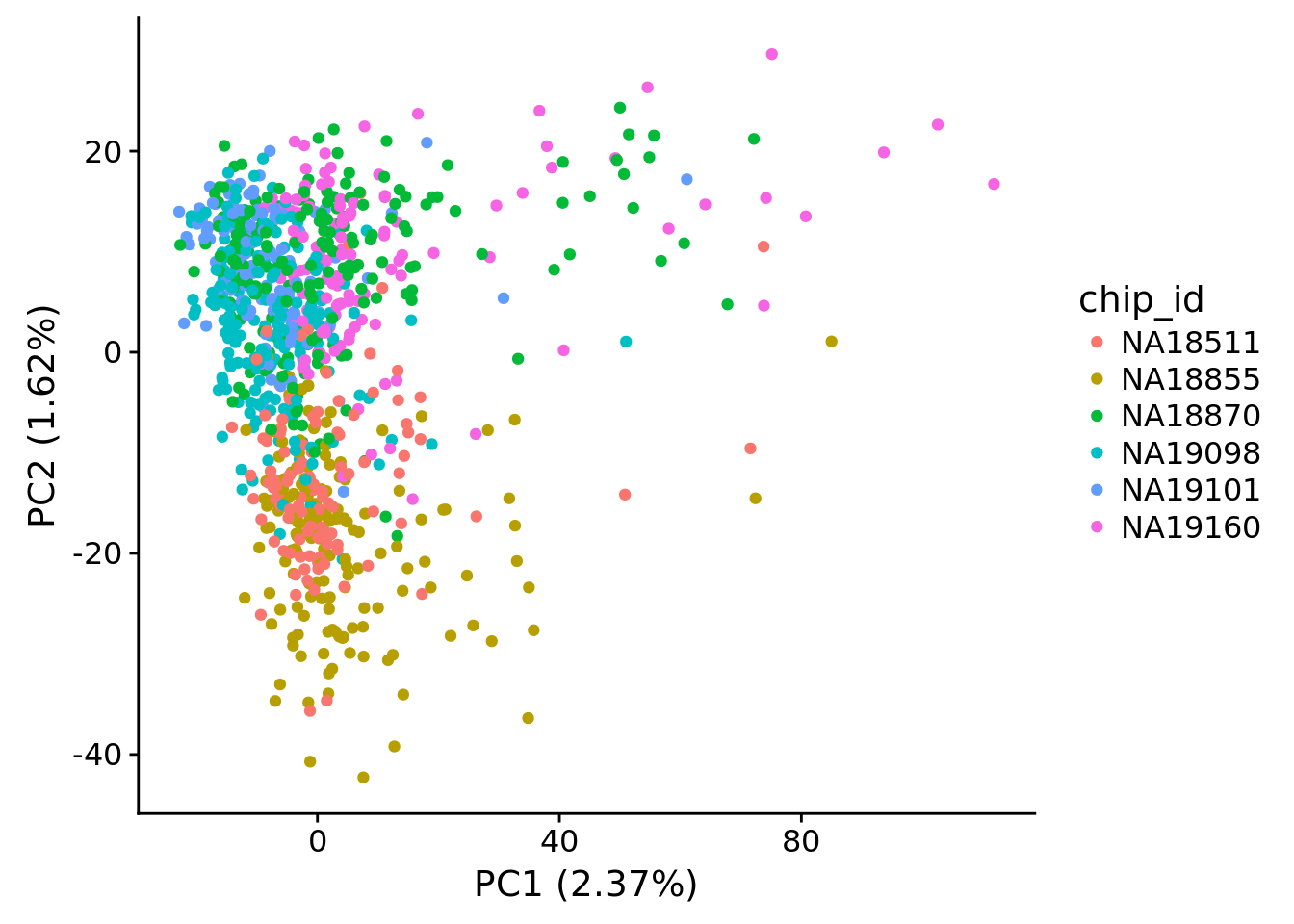

plot_pca(x=pca_log2cpm$PCs, explained=pca_log2cpm$explained,
         metadata=pdata, color=&quot;chip_id&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/after-filter-1.png" width="672" style="display: block; margin: auto;" /></p>

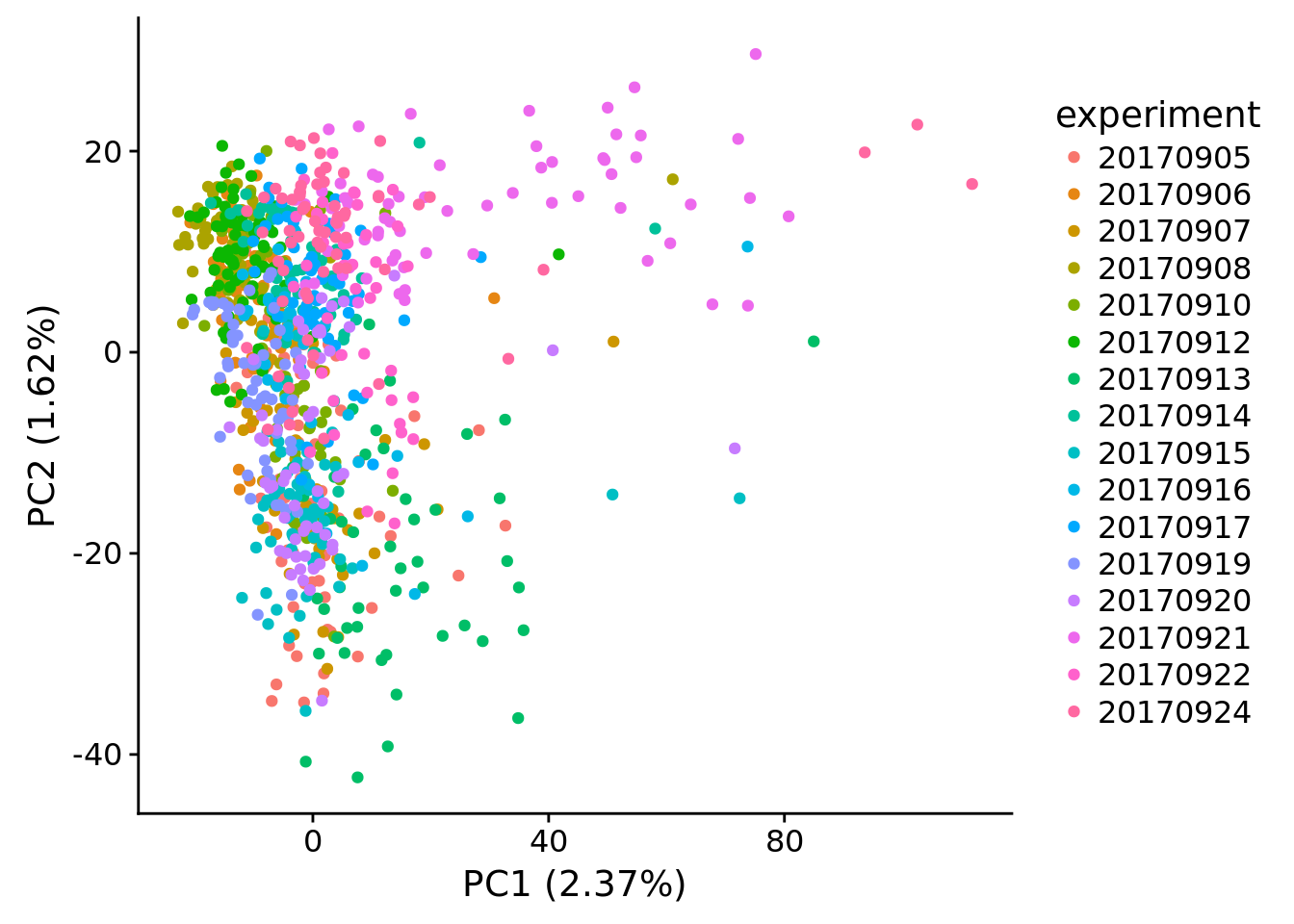

<pre class="r"><code>plot_pca(x=pca_log2cpm$PCs, explained=pca_log2cpm$explained,
         metadata=pdata, color=&quot;experiment&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/after-filter-2.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>## selection of technical factor
covariates &lt;- pData(eset_filter) %&gt;% dplyr::select(experiment, well, chip_id,
                                                     concentration, raw:unmapped,
                                                     starts_with(&quot;detect&quot;),  molecules)
## look at the first 6 PCs
pcs &lt;- pca_log2cpm$PCs[, 1:6]

## generate the data
r2 &lt;- matrix(NA, nrow = ncol(covariates), ncol = ncol(pcs),
             dimnames = list(colnames(covariates), colnames(pcs)))
for (cov in colnames(covariates)) {
  for (pc in colnames(pcs)) {
    r2[cov, pc] &lt;- get_r2(covariates[, cov], pcs[, pc])
  }
}

## plot heatmap

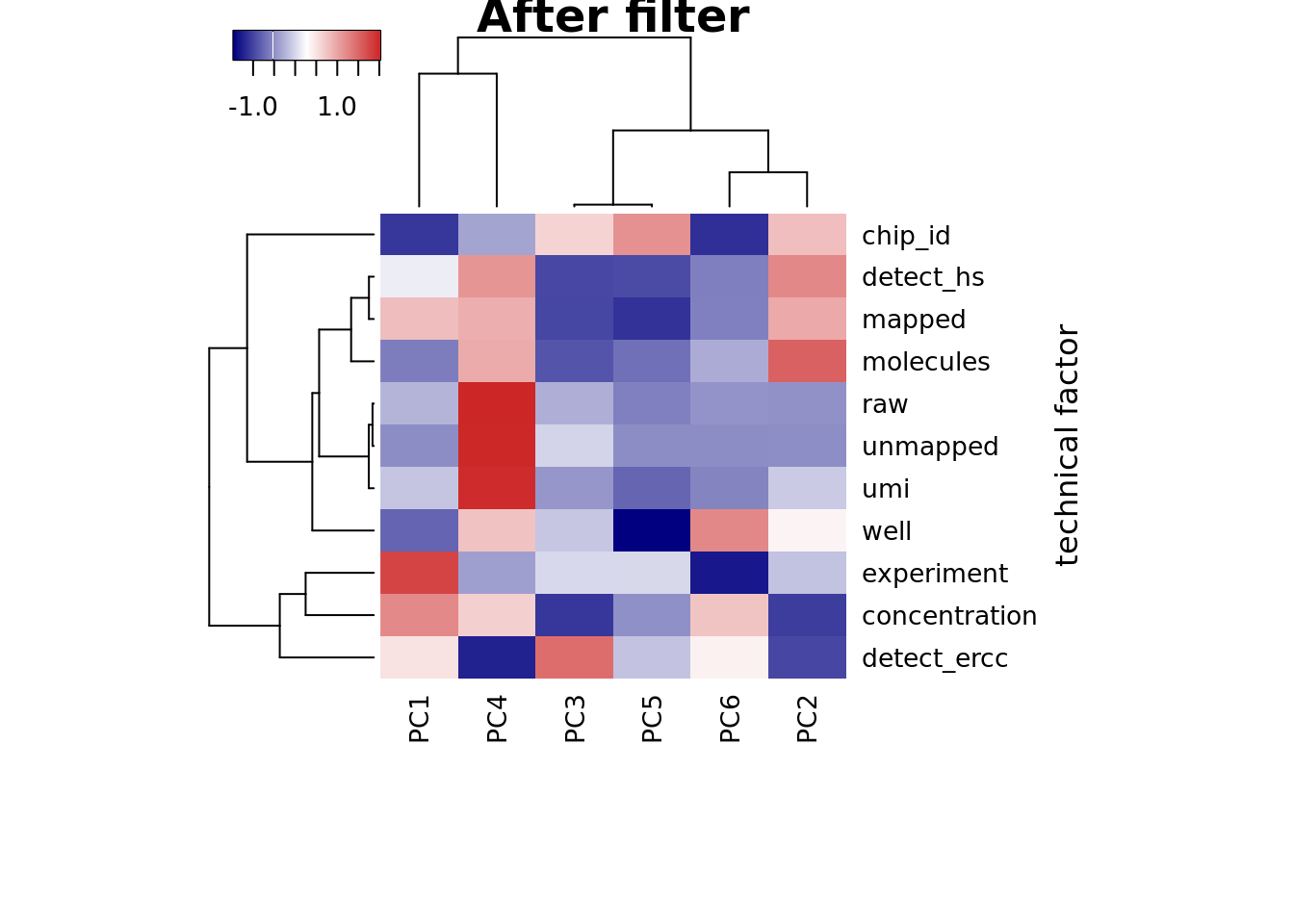

heatmap3(r2, cexRow=1, cexCol=1, margins=c(8,8),
         ylab=&quot;technical factor&quot;, main = &quot;After filter&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/after-filter-tf-1.png" width="672" style="display: block; margin: auto;" /></p>

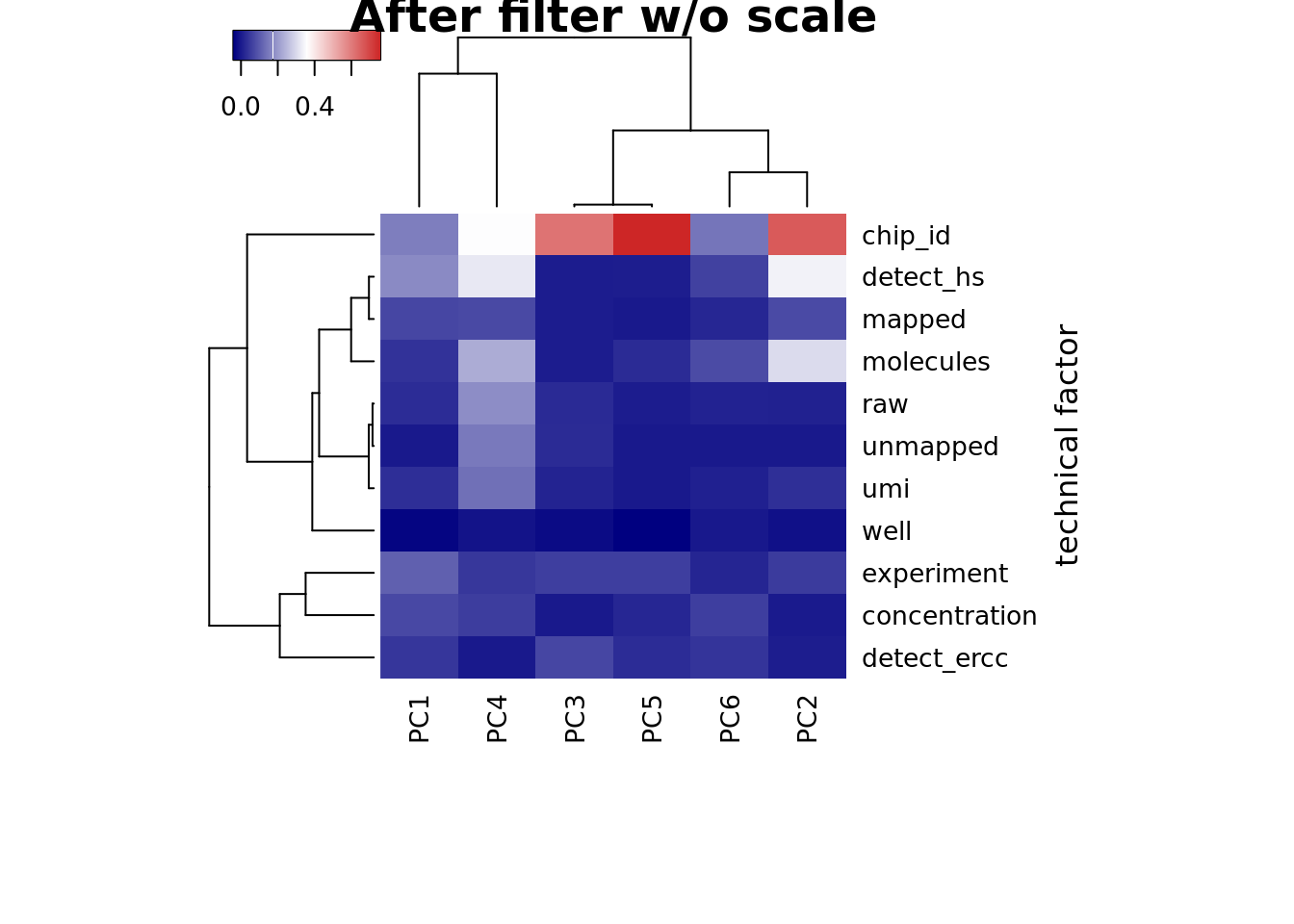

<pre class="r"><code>heatmap3(r2, cexRow=1, cexCol=1, margins=c(8,8), scale = &quot;none&quot;,
         ylab=&quot;technical factor&quot;, main = &quot;After filter w/o scale&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/after-filter-tf-2.png" width="672" style="display: block; margin: auto;" /></p>
<p>PC1 correlated with number of genes detected, which is described in <a href="https://academic.oup.com/biostatistics/advance-article/doi/10.1093/biostatistics/kxx053/4599254">Hicks et al 2017</a></p>

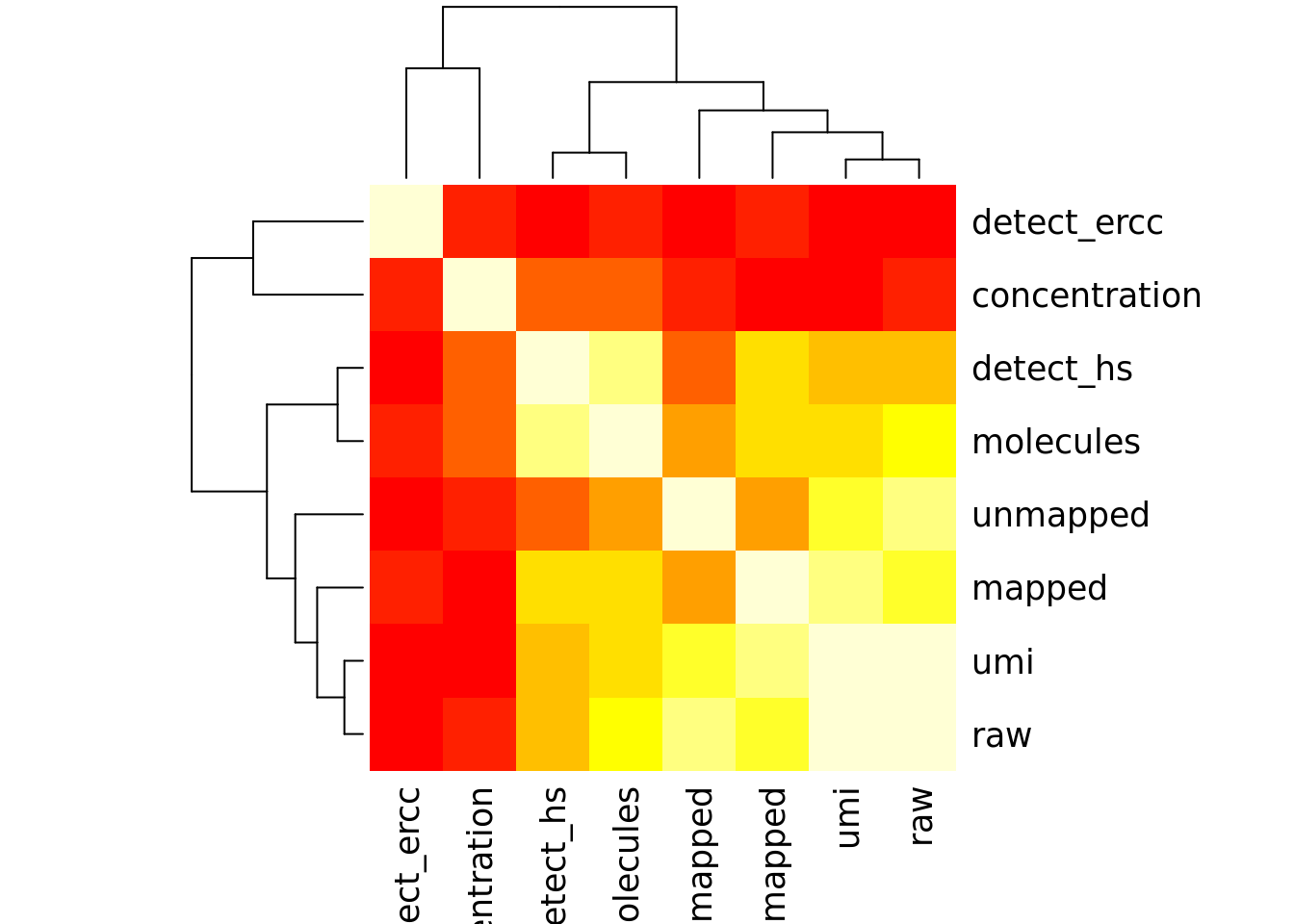

<p>Number of genes detected also highly correlated with sequencing metrics, especially total molecule number per sample.</p>
<pre class="r"><code>cor_tech &lt;- cor(as.matrix(covariates[,4:11]),use=&quot;pairwise.complete.obs&quot;)
heatmap(cor_tech, symm = TRUE)</code></pre>
<p><img src="figure/pca-tf.Rmd/cor-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Look at the top 10% expression genes to see if the correlation of PC1 and number of detected gene would go away. However, the PC1 is still not individual (chip_id).</p>
<pre class="r"><code>## look at top 10% of genes
log2cpm_mean &lt;- rowMeans(log2cpm)
summary(log2cpm_mean)</code></pre>
<pre><code>   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  2.447   3.482   4.505   4.865   5.882  13.434 </code></pre>
<pre class="r"><code>log2cpm_top &lt;- log2cpm[rank(log2cpm_mean) / length(log2cpm_mean) &gt; 1 - 0.1, ]
dim(log2cpm_top)</code></pre>
<pre><code>[1] 1110  923</code></pre>
<pre class="r"><code>pca_top &lt;- run_pca(log2cpm_top)

## look at the first 6 PCs
pcs &lt;- pca_top$PCs[, 1:6]

## generate the data
r2_top &lt;- matrix(NA, nrow = ncol(covariates), ncol = ncol(pcs),
             dimnames = list(colnames(covariates), colnames(pcs)))
for (cov in colnames(covariates)) {
  for (pc in colnames(pcs)) {
    r2_top[cov, pc] &lt;- get_r2(covariates[, cov], pcs[, pc])
  }
}

## plot heatmap
heatmap3(r2_top, cexRow=1, cexCol=1, margins=c(8,8),
         ylab=&quot;technical factor&quot;, main = &quot;Top 10 % gene&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/top-1.png" width="672" style="display: block; margin: auto;" /></p>

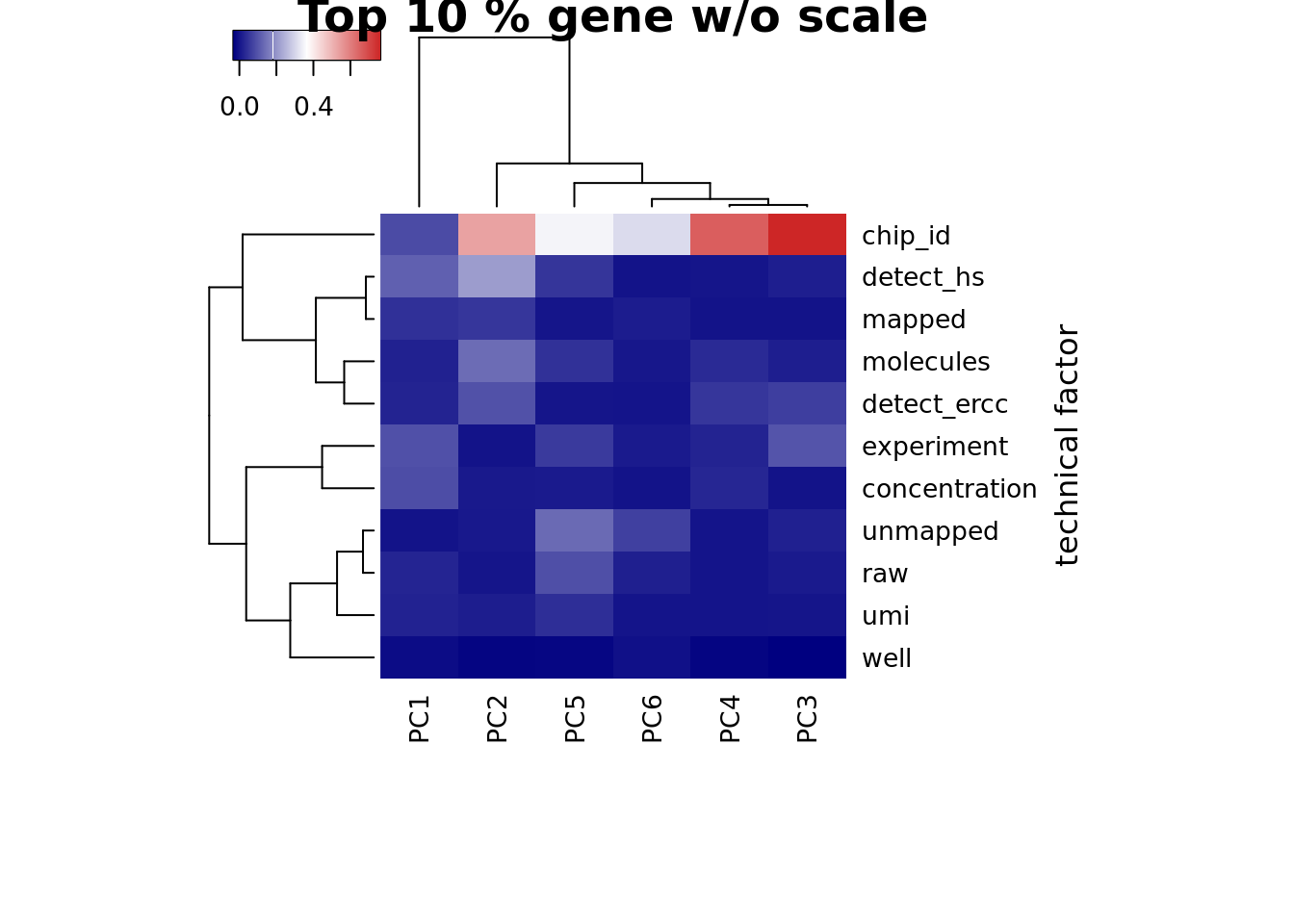

<pre class="r"><code>heatmap3(r2_top, cexRow=1, cexCol=1, margins=c(8,8), scale = &quot;none&quot;,
         ylab=&quot;technical factor&quot;, main = &quot;Top 10 % gene w/o scale&quot;)</code></pre>
<p><img src="figure/pca-tf.Rmd/top-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
