ApaQTLs with all individuals

Last updated: 2018-09-26

• ✔ R Markdown file: up-to-date

  Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

• ✔ Environment: empty

  Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

• ✔ Seed: set.seed(12345)

  The command set.seed(12345) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

• ✔ Session information: recorded

  Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

• ✔ Repository version: 1c62f0b

  Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

  Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:


  Ignored files:
      Ignored:    .DS_Store
      Ignored:    .Rhistory
      Ignored:    .Rproj.user/
      Ignored:    output/.DS_Store

  Untracked files:
      Untracked:  analysis/callMolQTLS.Rmd
      Untracked:  analysis/ncbiRefSeq_sm.sort.mRNA.bed
      Untracked:  analysis/snake.config.notes.Rmd
      Untracked:  analysis/verifyBAM.Rmd
      Untracked:  data/18486.genecov.txt
      Untracked:  data/APApeaksYL.total.inbrain.bed
      Untracked:  data/NuclearApaQTLs.txt
      Untracked:  data/RNAkalisto/
      Untracked:  data/TotalApaQTLs.txt
      Untracked:  data/Totalpeaks_filtered_clean.bed
      Untracked:  data/YL-SP-18486-T-combined-genecov.txt
      Untracked:  data/YL-SP-18486-T_S9_R1_001-genecov.txt
      Untracked:  data/bedgraph_peaks/
      Untracked:  data/bin200.5.T.nuccov.bed
      Untracked:  data/bin200.Anuccov.bed
      Untracked:  data/bin200.nuccov.bed
      Untracked:  data/clean_peaks/
      Untracked:  data/comb_map_stats.csv
      Untracked:  data/comb_map_stats.xlsx
      Untracked:  data/comb_map_stats_39ind.csv
      Untracked:  data/combined_reads_mapped_three_prime_seq.csv
      Untracked:  data/gencov.test.csv
      Untracked:  data/gencov.test.txt
      Untracked:  data/gencov_zero.test.csv
      Untracked:  data/gencov_zero.test.txt
      Untracked:  data/gene_cov/
      Untracked:  data/joined
      Untracked:  data/leafcutter/
      Untracked:  data/merged_combined_YL-SP-threeprimeseq.bg
      Untracked:  data/nom_QTL/
      Untracked:  data/nom_QTL_opp/
      Untracked:  data/nuc6up/
      Untracked:  data/other_qtls/
      Untracked:  data/peakPerRefSeqGene/
      Untracked:  data/perm_QTL/
      Untracked:  data/perm_QTL_opp/
      Untracked:  data/reads_mapped_three_prime_seq.csv
      Untracked:  data/smash.cov.results.bed
      Untracked:  data/smash.cov.results.csv
      Untracked:  data/smash.cov.results.txt
      Untracked:  data/smash_testregion/
      Untracked:  data/ssFC200.cov.bed
      Untracked:  data/temp.file1
      Untracked:  data/temp.file2
      Untracked:  data/temp.gencov.test.txt
      Untracked:  data/temp.gencov_zero.test.txt
      Untracked:  output/picard/
      Untracked:  output/plots/
      Untracked:  output/qual.fig2.pdf

  Unstaged changes:
      Modified:   analysis/28ind.peak.explore.Rmd
      Modified:   analysis/cleanupdtseq.internalpriming.Rmd
      Modified:   analysis/dif.iso.usage.leafcutter.Rmd
      Modified:   analysis/diff_iso_pipeline.Rmd
      Modified:   analysis/explore.filters.Rmd
      Modified:   analysis/overlap_qtls.Rmd
      Modified:   analysis/peakOverlap_oppstrand.Rmd
      Modified:   analysis/pheno.leaf.comb.Rmd
      Modified:   analysis/test.max2.Rmd
      Modified:   code/Snakefile



  Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.

library(tidyverse)

── Attaching packages ──────────────────────────────────────────────────────────────────────────────────────────── tidyverse 1.2.1 ──

✔ ggplot2 3.0.0     ✔ purrr   0.2.5
✔ tibble  1.4.2     ✔ dplyr   0.7.6
✔ tidyr   0.8.1     ✔ stringr 1.3.1
✔ readr   1.1.1     ✔ forcats 0.3.0

── Conflicts ─────────────────────────────────────────────────────────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()

library(reshape2)

Attaching package: 'reshape2'

The following object is masked from 'package:tidyr':

    smiths

library(workflowr)

This is workflowr version 1.1.1
Run ?workflowr for help getting started

I am using the code from peakOverlap_oppstrand.Rmd analysis to call QTLs on the full set of individuals. (still missing 4 due to genotype issues- Remove 18500, 19092 and 19193, 18497 - at 35).

Scripts:
* APAqtl_nominal_oppstrand.sh

• APAqtl_perm_Opp.sh

cat /project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Total* > /project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Total_permRes.txt

cat /project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Nuclear* > /project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Nuclear_permRes.txt

Write a script to ad the BH correction of the permuted QTL pvalues. I will write the plots to

APAqtlpermCorrectQQplot.R

library(dplyr)


##total results
tot.perm= read.table("/project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Total_permRes.txt",head=F, stringsAsFactors=F, col.names = c("pid", "nvar", "shape1", "shape2", "dummy", "sid", "dist", "npval", "slope", "ppval", "bpval"))

#BH correction
tot.perm$bh=p.adjust(tot.perm$bpval, method="fdr")

#plot qqplot
pdf("/project2/gilad/briana/threeprimeseq/output/plots/qqplot_total_APAperm.pdf")
qqplot_total= qqplot(-log10(runif(nrow(tot.perm))), -log10(tot.perm$bpval),ylab="-log10 Total permuted pvalue", xlab="Uniform expectation", main="Total permuted pvalues for all snps")
abline(0,1)
dev.off()

#write df with BH

write.table(tot.perm, file = "/project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Total_permResBH.txt", col.names = T, row.names = F, quote = F)

##nuclear results


nuc.perm= read.table("/project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Nuclear_permRes.txt",head=F, stringsAsFactors=F, col.names = c("pid", "nvar", "shape1", "shape2", "dummy", "sid", "dist", "npval", "slope", "ppval", "bpval"))
nuc.perm$bh=p.adjust(nuc.perm$bpval, method="fdr")


#plot qqplot
pdf("/project2/gilad/briana/threeprimeseq/output/plots/qqplot_nuclear_APAperm.pdf")
qqplot(-log10(runif(nrow(nuc.perm))), -log10(nuc.perm$bpval),ylab="-log10 Nuclear permuted pvalue", xlab="Uniform expectation", main="Nuclear permuted pvalues for all snps")
abline(0,1)
dev.off()

# write df with BH
write.table(nuc.perm, file = "/project2/gilad/briana/threeprimeseq/data/perm_APAqtl_Opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Nuclear_permResBH.txt", col.names = T, row.names = F, quote = F)

Write a script to run this:

run_APAqtlpermCorrectQQplot.sh

#!/bin/bash


#SBATCH --job-name=run_APAqtlpermCorrectQQplot
#SBATCH --account=pi-yangili1
#SBATCH --time=24:00:00
#SBATCH --output=run_APAqtlpermCorrectQQplot.out
#SBATCH --error=run_APAqtlpermCorrectQQplot.err
#SBATCH --partition=broadwl
#SBATCH --mem=12G
#SBATCH --mail-type=END

module load Anaconda3
source activate three-prime-env


Rscript APAqtlpermCorrectQQplot.R

tot_permBH=read.table("../data/perm_QTL_opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Total_permResBH.txt", header=T, stringsAsFactors = F)

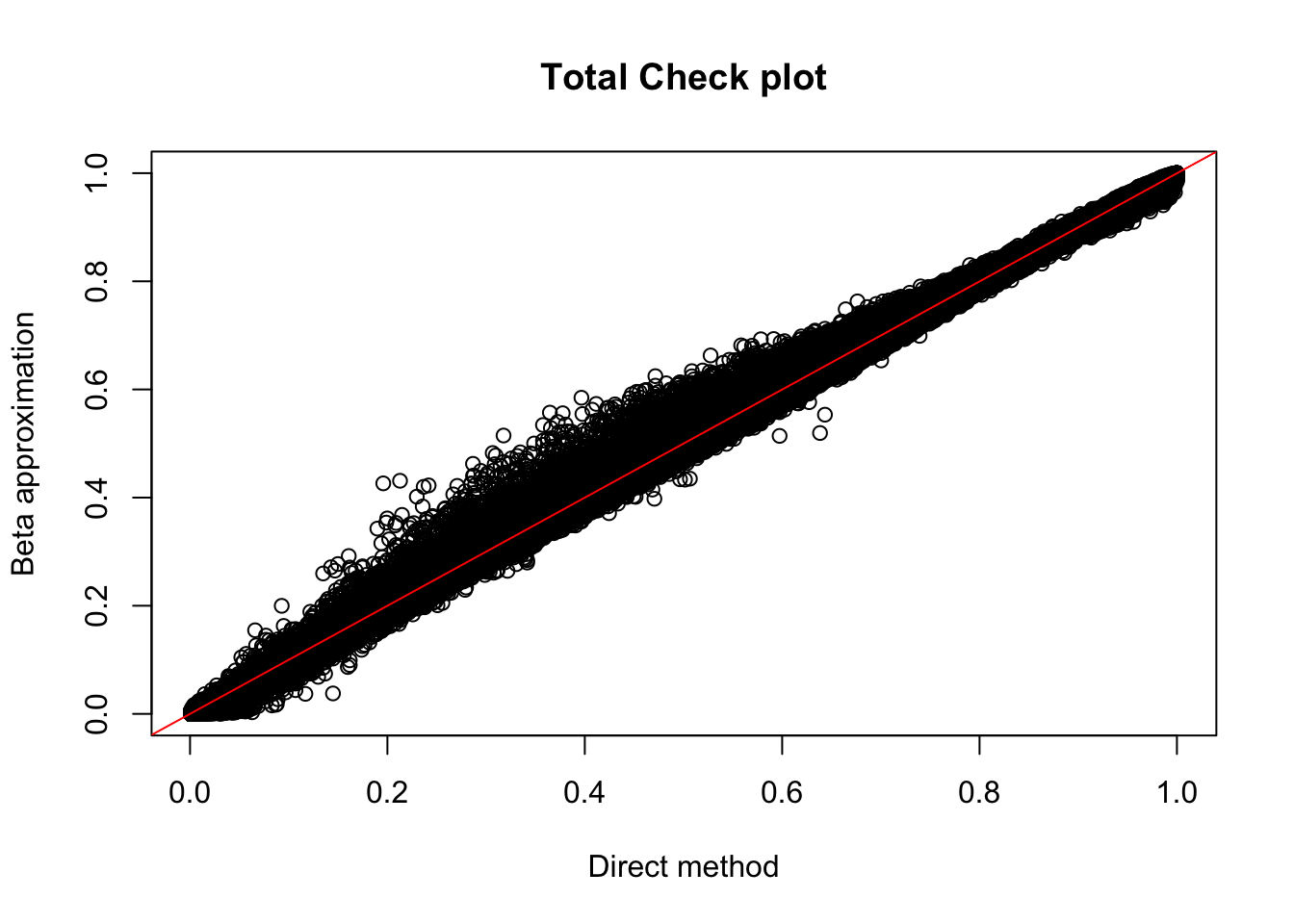

plot(tot_permBH$ppval, tot_permBH$bpval, xlab="Direct method", ylab="Beta approximation", main="Total Check plot")
abline(0, 1, col="red")

plot(-log10(tot_permBH$bh), main="Total BH corrected pval")
abline(h=1,col="Red")

tot_qtl_10= tot_permBH %>% filter(-log10(bh) > 1)
nrow(tot_qtl_10)

[1] 1468

tot_qtl_10uniq= tot_permBH %>% filter(-log10(bh) > 1)  %>% summarise(n_distinct(sid))
tot_qtl_10uniq

  n_distinct(sid)
1             568

nuc_permBH=read.table("../data/perm_QTL_opp/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Nuclear_permResBH.txt", header=T, stringsAsFactors = F)

plot(nuc_permBH$ppval, nuc_permBH$bpval, xlab="Direct method", ylab="Beta approximation", main="Nuclear Check plot")
abline(0, 1, col="red")

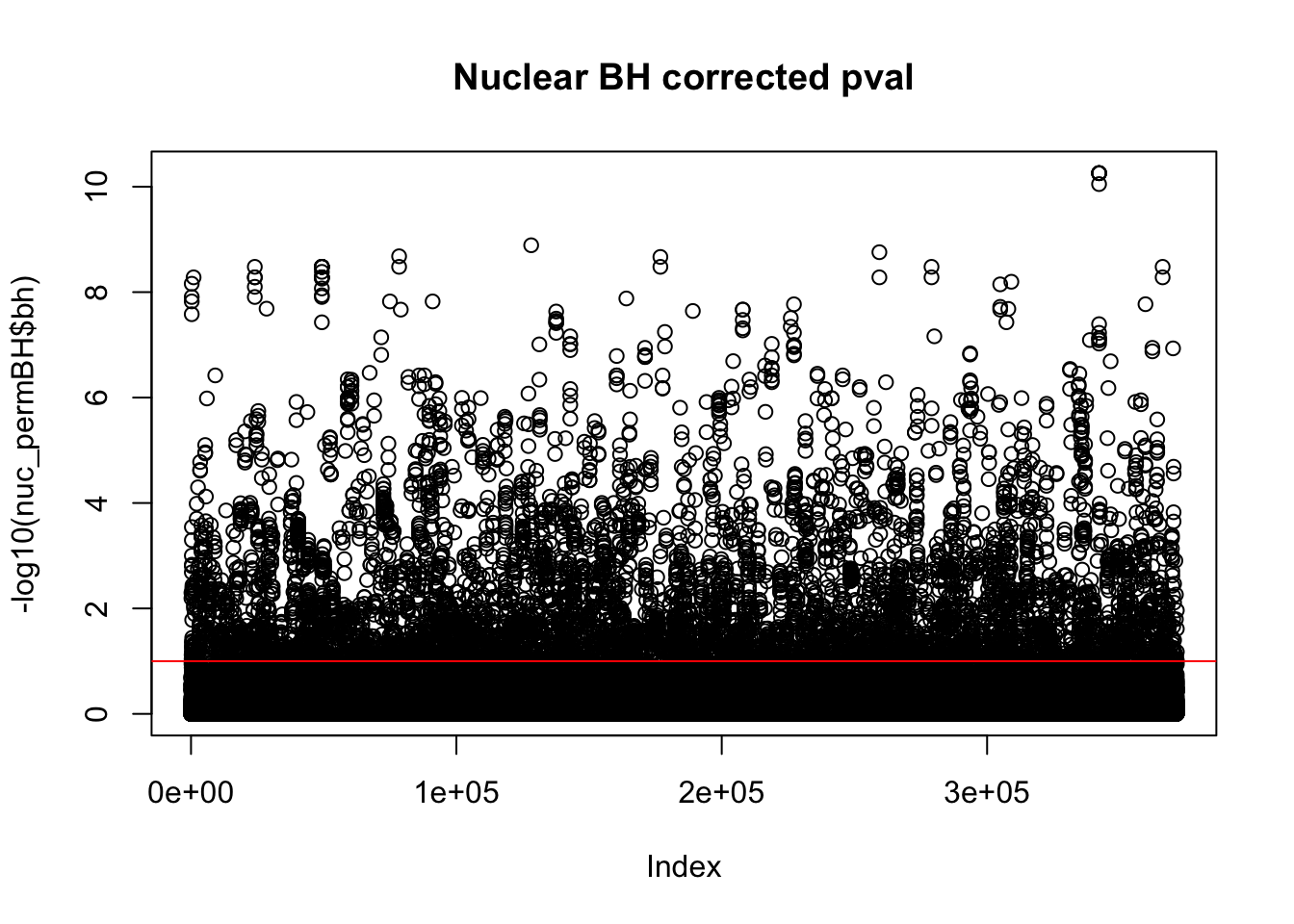

plot(-log10(nuc_permBH$bh), main="Nuclear BH corrected pval")
abline(h=1,col="Red")

nuc_qtl_10= nuc_permBH %>% filter(-log10(bh) > 1)
nrow(nuc_qtl_10)

[1] 7025

nuc_qtl_10uniq= nuc_permBH %>% filter(-log10(bh) > 1)  %>% summarise(n_distinct(sid))
nuc_qtl_10uniq

  n_distinct(sid)
1            2736

nQTL_tot=c()
FDR=seq(.05, .5, .01)
for (i in FDR){
  x=tot_permBH %>% filter(bh < i ) %>% nrow()
  nQTL_tot=c(nQTL_tot, x)
}

FDR=seq(.05, .5, .01)
nQTL_nuc=c()
for (i in FDR){
  x=nuc_permBH %>% filter(bh < i ) %>% nrow()
  nQTL_nuc=c(nQTL_nuc, x)
}

nQTL=as.data.frame(cbind(FDR, Total=nQTL_tot, Nuclear=nQTL_nuc))
nQTL_long=melt(nQTL, id.vars = "FDR")

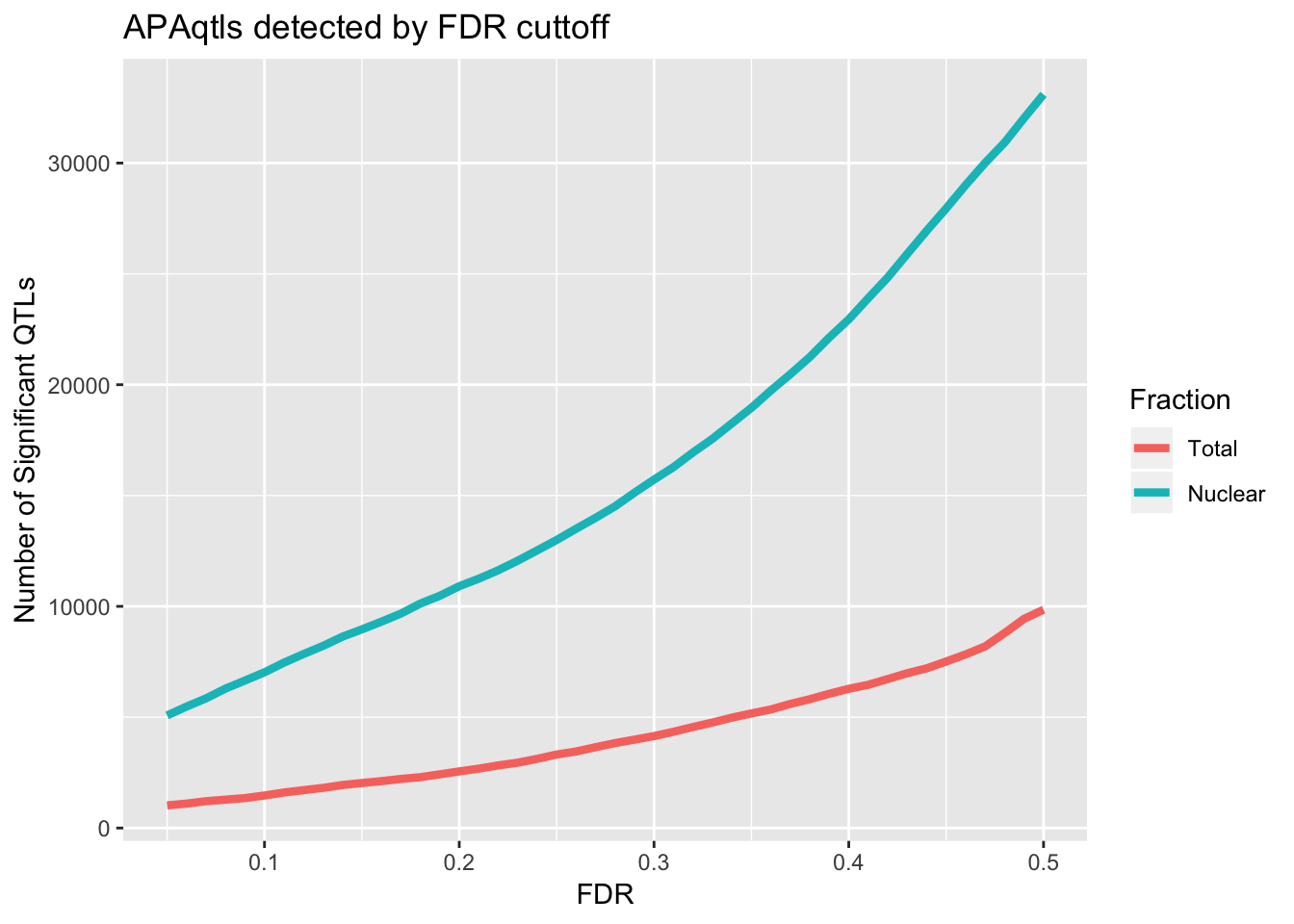

ggplot(nQTL_long, aes(x=FDR, y=value, by=variable, col=variable)) + geom_line(size=1.5) + labs(y="Number of Significant QTLs", title="APAqtls detected by FDR cuttoff", color="Fraction")

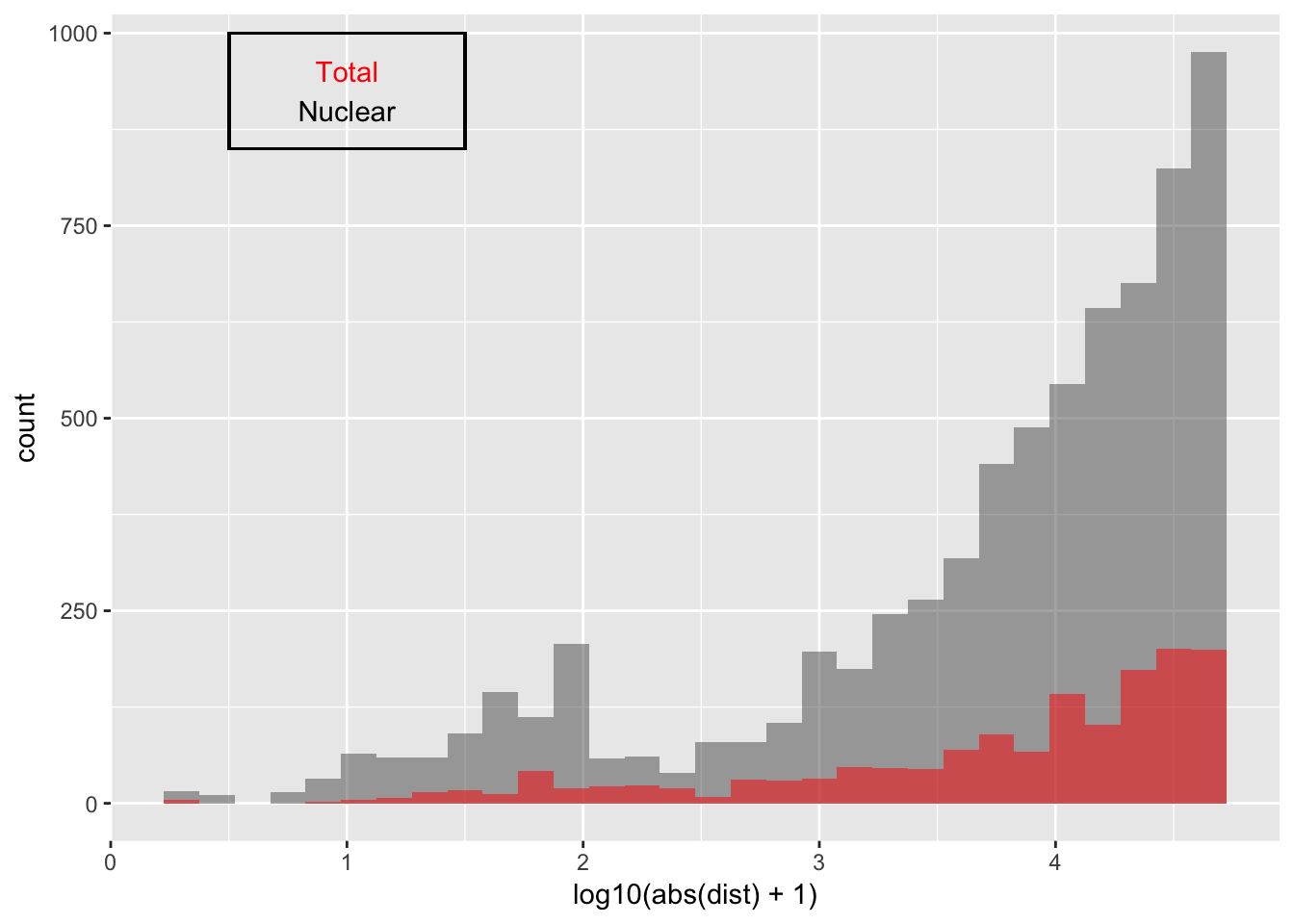

ggplot(nuc_qtl_10, aes(x=log10(abs(dist) + 1)) )+ geom_histogram(binwidth=.15, alpha=.5 ) + geom_histogram(data=tot_qtl_10, aes(x=log10(abs(dist) + 1)),fill="Red", alpha=.5,binwidth=.15)  +  annotate("text", x=1, y=950, col="Red", label="Total") + annotate("text", x=1, y=900, col="Black", label="Nuclear") + geom_rect(linetype=1, xmin=.5, xmax=1.5, ymin=850, ymax=1000, color="Black", alpha=0)

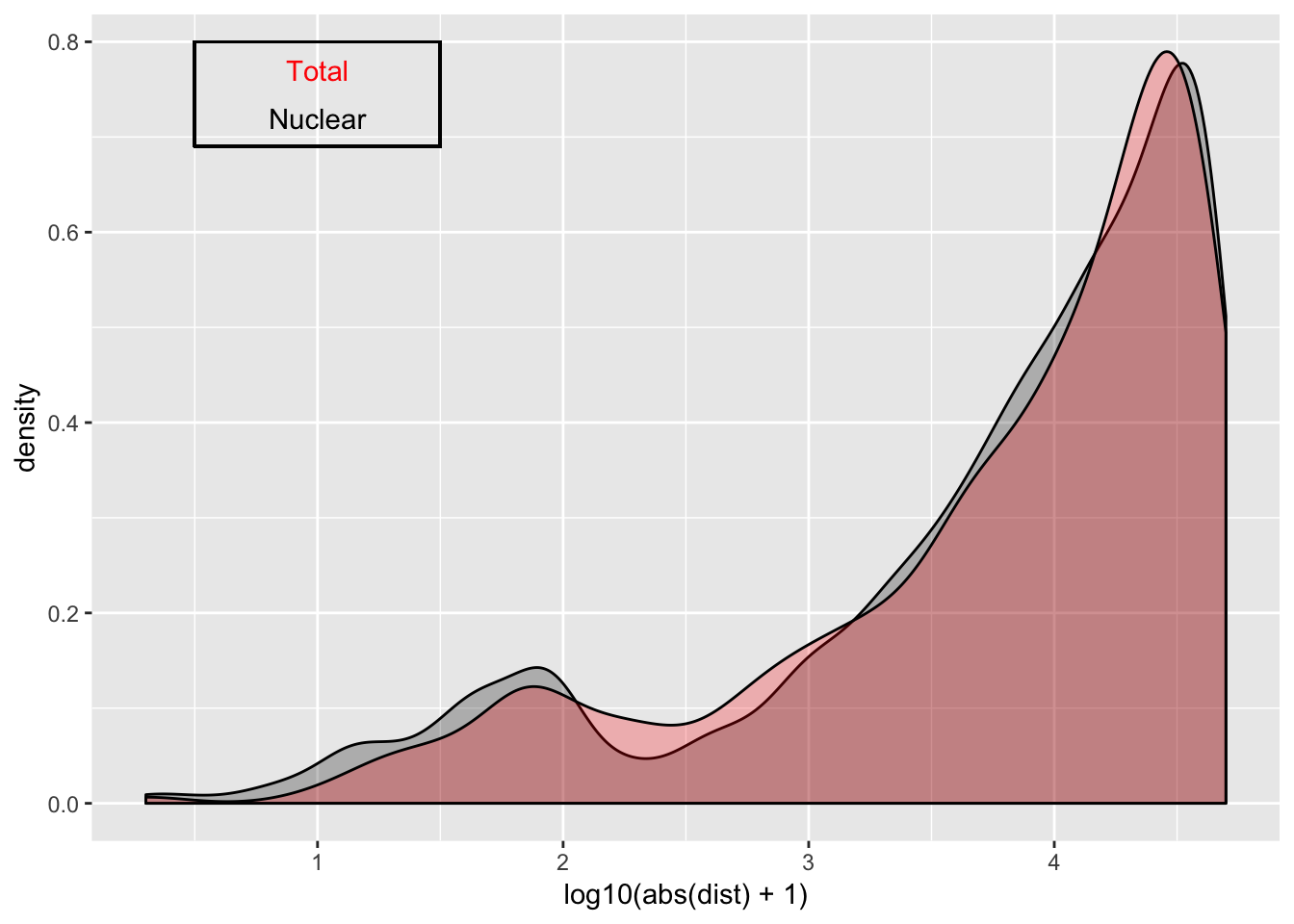

ggplot(nuc_qtl_10, aes(x=log10(abs(dist) + 1)) )+ geom_density( alpha=.25 ,fill="Black") + geom_density(data=tot_qtl_10, aes(x=log10(abs(dist) + 1)),fill="Red", alpha=.25)  + annotate("text", x=1, y=.77, col="Red", label="Total") + annotate("text", x=1, y=.72, col="Black", label="Nuclear") + geom_rect(linetype=1, xmin=.5, xmax=1.5, ymin=.69, ymax=.8, color="Black", alpha=0)

sessionInfo()

R version 3.5.1 (2018-07-02)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Sierra 10.12.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.5/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] bindrcpp_0.2.2  workflowr_1.1.1 reshape2_1.4.3  forcats_0.3.0
 [5] stringr_1.3.1   dplyr_0.7.6     purrr_0.2.5     readr_1.1.1
 [9] tidyr_0.8.1     tibble_1.4.2    ggplot2_3.0.0   tidyverse_1.2.1

loaded via a namespace (and not attached):
 [1] tidyselect_0.2.4  haven_1.1.2       lattice_0.20-35
 [4] colorspace_1.3-2  htmltools_0.3.6   yaml_2.2.0
 [7] rlang_0.2.2       R.oo_1.22.0       pillar_1.3.0
[10] glue_1.3.0        withr_2.1.2       R.utils_2.7.0
[13] modelr_0.1.2      readxl_1.1.0      bindr_0.1.1
[16] plyr_1.8.4        munsell_0.5.0     gtable_0.2.0
[19] cellranger_1.1.0  rvest_0.3.2       R.methodsS3_1.7.1
[22] evaluate_0.11     labeling_0.3      knitr_1.20
[25] broom_0.5.0       Rcpp_0.12.18      scales_1.0.0
[28] backports_1.1.2   jsonlite_1.5      hms_0.4.2
[31] digest_0.6.16     stringi_1.2.4     grid_3.5.1
[34] rprojroot_1.3-2   cli_1.0.0         tools_3.5.1
[37] magrittr_1.5      lazyeval_0.2.1    crayon_1.3.4
[40] whisker_0.3-2     pkgconfig_2.0.2   xml2_1.2.0
[43] lubridate_1.7.4   assertthat_0.2.0  rmarkdown_1.10
[46] httr_1.3.1        rstudioapi_0.7    R6_2.2.2
[49] nlme_3.1-137      git2r_0.23.0      compiler_3.5.1

This reproducible R Markdown analysis was created with workflowr 1.1.1
