Differential isoform usage netween total and nuclear fractions

Final data preparation:

Create the differential sample file. It will have the names of the samples in column 1 and the fraction they belong to in column two.

isoform_data=read.table("../data/leafcutter/all_leaf_200wind.csv")

samples=colnames(isoform_data)

fraction=c()
for (i in samples){
  if(grepl("N", i)){
    fraction=c(fraction, "Nuclear")
  }
  else{
    fraction=c(fraction, "Total")
  }
}


sample_anno=cbind(samples,fraction)

I will write this to the leafcutter directory without the header.

#write.table(sample_anno, file="../data/leafcutter/sample_ano.txt", row.names = FALSE, quote = FALSE, sep=" ", col.names = F)

Leafcutter results

Confirm we only have 2188 genes with APA here.

genes.anno=data.frame(x=rownames(isoform_data)) %>%  separate(col=x, into=c("chr","bin","gene"), sep=":")
n_genes= n_distinct(genes.anno$gene)
num_gene=genes.anno %>% group_by(gene) %>% select(gene) %>% tally() %>% filter(n>1)

Warning: package 'bindrcpp' was built under R version 3.4.4

dim(num_gene)

[1] 2188    2

We have 3797 unique genes in this file and only 2188 have multiple bins passing the filter.

I ran leafcutter on the cluster with the following command.

Rscript /project2/gilad/briana/leafcutter/scripts/leafcutter_ds.R all_apa_perind.csv.gz sample_ano.txt -o APA

The resutls for significant bins are in the effet size file.

effect_size=read.table("../data/leafcutter/APA_effect_sizes.txt", header=T)
effect_size= effect_size %>%  separate(col=intron, into=c("chr","start","end", "gene"), sep=":")
effect_size= effect_size %>%  separate(col=gene, into=c("clu", "gene", "strand"), sep="_")

counts=read.table("../data/leafcutter/all_leaf_200wind.csv")
genes=rownames(counts)


counts_anno=cbind(genes,counts)

I need a way to plot the counts for the bins called as significant in leafcutter. To do this I should tidy the counts data and have line and sample coulmns. Then I can create boxplots.

counts_melt =melt(counts_anno, id.vars="genes") %>% mutate(fraction=ifelse(grepl("T", variable), "total", "nuclear")) %>% mutate(line=substr(variable,3,7)) %>% separate(col=genes, into=c("chr","bin", "gene"), sep=":")

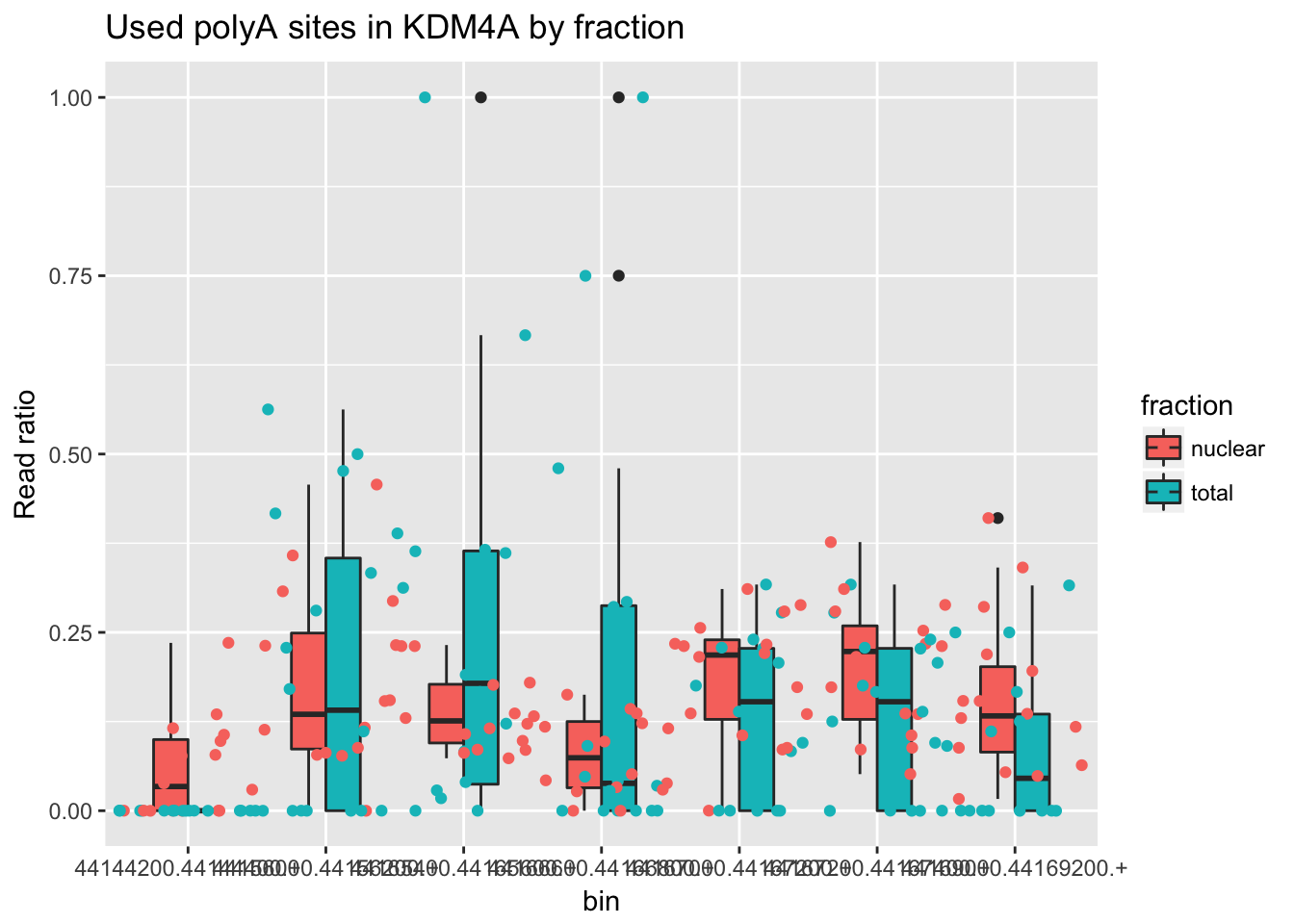

I can filter this for specific genes and examples. I am going to first look at the gene with the top effect size. ENSG00000066135.8

counts_melt_ENSG00000066135.8= counts_melt %>% filter(gene=="ENSG00000066135.8") %>% arrange(bin) %>% group_by(variable) %>% mutate(sum=sum(value)) %>% ungroup(variable) %>%  mutate(ratio=value/sum)

Try to plot this.

ggplot(counts_melt_ENSG00000066135.8, aes(x=bin, y=ratio, fill=fraction)) + geom_boxplot(width=.5) + labs(title="Used polyA sites in KDM4A by fraction", y="Read ratio")+ geom_jitter(aes(col=fraction), width=.5)

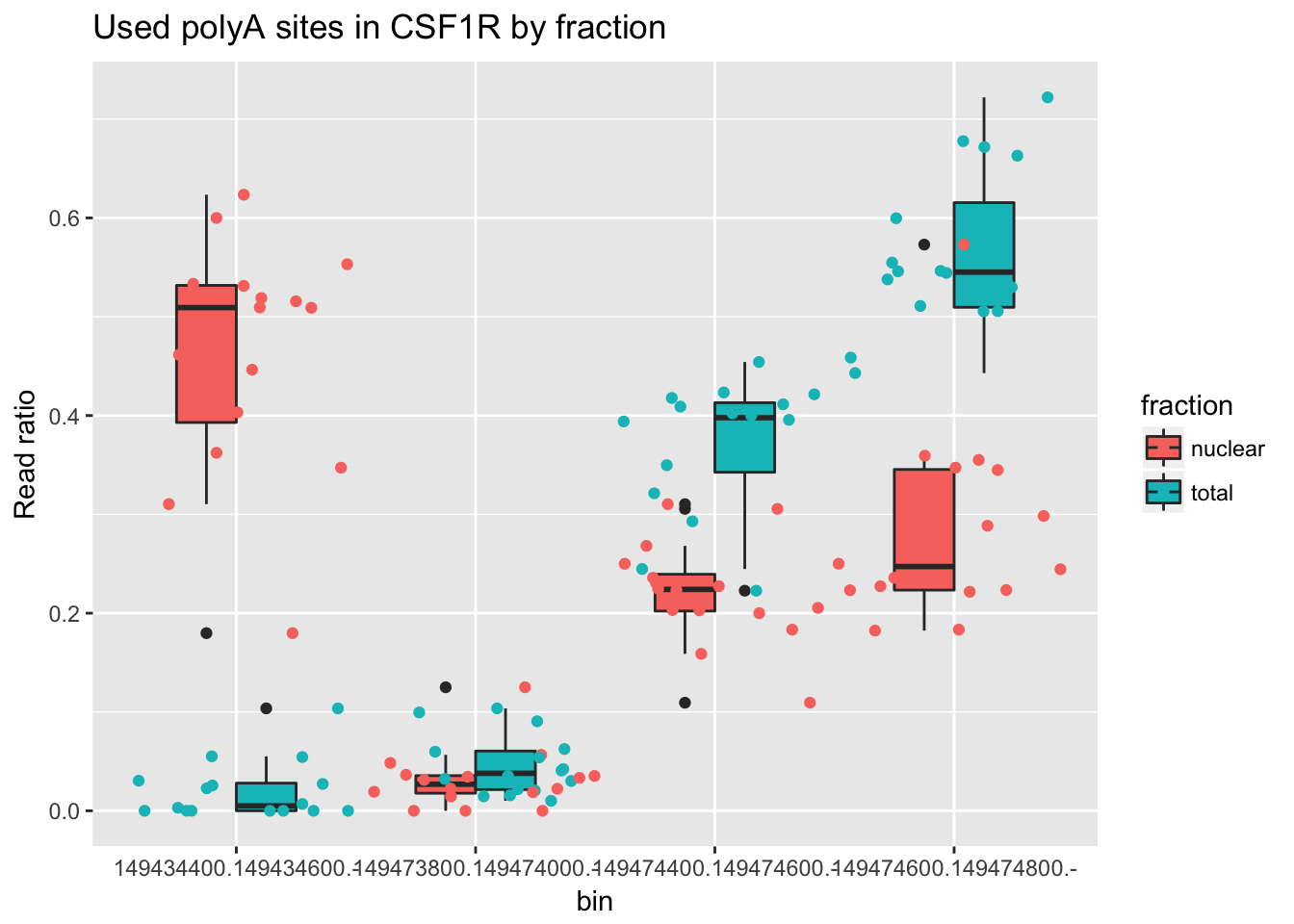

Look at one more gene. ENSG00000182578.9

counts_melt_ENSG00000182578.9= counts_melt %>% filter(gene=="ENSG00000182578.9") %>% arrange(bin)  %>% group_by(variable) %>% mutate(sum=sum(value)) %>% ungroup(variable) %>%  mutate(ratio=value/sum)
ggplot(counts_melt_ENSG00000182578.9, aes(x=bin, y=ratio, fill=fraction)) + geom_boxplot(width=.5) + geom_jitter(aes(col=fraction),width=.5) +labs(title="Used polyA sites in CSF1R by fraction", y="Read ratio")

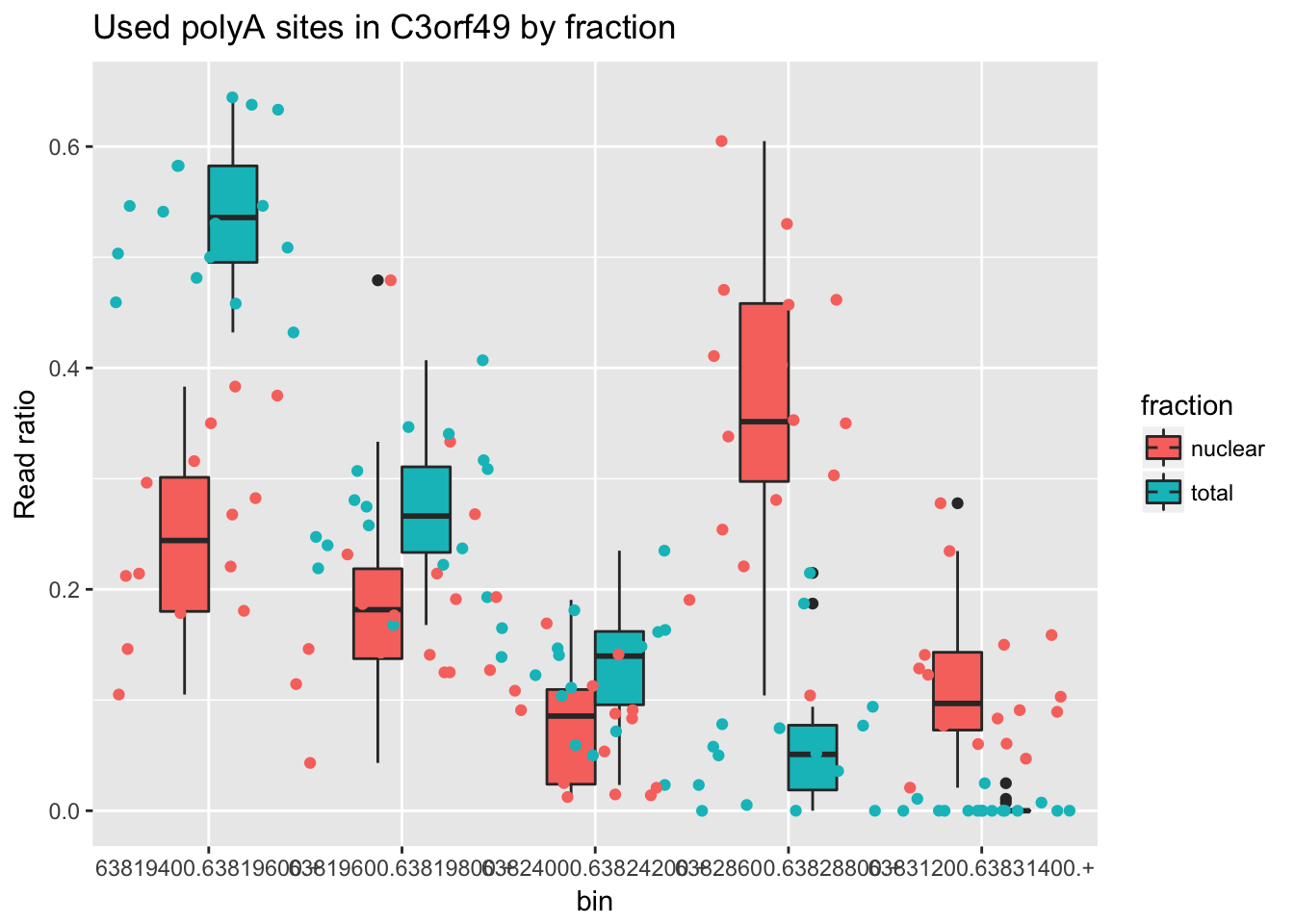

One more. ENSG00000163632.8

counts_melt_ENSG00000163632.8= counts_melt %>% filter(gene=="ENSG00000163632.8") %>% arrange(bin)  %>% group_by(variable) %>% mutate(sum=sum(value)) %>% ungroup(variable) %>%  mutate(ratio=value/sum)
ggplot(counts_melt_ENSG00000163632.8, aes(x=bin, y=ratio, fill=fraction)) + geom_boxplot(width=.5) + labs(title="Used polyA sites in C3orf49 by fraction", y="Read ratio")+ geom_jitter(aes(col=fraction), width=.5)

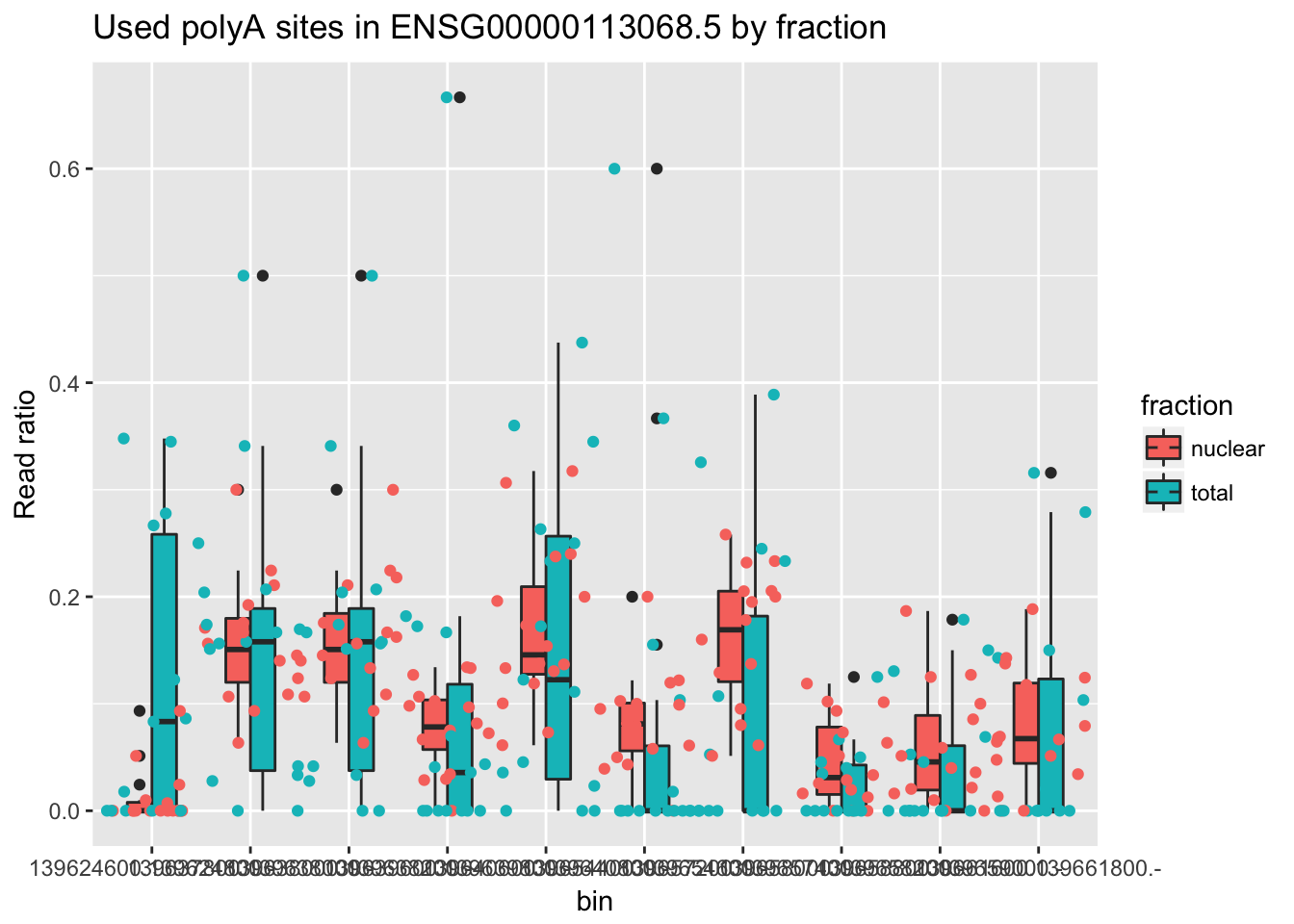

Top effect size in the positive direction.
ENSG00000113068.5

counts_melt_ENSG00000113068.5= counts_melt %>% filter(gene=="ENSG00000113068.5") %>% arrange(bin)  %>% group_by(variable) %>% mutate(sum=sum(value)) %>% ungroup(variable) %>%  mutate(ratio=value/sum)
ggplot(counts_melt_ENSG00000113068.5, aes(x=bin, y=ratio, fill=fraction)) + geom_boxplot(width=.5) + labs(title="Used polyA sites in ENSG00000113068.5 by fraction", y="Read ratio")+ geom_jitter(aes(col=fraction), width=.5)

Warning: Removed 10 rows containing non-finite values (stat_boxplot).

Warning: Removed 10 rows containing missing values (geom_point).

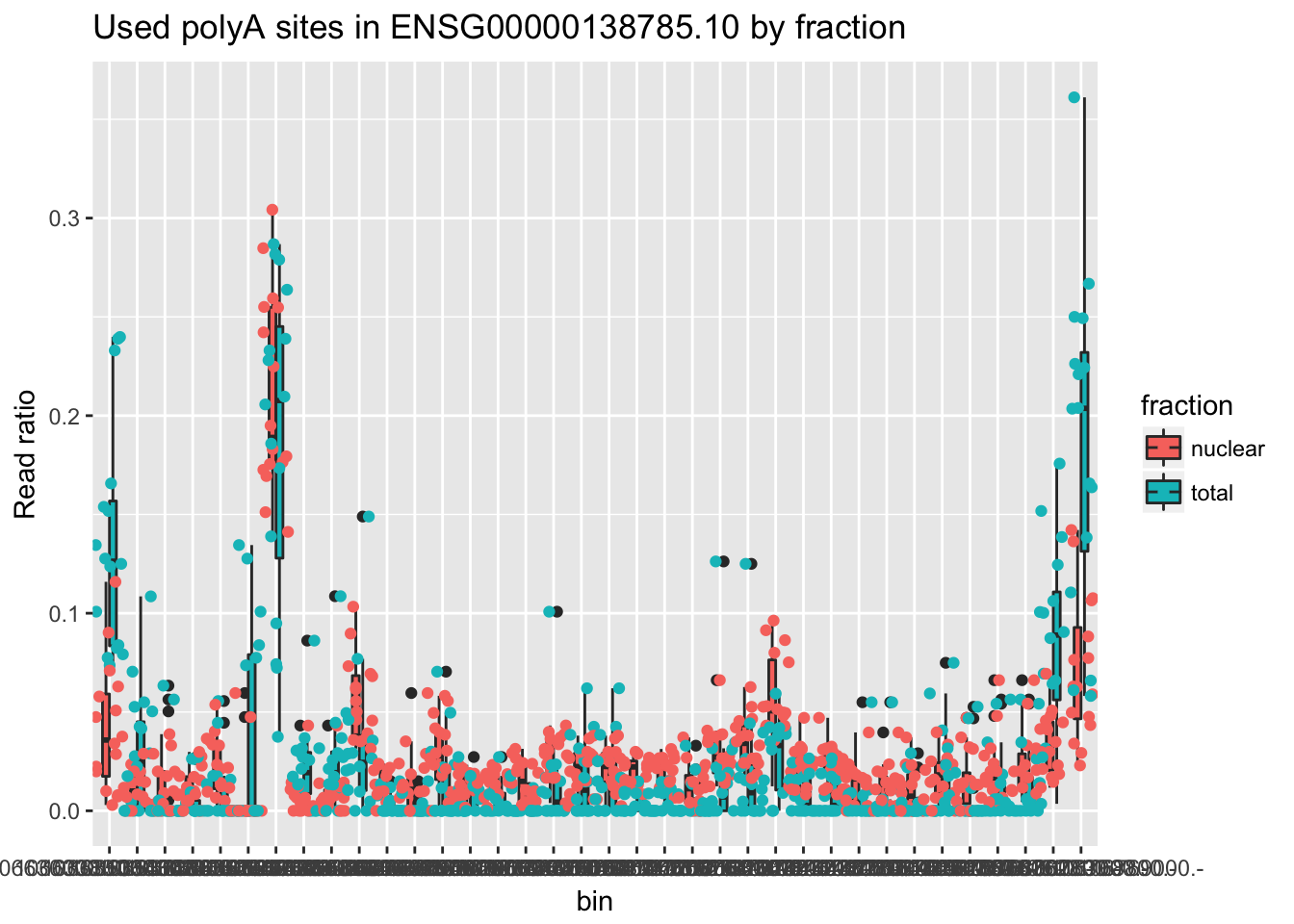

ENSG00000138785.10

counts_melt_ENSG00000138785.10= counts_melt %>% filter(gene=="ENSG00000138785.10") %>% arrange(bin)  %>% group_by(variable) %>% mutate(sum=sum(value)) %>% ungroup(variable) %>%  mutate(ratio=value/sum)
ggplot(counts_melt_ENSG00000138785.10, aes(x=bin, y=ratio, fill=fraction)) + geom_boxplot(width=.5) + labs(title="Used polyA sites in ENSG00000138785.10 by fraction", y="Read ratio")+ geom_jitter(aes(col=fraction), width=.5)
