Characterize Nuclear ApaQTLs

Upload Libraries and Data:

Library

library(workflowr)

This is workflowr version 1.1.1
Run ?workflowr for help getting started

library(reshape2)
library(tidyverse)

── Attaching packages ───────────────────────────────────────────────────────────── tidyverse 1.2.1 ──

✔ ggplot2 3.0.0     ✔ purrr   0.2.5
✔ tibble  1.4.2     ✔ dplyr   0.7.6
✔ tidyr   0.8.1     ✔ stringr 1.3.1
✔ readr   1.1.1     ✔ forcats 0.3.0

── Conflicts ──────────────────────────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()

library(VennDiagram)

Loading required package: grid

Loading required package: futile.logger

library(data.table)

Attaching package: 'data.table'

The following objects are masked from 'package:dplyr':

    between, first, last

The following object is masked from 'package:purrr':

    transpose

The following objects are masked from 'package:reshape2':

    dcast, melt

library(ggpubr)

Loading required package: magrittr

Attaching package: 'magrittr'

The following object is masked from 'package:purrr':

    set_names

The following object is masked from 'package:tidyr':

    extract

Attaching package: 'ggpubr'

The following object is masked from 'package:VennDiagram':

    rotate

library(cowplot)

Attaching package: 'cowplot'

The following object is masked from 'package:ggpubr':

    get_legend

The following object is masked from 'package:ggplot2':

    ggsave

Permuted Results from APA:

I will add a column to this dataframe that will tell me if the association is significant at 10% FDR. This will help me plot based on significance later in the analysis. I am also going to seperate the PID into relevant pieces.

NuclearAPA=read.table("../data/perm_QTL_trans/filtered_APApeaks_merged_allchrom_refseqGenes_pheno_Nuclear_transcript_permResBH.txt", stringsAsFactors = F, header=T)  %>% mutate(sig=ifelse(-log10(bh)>=1, 1,0 )) %>%  separate(pid, sep = ":", into=c("chr", "start", "end", "id")) %>% separate(id, sep = "_", into=c("gene", "strand", "peak"))

NuclearAPA$sig=as.factor(NuclearAPA$sig)


print(names(NuclearAPA))

 [1] "chr"    "start"  "end"    "gene"   "strand" "peak"   "nvar"
 [8] "shape1" "shape2" "dummy"  "sid"    "dist"   "npval"  "slope"
[15] "ppval"  "bpval"  "bh"     "sig"

Distance Metrics

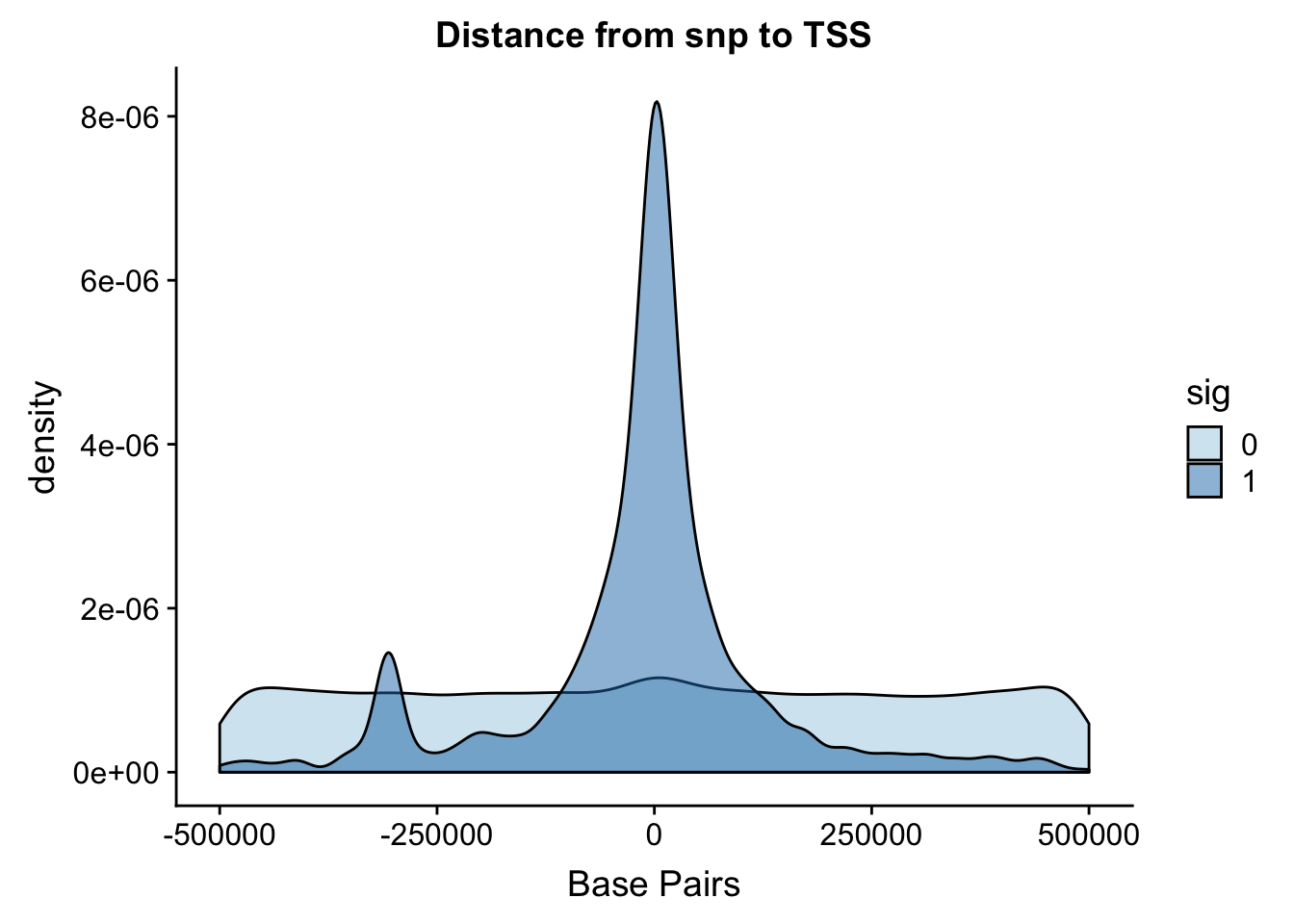

ggplot(NuclearAPA, aes(x=dist, fill=sig, by=sig)) + geom_density(alpha=.5)  +  labs(title="Distance from snp to TSS", x="Base Pairs") + scale_fill_discrete(guide = guide_legend(title = "Significant QTL")) + scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

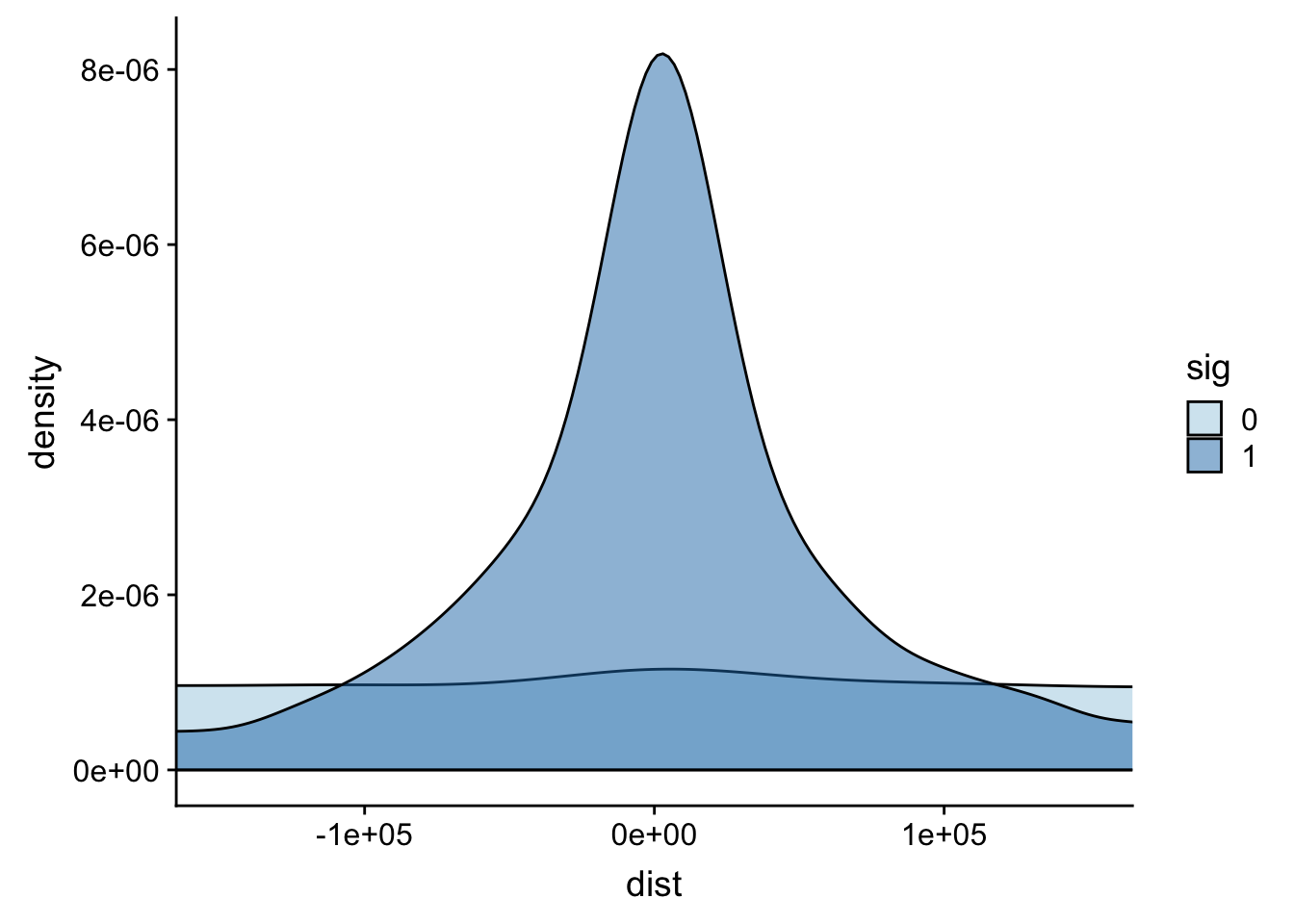

ggplot(NuclearAPA, aes(x=dist, fill=sig, by=sig)) + geom_density(alpha=.5)+coord_cartesian(xlim = c(-150000, 150000)) + scale_fill_brewer(palette="Paired")

peaks=read.table("../data/PeaksUsed/filtered_APApeaks_merged_allchrom_refseqTrans.noties_sm.fixed.bed", col.names = c("chr", "peakStart", "peakEnd", "PeakNum", "PeakScore", "Strand", "Gene")) %>% mutate(peak=paste("peak", PeakNum,sep="")) %>% mutate(PeakCenter=peakStart+ (peakEnd- peakStart))

NuclearAPA_peakdist= NuclearAPA %>%  inner_join(peaks, by="peak") %>%  separate(sid, into=c("snpCHR", "snpLOC"), by=":")
NuclearAPA_peakdist$snpLOC= as.numeric(NuclearAPA_peakdist$snpLOC)

NuclearAPA_peakdist= NuclearAPA_peakdist %>%  mutate(DisttoPeak= snpLOC-PeakCenter)

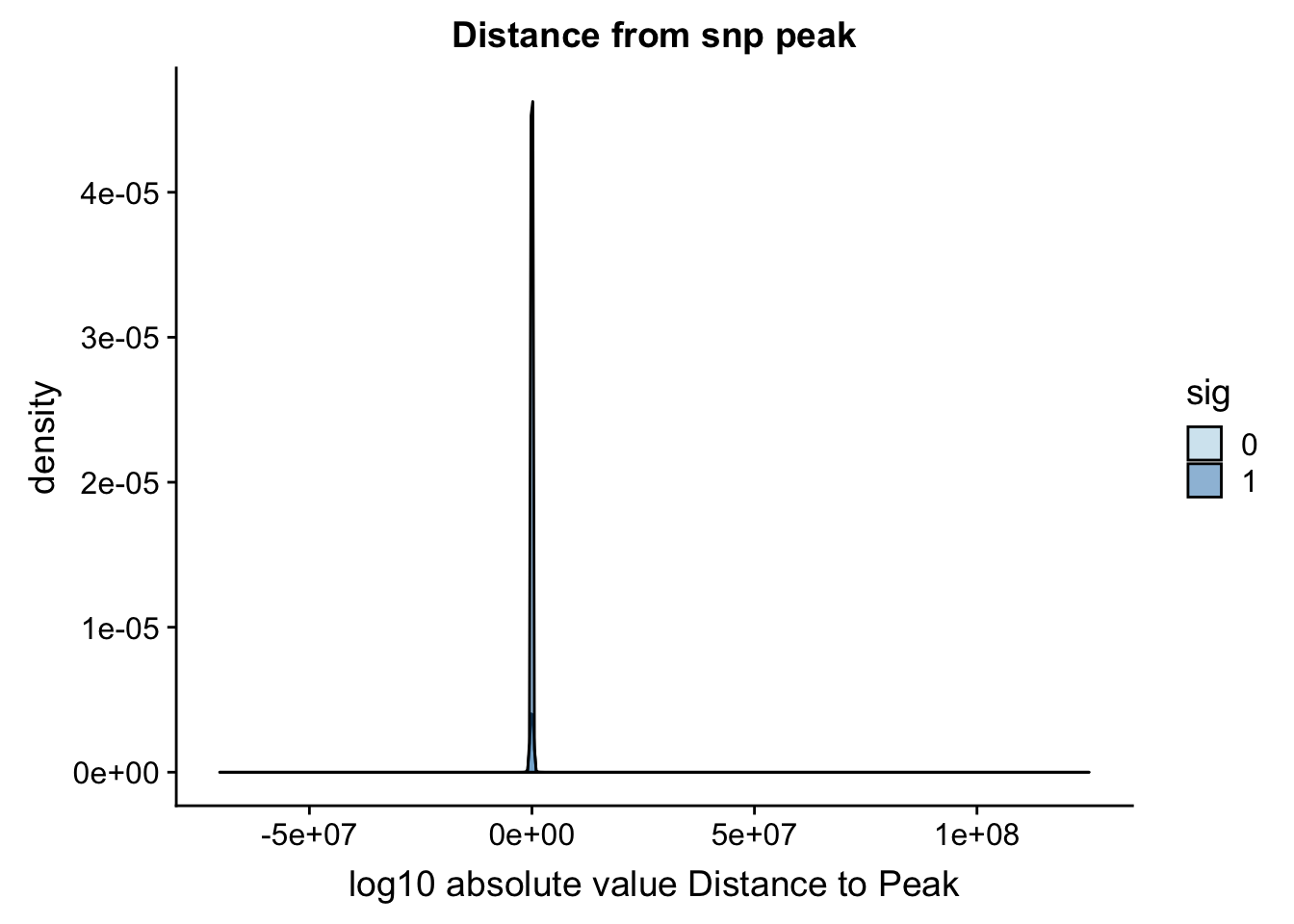

ggplot(NuclearAPA_peakdist, aes(x=DisttoPeak, fill=sig, by=sig)) + geom_density(alpha=.5)  +  labs(title="Distance from snp peak", x="log10 absolute value Distance to Peak") + scale_fill_discrete(guide = guide_legend(title = "Significant QTL")) + scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

NuclearAPA_peakdist_sig=NuclearAPA_peakdist %>% filter(sig==1)
NuclearAPA_peakdist_notsig=NuclearAPA_peakdist %>% filter(sig==0)


summary(NuclearAPA_peakdist_sig$DisttoPeak)

    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-1003786   -17579      -91    -8818     6588   891734

summary(NuclearAPA_peakdist_notsig$DisttoPeak)

     Min.   1st Qu.    Median      Mean   3rd Qu.      Max.
-70147526   -265059     -2067      7263    255169 125172864

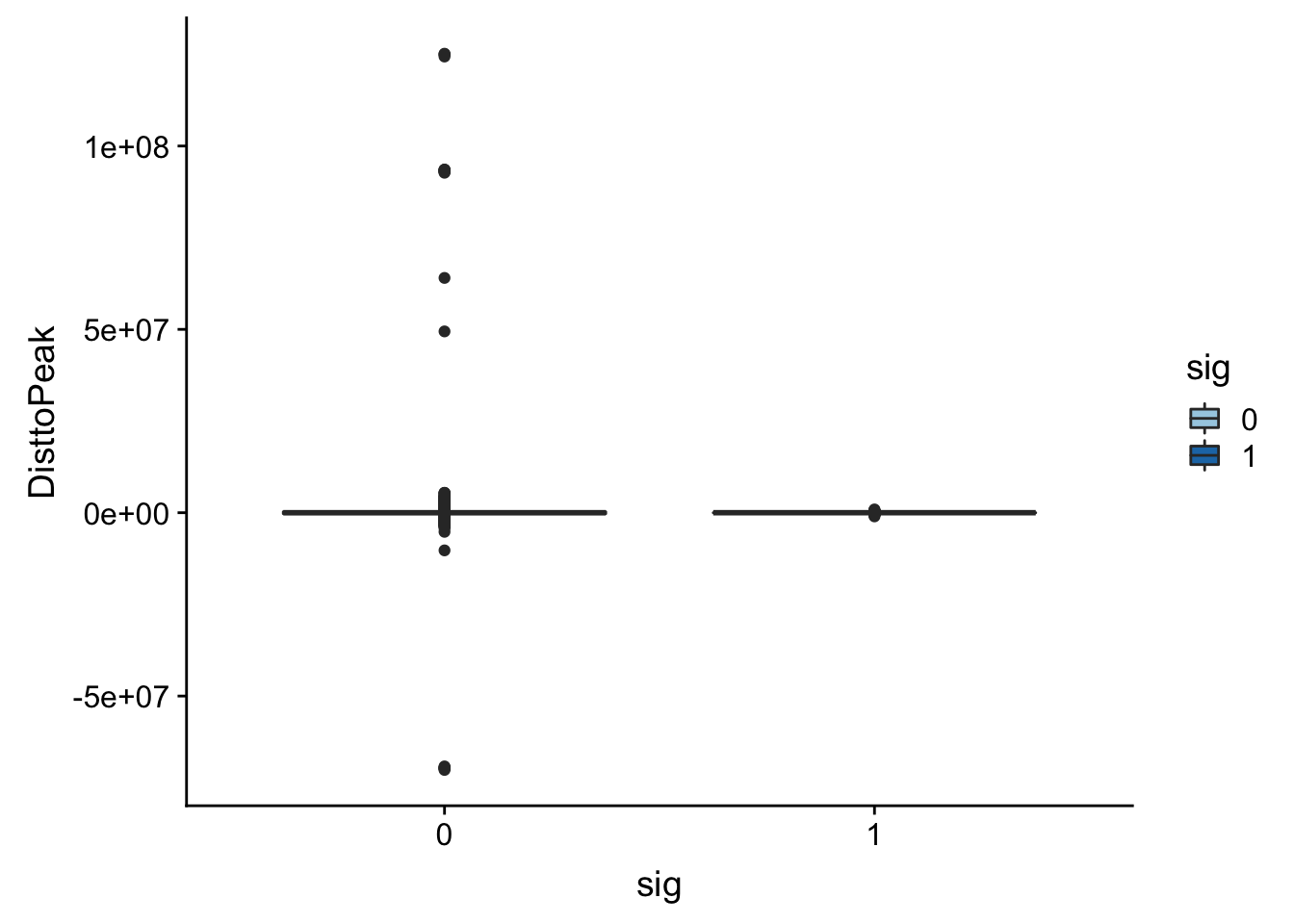

ggplot(NuclearAPA_peakdist, aes(y=DisttoPeak,x=sig, fill=sig, by=sig)) + geom_boxplot()  + scale_fill_discrete(guide = guide_legend(title = "Significant QTL")) + scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

NuclearAPA_peakdist_filt=NuclearAPA_peakdist %>% filter(abs(DisttoPeak) <= 1*(10^6))

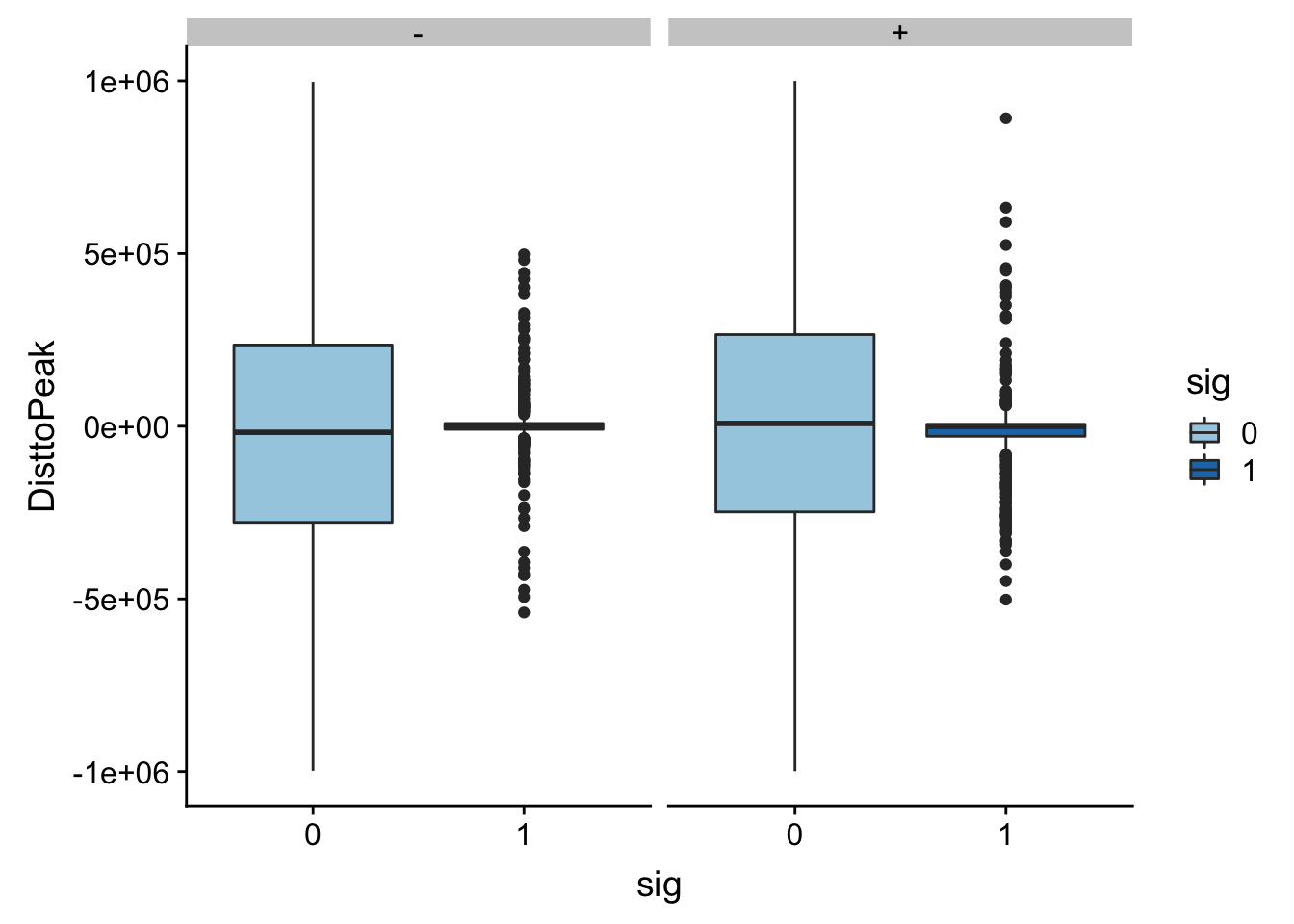

ggplot(NuclearAPA_peakdist_filt, aes(y=DisttoPeak,x=sig, fill=sig, by=sig)) + geom_boxplot()  + scale_fill_discrete(guide = guide_legend(title = "Significant QTL")) + facet_grid(.~strand) + scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

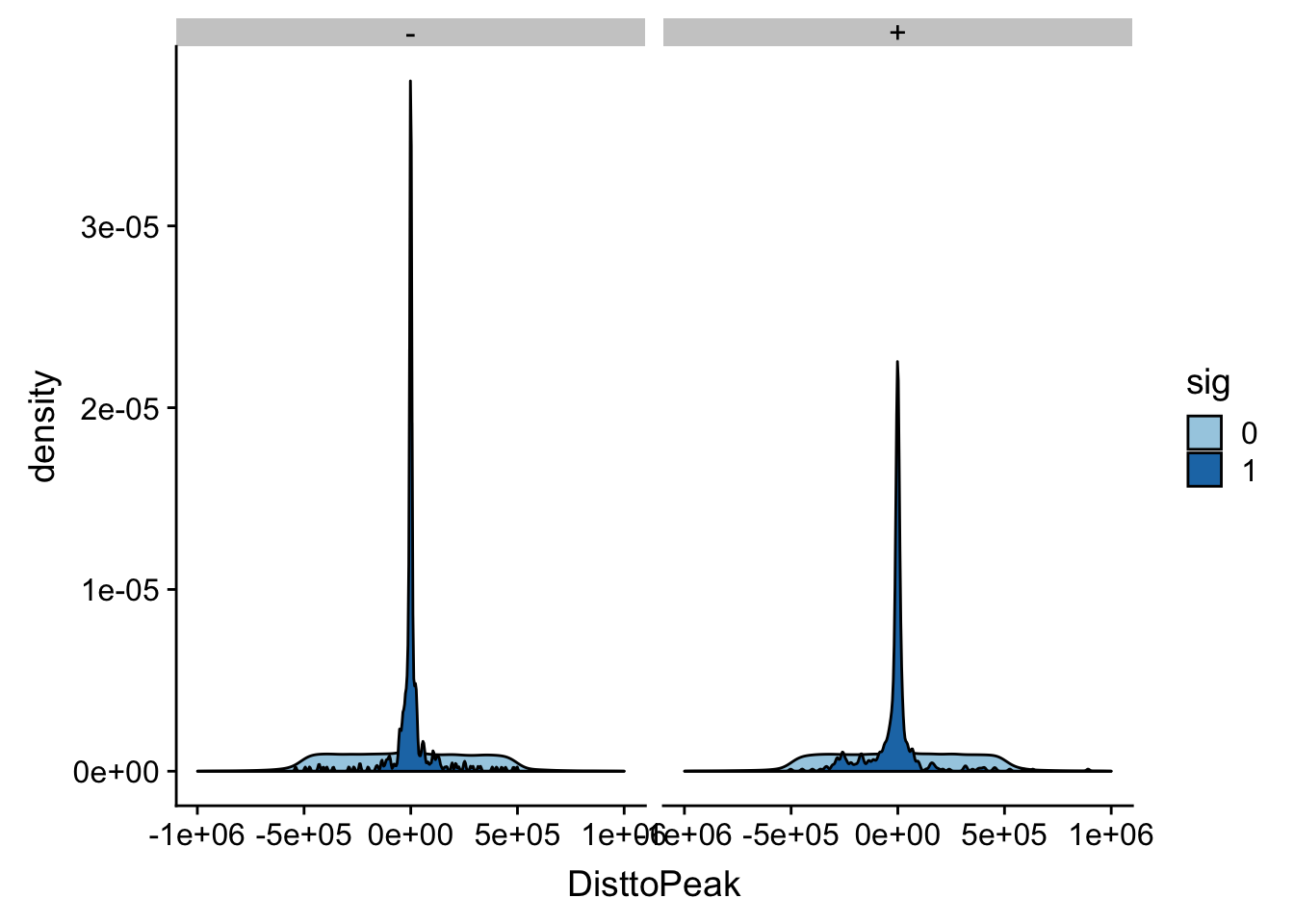

ggplot(NuclearAPA_peakdist_filt, aes(x=DisttoPeak, fill=sig, by=sig)) + geom_density()  + scale_fill_discrete(guide = guide_legend(title = "Significant QTL")) + facet_grid(.~strand)+ scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

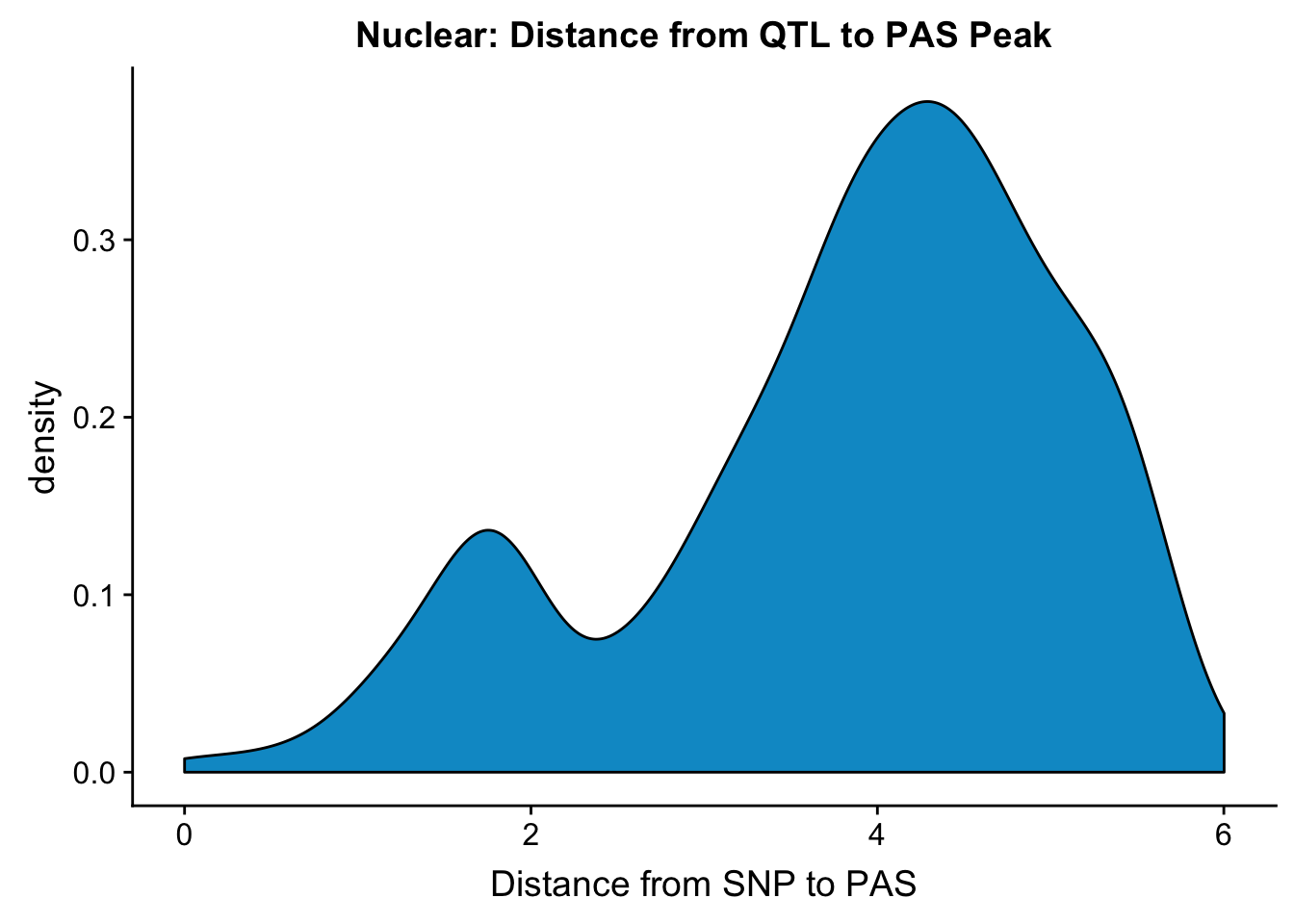

ggplot(NuclearAPA_peakdist_sig, aes(x=log10(abs(DisttoPeak)+1))) + geom_density(fill="deepskyblue3")+ labs(title="Nuclear: Distance from QTL to PAS Peak", x="Distance from SNP to PAS")

NuclearAPA_peakdist_sig %>% filter(abs(DisttoPeak) < 1000) %>% nrow()

[1] 192

NuclearAPA_peakdist_sig %>% filter(abs(DisttoPeak) < 10000) %>% nrow()

[1] 420

NuclearAPA_peakdist_sig %>% filter(abs(DisttoPeak) < 100000) %>% nrow()

[1] 726

Expression metrics

Next I want to pull in the expression values and compare the expression of genes with a nuclear APA qtl in comparison to genes without one. I will also need to pull in the gene names file to add in the gene names from the ensg ID.

Remove the # from the file.

expression=read.table("../data/mol_pheno/fastqtl_qqnorm_RNAseq_phase2.fixed.noChr.txt", header = T,stringsAsFactors = F)
expression_mean=apply(expression[,5:73],1,mean,na.rm=TRUE)
expression_var=apply(expression[,5:73],1,var,na.rm=TRUE)
expression$exp.mean= expression_mean
expression$exp.var=expression_var
expression= expression %>% separate(ID, into=c("Gene.stable.ID", "ver"), sep ="[.]")

Now I can pull in the names and join the dataframes.

geneNames=read.table("../data/ensemble_to_genename.txt", sep="\t", header=T,stringsAsFactors = F)

expression=expression %>% inner_join(geneNames,by="Gene.stable.ID")

expression=expression %>% select(Chr, start, end, Gene.name, exp.mean,exp.var) %>%  rename("gene"=Gene.name)

Now I can join this with the qtls.

NuclearAPA_wExp=NuclearAPA %>% inner_join(expression, by="gene")

gene_wQTL_N= NuclearAPA_wExp %>% group_by(gene) %>% summarise(sig_gene=sum(as.numeric(as.character(sig)))) %>% ungroup() %>% inner_join(expression, by="gene") %>% mutate(sigGeneFactor=ifelse(sig_gene>=1, 1,0))

gene_wQTL_N$sigGeneFactor= as.factor(as.character(gene_wQTL_N$sigGeneFactor))
summary(gene_wQTL_N$sigGeneFactor)

   0    1
4589  607

There are 607 genes with a QTL

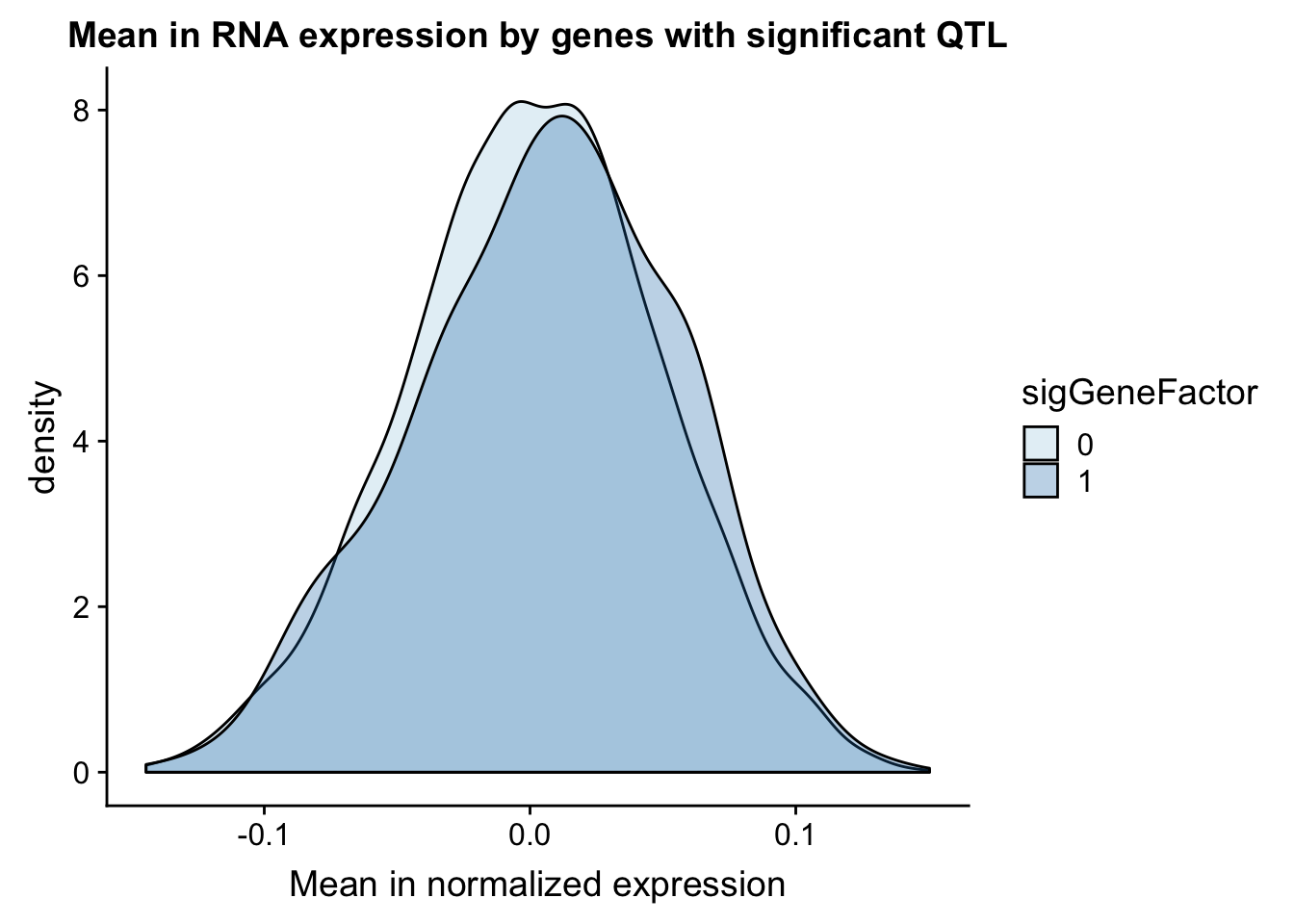

ggplot(gene_wQTL_N, aes(x=exp.mean, by=sigGeneFactor, fill=sigGeneFactor)) + geom_density(alpha=.3) +labs(title="Mean in RNA expression by genes with significant QTL", x="Mean in normalized expression") + scale_fill_discrete(guide = guide_legend(title = "Significant QTL"))+ scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

I can do a similar analysis but test the variance in the gene expression.

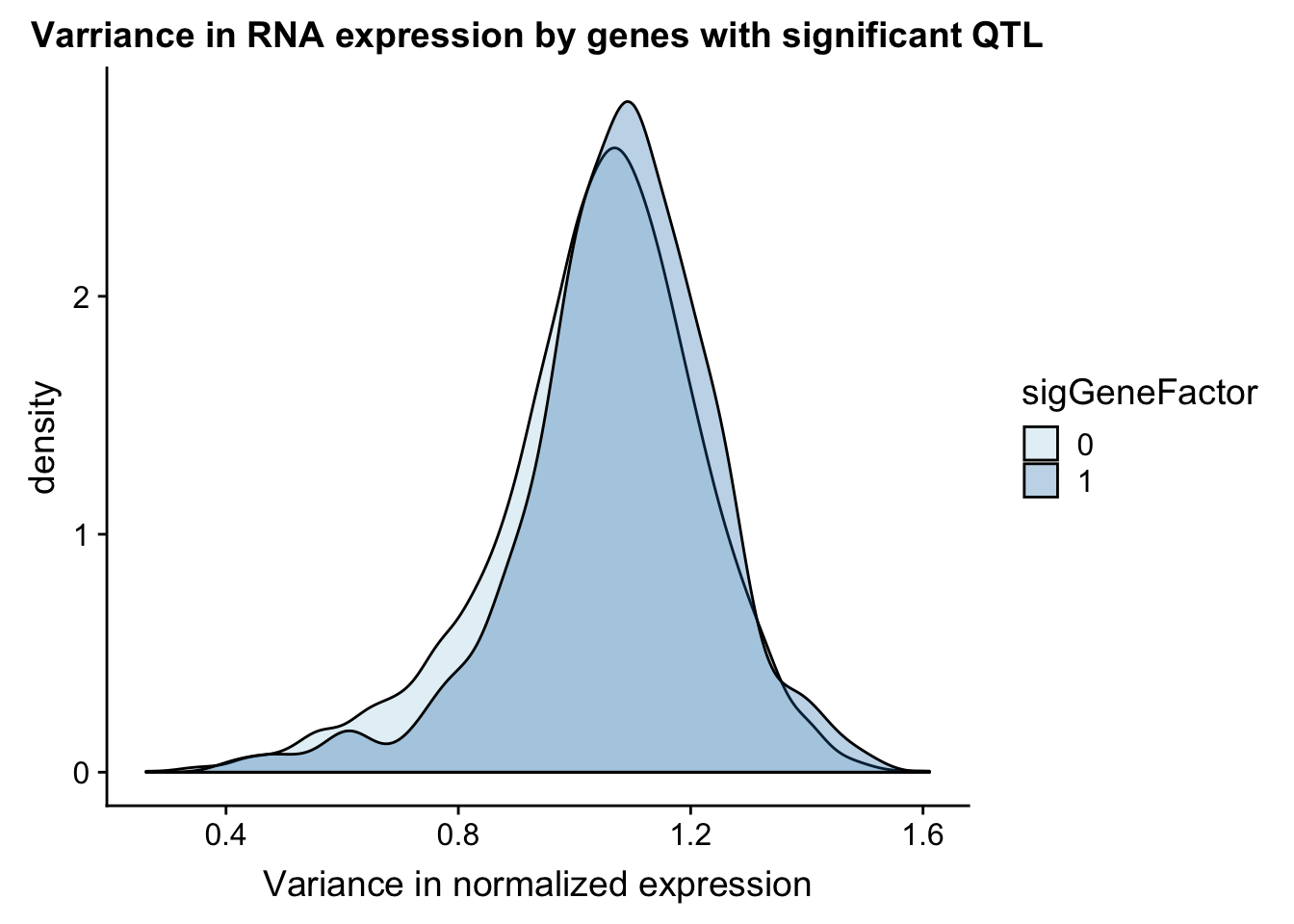

ggplot(gene_wQTL_N, aes(x=exp.var, by=sigGeneFactor, fill=sigGeneFactor)) + geom_density(alpha=.3) + labs(title="Varriance in RNA expression by genes with significant QTL", x="Variance in normalized expression") + scale_fill_discrete(guide = guide_legend(title = "Significant QTL"))+ scale_fill_brewer(palette="Paired")

Scale for 'fill' is already present. Adding another scale for 'fill',
which will replace the existing scale.

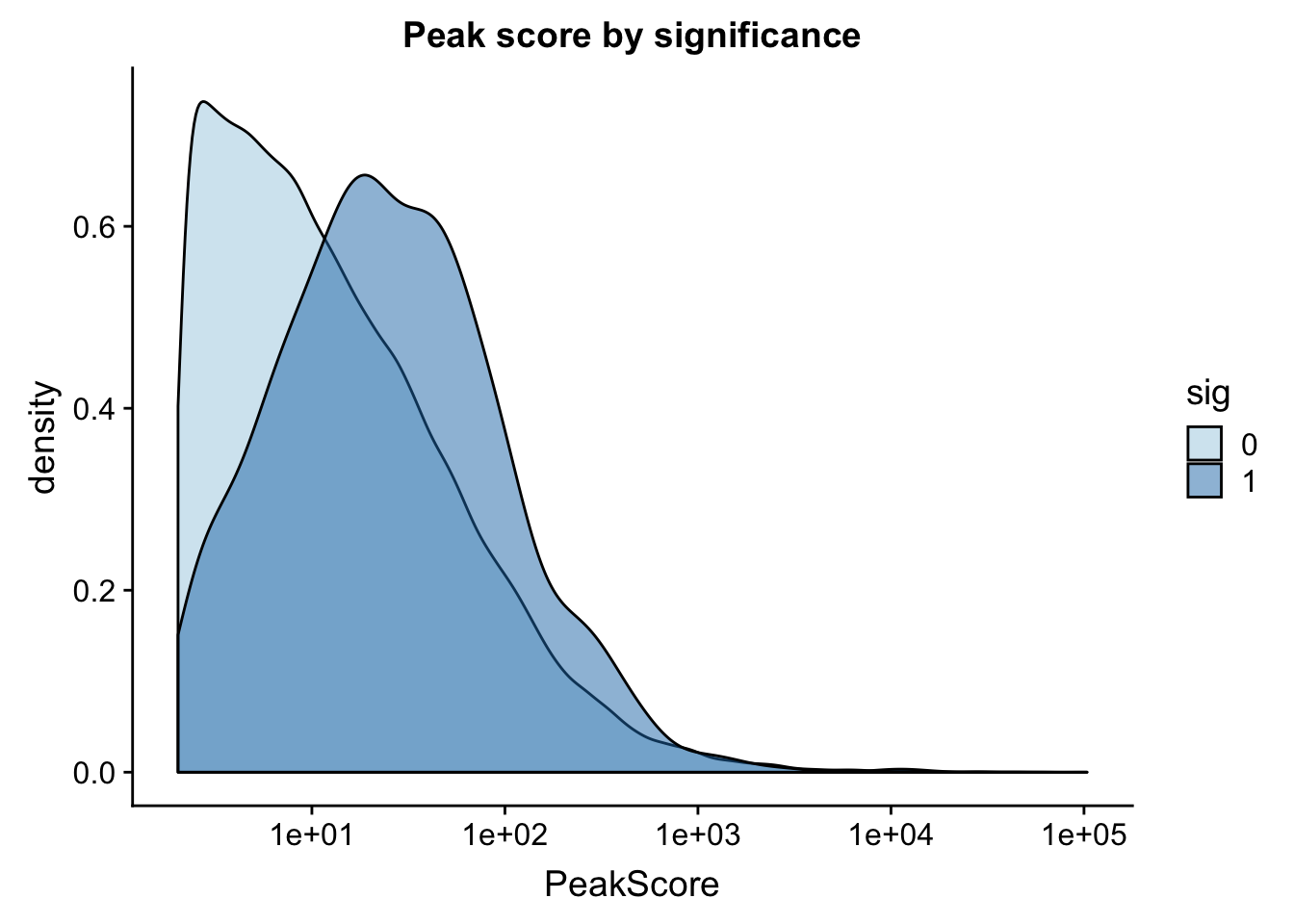

ggplot(NuclearAPA_peakdist, aes(x=PeakScore,fill=sig,by=sig)) + geom_density(alpha=.5)+ scale_x_log10() + labs(title="Peak score by significance") + scale_fill_brewer(palette="Paired")

chromHmm=read.table("../data/ChromHmmOverlap/chromHMM_regions.txt", col.names = c("number", "name"), stringsAsFactors = F)

NuclearOverlapHMM=read.table("../data/ChromHmmOverlap/Nuc_overlapHMM.bed", col.names=c("chrom", "start", "end", "sid", "significance", "strand", "number"))
NuclearOverlapHMM$number=as.integer(NuclearOverlapHMM$number)
NuclearOverlapHMM_names=NuclearOverlapHMM %>% left_join(chromHmm, by="number")

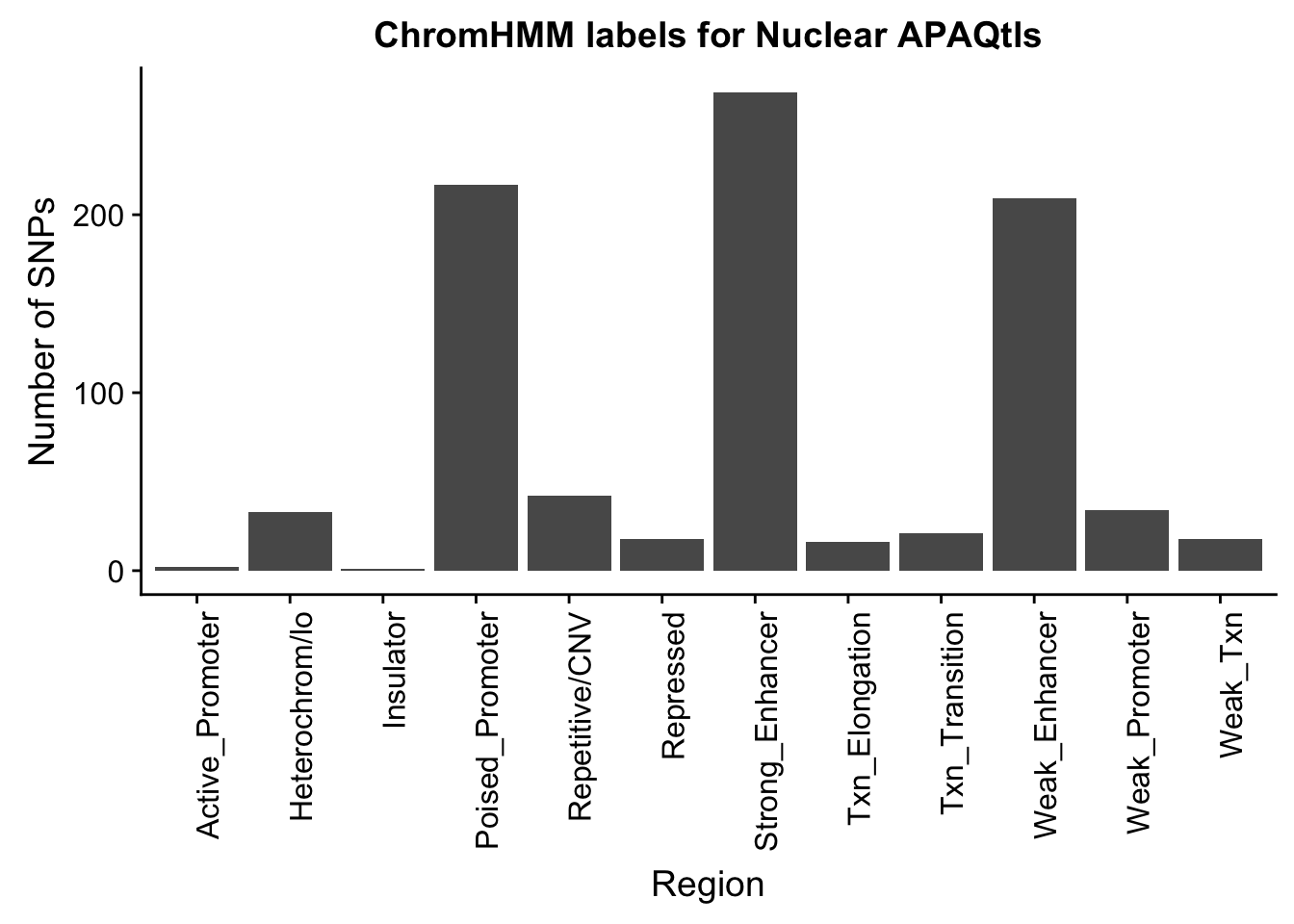

ggplot(NuclearOverlapHMM_names, aes(x=name)) + geom_bar() + labs(title="ChromHMM labels for Nuclear APAQtls" , y="Number of SNPs", x="Region")+theme(axis.text.x = element_text(angle = 90, hjust = 1))
