<p>In this analysis I will explore the UMI usage in the Net-Seq1 library. Due to low read counts in the total sample, I will exclude this sample from the analysis.</p>
<p>This code is used to create a text file that I can explore in R. It has a list of all of the UMIs used for the sample sorted by usage with the number of times each is used. This is run before the duduplication step.</p>
<pre class="bash"><code>samtools view {file} | tr "_" "\t" | cut -f 2 | sort | uniq -c > ../../output/UMI_{file}_stat.txt</code></pre>
<div id="packages" class="section level3">
<h3>Packages</h3>
<pre class="r"><code>library("tidyr")
library("dplyr")</code></pre>
<pre><code>
Attaching package: 'dplyr'</code></pre>
<pre><code>The following objects are masked from 'package:stats':
filter, lag</code></pre>
<pre><code>The following objects are masked from 'package:base':
intersect, setdiff, setequal, union</code></pre>
<pre class="r"><code>library("ggplot2")
library("seqLogo")</code></pre>
<pre><code>Loading required package: grid</code></pre>
<pre class="r"><code>library("Biostrings")</code></pre>
<pre><code>Loading required package: BiocGenerics</code></pre>
<pre><code>Loading required package: parallel</code></pre>
<pre><code>
Attaching package: 'BiocGenerics'</code></pre>
<pre><code>The following objects are masked from 'package:parallel':
clusterApply, clusterApplyLB, clusterCall, clusterEvalQ,
clusterExport, clusterMap, parApply, parCapply, parLapply,
parLapplyLB, parRapply, parSapply, parSapplyLB</code></pre>
<pre><code>The following objects are masked from 'package:dplyr':
combine, intersect, setdiff, union</code></pre>
<pre><code>The following objects are masked from 'package:stats':
IQR, mad, sd, var, xtabs</code></pre>
<pre><code>The following objects are masked from 'package:base':
anyDuplicated, append, as.data.frame, cbind, colMeans,
colnames, colSums, do.call, duplicated, eval, evalq, Filter,
Find, get, grep, grepl, intersect, is.unsorted, lapply,
lengths, Map, mapply, match, mget, order, paste, pmax,
pmax.int, pmin, pmin.int, Position, rank, rbind, Reduce,
rowMeans, rownames, rowSums, sapply, setdiff, sort, table,
tapply, union, unique, unsplit, which, which.max, which.min</code></pre>
<pre><code>Loading required package: S4Vectors</code></pre>
<pre><code>Loading required package: stats4</code></pre>
<pre><code>
Attaching package: 'S4Vectors'</code></pre>
<pre><code>The following objects are masked from 'package:dplyr':
first, rename</code></pre>
<pre><code>The following object is masked from 'package:tidyr':
expand</code></pre>
<pre><code>The following object is masked from 'package:base':
expand.grid</code></pre>
<pre><code>Loading required package: IRanges</code></pre>
<pre><code>
Attaching package: 'IRanges'</code></pre>
<pre><code>The following objects are masked from 'package:dplyr':
collapse, desc, slice</code></pre>
<pre><code>Loading required package: XVector</code></pre>
<pre><code>
Attaching package: 'Biostrings'</code></pre>
<pre><code>The following object is masked from 'package:base':
strsplit</code></pre>
<pre class="r"><code>require("Biostrings")</code></pre>
</div>
<div id="input-data" class="section level3">
<h3>Input data</h3>
<pre class="r"><code>prepare_UMI_data=function(path.txt){
x=read.delim(file=path.txt, header = FALSE,stringsAsFactors = FALSE)
colnames(x) <- "UMI"
x= data.frame(sapply(x, trimws), stringsAsFactors = FALSE)
x= separate(data=x, col = UMI, into= c("number", "umi"), sep="\\s+")
x$number= as.numeric(x$number)
x= arrange(x, desc(number))
return(x)
}
UMI_18486_dep = prepare_UMI_data("../data/UMI_18486_dep_stat.txt")
UMI_18508_dep= prepare_UMI_data("../data/UMI_18508_dep_stat.txt")
UMI_18508_nondep= prepare_UMI_data("../data/UMI_18508_nondep_stat.txt")
UMI_19238_dep= prepare_UMI_data("../data/UMI_19238_dep_stat.txt")
UMI_mayer= prepare_UMI_data("../data/UMI_mayer_stat.txt")</code></pre>
<div id="plot-the-umi-distributions" class="section level4">
<h4>Plot the umi distributions</h4>

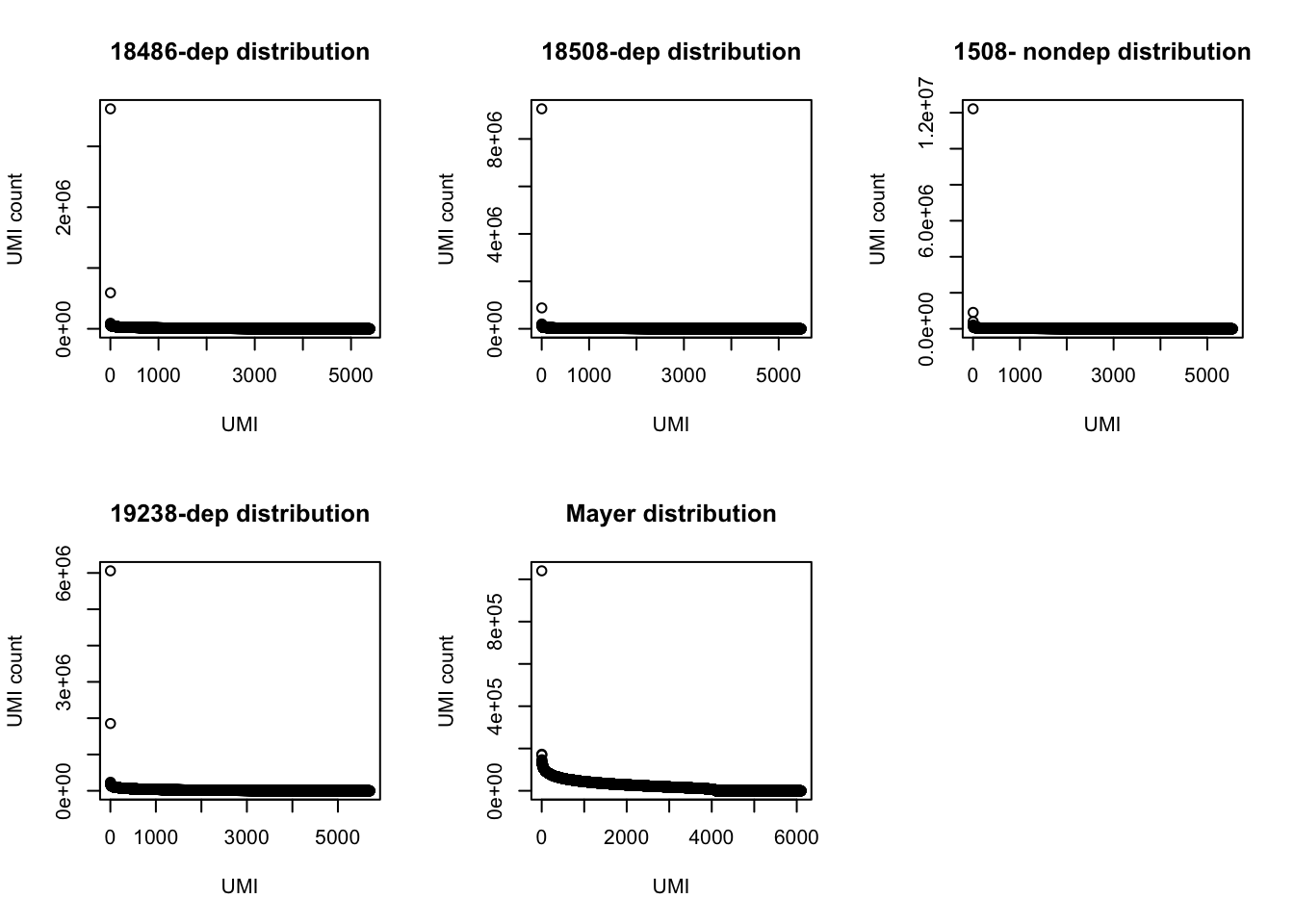

<pre class="r"><code>par(mfrow = c(2,3))
plot(UMI_18486_dep$number, ylab="UMI count", xlab="UMI", main="18486-dep distribution")
plot(UMI_18508_dep$number, ylab="UMI count", xlab="UMI", main="18508-dep distribution")
plot(UMI_18508_nondep$number, ylab="UMI count", xlab="UMI", main="1508- nondep distribution")
plot(UMI_19238_dep$number, ylab="UMI count", xlab="UMI", main="19238-dep distribution")
plot(UMI_mayer$number, ylab="UMI count", xlab="UMI", main="Mayer distribution")</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /> Look at the top used UMI for each data set.</p>
<pre class="r"><code>UMI_18486_dep[1:3,]</code></pre>
<pre><code> number umi
1 3617979 ATCTCG
2 592512 CACCCG
3 90128 TCTCGT</code></pre>
<pre class="r"><code>UMI_18508_dep[1:3,]</code></pre>
<pre><code> number umi
1 9270083 ATCTCG
2 880379 CACCCG
3 201796 TCTCGT</code></pre>
<pre class="r"><code>UMI_18508_nondep[1:3, ]</code></pre>
<pre><code> number umi
1 12216803 ATCTCG
2 911426 CACCCG
3 401897 TCTCGT</code></pre>
<pre class="r"><code>UMI_19238_dep[1:3,]</code></pre>
<pre><code> number umi
1 6058977 ATCTCG
2 1852855 CACCCG
3 235866 TATCTC</code></pre>
<pre class="r"><code>UMI_mayer[1:3,]</code></pre>
<pre><code> number umi
1 1040195 ATCTCG
2 172910 TTTCAC
3 169350 TTACAC</code></pre>
<p>The top used UMIs are similar accross samples. This preference could be due to annealing temperatures.(Conversation with Po) All data sets show an overrepresentation of a few UMIs, I will remove the top 5 to get a better look at the distribution.</p>

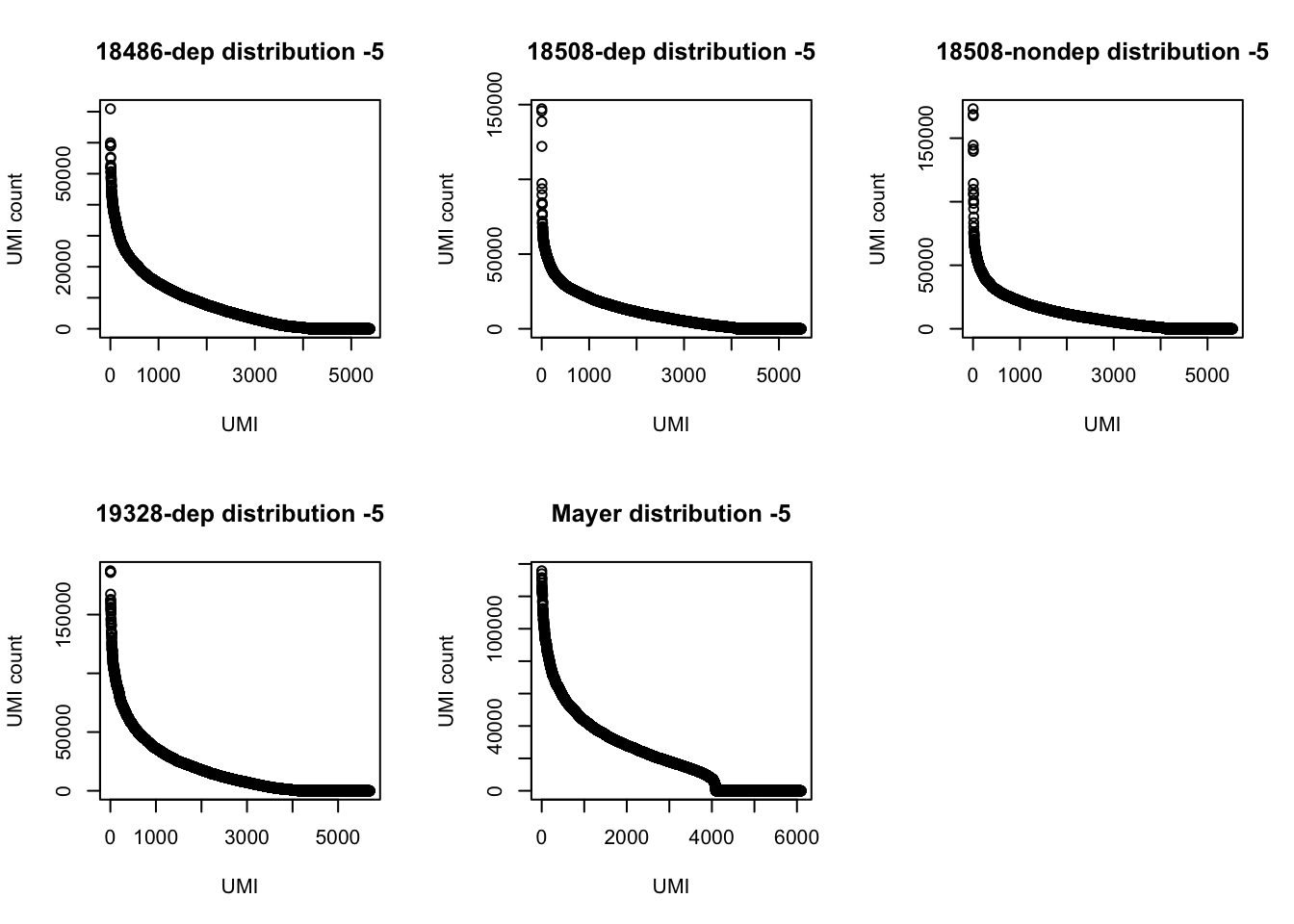

<pre class="r"><code>par(mfrow = c(2,3))
plot(UMI_18486_dep[6:5388,]$number, ylab="UMI count", xlab="UMI", main="18486-dep distribution -5")
plot(UMI_18508_dep[6:5471,]$number, ylab="UMI count", xlab="UMI", main="18508-dep distribution -5")
plot(UMI_18508_nondep[6:5535,]$number, ylab="UMI count", xlab="UMI", main="18508-nondep distribution -5")
plot(UMI_19238_dep[6:5699,]$number, ylab="UMI count", xlab="UMI", main="19328-dep distribution -5")
plot(UMI_mayer[6:6101,]$number, ylab="UMI count", xlab="UMI", main="Mayer distribution -5")</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/plot-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="seq-logo-plots" class="section level4">
<h4>Seq Logo Plots</h4>
<p>Use Biostrings to get the PMW then create the logoplots with seqlogo.</p>
<pre class="r"><code>#source("https://bioconductor.org/biocLite.R")
#biocLite("seqLogo")
#source("http://bioconductor.org/biocLite.R")
#biocLite("Biostrings")
#set= DNAStringSet(UMI_18486_dep$umi)
#length(set)
#set.freq=data.frame(alphabetFrequency(set, baseOnly=T, as.prob=T))
#set_noN=set[set.freq$other==0,]
#length(set_noN)
#width(set_noN)
#x=consensusMatrix(set_noN) #problem here, getting 1024 for all
#freq_18486= PWM(x[1:4,])
#sum(UMI_18486_dep$number==0) > 0 : shows no UMIs are never used
#seqLogo(freq_18486, ic.scale = TRUE, xaxis = TRUE, yaxis = TRUE, xfontsize = 15, yfontsize =15)</code></pre>
<p>Try with a different package:</p>
<pre class="r"><code>#library("devtools")
#install_github("omarwagih/ggseqlogo")
require(ggseqlogo)</code></pre>
<pre><code>Loading required package: ggseqlogo</code></pre>
<pre class="r"><code>cs1 = make_col_scheme(chars=c('A', 'T', 'C', 'G', 'N'), groups=c('A', 'T', 'C', 'G', 'N'), cols=c('red', 'blue', 'green', 'yellow', 'pink'))
par(mfrow = c(2,3))

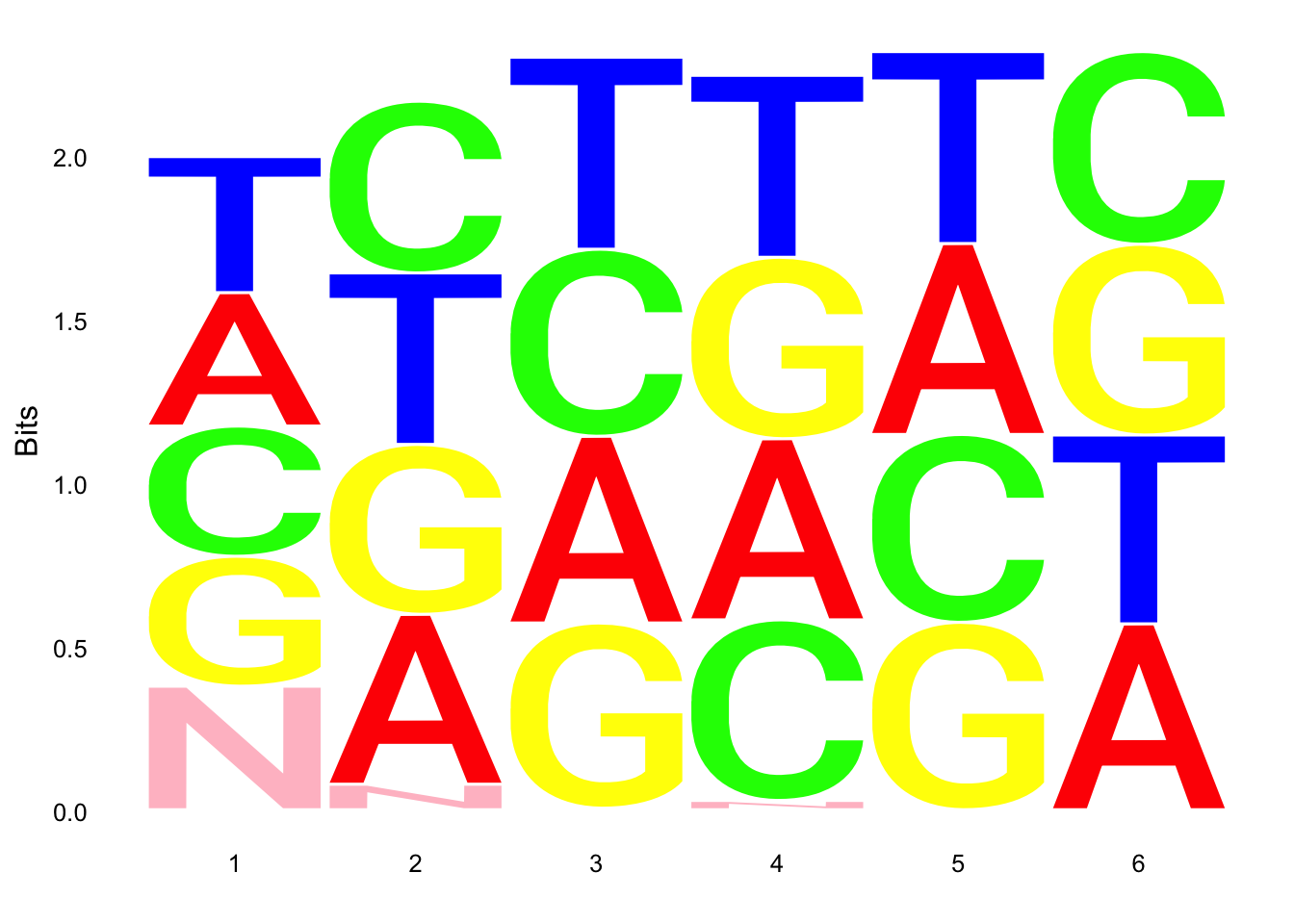

ggseqlogo(UMI_18486_dep$umi, col_scheme=cs1)</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-7-1.png" width="672" style="display: block; margin: auto;" /></p>

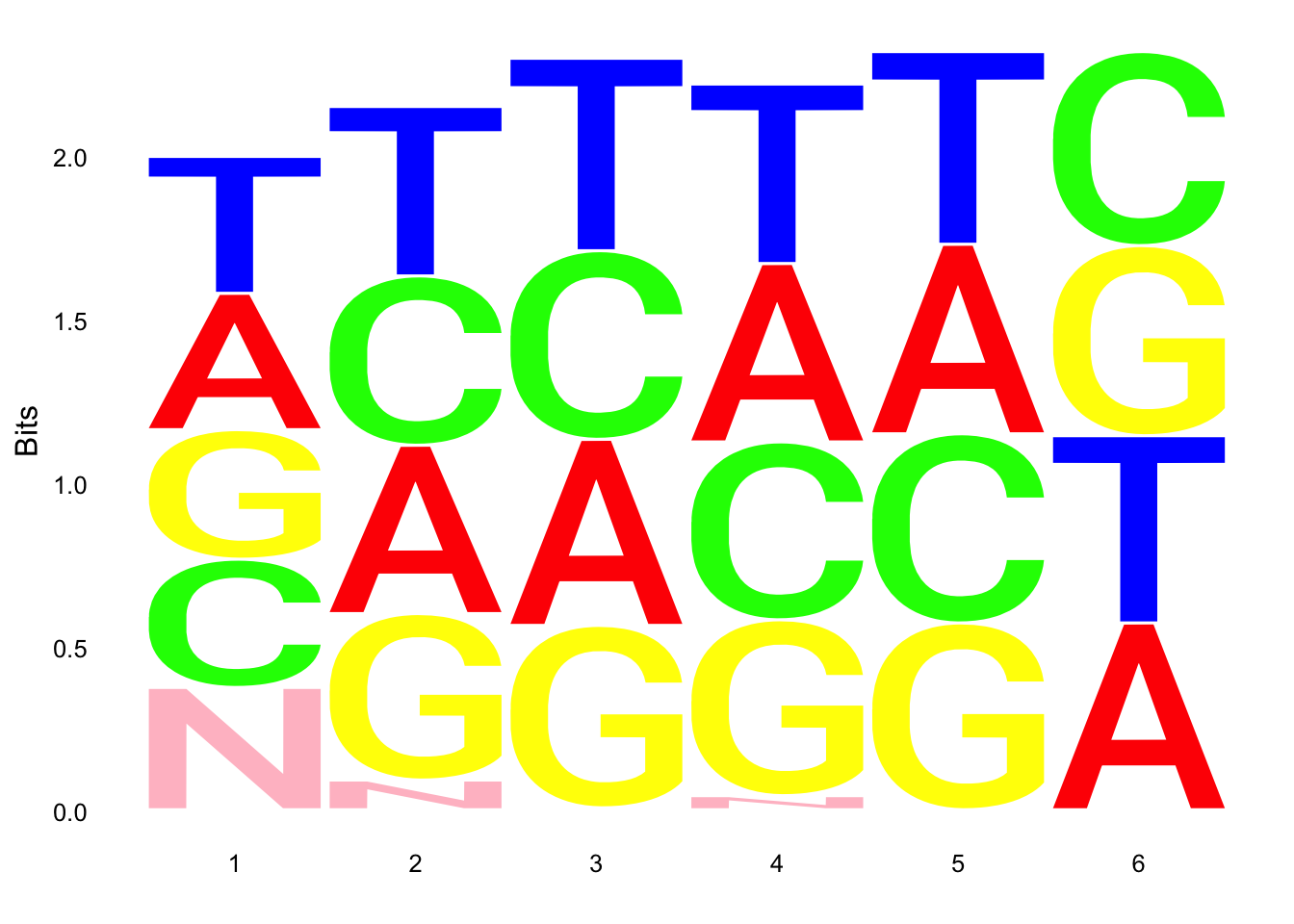

<pre class="r"><code>ggseqlogo(UMI_18508_dep$umi, col_scheme=cs1)</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-7-2.png" width="672" style="display: block; margin: auto;" /></p>

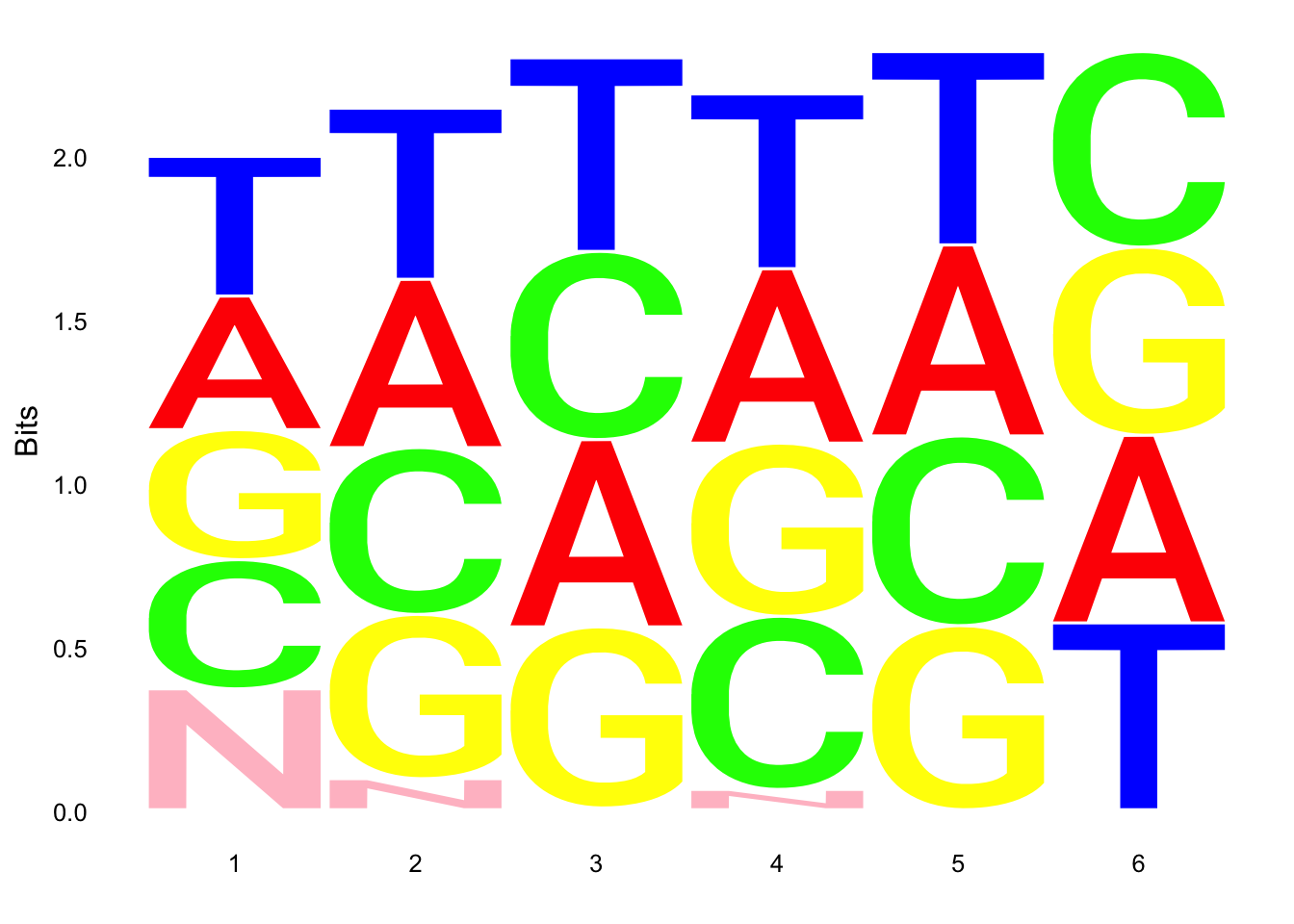

<pre class="r"><code>ggseqlogo(UMI_18508_nondep$umi, col_scheme=cs1)</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-7-3.png" width="672" style="display: block; margin: auto;" /></p>

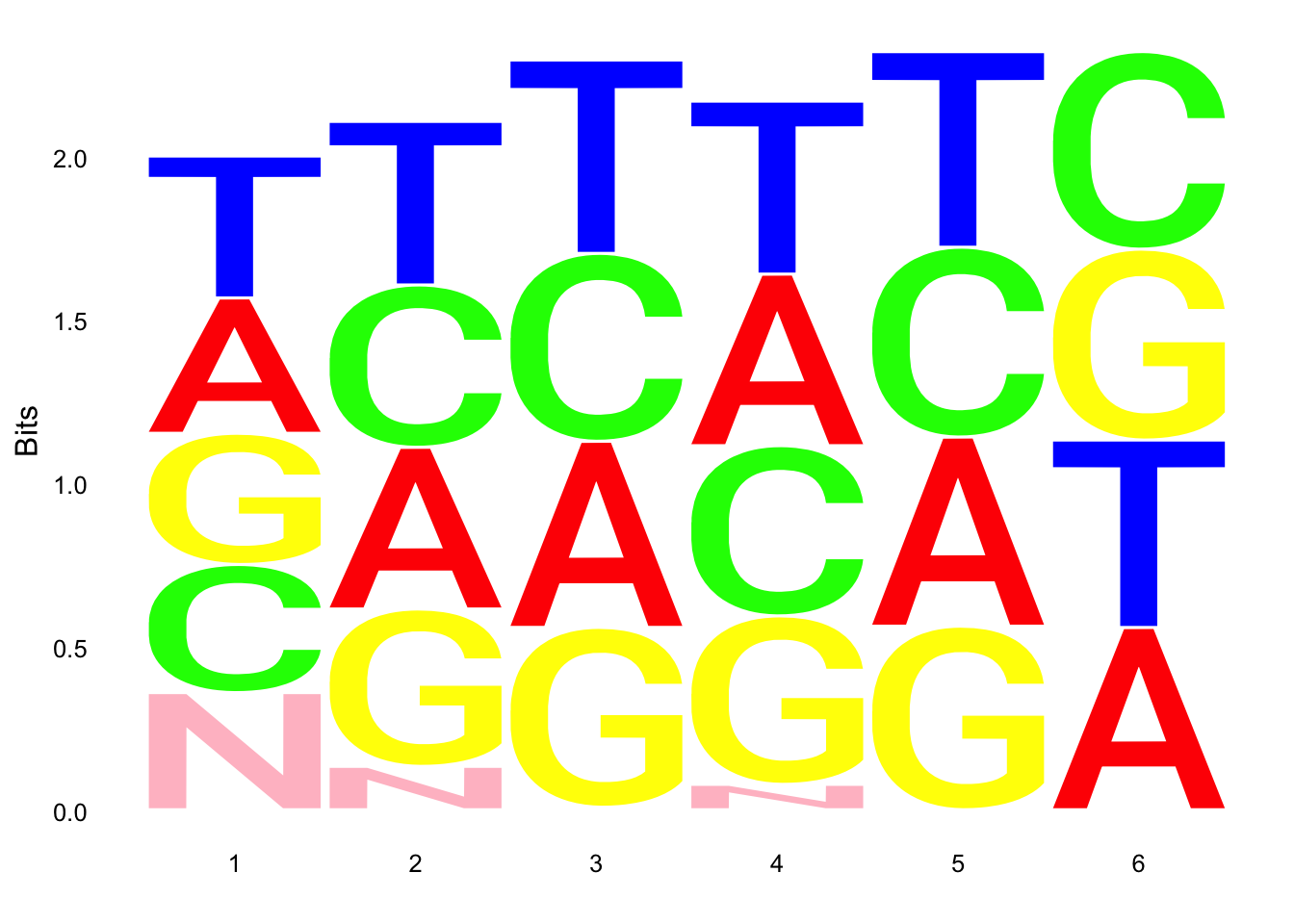

<pre class="r"><code>ggseqlogo(UMI_19238_dep$umi, col_scheme=cs1)</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-7-4.png" width="672" style="display: block; margin: auto;" /></p>

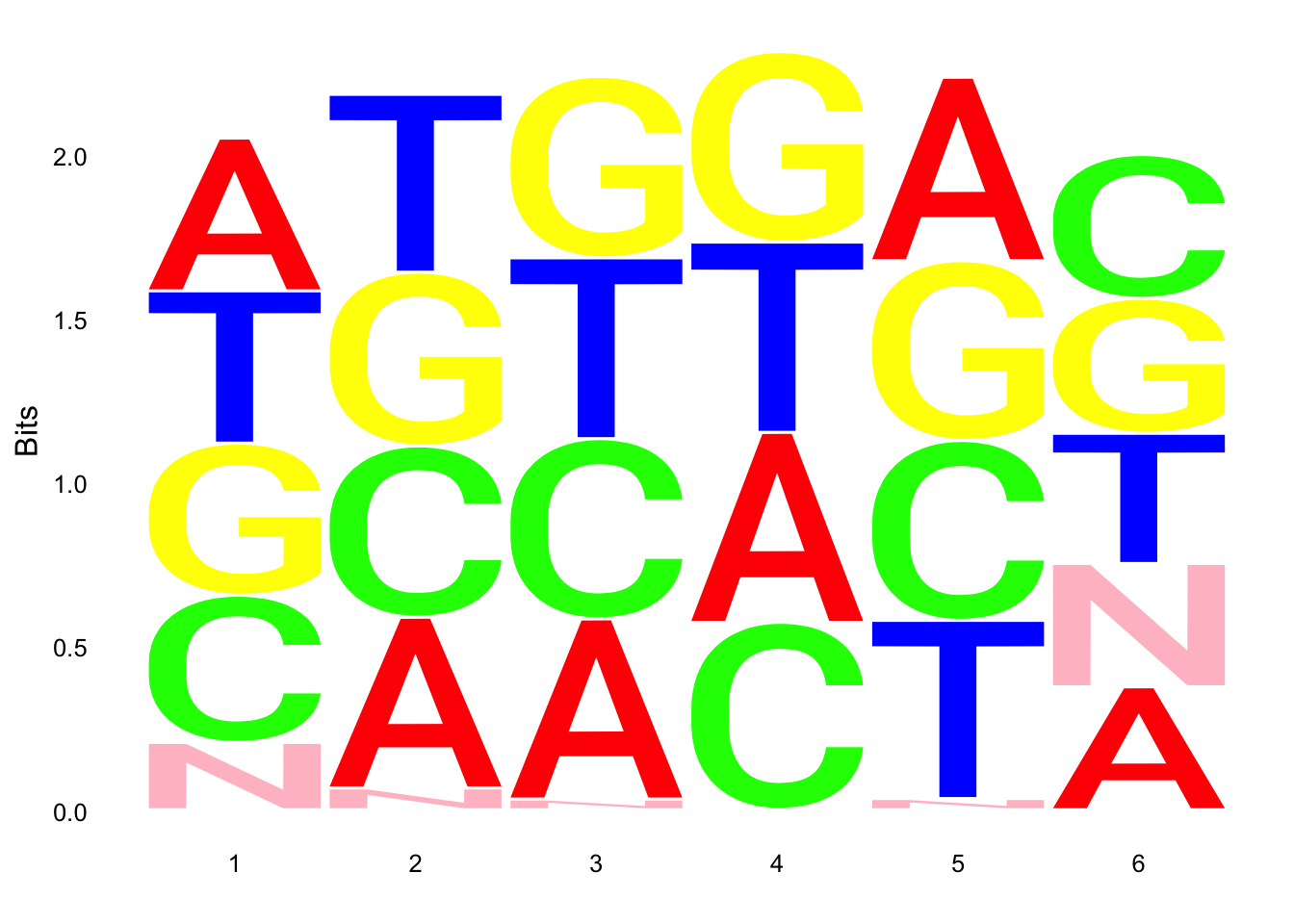

<pre class="r"><code>ggseqlogo(UMI_mayer$umi, col_scheme=cs1)</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-7-5.png" width="672" style="display: block; margin: auto;" /> Does not look like we get overrepresentation of one letter at any particular location in the UMI.</p>
<pre class="r"><code>test.seqs= c("ATGC", "TAGC", "ATGC", "ATGC")
ggseqlogo(test.seqs, col_scheme=cs1)</code></pre>
<p><img src="figure/explore_umi_usage.Rmd/unnamed-chunk-8-1.png" width="672" style="display: block; margin: auto;" /></p>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.2 (2017-09-28)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Sierra 10.12.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats4 parallel grid stats graphics grDevices utils
[8] datasets methods base
other attached packages:
[1] ggseqlogo_0.1 bindrcpp_0.2 Biostrings_2.46.0
[4] XVector_0.18.0 IRanges_2.12.0 S4Vectors_0.16.0
[7] BiocGenerics_0.24.0 seqLogo_1.44.0 ggplot2_2.2.1
[10] dplyr_0.7.4 tidyr_0.7.2
loaded via a namespace (and not attached):
[1] Rcpp_0.12.13 compiler_3.4.2 git2r_0.19.0 plyr_1.8.4
[5] bindr_0.1 tools_3.4.2 zlibbioc_1.24.0 digest_0.6.12
[9] evaluate_0.10.1 tibble_1.3.4 gtable_0.2.0 pkgconfig_2.0.1
[13] rlang_0.1.4 yaml_2.1.14 stringr_1.2.0 knitr_1.17
[17] tidyselect_0.2.3 rprojroot_1.2 glue_1.2.0 R6_2.2.2
[21] rmarkdown_1.6 purrr_0.2.4 magrittr_1.5 backports_1.1.1
[25] scales_0.5.0 htmltools_0.3.6 assertthat_0.2.0 colorspace_1.3-2
[29] labeling_0.3 stringi_1.1.5 lazyeval_0.2.1 munsell_0.4.3 </code></pre>
</div>
</div>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
