In this analysis I will explore the UMI usage in the Net-Seq1 library. Due to low read counts in the total sample, I will exclude this sample from the analysis.

This code is used to create a text file that I can explore in R. It has a list of all of the UMIs used for the sample sorted by usage with the number of times each is used. This is run before the duduplication step.

samtools view {file} | tr "_" "\t" | cut -f 2 | sort | uniq -c > ../../output/UMI_{file}_stat.txt

Packages

library("tidyr")
library("dplyr")

Attaching package: 'dplyr'
The following objects are masked from 'package:stats':

    filter, lag
The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union
library("ggplot2")
library("seqLogo")
Loading required package: grid
library("Biostrings")
Loading required package: BiocGenerics
Loading required package: parallel

Attaching package: 'BiocGenerics'
The following objects are masked from 'package:parallel':

    clusterApply, clusterApplyLB, clusterCall, clusterEvalQ,
    clusterExport, clusterMap, parApply, parCapply, parLapply,
    parLapplyLB, parRapply, parSapply, parSapplyLB
The following objects are masked from 'package:dplyr':

    combine, intersect, setdiff, union
The following objects are masked from 'package:stats':

    IQR, mad, sd, var, xtabs
The following objects are masked from 'package:base':

    anyDuplicated, append, as.data.frame, cbind, colMeans,
    colnames, colSums, do.call, duplicated, eval, evalq, Filter,
    Find, get, grep, grepl, intersect, is.unsorted, lapply,
    lengths, Map, mapply, match, mget, order, paste, pmax,
    pmax.int, pmin, pmin.int, Position, rank, rbind, Reduce,
    rowMeans, rownames, rowSums, sapply, setdiff, sort, table,
    tapply, union, unique, unsplit, which, which.max, which.min
Loading required package: S4Vectors
Loading required package: stats4

Attaching package: 'S4Vectors'
The following objects are masked from 'package:dplyr':

    first, rename
The following object is masked from 'package:tidyr':

    expand
The following object is masked from 'package:base':

    expand.grid
Loading required package: IRanges

Attaching package: 'IRanges'
The following objects are masked from 'package:dplyr':

    collapse, desc, slice
Loading required package: XVector

Attaching package: 'Biostrings'
The following object is masked from 'package:base':

    strsplit
require("Biostrings")

Input data

prepare_UMI_data=function(path.txt){
  x=read.delim(file=path.txt, header = FALSE,stringsAsFactors = FALSE)
  colnames(x) <- "UMI"
  x= data.frame(sapply(x, trimws), stringsAsFactors = FALSE)
  x= separate(data=x, col = UMI, into= c("number", "umi"), sep="\\s+")
  x$number= as.numeric(x$number)
  x= arrange(x, desc(number))
  return(x)
}

UMI_18486_dep = prepare_UMI_data("../data/UMI_18486_dep_stat.txt")
UMI_18508_dep= prepare_UMI_data("../data/UMI_18508_dep_stat.txt")
UMI_18508_nondep= prepare_UMI_data("../data/UMI_18508_nondep_stat.txt")
UMI_19238_dep= prepare_UMI_data("../data/UMI_19238_dep_stat.txt")
UMI_mayer= prepare_UMI_data("../data/UMI_mayer_stat.txt")

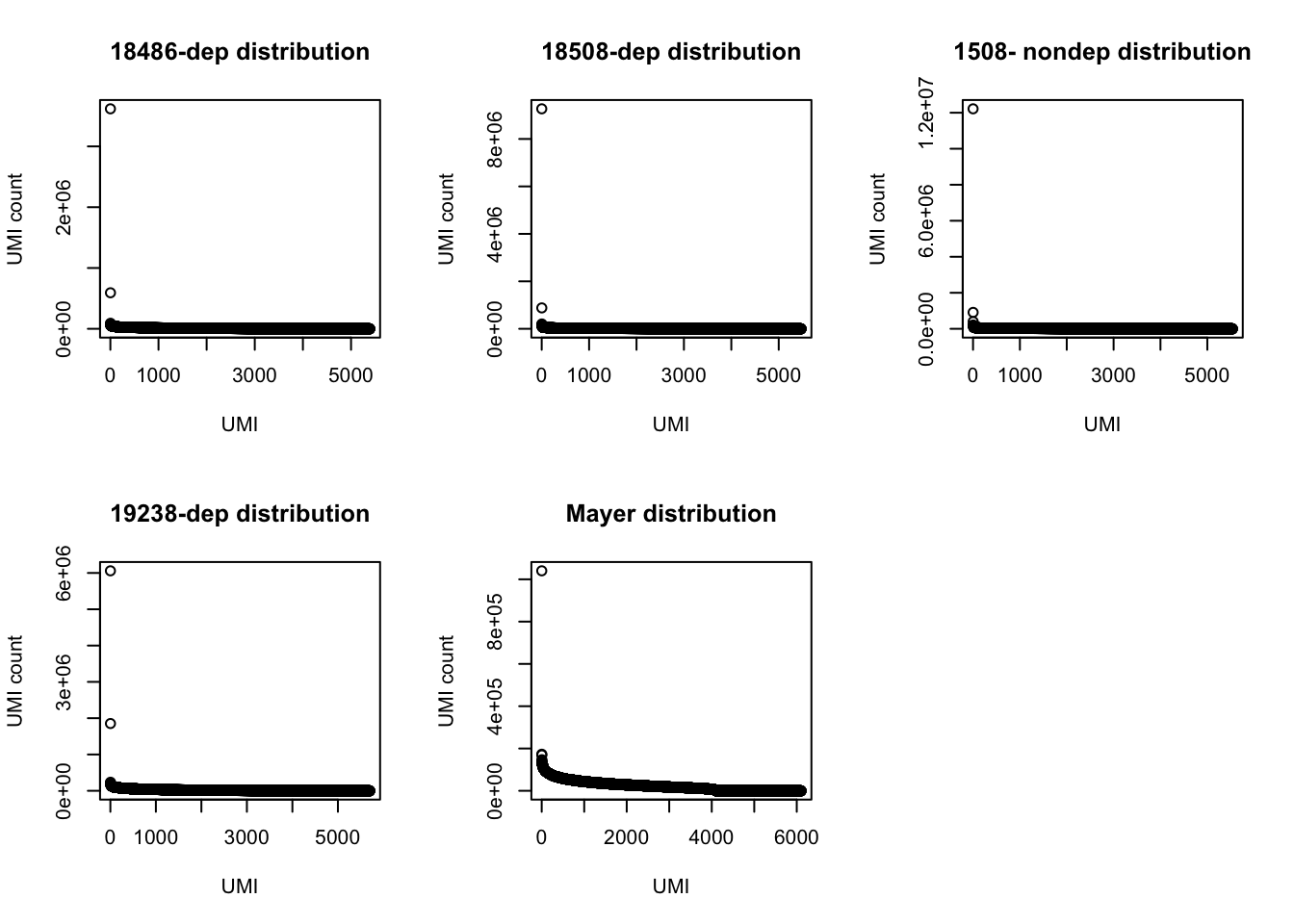

Plot the umi distributions

par(mfrow = c(2,3))
plot(UMI_18486_dep$number, ylab="UMI count", xlab="UMI", main="18486-dep distribution")
plot(UMI_18508_dep$number, ylab="UMI count", xlab="UMI", main="18508-dep distribution")
plot(UMI_18508_nondep$number, ylab="UMI count", xlab="UMI", main="1508- nondep distribution")
plot(UMI_19238_dep$number, ylab="UMI count", xlab="UMI", main="19238-dep distribution")
plot(UMI_mayer$number, ylab="UMI count", xlab="UMI", main="Mayer distribution")

Look at the top used UMI for each data set.

UMI_18486_dep[1:3,]
   number    umi
1 3617979 ATCTCG
2  592512 CACCCG
3   90128 TCTCGT
UMI_18508_dep[1:3,]
   number    umi
1 9270083 ATCTCG
2  880379 CACCCG
3  201796 TCTCGT
UMI_18508_nondep[1:3, ]
    number    umi
1 12216803 ATCTCG
2   911426 CACCCG
3   401897 TCTCGT
UMI_19238_dep[1:3,]
   number    umi
1 6058977 ATCTCG
2 1852855 CACCCG
3  235866 TATCTC
UMI_mayer[1:3,]
   number    umi
1 1040195 ATCTCG
2  172910 TTTCAC
3  169350 TTACAC

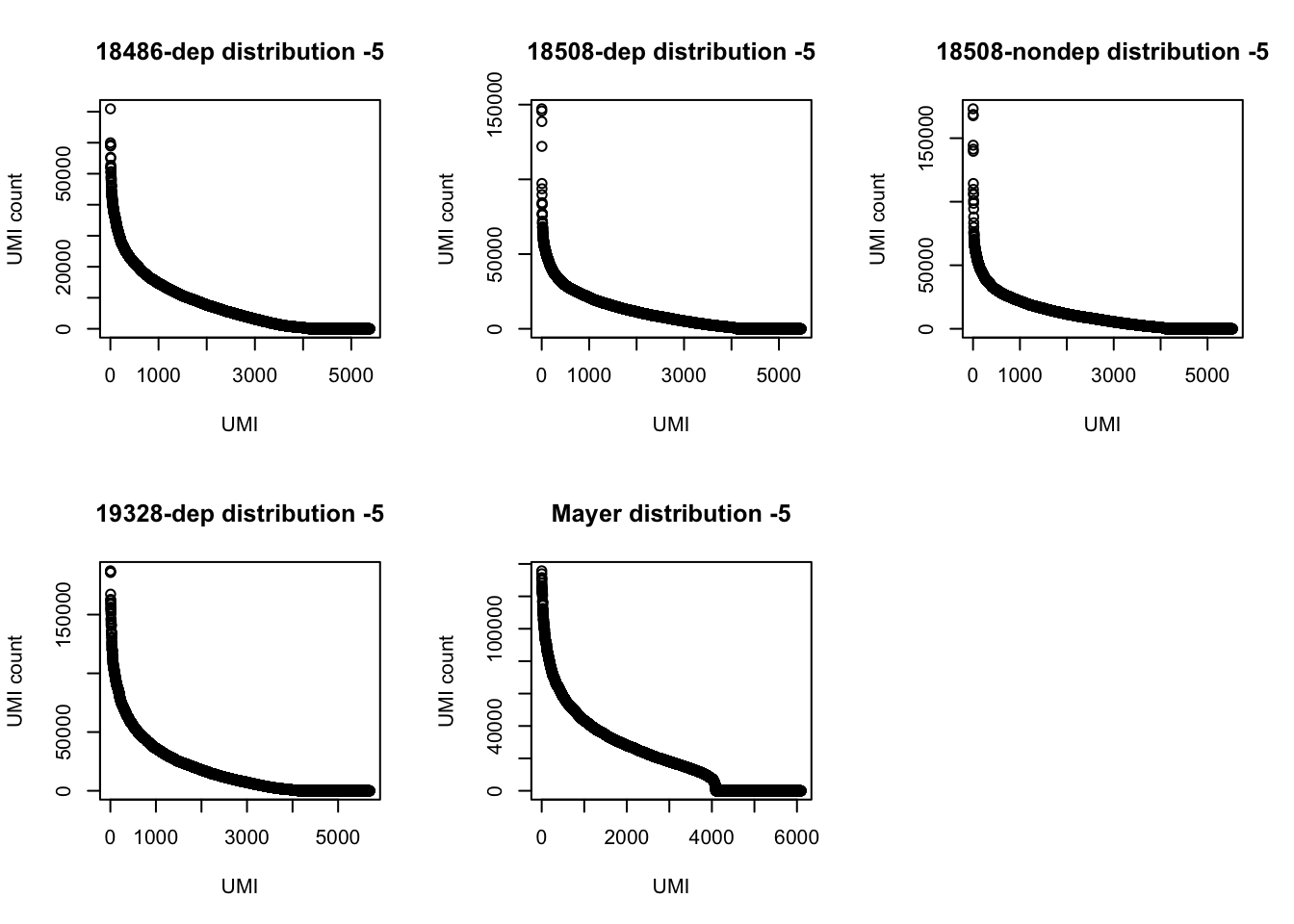

The top used UMIs are similar accross samples. This preference could be due to annealing temperatures.(Conversation with Po) All data sets show an overrepresentation of a few UMIs, I will remove the top 5 to get a better look at the distribution.

par(mfrow = c(2,3))
plot(UMI_18486_dep[6:5388,]$number, ylab="UMI count", xlab="UMI", main="18486-dep distribution -5")

plot(UMI_18508_dep[6:5471,]$number, ylab="UMI count", xlab="UMI", main="18508-dep distribution -5")

plot(UMI_18508_nondep[6:5535,]$number, ylab="UMI count", xlab="UMI", main="18508-nondep distribution -5")

plot(UMI_19238_dep[6:5699,]$number, ylab="UMI count", xlab="UMI", main="19328-dep distribution -5")

plot(UMI_mayer[6:6101,]$number, ylab="UMI count", xlab="UMI", main="Mayer distribution -5")

Seq Logo Plots

Use Biostrings to get the PMW then create the logoplots with seqlogo.

#source("https://bioconductor.org/biocLite.R")
#biocLite("seqLogo")
#source("http://bioconductor.org/biocLite.R")
#biocLite("Biostrings")
#set= DNAStringSet(UMI_18486_dep$umi)
#length(set)
#set.freq=data.frame(alphabetFrequency(set, baseOnly=T, as.prob=T))
#set_noN=set[set.freq$other==0,]
#length(set_noN)
#width(set_noN)
#x=consensusMatrix(set_noN) #problem here, getting 1024 for all
#freq_18486= PWM(x[1:4,])

#sum(UMI_18486_dep$number==0) > 0 : shows no UMIs are never used

#seqLogo(freq_18486, ic.scale = TRUE, xaxis = TRUE, yaxis = TRUE, xfontsize = 15, yfontsize =15)

Try with a different package:

#library("devtools")
#install_github("omarwagih/ggseqlogo")
require(ggseqlogo)
Loading required package: ggseqlogo
cs1 = make_col_scheme(chars=c('A', 'T', 'C', 'G', 'N'), groups=c('A', 'T', 'C', 'G', 'N'), cols=c('red', 'blue', 'green', 'yellow', 'pink'))


par(mfrow = c(2,3))

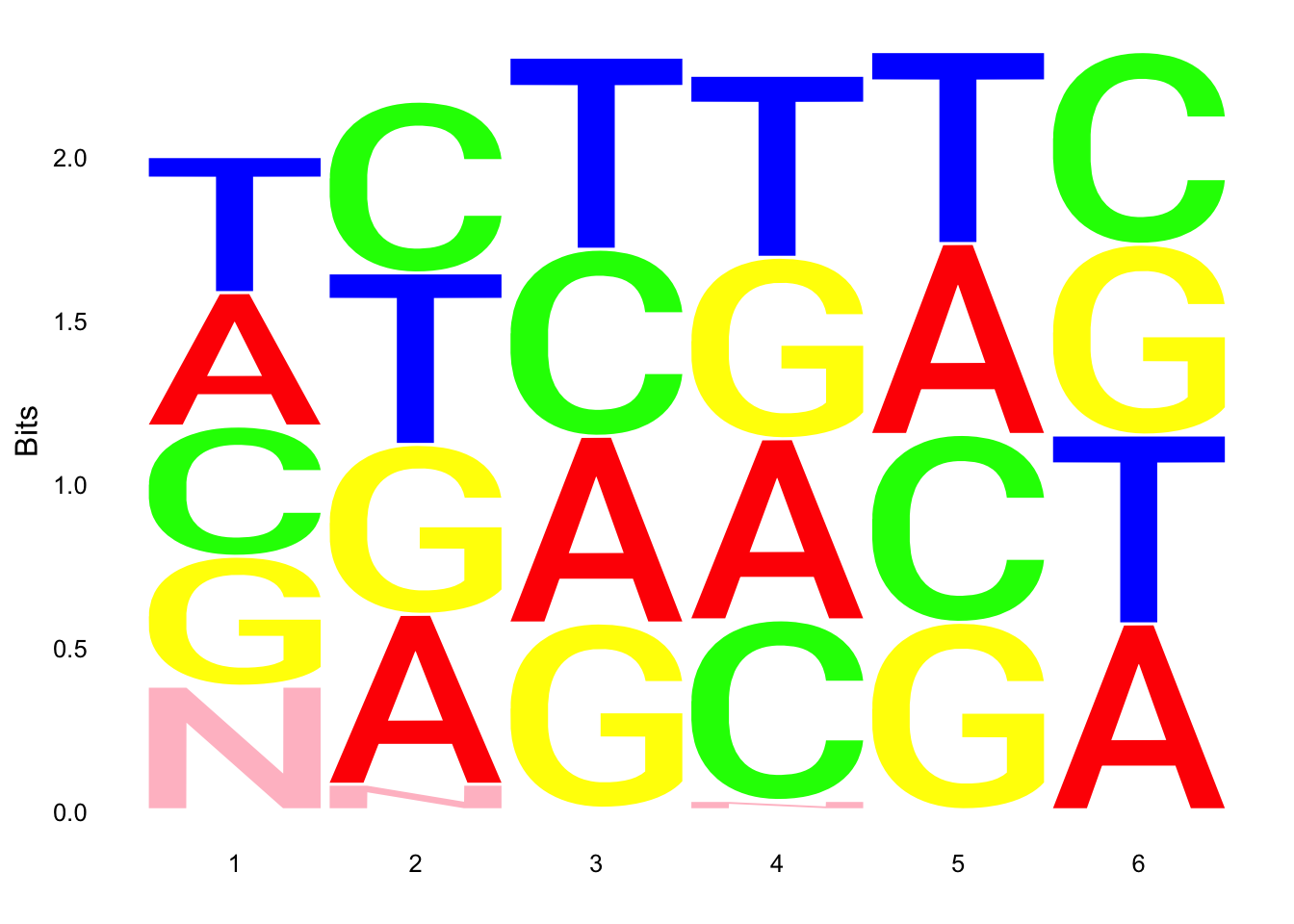

ggseqlogo(UMI_18486_dep$umi, col_scheme=cs1)

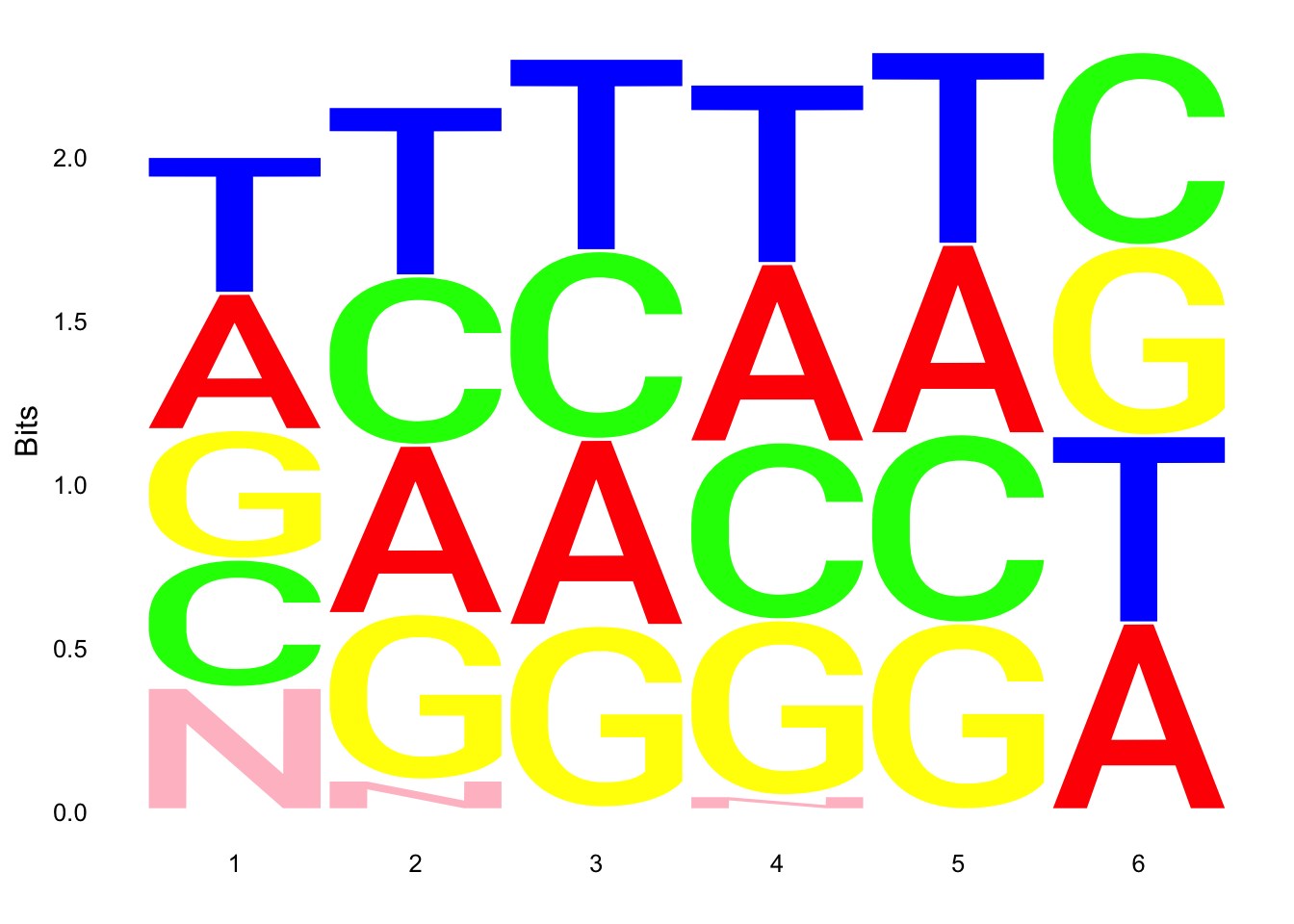

ggseqlogo(UMI_18508_dep$umi, col_scheme=cs1)

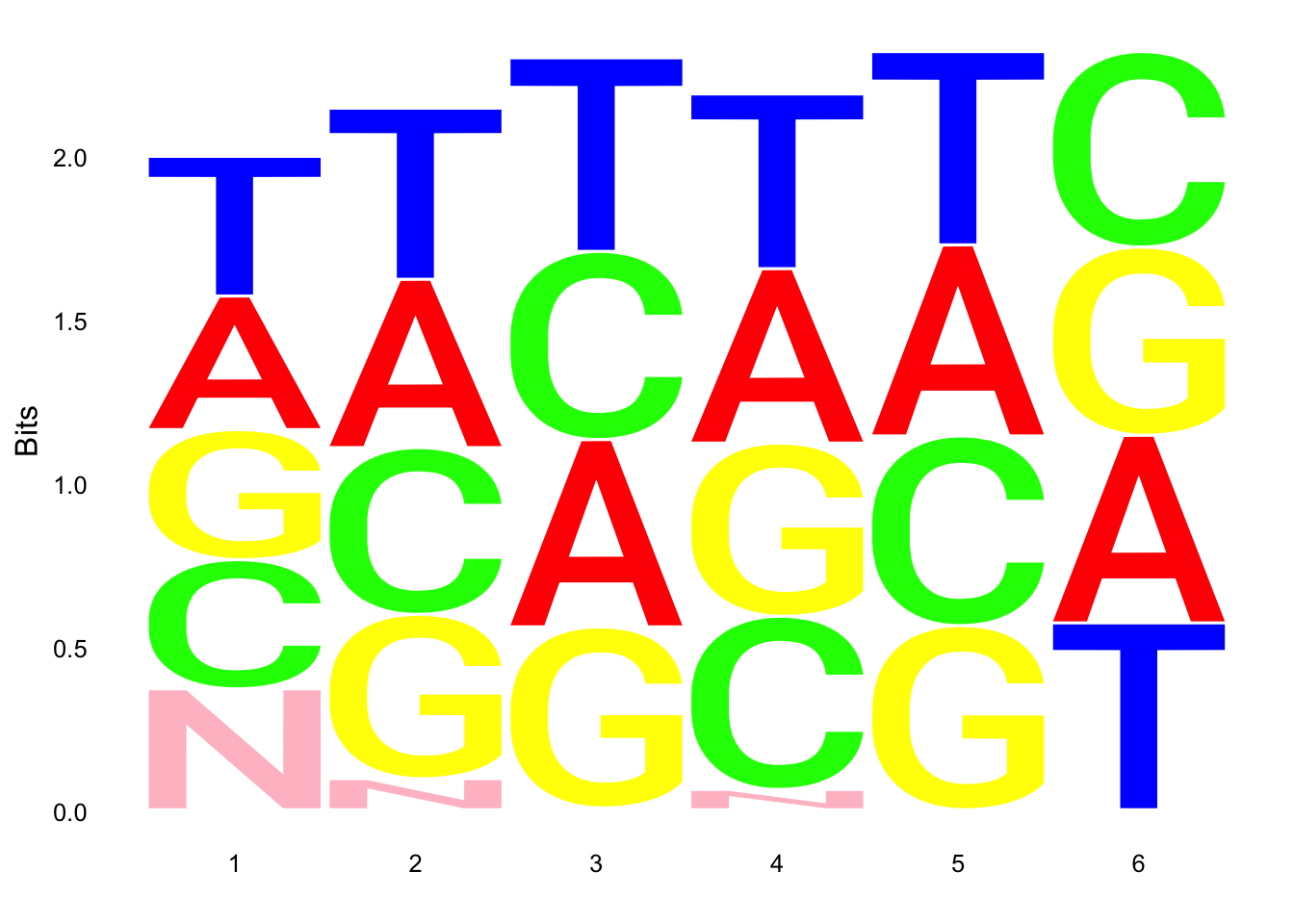

ggseqlogo(UMI_18508_nondep$umi, col_scheme=cs1)

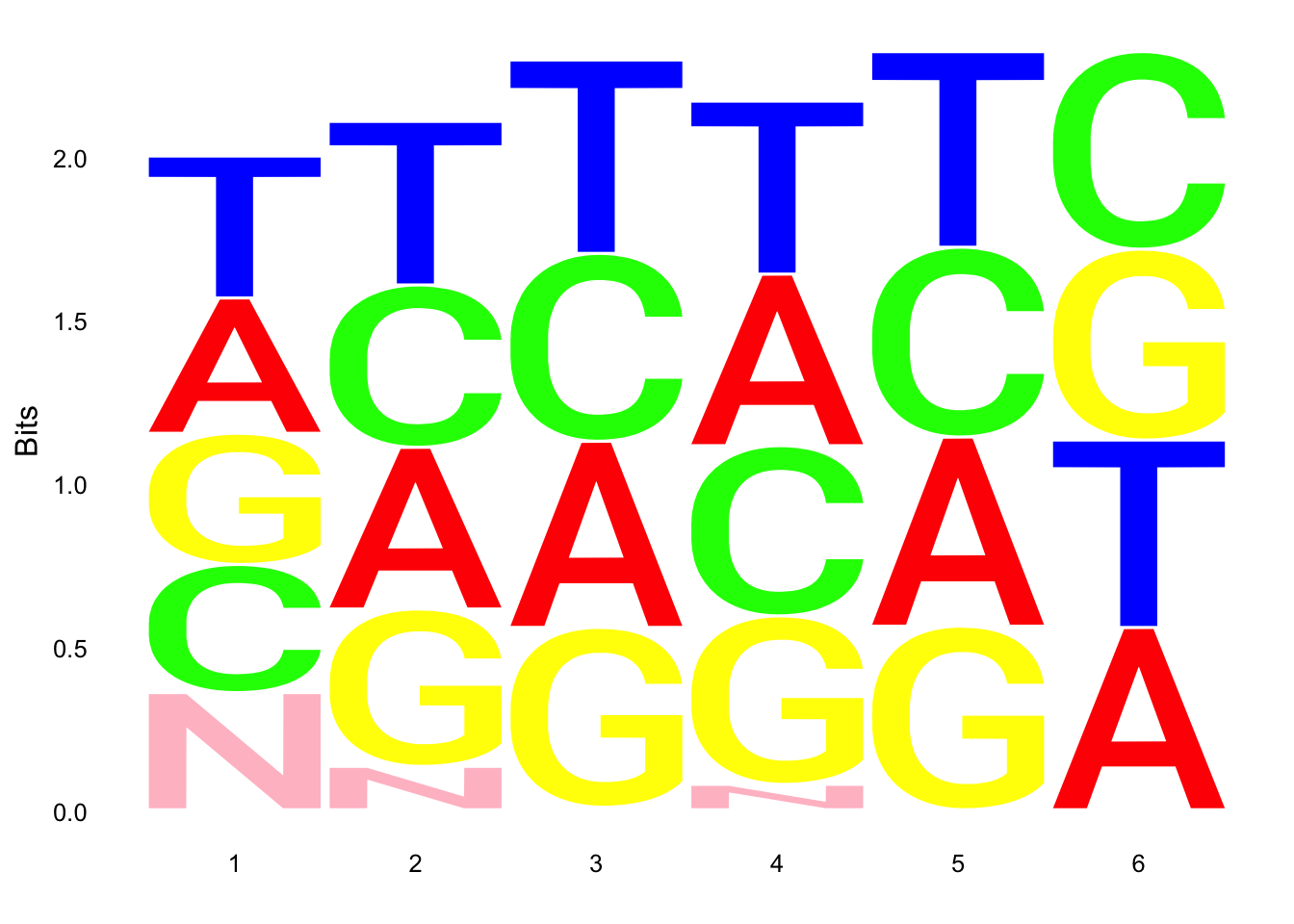

ggseqlogo(UMI_19238_dep$umi, col_scheme=cs1)

ggseqlogo(UMI_mayer$umi, col_scheme=cs1)

Does not look like we get overrepresentation of one letter at any particular location in the UMI.

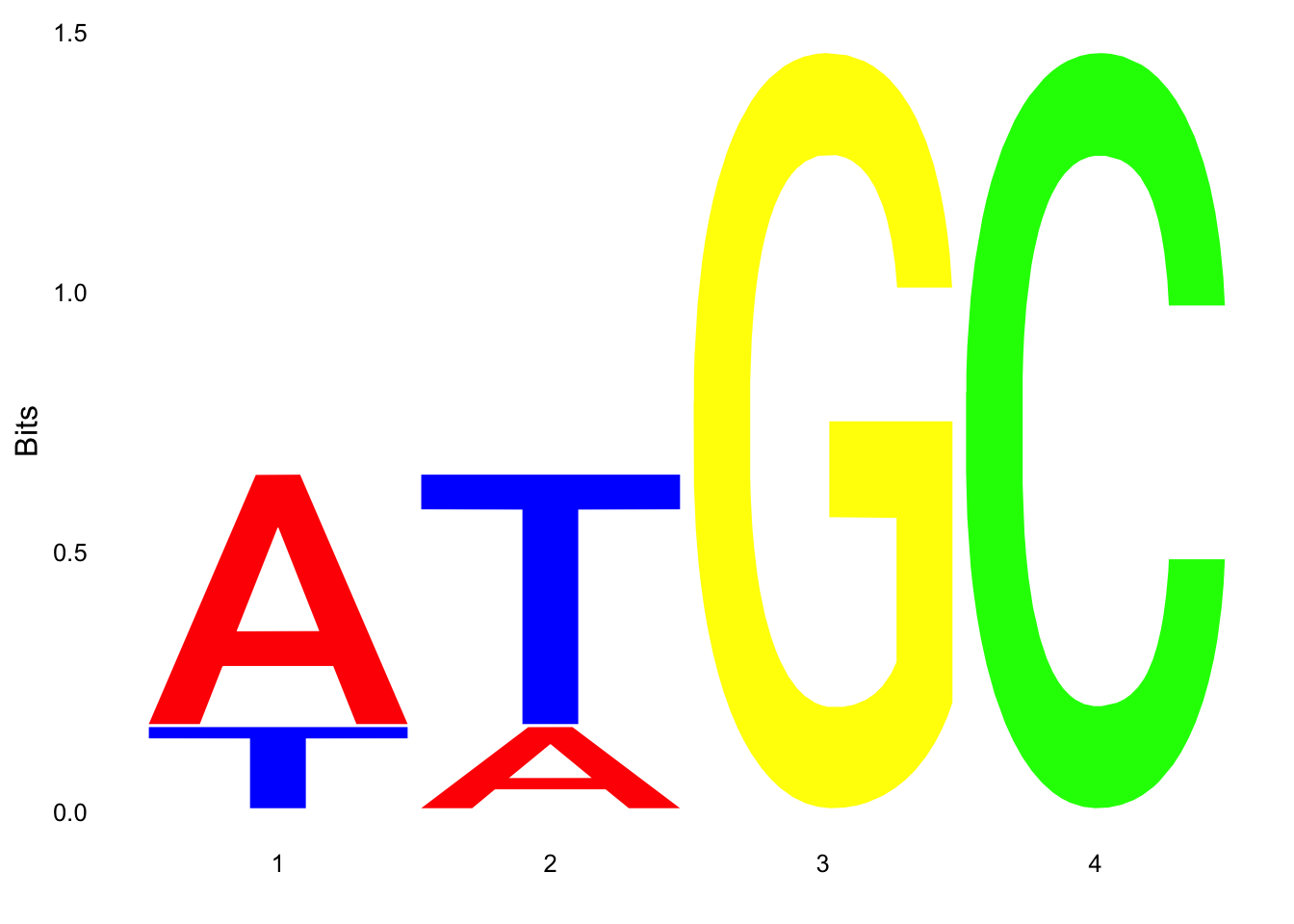

test.seqs= c("ATGC", "TAGC", "ATGC", "ATGC")
ggseqlogo(test.seqs, col_scheme=cs1)
