<h1 class="title toc-ignore">Initial Data Exploration Netseq1</h1>
<h4 class="author"><em>Brina Mittleman</em></h4>
<h4 class="date"><em>2017-11-06</em></h4>
</div>
<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-11-27</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
package git2r is installed -->
<p><strong>Code version:</strong> c9cf54b</p>
<!-- Add your analysis here -->
<p>I will use this analysis to look at inital data QC and points of interests.</p>
<p>First I looked at the number of reads that mapp to the genome before and after deduplication UMI steps.</p>
<p><code>samtools view -c -F 4</code></p>
<p>For flag info: <a href="https://broadinstitute.github.io/picard/explain-flags.html" class="uri">https://broadinstitute.github.io/picard/explain-flags.html</a></p>
<p>Mayer data: fastq: 137281933<br />
sorted: 120124203 dedup: 2262387<br />
dedup/sorted: 0.01883373</p>
<pre class="r"><code>library= c( "18486-dep", "18508-dep", "18508-nondep", "19238-dep", "mayer")
fastq= c( 45803834, 70776230, 77223987, 113160855, 137281933)
sorted= c(17336796, 43247747, 50189574, 40420633, 17157730 )
dedup= c(1533069, 1776330,1919904,
1870359,2262387)
perc= dedup/sorted
reads_mapped_dedup= data.frame(rbind(library, fastq, sorted, dedup, perc))
reads_mapped_dedup</code></pre>
<pre><code> X1 X2 X3
library 18486-dep 18508-dep 18508-nondep
fastq 45803834 70776230 77223987
sorted 17336796 43247747 50189574
dedup 1533069 1776330 1919904
perc 0.0884286231435151 0.0410733534859053 0.0382530443474177
X4 X5
library 19238-dep mayer
fastq 113160855 137281933
sorted 40420633 17157730
dedup 1870359 2262387
perc 0.0462723827209732 0.131858177043234</code></pre>
<pre class="r"><code>total_reads= sum(fastq)
sorted/fastq</code></pre>
<pre><code>[1] 0.3785010 0.6110490 0.6499221 0.3571962 0.1249817</code></pre>

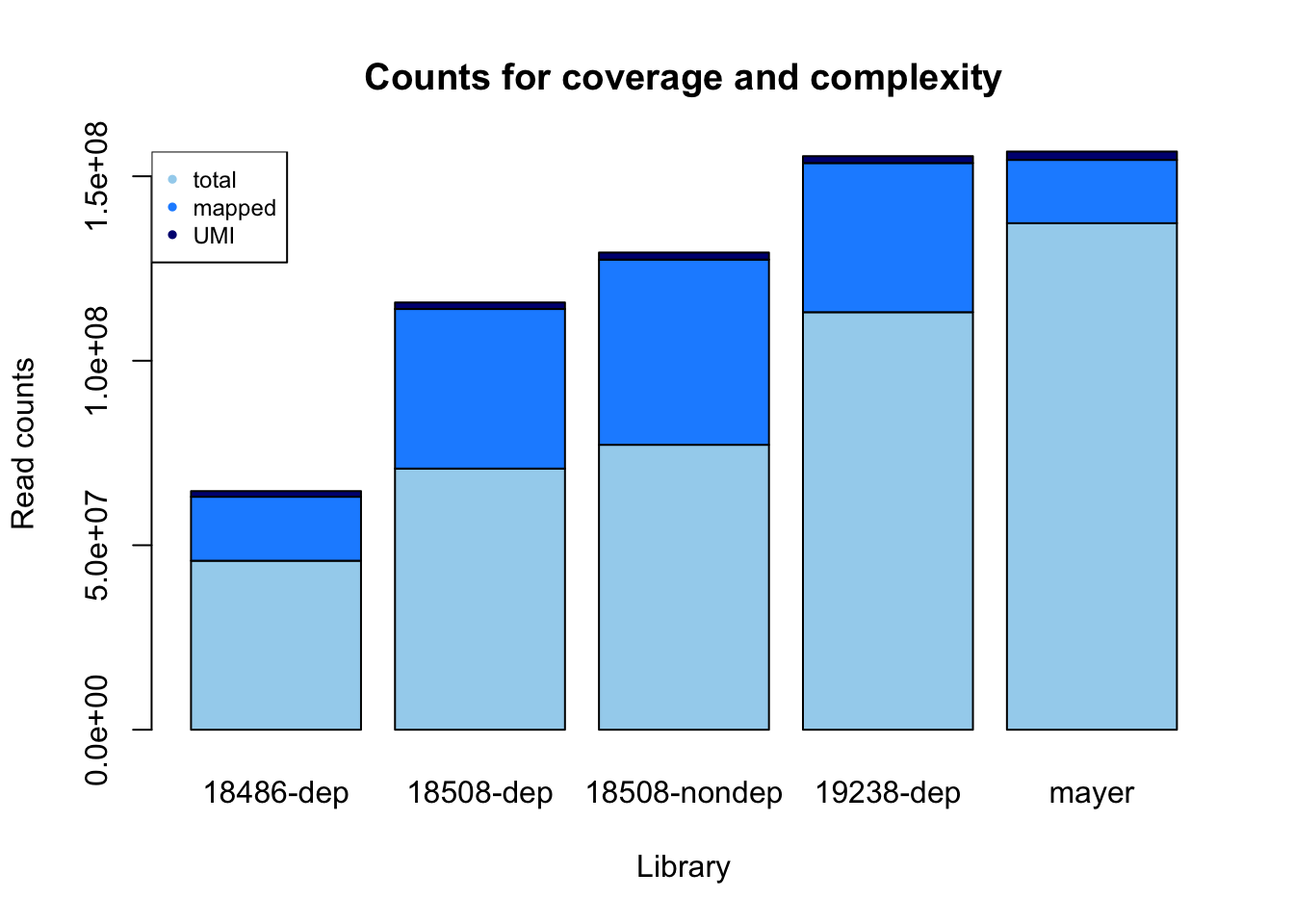

<p>Make a stacked bar plot to show complexity and coverage.<br />
library, fastq, mapped, dedup</p>
<pre class="r"><code>counts= rbind(fastq, sorted, dedup)
colnames(counts)= library
count_plot=barplot(as.matrix(counts), main="Counts for coverage and complexity",
xlab="Library", col=c("lightskyblue2","dodgerblue1","navy"),
ylab="Read counts")
legend("topleft", legend = c("total", "mapped", "UMI"), col=c("lightskyblue2","dodgerblue1","navy"), pch=20, cex = .75)</code></pre>
<p><img src="figure/initial.data.exploration.Rmd/unnamed-chunk-2-1.png" width="672" style="display: block; margin: auto;" /></p>

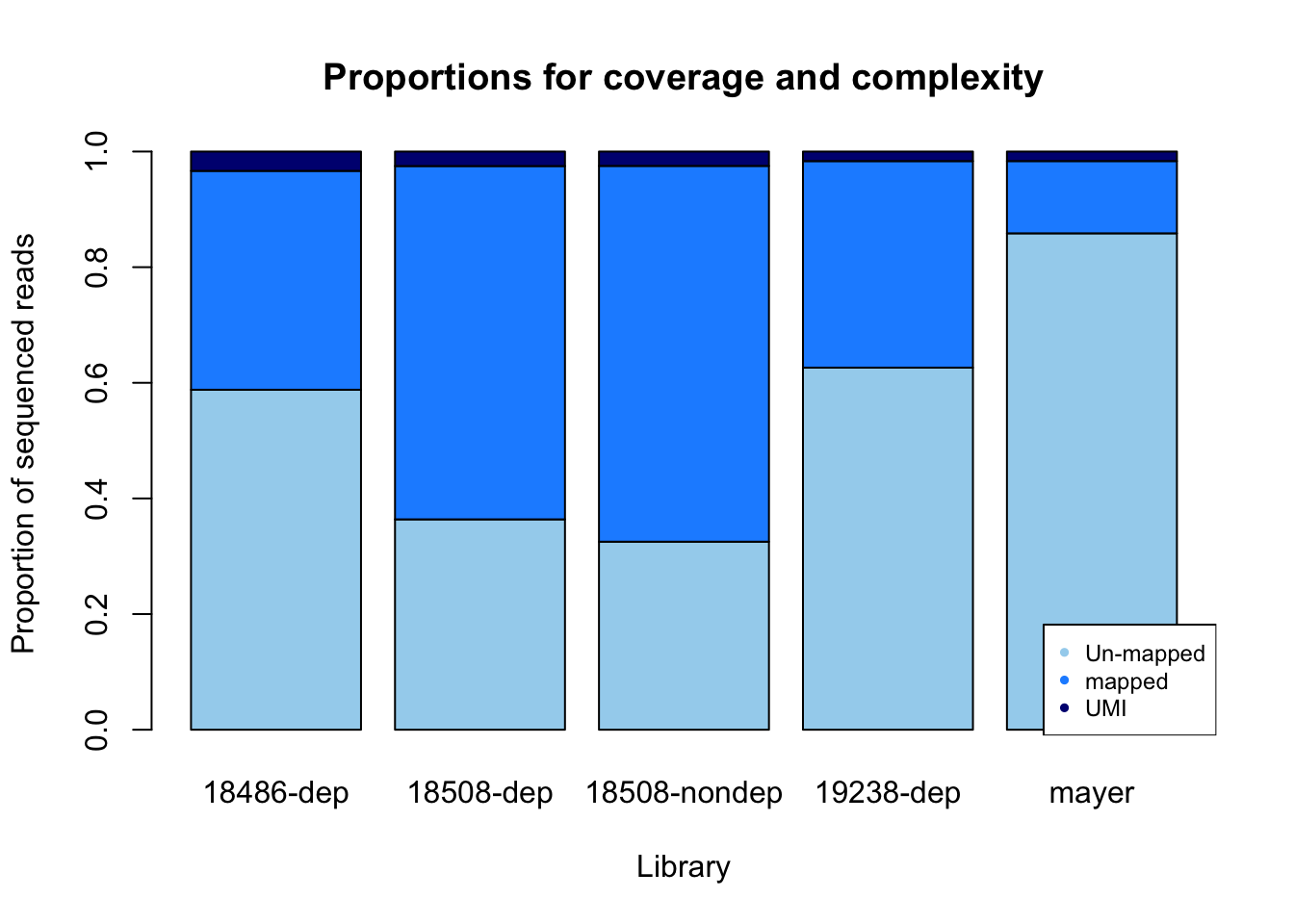

<pre class="r"><code>percent_mapped= sorted/fastq
percent_UMI= dedup/fastq
percent_not_mapped= 1- percent_mapped - percent_UMI
prop=rbind(percent_not_mapped, percent_mapped, percent_UMI)
colnames(prop)= library
prop_plot=barplot(as.matrix(prop), main="Proportions for coverage and complexity",
xlab="Library", col=c("lightskyblue2","dodgerblue1","navy"),
ylab="Proportion of sequenced reads")
legend("bottomright", legend = c("Un-mapped", "mapped", "UMI"), col=c("lightskyblue2","dodgerblue1","navy"), pch=20, cex = 0.75)</code></pre>
<p><img src="figure/initial.data.exploration.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>
<p>Undetermined is nothing: it corresponds to random reads</p>
<p>From meeting:</p>
<ul>
<li><p>Allign with star and bwa to compare</p></li>
<li><p>compare to <a href="http://genome.ucsc.edu/cgi-bin/hgTracks?db=hg19&lastVirtModeType=default&lastVirtModeExtraState" class="uri">http://genome.ucsc.edu/cgi-bin/hgTracks?db=hg19&lastVirtModeType=default&lastVirtModeExtraState</a>=&virtModeType=default&virtMode=0&nonVirtPosition=&position=chr7%3A5568588%2D5568715&hgsid=642260271_FLEwDANY0lSWCFhW4QjbmbASDDnB</p></li>
</ul>
<div id="explore-different-mappers" class="section level3">
<h3>Explore different mappers</h3>
<pre class="bash"><code>
#index and prepare ref genome:
STAR --runThreadN 2 --runMode genomeGenerate --genomeDir /scratch/midway2/brimittleman/star_genome/ --genomeFastaFiles /project2/gilad/briana/Net-seq/STAR_genome/hg19.fa --sjdbGTFfile /project2/gilad/briana/Net-seq/Homo_sapiens.GRCh37.75.chr.gtf --sjdbOverhang 43
# --sjdbOverhang read length -1
STAR --runThreadN 4 --genomeDir /scratch/midway2/brimittleman/star_genome/ --readFilesIn fastq_extr/SRR1575922_extracted.fastq --outFilterMultimapNmax 1 --outSAMtype BAM SortedByCoordinate --outStd BAM_SortedByCoordinate > star/mayer_star_align.bam</code></pre>
<pre class="bash"><code>samtools sort -o star.sort/star_mayer.sort.bam star/mayer_star_align.bam
</code></pre>
<p>Run this on my data as well.</p>
<pre class="bash"><code>#!/bin/bash
#SBATCH --job-name=star_align_mayer
#SBATCH --time=8:00:00
#SBATCH --partition=broadwl
#SBATCH --mem=50G
#SBATCH --tasks-per-node=4
module load Anaconda3
source activate net-seq
STAR --runThreadN 4 --genomeDir /scratch/midway2/brimittleman/star_genome/ --readFilesIn fastq_extr/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.fastq --outFilterMultimapNmax 1 --outSAMtype BAM SortedByCoordinate --outStd BAM_SortedByCoordinate > star/star_18486-dep.bam
#to run: sbatch --partition=broadwl --mem=50G</code></pre>
<p>Continue with the sort and index the bam.</p>
<pre class="bash"><code>samtools sort -o star.sort/star_18486_dep_sort.bam star/star_18486-dep.bam
samtools index star_18486_dep_sort.bam</code></pre>
<p>Look at the percent mapped with star.</p>
<pre class="r"><code>samples=c("18486_dep", "mayer")
fastq_star= c(45803834,137281933)
bam_star= c(1996777,1993674)
bam_star/fastq_star</code></pre>
<pre><code>[1] 0.04359410 0.01452248</code></pre>
<p>Thats way too low. This didnt work.</p>
<p>In the log.Final file.</p>
<p>% of reads unmapped: too many mismatches | 0.00%<br />
% of reads unmapped: too short | 79.96%<br />
% of reads unmapped: other | 0.00%</p>
<p>“–outFilterScoreMinOverLread 0 –outFilterMatchNminOverLread 0 –outFilterMatchNmin 0” Try to add these parameters on the mayer map.</p>
<p>This run gave too many multi-map reads. 64.82%.</p>
<p>Try:<br />
“–outFilterScoreMinOverLread 0.3 –outFilterMatchNminOverLread 0.3”<br />
% of reads mapped to too many loci | 63.75%</p>
<p>Test length of fastq reads:<br />
Mayer: total 137281933 avg=70.000000 stddev=0.000000 18486_dep: total 45803834 avg=44.000000 stddev=0.000000</p>
<p>Try clipping last 10 bases with : “–clip3pNbases 10”<br />
* This didnt work for the mayer data but that is long. I will try it on ours.</p>
<p>Our data:</p>
<ul>
<li>% of reads mapped to too many loci | 31.70%<br />
</li>
<li>% of reads unmapped: too short | 55.32%</li>
</ul>
<p>Other ways to fix this:</p>
<ul>
<li>try blasting the unmapped reads</li>
</ul>
</div>
<div id="look-into-bwa-mapping" class="section level3">
<h3>Look into BWA mapping</h3>
<p>BWA-backtrack - for Illumina seqs up to 100 bp</p>
<p>First step is to construt a FM-index for the reference genome.</p>
<p>“bwa index -a bwtsw -p /scratch/midway2/brimittleman/BWA_genome/BWA.index STAR_genome/hg19.fa”</p>
<p>Added bwa to envirnoment</p>
<p>Mapping:</p>
<p>bwa aln</p>
<ul>
<li><p>creates the .sai index files</p></li>
<li><p>-n 0.01 1% missmatch allowed</p></li>
<li><p>-t 3 spead up by using 3 threads</p></li>
</ul>
<p>bwa samse</p>
<ul>
<li>generates alignments in a sam format</li>
</ul>
<pre class="bash"><code>
#$1 ref fa
#$2 fastq
#$3 output sai
module load Anaconda3
source activate net-seq
module load bwa
bwa aln -t 3 -n 0.01 $1 $2 > $3
#submit
sbatch scripts/bwa_aln.sh hg19.copy.fa /project2/gilad/briana/Net-seq/Net-seq1/data/fastq_extr/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/BWA/bwa.18486.dep.sai</code></pre>
<pre class="bash"><code>
#SBATCH --job-name=BWA_samse
#SBATCH --time=8:00:00
#SBATCH --partition=broadwl
#SBATCH --mem=50G
#SBATCH --tasks-per-node=4
#SBATCH --mail-type=END
#$1 ref fasta
#$2 sai file
#$3 fastq file
#$4 output sam
module load Anaconda3
source activate net-seq
module load bwa
bwa samse $1 $2 $3 > $4
#run on mayer
sbatch scripts/bwa_samse.sh hg19.copy.fa /project2/gilad/briana/Net-seq/data/bwa/bwa.mayer.sai /project2/gilad/briana/Net-seq/data/fastq_extr/SRR1575922_extracted.fastq /project2/gilad/briana/Net-seq/data/bwa/bwa.mayer.sam
sbatch scripts/bwa_samse.sh hg19.copy.fa /project2/gilad/briana/Net-seq/data/bwa/bwa.mayer.cut3prime.sai /project2/gilad/briana/Net-seq/data/fastq_extr/SRR1575922_extracted.fastq /project2/gilad/briana/Net-seq/data/bwa/bwa.mayer.cut3prime.sam
#run on 18486 dep
sbatch scripts/bwa_samse.sh hg19.copy.fa /project2/gilad/briana/Net-seq/Net-seq1/data/BWA/bwa.18486.dep.sai /project2/gilad/briana/Net-seq/Net-seq1/data/fastq_extr/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/BWA/bwa.18486.dep.sam
</code></pre>
<p>Sam to bam:<br />
<code>samtools view -S -b sample.sam > sample.bam</code></p>
<p>Check how big the file is:</p>
<ul>
<li>18486_dep : 796546</li>
<li>Mayer: 117726</li>
</ul>
<p>This is super low mapping as well. Not sure what is going on.</p>
<p>For poor quality on the ends- add -q 15 to the bwa aln command. I am trying this on the mayer data.</p>
<ul>
<li>18486_dep : 805899<br />
</li>
<li>Mayer: 121892</li>
</ul>
<div id="rerun-star" class="section level4">
<h4>Rerun star:</h4>
<p>I deleted the reference genome and am reindexing and rebuilding it.</p>
</div>
<div id="cut-polya" class="section level4">
<h4>Cut polyA</h4>
<p>Code from Sebs snakemake will allow me to cut any read that has more than 6 As. It will then keep the read if it is longer than 25 bases long post cut. I will run this on the UMI extracted fastq files.</p>
<p>This script is called cut_polyA.sh and is in the /project2/gilad/briana/Net-seq/scripts directory.</p>
<pre class="bash"><code>#!/bin/bash
#SBATCH --job-name=cut_polyA
#SBATCH --time=8:00:00
#SBATCH --partition=broadwl
#SBATCH --mem=8G
#SBATCH --tasks-per-node=4
#SBATCH --mail-type=END
module load Anaconda3
source activate net-seq
#$1 fastq file
#$2 output cut file name
cutadapt --minimum-length 25 -a AAAAAA -o $2 $1</code></pre>
<p>Run this script first on 18486 dep.</p>
<pre class="bash"><code>sbatch scripts/cut_polyA.sh /project2/gilad/briana/Net-seq/Net-seq1/data/fastq_extr/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/cut_polyA/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.cutPolyA.fastq
</code></pre>
<p>Pre-cut: 45803834<br />
Cut: 40905492</p>
<pre class="bash"><code>sbatch scripts/star_allign.sh /project2/gilad/briana/Net-seq/Net-seq1/data/cut_polyA/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.cutPolyA.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/star/star_18486-dep_cutPolyA.bam</code></pre>
<p>Cut: 40905492<br />
mapped: 1350684</p>
</div>
<div id="subjunc-with-alljunctions" class="section level4">
<h4>Subjunc with –allJunctions</h4>
<p>I am running subjunc on the polyA cut reads with the –allJunctions to map cononincal and non-connoical exon exon boundaries.</p>
<p>This script is called subjunc_all_junc.sh and is in the /project2/gilad/briana/Net-seq/scripts directory.</p>
<pre class="bash"><code>#!/bin/bash
#SBATCH --job-name=cut_polyA
#SBATCH --time=8:00:00
#SBATCH --partition=broadwl
#SBATCH --mem=20G
#SBATCH --tasks-per-node=4
#SBATCH --mail-type=END
module load Anaconda3
source activate net-seq
#$1 input extracted fast q
#$2 output bam
subjunc --allJunctions -i /project2/gilad/briana/Net-seq/Net-seq1/genome/ -r $1 -T 8 > $2</code></pre>
<pre class="bash"><code>#slurm-40290339.out
sbatch scripts/subjunc_all_junc.sh /project2/gilad/briana/Net-seq/Net-seq1/data/cut_polyA/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.cutPolyA.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/subjunc_all_junc/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.cutPolyA.all.junc.bam
</code></pre>
<p>Before subjunc mapped 37.85. Now it mapped 38.4%.</p>
<p>I am also going to run this on the non polyA cut samples.</p>
<pre class="bash"><code>#slurm-40290637.out
sbatch scripts/subjunc_all_junc.sh /project2/gilad/briana/Net-seq/Net-seq1/data/fastq_extr/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/subjunc_all_junc/YG-SP-NET1-18486-dep-2017-10-13_S4_R1_001_extracted.all.junc.bam
</code></pre>
<p>Before subjunc mapped 37.85. This run is 53.1%</p>
<p>Try for mayer:</p>
<pre class="bash"><code>sbatch scripts/subjunc_all_junc.sh /project2/gilad/briana/Net-seq/data/fastq_extr/SRR1575922_extracted.fastq /project2/gilad/briana/Net-seq/data/subjunc_all_junc/mayer.extracted.subjunc.all.junc.bam
#508 dep
sbatch scripts/subjunc_all_junc.sh /project2/gilad/briana/Net-seq/Net-seq1/data/fastq_extr/YG-SP-NET1-18508-dep-2017-10-13_S2_R1_001_extracted.fastq /project2/gilad/briana/Net-seq/Net-seq1/data/subjunc_all_junc/YG-SP-NET1-18508-dep-2017-10-13_S2_R1_001_extracted.all.junc.bam </code></pre>
<p>508_dep<br />
dep fastq: 70776230<br />
mapped: 54088856</p>
<p>This mapped 76.4%</p>
<pre class="bash"><code>samtools sort -o {output} {input}
samtools index {input}
umi_tools dedup -I {input.bam} -S {output}</code></pre>
</div>
</div>
<div id="extend-mayer-data-exploration" class="section level3">
<h3>Extend Mayer data exploration</h3>
<p>I downloaded HeLa S3 Rep1 and the other run for HEK293T Rep1. I ran the snake file in the mayer.data directory as Mayer_hek and Mayer_hela.</p>
<p>mayer_hek</p>
<ul>
<li><p>reads: 358754064</p></li>
<li><p>mapped: 128152521</p></li>
<li><p>deduplication: 4392741</p></li>
</ul>
<p>mayer_hela</p>
<ul>
<li><p>reads: 175303176</p></li>
<li><p>mapped: 51362897</p></li>
<li><p>deduplication: 6314281</p></li>
</ul>

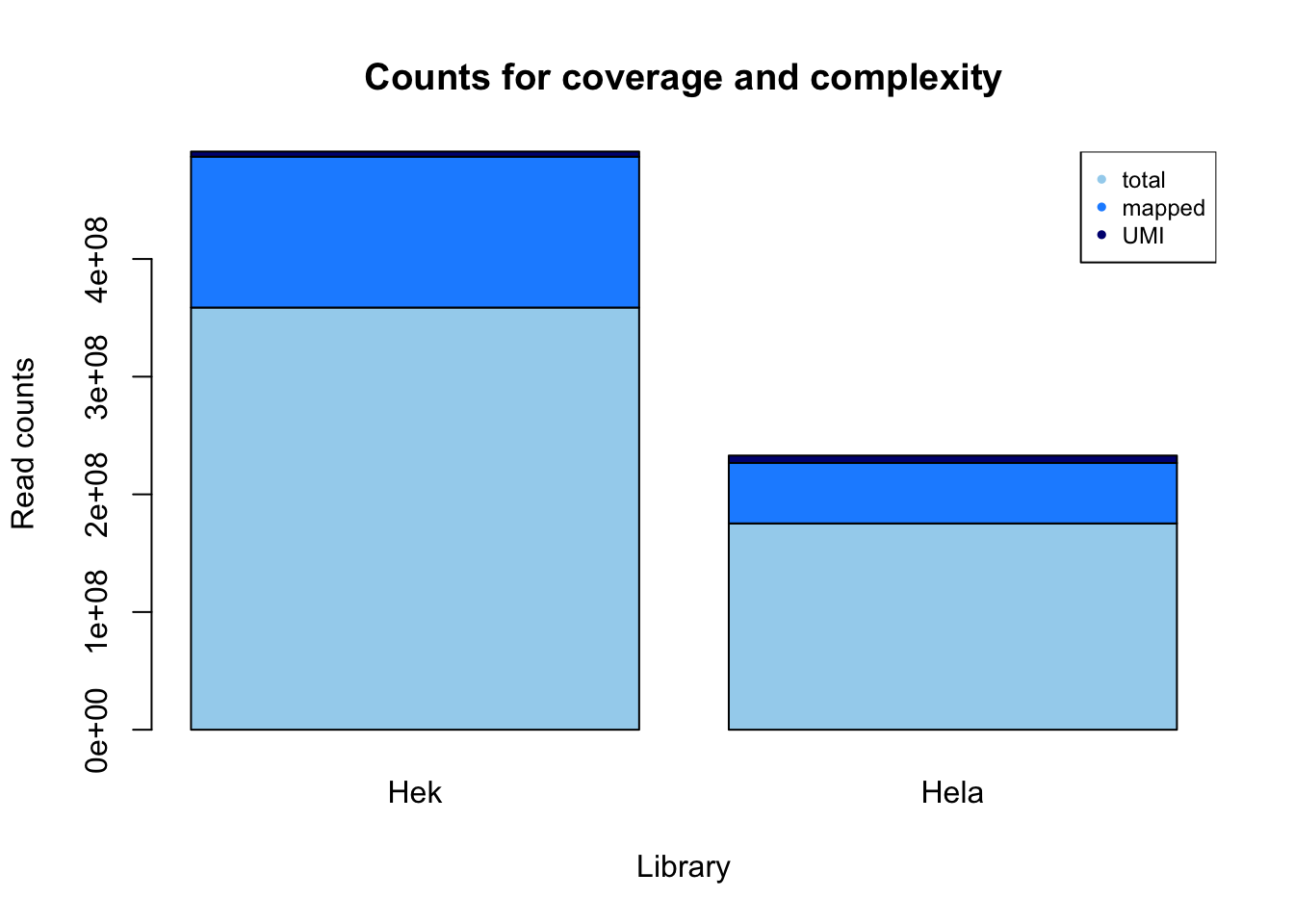

<pre class="r"><code>m_fastq= c(358754064,175303176)
m_sort= c(128152521 , 51362897)
m_dedup= c(4392741, 6314281 )
mayer= c("Hek", "Hela")
counts_m= rbind(m_fastq, m_sort, m_dedup)
colnames(counts_m)= mayer
count_plot_m=barplot(as.matrix(counts_m), main="Counts for coverage and complexity",
xlab="Library", col=c("lightskyblue2","dodgerblue1","navy"),
ylab="Read counts")
legend("topright", legend = c("total", "mapped", "UMI"), col=c("lightskyblue2","dodgerblue1","navy"), pch=20, cex = .75)</code></pre>
<p><img src="figure/initial.data.exploration.Rmd/unnamed-chunk-19-1.png" width="672" style="display: block; margin: auto;" /></p>

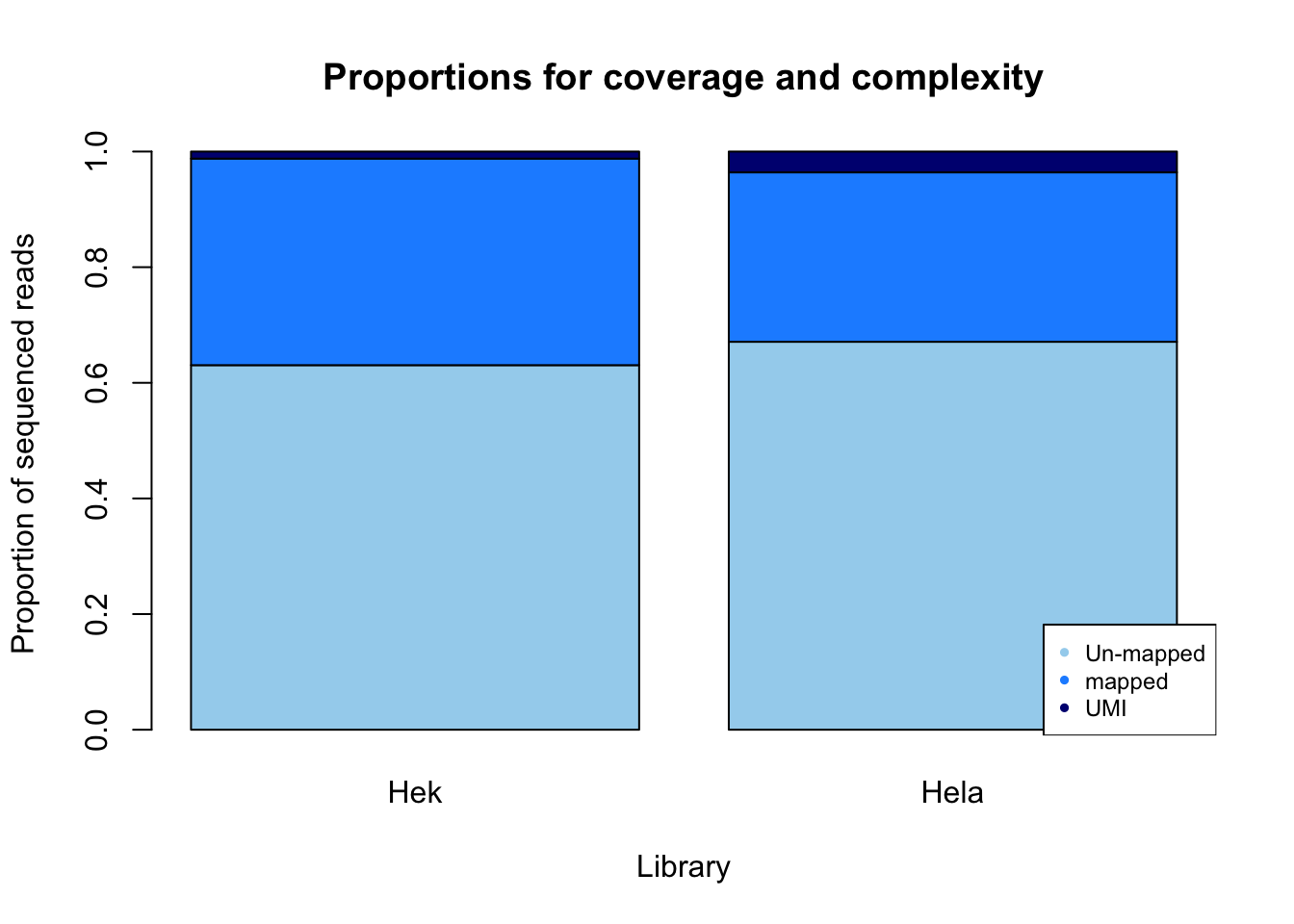

<pre class="r"><code>percent_mapped_m= m_sort/m_fastq
percent_UMI_m= m_dedup/m_fastq
percent_not_mapped_m= 1- percent_mapped_m - percent_UMI_m
prop_m=rbind(percent_not_mapped_m, percent_mapped_m, percent_UMI_m)
colnames(prop_m)= mayer
prop_plot_m=barplot(as.matrix(prop_m), main="Proportions for coverage and complexity",
xlab="Library", col=c("lightskyblue2","dodgerblue1","navy"),
ylab="Proportion of sequenced reads")
legend("bottomright", legend = c("Un-mapped", "mapped", "UMI"), col=c("lightskyblue2","dodgerblue1","navy"), pch=20, cex = 0.75)</code></pre>
<p><img src="figure/initial.data.exploration.Rmd/unnamed-chunk-20-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.2 (2017-09-28)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Sierra 10.12.6
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
loaded via a namespace (and not attached):
[1] compiler_3.4.2 backports_1.1.1 magrittr_1.5 rprojroot_1.2
[5] tools_3.4.2 htmltools_0.3.6 yaml_2.1.14 Rcpp_0.12.13
[9] stringi_1.1.5 rmarkdown_1.6 knitr_1.17 git2r_0.19.0
[13] stringr_1.2.0 digest_0.6.12 evaluate_0.10.1</code></pre>
</div>
<hr>
<p>
This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>
<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->
<!-- disqus
<div id="disqus_thread"></div>
<script type="text/javascript">
/* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname
/* * * DON'T EDIT BELOW THIS LINE * * */
(function() {
var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
(document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
})();
</script>
<noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
<a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->
</div>
</div>
</div>
<script>
// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
$('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
bootstrapStylePandocTables();
});
</script>
<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
(function () {
var script = document.createElement("script");
script.type = "text/javascript";
script.src = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
document.getElementsByTagName("head")[0].appendChild(script);
})();
</script>
</body>
</html>
