Last updated: 2017-12-19

Code version: 1d63e1d

The goal of this analysis is to create nice plots showing that we are getting as much information as the 1 lane from the Mayer sample. I will do this with our merged data vs. their 1 lane.

Genes from IGV that I want to use:

  • HERPUD1 chr16:56,964,002-56,979,793

  • ACTB chr7:5,564,779-5,572,232

  • CCNB2 chr15:59,396,707-59,401,006

  • chr11:234,336-239,997

  • KIAA0100 chr17:26,968,078-26,974,887

  • HECTD1 chr14:31,672,040-31,681,043

  • STAG1 chr3:136,469,421-136,472,771

  • SRSF3

  • ENO1

Load Packages:

library(Gviz)
Loading required package: S4Vectors
Loading required package: stats4
Loading required package: BiocGenerics
Loading required package: parallel

Attaching package: 'BiocGenerics'
The following objects are masked from 'package:parallel':

    clusterApply, clusterApplyLB, clusterCall, clusterEvalQ,
    clusterExport, clusterMap, parApply, parCapply, parLapply,
    parLapplyLB, parRapply, parSapply, parSapplyLB
The following objects are masked from 'package:stats':

    IQR, mad, sd, var, xtabs
The following objects are masked from 'package:base':

    anyDuplicated, append, as.data.frame, cbind, colMeans,
    colnames, colSums, do.call, duplicated, eval, evalq, Filter,
    Find, get, grep, grepl, intersect, is.unsorted, lapply,
    lengths, Map, mapply, match, mget, order, paste, pmax,
    pmax.int, pmin, pmin.int, Position, rank, rbind, Reduce,
    rowMeans, rownames, rowSums, sapply, setdiff, sort, table,
    tapply, union, unique, unsplit, which, which.max, which.min

Attaching package: 'S4Vectors'
The following object is masked from 'package:base':

    expand.grid
Loading required package: IRanges
Loading required package: GenomicRanges
Loading required package: GenomeInfoDb
Loading required package: grid
library(GenomicRanges)
library(biomaRt)
library(TxDb.Hsapiens.UCSC.hg19.knownGene)
Loading required package: GenomicFeatures
Loading required package: AnnotationDbi
Loading required package: Biobase
Welcome to Bioconductor

    Vignettes contain introductory material; view with
    'browseVignettes()'. To cite Bioconductor, see
    'citation("Biobase")', and for packages 'citation("pkgname")'.
library("IRanges")
library("dplyr")

Attaching package: 'dplyr'
The following object is masked from 'package:AnnotationDbi':

    select
The following object is masked from 'package:Biobase':

    combine
The following object is masked from 'package:biomaRt':

    select
The following objects are masked from 'package:GenomicRanges':

    intersect, setdiff, union
The following object is masked from 'package:GenomeInfoDb':

    intersect
The following objects are masked from 'package:IRanges':

    collapse, desc, intersect, setdiff, slice, union
The following objects are masked from 'package:S4Vectors':

    first, intersect, rename, setdiff, setequal, union
The following objects are masked from 'package:BiocGenerics':

    combine, intersect, setdiff, union
The following objects are masked from 'package:stats':

    filter, lag
The following objects are masked from 'package:base':

    intersect, setdiff, setequal, union
library("data.table")

Attaching package: 'data.table'
The following objects are masked from 'package:dplyr':

    between, first, last
The following object is masked from 'package:GenomicRanges':

    shift
The following object is masked from 'package:IRanges':

    shift
The following objects are masked from 'package:S4Vectors':

    first, second
library("GenomicAlignments")
Loading required package: SummarizedExperiment
Loading required package: DelayedArray
Loading required package: matrixStats

Attaching package: 'matrixStats'
The following object is masked from 'package:dplyr':

    count
The following objects are masked from 'package:Biobase':

    anyMissing, rowMedians

Attaching package: 'DelayedArray'
The following objects are masked from 'package:matrixStats':

    colMaxs, colMins, colRanges, rowMaxs, rowMins, rowRanges
The following object is masked from 'package:base':

    apply
Loading required package: Biostrings
Loading required package: XVector

Attaching package: 'Biostrings'
The following object is masked from 'package:DelayedArray':

    type
The following object is masked from 'package:base':

    strsplit
Loading required package: Rsamtools

Attaching package: 'GenomicAlignments'
The following object is masked from 'package:data.table':

    last
The following object is masked from 'package:dplyr':

    last

Upload data:

chr= "chr7"
gen= "hg19"

merged_data_7= DataTrack(range = "../data/bam_files_chr/merged_Net1_chr.bam", genome = gen, type = "h", name = "Merged", window = -1, chromosome = "chr7")
mayer_data_7= DataTrack(range = "../data/bam_files_chr/mayer_chr.bam", genome = gen, type = "h", name = "Mayer", window = -1, chromosome = "chr7")



refGenes <- UcscTrack(genome= gen, chromosome=chr,
     track="RefSeq Genes", from = 5555158, to = 5581854,
     trackType="GeneRegionTrack", rstarts="exonStarts",
     rends="exonEnds", gene="name", symbol="name2",
     transcript="name", strand="strand", fill="#800000", name="RefSeq Genes", showId=TRUE)
gtrack = GenomeAxisTrack()


itrack= IdeogramTrack(genome = gen, chromosome = chr)


#plots

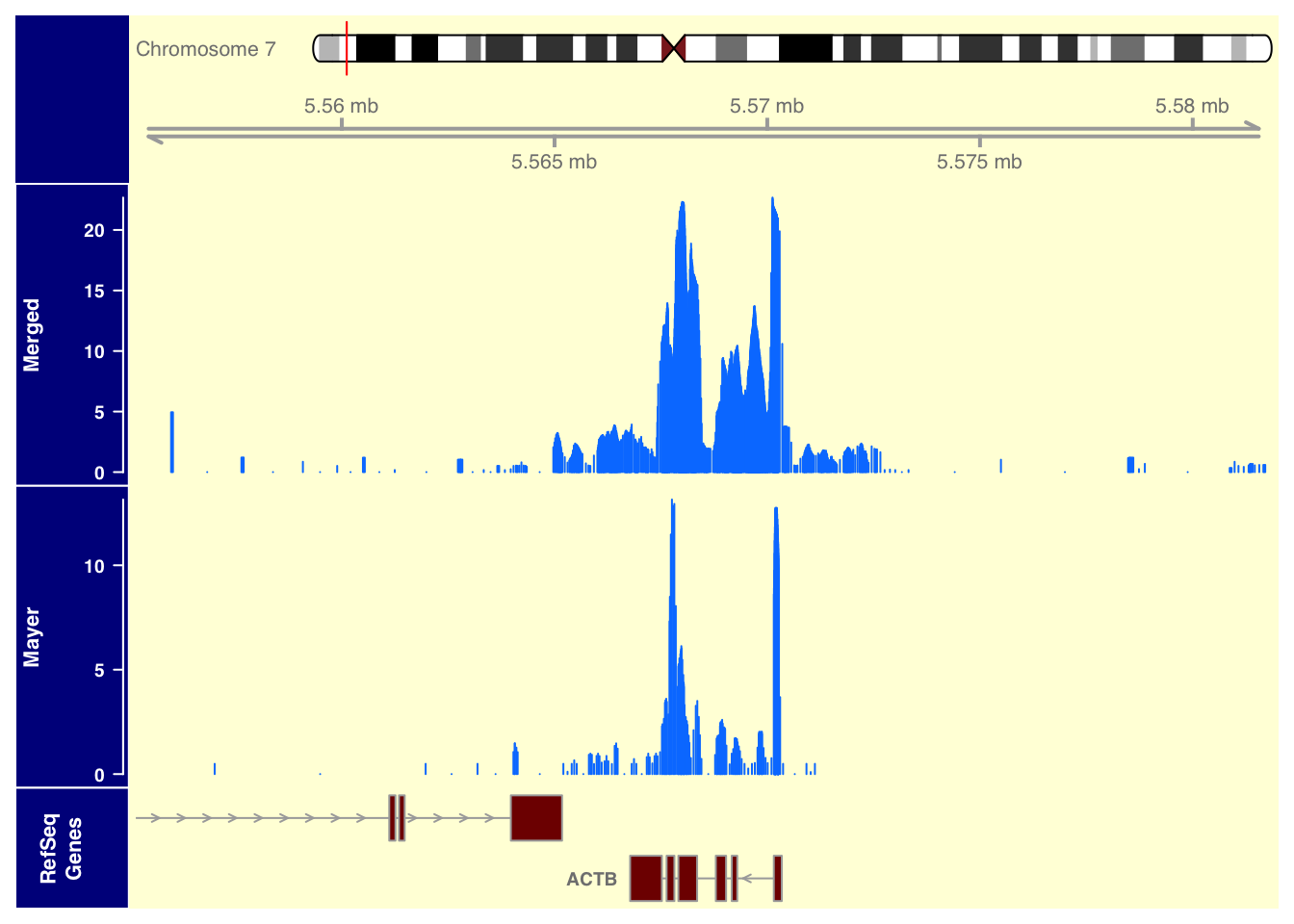

plotTracks(list(itrack,gtrack, merged_data_7, mayer_data_7, refGenes), from = 5555158, to = 5581854,  background.title="darkblue",  background.panel = "#FFFEDB")

merged_anno_7= AnnotationTrack(range = "../data/bam_files_chr/merged_Net1_chr.bam", genome = gen, name = "Merged", window = -1, chromosome = chr)
mayer_anno_7= AnnotationTrack(range = "../data/bam_files_chr/mayer_chr.bam", genome = gen, name = "Mayer", window = -1, chromosome = chr)

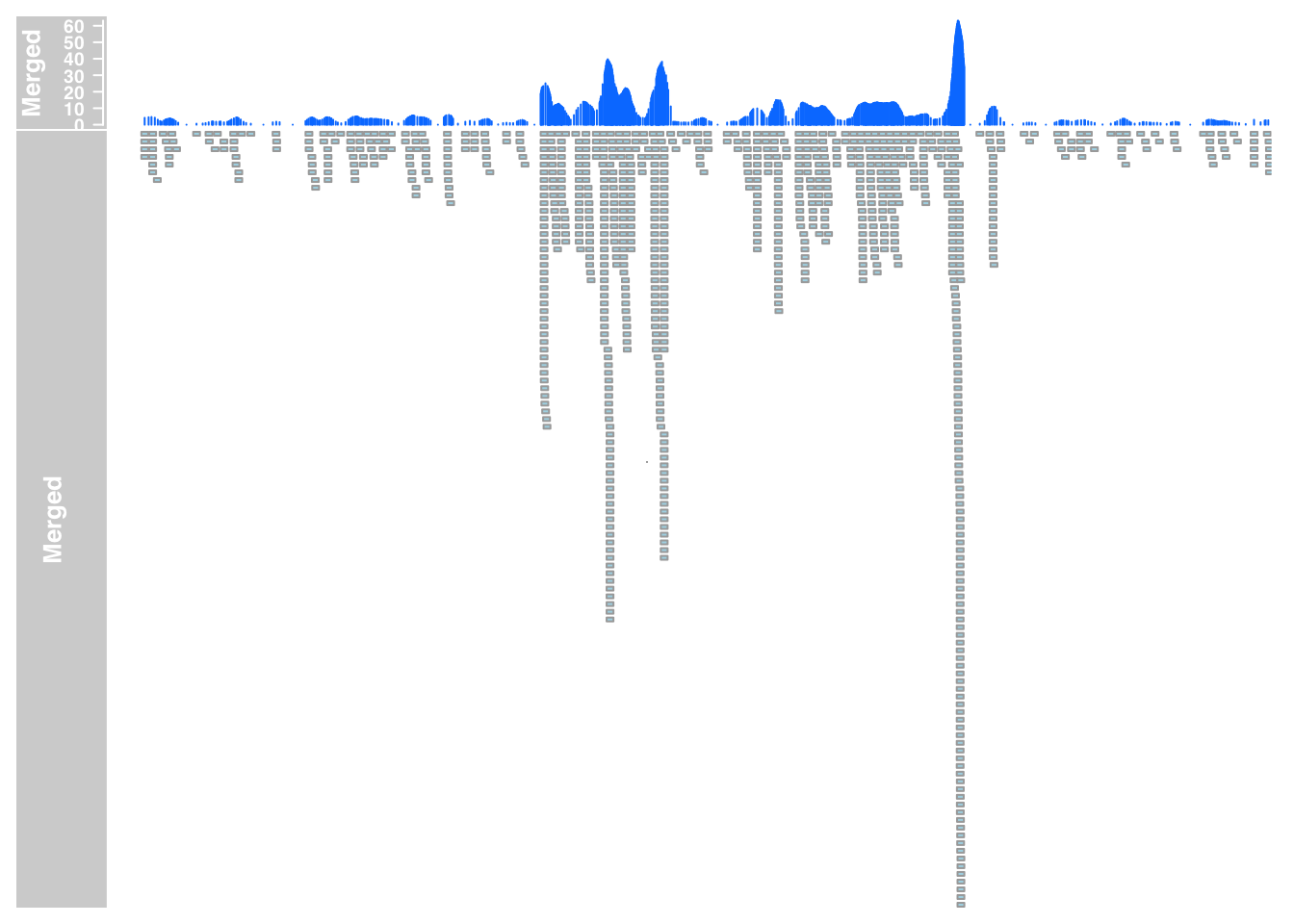

plotTracks(list(merged_data_7, merged_anno_7), from = 5564779, to = 5572232)

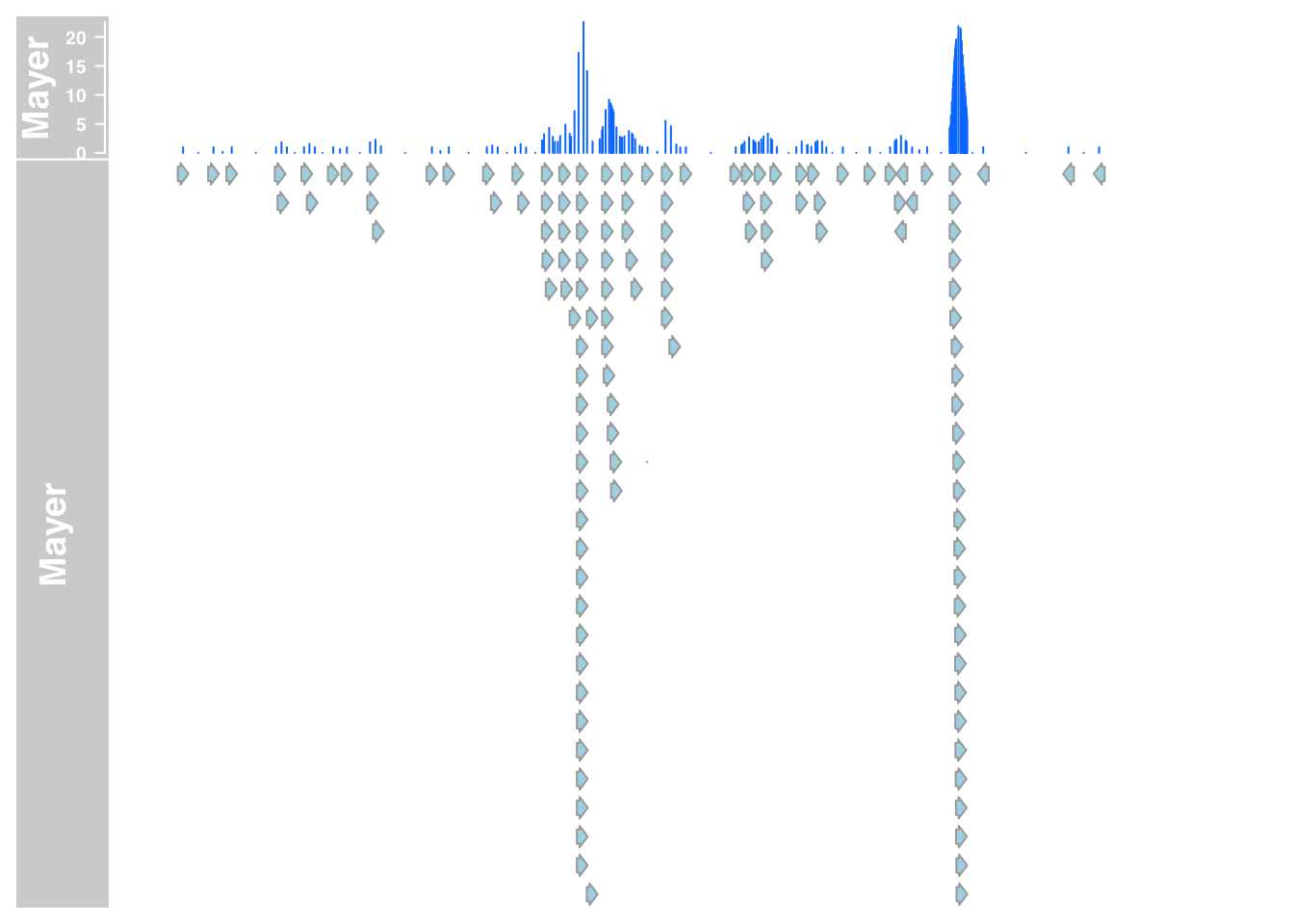

plotTracks(list(mayer_data_7,mayer_anno_7), from = 5564779, to = 5572232)

Create a function for the plots

track_plot=function(chrom, from, to){
  gen= "hg19"
  chr= chrom
  merged_data= DataTrack(range = "../data/bam_files_chr/merged_Net1_chr.bam", genome = gen, type = "h", name = "Merged", window = -1, chromosome = chr)
  mayer_data= DataTrack(range = "../data/bam_files_chr/mayer_chr.bam", genome = gen, type = "h", name = "Mayer", window = -1, chromosome = chr)
  refGenes <- UcscTrack(genome= gen, chromosome=chr,
     track="RefSeq Genes", from = from, to = to,
     trackType="GeneRegionTrack", rstarts="exonStarts",
     rends="exonEnds", gene="name", symbol="name2",
     transcript="name", strand="strand", fill="#800000", name="RefSeq Genes", showId=TRUE)
  gtrack = GenomeAxisTrack()
  itrack= IdeogramTrack(genome = gen, chromosome = chr)
  plot= plotTracks(list(itrack,gtrack, merged_data, mayer_data, refGenes), from = from, to = to,  background.title="darkblue",  background.panel = "#FFFEDB")
  return(plot)
}
#plot_SRSF3= track_plot("chr6",36564332,36571507)
#plot_ENO1=track_plot("chr1",8919652,8940558 )
#plot_tars=track_plot("chr5",33438802,33468000)
#plot_CAXN= track_plot("chr5",179123129,179159838)
#future: change track size with sizes=c(5,1,5) commpand in plot track
#plot_ALDOA= track_plot("chr16",30080421,30082314)

#plot_XRCC5= track_plot("chr2", 216968869,217009667)

#plot_TUBB= track_plot("chr6",30684274,30698626)

Fix in terminal

Add the chr tag to the bam files.

samtools view -h SRR1575922-sort.bam | awk 'BEGIN{FS=OFS="\t"} (/^@/ && !/@SQ/){print $0} $2~/^SN:[1-9]|^SN:X|^SN:Y|^SN:MT/{print $0}  $3~/^[1-9]|X|Y|MT/{$3="chr"$3; print $0} ' | sed 's/SN:/SN:chr/g' | sed 's/chrMT/chrM/g' | samtools view -bS - > mayer_chr.bam

samtools view -h merged_Net1.bam | awk 'BEGIN{FS=OFS="\t"} (/^@/ && !/@SQ/){print $0} $2~/^SN:[1-9]|^SN:X|^SN:Y|^SN:MT/{print $0}  $3~/^[1-9]|X|Y|MT/{$3="chr"$3; print $0} ' | sed 's/SN:/SN:chr/g' | sed 's/chrMT/chrM/g' | samtools view -bS - > merged_Net1_chr.bam

index the bam files:

samtools index mayer_chr.bam
samtools index merged_Net1_chr.bam
