Introduction

Similar to previous simulations, only that the design matrix \(X\) is simulated such that \(\Sigma_{\hat\beta} = \sigma_e^2(X^TX)^{-1}\) has non negligible off-diagnoal correlations.

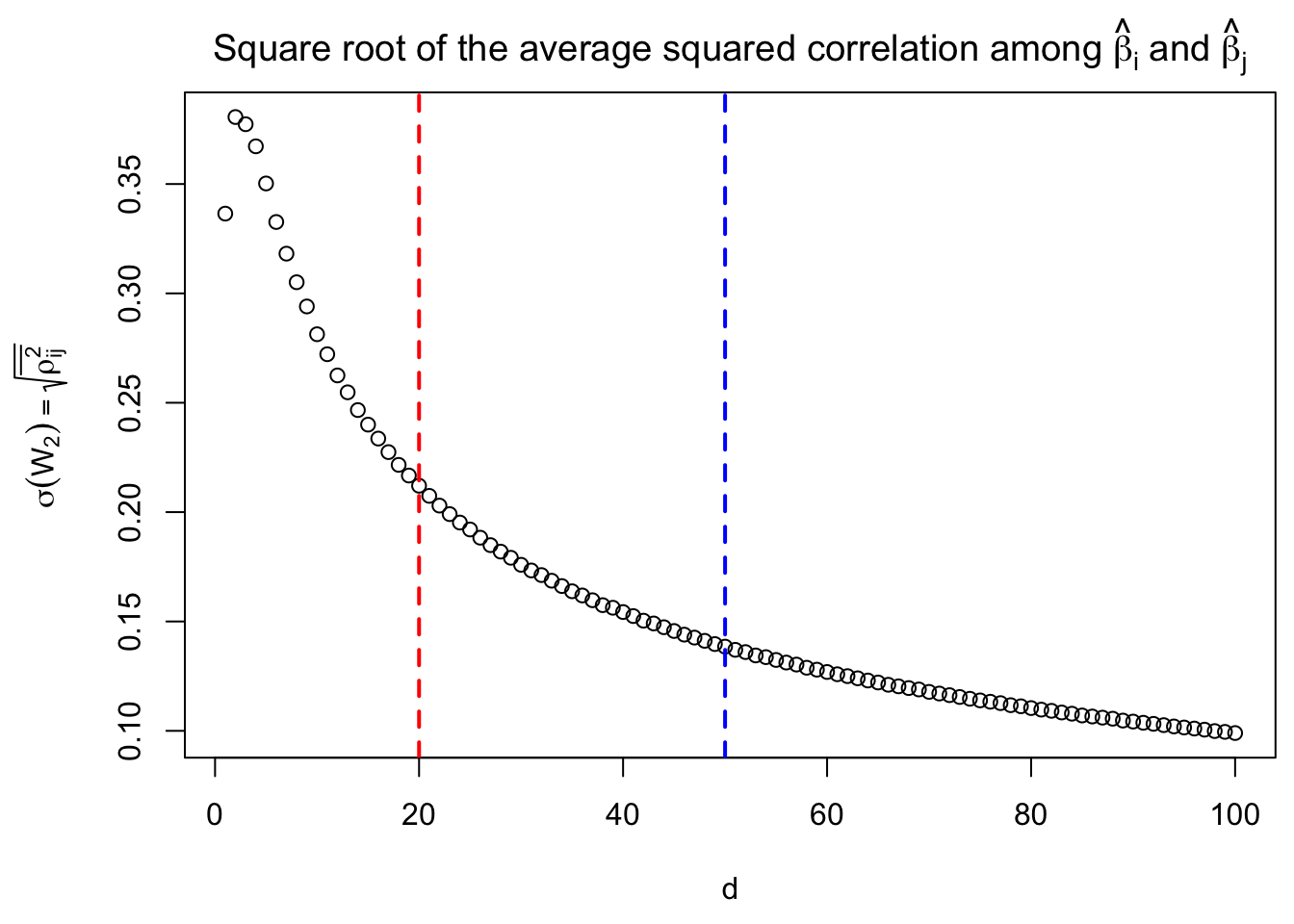

\(d\) and \(\Sigma_{\hat\beta}\)

Let \(\Sigma_{\hat\beta} / \sigma_e^2 = B_{p \times d} \cdot B_{p \times d}^T + I\), where \(B_{i, j} \stackrel{\text{iid}}{\sim} N(0, 1)\). Then rescale the matrix such that the mean of its diagnal \(= 1\). Generate \(X_{n \times p}\) such that \((X^TX)^{-1} = \Sigma_{\hat\beta} / \sigma_e^2\).

Recall that the random coefficient of the second order of Gaussian deviative with the empirical distribution of correlated null \(W_2\) has the property \[ Var(W_2) = \bar{\rho_{ij}^2} \] We take a look at how \(d\) is related to this quantity.

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
4491358 LSun 2018-01-30

\(\eta \in \{0.5, 0.6, 0.7, 0.8, 0.9\}\), \(\sigma_\beta / \sigma_e = 3\), \(d \sim Unif\{1, 2, \cdots, 50\}\)

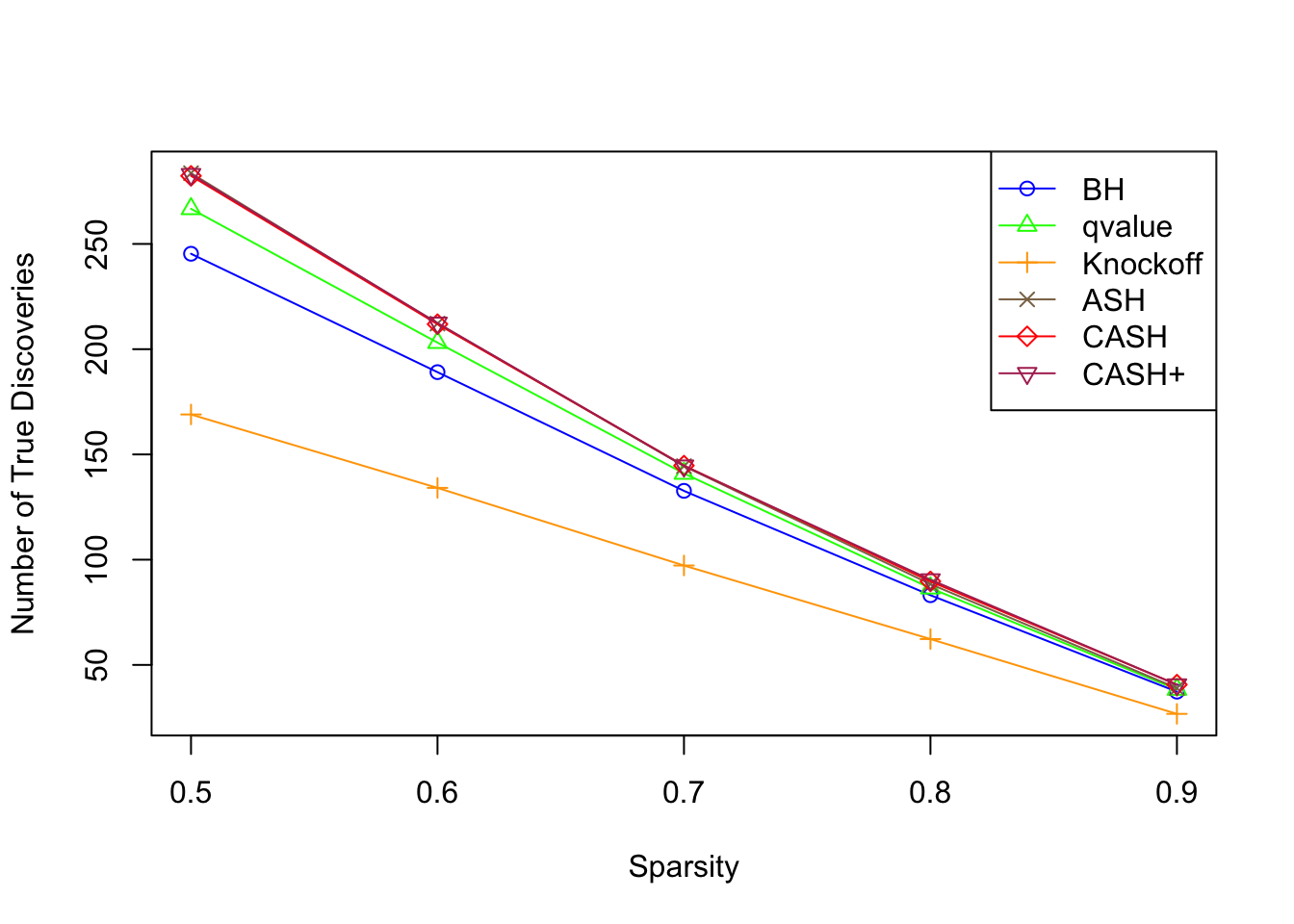

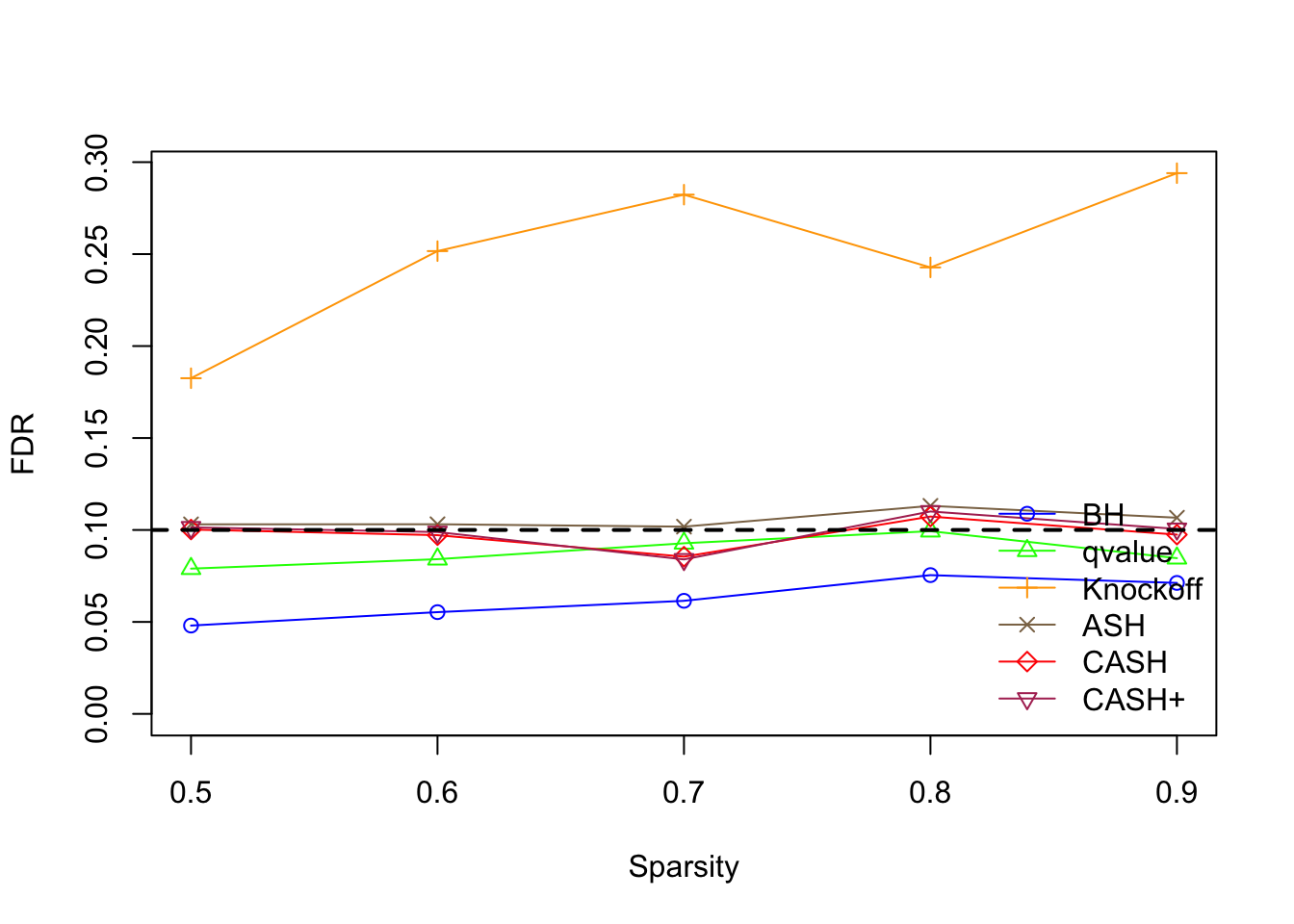

Overall FDR and Power comparison

Expand here to see past versions of avg-1.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of avg-2.png:
Version Author Date
4491358 LSun 2018-01-30

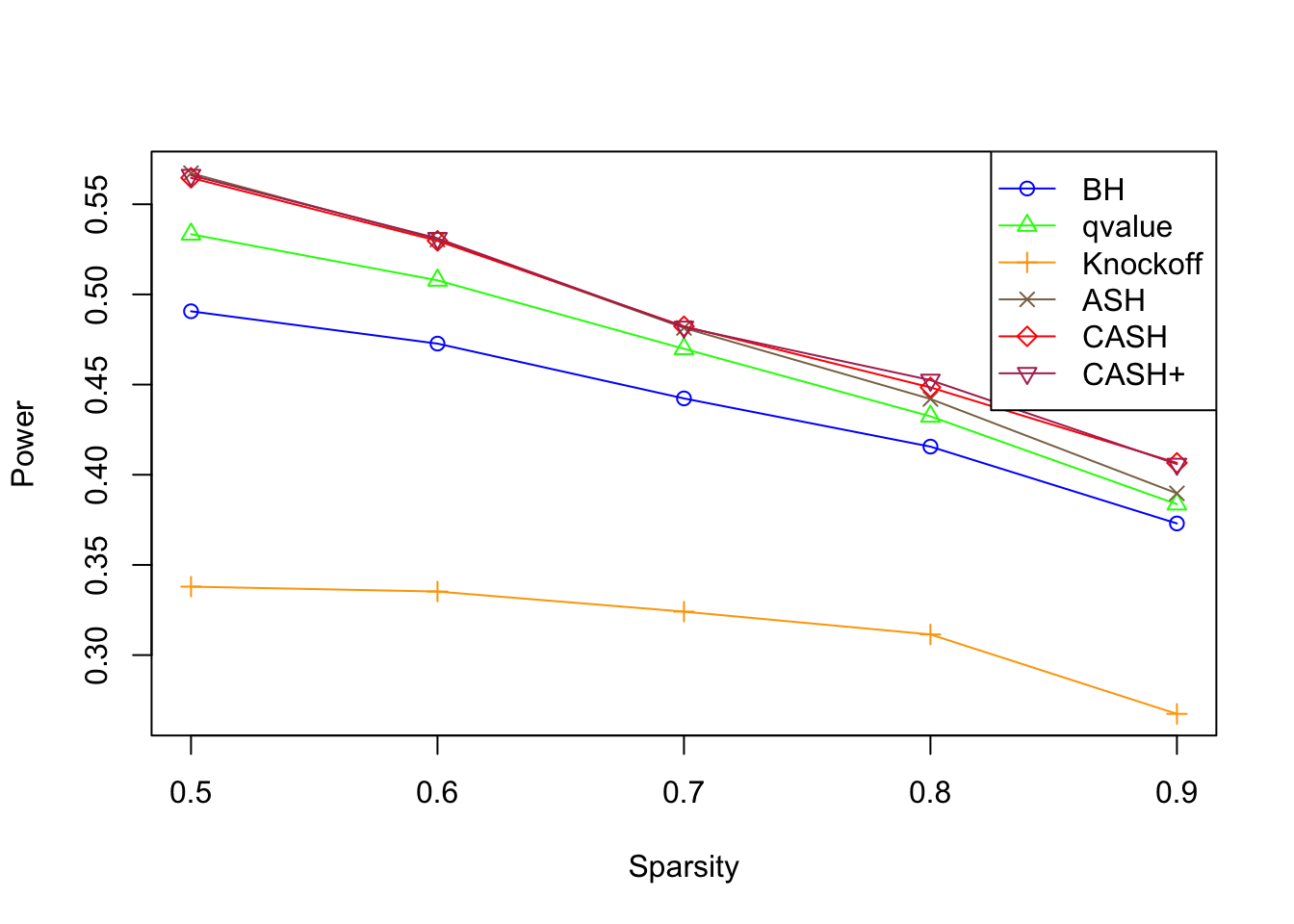

Expand here to see past versions of avg-3.png:
Version Author Date
4491358 LSun 2018-01-30

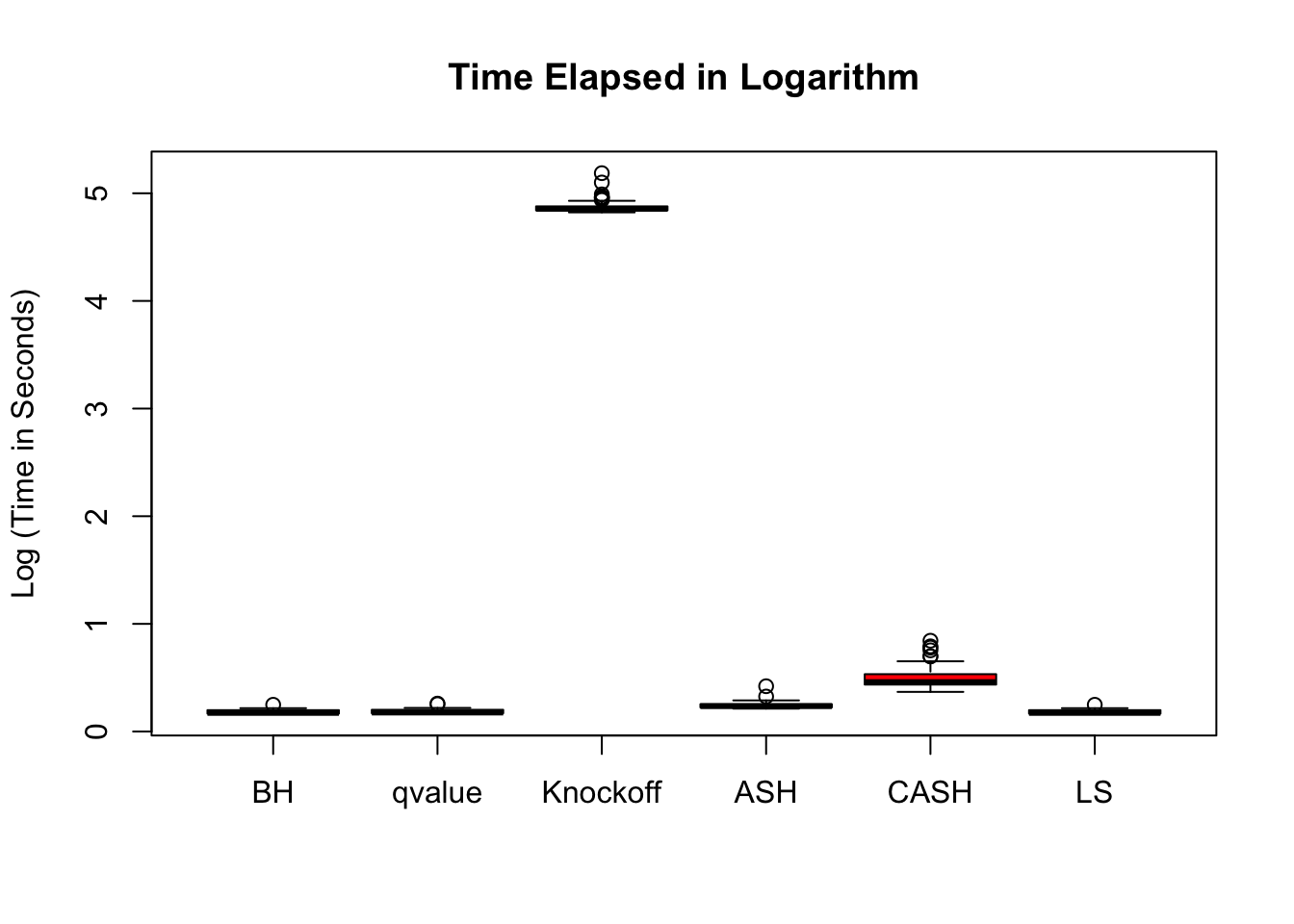

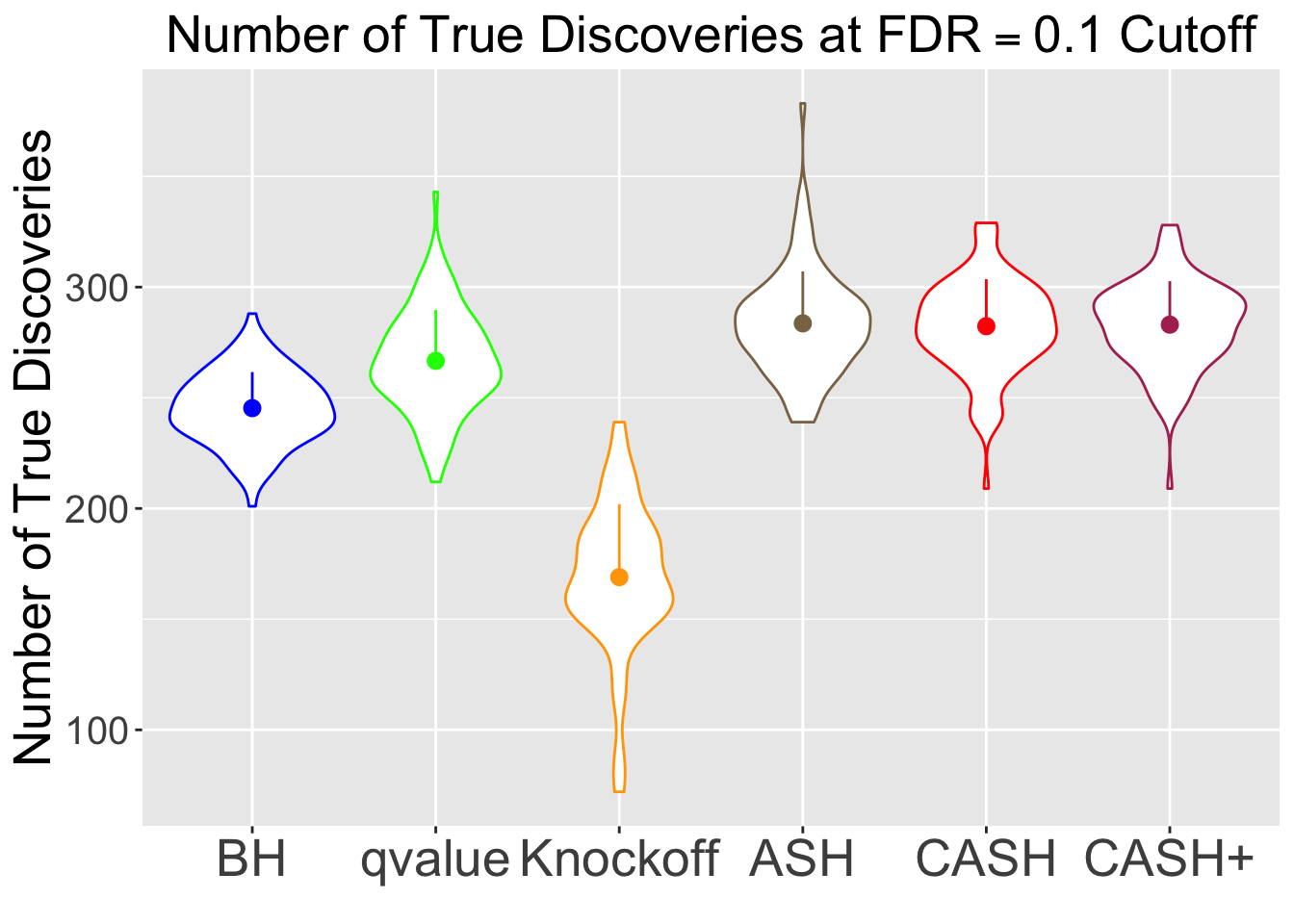

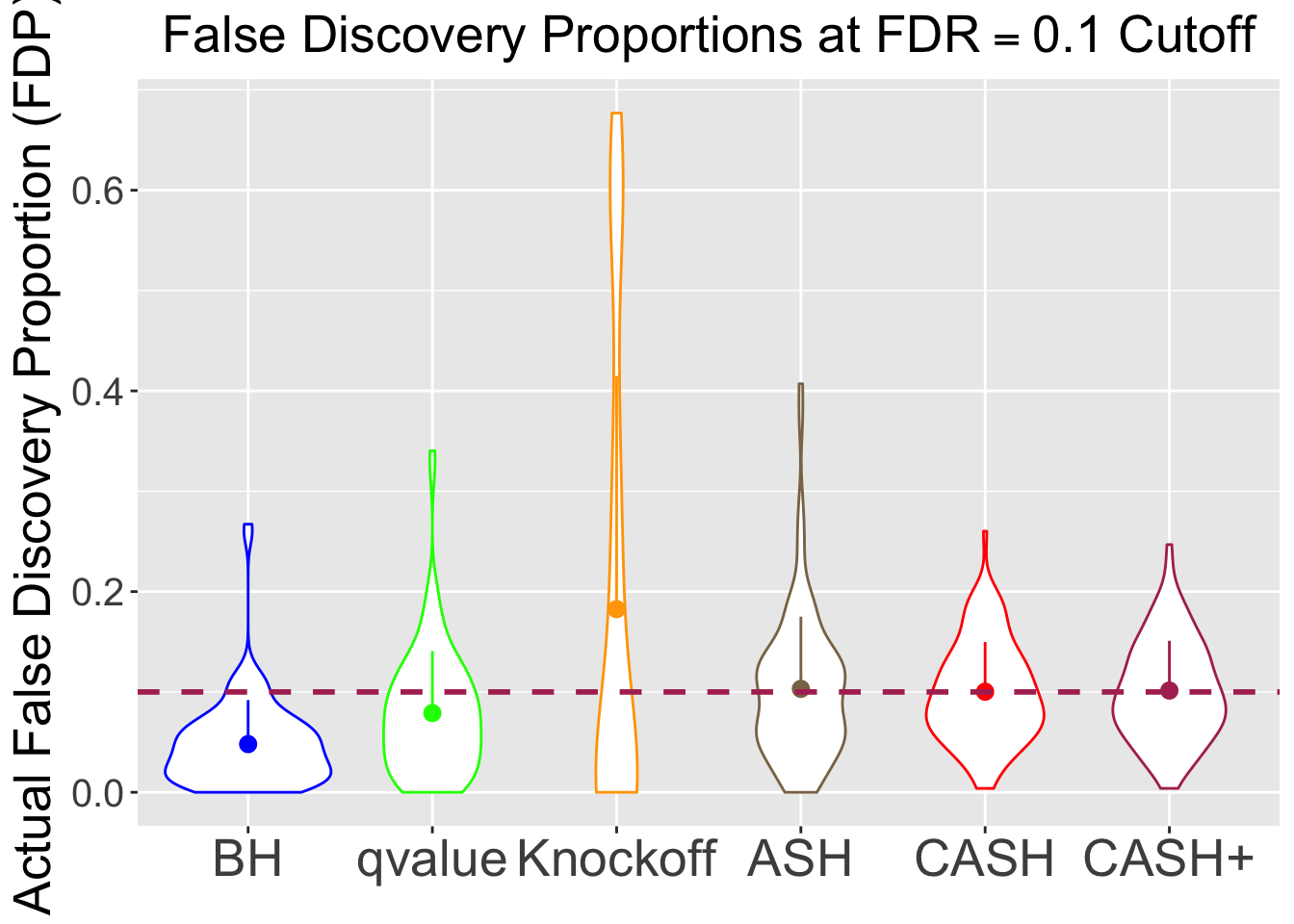

FDR and Power at low sparsity: \(50\%\) true signal

Expand here to see past versions of 500-1.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of 500-2.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of 500-3.png:
Version Author Date
4491358 LSun 2018-01-30

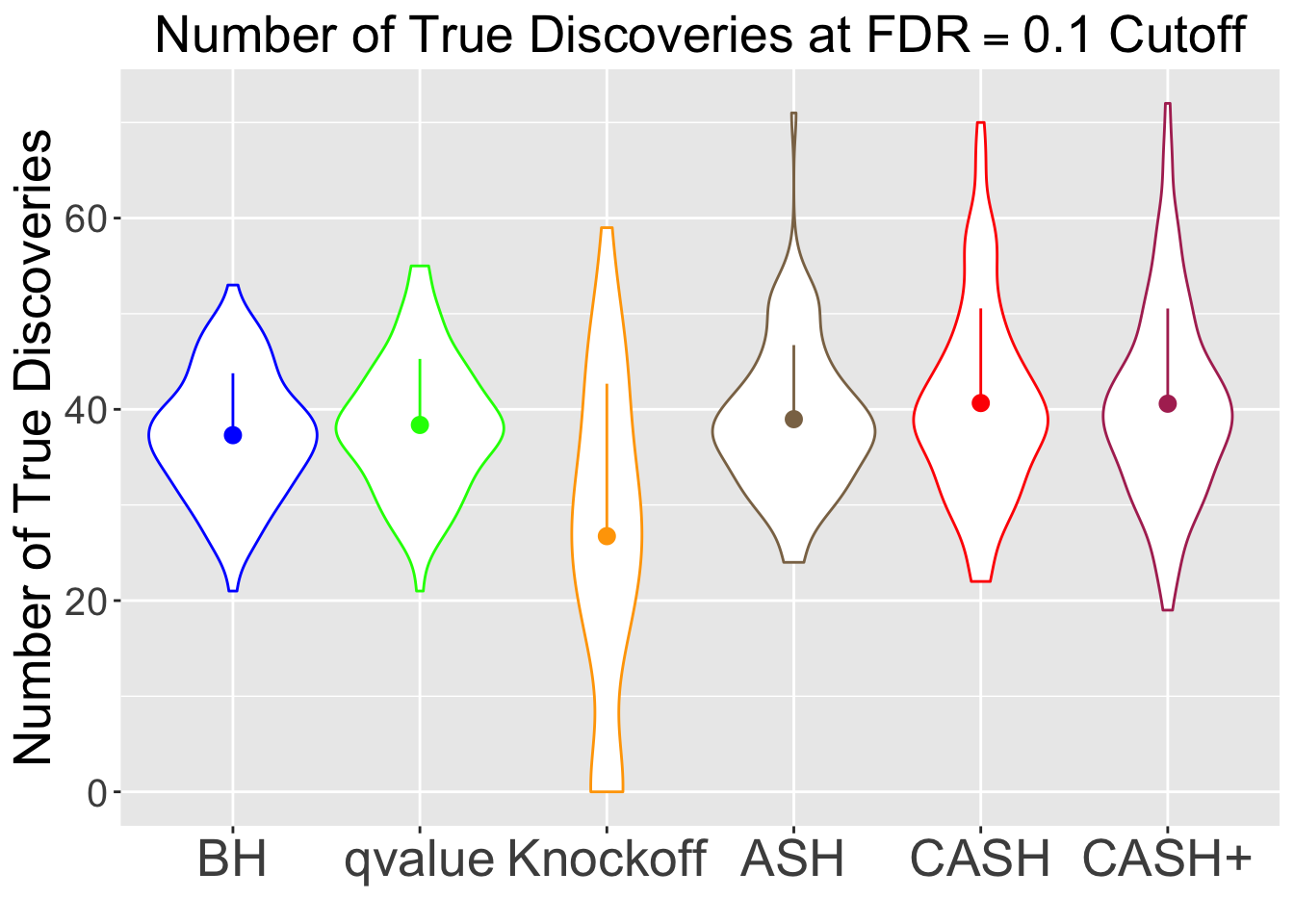

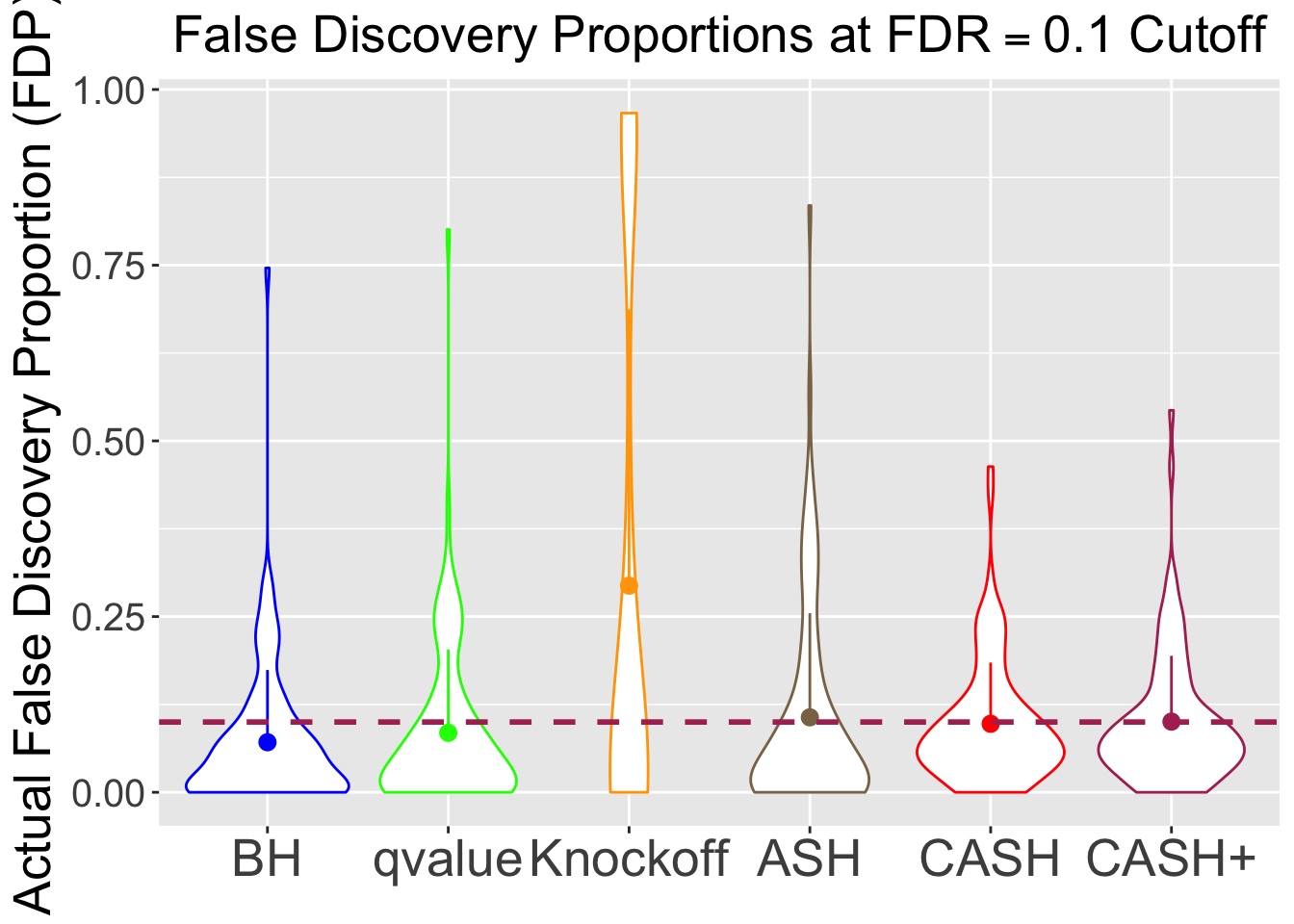

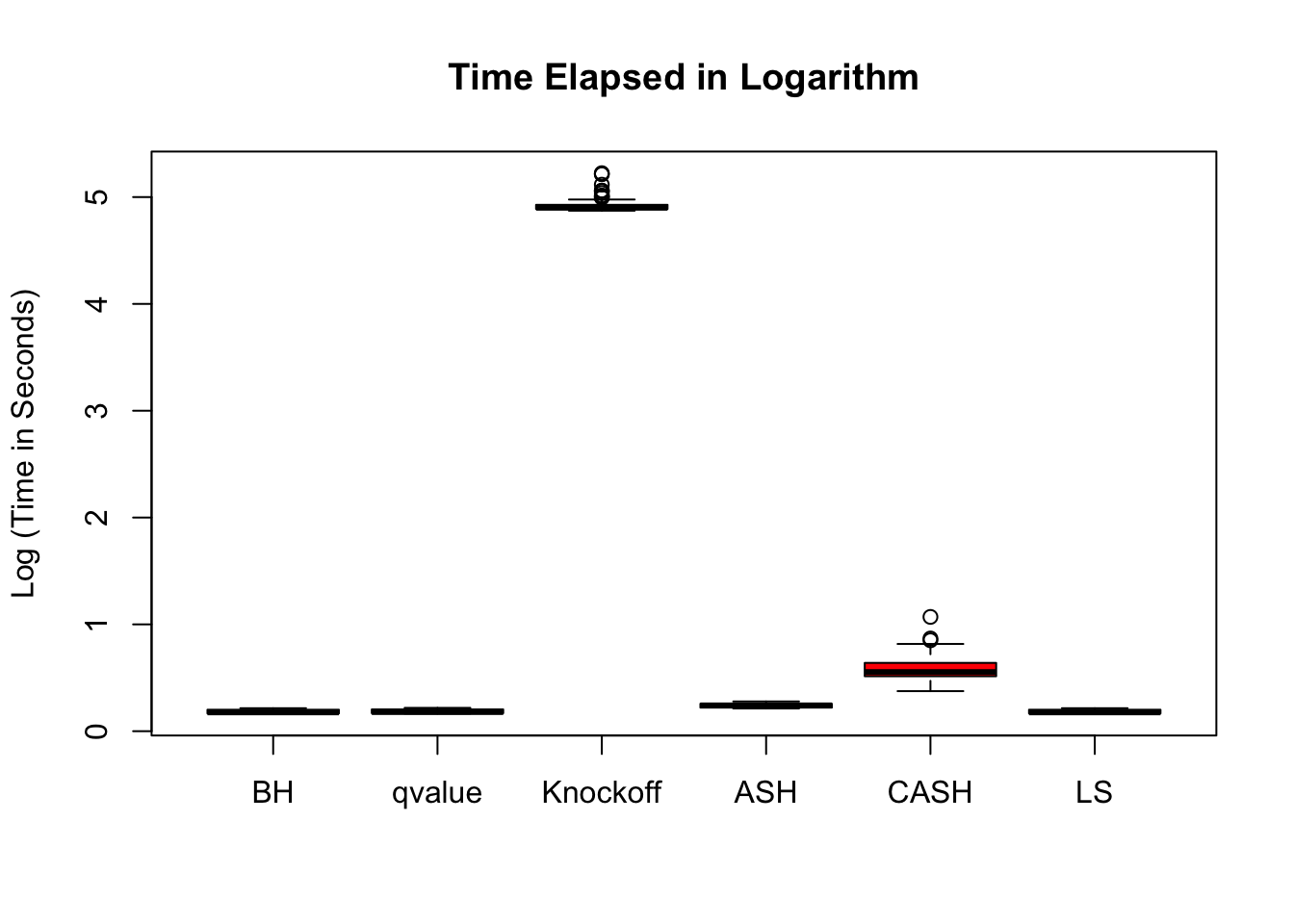

FDR and Power at high sparsity: \(10\%\) true signal

Expand here to see past versions of 100-1.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of 100-2.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of 100-3.png:
Version Author Date
4491358 LSun 2018-01-30

\(\eta \in \{0.75, 0.80, 0.85, 0.90, 0.95\}\), \(\sigma_\beta / \sigma_e = 3\), \(d \sim Unif\{1, 2, \cdots, 20\}\)

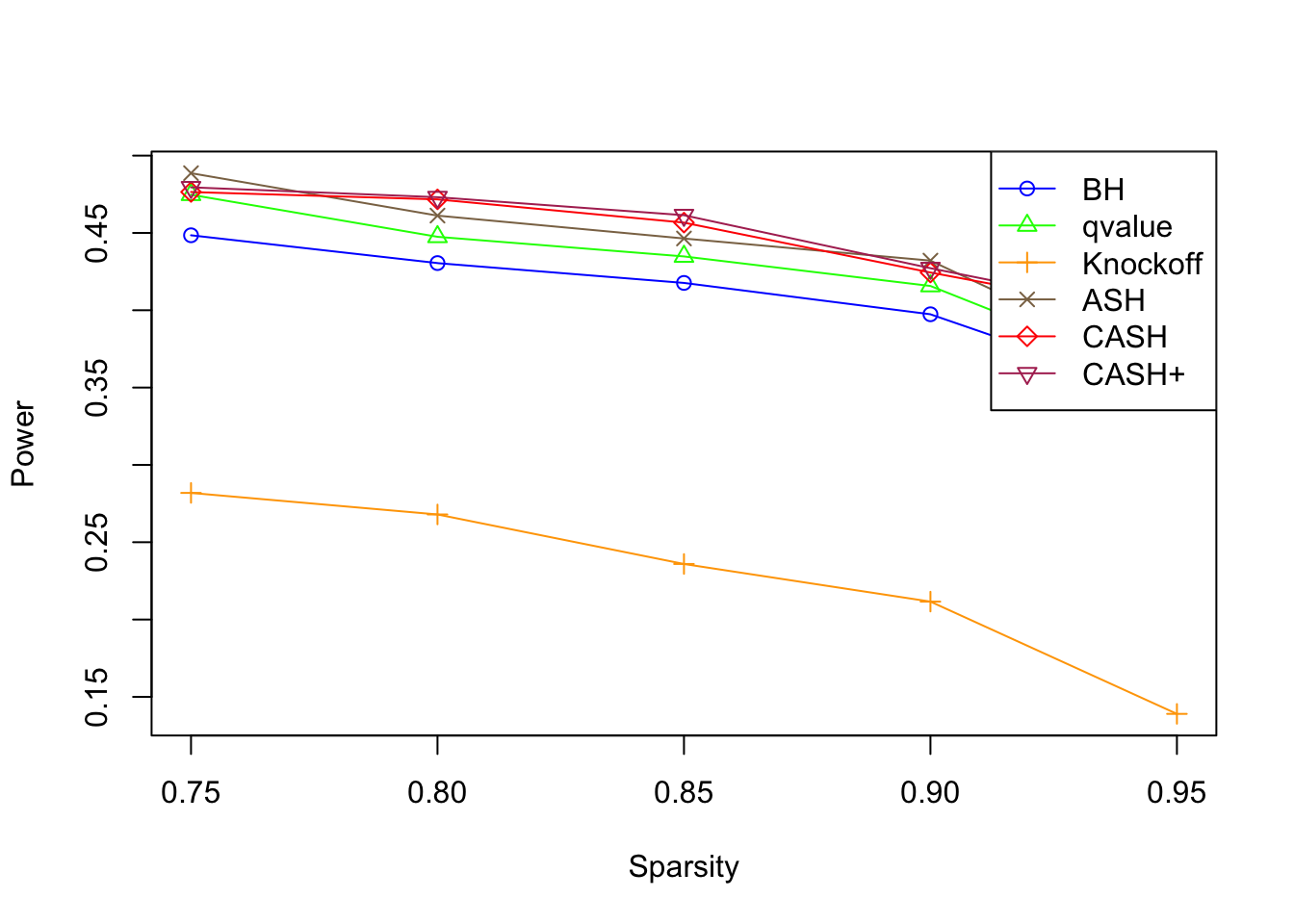

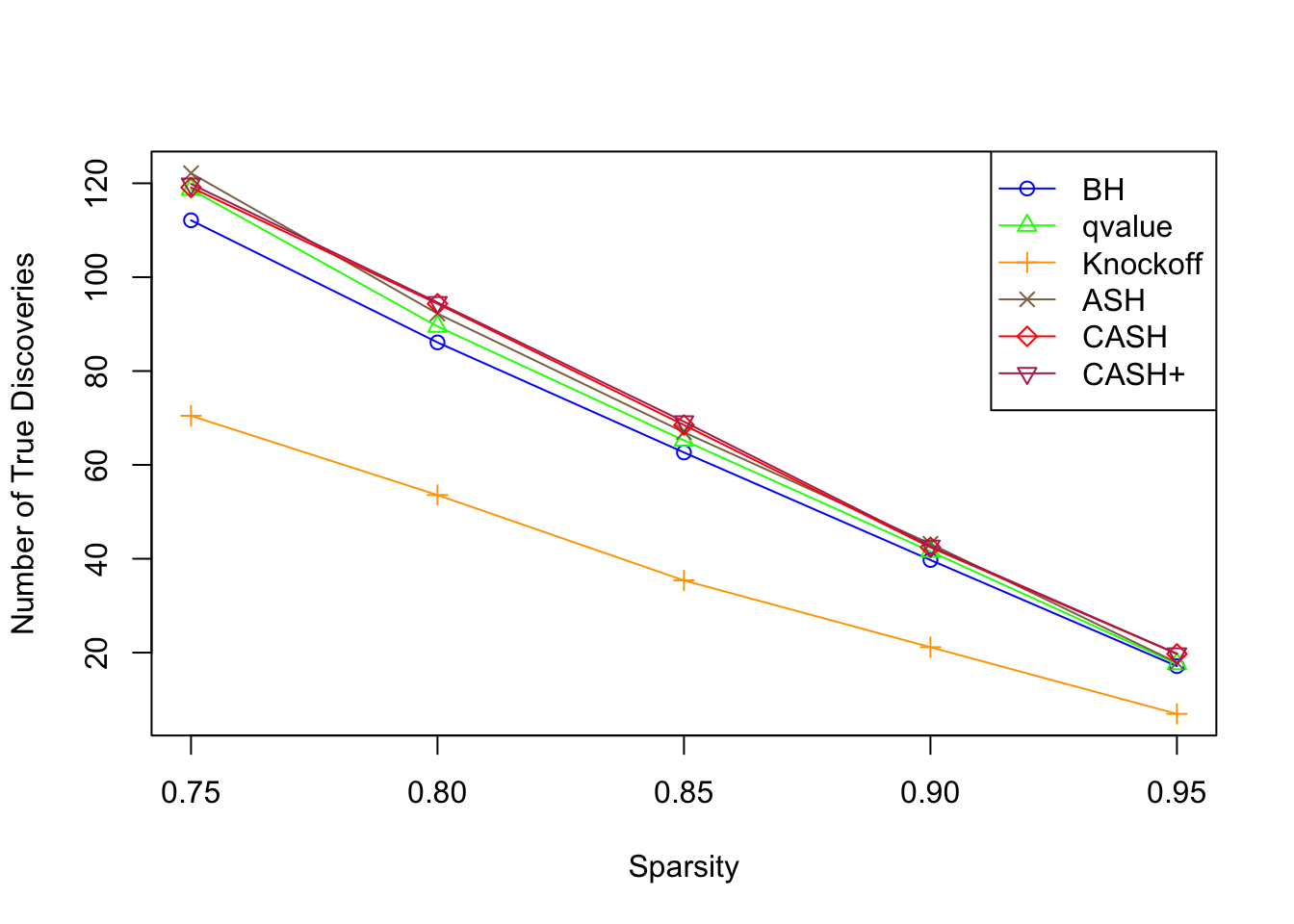

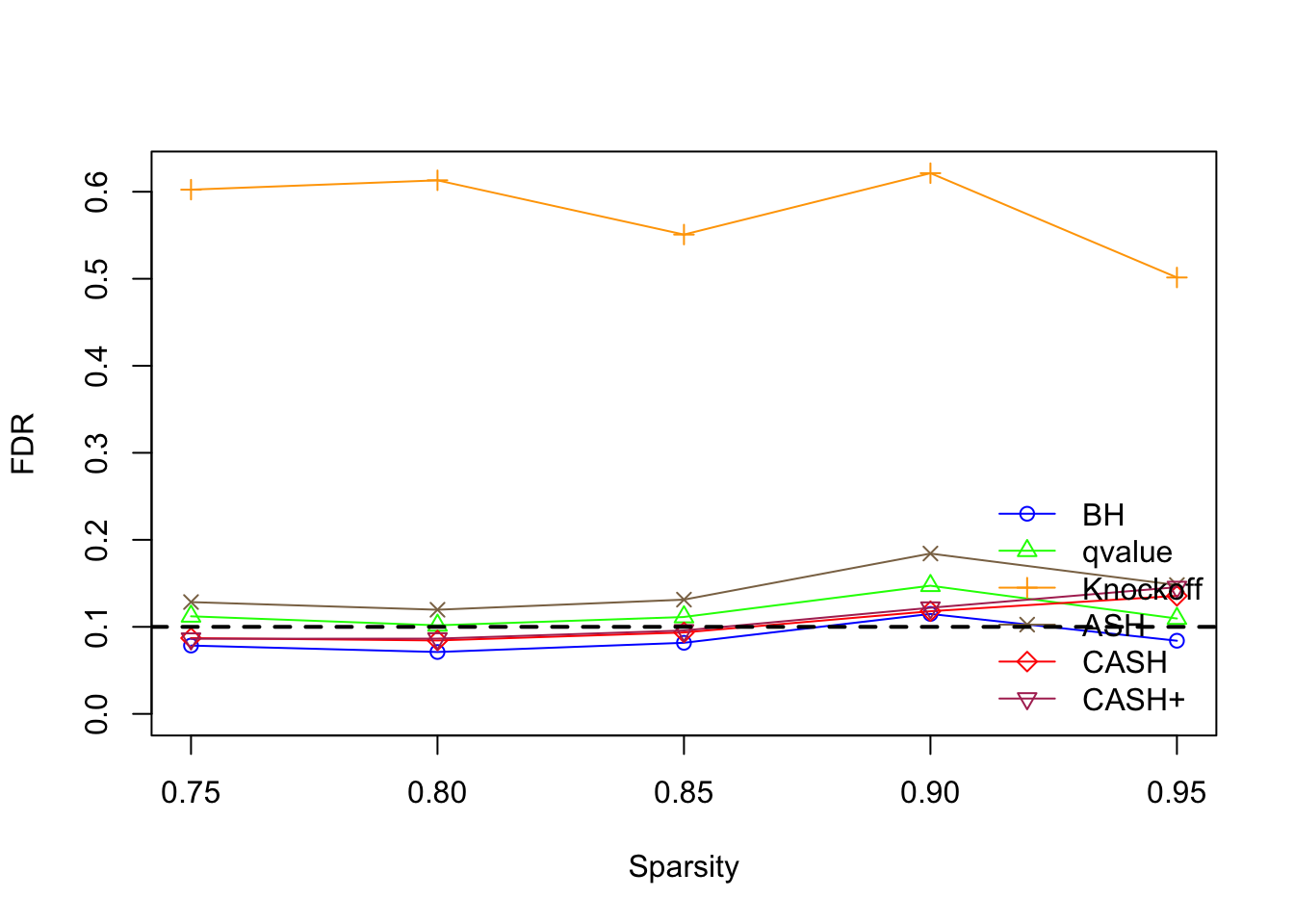

Overall FDR and Power comparison

Expand here to see past versions of sparse_cor avg-1.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of sparse_cor avg-2.png:
Version Author Date
4491358 LSun 2018-01-30

Expand here to see past versions of sparse_cor avg-3.png:
Version Author Date
4491358 LSun 2018-01-30

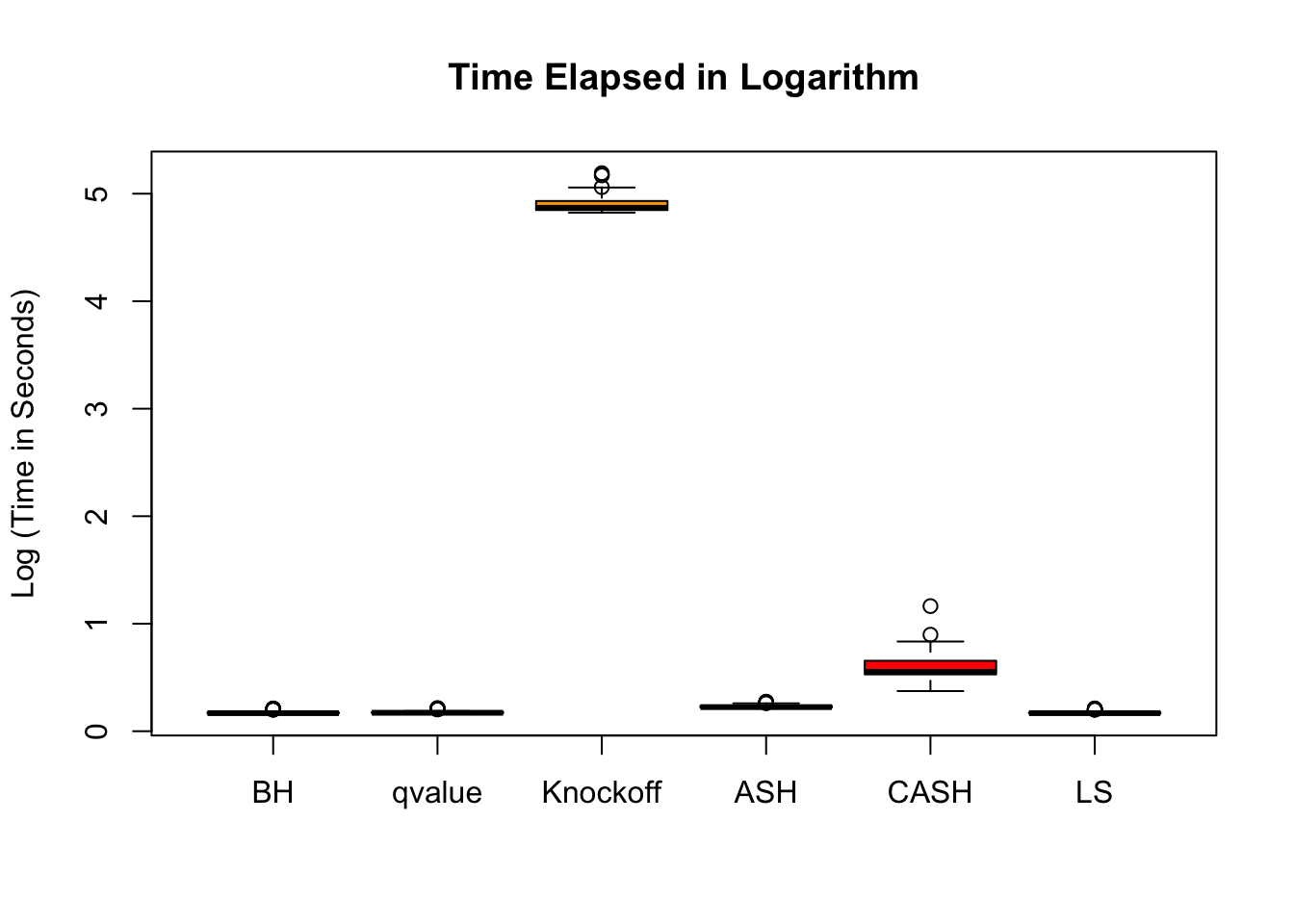

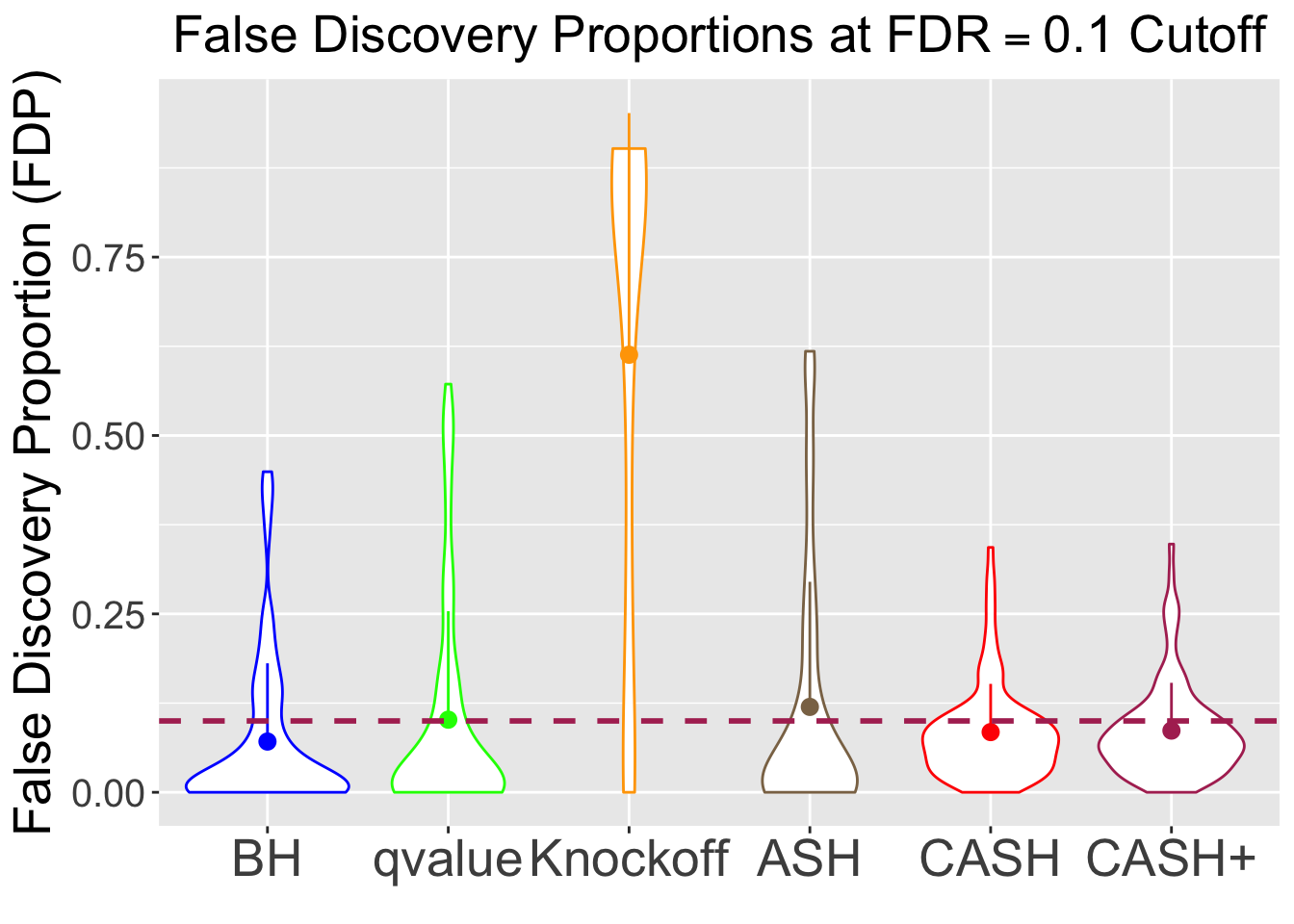

FDR and Power at low sparsity: \(20\%\) true signal

Expand here to see past versions of sparse_cor 250-1.png:
Version Author Date
735abc6 LSun 2018-02-01
4491358 LSun 2018-01-30

Expand here to see past versions of sparse_cor 250-2.png:
Version Author Date
735abc6 LSun 2018-02-01
4491358 LSun 2018-01-30

Expand here to see past versions of sparse_cor 250-3.png:
Version Author Date
735abc6 LSun 2018-02-01
4491358 LSun 2018-01-30

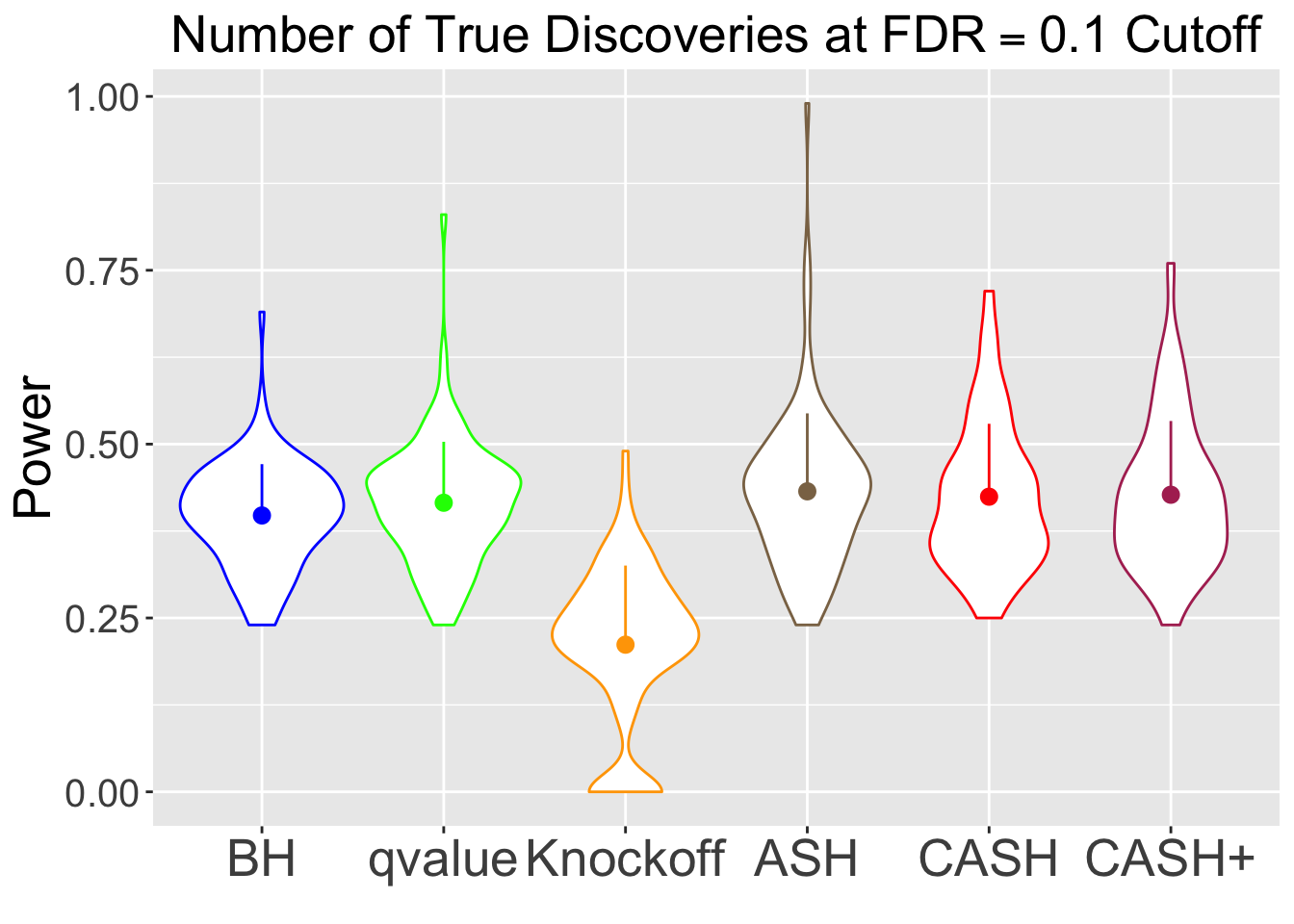

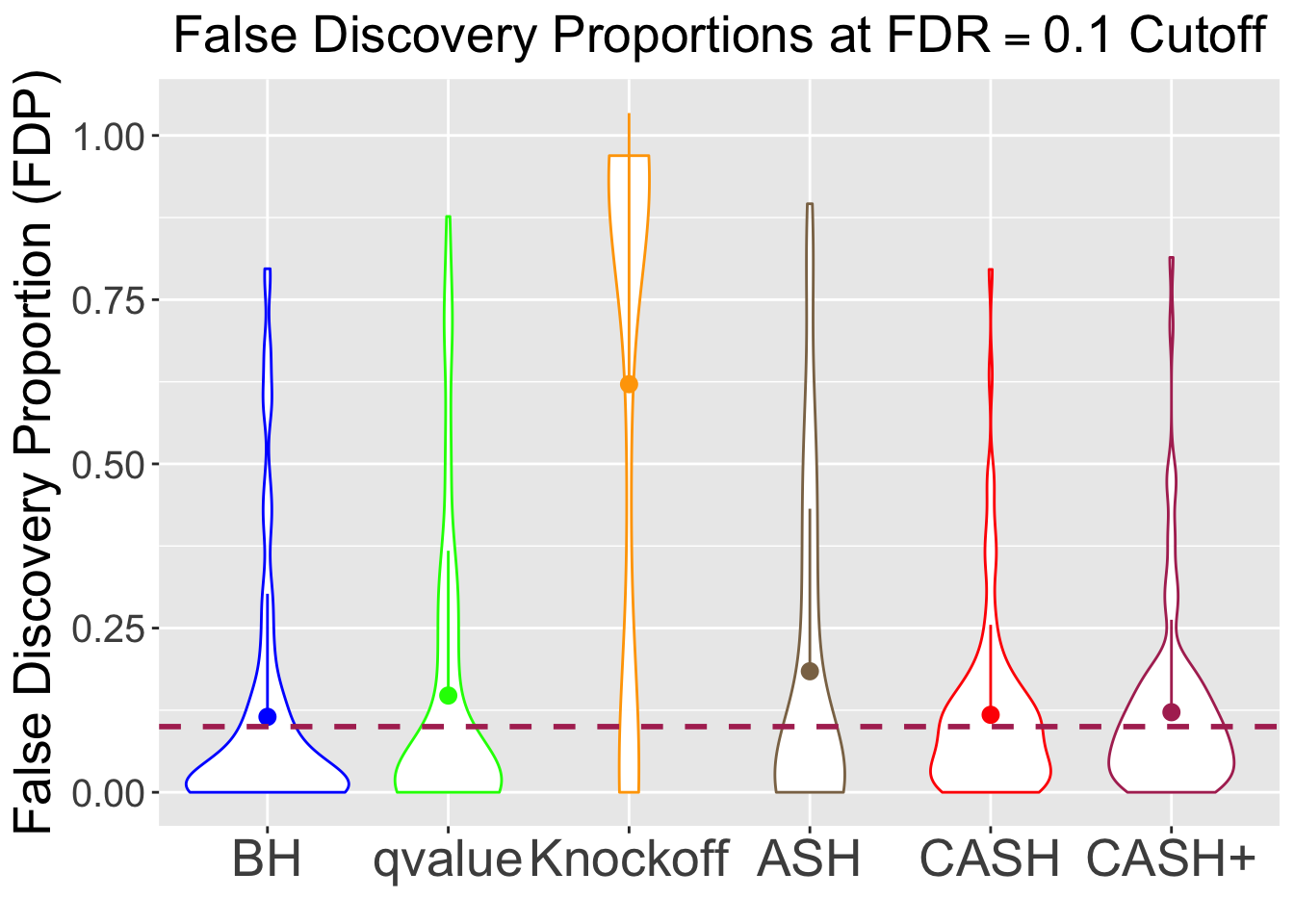

FDR and Power at high sparsity: \(10\%\) true signal

Expand here to see past versions of sparse_cor 100-1.png:
Version Author Date
735abc6 LSun 2018-02-01
4491358 LSun 2018-01-30

Expand here to see past versions of sparse_cor 100-2.png:
Version Author Date
735abc6 LSun 2018-02-01
4491358 LSun 2018-01-30

Expand here to see past versions of sparse_cor 100-3.png:
Version Author Date
735abc6 LSun 2018-02-01
4491358 LSun 2018-01-30
