<h1 class="title toc-ignore">Real Data with Simulated Signals: Part I</h1>
<h4 class="author"><em>Lei Sun</em></h4>
<h4 class="date"><em>2017-05-18</em></h4>

</div>


<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-11-07</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
 package git2r is installed -->
<p><strong>Code version:</strong> 2c05d59</p>
<!-- Add your analysis here -->
<pre class="r"><code>library(ashr)
library(edgeR)
library(limma)
library(qvalue)
library(seqgendiff)
library(sva)
library(cate)</code></pre>
<pre class="r"><code>source(&quot;../code/gdash.R&quot;)</code></pre>
<pre><code>Warning: replacing previous import &#39;Matrix::crossprod&#39; by &#39;gmp::crossprod&#39;
when loading &#39;cvxr&#39;</code></pre>
<pre><code>Warning: replacing previous import &#39;Matrix::tcrossprod&#39; by
&#39;gmp::tcrossprod&#39; when loading &#39;cvxr&#39;</code></pre>
<div id="introduction" class="section level2">
<h2>Introduction</h2>
<p>Using David’s package <code>seqgendiff</code>, we are adding artefactual signals to the real GTEx Liver RNA-seq data.</p>
<pre class="r"><code>mat = read.csv(&quot;../data/liver.csv&quot;)</code></pre>
<p>The true signal comes from a mixture distribution</p>
<p><span class="math display">\[
g\left(\beta\right) = \pi_0\delta_0 + \left(1 - \pi_0\right)N\left(0, \sigma^2\right)
\]</span> The simulated data matrices are then fed into <code>edgeR</code>, <code>limma</code> pipeline. In the following simulations, we always use <span class="math inline">\(5\)</span> vs <span class="math inline">\(5\)</span>.</p>
</div>
<div id="case-1-pi_0-0.9-sigma2-1." class="section level2">

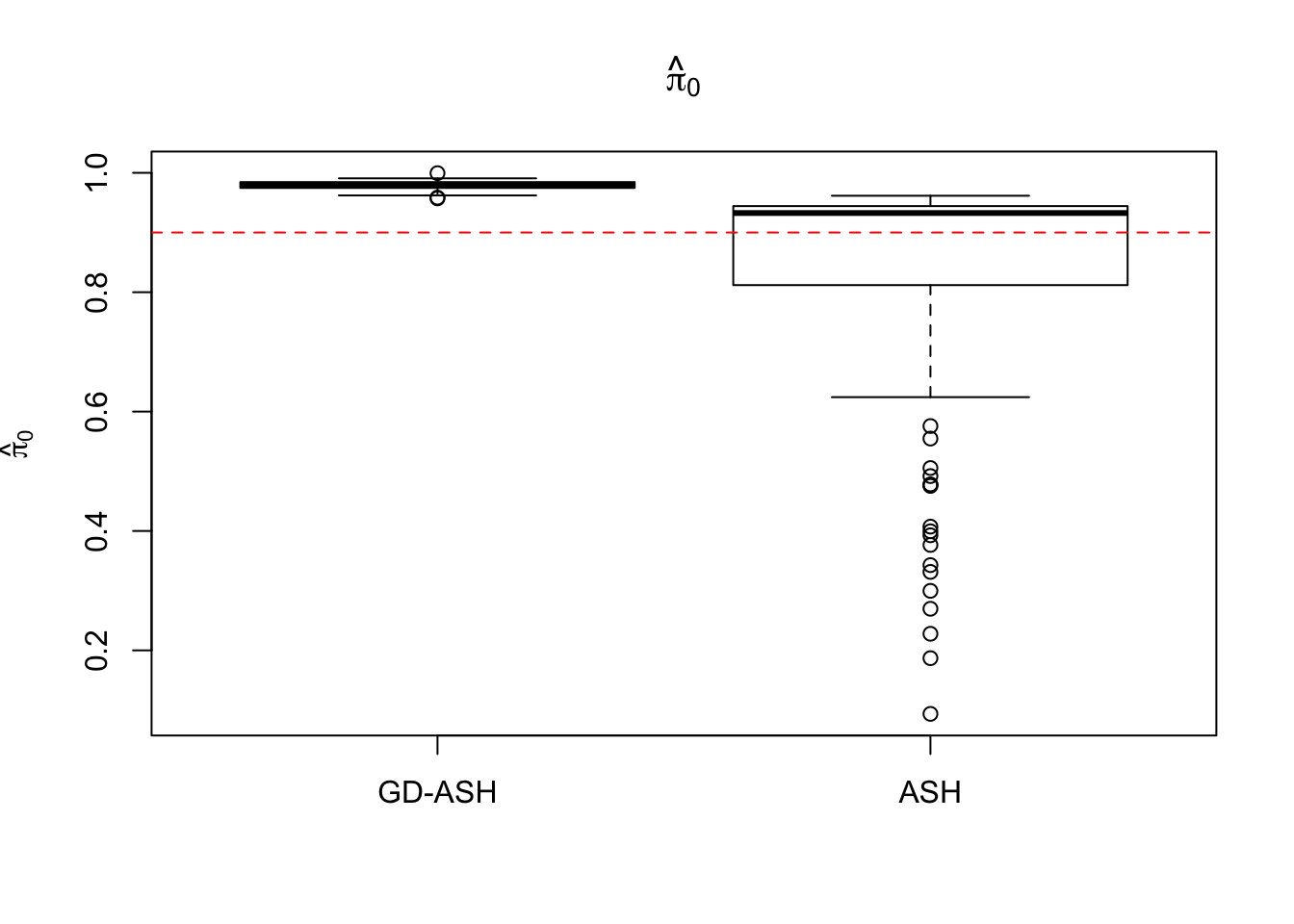

<h2>Case 1: <span class="math inline">\(\pi_0 = 0.9\)</span>, <span class="math inline">\(\sigma^2 = 1\)</span>.</h2>
<pre class="r"><code>N = 100
nsamp = 10
pi0 = 0.9
sd = 1
system.time(ashvgdash &lt;- N_simulations(N, mat, nsamp, pi0, sd))</code></pre>
<pre><code>     user    system   elapsed
 6854.603   627.845 12855.081 </code></pre>
<p><img src="figure/real_data_simulation.rmd/unnamed-chunk-2-1.png" width="672" style="display: block; margin: auto;" /><img src="figure/real_data_simulation.rmd/unnamed-chunk-2-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="case-2-pi_0-0.9-sigma2-4" class="section level2">

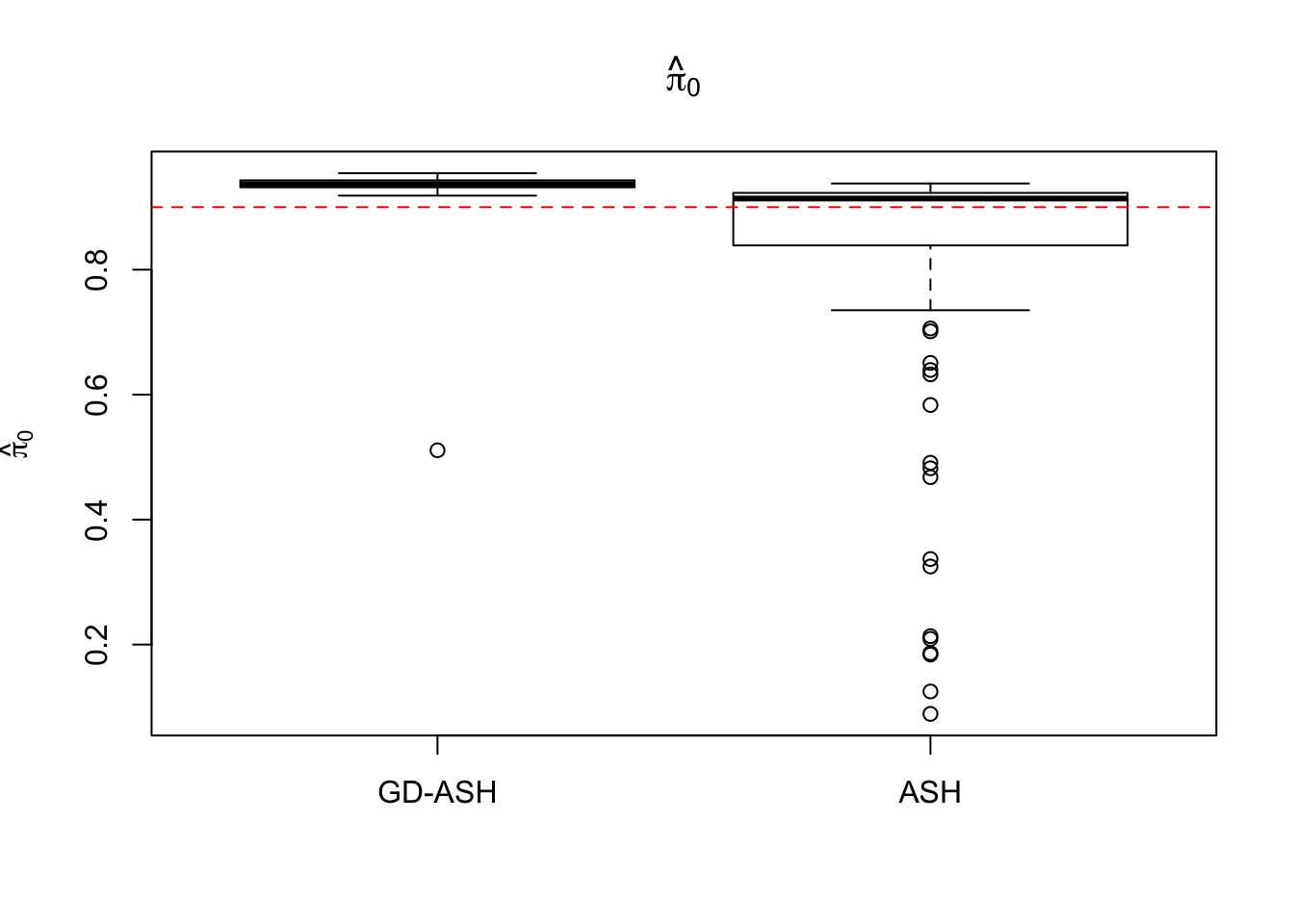

<h2>Case 2: <span class="math inline">\(\pi_0 = 0.9\)</span>, <span class="math inline">\(\sigma^2 = 4\)</span></h2>
<pre class="r"><code>N = 100
nsamp = 10
pi0 = 0.9
sd = 2
system.time(ashvgdash &lt;- N_simulations(N, mat, nsamp, pi0, sd))</code></pre>
<pre><code>    user   system  elapsed
5877.223  621.433 5256.693 </code></pre>
<p><img src="figure/real_data_simulation.rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /><img src="figure/real_data_simulation.rmd/unnamed-chunk-3-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="case-3-pi_0-0.5-sigma2-4" class="section level2">

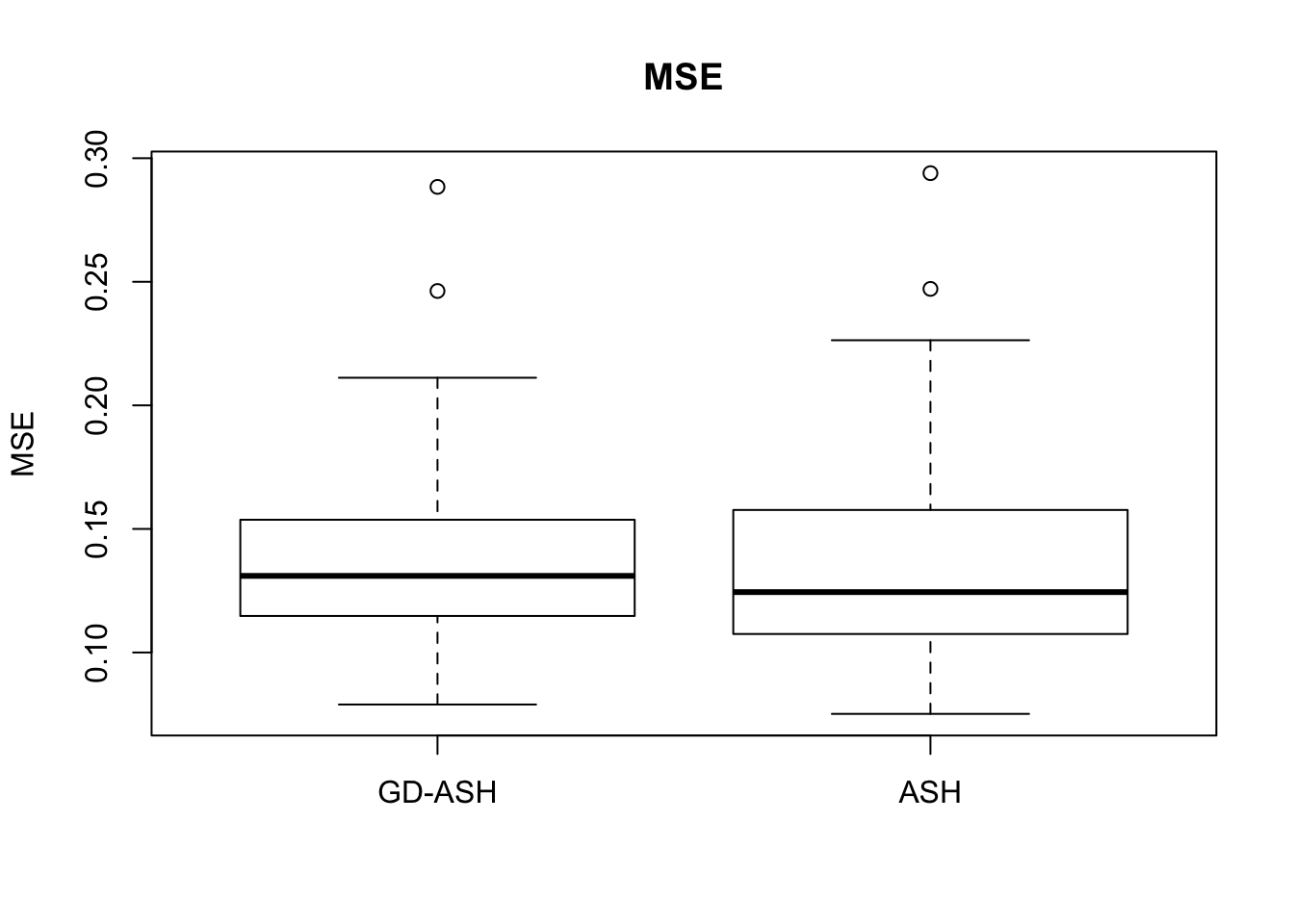

<h2>Case 3: <span class="math inline">\(\pi_0 = 0.5\)</span>, <span class="math inline">\(\sigma^2 = 4\)</span></h2>
<pre class="r"><code>N = 100
nsamp = 10
pi0 = 0.5
sd = 2
system.time(ashvgdash &lt;- N_simulations(N, mat, nsamp, pi0, sd))</code></pre>
<pre><code>     user    system   elapsed
 5269.488   574.588 15042.479 </code></pre>
<p><img src="figure/real_data_simulation.rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /><img src="figure/real_data_simulation.rmd/unnamed-chunk-4-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="case-4-pi_0-0.9-sigma2-9" class="section level2">

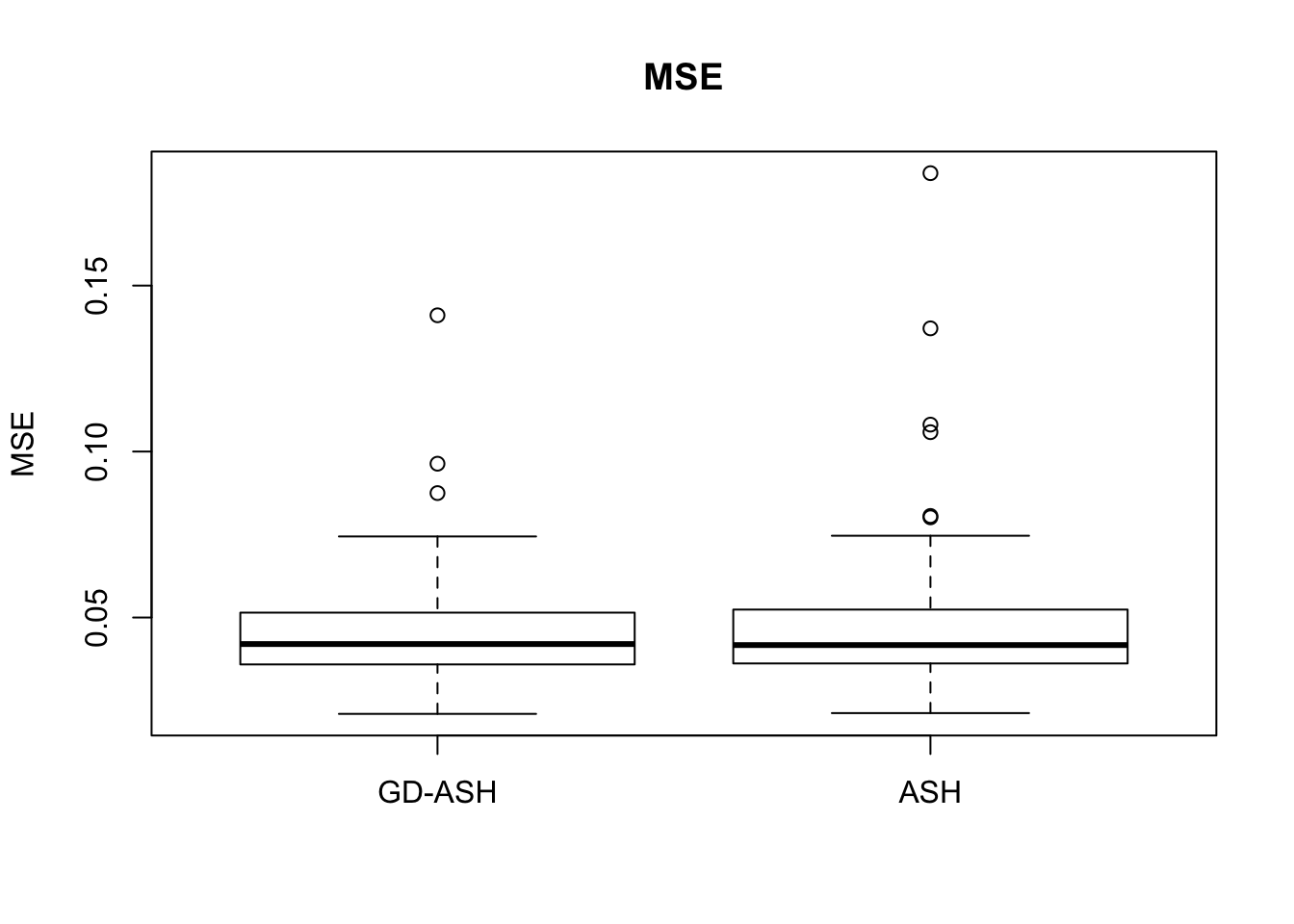

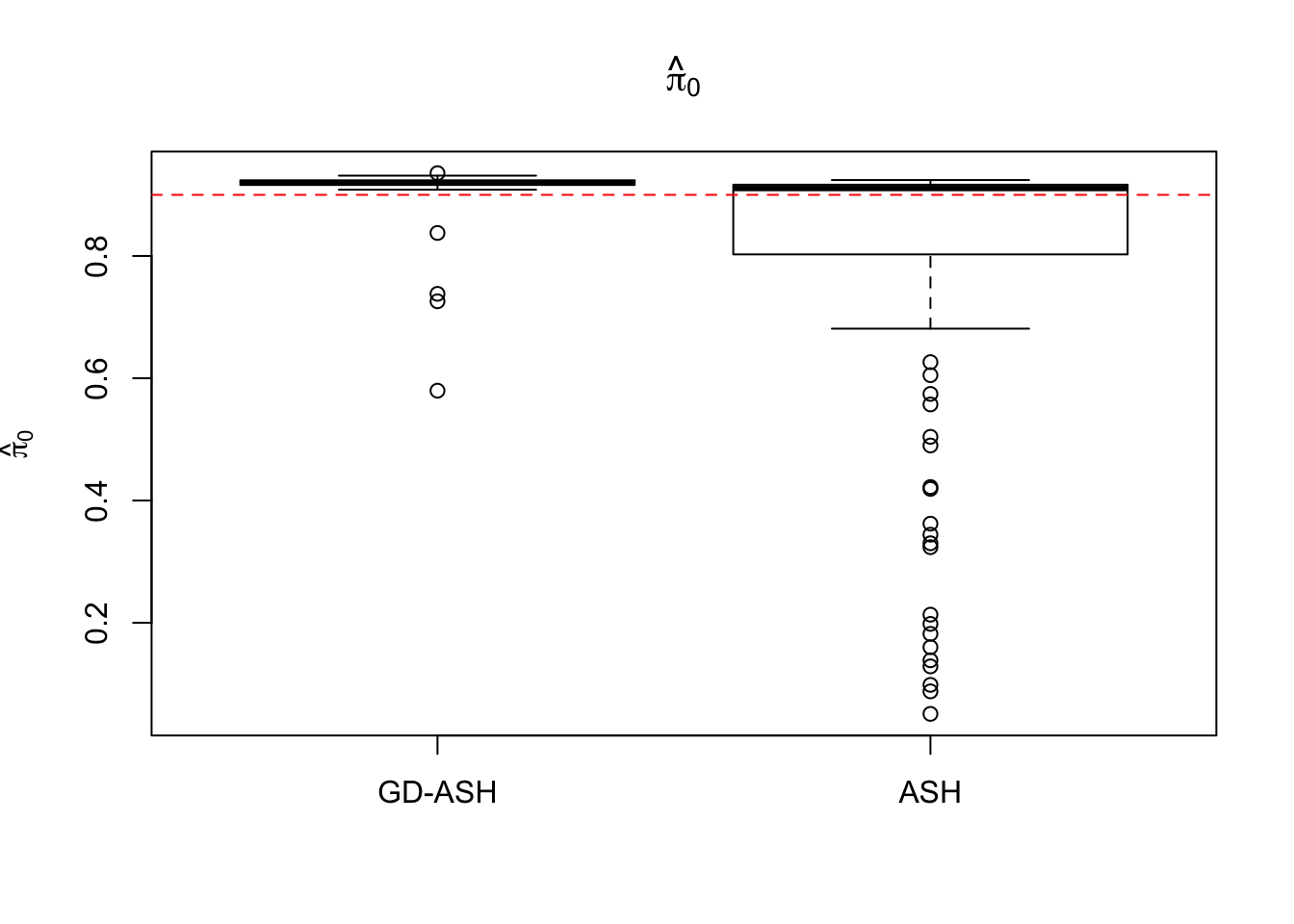

<h2>Case 4: <span class="math inline">\(\pi_0 = 0.9\)</span>, <span class="math inline">\(\sigma^2 = 9\)</span></h2>
<pre class="r"><code>N = 100
nsamp = 10
pi0 = 0.9
sd = 3
system.time(ashvgdash &lt;- N_simulations(N, mat, nsamp, pi0, sd))</code></pre>
<pre><code>     user    system   elapsed
 5321.625   558.205 15356.345 </code></pre>
<p><img src="figure/real_data_simulation.rmd/unnamed-chunk-5-1.png" width="672" style="display: block; margin: auto;" /><img src="figure/real_data_simulation.rmd/unnamed-chunk-5-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.2 (2017-09-28)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Sierra 10.12.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] Rmosek_7.1.3        PolynomF_0.94       cvxr_0.0.0.9400
 [4] REBayes_0.85        Matrix_1.2-11       SQUAREM_2017.10-1
 [7] EQL_1.0-0           ttutils_1.0-1       cate_1.0.4
[10] sva_3.26.0          BiocParallel_1.12.0 genefilter_1.60.0
[13] mgcv_1.8-22         nlme_3.1-131        seqgendiff_0.1.0
[16] qvalue_2.10.0       edgeR_3.20.1        limma_3.34.0
[19] ashr_2.1-27

loaded via a namespace (and not attached):
 [1] Biobase_2.38.0       svd_0.4.1            bit64_0.9-7
 [4] splines_3.4.2        foreach_1.4.3        stats4_3.4.2
 [7] blob_1.1.0           yaml_2.1.14          RSQLite_2.0
[10] backports_1.1.1      lattice_0.20-35      digest_0.6.12
[13] colorspace_1.3-2     htmltools_0.3.6      plyr_1.8.4
[16] XML_3.98-1.9         esaBcv_1.2.1         xtable_1.8-2
[19] corpcor_1.6.9        scales_0.5.0         git2r_0.19.0
[22] tibble_1.3.4         annotate_1.56.0      gmp_0.5-13.1
[25] IRanges_2.12.0       ggplot2_2.2.1        BiocGenerics_0.24.0
[28] lazyeval_0.2.1       survival_2.41-3      magrittr_1.5
[31] memoise_1.1.0        evaluate_0.10.1      doParallel_1.0.11
[34] MASS_7.3-47          truncnorm_1.0-7      tools_3.4.2
[37] matrixStats_0.52.2   stringr_1.2.0        S4Vectors_0.16.0
[40] munsell_0.4.3        locfit_1.5-9.1       AnnotationDbi_1.40.0
[43] compiler_3.4.2       rlang_0.1.4          grid_3.4.2
[46] leapp_1.2            RCurl_1.95-4.8       iterators_1.0.8
[49] bitops_1.0-6         rmarkdown_1.6        gtable_0.2.0
[52] codetools_0.2-15     DBI_0.7              reshape2_1.4.2
[55] ruv_0.9.6            knitr_1.17           bit_1.1-12
[58] rprojroot_1.2        stringi_1.1.5        pscl_1.5.2
[61] parallel_3.4.2       Rcpp_0.12.13        </code></pre>
</div>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
