Introduction

The idea in Knockoff is to generate knockoff variables \(\tilde X\) which 1) keep the relationship of original variables \(X\) 2) are unlike the original variables 3) are null.

For Fixed-\(X\) Knockoff

\[ \begin{array}{c} \tilde X_i^T\tilde X_i = X_i^TX_i \\ \tilde X_i^T\tilde X_j = X_i^T \tilde X_j = \tilde X_i^T X_j = X_i^TX_j \\ \left|\tilde X_i^T X_i\right|: \text{as small as possible} \end{array} \]

The first two constraints are to control the Type I error, whereas the third is to increase power. Furthermore, there are two methods to make \(\left|\tilde X_i^T X_i\right|\) as small as possible.

  • Equi: \(\tilde X_1^T X_1 = \tilde X_2^T X_2 = \cdots = \tilde X_p^T X_p \geq 0\) as close to zero as possible.
  • SDP: \(\tilde X_1^T X_1 + \tilde X_2^T X_2 + \cdots + \tilde X_p^T X_p\) as close to zero as possible with \(\tilde X_i^T X_i \geq 0\).

For Model-X Knockoff

\[ \begin{array}{c} Var(X_i) = Var(\tilde X_i) \\ cor(\tilde X_i, \tilde X_j) = cor(X_i, \tilde X_j) = cor(\tilde X_i, X_j) = cor(X_i, X_j) \\ \left|cor(\tilde X_i, X_i)\right|: \text{as small as possible} \end{array} \]

Similarly, the first two constraints are to control the Type I error, whereas the third is to increase power. Furthermore, there are three methods to make \(\left|cor(\tilde X_i, X_i)\right|\) as small as possible.

  • Equi: \(cor(\tilde X_1, X_1) = cor(\tilde X_2, X_2) = \cdots = cor(\tilde X_p, X_p) \geq 0\) as close to zero as possible.
  • SDP: \(\left|cor(\tilde X_1, X_1)\right| + \left|cor(\tilde X_2, X_2)\right| + \cdots + \left|cor(\tilde X_p, X_p)\right|\) as small as possible.
  • aSDP: An approximation to SDP to speed it up and also retain the power to some extend.

After centering \(X_j\)’s, the constraints on the Fix-\(X\) design can be seen as the constraints on the sample correlation structure, whereas those on the Model-\(X\) design as on the population correlation structure. It’s no wonder the Model-\(X\) design is believed to be more relaxed, and hence, more powerful.

n <- 3000
p <- 1000
k <- 50
m <- 100
q <- 0.1

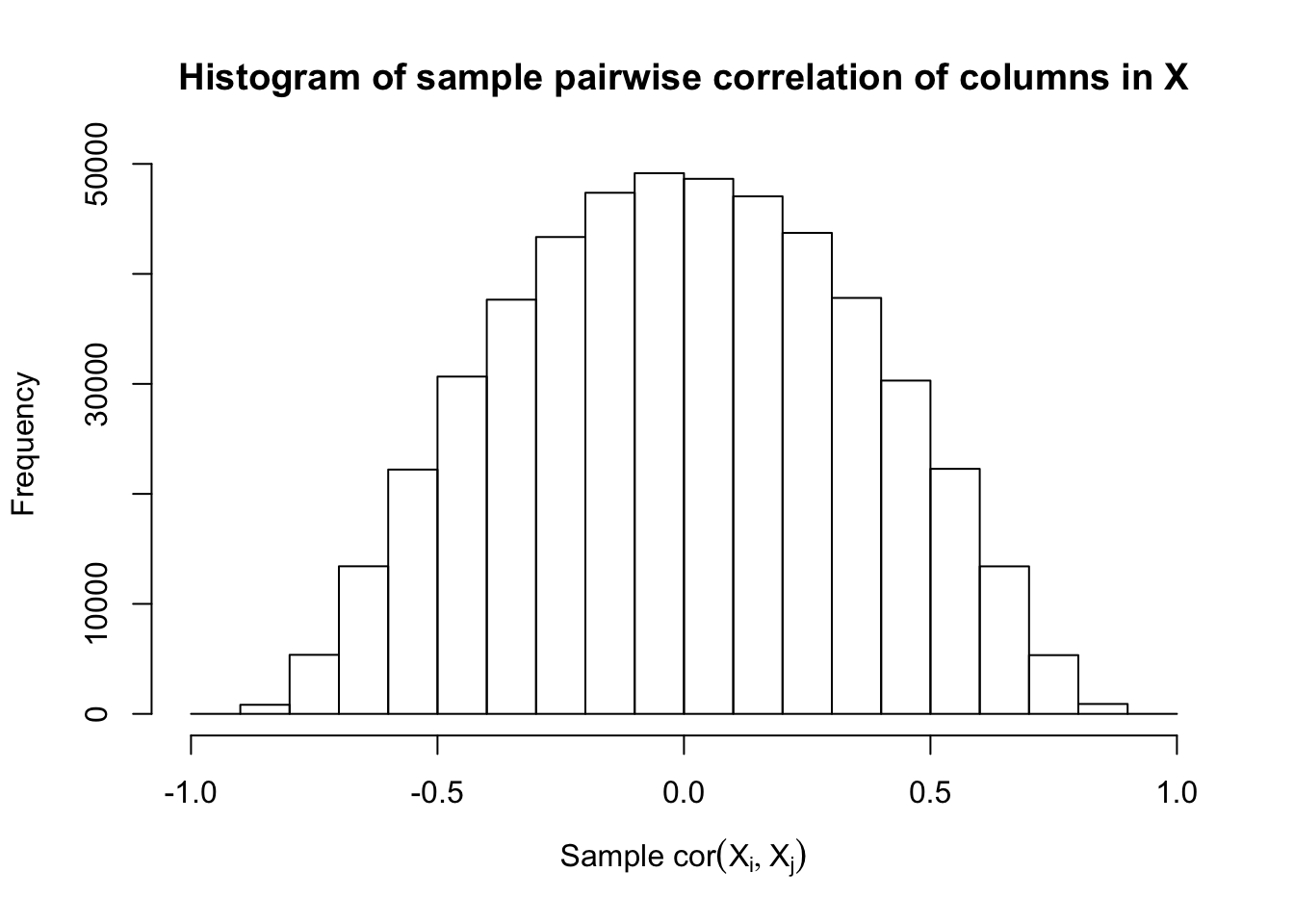

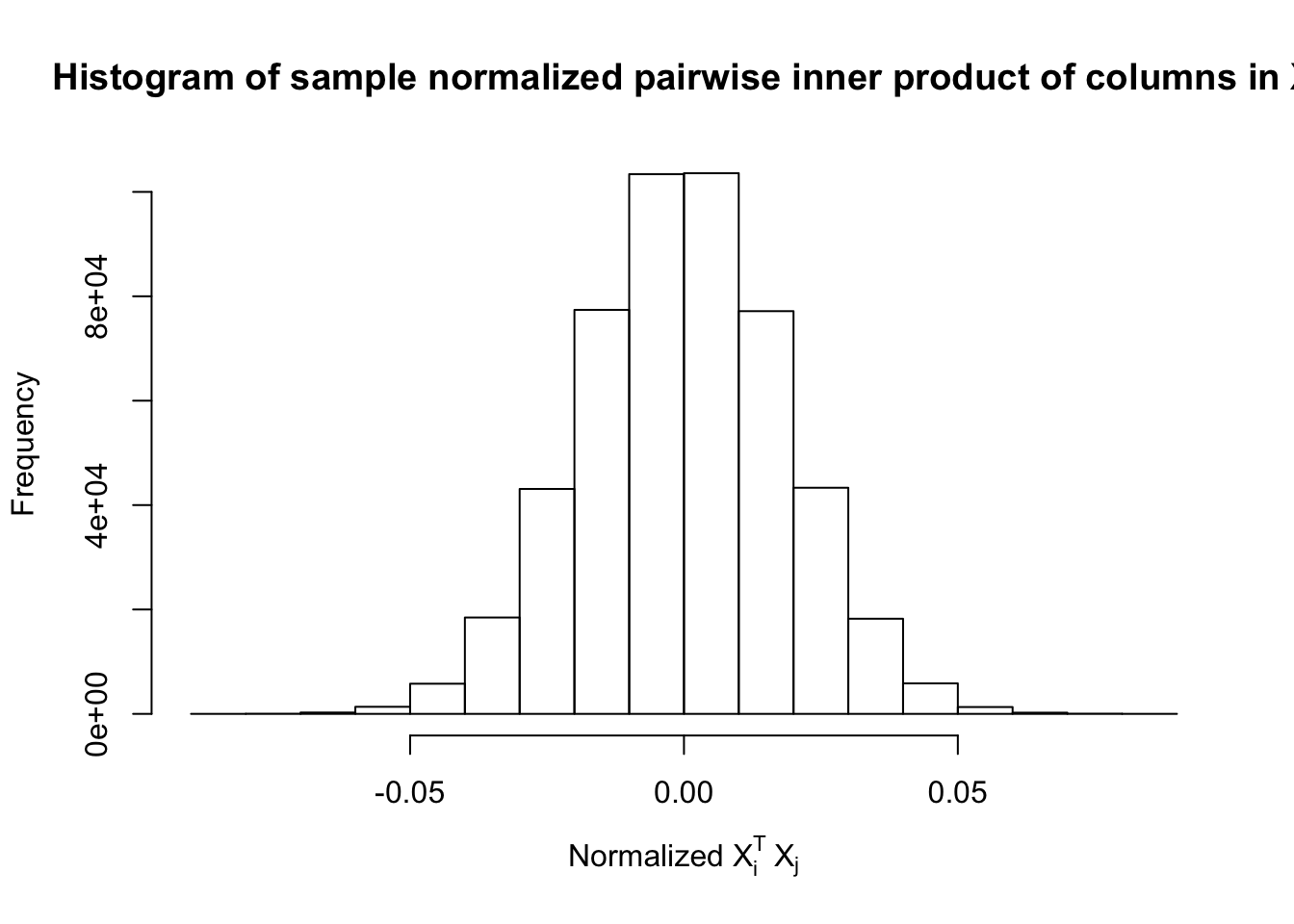

Scenario 1: Independent Gaussian Columns

\[ X_{ij} \overset{iid}{\sim} N\left(0, \left(\frac{1}{\sqrt n}\right)^2\right) \]

Expand here to see past versions of unnamed-chunk-3-1.png:
Version Author Date
7b67910 LSun 2018-03-02

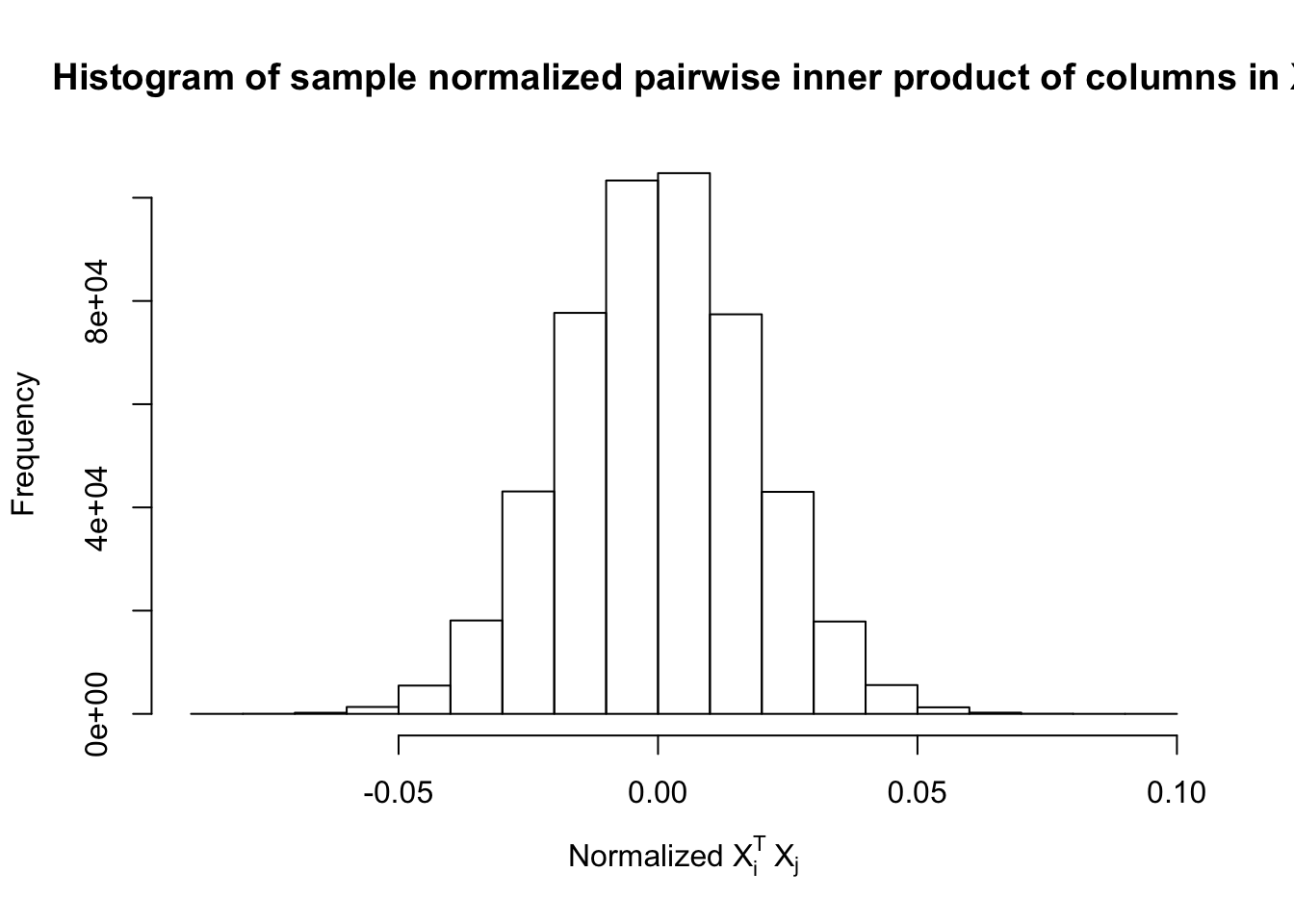

Expand here to see past versions of unnamed-chunk-3-2.png:
Version Author Date
7b67910 LSun 2018-03-02

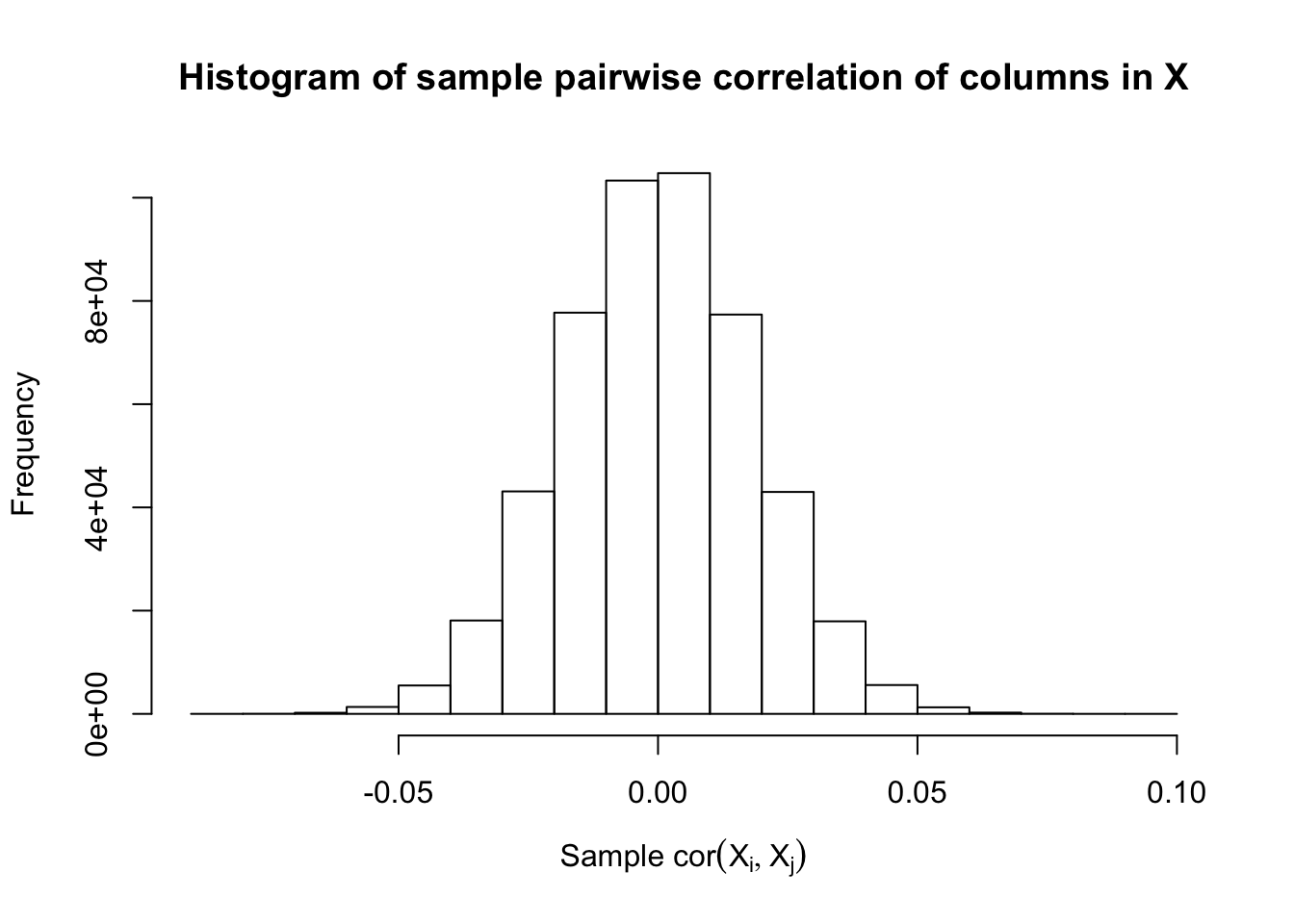

Expand here to see past versions of unnamed-chunk-3-3.png:
Version Author Date
7b67910 LSun 2018-03-02

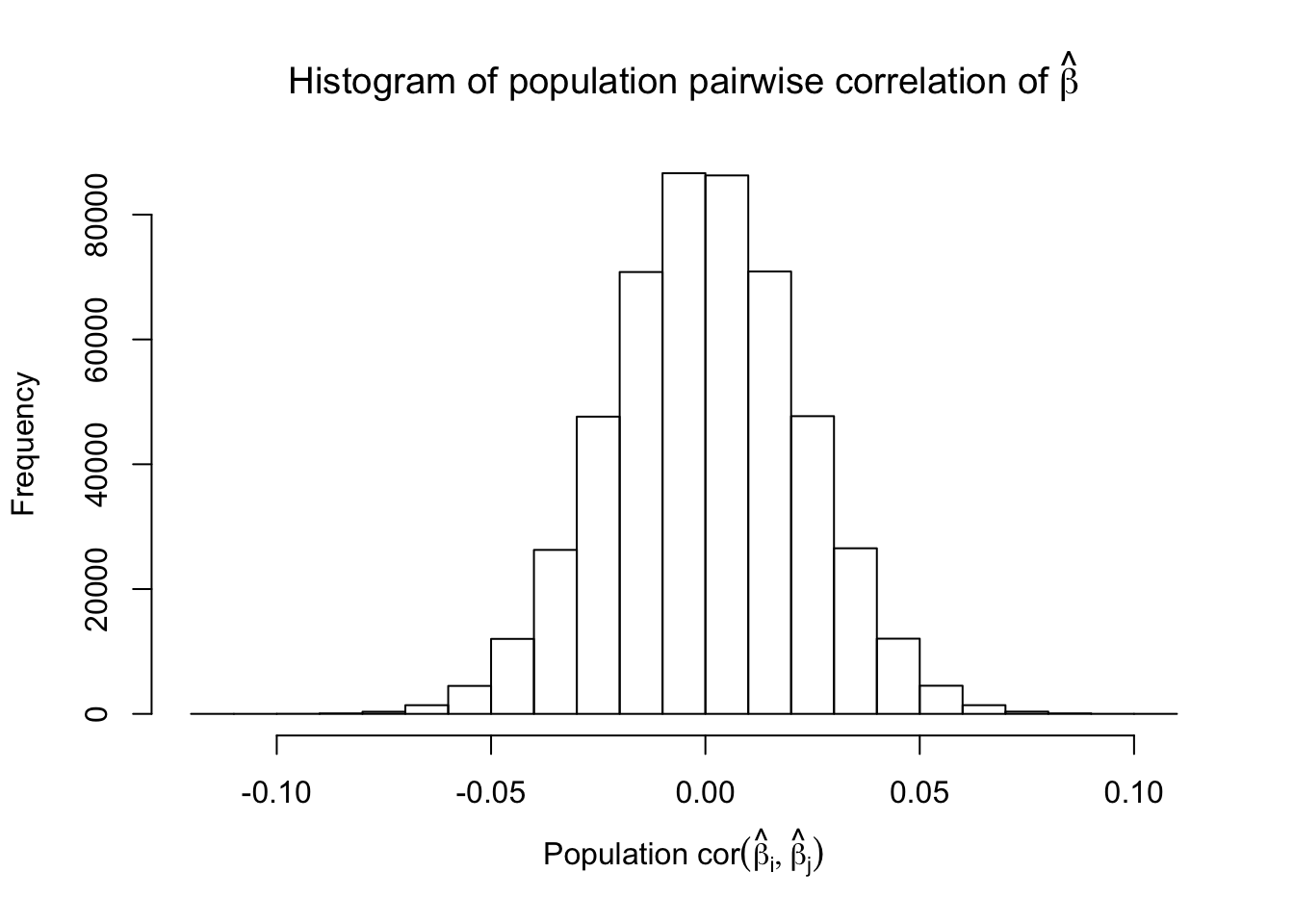

Expand here to see past versions of unnamed-chunk-3-4.png:
Version Author Date
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

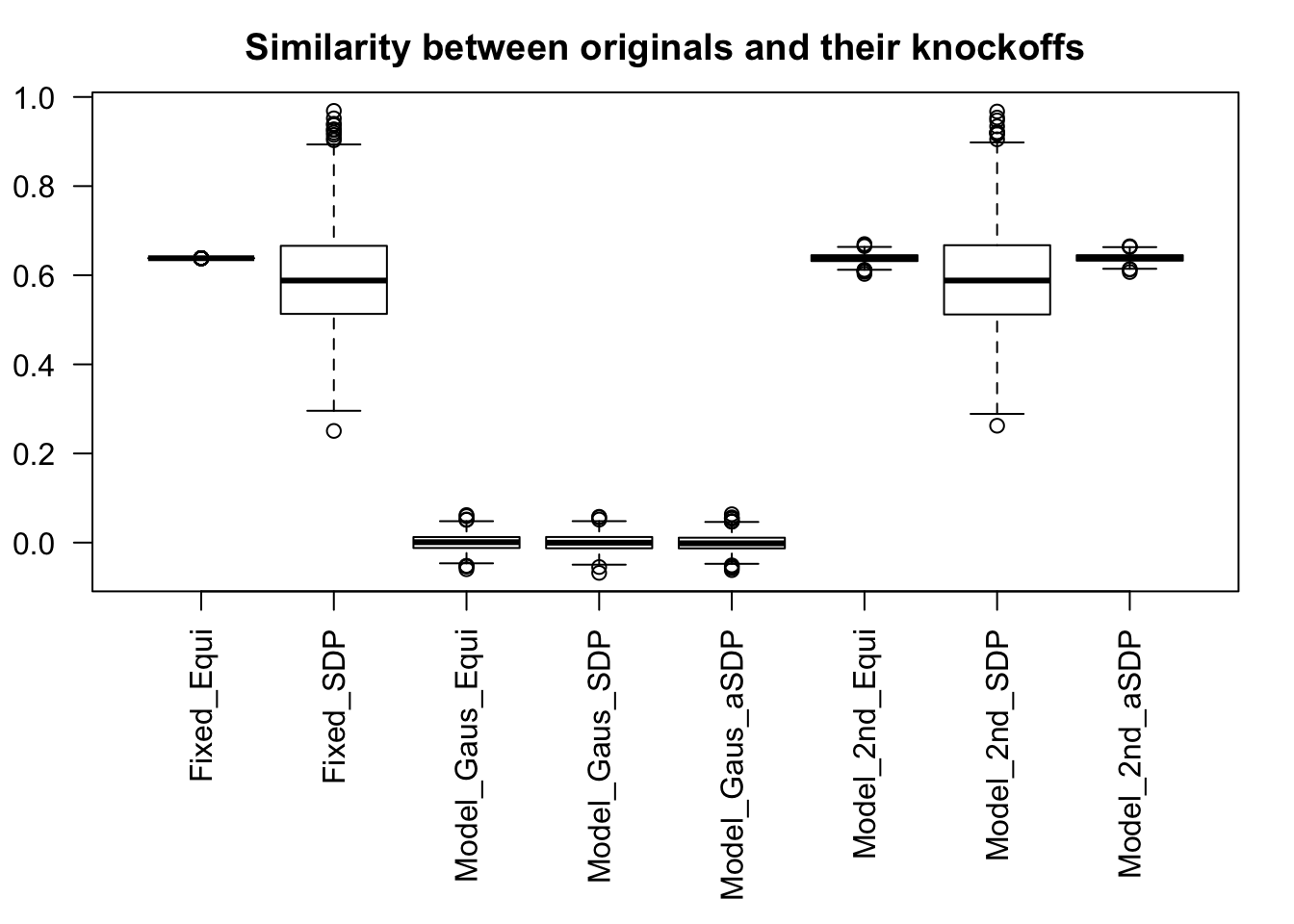

Expand here to see past versions of unnamed-chunk-3-5.png:
Version Author Date
480666b LSun 2018-03-03

Fixed Design

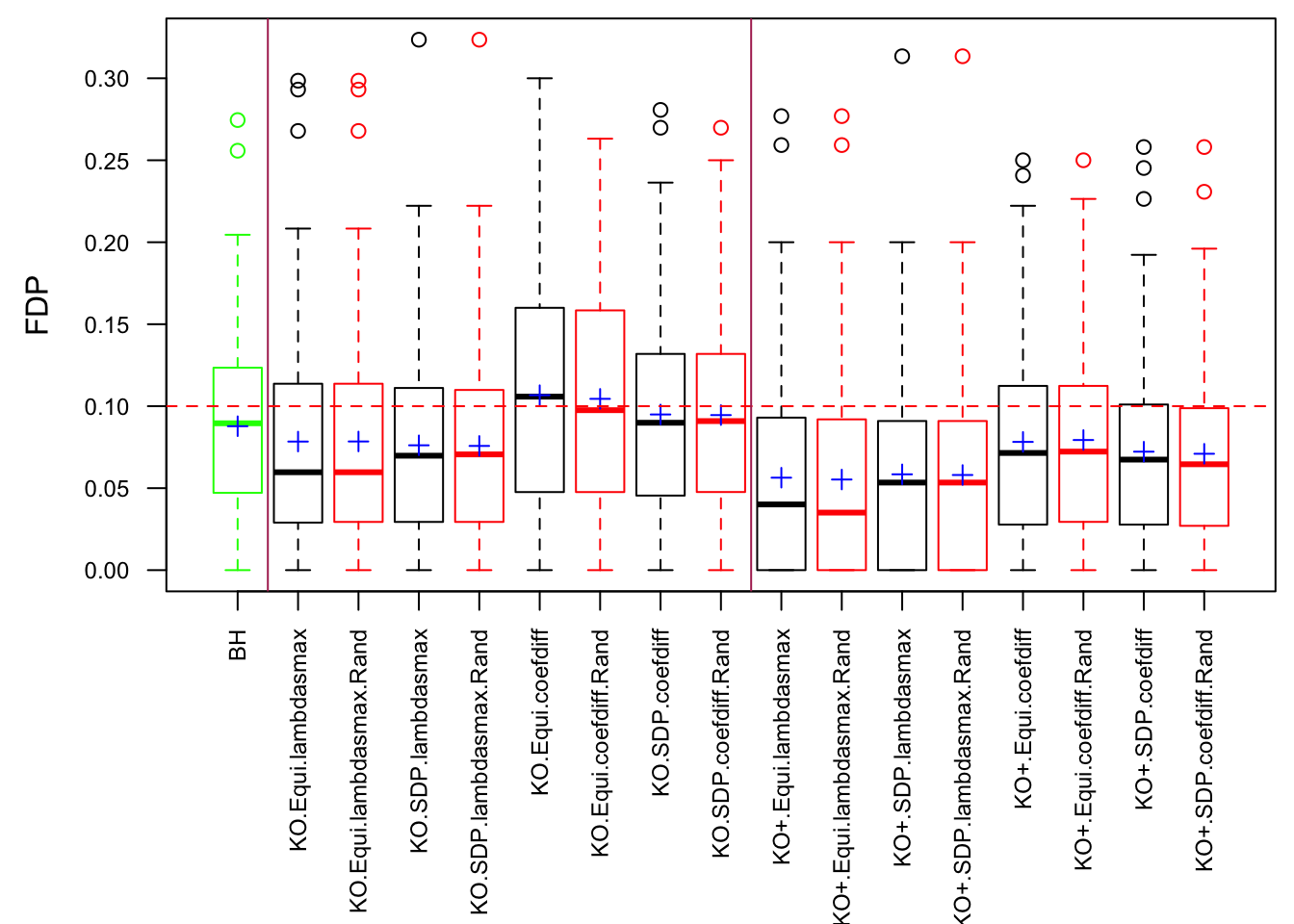

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

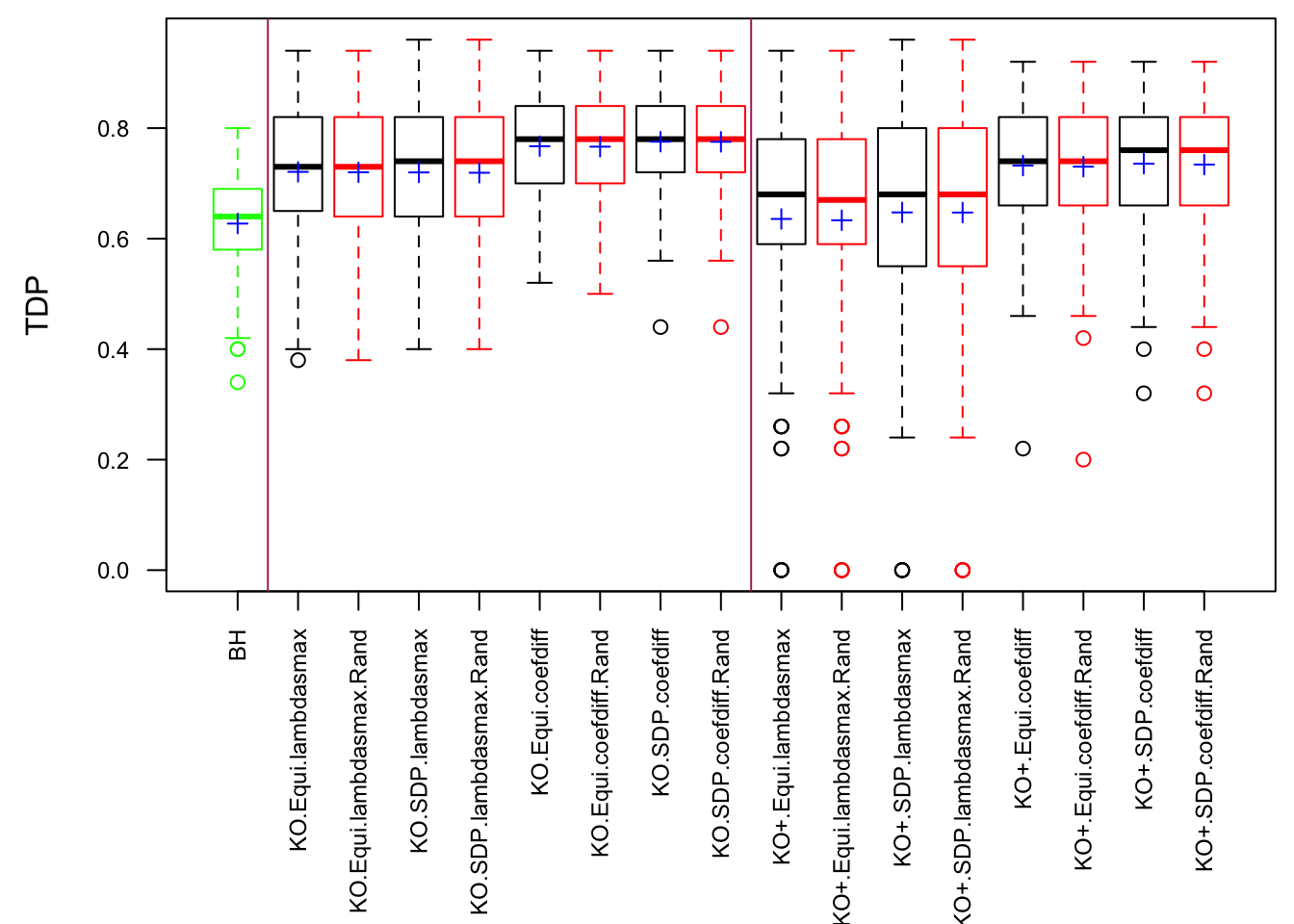

Expand here to see past versions of unnamed-chunk-4-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

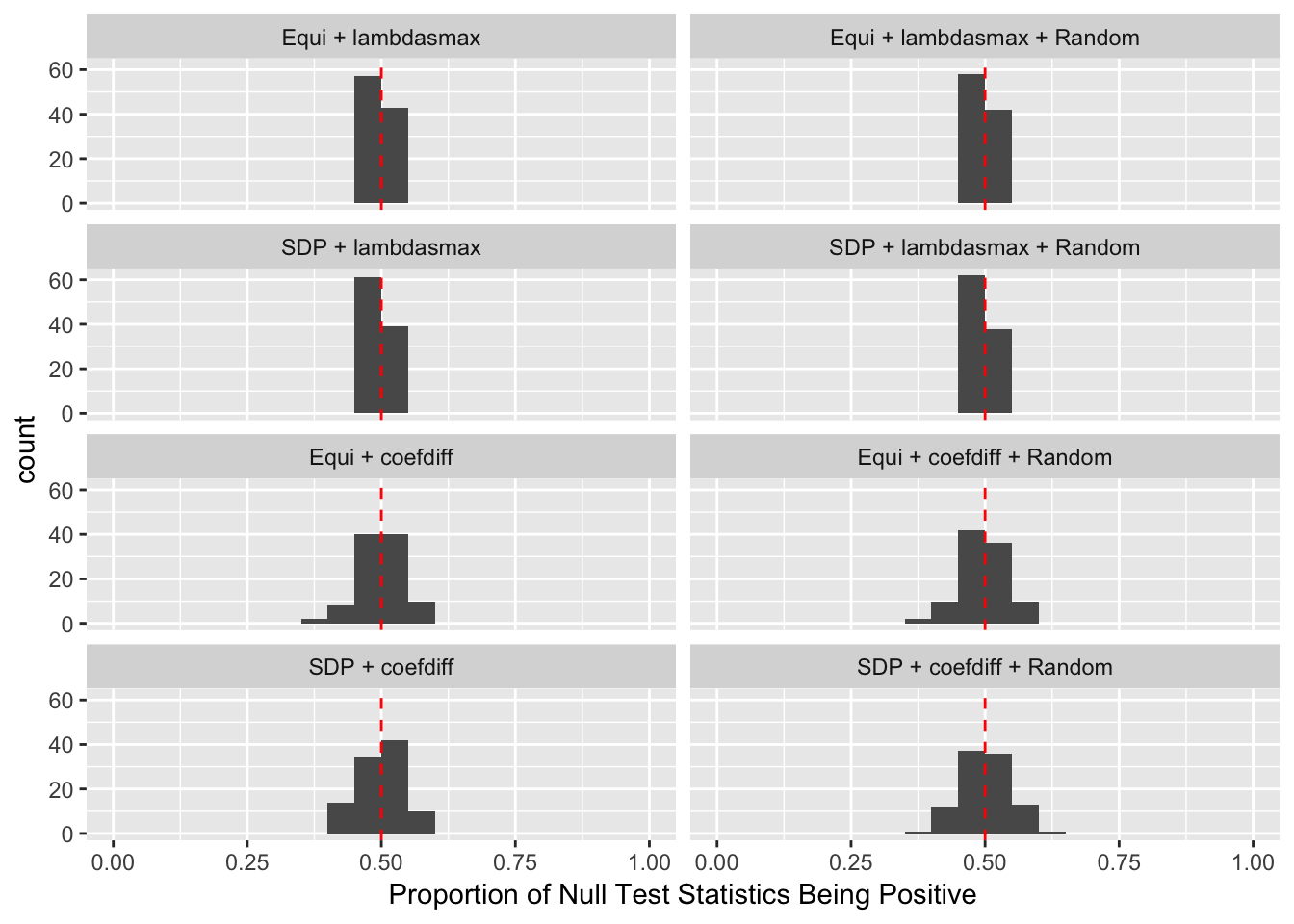

Expand here to see past versions of unnamed-chunk-4-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

Model-\(X\) Design

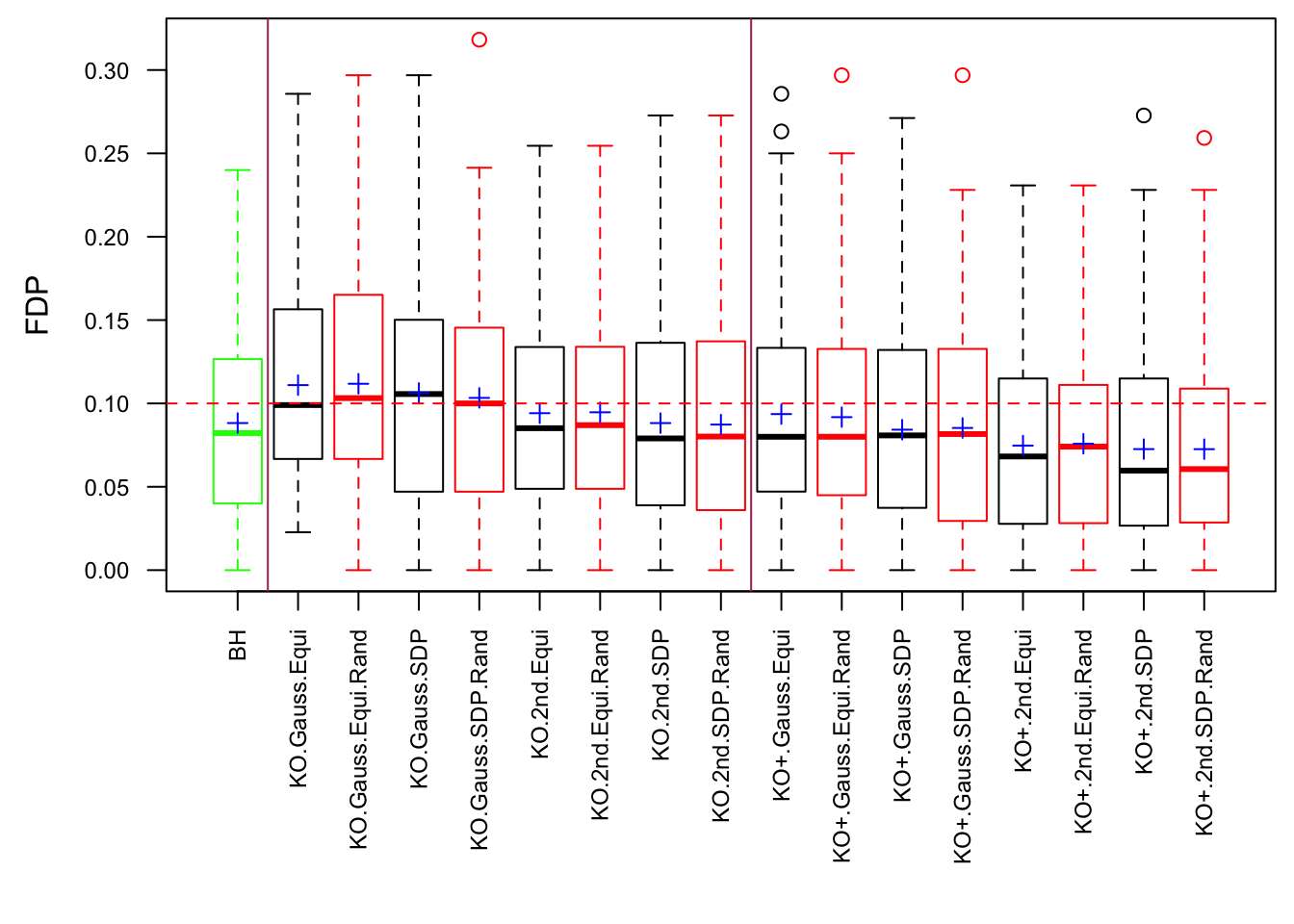

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

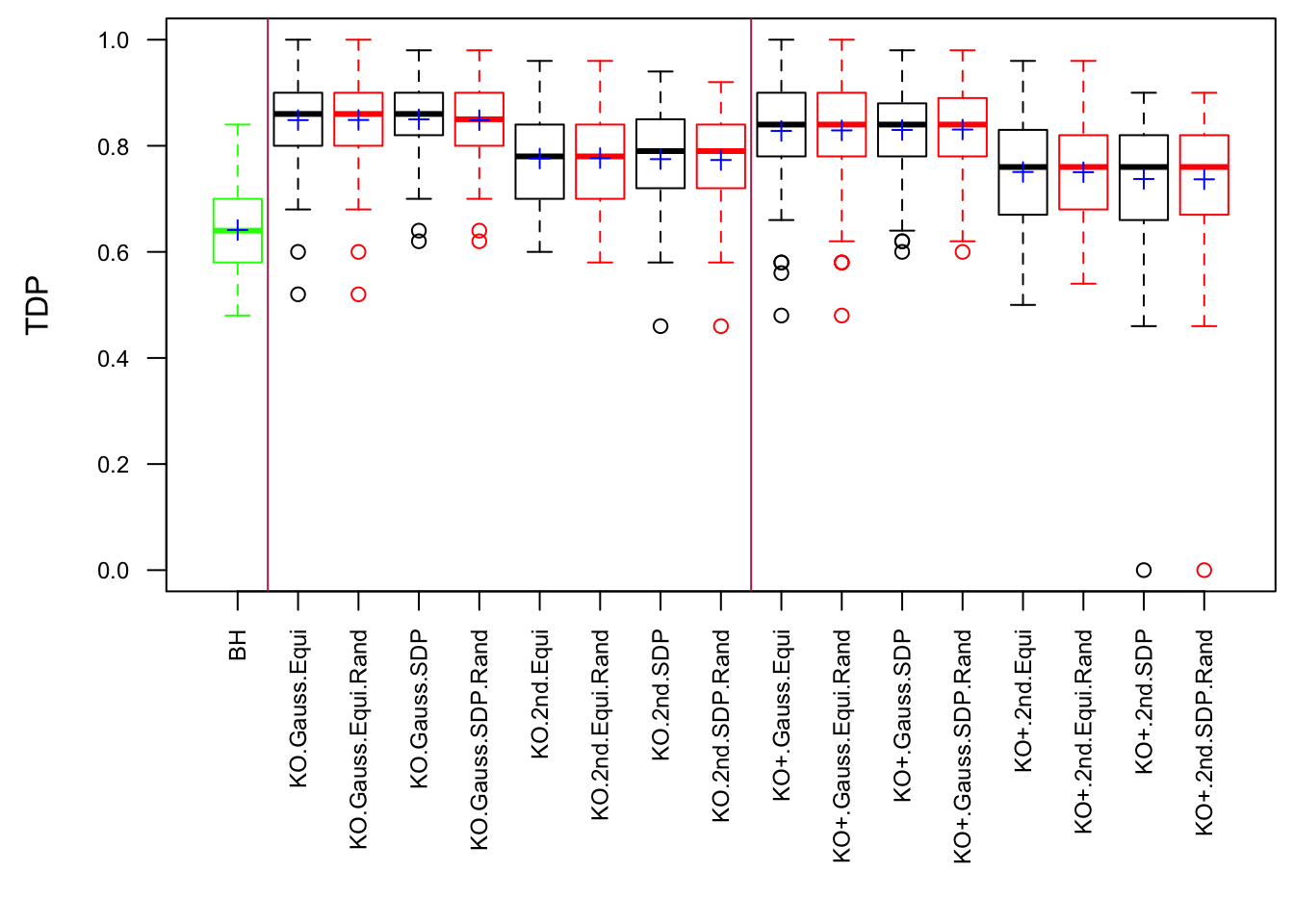

Expand here to see past versions of unnamed-chunk-5-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

Expand here to see past versions of unnamed-chunk-5-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

Scenario 2: Equal-correlation

\[ \begin{array}{c} X_{ij} \sim N\left(0, \left(\frac{1}{\sqrt n}\right)^2\right) \\ cor(X_{ij}, X_{ij'}) \equiv \rho \end{array} \]

\(\rho = 0.5\)

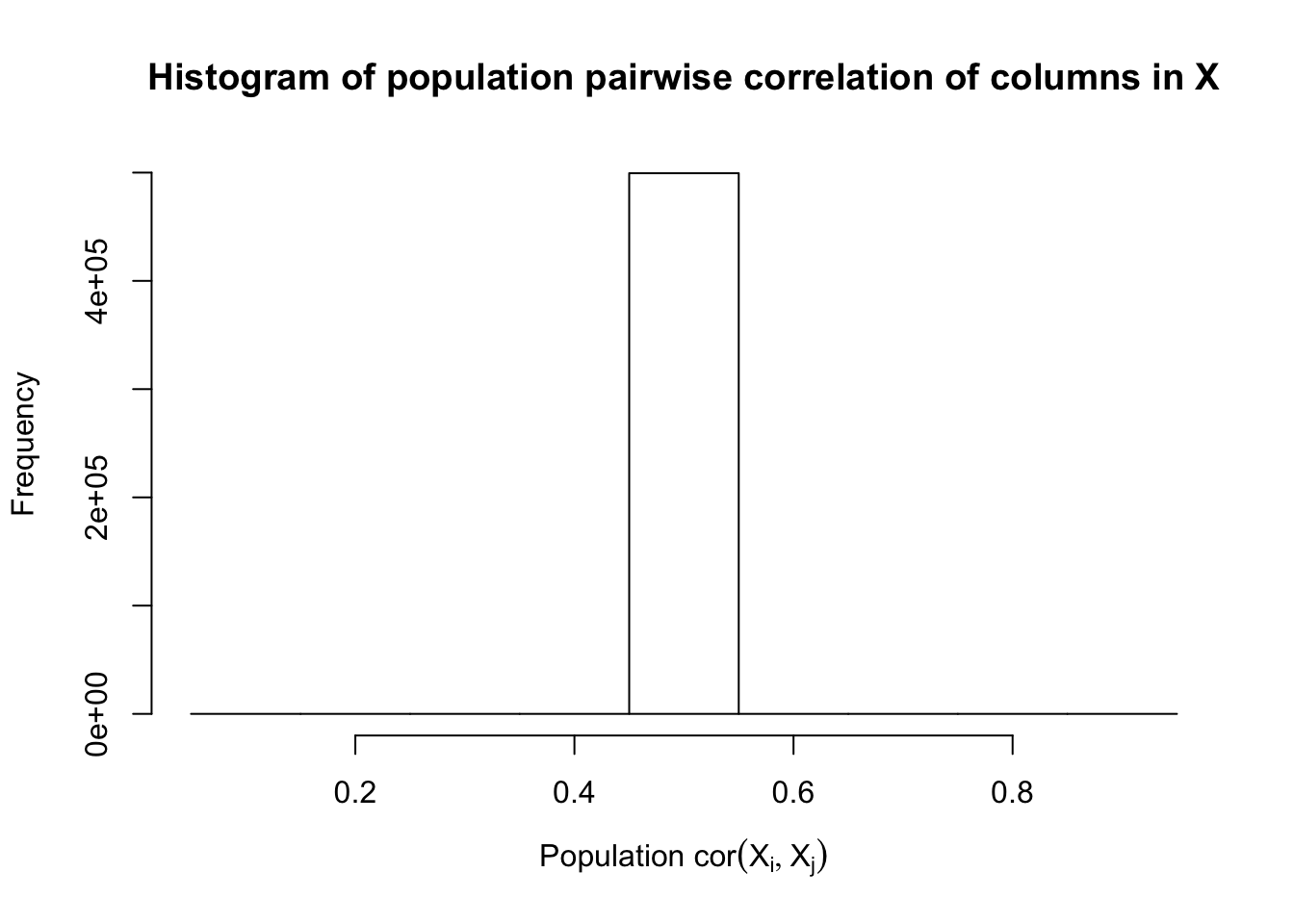

Expand here to see past versions of unnamed-chunk-6-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

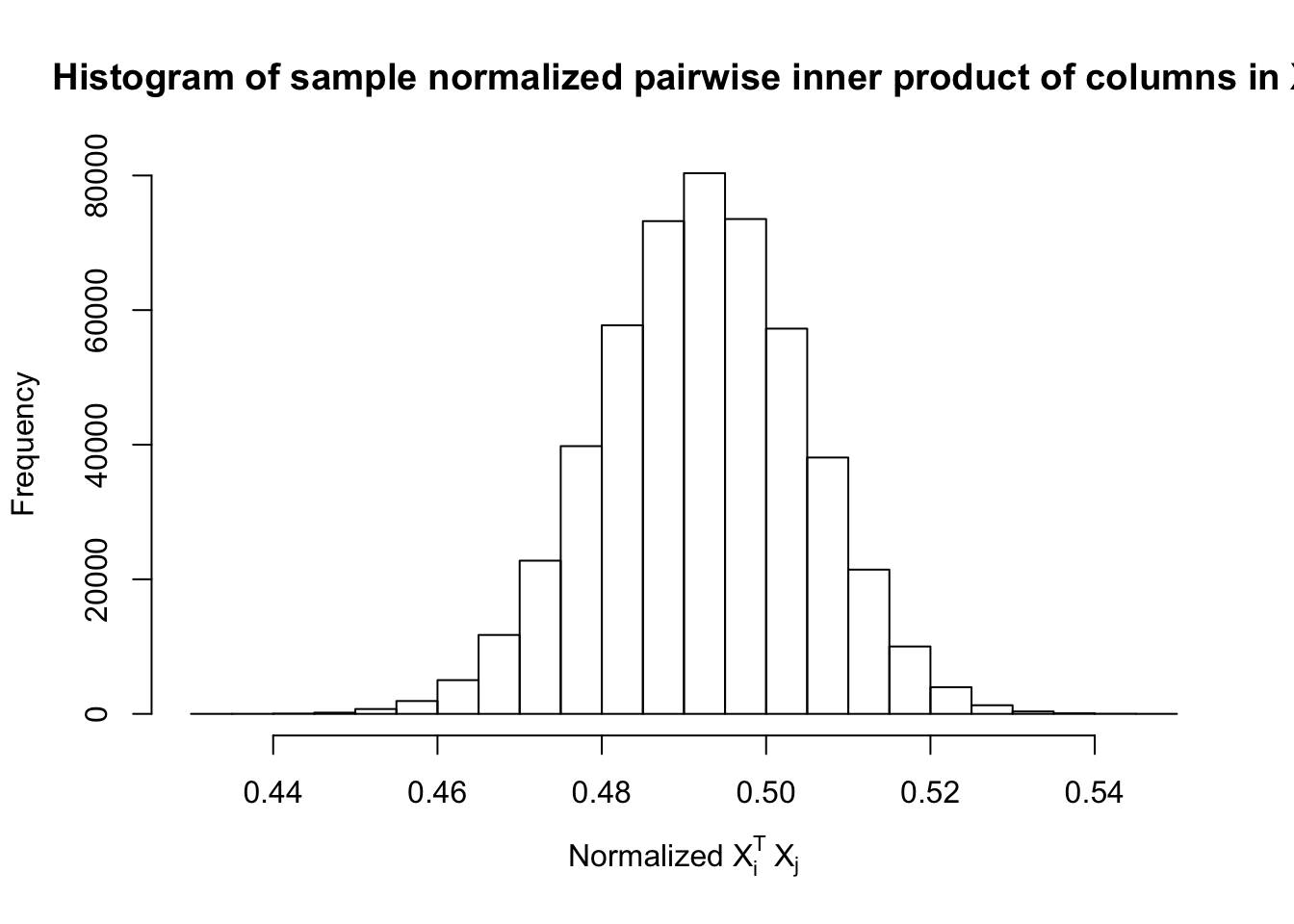

Expand here to see past versions of unnamed-chunk-6-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

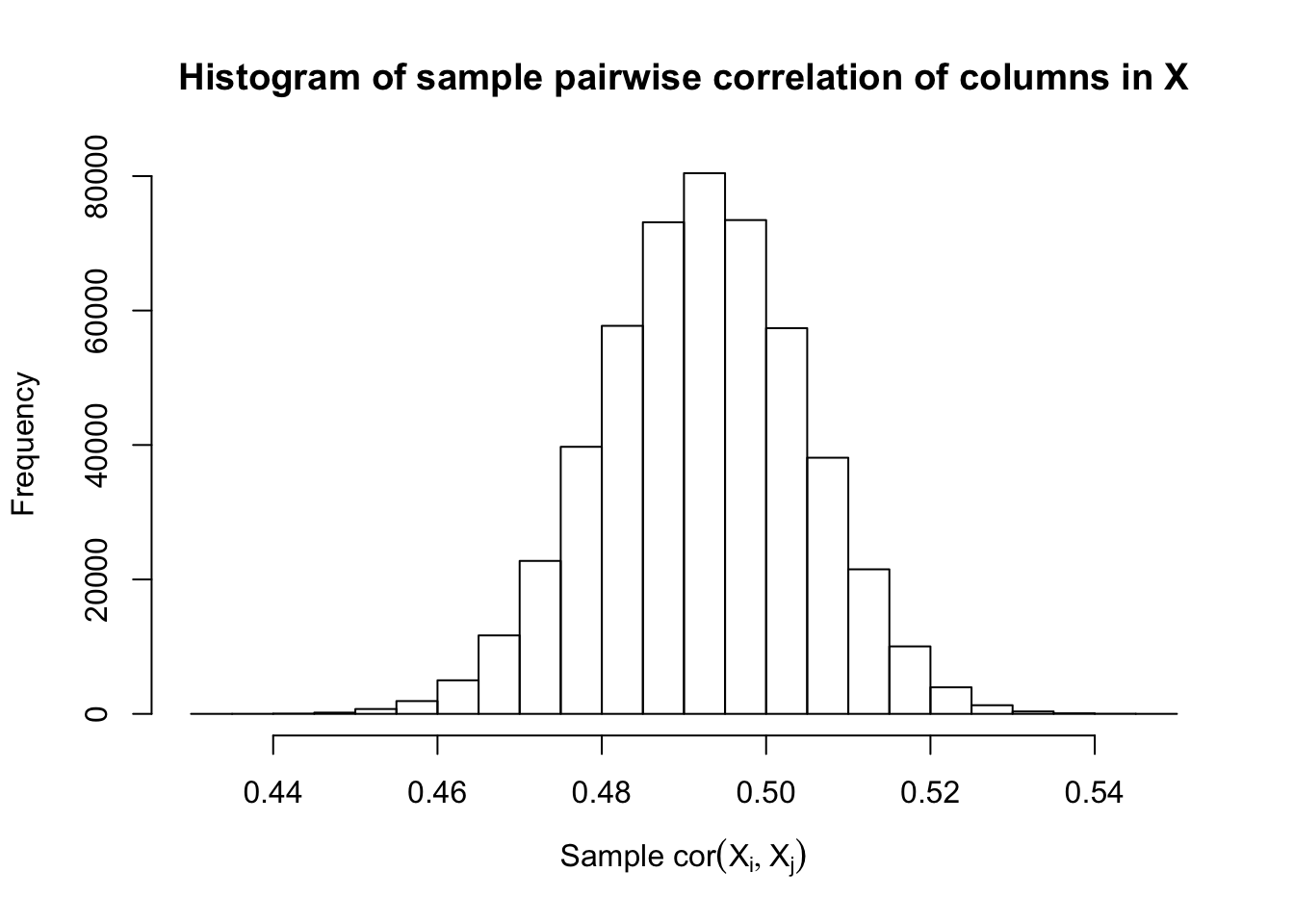

Expand here to see past versions of unnamed-chunk-6-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

Expand here to see past versions of unnamed-chunk-6-4.png:
Version Author Date
d3d259c LSun 2018-03-10
7b67910 LSun 2018-03-02

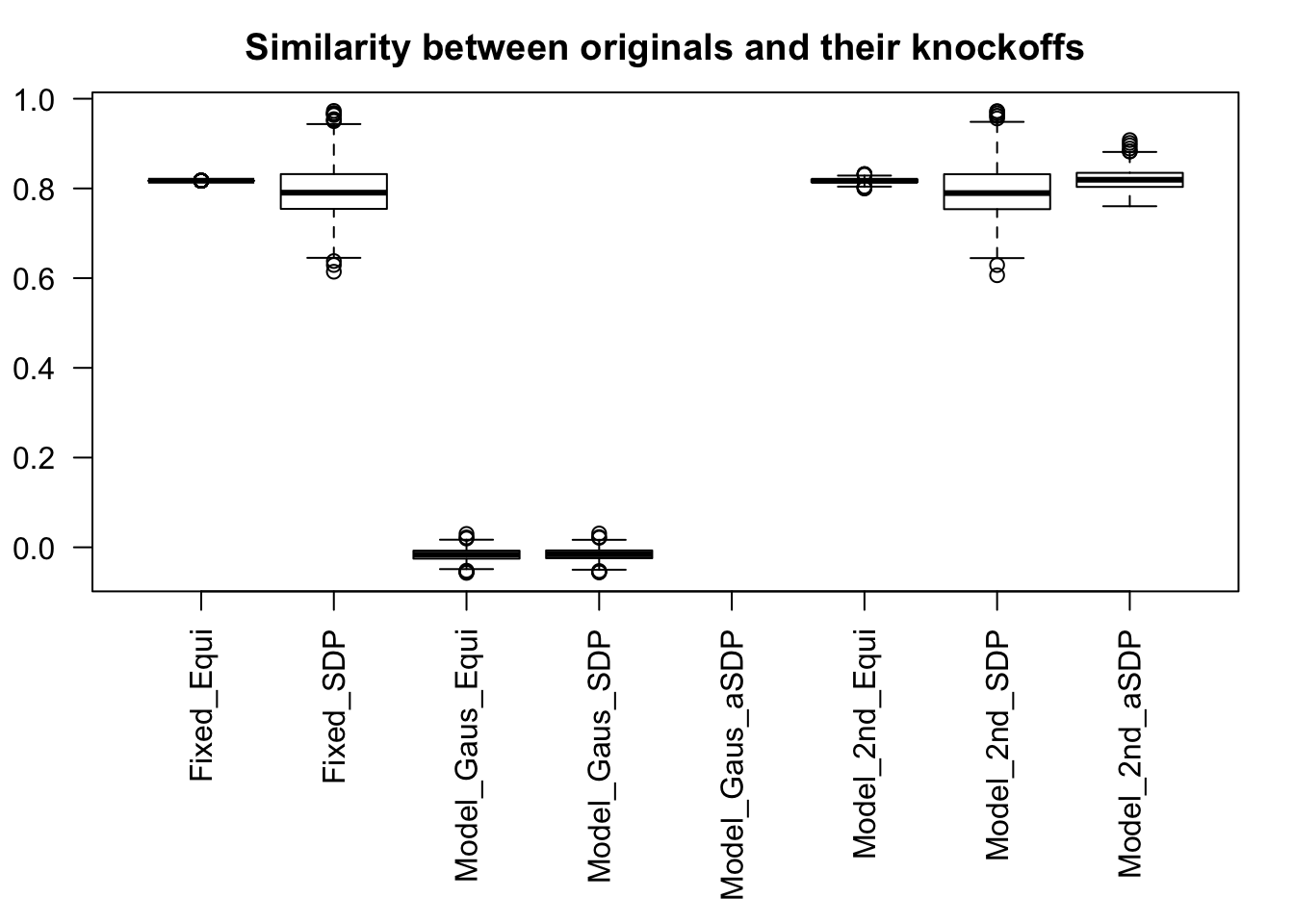

Expand here to see past versions of unnamed-chunk-6-5.png:
Version Author Date
d3d259c LSun 2018-03-10

Fixed Design

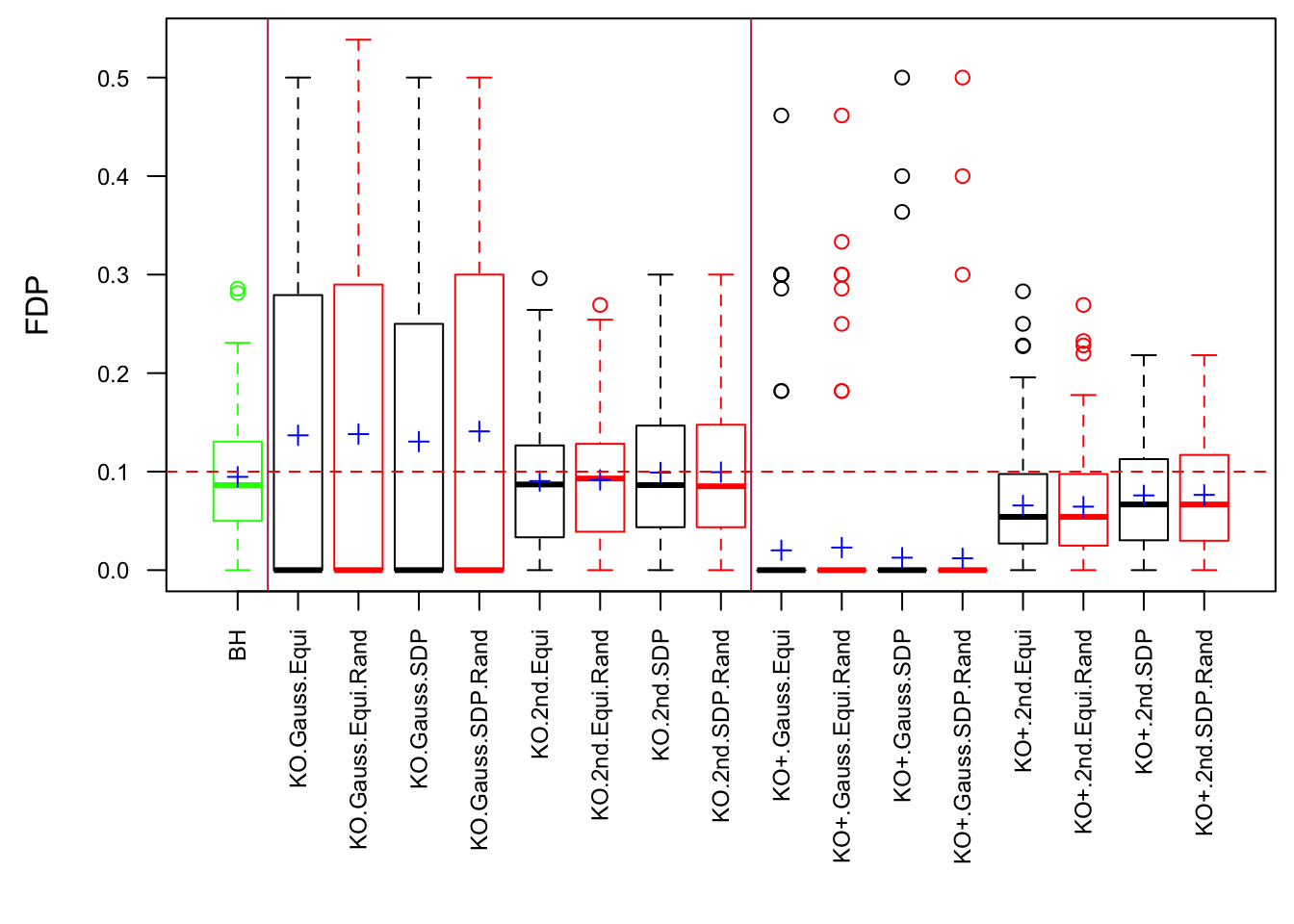

Expand here to see past versions of unnamed-chunk-7-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

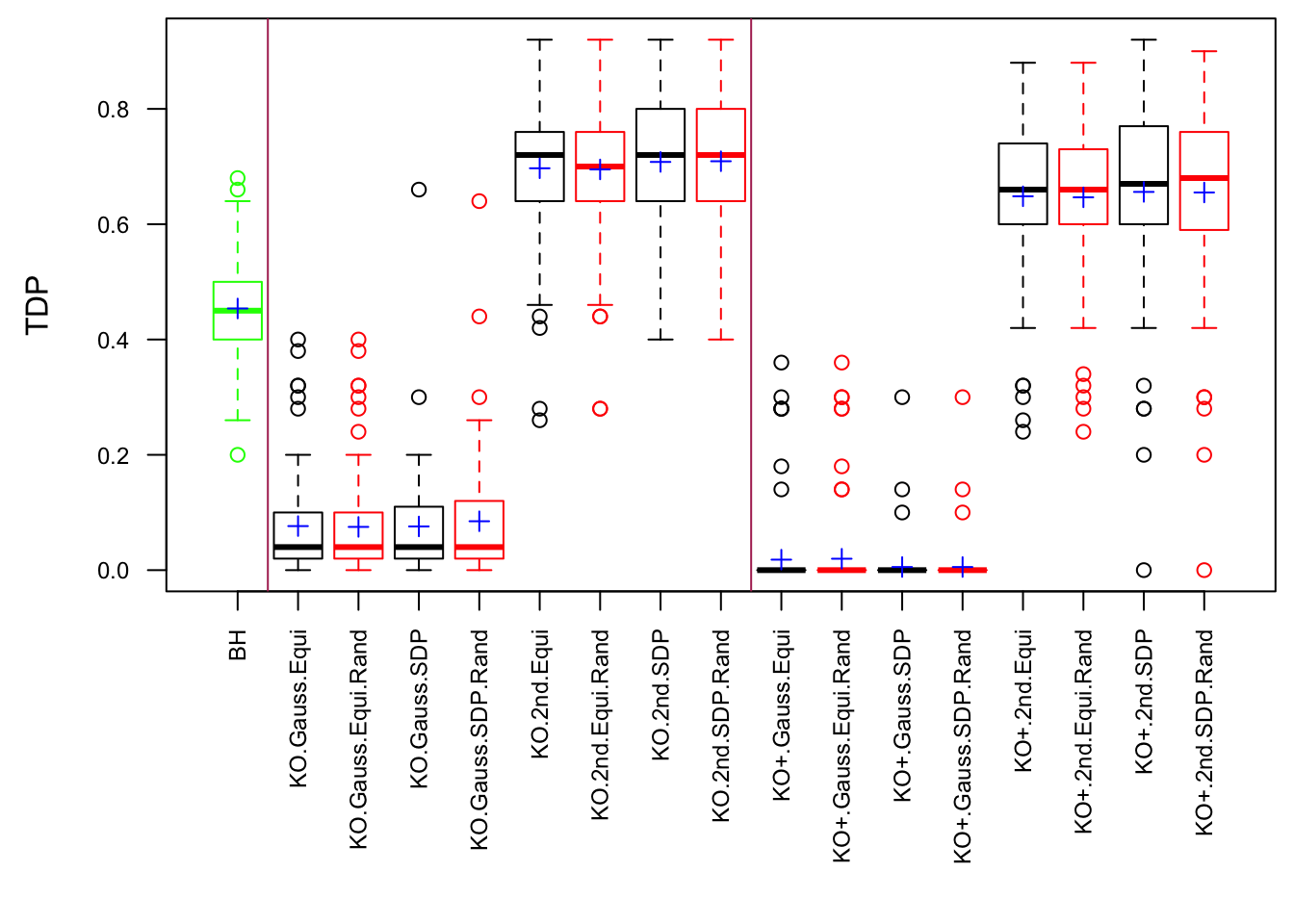

Expand here to see past versions of unnamed-chunk-7-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

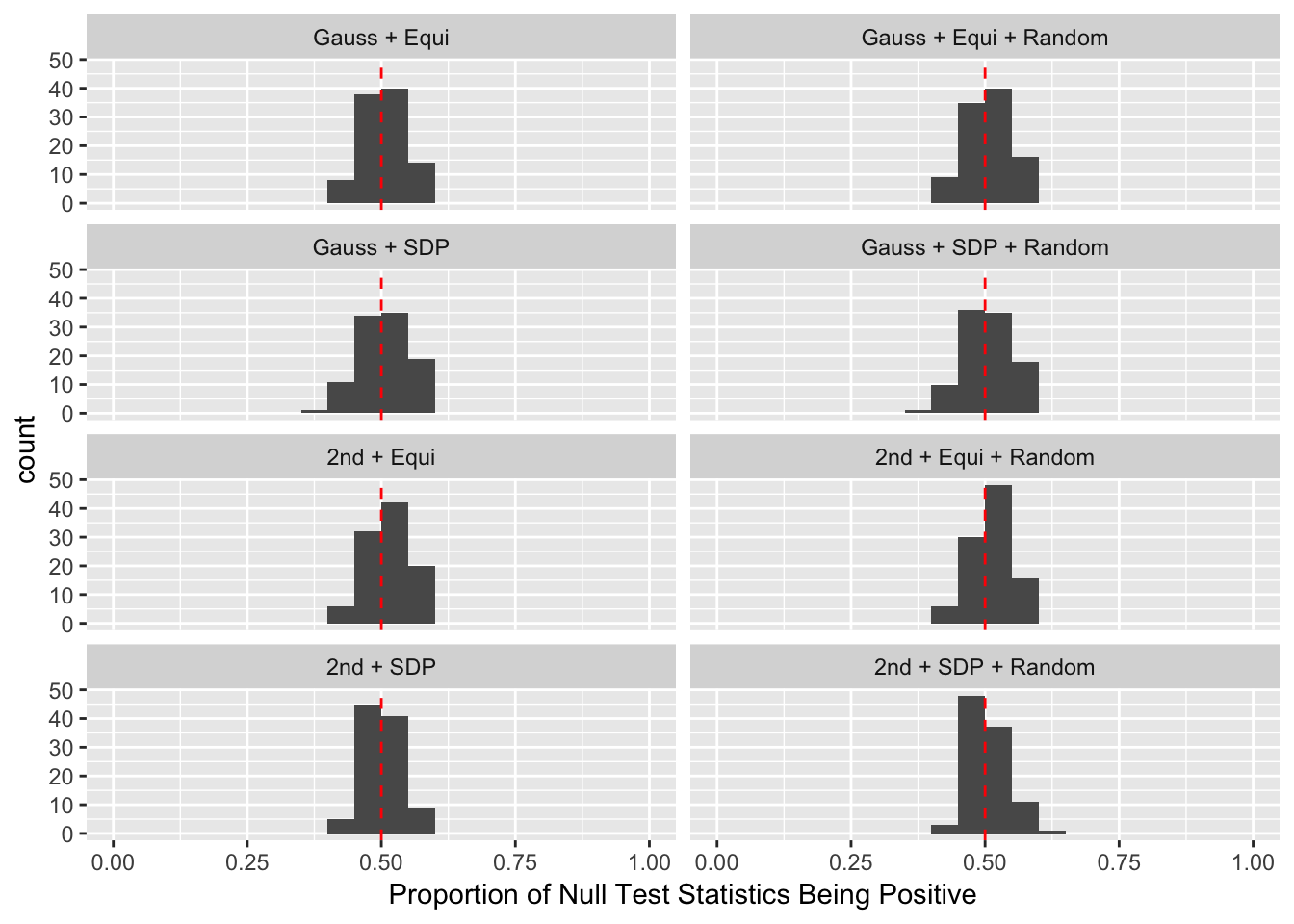

Expand here to see past versions of unnamed-chunk-7-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03
7b67910 LSun 2018-03-02

Model-\(X\) Design

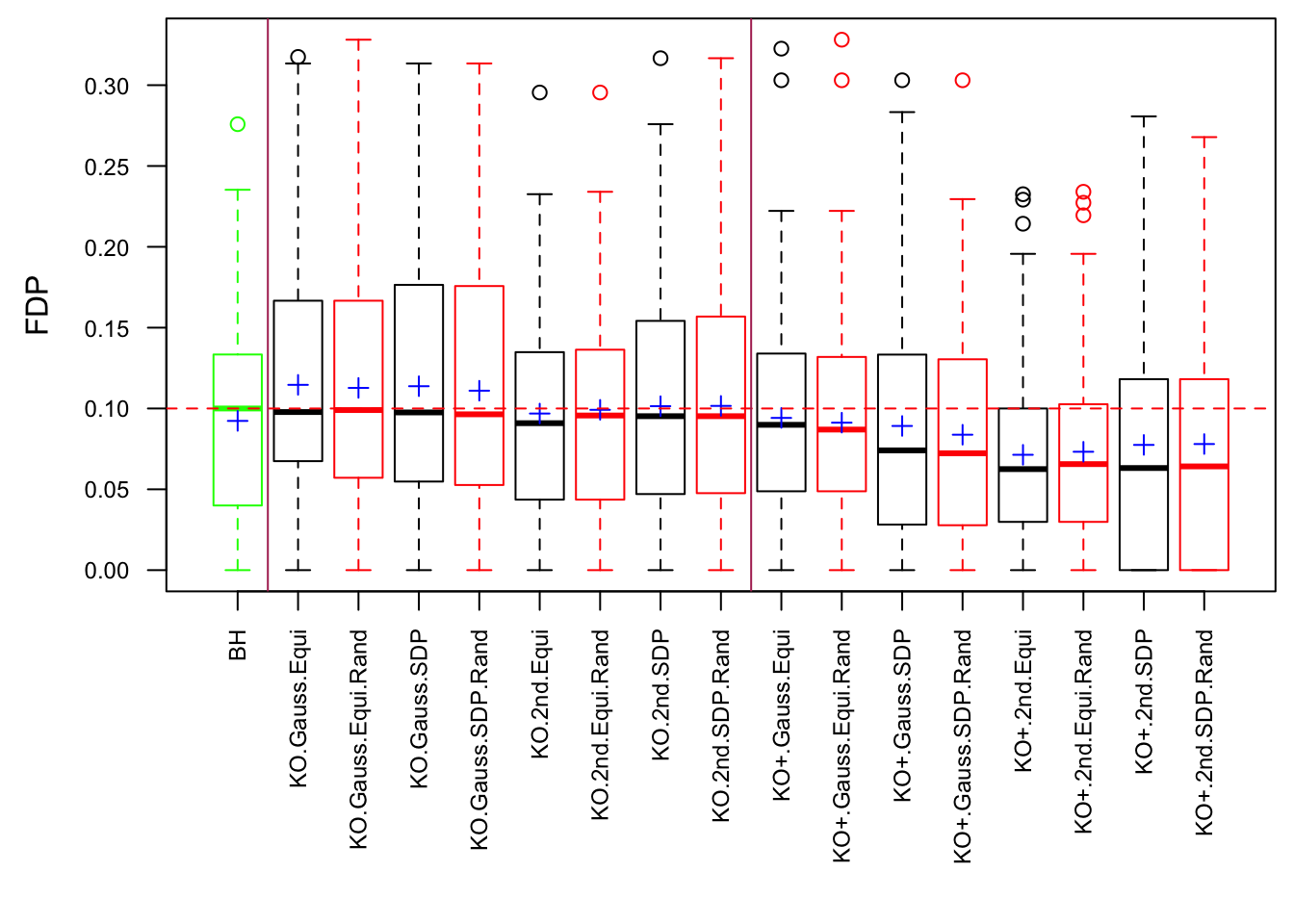

Expand here to see past versions of unnamed-chunk-8-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

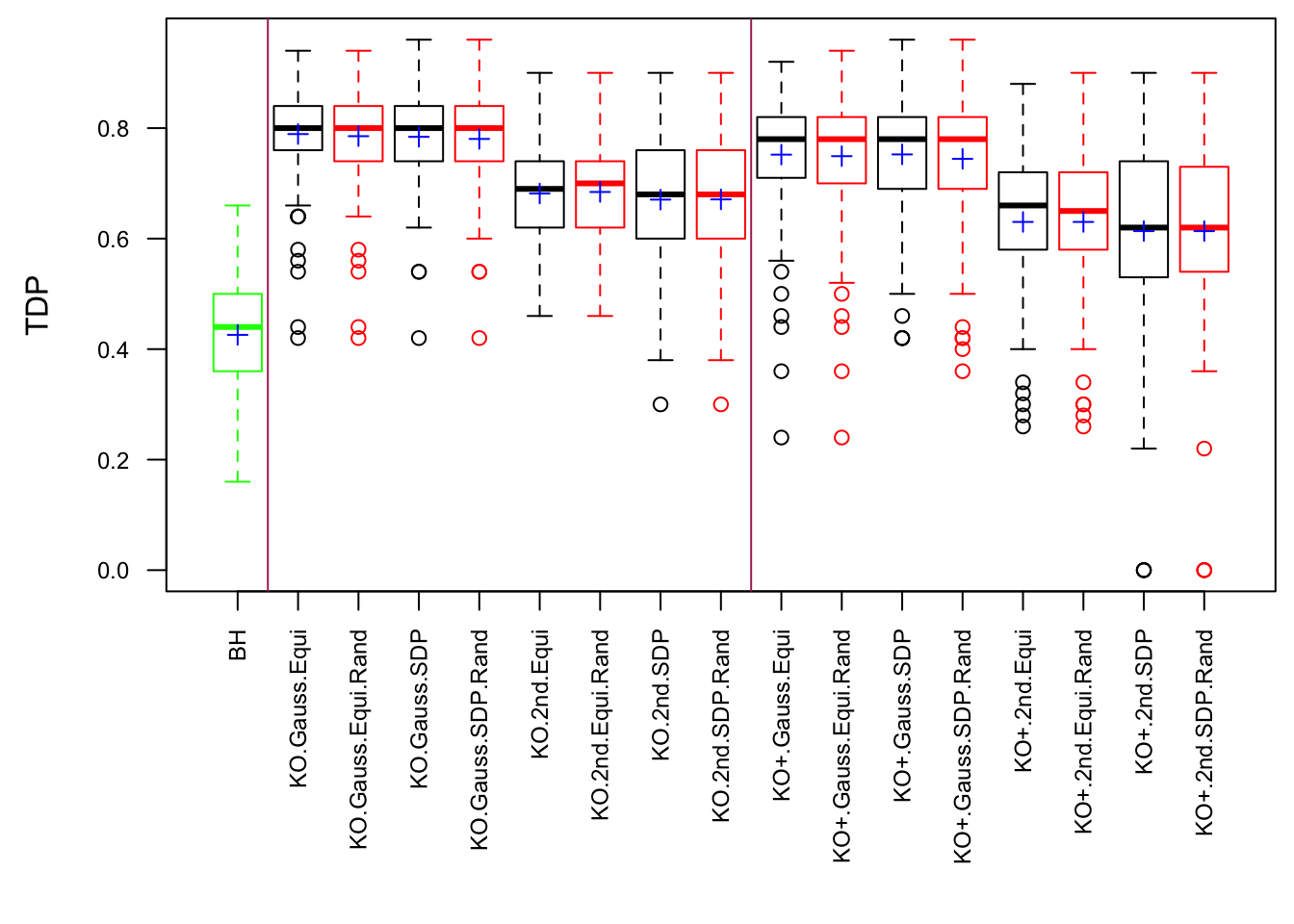

Expand here to see past versions of unnamed-chunk-8-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

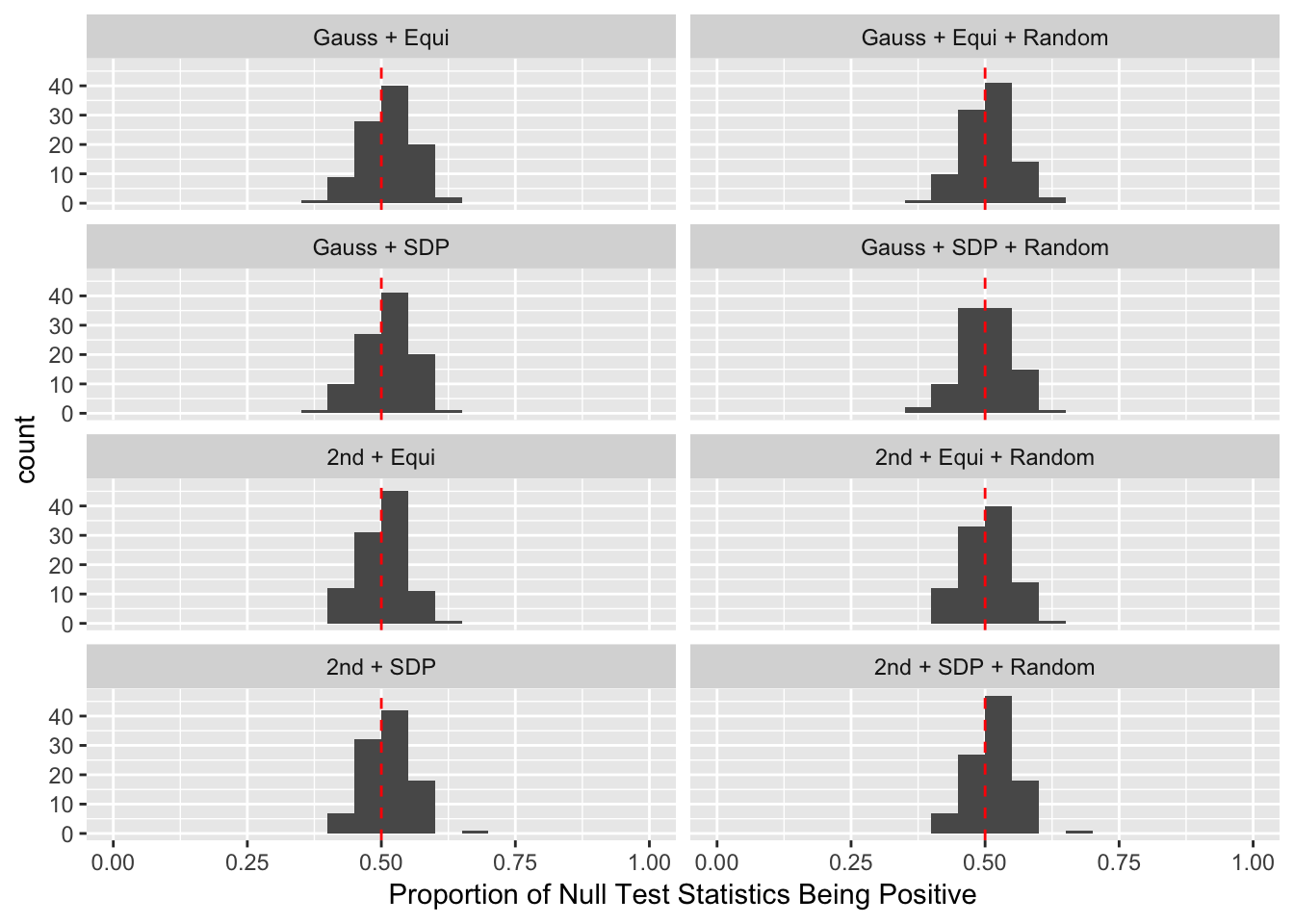

Expand here to see past versions of unnamed-chunk-8-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

\(\rho = 0.99\)

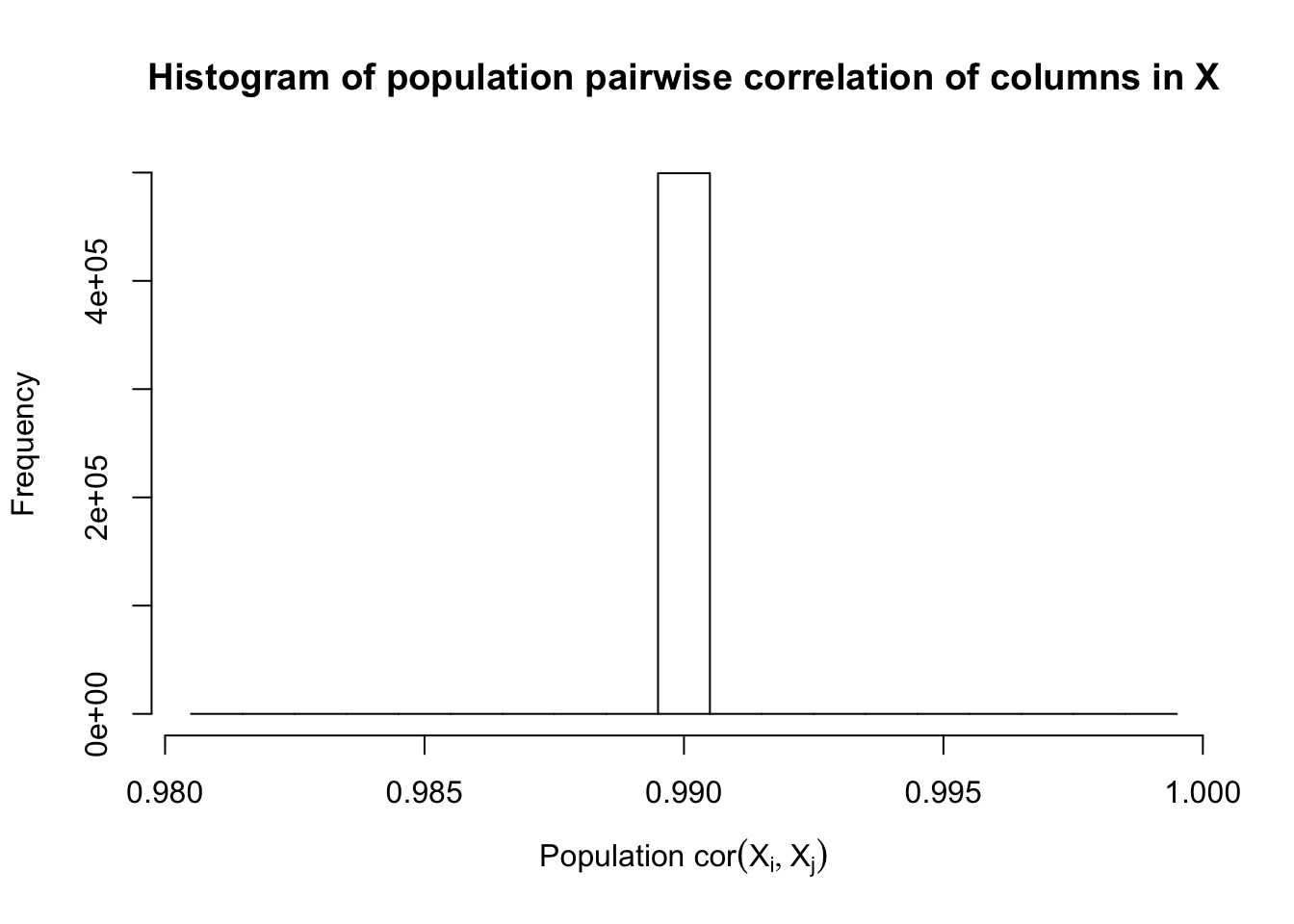

Expand here to see past versions of unnamed-chunk-9-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

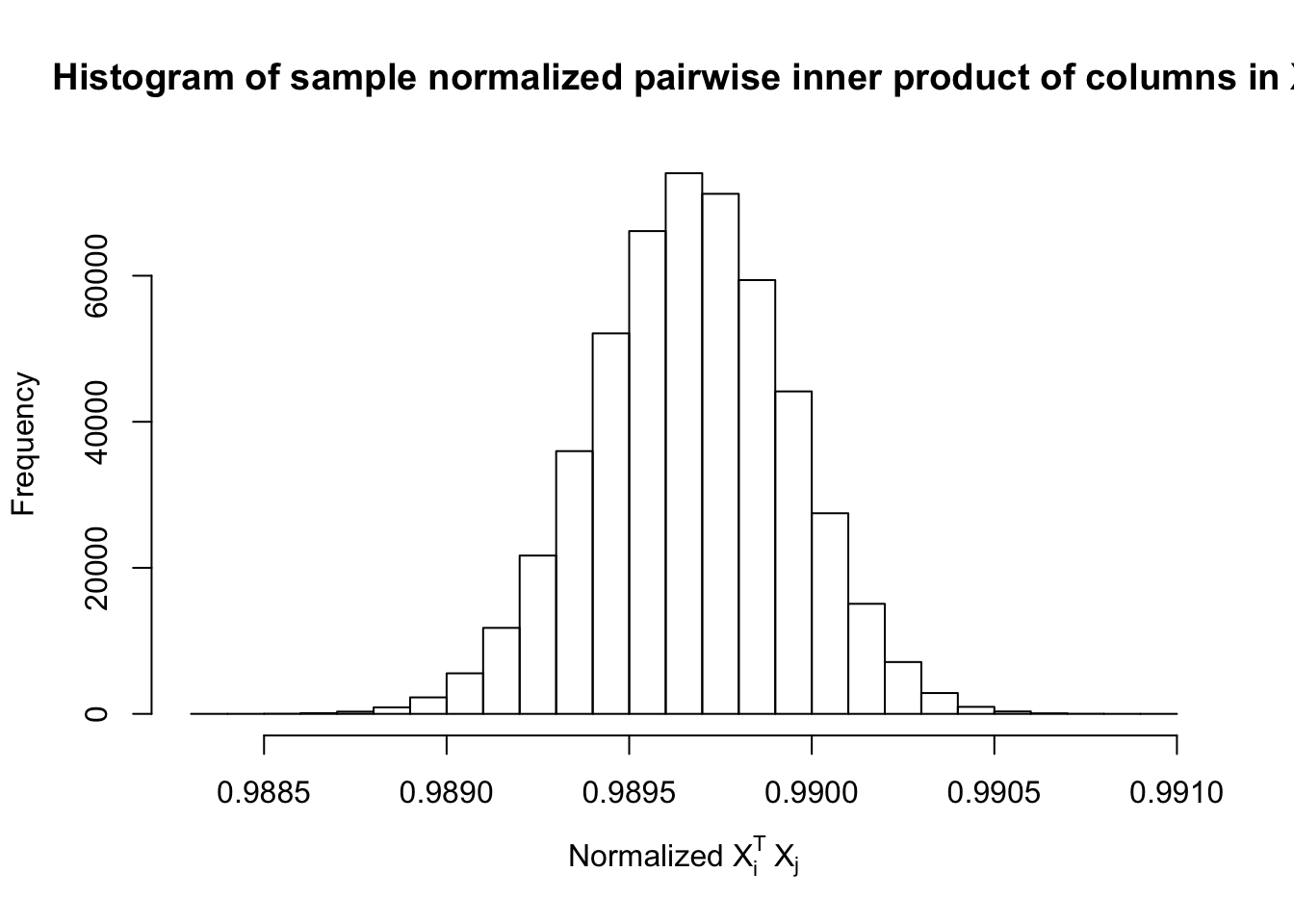

Expand here to see past versions of unnamed-chunk-9-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

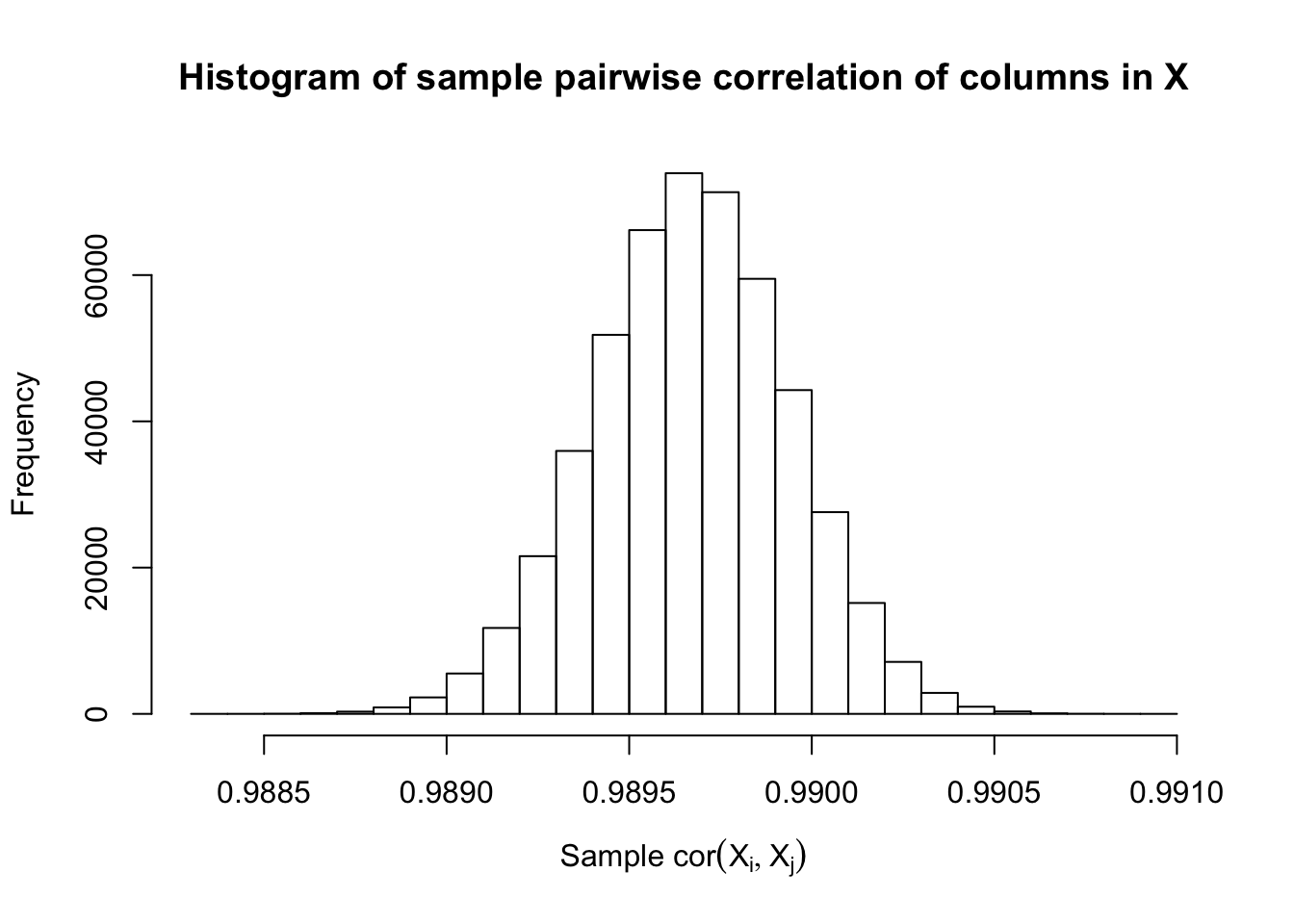

Expand here to see past versions of unnamed-chunk-9-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-9-4.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

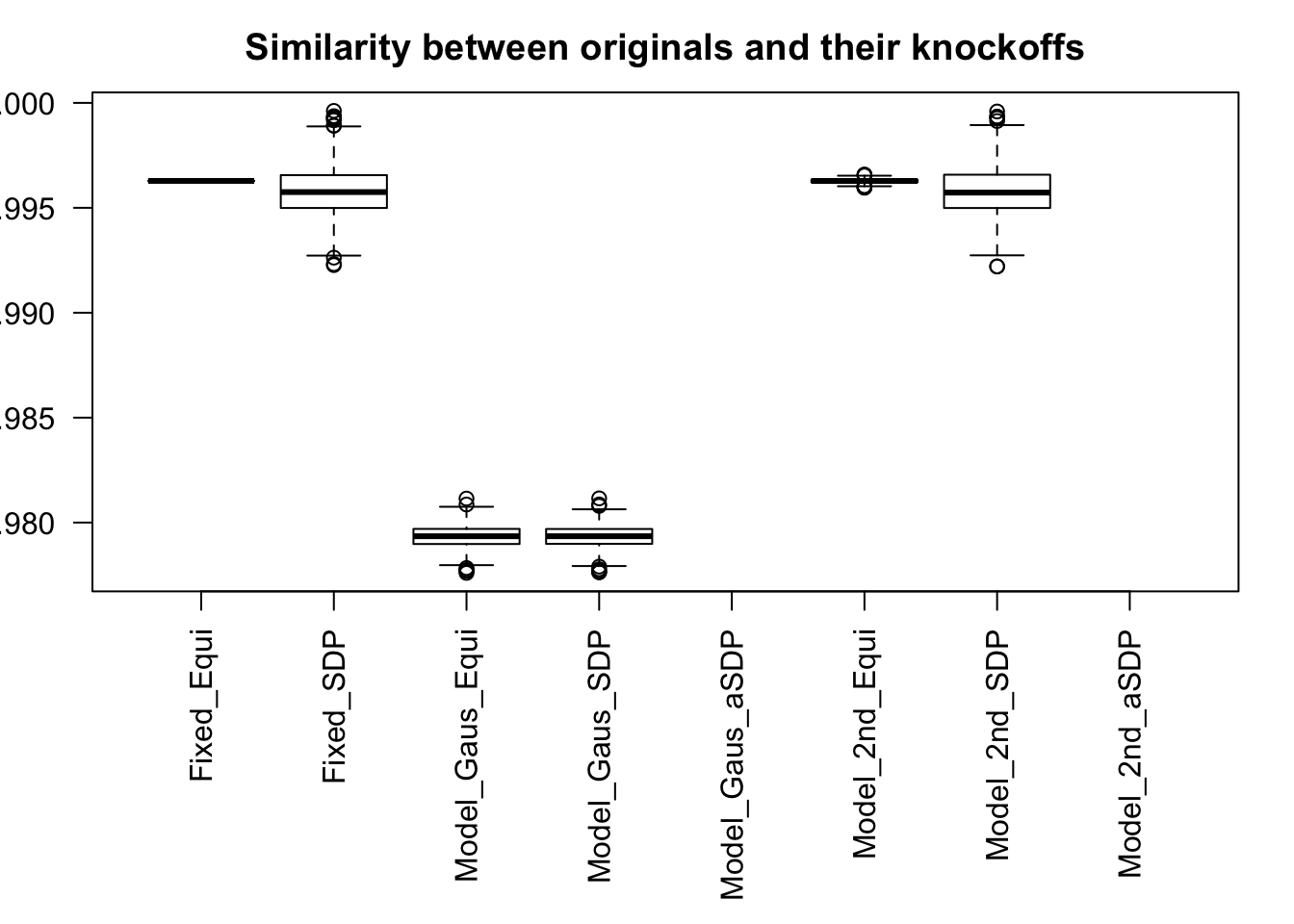

Expand here to see past versions of unnamed-chunk-9-5.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Fixed Design

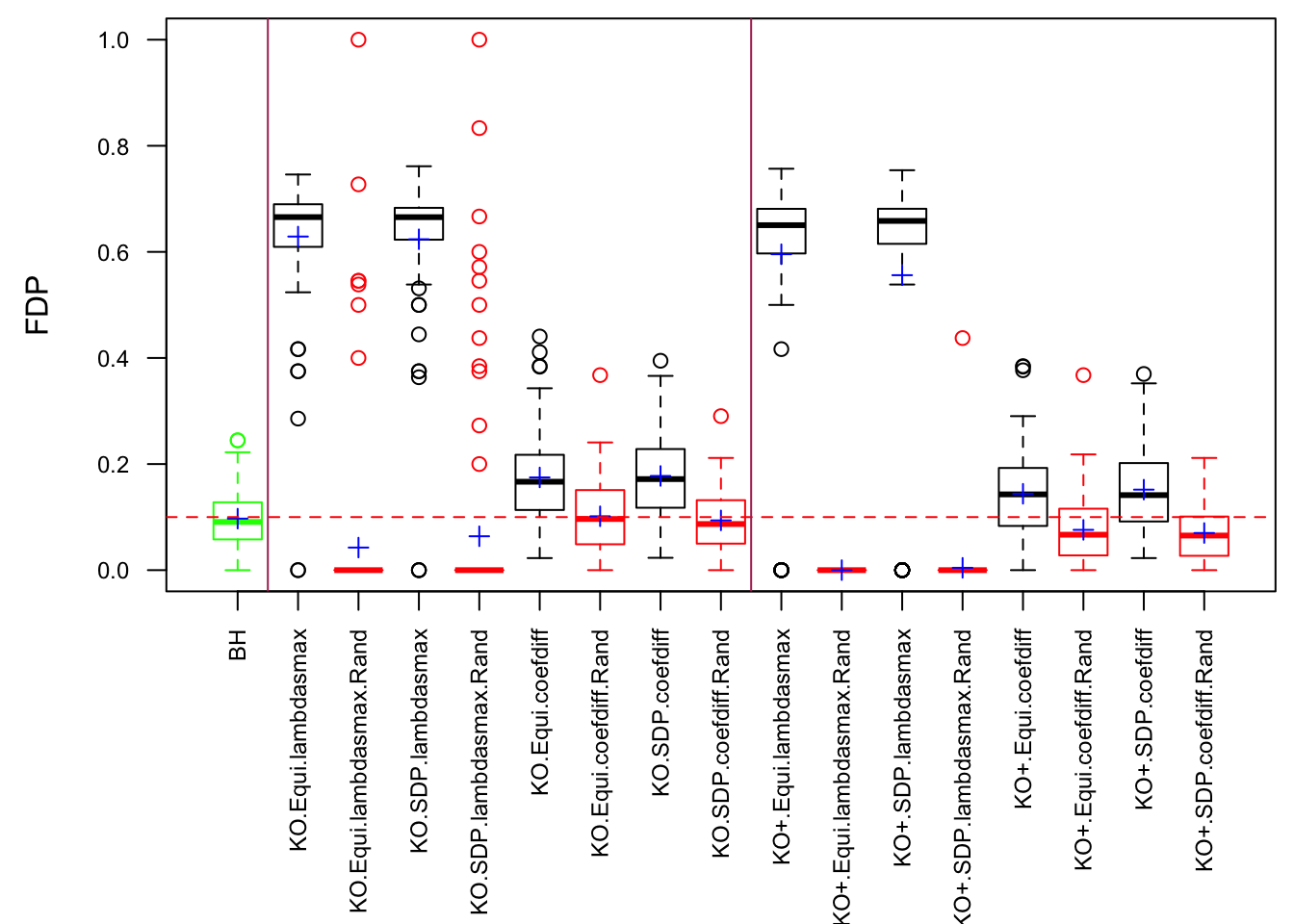

Expand here to see past versions of unnamed-chunk-10-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-10-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

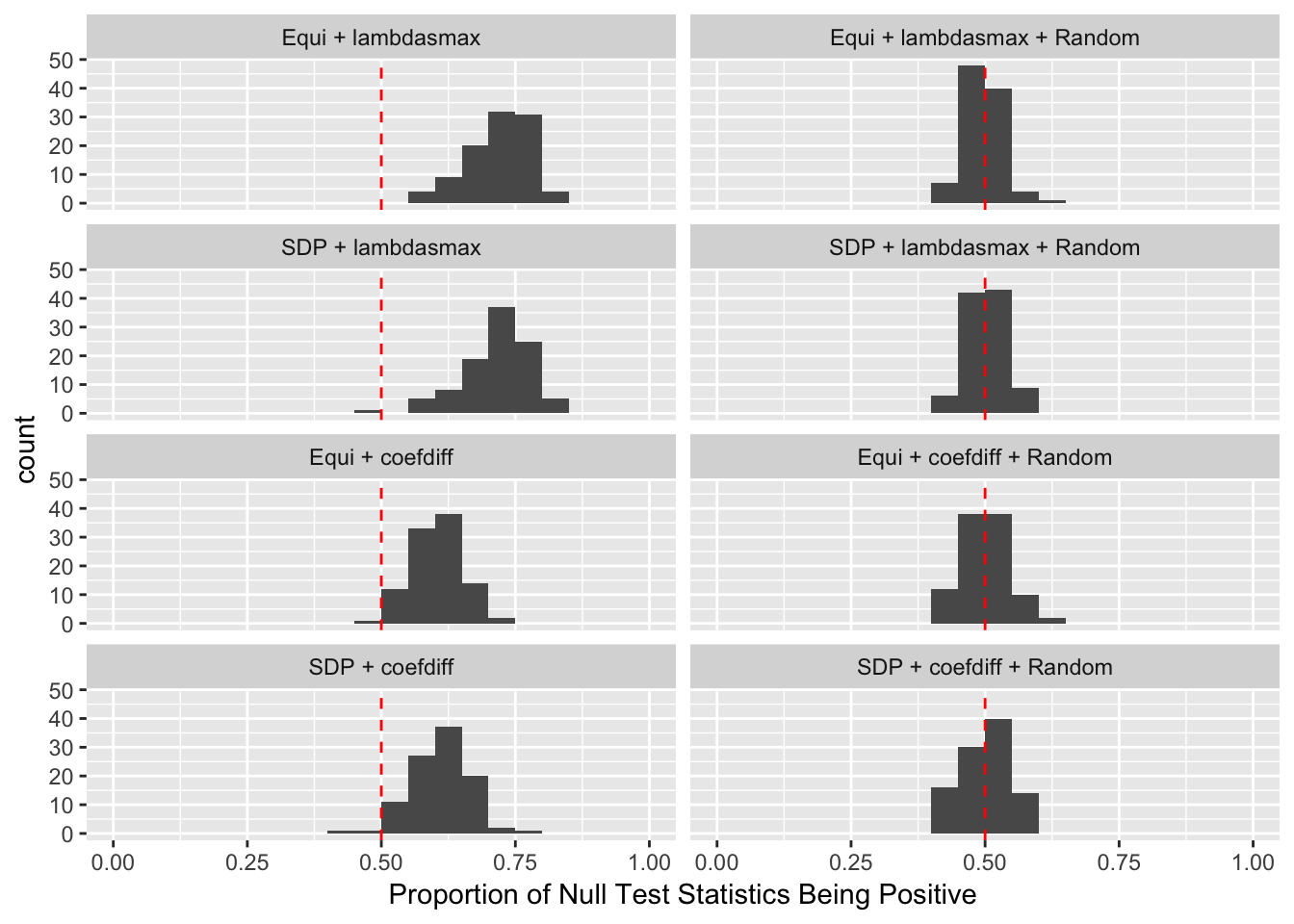

Expand here to see past versions of unnamed-chunk-10-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Model-\(X\) Design

Expand here to see past versions of unnamed-chunk-11-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

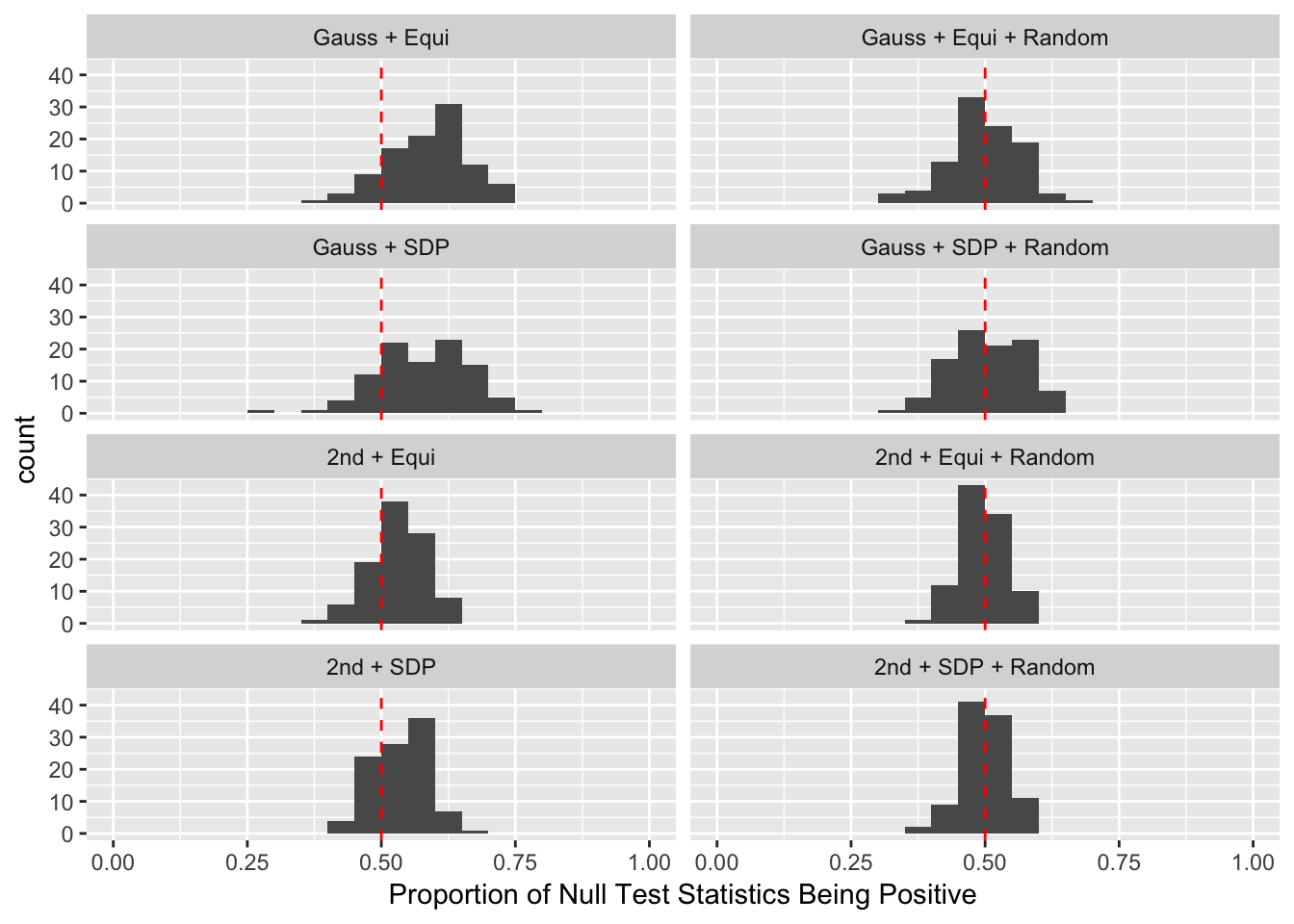

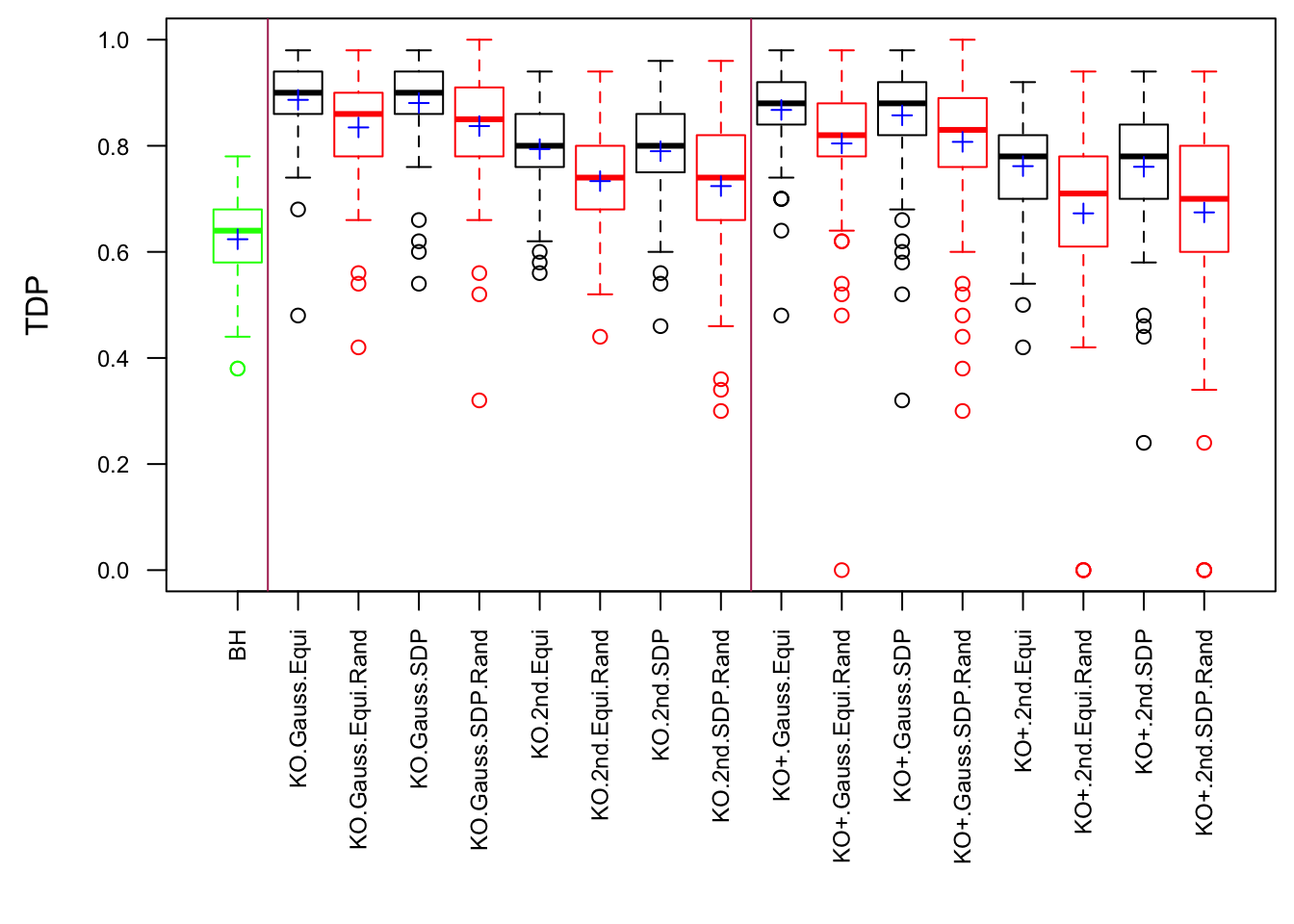

Expand here to see past versions of unnamed-chunk-11-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-11-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

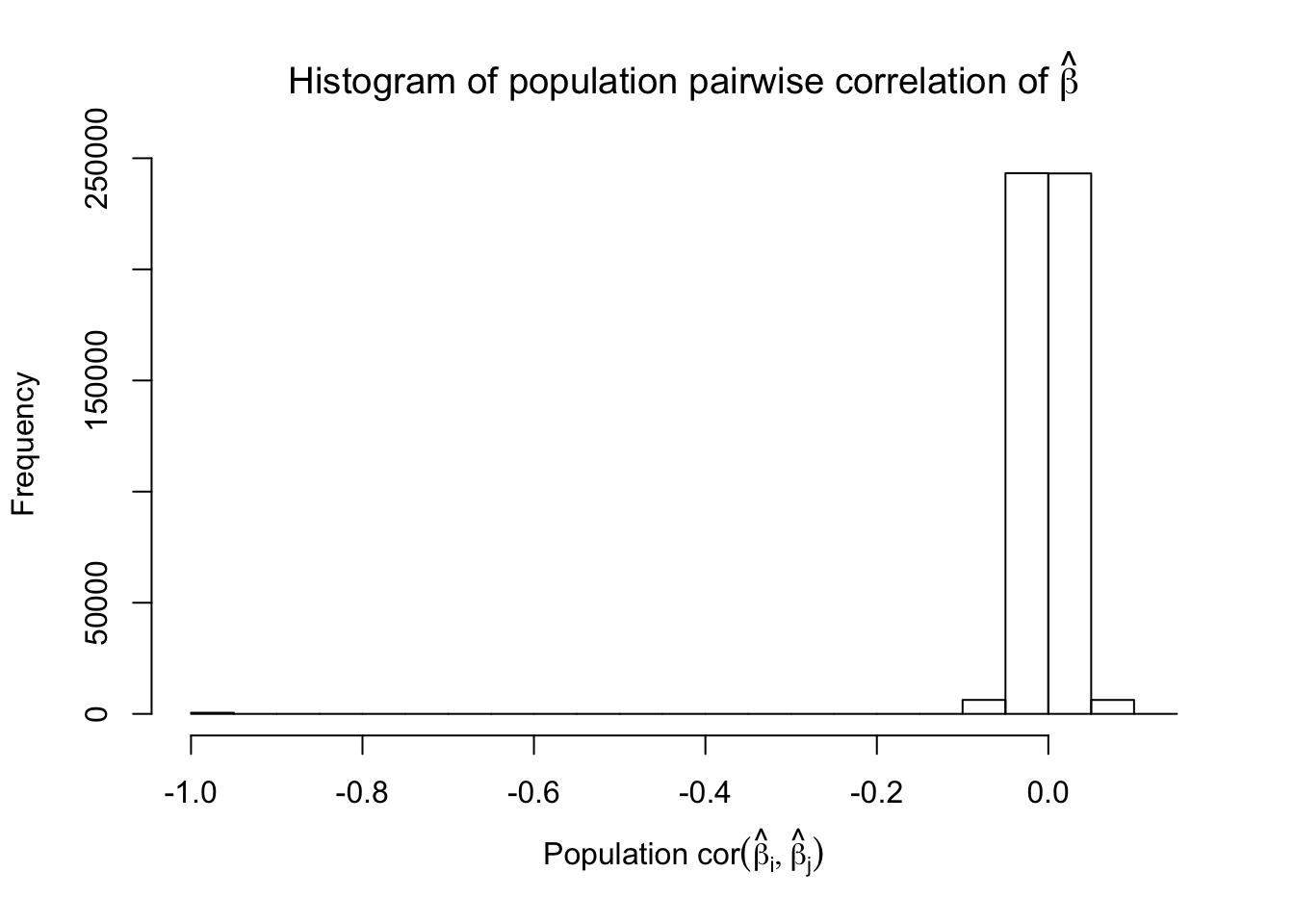

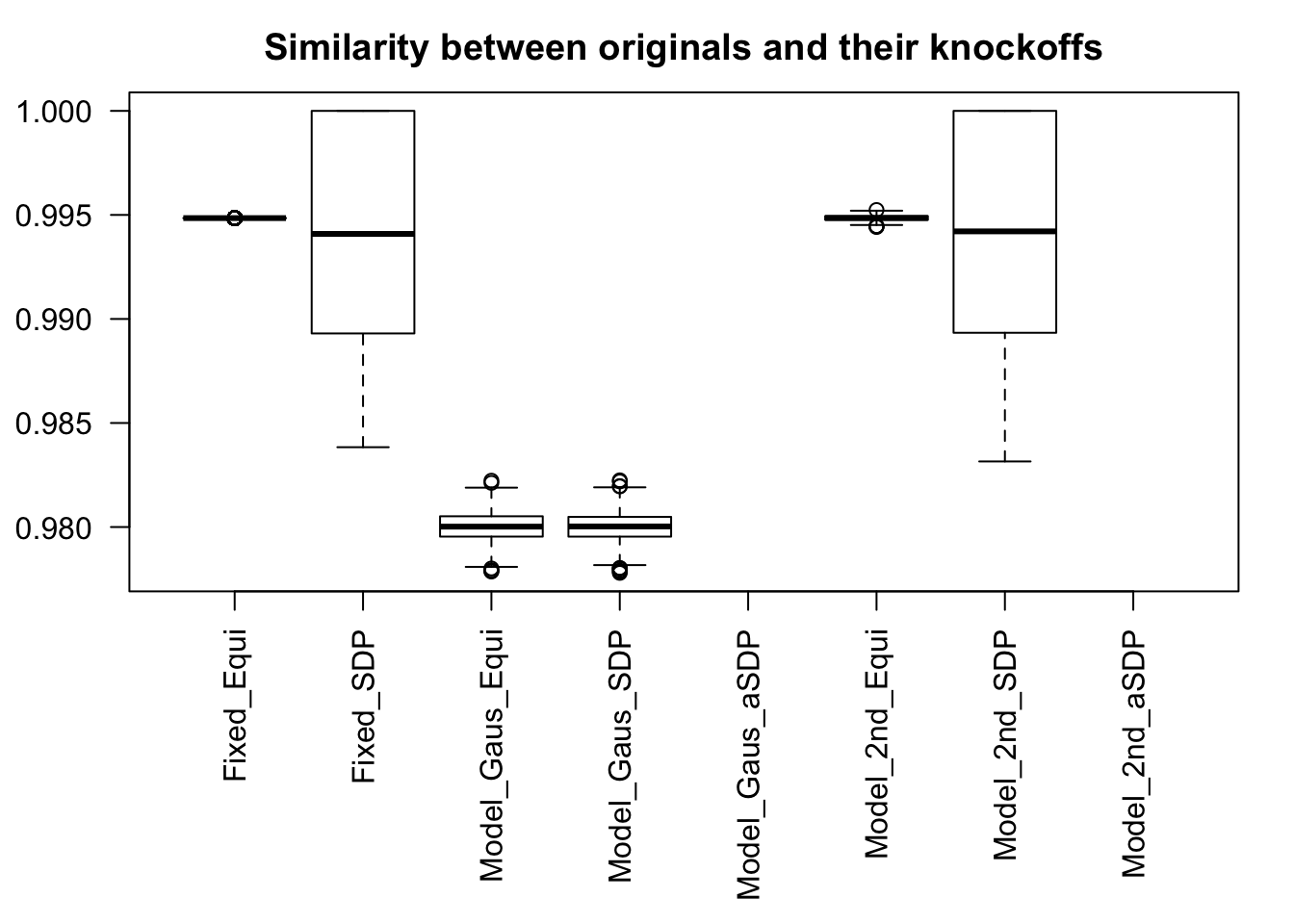

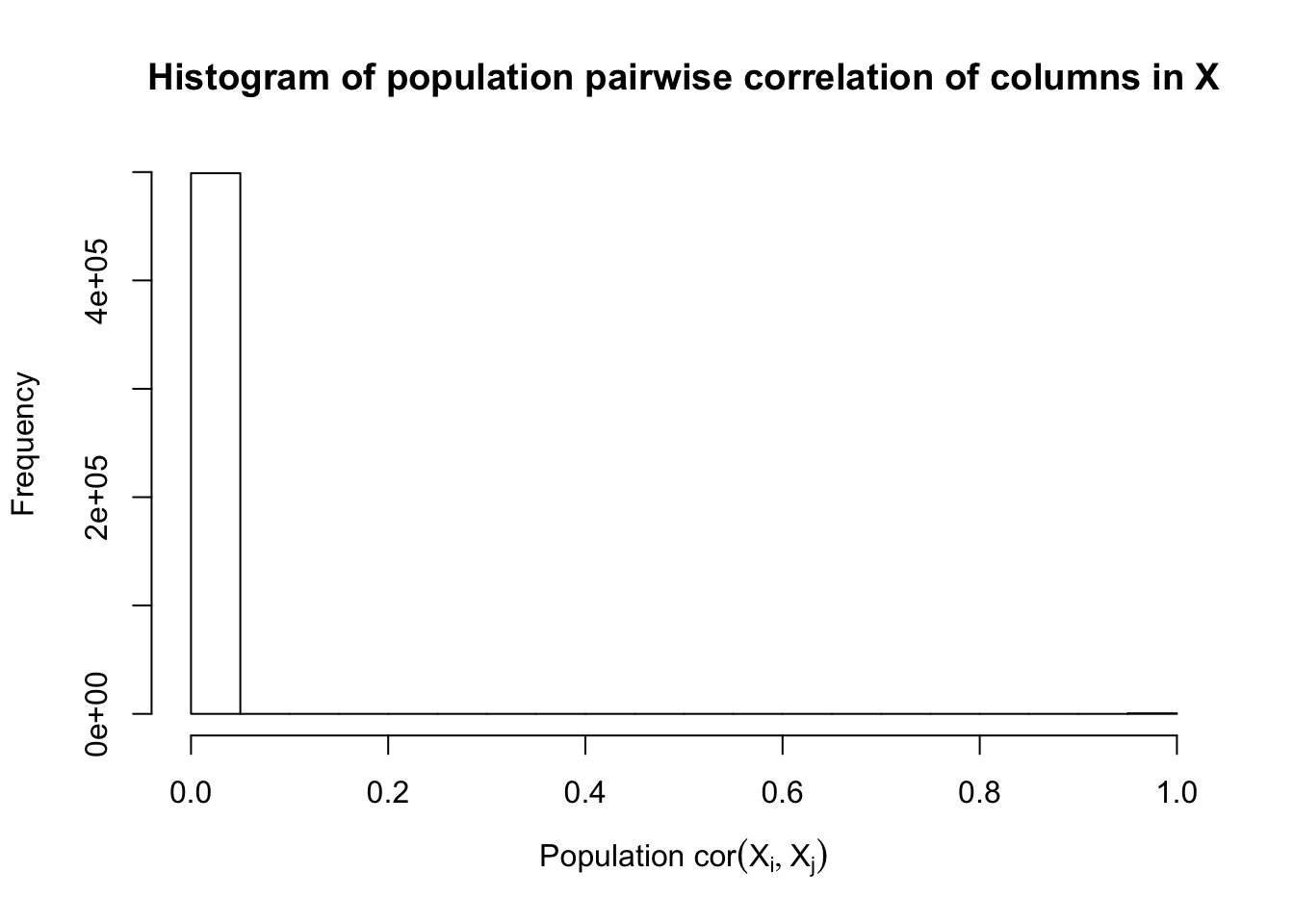

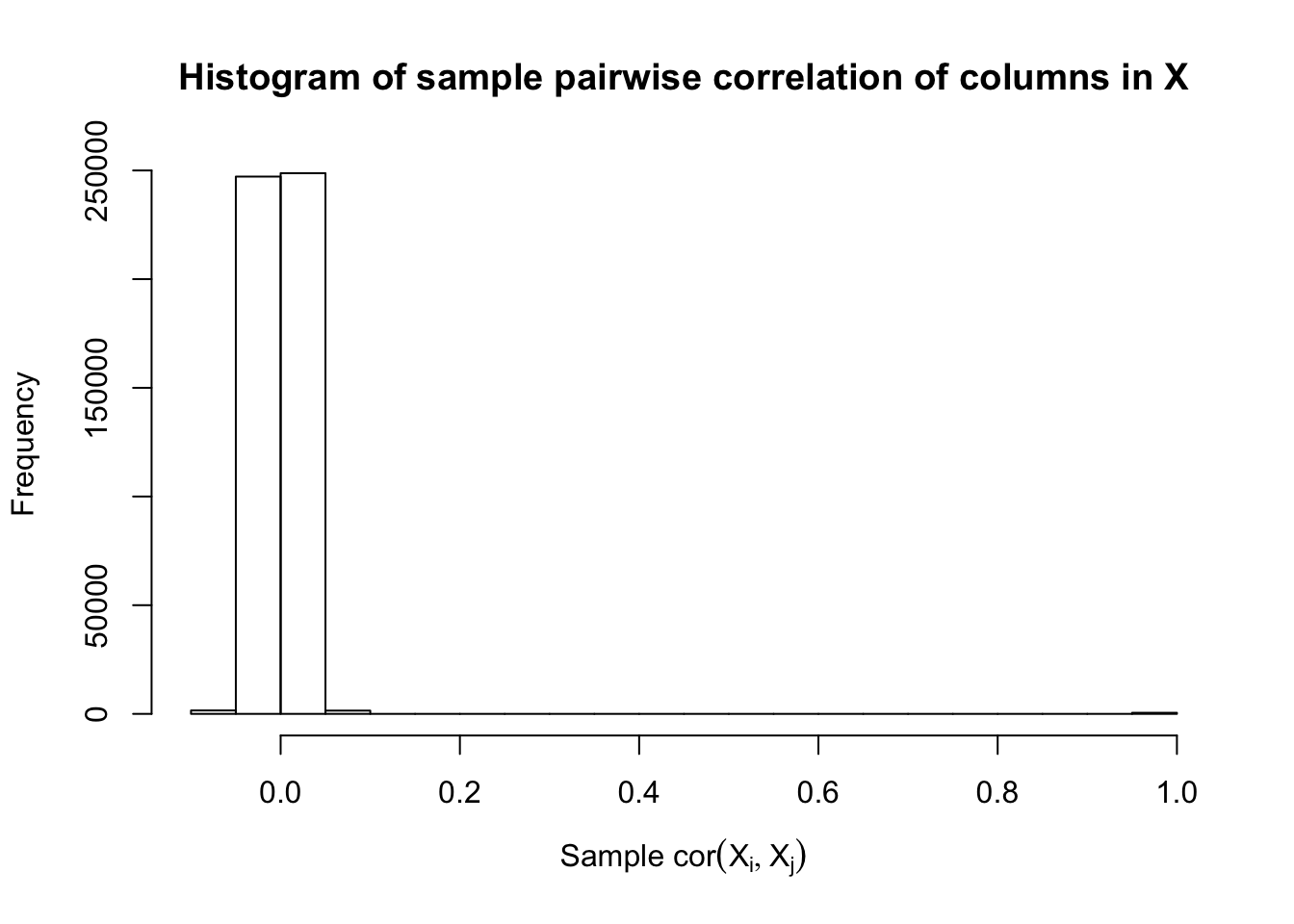

Scenario 3: Extreme local correlation

\[ \begin{array}{c} X_{ij} \sim N\left(0, \left(\frac{1}{\sqrt n}\right)^2\right) \\ cor(X_{i1}, X_{i2}) = cor(X_{i3}, X_{i4}) = \cdots = cor(X_{i(p-1)}, X_{ip}) = \rho = 0.99 \end{array} \]

Expand here to see past versions of unnamed-chunk-12-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

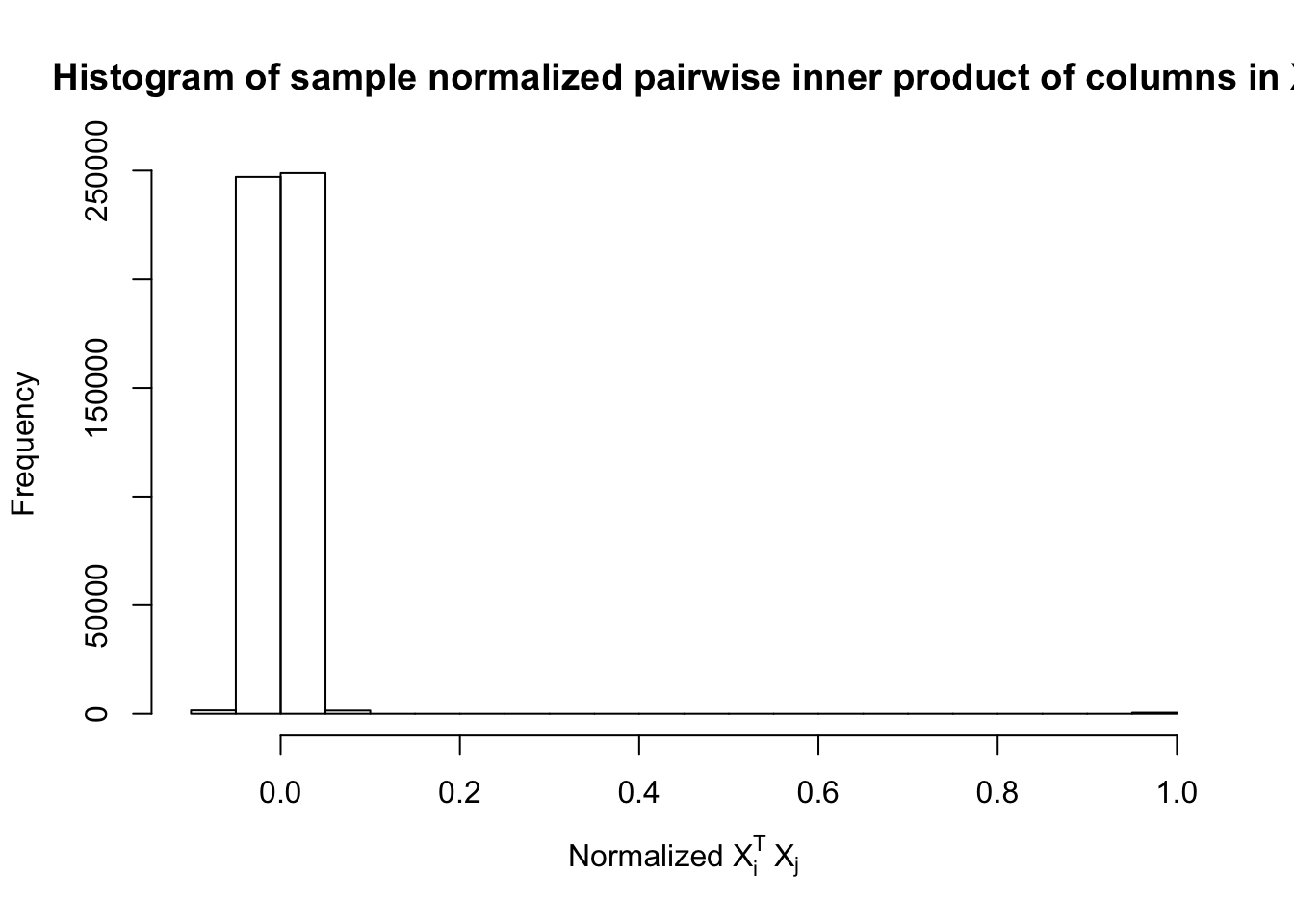

Expand here to see past versions of unnamed-chunk-12-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-12-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-12-4.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-12-5.png:
Version Author Date
d3d259c LSun 2018-03-10

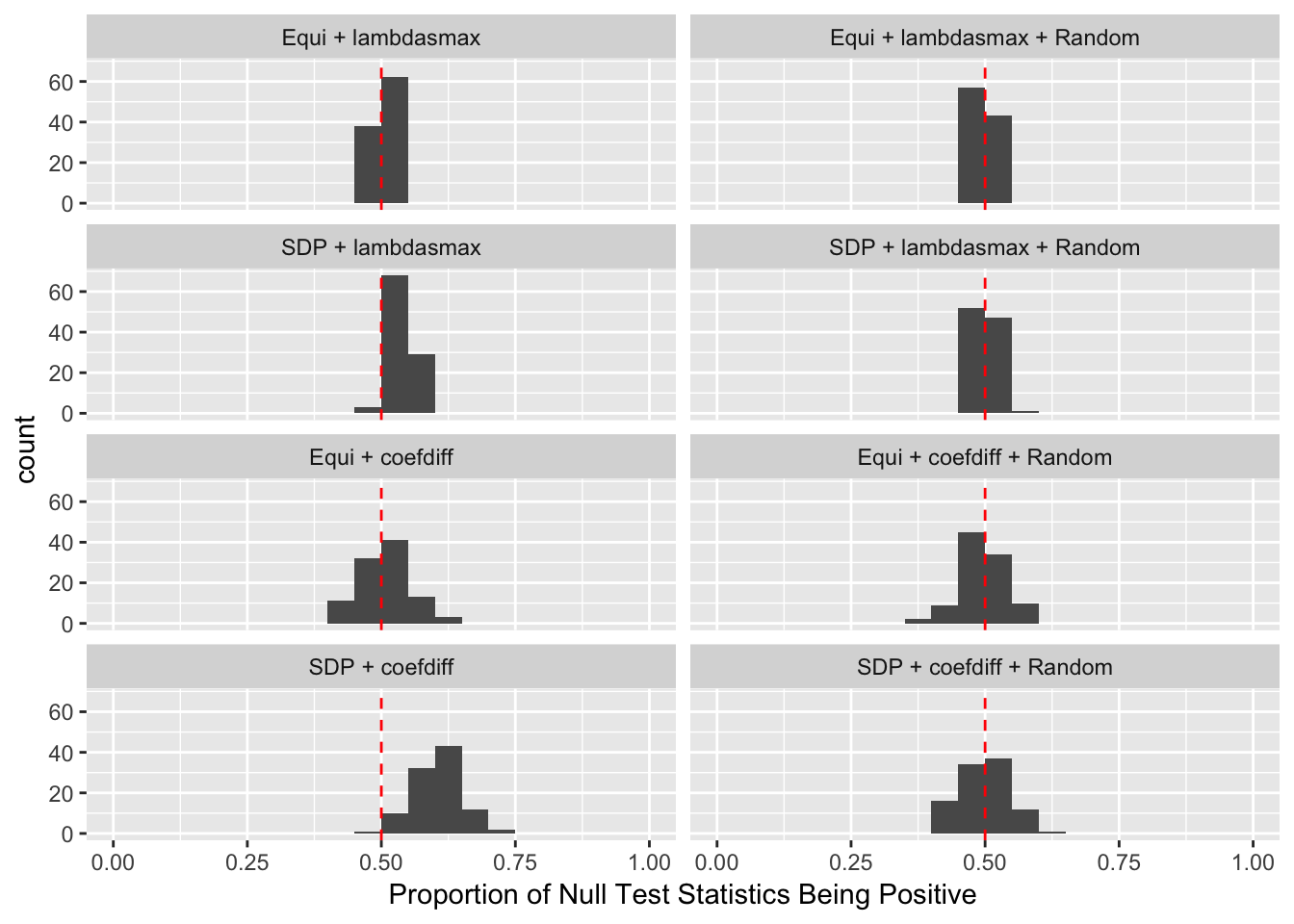

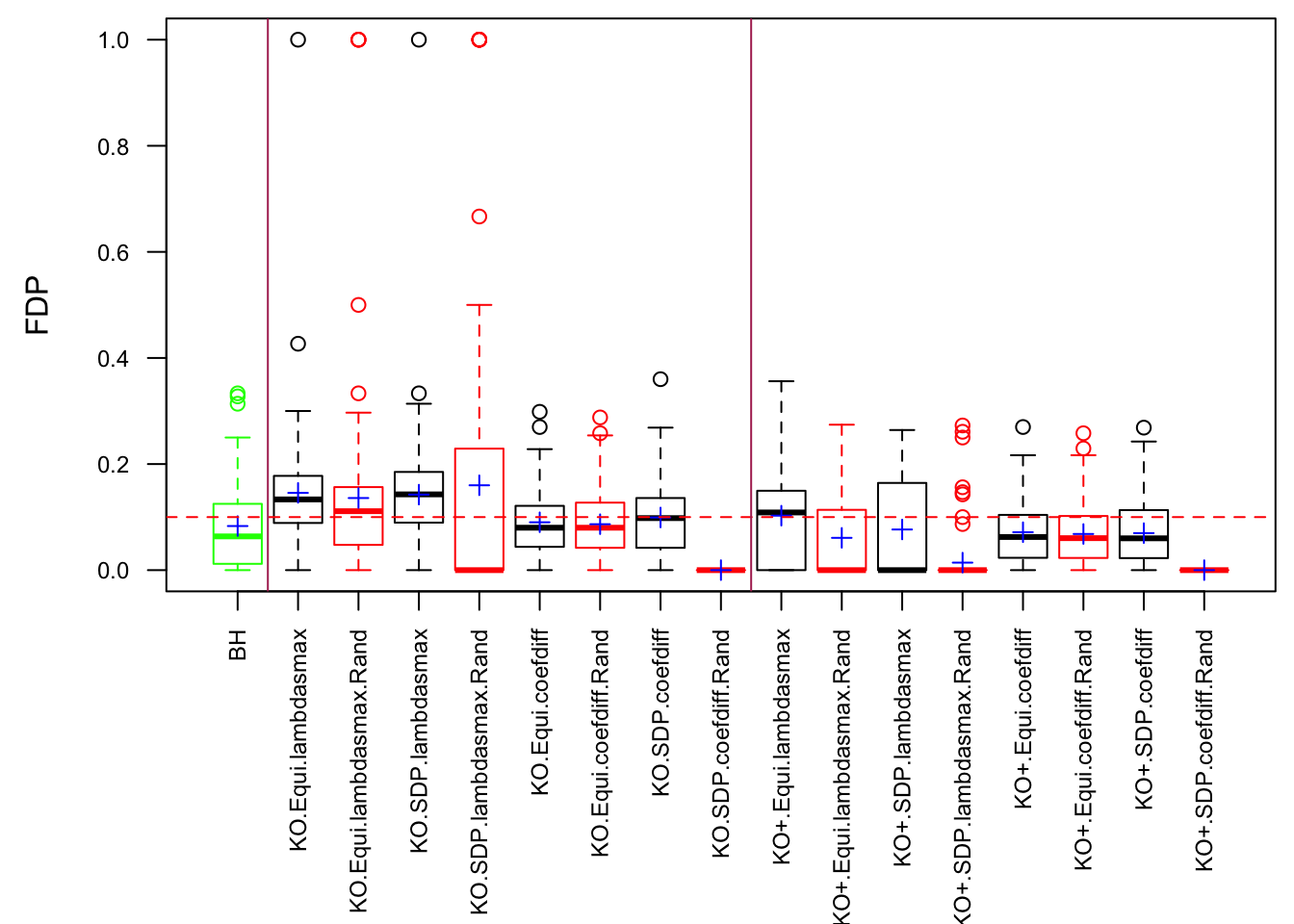

Fixed Design

Expand here to see past versions of unnamed-chunk-13-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

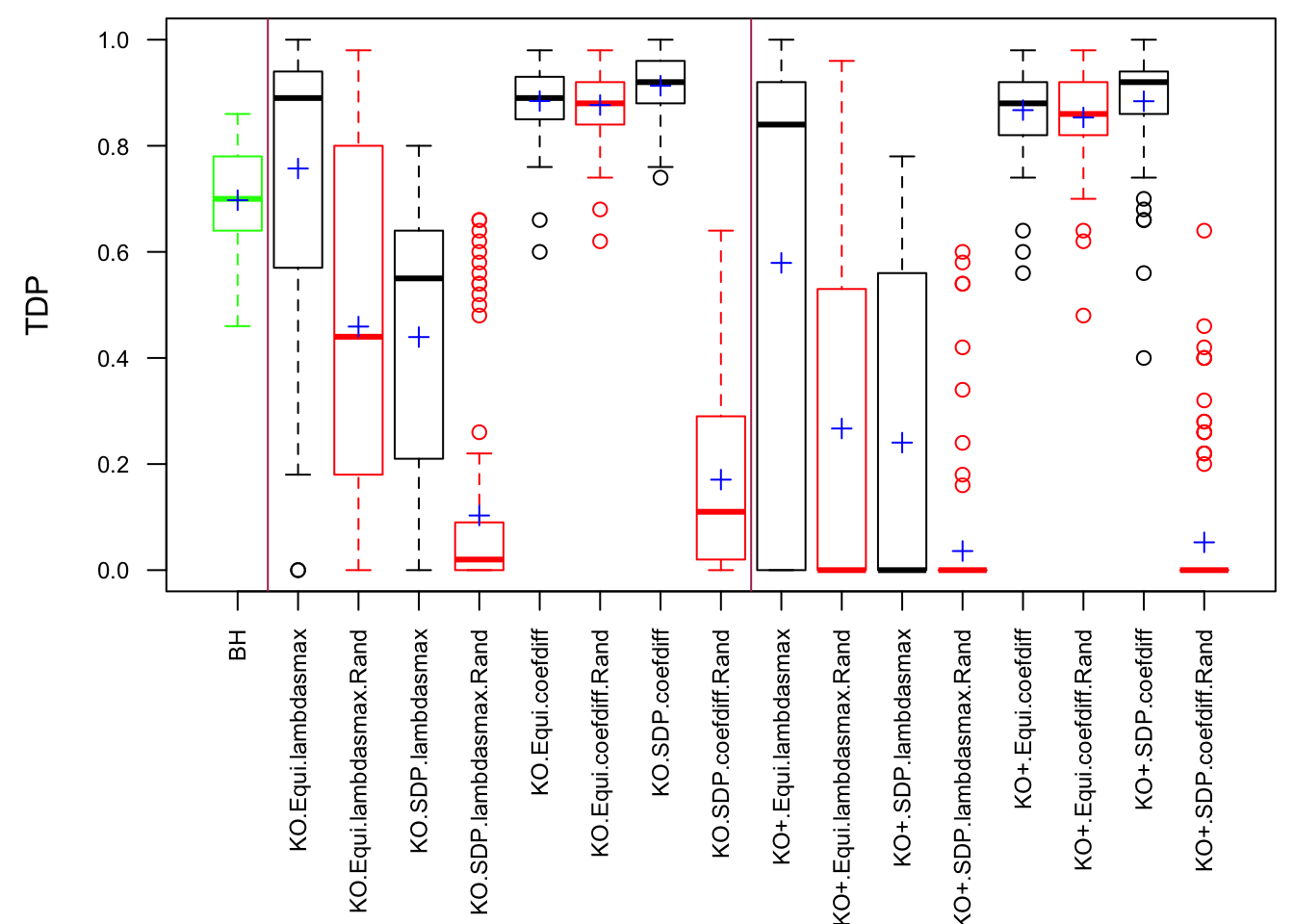

Expand here to see past versions of unnamed-chunk-13-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-13-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Model-\(X\) Design

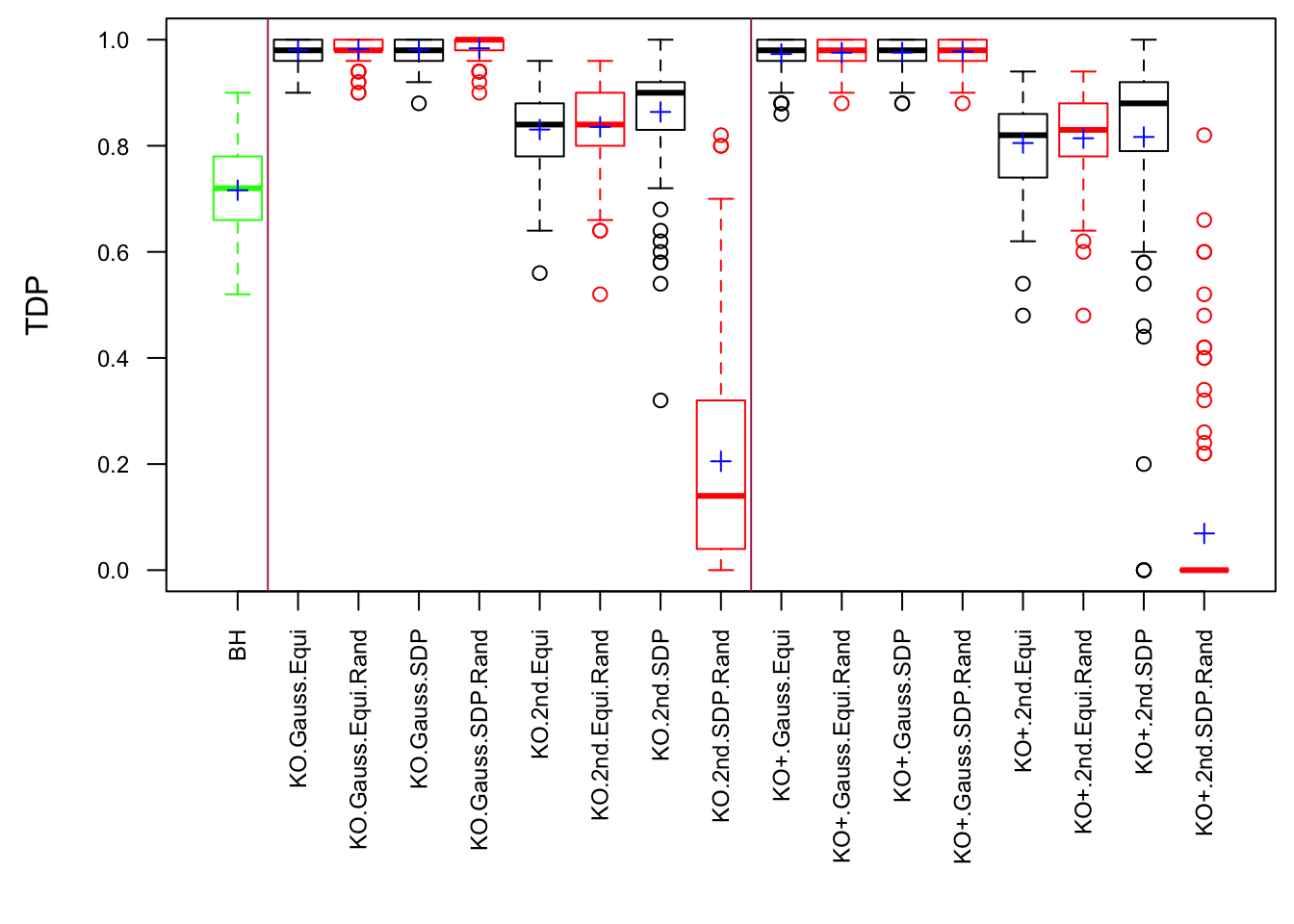

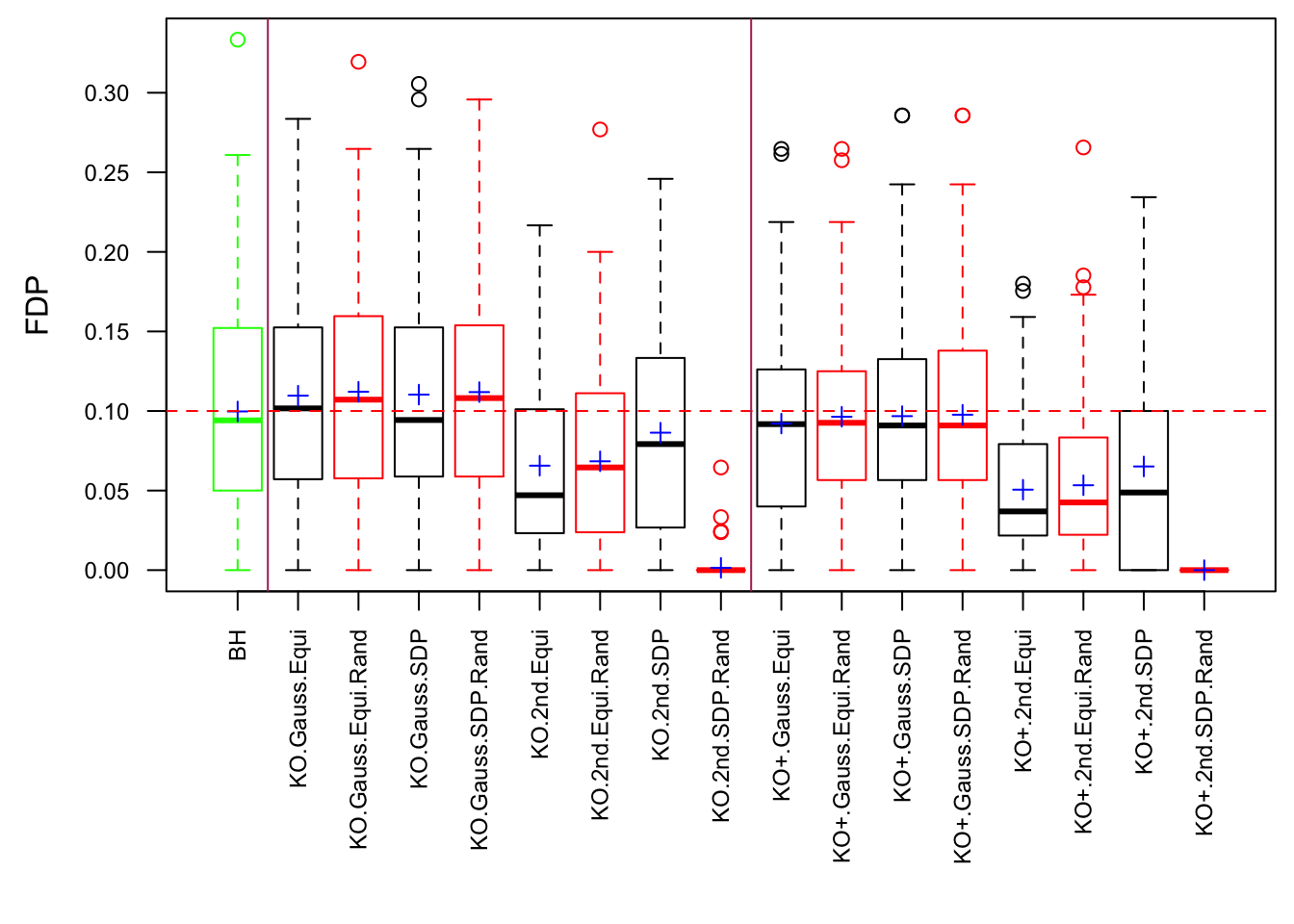

Expand here to see past versions of unnamed-chunk-14-1.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-14-2.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

Expand here to see past versions of unnamed-chunk-14-3.png:
Version Author Date
d3d259c LSun 2018-03-10
480666b LSun 2018-03-03

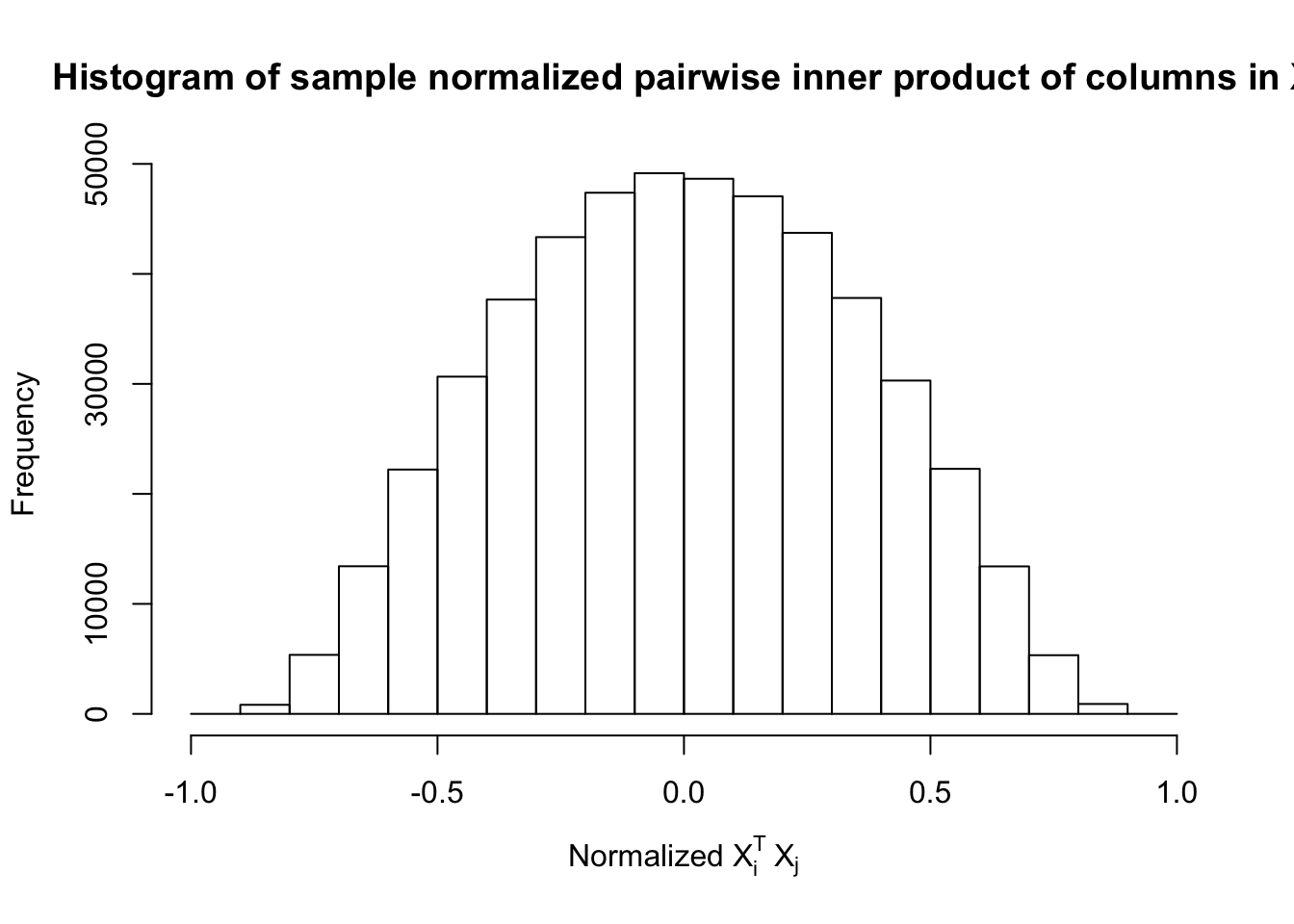

Scenario 4: Factor Model for \(X\)

\[ \begin{array}{c} \text{each row }X_{i}^T \sim N\left(0, \frac{1}n\Sigma_{p}\right) \\ \Sigma_p = \texttt{cov2cor}(B_{p \times d}B_{d\times p}^T + I)\\ B_{ij} \overset{iid}{\sim} N(0, 1) \end{array} \]

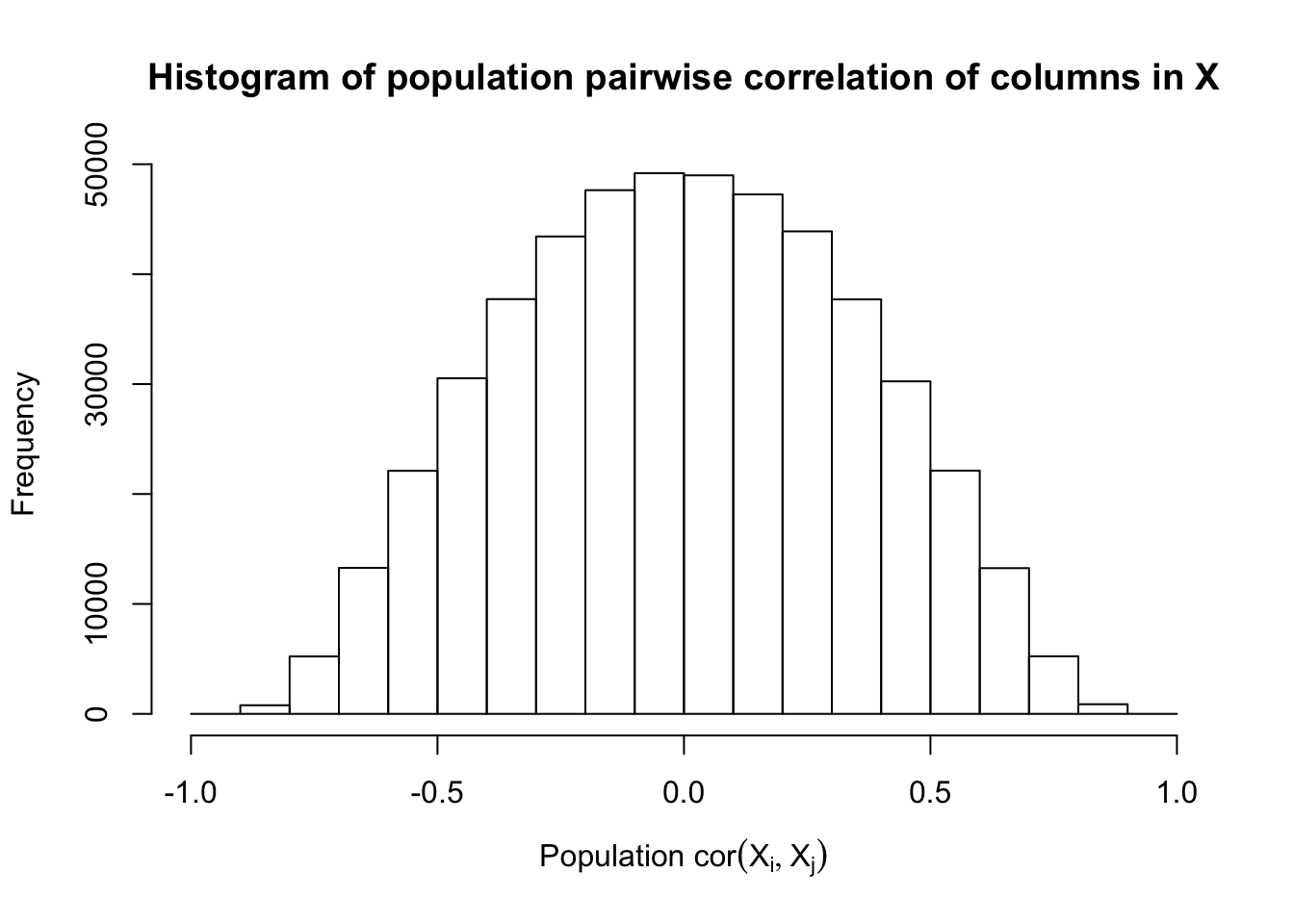

Expand here to see past versions of unnamed-chunk-15-1.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-15-2.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-15-3.png:
Version Author Date
d3d259c LSun 2018-03-10

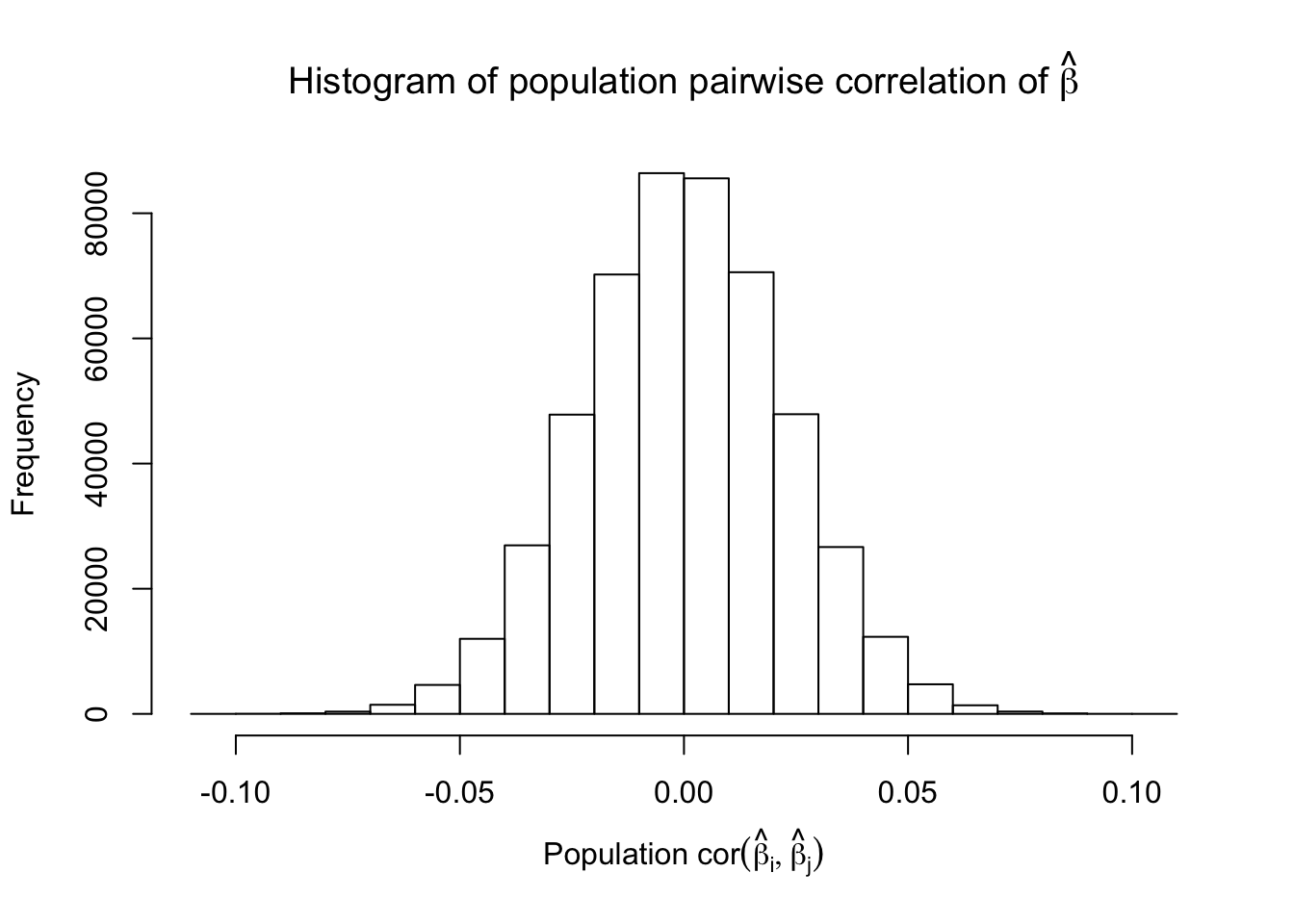

Expand here to see past versions of unnamed-chunk-15-4.png:
Version Author Date
d3d259c LSun 2018-03-10

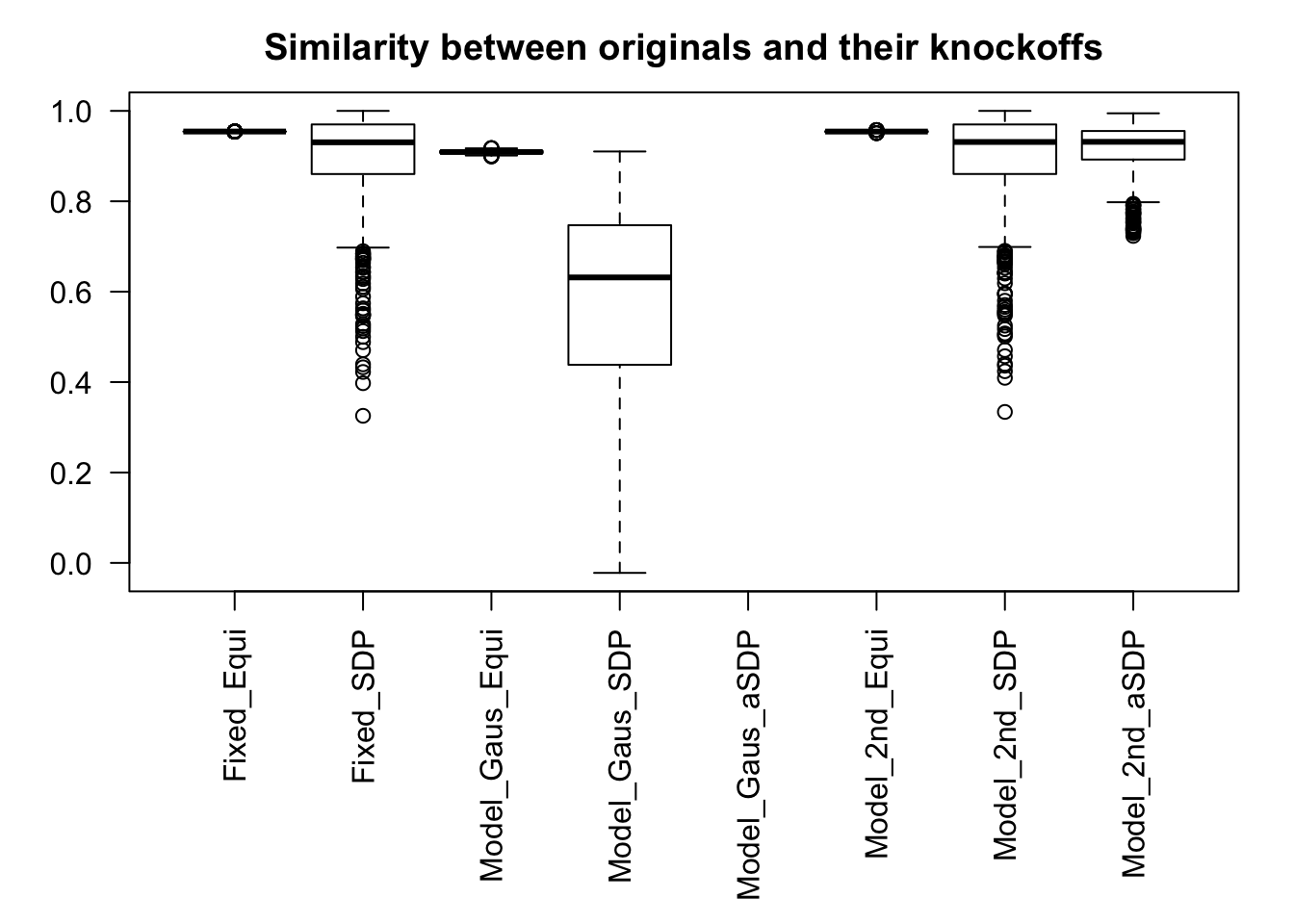

Expand here to see past versions of unnamed-chunk-15-5.png:
Version Author Date
d3d259c LSun 2018-03-10

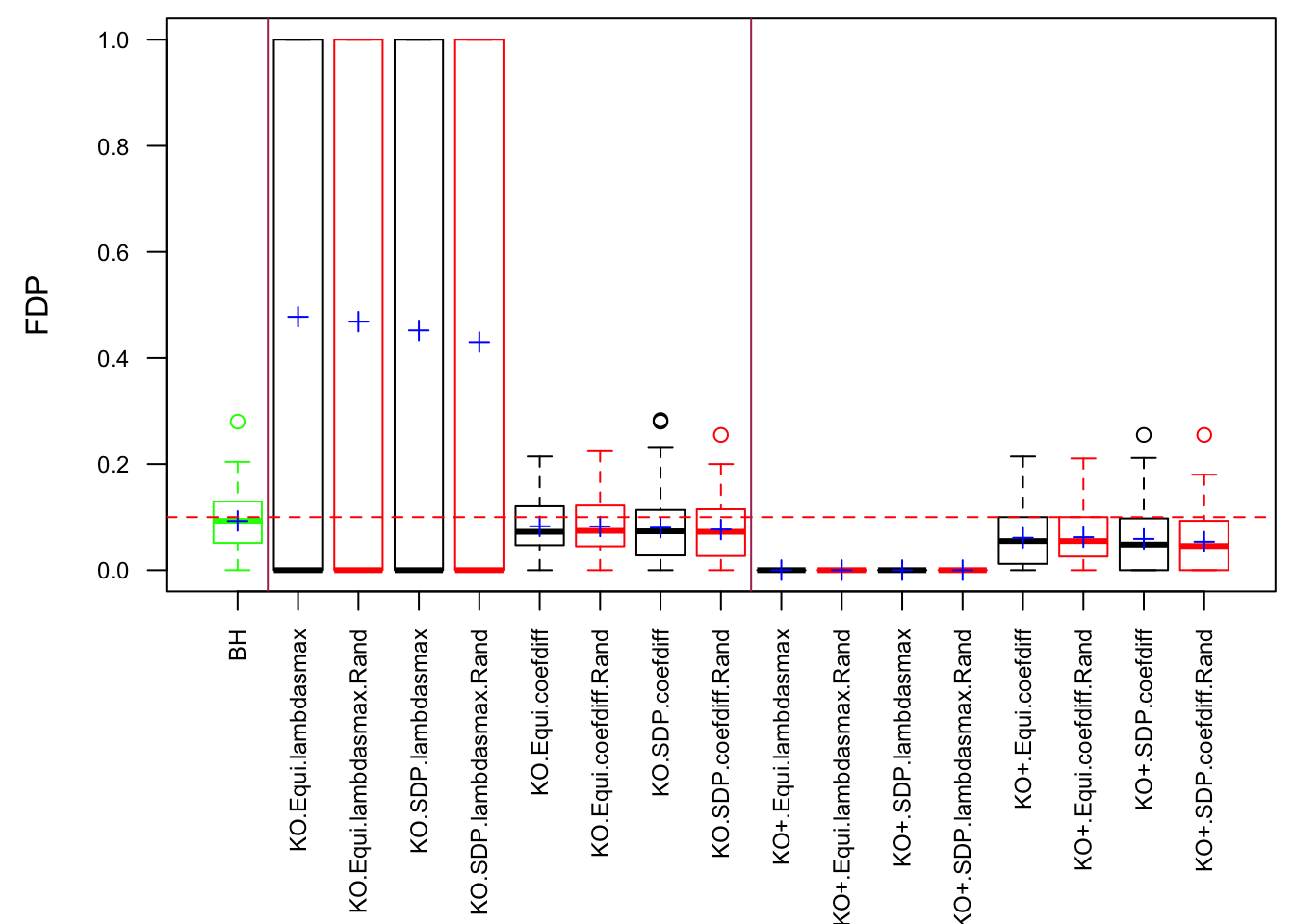

Fixed Design

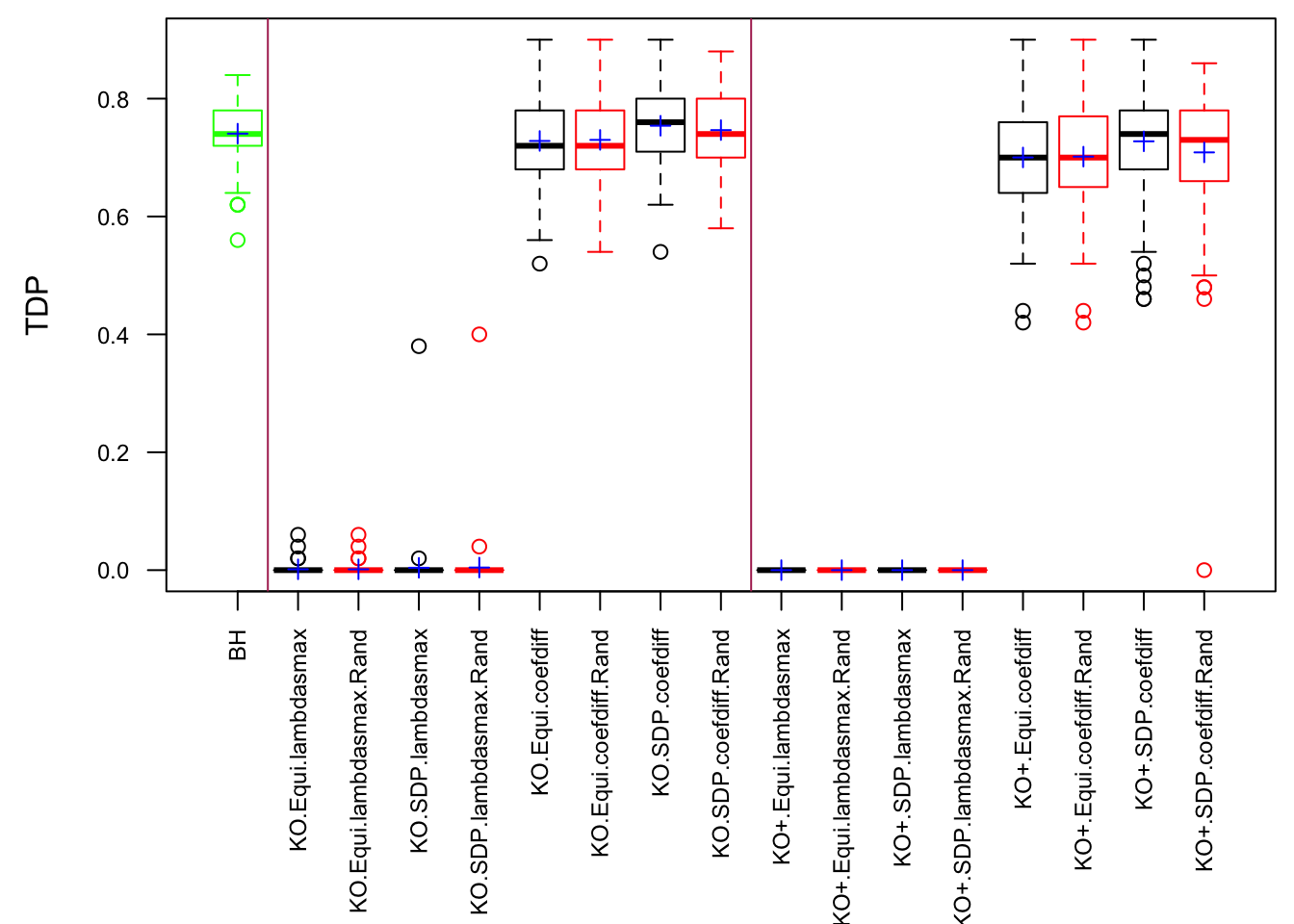

Expand here to see past versions of unnamed-chunk-16-1.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-16-2.png:
Version Author Date
d3d259c LSun 2018-03-10

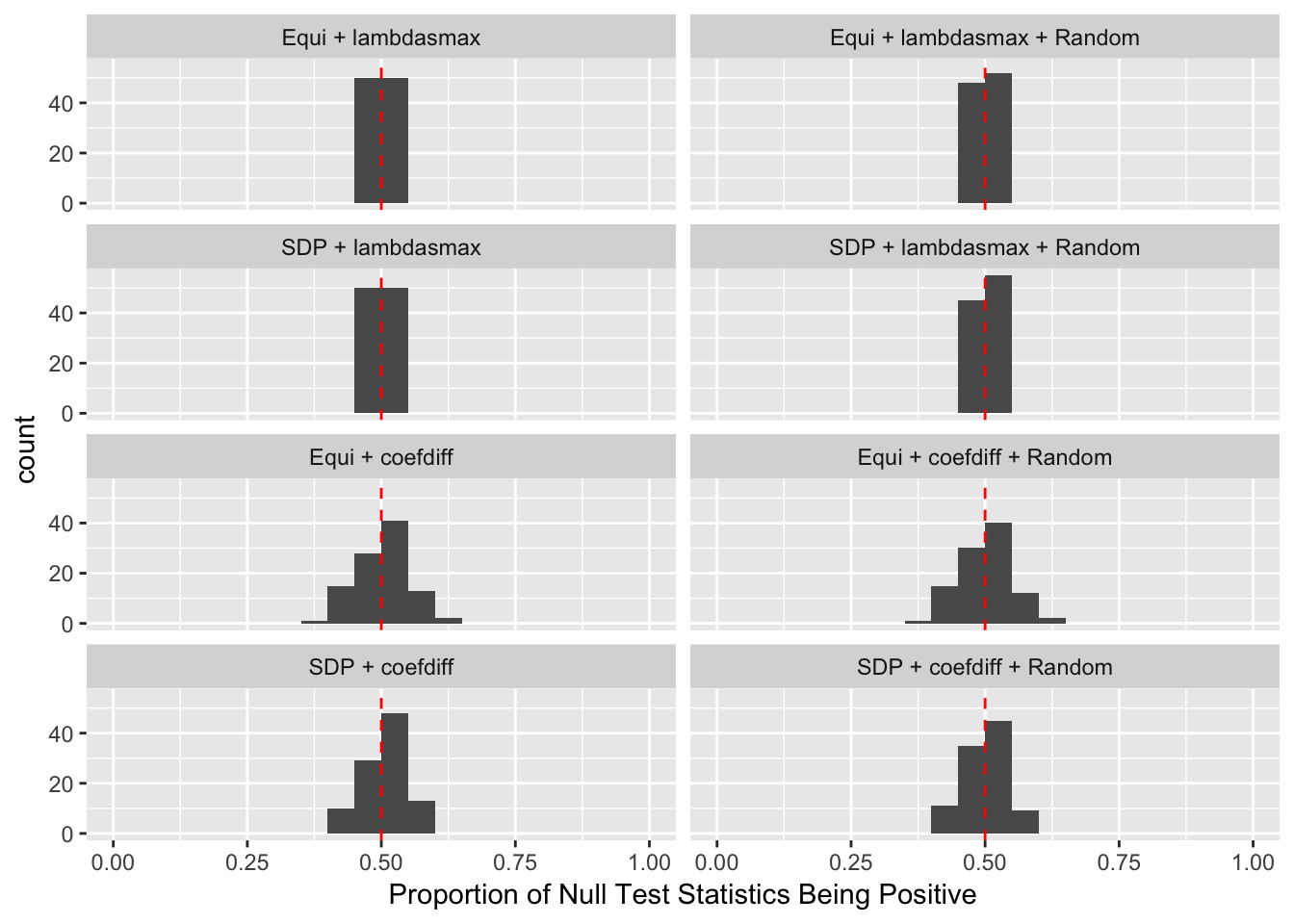

Expand here to see past versions of unnamed-chunk-16-3.png:
Version Author Date
d3d259c LSun 2018-03-10

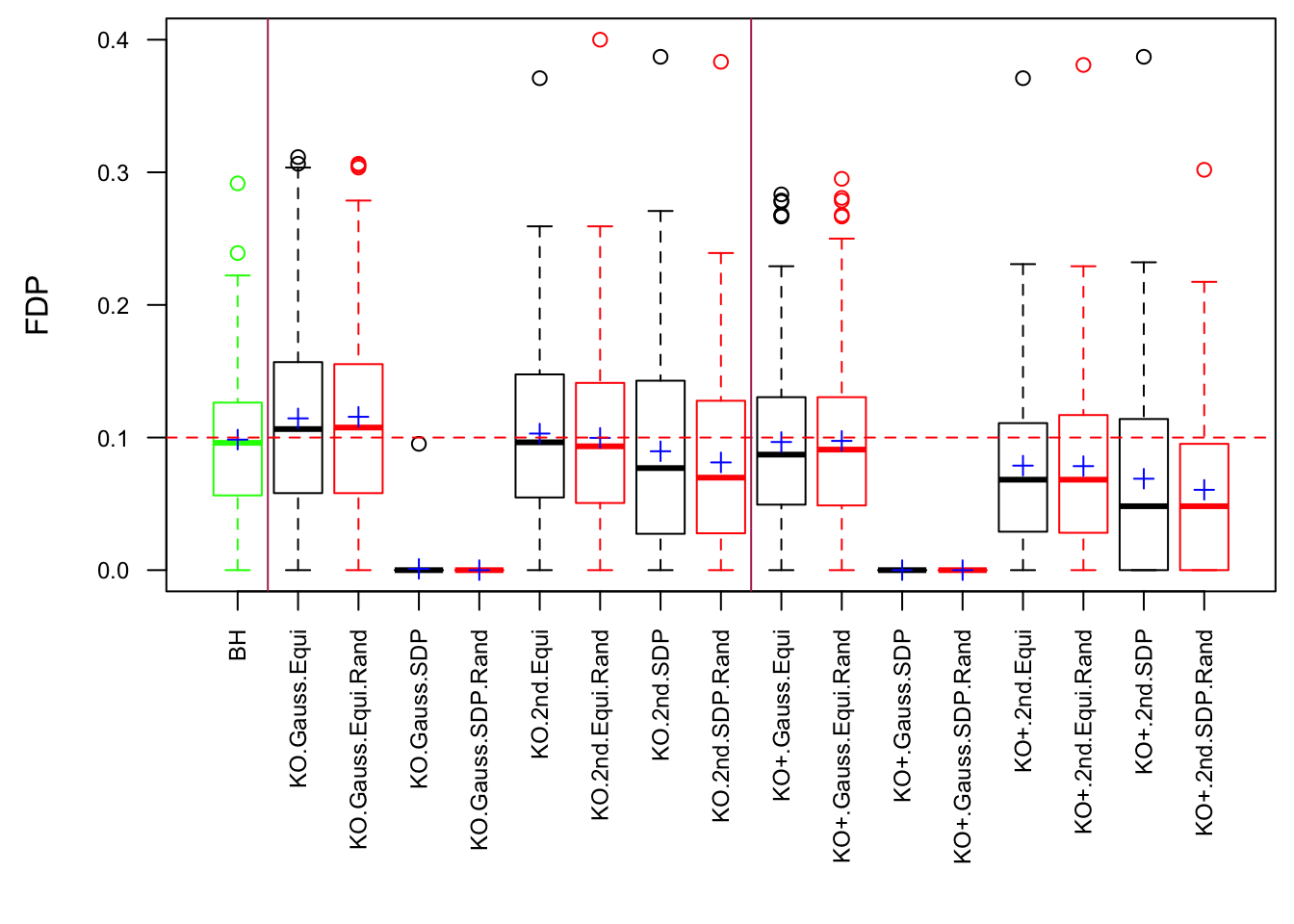

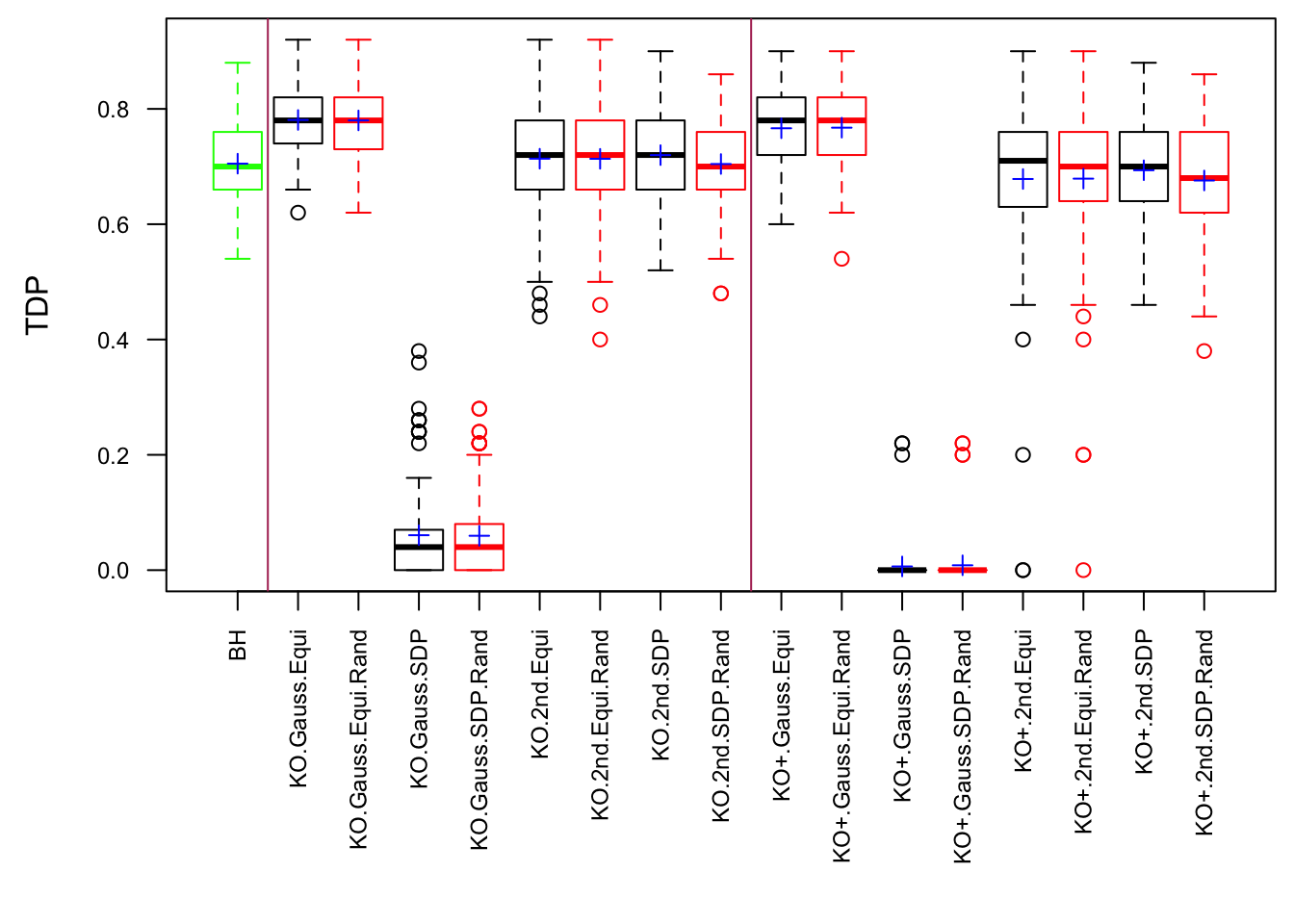

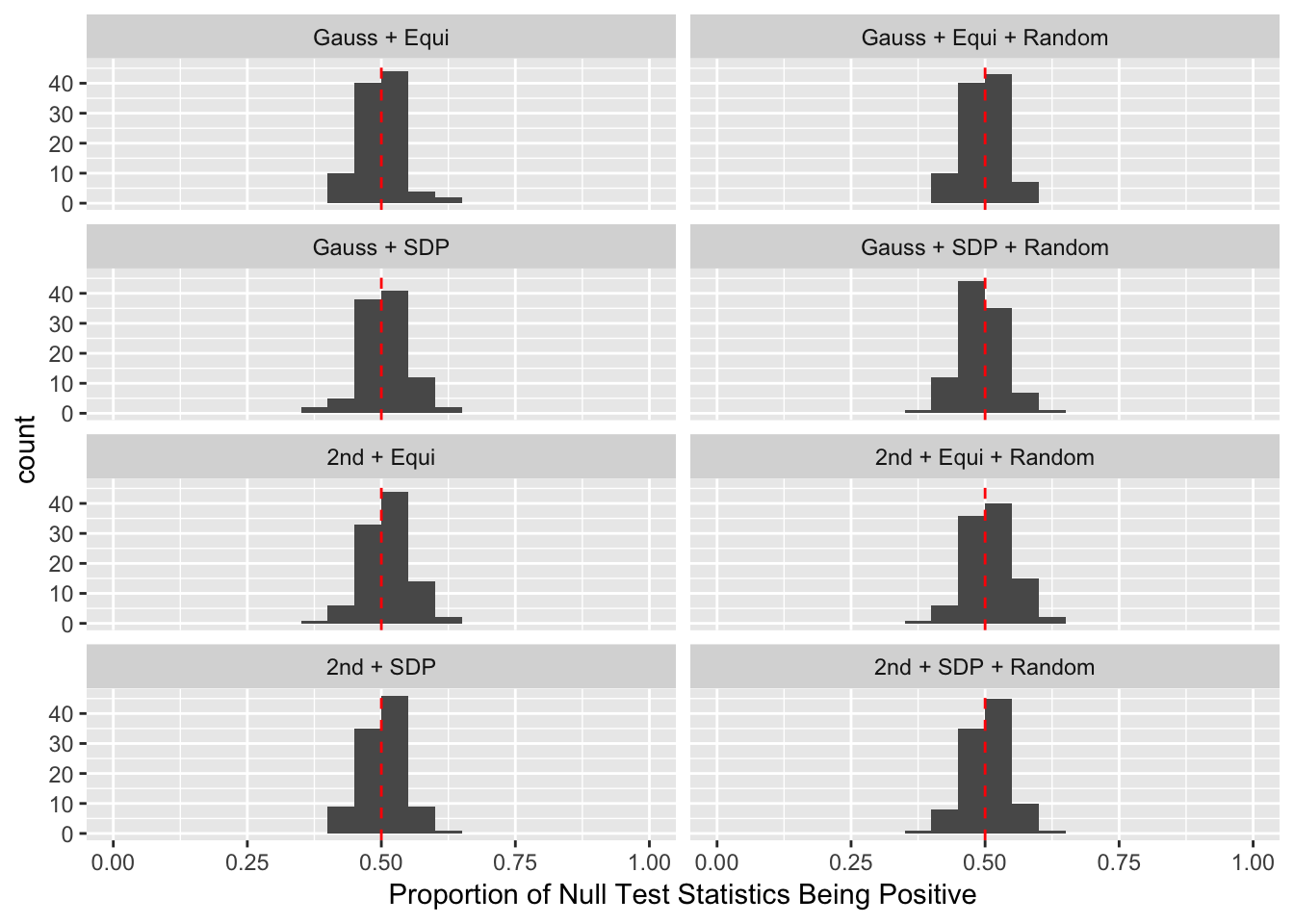

Model-\(X\) Design

Expand here to see past versions of unnamed-chunk-17-1.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-17-2.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-17-3.png:
Version Author Date
d3d259c LSun 2018-03-10

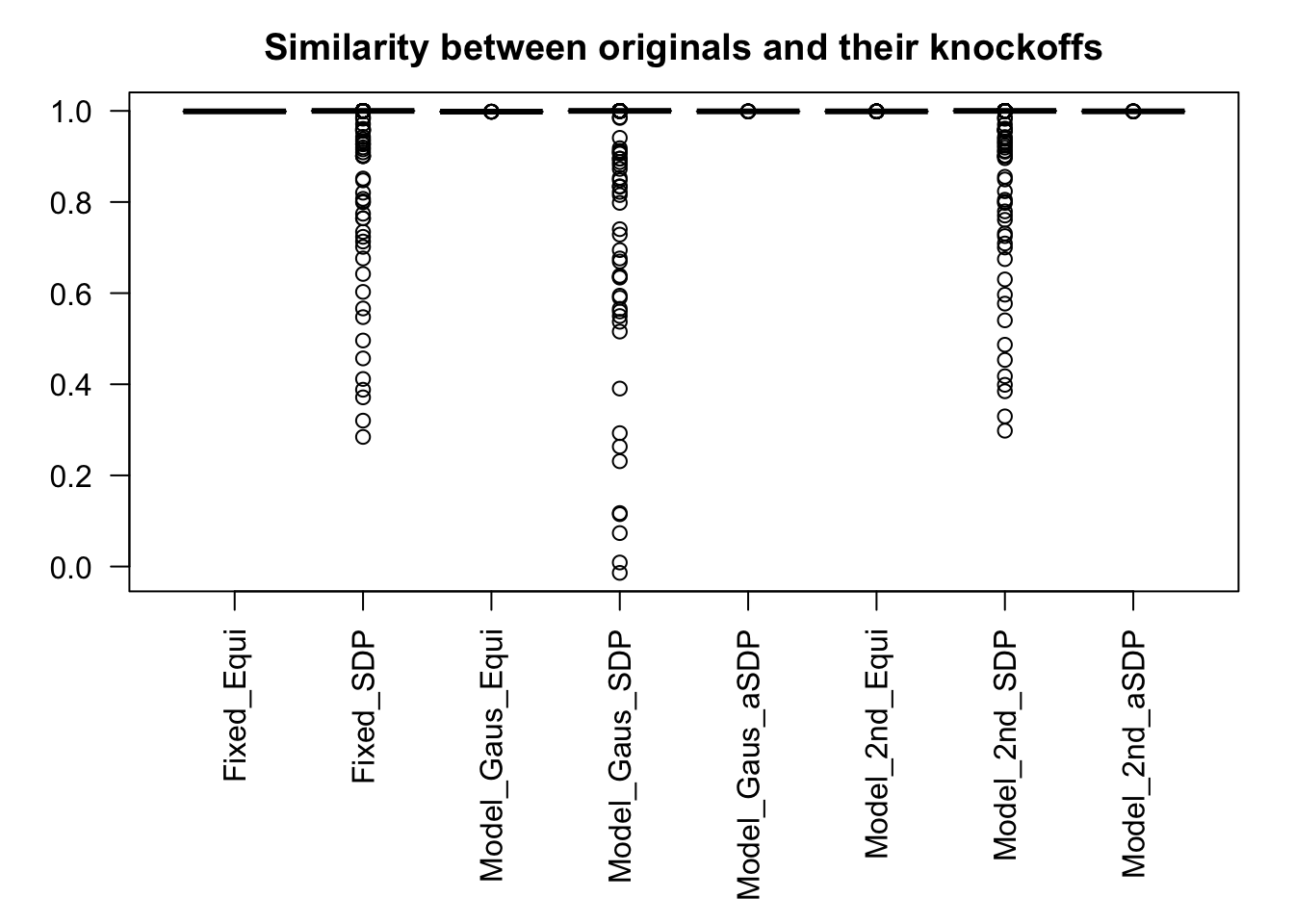

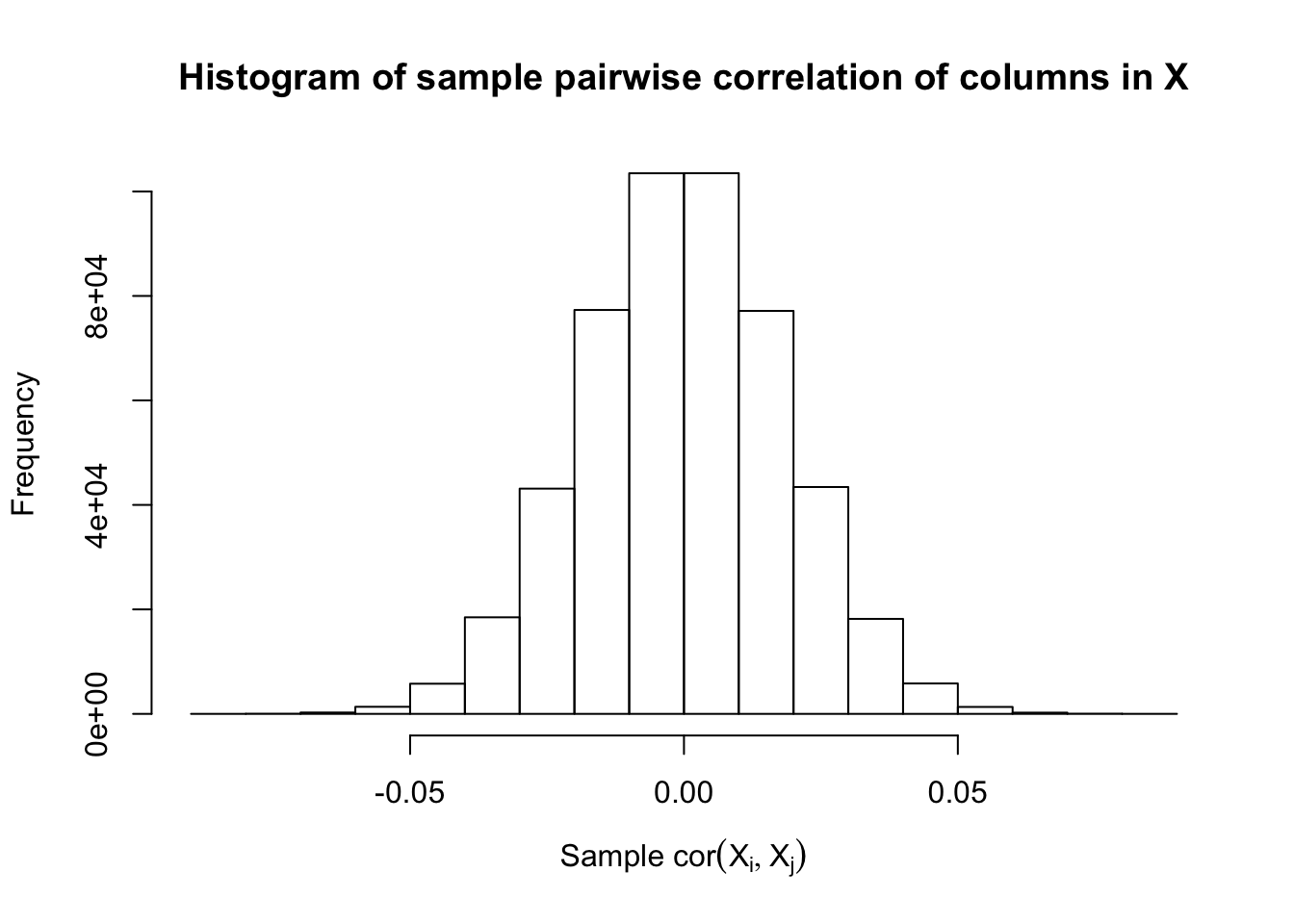

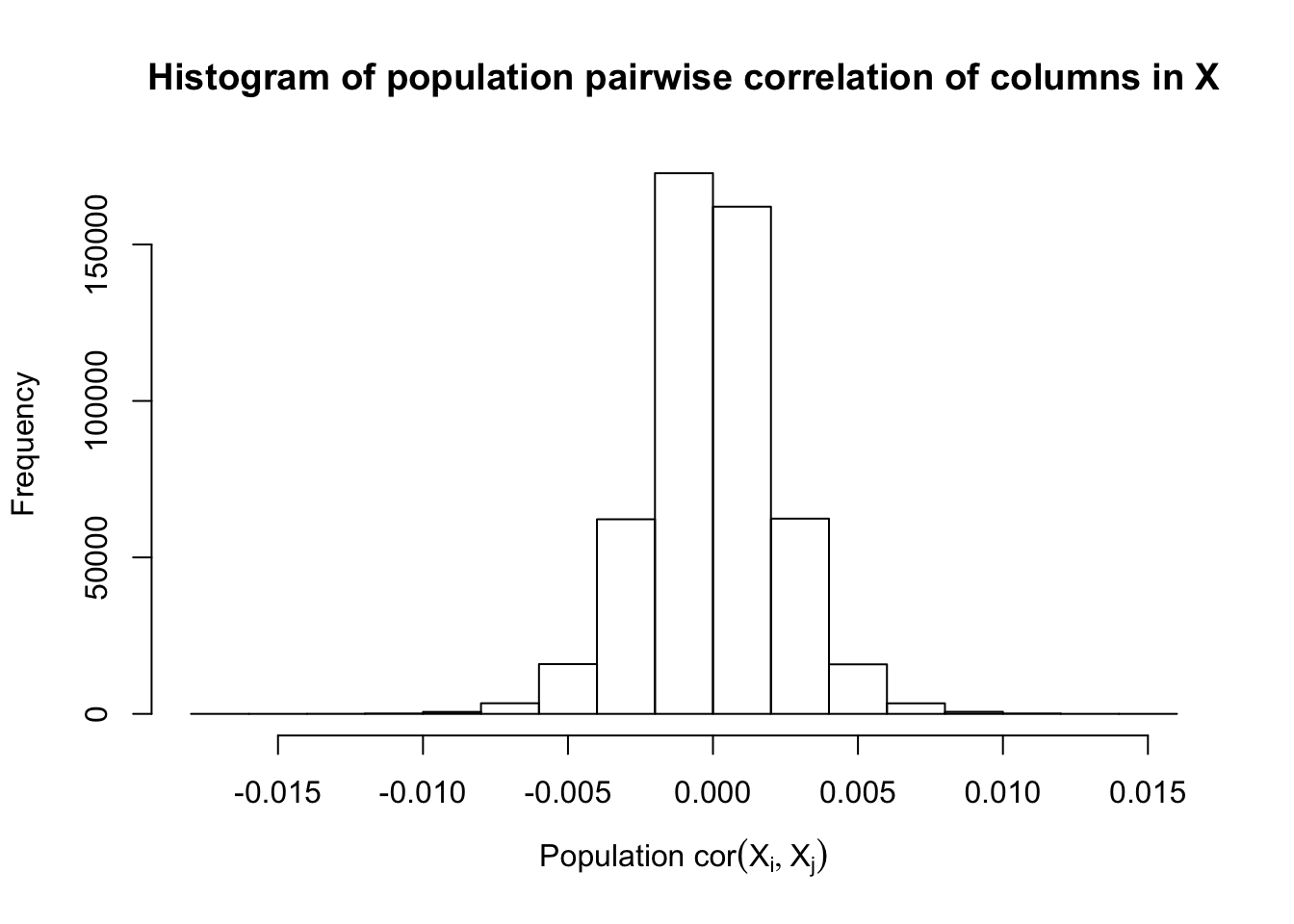

Scenario 5: Factor Model for \(\hat\beta\)

\[ \begin{array}{c} \text{each row }X_{i}^T \sim N\left(0, \frac{1}n\Sigma_{p}\right) \\ \Sigma_p = \texttt{cov2cor}(\left(B_{p \times d}B_{d\times p}^T + I\right)^{-1})\\ B_{ij} \overset{iid}{\sim} N(0, 1) \end{array} \]

Expand here to see past versions of unnamed-chunk-18-1.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-18-2.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-18-3.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-18-4.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-18-5.png:
Version Author Date
d3d259c LSun 2018-03-10

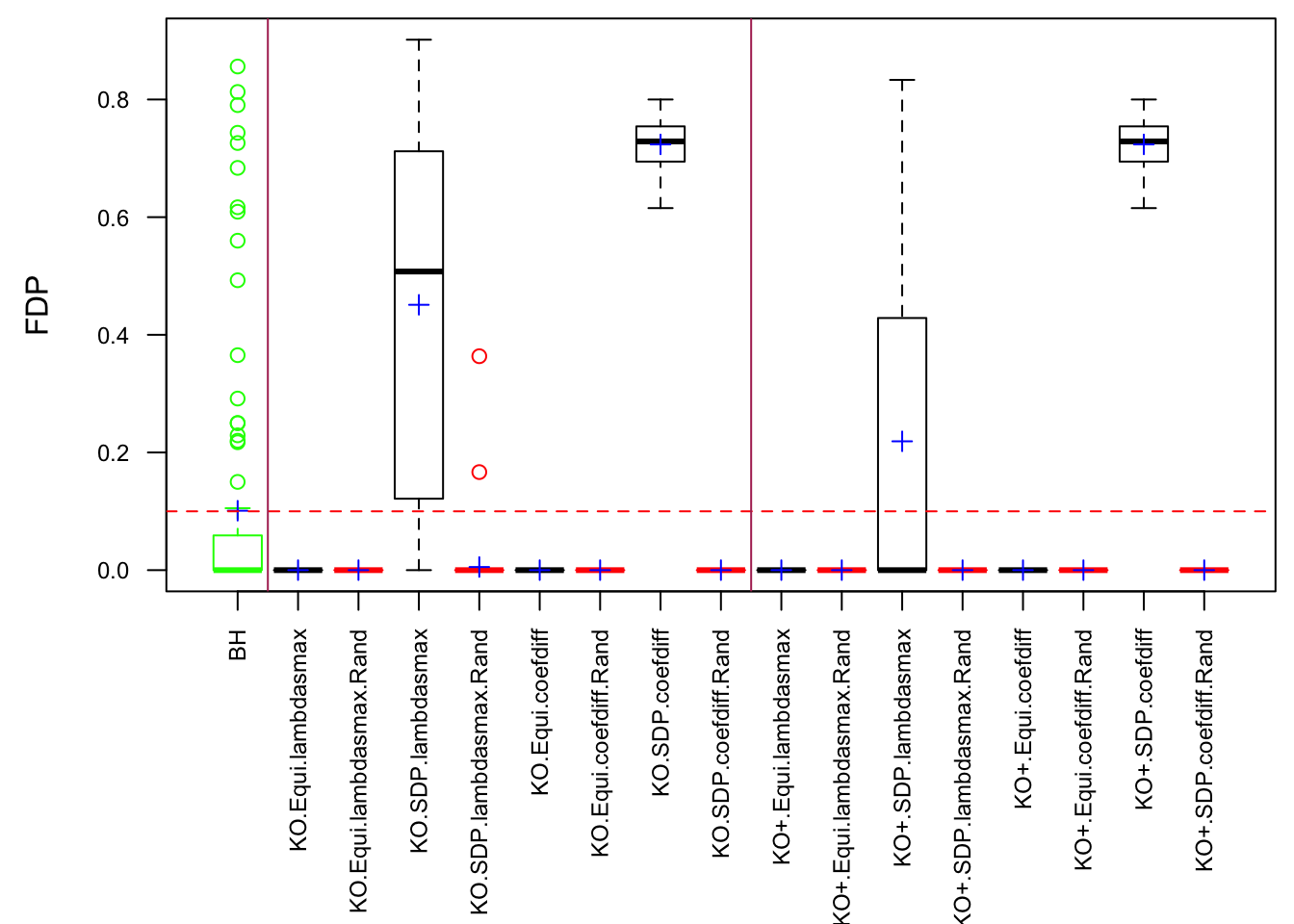

Fixed Design

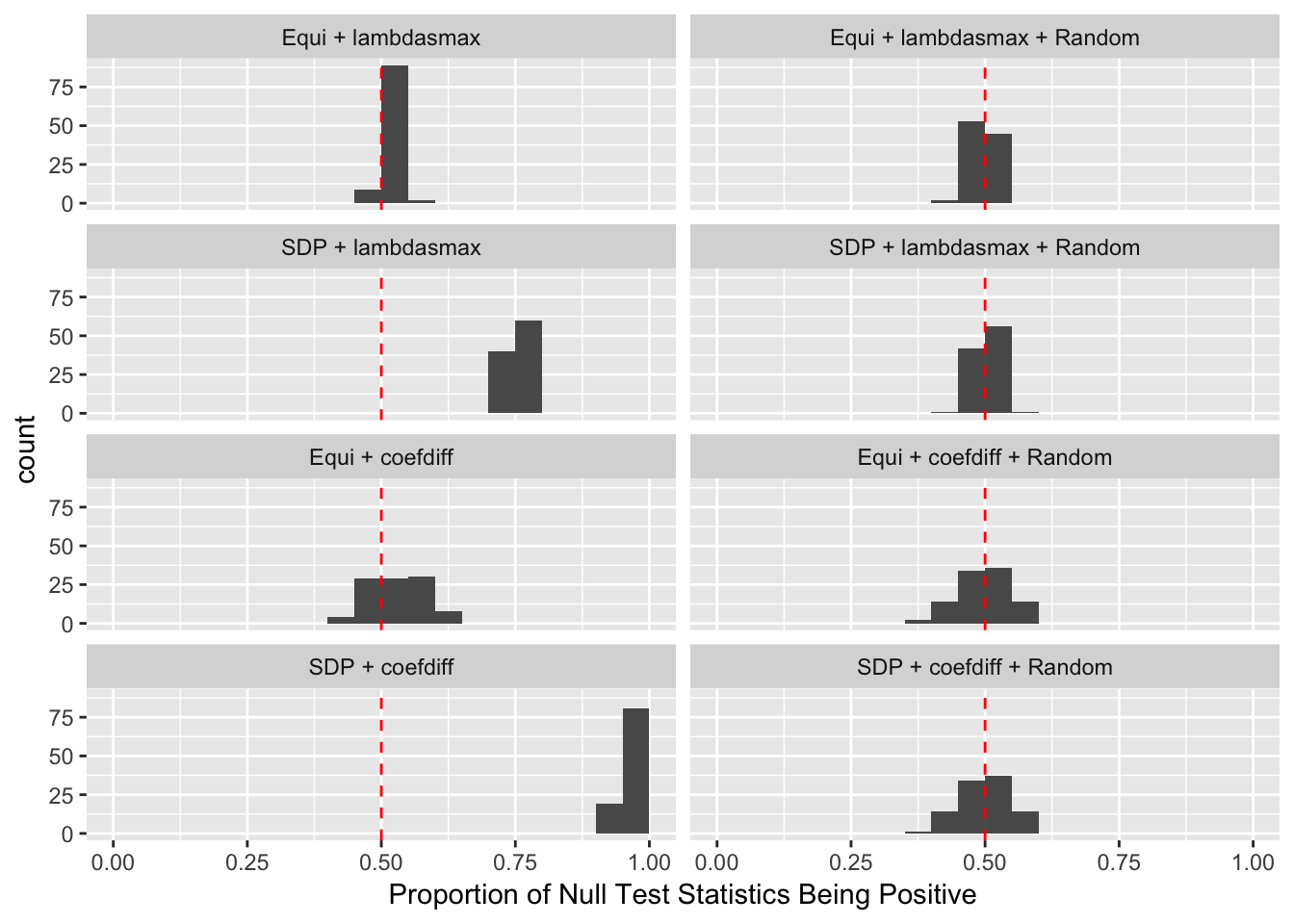

Expand here to see past versions of unnamed-chunk-19-1.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-19-2.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-19-3.png:
Version Author Date
d3d259c LSun 2018-03-10

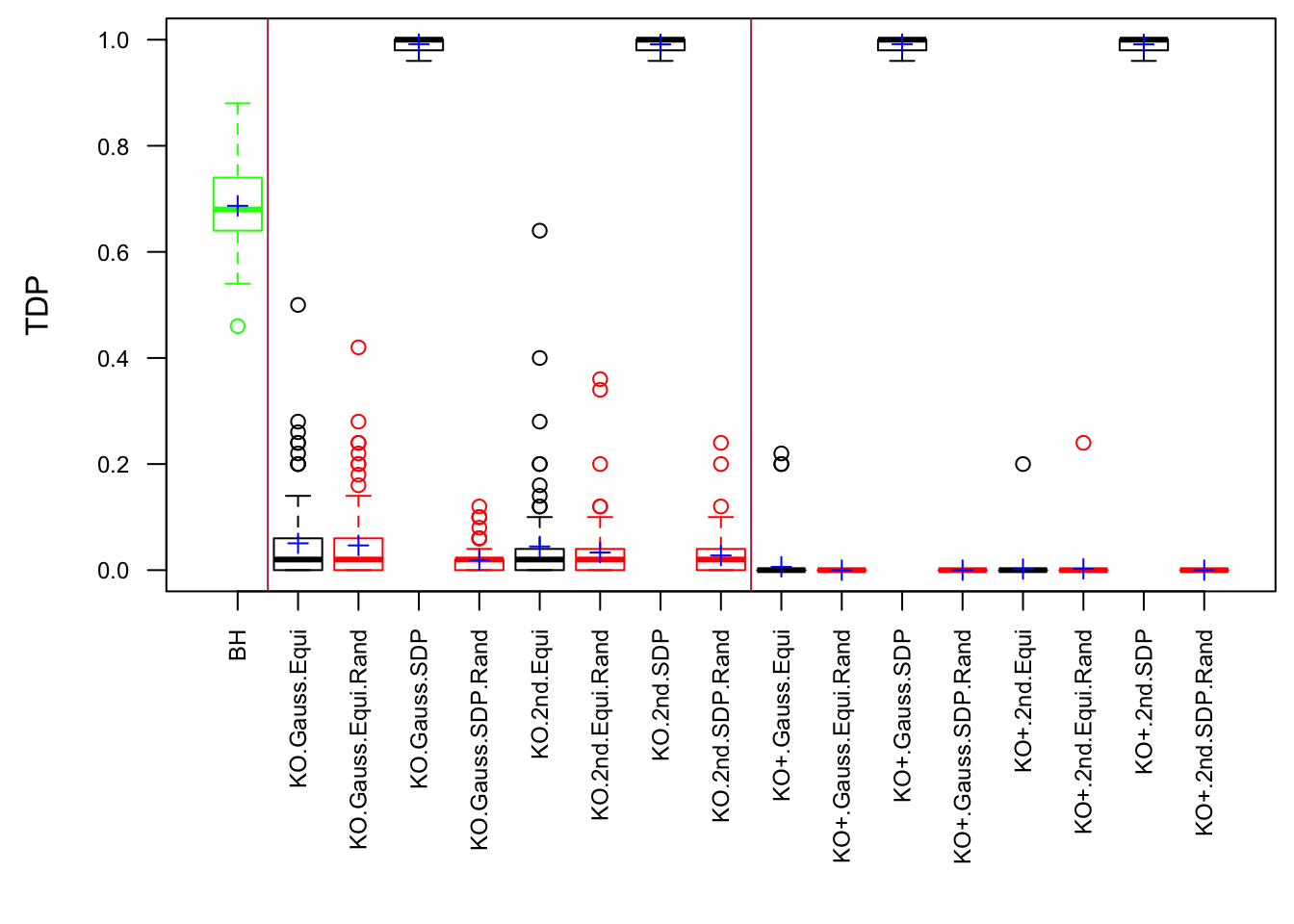

Model-\(X\) Design

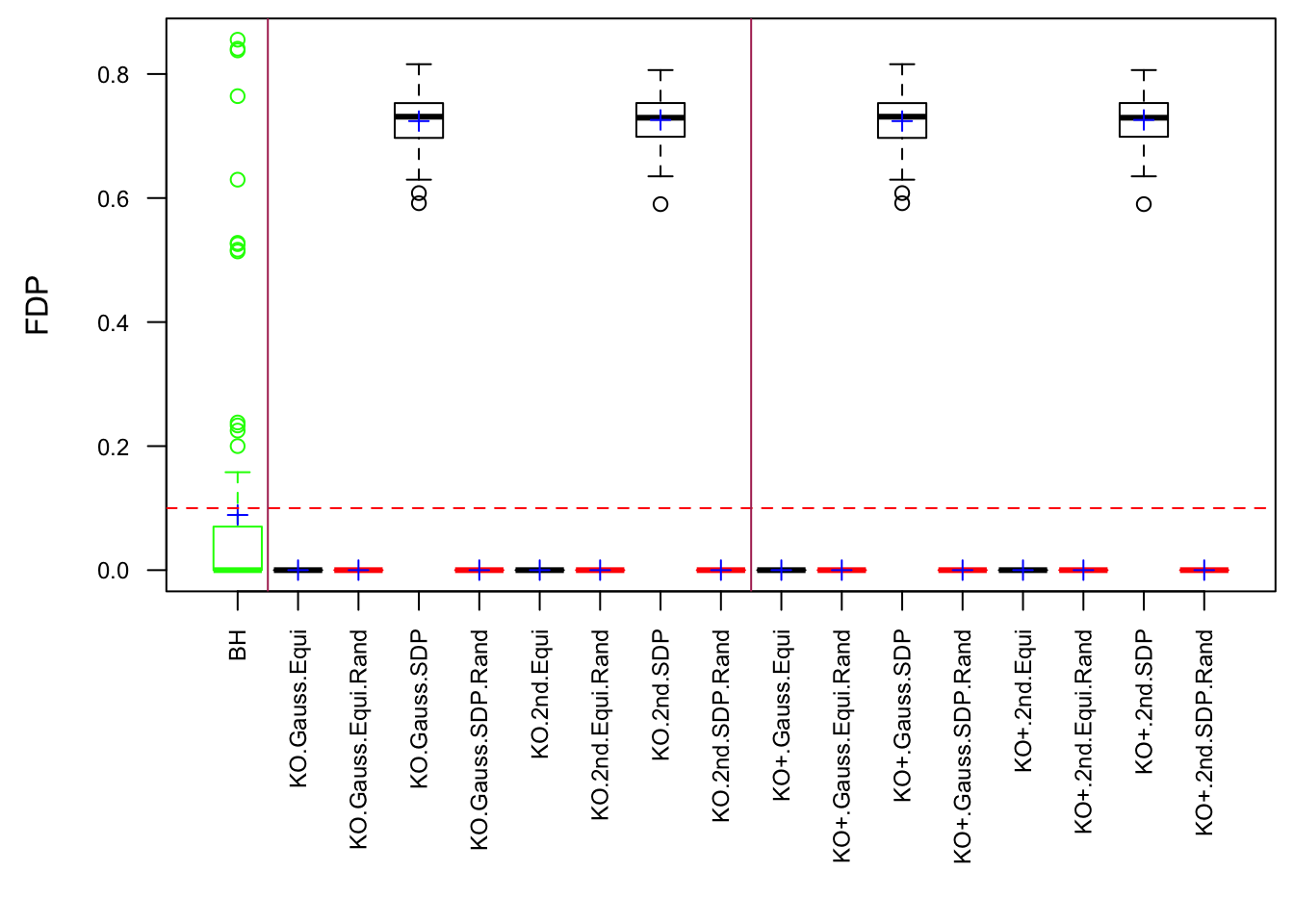

Expand here to see past versions of unnamed-chunk-20-1.png:
Version Author Date
d3d259c LSun 2018-03-10

Expand here to see past versions of unnamed-chunk-20-2.png:
Version Author Date
d3d259c LSun 2018-03-10

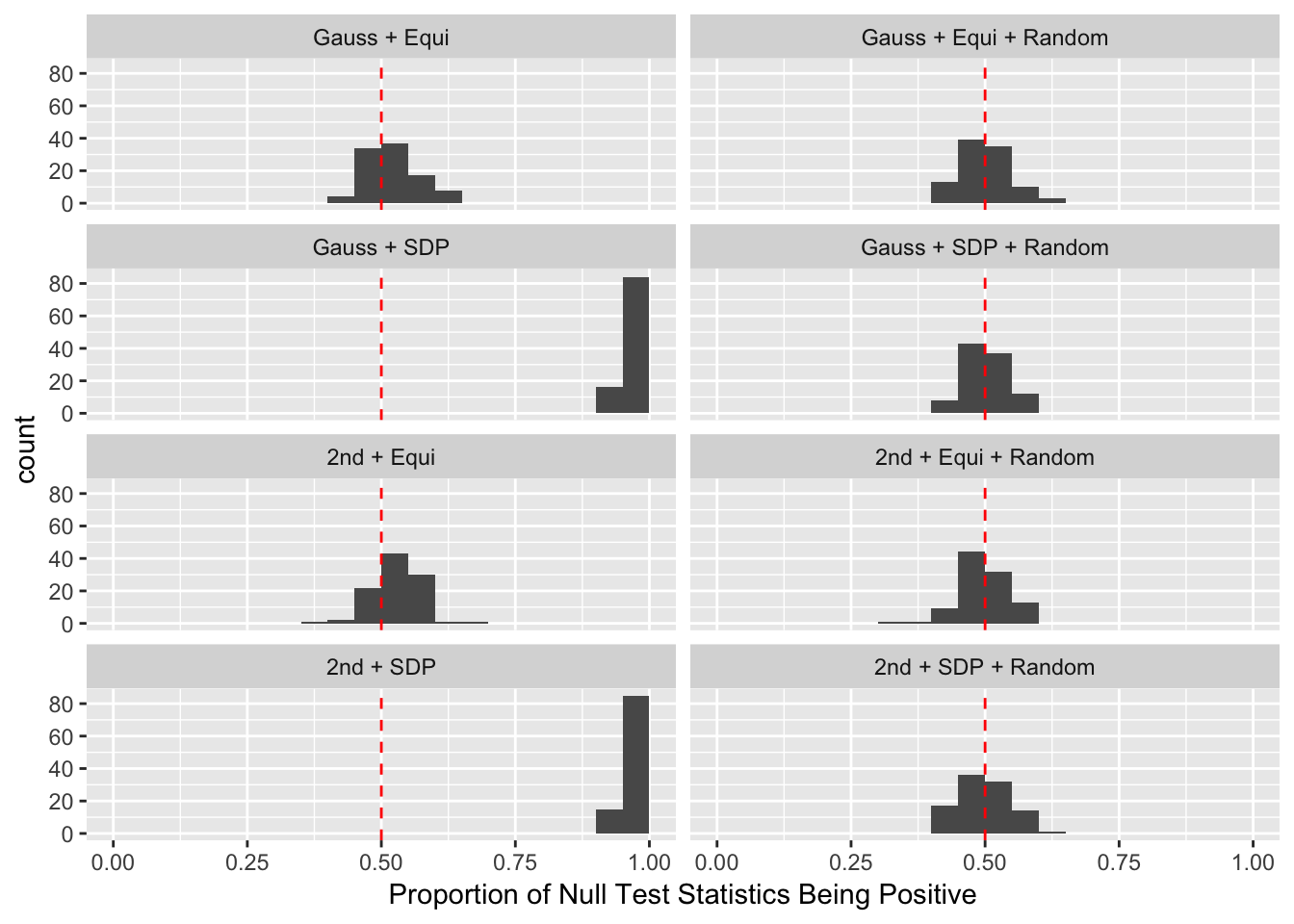

Expand here to see past versions of unnamed-chunk-20-3.png:
Version Author Date
d3d259c LSun 2018-03-10

Observation

Model-\(X\) knockoff indeed increases power substantially.

  • Reason 1: it builds better knockoffs as they are less similar to originals, since Model-\(X\) is about population correlation not sample correlation.

  • Reason 2: Model-\(X\) unleashes a large swarm of complicated test statistics which are not applicable for Fixed-\(X\).

However, for that particular case when we have \[\Sigma_\hat\beta\] as a factor model, Model-\(X\) knockoffs are still not good.

Session information

sessionInfo()
R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.4

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] parallel  stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
[1] lattice_0.20-35 doMC_1.3.5      iterators_1.0.9 foreach_1.4.4
[5] ggplot2_2.2.1   reshape2_1.4.3  Matrix_1.2-12   knockoff_0.3.0

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.16      compiler_3.4.3    pillar_1.0.1
 [4] git2r_0.21.0      plyr_1.8.4        workflowr_1.0.1
 [7] R.methodsS3_1.7.1 R.utils_2.6.0     tools_3.4.3
[10] digest_0.6.15     evaluate_0.10.1   tibble_1.4.1
[13] gtable_0.2.0      rlang_0.1.6       yaml_2.1.18
[16] stringr_1.3.0     knitr_1.20        rprojroot_1.3-2
[19] grid_3.4.3        rmarkdown_1.9     magrittr_1.5
[22] whisker_0.3-2     backports_1.1.2   scales_0.5.0
[25] codetools_0.2-15  htmltools_0.3.6   colorspace_1.3-2
[28] labeling_0.3      stringi_1.1.6     lazyeval_0.2.1
[31] munsell_0.4.3     R.oo_1.21.0

This reproducible R Markdown analysis was created with workflowr 1.0.1
