Introduction

The true \(\beta\) are simulated as \(\beta \sim \pi_0\delta_0 + (1 - \pi_0)N(0, \sigma_\beta^2)\).

varbvs.get.lfsr <- function (fit) {

# For each variable, and each hyperparameter setting, get the
# posterior probability that the regression coefficient is exactly
# zero.
p0 <- 1 - fit$alpha

# For each variable, and for each hyperparameter setting, get the
# posterior probability that the regression coefficient is negative.
pn <- with(fit,alpha * pnorm(0,mu,sqrt(s)))

# For each variable, and for each hyperparameter setting, ompute the
# local false sign rate (LFSR) following the formula given in
# Matthew's Biostatistics paper, "False discovery rates: a new deal".
p        <- nrow(fit$alpha)
k          <- ncol(fit$alpha)
lfsr     <- matrix(0,p,k)
b        <- pn > 0.5*(1 - p0)
lfsr[b]  <- 1 - pn[b]
lfsr[!b] <- p0[!b] + pn[!b]

# Average the average LFSR over the hyperparameter settings, weighted
# by the probability of each hyperparameter setting.
lfsr <-    c(lfsr %*% fit$w)

return(lfsr)
}

\(n > p\)

n <- 2000
p <- 1000
k <- 200
m <- 100
q <- 0.1

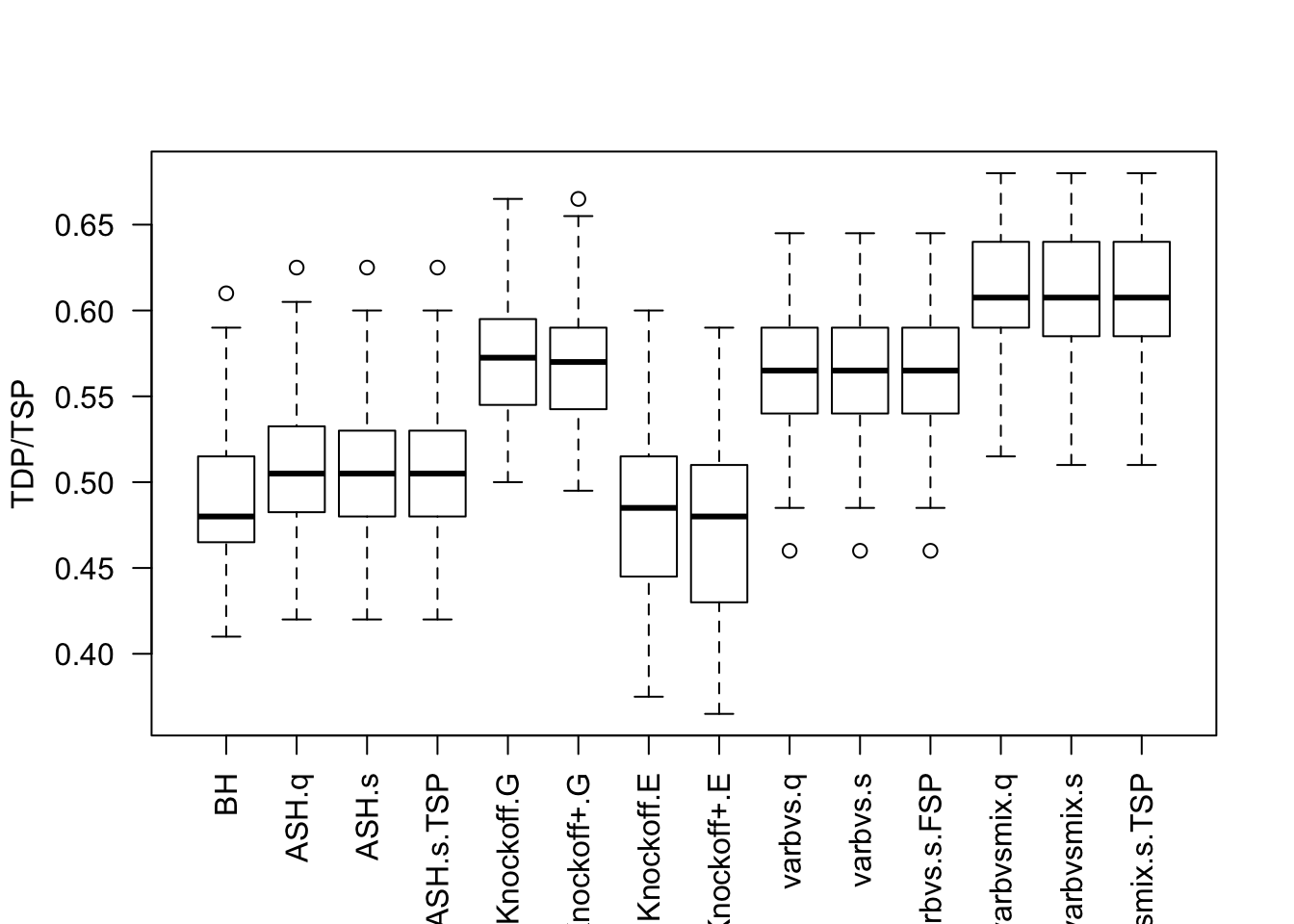

Independent design

\(X_{n \times p}\) has independent columns simulated from \(N(0, (1/\sqrt n)^2)\) so they are roughly normalized.

Expand here to see past versions of unnamed-chunk-6-1.png:
Version Author Date
d93edc5 LSun 2018-04-14

Expand here to see past versions of unnamed-chunk-6-2.png:
Version Author Date
d93edc5 LSun 2018-04-14

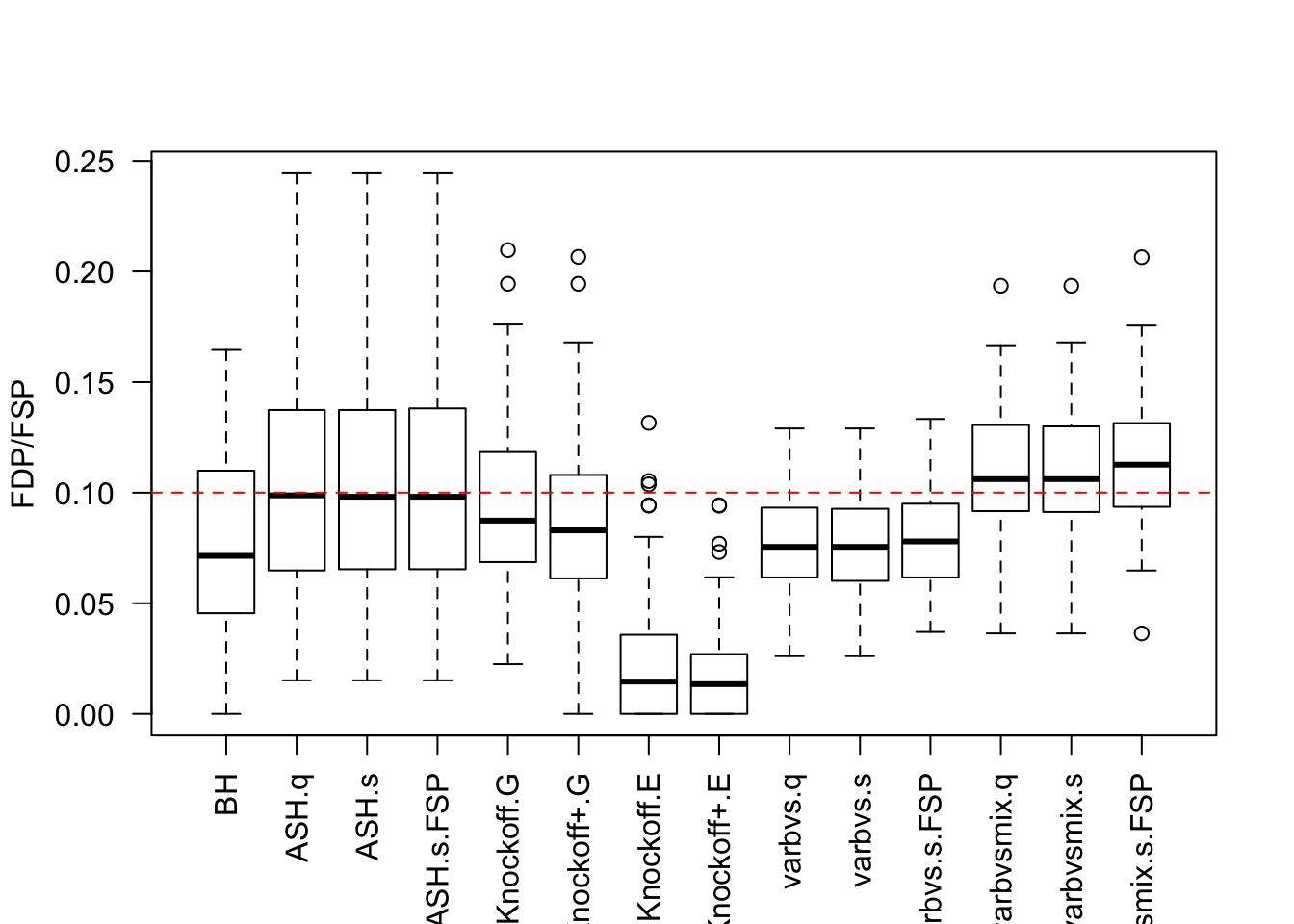

Local correlation / AR model for \(X\)

\(X_{n \times p}\) has correlation \(\Sigma_{ij} = \rho^{|i - j|}\). Each row is independently \(N(0, \frac1n\Sigma)\).

Expand here to see past versions of unnamed-chunk-9-1.png:
Version Author Date
d93edc5 LSun 2018-04-14

Expand here to see past versions of unnamed-chunk-9-2.png:
Version Author Date
d93edc5 LSun 2018-04-14

Factor Model for \(X\)

Expand here to see past versions of unnamed-chunk-12-1.png:
Version Author Date
cd5f166 LSun 2018-04-16
d93edc5 LSun 2018-04-14

Expand here to see past versions of unnamed-chunk-12-2.png:
Version Author Date
cd5f166 LSun 2018-04-16
d93edc5 LSun 2018-04-14

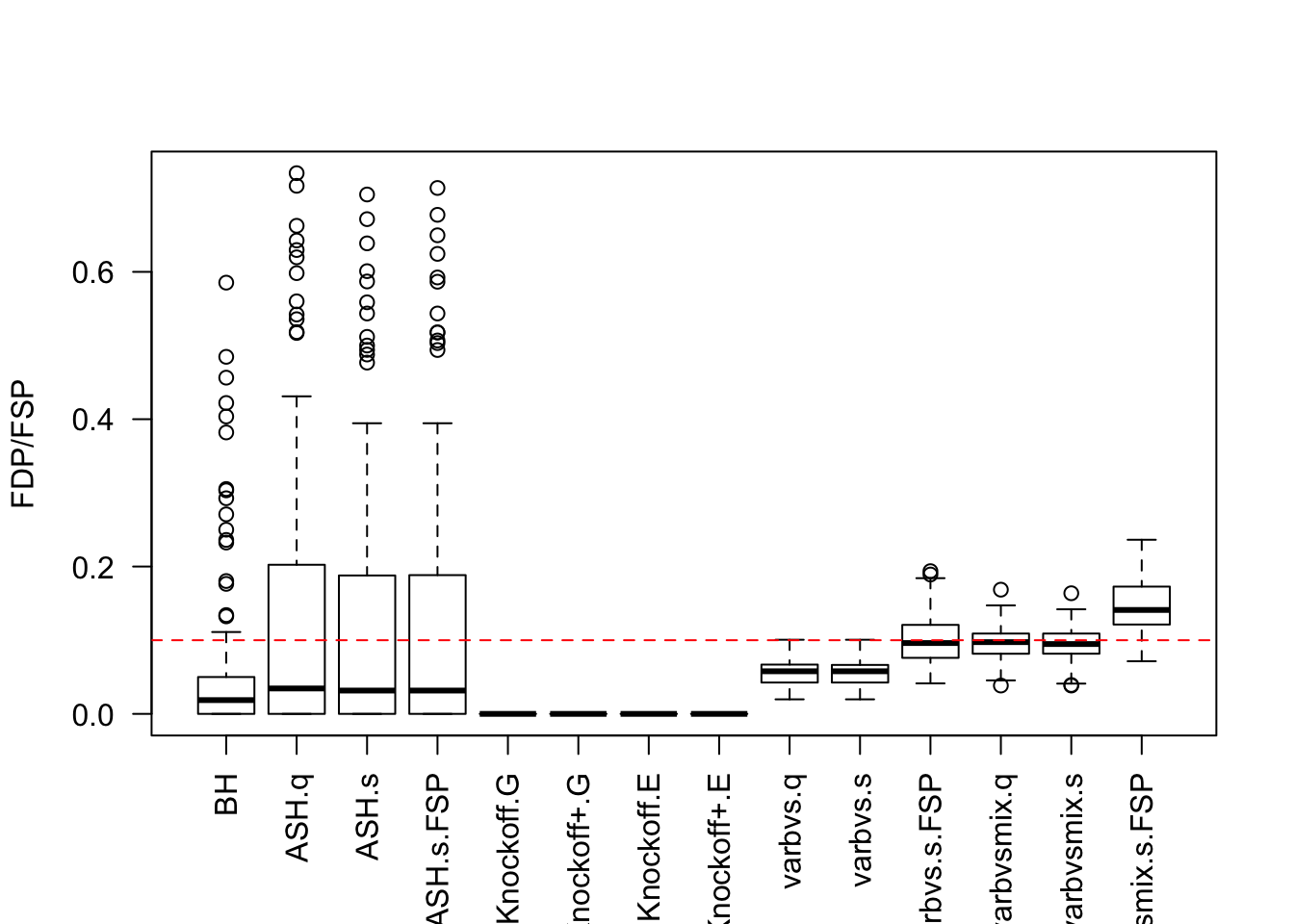

Factor Model for \(\hat\beta\)

Expand here to see past versions of unnamed-chunk-15-1.png:
Version Author Date
cd5f166 LSun 2018-04-16
d93edc5 LSun 2018-04-14

Expand here to see past versions of unnamed-chunk-15-2.png:
Version Author Date
cd5f166 LSun 2018-04-16
d93edc5 LSun 2018-04-14

Observation

  1. Model-\(X\) knockoff is very powerful.
  2. Using estimated distribution of \(X\) rather than the true distribution hurts the power of Model-\(X\) knockoff.
  3. The power of Model-\(X\) knockoff using estimated distributio of \(X\) is on par with that of ASH and BH, probably because the presence of small signals makes knockoff less powerful.
  4. Sometimes equi is better than SDP when generating knockoffs, as shown in previous simulations using factor model for \(X\).

\(n < p\)

n <- 300
p <- 1000
k <- 200
m <- 100
q <- 0.1

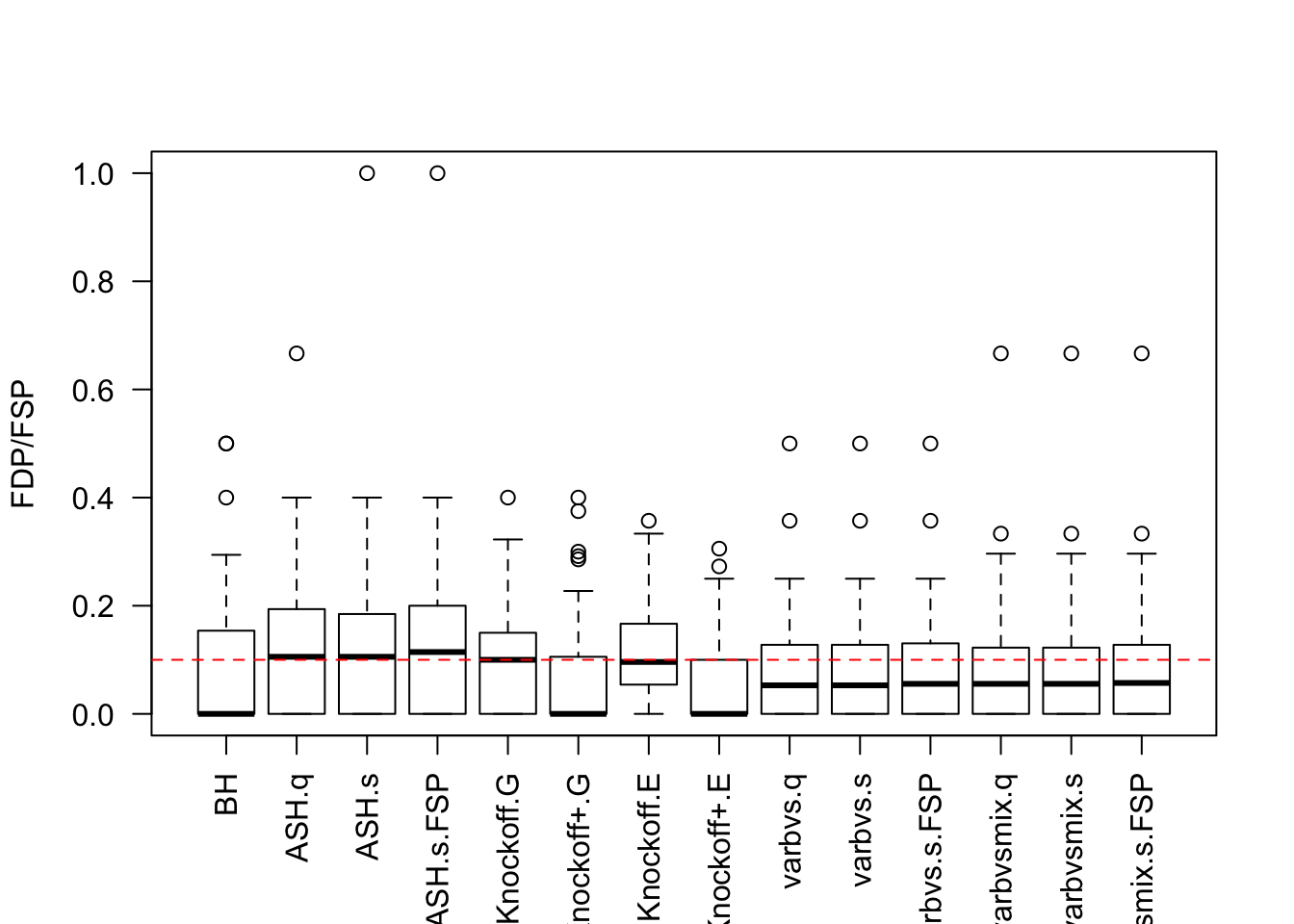

Independent design

Cov.X <- diag(1 / n, p)

Expand here to see past versions of unnamed-chunk-19-1.png:
Version Author Date
cd5f166 LSun 2018-04-16

Expand here to see past versions of unnamed-chunk-19-2.png:
Version Author Date
cd5f166 LSun 2018-04-16

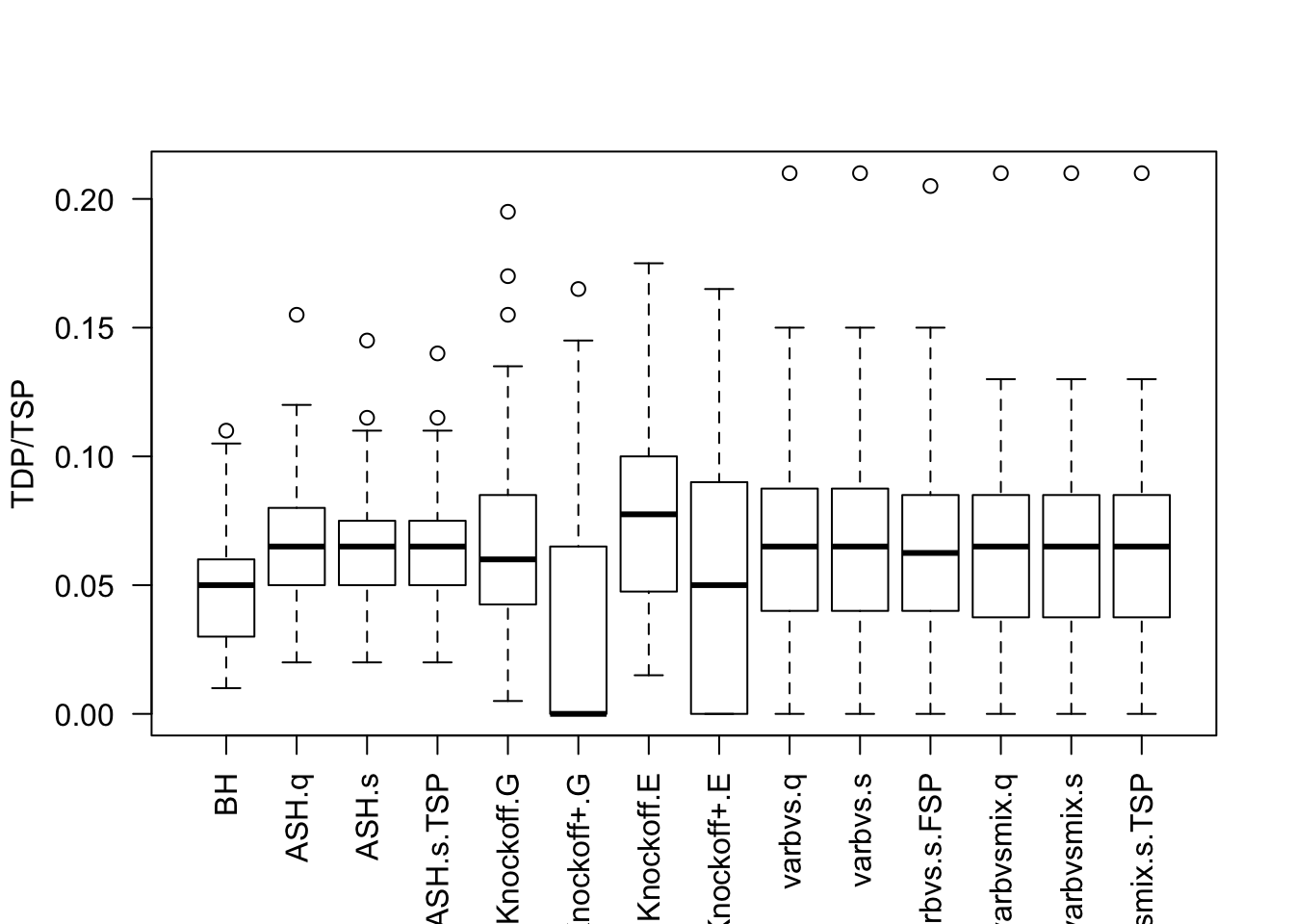

Local correlation design

Expand here to see past versions of unnamed-chunk-22-1.png:
Version Author Date
cd5f166 LSun 2018-04-16

Expand here to see past versions of unnamed-chunk-22-2.png:
Version Author Date
cd5f166 LSun 2018-04-16

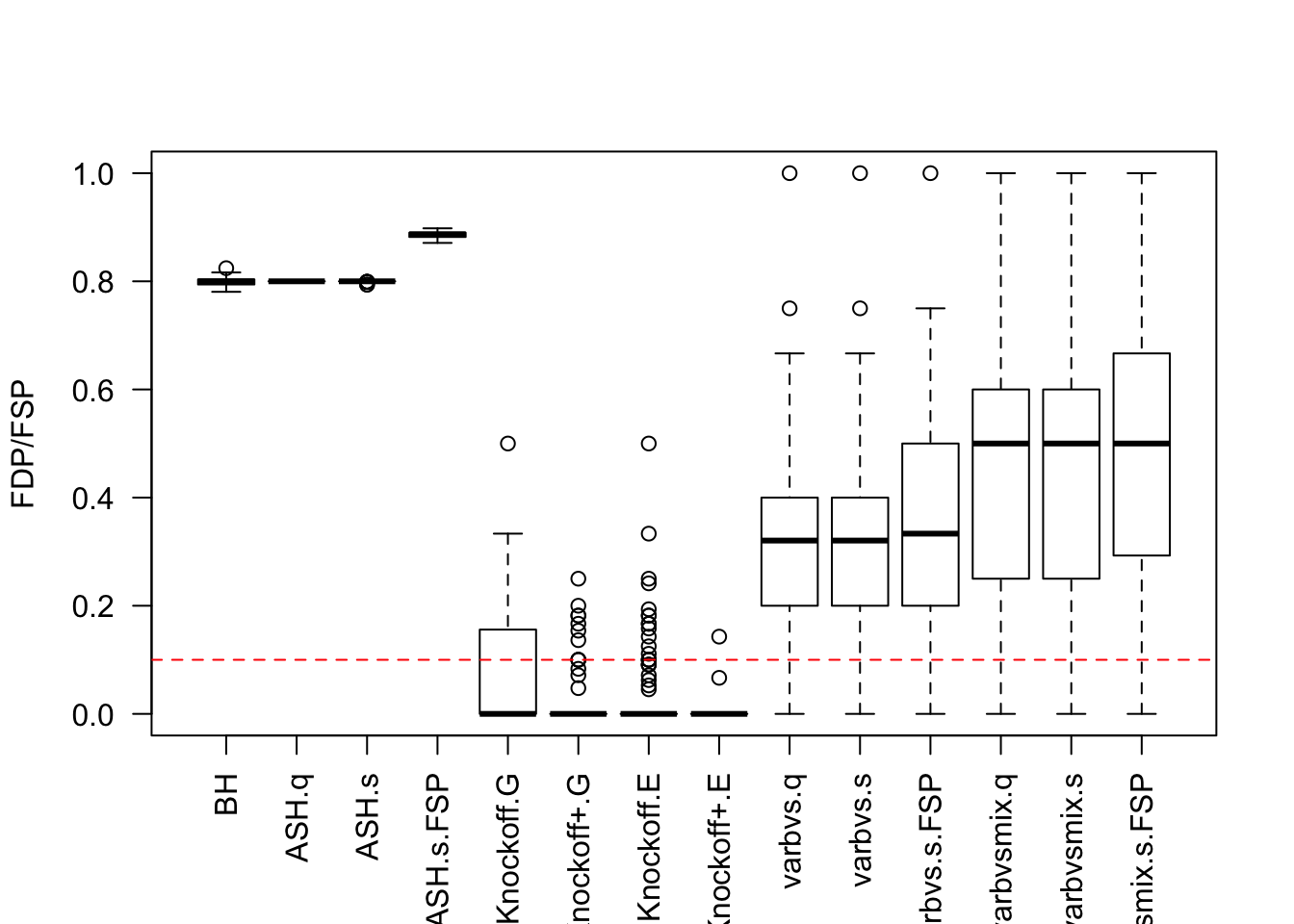

Factor Model for \(X\)

Expand here to see past versions of unnamed-chunk-25-1.png:
Version Author Date
cd5f166 LSun 2018-04-16

Expand here to see past versions of unnamed-chunk-25-2.png:
Version Author Date
cd5f166 LSun 2018-04-16

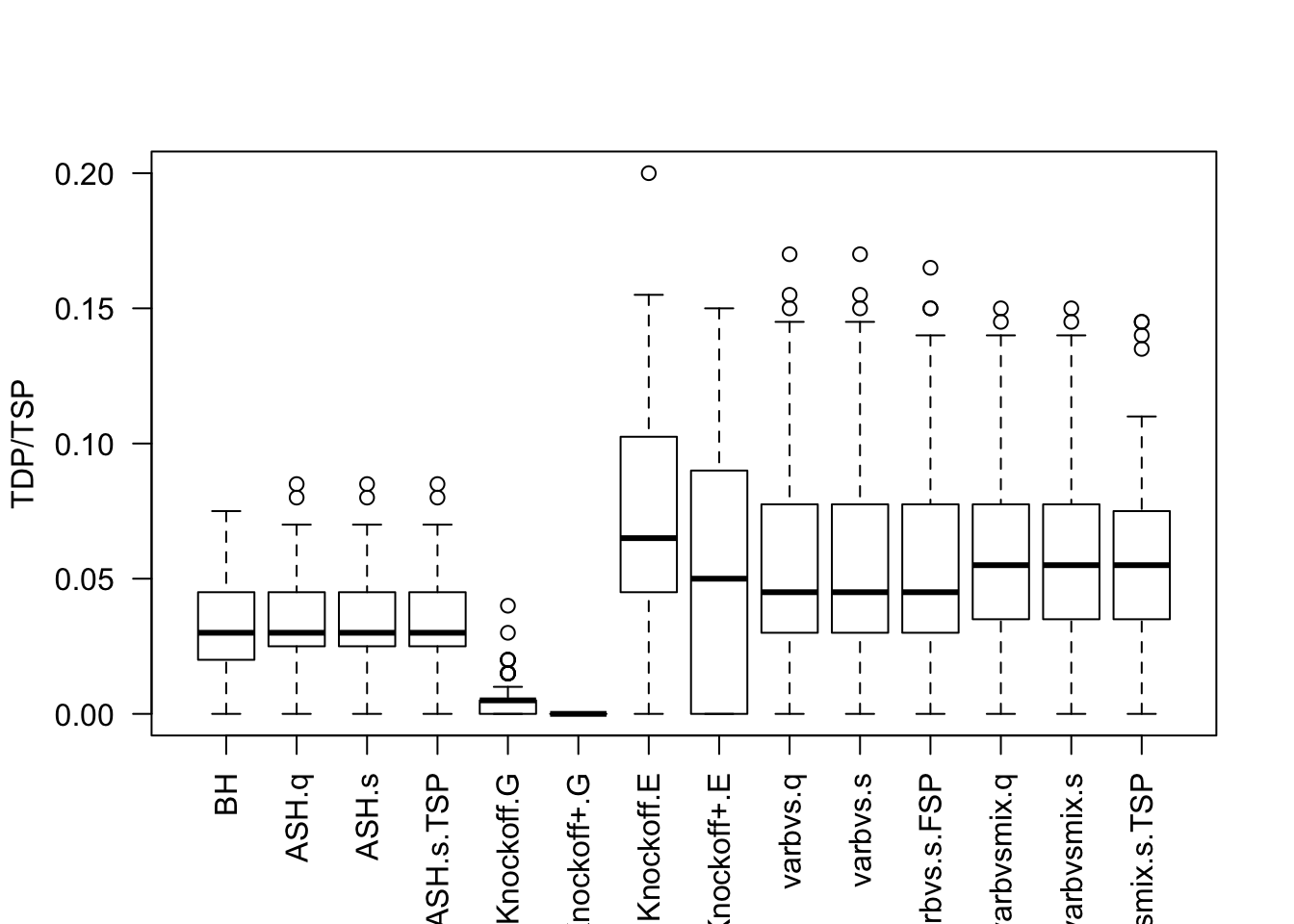

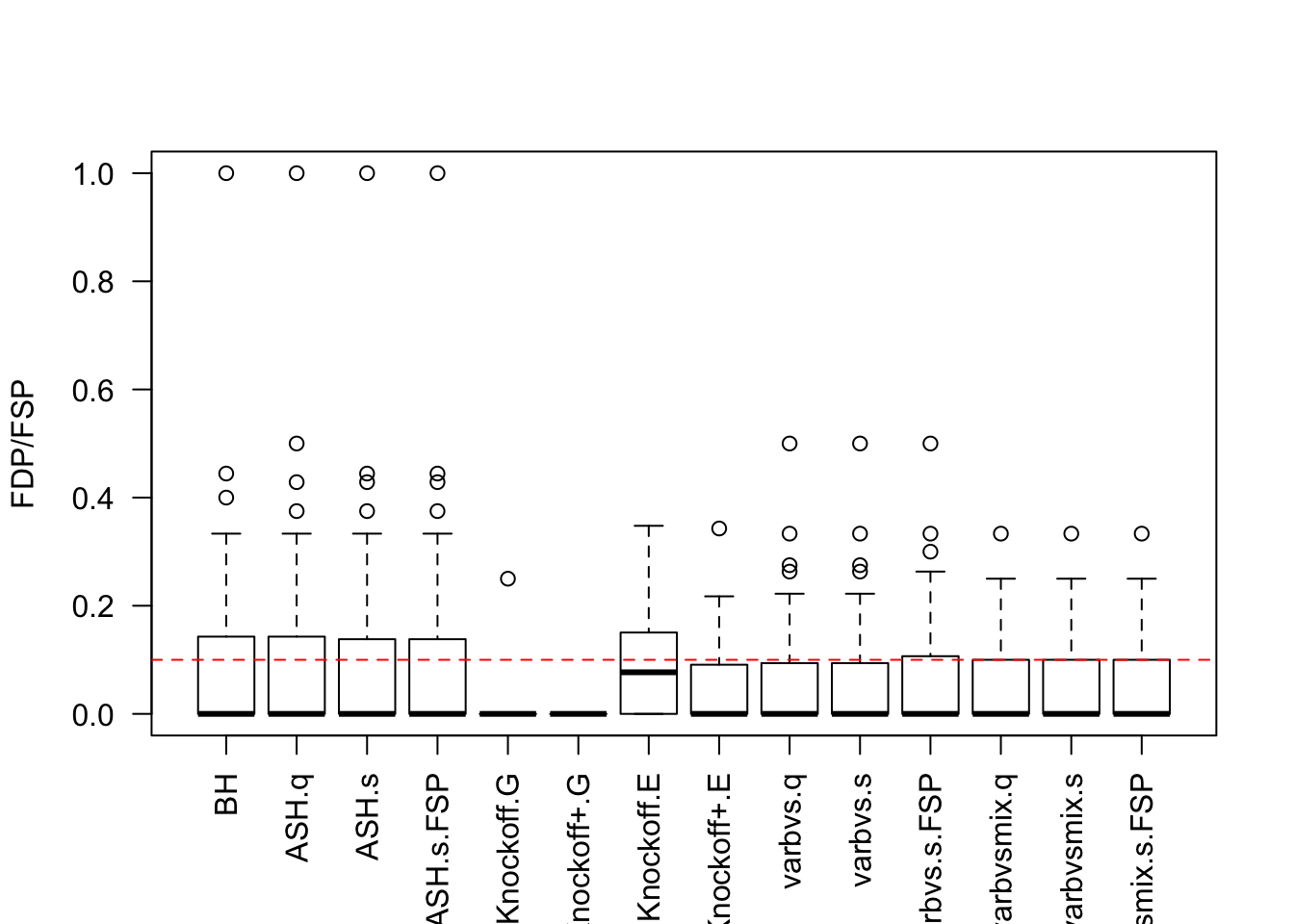

Factor Model for \(\hat\beta\)

Expand here to see past versions of unnamed-chunk-28-1.png:
Version Author Date
cd5f166 LSun 2018-04-16

Expand here to see past versions of unnamed-chunk-28-2.png:
Version Author Date
cd5f166 LSun 2018-04-16
