plot_diagnostic in ashr

Introduction

This file documents some simulations done for a May 12, 2017, NHS presentation on the diagnostic plots for ASH implemented by ashr::plot_diagnostic().

library(ashr)
library(qvalue)

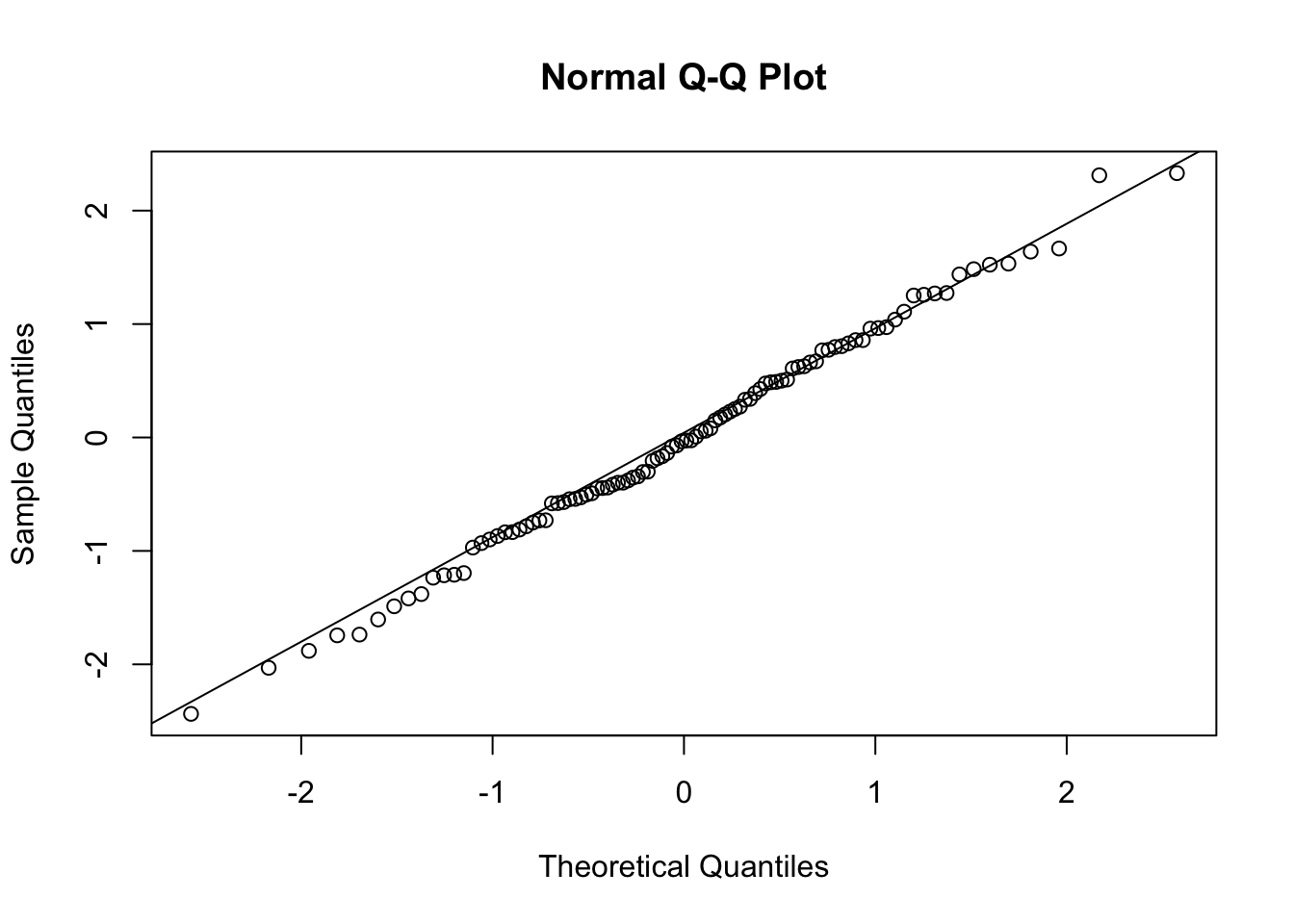

The concept of a Q-Q plot

set.seed(777)
x = rnorm(100)
qqnorm(x)
qqline(x)

y = runif(100)
qqnorm(y)
qqline(y)

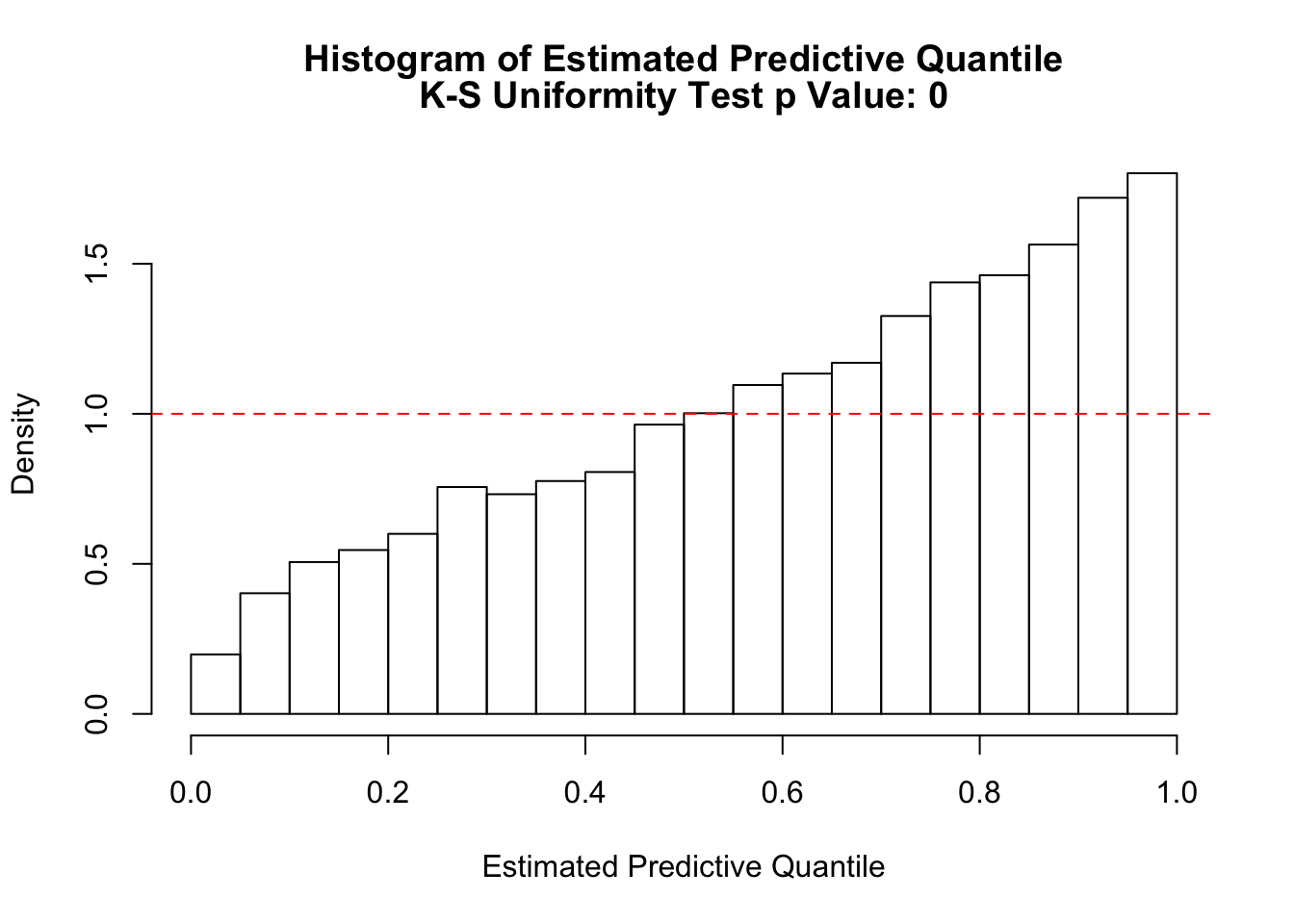

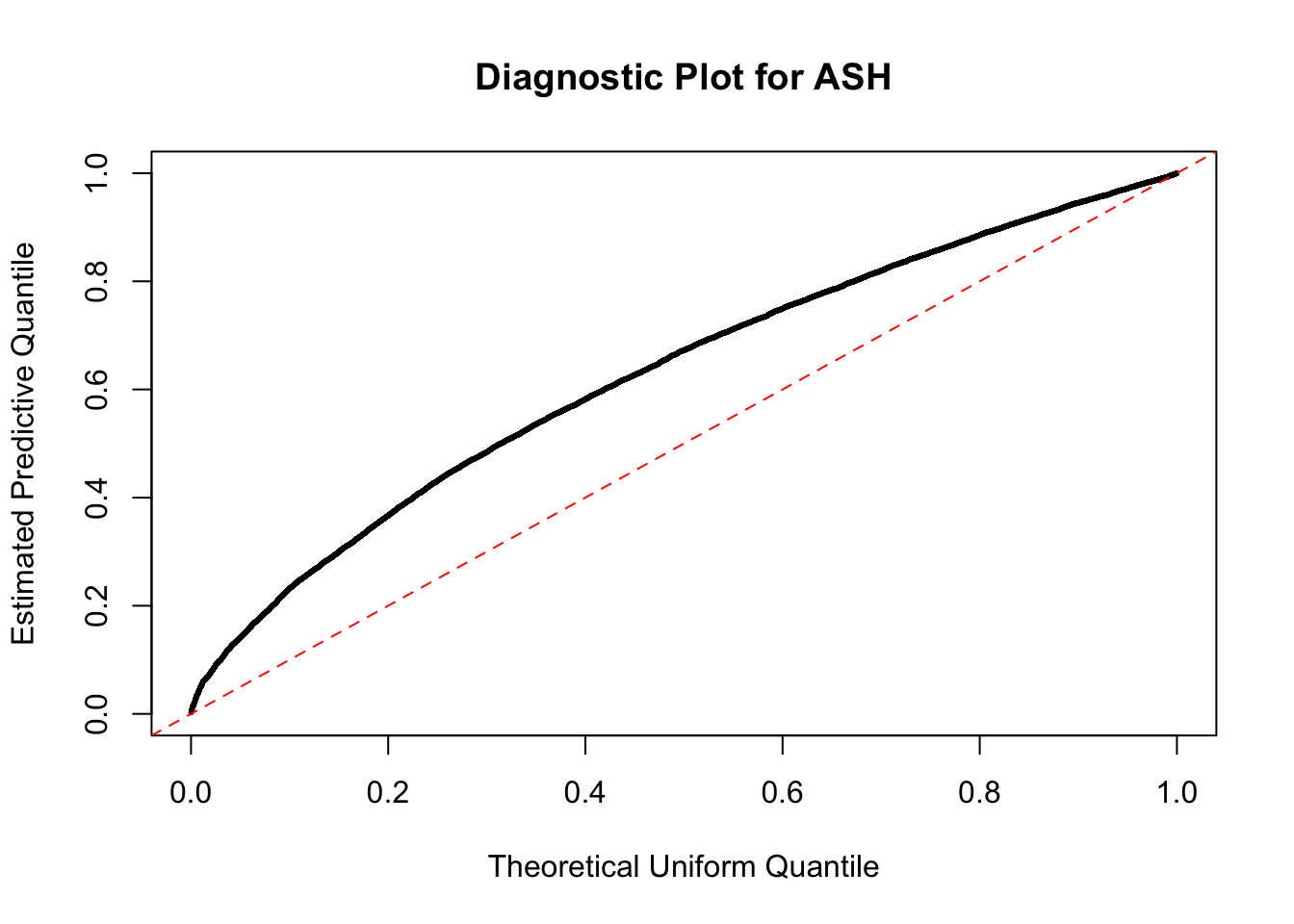

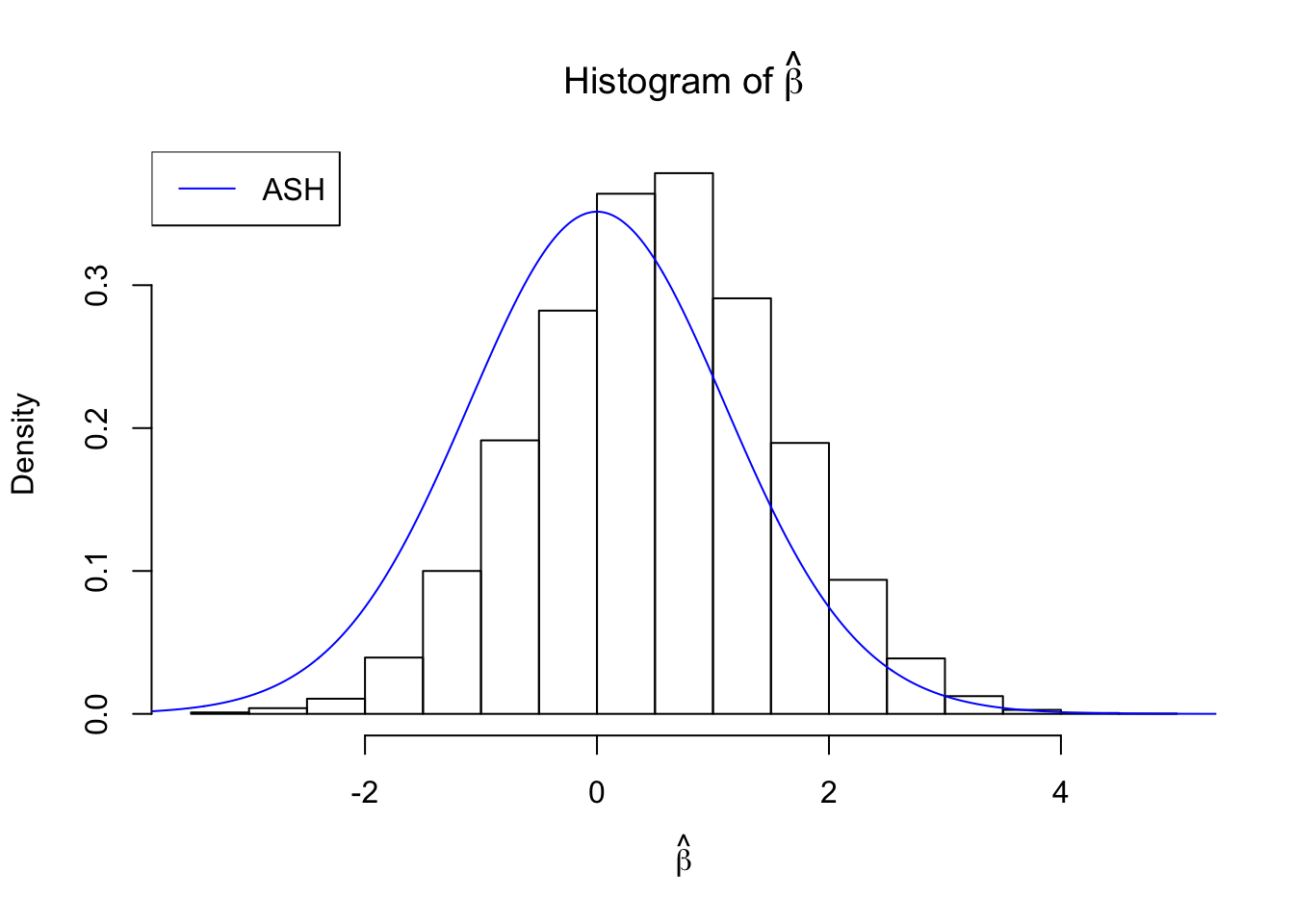

Diagnostic plots for ASH applied to different data sets

beta = runif(10000)
betahat = beta + rnorm(10000)
fit = ash(betahat, 1, mixcompdist = "normal", method = "fdr")
plot_diagnostic(fit)

Press [enter] to see next plot

Press [enter] to see next plot

Press [enter] to see next plot

par(mfrow = c(2, 2))

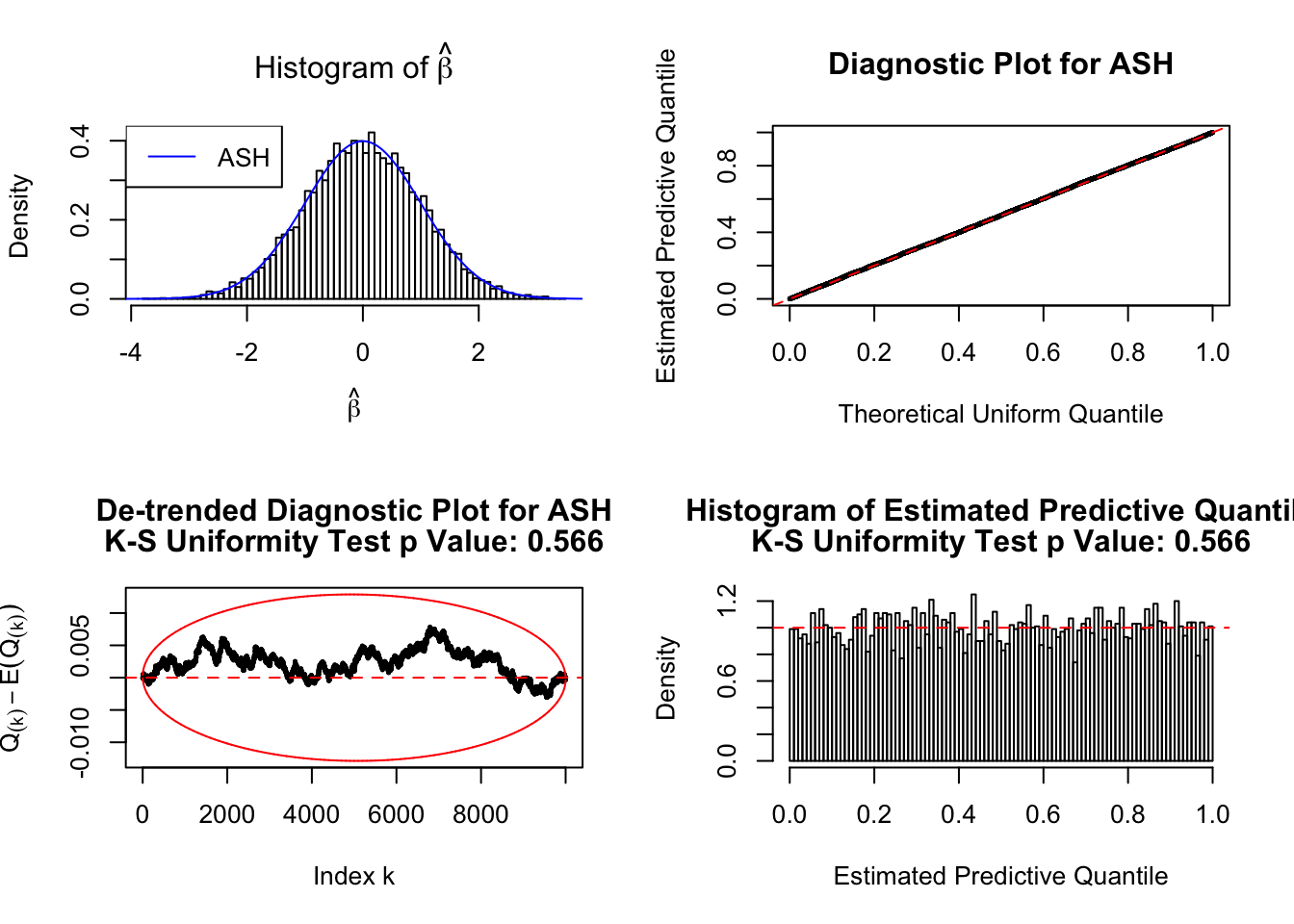

fit = ash(rnorm(10000), 1, mixcompdist = "normal", method = "fdr")
plot_diagnostic(fit, breaks = 100)

Press [enter] to see next plot

Press [enter] to see next plot

Press [enter] to see next plot

beta = sample(c(rnorm(5000, 1.5, 1), rnorm(5000, -1.5, 1)))
betahat = beta + rnorm(10000)
fit = ash(betahat, 1, mixcompdist = "normal", method = "fdr")
plot_diagnostic(fit, breaks = 100)

Press [enter] to see next plot

Press [enter] to see next plot

Press [enter] to see next plot

The peculiarities of the correlated null

z = readRDS("../output/z_null_liver_777_select.RDS")
z = z$typical[[5]]

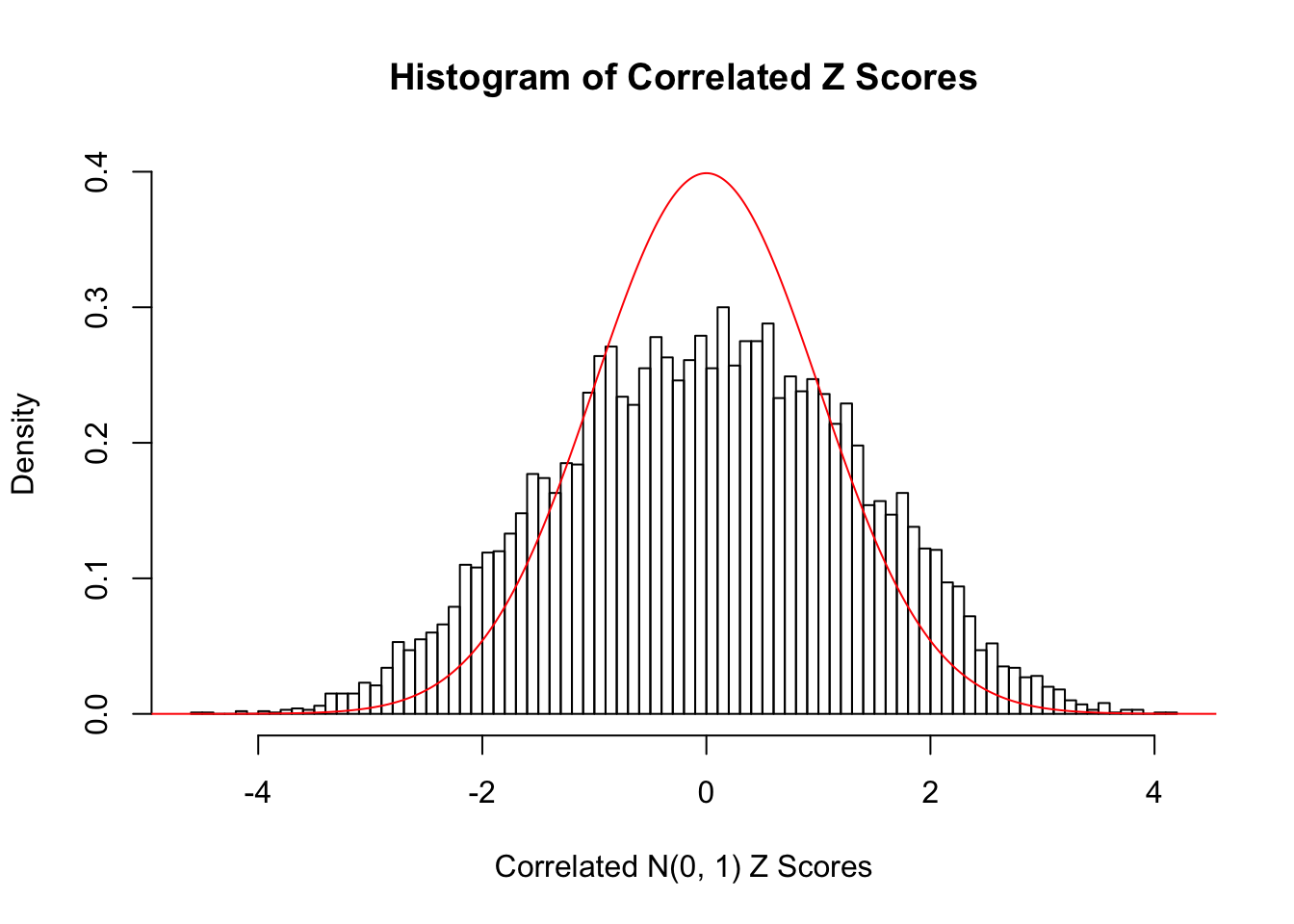

hist(z, breaks = 100, prob = TRUE, xlab = "Correlated N(0, 1) Z Scores", ylim = c(0, dnorm(0)), main = "Histogram of Correlated Z Scores")
lines(seq(-6, 6, 0.01), dnorm(seq(-6, 6, 0.01)), col = "red")

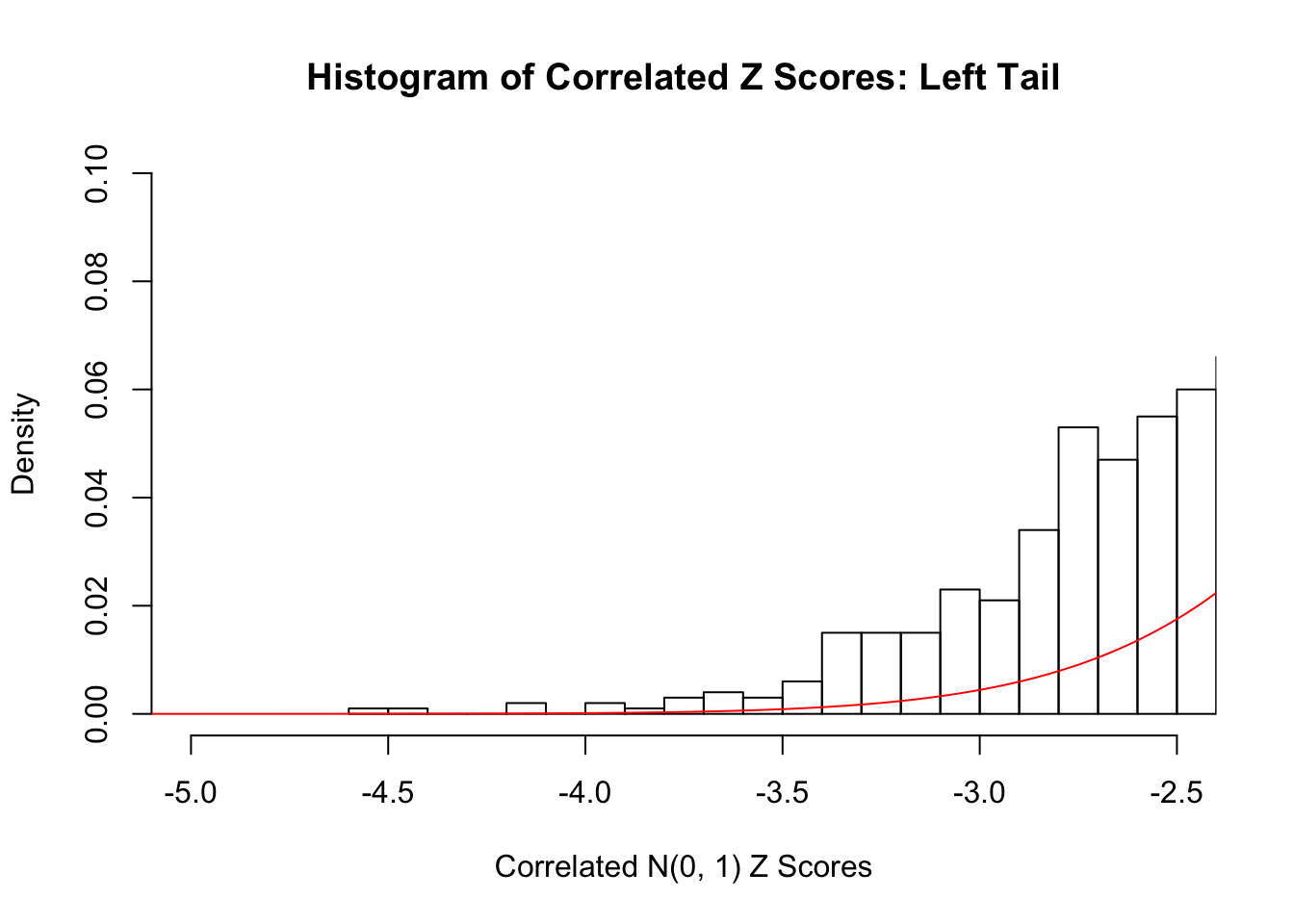

hist(z, breaks = 100, prob = TRUE, xlab = "Correlated N(0, 1) Z Scores", ylim = c(0, 0.1), main = "Histogram of Correlated Z Scores: Left Tail", xlim = c(-5, -2.5))
lines(seq(-6, 6, 0.01), dnorm(seq(-6, 6, 0.01)), col = "red")

pval = (1 - pnorm(abs(z))) * 2
q = qvalue(pval)

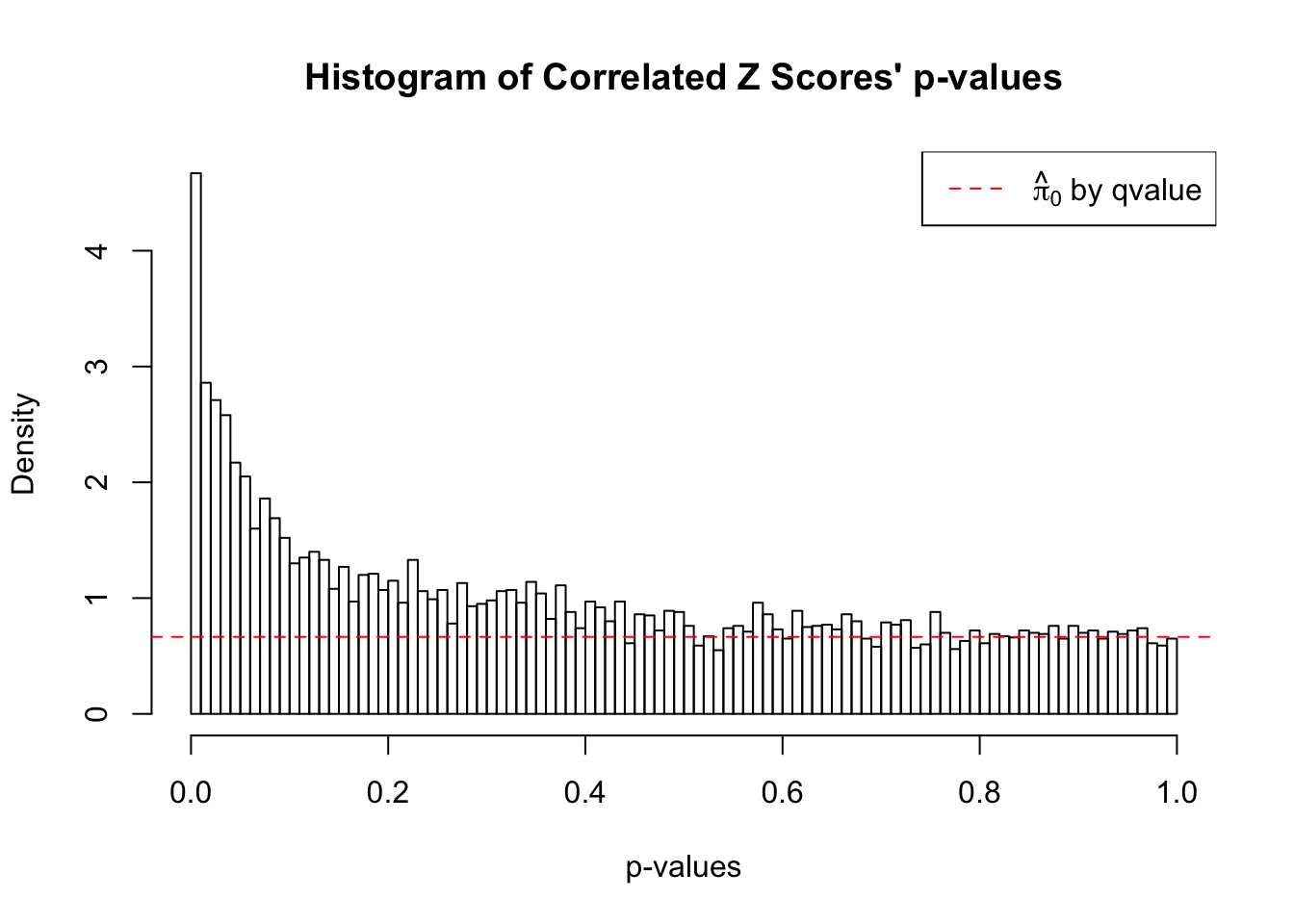

hist(pval, breaks = 100, main = "Histogram of Correlated Z Scores' p-values", xlab = "p-values", prob = TRUE)
abline(h = q$pi0, col = "red", lty = 2)
legend("topright", lty = 2, col = "red", expression(paste(hat(pi)[0], " by qvalue")))

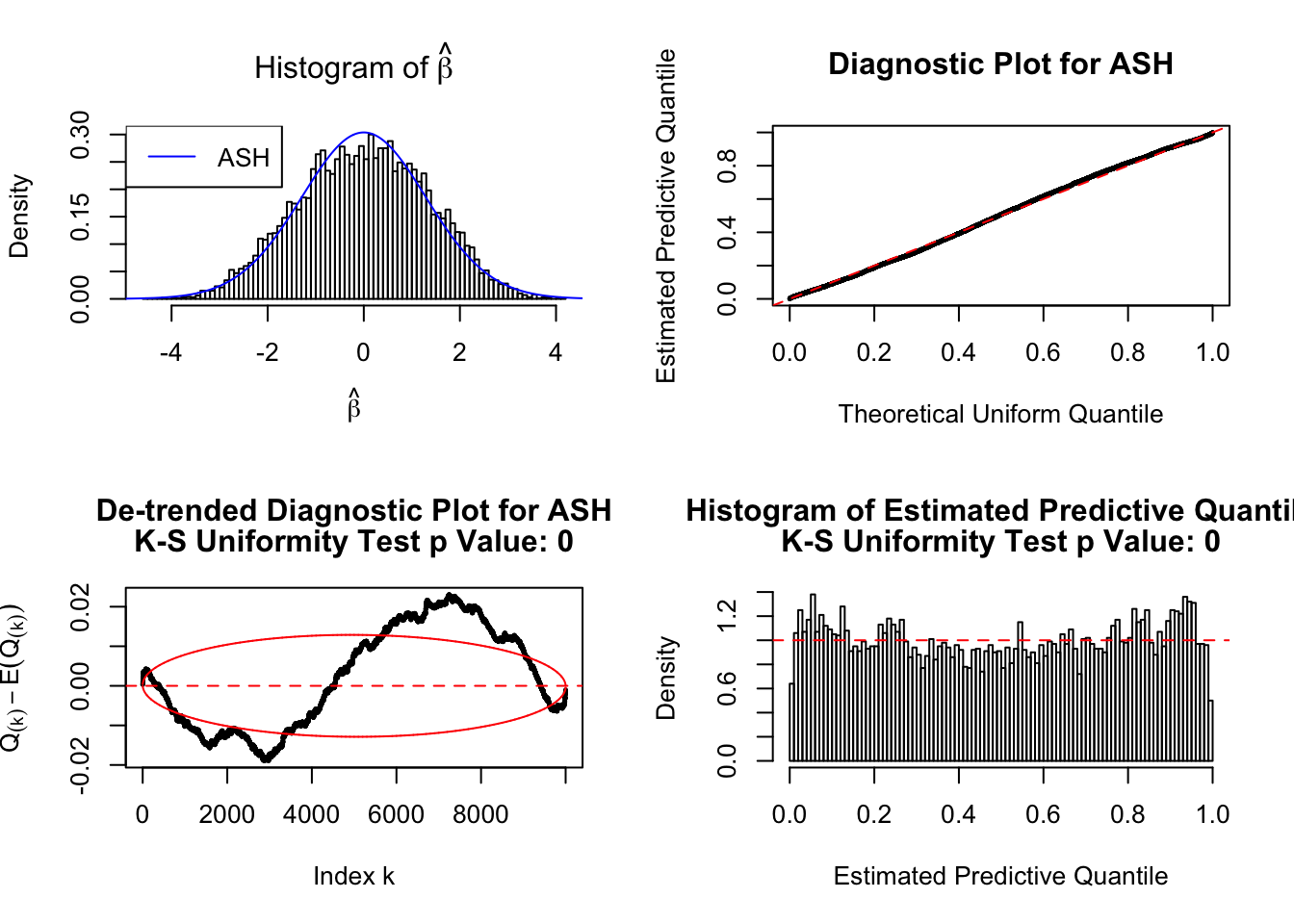

Diagnostic plots for ASH applied to the correlated null.

library(ashr)
fit = ashr::ash(z, 1, mixcompdist = "normal", method = "fdr")
par(mfrow = c(2, 2))
plot_diagnostic(fit, breaks = 100)

Press [enter] to see next plot

Press [enter] to see next plot

Press [enter] to see next plot
