Re-Analyze Efron’s Leukemia Data
Lei Sun
2018-04-16
Last updated: 2018-05-15
workflowr checks: (Click a bullet for more information)-
✔ R Markdown file: up-to-date
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
-
✔ Environment: empty
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
-
✔ Seed:
set.seed(12345)The command
set.seed(12345)was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible. -
✔ Session information: recorded
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
-
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.✔ Repository version: 388e65e
Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can usewflow_publishorwflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.Ignored files: Ignored: .DS_Store Ignored: .Rhistory Ignored: .Rproj.user/ Ignored: analysis/.DS_Store Ignored: analysis/BH_robustness_cache/ Ignored: analysis/FDR_Null_cache/ Ignored: analysis/FDR_null_betahat_cache/ Ignored: analysis/Rmosek_cache/ Ignored: analysis/StepDown_cache/ Ignored: analysis/alternative2_cache/ Ignored: analysis/alternative_cache/ Ignored: analysis/ash_gd_cache/ Ignored: analysis/average_cor_gtex_2_cache/ Ignored: analysis/average_cor_gtex_cache/ Ignored: analysis/brca_cache/ Ignored: analysis/cash_deconv_cache/ Ignored: analysis/cash_fdr_1_cache/ Ignored: analysis/cash_fdr_2_cache/ Ignored: analysis/cash_fdr_3_cache/ Ignored: analysis/cash_fdr_4_cache/ Ignored: analysis/cash_fdr_5_cache/ Ignored: analysis/cash_fdr_6_cache/ Ignored: analysis/cash_plots_cache/ Ignored: analysis/cash_sim_1_cache/ Ignored: analysis/cash_sim_2_cache/ Ignored: analysis/cash_sim_3_cache/ Ignored: analysis/cash_sim_4_cache/ Ignored: analysis/cash_sim_5_cache/ Ignored: analysis/cash_sim_6_cache/ Ignored: analysis/cash_sim_7_cache/ Ignored: analysis/correlated_z_2_cache/ Ignored: analysis/correlated_z_3_cache/ Ignored: analysis/correlated_z_cache/ Ignored: analysis/create_null_cache/ Ignored: analysis/cutoff_null_cache/ Ignored: analysis/design_matrix_2_cache/ Ignored: analysis/design_matrix_cache/ Ignored: analysis/diagnostic_ash_cache/ Ignored: analysis/diagnostic_correlated_z_2_cache/ Ignored: analysis/diagnostic_correlated_z_3_cache/ Ignored: analysis/diagnostic_correlated_z_cache/ Ignored: analysis/diagnostic_plot_2_cache/ Ignored: analysis/diagnostic_plot_cache/ Ignored: analysis/efron_leukemia_cache/ Ignored: analysis/fitting_normal_cache/ Ignored: analysis/gaussian_derivatives_2_cache/ Ignored: analysis/gaussian_derivatives_3_cache/ Ignored: analysis/gaussian_derivatives_4_cache/ Ignored: analysis/gaussian_derivatives_5_cache/ Ignored: analysis/gaussian_derivatives_cache/ Ignored: analysis/gd-ash_cache/ Ignored: analysis/gd_delta_cache/ Ignored: analysis/gd_lik_2_cache/ Ignored: analysis/gd_lik_cache/ Ignored: analysis/gd_w_cache/ Ignored: analysis/knockoff_10_cache/ Ignored: analysis/knockoff_2_cache/ Ignored: analysis/knockoff_3_cache/ Ignored: analysis/knockoff_4_cache/ Ignored: analysis/knockoff_5_cache/ Ignored: analysis/knockoff_6_cache/ Ignored: analysis/knockoff_7_cache/ Ignored: analysis/knockoff_8_cache/ Ignored: analysis/knockoff_9_cache/ Ignored: analysis/knockoff_cache/ Ignored: analysis/knockoff_var_cache/ Ignored: analysis/marginal_z_alternative_cache/ Ignored: analysis/marginal_z_cache/ Ignored: analysis/mosek_reg_2_cache/ Ignored: analysis/mosek_reg_4_cache/ Ignored: analysis/mosek_reg_5_cache/ Ignored: analysis/mosek_reg_6_cache/ Ignored: analysis/mosek_reg_cache/ Ignored: analysis/pihat0_null_cache/ Ignored: analysis/plot_diagnostic_cache/ Ignored: analysis/poster_obayes17_cache/ Ignored: analysis/real_data_simulation_2_cache/ Ignored: analysis/real_data_simulation_3_cache/ Ignored: analysis/real_data_simulation_4_cache/ Ignored: analysis/real_data_simulation_5_cache/ Ignored: analysis/real_data_simulation_cache/ Ignored: analysis/rmosek_primal_dual_2_cache/ Ignored: analysis/rmosek_primal_dual_cache/ Ignored: analysis/seqgendiff_cache/ Ignored: analysis/simulated_correlated_null_2_cache/ Ignored: analysis/simulated_correlated_null_3_cache/ Ignored: analysis/simulated_correlated_null_cache/ Ignored: analysis/simulation_real_se_2_cache/ Ignored: analysis/simulation_real_se_cache/ Ignored: analysis/smemo_2_cache/ Ignored: data/LSI/ Ignored: docs/.DS_Store Ignored: docs/figure/.DS_Store Ignored: output/fig/
Expand here to see past versions:
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| html | e05bc83 | LSun | 2018-05-12 | Update to 1.0 |
| rmd | cc0ab83 | Lei Sun | 2018-05-11 | update |
| html | 38db87b | LSun | 2018-05-11 | Build site. |
| rmd | 17a2cb9 | Lei Sun | 2018-05-11 | leukemia |
| html | fa3d9fe | LSun | 2018-05-10 | Build site. |
| rmd | a2904d9 | Lei Sun | 2018-05-10 | color |
| html | 69e6367 | LSun | 2018-05-09 | Build site. |
| rmd | 4070fcd | LSun | 2018-05-09 | wflow_publish(“analysis/efron_leukemia.rmd”) |
| html | 4d4a685 | LSun | 2018-05-06 | Build site. |
| rmd | 63936e7 | LSun | 2018-05-06 | wflow_publish(“analysis/efron_leukemia.rmd”) |
| html | e0e5005 | LSun | 2018-05-05 | constraints |
| rmd | fbfd54d | LSun | 2018-05-05 | leukemia |
| rmd | 04ff9ef | LSun | 2018-05-05 | leukemia |
| html | 2f3b0f1 | LSun | 2018-05-01 | leukemia |
Introduction
source("../code/gdash_lik.R")
source("../code/gdfit.R")
library(limma)
library(locfdr)
library(scales)load("../data/LSI/leukdata.RData")
load("../data/LSI/leukz.RData")

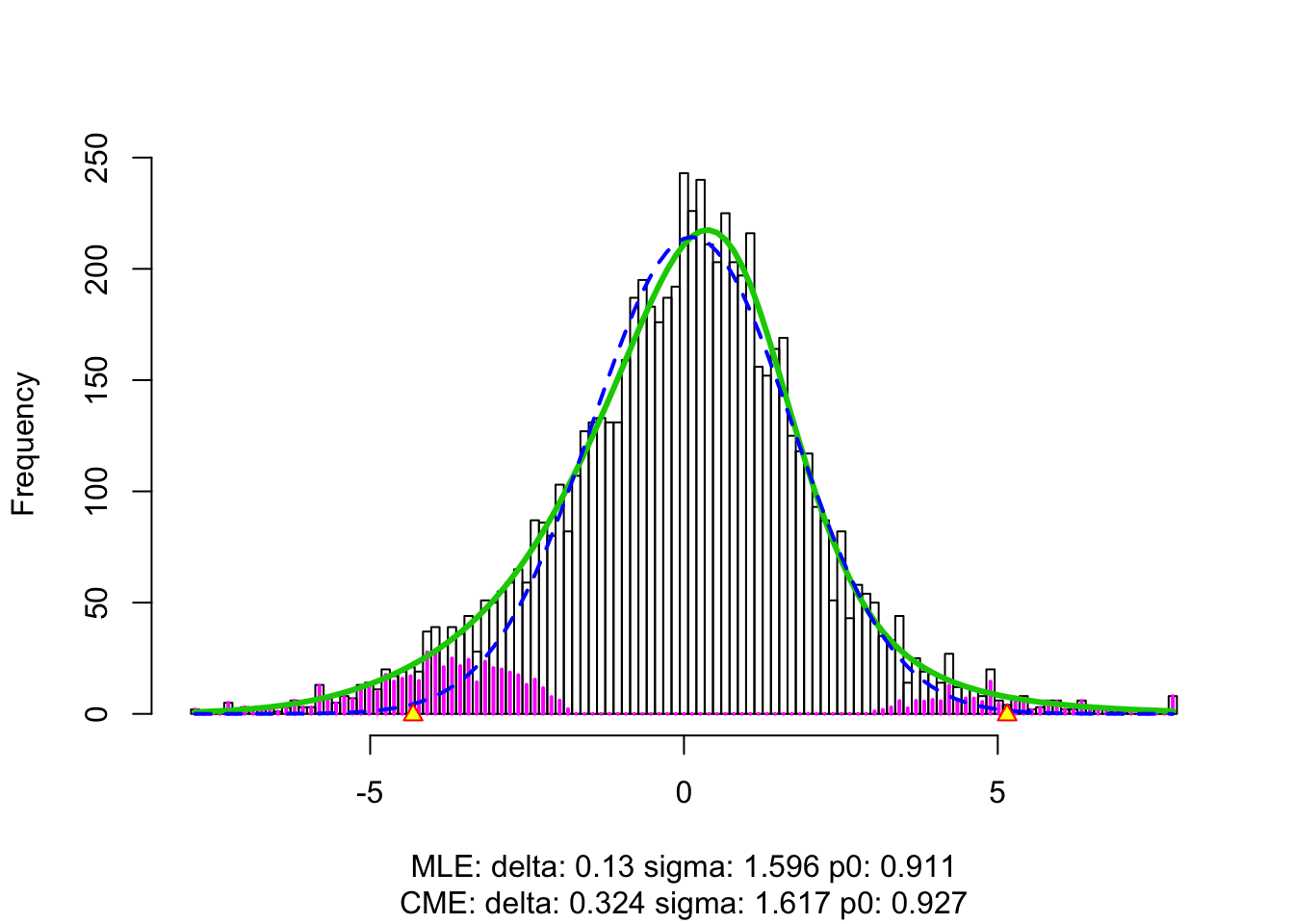

design <- design <- c(rep(0, 47), rep(1, 25))temp <- locfdr(leukz)
Reproduce Efron’s empirical null analysis
t <- apply(leukdata, 1, function (x) {
t.test(x[design == 1], x[design == 0], var.equal = TRUE)$statistic
})
z <- -qnorm(pt(-abs(t), 70)) * sign(t)temp <- locfdr(z)
Expand here to see past versions of unnamed-chunk-5-1.png:
| Version | Author | Date |
|---|---|---|
| 4d4a685 | LSun | 2018-05-06 |

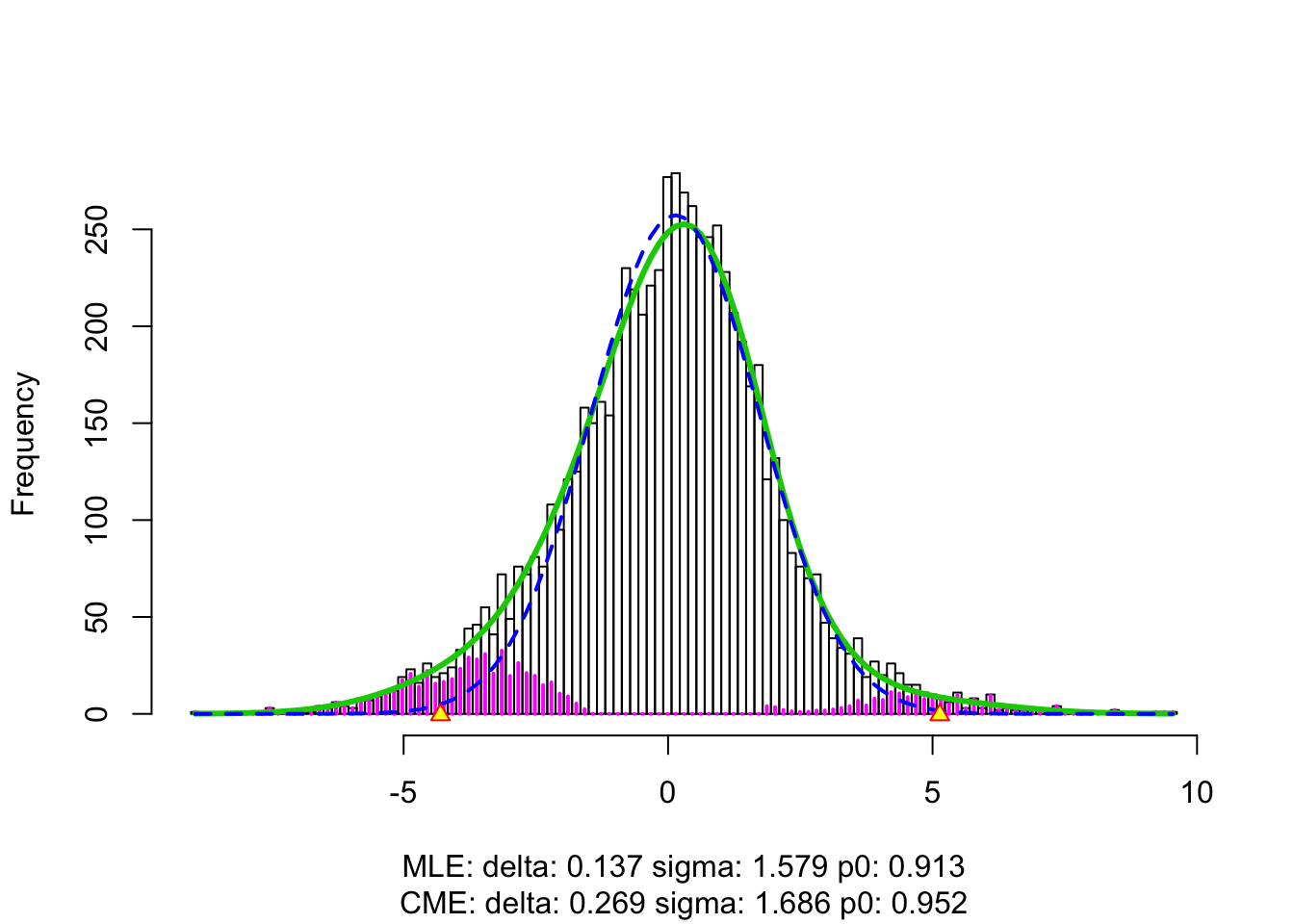

Use Smyth’s pipeline to obtain better summary statistics
lim = limma::lmFit(leukdata, model.matrix(~design))
r.ebayes = limma::eBayes(lim)
p = r.ebayes$p.value[, 2]
t = r.ebayes$t[, 2]
z = -sign(t) * qnorm(p/2)fit.locfdr <- locfdr(z)
Expand here to see past versions of unnamed-chunk-7-1.png:
| Version | Author | Date |
|---|---|---|
| 4d4a685 | LSun | 2018-05-06 |
| e0e5005 | LSun | 2018-05-05 |
fit.qvalue <- qvalue::qvalue(p)CASH fitting
- betahat = sebetahat * z
betahat = lim$coefficients[, 2]
sebetahat = betahat / t
betahat = sebetahat * zfit.cash <- gdash(betahat, sebetahat, gd.ord = 10)
fit.ash <- ashr::ash(betahat, sebetahat, mixcompdist = "normal", method = "fdr")x.plot <- seq(-10, 10, length = 1000)
gd.ord <- 10
hermite = Hermite(gd.ord)
gd0.std = dnorm(x.plot)
matrix_lik_plot = cbind(gd0.std)
for (i in 1 : gd.ord) {
gd.std = (-1)^i * hermite[[i]](x.plot) * gd0.std / sqrt(factorial(i))
matrix_lik_plot = cbind(matrix_lik_plot, gd.std)
}
y.plot = matrix_lik_plot %*% fit.cash$w * fit.cash$fitted_g$pi[1]
method.col <- scales::hue_pal()(5)
# method.col <- c("#377eb8", "#984ea3", "#4daf4a", "#ff7f00", "#e41a1c")
par(mfrow = c(1, 2))
hist(z, prob = TRUE, main = "", xlab = expression(paste(z, "-scores")), cex.lab = 1.25)
lines(x.plot, y.plot, col = method.col[5], lwd = 2)
lines(x.plot, dnorm(x.plot), col =
"orange"
# method.col[2]
, lty = 2, lwd = 2)
lines(x.plot, dnorm(x.plot, fit.locfdr$fp0[3, 1], fit.locfdr$fp0[3, 2]) * fit.locfdr$fp0[3, 3], col = method.col[3], lty = 2, lwd = 2)
text(-3, 0.22, "N(0,1)", col = "orange")
text(-5, 0.15, bquote(atop("Efron's empirical null", .(round(fit.locfdr$fp0[3, 3], 2)) %*% N(.(round(fit.locfdr$fp0[3, 1], 2)), .(round(fit.locfdr$fp0[3, 2], 2))^2))), col = method.col[3])
text(4.5, 0.10, "CASH null", col = method.col[5])
arrows(-1.8, 0.22, -1.1, 0.215, length = 0.1, angle = 20, col = "orange")
arrows(-2, 0.15, -1.5, 0.145, length = 0.1, angle = 20, col = method.col[3])
arrows(2.9, 0.10, 2, 0.095, length = 0.1, angle = 20, col = method.col[5])
plot(z, fit.cash$lfdr, pch = 18, cex = 0.5, ylim = c(0, 1), col = method.col[5], ylab = "Local FDR", xlab = expression(paste(z, "-scores")), cex.lab = 1.25)
points(z, fit.locfdr$fdr, pch = 16, cex = 0.5, col = method.col[3])
points(z, ashr::get_lfdr(fit.ash), pch = 17, cex = 0.5, col = method.col[4])
points(z, fit.qvalue$lfdr, pch = 15, cex = 0.5, col = method.col[2])
abline(h = 0.2, lty = 2)
legend("topright", bty = "n", pch = 15 : 18, col = method.col[2 : 5], c("qvalue", "locfdr", "ASH", "CASH"))
Expand here to see past versions of unnamed-chunk-11-1.png:
| Version | Author | Date |
|---|---|---|
| 69e6367 | LSun | 2018-05-09 |
| 4d4a685 | LSun | 2018-05-06 |
- sebetahat = betahat / z
betahat = lim$coefficients[, 2]
sebetahat = betahat / zfit.cash2 <- gdash(betahat, sebetahat, gd.ord = 10)y.plot2 = matrix_lik_plot %*% fit.cash2$w * fit.cash2$fitted_g$pi[1]
par(mfrow = c(1, 2))
hist(z, prob = TRUE, main = "", xlab = expression(paste(z, "-scores")), cex.lab = 1.25)
lines(x.plot, y.plot, col = "red", lwd = 2)
lines(x.plot, y.plot2, col = "blue", lwd = 2)
lines(x.plot, dnorm(x.plot, fit.locfdr$fp0[3, 1], fit.locfdr$fp0[3, 2]) * fit.locfdr$fp0[3, 3], col = 'green', lty = 2, lwd = 2)
plot(z, fit.cash$lfdr, pch = 18, cex = 0.5, ylim = c(0, 1), col = "red", ylab = "Local FDR", xlab = expression(paste(z, "-scores")), cex.lab = 1.25)
points(z, fit.cash2$lfdr, pch = 17, cex = 0.5, col = "blue")
points(z, fit.locfdr$fdr, pch = 16, cex = 0.5, col = "green")
abline(h = 0.2, lty = 2)
legend("topright", bty = "n", pch = c(16, 18, 17), col = c("green", "red", "blue"), c("qvalue", "CASH: 1", "CASH: 2"))
Expand here to see past versions of unnamed-chunk-14-1.png:
| Version | Author | Date |
|---|---|---|
| 4d4a685 | LSun | 2018-05-06 |
- sebetahat = betahat / z
betahat = lim$coefficients[, 2]
sebetahat = betahat / zfit.cash <- gdash(betahat, sebetahat, gd.ord = 10)
fit.ash <- ashr::ash(betahat, sebetahat, mixcompdist = "normal", method = "fdr")x.plot <- seq(-10, 10, length = 1000)
gd.ord <- 10
hermite = Hermite(gd.ord)
gd0.std = dnorm(x.plot)
matrix_lik_plot = cbind(gd0.std)
for (i in 1 : gd.ord) {
gd.std = (-1)^i * hermite[[i]](x.plot) * gd0.std / sqrt(factorial(i))
matrix_lik_plot = cbind(matrix_lik_plot, gd.std)
}
y.plot = matrix_lik_plot %*% fit.cash$w * fit.cash$fitted_g$pi[1]
method.col <- scales::hue_pal()(5)
# method.col <- c("#377eb8", "#984ea3", "#4daf4a", "#ff7f00", "#e41a1c")
setEPS()
postscript("../output/fig/leukemia.eps", height = 5, width = 12)
par(mfrow = c(1, 2))
hist(z, prob = TRUE, main = "", xlab = expression(paste(z, "-score")), cex.lab = 1.25)
lines(x.plot, y.plot, col = method.col[5], lwd = 2)
lines(x.plot, dnorm(x.plot), col =
"orange"
# method.col[2]
, lty = 2, lwd = 2)
lines(x.plot, dnorm(x.plot, fit.locfdr$fp0[3, 1], fit.locfdr$fp0[3, 2]) * fit.locfdr$fp0[3, 3], col = method.col[3], lty = 2, lwd = 2)
text(-3, 0.22, "N(0,1)", col = "orange")
text(-5, 0.15, bquote(atop("Efron's empirical null", .(round(fit.locfdr$fp0[3, 3], 2)) %*% N(.(round(fit.locfdr$fp0[3, 1], 2)), .(round(fit.locfdr$fp0[3, 2], 2))^2))), col = method.col[3])
text(4.5, 0.10, "CASH null", col = method.col[5])
arrows(-1.8, 0.22, -1.1, 0.215, length = 0.1, angle = 20, col = "orange")
arrows(-2, 0.15, -1.5, 0.145, length = 0.1, angle = 20, col = method.col[3])
arrows(2.9, 0.10, 2, 0.095, length = 0.1, angle = 20, col = method.col[5])
plot(z, fit.cash$lfdr, pch = 18, cex = 0.5, ylim = c(0, 1), col = method.col[5], ylab = "Local FDR", xlab = expression(paste(z, "-score")), cex.lab = 1.25)
points(z, fit.locfdr$fdr, pch = 16, cex = 0.5, col = method.col[3])
points(z, ashr::get_lfdr(fit.ash), pch = 17, cex = 0.5, col = method.col[4])
points(z, fit.qvalue$lfdr, pch = 15, cex = 0.5, col = method.col[2])
abline(h = 0.2, lty = 2)
legend("topright", bty = "n", pch = 15 : 18, col = method.col[2 : 5], c("qvalue", "locfdr", "ASH", "CASH"))
dev.off()quartz_off_screen
2 setEPS()
postscript("../output/fig/leukemia_q.eps", height = 5, width = 12)
par(mfrow = c(1, 2))
hist(z, prob = TRUE, main = "", xlab = expression(paste(z, "-score")), cex.lab = 1.25)
lines(x.plot, y.plot, col = method.col[5], lwd = 2)
lines(x.plot, dnorm(x.plot), col =
"orange"
# method.col[2]
, lty = 2, lwd = 2)
lines(x.plot, dnorm(x.plot, fit.locfdr$fp0[3, 1], fit.locfdr$fp0[3, 2]) * fit.locfdr$fp0[3, 3], col = method.col[3], lty = 2, lwd = 2)
text(-3, 0.22, "N(0,1)", col = "orange")
text(-5, 0.15, bquote(atop("Efron's empirical null", .(round(fit.locfdr$fp0[3, 3], 2)) %*% N(.(round(fit.locfdr$fp0[3, 1], 2)), .(round(fit.locfdr$fp0[3, 2], 2))^2))), col = method.col[3])
text(4.5, 0.10, "CASH null", col = method.col[5])
arrows(-1.8, 0.22, -1.1, 0.215, length = 0.1, angle = 20, col = "orange")
arrows(-2, 0.15, -1.5, 0.145, length = 0.1, angle = 20, col = method.col[3])
arrows(2.9, 0.10, 2, 0.095, length = 0.1, angle = 20, col = method.col[5])
plot(z, z, ylim = c(0, 1), ylab = expression(paste(q, "-value")), xlab = expression(paste(z, "-score")), cex.lab = 1.25, type = "n")
points(z, fit.cash$qvalue, pch = 25, cex = 0.25, col = method.col[5])
points(z, p.adjust(p, method = "BH"), pch = 21, cex = 0.25, col = method.col[1])
points(z, fit.qvalue$qvalues, pch = 22, cex = 0.25, col = method.col[2])
points(z, ashr::qval.from.lfdr(fit.locfdr$fdr), pch = 23, cex = 0.25, col = method.col[3])
points(z, ashr::get_qvalue(fit.ash), pch = 24, cex = 0.25, col = method.col[4])
abline(h = 0.1, lty = 2)
legend("topright", bty = "n", pch = 21 : 25, col = method.col[1 : 5], c("BHq", "qvalue", "locfdr", "ASH", "CASH"))
dev.off()quartz_off_screen
2 HIV
load("../data/LSI/hivdata.RData")
load("../data/LSI/hivz.RData")

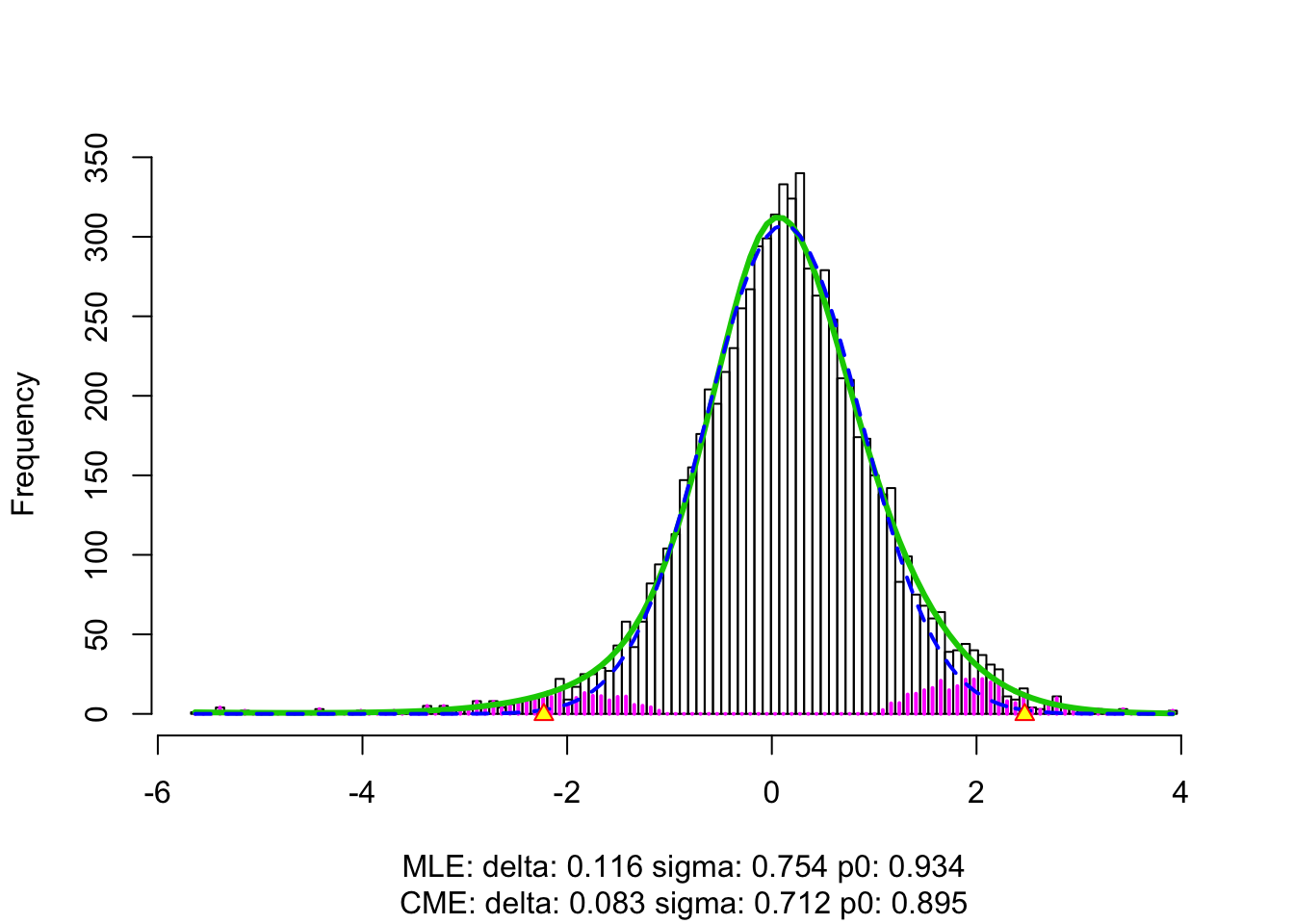

design <- rep(0 : 1, each = 4)Reproduce Efron’s empirical null analysis
temp <- locfdr(hivz)
Expand here to see past versions of unnamed-chunk-20-1.png:
| Version | Author | Date |
|---|---|---|
| 38db87b | LSun | 2018-05-11 |

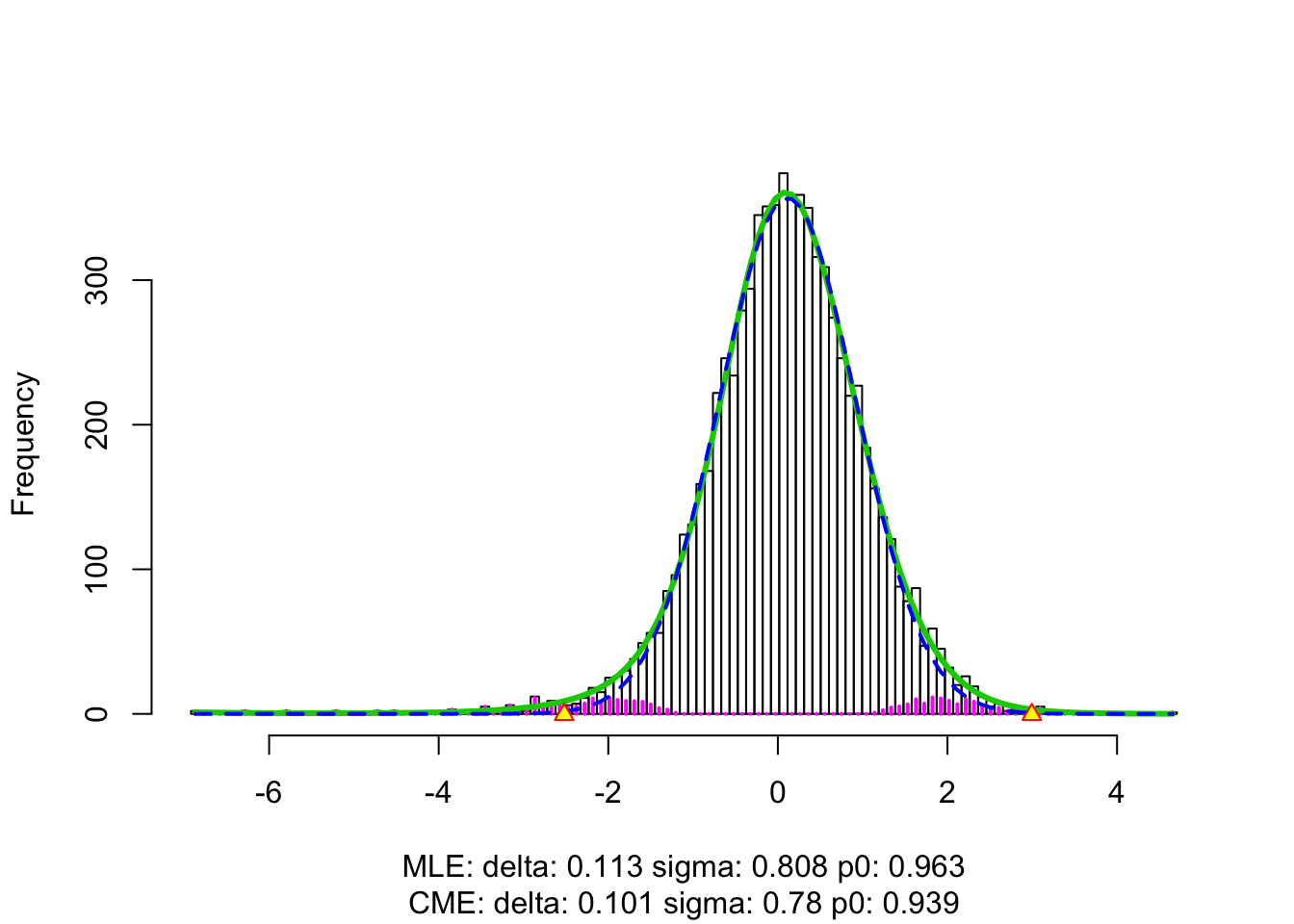

Use Smyth’s pipeline to obtain better summary statistics
loghivdata <- log2(hivdata)
loghivdata <- limma::normalizeBetweenArrays(loghivdata)
lim = limma::lmFit(loghivdata, model.matrix(~design))
r.ebayes = limma::eBayes(lim)
p = r.ebayes$p.value[, 2]
t = r.ebayes$t[, 2]
z = -sign(t) * qnorm(p/2)fit.locfdr <- locfdr(z)
Expand here to see past versions of unnamed-chunk-22-1.png:
| Version | Author | Date |
|---|---|---|
| 38db87b | LSun | 2018-05-11 |
| 4d4a685 | LSun | 2018-05-06 |
fit.qvalue <- qvalue::qvalue(p)CASH fitting
- sebetahat = betahat / z
betahat = lim$coefficients[, 2]
sebetahat = betahat / zfit.cash <- gdash(betahat, sebetahat, gd.ord = 10)
fit.ash <- ashr::ash(betahat, sebetahat, mixcompdist = "normal", method = "fdr")x.plot <- seq(-7, 5, length = 1000)
gd.ord <- 10
hermite = Hermite(gd.ord)
gd0.std = dnorm(x.plot)
matrix_lik_plot = cbind(gd0.std)
for (i in 1 : gd.ord) {
gd.std = (-1)^i * hermite[[i]](x.plot) * gd0.std / sqrt(factorial(i))
matrix_lik_plot = cbind(matrix_lik_plot, gd.std)
}
y.plot = matrix_lik_plot %*% fit.cash$w * fit.cash$fitted_g$pi[1]
method.col <- scales::hue_pal()(5)
par(mfrow = c(1, 2))
hist(z, prob = TRUE, main = "", xlab = expression(paste(z, "-scores")), cex.lab = 1.25, breaks = 50)
lines(x.plot, y.plot, col = method.col[5], lwd = 2)
lines(x.plot, dnorm(x.plot), col =
"orange"
# method.col[2]
, lty = 2, lwd = 2)
lines(x.plot, dnorm(x.plot, fit.locfdr$fp0[3, 1], fit.locfdr$fp0[3, 2]) * fit.locfdr$fp0[3, 3], col = method.col[3], lty = 2, lwd = 2)
text(-3, 0.22, "N(0,1)", col = "orange")
text(-5, 0.15, bquote(atop("Efron's empirical null", .(round(fit.locfdr$fp0[3, 3], 2)) %*% N(.(round(fit.locfdr$fp0[3, 1], 2)), .(round(fit.locfdr$fp0[3, 2], 2))^2))), col = method.col[3])
text(4.5, 0.10, "CASH null", col = method.col[5])
arrows(-1.8, 0.22, -1.1, 0.215, length = 0.1, angle = 20, col = "orange")
arrows(-2, 0.15, -1.5, 0.145, length = 0.1, angle = 20, col = method.col[3])
arrows(2.9, 0.10, 2, 0.095, length = 0.1, angle = 20, col = method.col[5])
plot(z, fit.cash$lfdr, pch = 18, cex = 0.5, ylim = c(0, 1), col = method.col[5], ylab = "Local FDR", xlab = expression(paste(z, "-scores")), cex.lab = 1.25)
points(z, fit.locfdr$fdr, pch = 16, cex = 0.5, col = method.col[3])
points(z, ashr::get_lfdr(fit.ash), pch = 17, cex = 0.5, col = method.col[4])
points(z, fit.qvalue$lfdr, pch = 15, cex = 0.5, col = method.col[2])
abline(h = 0.2, lty = 2)
legend("topleft", bty = "n", pch = 15 : 18, col = method.col[2 : 5], c("qvalue", "locfdr", "ASH", "CASH"))
Expand here to see past versions of unnamed-chunk-26-1.png:
| Version | Author | Date |
|---|---|---|
| 38db87b | LSun | 2018-05-11 |
Session information
sessionInfo()R version 3.4.3 (2017-11-30)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS High Sierra 10.13.4
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] scales_0.5.0 locfdr_1.1-8 limma_3.34.4
[4] ashr_2.2-2 Rmosek_8.0.69 PolynomF_1.0-1
[7] CVXR_0.95 REBayes_1.2 Matrix_1.2-12
[10] SQUAREM_2017.10-1 EQL_1.0-0 ttutils_1.0-1
loaded via a namespace (and not attached):
[1] gmp_0.5-13.1 Rcpp_0.12.16 pillar_1.0.1
[4] plyr_1.8.4 compiler_3.4.3 git2r_0.21.0
[7] workflowr_1.0.1 R.methodsS3_1.7.1 R.utils_2.6.0
[10] iterators_1.0.9 tools_3.4.3 digest_0.6.15
[13] bit_1.1-12 tibble_1.4.1 gtable_0.2.0
[16] evaluate_0.10.1 lattice_0.20-35 rlang_0.1.6
[19] foreach_1.4.4 yaml_2.1.18 parallel_3.4.3
[22] Rmpfr_0.6-1 ECOSolveR_0.4 stringr_1.3.0
[25] knitr_1.20 rprojroot_1.3-2 bit64_0.9-7
[28] grid_3.4.3 qvalue_2.10.0 R6_2.2.2
[31] rmarkdown_1.9 reshape2_1.4.3 ggplot2_2.2.1
[34] magrittr_1.5 whisker_0.3-2 splines_3.4.3
[37] MASS_7.3-47 backports_1.1.2 codetools_0.2-15
[40] htmltools_0.3.6 scs_1.1-1 assertthat_0.2.0
[43] colorspace_1.3-2 stringi_1.1.6 lazyeval_0.2.1
[46] munsell_0.4.3 pscl_1.5.2 doParallel_1.0.11
[49] truncnorm_1.0-7 R.oo_1.21.0 This reproducible R Markdown analysis was created with workflowr 1.0.1
