<h1 class="title toc-ignore">Gaussian derivatives applied to Smemo’s data</h1>
<h4 class="author"><em>Lei Sun</em></h4>
<h4 class="date"><em>2017-06-17</em></h4>

</div>


<!-- The file analysis/chunks.R contains chunks that define default settings
shared across the workflowr files. -->
<!-- Update knitr chunk options -->
<!-- Insert the date the file was last updated -->
<p><strong>Last updated:</strong> 2017-11-07</p>
<!-- Insert the code version (Git commit SHA1) if Git repository exists and R
 package git2r is installed -->
<p><strong>Code version:</strong> 2c05d59</p>
<!-- Add your analysis here -->
<div id="introduction" class="section level2">
<h2>Introduction</h2>
<p>Re-analyze <a href="http://www.nature.com/nature/journal/v507/n7492/abs/nature13138.html">Smemo et al 2014</a>’s mouse heart RNA-seq data after discussion with Matthew.</p>
<pre class="r"><code>counts.mat = read.table(&quot;../data/smemo.txt&quot;, header = T, row.name = 1)
counts.mat = counts.mat[, -5]</code></pre>
</div>
<div id="gene-selection" class="section level2">
<h2>Gene selection</h2>
<p>Only use genes with total counts of <span class="math inline">\(4\)</span> samples <span class="math inline">\(\geq 5\)</span>.</p>
<pre class="r"><code>counts = counts.mat[rowSums(counts.mat) &gt;= 5, ]
design = model.matrix(~c(0, 0, 1, 1))</code></pre>
<pre><code>Number of selected genes: 17191</code></pre>
</div>
<div id="summary-statistics" class="section level2">
<h2>Summary statistics</h2>
<pre class="r"><code>source(&quot;../code/count_to_summary.R&quot;)
summary &lt;- count_to_summary(counts, design)
betahat &lt;- summary$betahat
sebetahat &lt;- summary$sebetahat
z &lt;- summary$z</code></pre>
</div>
<div id="fitting-z-with-gaussian-derivatives" class="section level2">

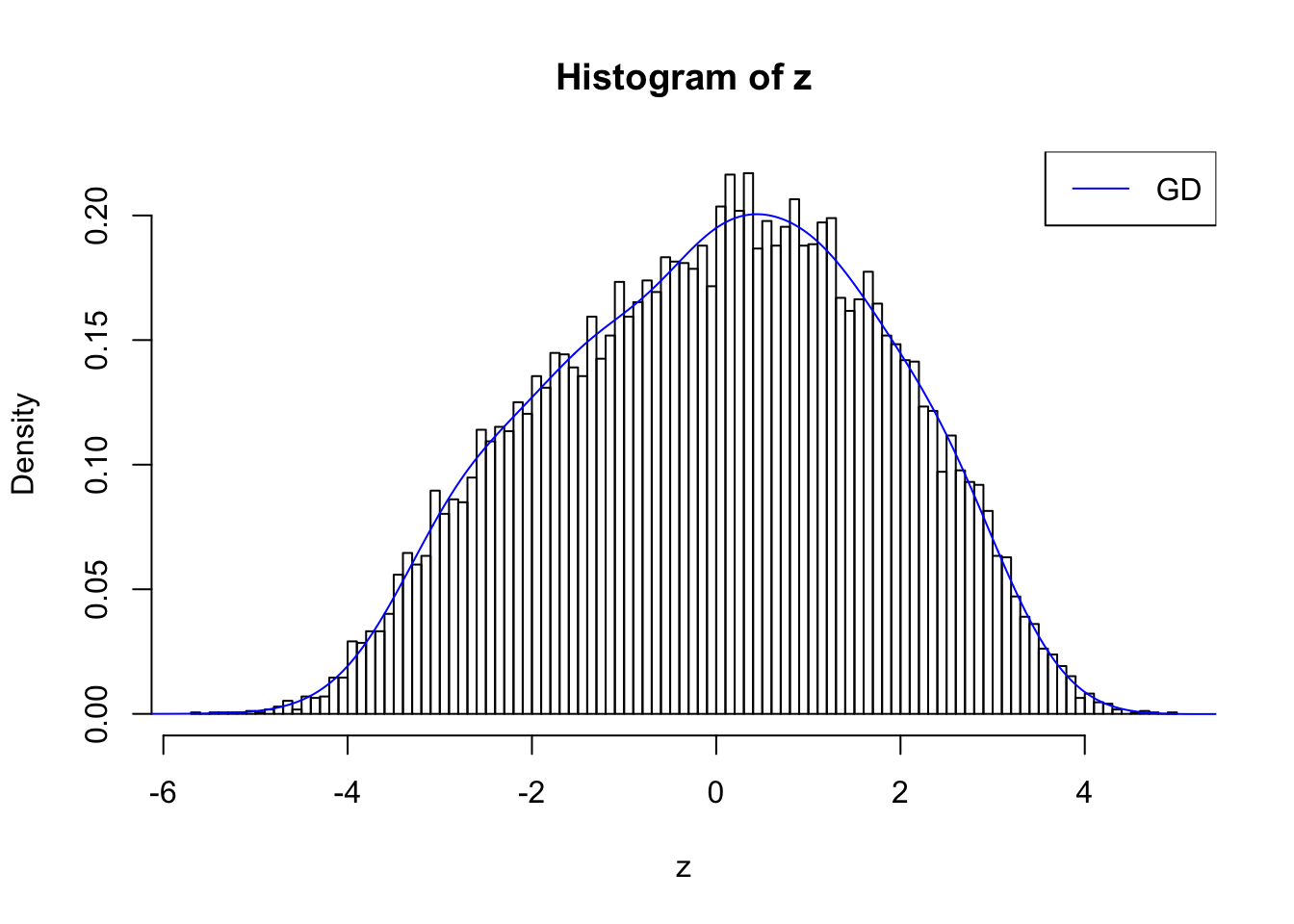

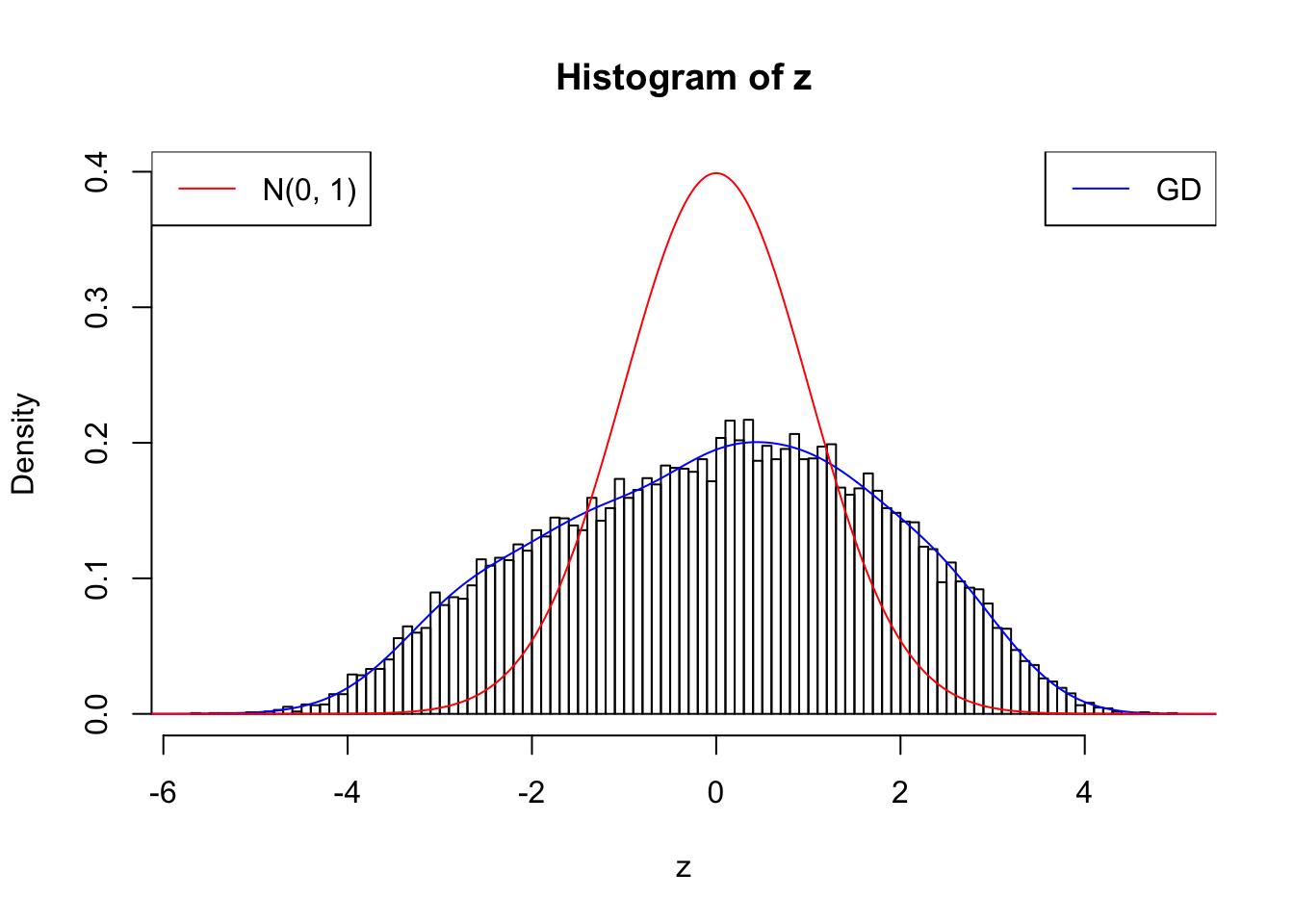

<h2>Fitting <span class="math inline">\(z\)</span> with Gaussian derivatives</h2>
<p>With stretch GD can fit <span class="math inline">\(z\)</span> scores, but it seems there should be signals.</p>
<pre><code>GD Coefficients:</code></pre>
<pre><code>0 : 1 ; 1 : 0.0112765123515512 ; 2 : 1.60751487400088 ; 3 : 0.361378958092869 ; 4 : 1.65789257614746 ; 5 : 0.670189379060472 ; 6 : 0.75997503879673 ; 7 : 0.557659272292024 ; 8 : -0.0586994517219462 ; 9 : 0.175073181131849 ; 10 : -0.132350826272713 ;</code></pre>
<p><img src="figure/smemo_2.rmd/fitting%20gaussian%20derivatives-1.png" width="672" style="display: block; margin: auto;" /><img src="figure/smemo_2.rmd/fitting%20gaussian%20derivatives-2.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="discovered-by-bh-and-ash" class="section level2">
<h2>Discovered by <code>BH</code> and <code>ASH</code></h2>
<p>Feeding summary statistics to <code>BH</code> and <code>ASH</code>, both give thousands of discoveries.</p>
<pre class="r"><code>fit.BH = p.adjust((1 - pnorm(abs(z))) * 2, method = &quot;BH&quot;)
## Number of discoveries by BH
sum(fit.BH &lt;= 0.05)</code></pre>
<pre><code>[1] 2541</code></pre>
<pre class="r"><code>fit.ash = ashr::ash(betahat, sebetahat, method = &quot;fdr&quot;)
## Number of discoveries by ASH
sum(get_svalue(fit.ash) &lt;= 0.05)</code></pre>
<pre><code>[1] 6440</code></pre>
</div>
<div id="fitting-ash-first-or-gaussian-derivatives-first" class="section level2">
<h2>Fitting <code>ASH</code> first or Gaussian derivatives first</h2>
<p>Using default setting <span class="math inline">\(L = 10\)</span>, <span class="math inline">\(\lambda = 10\)</span>, <span class="math inline">\(\rho = 0.5\)</span>, compare the <code>GD-ASH</code> results by fitting <code>ASH</code> first vs fitting <code>GD</code> first. They indeed arrive at different local minima.</p>
<pre class="r"><code>fit.gdash.ASH &lt;- gdash(betahat, sebetahat,
                       gd.priority = FALSE)
## Regularized log-likelihood by fitting ASH first
fit.gdash.ASH$loglik</code></pre>
<pre><code>[1] -12483.86</code></pre>
<pre class="r"><code>fit.gdash.GD &lt;- gdash(betahat, sebetahat)
## Regularized log-likelihood by fitting GD first
fit.gdash.GD$loglik</code></pre>
<pre><code>[1] -22136.92</code></pre>
</div>
<div id="gd-ash-with-larger-penalties-on-w" class="section level2">
<h2><code>GD-ASH</code> with larger penalties on <span class="math inline">\(w\)</span></h2>
<p>Using <span class="math inline">\(\lambda = 50\)</span>, <span class="math inline">\(\rho = 0.1\)</span>, fitting <code>ASH</code> first and <code>GD</code> first give the same result, and produce 1400+ discoveries with <span class="math inline">\(q\)</span> values <span class="math inline">\(\leq 0.05\)</span>, all of which are discovered by <code>BH</code>.</p>
<pre class="r"><code>L = 10
lambda = 50
rho = 0.1
fit.gdash.ASH &lt;- gdash(betahat, sebetahat,
                       gd.ord = L, w.lambda = lambda, w.rho = rho,
                       gd.priority = FALSE)
## Regularized log-likelihood by fitting ASH first
fit.gdash.ASH$loglik</code></pre>
<pre><code>[1] -13651.59</code></pre>
<pre class="r"><code>## Number of discoveries
sum(fit.gdash.ASH$qvalue &lt;= 0.05)</code></pre>
<pre><code>[1] 1431</code></pre>
<pre class="r"><code>fit.gdash.GD &lt;- gdash(betahat, sebetahat,
                      gd.ord = L, w.lambda = lambda, w.rho = rho,
                      gd.priority = TRUE)
## Regularized log-likelihood by fitting GD first
fit.gdash.GD$loglik</code></pre>
<pre><code>[1] -13651.59</code></pre>
<pre class="r"><code>## Number of discoveries
sum(fit.gdash.GD$qvalue &lt;= 0.05)</code></pre>
<pre><code>[1] 1431</code></pre>
<pre><code>GD Coefficients:</code></pre>
<pre><code>0 : 1 ; 1 : -0.0475544308510135 ; 2 : 0.707888470469342 ; 3 : 0.149489828947119 ; 4 : -8.97499076623316e-14 ; 5 : 0.109281416075664 ; 6 : -3.00530934822662e-13 ; 7 : 0.0783545592042359 ; 8 : -2.99572304462426e-13 ; 9 : 0.0911488252640105 ; 10 : -2.99578347875936e-13 ;</code></pre>

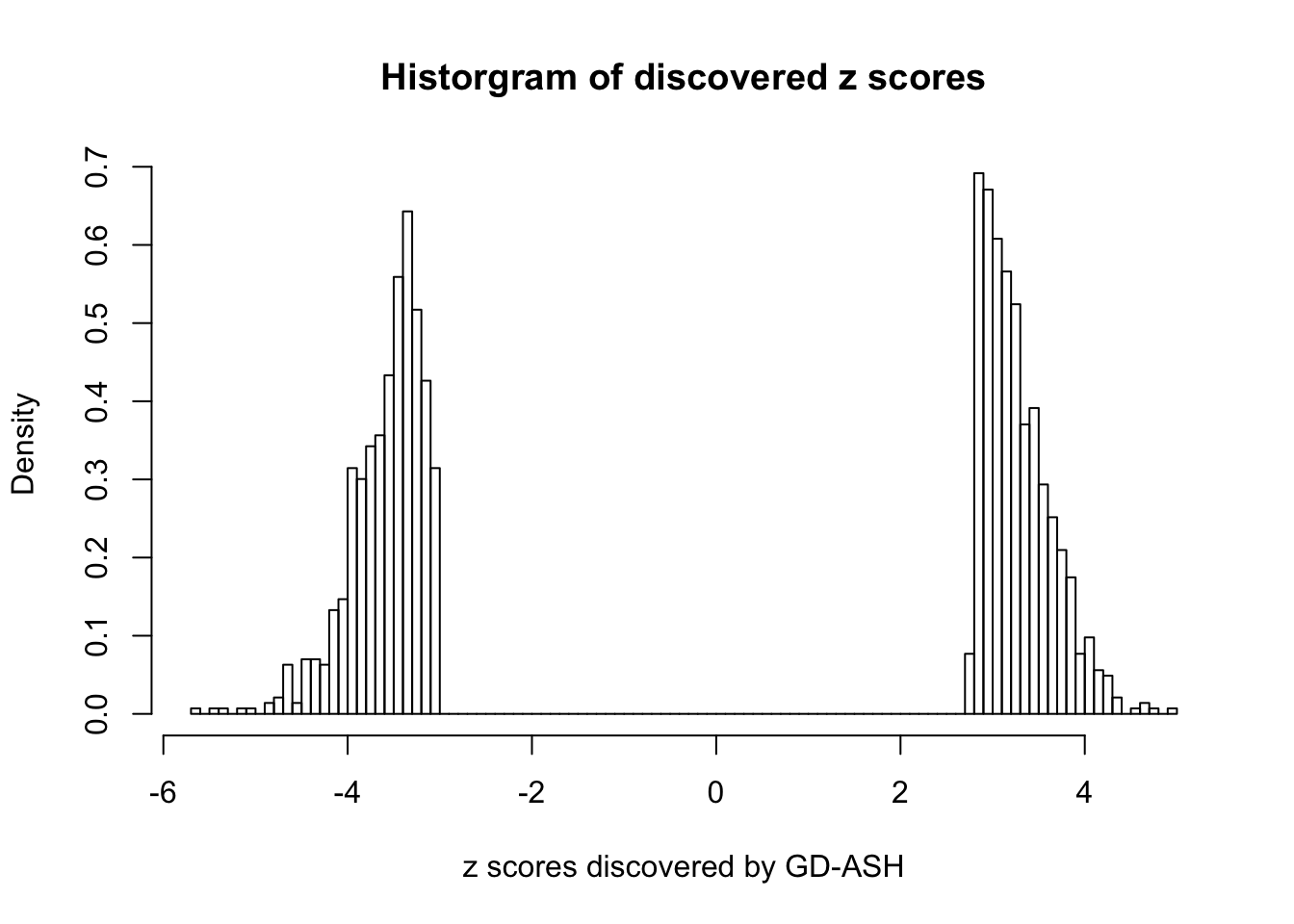

<p><img src="figure/smemo_2.rmd/GD-ASH%20discoveries%20histogram-1.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<!-- Insert the session information into the document -->
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.2 (2017-09-28)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Sierra 10.12.6

Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.4/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] ashr_2.1-27       Rmosek_7.1.3      PolynomF_0.94     cvxr_0.0.0.9400
[5] REBayes_0.85      Matrix_1.2-11     SQUAREM_2017.10-1 EQL_1.0-0
[9] ttutils_1.0-1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.13      knitr_1.17        magrittr_1.5
 [4] edgeR_3.20.1      MASS_7.3-47       pscl_1.5.2
 [7] doParallel_1.0.11 lattice_0.20-35   foreach_1.4.3
[10] stringr_1.2.0     tools_3.4.2       parallel_3.4.2
[13] grid_3.4.2        git2r_0.19.0      iterators_1.0.8
[16] htmltools_0.3.6   assertthat_0.2.0  yaml_2.1.14
[19] rprojroot_1.2     digest_0.6.12     gmp_0.5-13.1
[22] codetools_0.2-15  evaluate_0.10.1   rmarkdown_1.6
[25] limma_3.34.0      stringi_1.1.5     compiler_3.4.2
[28] backports_1.1.1   locfit_1.5-9.1    truncnorm_1.0-7  </code></pre>
</div>

<hr>
<p>
    This <a href="http://rmarkdown.rstudio.com">R Markdown</a> site was created with <a href="https://github.com/jdblischak/workflowr">workflowr</a>
</p>
<hr>

<!-- To enable disqus, uncomment the section below and provide your disqus_shortname -->

<!-- disqus
  <div id="disqus_thread"></div>
    <script type="text/javascript">
        /* * * CONFIGURATION VARIABLES: EDIT BEFORE PASTING INTO YOUR WEBPAGE * * */
        var disqus_shortname = 'rmarkdown'; // required: replace example with your forum shortname

        /* * * DON'T EDIT BELOW THIS LINE * * */
        (function() {
            var dsq = document.createElement('script'); dsq.type = 'text/javascript'; dsq.async = true;
            dsq.src = '//' + disqus_shortname + '.disqus.com/embed.js';
            (document.getElementsByTagName('head')[0] || document.getElementsByTagName('body')[0]).appendChild(dsq);
        })();
    </script>
    <noscript>Please enable JavaScript to view the <a href="http://disqus.com/?ref_noscript">comments powered by Disqus.</a></noscript>
    <a href="http://disqus.com" class="dsq-brlink">comments powered by <span class="logo-disqus">Disqus</span></a>
-->


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
