Modder's Notes for Baldur's Gate: Enhanced Edition Trilogy (EET)

Table of Contents

  1. Overview
  2. EET conventions
  3. Scope of changes needed
  4. Tutorials


Baldur's Gate: Enhanced Edition Trilogy Modder's Notes is intended for modders who wish to build modifications to be installed on top of EET core component installation. The document is organized using a tutorial approach, in which you are guided through each step of accomplishing particular modding tasks without breaking compatibility with other platforms.

These notes expects that you're already familiar with F.A.Q section of the EET readme file.

I've tried to write this document with easy to understand language even for novice modders. English is not my first language though, so I can't promise that it will be smooth read. If you find something here confusing or if you have additional questions don't hesitate to ask on EET section of Gibberlings3 forum.

EET conventions

Areas naming convention

All area resources (ARE, WED, TIS, MOS, BMP, BCS) have been renamed to use new area codes because there is considerable overlap in area filenames between Baldur's Gate: Enahanced Edition and Baldur's Gate II: Enhanced Edition. It is a straightforward system. The numbers are untouched, but the prefix "AR" is changed to "BG". This maintains the consistency and validity of area references from a number of public documents, including walkthroughs, travel maps, and the like. Therefore, these documents can be referred to for an area number guide to EET, except that the prefix change from "AR" to "BG" must be considered when, for example, using the CLUAConsole, or when developing modifications that affects Baldur's Gate: Enhanced Edition areas. Siege of Dragonspear area resources don't conflict with BG2:EE due to vanilla "BD" prefix, so the original names are kept.

Resource naming convention

For other resources, EET keeps the original BG:EE resource name as strictly as possible. If it doesn't conflict with BG2:EE content than the name of imported file is not changed. For conflicting resources BG1 ones have suffix with the underscore (_) added to make them unique. Since the engine only supports 8.3 filenames, there are 2 resources that couldn't use this convention and adopted BGT one instead (skelwa02.cre => bgskel02.cre, skelwa03.cre => bgskel03.cre).

Conflicting spells from BG:EE that don't use SPELL.IDS symbolic names uses a little different naming convention - "BG" letters replaces first 2 letters of the spell (so SPWI becomes BGWI etc). The reason behind this is limitation of the engine which expects maximum 7 character spell names for some spell effects. This convention, adopted from BGT, makes the renamed spells still easy to identify.

Naming convention for new files

New files added by EET have "K#" prefix to distinguish them from vanilla BG:EE and BG2:EE content.

BG1 resource naming reference table

For more convenient viewing, the BG1 resource naming reference table has been moved to external file. Even though it's in HTML format it's basically a spreadsheet file, so you can also open it for example in Microsoft Excel (which has been used to create it). The file is separated into several worksheets named after extensions of files listed there. Columns show naming conventions used in BG:EE, EET and BGT. Tutu reference has not been included because that platform renames pretty much every single resource in game which would make the table far less readable.

Scope of changes needed

Mods that doesn't support EE engine at all

How-to: Converting existing mods to the EE engine

Mods with only BG2:EE content

If the mod is compatible with BG2:EE and only has BG2/ToB content than adding compatibility is a matter of minutes. Here are usual steps:

Mods with only BG:EE/SoD content

When it comes to native compatibility with BG:EE/SoD content you should be especially aware about EET naming conventions for conflicting BG1 resources and how to implement them in your code. Also keep in mind that the party can go back to previous areas (access to areas from previous campaigns is not blocked after finishing the campaign), so additional dialogue/script filtering may be needed.

NPC mods

Regardless of the portion of the story that the NPC mod has been designed for it's recommended to adopt EET NPC continuity system.

Mods affecting both BG:EE and BG2:EE resources

These are the most tricky beasts because you can't just trust EET_modConverter to handle conversion automatically - in most cases that would result in modifying both BG1 and BG2 stuff which is not intended. However you can still use the output change-log in order to decide which changes are warranted, especially if you know the code well. Preferable way to deal with incompatibilities between platform in such mods is using cross-platform coding variables. Fortunately patches for most demanding mods in this category has been already made.


Adopting EET naming conventions for BG1 resources

If your mod is designed to work not only with EET but also other platforms you should consider using either:

You can also patch files directly using EET_modConverter tool that has custom version of Platform Conversion Utility in it, specialized in converting BG:EE and BGT code and resources to adopt EET BG1 naming conventions. The tool will print all changes it makes into a log file, so you can review them if they are really needed. "Patching (...)" in log means that the input file has been patched and copied to output directory of the tool. "Analyzing (...)" means that the tool found an instance of the particular resource in tp2/tph/tpp/tpa files that didn't have extension provided. In such case the file is not patched but you should manually check if suggested change is warranted. Keep in mind that PCU part of this tool is designed for mods with BG1/BG:EE content only. You should not use it for mods with BG2 resources/code, unless you really know you're doing. Supported files that this tool can automatically convert: ARE, BAF, BCS, CRE, D, DLG, EFF, GAM, ITM, SPL, STO, TBL, TP2, TPH, TPP, TPA, TRA, VVC, WED, WMP. Other than renaming and patching files to use EET naming convention it will also handle converting ARE Song references to use EET song playlist.

Implementing BG1 random items

Infinity Engine uses dummy items in order to assign random loot through the game. There are 2 ways to implement them:

  1. via RNDEQUIP.2DA, RNDMAGIC.2DA, RNDSCROL.2DA, RNDTREAS.2DA, RNDWEAP.2DA system from vanilla engine
  2. via RNDTRES.2DA system added in EE engine

In EET RNDTRES.2DA is used for random tables related to SoD content (no changes compared to vanilla SoD, new rows are simply appended to the file.). But for the vanilla BG1 content old system is still in use due to problem with item identification when another dummy item is referenced in a row. This means that BG1 random items have different names compared to vanilla BG:EE which needs to be adopted in mods that use them. EET uses exactly the same item names for BG1 items as BGT (the only difference is that EET also makes entries from RNDEQUIP.2DA unique), so if your mod already has compatibility code/resources for that platform it will also work with EET. To make the resource patching easier we've prepared a new WeiDU function that can be used to automatically patch any resource to use correct BG1 dummy item names, regardless of platform, available within EET_functions.tph. BG1_RND_ITM patch function supports following resources: ARE, CRE, EFF, ITM, SPL, STO. Example usage:

COPY ~somefile~ ~override~
    src = 1 //source platform for dummy item names used in the patched file: 0 (default, no need to assign) - BG1 / BG:EE / Tutu; 1 - BGT; 2 - EET

Implementing area music

EET uses all music files present in BG:EE, SoD and BG2:EE. The mod is meant to be installed on clean installation of BG2:EE, which allows it to set a common standard for song numbers for mods installed later. All BG2:EE song references are kept as they were, BG:EE and SoD songs that were missing in BG2:EE become appended to songlist.2da during EET installation - use it as a reference. It's also easy to patch areas from BG:EE and BGT mods to use EET common standard for song numbers thanks to EET_modConverter tool, as has been explained here.

Adding support for EET chapters/journal system

EET uses united journal system that keeps track of all 22 chapters of your journey. Here is a reference information when each chapter starts and ends:

  1. Baldur's Gate - chapters from 0 to 7 (no changes compared to vanilla BG:EE).
  2. Siege of Dragonspear expansion - chapters from 7 to 13 (no changes compared to vanilla BG:EE+SoD).
  3. Baldur's Gate II: Shadows of Amn - chapters from 13 to 19 (instead of 1-7).
  4. Throne of Bhaal expansion - chapters from 20 to 22 (instead of 8-10).

As you can see from above reference mods that uses Chapter variable should adopt EET continuous chapters/journal system when it comes to Shadows of Amn and Throne of Bhaal chapters (no changes in BG:EE and SoD content). Sounds like a nightmare compatibility wise, right? Well... not really. All changes to your code can be implemented automatically without any effort on your part. There are 2 ways do it:

Working with files that are merged during installation

EET is installed in two steps - main component (setup-EET) on a clean BG2:EE, and additional setup-EET_end component at the end of mod installation process (after any other mods). This second step is used to automatically:

Why exactly NPC JOIN dialogue files are being merged? Short answer - interjections. Let's use an example from vanilla game.

Party travels through Athkatla slums where they can meet a shady looking guy that initiates a dialogue: "Yes, you! See this mighty fine sphere here? You can have it for your very own for a mere 500 gold pieces! What do you say?". Now if you have Minsc in the party following interjection is called "Boo says such a sphere will not fit into my pocket. If I can't carry it with me, it's just not a good buy."

The above dialogue piece called 'interjection' is triggered by WAYLANE.DLG and filtered with triggers, in this case See("Minsc") and InParty("Minsc"). Now let's say you didn't meet this guy during your Shadows of Amn travels. What would happen after going back from Throne of Bhaal to Athkatla with Minsc? The dialogue would be interrupted in the place where Minsc is expected to say something (dialogue shutdown/infinite loop and other problems). In order to make JOIN dialogue files valid through whole journey continuous characters that uses more than 1 JOIN dialogue file have them merged with one another.

JOIN dialogue file merging is done automatically, based on PDIALOG variants 2DA entries, at the end of installation process (after all mods are already installed), so modders don't need to change anything when it comes to JOIN dialogue coding. You should patch each dialogue file exactly the same way as you do in vanilla games. State numbers and file names are not altered at that point of installation (just keep in mind that some BG1 files have been renamed due to conflicts with BG2). You can use this reference file that lists different files that are assigned through out the game (green colour cells shows BG1 renamed files - if you're using cpmvars variable libraries then you don't even need to be aware about it).

Detecting EET within WeiDU code

Once again EET_modConverter may be handy if you need to replace many instances of GAME_IS command in your code - the tool has an option to do it automatically.

Detecting EET within UI.MENU (GUI) code

In order to detect EET presence from within UI.MENU LUA code (for example to enable some features in cross platform compatible GUI mods) you can use following code:

eetState = Infinity_GetINIValue('Program Options','EET Installation State')

In this example code 'eetState' variable will return 0 on non EET games and 2 when it's EET installation (or 1 if setup-EET_end component has not been installed yet). Example usage:

enabled "eetState ~= 0" --enabled if game is EET

enabled "eetState == 0" --enabled if game is not EET

if eetState > 0 then --EET installation
  --some code
else --not EET installation
  --some code

Trigger filtering across BG1, SoD, BG2:SoA, BG2:ToB

EET uses following GLOBAL in-game variable filters for vanilla campaigns to shut off content that no longer should show up after certain point of the story.

All these variables are correctly set even if you start the game in SoD, BG2 or ToB, so they should be always reliable for content filtering.

There may be situations where you want to filter content to show up (or not) when party is returning to old areas. For this purpose EET added new "BG1AREA" entry to AREATYPE.IDS. You can check if the current area is part of BG1 campaign via following triggers:

If you need more precision with detecting areas you can also use additional AreaCheck(S:ResRef*) triggers.

Adding AreaType to BG1 ARE files

You can patch area files with WeiDU code during your mod installation. First retrieve the BIT number associated with BG1AREA from AREATYPE.IDS using this action command:


And than patch area files with this code:


Detecting mods installed on BG:EE

As has been mentioned in the readme F.A.Q section EET has limited support for BG:EE mods installed on BG:EE previous to installing EET on BG2:EE. Mods installed this way are treated exactly the same as vanilla resources and end up as part of the BG2:EE EET installation. So, how can other mods detect if a particular mod has been installed on BG:EE? There are 2 ways to do it:

Adding support for mods installable on BG:EE previous to installing EET on BG2:EE

If you're not planning to convert your BG:EE mod to work natively with EET, you may be interested in a solution that treats mods installed on BG:EE (previous to installing EET on BG2:EE) as vanilla content, which means all new BG:EE resources are converted on the fly with vanilla files. For more information how to achieve this please take a look at BGEE_to_EET_mod_checker tool readme file.

Adding support for shattering items (iron crisis) system in BG1 portion of the game

EET uses the same system as vanilla BG:EE+SoD installation - via opcode 232. There is a pre-made action function available within EET_functions.tph in case you would like to add more items into iron crisis pool. It first removes BG:EE/Tutu/BGT/EET implementation (if already present) and automatically patch files to add BG:EE/EET item shattering system. The function can be used not only for weapons but also armors, shield and helmets listed in the array.

ACTION_DEFINE_ARRAY arrayName BEGIN ~modDir/weapon.itm~ ~modDir/armor.itm~ ~%var%/shield.itm~ ~override/helmet.itm~ END
    shattering_array = EVAL ~arrayName~ //array with files to patch (supports: weapons, armors, shields, helmets)

Importing more items to BG2

In vanilla game when you import your character only Player1 inventory is checked and bags of holding are lost. In order to expand item importation for whole party and junk located in bags of holding EET introduced a new way to import items. Modders should use exactly the same code in AR0602.BCS as they do in vanilla game. The only change needed is appending the item that you would like to be imported into K#IMPORT.2DA:


This way the item will be in Player1 inventory at the beginning of Irenicus Dungeon even if it belonged to other party member during transition or was stored in a bag of holding. Your importation code should be expanded on top of AR0602.BCS like in vanilla game (before block that takes all items from your inventory). That's all you really need to know to create mods compatible with EET, but here is a full explanation how the system works in case you'd like to take advantage of other features of this system:

  1. During setup-EET_end component installation K#IMPORT.2DA, IMPORT01.2DA, IMPORT02.2DA, IMPORT03.2DA and BDSODIMP.BCS files are read and the importation code is automatically generated at the top of K#TELBGT.BCS script using filenames found within those previously analysed files
  2. The importation code within K#TELBGT.BCS takes the referenced items from whole party + bags of holdings during SoD->BG2 transition and places them in a new bag of holding called K#IMPORT.ITM
  3. Now that the all relevant items are already within importation bag of holding the transition code moves all the remaining party items into invisible 'K#ImportContainer' container in BD6100.ARE (last area in SoD)
  4. At the end of script run CHARNAME receives importation bag of holding (K#IMPORT.ITM) with all imported items in it (so we are NOT limited to just 20 items)
  5. After CHARNAME is moved to Irenicus Dungeon there is a time for mods to do something with items imported to BG2 before they are taken away from player inventory
  6. Instead of completely destroying inventory and gold EET moves remaining items to invisible 'K#ImportContainer' container within AR0602.ARE and the gold is stored in K#ImportGold global variable. The same container also receives all items that we previously moved to container with the same name in BD6100.ARE

Adding support for NPC transition system

As mentioned in readme file EET uses new system for NPC transition from Siege of Dragonspear expansion to Shadows of Amn and from Shadows of Amn to Throne of Bhaal expansion. In order to make modder's life easier we've prepared a function designed to automatically add both types of transition to any kind of NPC mod. All you need to do to make your NPC fully compatible with EET is disabling your normal patching code for AR4000.BCS, AR4500.BCS, FATESP.DLG and using EET_NPC_TRANSITION function instead.

If your BG2 NPC is meant to have BG1->BG2 transition than you should add additional !BeenInParty("%DV%") trigger (where %DV% is death variable of your CRE) in the code that spawns new version of CRE file into BG2 area. This way such block won't trigger if the NPC is valid for migration from BG1 to BG2. For example:

//this code will spawn new version of CRE if the transition didn't occur and CRE was not left dead in BG1
  !BeenInParty("Minsc") //NPC was not in party at any point during BG1/SoD (otherwise he would be valid for trnsition)
  GlobalLT("chapter","GLOBAL",20) //don't spawn him during ToB
  !Dead("Minsc") //NPC has not been killed during BG1
    ActionOverride("Minsc",MakeGlobalOverride()) //just to be sure that there is no more than 1 entry in GAM file

In order to always be up to date with latest set of EET functions I suggest using WeiDU INCLUDE command and point it to EET directory in your code like this:

INCLUDE ~EET/other/EET_functions.tph~

You can use this example code for reference how the EET_functions.tph EET_NPC_TRANSITION function is meant to be used:

    type = 1
      //1 - BG1/SoD NPC without BG2 content (NPC is disabled from game after BG1, mentioned but not summonable in ToB)
      //2 - BG2 NPC without BG1 content (transition to ToB if joined the party at least once during SoA)
      //3 - NPC with BG1 and BG2 content (full transition to SoA/ToB)
      //4 - NPC joinable only in ToB (creates new creature)
    default_ToB = 0 //controls if NPC should be spawnable in ToB when the game has been started in ToB (no by default - 0)
    clean_ToB = 0 //cleans out existing EET code in FATESP.DLG, AR4000.BCS, AR4500.BCS for DV specified in clean_ToB_DV
    dv = "IMOEN2" //Death Variable (script name) of the NPC (must be the same in BG1/SoD/BG2/ToB)
    override_BG1 = "IMOEN_" //name of the override NPC script in BG1
    override_SoD = "BDIMOEN" //name of the override NPC script in SoD (use BG1 one if doesn't exist)
    override_SoA = "IMOEN2" //name of the override NPC script in SoA
    override_ToB = "IMOEN25" //name of the override NPC script in ToB (use SoA one if doesn't exist)
    dialog_ToB = "IMOEN25A" //name of the dialogue file used after spawning NPC in ToB (use SoA POST dialogue or initial SoA dialogue file if doesn't exist)
    cre_ToB = "IMOEN15" //if type = 4 and/or default_ToB = 1 name of the ToB CRE file is needed (used to create new CRE rather than migrating existing one from SoA)
    traFile = "" //an optional TRA file that will be used for the TRA references defined in "string"
    string = "@1" //FATESP summon text (example: "Bring me Quayle, the gnome cleric/illusionist.") or TRA string number
    stringPosDV = "" //set the DV of NPC right below your response (used for sorting FATESP responses alphabetically)
      //Aerie, Ajantis, Alora, Anomen, Baeloth, Branwen, Cernd, Coran, Corwin, Dorn, Dynaheir, Edwin, Eldoth, Faldorn, Garrick,
      //Glint, HaerDalis, Hexxat, Imoen2, Jaheira, Jan, Kagain, Keldorn, Khalid, Kivan, Korgan, MKhiin, Mazzy, Minsc, Montaron,
      //Nalia, Neera, Quayle, Rasaad, Safana, SharTeel, Skie, Tiax, Valygar, Viconia, Voghiln, Wilson, Xan, Xzar, Yeslick, Yoshimo
      //variable not set (default) = NPC name appended at the end of summoning list
    SummonedVar = "" //set it only if you want to use different var name than %dv%Summoned (useless in most cases)
    SpawnPlaneVar = "" //set it only if you want use different var name than %dv%SpawnPlane (useless in most cases)
    clean_ToB_DV = "" //if clean_ToB = 1 existing code for this DV will be removed from FATESP.DLG, AR4000.BCS, AR4500.BCS
//example for BG1 NPC without BG2 content
    type = 1
    dv = "IMOEN2"
    override_BG1 = "IMOEN_"
    override_SoD = "BDIMOEN"
    traFile = "ModFolder/language/%LANGUAGE%/dialog.tra"
    string = "@1"
    stringPosDV = "Jaheira"

//example for BG2 NPC without BG1 content
    type = 2
    dv = "IMOEN2"
    override_SoA = "IMOEN2"
    override_ToB = "IMOEN25"
    dialog_ToB = "IMOEN25A"
    traFile = "ModFolder/language/%LANGUAGE%/dialog.tra"
    string = "@1"
    stringPosDV = "Jaheira"

//example for NPC with BG1 and BG2 content (type = 3 can be also used to add transition into vanilla BG1 NPC without it)
    type = 3
    dv = "IMOEN2"
    override_BG1 = "IMOEN_"
    override_SoD = "BDIMOEN"
    override_SoA = "IMOEN2"
    override_ToB = "IMOEN25"
    dialog_ToB = "IMOEN25A"
    traFile = "ModFolder/language/%LANGUAGE%/dialog.tra"
    string = "@1"
    stringPosDV = "Jaheira"

//example for NPC joinable only in ToB
    type = 4
    dv = "IMOEN2"
    cre_ToB = "IMOEN15"
    traFile = "ModFolder/language/%LANGUAGE%/dialog.tra"
    string = "@1"
    stringPosDV = "Jaheira"

//example of implementing type of transition depending on detection if separate mod with type = 1 transition has been installed
  OUTER_SET type_var = 3 //this will change already applied type of transition = 1 to 3
  OUTER_SET type_var = 2 //BG1 version of NPC is not installed, so just add BG2 only transition
    type = type_var
    dv = "IMOEN2"
    override_BG1 = "IMOEN_" //won't be used if type_var = 2
    override_SoD = "BDIMOEN" //won't be used if type_var = 2
    override_SoA = "IMOEN2"
    override_ToB = "IMOEN25"
    dialog_ToB = "IMOEN25A"
    traFile = "ModFolder/language/%LANGUAGE%/dialog.tra"
    string = "@1"
    stringPosDV = "Jaheira"

You can see more examples in EET/lib/transition.tph file. It is preferable to use EET_NPC_TRANSITION than manually patching files. This way if anything regarding transition will be changed in future you won't need to change anything in your code. For those interested how exactly it works or those who need to include additional REPLACE_TEXTUALLY patching within outcome code, here is an explanation what the function does:

Depending on which variables you set in EET_NPC_TRANSITION code, different combination of above patching will take place.

Workaround for CalanderDay command in SoD/BG2 portion of the game

CalanderDay(I:Day*) / CalanderDayGT(I:Day*) / CalanderDayLT(I:Day*) triggers can be used to detect if the current day is the day specified / after the day specified / before the day specified. What about situations when you need to use it in Siege of Dragonspear or Baldur's Gate 2 portion of the game? We don't know how many days it will take CHARNAME party to finish first 7 chapters, so the vanilla command becomes less useful. That is why EET introduced days counter that can be used as a workaround here. For easier explanation let's take a look at how EET resolved this problem for Town Crier in Athkatla, who should tell something new each 3 passing days.

Town Crier local script (DS3483.BCS) has been expanded with the below code that assigns K#TOWNC01_day variable to use K#DaysPassed value (in EET this variable counts passed in-game days). From now after each day the value of K#TOWNC01_cnt will be increased by 1. You don't need to be near NPC to make it work - the K#TOWNC01_cnt variable will be updated correctly as soon as you return to area with this NPC.

    SetGlobal("K#TOWNC01_cnt","GLOBAL",1) //modify this value if you want to change starting day
    SetGlobal("K#TOWNC01_day","GLOBAL",0) //just to be sure


Now that we have a working day tracking system we should modify TOWNC01.DLG to replace CalanderDayLT trigger with variable check instead, like this:

    REPLACE_TEXTUALLY ~CalanderDayLT(~ ~GlobalLT("K#TOWNC01_cnt","GLOBAL",~

There you go - a working workaround for CalanderDayLT. You can adjust the code to easily create workarounds for CalanderDay and CalanderDayGT too. In this example K#TOWNC01_cnt is a GLOBAL variable due to multiple instances of TOWNC01.CRE in different areas and we want them all to use the same days passed counter. You can change it to use LOCALS variable instead if the counter should be tracked only for 1 instance of NPC.

Adding new animations

Unlike classic games Infinity Engine distributed with Enhanced Edition games doesn't have hardcoded limit for animations, so assigning new animations to existing vanilla slots is considered a bad practice now. There are 2 ways to implement new animations to the game:

EET promotes common standard introduced in IWD:EE and viader's Extended Animations mod. If you are creating mod compatible with EET you should follow what has been said by viader regarding animation slot offsets, in above mentioned topic:

0xE240 - 0xE2FF - reserved by Extended Animations
0xE330 - 0xE3FF - free
0xE440 - 0xE4FF - free
0xE530 - 0xE5FF - free
0xE620 - 0xE6FF - free
0xE730 - 0xE7FF - free
0xE850 - 0xE8FF - free
0xE920 - 0xE9FF - free
0xEA30 - 0xEAFF - free
0xEB30 - 0xEBFF - free
0xEC30 - 0xECFF - free
0xED30 - 0xEDFF - free
0xEE20 - 0xEEFF - free

Adding support for EET Worldmap

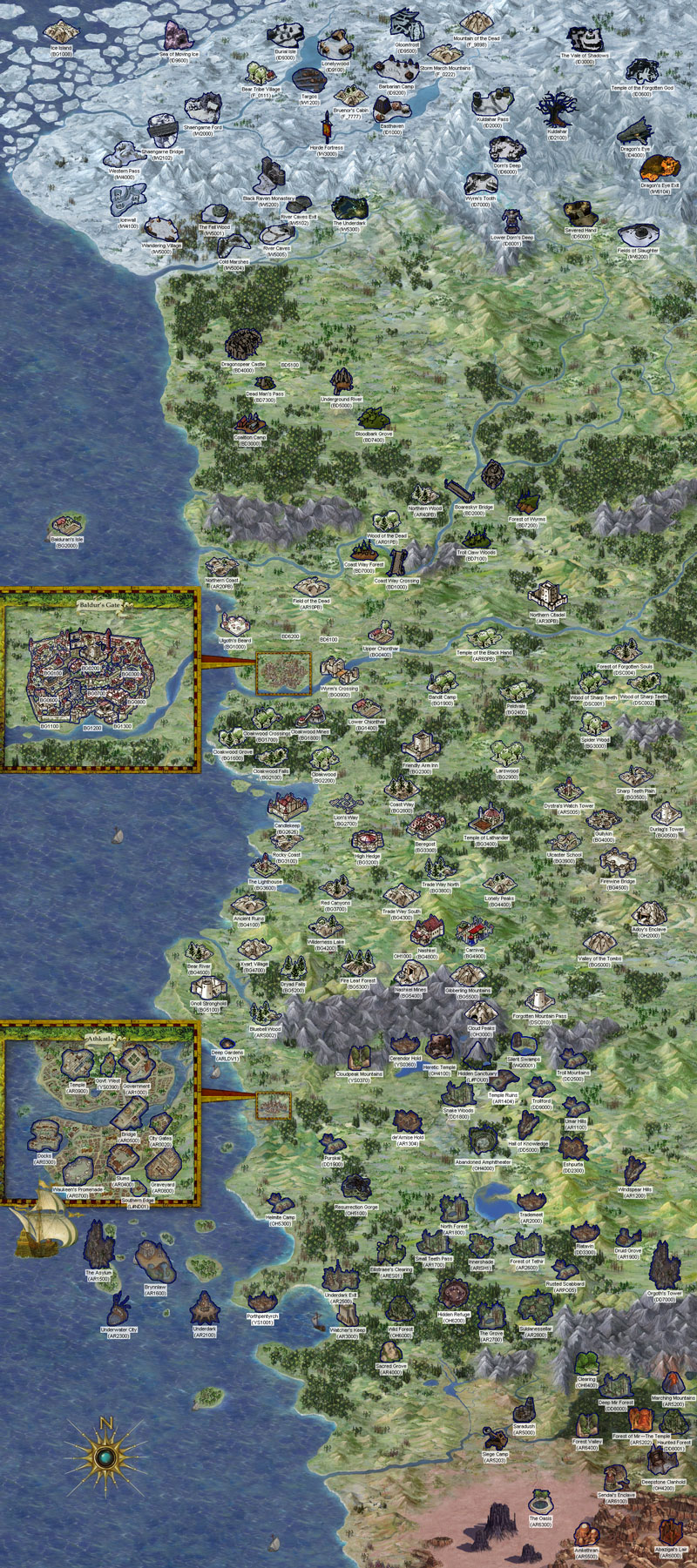

EET Worldmap consists of BG1, SoD, BG2, ToB maps merged together. It also covers lands from both IWD games (related to IWD-in-EET mod). When it comes to BG2 and ToB areas it allows for cross-platform modding without separate script blocks for patching EET Worldmap. For EET you can use the same coordinates as in vanilla maps but with added X and Y correction that represents where the old map starts compared to the upper-left corner of the EET map. Preferable way of doing so is using cpmvars variable libraries Modders can use the same weidu code as for SoA/ToB worldmaps, by simply assigning additional X and Y coordinate correction depending on the platform. BG2 and ToB icons have the same numbers as in vanilla BG2:EE. BG1 icons also preserve the numbering, but you need to add a starting number correction, if you want to use the same code for worldmap patching between BG1 and EET. BG1 and ToB icons have been appended to MAPICONS.BAM file, so you also need to take it into account. EET uses the same icon numbers as BP-BGT Worldmap.

Here is an example code that is compatible with different platforms at the same time:

//either use cpmvars that have these variables set or add this variable declaration somewhere in your tp2 code
  OUTER_SET wmp_xCoord_SoA = 0 //in relation to BG2/BG2:EE WORLDMAP.WMP add 0 px correction to X coordinate
  OUTER_SET wmp_yCoord_SoA = 2283 //in relation to BG2/BG2:EE WORLDMAP.WMP add 2283 px correction to Y coordinate
  OUTER_SET wmp_xCoord_ToB = 893 //in relation to BG2/BG2:EE WORLDM25.WMP add 893 px correction to X coordinate
  OUTER_SET wmp_yCoord_ToB = 3011 //in relation to BG2/BG2:EE WORLDM25.WMP add 1681 px correction to Y coordinate
  OUTER_SET wmp_mapIcon_BG1 = 29 //in relation to Tutu YAC22MAP.BAM add 29 cycles correction to map icon
  OUTER_SET wmp_mapIcon_ToB = 85 //in relation to BG2 25MAPIC.BAM add 85 cycles correction to map icon
  OUTER_SPRINT wmp_worldmap_ToB "worldmap" //when editing ToB worldmap use WORLDMAP.WMP instead of WORLDM25.WMP
  OUTER_SET wmp_xCoord_SoA = 0
  OUTER_SET wmp_yCoord_SoA = 0
  OUTER_SET wmp_xCoord_ToB = 0
  OUTER_SET wmp_yCoord_ToB = 0
  OUTER_SET wmp_mapIcon_BG1 = 0
  OUTER_SET wmp_mapIcon_ToB = 0
  OUTER_SPRINT wmp_worldmap_ToB "worldm25"

//example code that adds new area to BG2/BG2:EE/EET WORLDMAP.WMP
LAF sc#addWmpAre
    mapIcon = 5
    xCoord = 240 + wmp_xCoord_SoA
    yCoord = 130 + wmp_yCoord_SoA
    areName = ~fileName~
    strName = "nameOfTheArea"
    strDesc = "nameOfTheArea"

//example code that adds new area to BG2/BG2:EE WORLDM25.WMP and to EET WORLDMAP.WMP
LAF sc#addWmpAre
    mapIcon = 5 + wmp_mapIcon_ToB
    xCoord = 240 + wmp_xCoord_ToB
    yCoord = 130 + wmp_yCoord_ToB
    areName = ~fileName~
    strName = "nameOfTheArea"
    strDesc = "nameOfTheArea"
    worldmap = EVAL "%wmp_worldmap_ToB%"

For reference here is a table listing all icons available in EET MAPICONS.BAM file and icon numbers used by EET and other platforms.

Icon Origins EET / BP-BGT Worldmap Tutu BG2 / BG2:EE (SoA map) BG2 / BG2:EE (ToB map)
AR1600 (Brynnlaw) 5 - 5 -
AR1500 (The Asylum) 6 - 6 -
AR2100 (Underdark) 7 - 7 -
AR2300 (Underwater City) 8 - 8 -
AR1400 (Temple Ruins) 9 - 9 -
AR1100 (Umar Hills) 10 - 10 -
AR1200 (Windspear Hills) 11 - 11 -
AR1300 (de'Arnise Hold) 12 - 12 -
AR2000 (Trademeet) 13 - 13 -
AR1900 (Druid Grove) 14 - 14 -
AR2500 (Underdark Exit) 15 - 15 -
AR1800 (North Forest) 16 - 16 -
AR1700 (Small Teeth Pass) 17 - 17 -
AR2800 (Suldanessellar) 18 - 18 -
AR1000 (Government) 19 - 19 -
AR0800 (Graveyard) 20 - 20 -
AR0400 (Slums) 21 - 21 -
AR0700 (Waukeen's Promenade) 22 - 22 -
AR0500 (Bridge) 23 - 23 -
AR0900 (Temple) 24 - 24 -
AR0300 (Docks) 25 - 25 -
AR0020 (City Gates) 26 - 26 -
BG0100 (Baldur's Gate North West) 29 0 - -
BG0200 (Baldur's Gate North) 30 1 - -
BG0300 (Baldur's Gate North East) 31 2 - -
BG0600 (Baldur's Gate West) 32 3 - -
BG0700 (Baldur's Gate Center) 33 4 - -
BG0800 (Baldur's Gate East) 34 5 - -
BG1100 (Baldur's Gate South West) 35 6 - -
BG1200 (Baldur's Gate South) 36 7 - -
BG1300 (Baldur's Gate South East) 37 8 - -
BG1600 (Cloakwood Grove) 38 9 - -
BG2100 (Cloakwood Falls) 39 10 - -
BG1700 (Cloakwood Crossings) 40 11 - -
BG1900 (Bandit Camp) 41 12 - -
BG2000 (Balduran's Isle) 42 13 - -
BG0900 (Wyrm's Crossing) 43 14 - -
BG1800 (Cloakwood Mines) 44 15 - -
BG2200 (Cloakwood) 45 16 - -
BG2300 (Friendly Arm Inn) 46 17 - -
BG2800 (Coast Way) 47 18 - -
BG2900 (Larswood) 48 19 - -
BG2400 (Peldvale) 49 20 - -
BG2600 (Candlekeep) 50 21 - -
BG3100 (Rocky Coast) 51 22 - -
BG2700 (Lion's Way) 52 23 - -
BG3300 (Beregost) 53 24 - -
BG3000 (Spider Wood) 54 25 - -
BG3700 (Red Canyons) 56 26 - -
BG0400 (Upper Chionthar) 57 27 - -
BG3200 (High Hedge) 58 28 - -
BG3800 (Trade Way North) 59 29 - -
BG4000 (Gullykin) 61 30 - -
BG3600 (The Lighthouse) 62 31 - -
BG4200 (Wilderness Lake) 63 32 - -
BG4300 (Trade Way South) 64 33 - -
BG4400 (Lonely Peaks) 65 34 - -
BG3900 (Ulcaster School) 66 35 - -
BG4500 (Firewine Bridge) 67 36 - -
BG4100 (Ancient Ruins) 68 37 - -
BG4700 (Xvart Village) 69 38 - -
BG5200 (Dryad Falls) 70 39 - -
BG4800 (Nashkel) 71 40 - -
BG4900 (Carnival) 72 41 - -
BG5000 (Valley of the Tombs) 73 42 - -
BG4600 (Bear River) 74 43 - -
BG5100 (Gnoll Stronghold) 75 44 - -
BG5300 (Fire Leaf Forest) 76 45 - -
BG5400 (Nashkel Mines) 77 46 - -
BG5500 (Gibberling Mountains) 78 47 - -
BG0500 (Durlag's Tower) 79 48 - -
BG1000 (Ulgoth's Beard) 80 49 - -
unused 82 50 - -
BG3500 (Sharp Teeth Plain) 83 51 - -
BG3400 (Temple of Lathander) 84 52 - -
AR3000 (Watcher's Keep) 90 - - 5
AR4000 (Sacred Groove) 91 - - 6
AR5203 (Siege Camp) 92 - - 7
AR5000 (Saradush) 93 - - 8
AR5202 (Forest of Mir—The Temple) 94 - - 9
AR5200 (Marching Mountains) 95 - - 10
OH6400 (Clearing) 96 - - 11
AR6100 (Sendai's Enclave) 97 - - 12
AR6400 (Forest Valley) 98 - - 13
AR5500 (Amkethran) 99 - - 14
AR6300 (The Oasis) 100 - - 15
AR6000 (Abazigal's Lair) 101 - - 16
unused (Saradush destroyed) 102 - - 17
OH4000 (Abandoned Amphitheater) 106 - 29 (only in BG2:EE) -
OH6100 (Hidden Refuge) 107 - 31 (only in BG2:EE) -
OH4100 (Heretic Temple) 108 - 32 (only in BG2:EE) -
OH6000 (Wild Forest) 109 - 33 (only in BG2:EE) -
OH5100 (Resurrection Gorge) 110 - 34 (only in BG2:EE) -
OH4200 (Deepstone Clanhold) 111 - 30 (only in BG2:EE) 18 (only in BG2:EE)
OH2000 (Adoy's Enclave) 112 - - -
OH3000 (Cloud Peaks) 113 - - -
AR30PB (Northern Citadel) 114 - - -
ARC001 (Castle Daerthmac) 115 - - -
BD7300 (Dead Man's Pass) 123 - - -
BD1000 (Coast Way Crossing) 124 - - -
BD2000 (Boareskyr Bridge) 125 - - -
BD3000 (Coalition Camp) 126 - - -
BD5000 (Underground River) 127 - - -
BD4000 (Dragonspear Castle) 128 - - -
BD7000 (Coast Way Forest) 130 - - -
BD7100 (Troll Claw Woods) 131 - - -
BD7200 (Forest of Wyrms) 132 - - -
BD7400 (Bloodbark Grove) 133 - - -
ID1000 (Easthaven) 135 - - -
ID2000 (Kuldahar Pass) 136 - - -
ID2100 (Kuldahar) 137 - - -
ID3000 (The Vale of Shadows) 138 - - -
ID3600 (Temple of the Forgotten God) 139 - - -
ID4000 (Dragon's Eye) 140 - - -
ID5000 (Severed Hand) 141 - - -
ID6000 (Dorn's Deep) 142 - - -
ID7000 (Wyrm's Tooth) 143 - - -
ID8001 (Lower Dorn's Deep) 144 - - -
ID9100 (Lonelywood) 146 - - -
ID9200 (Barbarian Camp) 147 - - -
ID9300 (Burial Isle) 148 - - -
ID9500 (Gloomfrost) 150 - - -
ID9600 (Sea of Moving Ice) 151 - - -
IW1000 (Targos) 152 - - -
IW2000 (Shaengarne Ford) 155 - - -
IW2102 (Shaengarne Bridge) 156 - - -
IW3000 (Horde Fortress) 157 - - -
IW4000 (Western Pass) 158 - - -
IW4100 (Icewall) 159 - - -
IW5000 (Wandering Village) 160 - - -
IW5001 (The Fell Wood) 161 - - -
IW5004 (Cold Marshes) 162 - - -
IW5005 (River Caves) 163 - - -
IW5102 (River Caves Exit) 164 - - -
IW5200 (Black Raven Monastery) 165 - - -
IW5300 (The Underdark) 166 - - -
IW6200 (Fields of Slaughter) 170 - - -
IW6000 (Kuldahar Valley) 172 - - -
IW6104 (Dragon's Eye Exit) 173 - - -
ARES01 (Eilistraee's Clearing) 175 - - -
ARISH1 (Innershade) 176 - - -
WQ0001 (Silent Swamps) 177 - - -
ARLDV1 (Deep Gardens) 178 - - -
L#ND01 (Southern Edge) 179 - - -
L#FOU0 (Hidden Sanctuary) 180 - - -
unused (reserved by Lava) 181 - - -
YS0390 (Govt. West) 182 - - -
EET Worldmap reference for BG1/SoD/SoA/ToB areas as well as up to date reference for supported and uppcoming mods (click to enlarge)
Please visit this forum topic for information from which game/mod particular area originates.
