Ramp (FB)

FUNCTION_BLOCK Ramp

Short Description

Limitation of the signal change of one analog input signal

Typical application: damping / filtering

Portrayal

Interfaces

Inputs

Name	Datatype	Range	Init-Value	Function
rIn	REAL			Analog value input

Outputs

Name	Datatype	Range	Init-Value	Function
rOut	REAL			Analog value output
xRampActive	BOOL			Status - Ramp

Setpoints / Parameters

Name	Datatype	Range	Init-Value	Function
rVariation	REAL	0 ...	100	Maximum change per unit of time
tTime	TIME		T#10s	Unit of time
rInitValue	REAL		0	Init-Value
eInitial	eInit		eInit.InputValue	Selection of the initial value
tInitDelay	TIME		T#5s	Start delay

Functional Description

General

The analog input signal rIn is permanently monitored for value changes.

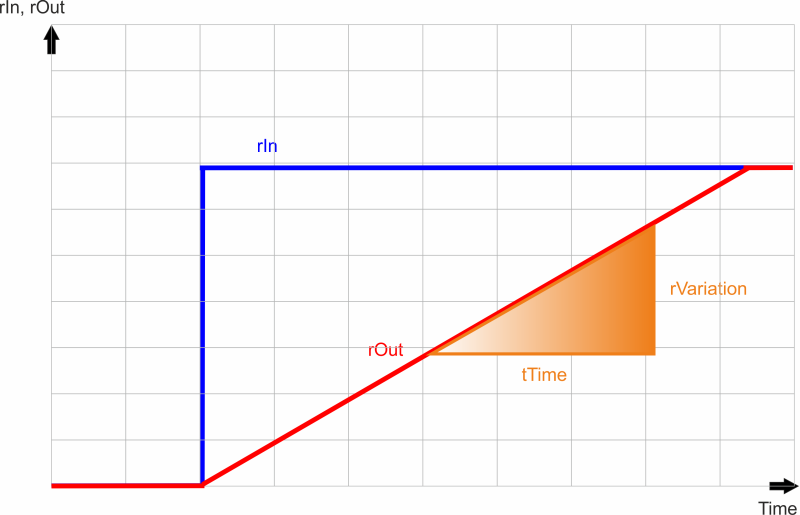

If the signal at the analog value output rOut differs from the input signal, it follows the input signal with the maximum change rate.

Setting the unit of time tTime

This setpoint / parameter may only accept values >= 0.

The maximum signal change rate is calculated by the quotient of the setpoints / parameters rVariation and tTime (tTime > 0s).

The maximum signal change rate is calculated by the quotient of the setpoints / parameters rVariation and the task cycle time (tTime = 0s).

The maximum signal change rate is effective for positive and negative changes at the input value rIn.

Type of initialization eInitial

This setpoint / parameter defines the type of initialization of the analog value input rIn.

The initialization is performed once after each CPU restart.

The following options are possible:

Art	Initialization value	Note
eInit.InitValue	rInitValue	Configurable initial value
eInit.InputValue	rIn	Input value
eInit.InputValueDelayed	rIn	Delayed input value

Independent of this, the initialization is continuously performed if the setpoint / parameter tTime has the value T#0s.

Visualization

Information

Element	Authors	Date	Version	Notes
Function	Adam Bartod	04.2016	1.0	Initial version
Programming	Adam Bartod	04.2016	1.0	Initial version
Test	Jochen Reu	10.2017	1.0	Initial version
Documentation	Jochen Reu	10.2017	1.0	Initial version

Codesys

InOut:

Scope	Name	Type	Initial	Comment
Input	rIn	REAL		Analog value input
	rVariation	REAL	100	Maximum change per unit of time
	tTime	TIME	TIME#10s0ms	Unit of time
	rInitValue	REAL	0	Init-Value
	eInitial	eInit	eInit.InputValue	Selection of the initial value
	tInitDelay	TIME	TIME#5s0ms	Start delay
Output	rOut	REAL		Analog value output
	xRampActive	BOOL		Status - Ramp
