<msg> Save a memory engram delete <obs_id> Delete an observation [--hard] (soft-delete by default; --hard removes permanently) engram delete session <id> Delete a session by ID (session must have no observations) engram delete prompt <id> Delete a prompt by ID (permanent) engram delete project <name> [--hard] Cascade-delete a project: soft-deletes observations (or hard-deletes with --hard, which also removes sessions); always removes prompts engram timeline <obs_id> Chronological context around an observation engram context [project] Recent context from previous sessions engram stats Memory statistics engram export [file] Export all memories to JSON engram import <file> Import memories from JSON engram sync Export new memories as compressed chunk to .engram/ engram sync --all Export ALL projects (ignore directory-based filter) engram sync --cloud --project <name> Sync against configured cloud endpoint (project-scoped) engram conflicts <sub> Inspect and manage memory conflict relations list, show, stats, scan, deferred engram doctor Run read-only operational diagnostics [--json] [--project P] [--check CODE] engram cloud status Show cloud runtime/config status engram cloud config --server <url> Configure cloud server URL engram cloud enroll <project> Enroll a project for cloud sync engram cloud serve Run cloud backend + dashboard engram cloud upgrade <doctor|repair|bootstrap|status|rollback> --project <name> Guided upgrade workflow for existing projects engram cloud bootstrap admin --username <name> [--email <email>] [--grant-project <project>]... [--issue-token [name]] Create the first managed admin (see DOCS.md for details and the current server-side auth wiring limitation) engram projects list Show all projects with obs/session/prompt counts engram projects consolidate Interactive merge of similar project names [--all] [--dry-run] engram projects prune Remove projects with 0 observations [--dry-run] engram obsidian-export Export memories to Obsidian vault (beta) engram version Show version ``` Local server auth: - `ENGRAM_HTTP_TOKEN`: optional Bearer auth for `engram serve`. When set, the following routes require `Authorization: Bearer <token>`: `DELETE /sessions/{id}`, `DELETE /observations/{id}`, `DELETE /prompts/{id}`, `GET /export`, `POST /import`, `POST /projects/migrate`. Comparison is constant-time; token is read per-request. When unset, all routes are open (zero-config default). - `ENGRAM_TIMEZONE`: IANA zone name for timestamp display in TUI and cloud dashboard (e.g. `America/New_York`). Falls back to system local when unset or invalid. Cloud constraints (current behavior): - Cloud is opt-in replication/shared access; local SQLite remains source of truth. - `engram cloud serve` requires `ENGRAM_CLOUD_ALLOWED_PROJECTS` in both token-auth and insecure no-auth mode. Use `*` to allow all projects (dev/internal deploys) — bypasses per-project name enforcement while still requiring a non-empty project on each request. - Authenticated cloud serve requires `ENGRAM_CLOUD_TOKEN` + explicit non-default `ENGRAM_JWT_SECRET`. - Insecure local-dev mode (`ENGRAM_CLOUD_INSECURE_NO_AUTH=1`) still requires the project allowlist and must not be used in production. Cloud route/auth split (current behavior): - Local runtime (`engram serve`) exposes local JSON APIs and `GET /sync/status` only. - Cloud runtime (`engram cloud serve`) exposes `GET /health`, `GET /sync/pull`, `GET /sync/pull/{chunkID}`, `POST /sync/push`, and `/dashboard/*`. - Dashboard public routes: `GET /dashboard/health`, `GET/POST /dashboard/login`, `POST /dashboard/logout`, `GET /dashboard/static/*`. - Dashboard protected routes: `GET /dashboard`, `/dashboard/stats`, `/dashboard/activity`, `/dashboard/browser` (`/observations`, `/sessions`, `/sessions/{sessionID}`, `/prompts`), `/dashboard/projects`, `/dashboard/projects/list`, `/dashboard/projects/{project}`, `/dashboard/projects/{name}/observations|sessions|prompts`, `/dashboard/contributors`, `/dashboard/contributors/list`, `/dashboard/contributors/{contributor}`, `/dashboard/admin`, `/dashboard/admin/projects`, `/dashboard/admin/users`, `/dashboard/admin/users/list`, `/dashboard/admin/health`, `POST /dashboard/admin/projects/{name}/sync`, `/dashboard/sessions/{project}/{sessionID}`, `/dashboard/observations/{project}/{sessionID}/{syncID}`, `/dashboard/prompts/{project}/{sessionID}/{syncID}`. - Note: `/dashboard/admin/contributors` was removed; user/contributor management lives under `/dashboard/admin/users`. - In authenticated mode, protected dashboard routes require a signed dashboard cookie (obtained via `/dashboard/login` + bearer token) and do not accept direct bearer headers as a browser session substitute. - In insecure mode (`ENGRAM_CLOUD_INSECURE_NO_AUTH=1` with no bearer token), dashboard auth is bypassed and `/dashboard/login` redirects to `/dashboard/`. --- ## Dashboard visual-parity layer The cloud dashboard (`internal/cloud/dashboard/`) is rendered server-side using [templ](https://templ.guide/) components. This section documents the key invariants introduced in the `cloud-dashboard-visual-parity` change. ### Principal bridge Display name is surfaced through `MountConfig.GetDisplayName func(r *http.Request) string`. If nil or if the closure returns an empty string, all handlers fall back to `"OPERATOR"`. The bridge is implemented in `internal/cloud/dashboard/principal.go` and accessed via `h.principalFromRequest(r)`. Handlers never read `r.Context()` for identity — they read the `MountConfig` closures. ### Push-path pause guard A per-project sync pause is stored in `cloud_project_controls` (Postgres). The `POST /sync/push` handler in `cloudserver.go` checks `IsProjectSyncEnabled(project)` immediately after `authorizeProjectScope` succeeds, using a structural interface assertion. A paused project returns HTTP 409 Conflict with `error_code: "sync-paused"`. This is enforced server-side — the admin toggle is never purely cosmetic. Regression guard: `TestPushPathPauseEnforcement` in `cloudserver_test.go`. ### Audit log boundary (structural interface pattern) When a push is rejected due to a paused project, both `handleMutationPush` and `handlePushChunk` emit an audit entry via `cloudstore.InsertAuditEntry`. The audit capability is accessed through a structural type assertion against an anonymous interface: ```go if auditor, ok := s.store.(interface { InsertAuditEntry(ctx context.Context, entry cloudstore.AuditEntry) error }); ok { _ = auditor.InsertAuditEntry(r.Context(), cloudstore.AuditEntry{...}) } ``` **Why `ChunkStore` and `MutationStore` are NOT extended**: these interfaces are consumed by a wide surface of test fakes, integration adapters, and future clients. Adding `InsertAuditEntry` to them would require every implementer (real and fake) to implement a method that is only relevant to the rejection path. The structural assertion isolates the audit concern at the call site and makes it trivially optional: stores that do not implement `InsertAuditEntry` (e.g., legacy test fakes) silently skip the audit with a log warning — no panic, no 5xx. **Synchronous insert rationale**: the insert is synchronous (no goroutine, no channel) because the 409 is already a fast path (the data was never stored). The ~1ms overhead of a Postgres `INSERT` is acceptable; the alternative (buffered async) would complicate recovery, lose entries on process restart, and add concurrency concerns with no meaningful latency benefit for the caller. **Audit boundary**: audit entries are only emitted at the pause-rejection site. Pull requests (`GET /sync/mutations/pull`) never emit audit entries; paused projects continue to serve reads unrestricted. ### Composite-ID URL scheme Detail pages use composite path parameters because the integrated store is chunk-centric (no globally unique numeric IDs): | Page | URL pattern | |------|-------------| | Session detail | `GET /dashboard/sessions/{project}/{sessionID}` | | Observation detail | `GET /dashboard/observations/{project}/{sessionID}/{syncID}` | | Prompt detail | `GET /dashboard/prompts/{project}/{sessionID}/{syncID}` | Path values are extracted via `r.PathValue(name)` (Go 1.22 `net/http.ServeMux`). `syncID` values are validated as non-empty with `len <= 128`. ### Insecure-mode regression guard `TestInsecureModeLoginRedirects` in `cloudserver_test.go` asserts that `GET /dashboard/login` with `auth == nil` returns 303 to `/dashboard/`. This prevents silent regressions if the no-auth short-circuit path is modified. --- ## Cloud Autosync Manager `internal/cloud/autosync/Manager` is a lease-guarded background goroutine started by `engram serve` and `engram mcp` when `ENGRAM_CLOUD_AUTOSYNC=1`. It implements the local-first invariant: all network I/O happens in its own goroutine and never holds locks shared with the SQLite write path. ### Data flow ``` Local Write → store.WriteObservation → [SQLite sync_mutations journal] ↓ (onWrite hook) Manager.NotifyDirty() [buffered-1 chan] ↓ (debounce 500ms) Manager.cycle() ├─ AcquireSyncLease (SQLite) ├─ push: ListPendingSyncMutations → MutationTransport.PushMutations │ → POST /sync/mutations/push → cloudstore.InsertMutationBatch └─ pull: GetSyncState → MutationTransport.PullMutations → GET /sync/mutations/pull (filtered by enrollment) → store.ApplyPulledMutation ↓ autosyncStatusAdapter → /sync/status → dashboard pill ``` ### Lease semantics The Manager holds a SQLite-backed lease during each cycle. `StopForUpgrade` sets `PhaseDisabled` and does NOT release the lease, so no other worker can pick up sync during an upgrade window. `ResumeAfterUpgrade` clears the disabled flag and re-arms the loop without restarting the process. ### Mutation endpoints The cloud server exposes two routes registered in `cloudserver.go` and handled by `mutations.go`: | Method | Path | Purpose | |--------|------|---------| | `POST` | `/sync/mutations/push` | Accept a batch of up to 100 mutations from the client | | `GET` | `/sync/mutations/pull` | Return mutations since a cursor, filtered by caller's enrolled projects | Both require `Authorization: Bearer <token>`. Push enforces the project-level sync pause (HTTP 409 on `sync_enabled=false`) and the configured cloud push body limit (`ENGRAM_CLOUD_MAX_PUSH_BYTES`, default 8 MiB). Pull filters server-side. --- ## Next Steps - [Agent Setup](AGENT-SETUP.md) — connect your agent to Engram - [Plugins](PLUGINS.md) — what the OpenCode and Claude Code plugins add - [Obsidian Brain](beta/obsidian-brain.md) — visualize memories as a knowledge graph (beta)

[← Back to README](../README.md) # Architecture - [How It Works](#how-it-works) - [Session Lifecycle](#session-lifecycle) - [MCP Tools](#mcp-tools) - [Progressive Disclosure](#progressive-disclosure-3-layer-pattern) - [Memory Hygiene](#memory-hygiene) - [Topic Key Workflow](#topic-key-workflow-recommended) - [Project Structure](#project-structure) - [CLI Reference](#cli-reference) --- ## How It Works

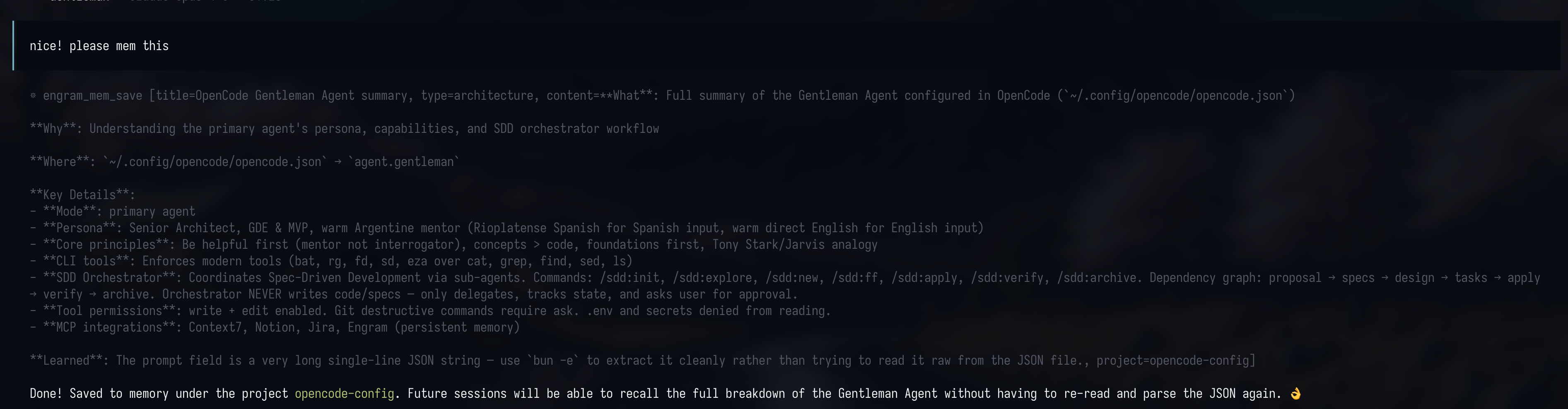

Agent saving a memory via mem_save
The agent proactively calls mem_save after significant work — structured, searchable, no noise.

Engram trusts the **agent** to decide what's worth remembering — not a firehose of raw tool calls. ### The Agent Saves, Engram Stores ``` 1. Agent completes significant work (bugfix, architecture decision, etc.) 2. Agent calls mem_save with a structured summary: - title: "Fixed N+1 query in user list" - type: "bugfix" - content: What/Why/Where/Learned format 3. Engram persists to SQLite with FTS5 indexing 4. Next session: agent searches memory, gets relevant context ``` --- ## Session Lifecycle ``` Session starts → Agent works → Agent saves memories proactively ↓ Session ends → Agent writes session summary (Goal/Discoveries/Accomplished/Next Steps/Files) ↓ Next session starts → Previous session context is injected automatically ``` --- ## MCP Tools | Tool | Purpose | |------|---------| | `mem_save` | Save a structured observation (decision, bugfix, pattern, etc.); best-effort captures process-local current prompt context when available unless `capture_prompt=false` | | `mem_update` | Update an existing observation by ID | | `mem_delete` | Delete an observation (soft-delete by default, hard-delete optional) | | `mem_suggest_topic_key` | Suggest a stable `topic_key` for evolving topics before saving | | `mem_search` | Full-text search across all memories | | `mem_session_summary` | Save end-of-session summary | | `mem_context` | Get recent context from previous sessions | | `mem_timeline` | Chronological context around a specific observation | | `mem_get_observation` | Get full content of a specific memory | | `mem_save_prompt` | Save a user prompt for future context | | `mem_stats` | Memory system statistics | | `mem_session_start` | Register a session start | | `mem_session_end` | Mark a session as completed | | `mem_capture_passive` | Extract learnings from text output | | `mem_merge_projects` | Merge project name variants into canonical name (admin) | | `mem_current_project` | Detect project from cwd — never errors, recommended first call | | `mem_doctor` | Run read-only operational diagnostics for project detection and store health | | `mem_review` | List observations whose `review_after` lifecycle is stale; `mark_reviewed` resets the local review cycle | | `mem_judge` | Record a verdict for a pending memory conflict surfaced by `mem_save` | | `mem_compare` | Persist a semantic relation verdict between two existing observations | --- ## Progressive Disclosure (3-Layer Pattern) Token-efficient memory retrieval — don't dump everything, drill in: ``` 1. mem_search "auth middleware" → compact results with IDs (~100 tokens each) 2. mem_timeline observation_id=42 → what happened before/after in that session 3. mem_get_observation id=42 → full untruncated content ``` --- ## Memory Hygiene - `mem_save` now supports `scope` (`project` default, `personal` and `global` also accepted) - `mem_save` also supports `topic_key`; with a topic key, saves become upserts (same project+scope+topic updates the existing memory) - `mem_save` supports `capture_prompt` (`true` by default). When the same MCP process lifecycle has current prompt context for the same project and session, it best-effort records that prompt alongside the observation. The prompt context must be fed before the later `mem_save` (typically via `mem_save_prompt`); `mem_save` still succeeds if context is unavailable or prompt capture fails. Automated saves such as SDD artifacts should pass `capture_prompt=false`. - `mem_save` and `mem_search` expose lifecycle metadata: computed `state` (`active` or `needs_review`) and `review_after` when a review cycle applies. - `mem_review` supports `action="list"` (`project`, `limit`) and `action="mark_reviewed"` (`observation_id`). Marking reviewed is local-only for now because `review_after` is intentionally not part of sync payloads in this phase. - Exact dedupe prevents repeated inserts in a rolling window (hash + project + scope + type + title) - Duplicates update metadata (`duplicate_count`, `last_seen_at`, `updated_at`) instead of creating new rows - Topic upserts increment `revision_count` so evolving decisions stay in one memory - `mem_delete` uses soft-delete by default (`deleted_at`), with optional hard delete - `mem_search`, `mem_context`, recent lists, and timeline ignore soft-deleted observations --- ## Topic Key Workflow (Recommended) ### What topic_key is `topic_key` turns `mem_save` into an **upsert**: if a memory with the same `project + scope + topic_key` already exists, the existing observation is updated in place (`revision_count++`) instead of creating a new row. Without a `topic_key`, every `mem_save` creates a new observation even when the content describes the same evolving topic. Use topic keys for knowledge that changes over time: architecture decisions, long-running feature notes, recurring patterns, configuration choices. Skip them for one-off bugs, single facts, or anything that does not evolve. ### Format convention Topic keys follow **slash-separated lowercase kebab-case**: ``` family/specific-description ``` Examples: - `architecture/auth-model` - `bug/nil-panic-in-user-list` - `decision/database-choice` - `pattern/error-handling-convention` - `config/ci-environment` **Why this format?** SQLite FTS5 tokenises on word boundaries. Lowercase kebab-case ensures the key fragments are individually searchable and do not create unexpected FTS5 token splits. **Anti-patterns to avoid:** | Anti-pattern | Problem | Correct form | |---|---|---| | `authModel` | camelCase breaks FTS5 tokenisation | `architecture/auth-model` | | `auth model` | spaces create accidental multi-token keys | `architecture/auth-model` | | `ARCHITECTURE/AUTH` | uppercase is inconsistent with FTS5 normalisation | `architecture/auth-model` | | `auth/model/v2/final` | more than 2 levels — use `v2` in the description | `architecture/auth-model-v2` | | `bugfix` | no slash — looks like a family with no description | `bug/auth-nil-panic` | ### Decision table — when to use topic_key | Situation | Use topic_key? | Reasoning | |---|---|---| | Architecture or design decision that may evolve | Yes | Keeps history in one observation, incrementing `revision_count` | | Long-running feature work (spans multiple sessions) | Yes | Single source of truth across sessions | | A pattern or convention established for the project | Yes | One canonical entry, updated as the pattern matures | | Bug fix that was self-contained and is now closed | No | A single observation is fine; no future updates expected | | One-off discovery or fact | No | Creating a key you will never reuse adds noise | | Multiple independent decisions on the same broad topic | No — use distinct keys | Different decisions must have different keys or they will overwrite each other | ### The mem_suggest_topic_key-first workflow When you are not sure which key to use, call `mem_suggest_topic_key` before `mem_save`. It applies a family heuristic based on the observation type and title, returning a suggested key you can use directly or adjust: ```text 1. mem_suggest_topic_key(type="architecture", title="Auth model") → returns: "architecture/auth-model" 2. mem_save(..., topic_key="architecture/auth-model") → creates new observation (revision_count=1) 3. (later session) mem_save(..., topic_key="architecture/auth-model") → updates existing observation (revision_count=2) ``` `mem_suggest_topic_key` families: - `architecture/*` — architecture, design, ADR-like observations - `bug/*` — bug fixes, regressions, panics, error root causes - `decision/*` — explicit decisions with tradeoffs - `pattern/*` — naming conventions, structural patterns, coding standards - `config/*` — configuration and environment setup - `discovery/*` — non-obvious findings about the codebase - `learning/*` — team knowledge and onboarding notes If none of these families fit, it is usually fine to skip the key and let `mem_save` create a plain observation. ### Hierarchical keys — max 2 levels Keys are organisational only; there is no parent–child relationship in the store. Two levels (`family/description`) cover almost every case. Use the description segment to add specificity rather than adding more slashes: ``` architecture/auth-model ✓ two levels, specific architecture/auth-model-v2 ✓ version in description architecture/auth/model/detail ✗ three levels — flatten to two ``` ### Lifecycle and pruning Topic keys are not pruned automatically. An observation updated via upsert keeps a single row with the latest content and an incremented `revision_count`. Use `mem_delete` to remove an observation (soft-delete by default) when a topic is no longer relevant. Soft-deleted observations are excluded from search and context but their IDs remain in the store for audit purposes. Use `--hard` to remove them permanently. ### Scope interaction `topic_key` upsert is scoped to `project + scope + topic_key`. The same key used with different scopes creates independent observations: ``` project=engram, scope=project, topic_key=architecture/auth-model → observation A project=engram, scope=personal, topic_key=architecture/auth-model → observation B (independent) ``` This means a `personal` note on the same topic does not overwrite the shared `project` observation. --- ## Project Structure ``` engram/ ├── cmd/engram/main.go # CLI entrypoint ├── internal/ │ ├── store/store.go # Core: SQLite + FTS5 + all data ops │ ├── server/server.go # HTTP REST API (port 7437) │ ├── mcp/mcp.go # MCP stdio server (20 tools) │ ├── setup/setup.go # Agent plugin installer (go:embed) │ ├── cloud/ # Optional cloud runtime (Postgres + dashboard) │ │ ├── cloudserver/ # /sync API + dashboard mount + auth/session bridge │ │ ├── cloudstore/ # Cloud chunk storage and dashboard read-model queries │ │ ├── dashboard/ # Server-rendered dashboard routes + embedded static assets │ │ └── auth/ # Bearer token auth + signed dashboard sessions │ ├── project/ # Project name detection + similarity matching │ │ └── detect.go # DetectProject, DetectProjectFull, 5-case algorithm │ ├── sync/sync.go # Git sync: manifest + compressed chunks │ └── tui/ # Bubbletea terminal UI │ ├── model.go # Screen constants, Model, Init() │ ├── styles.go # Lipgloss styles (Catppuccin Mocha) │ ├── update.go # Input handling, per-screen handlers │ └── view.go # Rendering, per-screen views ├── plugin/ │ ├── opencode/engram.ts # OpenCode adapter plugin │ └── claude-code/ # Claude Code plugin (hooks + skill) │ ├── .claude-plugin/plugin.json │ ├── .mcp.json │ ├── hooks/hooks.json │ ├── scripts/ # session-start, post-compaction, subagent-stop, session-stop │ └── skills/memory/SKILL.md ├── skills/ # Contributor AI skills (repo-wide standards + Engram-specific guardrails) ├── setup.sh # Links repo skills into .claude/.codex/.gemini (project-local) ├── assets/ # Screenshots and media ├── DOCS.md # Full technical documentation ├── CONTRIBUTING.md # Contribution workflow and standards ├── go.mod └── go.sum ``` --- ## CLI Reference ``` engram setup [agent] Install/setup agent integration (opencode, claude-code, gemini-cli, codex) engram serve [port] Start HTTP API server (default: 7437) engram mcp Start MCP server (stdio transport) engram tui Launch interactive terminal UI engram search Search memories engram save <msg> Save a memory engram delete <obs_id> Delete an observation [--hard] (soft-delete by default; --hard removes permanently) engram delete session <id> Delete a session by ID (session must have no observations) engram delete prompt <id> Delete a prompt by ID (permanent) engram delete project <name> [--hard] Cascade-delete a project: soft-deletes observations (or hard-deletes with --hard, which also removes sessions); always removes prompts engram timeline <obs_id> Chronological context around an observation engram context [project] Recent context from previous sessions engram stats Memory statistics engram export [file] Export all memories to JSON engram import <file> Import memories from JSON engram sync Export new memories as compressed chunk to .engram/ engram sync --all Export ALL projects (ignore directory-based filter) engram sync --cloud --project <name> Sync against configured cloud endpoint (project-scoped) engram conflicts <sub> Inspect and manage memory conflict relations list, show, stats, scan, deferred engram doctor Run read-only operational diagnostics [--json] [--project P] [--check CODE] engram cloud status Show cloud runtime/config status engram cloud config --server <url> Configure cloud server URL engram cloud enroll <project> Enroll a project for cloud sync engram cloud serve Run cloud backend + dashboard engram cloud upgrade <doctor|repair|bootstrap|status|rollback> --project <name> Guided upgrade workflow for existing projects engram cloud bootstrap admin --username <name> [--email <email>] [--grant-project <project>]... [--issue-token [name]] Create the first managed admin (see DOCS.md for details and the current server-side auth wiring limitation) engram projects list Show all projects with obs/session/prompt counts engram projects consolidate Interactive merge of similar project names [--all] [--dry-run] engram projects prune Remove projects with 0 observations [--dry-run] engram obsidian-export Export memories to Obsidian vault (beta) engram version Show version ``` Local server auth: - `ENGRAM_HTTP_TOKEN`: optional Bearer auth for `engram serve`. When set, the following routes require `Authorization: Bearer <token>`: `DELETE /sessions/{id}`, `DELETE /observations/{id}`, `DELETE /prompts/{id}`, `GET /export`, `POST /import`, `POST /projects/migrate`. Comparison is constant-time; token is read per-request. When unset, all routes are open (zero-config default). - `ENGRAM_TIMEZONE`: IANA zone name for timestamp display in TUI and cloud dashboard (e.g. `America/New_York`). Falls back to system local when unset or invalid. Cloud constraints (current behavior): - Cloud is opt-in replication/shared access; local SQLite remains source of truth. - `engram cloud serve` requires `ENGRAM_CLOUD_ALLOWED_PROJECTS` in both token-auth and insecure no-auth mode. Use `*` to allow all projects (dev/internal deploys) — bypasses per-project name enforcement while still requiring a non-empty project on each request. - Authenticated cloud serve requires `ENGRAM_CLOUD_TOKEN` + explicit non-default `ENGRAM_JWT_SECRET`. - Insecure local-dev mode (`ENGRAM_CLOUD_INSECURE_NO_AUTH=1`) still requires the project allowlist and must not be used in production. Cloud route/auth split (current behavior): - Local runtime (`engram serve`) exposes local JSON APIs and `GET /sync/status` only. - Cloud runtime (`engram cloud serve`) exposes `GET /health`, `GET /sync/pull`, `GET /sync/pull/{chunkID}`, `POST /sync/push`, and `/dashboard/*`. - Dashboard public routes: `GET /dashboard/health`, `GET/POST /dashboard/login`, `POST /dashboard/logout`, `GET /dashboard/static/*`. - Dashboard protected routes: `GET /dashboard`, `/dashboard/stats`, `/dashboard/activity`, `/dashboard/browser` (`/observations`, `/sessions`, `/sessions/{sessionID}`, `/prompts`), `/dashboard/projects`, `/dashboard/projects/list`, `/dashboard/projects/{project}`, `/dashboard/projects/{name}/observations|sessions|prompts`, `/dashboard/contributors`, `/dashboard/contributors/list`, `/dashboard/contributors/{contributor}`, `/dashboard/admin`, `/dashboard/admin/projects`, `/dashboard/admin/users`, `/dashboard/admin/users/list`, `/dashboard/admin/health`, `POST /dashboard/admin/projects/{name}/sync`, `/dashboard/sessions/{project}/{sessionID}`, `/dashboard/observations/{project}/{sessionID}/{syncID}`, `/dashboard/prompts/{project}/{sessionID}/{syncID}`. - Note: `/dashboard/admin/contributors` was removed; user/contributor management lives under `/dashboard/admin/users`. - In authenticated mode, protected dashboard routes require a signed dashboard cookie (obtained via `/dashboard/login` + bearer token) and do not accept direct bearer headers as a browser session substitute. - In insecure mode (`ENGRAM_CLOUD_INSECURE_NO_AUTH=1` with no bearer token), dashboard auth is bypassed and `/dashboard/login` redirects to `/dashboard/`. --- ## Dashboard visual-parity layer The cloud dashboard (`internal/cloud/dashboard/`) is rendered server-side using [templ](https://templ.guide/) components. This section documents the key invariants introduced in the `cloud-dashboard-visual-parity` change. ### Principal bridge Display name is surfaced through `MountConfig.GetDisplayName func(r *http.Request) string`. If nil or if the closure returns an empty string, all handlers fall back to `"OPERATOR"`. The bridge is implemented in `internal/cloud/dashboard/principal.go` and accessed via `h.principalFromRequest(r)`. Handlers never read `r.Context()` for identity — they read the `MountConfig` closures. ### Push-path pause guard A per-project sync pause is stored in `cloud_project_controls` (Postgres). The `POST /sync/push` handler in `cloudserver.go` checks `IsProjectSyncEnabled(project)` immediately after `authorizeProjectScope` succeeds, using a structural interface assertion. A paused project returns HTTP 409 Conflict with `error_code: "sync-paused"`. This is enforced server-side — the admin toggle is never purely cosmetic. Regression guard: `TestPushPathPauseEnforcement` in `cloudserver_test.go`. ### Audit log boundary (structural interface pattern) When a push is rejected due to a paused project, both `handleMutationPush` and `handlePushChunk` emit an audit entry via `cloudstore.InsertAuditEntry`. The audit capability is accessed through a structural type assertion against an anonymous interface: ```go if auditor, ok := s.store.(interface { InsertAuditEntry(ctx context.Context, entry cloudstore.AuditEntry) error }); ok { _ = auditor.InsertAuditEntry(r.Context(), cloudstore.AuditEntry{...}) } ``` **Why `ChunkStore` and `MutationStore` are NOT extended**: these interfaces are consumed by a wide surface of test fakes, integration adapters, and future clients. Adding `InsertAuditEntry` to them would require every implementer (real and fake) to implement a method that is only relevant to the rejection path. The structural assertion isolates the audit concern at the call site and makes it trivially optional: stores that do not implement `InsertAuditEntry` (e.g., legacy test fakes) silently skip the audit with a log warning — no panic, no 5xx. **Synchronous insert rationale**: the insert is synchronous (no goroutine, no channel) because the 409 is already a fast path (the data was never stored). The ~1ms overhead of a Postgres `INSERT` is acceptable; the alternative (buffered async) would complicate recovery, lose entries on process restart, and add concurrency concerns with no meaningful latency benefit for the caller. **Audit boundary**: audit entries are only emitted at the pause-rejection site. Pull requests (`GET /sync/mutations/pull`) never emit audit entries; paused projects continue to serve reads unrestricted. ### Composite-ID URL scheme Detail pages use composite path parameters because the integrated store is chunk-centric (no globally unique numeric IDs): | Page | URL pattern | |------|-------------| | Session detail | `GET /dashboard/sessions/{project}/{sessionID}` | | Observation detail | `GET /dashboard/observations/{project}/{sessionID}/{syncID}` | | Prompt detail | `GET /dashboard/prompts/{project}/{sessionID}/{syncID}` | Path values are extracted via `r.PathValue(name)` (Go 1.22 `net/http.ServeMux`). `syncID` values are validated as non-empty with `len <= 128`. ### Insecure-mode regression guard `TestInsecureModeLoginRedirects` in `cloudserver_test.go` asserts that `GET /dashboard/login` with `auth == nil` returns 303 to `/dashboard/`. This prevents silent regressions if the no-auth short-circuit path is modified. --- ## Cloud Autosync Manager `internal/cloud/autosync/Manager` is a lease-guarded background goroutine started by `engram serve` and `engram mcp` when `ENGRAM_CLOUD_AUTOSYNC=1`. It implements the local-first invariant: all network I/O happens in its own goroutine and never holds locks shared with the SQLite write path. ### Data flow ``` Local Write → store.WriteObservation → [SQLite sync_mutations journal] ↓ (onWrite hook) Manager.NotifyDirty() [buffered-1 chan] ↓ (debounce 500ms) Manager.cycle() ├─ AcquireSyncLease (SQLite) ├─ push: ListPendingSyncMutations → MutationTransport.PushMutations │ → POST /sync/mutations/push → cloudstore.InsertMutationBatch └─ pull: GetSyncState → MutationTransport.PullMutations → GET /sync/mutations/pull (filtered by enrollment) → store.ApplyPulledMutation ↓ autosyncStatusAdapter → /sync/status → dashboard pill ``` ### Lease semantics The Manager holds a SQLite-backed lease during each cycle. `StopForUpgrade` sets `PhaseDisabled` and does NOT release the lease, so no other worker can pick up sync during an upgrade window. `ResumeAfterUpgrade` clears the disabled flag and re-arms the loop without restarting the process. ### Mutation endpoints The cloud server exposes two routes registered in `cloudserver.go` and handled by `mutations.go`: | Method | Path | Purpose | |--------|------|---------| | `POST` | `/sync/mutations/push` | Accept a batch of up to 100 mutations from the client | | `GET` | `/sync/mutations/pull` | Return mutations since a cursor, filtered by caller's enrolled projects | Both require `Authorization: Bearer <token>`. Push enforces the project-level sync pause (HTTP 409 on `sync_enabled=false`) and the configured cloud push body limit (`ENGRAM_CLOUD_MAX_PUSH_BYTES`, default 8 MiB). Pull filters server-side. --- ## Next Steps - [Agent Setup](AGENT-SETUP.md) — connect your agent to Engram - [Plugins](PLUGINS.md) — what the OpenCode and Claude Code plugins add - [Obsidian Brain](beta/obsidian-brain.md) — visualize memories as a knowledge graph (beta)
