Introduction

Consider estimating spatially-structured \(\mu_t\) from Poisson sequence: \[Y_t\sim Poisson(\lambda_t).\] We assume that \(\lambda_t\) satisfies \[\lambda_t+c=(X_t'\beta+\mu_t)^2\], where \(X_t\) are \(p-\)dimensional covaraites and \(\beta\) is unknown coefficients.

Method

Apply variance stablizing transformation(VST) to \(Y_t\). Let the transformed data be \(\tilde Y_t=\sqrt{Y_t+c}\) and apply smash.gaus allowing covariates method to \(\tilde Y_t\), which gives \(\hat\mu_t\) and \(\hat\beta\). The recovered smooth mean structure is given by \((\hat\mu_t)^2-c\).

Simulations

Poisson sequence: Given \(\mu_t, t=1,2,\dots,T\), \(\lambda_t=(\mu_t+X_t'\beta+N(0,\sigma^2))^2-c\), generate \(Y_t\sim Poisson(\lambda_t)\).

The length of sequence \(T\) is set to be 256, covariates \(X_t\) are generate from \(N(0,I_{p\times p})\), and \(\beta\) is chosen to be \((1,2,-3,-4,5)\) then normalized to have unit norm. Signal-to-noise ratio(\(var(X\beta)/\sigma^2\)) is 3.

library(smashr)

smashgen_vst_x=function(y,X,sigma,c=3/8){

  yy=sqrt(y+c)
  Eyy=mean(yy)
  yys=yy-Eyy
  xx=apply(X, 2, function(x){scale(x,scale = F)})
  X=xx
  H=solve(t(X)%*%X)%*%t(X)
  beta.hat=H%*%yys
  res=yys-X%*%beta.hat
  if(missing(sigma)){
    mu.hat=smash.gaus(res+Eyy)
  }else{
    mu.hat=smash.gaus(res+Eyy,sigma=sqrt(1/4+sigma^2))
  }
  yy2=yy-mu.hat
  beta.hat=H%*%yy2

  res=yy-X%*%beta.hat

  if(missing(sigma)){
    mu.hat=smash.gaus(res)
  }else{
    mu.hat=smash.gaus(res,sigma=sqrt(1+sigma^2))
  }
  yy3=yy-mu.hat
  beta.hat=H%*%yy3
  return(list(beta.hat=beta.hat,mu.hat=mu.hat))
}

Step function

mu=c(rep(2,64), rep(5, 64), rep(6, 64), rep(2, 64))
beta=c(1,2,-3,-4,5)
beta=beta/norm(beta,'2')
n=length(mu)
p=length(beta)
SNR=3
seed=12345
set.seed(seed)
X=matrix(rnorm(n*p,0,1),nrow=n,byrow = T)
Xbeta=X%*%beta
sigma=sqrt(var(Xbeta)/SNR)
lambda=(mu+Xbeta+rnorm(n,0,sigma))^2
yt=rpois(n,lambda)
fit=smashgen_vst_x(yt,X,,0)

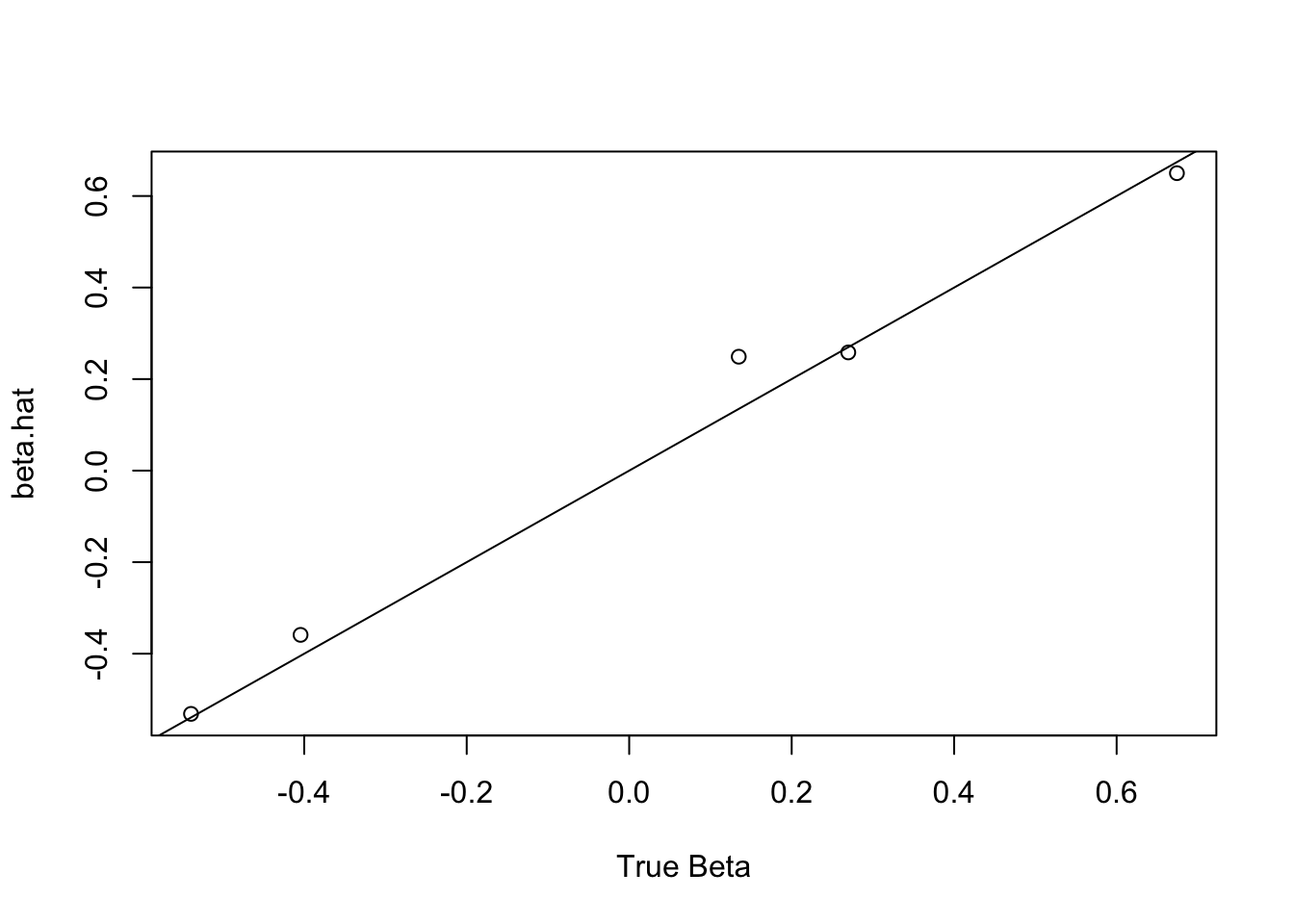

plot(beta,fit$beta.hat,ylab = 'beta.hat',xlab = 'True Beta')
abline(a=0,b=1)

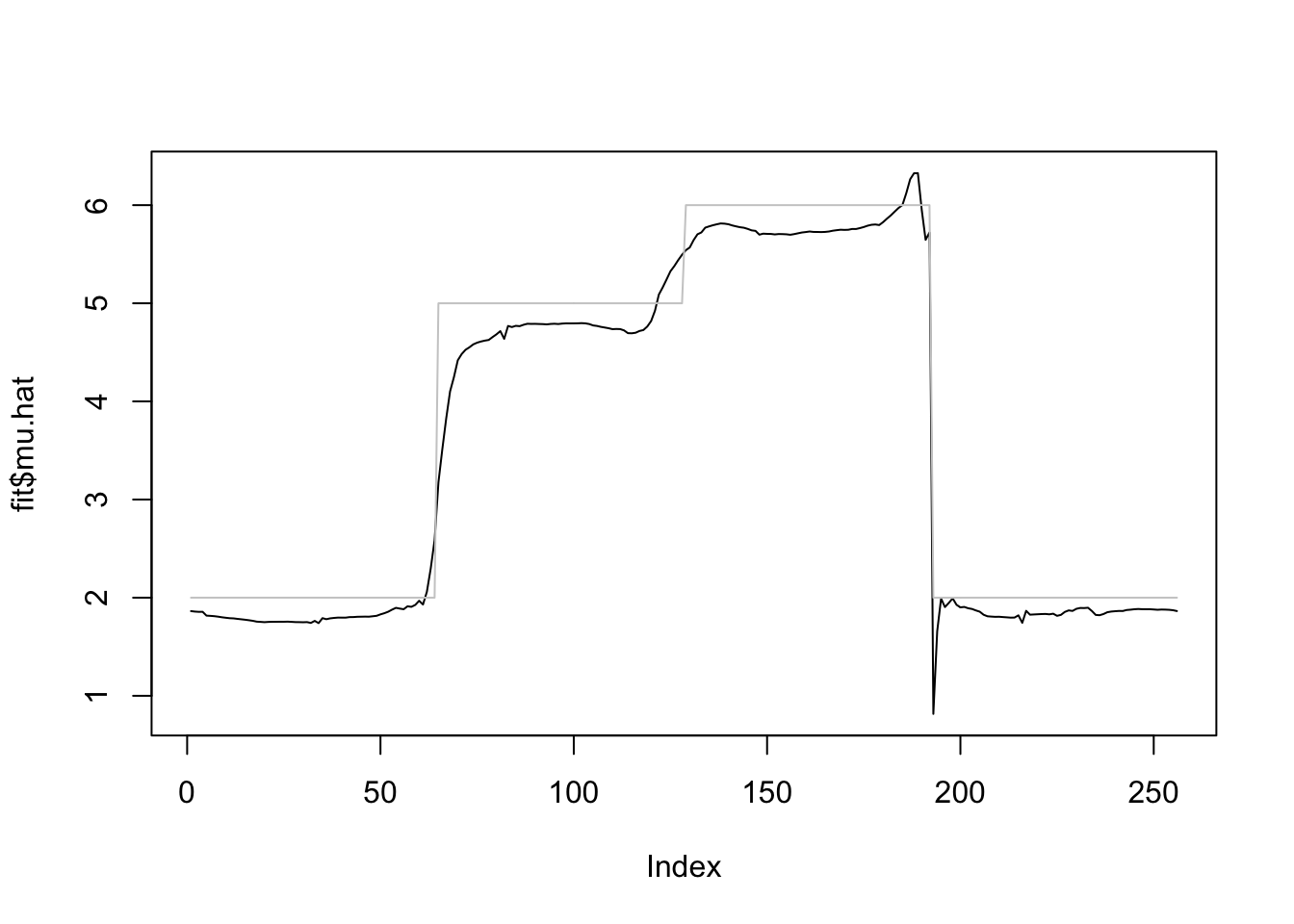

plot(fit$mu.hat,type='l',ylim = range(c(mu,fit$mu.hat)))
lines(mu,col='grey80')

Bumps

m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}
mu=f*5
beta=c(1,2,-3,-4,5)
beta=beta/norm(beta,'2')

n=length(mu)
p=length(beta)
SNR=3
seed=12345
set.seed(seed)
X=matrix(rnorm(n*p,0,1),nrow=n,byrow = T)
Xbeta=X%*%beta
sigma=sqrt(var(Xbeta)/SNR)
lambda=(mu+Xbeta+rnorm(n,0,sigma))^2
yt=rpois(n,lambda)
fit=smashgen_vst_x(yt,X,,0)

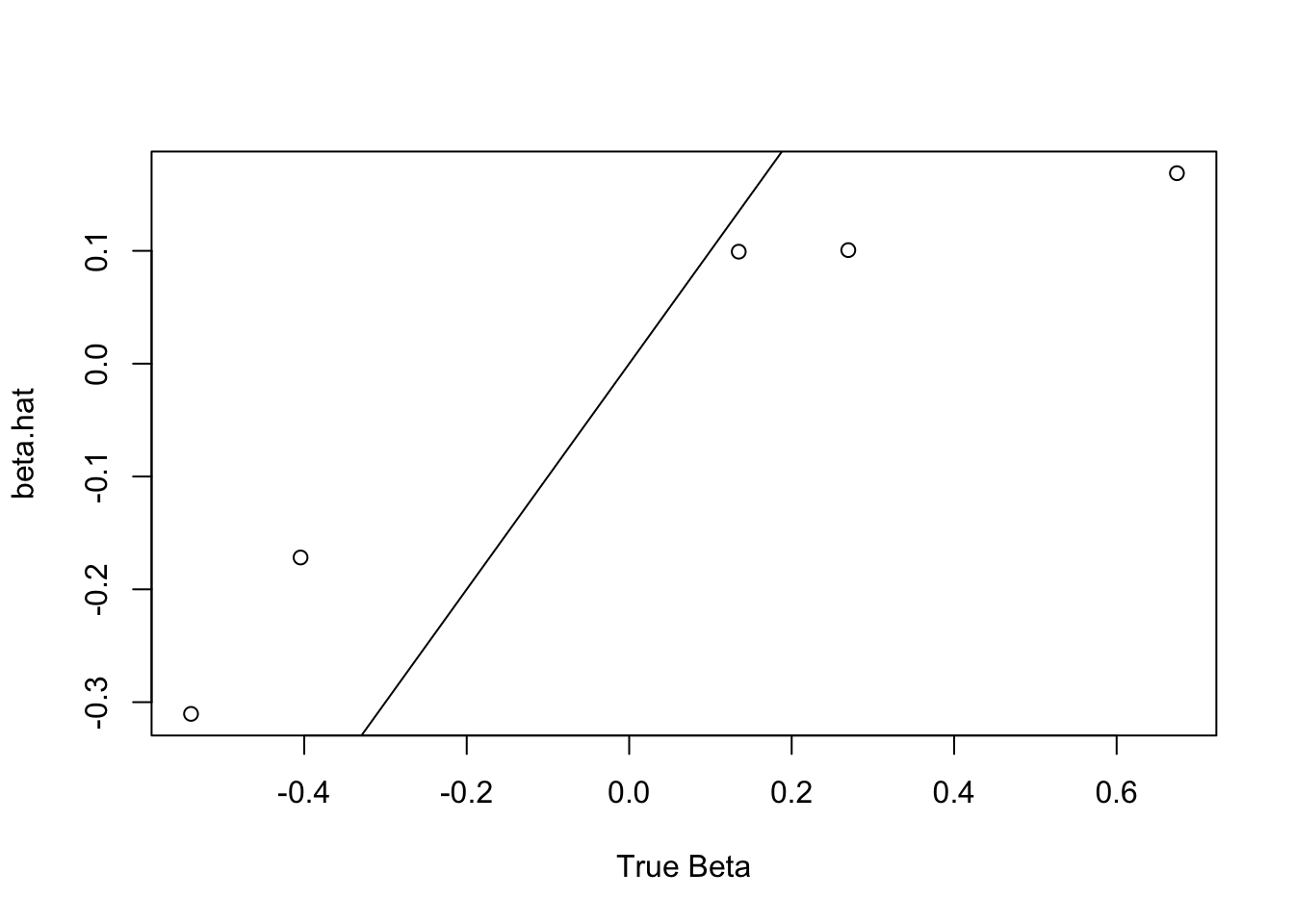

plot(beta,fit$beta.hat,ylab = 'beta.hat',xlab = 'True Beta')
abline(a=0,b=1)

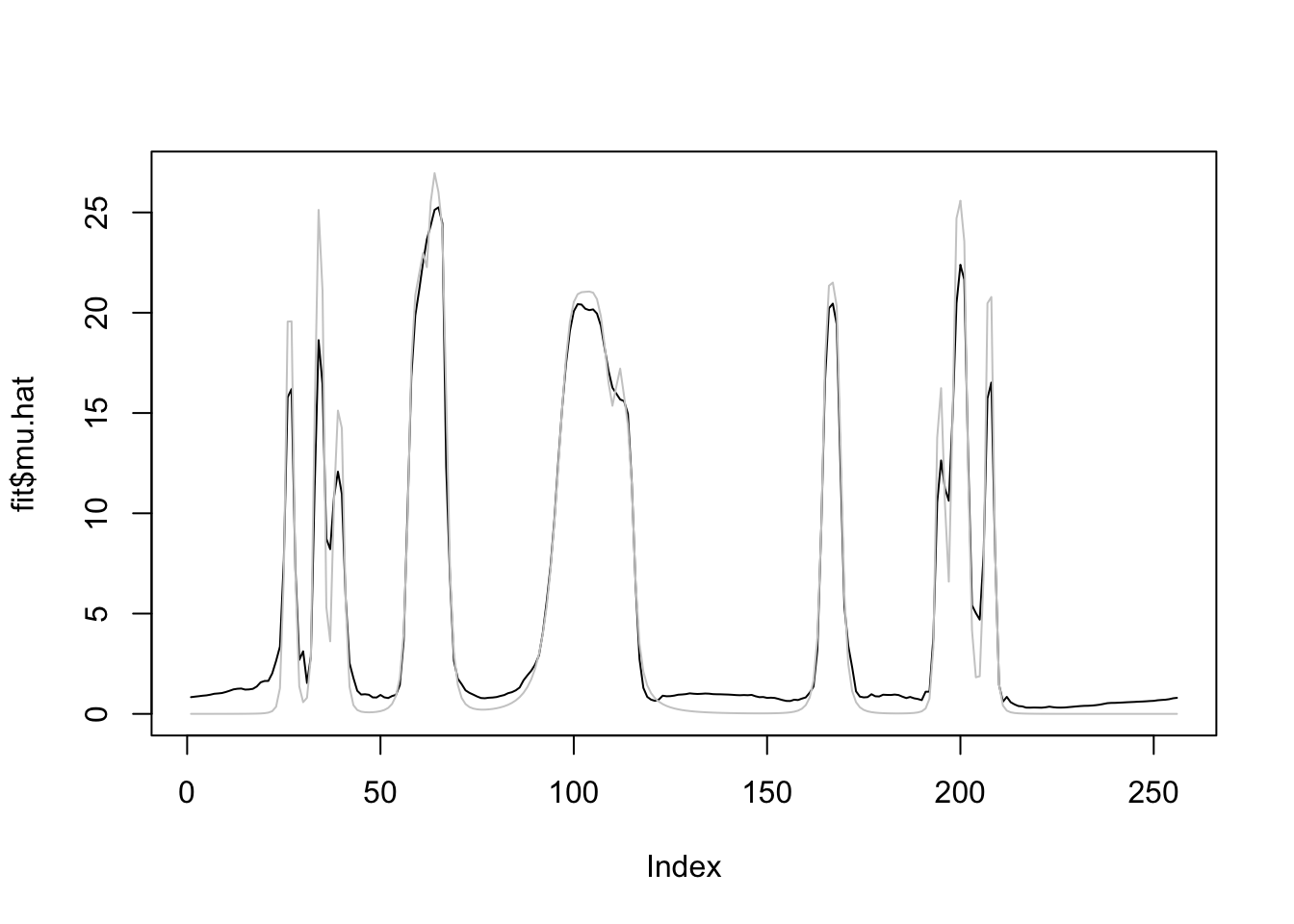

plot(fit$mu.hat,type='l',ylim = range(c(mu,fit$mu.hat)))
lines(mu,col='grey80')

Wave

f=function(x){return(0.5 + 2*cos(4*pi*x) + 2*cos(24*pi*x))}
mu=f(1:256/256)
mu=mu-min(mu)
beta=c(1,2,-3,-4,5)
beta=beta/norm(beta,'2')

n=length(mu)
p=length(beta)
SNR=3
seed=12345
set.seed(seed)
X=matrix(rnorm(n*p,0,1),nrow=n,byrow = T)
Xbeta=X%*%beta
sigma=sqrt(var(Xbeta)/SNR)
lambda=(mu+Xbeta+rnorm(n,0,sigma))^2
yt=rpois(n,lambda)
fit=smashgen_vst_x(yt,X,,0)

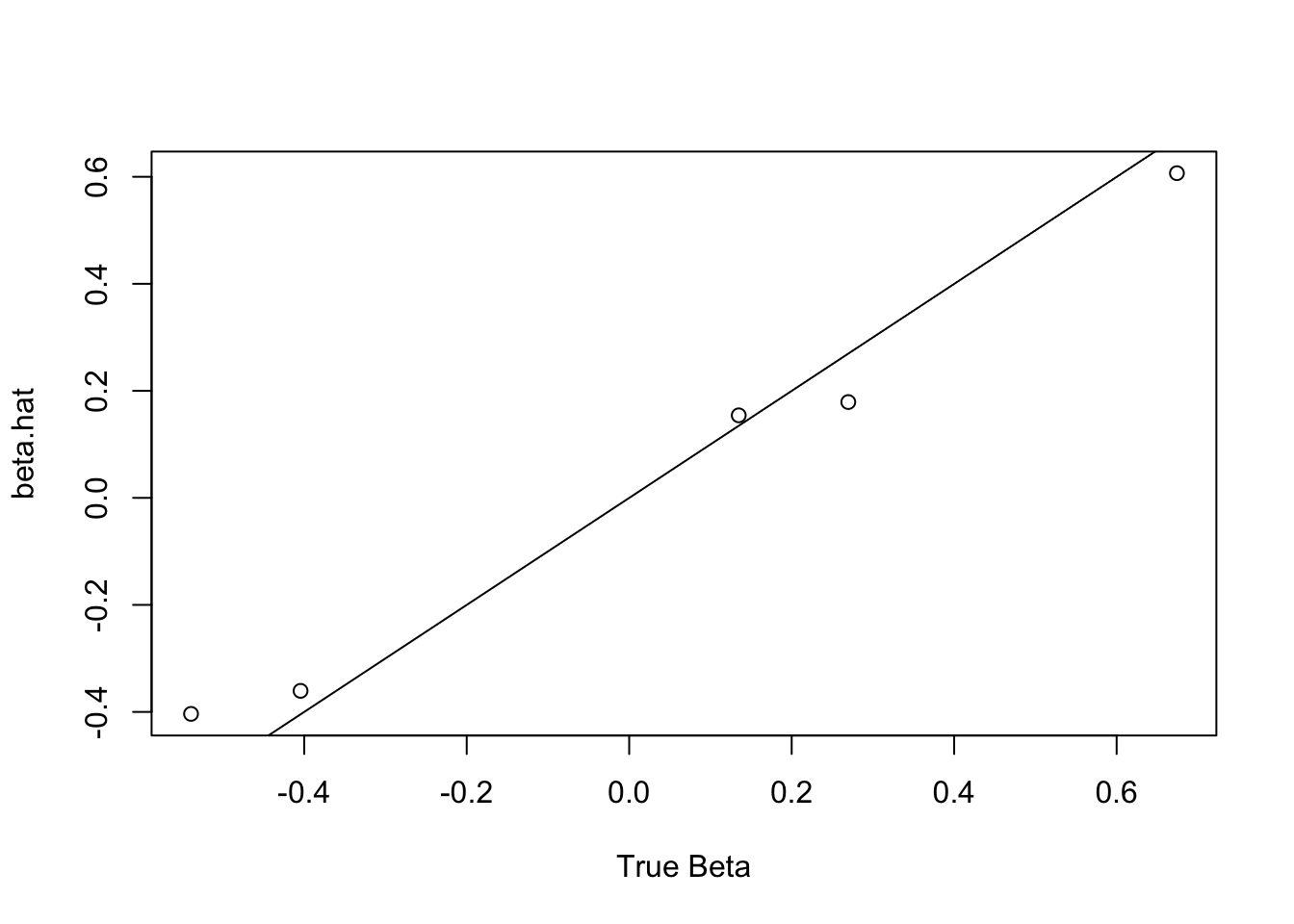

plot(beta,fit$beta.hat,ylab = 'beta.hat',xlab = 'True Beta')
abline(a=0,b=1)

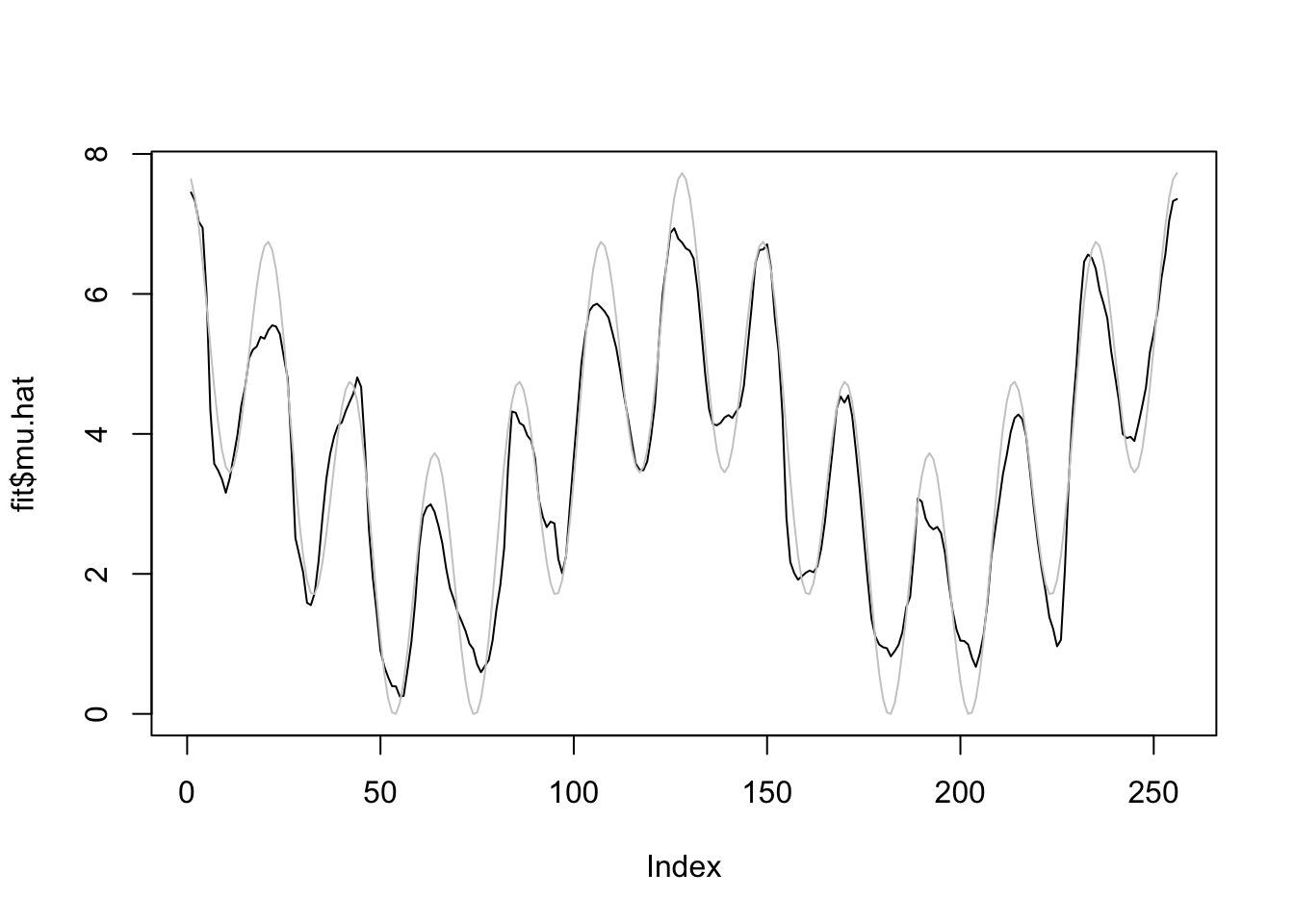

plot(fit$mu.hat,type='l',ylim = range(c(mu,fit$mu.hat)))
lines(mu,col='grey80')

Parabola

r=function(x,c){return((x-c)^2*(x>c)*(x<=1))}
f=function(x){return(0.8 - 30*r(x,0.1) + 60*r(x, 0.2) - 30*r(x, 0.3) +
                       500*r(x, 0.35) -1000*r(x, 0.37) + 1000*r(x, 0.41) - 500*r(x, 0.43) +
                       7.5*r(x, 0.5) - 15*r(x, 0.7) + 7.5*r(x, 0.9))}
mu=f(1:256/256)
mu=mu*7
beta=c(1,2,-3,-4,5)
beta=beta/norm(beta,'2')

n=length(mu)
p=length(beta)
SNR=3
seed=12345
set.seed(seed)
X=matrix(rnorm(n*p,0,1),nrow=n,byrow = T)
Xbeta=X%*%beta
sigma=sqrt(var(Xbeta)/SNR)
lambda=(mu+Xbeta+rnorm(n,0,sigma))^2
yt=rpois(n,lambda)
fit=smashgen_vst_x(yt,X,,0)

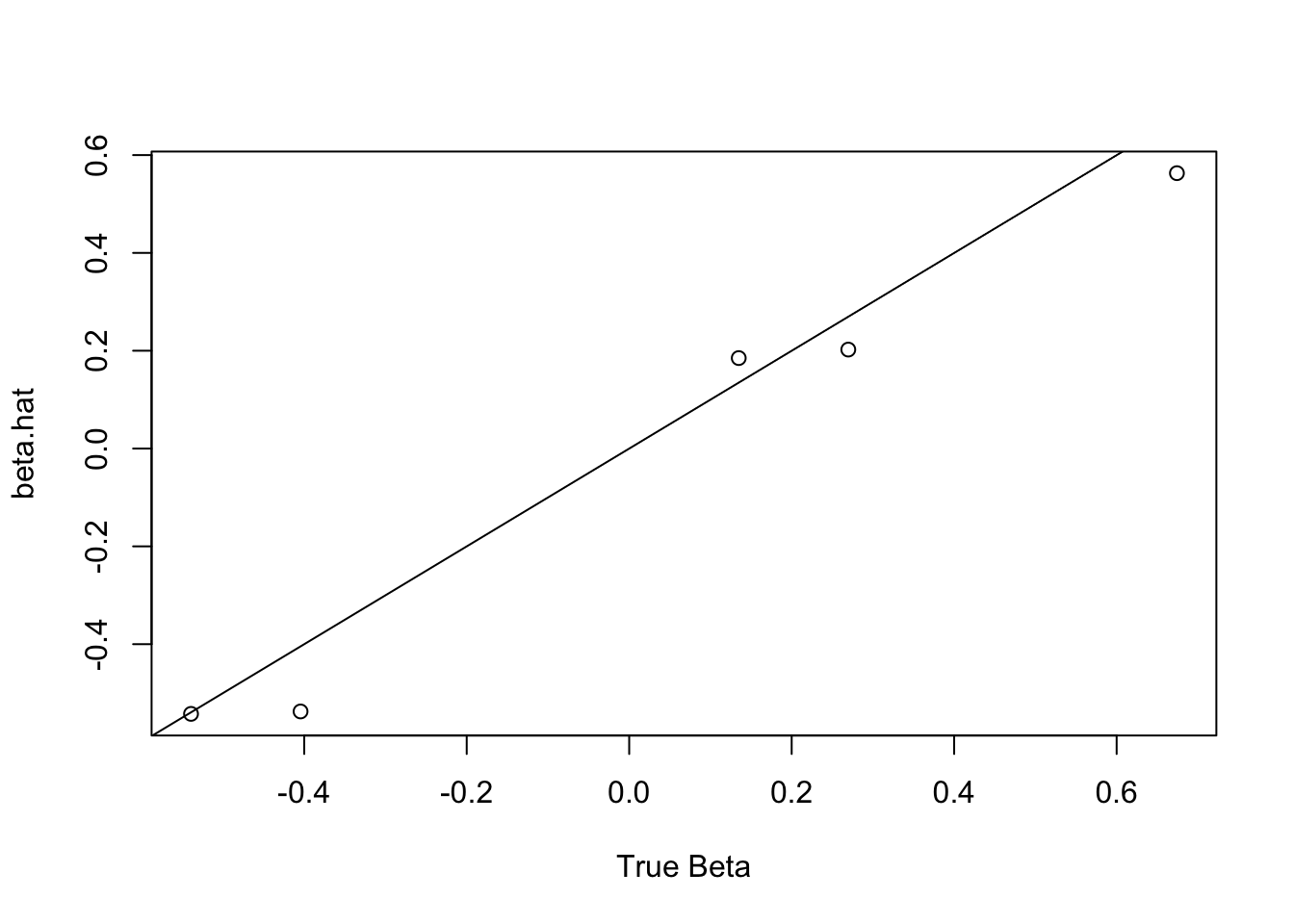

plot(beta,fit$beta.hat,ylab = 'beta.hat',xlab = 'True Beta')
abline(a=0,b=1)

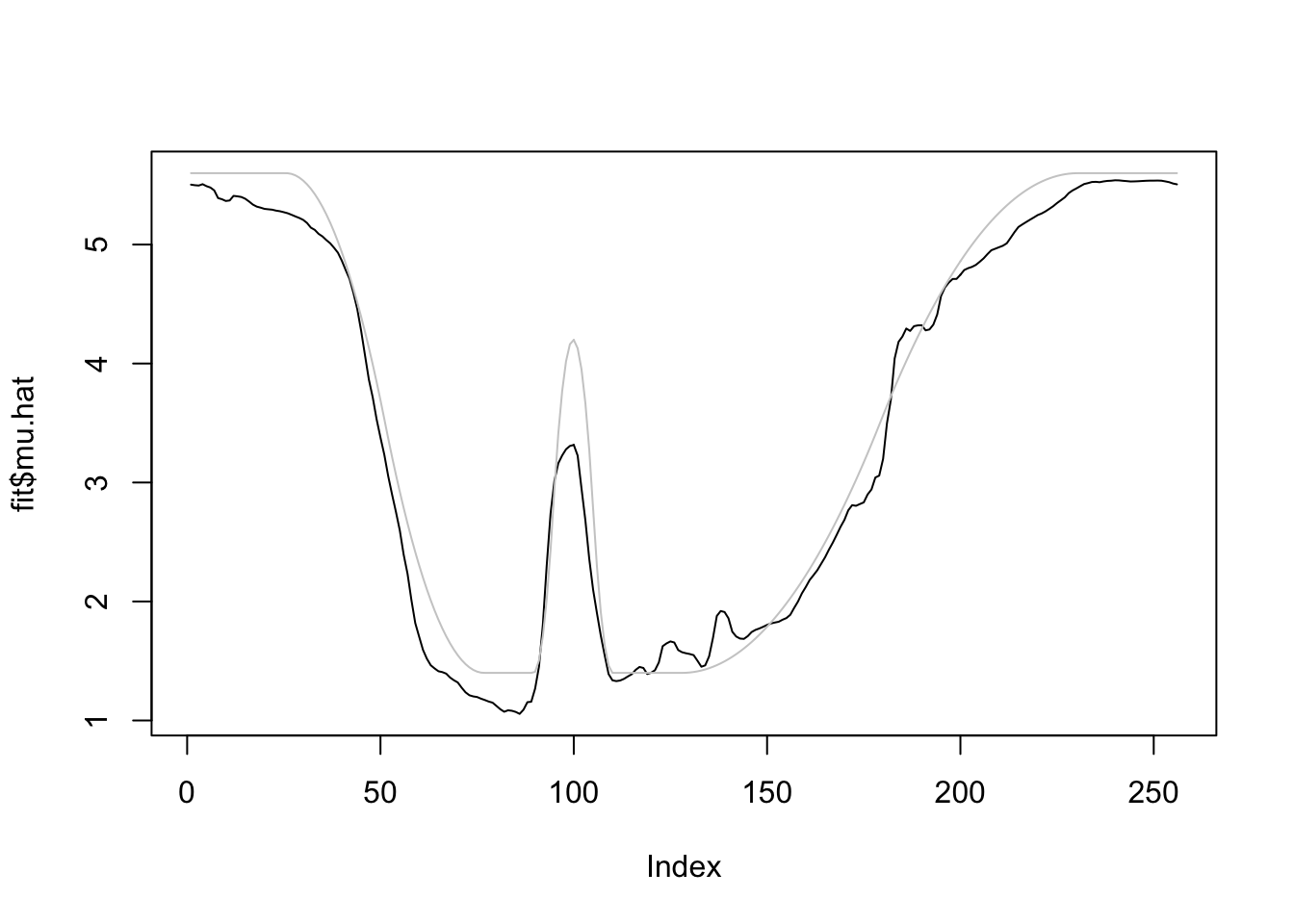

plot(fit$mu.hat,type='l',ylim = range(c(mu,fit$mu.hat)))
lines(mu,col='grey80')
