Examine the performance of smash-gen(unknown \(\sigma\)) under different simulation settings. When \(\sigma\) is unkown, the algorithm interatively estiamte \(\mu_t\) and \(s_t^2+\sigma^2\) in each interation.

#' smash generaliation function, unknown \sigma.

smash.gen.us=function(x,family='DaubExPhase',niter=100,tol=1e-2){
  mu=c()
  s=c()
  mu=rbind(mu,rep(mean(x),length(x)))
  s=rbind(s,rep(1/mu[1],length(x)))
  y=log(mean(x))+(x-mean(x))/mean(x)
  for(i in 1:niter){
    mu.hat=try(smash.gaus(y))
    if(class(mu.hat)=='try-error'){
      message('Algorithm diverges')
      break
    }
    mu=rbind(mu,mu.hat)
    #update m and s_t
    s=rbind(s,1/mu.hat)
    #update y
    mt=exp(mu.hat)
    y=log(mt)+(x-mt)/mt
    #y=log(mu.hat)+(x-mu.hat)/mu.hat
    if(norm(mu.hat-mu[i,],'2')<tol){
      break
    }
  }
  if(class(mu.hat)=='try-error'){
    return(list(mu.hat=mu[i,],mu=mu,s=s))
  }else{
    return(list(mu.hat=mu.hat,mu=mu,s=s))
  }
}

simu_study=function(m,sigma,seed=1234,
                    niter=100,family='DaubExPhase',tol=1e-2,
                    reflect=FALSE){
  set.seed(seed)
  lamda=exp(m+rnorm(length(m),0,sigma))
  x=rpois(length(m),lamda)
  #fit data
  smash.out=smash.poiss(x,reflect=FALSE)
  smash.gen.out=smash.gen.us(x,niter=niter,family = family,tol=tol)
  return(list(smash.out=smash.out,smash.gen.out=exp(smash.gen.out$mu.hat),smash.gen.est=smash.gen.out,x=x))
}

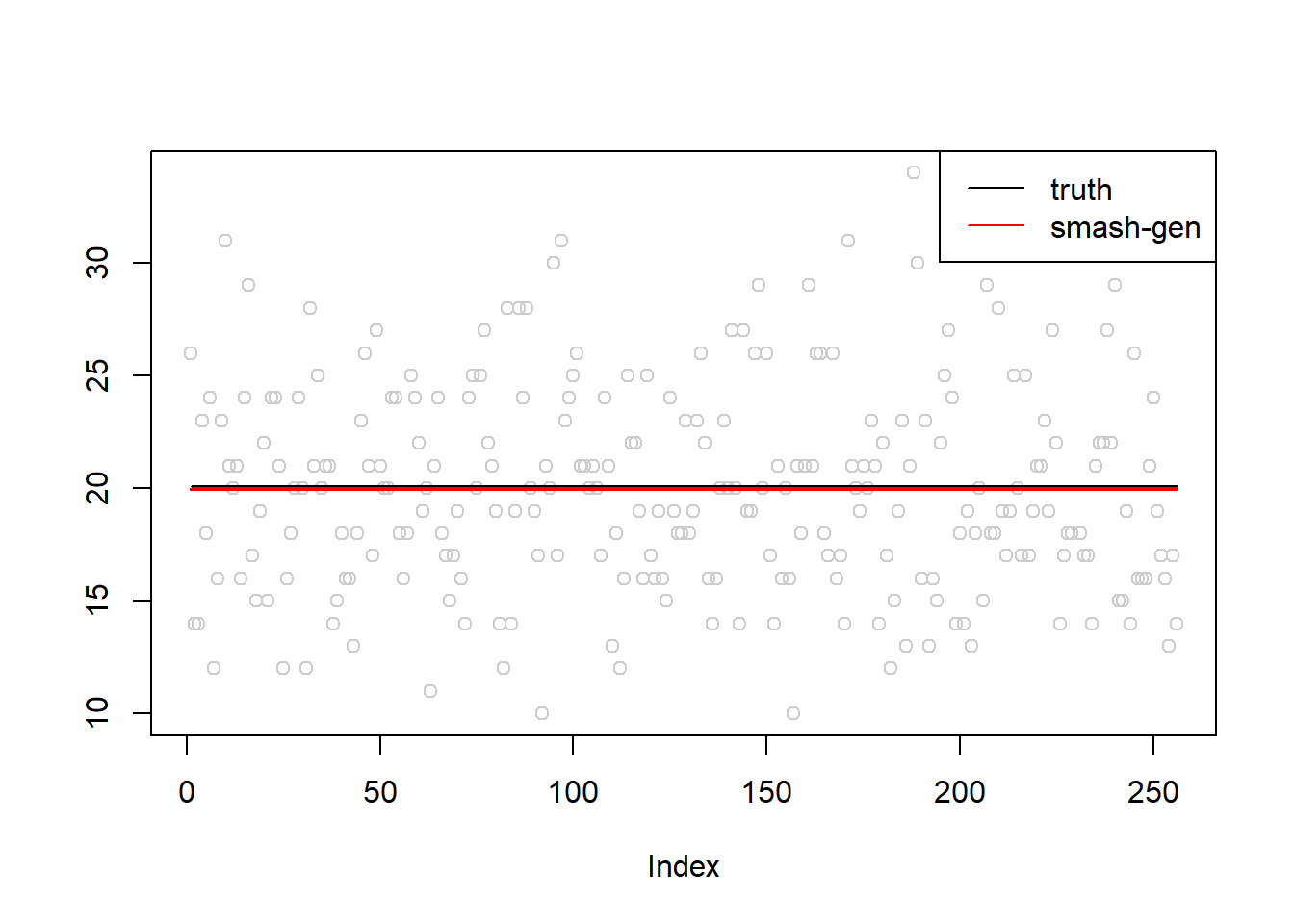

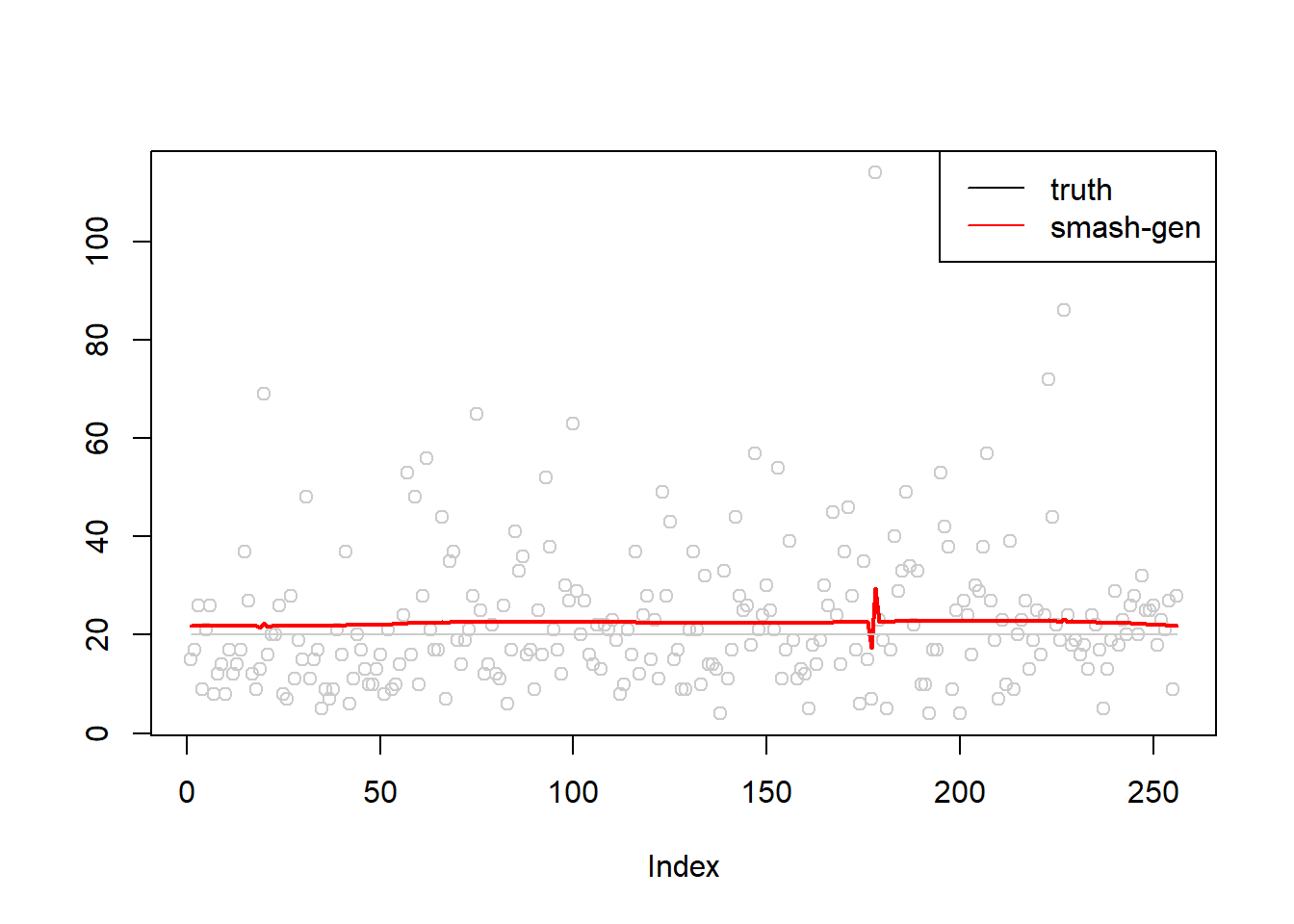

Simulation 1: Constant trend Poisson nugget

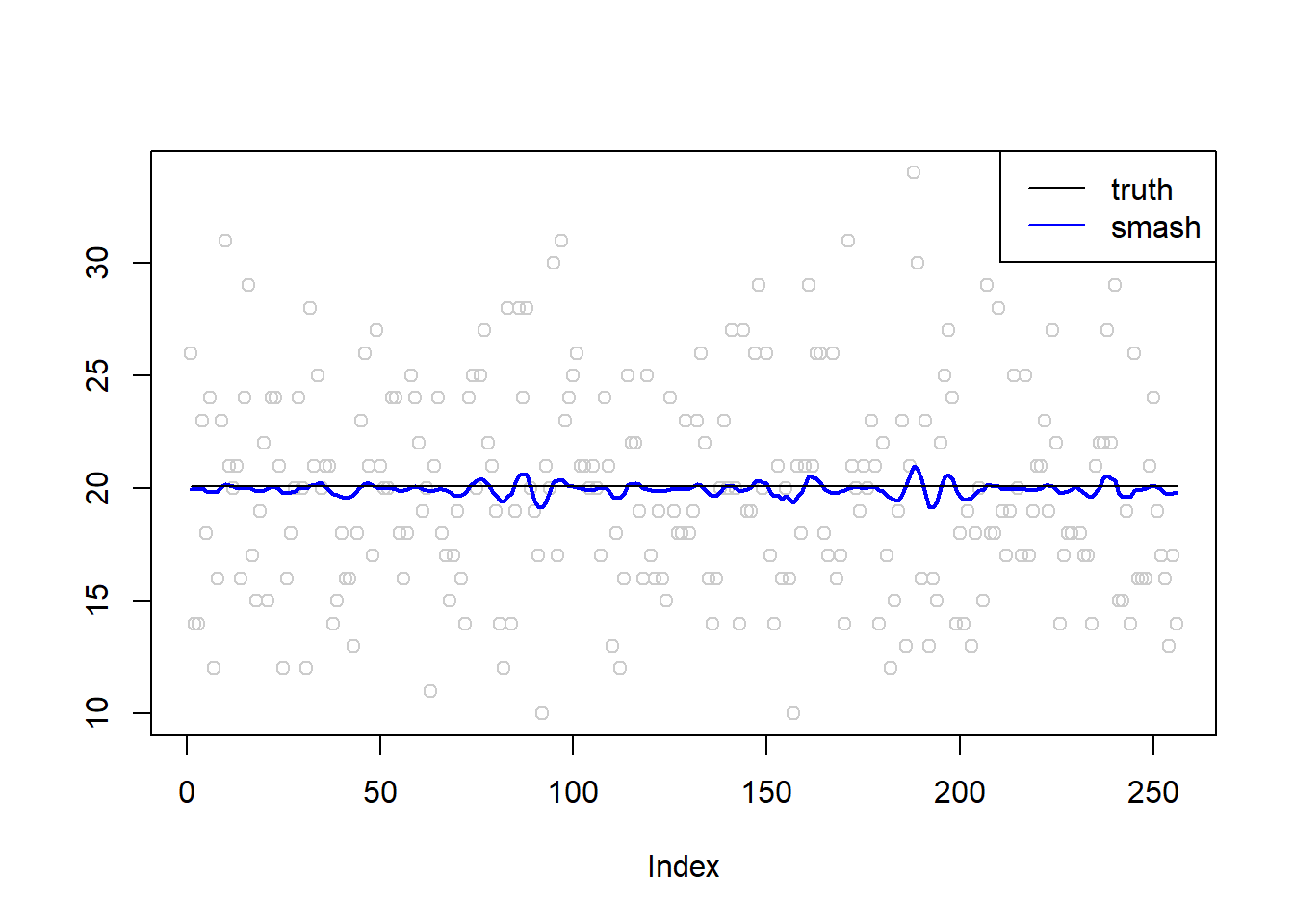

\(\sigma=0.01\)

library(smashr)
m=rep(3,256)
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright", # places a legend at the appropriate place
       c("truth","smash-gen"), # puts text in the legend
       lty=c(1,1), # gives the legend appropriate symbols (lines)
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

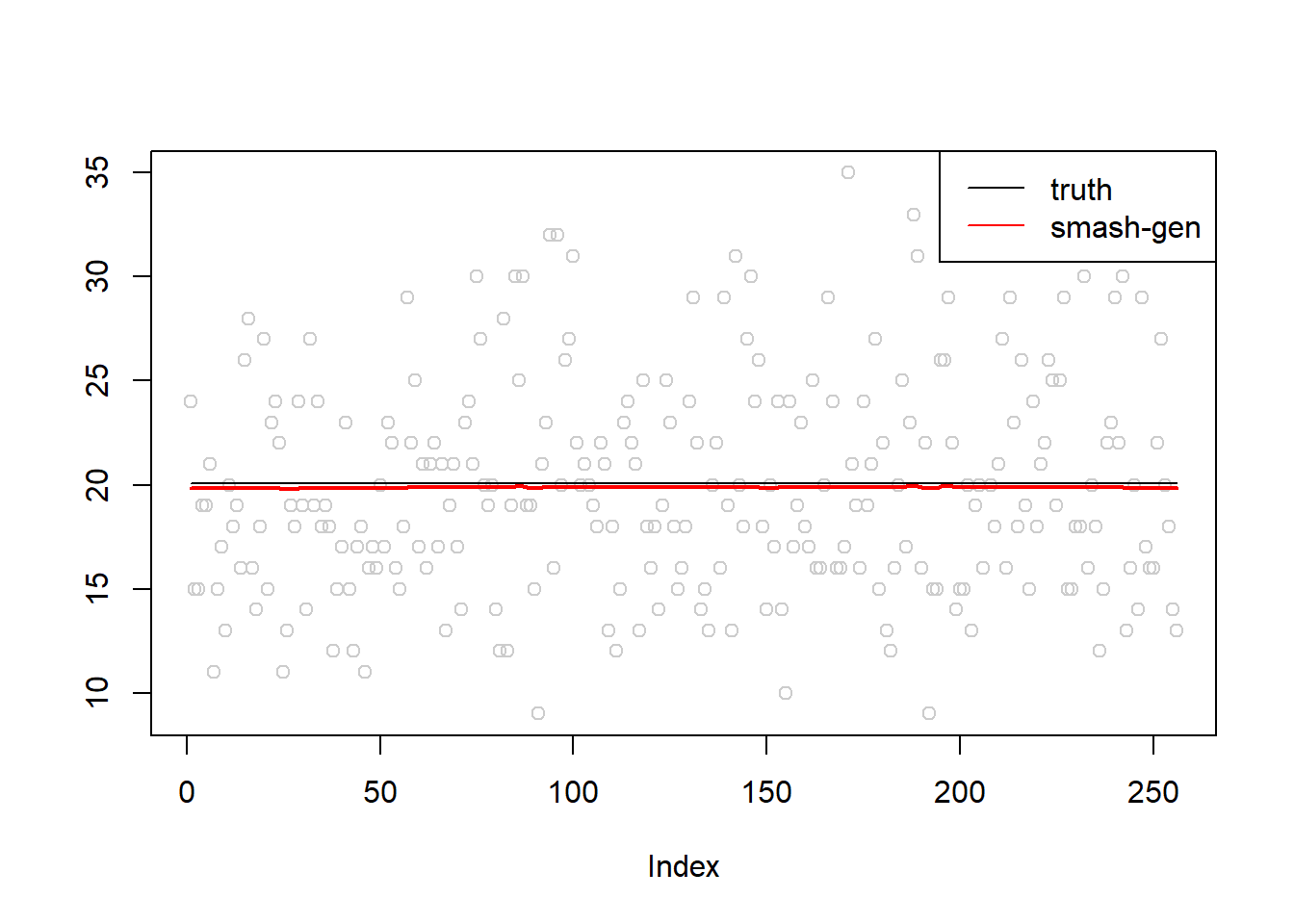

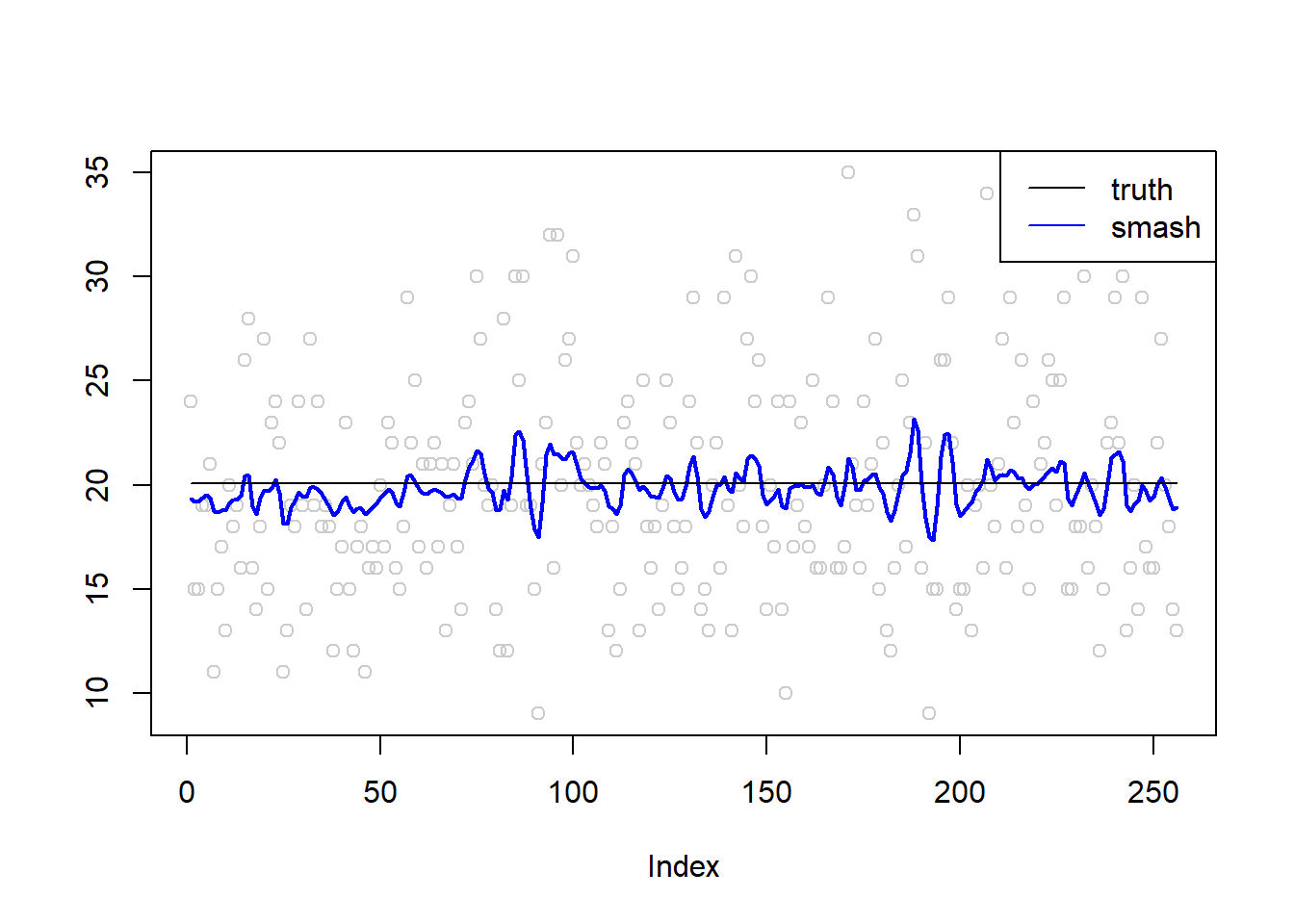

\(\sigma=0.1\)

simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

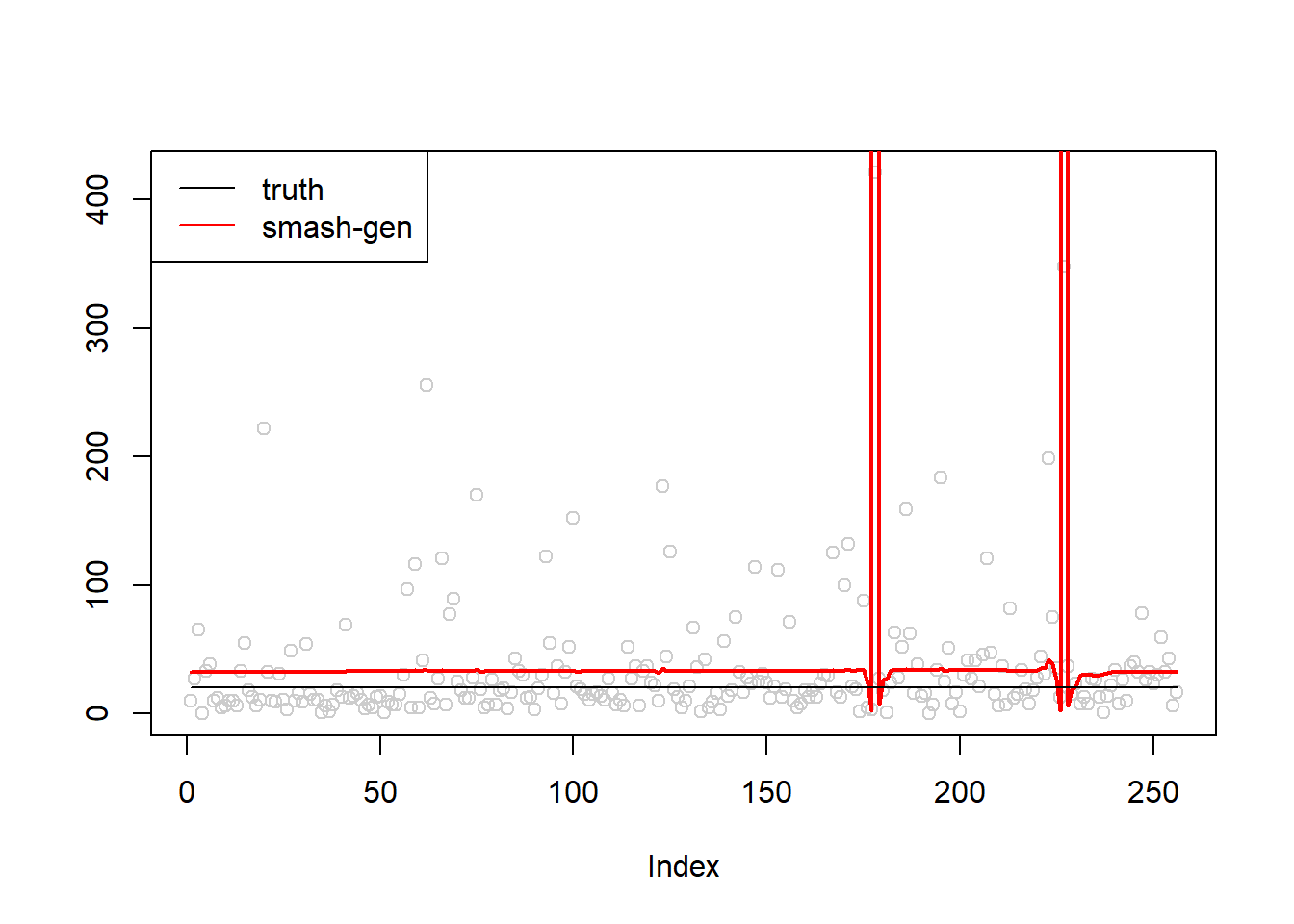

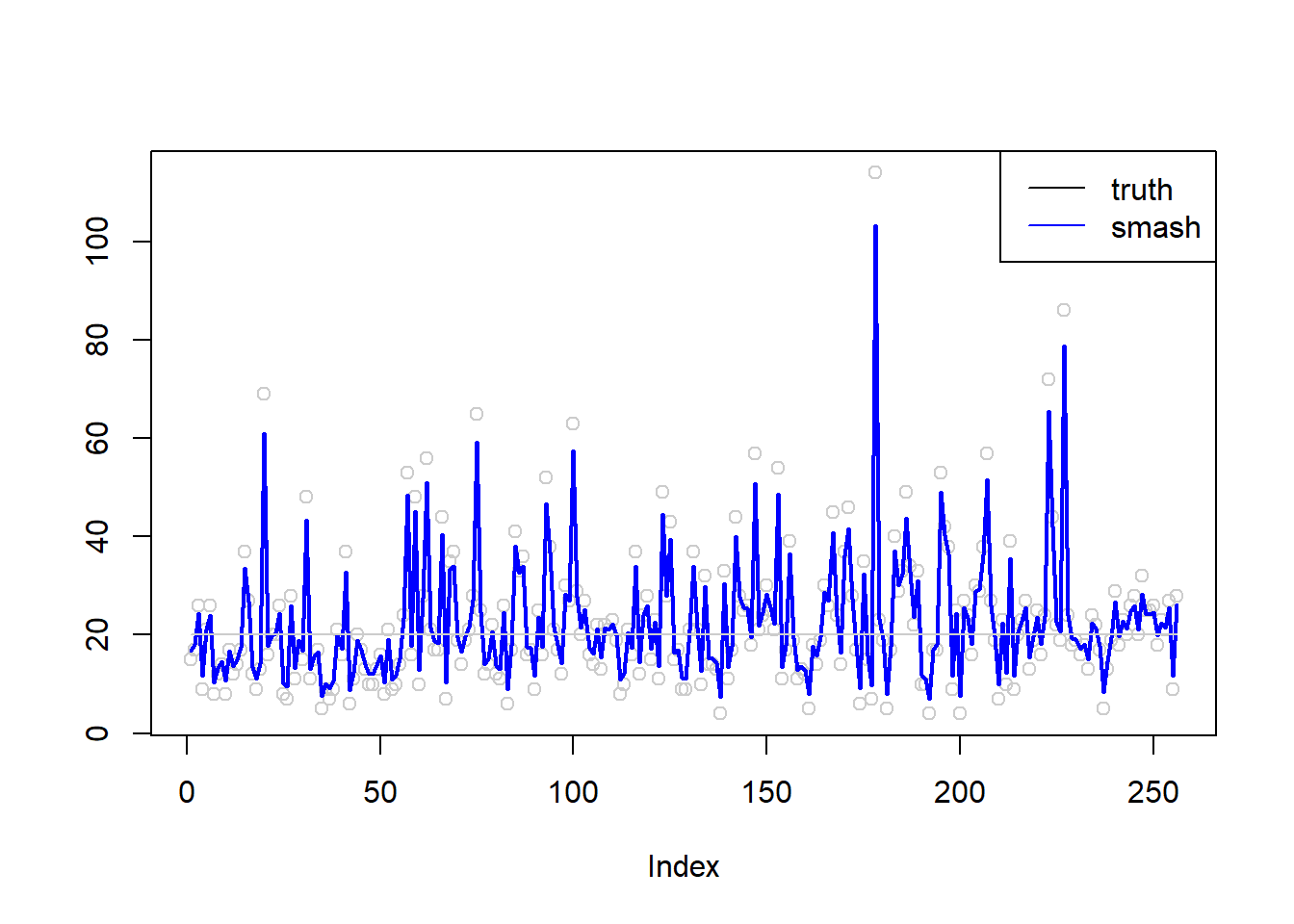

\(\sigma=0.5\)

simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m),col='gray80')
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m),col='gray80')
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

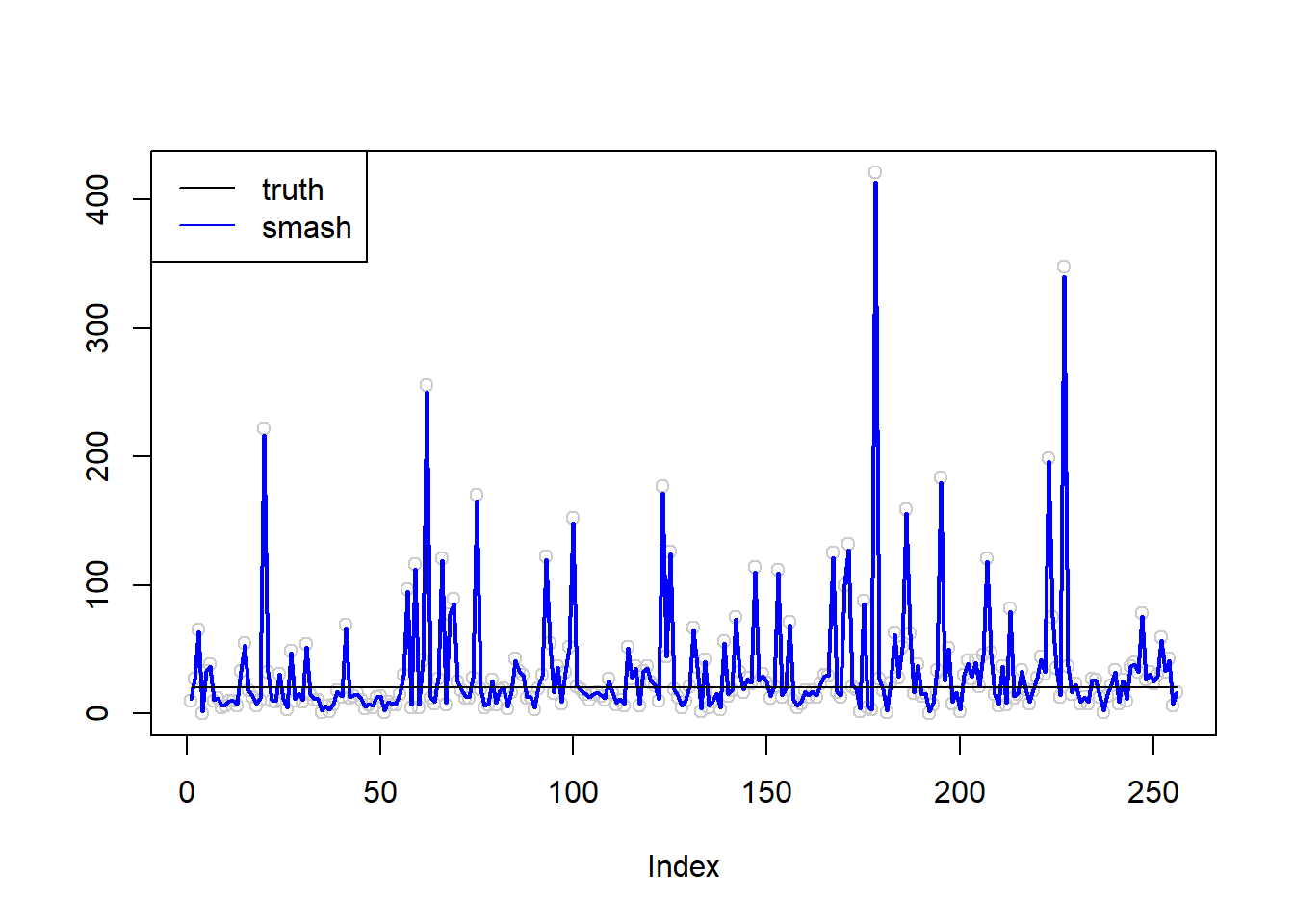

\(\sigma=1\)

simu.out=simu_study(m,1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m),col='black')
legend("topleft",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m),col='black')
legend("topleft",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

Simulation 2: Step trend

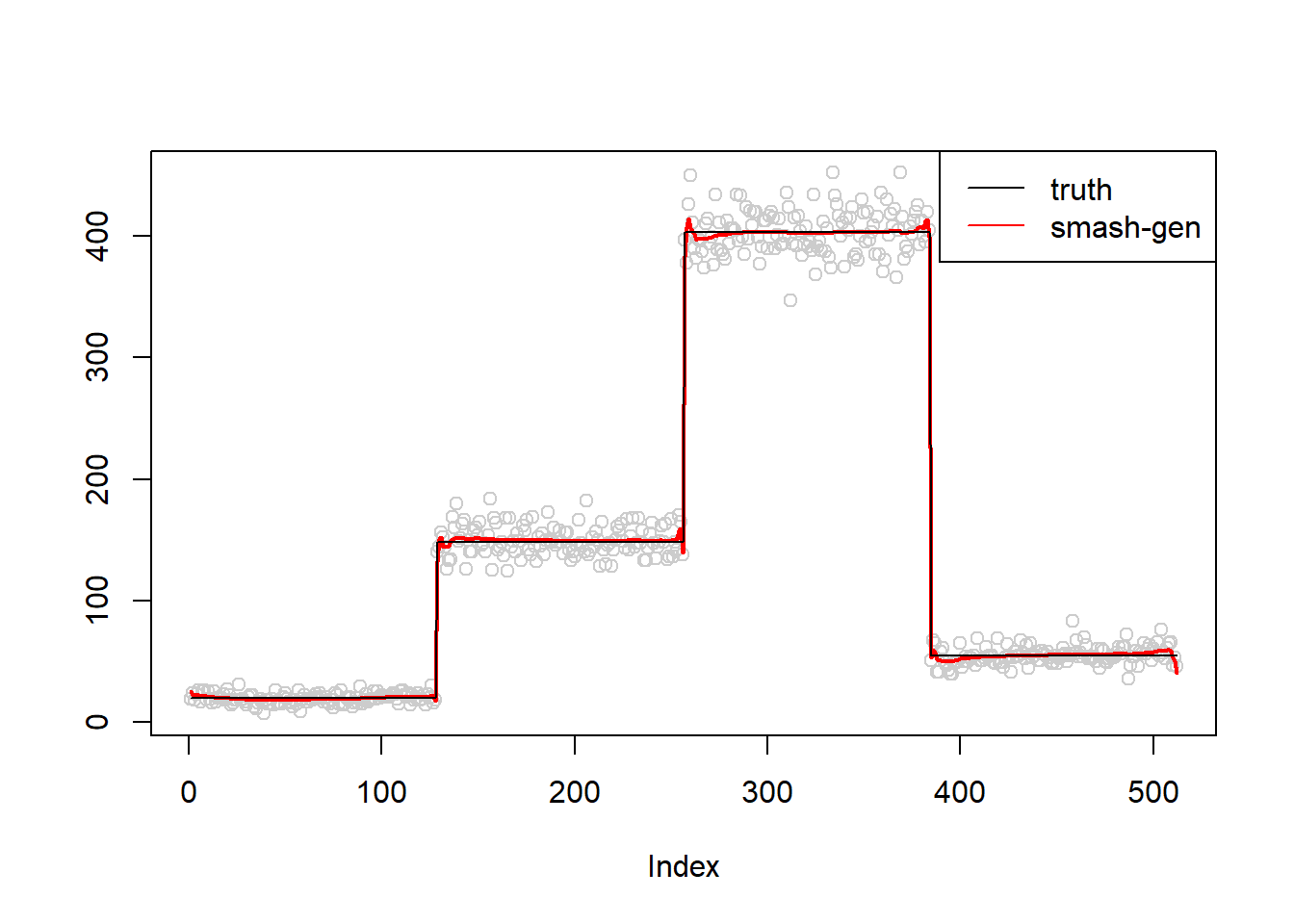

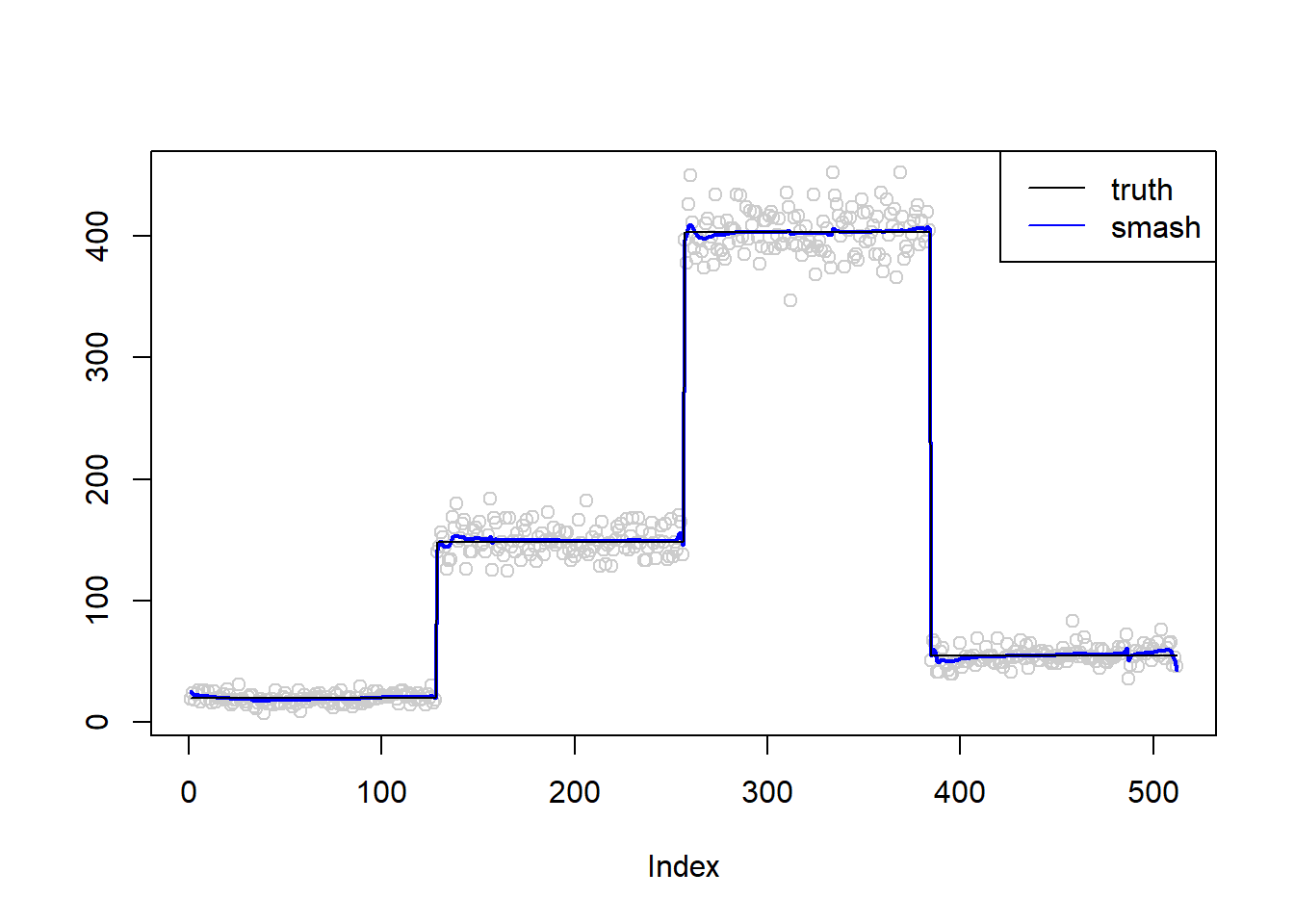

\(\sigma=0.01\)

m=c(rep(3,128), rep(5, 128), rep(6, 128), rep(4, 128))
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

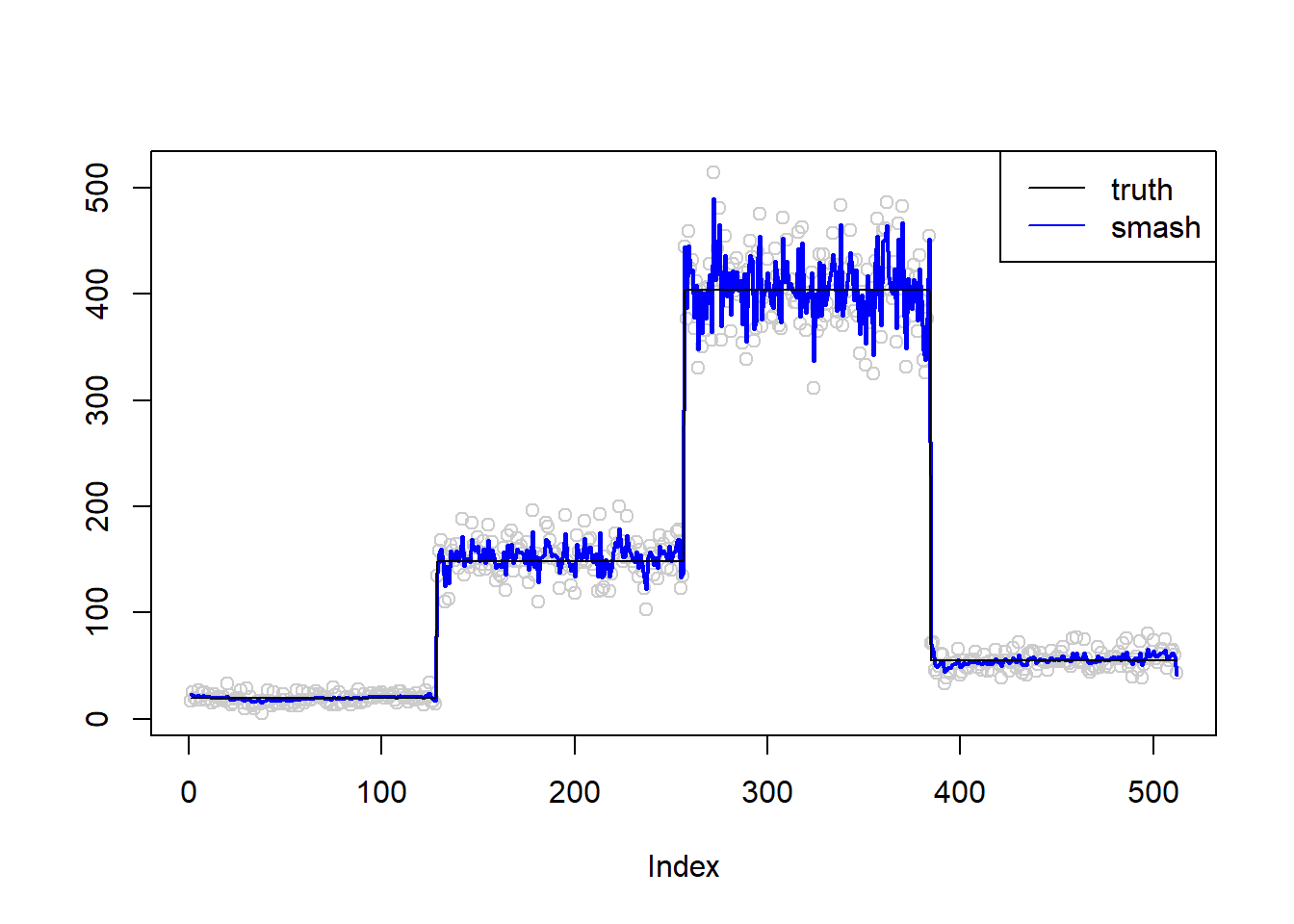

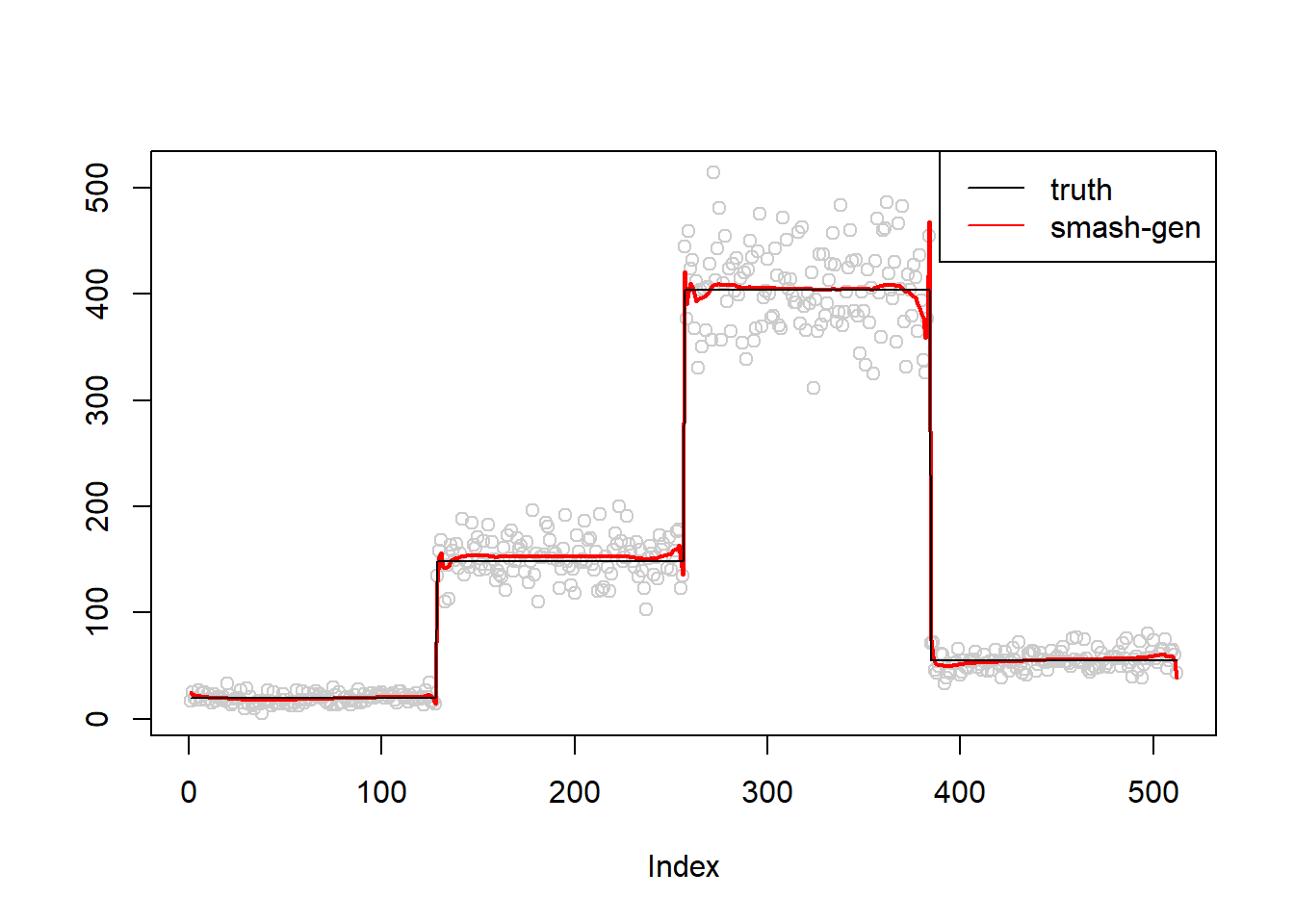

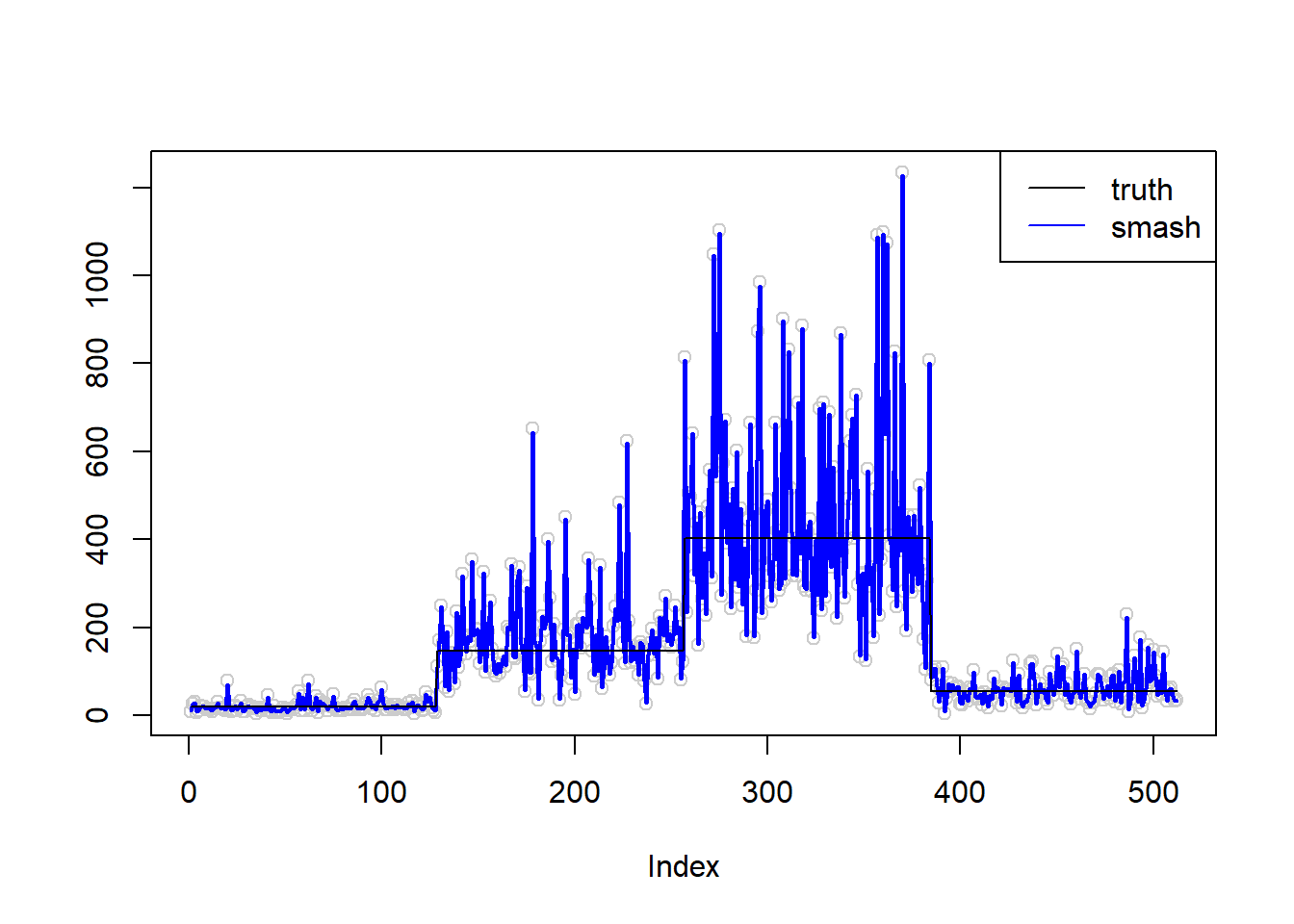

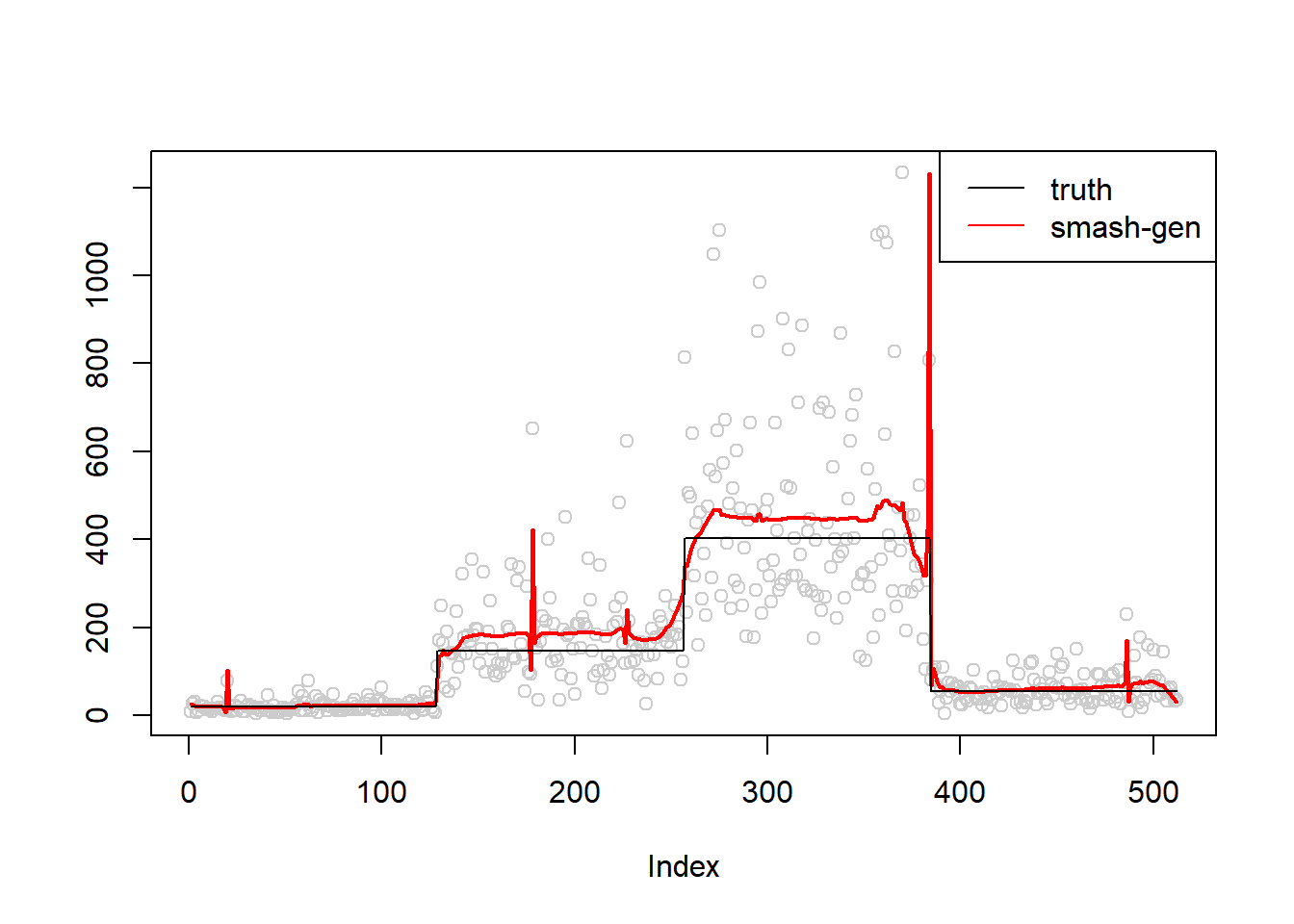

\(\sigma=0.1\)

simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

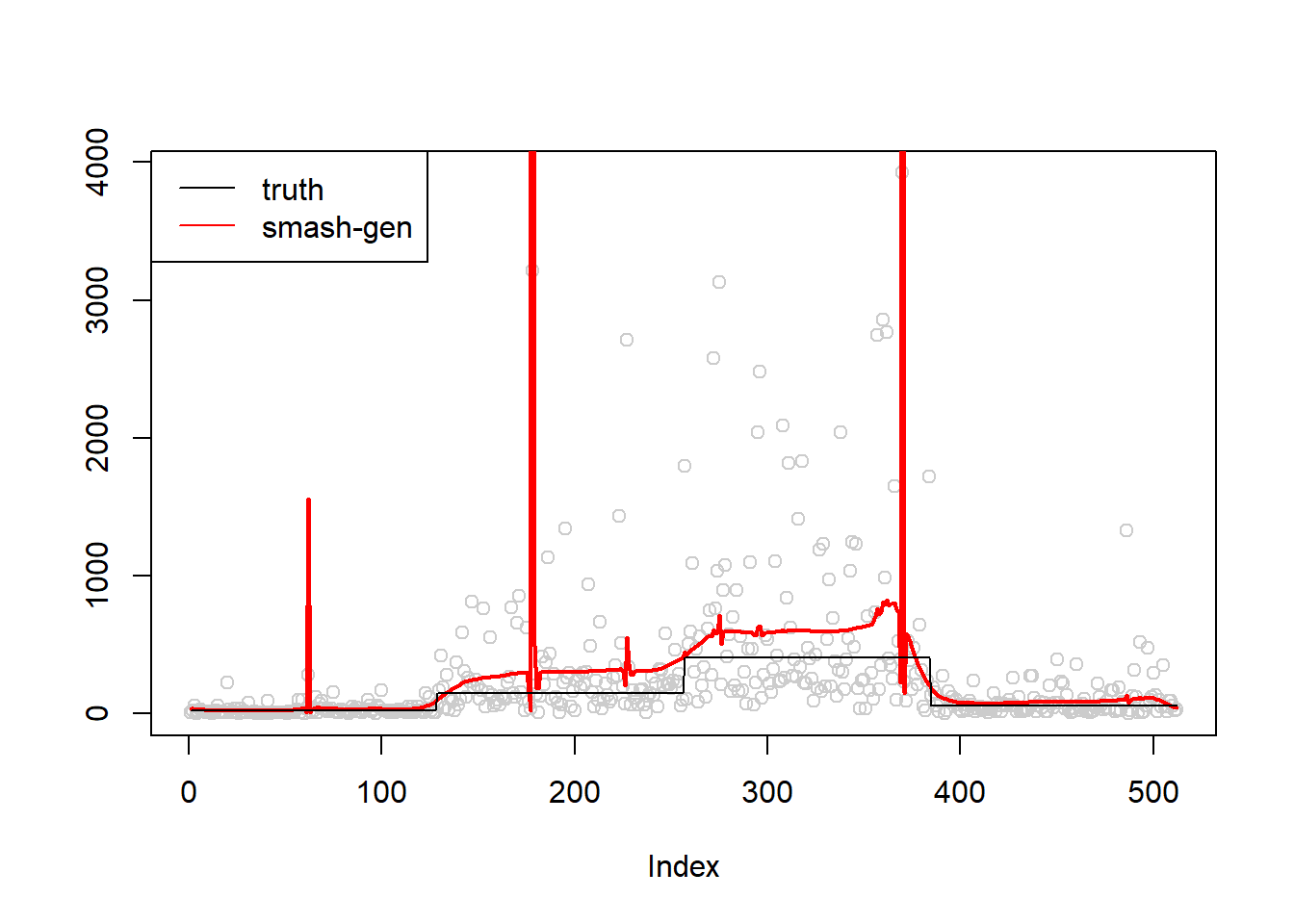

\(\sigma=0.5\)

simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=1\)

simu.out=simu_study(m,1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topleft",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topleft",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

Simulation 3: Oscillating Poisson nugget

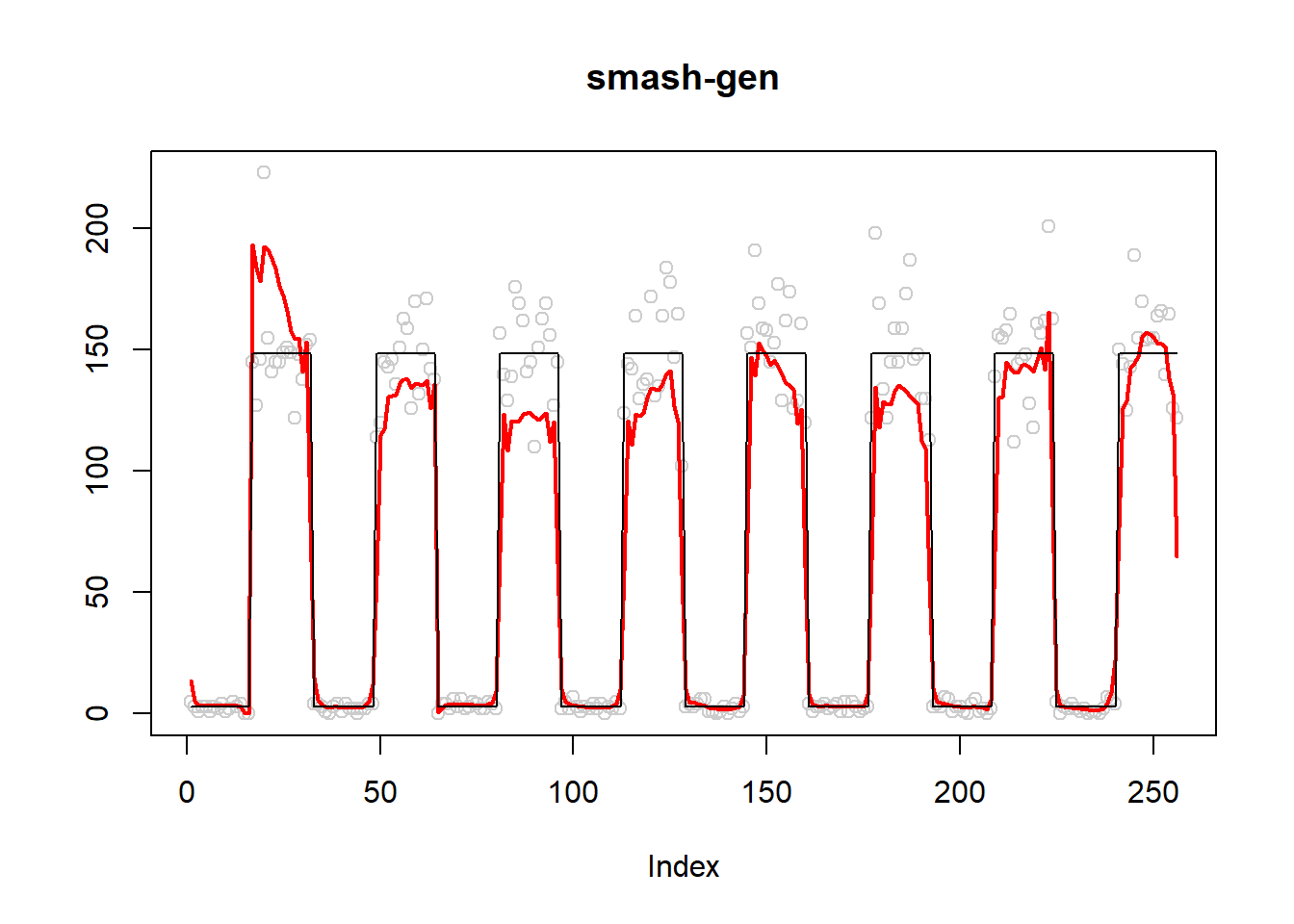

Low Oscillating Poisson nugget

\(\sigma=0.01\)

m=c()
for(k in 1:8){
    m=c(m, rep(1,16), rep(5, 16))
}
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

\(\sigma=0.1\)

simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

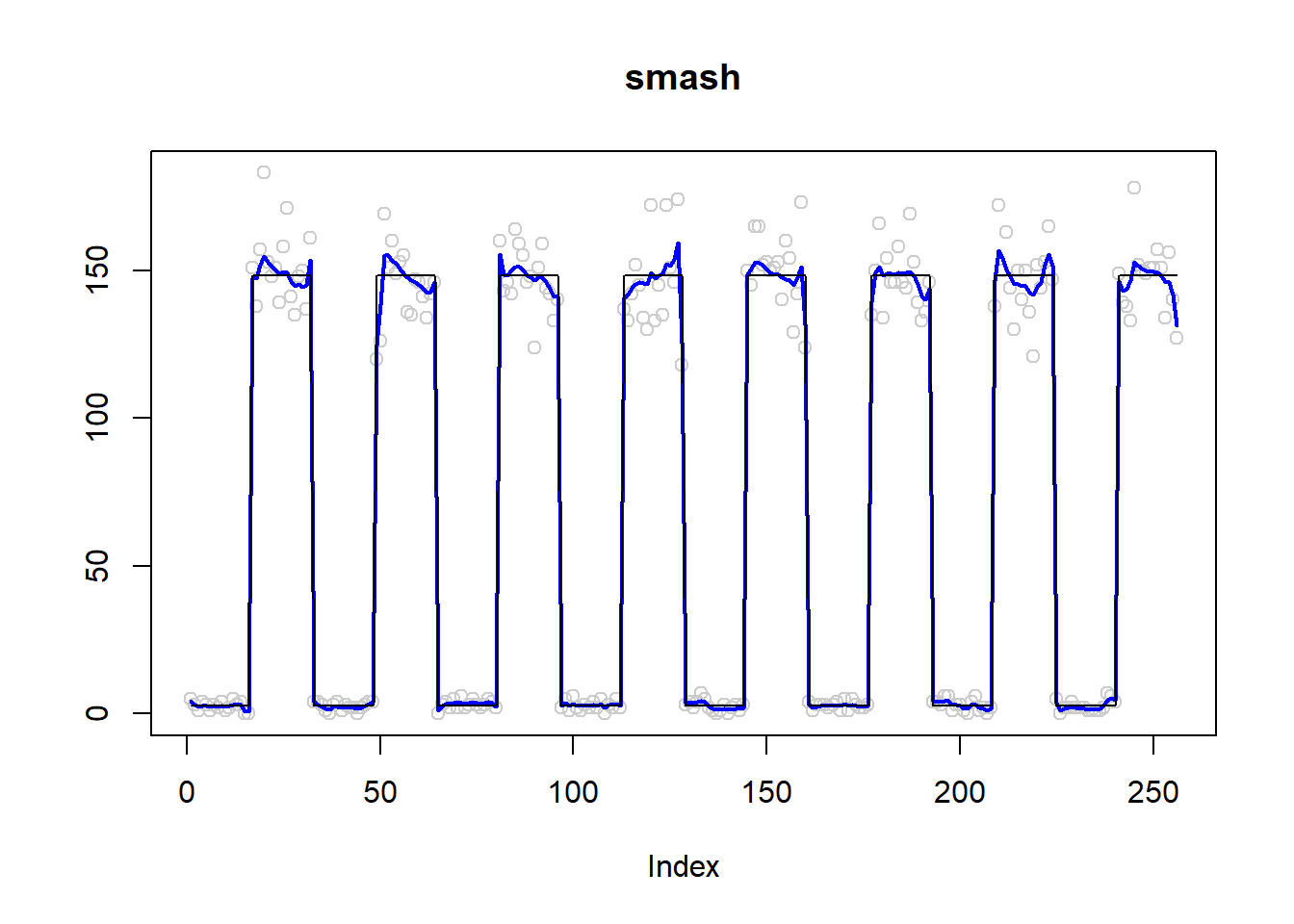

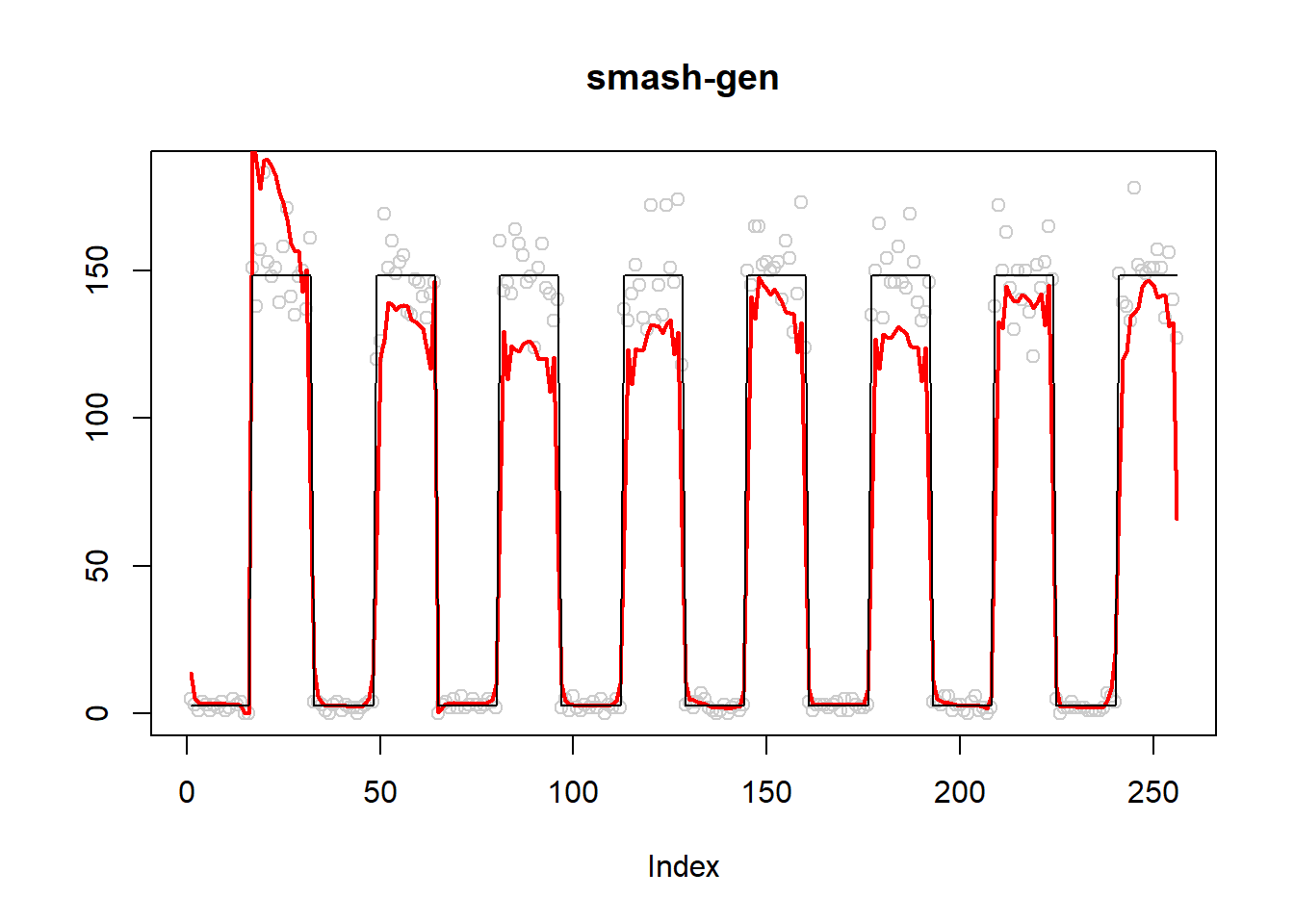

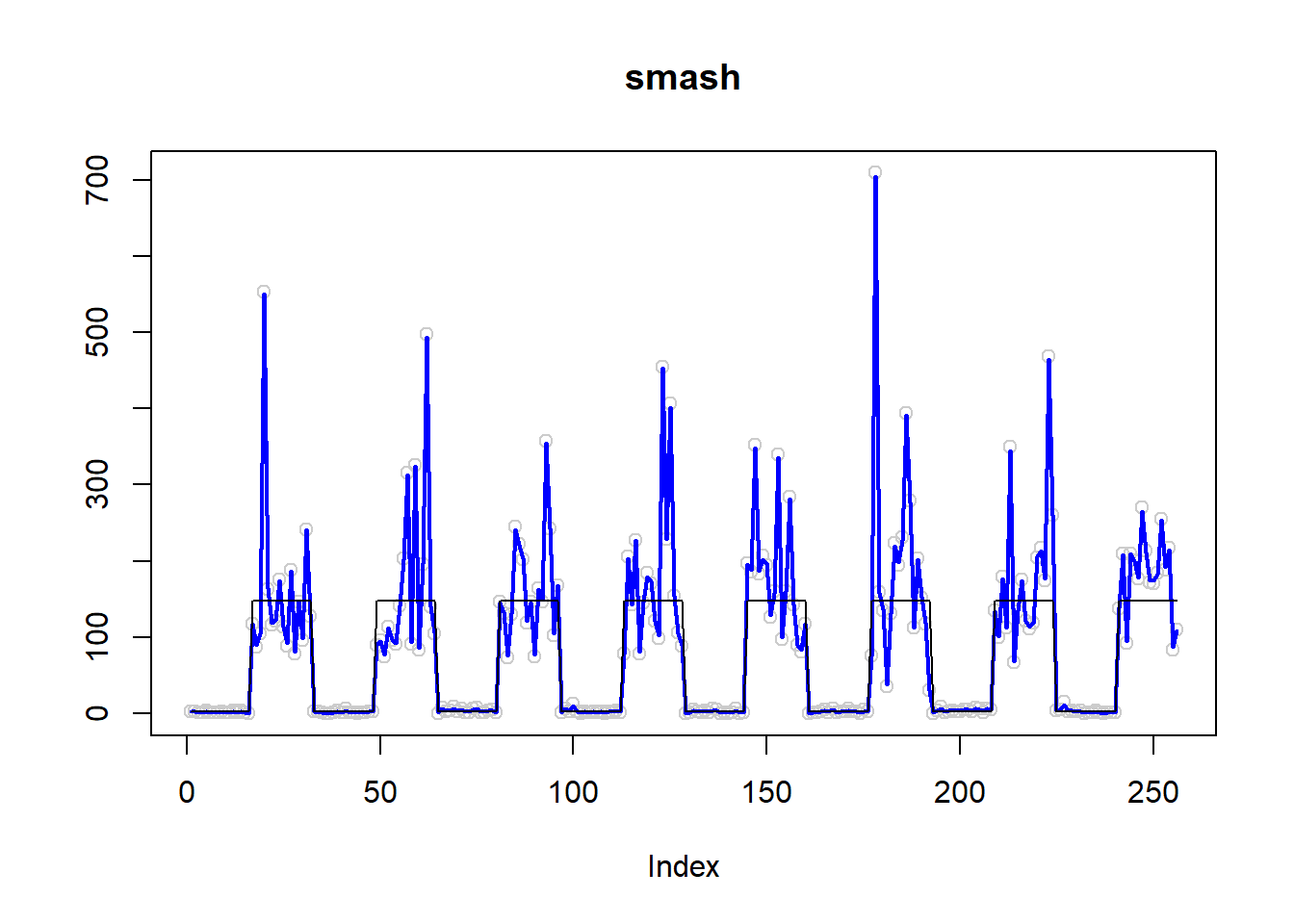

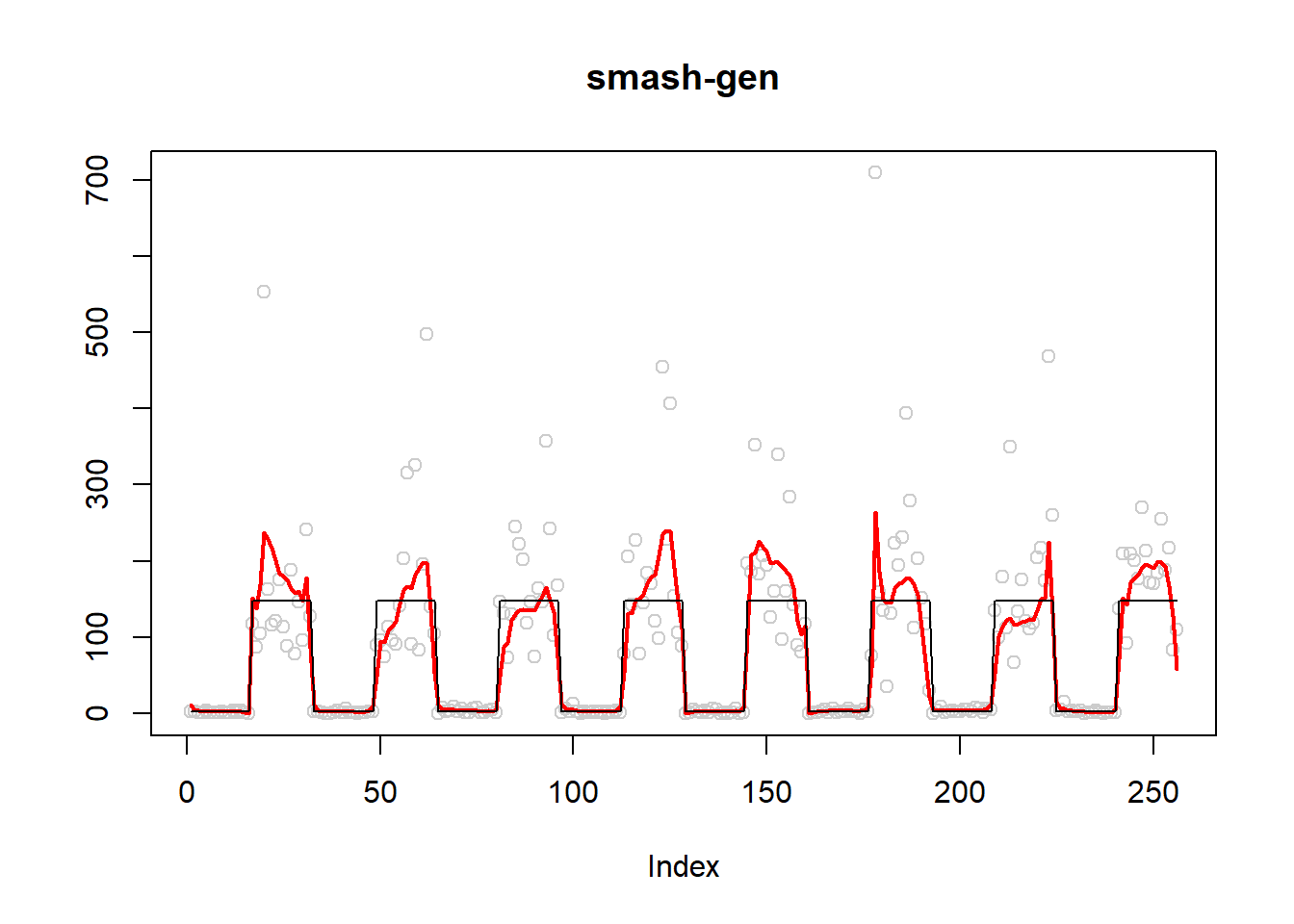

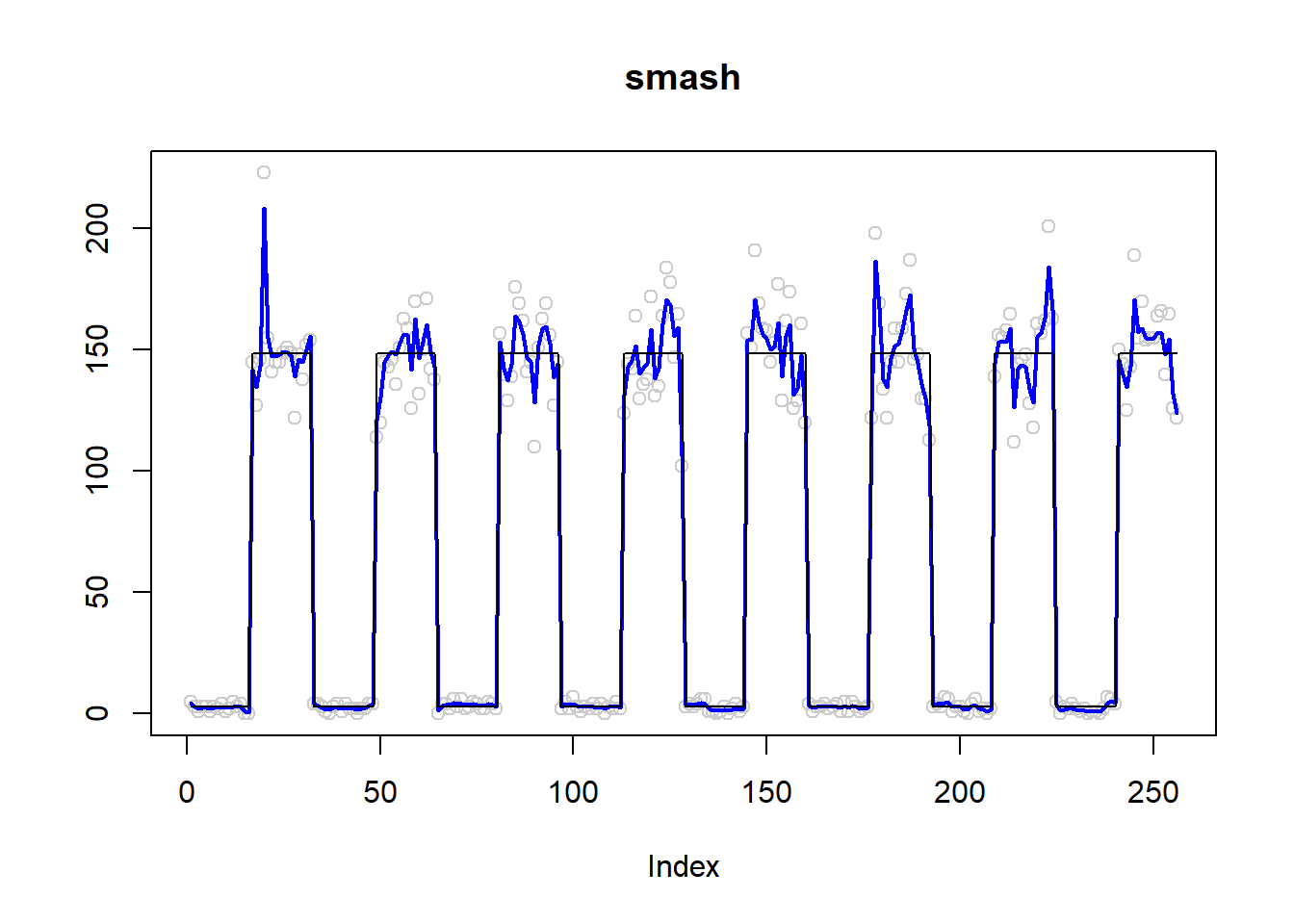

\(\sigma=0.5\)

simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

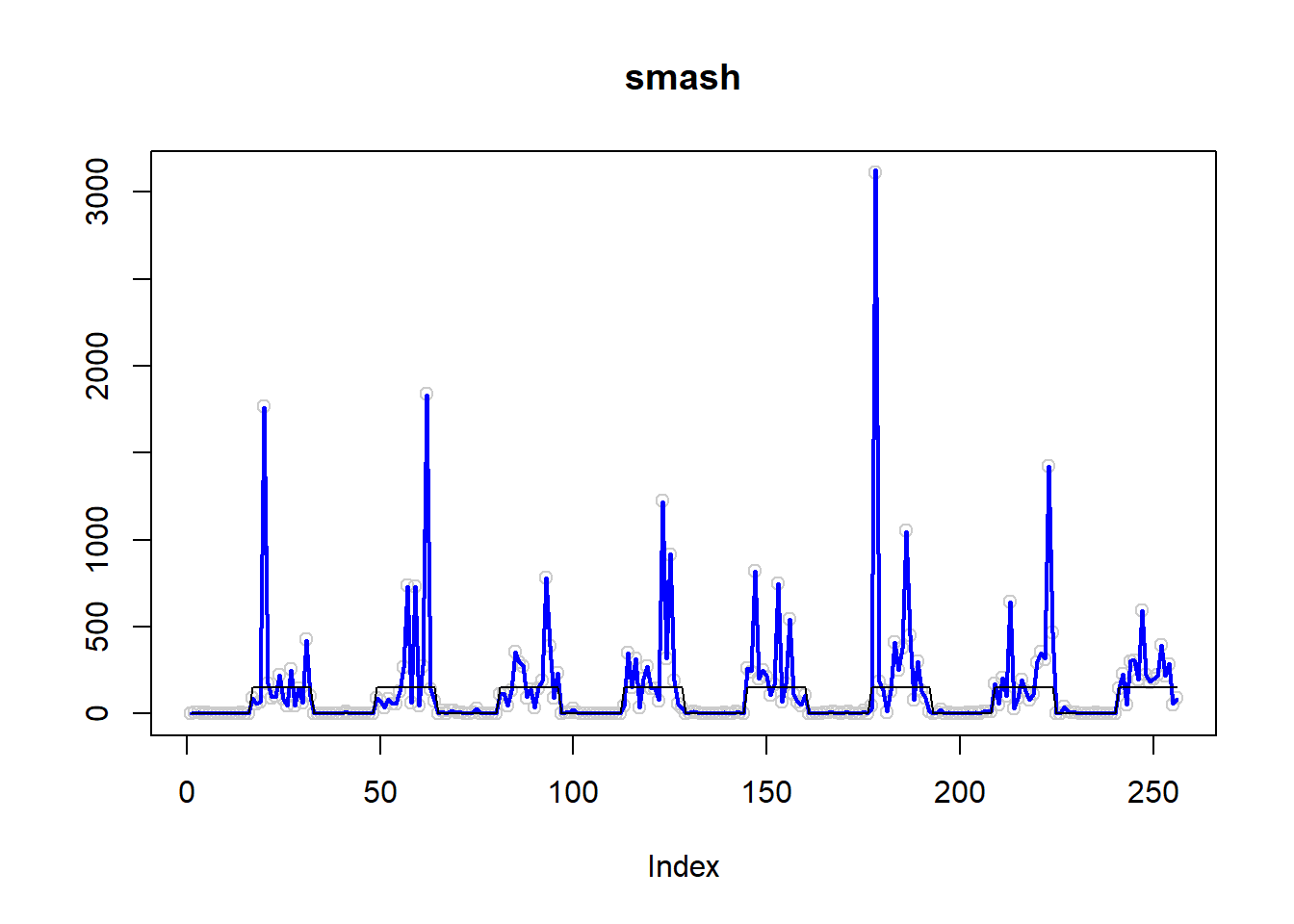

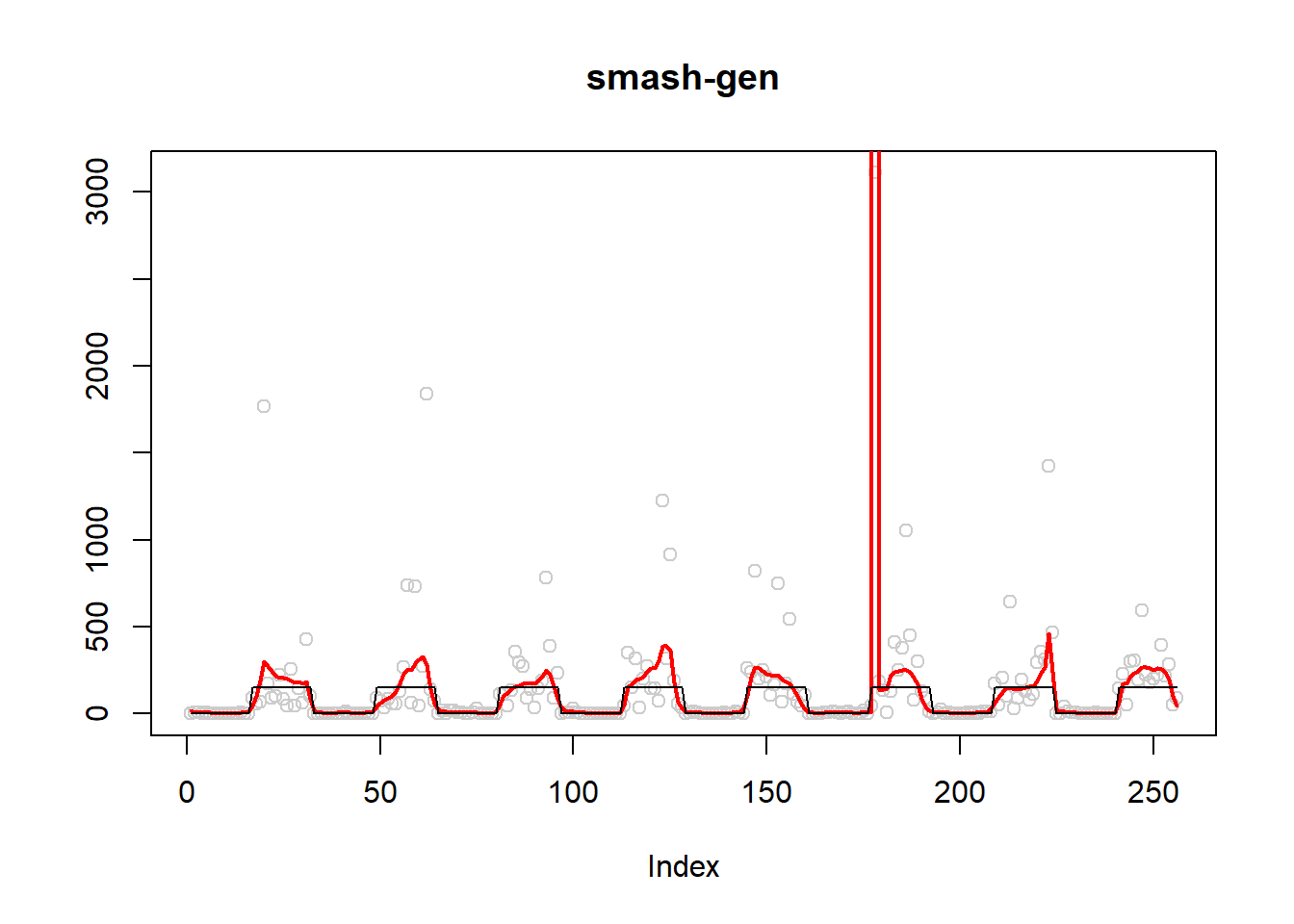

\(\sigma=1\)

simu.out=simu_study(m,1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

Fast Oscillating Poisson nugget

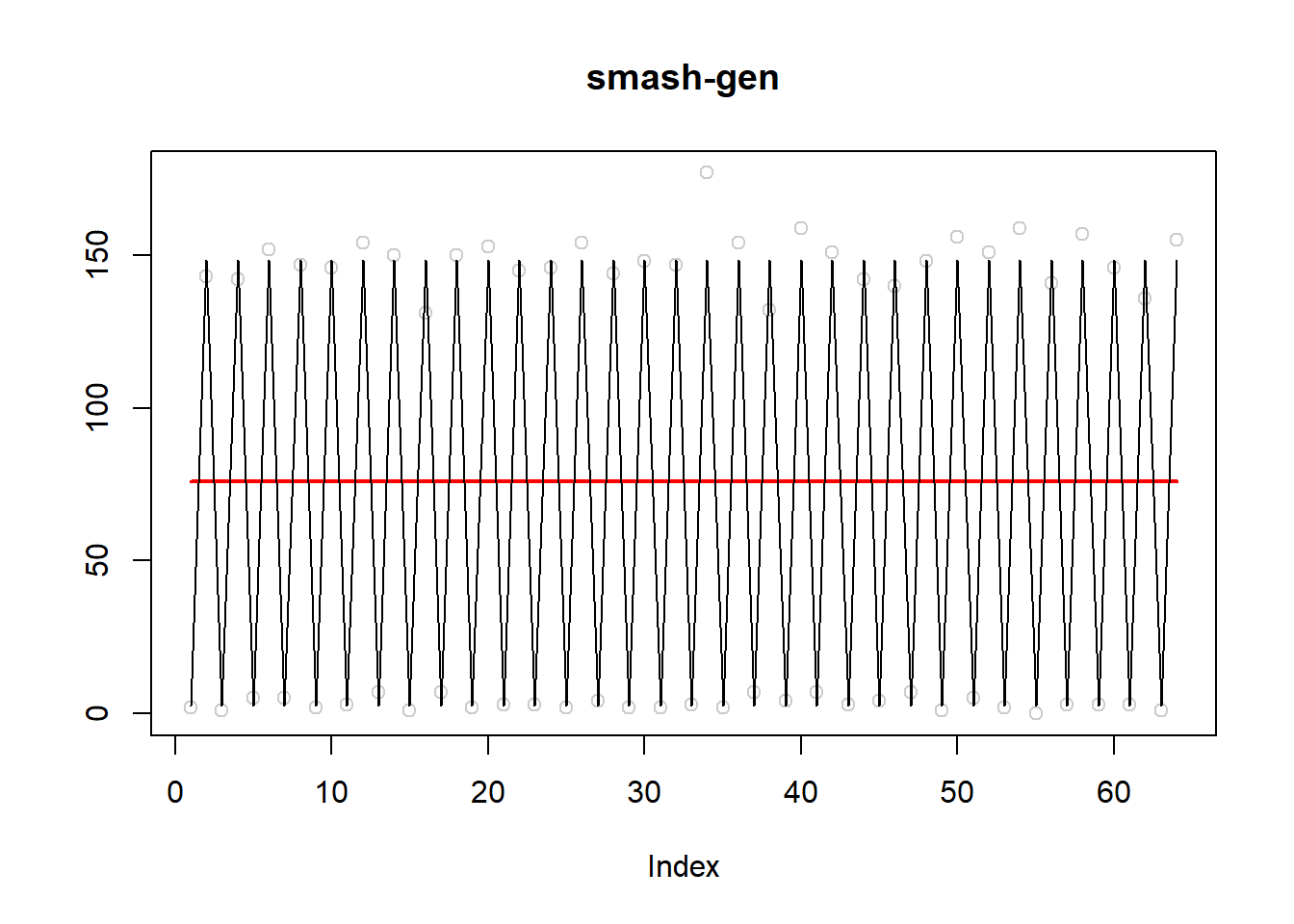

\(\sigma=0.01\)

m=c()
for(k in 1:32){
    m=c(m, c(1,5))
}
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

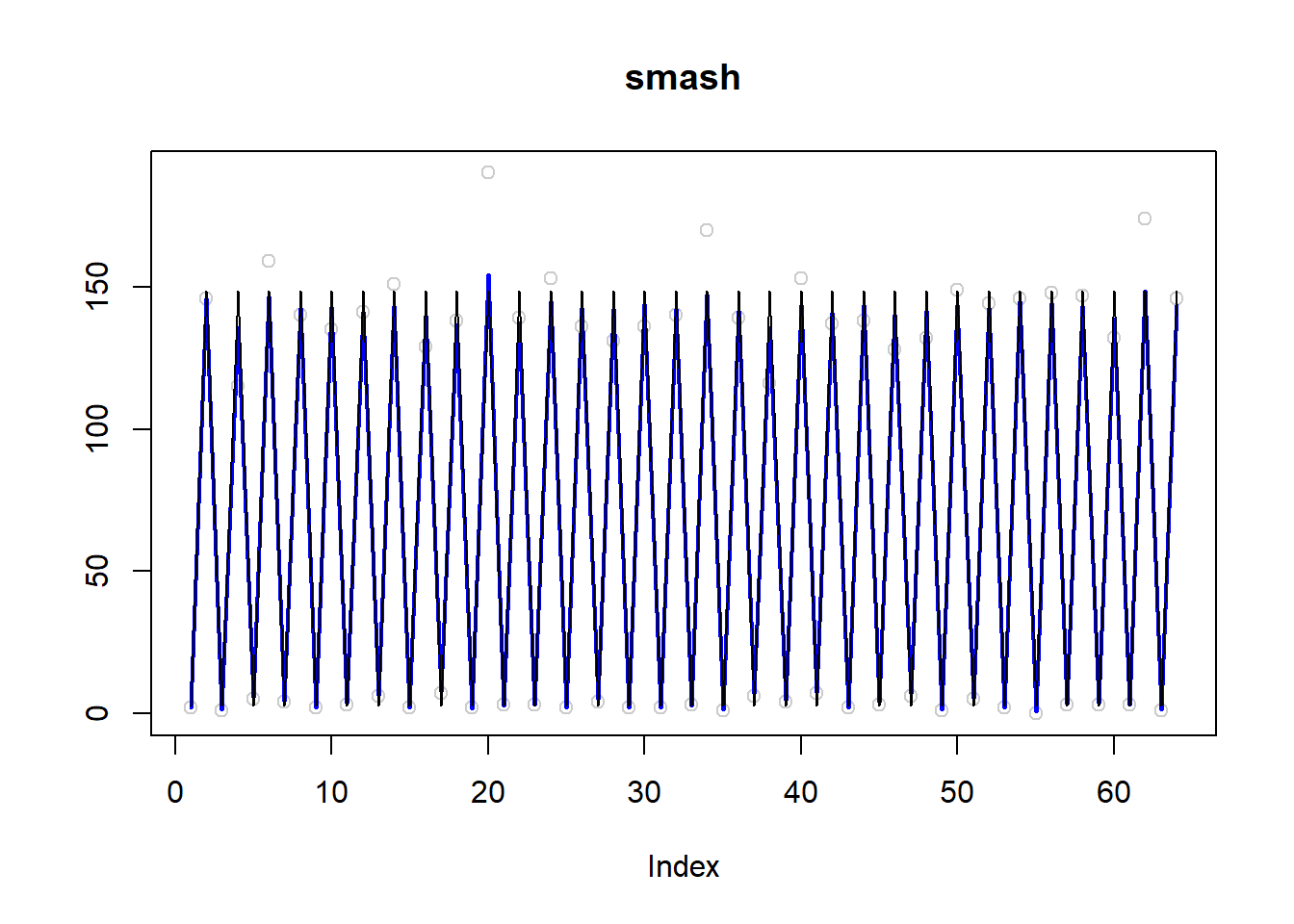

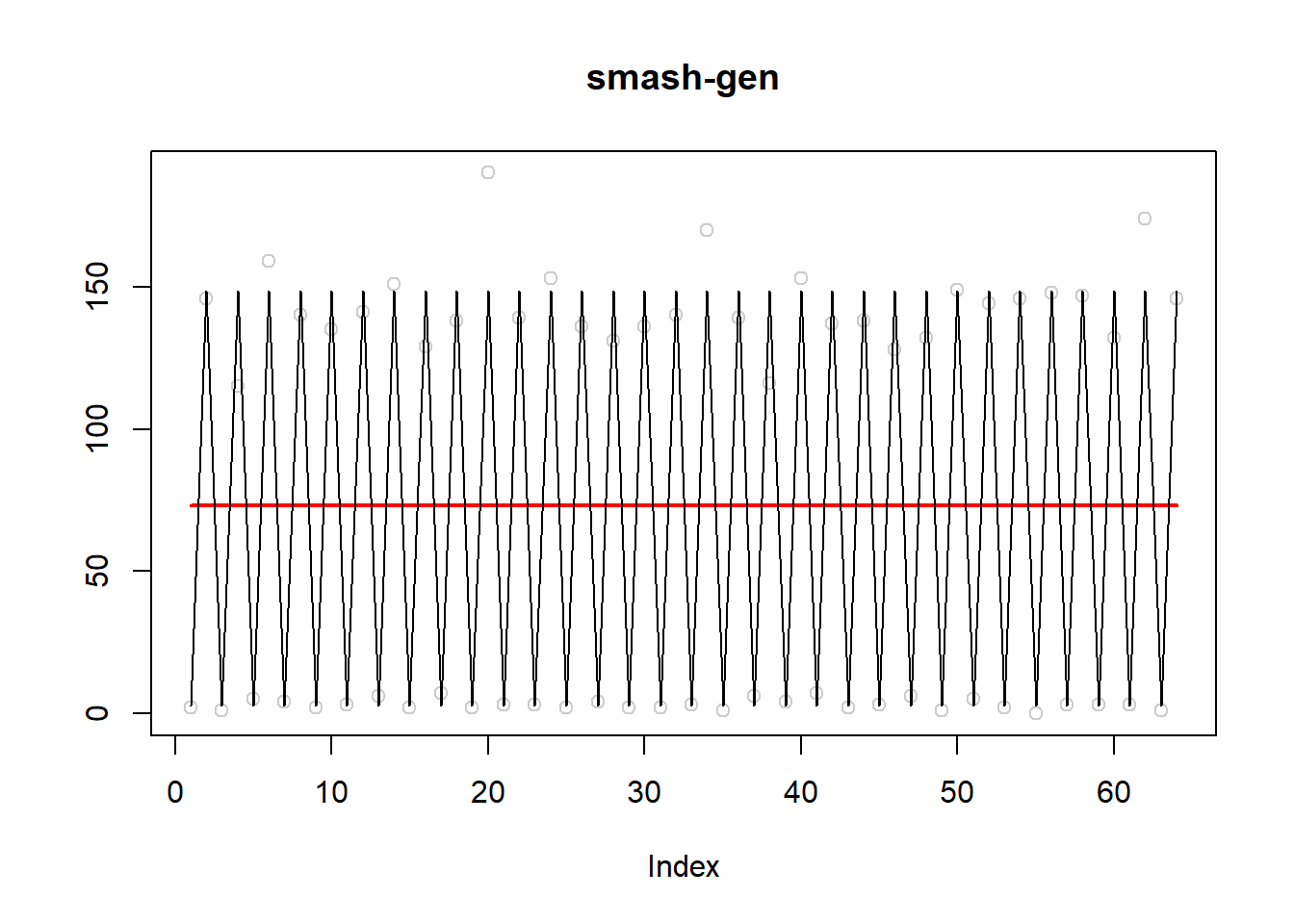

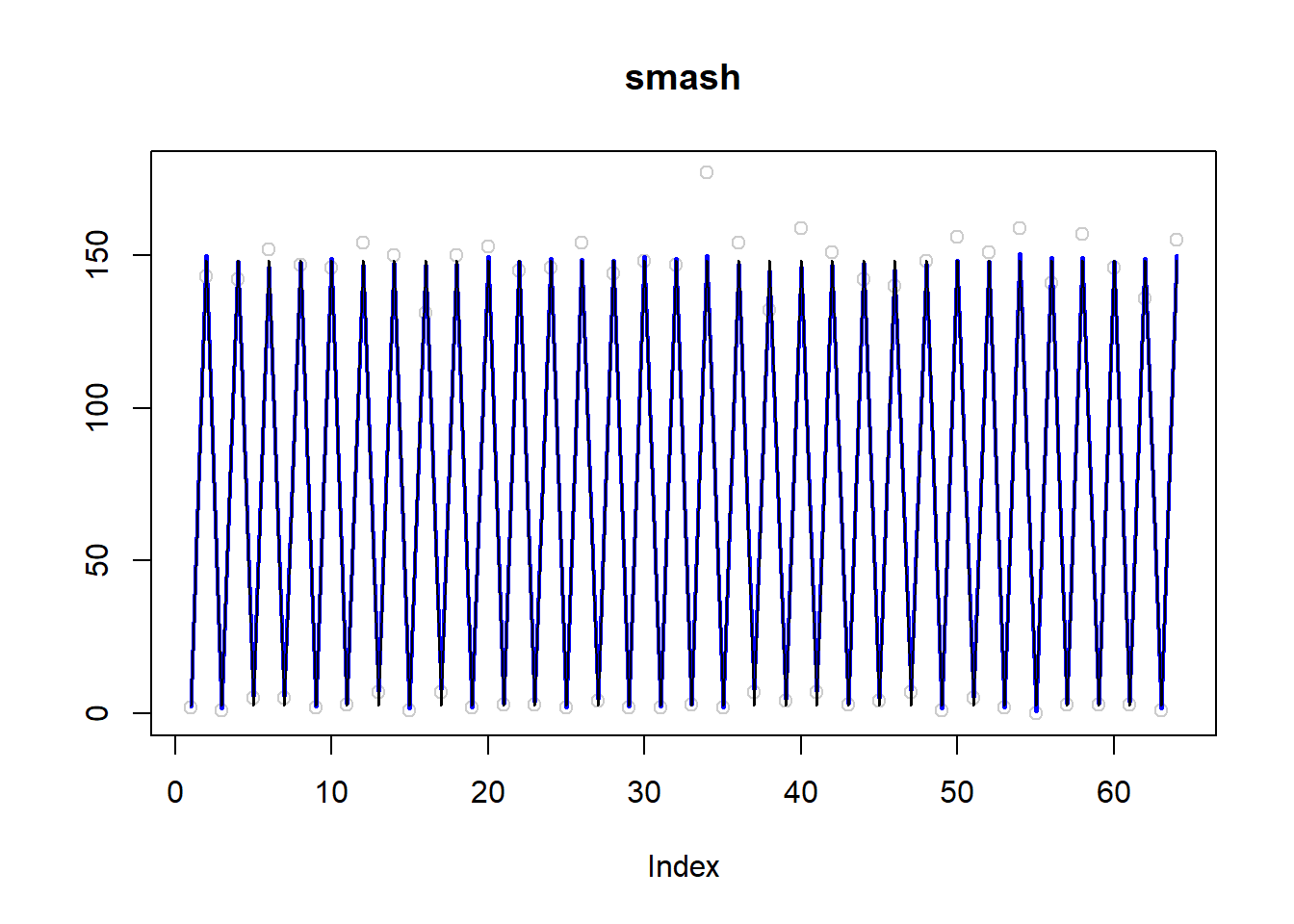

\(\sigma=0.1\)

simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

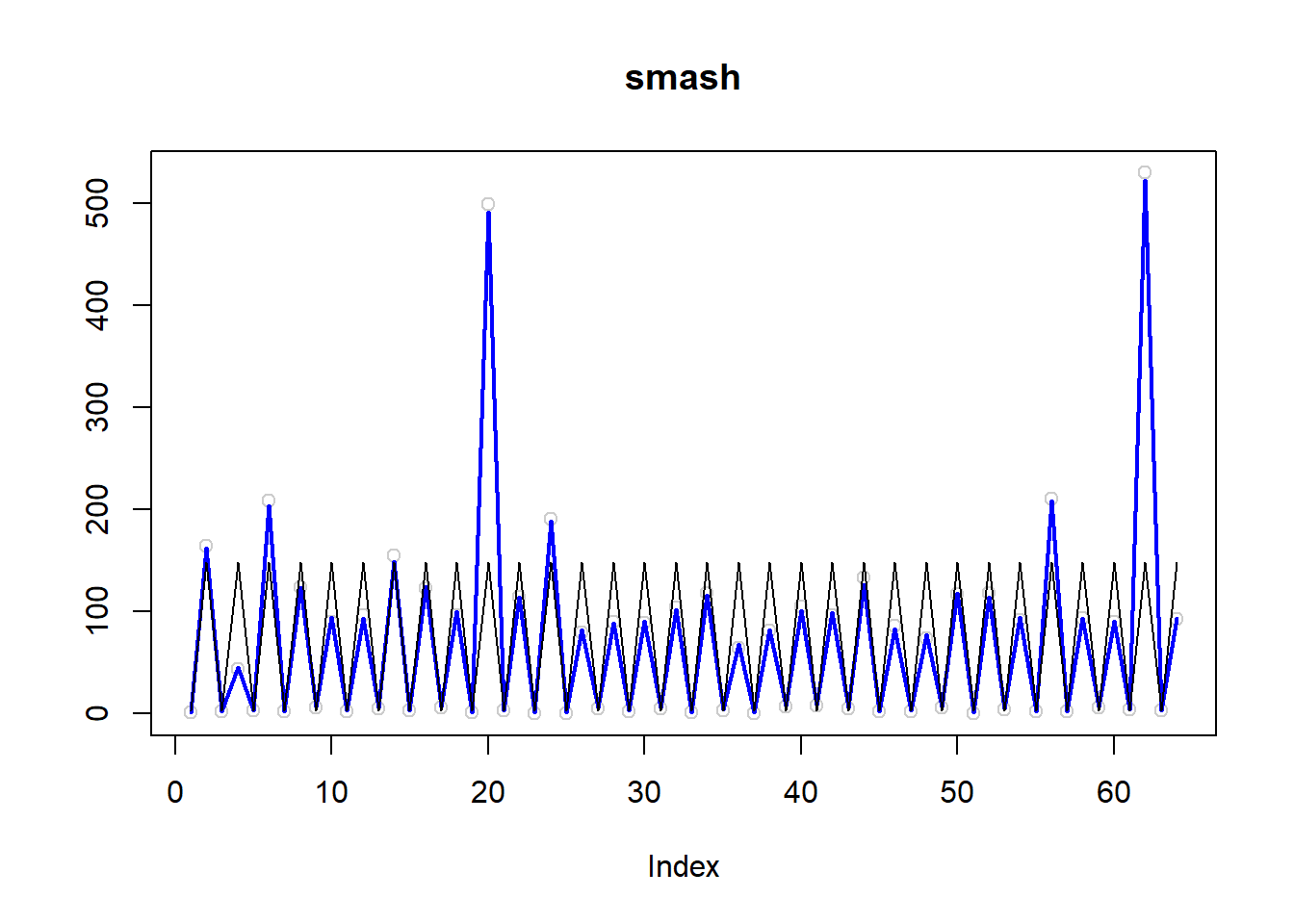

\(\sigma=0.5\)

simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

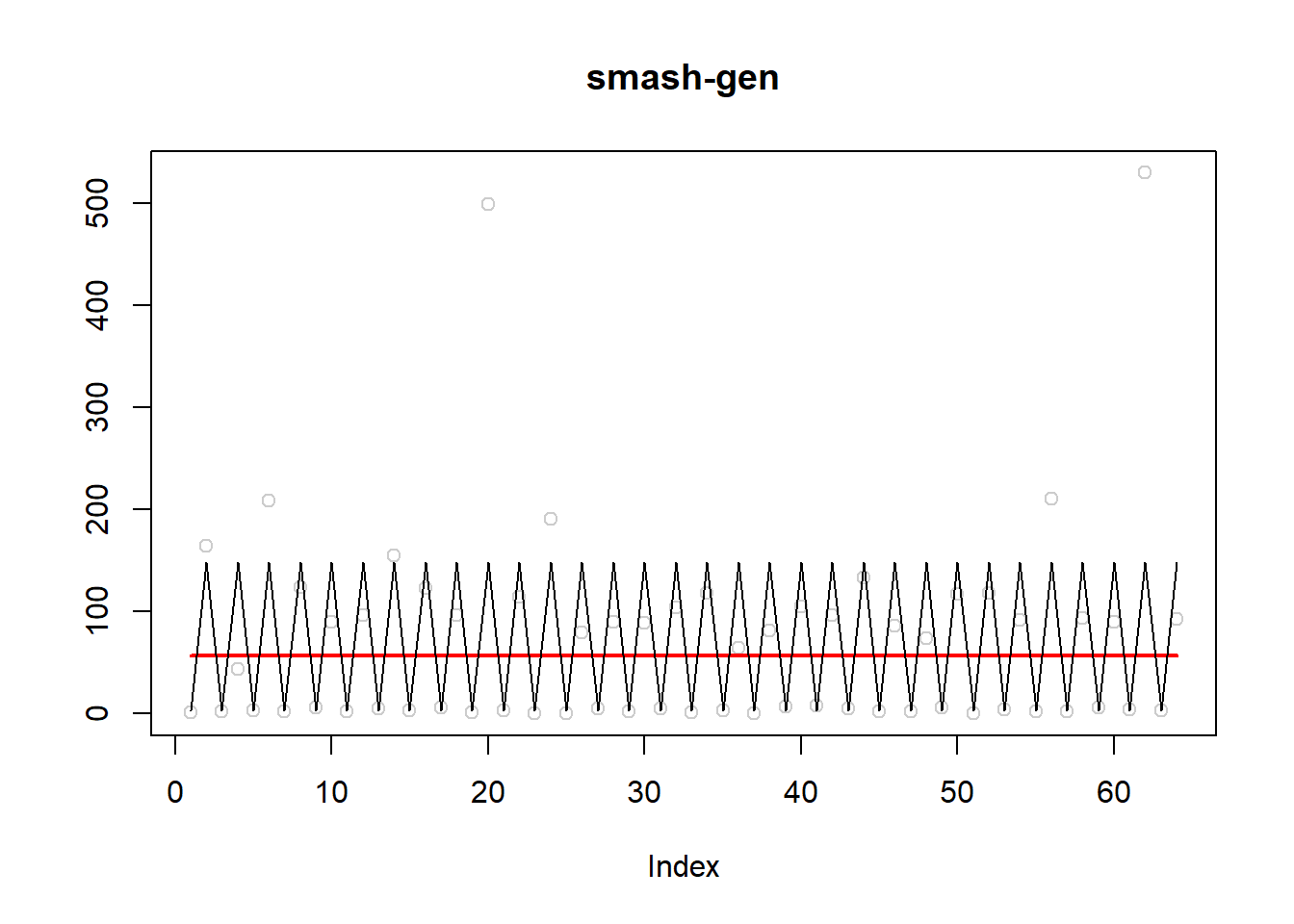

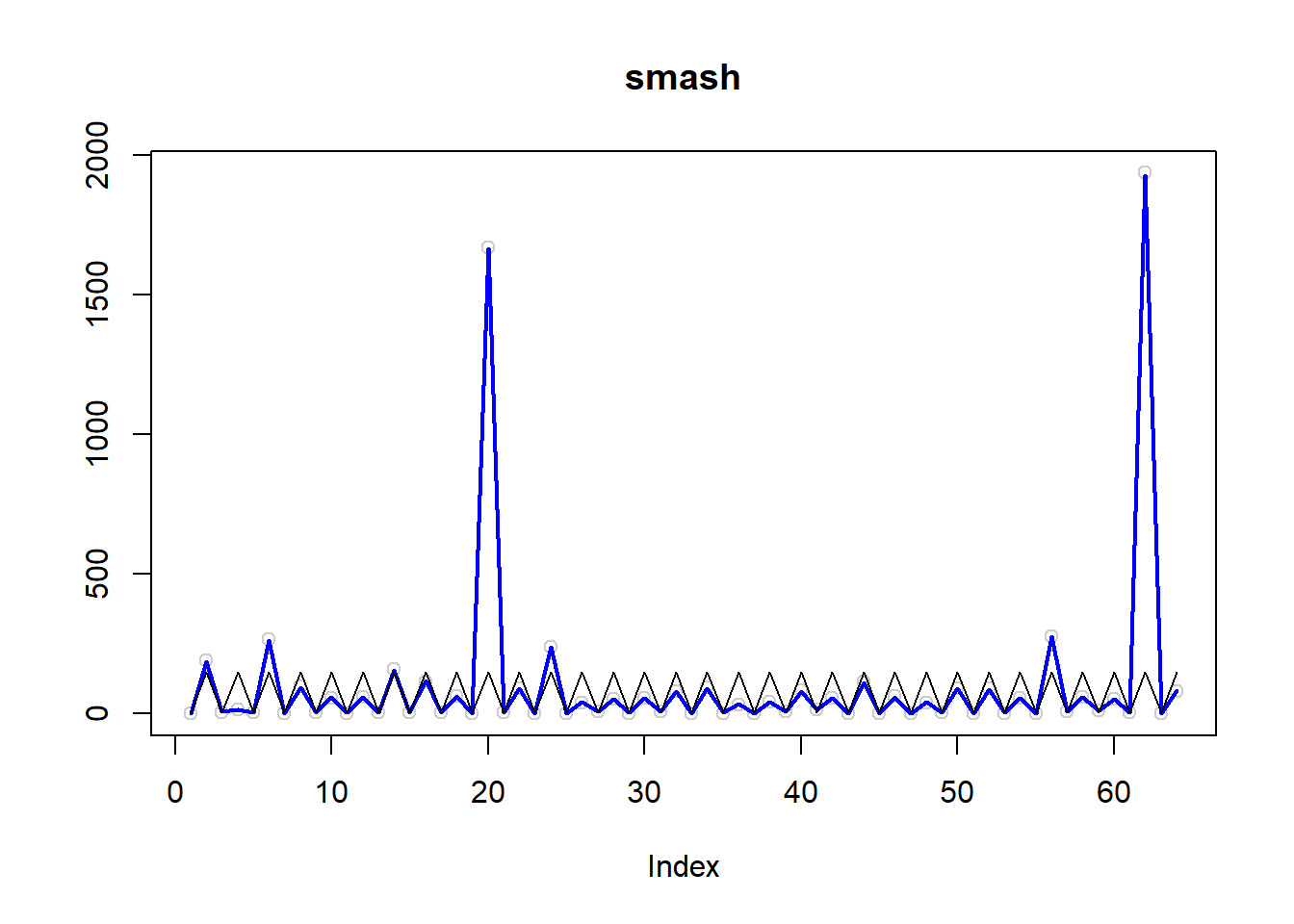

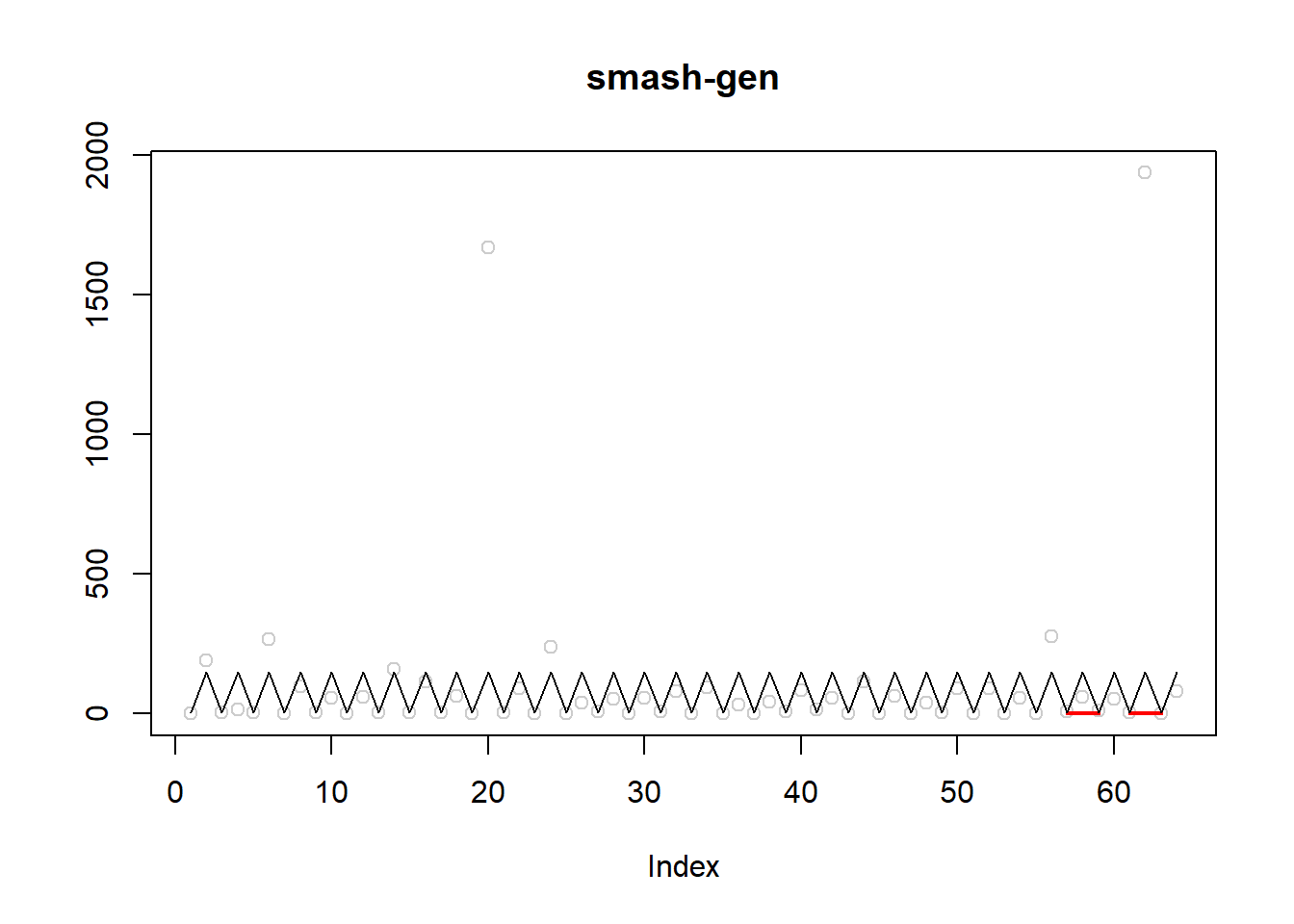

\(\sigma=1\)

simu.out=simu_study(m,1)
Algorithm diverges
#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash-gen')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))

plot(simu.out$x,col = "gray80" ,ylab = '',main='smash')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))

Simulation 4: Polynomial curve Poisson nugget

\(\sigma=0.01\)

m = seq(-1,1,length.out = 256)
m = m^3-2*m+1
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

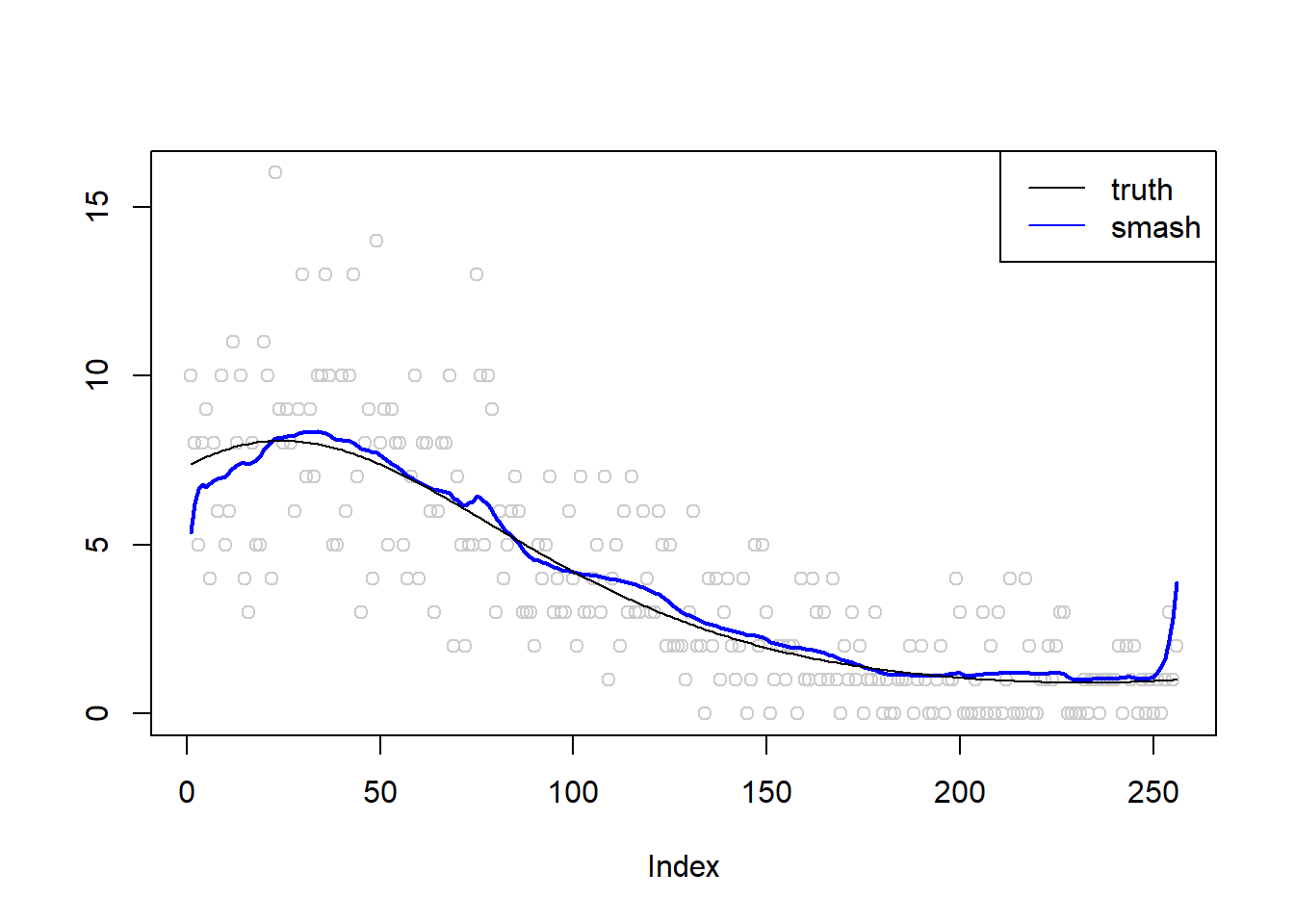

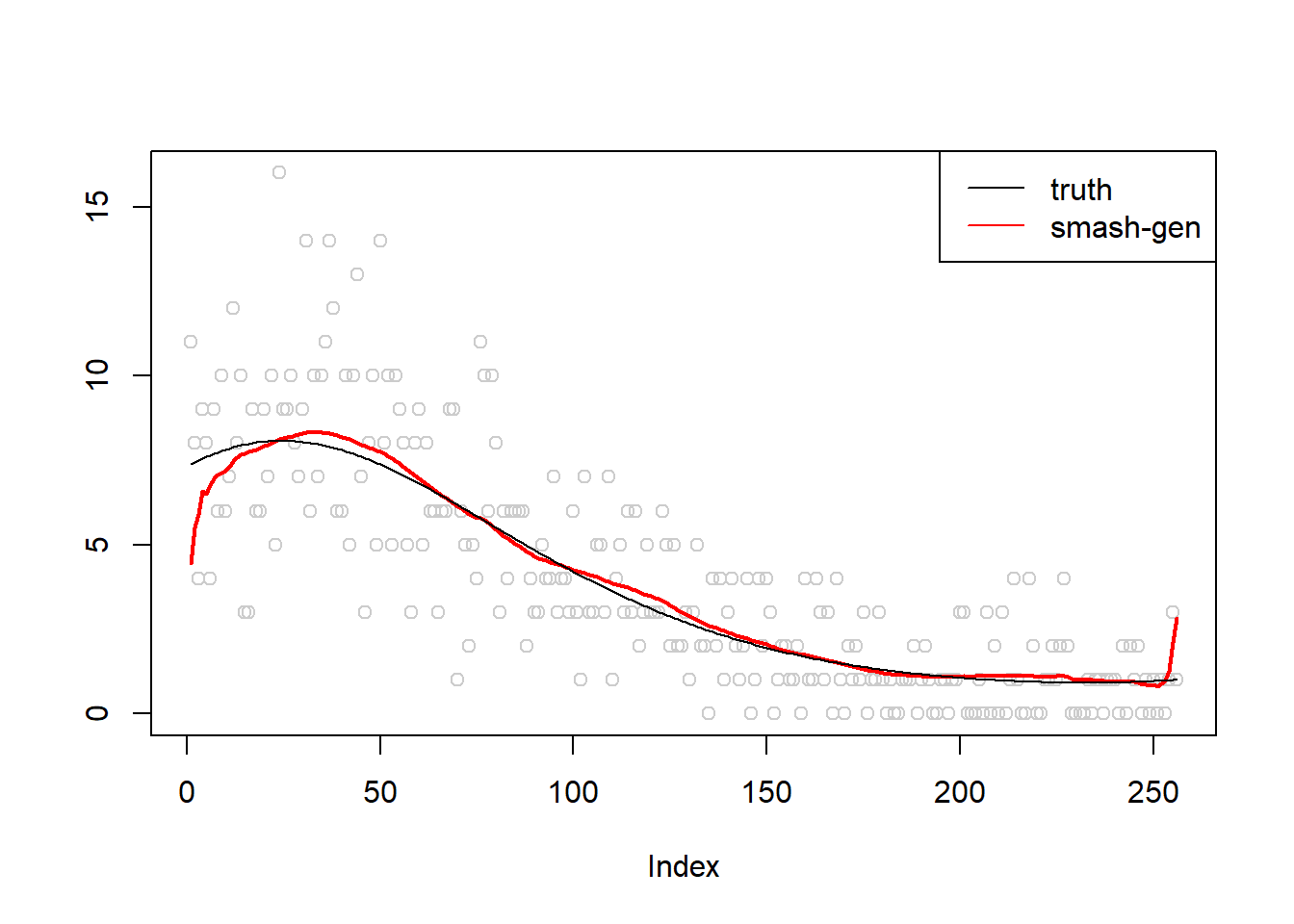

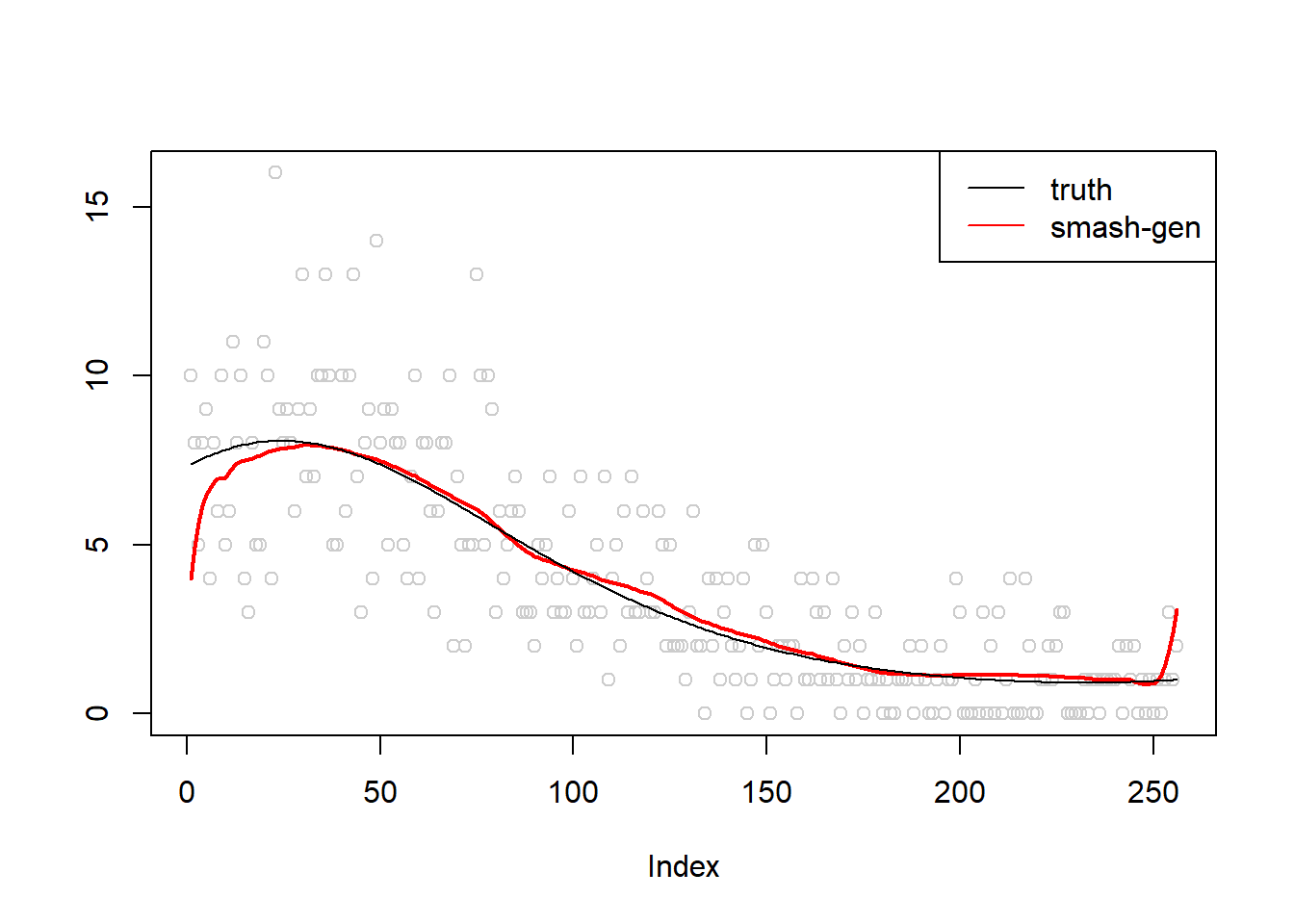

\(\sigma=0.1\)

m = seq(-1,1,length.out = 256)
m = m^3-2*m+1
simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

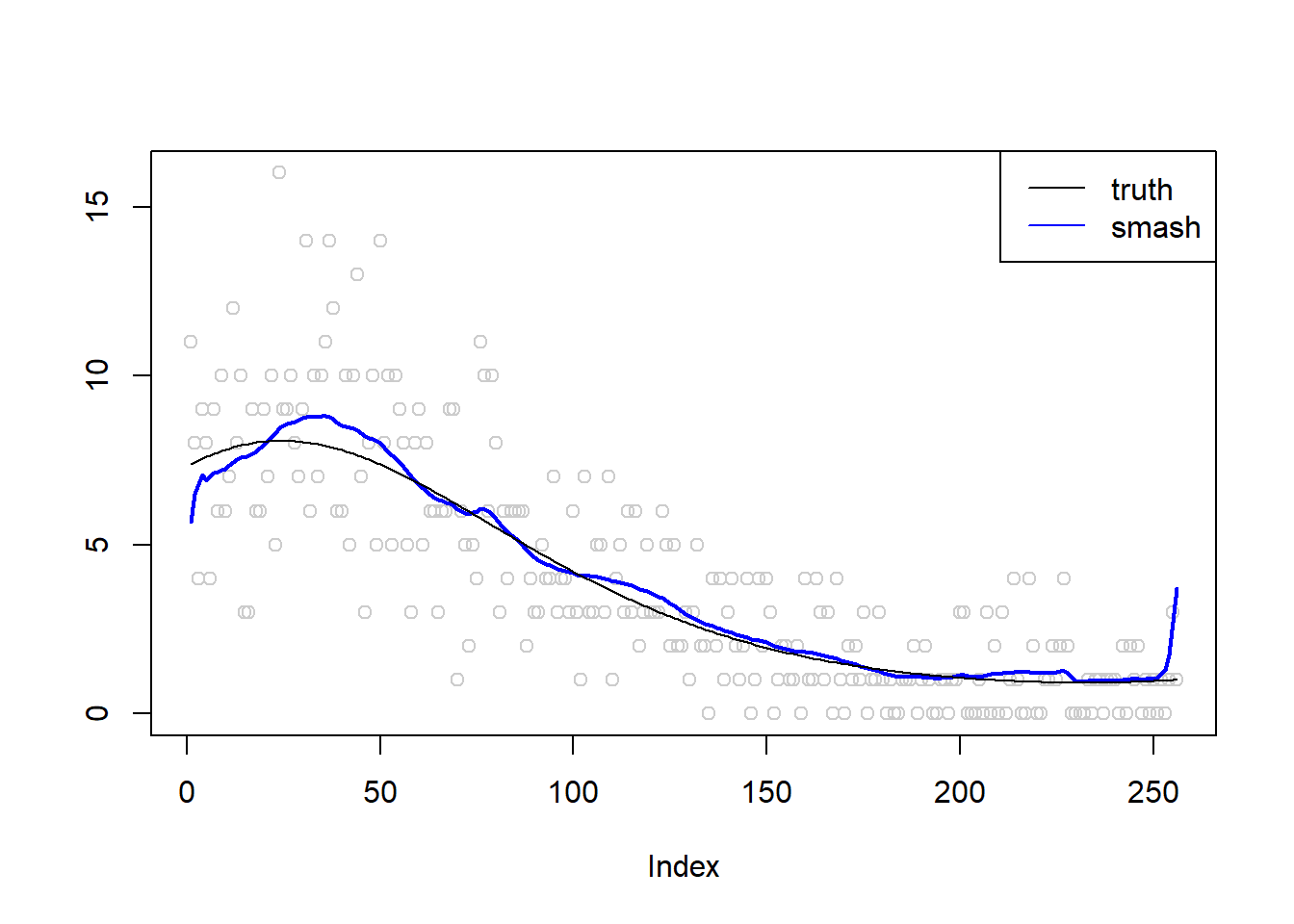

\(\sigma=0.5\)

m = seq(-1,1,length.out = 256)
m = m^3-2*m+1
simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

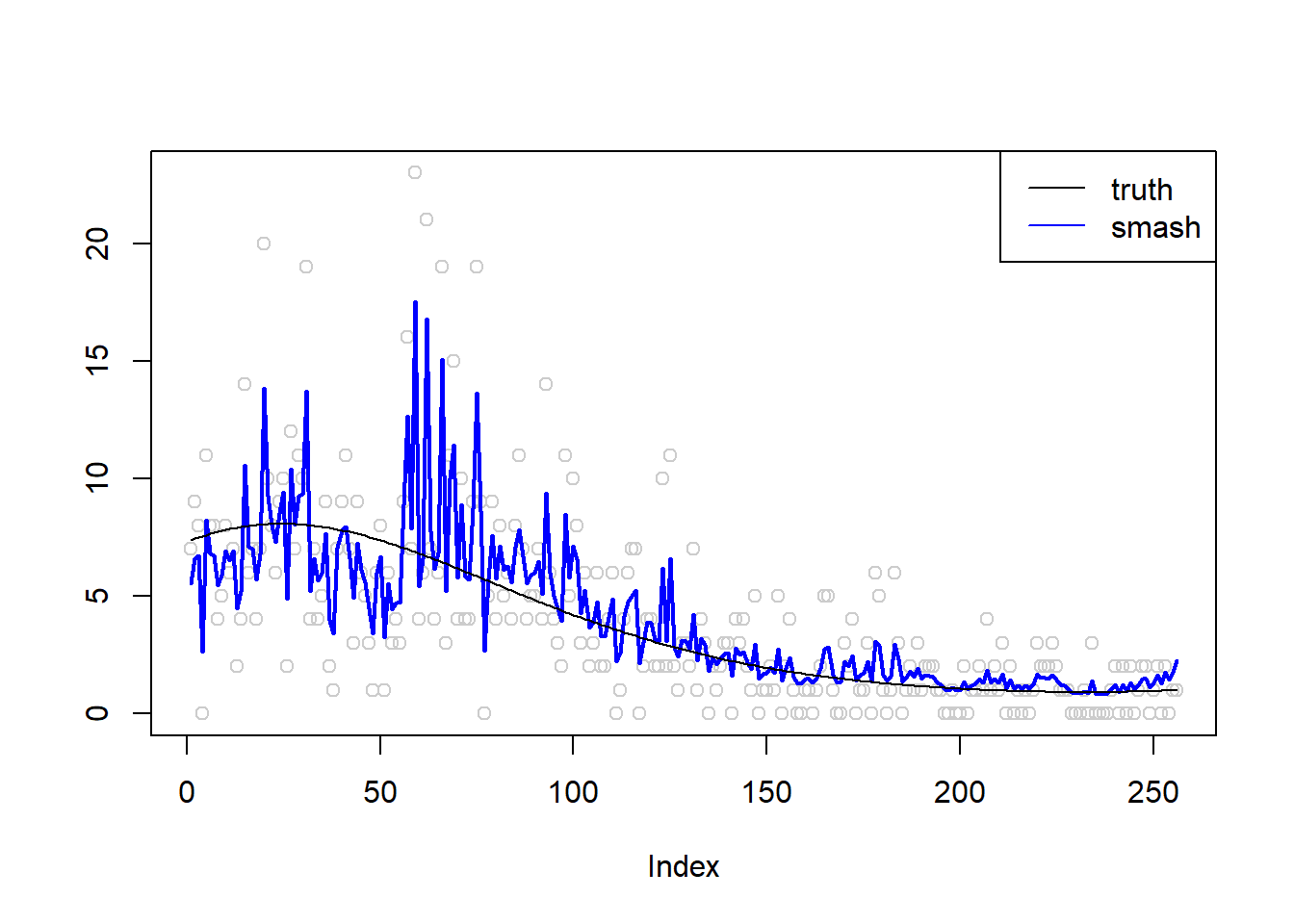

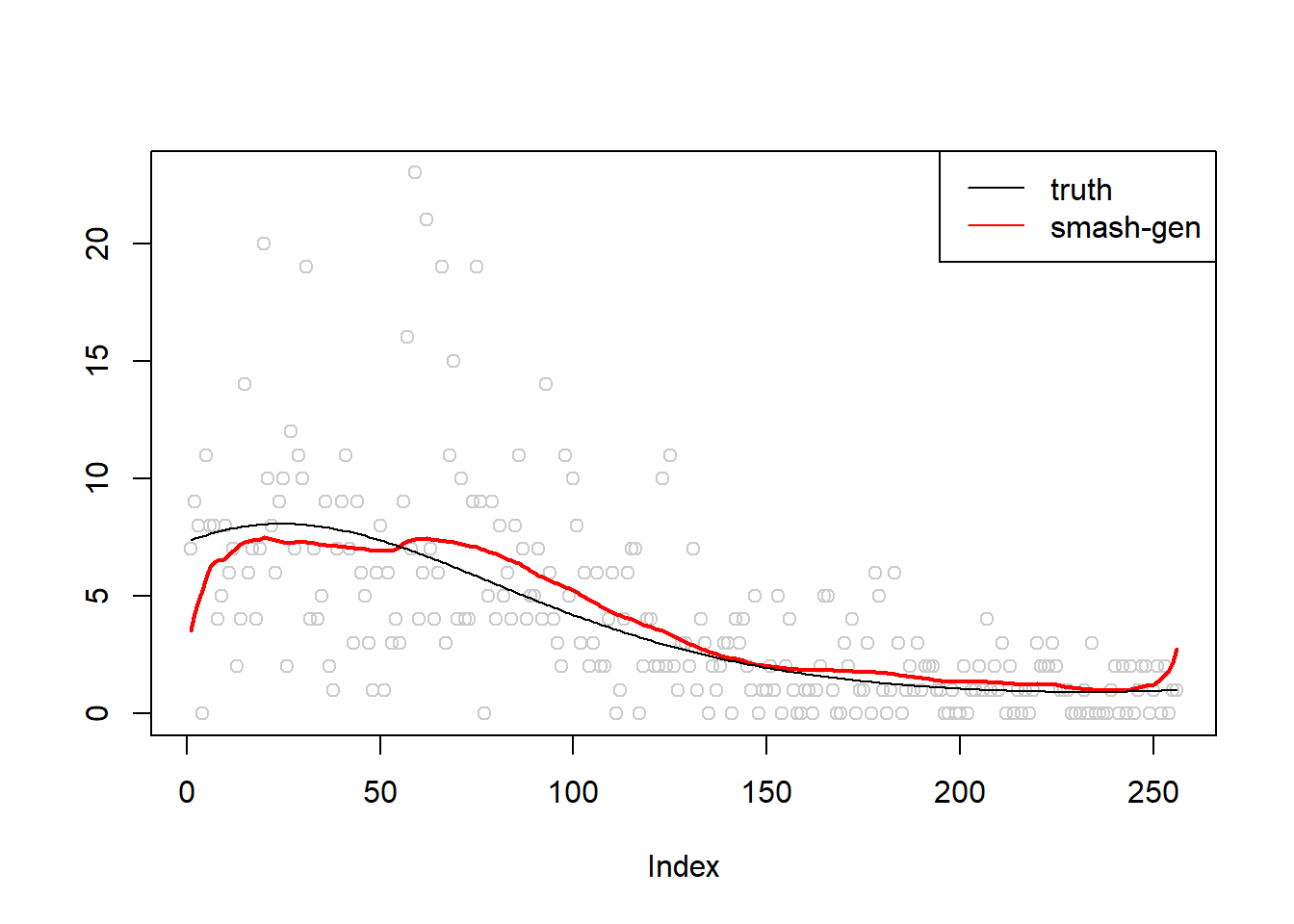

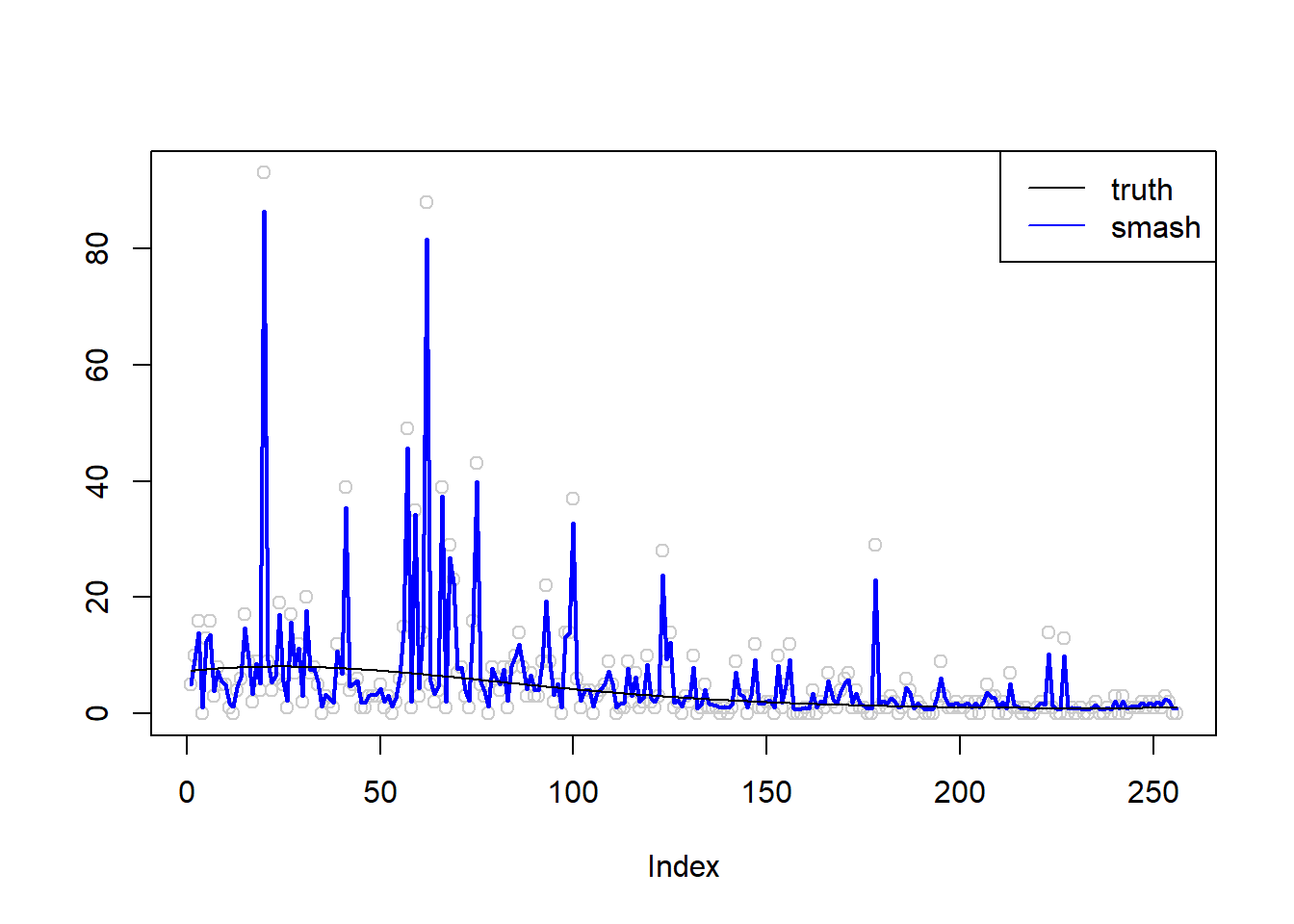

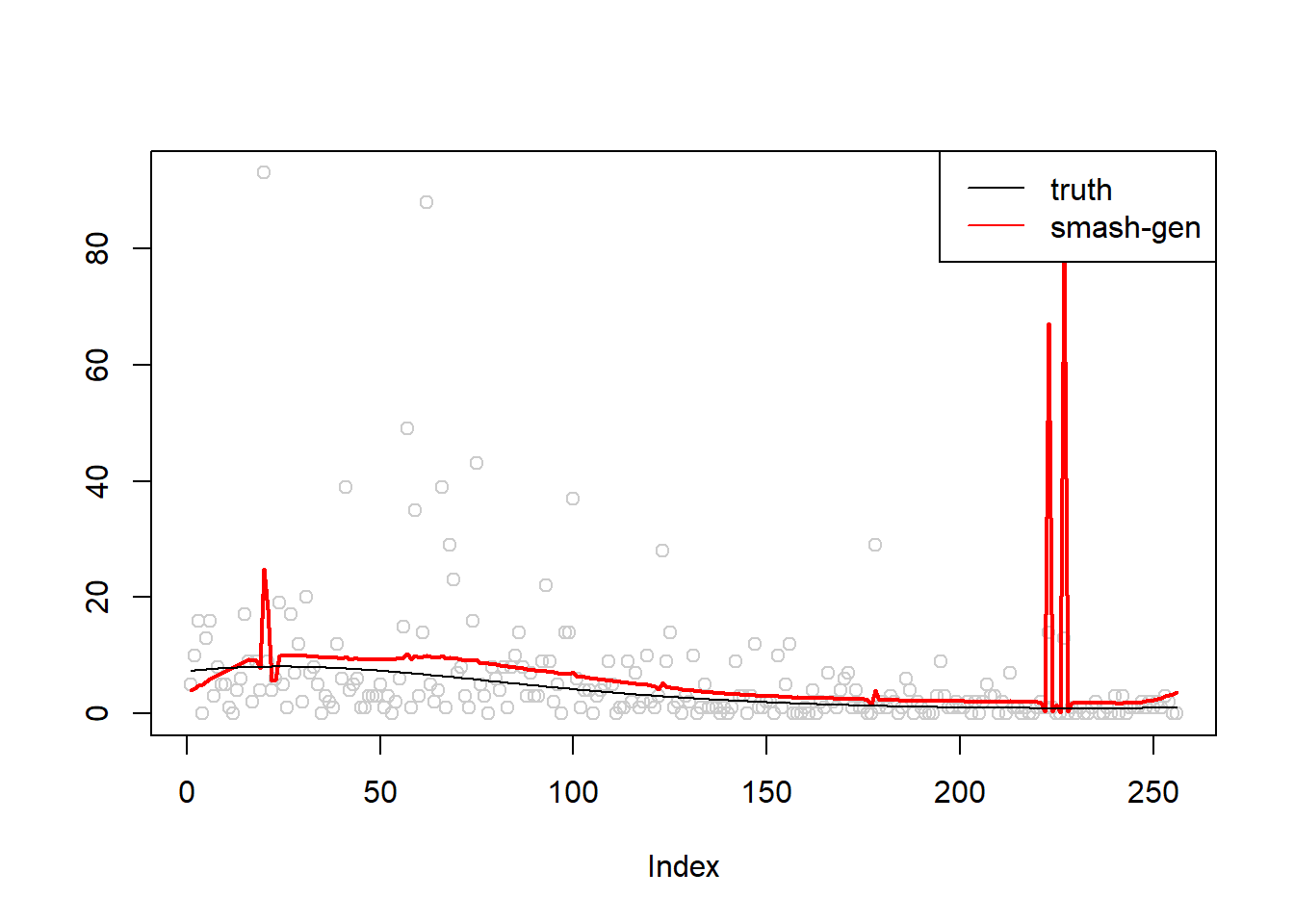

\(\sigma=1\)

m = seq(-1,1,length.out = 256)
m = m^3-2*m+1
simu.out=simu_study(m,1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

Session information

sessionInfo()
R version 3.4.0 (2017-04-21)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 16299)

Matrix products: default

locale:
[1] LC_COLLATE=English_United States.1252
[2] LC_CTYPE=English_United States.1252
[3] LC_MONETARY=English_United States.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] smashr_1.1-1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.16        knitr_1.20          whisker_0.3-2
 [4] magrittr_1.5        workflowr_1.0.1     REBayes_1.3
 [7] MASS_7.3-47         pscl_1.4.9          doParallel_1.0.11
[10] SQUAREM_2017.10-1   lattice_0.20-35     foreach_1.4.3
[13] ashr_2.2-7          stringr_1.3.0       caTools_1.17.1
[16] tools_3.4.0         parallel_3.4.0      grid_3.4.0
[19] data.table_1.10.4-3 R.oo_1.21.0         git2r_0.21.0
[22] iterators_1.0.8     htmltools_0.3.5     assertthat_0.2.0
[25] yaml_2.1.19         rprojroot_1.3-2     digest_0.6.13
[28] Matrix_1.2-9        bitops_1.0-6        codetools_0.2-15
[31] R.utils_2.6.0       evaluate_0.10       rmarkdown_1.8
[34] wavethresh_4.6.8    stringi_1.1.6       compiler_3.4.0
[37] Rmosek_8.0.69       backports_1.0.5     R.methodsS3_1.7.1
[40] truncnorm_1.0-7

This reproducible R Markdown analysis was created with workflowr 1.0.1
