<p>Now suppose at each <span class="math inline">\(t\)</span>, <span class="math inline">\(Y_t=X_t\beta+\mu_t+\epsilon_t\)</span>, where <span class="math inline">\(\mu\)</span> has smooth structure and <span class="math inline">\(\epsilon_t\sim N(0,\sigma^2_t)\)</span>.</p>
<div id="method" class="section level1">
<h1>Method</h1>
<ol style="list-style-type: decimal">
<li>Fit <span class="math inline">\(Y=X\gamma+\epsilon\)</span> using ordinary least square and compute residual <span class="math inline">\(e=Y-X\hat{\gamma}\)</span>.</li>
<li>Apply <code>smash.gaus</code> to <span class="math inline">\(e\)</span> and obtain <span class="math inline">\(\hat\mu_t, \hat\sigma_t\)</span>, <span class="math inline">\(t=1,2,\dots,T\)</span>.</li>
<li>Estimate <span class="math inline">\(\beta\)</span> by ordinary least square or weighted least square: <span class="math inline">\(Y-\hat\mu=X\beta+\hat\epsilon\)</span>, where <span class="math inline">\(\hat\epsilon_t\sim N(0,\hat\sigma_t^2)\)</span>.</li>
</ol>
<p>Rationale: the stucture of <span class="math inline">\(\mu\)</span> cannot be explained by the ordinary least square in step 1 so it is contained in the residual <span class="math inline">\(e\)</span>. Thus <span class="math inline">\(e\)</span> consists of <span class="math inline">\(\mu\)</span> and noises. Using <code>smash.gaus</code> recovers <span class="math inline">\(\mu\)</span> and estimates <span class="math inline">\(\sigma^2\)</span>.</p>
</div>
<div id="experiments" class="section level1">
<h1>Experiments</h1>
<p>We now show the performance of smash when covariates exist. The signal-to-noise ratio(SNR) is fixed at 2.</p>
<p>(Note: The SNR is the ratio of the sample standard deviation of the signal (although it is not random) to the standard deviation of the added noise. If the signal is constant, the SNR is mean(signal) to standard deviation of the added noise)</p>
<p>The length of sequence is <span class="math inline">\(n=256\)</span>.</p>
<pre class="r"><code>simu_study_x=function(mu,beta,snr=2,nsimu=100,filter.number=1,family=&#39;DaubExPhase&#39;,seed=1234){
  set.seed(1234)
  n=length(mu)
  p=length(beta)
  X=matrix(rnorm(n*p,0,1),nrow=n,byrow = T)
  cte=X%*%beta
  sd.noise=sd(mu)/snr
  sd.noise=ifelse(sd.noise==0,mean(mu),sd.noise)
  mse.mu=c()
  mse.beta=c()
  for(i in 1:nsimu){
    y=cte+mu+rnorm(n,0,sd.noise)
    s.out=smash.gaus.x(X,y,filter.number,family)
    mu.hat=s.out$mu.hat
    beta.hat=s.out$beta.hat
    mse.mu[i]=mse(mu,mu.hat)
    mse.beta[i]=mse(beta,beta.hat)
  }
  return(list(mse.mu=mse.mu,mse.beta=mse.beta,mu.hat=mu.hat,beta.hat=beta.hat,y=y))
}</code></pre>
<div id="step-trend" class="section level2">
<h2>Step trend</h2>

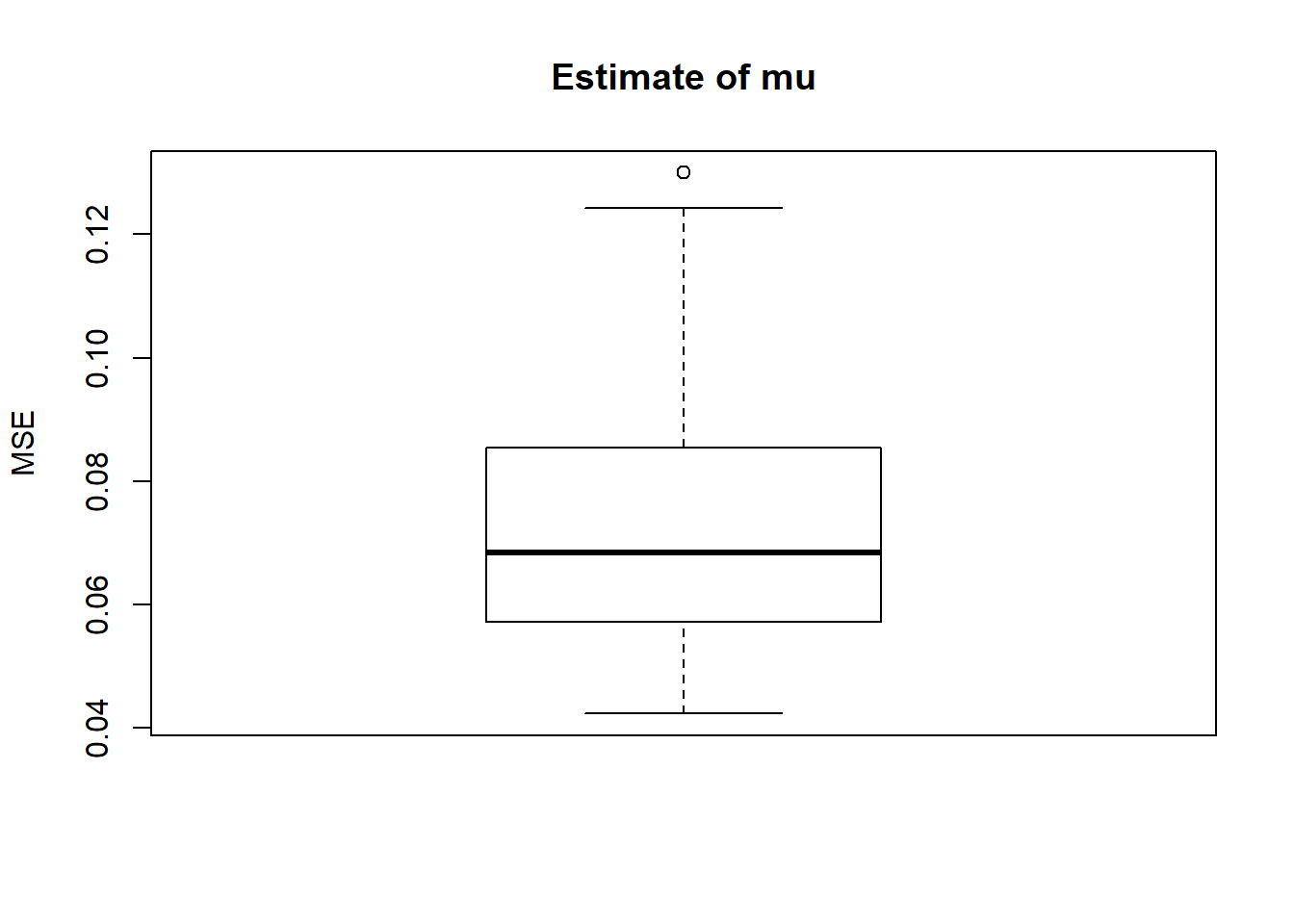

<pre class="r"><code>library(smashrgen)
library(ggplot2)

n=256

mu=c(rep(1,64),rep(2,64),rep(5,64),rep(1,64))
beta=c(1,2,3,4,5)
beta=beta/norm(beta,&#39;2&#39;)
result=simu_study_x(mu,beta)
boxplot(result$mse.mu,main=&#39;Estimate of mu&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-2-1.png" width="672" style="display: block; margin: auto;" /></p>

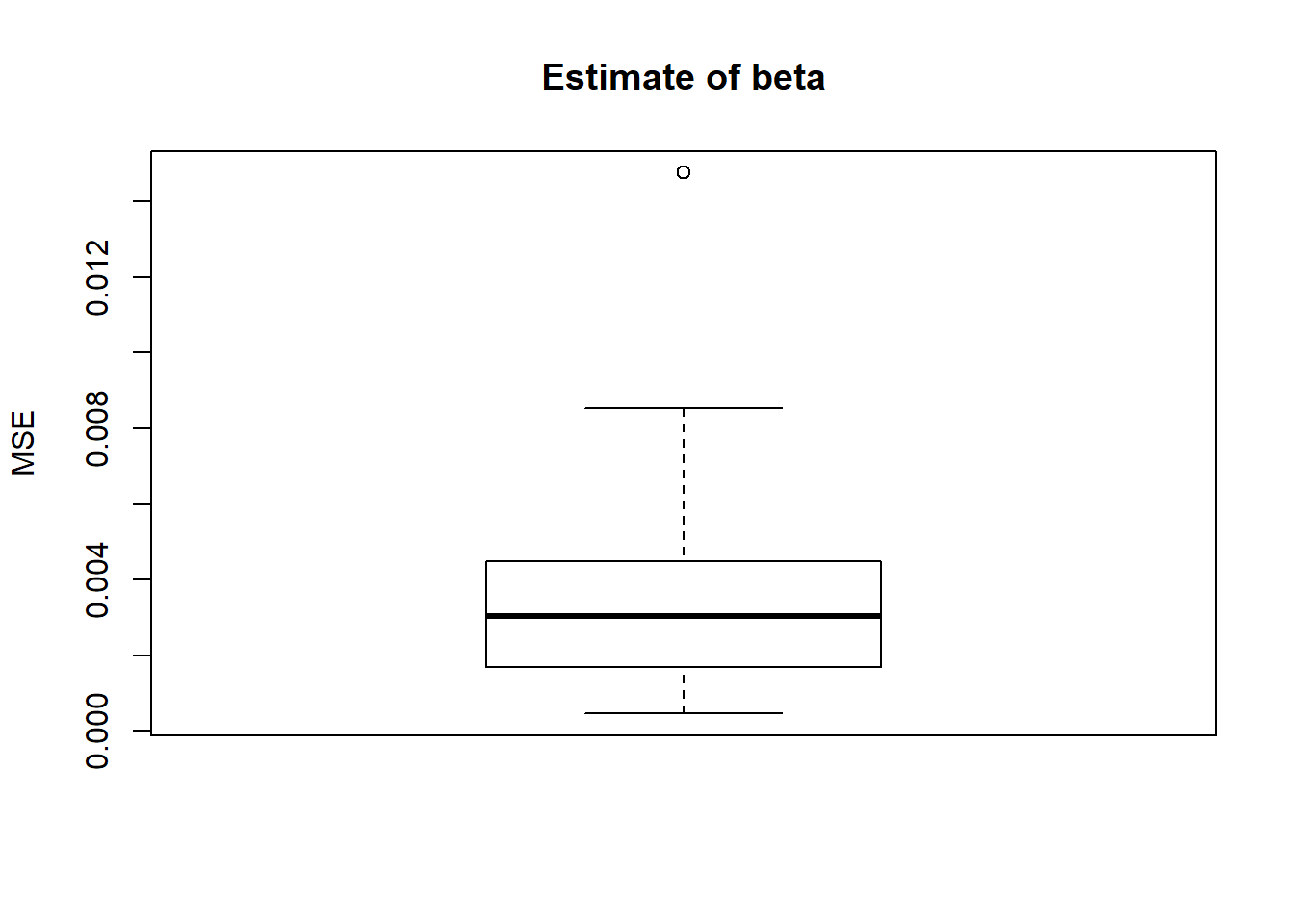

<pre class="r"><code>boxplot(result$mse.beta,main=&#39;Estimate of beta&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-2-2.png" width="672" style="display: block; margin: auto;" /></p>

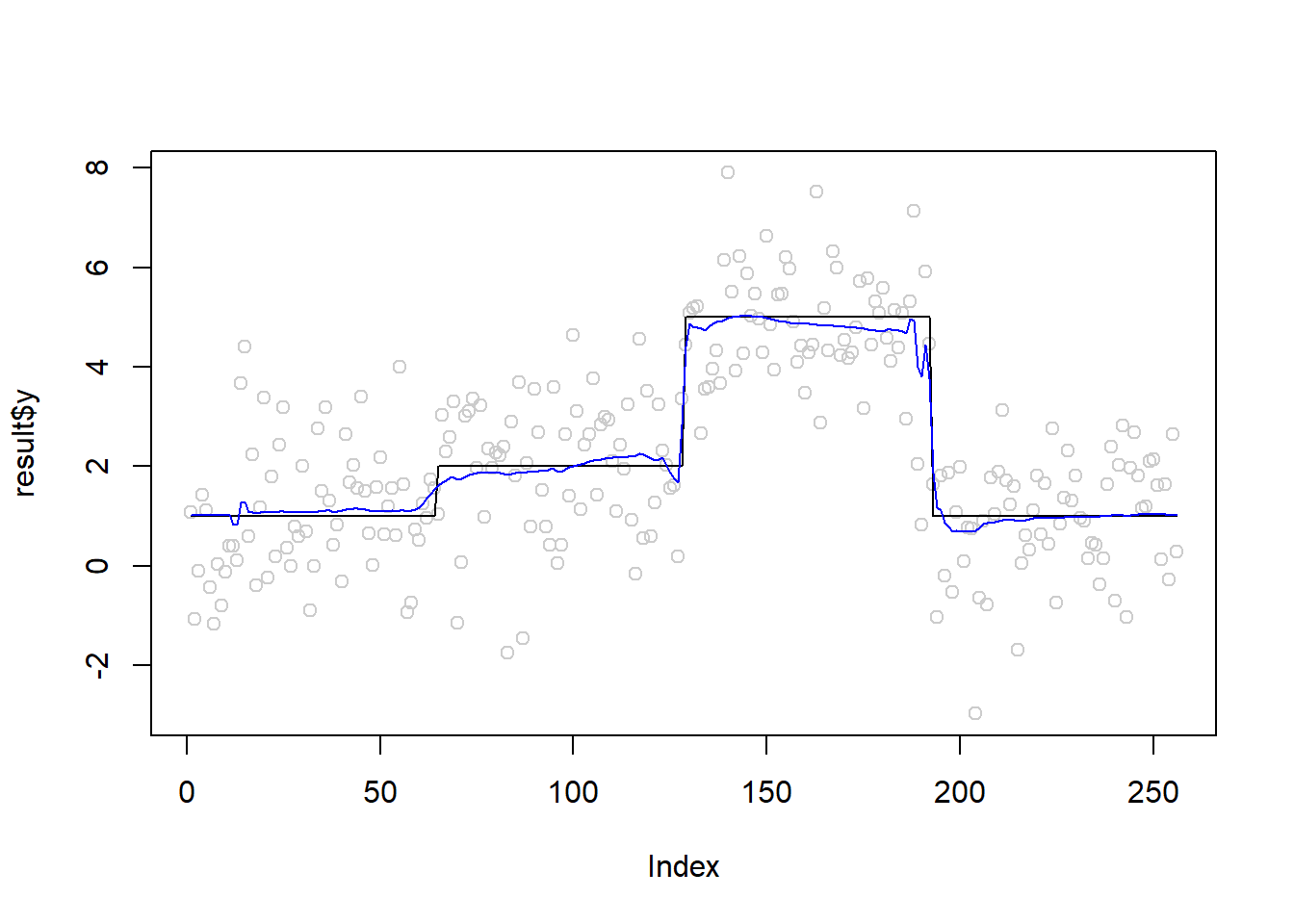

<pre class="r"><code>plot(result$y,col=&#39;gray80&#39;)
lines(mu)
lines(result$mu.hat,col=4)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-2-3.png" width="672" style="display: block; margin: auto;" /></p>

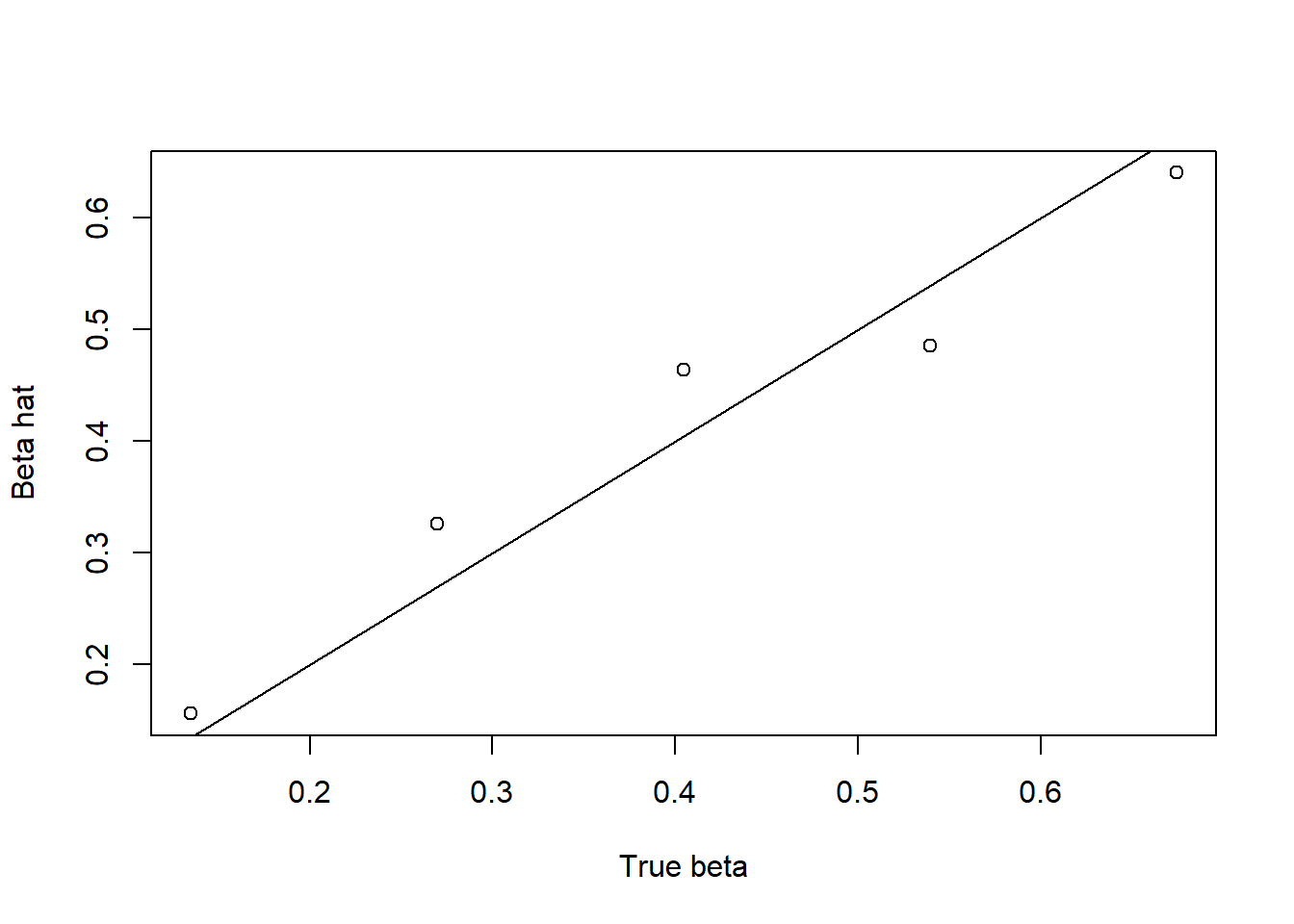

<pre class="r"><code>plot(beta,result$beta.hat,xlab = &#39;True beta&#39;, ylab = &#39;Beta hat&#39;)
abline(0,1)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-2-4.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="wave" class="section level2">
<h2>Wave</h2>
<pre class="r"><code>f=function(x){return(0.5 + 0.2*cos(4*pi*x) + 0.1*cos(24*pi*x))}
mu=f((1:n)/n)

result=simu_study_x(mu,beta,filter.number = 8,family=&#39;DaubLeAsymm&#39;)
boxplot(result$mse.mu,main=&#39;Estimate of mu&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-3-1.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>boxplot(result$mse.beta,main=&#39;Estimate of beta&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-3-2.png" width="672" style="display: block; margin: auto;" /></p>

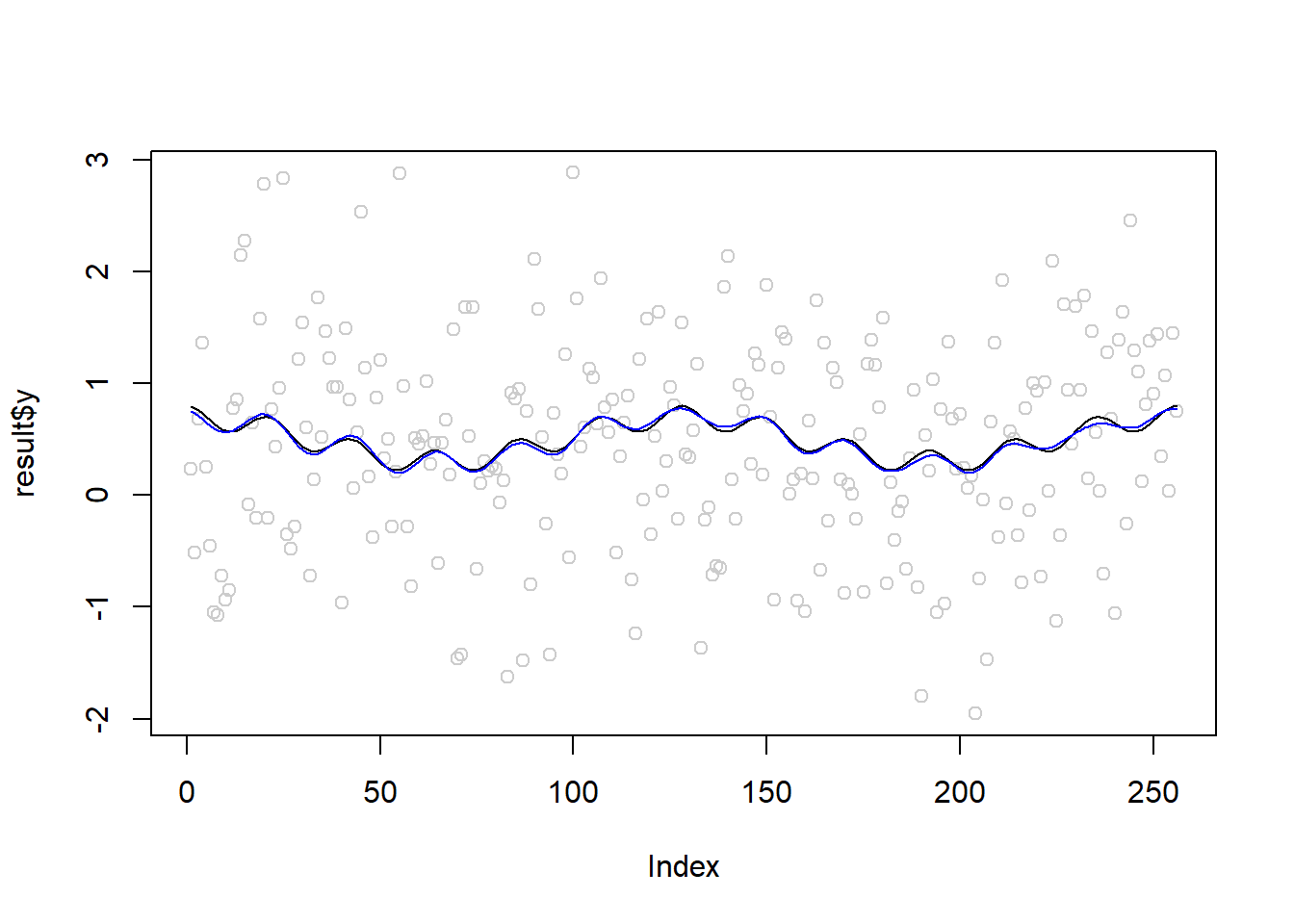

<pre class="r"><code>plot(result$y,col=&#39;gray80&#39;)
lines(mu)
lines(result$mu.hat,col=4)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-3-3.png" width="672" style="display: block; margin: auto;" /></p>
<pre class="r"><code>plot(beta,result$beta.hat,xlab = &#39;True beta&#39;, ylab = &#39;Beta hat&#39;)
abline(0,1)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-3-4.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="parabola" class="section level2">
<h2>Parabola</h2>
<pre class="r"><code>r=function(x,c){return((x-c)^2*(x&gt;c)*(x&lt;=1))}
f=function(x){return(0.8 − 30*r(x,0.1) + 60*r(x, 0.2) − 30*r(x, 0.3) +
500*r(x, 0.35) − 1000*r(x, 0.37) + 1000*r(x, 0.41) − 500*r(x, 0.43) +
7.5*r(x, 0.5) − 15*r(x, 0.7) + 7.5*r(x, 0.9))}
mu=f(1:n/n)

result=simu_study_x(mu,beta,filter.number = 8,family=&#39;DaubLeAsymm&#39;)

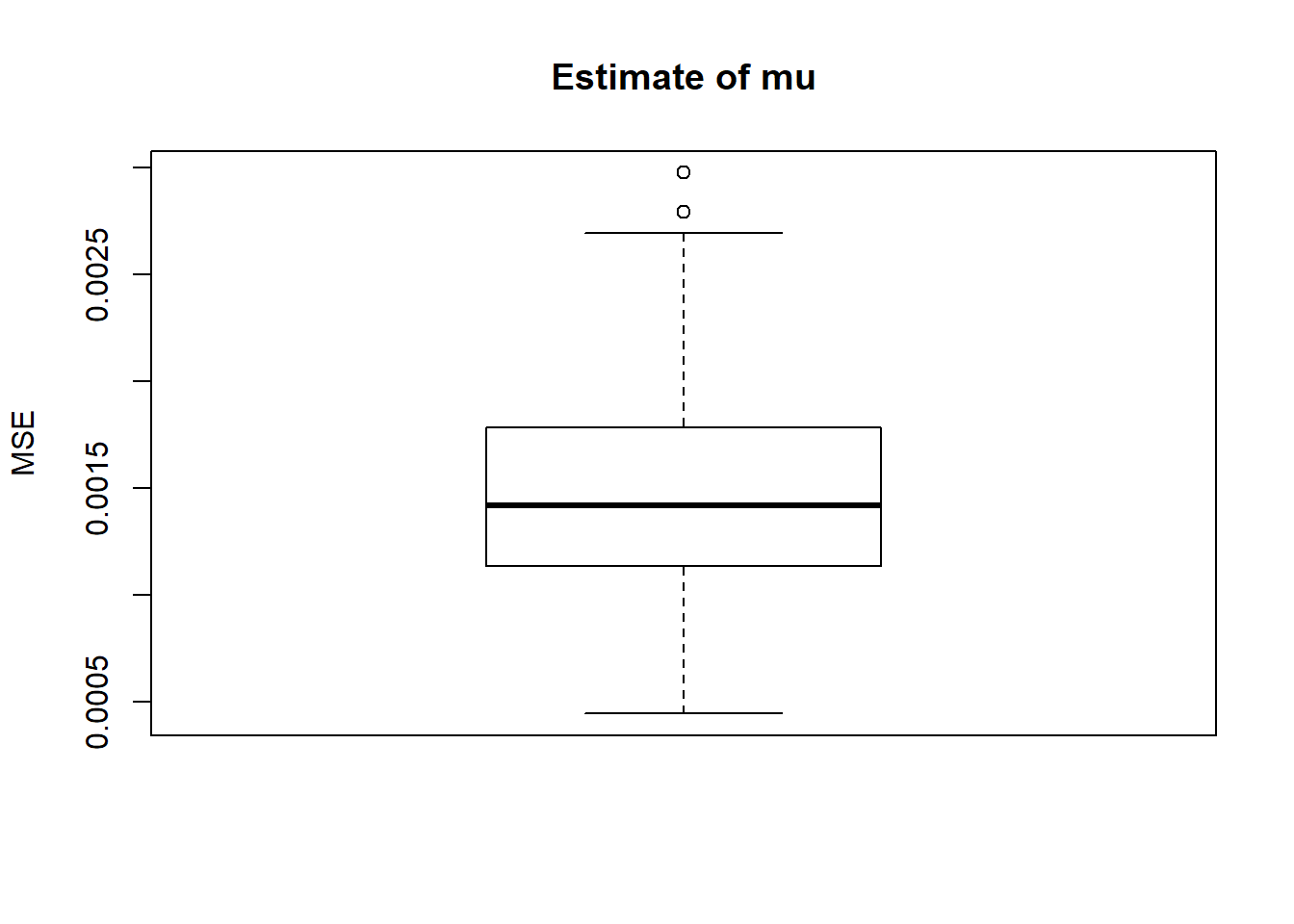

boxplot(result$mse.mu,main=&#39;Estimate of mu&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-4-1.png" width="672" style="display: block; margin: auto;" /></p>

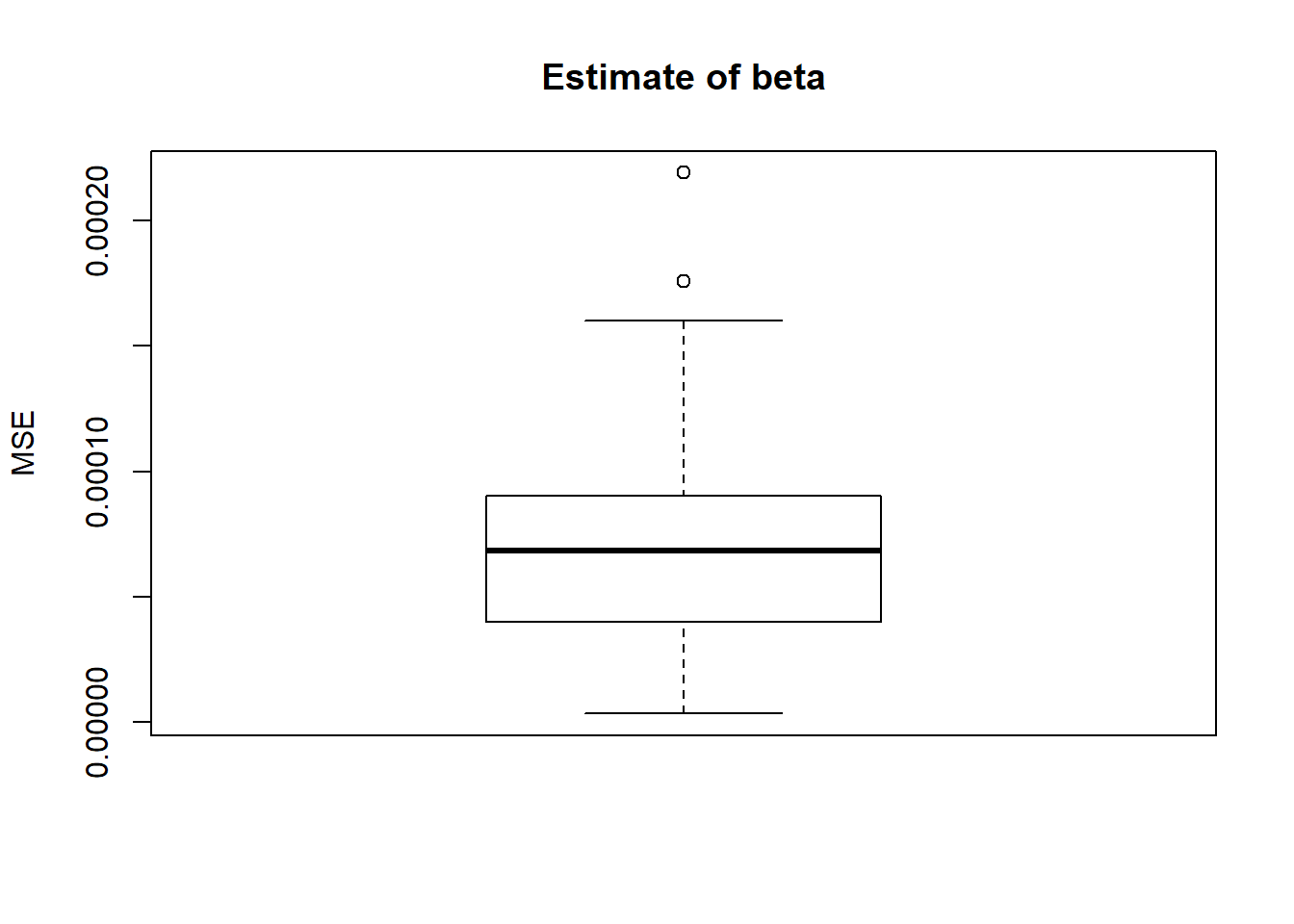

<pre class="r"><code>boxplot(result$mse.beta,main=&#39;Estimate of beta&#39;,ylab=&#39;MSE&#39;)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-4-2.png" width="672" style="display: block; margin: auto;" /></p>

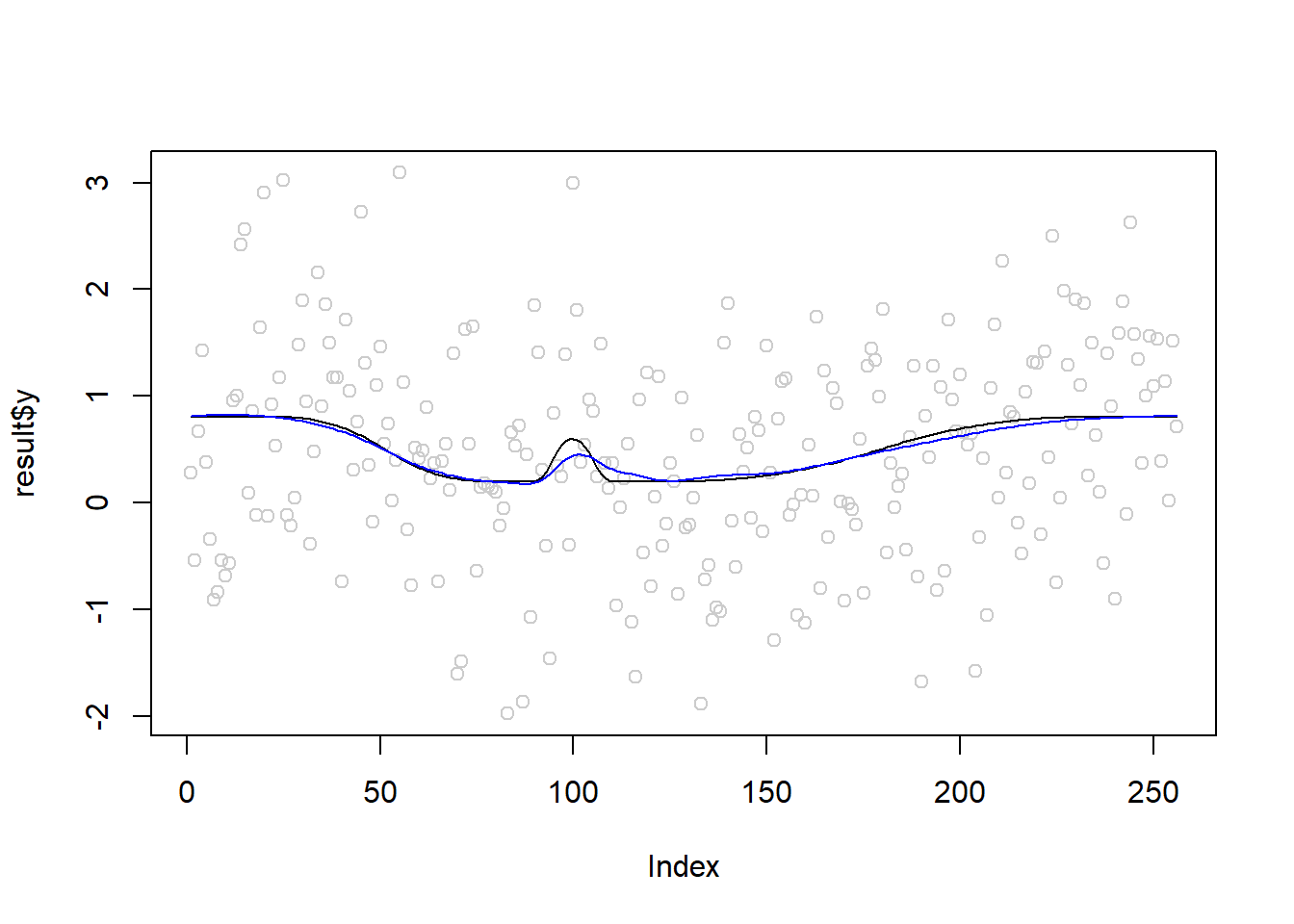

<pre class="r"><code>plot(result$y,col=&#39;gray80&#39;)
lines(mu)
lines(result$mu.hat,col=4)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-4-3.png" width="672" style="display: block; margin: auto;" /></p>

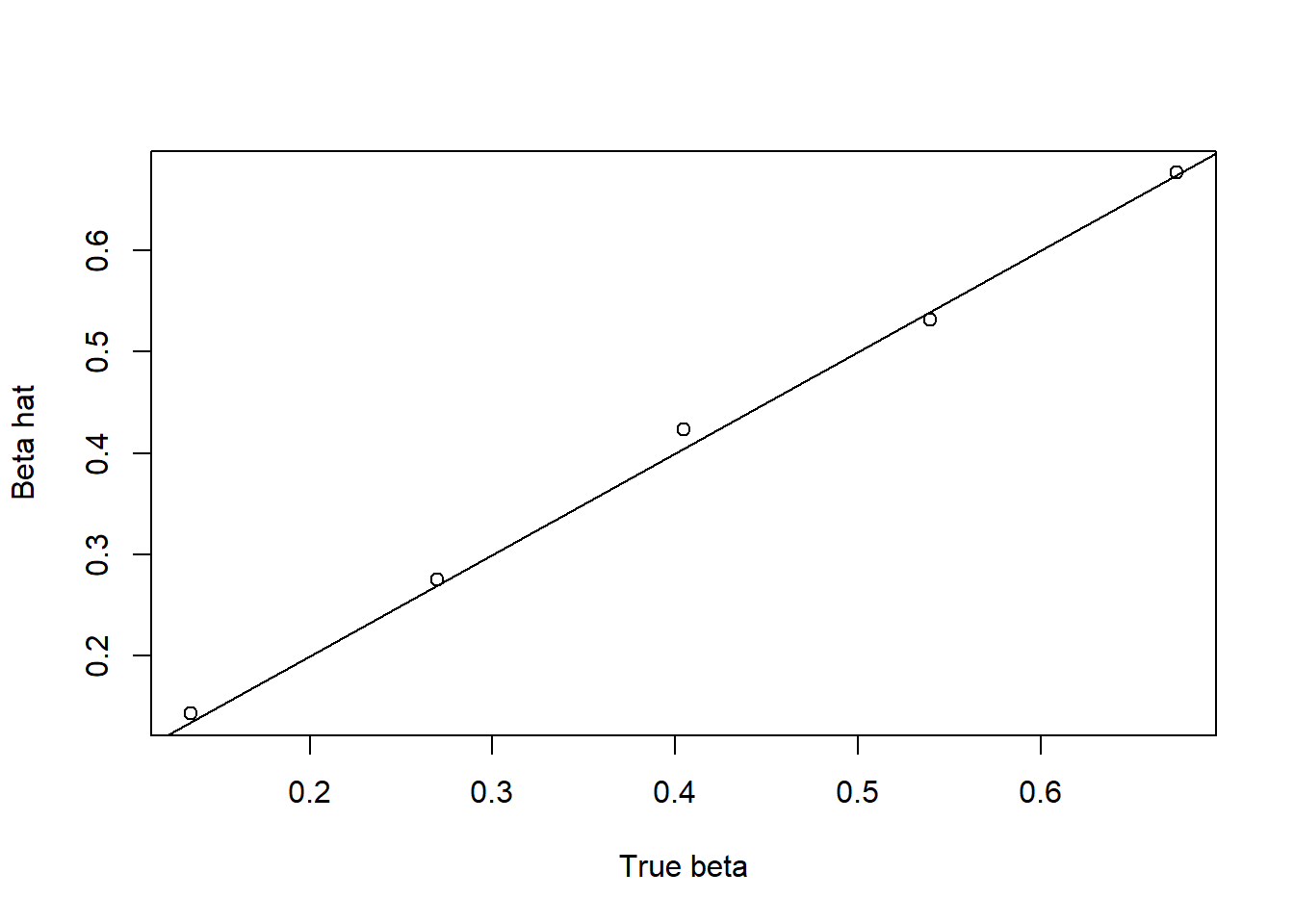

<pre class="r"><code>plot(beta,result$beta.hat,xlab = &#39;True beta&#39;, ylab = &#39;Beta hat&#39;)
abline(0,1)</code></pre>
<p><img src="figure/covariate.Rmd/unnamed-chunk-4-4.png" width="672" style="display: block; margin: auto;" /></p>
</div>
<div id="session-information" class="section level2">
<h2>Session information</h2>
<pre class="r"><code>sessionInfo()</code></pre>
<pre><code>R version 3.4.0 (2017-04-21)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 16299)

Matrix products: default

locale:
[1] LC_COLLATE=English_United States.1252
[2] LC_CTYPE=English_United States.1252
[3] LC_MONETARY=English_United States.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] ggplot2_2.2.1    smashrgen_0.1.0  wavethresh_4.6.8 MASS_7.3-47
[5] caTools_1.17.1   ashr_2.2-7       smashr_1.1-5

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.16        plyr_1.8.4          compiler_3.4.0
 [4] git2r_0.21.0        workflowr_1.0.1     R.methodsS3_1.7.1
 [7] R.utils_2.6.0       bitops_1.0-6        iterators_1.0.8
[10] tools_3.4.0         digest_0.6.13       tibble_1.3.3
[13] evaluate_0.10       gtable_0.2.0        lattice_0.20-35
[16] rlang_0.1.2         Matrix_1.2-9        foreach_1.4.3
[19] yaml_2.1.19         parallel_3.4.0      stringr_1.3.0
[22] knitr_1.20          REBayes_1.3         rprojroot_1.3-2
[25] grid_3.4.0          data.table_1.10.4-3 rmarkdown_1.8
[28] magrittr_1.5        whisker_0.3-2       backports_1.0.5
[31] scales_0.4.1        codetools_0.2-15    htmltools_0.3.5
[34] assertthat_0.2.0    colorspace_1.3-2    stringi_1.1.6
[37] Rmosek_8.0.69       lazyeval_0.2.1      munsell_0.4.3
[40] doParallel_1.0.11   pscl_1.4.9          truncnorm_1.0-7
[43] SQUAREM_2017.10-1   R.oo_1.21.0        </code></pre>
</div>
</div>

<!-- Adjust MathJax settings so that all math formulae are shown using
TeX fonts only; see
http://docs.mathjax.org/en/latest/configuration.html.  This will make
the presentation more consistent at the cost of the webpage sometimes
taking slightly longer to load. Note that this only works because the
footer is added to webpages before the MathJax javascript. -->
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    "HTML-CSS": { availableFonts: ["TeX"] }
  });
</script>

<hr>
<p>
  This reproducible <a href="http://rmarkdown.rstudio.com">R Markdown</a>
  analysis was created with
  <a href="https://github.com/jdblischak/workflowr">workflowr</a> 1.0.1
</p>
<hr>


</div>
</div>

</div>

<script>

// add bootstrap table styles to pandoc tables
function bootstrapStylePandocTables() {
  $('tr.header').parent('thead').parent('table').addClass('table table-condensed');
}
$(document).ready(function () {
  bootstrapStylePandocTables();
});


</script>

<!-- dynamically load mathjax for compatibility with self-contained -->
<script>
  (function () {
    var script = document.createElement("script");
    script.type = "text/javascript";
    script.src  = "https://mathjax.rstudio.com/latest/MathJax.js?config=TeX-AMS-MML_HTMLorMML";
    document.getElementsByTagName("head")[0].appendChild(script);
  })();
</script>

</body>
</html>
